Listing# 1030845

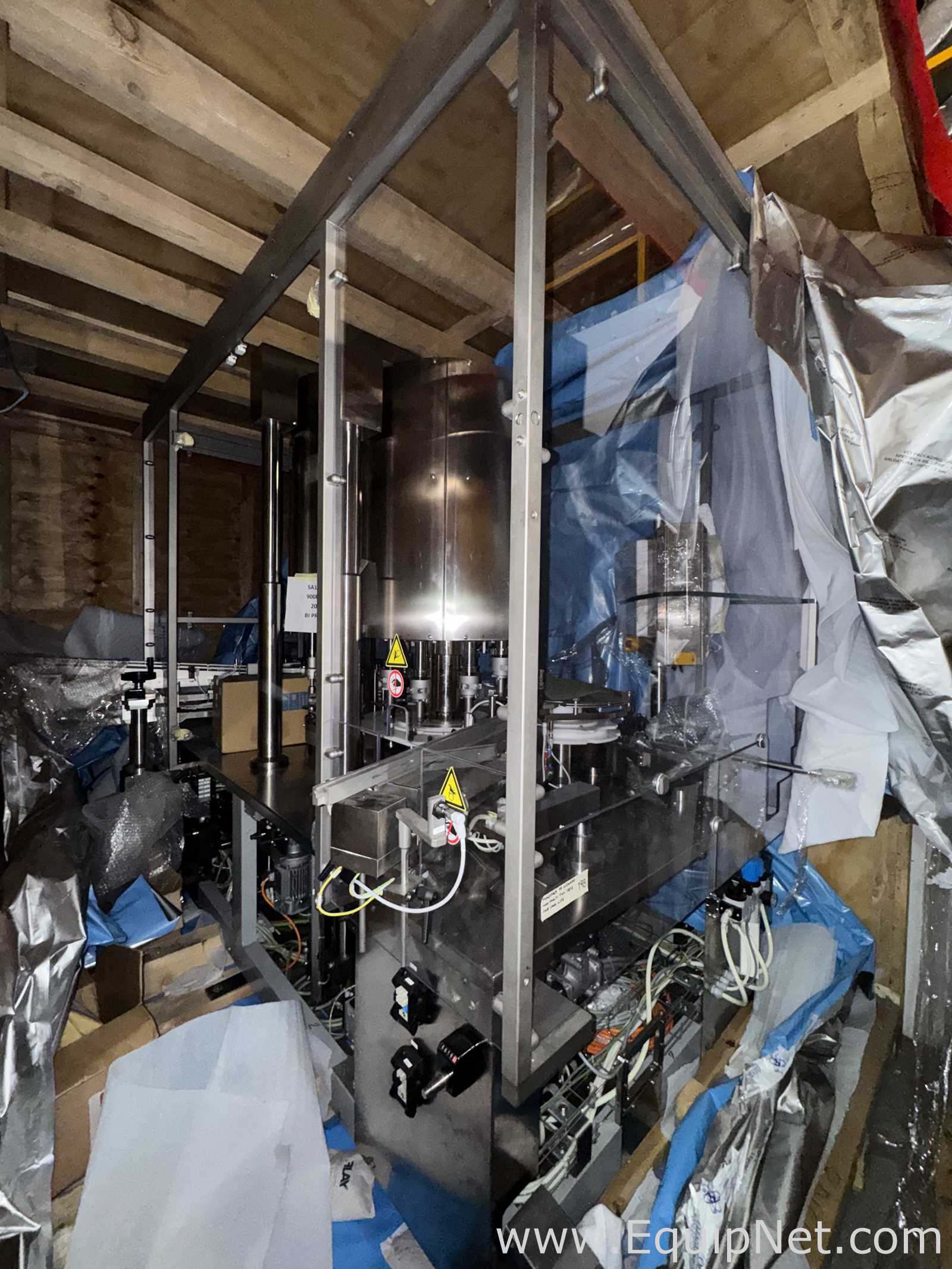

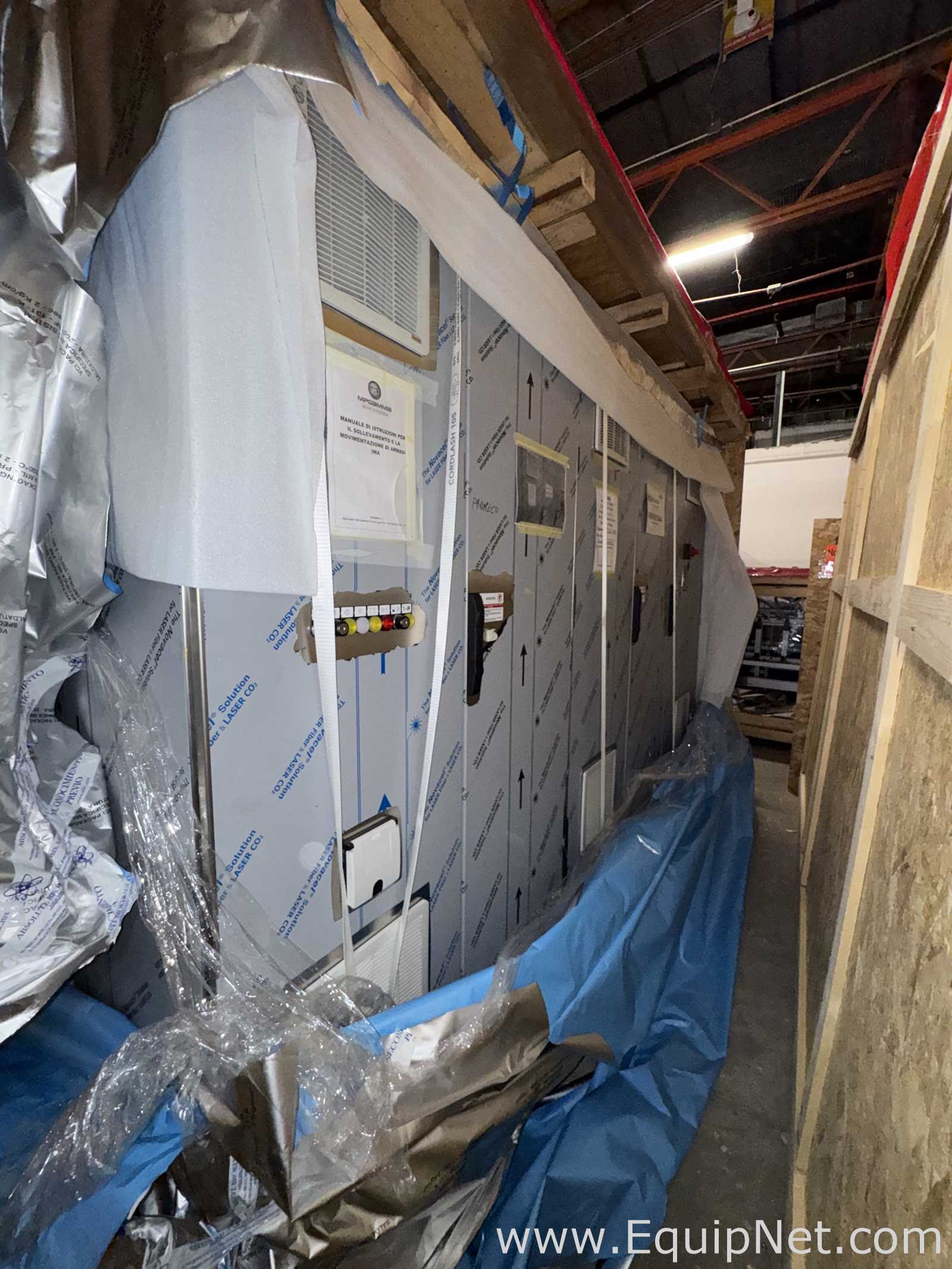

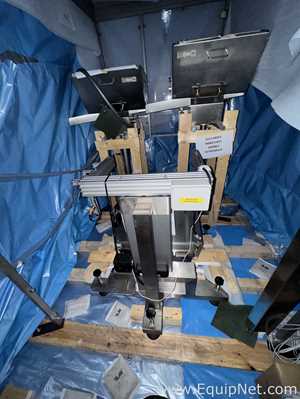

Brand New and Unused IMA LIFE Liquid Bottle Filling and Capping Line
THIS IS A MULTI-LISTING. VIEW INDIVIDUAL LISTINGS BY SCROLLING DOWN.
Pre-Owned IMA LIFE Liquid Filling Line for Sale
Seller's Acceptable Currency:
$15,695,000.00 MXN
Request More Info Make An OfferLocation: Mexico

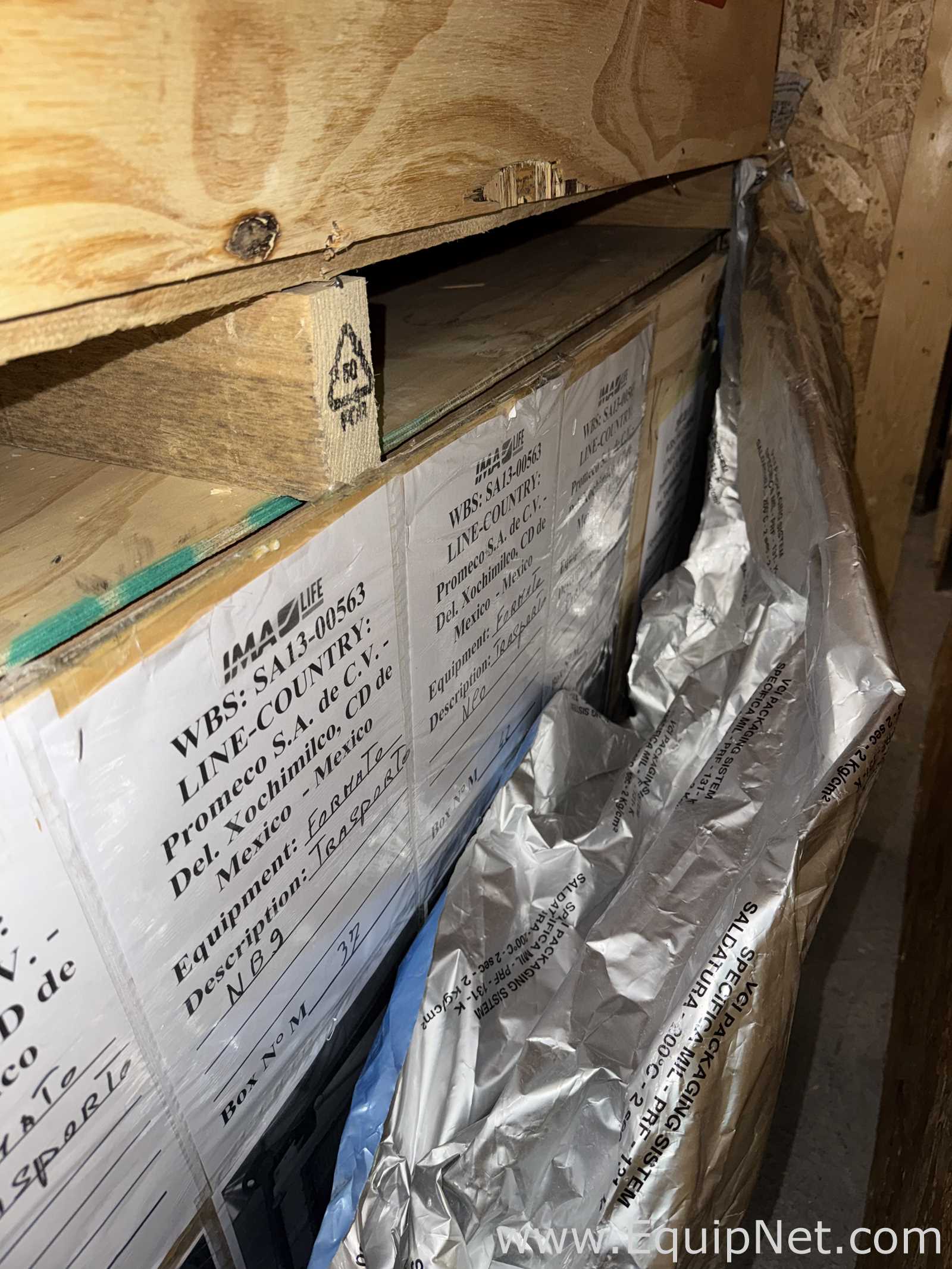

Level of Removal: Already Crated
*All offers are submitted in Seller’s Acceptable Currency
Don't see what you're looking for? We'll find it for you
Equipment Description
Includes:
Unused IMA LIFE Mistral Y16 Bottle Blowing Machine.

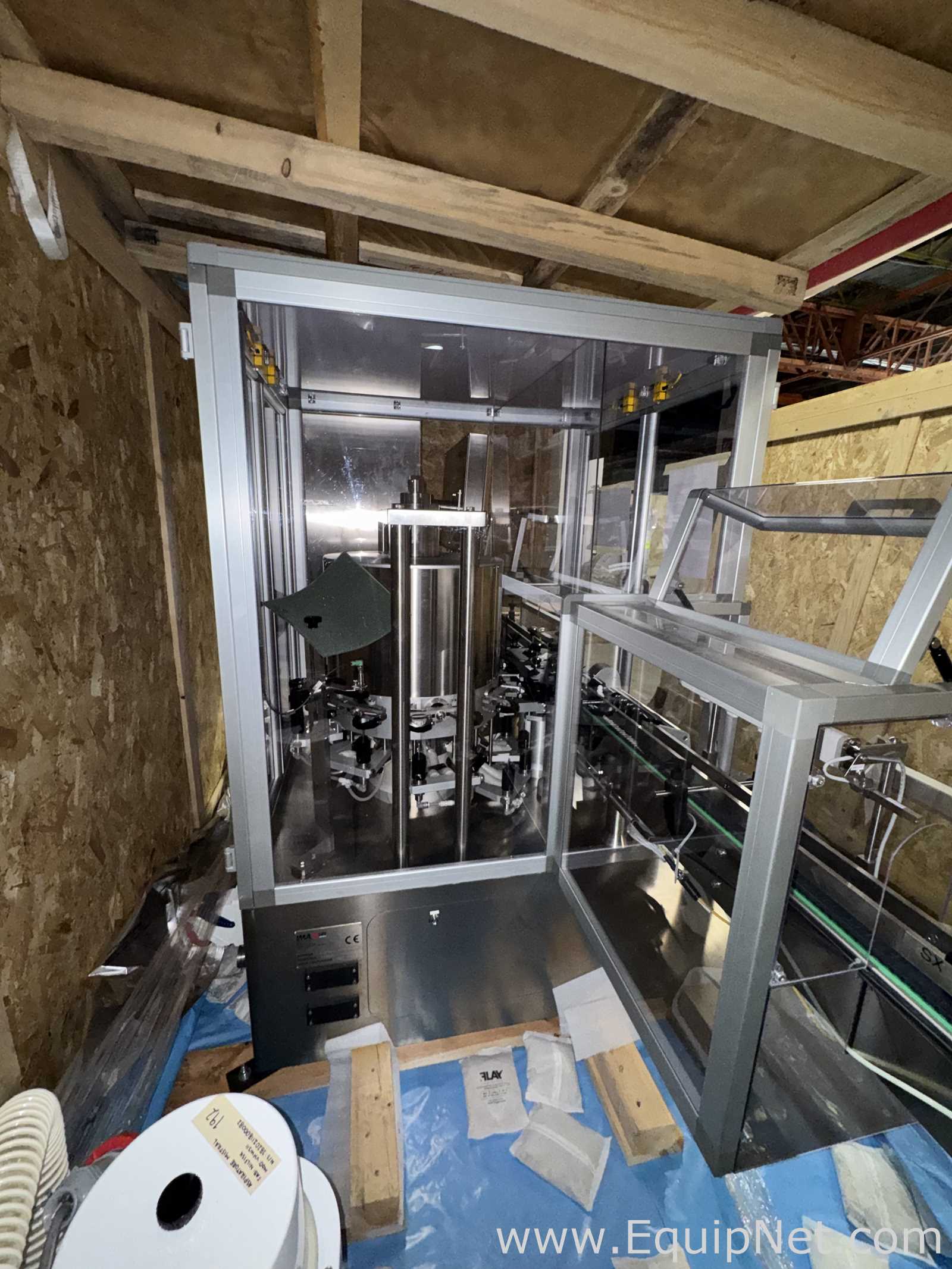

Unused IMA LIFE FlexiFill F940 Bottle Linear Filling Line plus IMA F872/8T-8V Stoppering and Capsuling Machine.
Unused Domino AX350 Inkjet Printer.
Unused ME.RO GST2KIGBT.DI.RA Induction Sealer.
Unused Antares K6220 plus K7220 Inspection System.

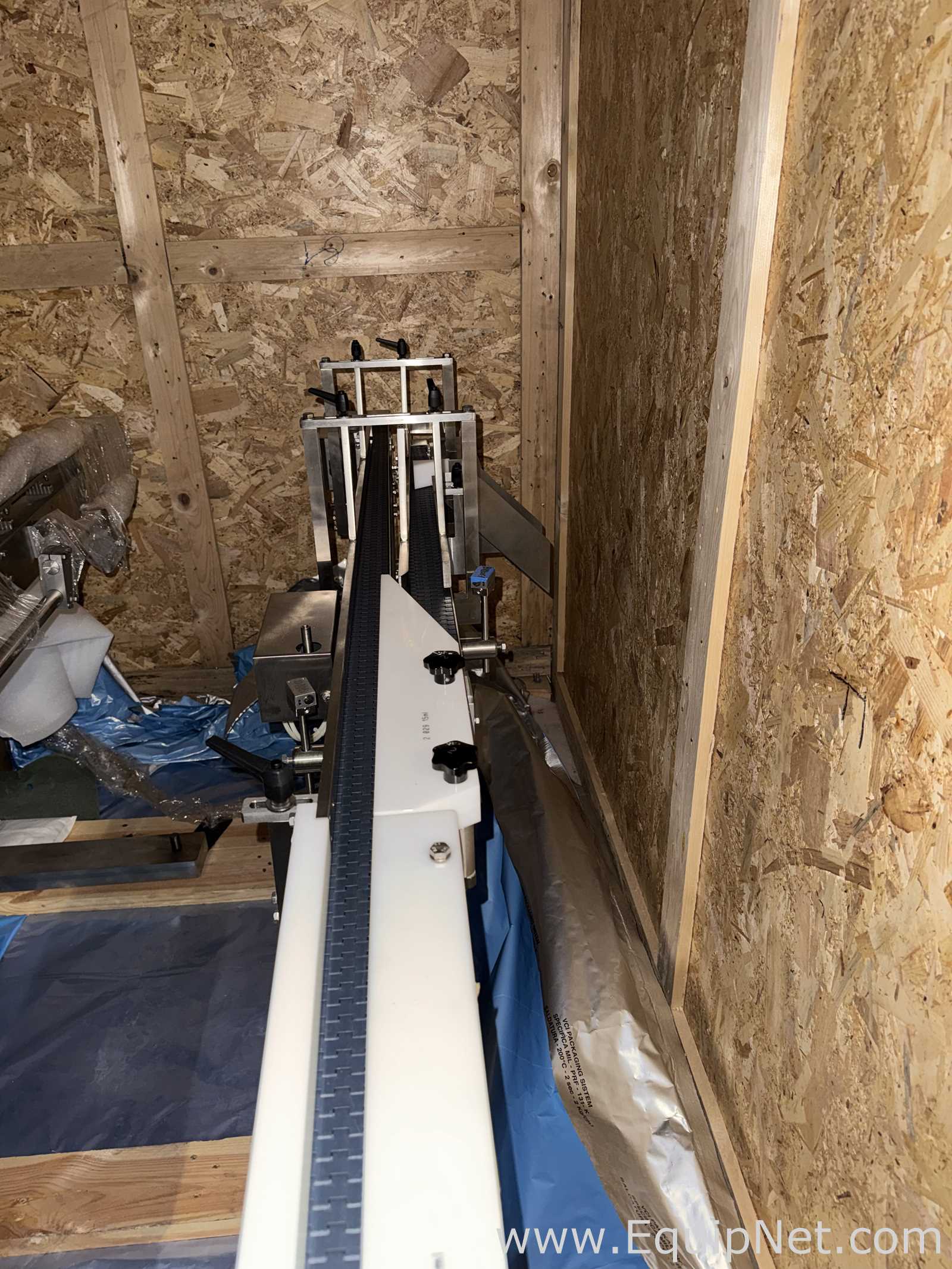

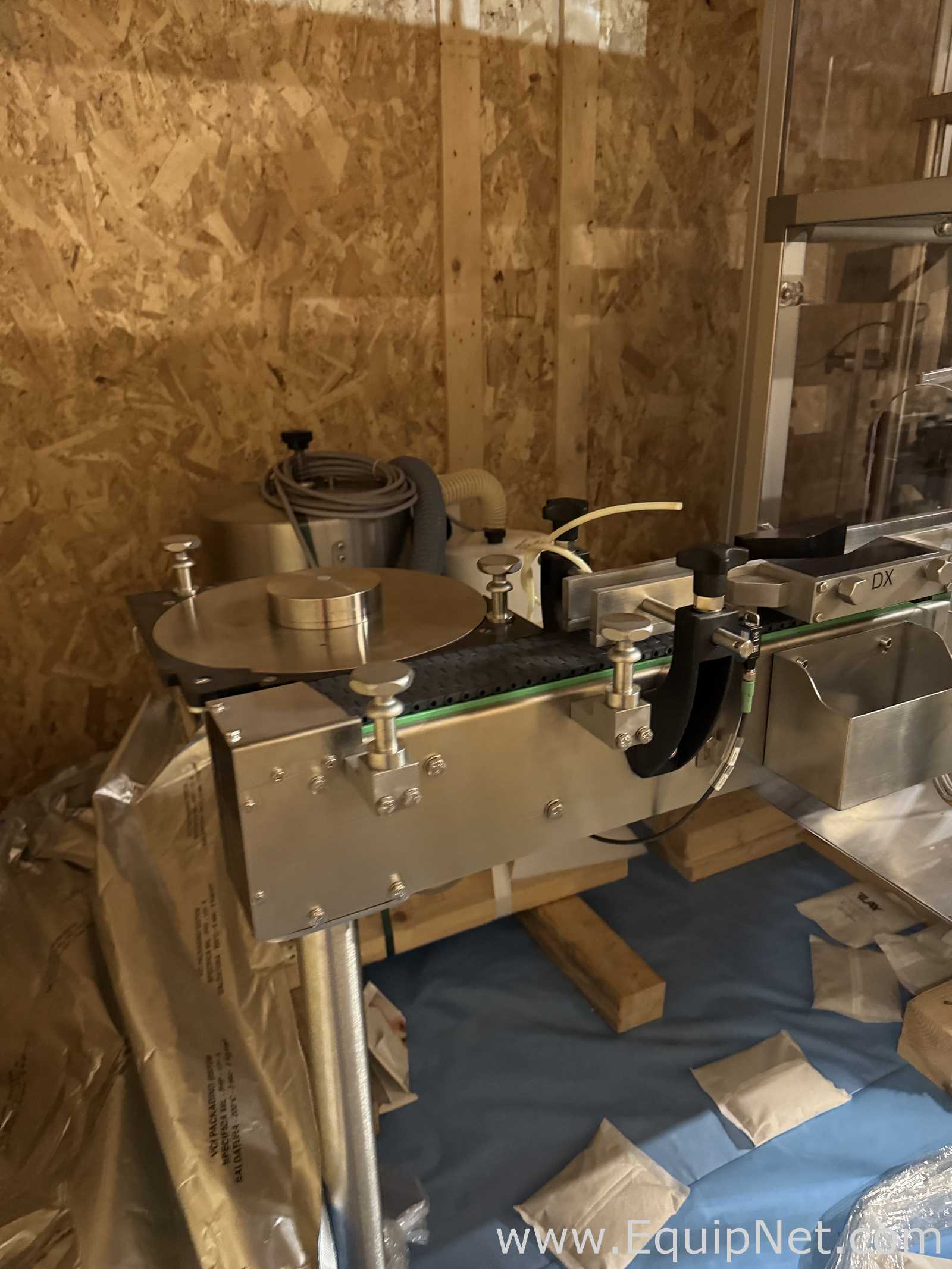

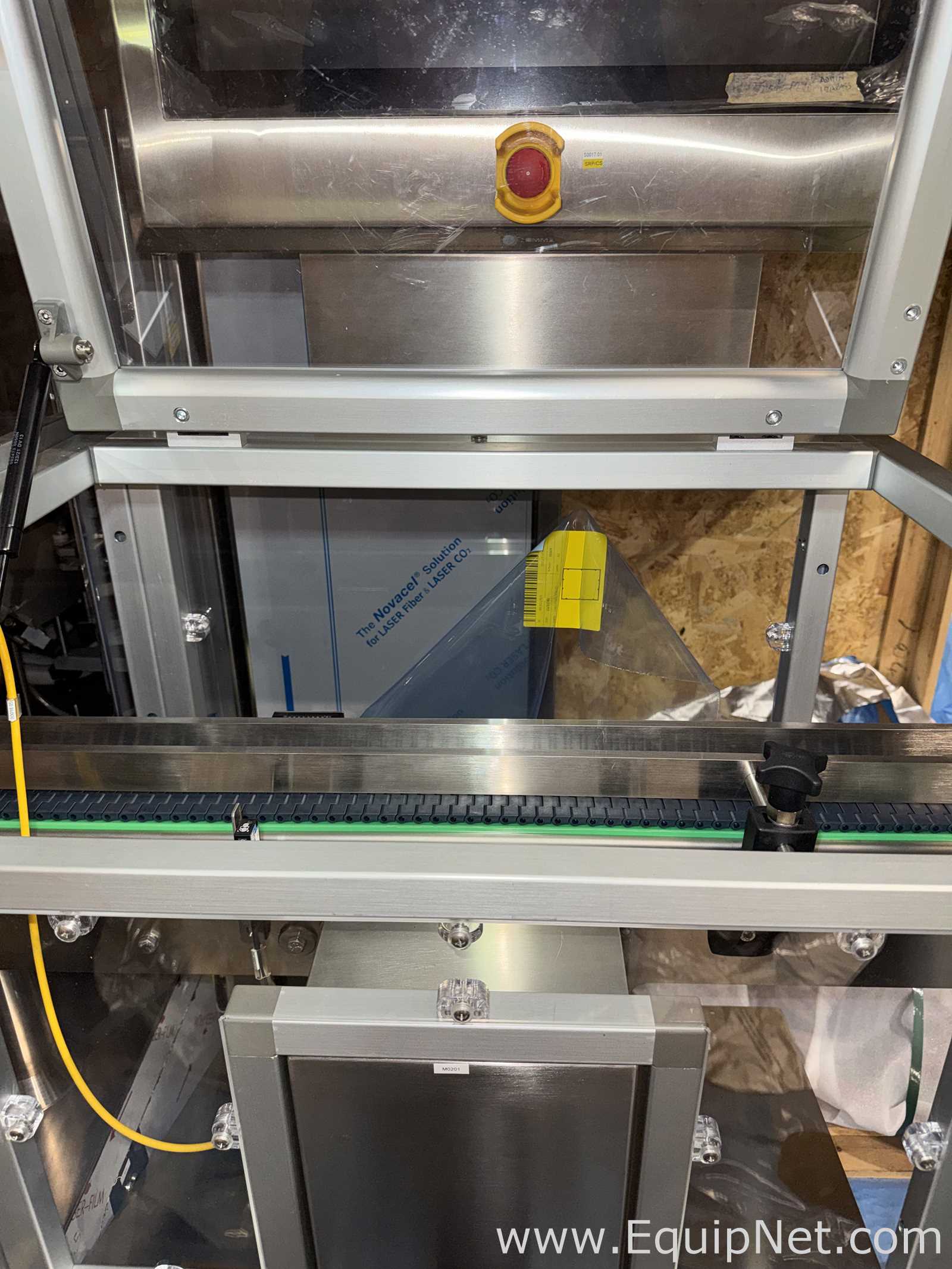

Unused Nastro FlexLink Slat Conveyors.

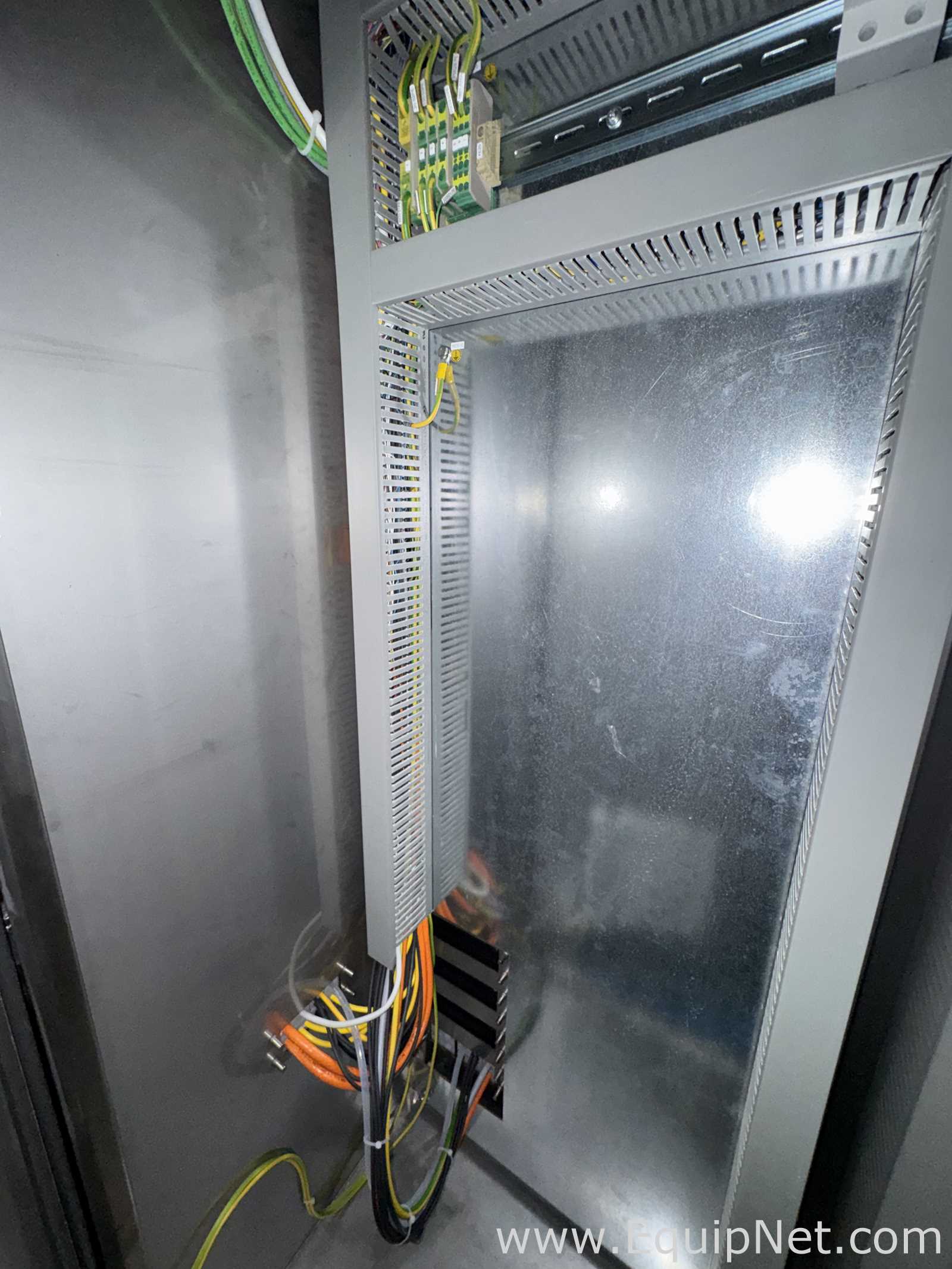

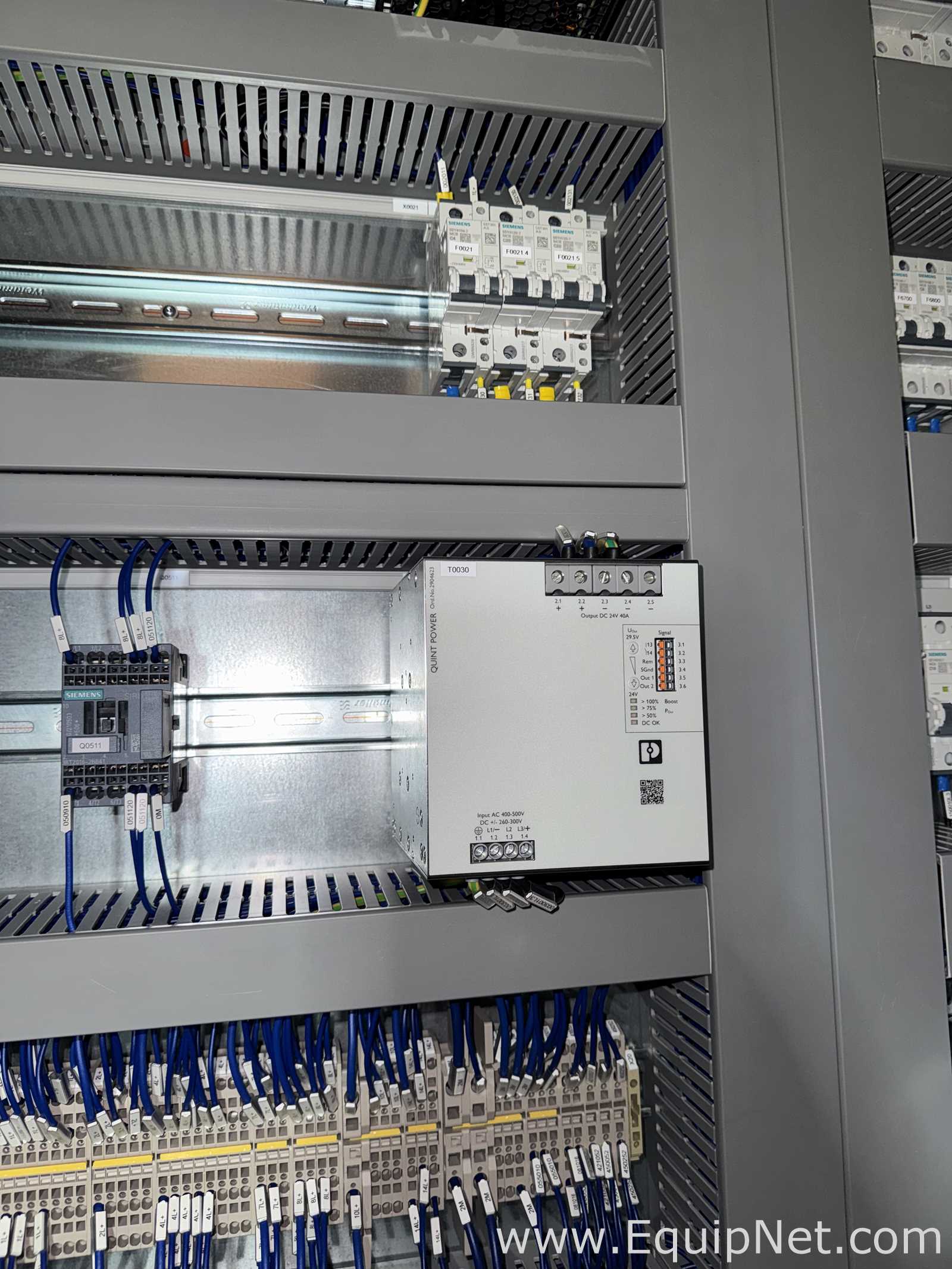

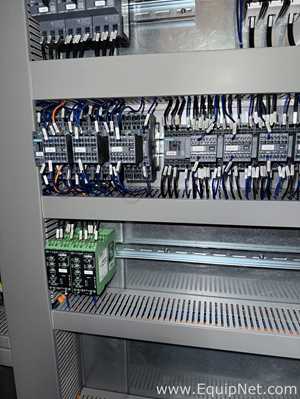

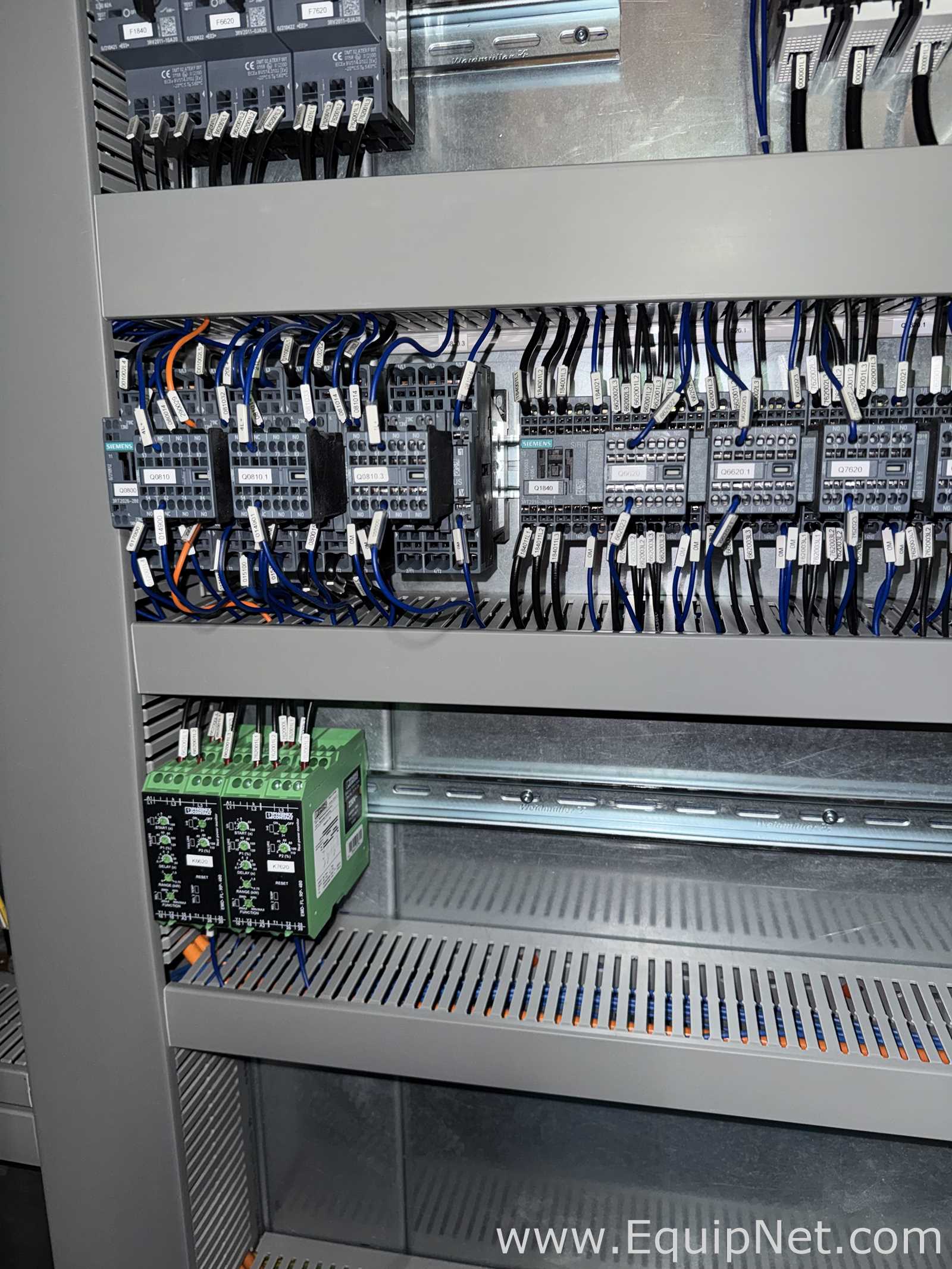

Control System: PLC CPU 1518 PN/DP, Siemens 6ES7518-4AP00-0AB0.
Pneumatic: 6-7 bar.
Operating Specifications

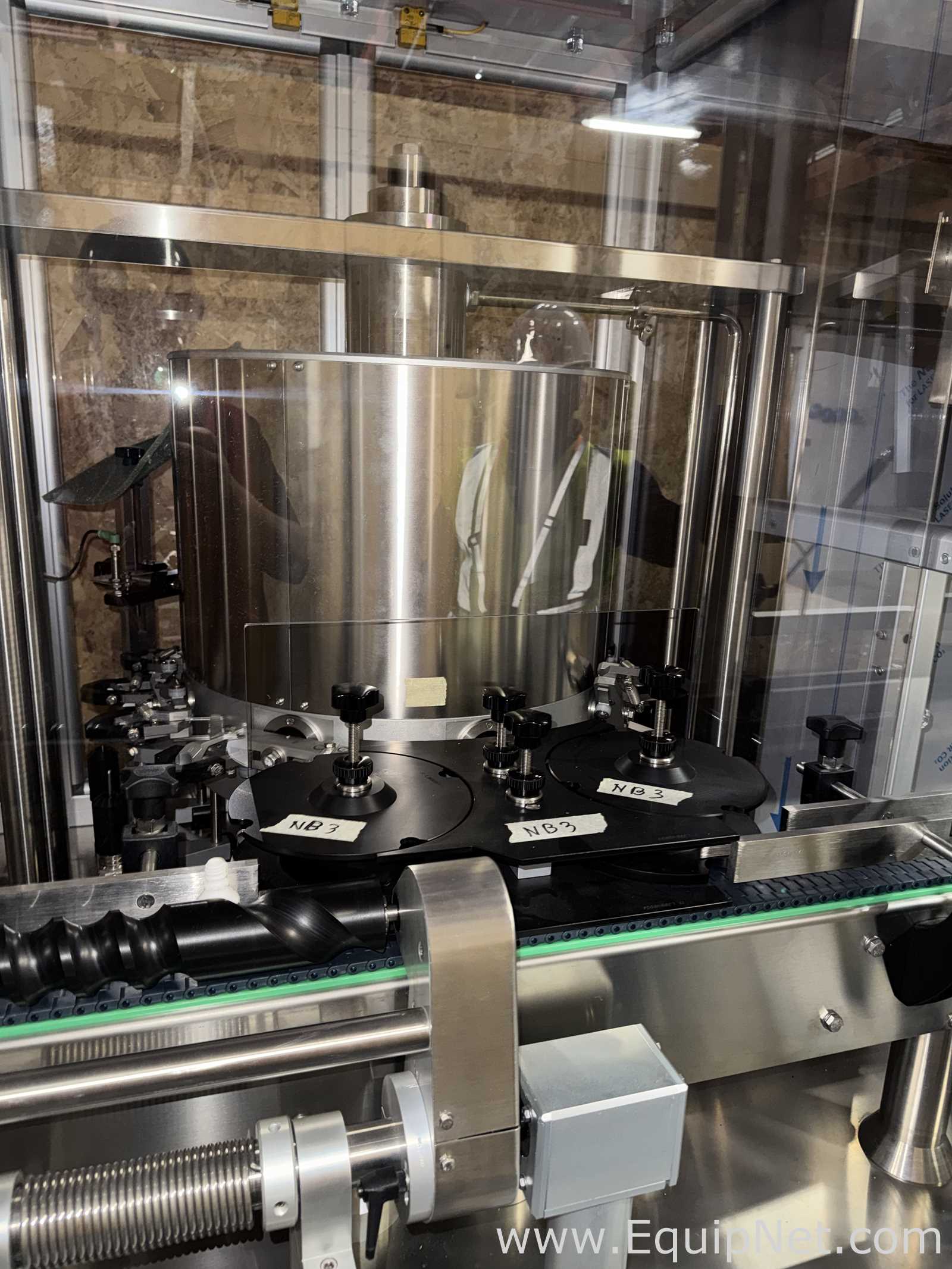

Format NB2. Size 3ml. Max Speed 200 ppm.

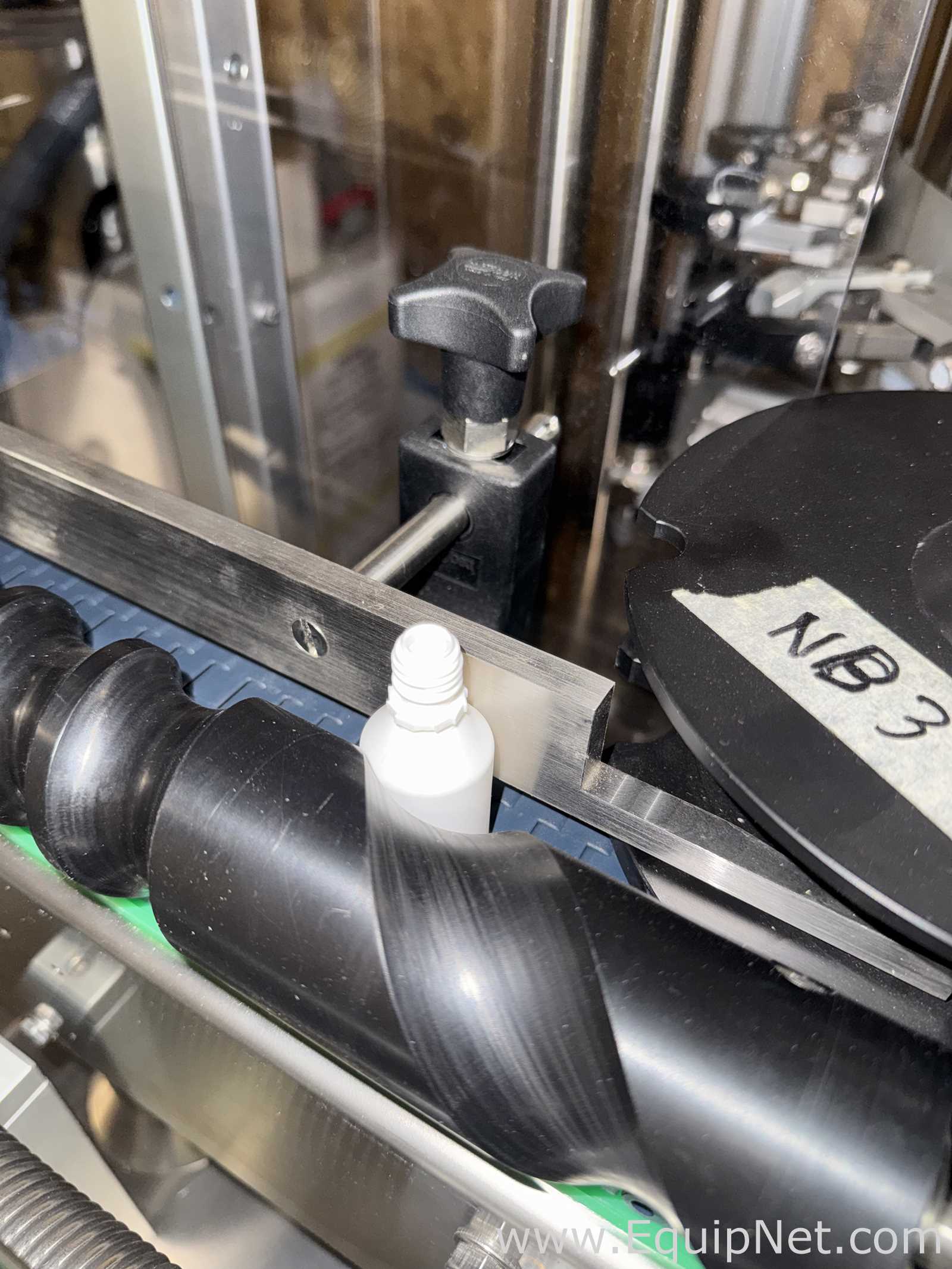

Format NB3. Size 15ml. Max Speed 200 ppm.
Format NB4. Size 30ml. Max Speed 180 ppm.
Format NB6. Size 100ml. Max Speed 120 ppm.
Format NB9. Size 180ml. Max Speed 85 ppm.
Format NB9. Size 250ml. Max Speed 75 ppm.
Format NC0. Size 330ml. Max Speed 55 ppm.
Format NC1. Size 335ml. Max Speed 47 ppm.
NOTE 1: This line does not include Lifting and bottle orientator machine.
NOTE 2: This line comprises the filler and capper. However, if your product requires a final cap adjustment, it does not include a retorquer.
NOTE 1: This line does not include Lifting and bottle orientator machine.
NOTE 2: This line comprises the filler and capper. However, if your product requires a final cap adjustment, it does not include a retorquer.
Specifications:
Standard
Metric
Manufacturer Name
IMA LIFE
Year:
2022
2022

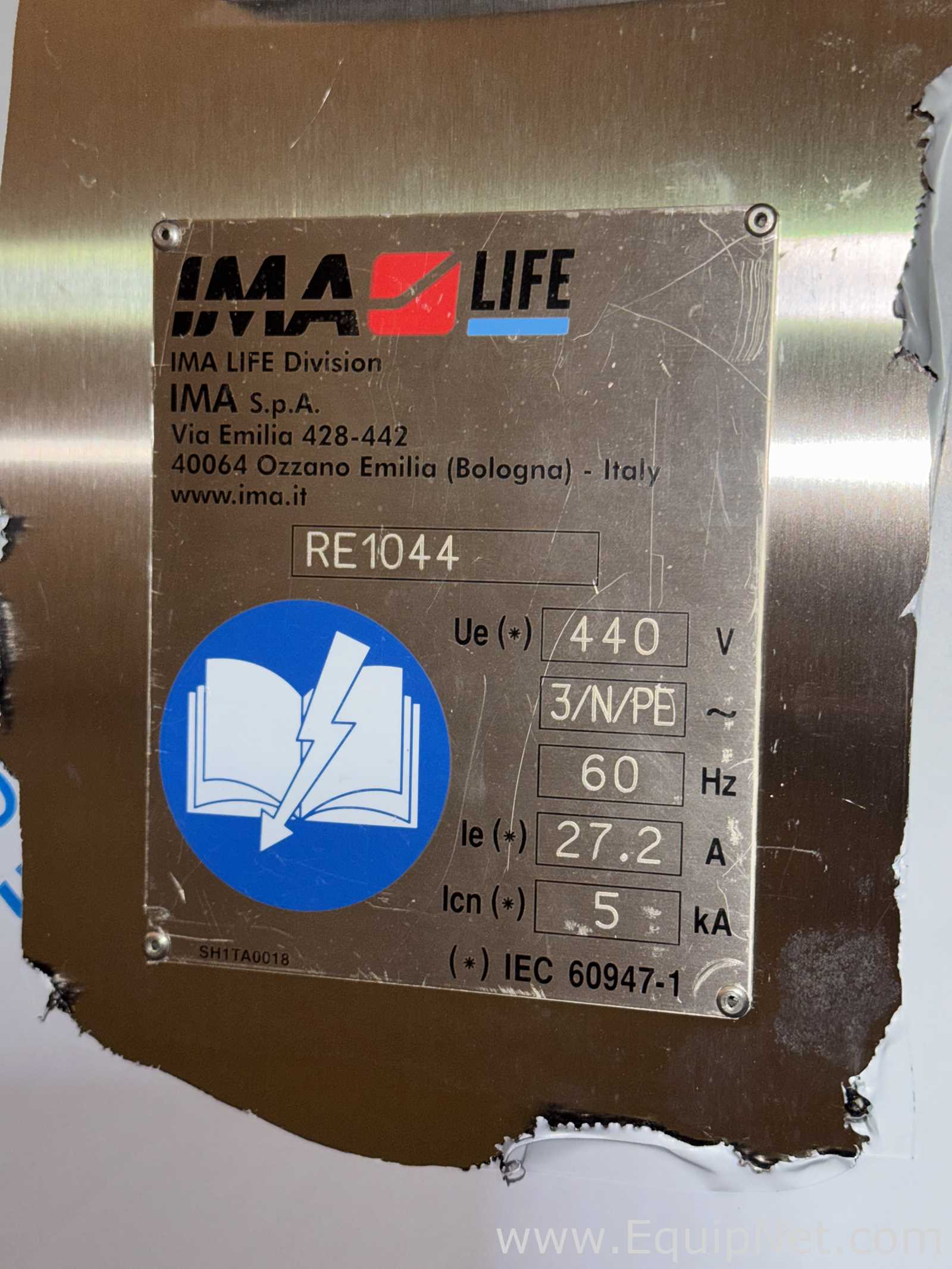

Serial Number:
RE1044
RE1044
CE Marked:
YES
YES
Type of Filler:
INLINE
INLINE
Model:
FlexiFill F940
FlexiFill F940
Number of Heads:
10
10
Can Seller Provide a Sample of Product Run:
Yes
Yes
Application Range(Ex Min/Max Range Size Bottles and Caps, Shape of Bottle and Style of Cap):
3 - 335 ml
3 - 335 ml
Average operating speed :
80
BPM
80
BPM
Max operating speed:
200
BPM
200
BPM
Minimum operating speed:
40
BPM
40
BPM
Air Requirements:
7
BAR
7
BAR
Voltage:
440
VOLTS
440
VOLTS
Frequency:
60
HERTZ
60
HERTZ
Phase:
3
3
Recommended Packaging Form:
CUSTOM PALLET
CUSTOM PALLET
Dimensions:
Standard
Metric
See all item dimensions
Item #1:
129.92 x 82.68 x 82.68 IN - 4,938.35 LBS
3300.00 x 2100.00 x 2100.00 MM - 2,240.00 KGS
Item #2:
129.92 x 82.68 x 82.68 IN - 2,425.08 LBS
3300.00 x 2100.00 x 2100.00 MM - 1,100.00 KGS
Item #3:
157.48 x 78.74 x 98.43 IN - 3,924.23 LBS
4000.00 x 2000.00 x 2500.00 MM - 1,780.00 KGS
Item #4:
137.8 x 88.58 x 92.91 IN - 4,056.50 LBS
3500.00 x 2250.00 x 2360.00 MM - 1,840.00 KGS
Item #5:
157.48 x 90.55 x 108.66 IN - 9,788.52 LBS
4000.00 x 2300.00 x 2760.00 MM - 4,440.00 KGS
Item #6:
157.48 x 88.58 x 100.39 IN - 5,158.81 LBS
4000.00 x 2250.00 x 2550.00 MM - 2,340.00 KGS
Item #7:
153.54 x 88.58 x 108.66 IN - 4,056.50 LBS
3900.00 x 2250.00 x 2760.00 MM - 1,840.00 KGS
Item #8:
145.67 x 88.58 x 62.99 IN - 1,587.33 LBS
3700.00 x 2250.00 x 1600.00 MM - 720.00 KGS
Overall:
1669.29 x 90.55 x 108.66 in - 49118.49 lb
42400 x 2300 x 2760 MM - 22280 KGS
Disclaimer:
This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in
Latin America
This equipment is subject to a removal and loading charge.
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Multi-Listing Includes:
Back to Top
Multi-Listing #975420

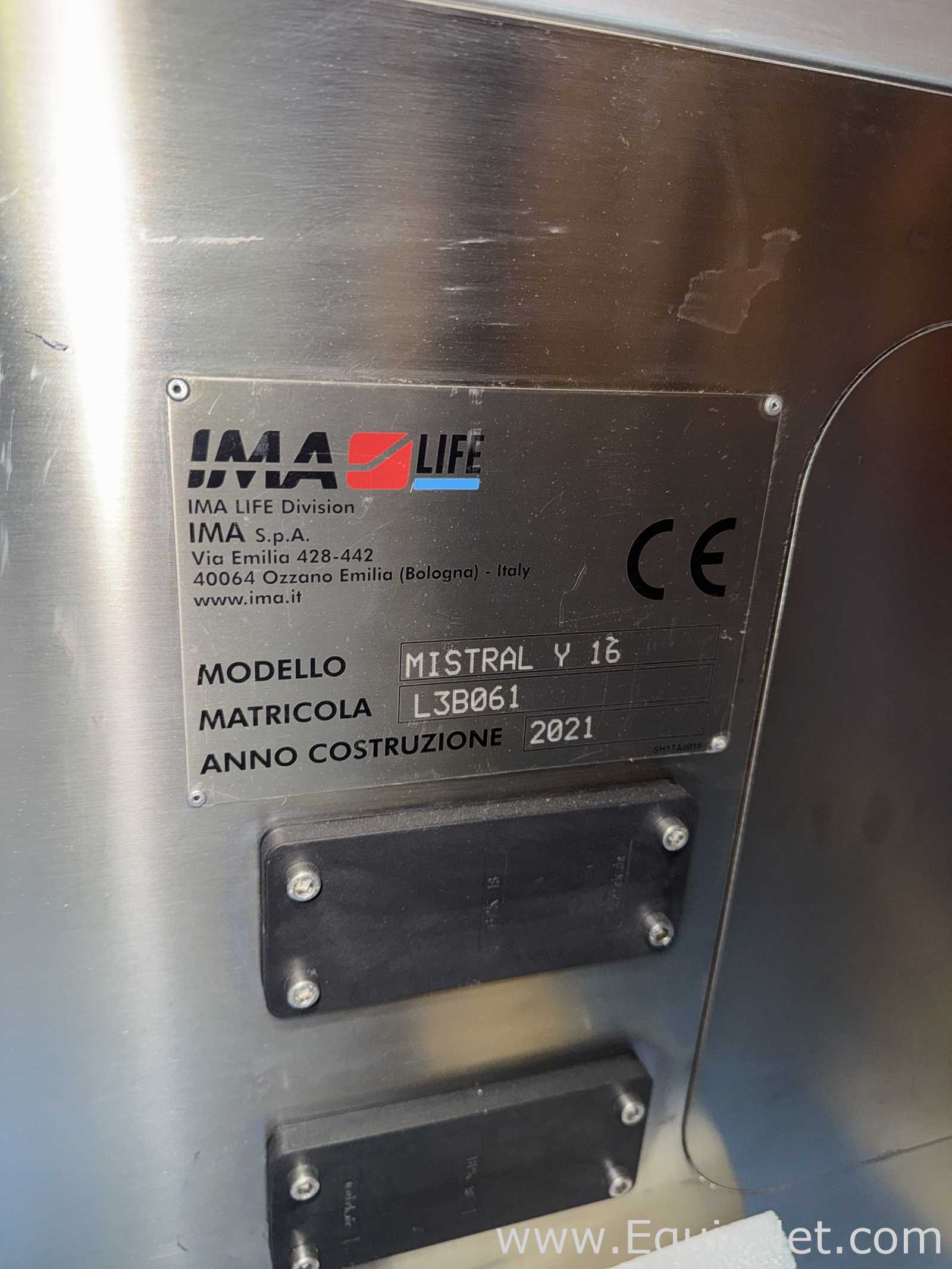

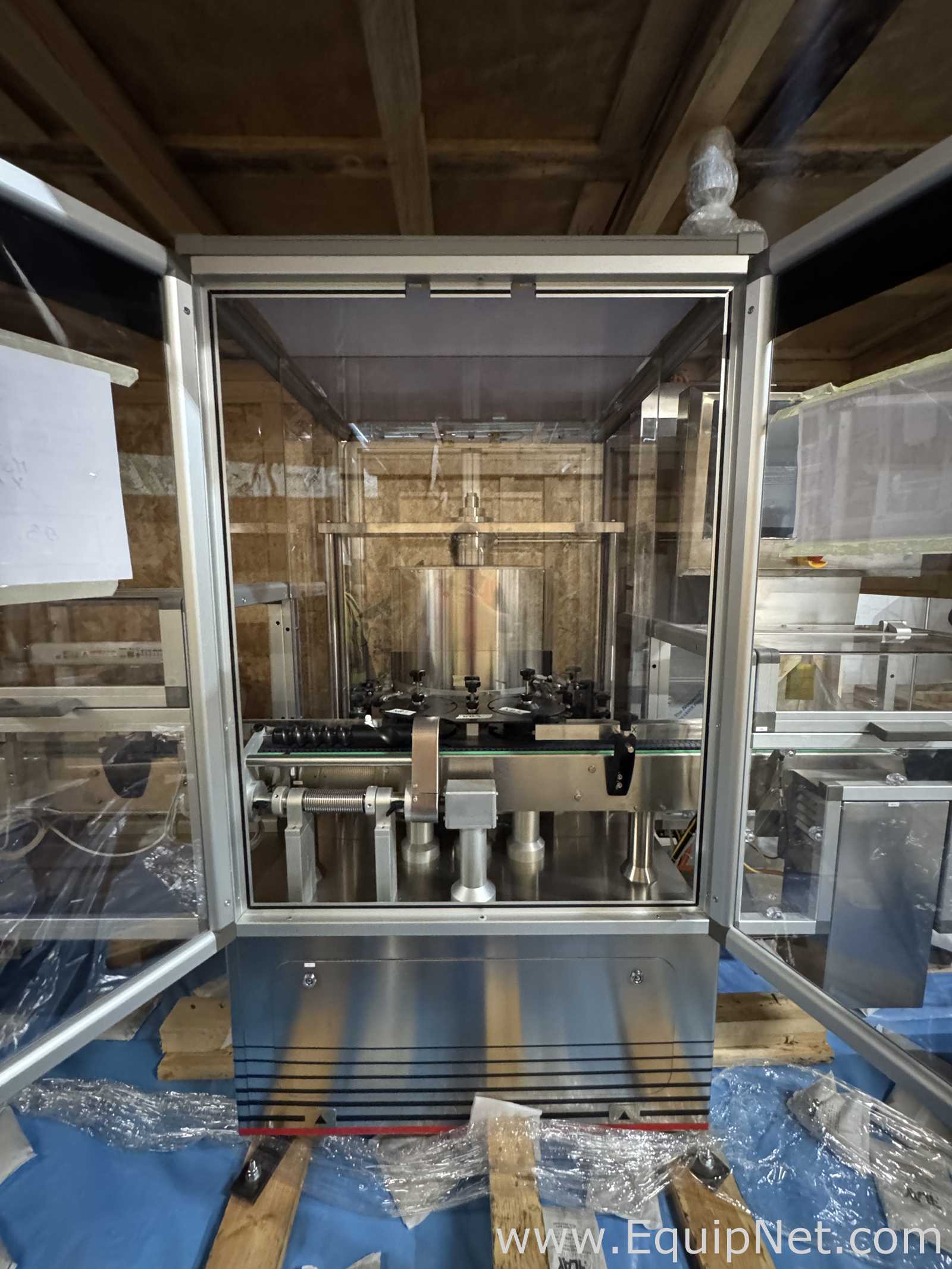

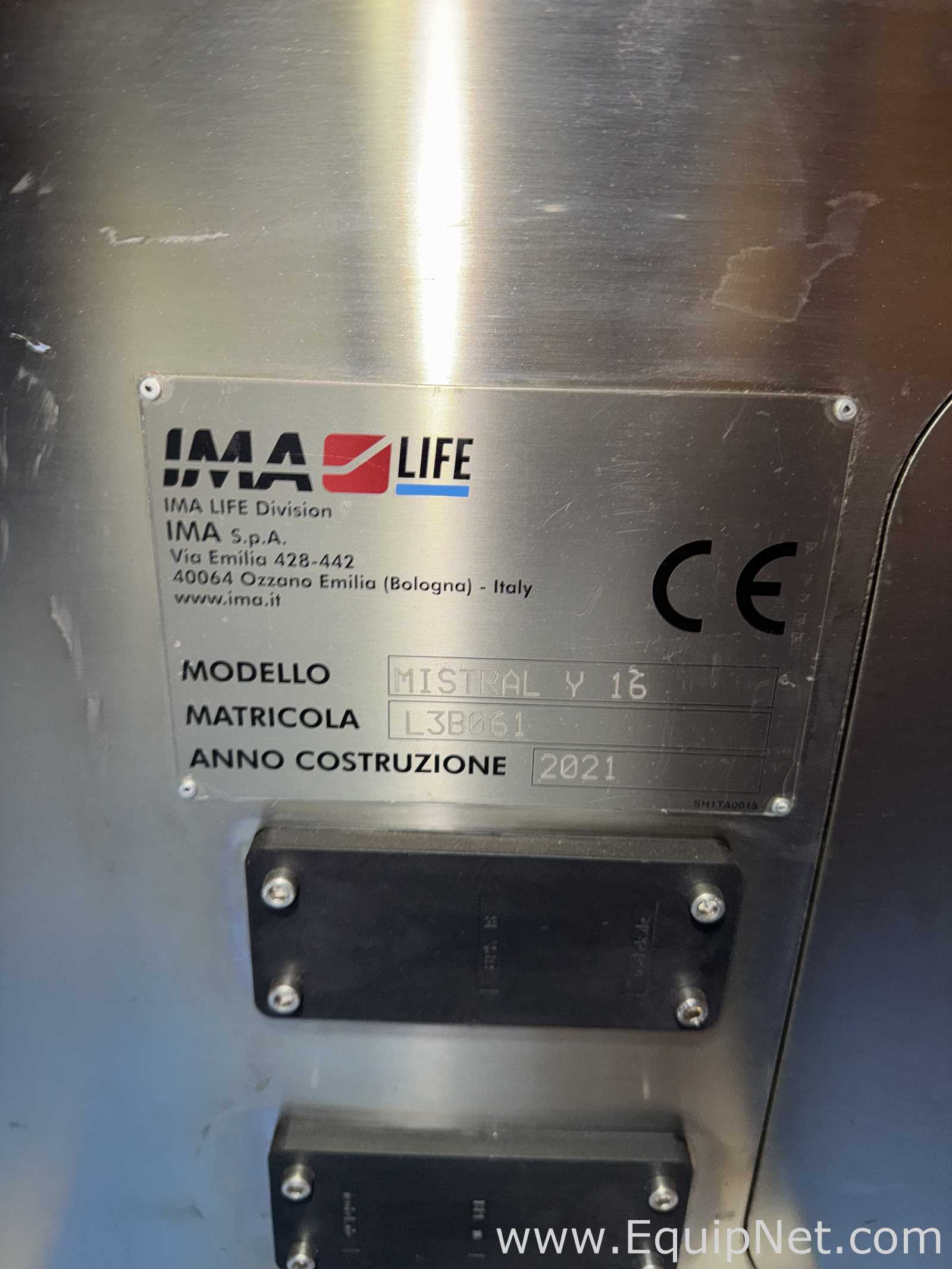

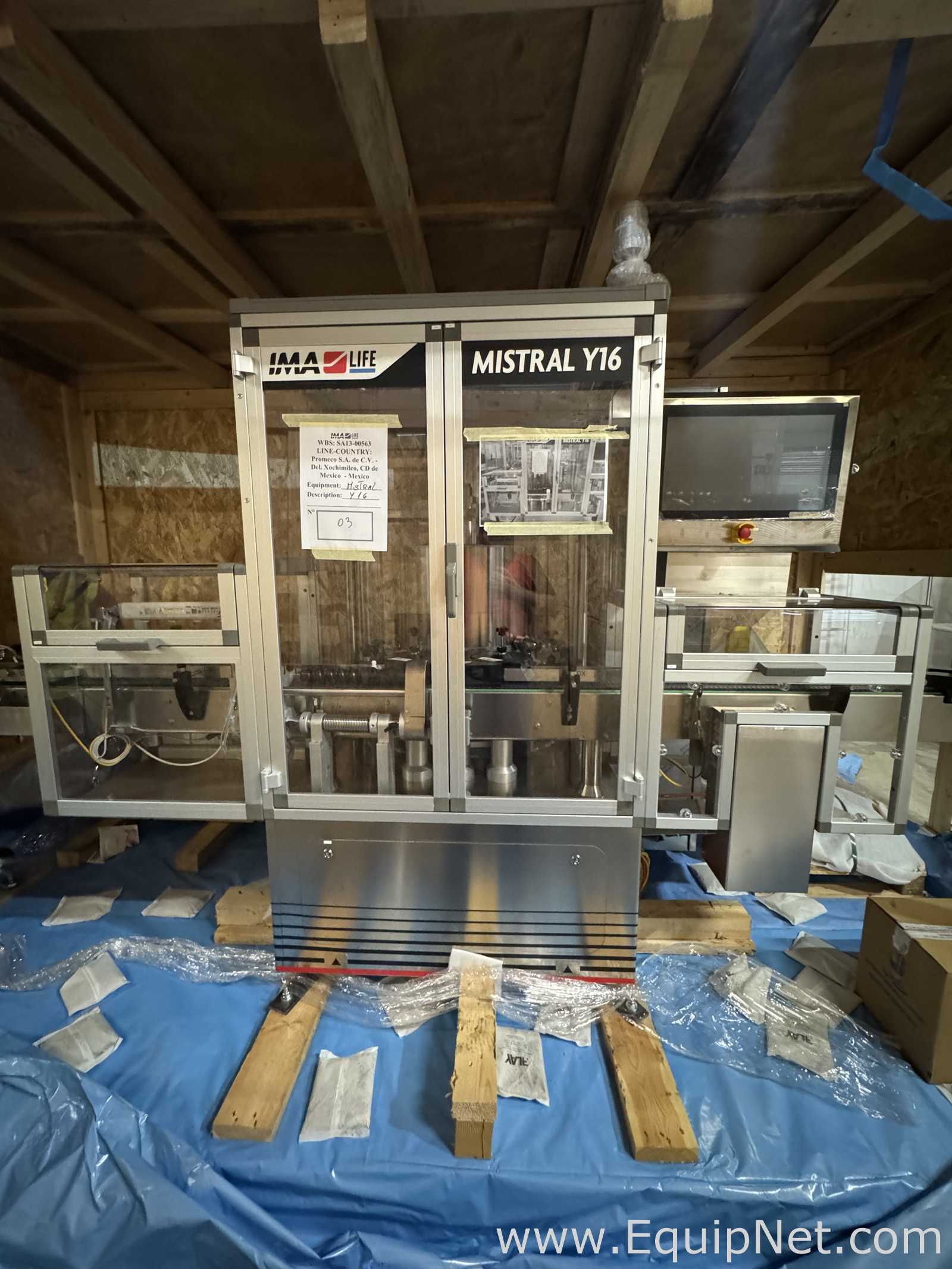

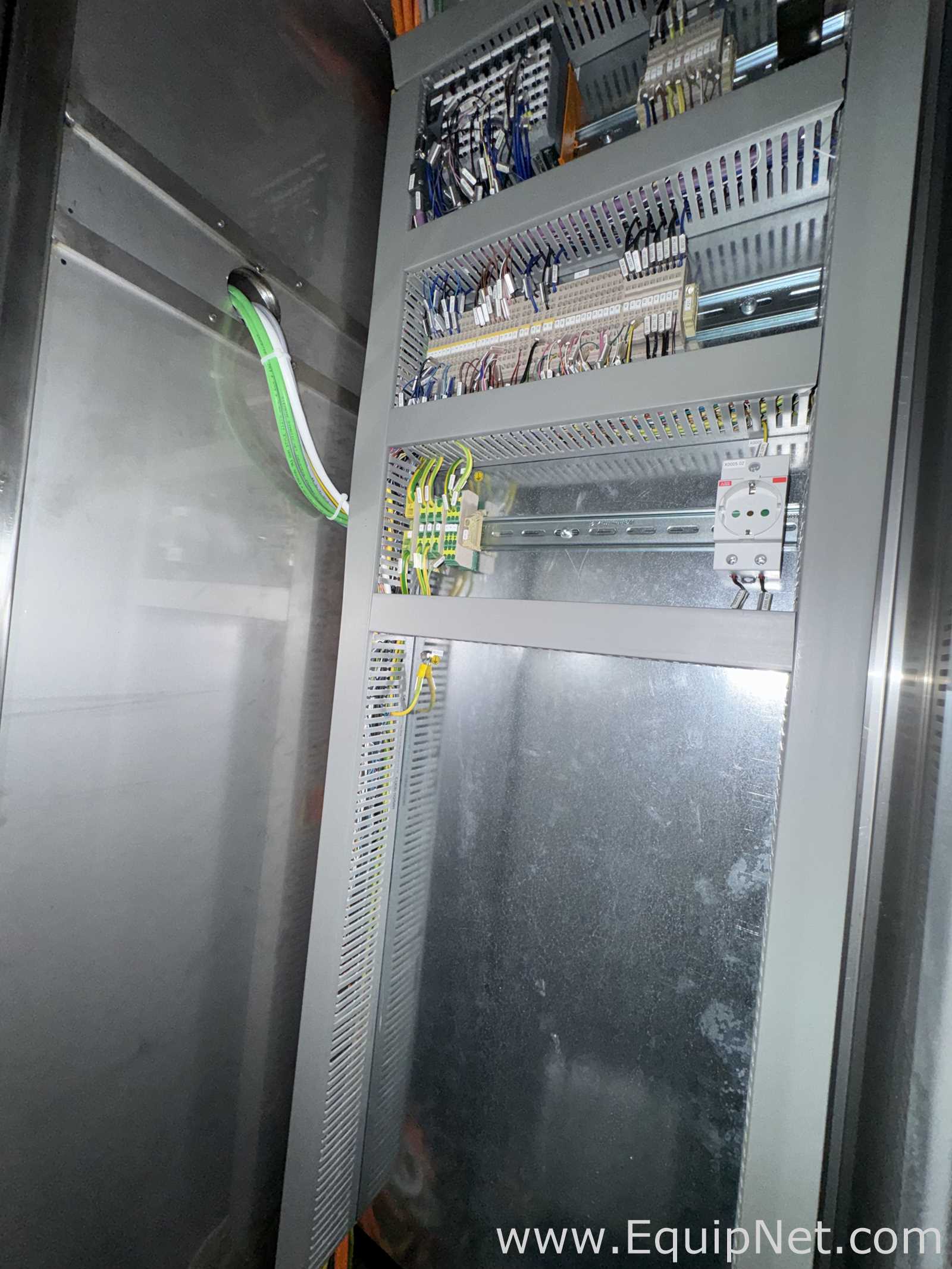

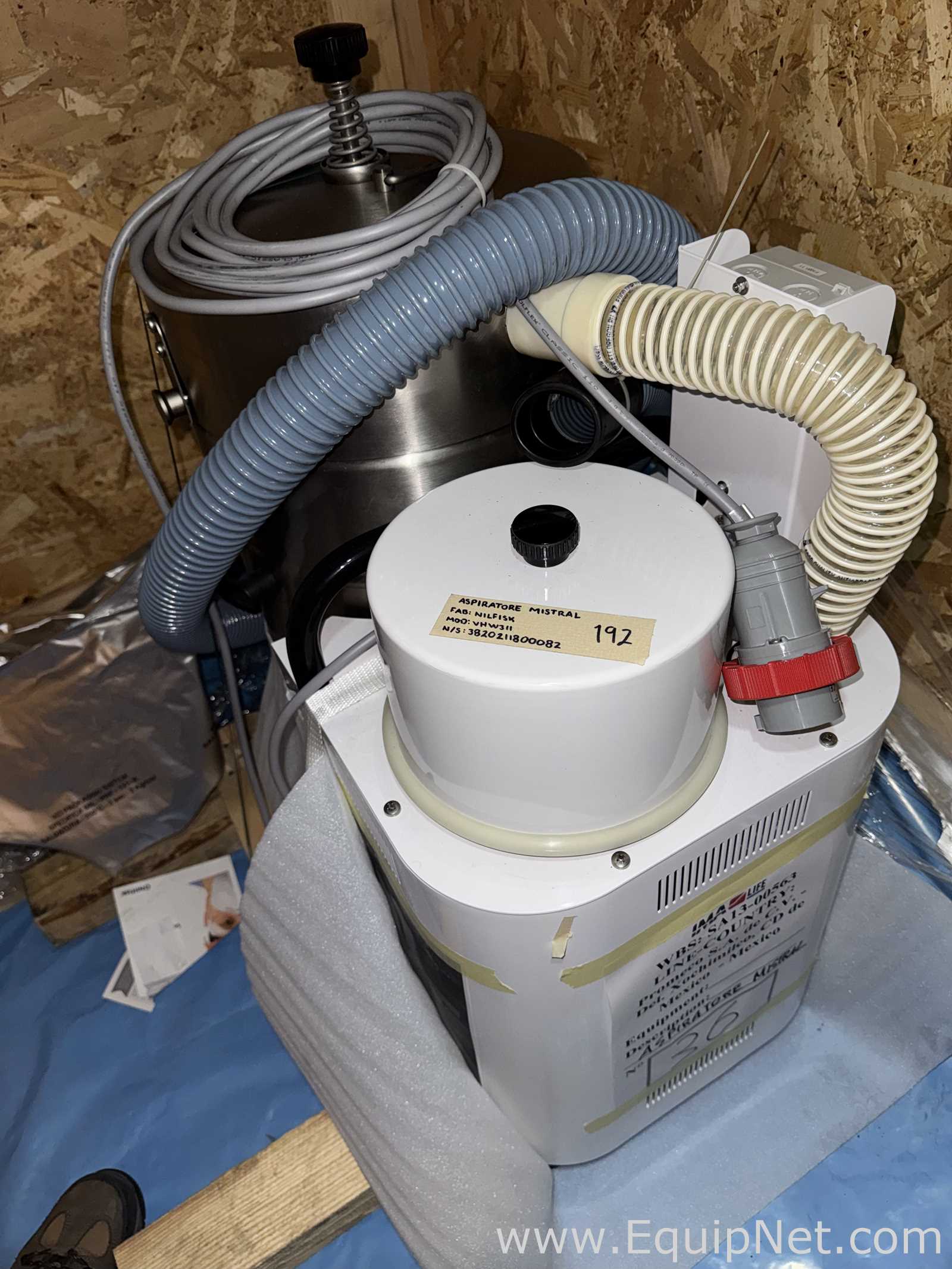

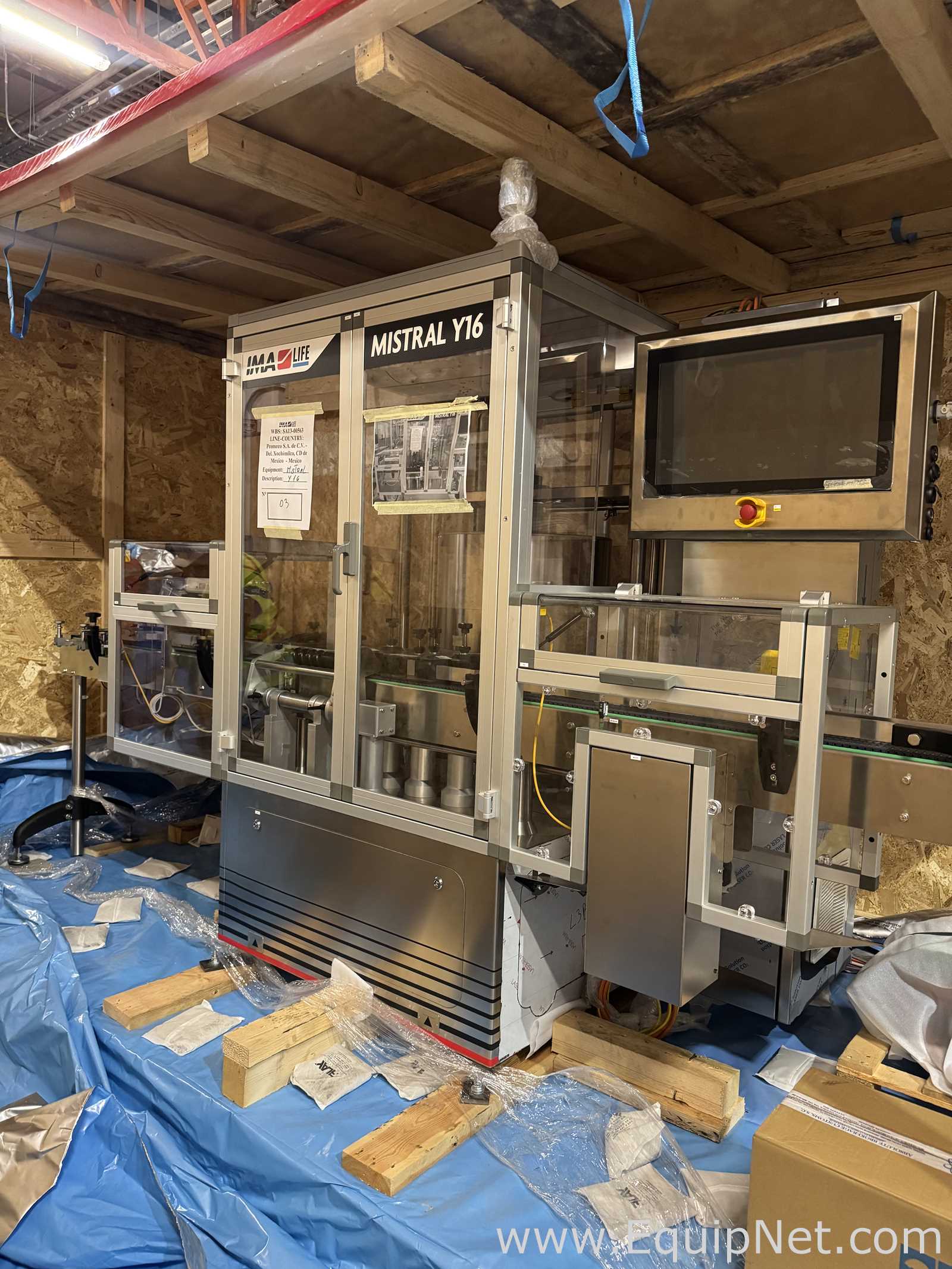

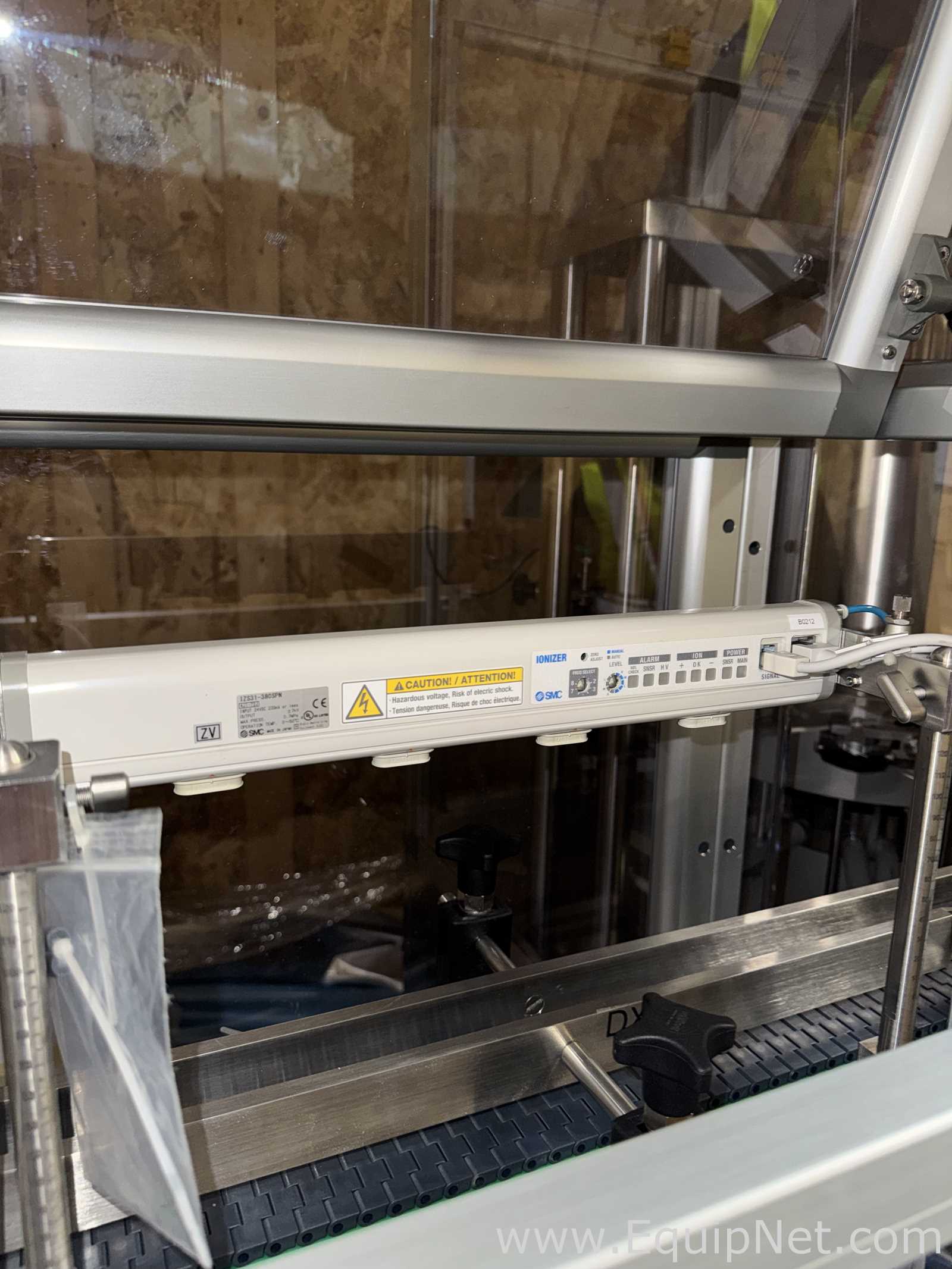

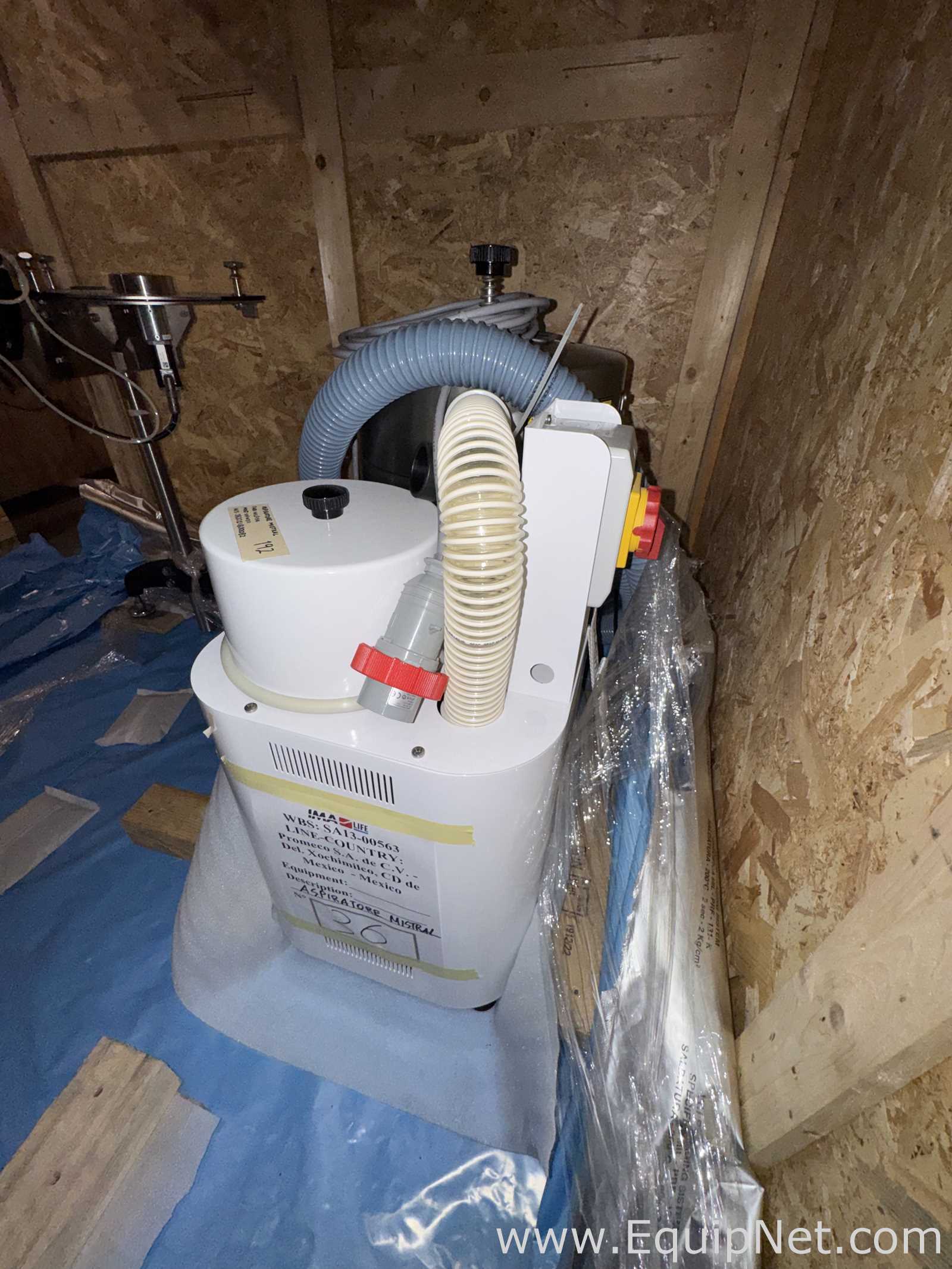

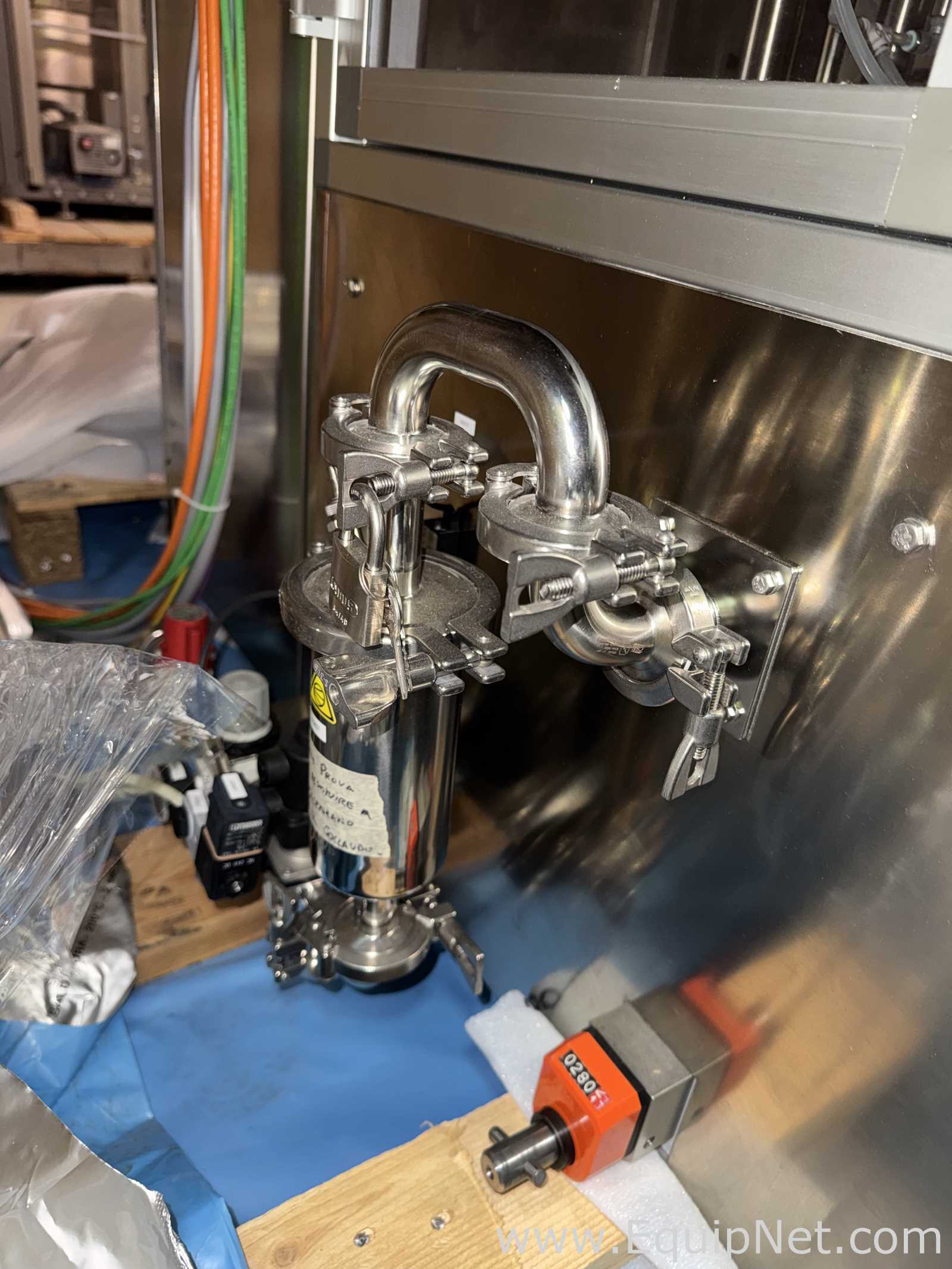

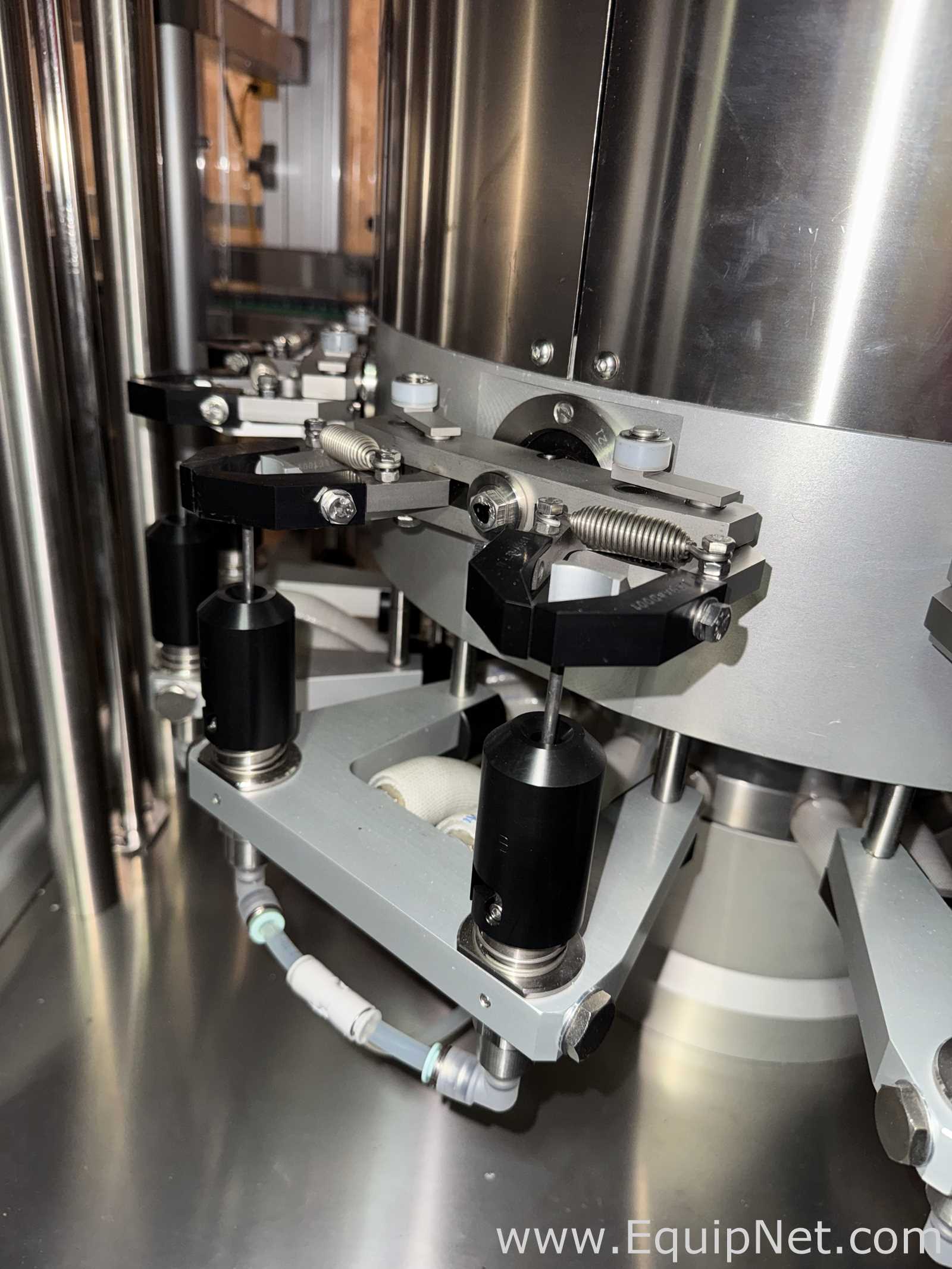

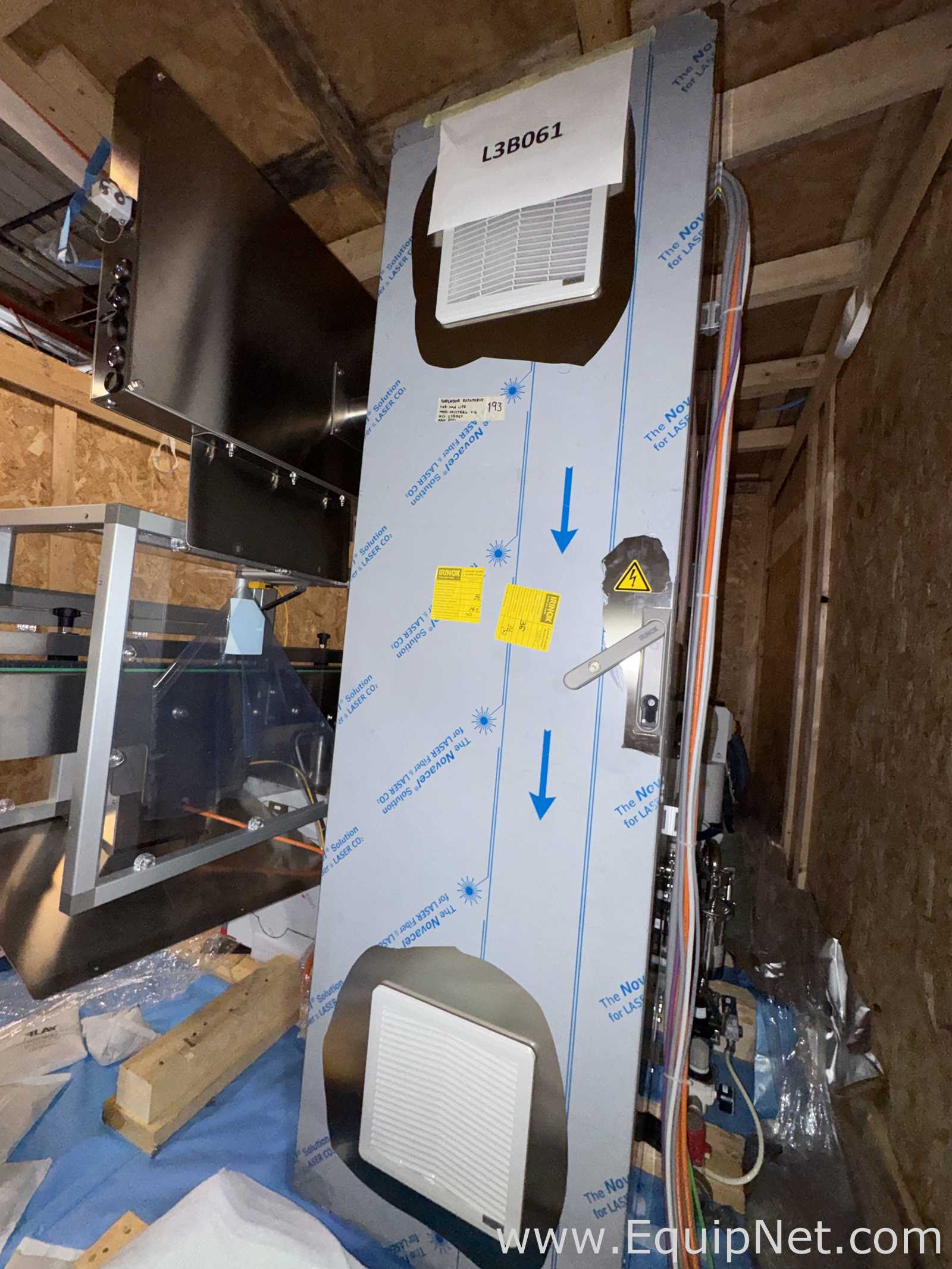

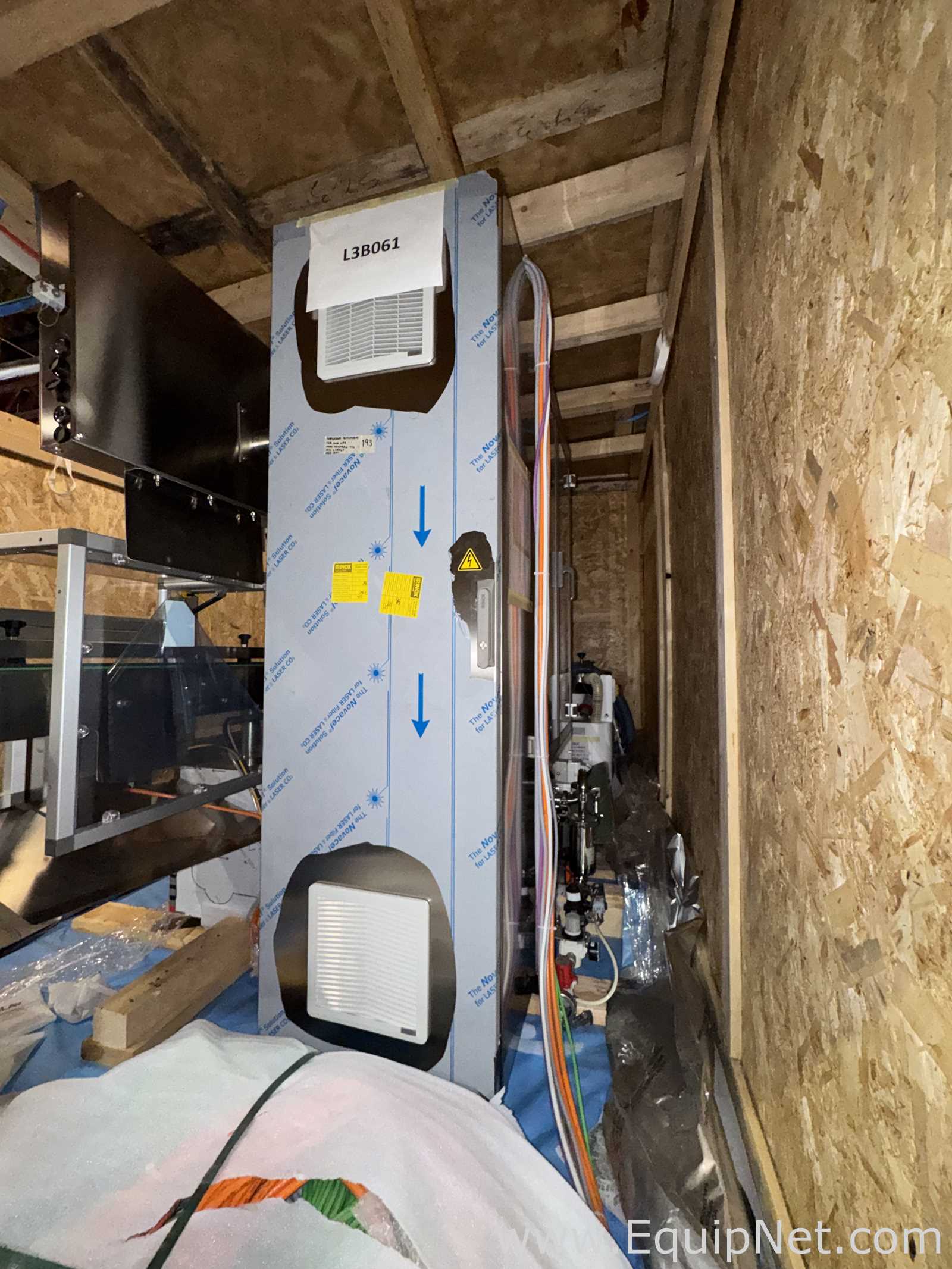

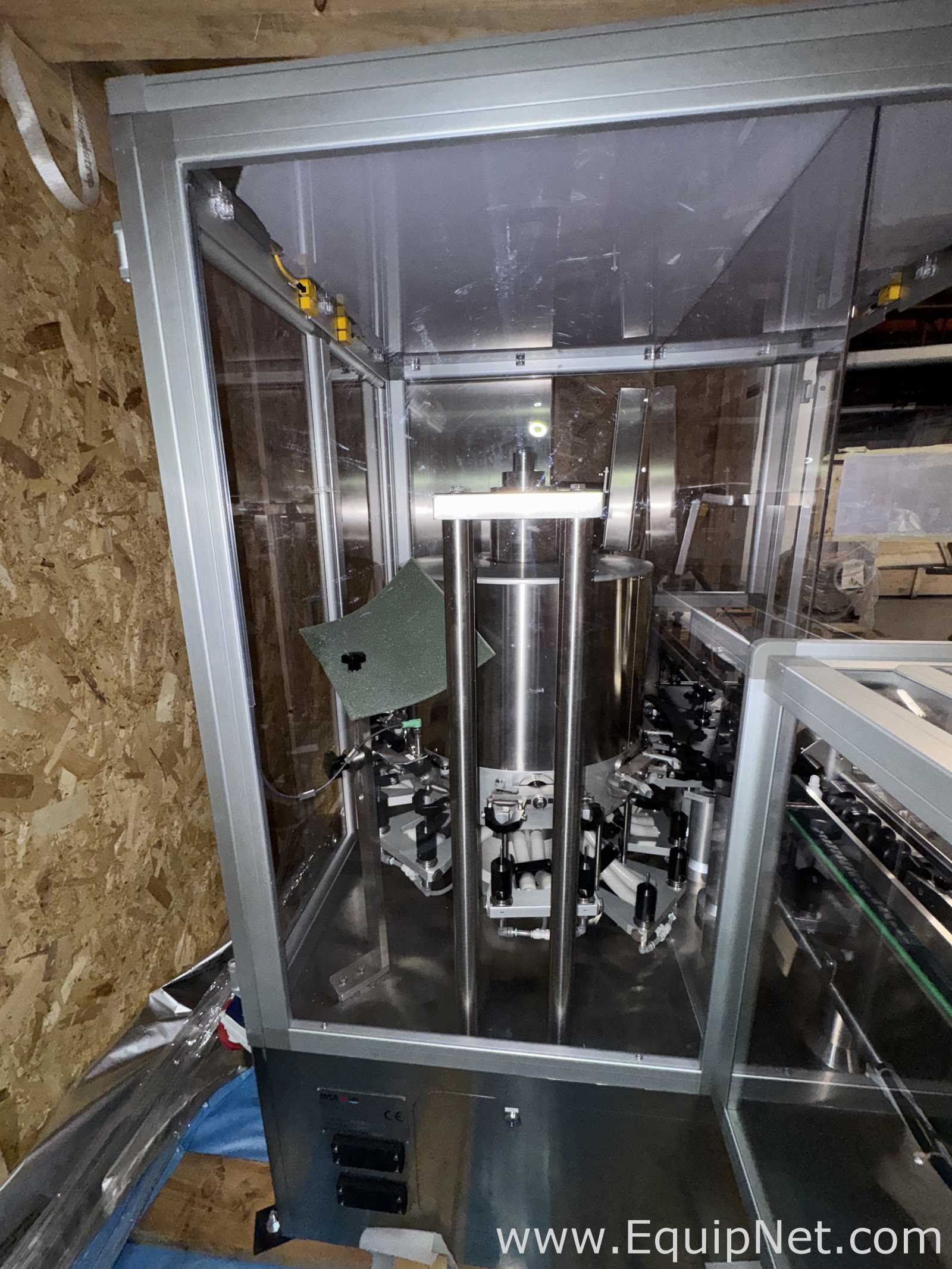

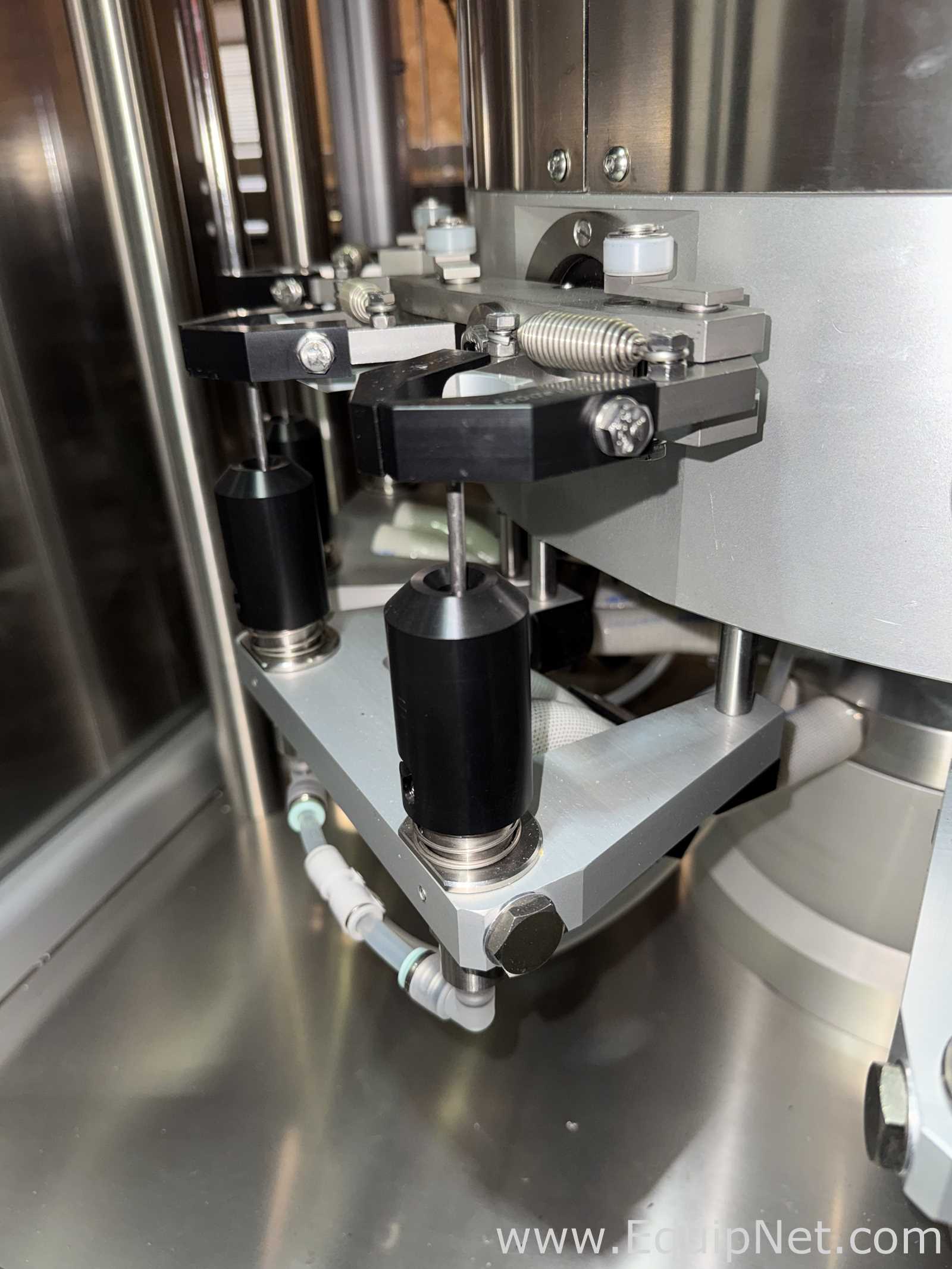

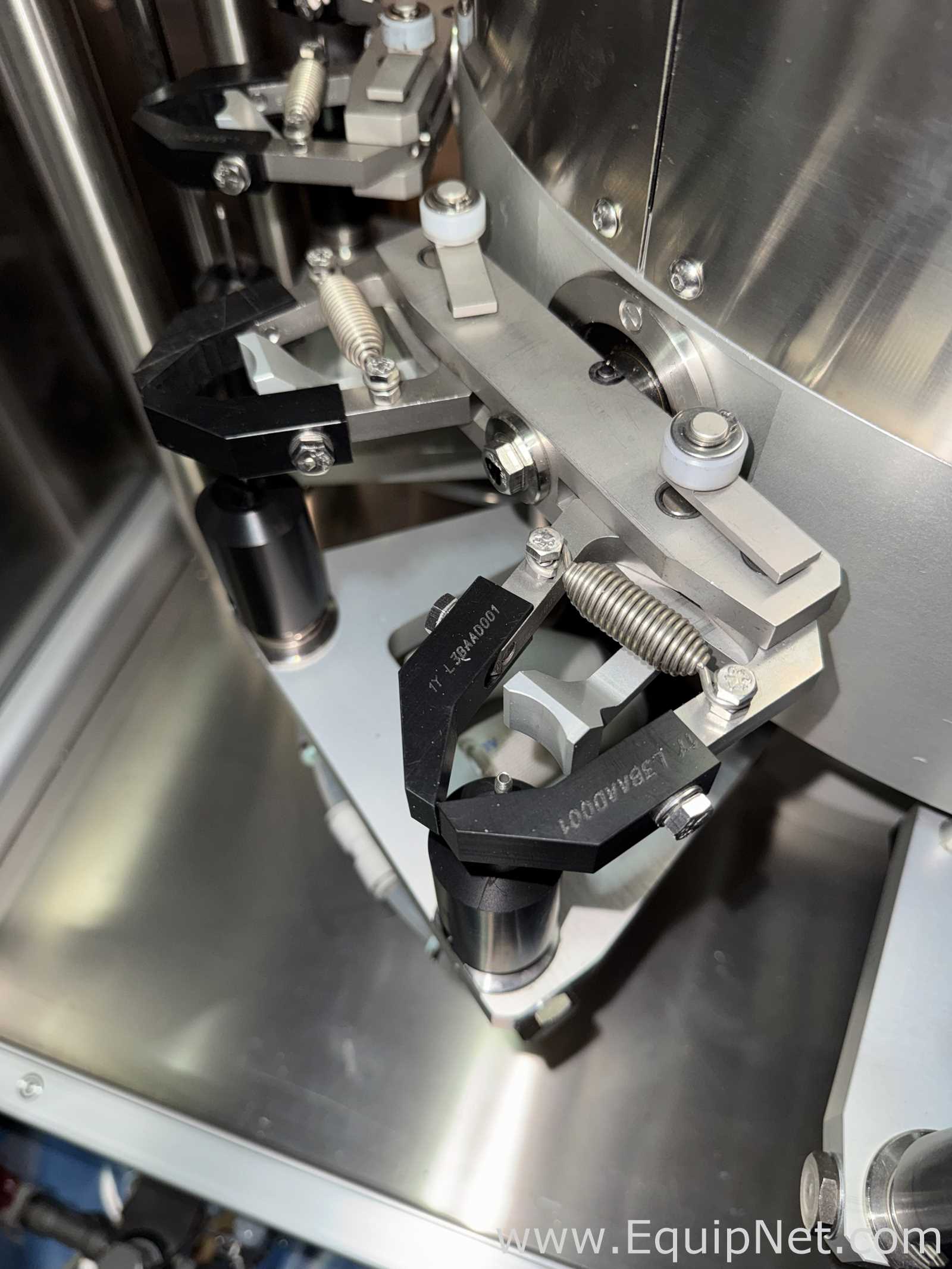

Unused IMA LIFE Mistral Y16 Bottle Blowing Machine
Equipment Description
IMA LIFE Mistral Y16 Bottle Blowing Machine
The Mistral Y16 machine is designed for air cleaning glass or plastic cylindrical vials in general which do not have to be washed with water and detergents, but merely with a jet of sterile air to remove solid, granular or dusty impurities. It has also been designed and built in compliance with the Good Manufacturing G.M.P. Standards.
The machine consists of a stainless steel frame containing the main drive, the gearboxes and the air and vacuum circuits. Mounted on the main frame are the vial conveyors & the rotating main turret of the machine. Vials are taken by a scroll from the infeed conveyor and guided into a starwheel that takes them onto the main turret. The starwheel & the main turret rotate continuously. The gripes assembled on the main turret take the vials from the starwheel. The gripes are designed to avoid any damage to the vials.
The bottles are positioned on the loading table ,after removing the packaging and pushed onto the rotating table by the operator. They are automatically sorted along the loading channel to the carousel where they rotates with a blowing jets of compressed air inside. The jets distribute air for approximately 150° of the carousel rotation and is kept under vacuum by an exhauster which sucks up all the particles released by the bottles. At the end of the rotation, the bottles are in the up-right position again and are discharged by the carousel on the rotating table where they are sorted for outlet.
Specifications:
Standard
Metric
Manufacturer Name
IMA
Year:
2022
2022
Serial Number:
L3B061
L3B061
Model:
Mistral Y16
Mistral Y16
Voltage:
440
VOLTS
440
VOLTS
Recommended Packaging Form:
CUSTOM PALLET
CUSTOM PALLET
Dimensions:
Standard
Metric
Overall:
0.04 x 0.04 x 0.04 in - 1 LBS
1 x 1 x 1 MM - 0.45 kg
Asset Documents
Bottles.pdf (1)
(PDF) Requires® Adobe® Acrobat)
Drawingcompleteline.pdf (2)
(PDF) Requires® Adobe® Acrobat)
PID.pdf (3)
(PDF) Requires® Adobe® Acrobat)
a2FirstPartoftheline.pdf (4)
(PDF) Requires® Adobe® Acrobat)
a3Secondpartoftheline.pdf (5)
(PDF) Requires® Adobe® Acrobat)
ManualMistralY16.pdf (6)
(PDF) Requires® Adobe® Acrobat)
ManualFlexifillF940.pdf (7)
(PDF) Requires® Adobe® Acrobat)
(PDF) Requires® Adobe® Acrobat)
Drawingcompleteline.pdf (2)
(PDF) Requires® Adobe® Acrobat)
PID.pdf (3)
(PDF) Requires® Adobe® Acrobat)
a2FirstPartoftheline.pdf (4)
(PDF) Requires® Adobe® Acrobat)
a3Secondpartoftheline.pdf (5)
(PDF) Requires® Adobe® Acrobat)
ManualMistralY16.pdf (6)
(PDF) Requires® Adobe® Acrobat)
ManualFlexifillF940.pdf (7)
(PDF) Requires® Adobe® Acrobat)
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #975421

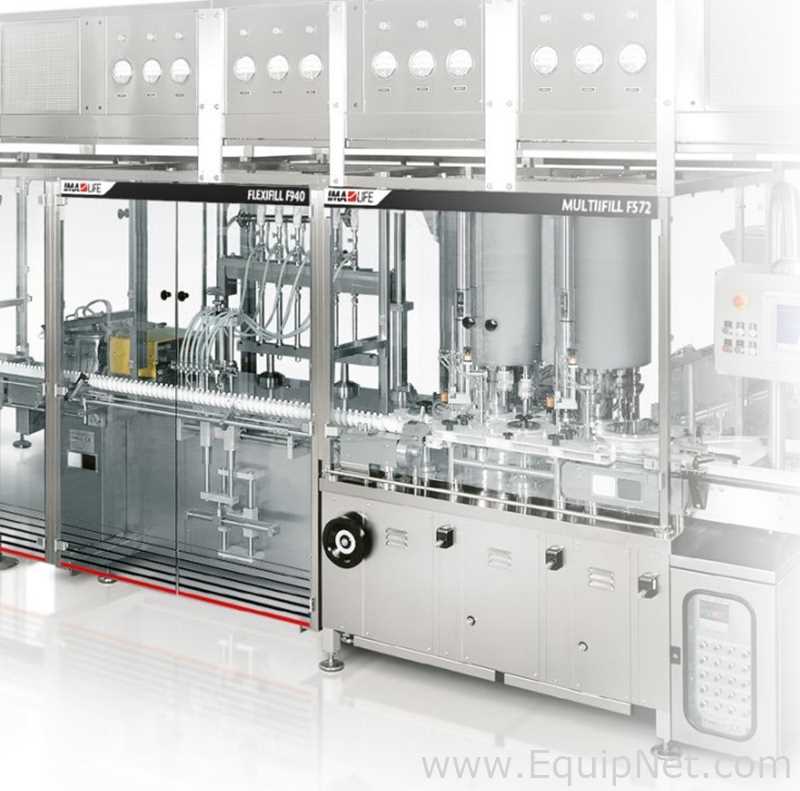

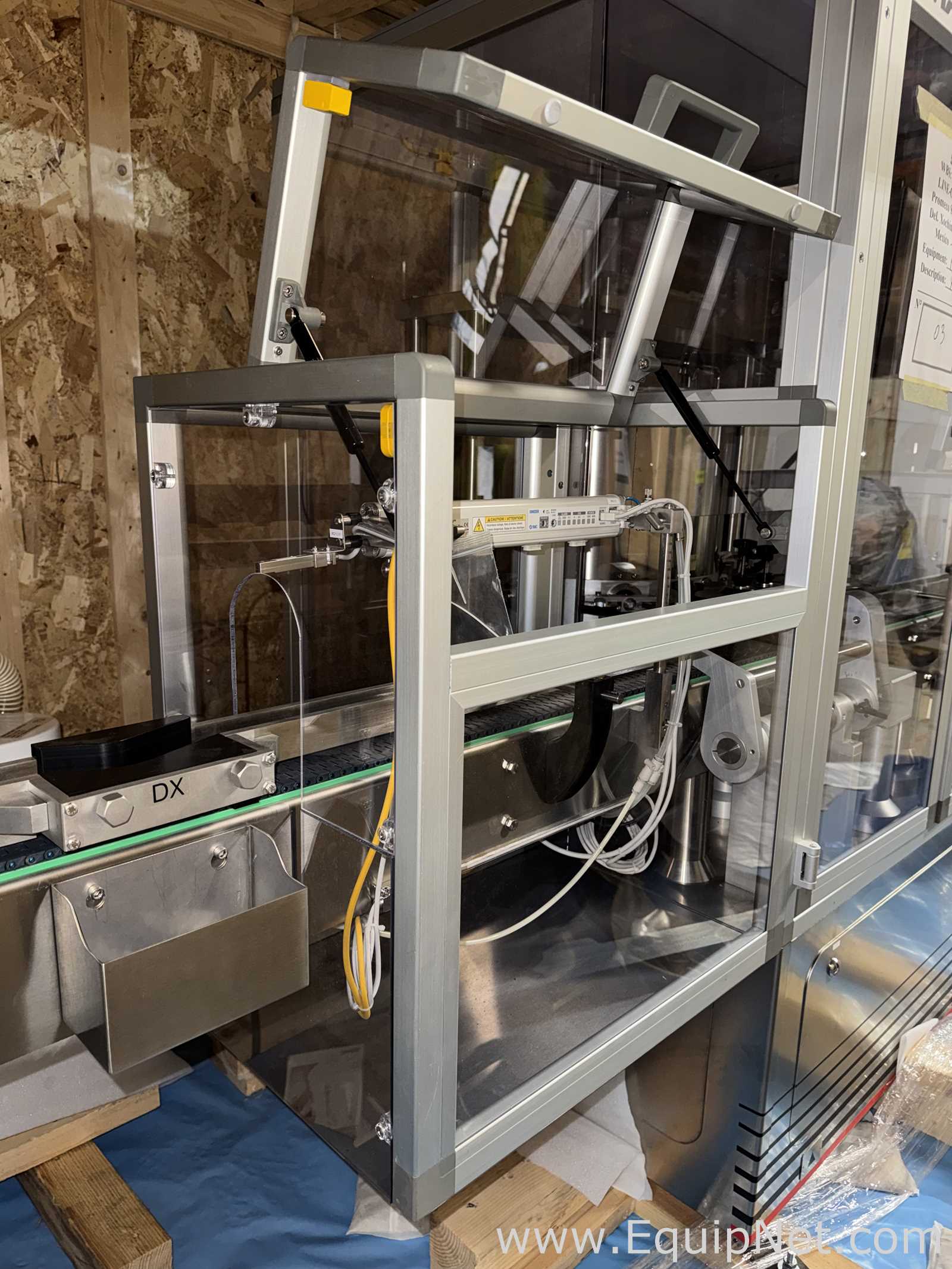

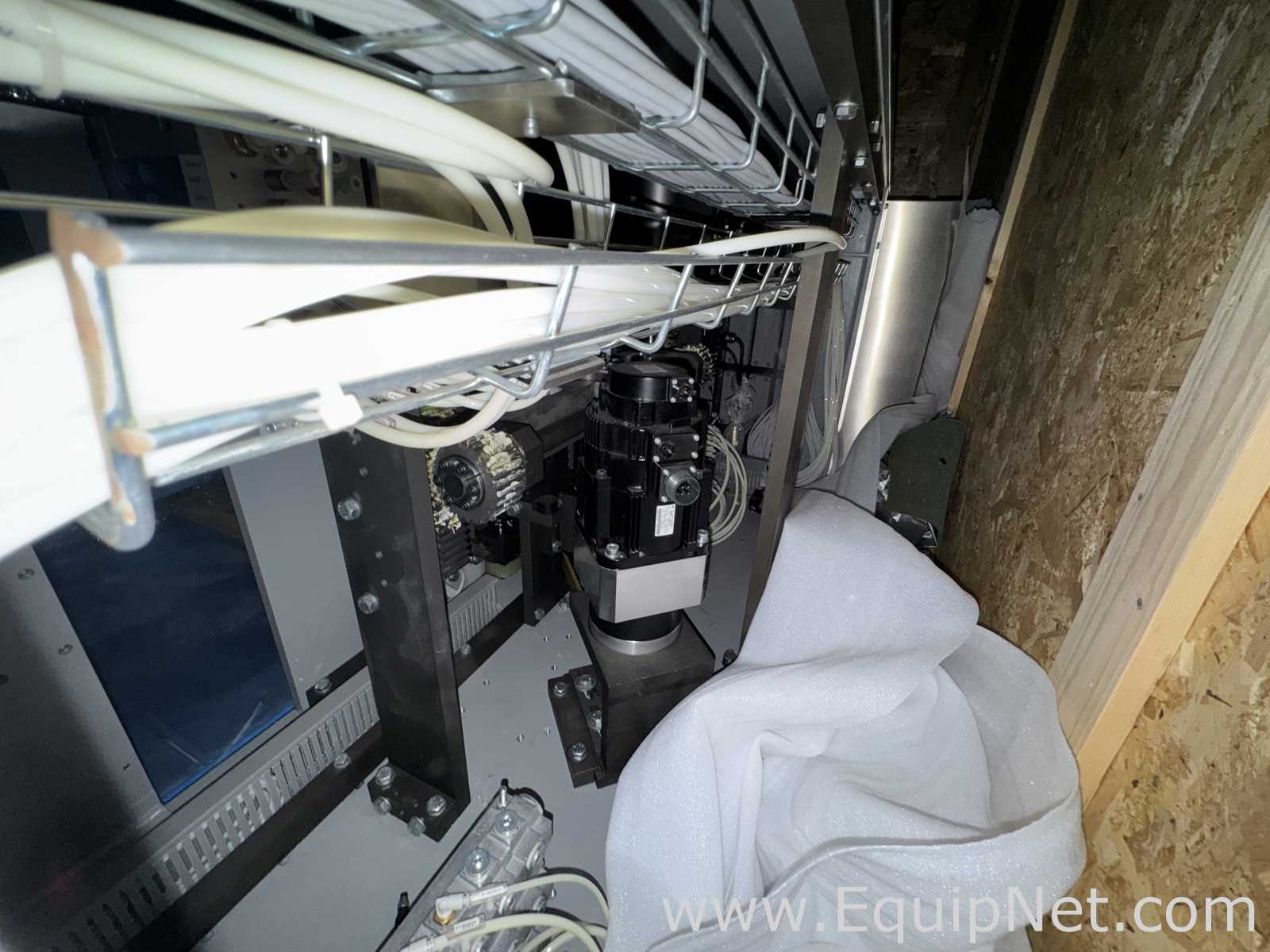

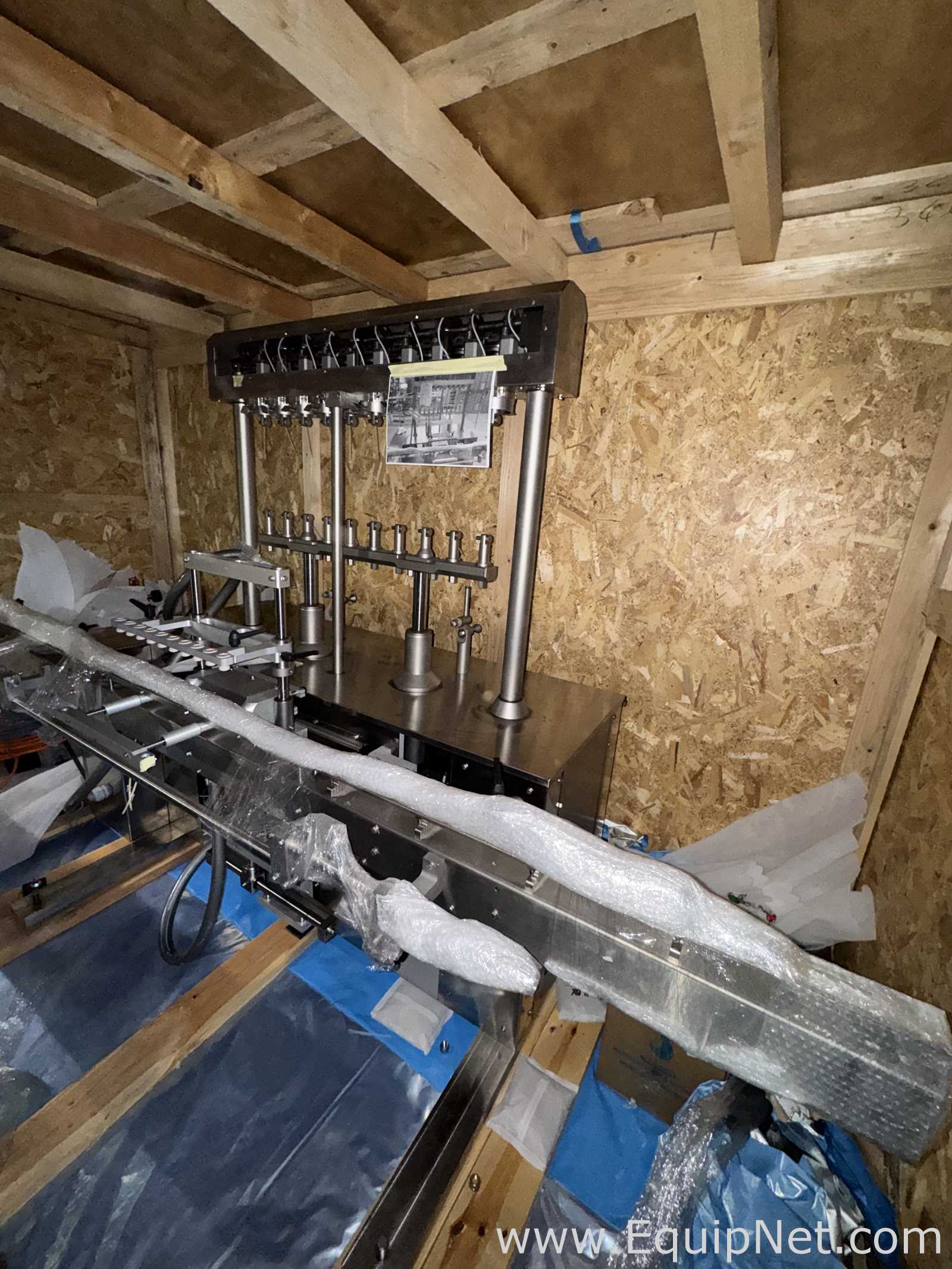

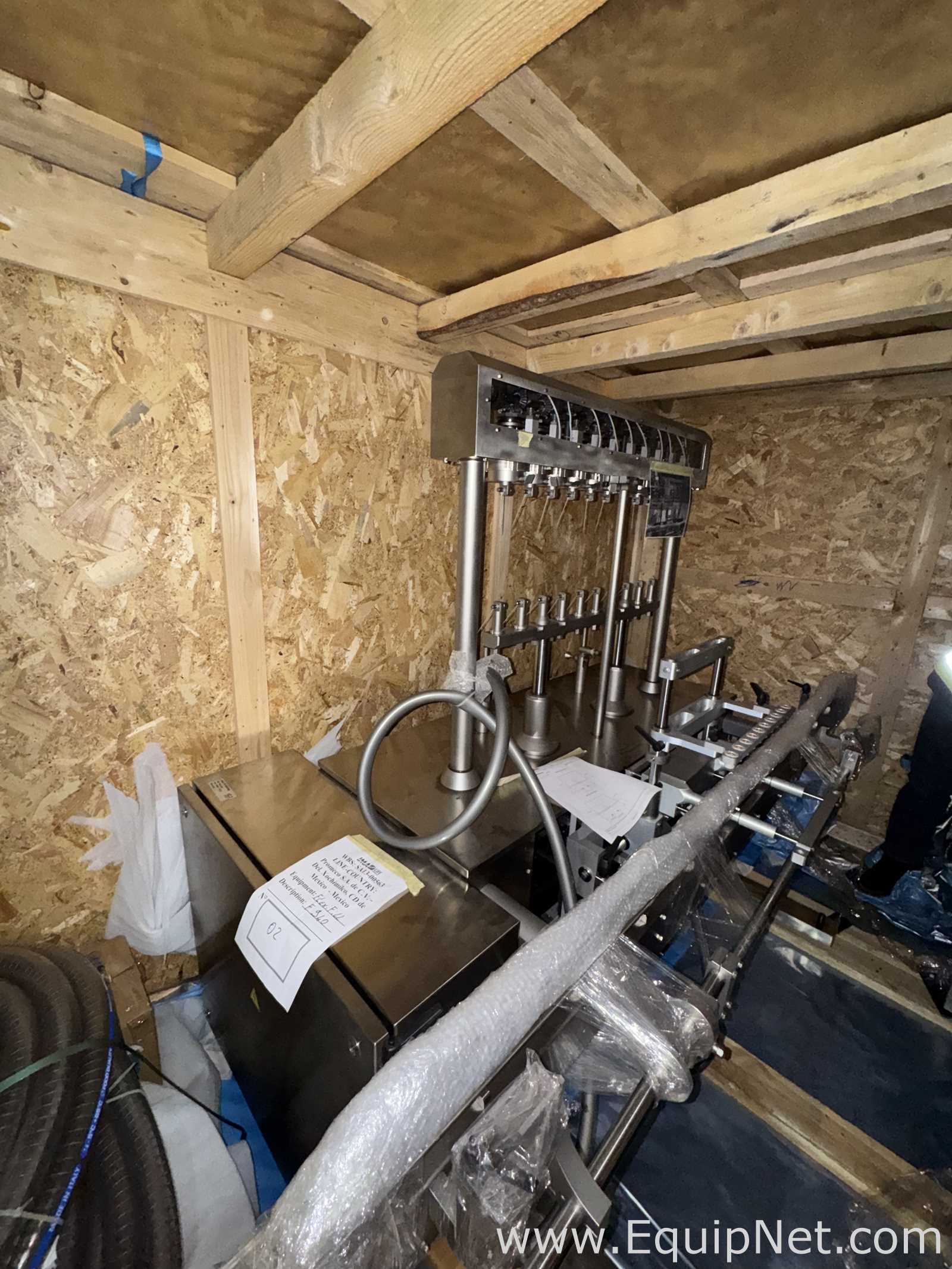

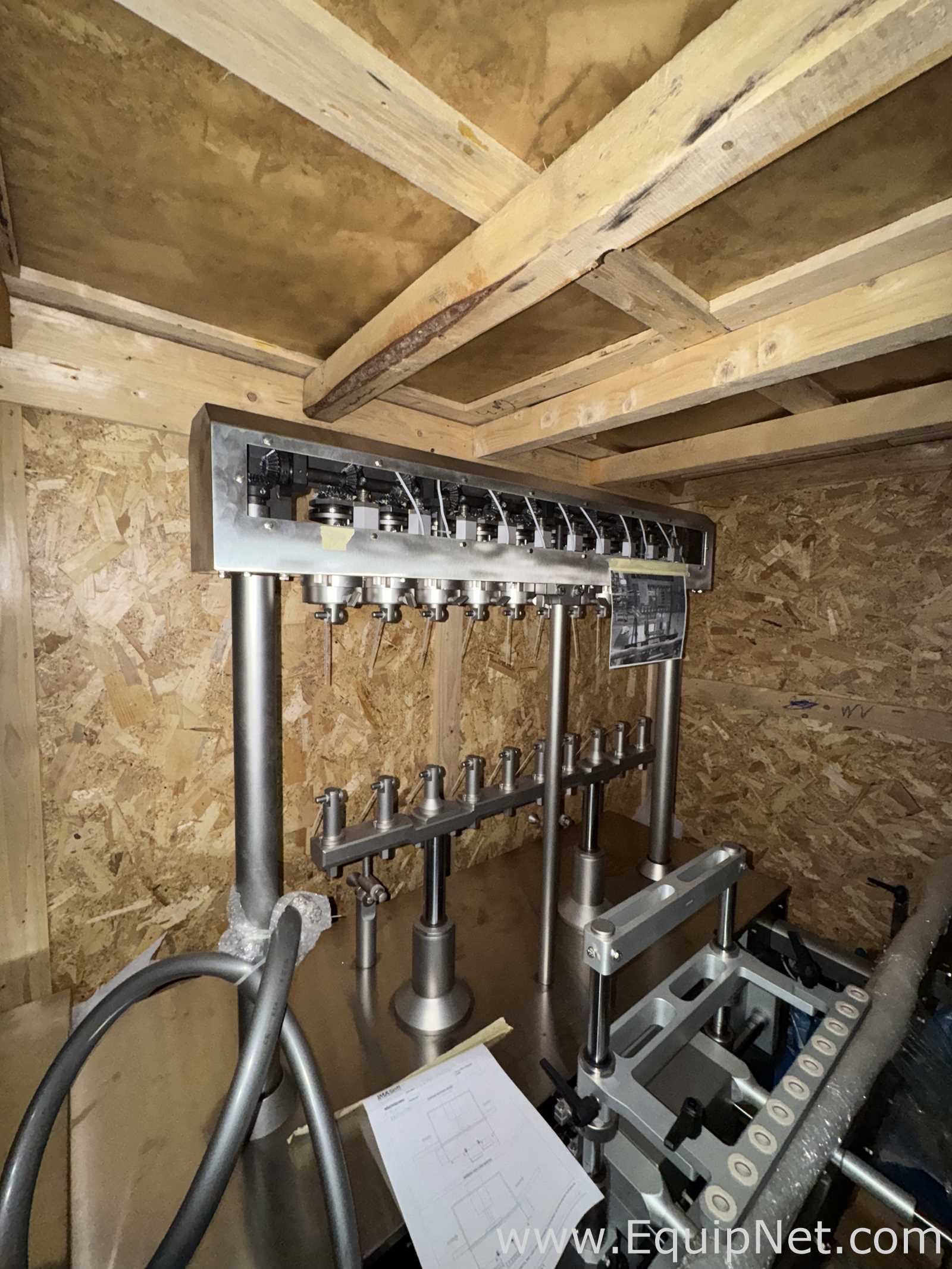

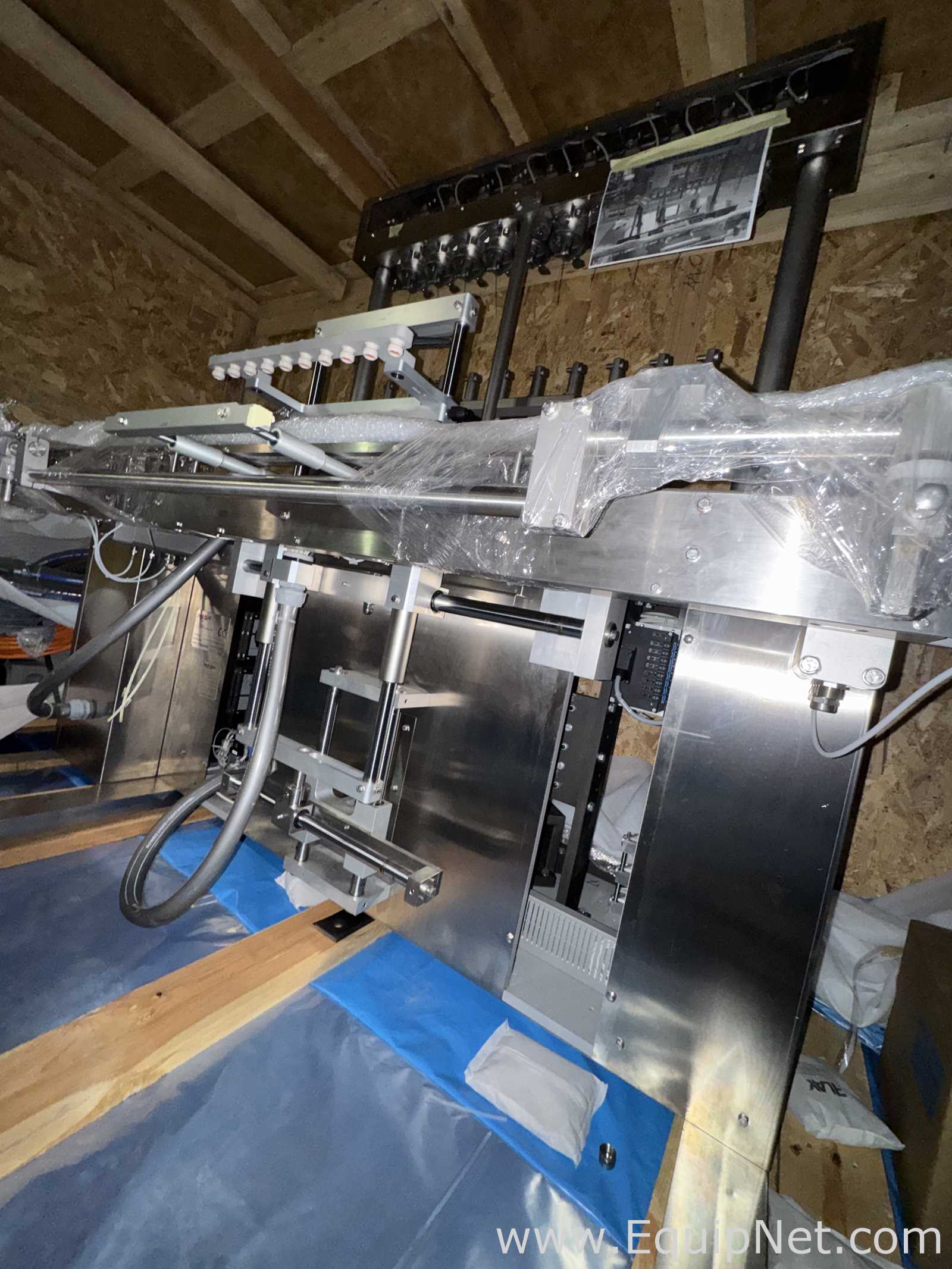

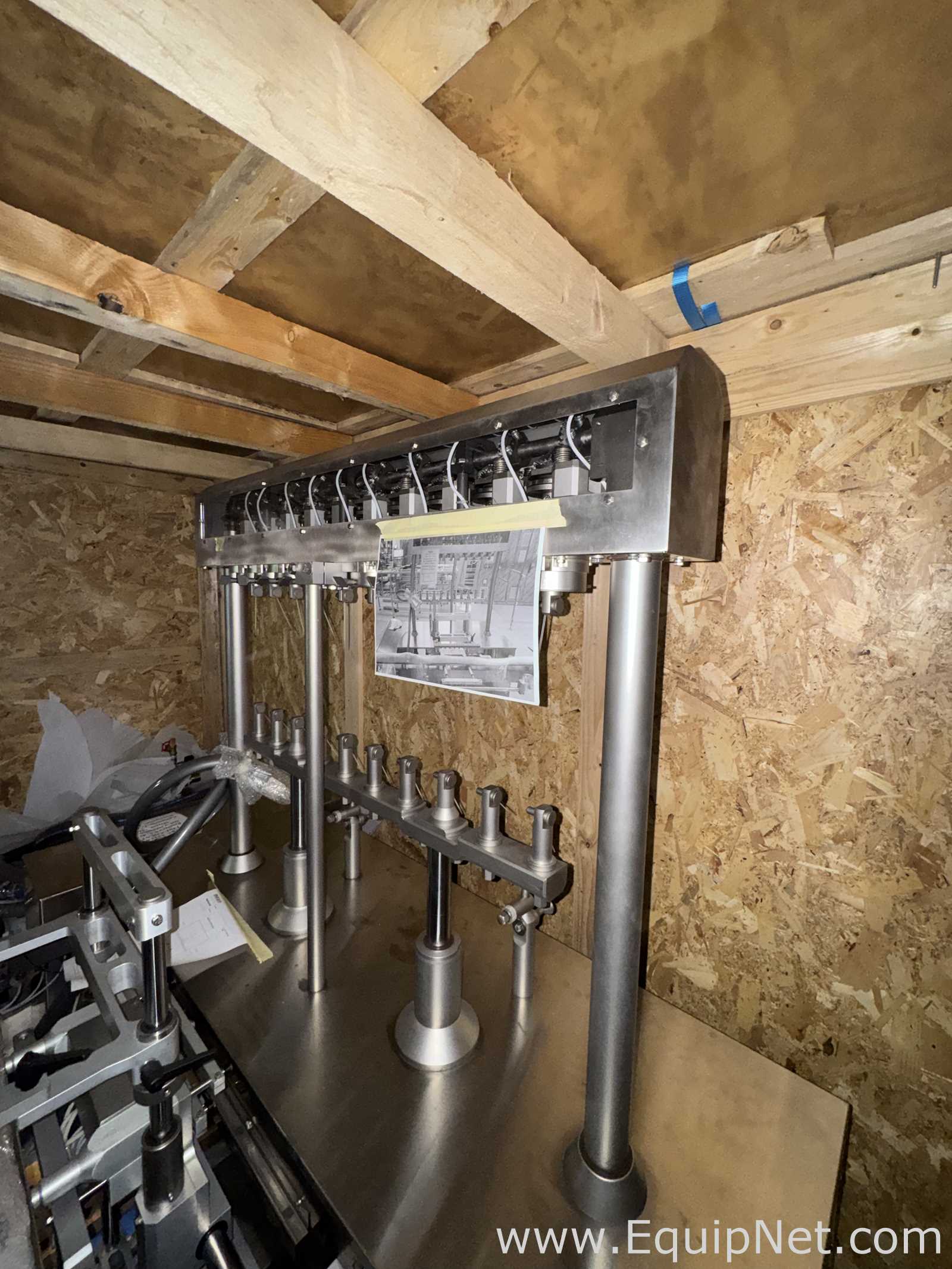

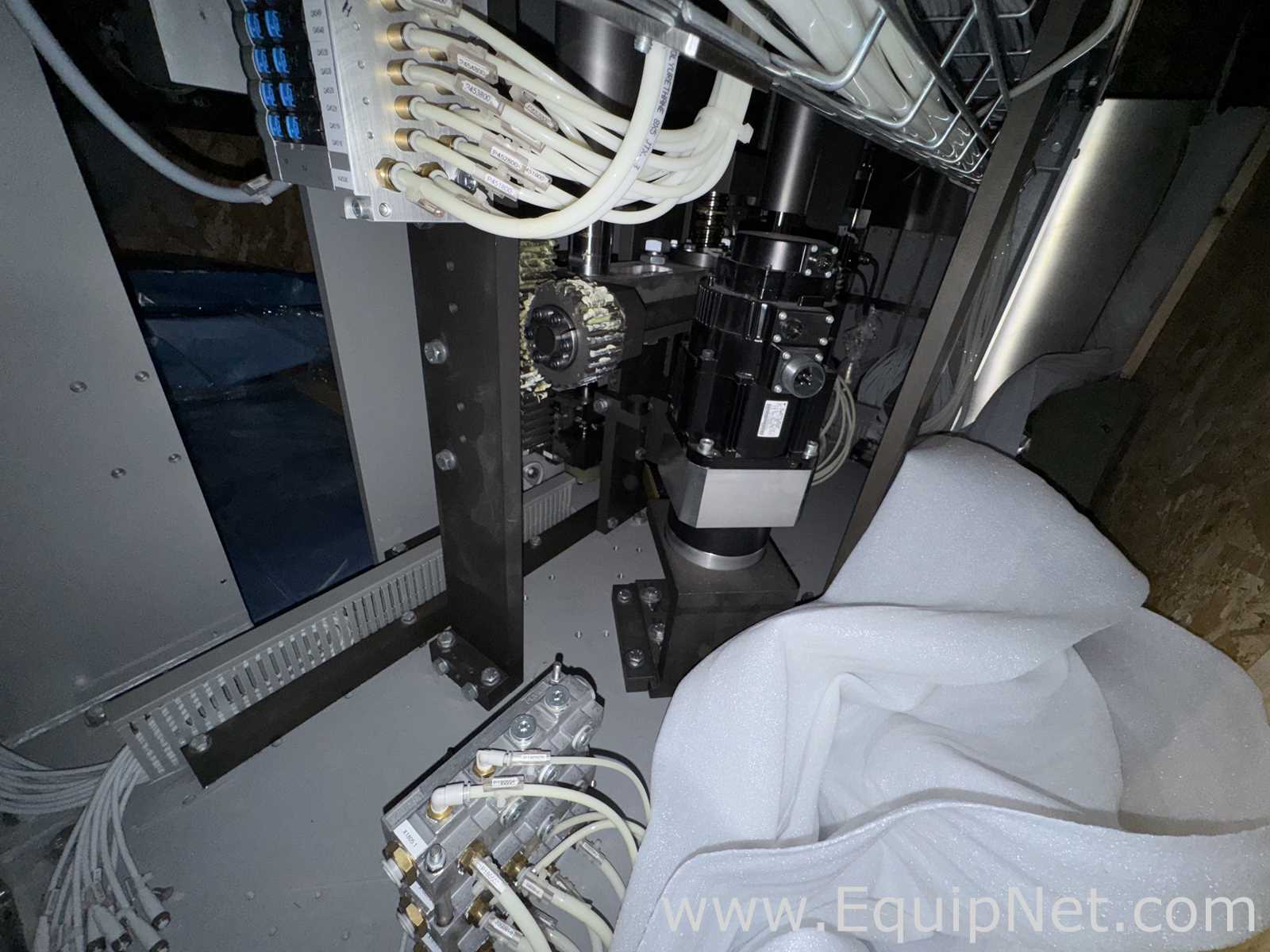

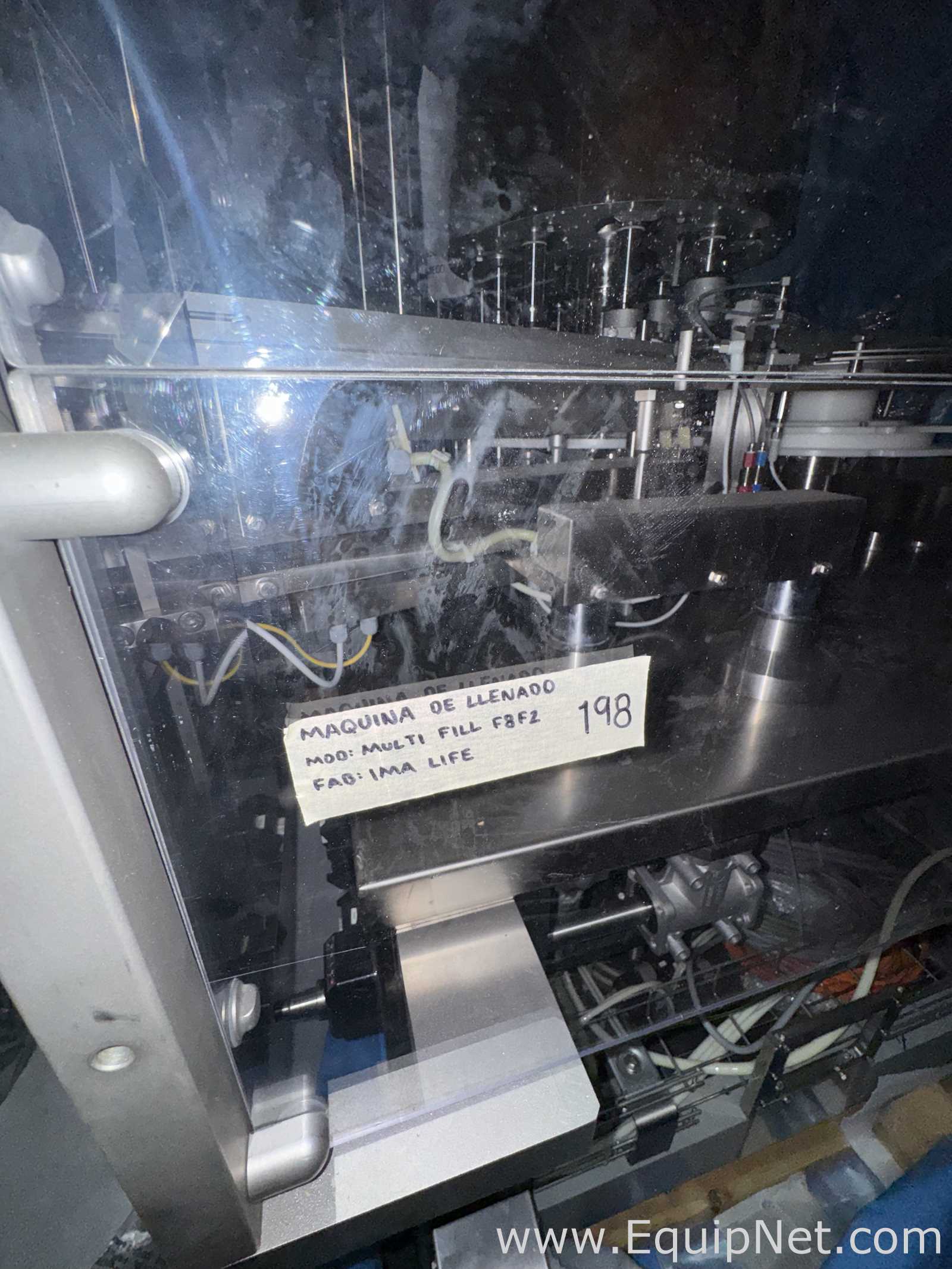

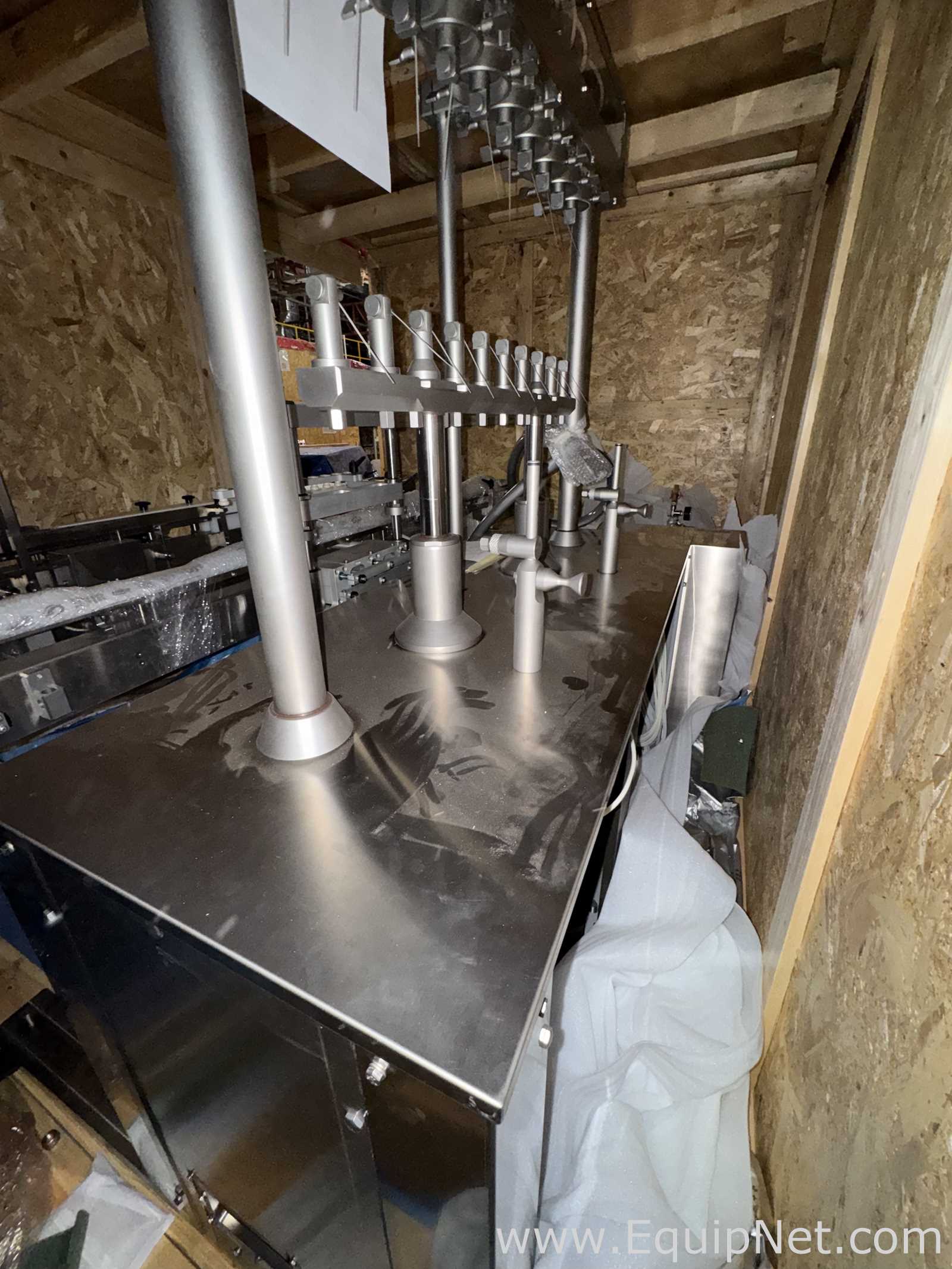

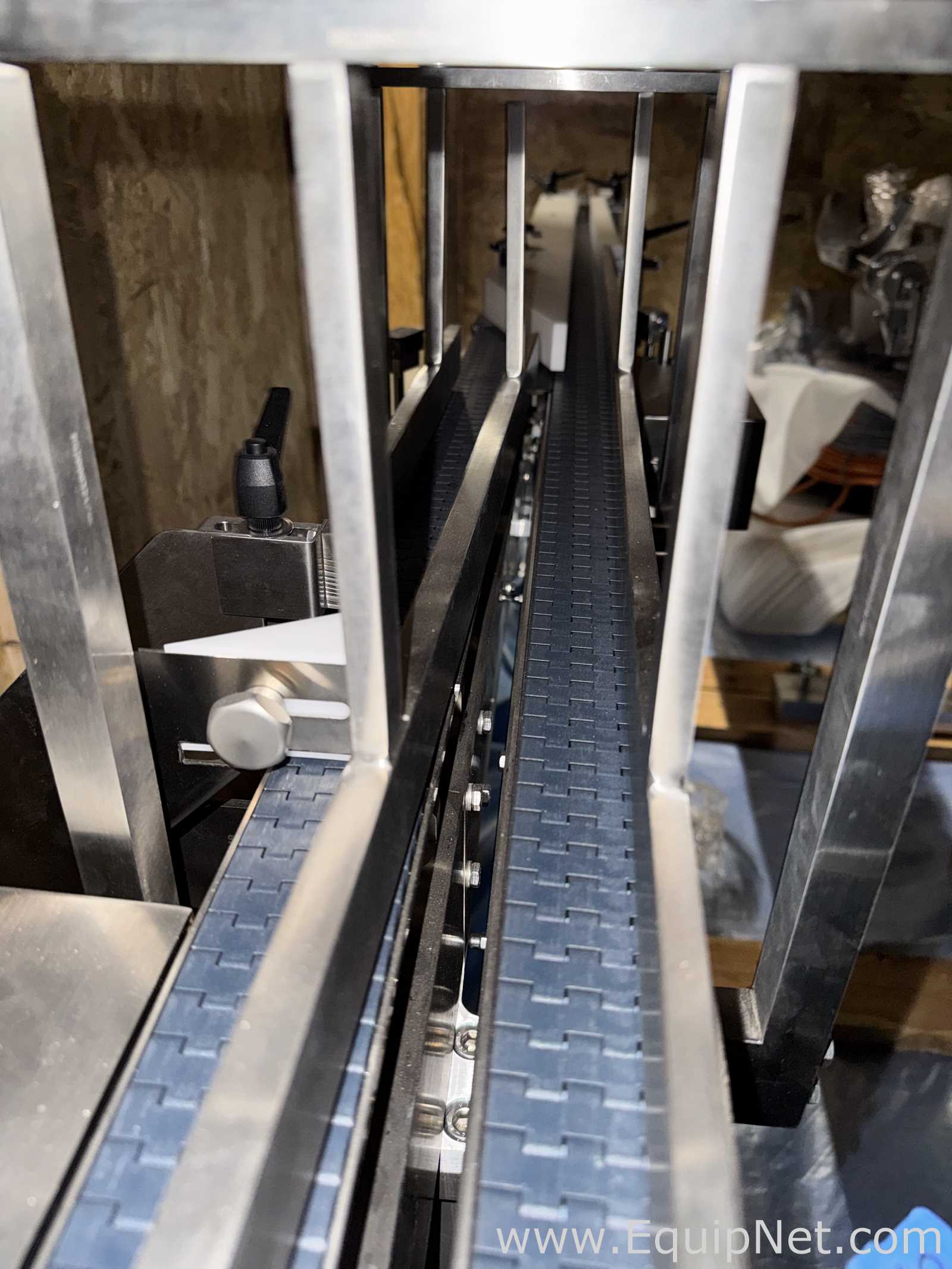

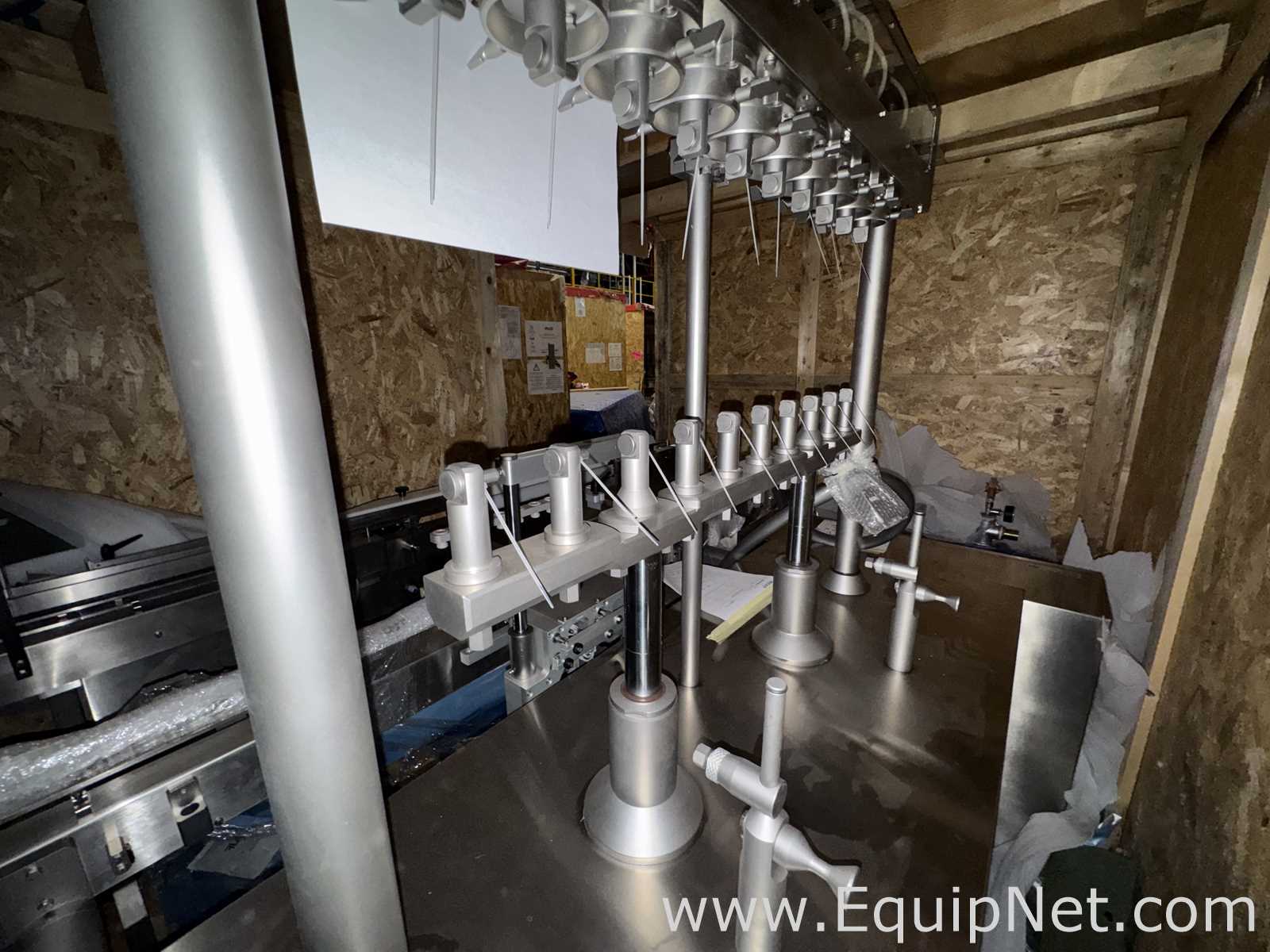

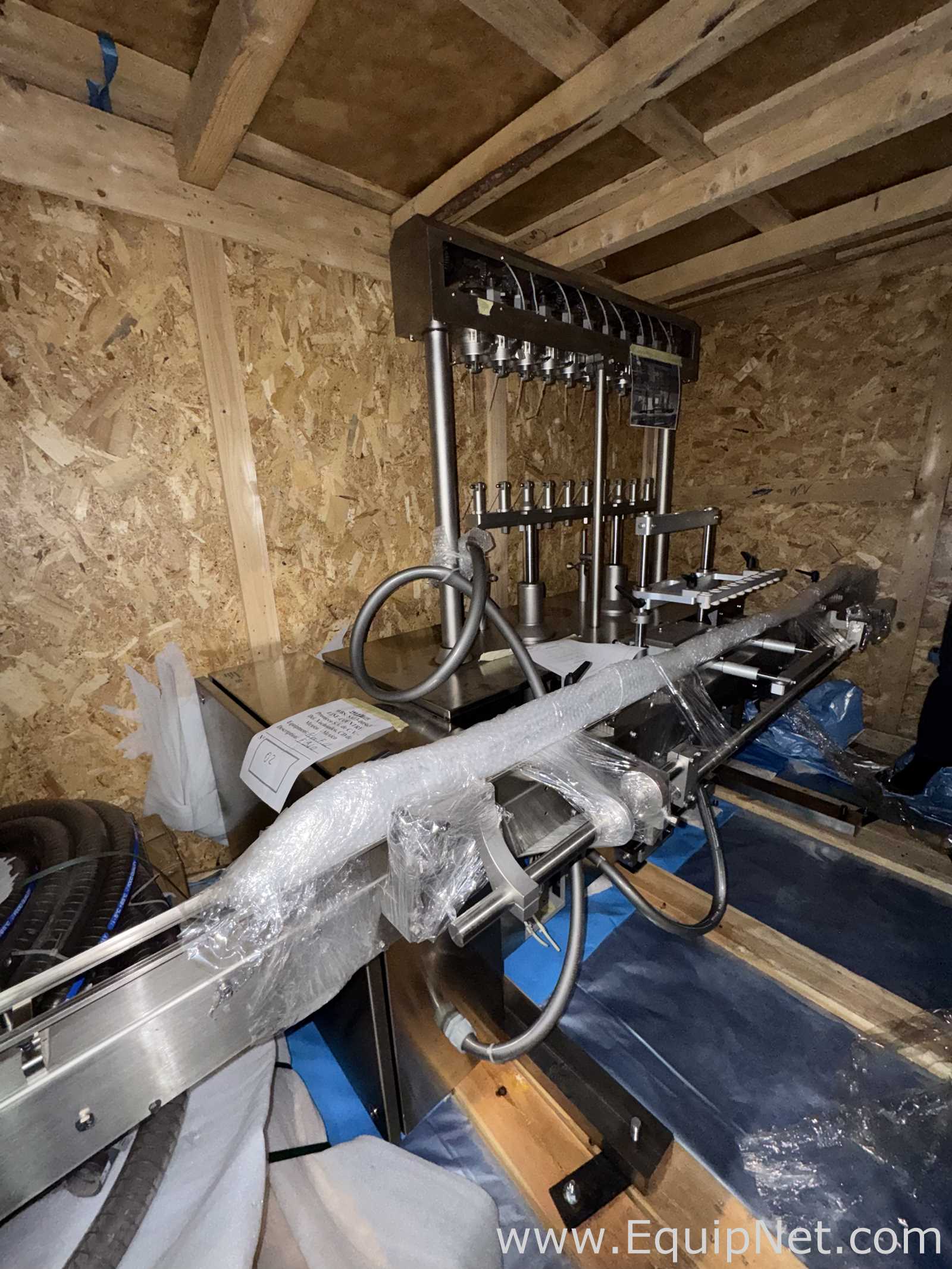

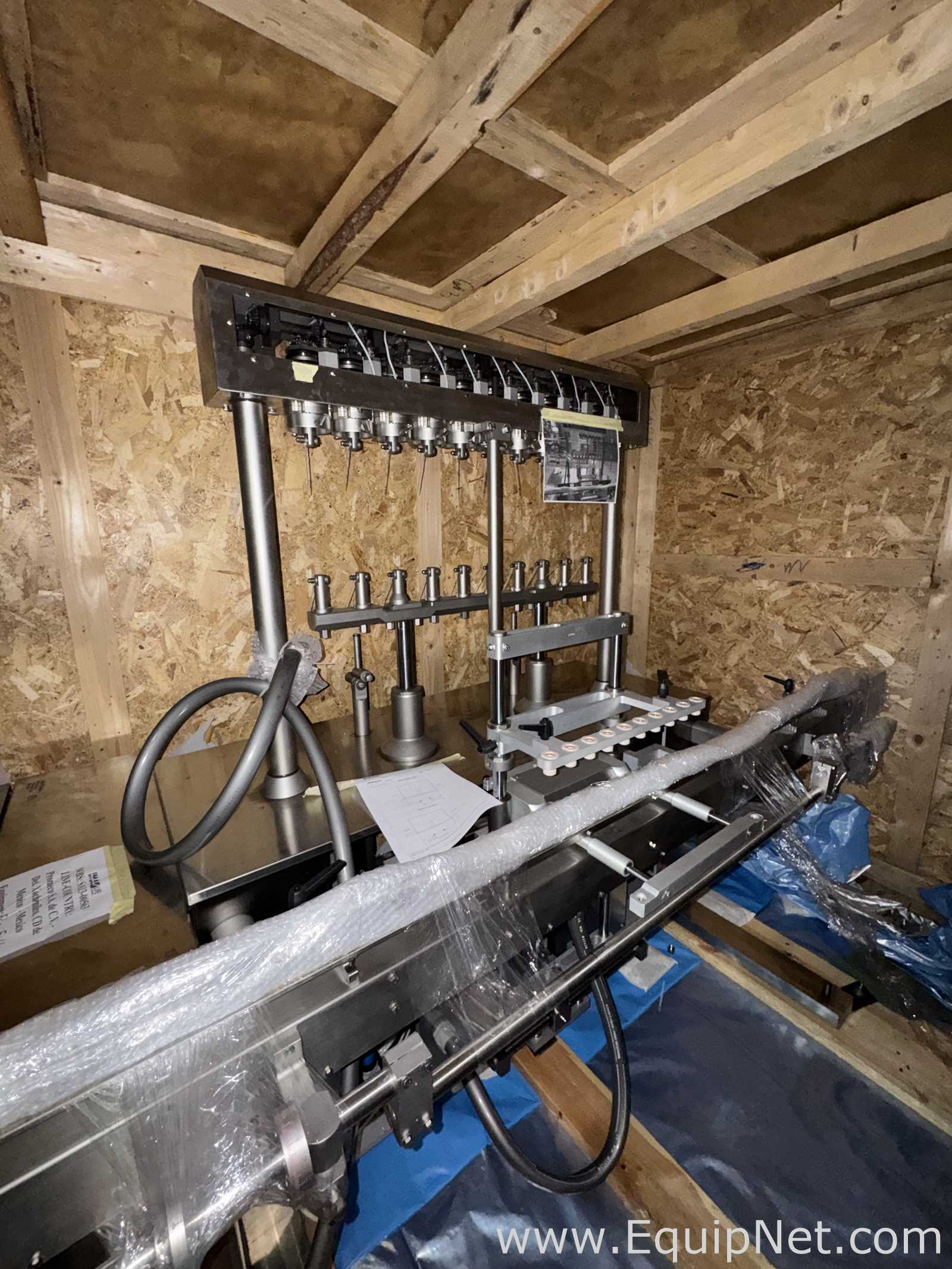

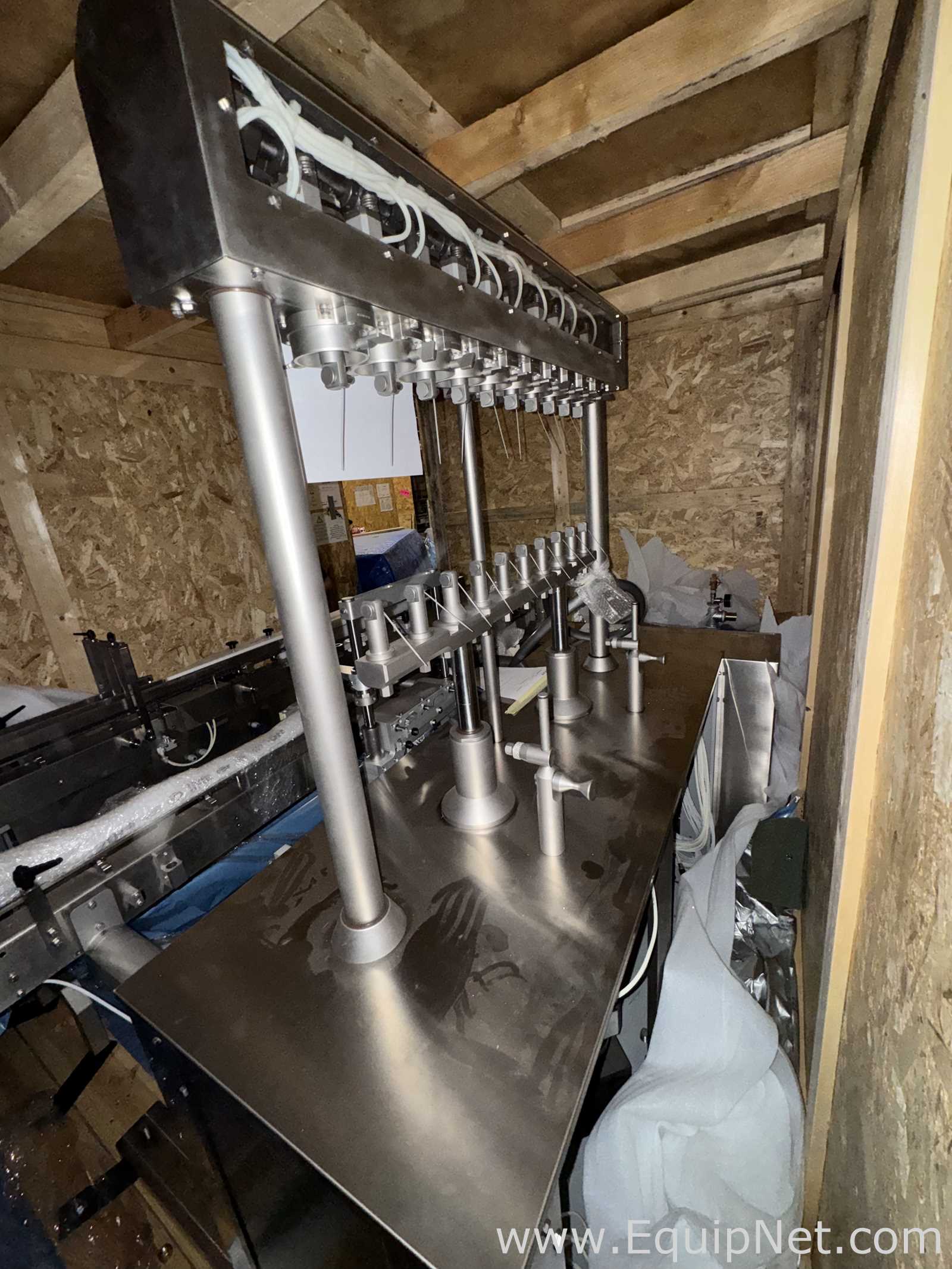

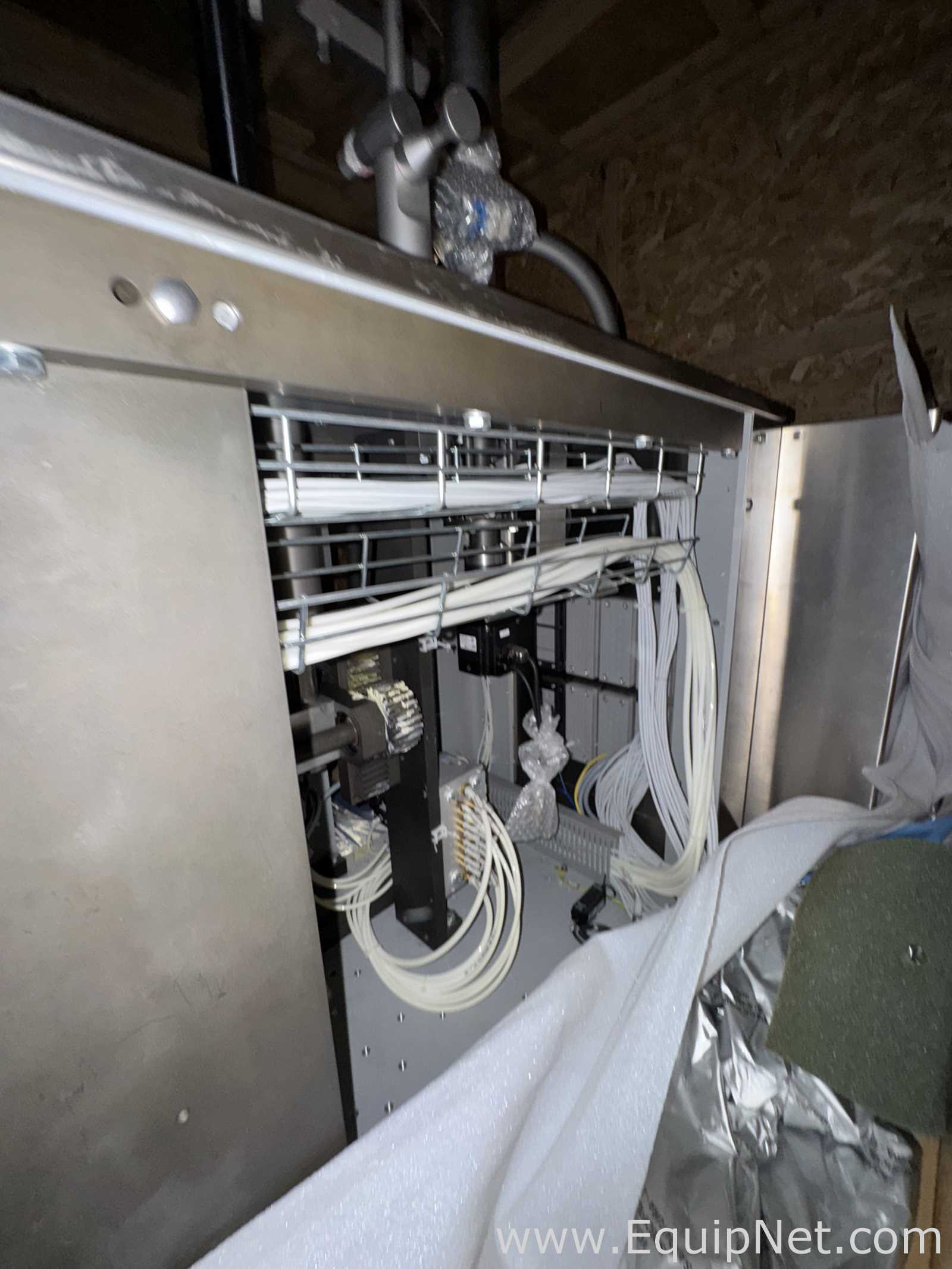

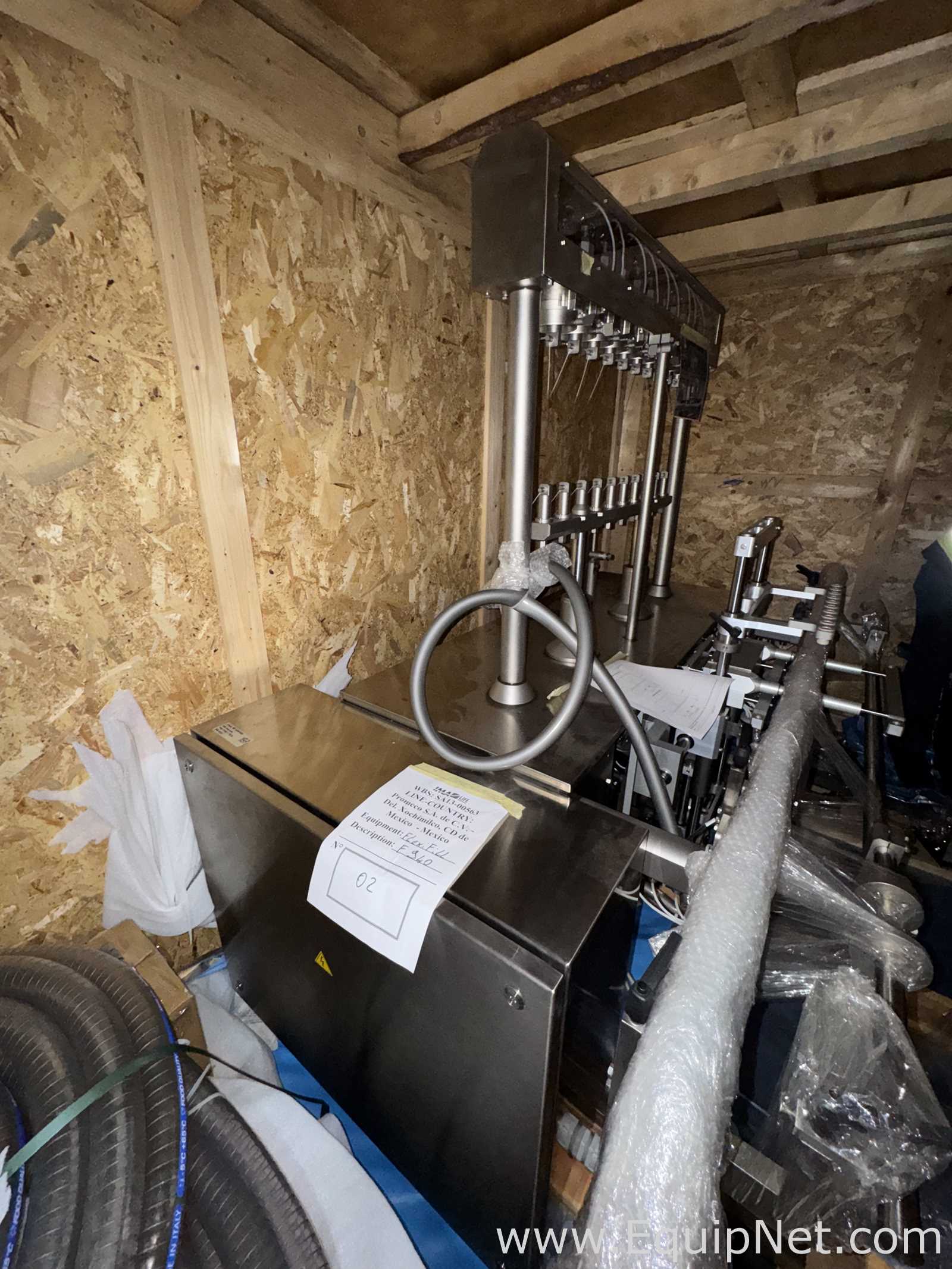

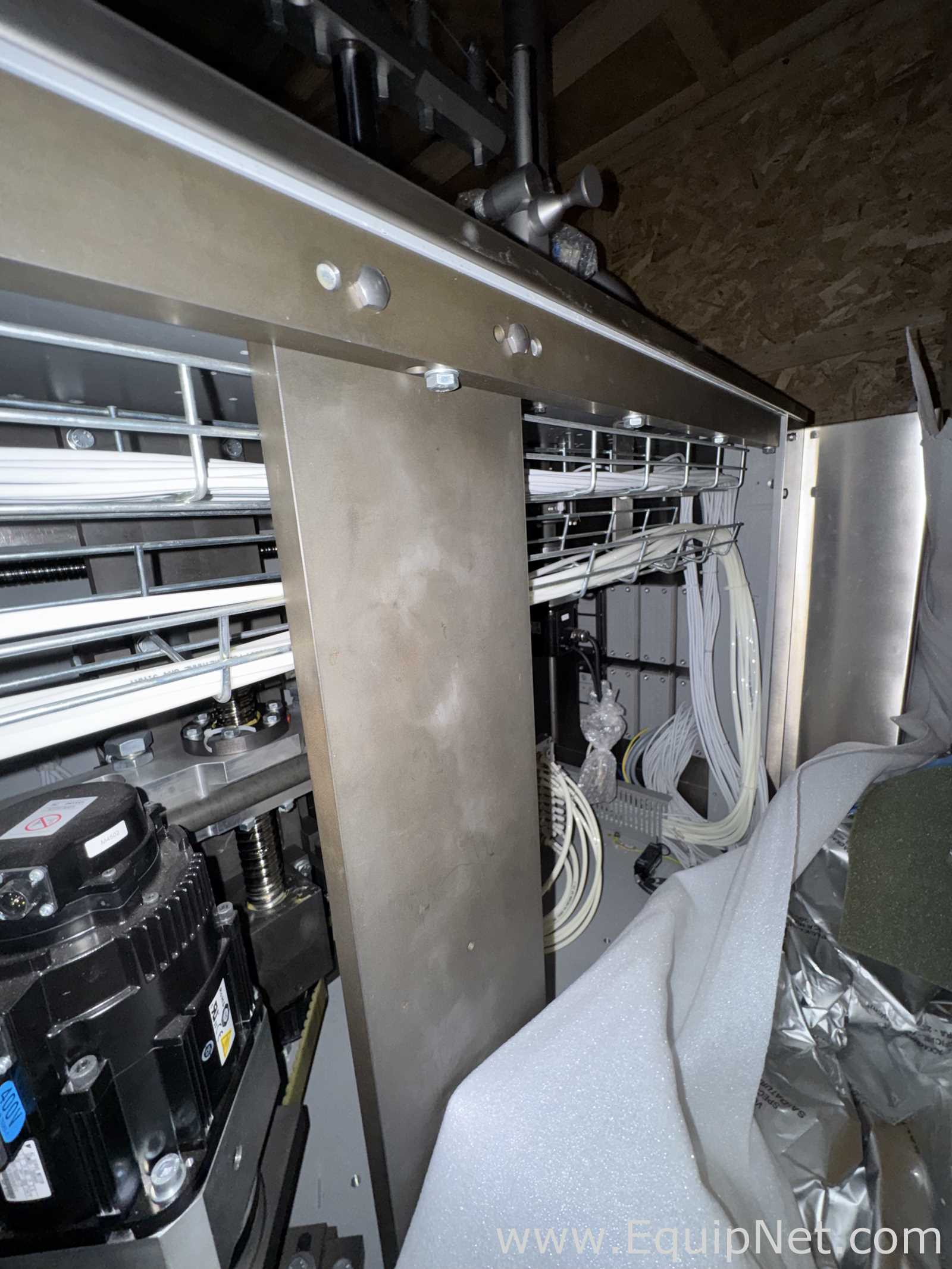

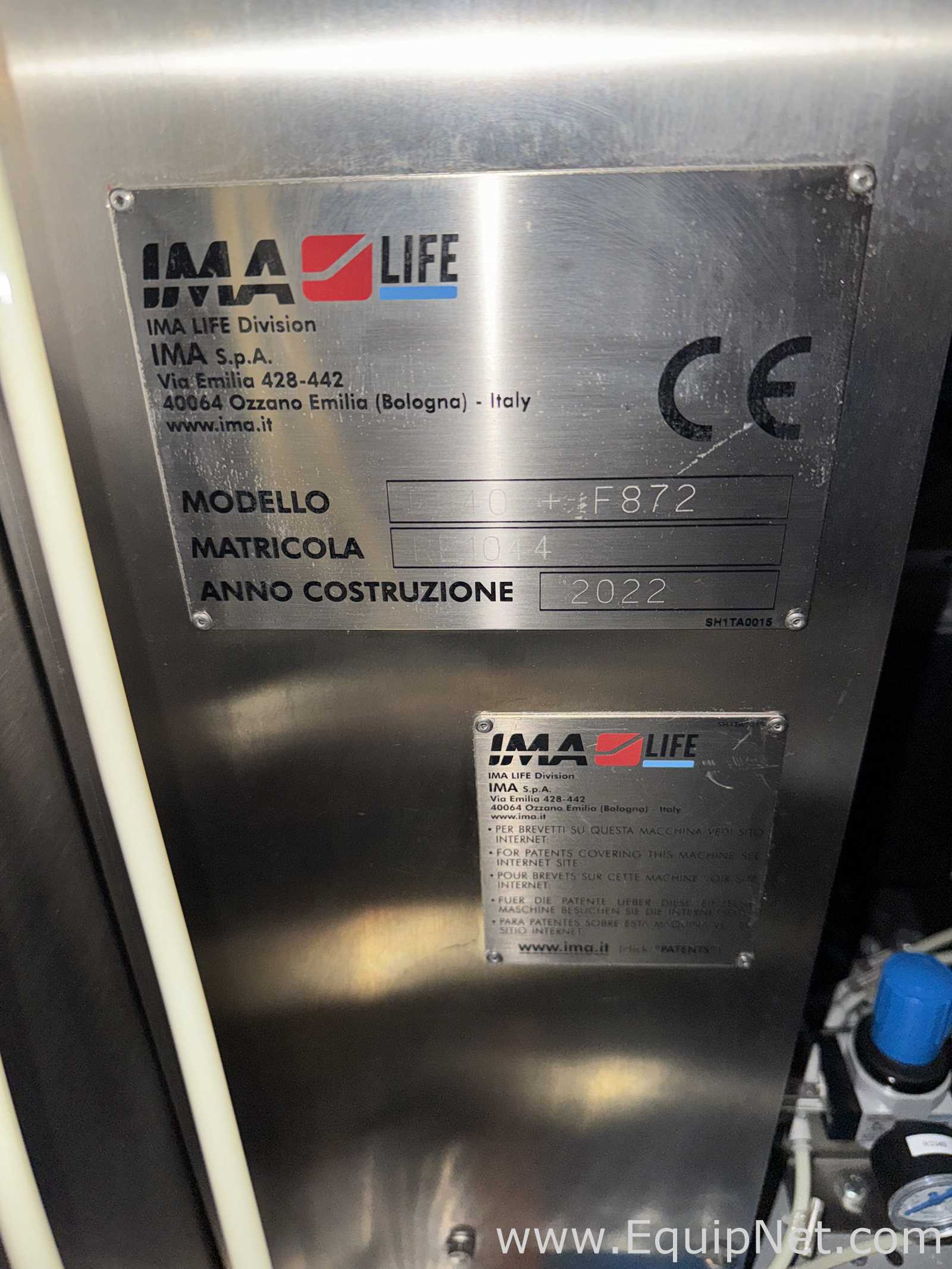

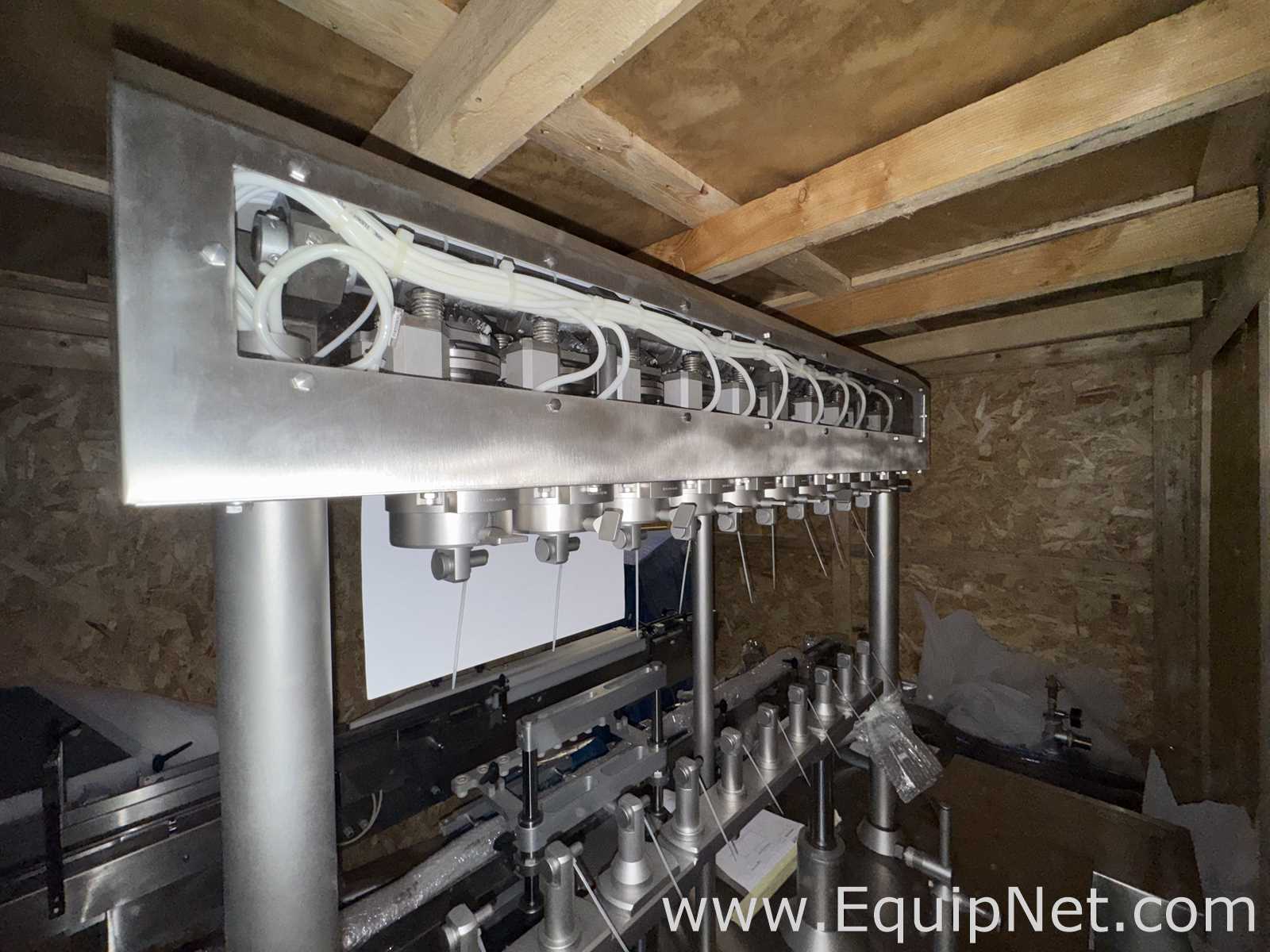

Unused IMA LIFE FlexiFill F940 Bottle Linear Filling Machine
Equipment Description
IMA LIFE FlexiFill F940 Bottle Linear Filling Machine

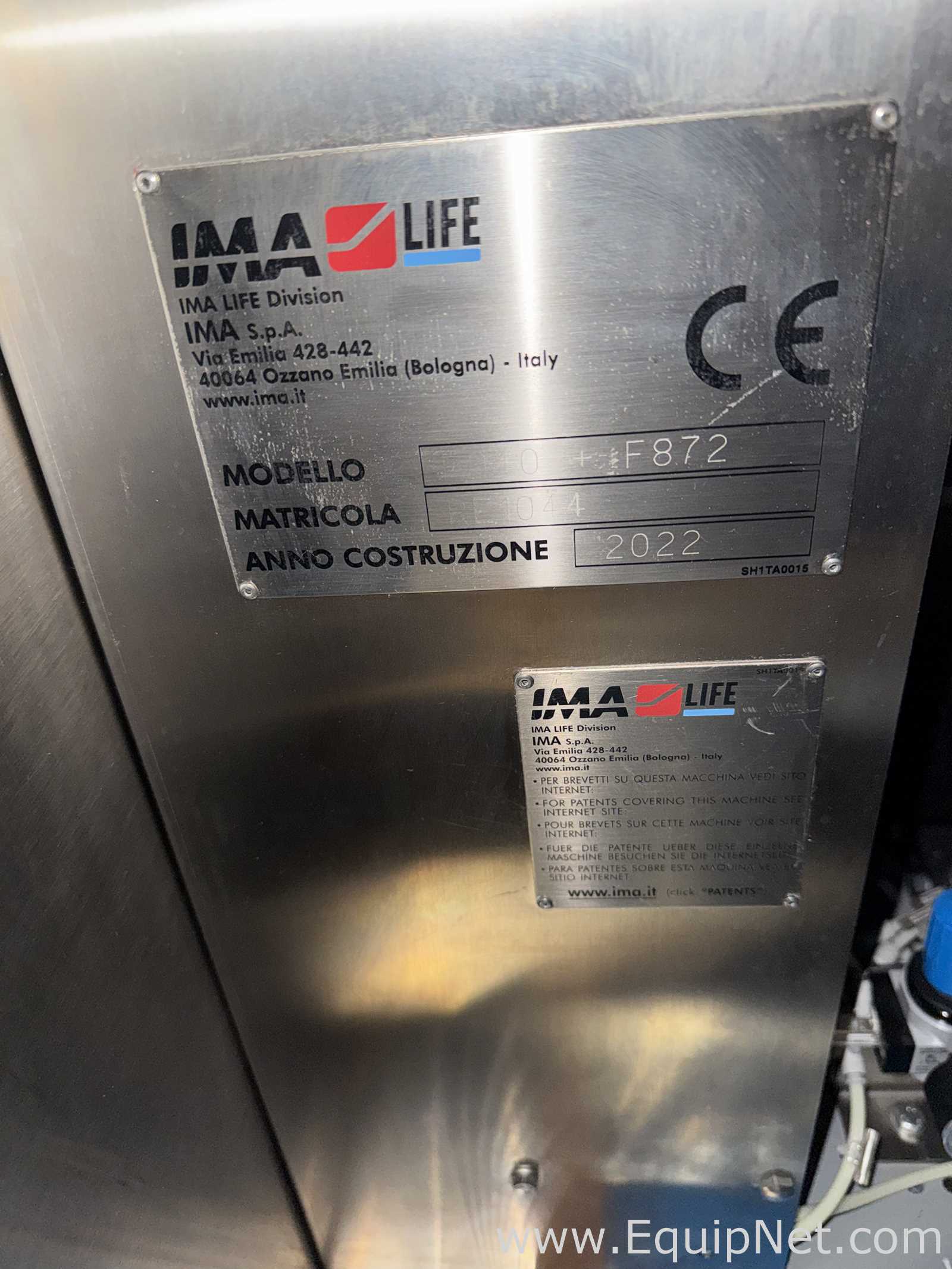

IMA LIFE FlexiFill F940 Bottle Linear Filling Line plus IMA LIFE F872/8T-8V Stoppering and Capsuling Machine plus IMA LIFE F51 Vibratory Dropper Feeder plus IMA LIFE F51 Vibratory Cap Feeder.

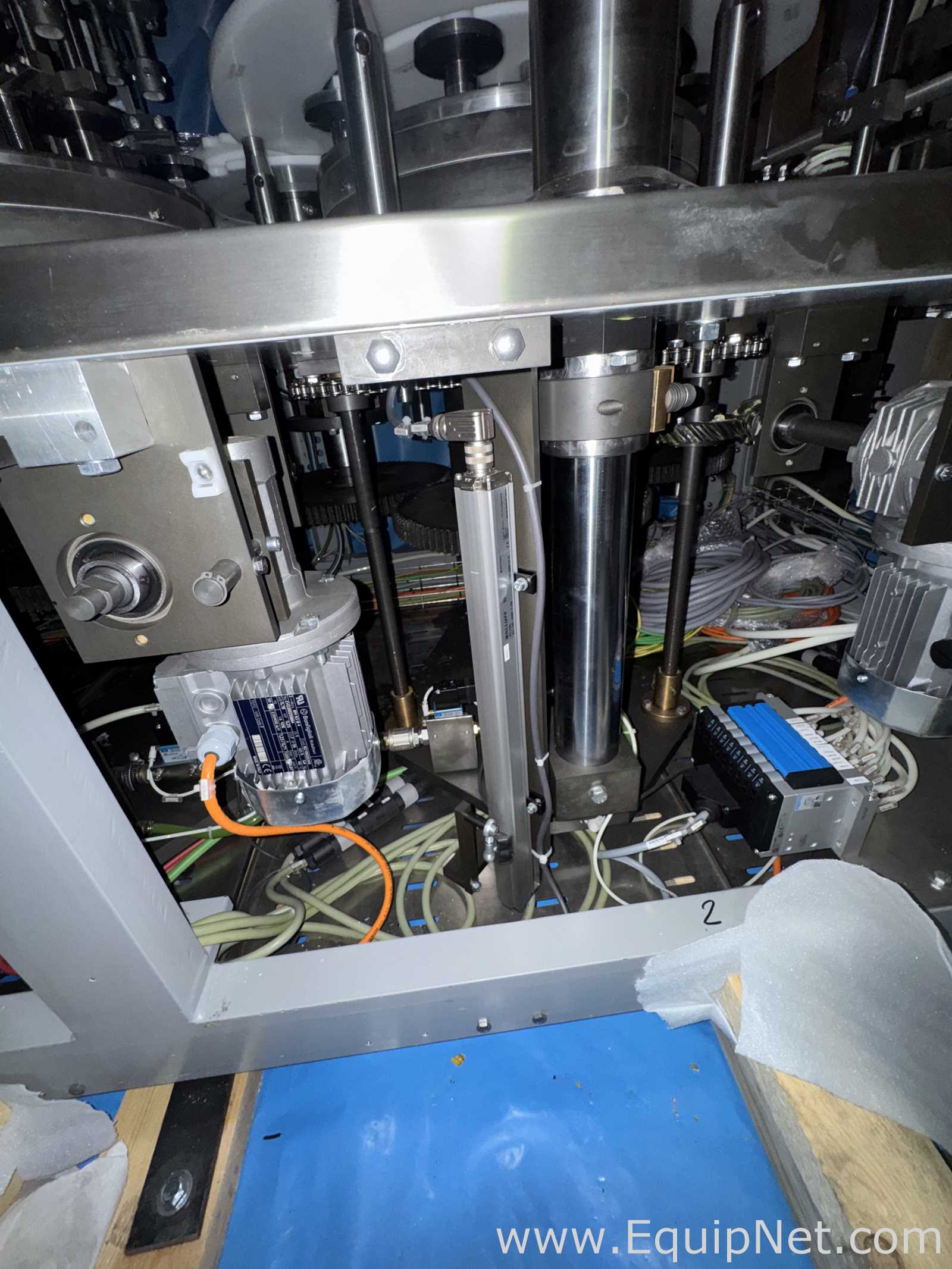

The FlexFill F940 is a linear machine with continuous movement consisting of several operating stations connected to each other and set out in succession along the vial feed path. The operating stations are divided into groups, each of which is a module of the FlexiFill F940.

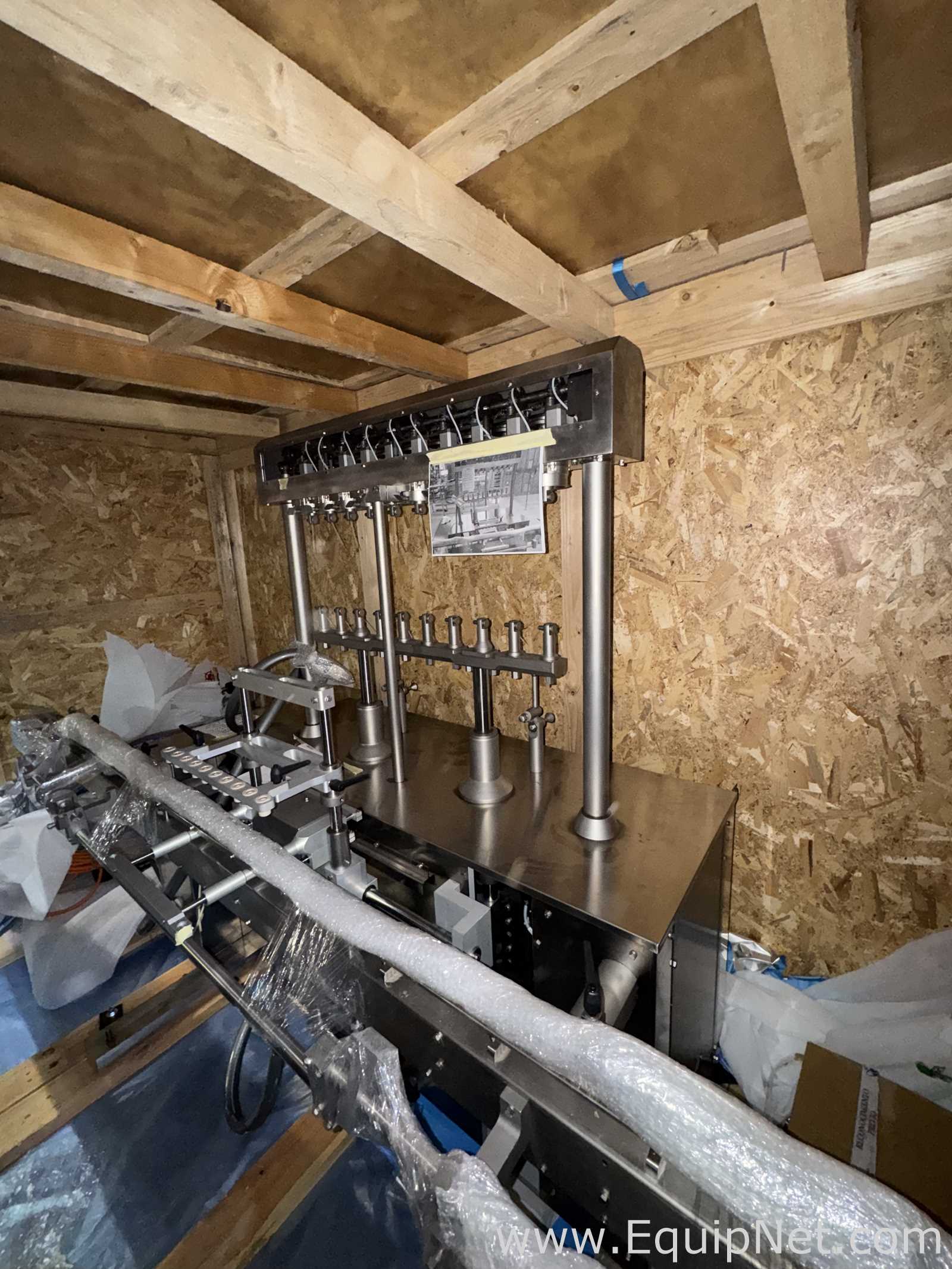

Filling Module (F940): For the filling of glass or plastic containers with liquid product.

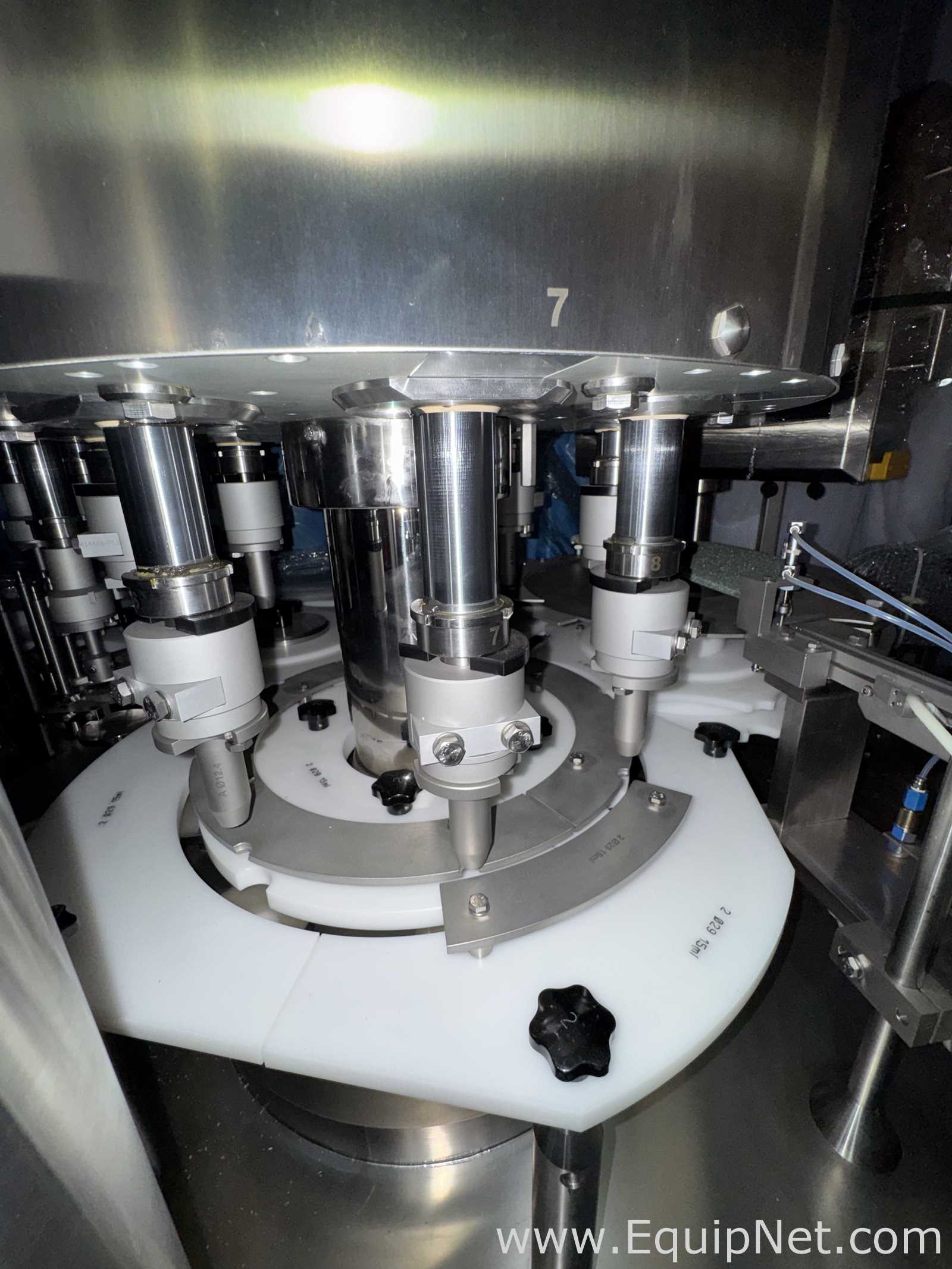

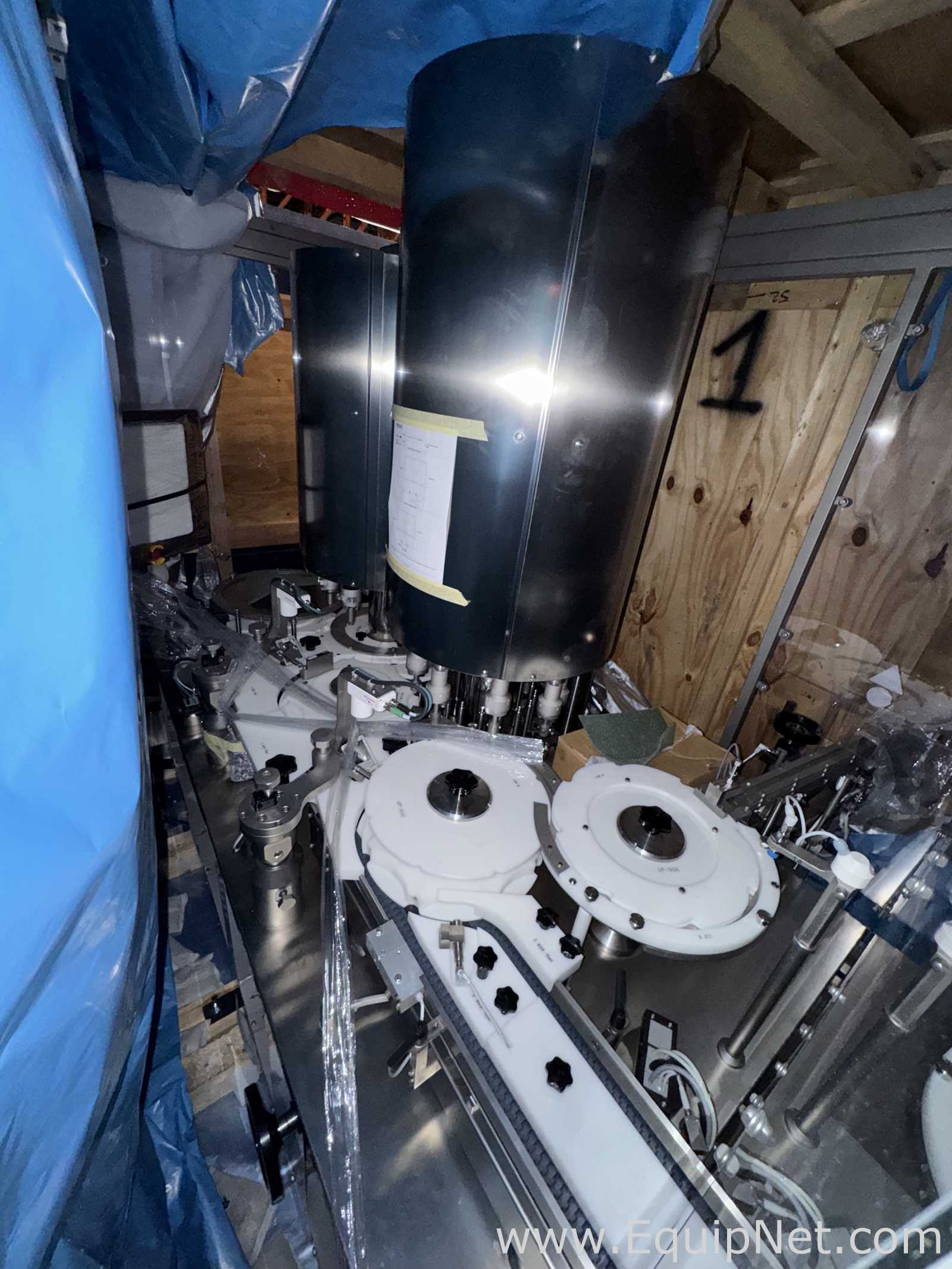

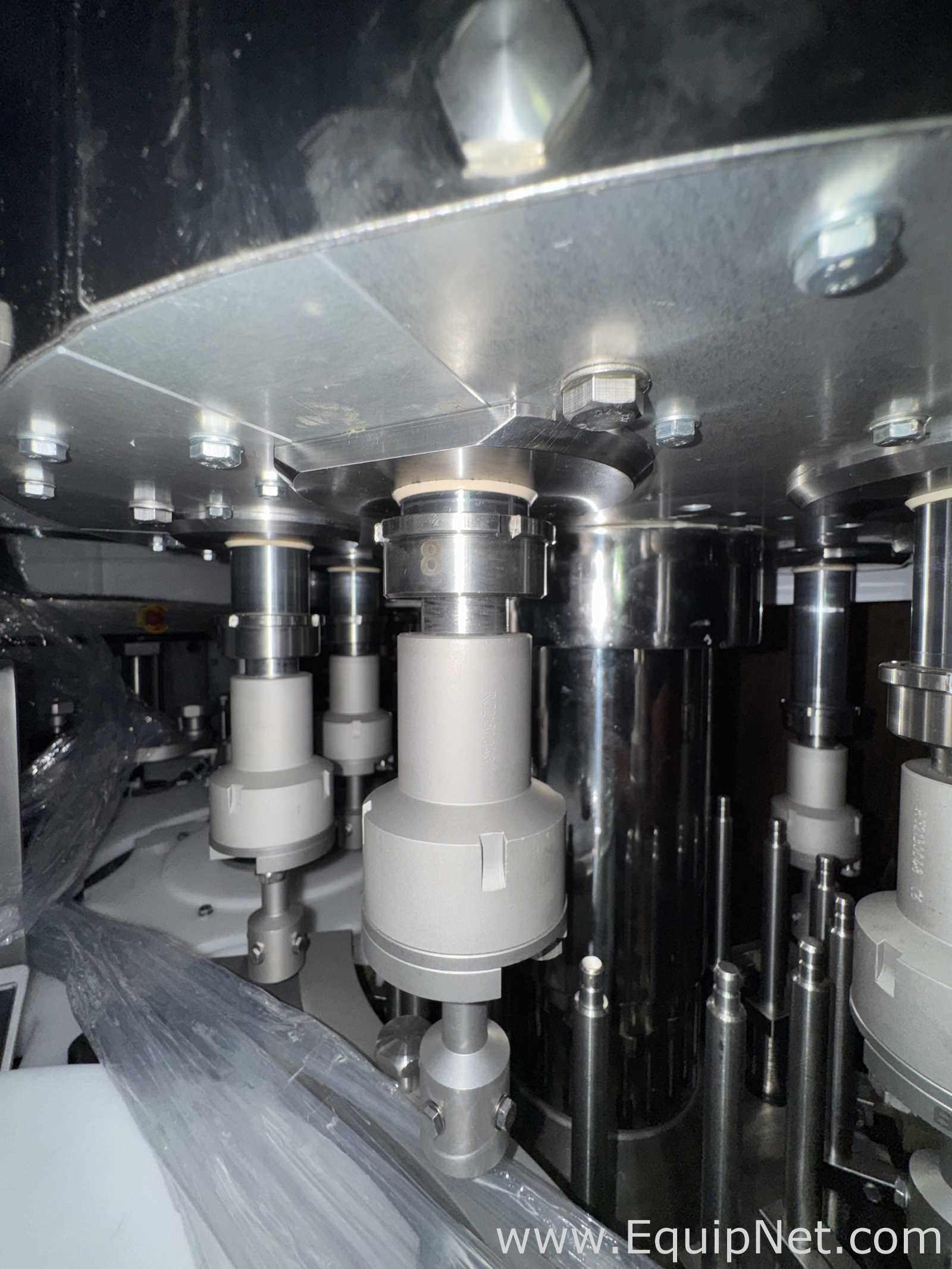

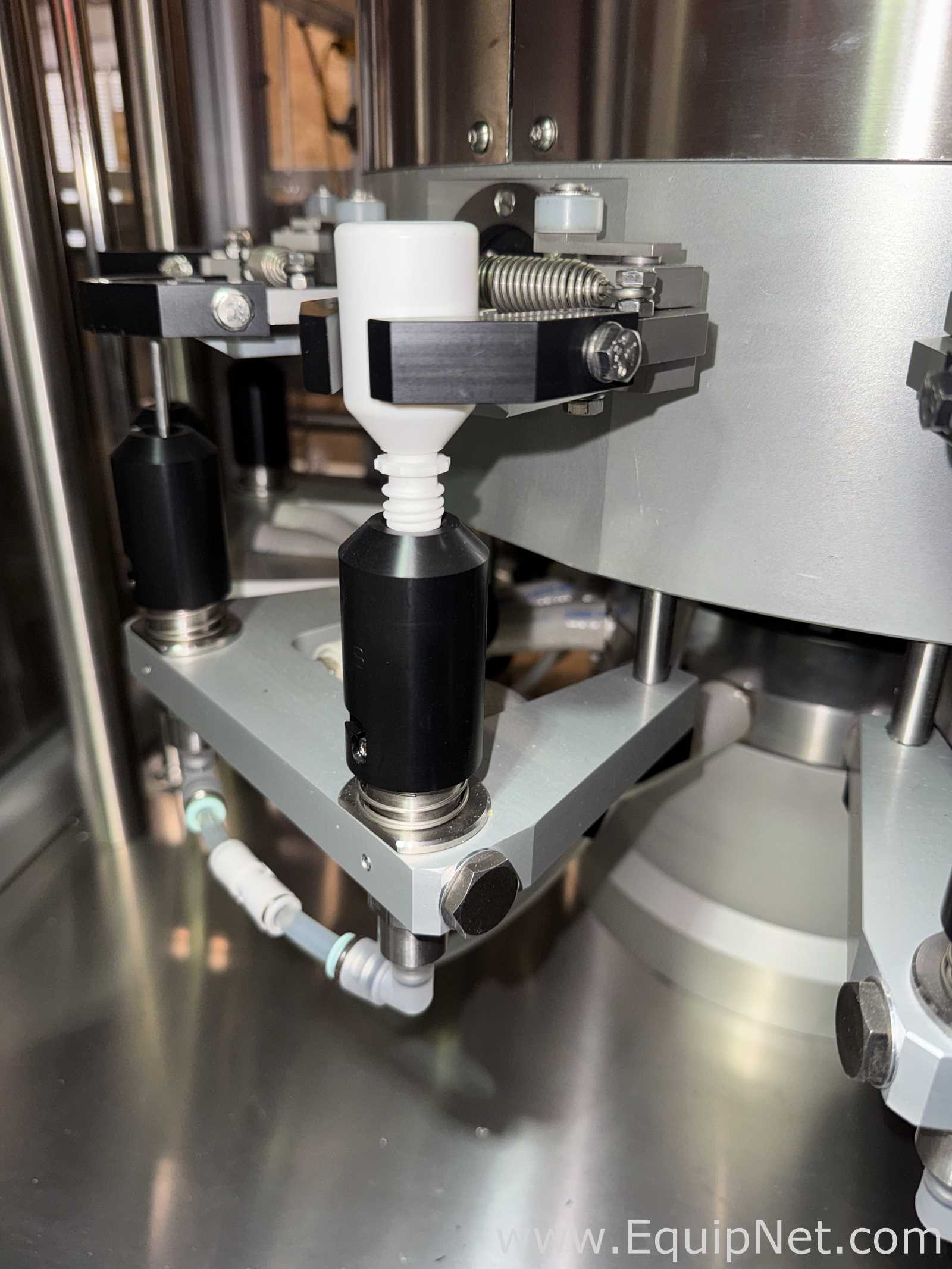

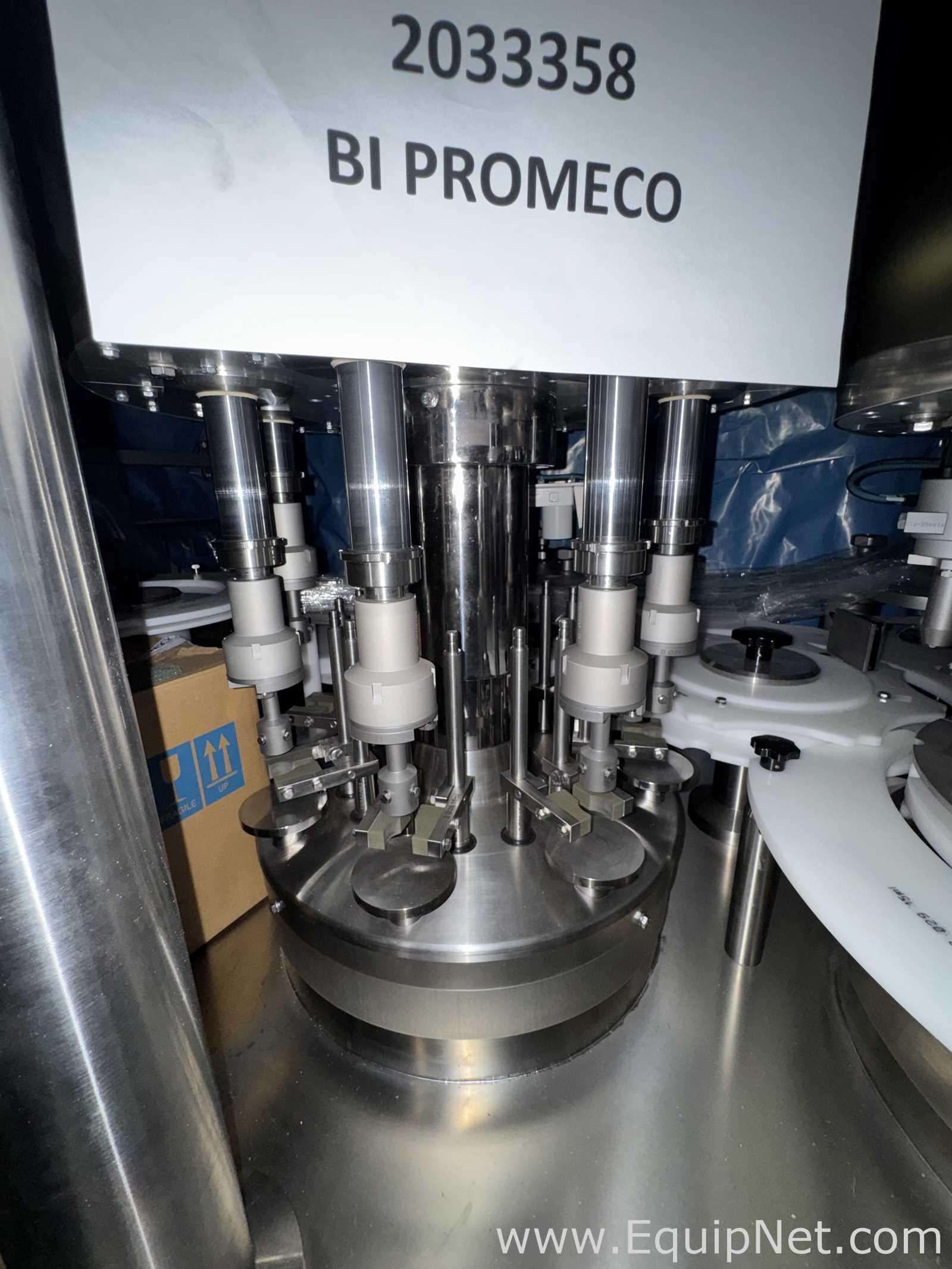

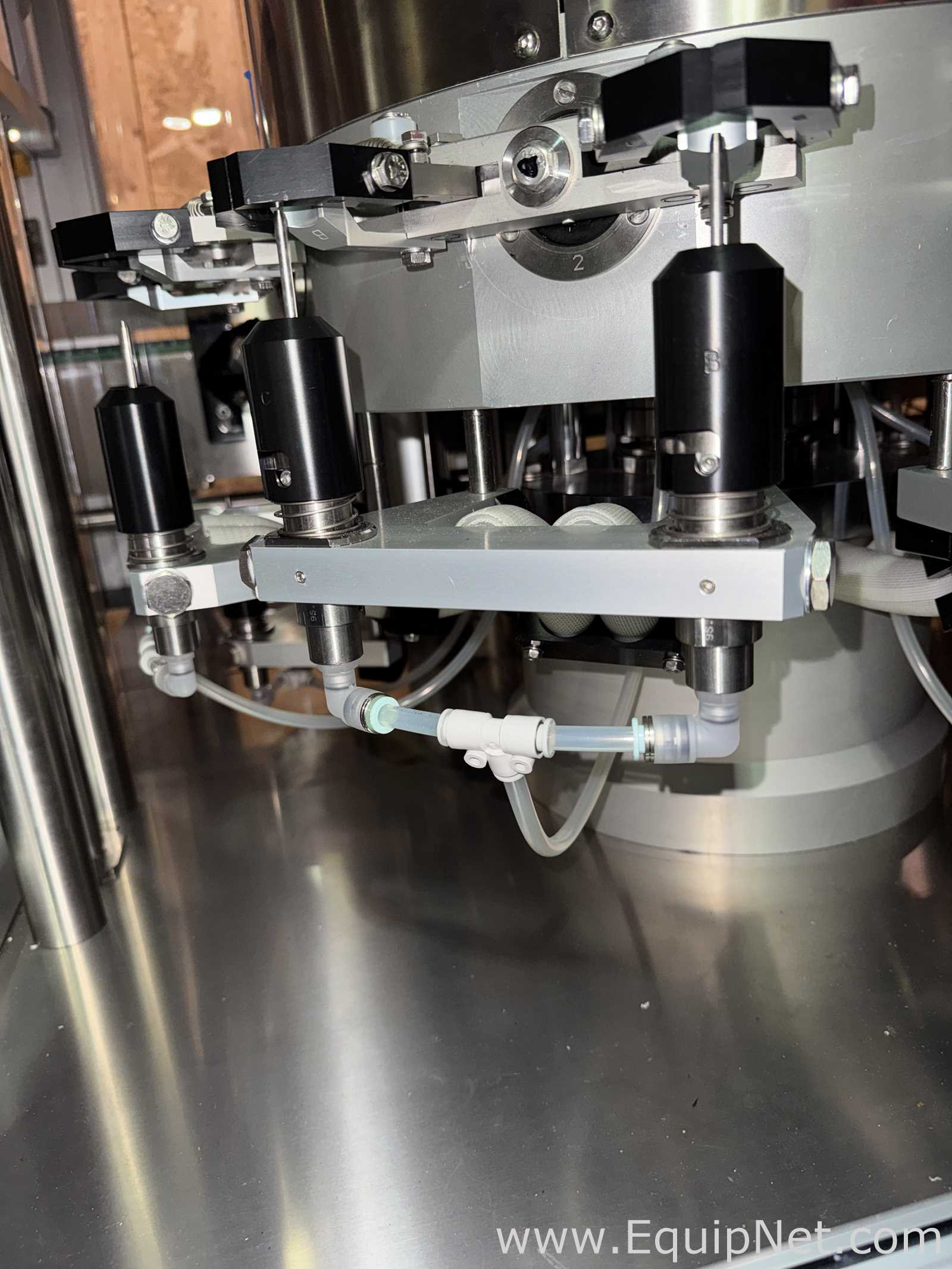

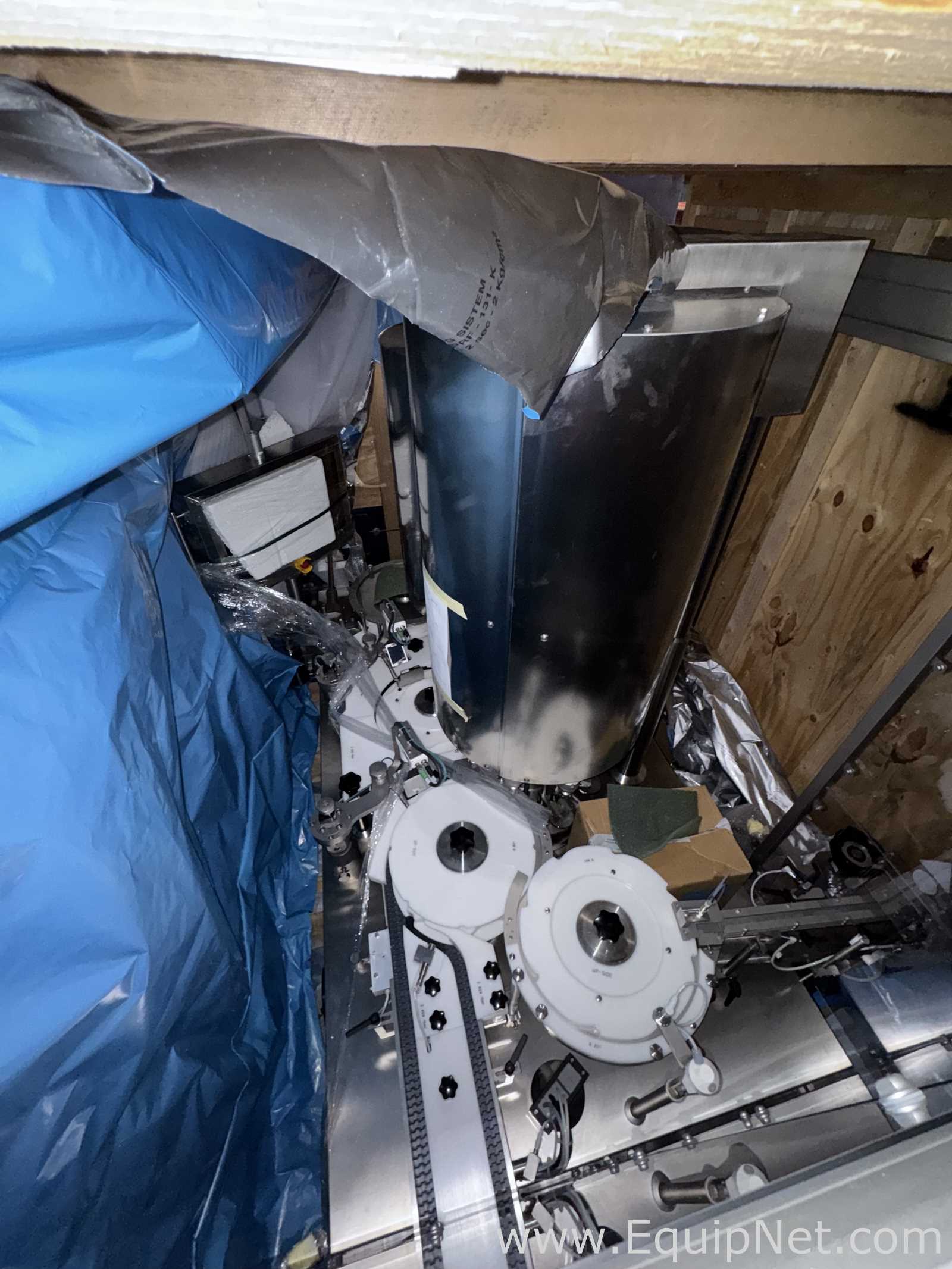

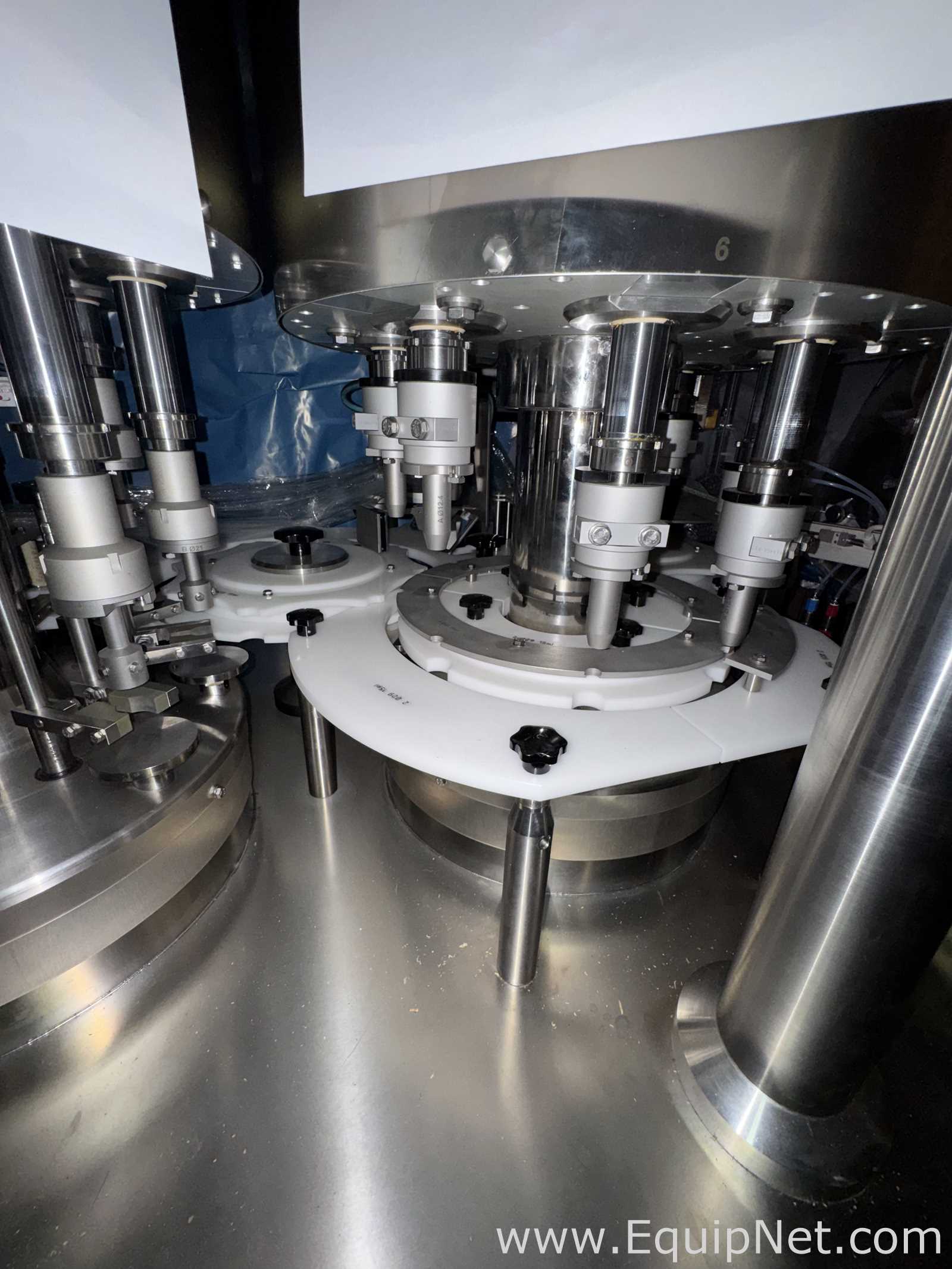

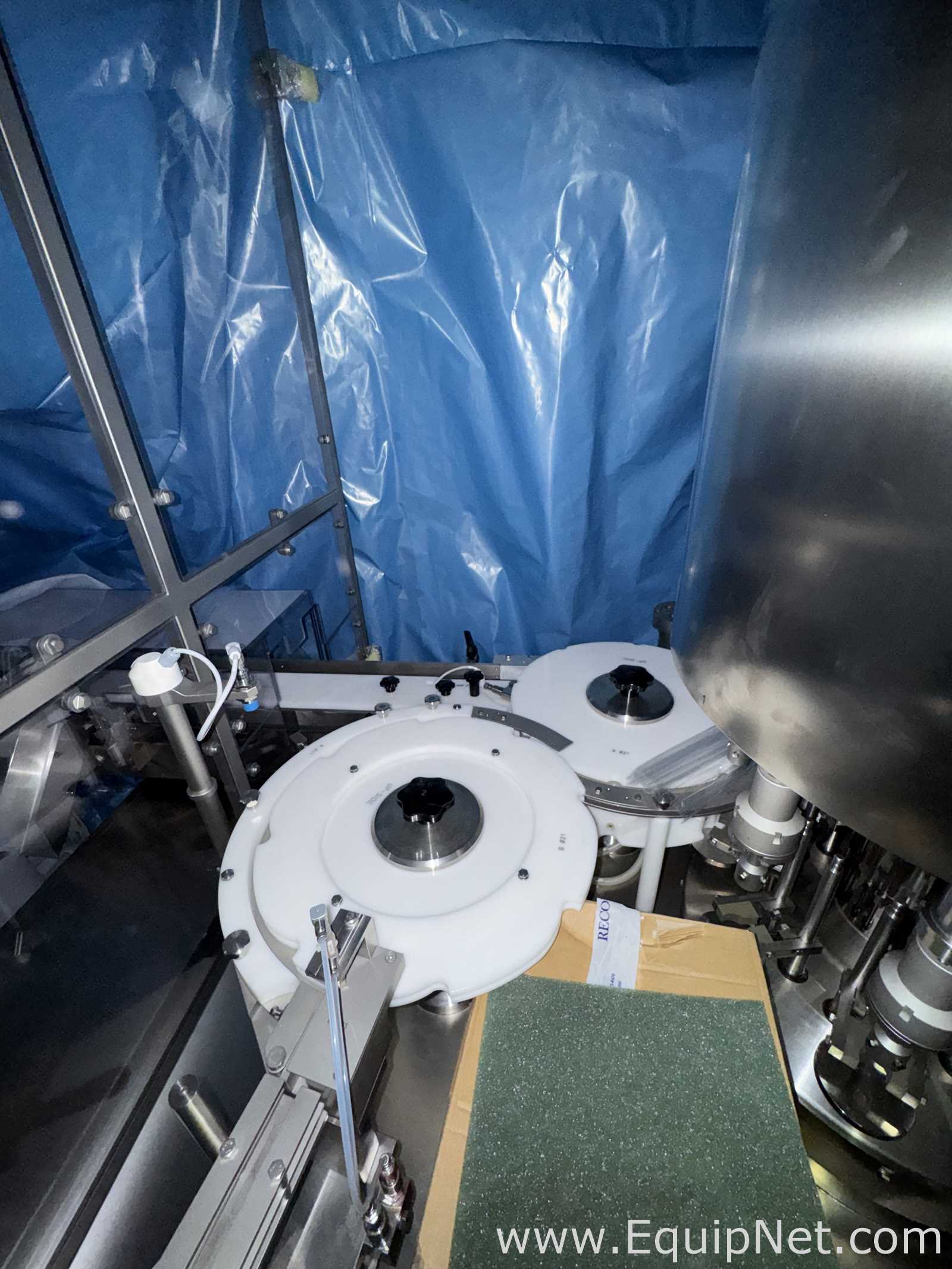

8-Head rotary stoppering and capsuling module (F572/8T-8V): For droppers/reducers/stoppers and screw cap automatic feeding and application.

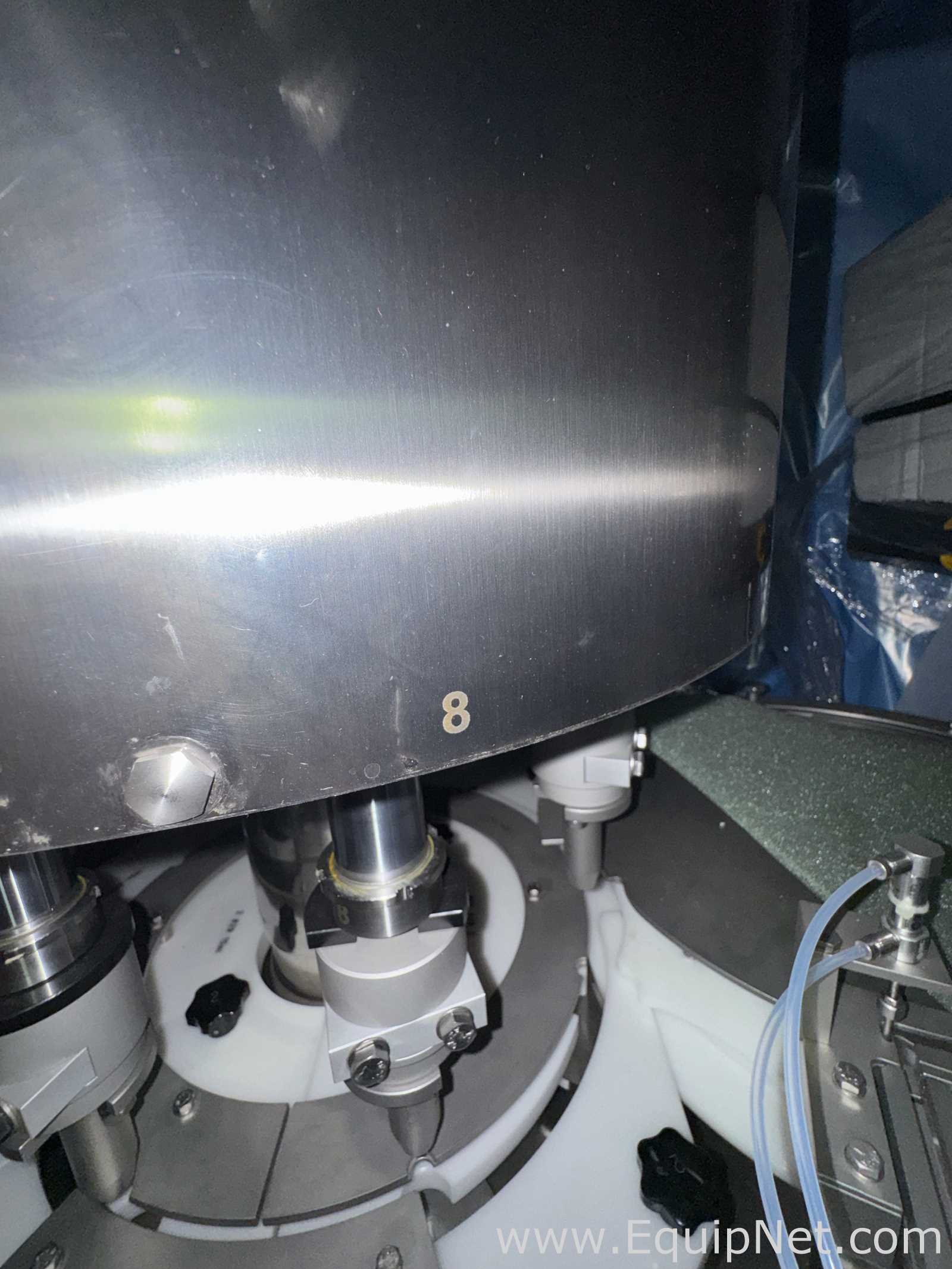

10-Head rotary stoppering and capsuling module: For droppers/reducers/stoppers and screw cap automatic feeding and application.
Visual inspection system to assure the correct colocation of materials.
General functional description of the machine:
Vial feeding from the machine connected upstream.
Automatic vial transfer.
Automatic vial filling.
Product supply.
Droppers/reducers/rubber stoppers/dropper feeding and placing station.
Collecting the vials at outfeed to distribute them to the downstream machine.
NT Conveyors: Auxiliary outfeed belt.
Filling Module (F940): For the filling of glass or plastic containers with liquid product.
8-Head rotary stoppering and capsuling module (F572/8T-8V): For droppers/reducers/stoppers and screw cap automatic feeding and application.
10-Head rotary stoppering and capsuling module: For droppers/reducers/stoppers and screw cap automatic feeding and application.
Visual inspection system to assure the correct colocation of materials.
Vial feeding from the machine connected upstream.
Automatic vial transfer.
Automatic vial filling.
Product supply.
Droppers/reducers/rubber stoppers/dropper feeding and placing station.
Collecting the vials at outfeed to distribute them to the downstream machine.
NT Conveyors: Auxiliary outfeed belt.
Specifications:
Standard
Metric
Manufacturer Name
IMA
Year:
2022
2022
Serial Number:
RE1044
RE1044
Model:
FlexiFill F940
FlexiFill F940
Type of Filler:
VOLUMETRIC
VOLUMETRIC
Number of Heads:
8
8
Voltage:
440
VOLTS
440
VOLTS
Recommended Packaging Form:
CUSTOM PALLET
CUSTOM PALLET
Dimensions:
Standard
Metric
Overall:
0.04 x 0.04 x 0.04 in - 1 LBS
1 x 1 x 1 MM - 0.45 kg
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #975424

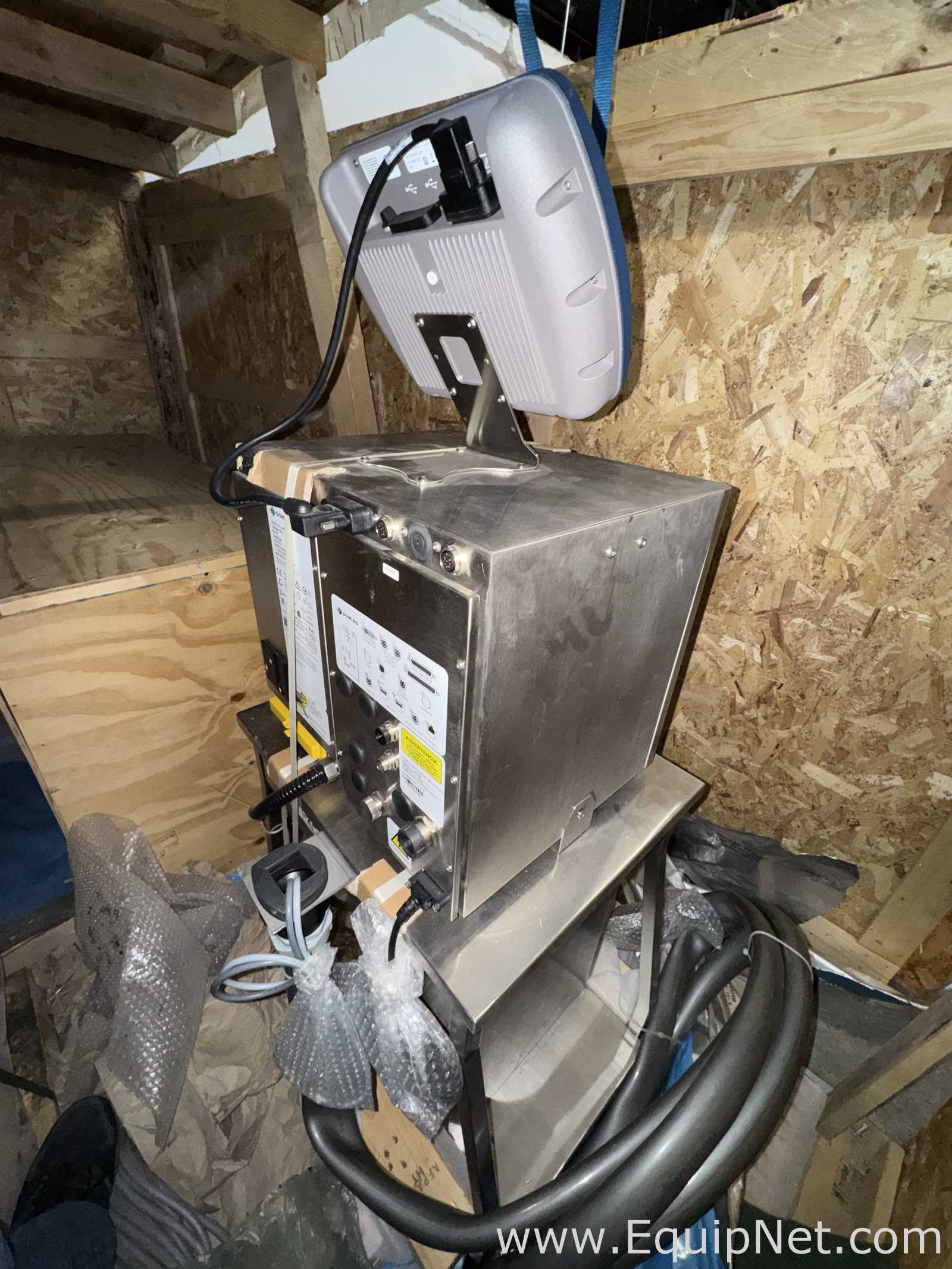

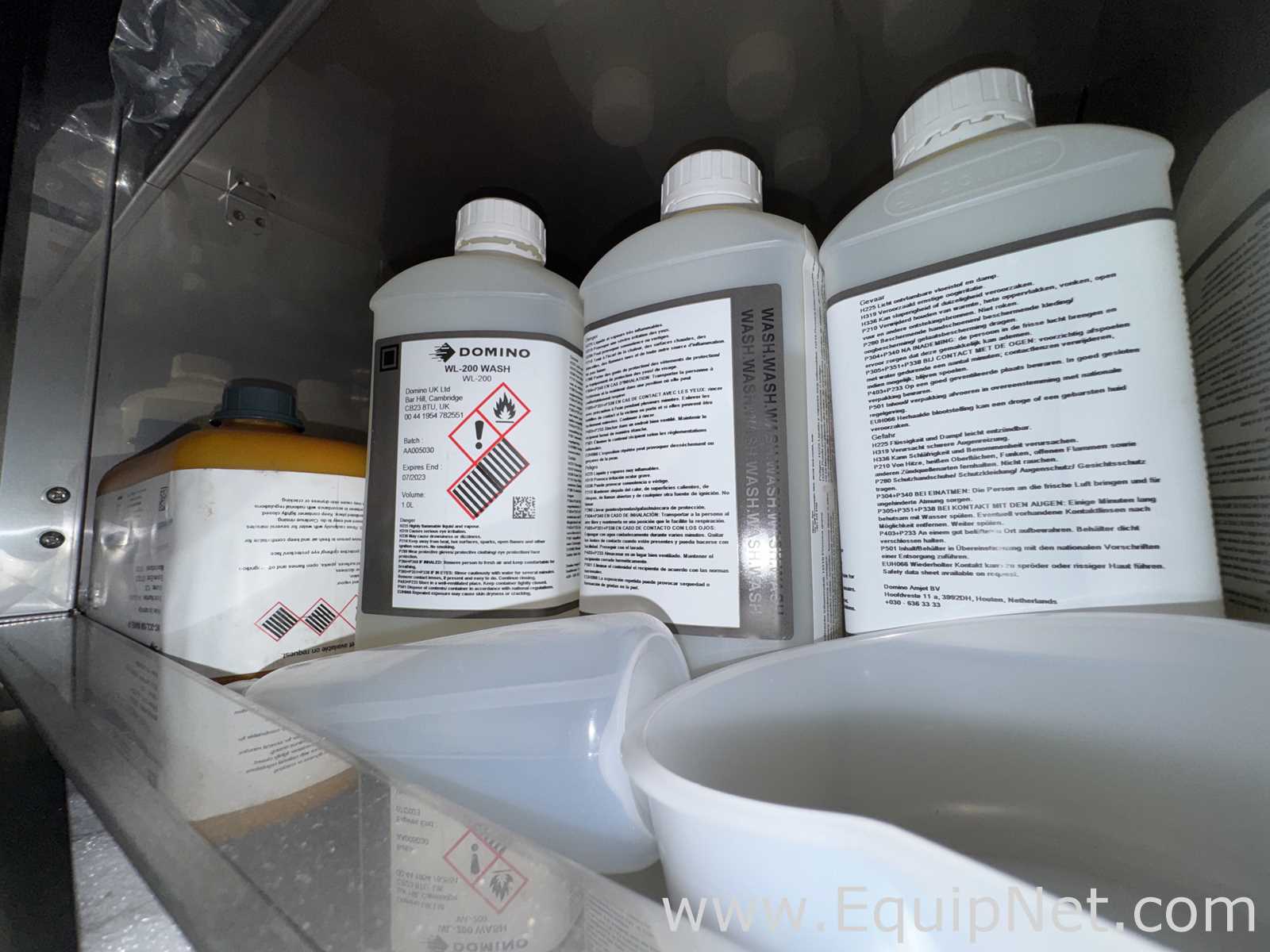

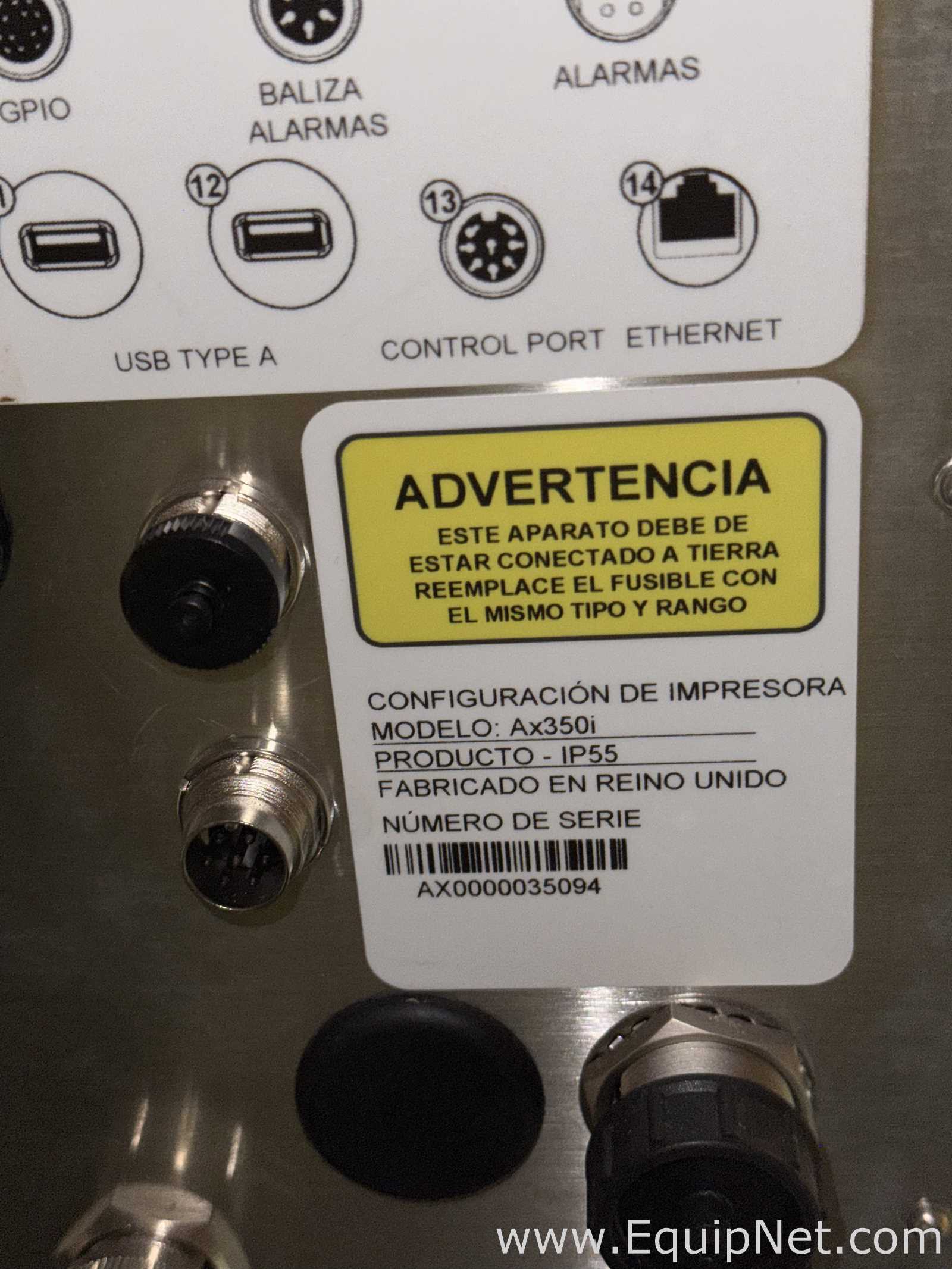

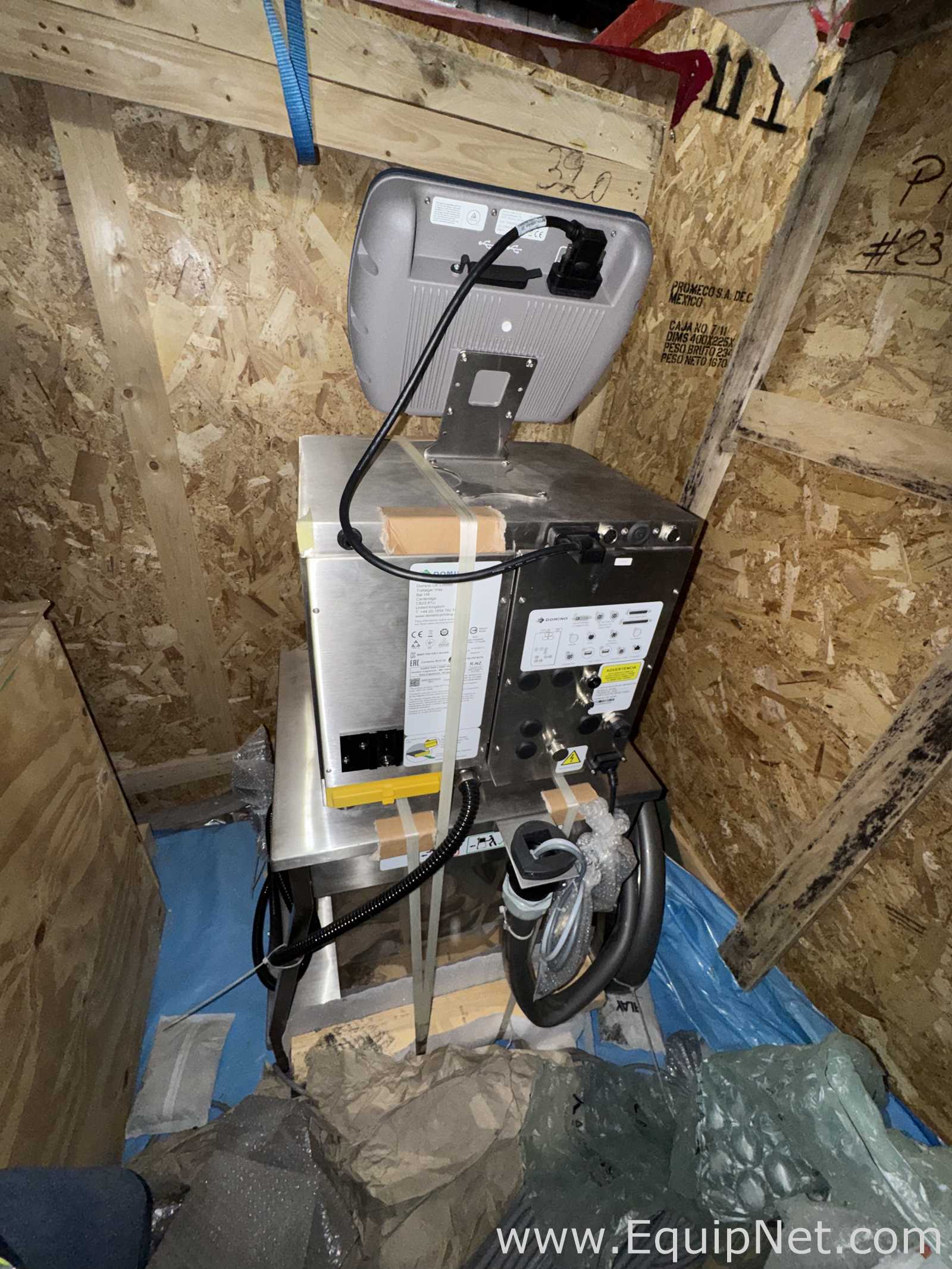

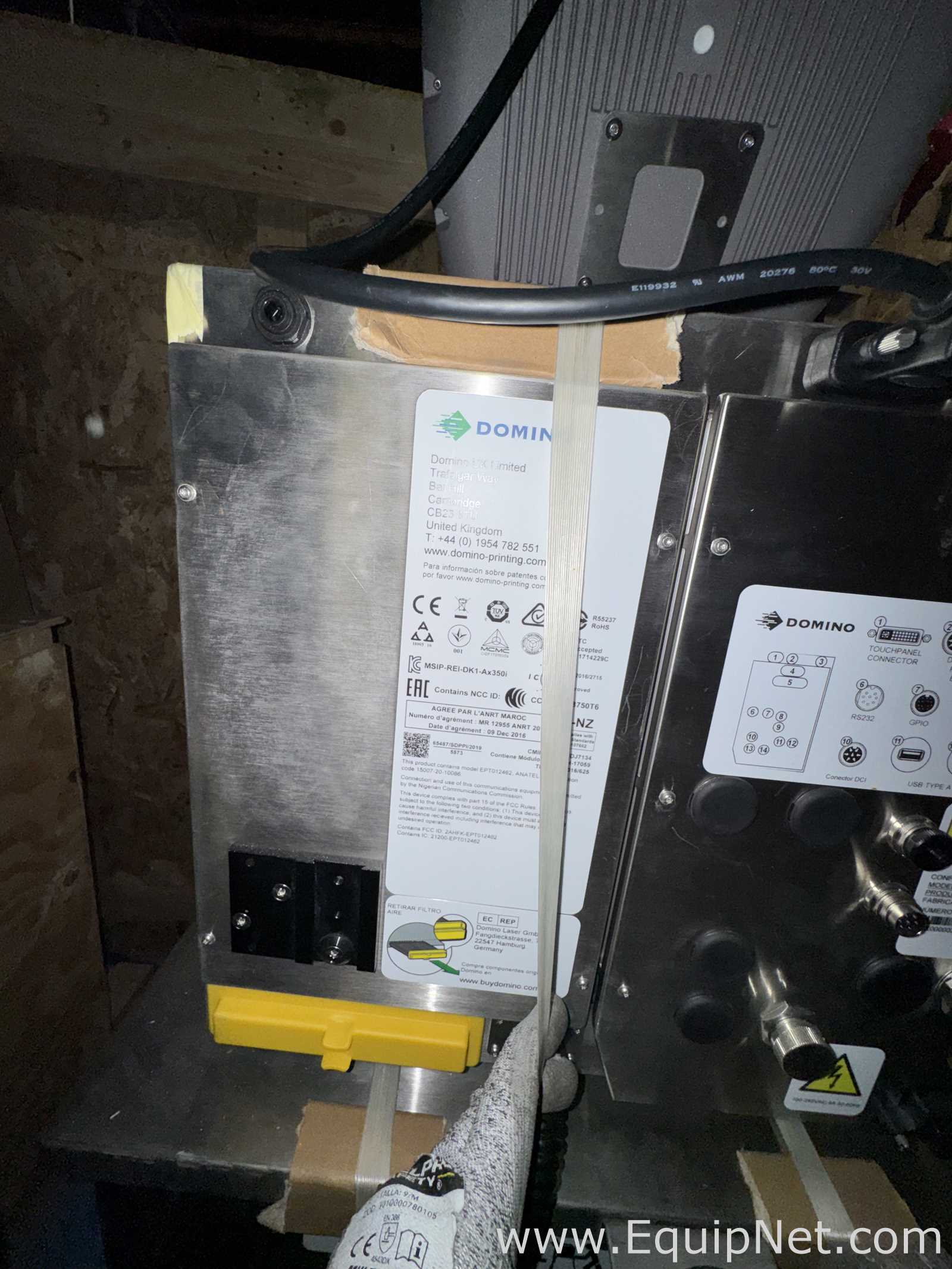

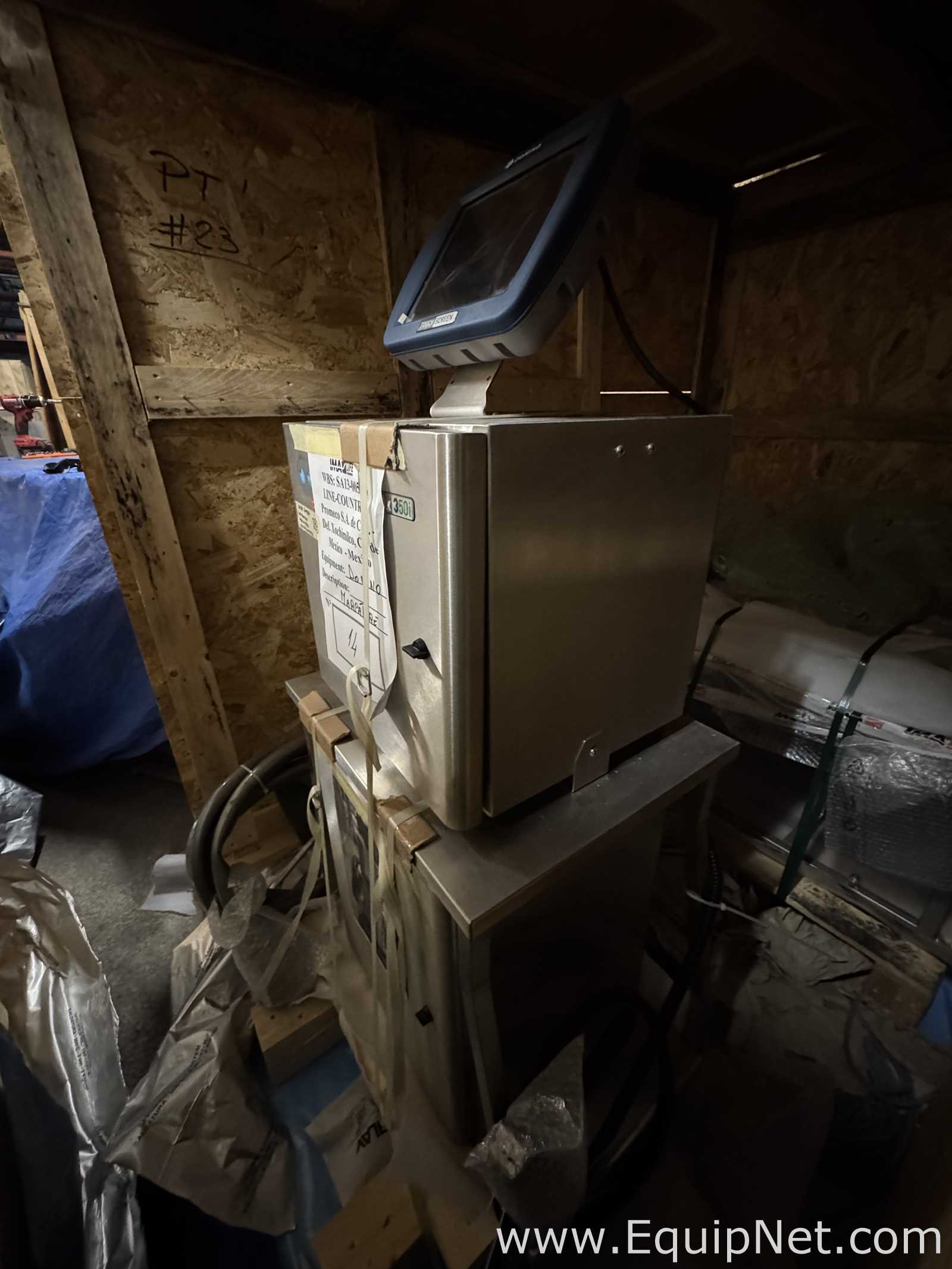

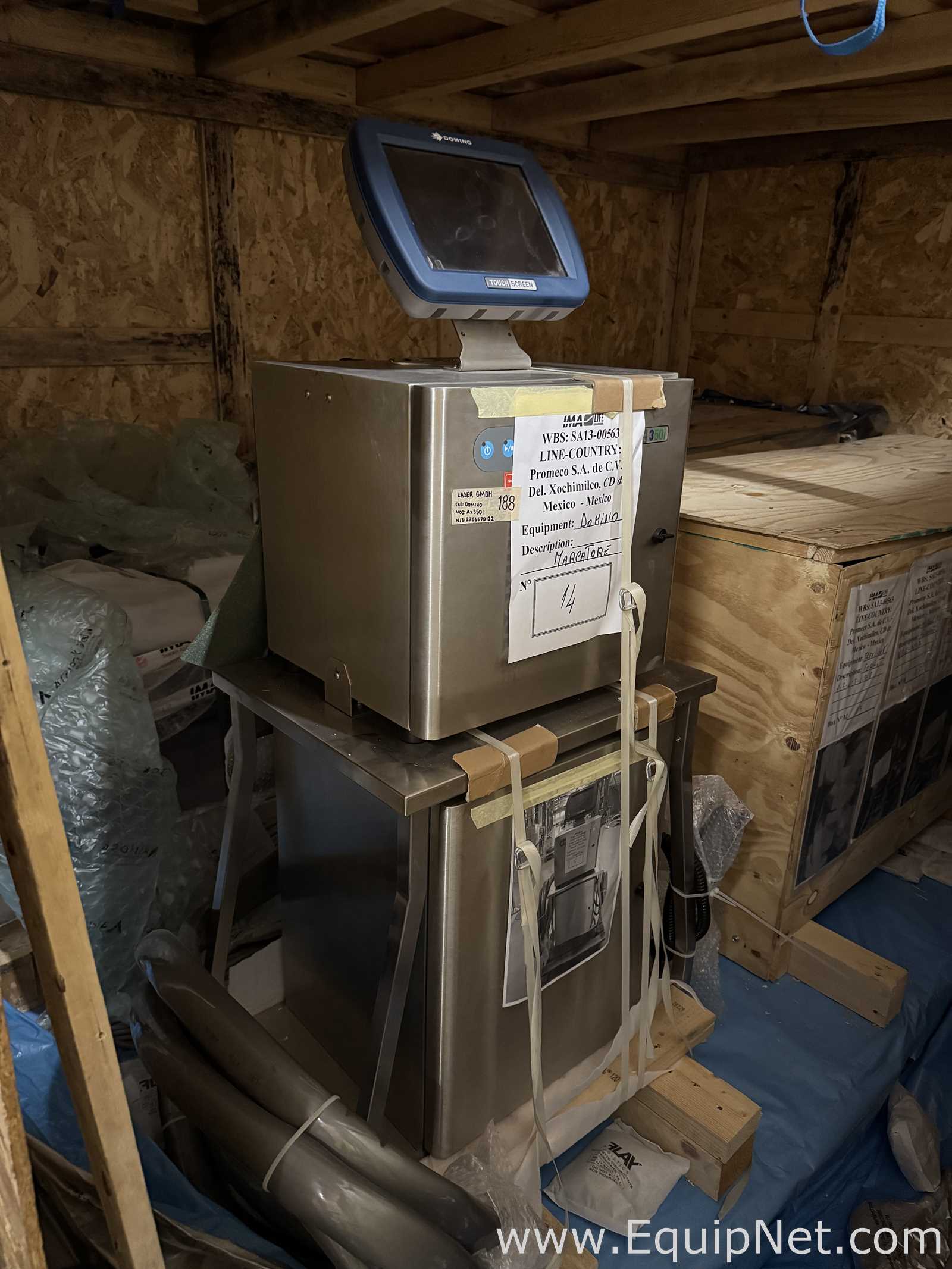

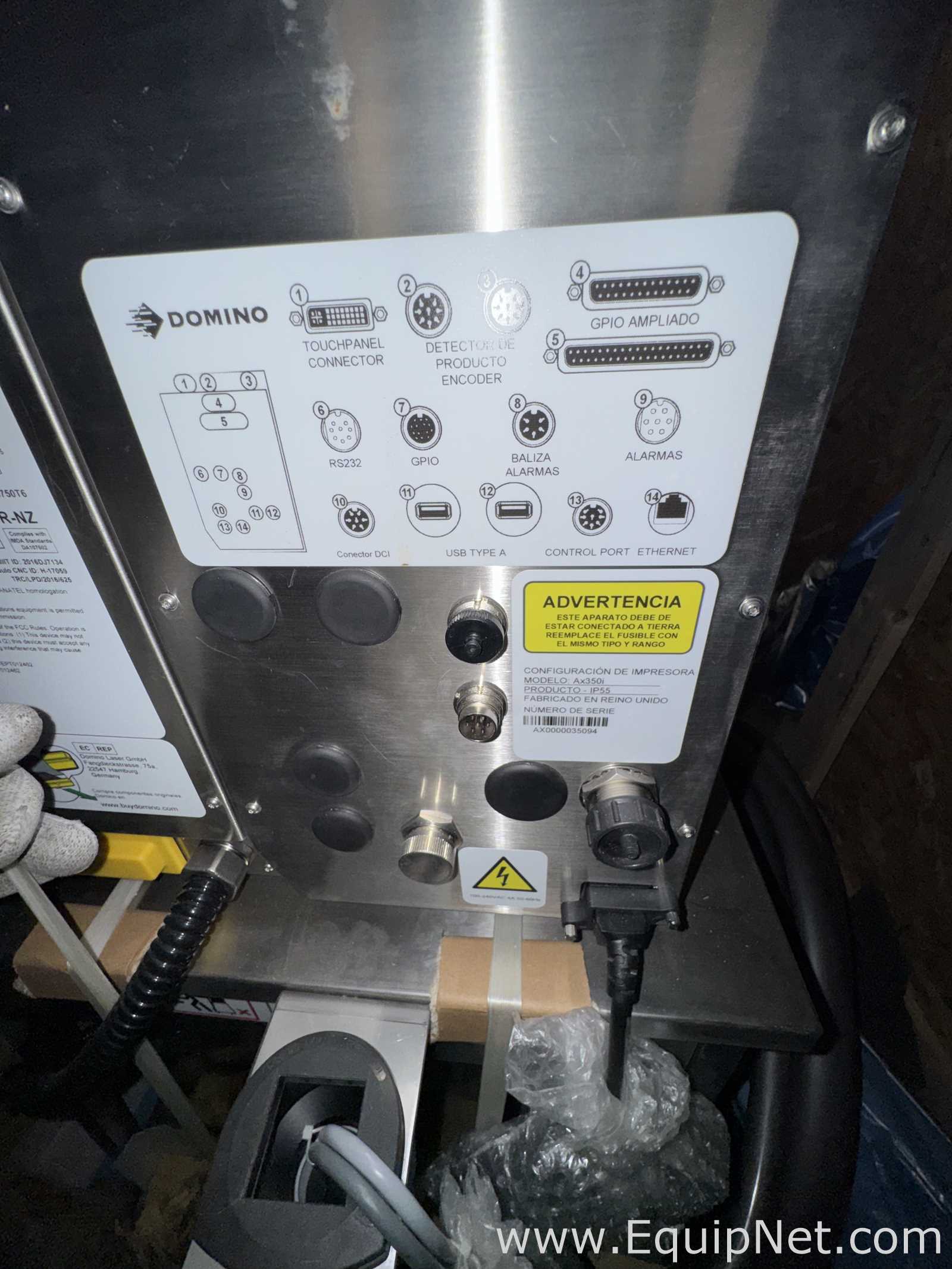

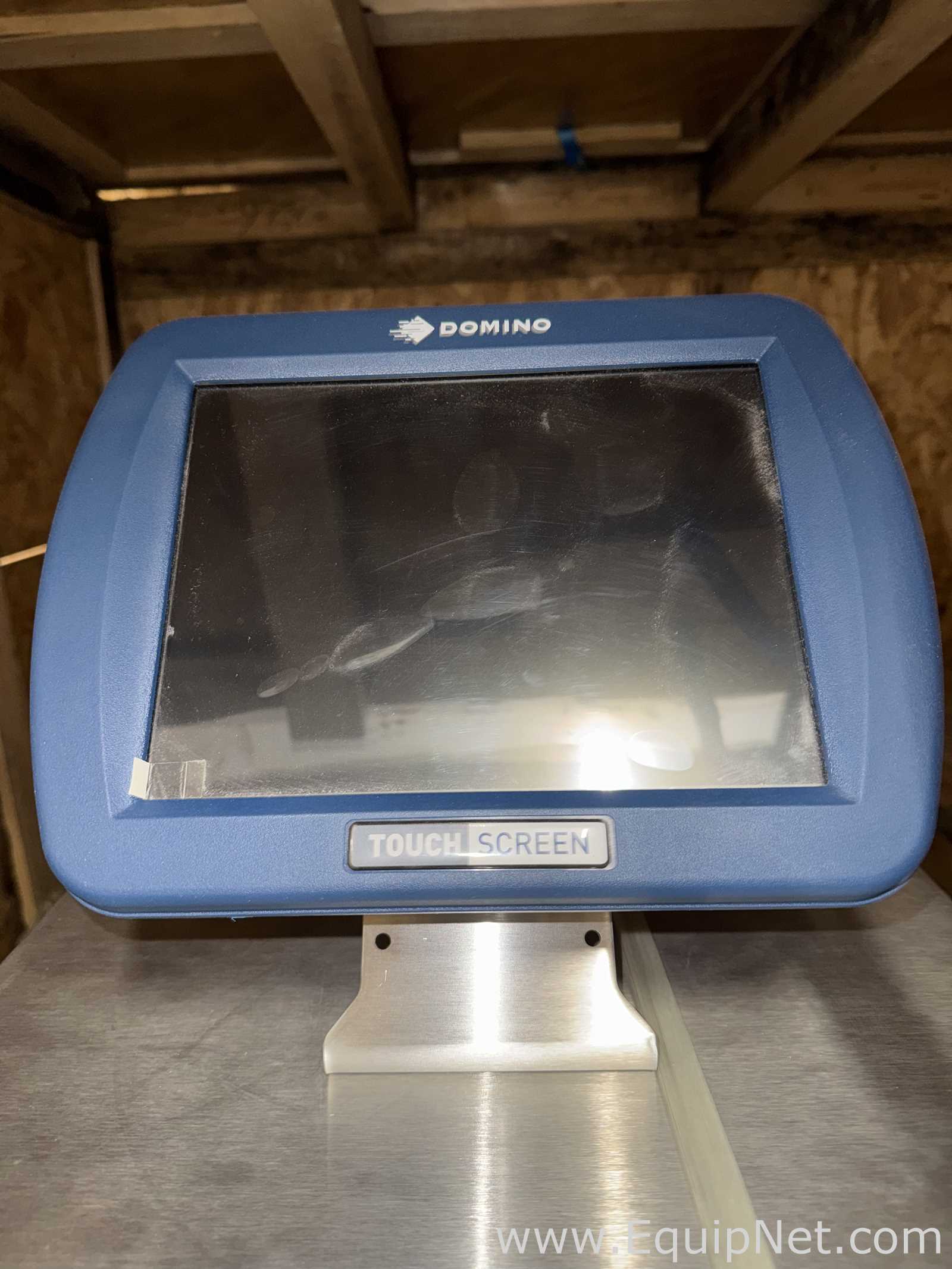

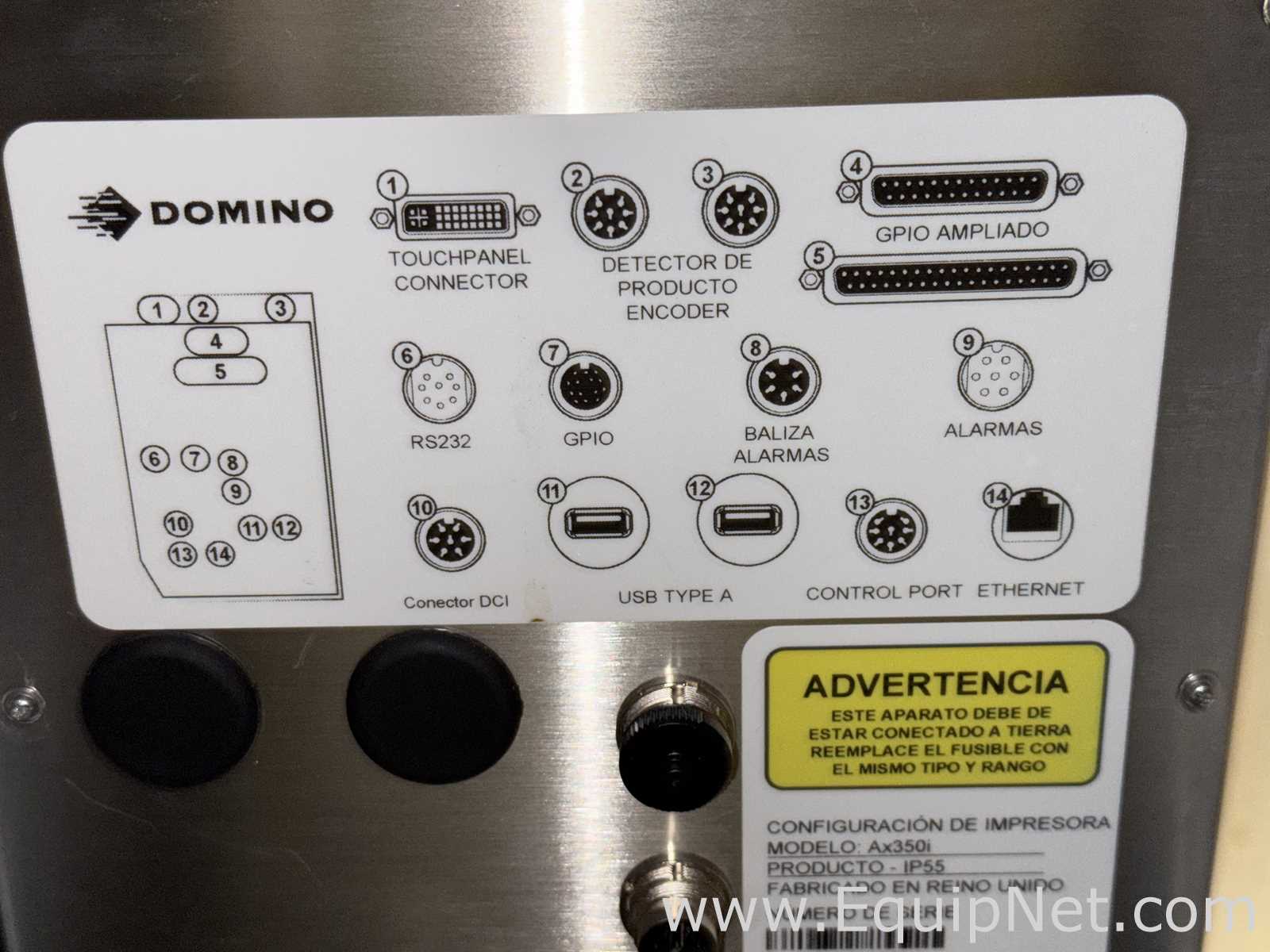

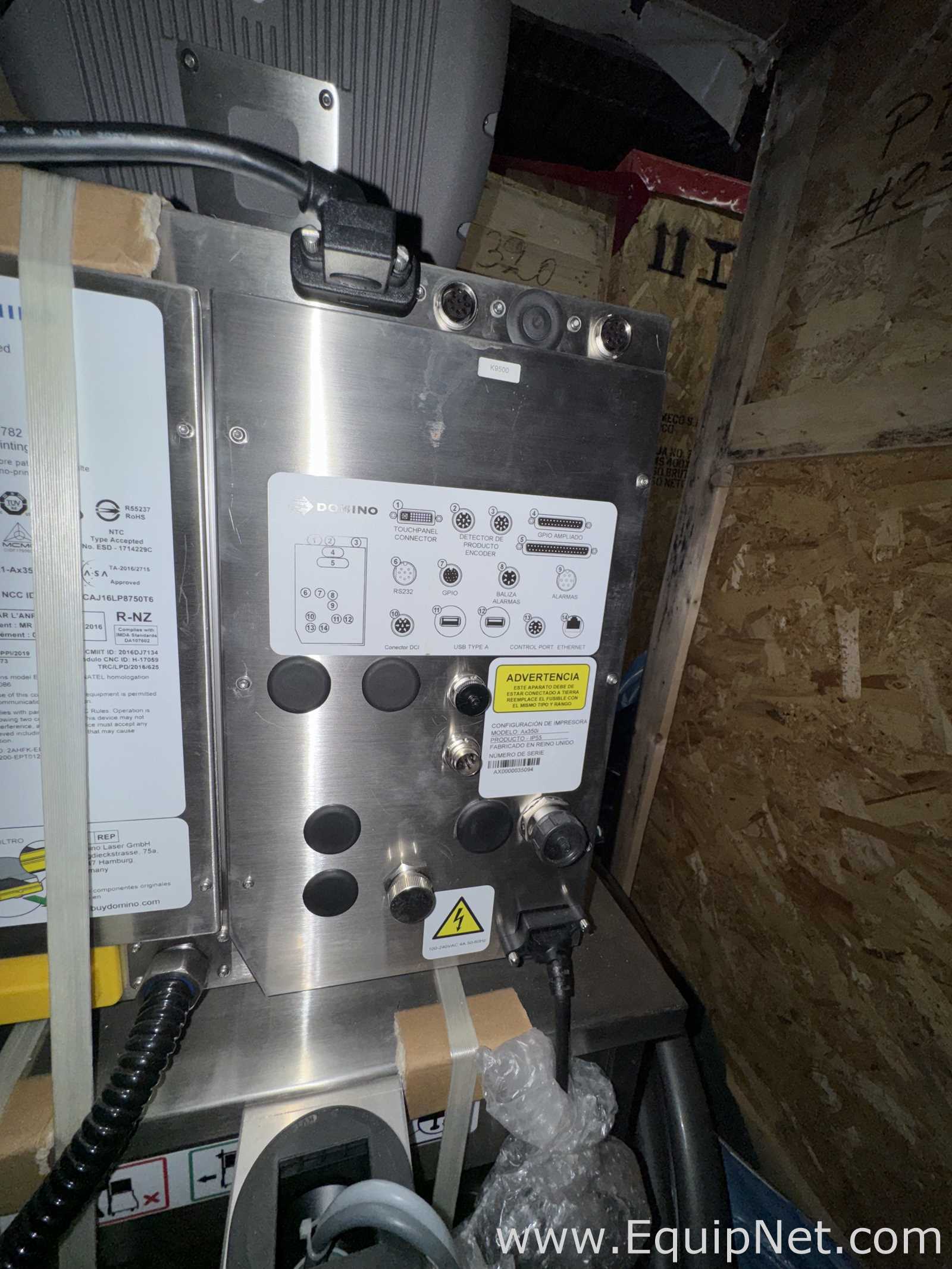

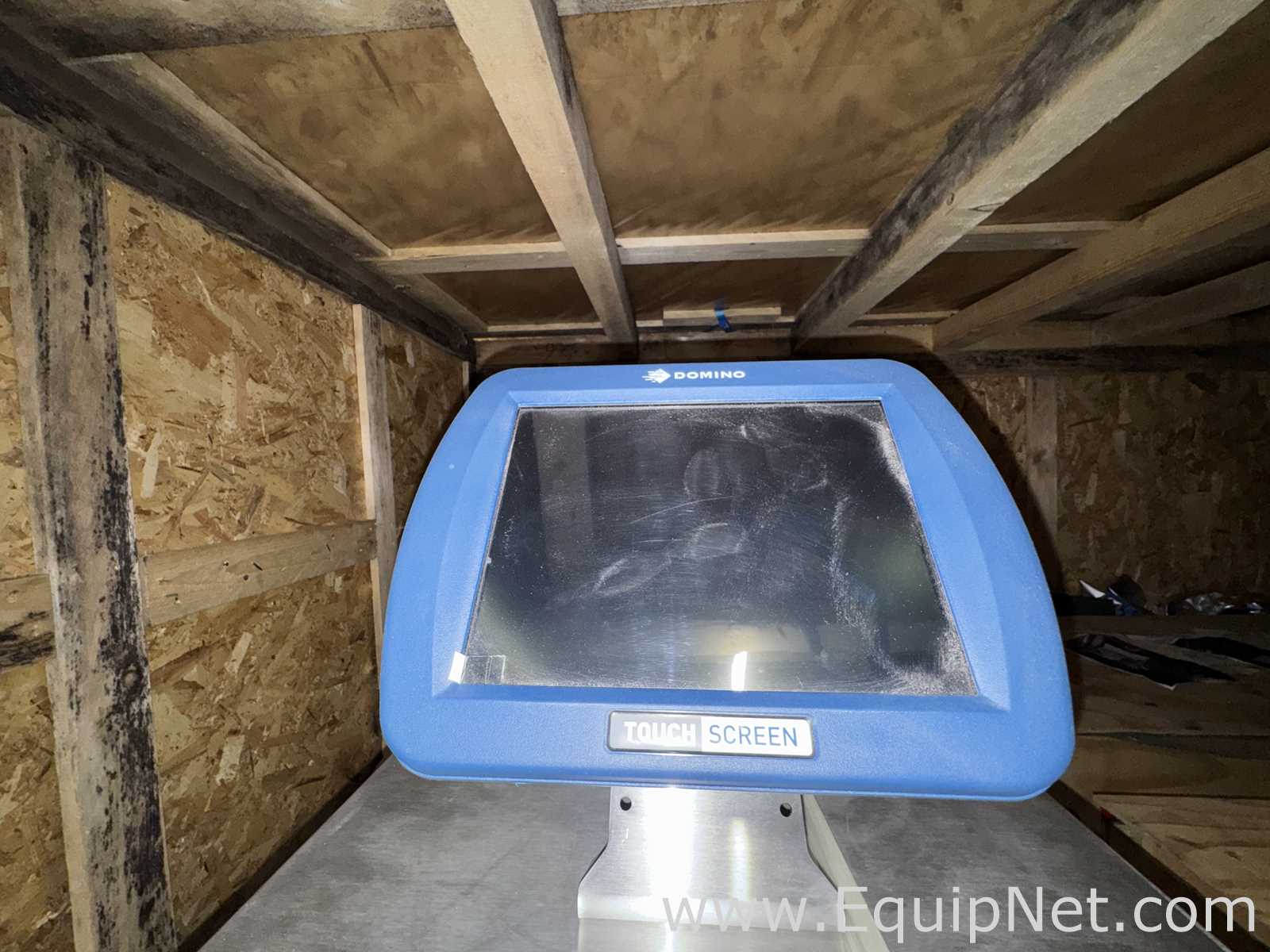

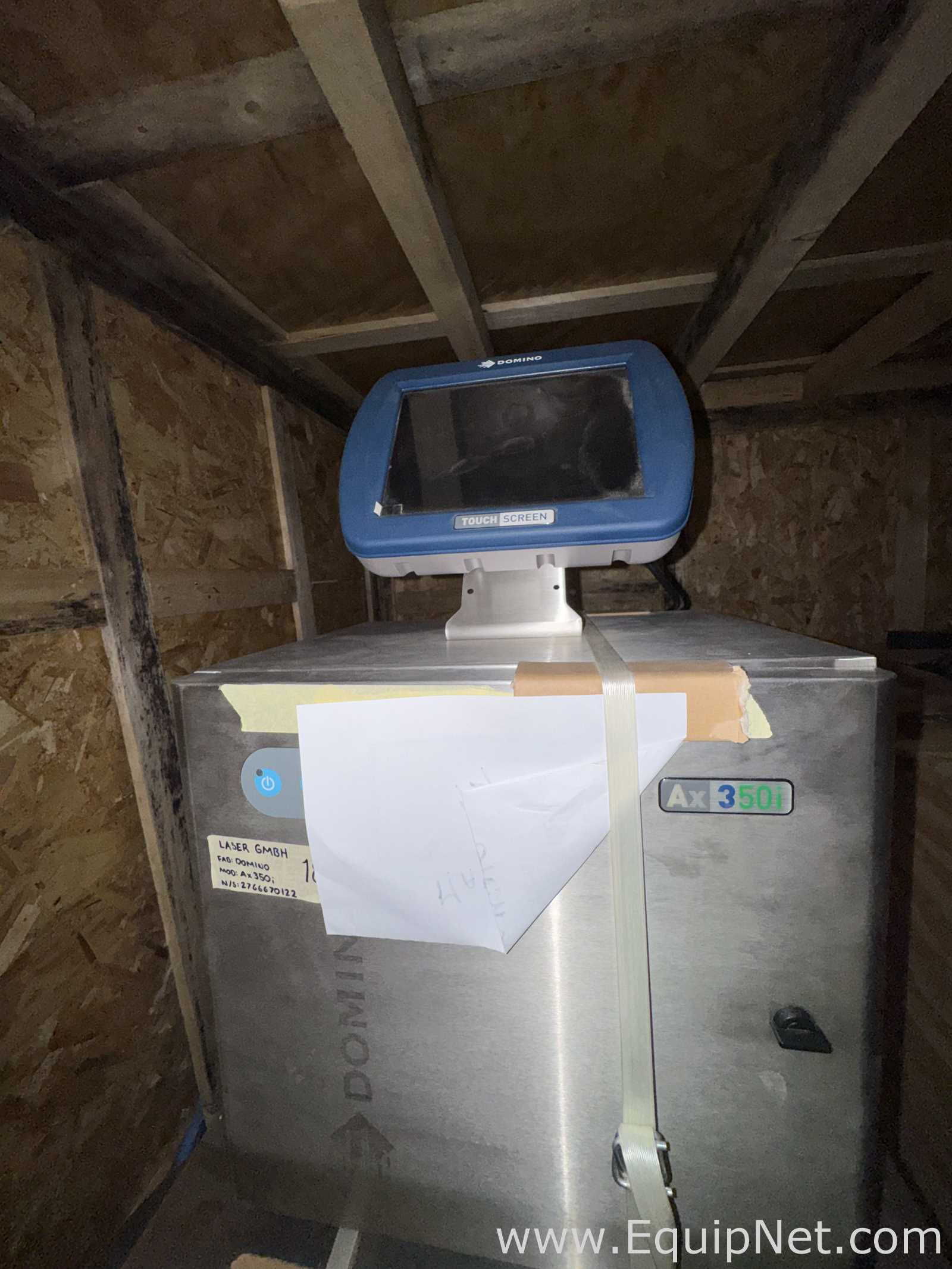

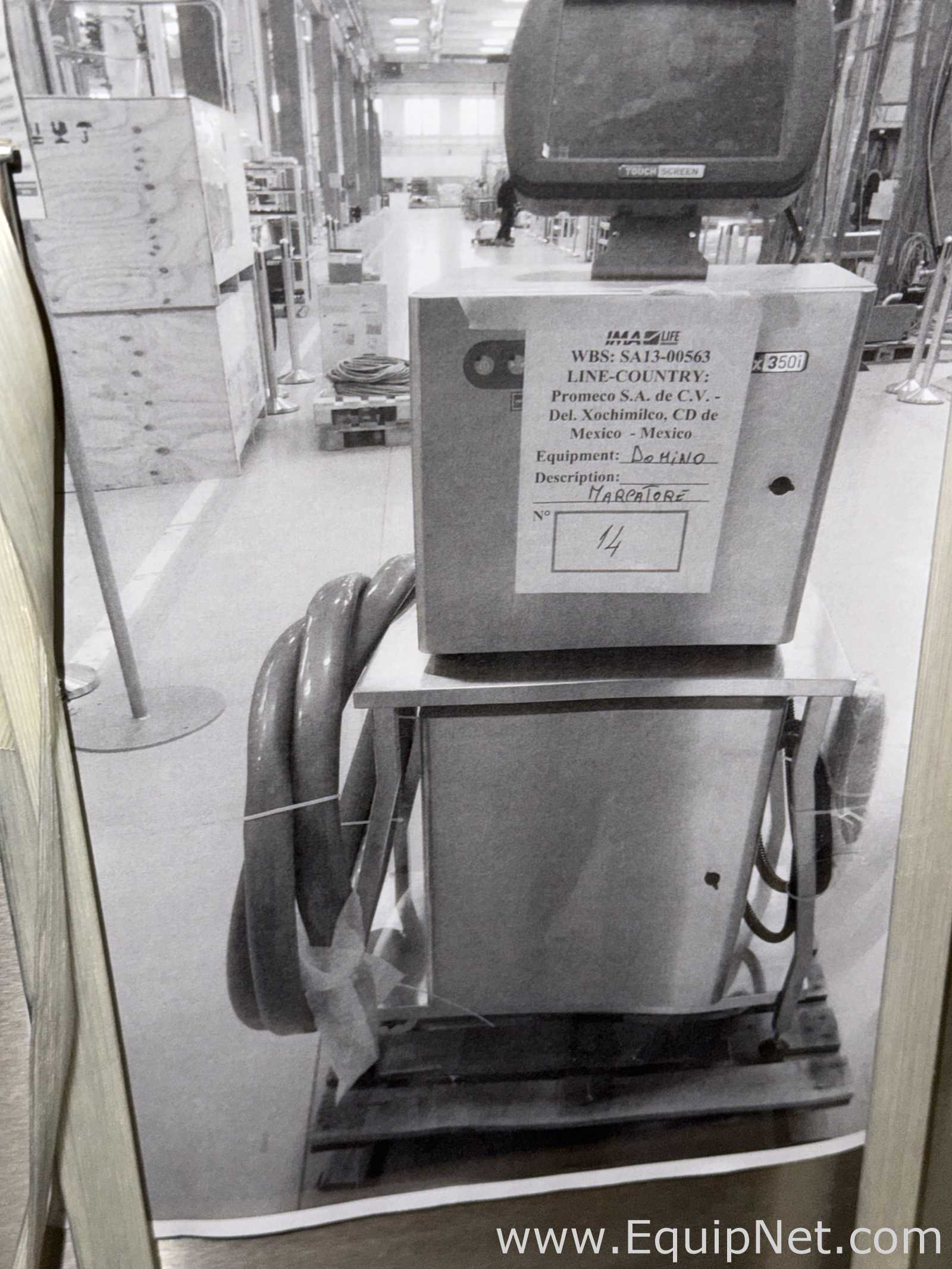

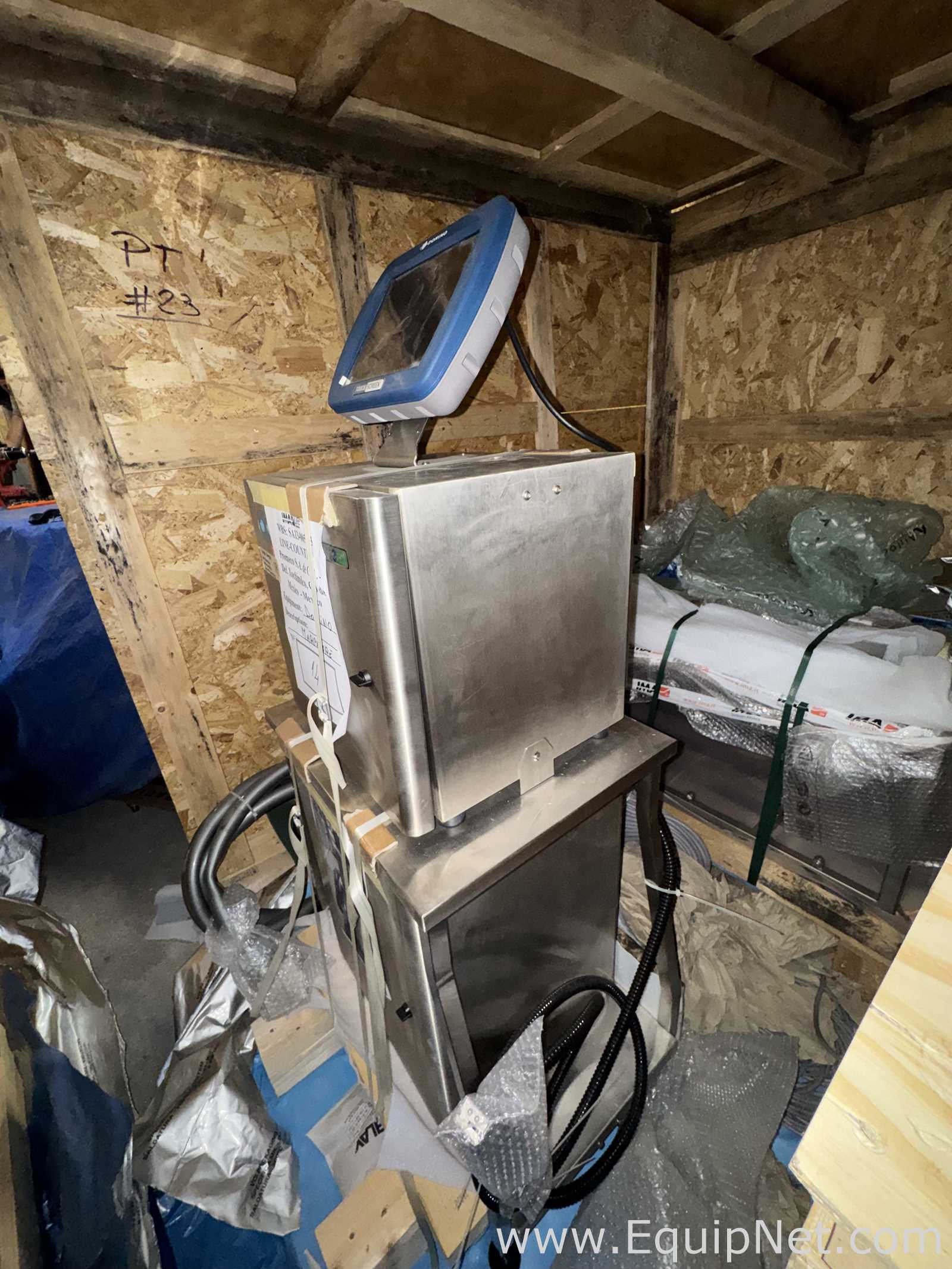

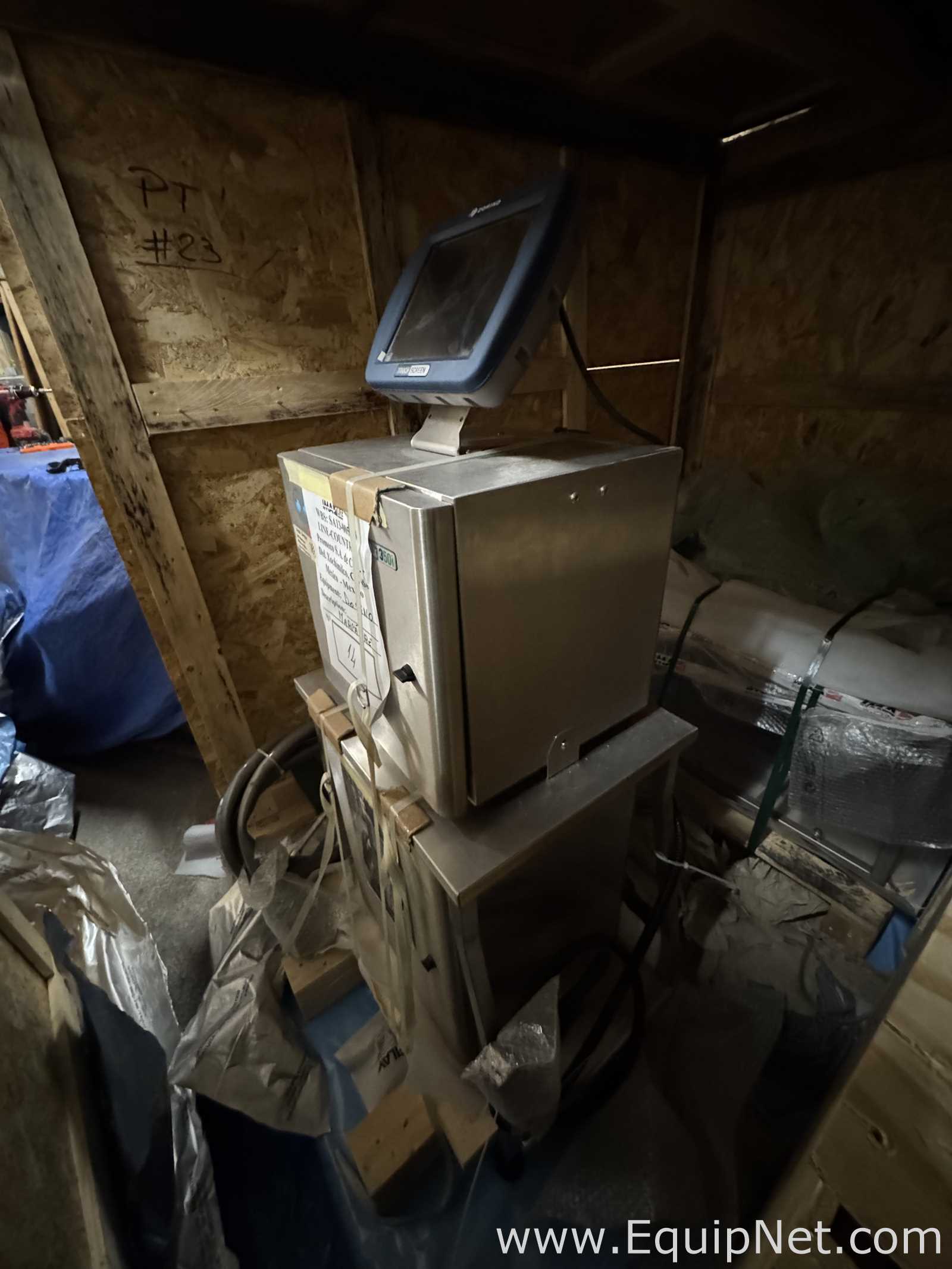

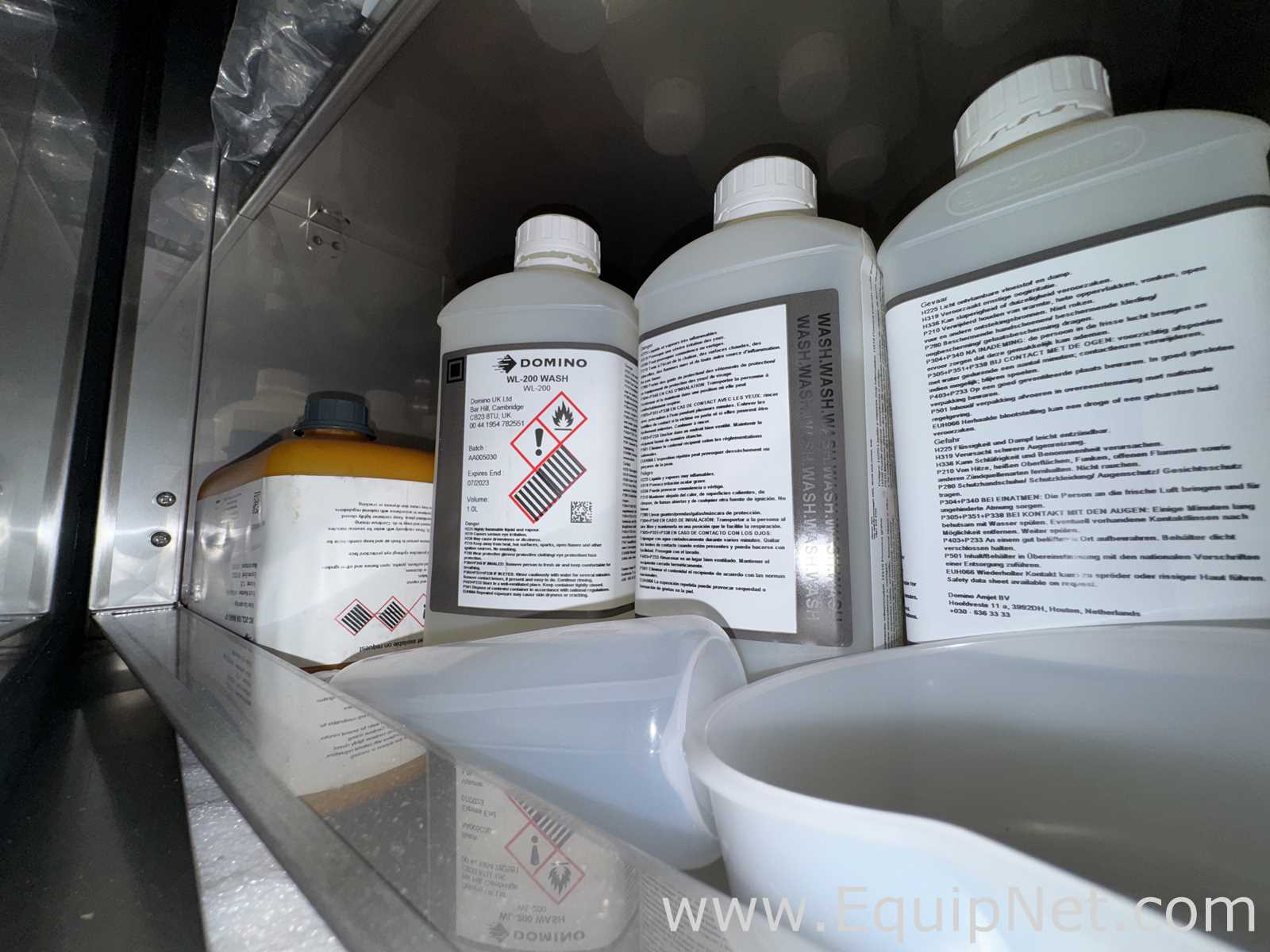

Unused Domino AX350 Inkjet Printer
Equipment Description
Domino AX350 Inkjet Printer
UV printer for bottles.
Specifications:
Standard
Metric
Manufacturer Name
Domino
Year:
2022
2022
Model:
AX350
AX350
Recommended Packaging Form:
PALLET
PALLET
Dimensions:
Standard
Metric
Overall:
15.00 x 16.93 x 23.19 in - 48.50 lb
381 x 430 x 589 MM - 22 KGS
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #975425

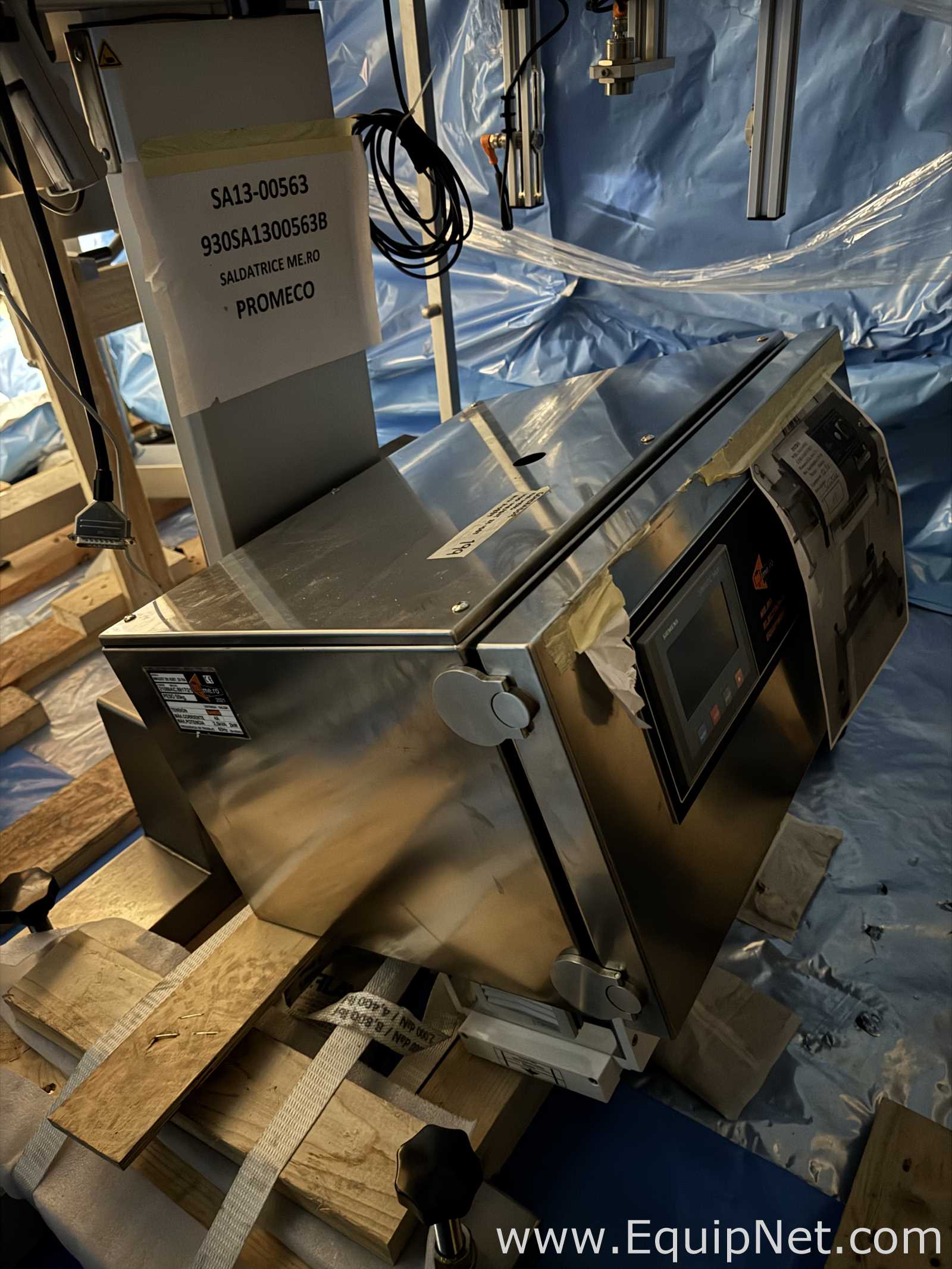

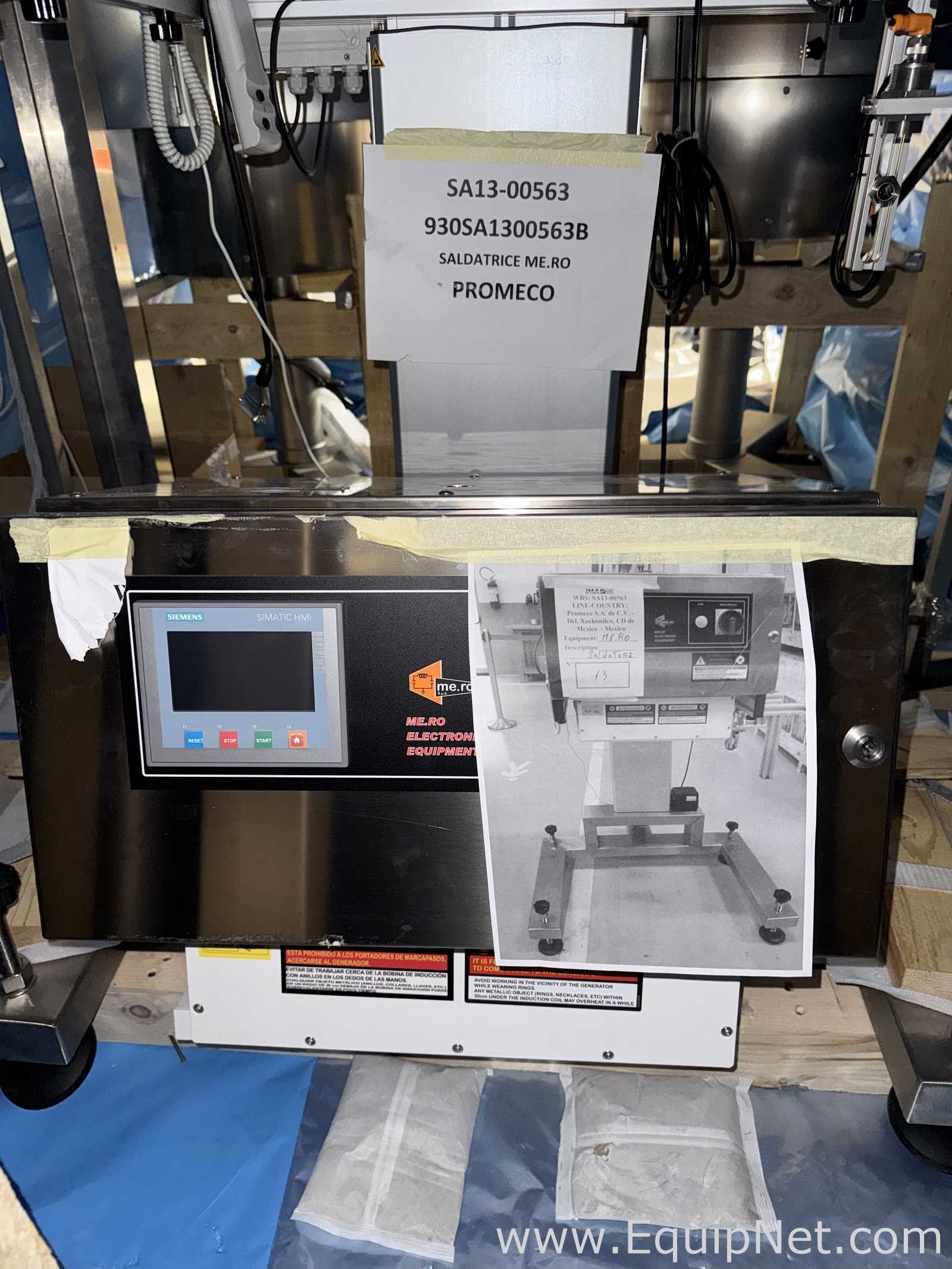

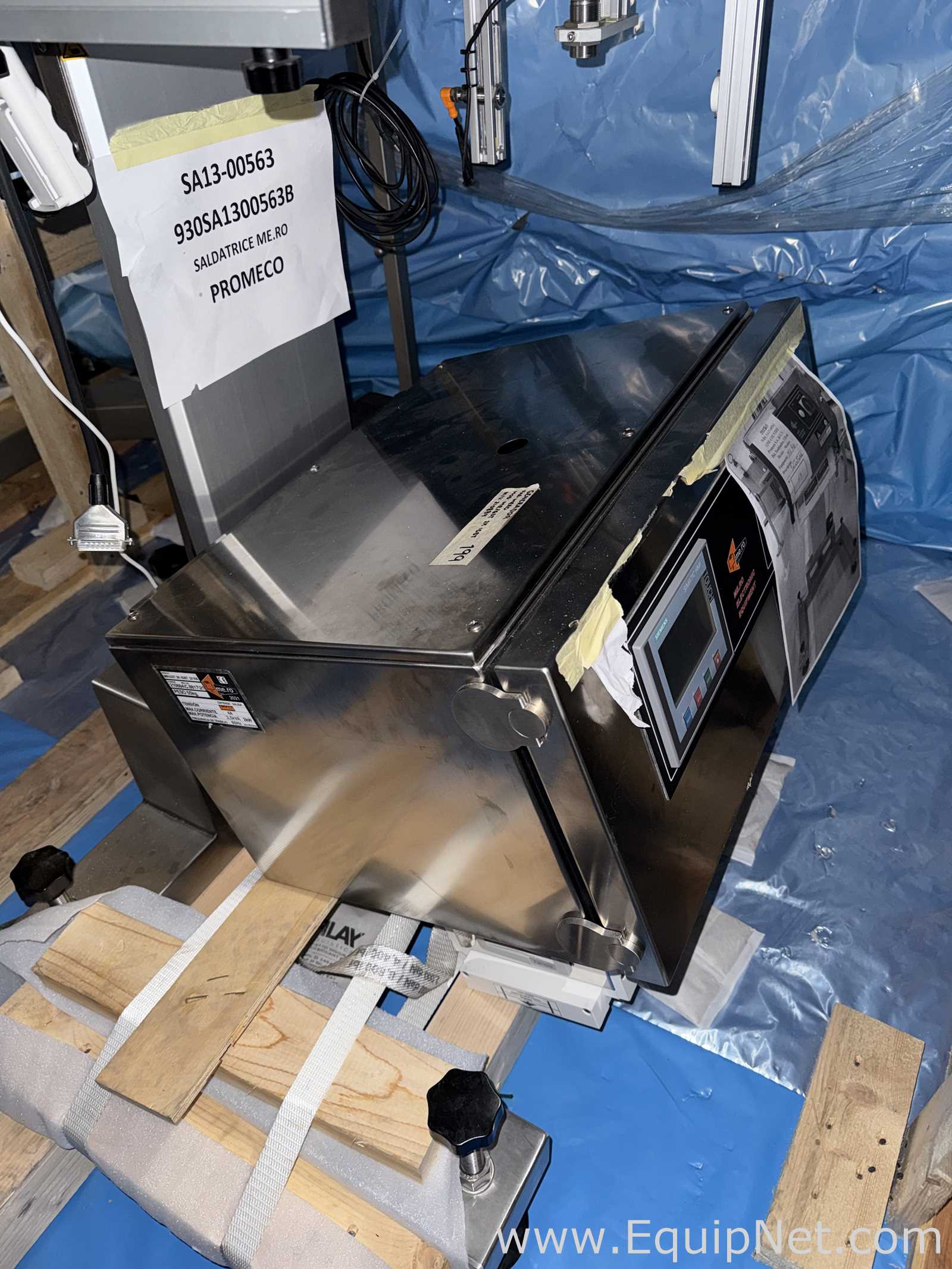

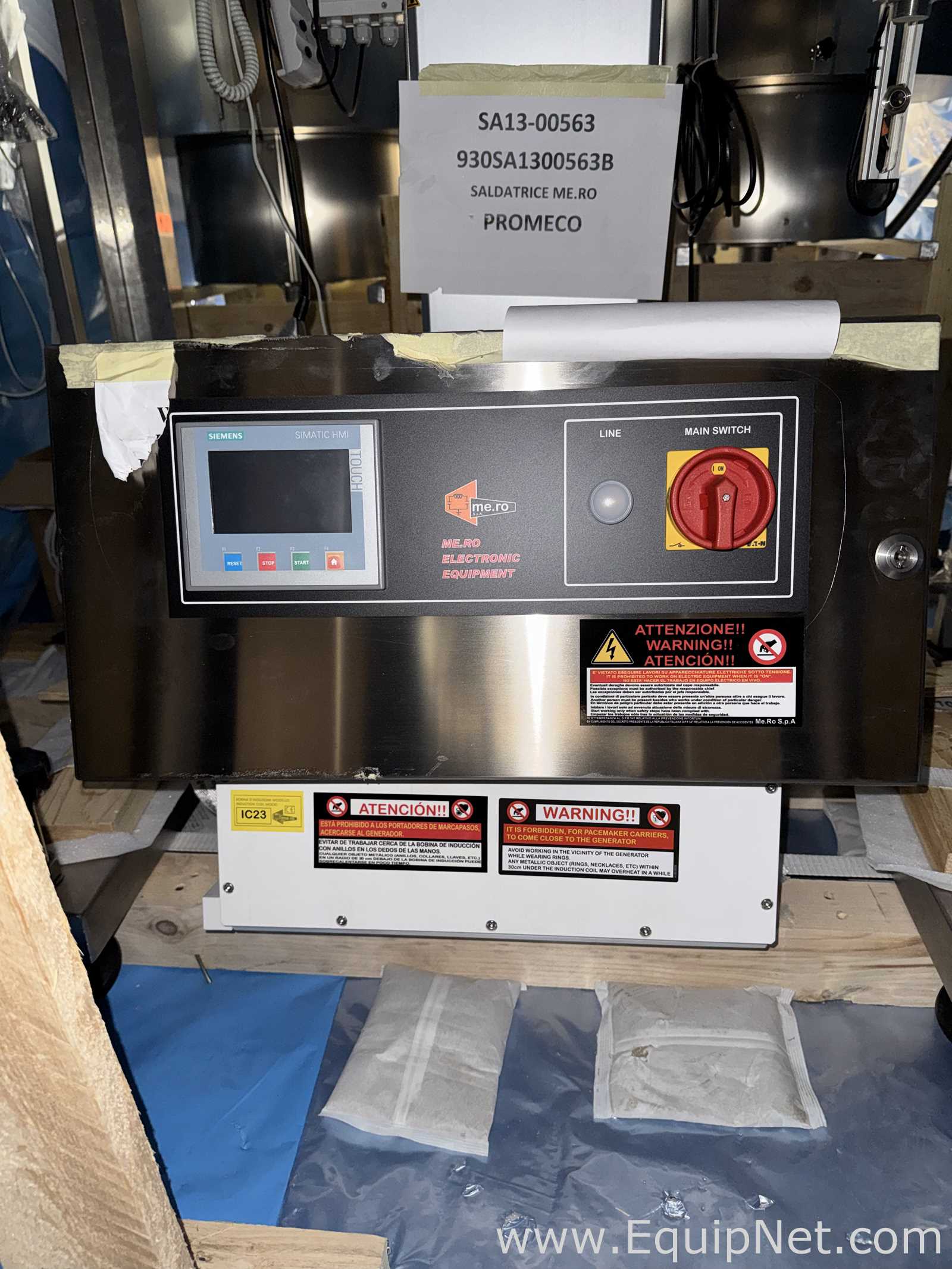

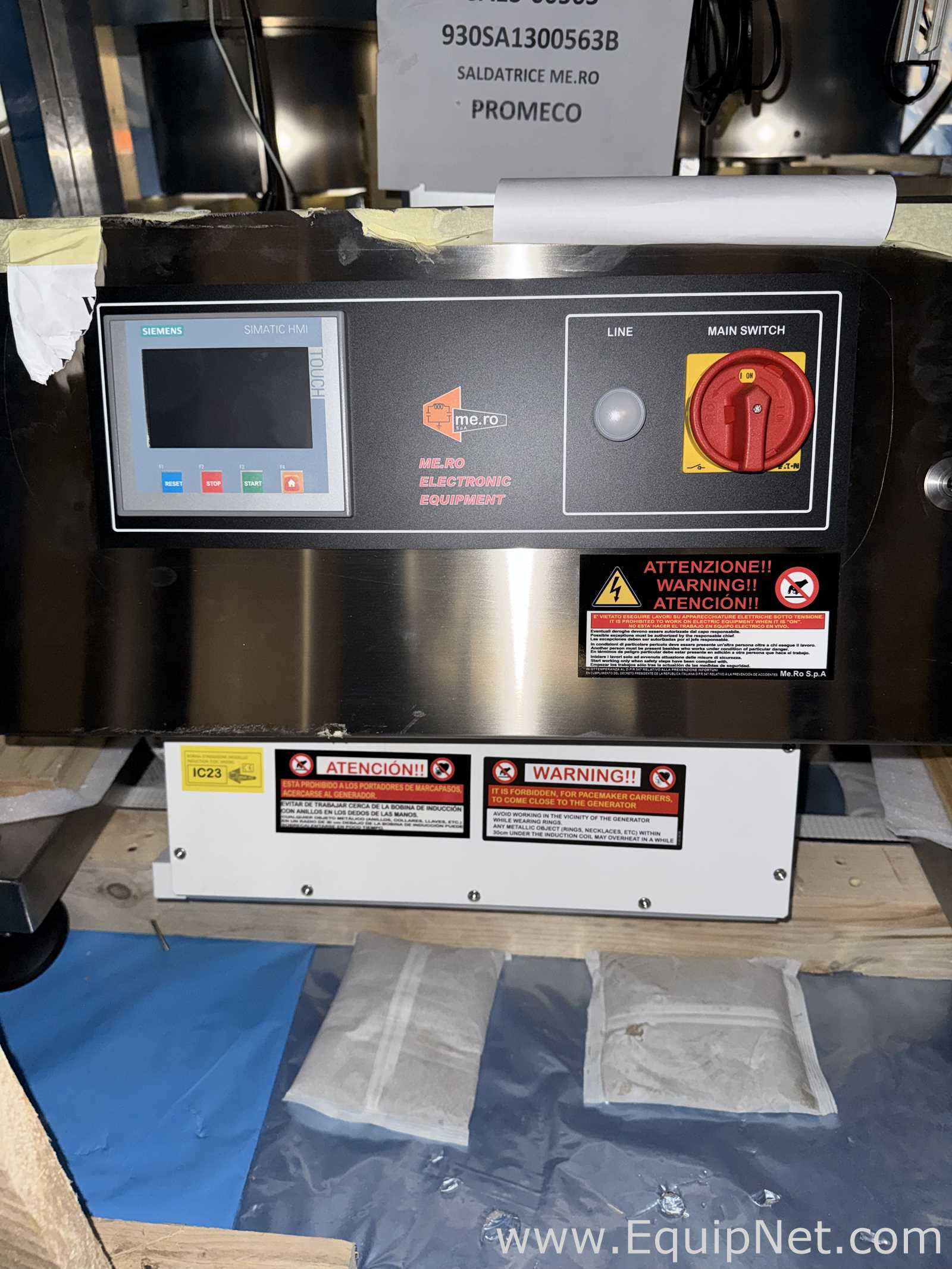

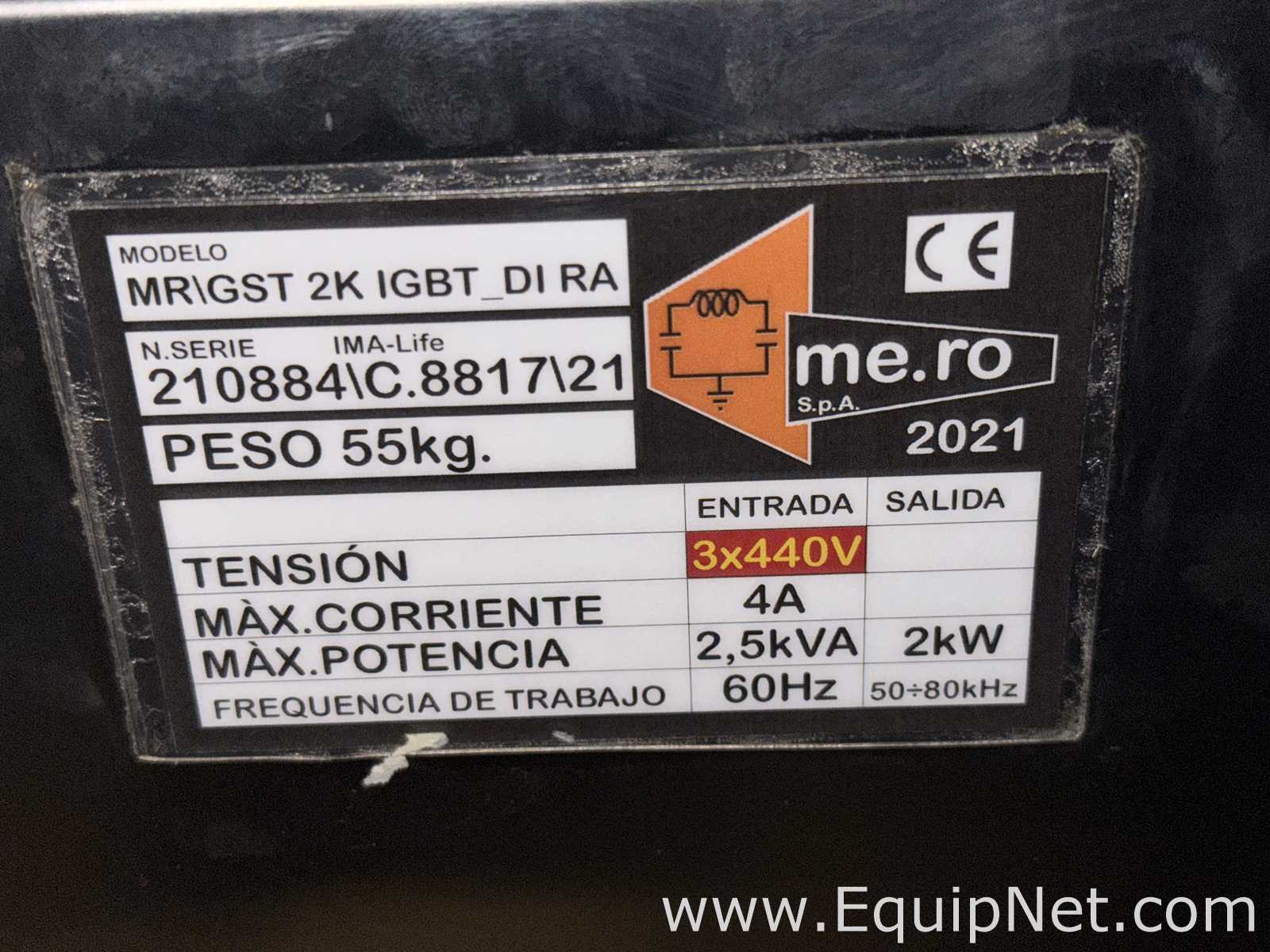

Unused ME.RO GST2KIGBT.DI.RA Induction Sealer
Equipment Description
ME.RO GST2KIGBT.DI.RA Induction Sealer
The GST2K-IGBT automatic induction sealer is specially designed for CAP SEALING applications. It uses a completely solid-state construction technique with IGBT power modules. The use of this new technique allows to obtain a high yield, reduces maintenance and eliminates the high cost of spare parts for vacuum tubes used on traditional generators. The output power is continuously adjustable up to the max, the generator automatically adapts to the different load conditions and is equipped with all the safety devices that make it reliable and easy to use. Induction sealing guarantees product protection: food, pharmaceutical, cosmetic and chemical products.
Specifications:
Standard
Metric
Manufacturer Name
ME.RO
Year:
2022
2022
Model:
GST2KIGBT.DI.RA
GST2KIGBT.DI.RA
Recommended Packaging Form:
PALLET
PALLET
Dimensions:
Standard
Metric
Overall:
55.12 x 31.50 x 66.93 in - 275.58 lb
1400 x 800 x 1700 MM - 125 KGS
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #975427

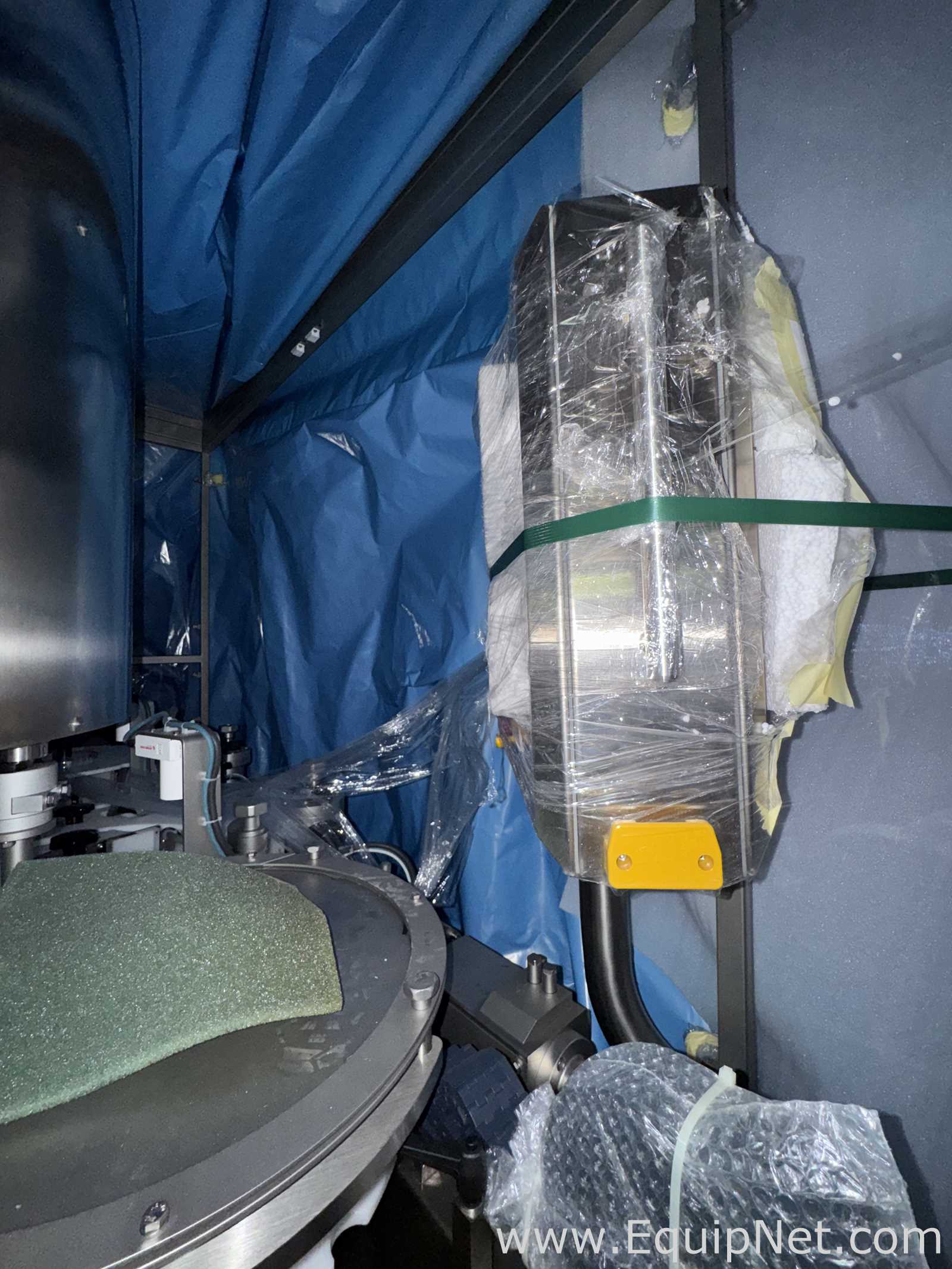

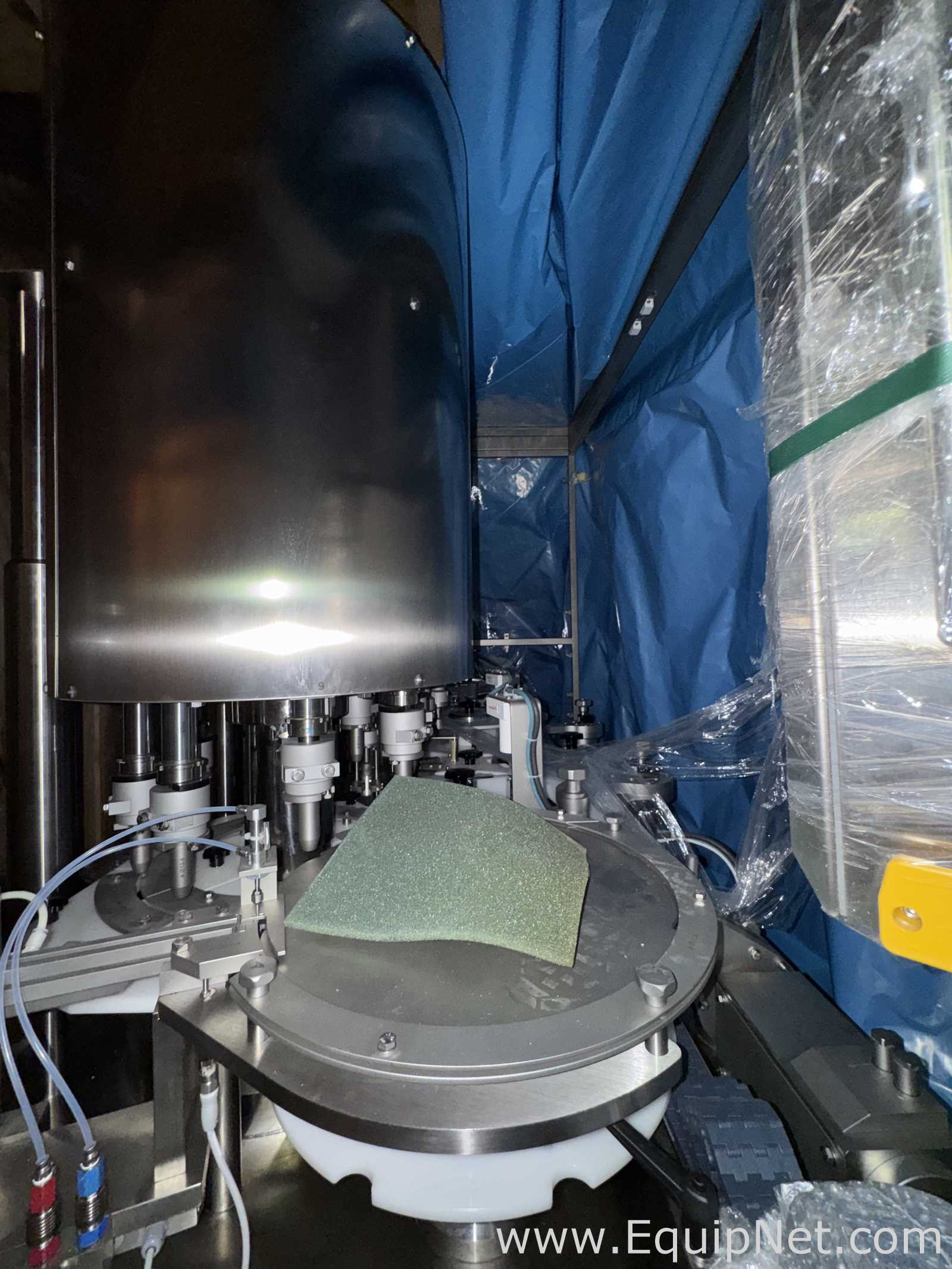

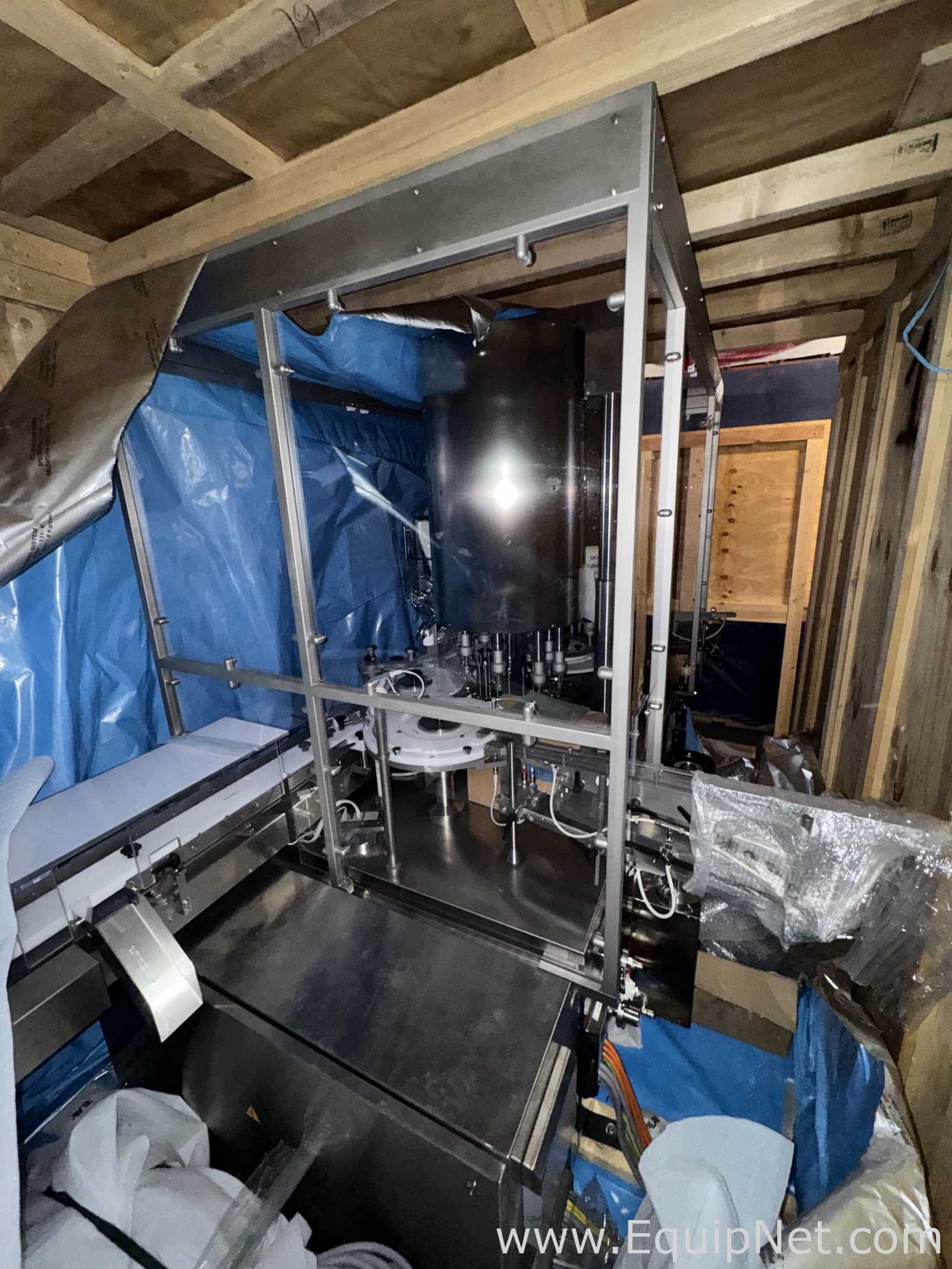

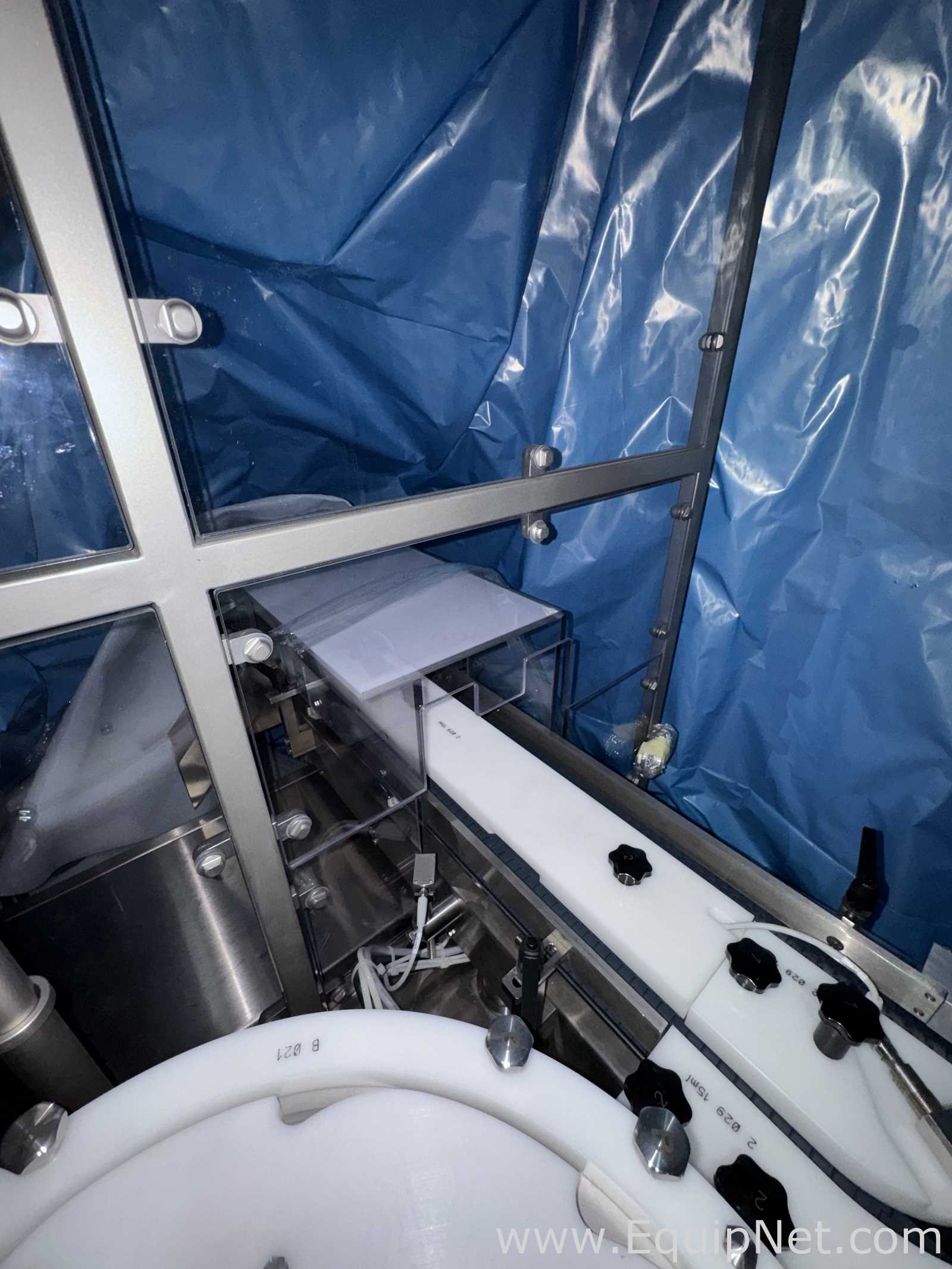

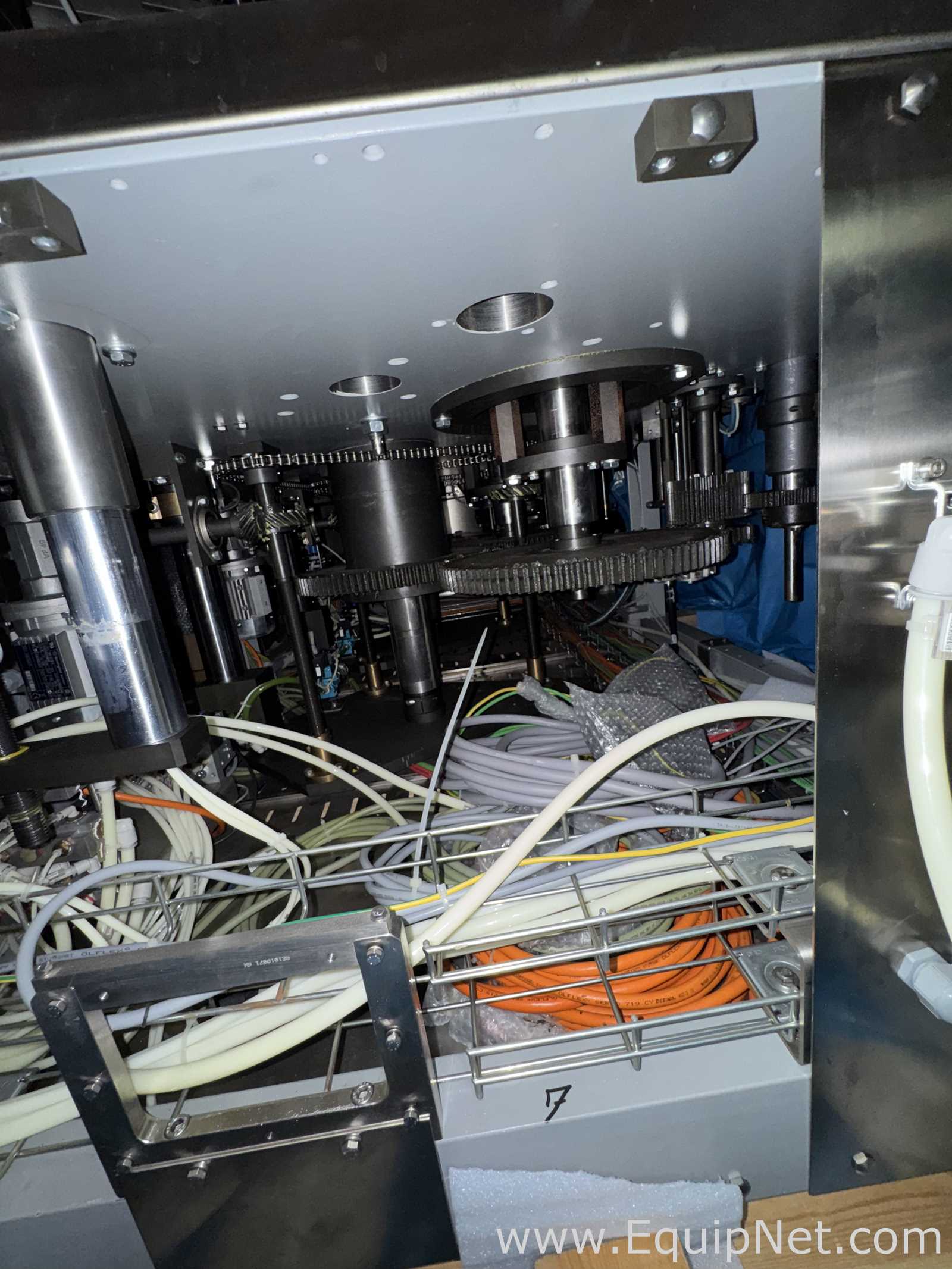

Unused Antares K6220 plus K7220 Inspection System
Equipment Description
Antares K6220+K7220 Inspection System
ANTARES "Smart Camera" camera VisionCam to perform presence / height control of screw cap.
Specifications:
Standard
Metric
Manufacturer Name
Antares Vision
Year:
2022
2022
Model:
K6220+K7220
K6220+K7220
Recommended Packaging Form:
PALLET
PALLET
Dimensions:
Standard
Metric
Overall:
0.04 x 0.04 x 0.04 in - 1 LBS
1 x 1 x 1 MM - 0.45 kg
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #975428
Unused Nastro FlexLink Slat Conveyors
Equipment Description
Nastro FlexLink Slat Conveyors
Specifications:
Standard
Metric
Manufacturer Name
FlexLink
Recommended Packaging Form:
CUSTOM PALLET
CUSTOM PALLET
Dimensions:
Standard
Metric
Overall:
0.04 x 0.04 x 0.04 in - 1 LBS
1 x 1 x 1 MM - 0.45 kg
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
