Keller ScreenROTO 2 Screen Printing Machine

Pre-Owned Keller Co Printer for Sale

Browse this pre-owned Keller Co Printer available now on EquipNet MarketPlace™ located in , Poland and backed by our logistics support - Inquire today.


Seller's Acceptable Currency:

€112,000.00 EUR

Request More Info   Make An Offer

Location:  Poland

Level of Removal:  Uncrated/Loose

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you

Equipment Description

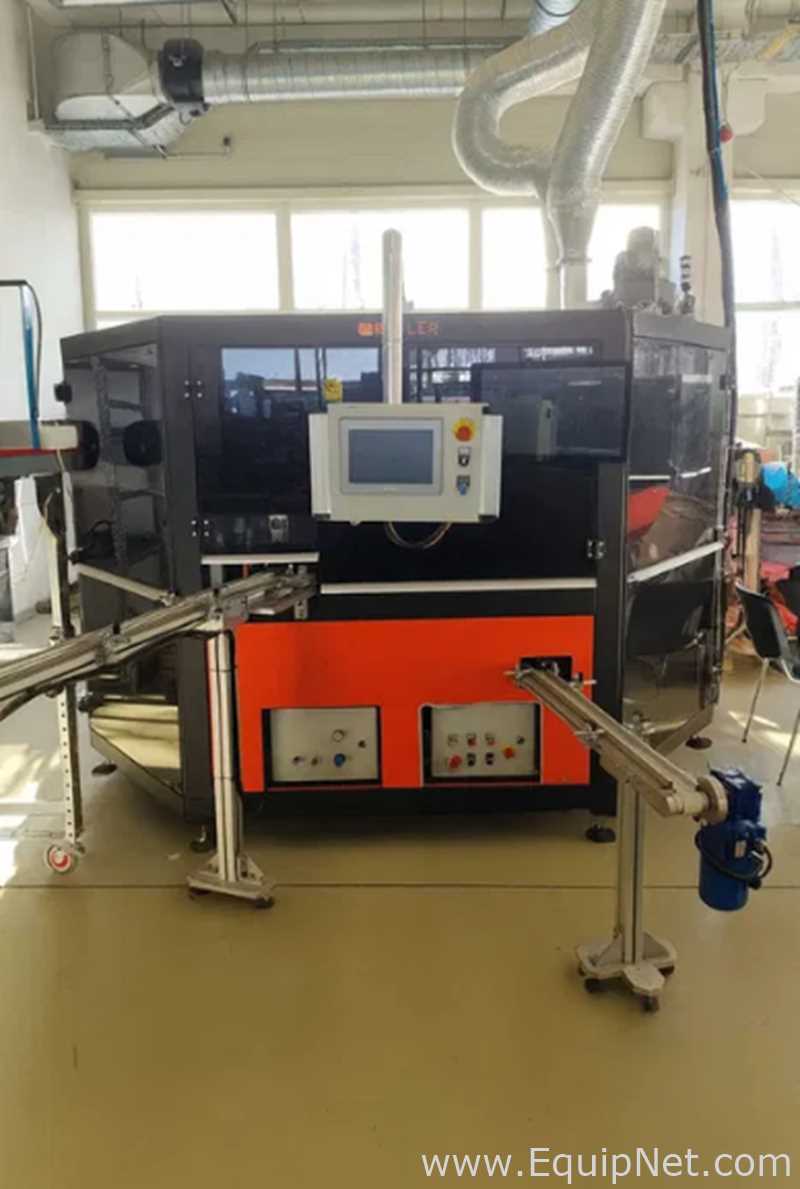

Keller ScreenROTO 2 Screen Printing Machine

  • The maximum dimensions of products that can be printed on these machines are 30 mm diameter, length 150 mm.

    High production efficiency
  • Up to 1000–2000 pieces/hour at each station, for a total of 2000–4000 pieces/hour from a single machine!
  • Two printing stations – the ability to apply two colors on a single element or print two pieces of one element simultaneously.

    Full process automation
  • Automated feeder, manipulators, WEISS rotary table, integrated part collection.
  • Process: feed ? deionization ? activation ? printing ? UV ? collection.

    Highest printing precision
  • MITSUBISHI control + 10" panel
  • HIWIN guides
  • MITSUBISHI servo drives for rotation, screen feed, and the Z axis.
  • Stable, rigid steel construction – ideal repeatability.

    Perfect print curing
  • 2 UV lamps, 2000 W each, with smooth regulation from 40%.
  • KELLER lamp cooling system.
  • Optical eye protection, full safety enclosure.

    Highest surface quality before printing
  • 2 surface activation stations
  • 2 deionization stations with exhaust.
  • Ensures perfect ink adhesion even on difficult materials.

    COGNEX vision system
  • Automatic print quality control.
  • Reject function for defective parts with an adjustable percentage threshold.

    Quick changeover
  • time savings
  • Screen replacement in as little as 10 minutes, including tooling in up to 20 minutes.

  • Systems: Mitsubishi, HIWIN, FESTO, METALWORK, WIELAND, OMRON, COGNEX

    The perfect proposition for companies that want to:
  • increase the efficiency of cylindrical printing,
  • achieve better repeatability and print quality,
  • automate the production process,
  • Reduce waste with vision control,
  • Reduce changeover times and increase production flexibility.

  • Specifications:
    Standard
    Metric

    Manufacturer Name

    Keller Co


    Year:

    2017
    2017

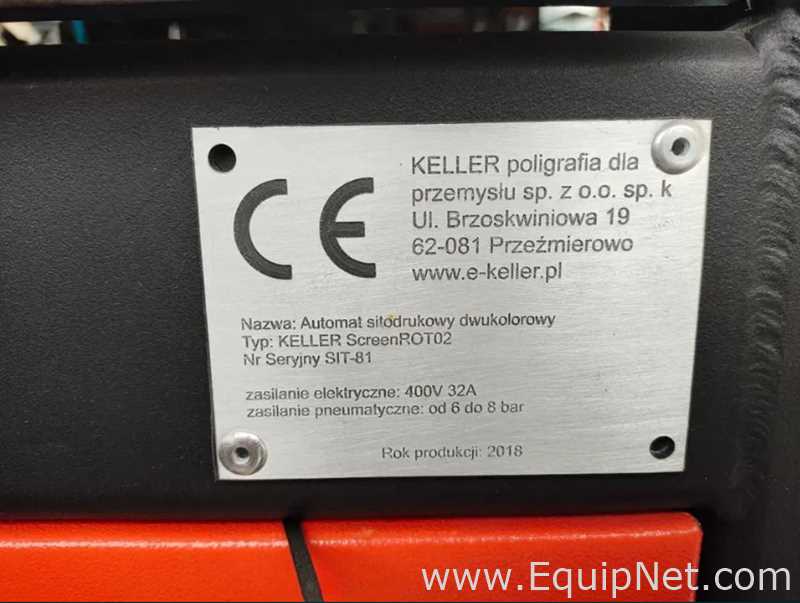

    Serial Number:

    SIT-81
    SIT-81

    CE Marked:

    YES
    YES

    Model:

    ScreenROTO 2
    ScreenROTO 2

    Voltage:

    400 VOLTS
    400 VOLTS

    Current:

    32 AMPS
    32 AMPS

    Recommended Packaging Form:

    PALLET
    PALLET


    Dimensions:
    Standard
    Metric

    Overall:

    196.85 x 137.80 x 86.61 in - 3858.05 lb
    5000 x 3500 x 2200 MM - 1750 KGS


    Disclaimer:

    This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in

    Europe

    This equipment is subject to a removal and loading charge.


    The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

    Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.

    Any license associated with this equipment is non-transferable.
