Listing# 1092234
Arrow Corp Pegasus PG 27A-LH SS Gravity Separator Table
Seller's Acceptable Currency:
$18,500.00 USD
Make An OfferLocation: AB, Canada
Level of Removal: Uncrated/Loose
*All offers are submitted in Seller’s Acceptable Currency
Don't see what you're looking for? We'll find it for you
Asset Documents
Equipment Description

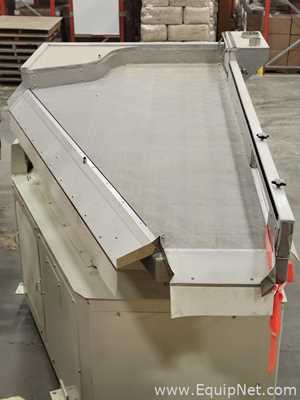

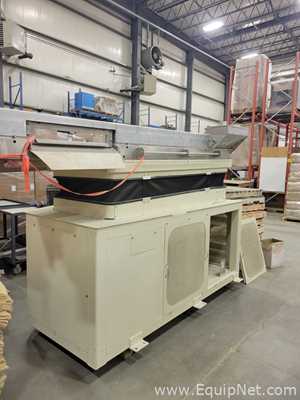

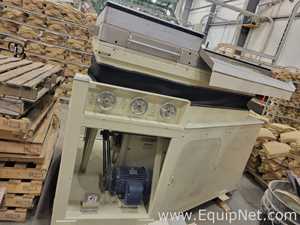

Arrow Corp Pegasus PG 27A-LH SS Gravity Separator Table
Throughput: up to 12,000 cubic feet per minute depending on product and application
Deck area: 27 cubic feet
Throughput per application:
Corn/Beans: between 275 - 340 bushels per hour
Wheat/Barley: between 380 - 410 bushels per hour
Canola/Flax: between 160 - 200 bushels per hour
Alfafa/Clover: 2500 - 3200 pounds per hour
Never put into production
Overall dimensions:
Length: 130 inches
Width: 92 inches
Height: 112 inches
Painted steel construction

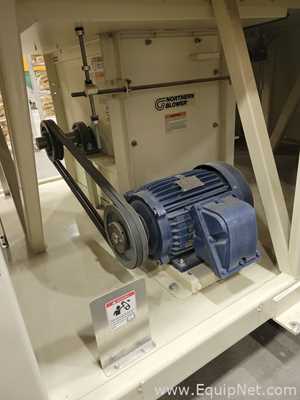

Fan motor requirements: 10 horsepower
Drive motor: 1.5 horsepower
Electrical: 575 volts
Previously used in testing for hemp application
Throughput: up to 12,000 cubic feet per minute depending on product and application
Deck area: 27 cubic feet
Throughput per application:
Corn/Beans: between 275 - 340 bushels per hour
Wheat/Barley: between 380 - 410 bushels per hour
Canola/Flax: between 160 - 200 bushels per hour
Alfafa/Clover: 2500 - 3200 pounds per hour
Never put into production
Overall dimensions:
Length: 130 inches
Width: 92 inches
Height: 112 inches
Painted steel construction
Fan motor requirements: 10 horsepower
Drive motor: 1.5 horsepower
Electrical: 575 volts
Previously used in testing for hemp application
Specifications:
Standard
Metric
Manufacturer Name
Arrow Corp
Year:
2017
2017
Serial Number:
3226
3226
CE Marked:
NO
NO
Model:
Pegasus PG 27A-LH SS
Pegasus PG 27A-LH SS
Material of Construction:
CARBON STEEL
CARBON STEEL
Diameter of Screen:
27 cubic feet
27 cubic feet
Number of Decks:
1
1
Voltage:
575
VOLTS
575
VOLTS
Frequency:
60
HERTZ
60
HERTZ
Phase:
3
3
Recommended Packaging Form:
CUSTOM PALLET
CUSTOM PALLET
Dimensions:
Standard
Metric
Overall:
130 x 92 x 112 IN - 4500 LBS
3302.00 x 2336.80 x 2844.80 mm - 2041.20 kg
Disclaimer
This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in
AB
This equipment is subject to a removal and loading charge.
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
