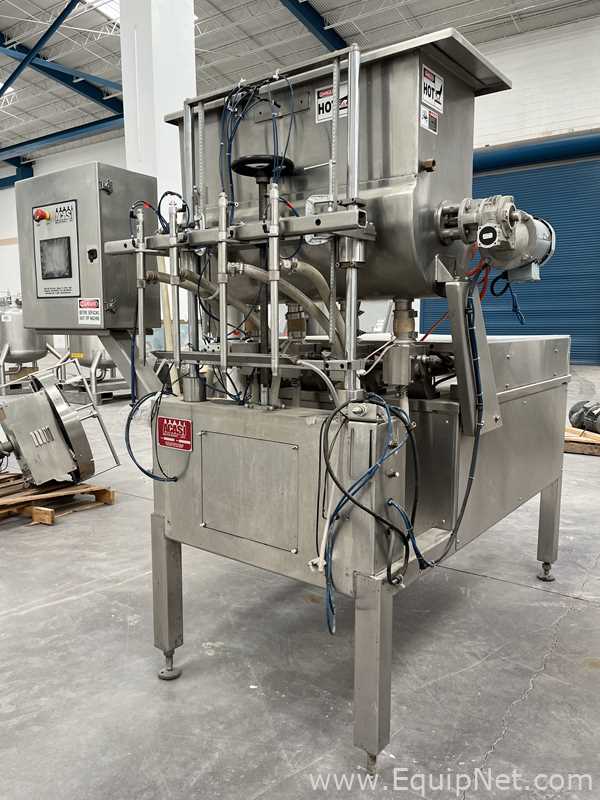

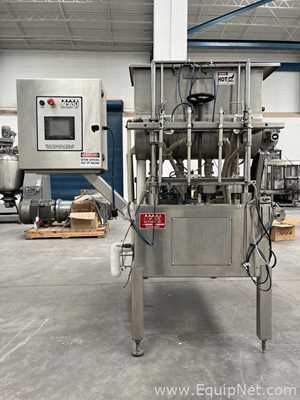

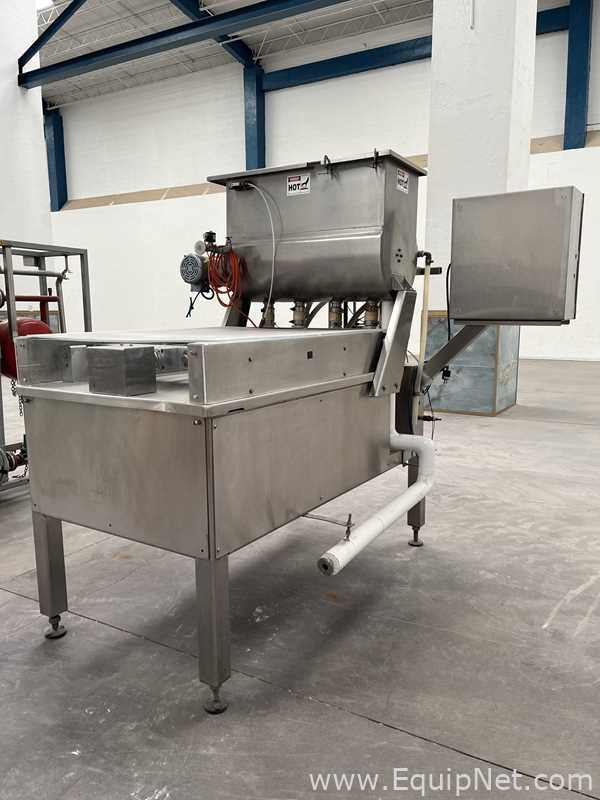

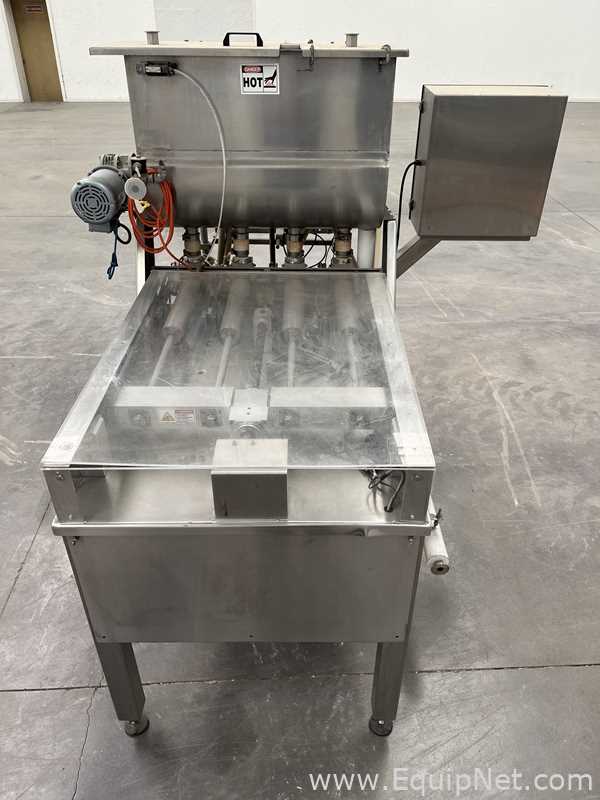

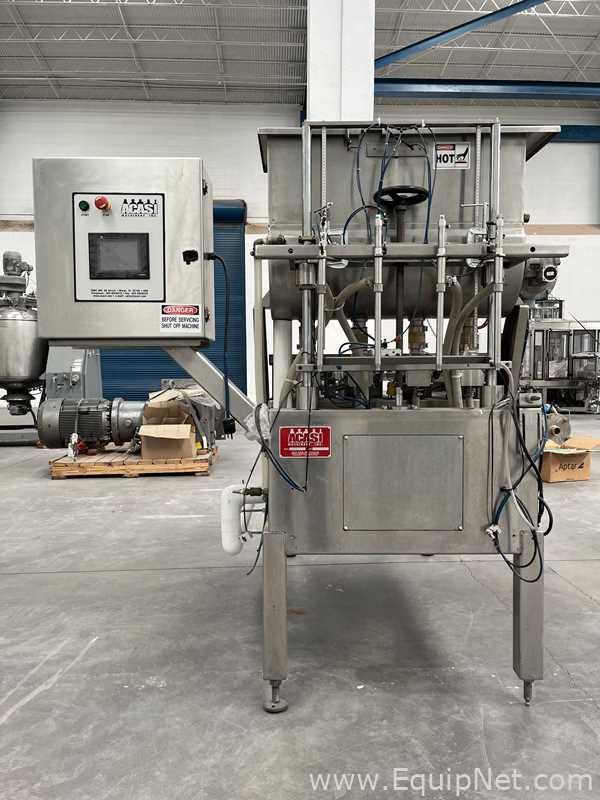

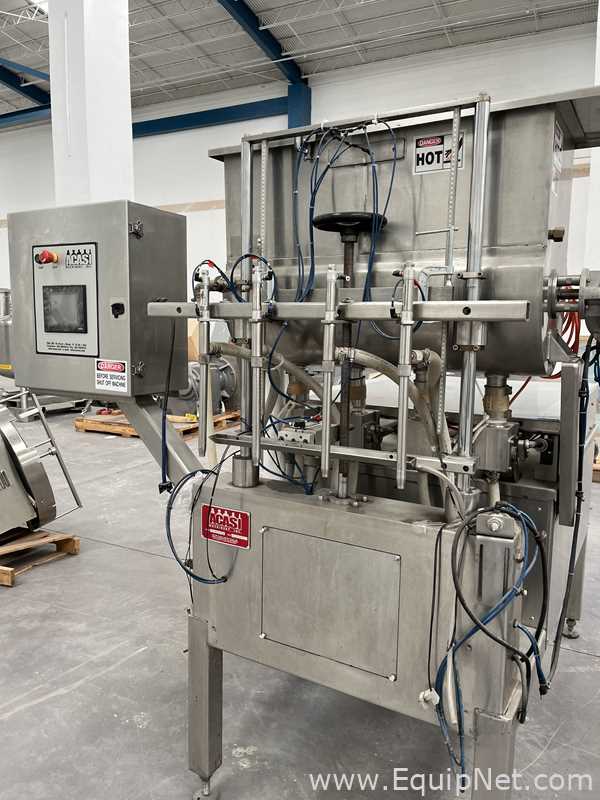

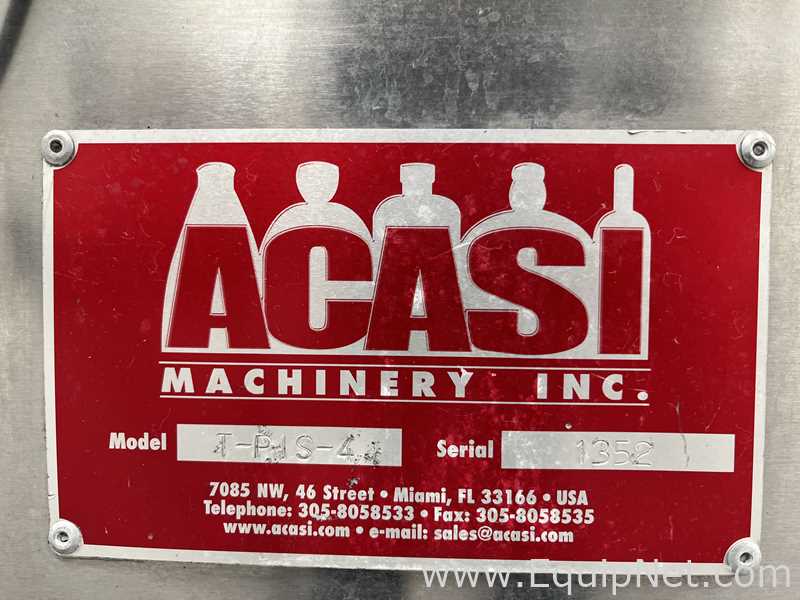

Lot 14 Listing# 1096115 Acasi Machinery Inc. T-PlS-4 Filler
You must be logged in to participate in auctions
Equipment Description

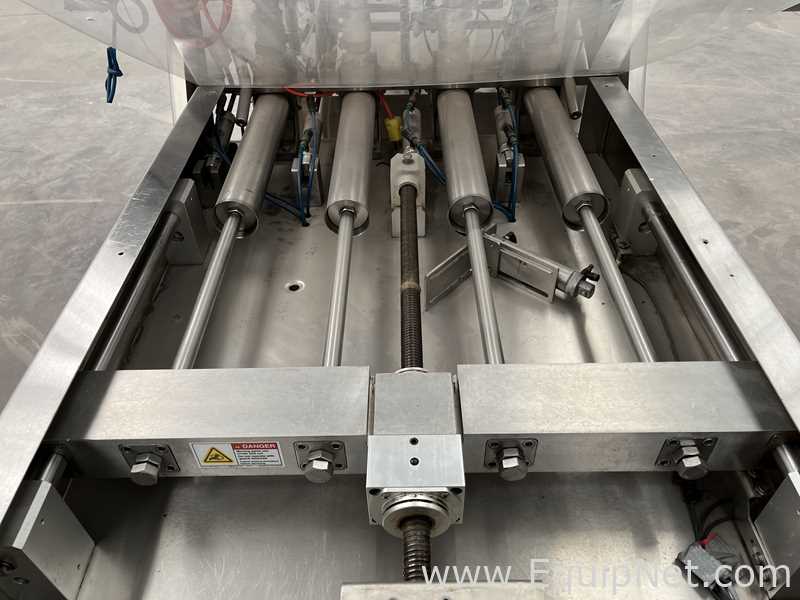

High-precision, electrically-driven ball screw movement, faster and more precise than pneumatic or air over oil systems.
Fill and charge speeds can be better controlled and changes performed at any point of the stroke (i.e., to reduce speed at the end of a fill cycle to avoid splashing).
Handles a wide variety of products and product viscosities.
Capable of handling breakable particulates up to ¾ in diameter.
Reservoir tank mounted directly above rotary valves for direct product feed.
Heavy duty 304 stainless steel welded frame construction.
FDA approved metallic rotary valves.
Minimal air consumption.
All contact parts are stainless steel, sanitary, Teflon, Buna and Viton.

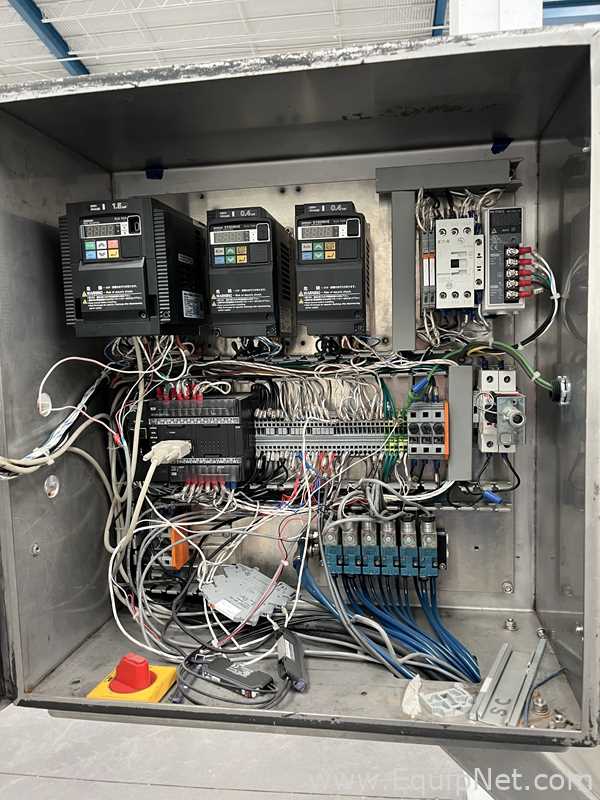

Omron PLC for all machine logic functions.
AC variable speed control.

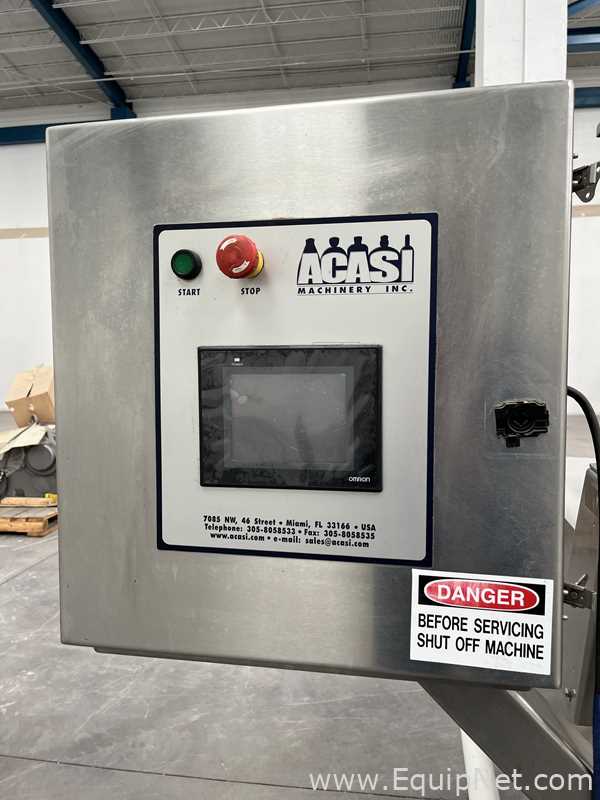

Front panel mounted bottle counter.
Front panel Start and E-STOP for easy access.
Fiber optic sensors by Omron standard for container gating.
No bottle/no fill PLC controlled.
Nozzle spacing fully adjustable.
Container height adjustment.
Nozzle stroke adjustments.
Adjustable entry and exit bottle gating cylinders.
Works with plastic or glass containers.
No change parts needed for various types of containers.
Pistons and fill nozzles available in various sizes.
Optional sanitary pistons and fittings.
220 Volts, 60Hz, 15 Amps.
5 CFM @ 80 psi.
Specifications:

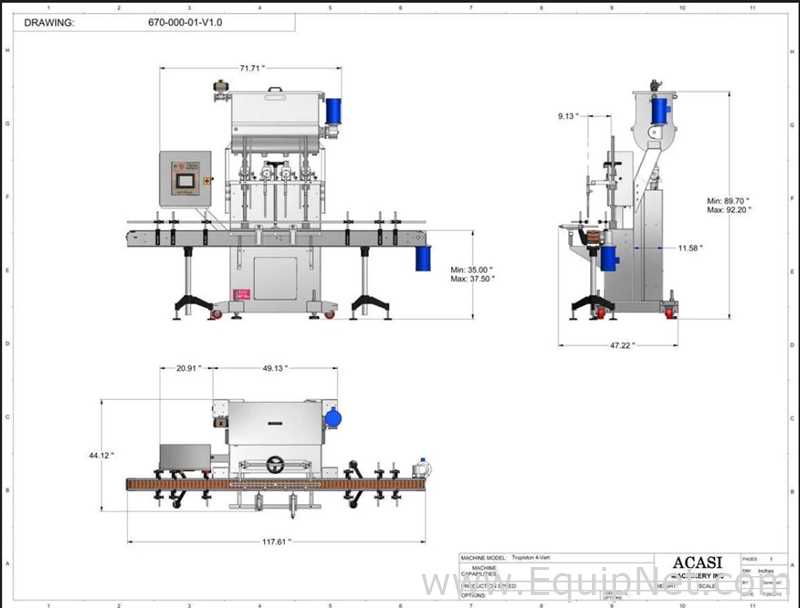

Dimensions:
