Listing# 956166
Famar 3- Single Syringes Production Line
Make An Offer
Location: France
Level of Removal: Still Installed
*All offers are submitted in Seller’s Acceptable Currency
Don't see what you're looking for? We'll find it for you
Asset Documents
Equipment Description
Famar 3- Single Syringes Production Line
Items included:

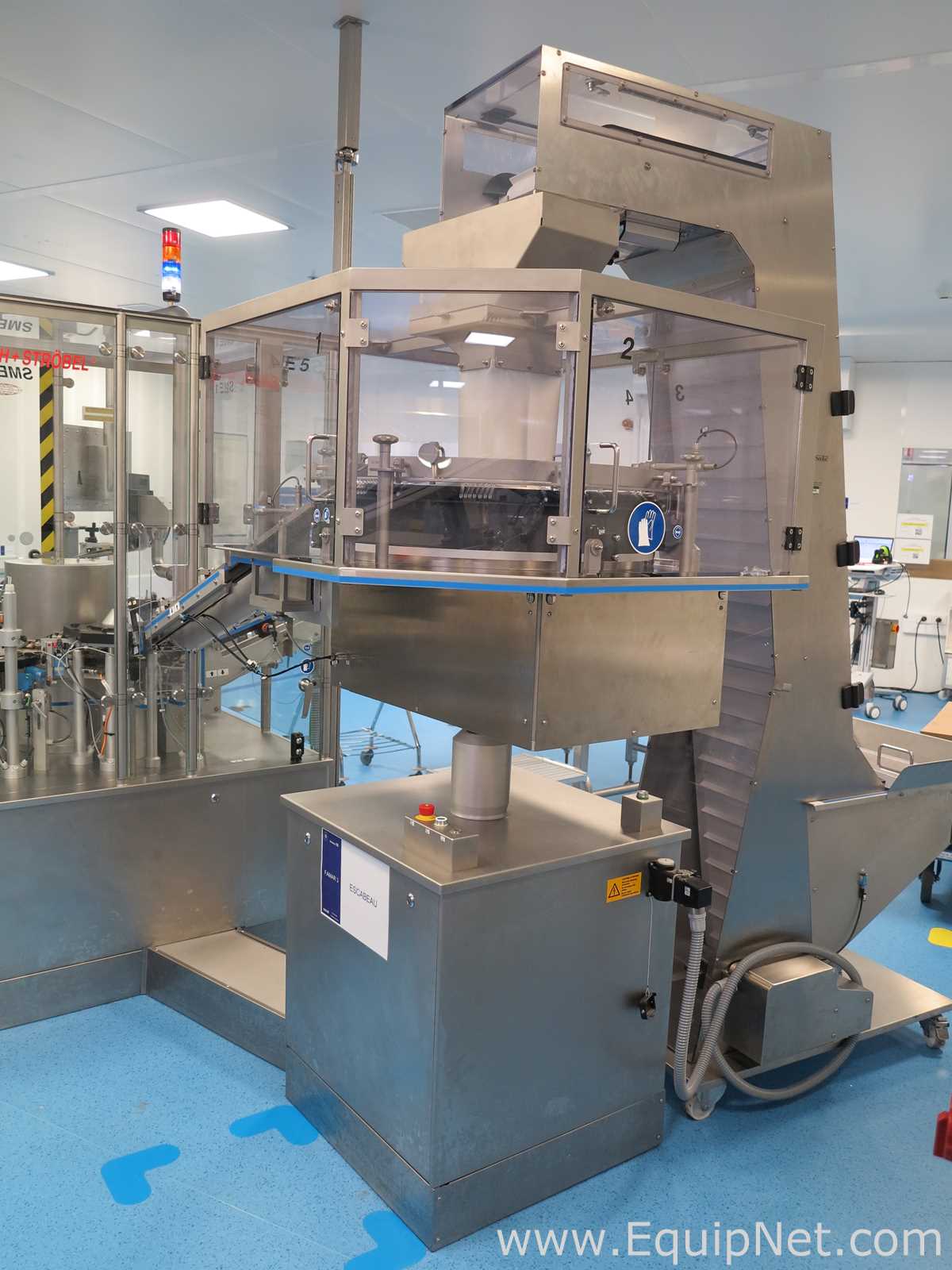

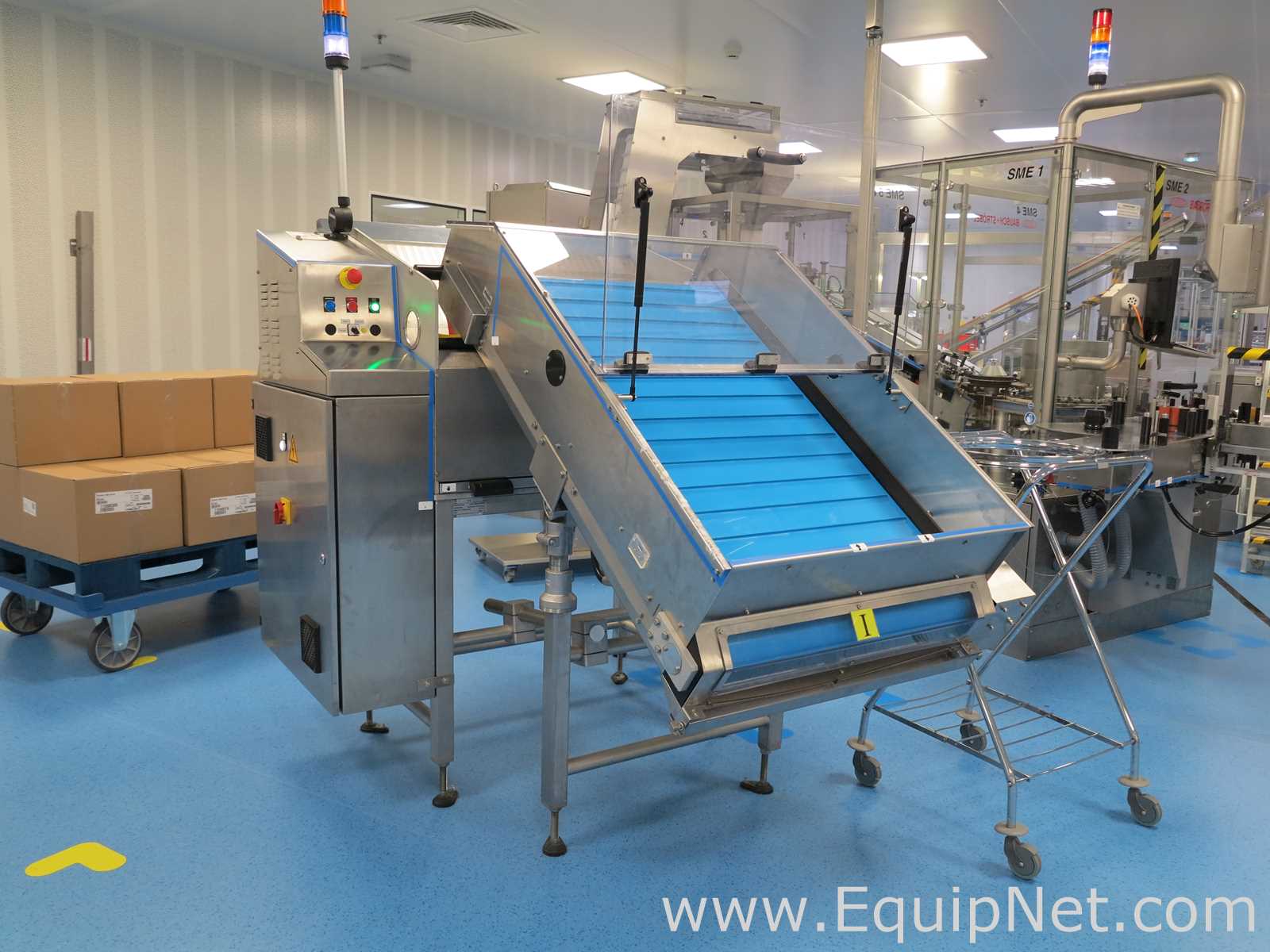

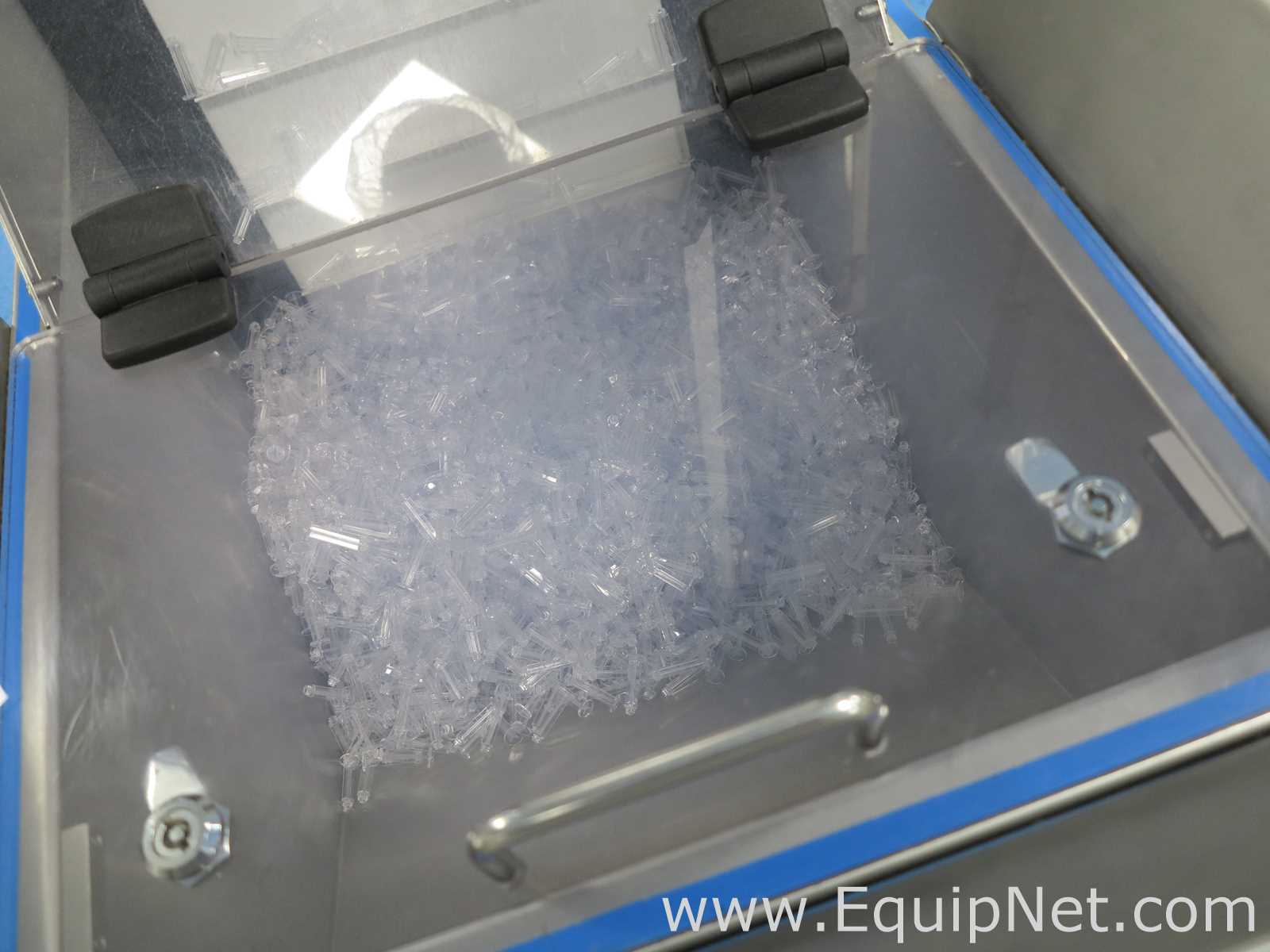

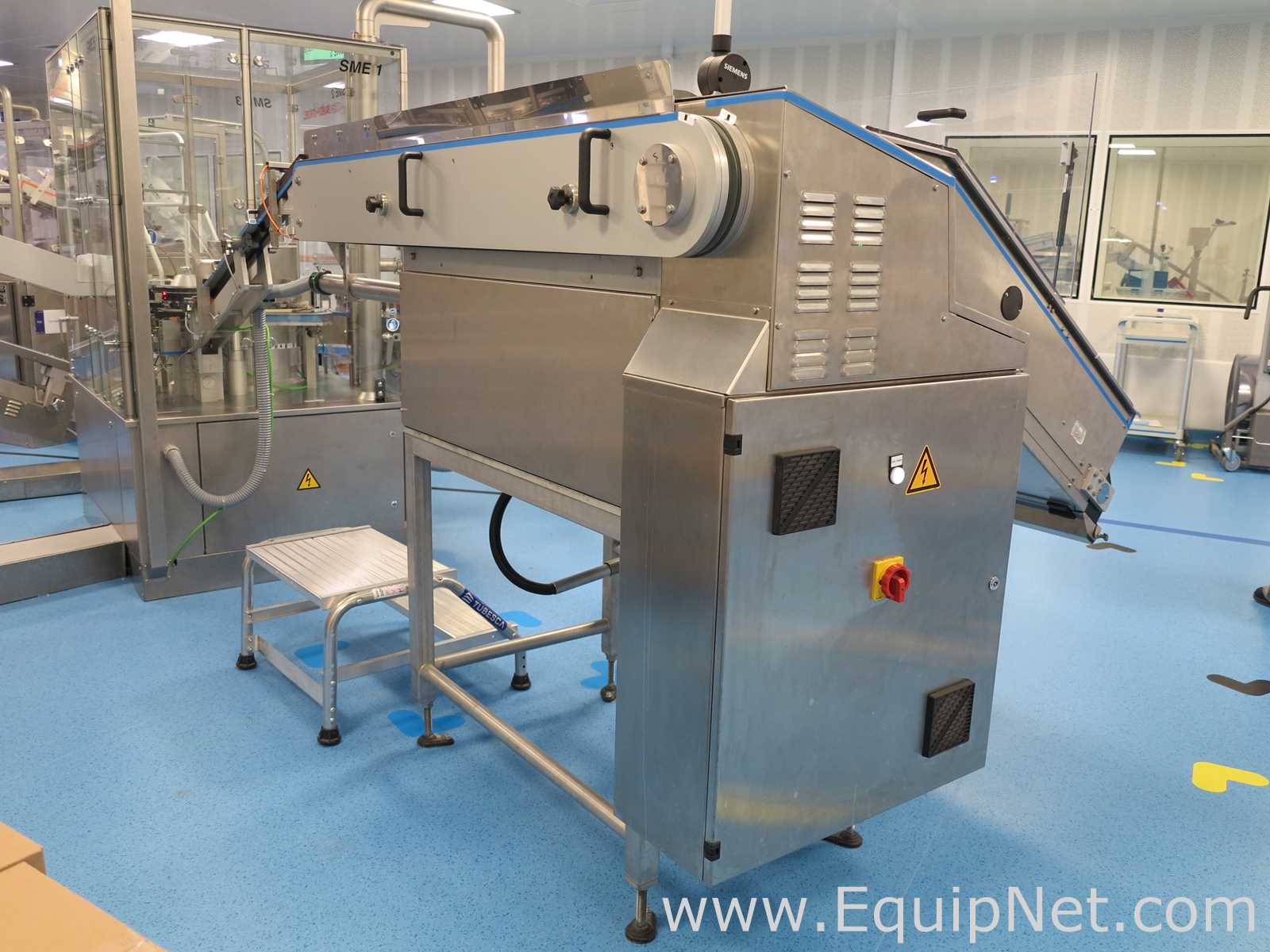

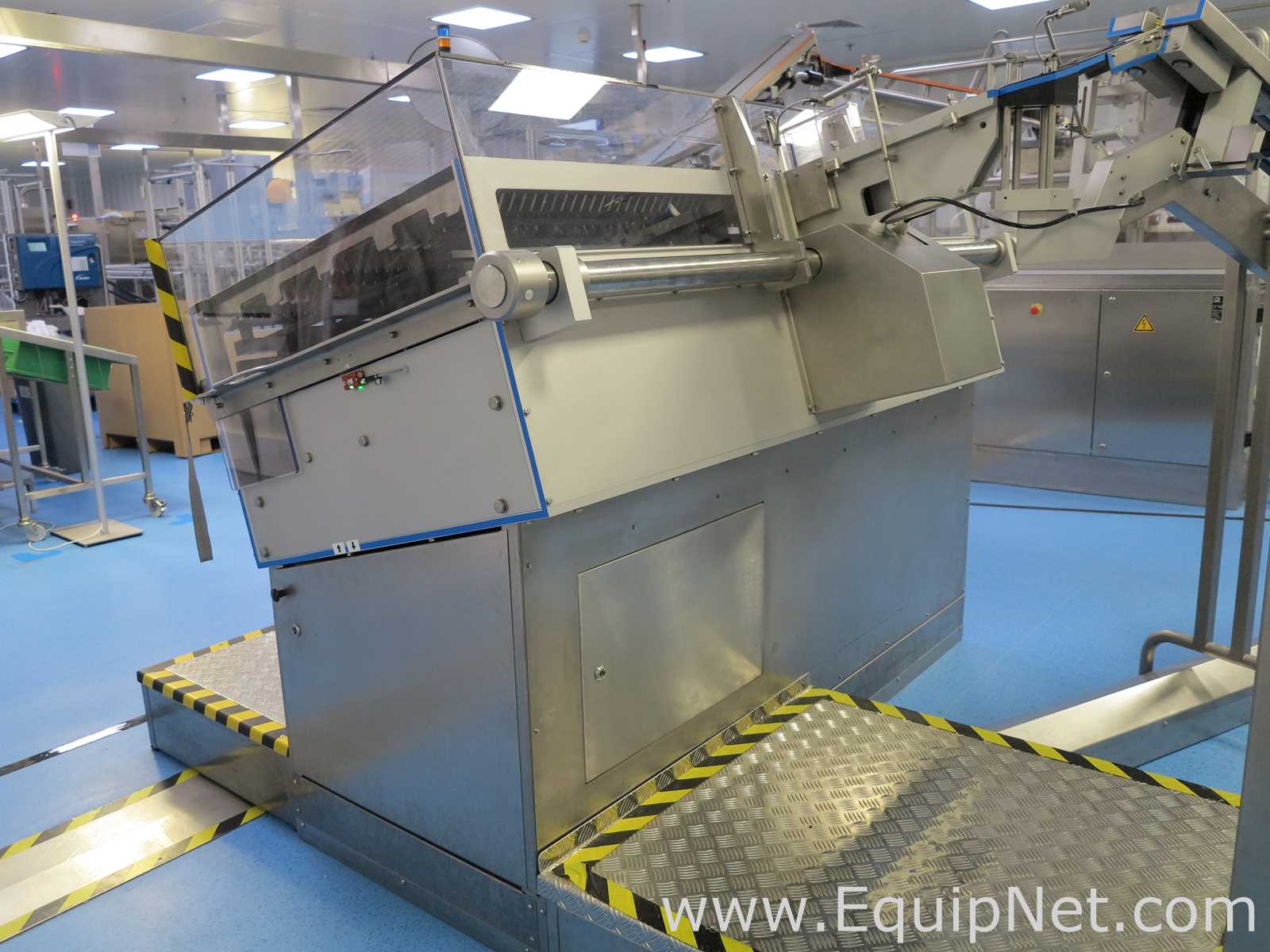

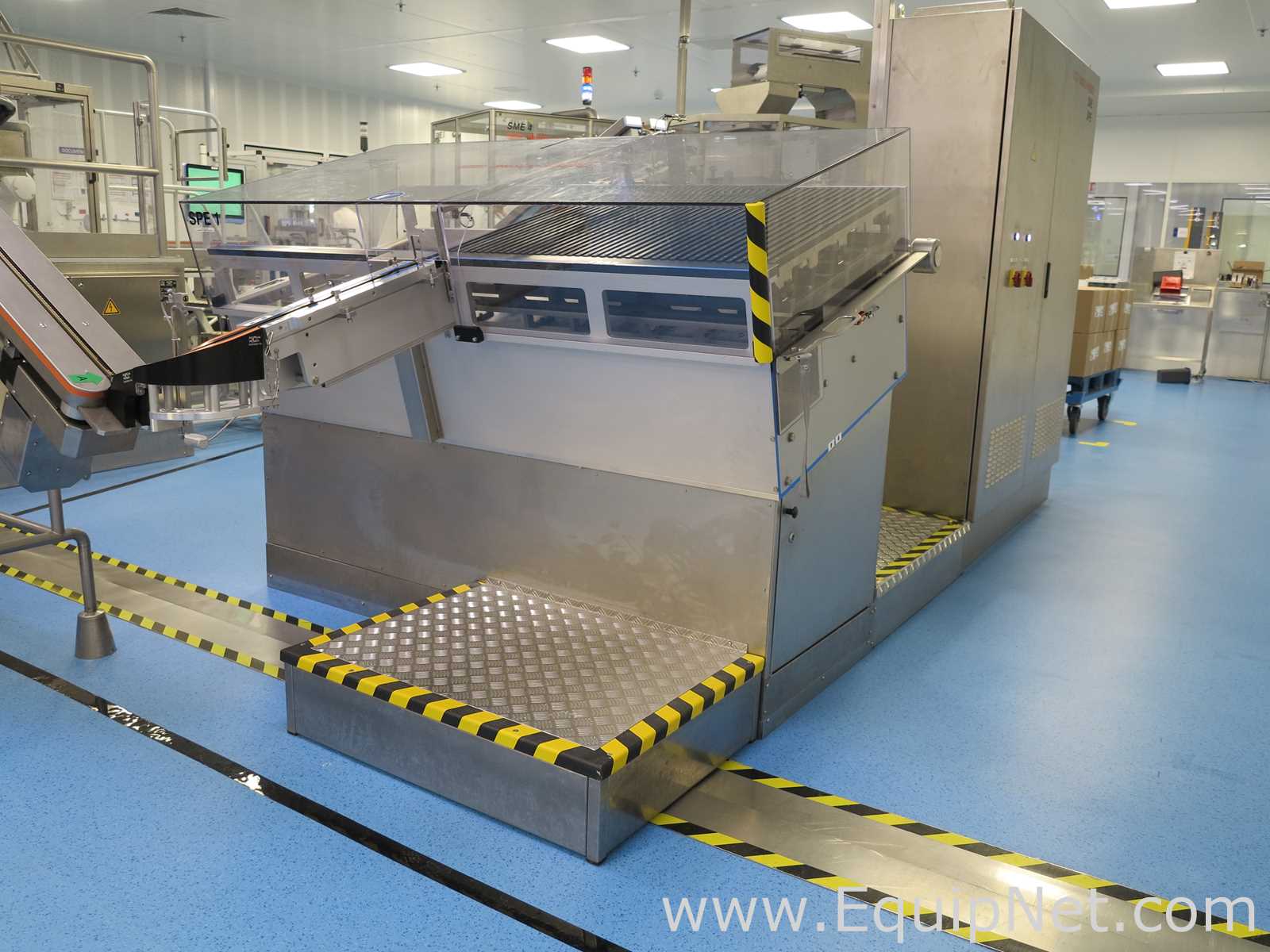

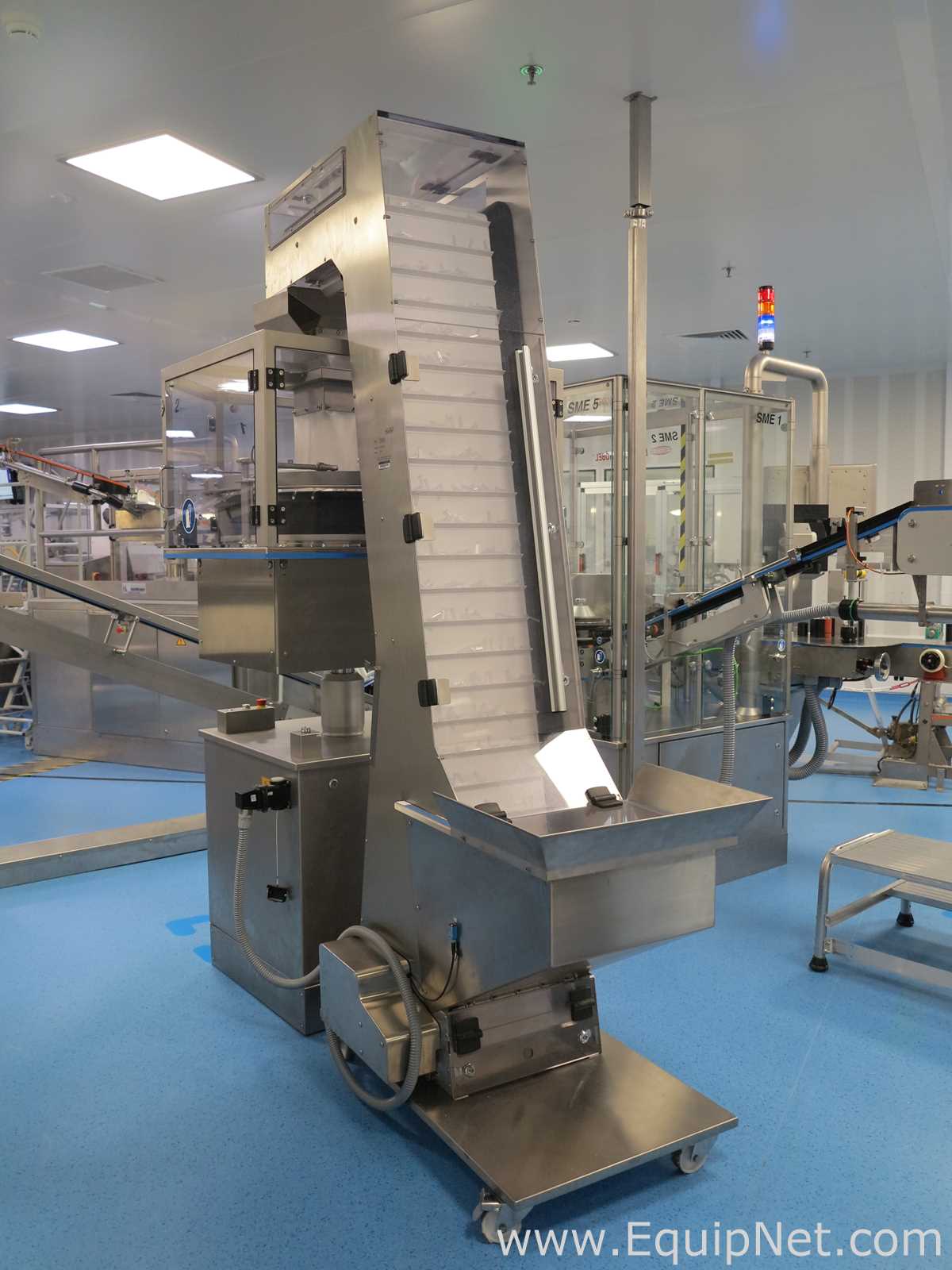

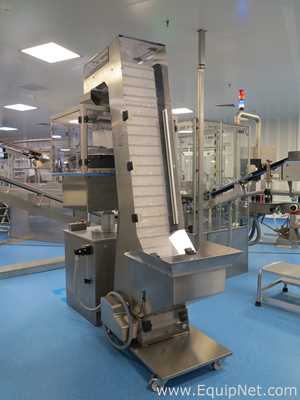

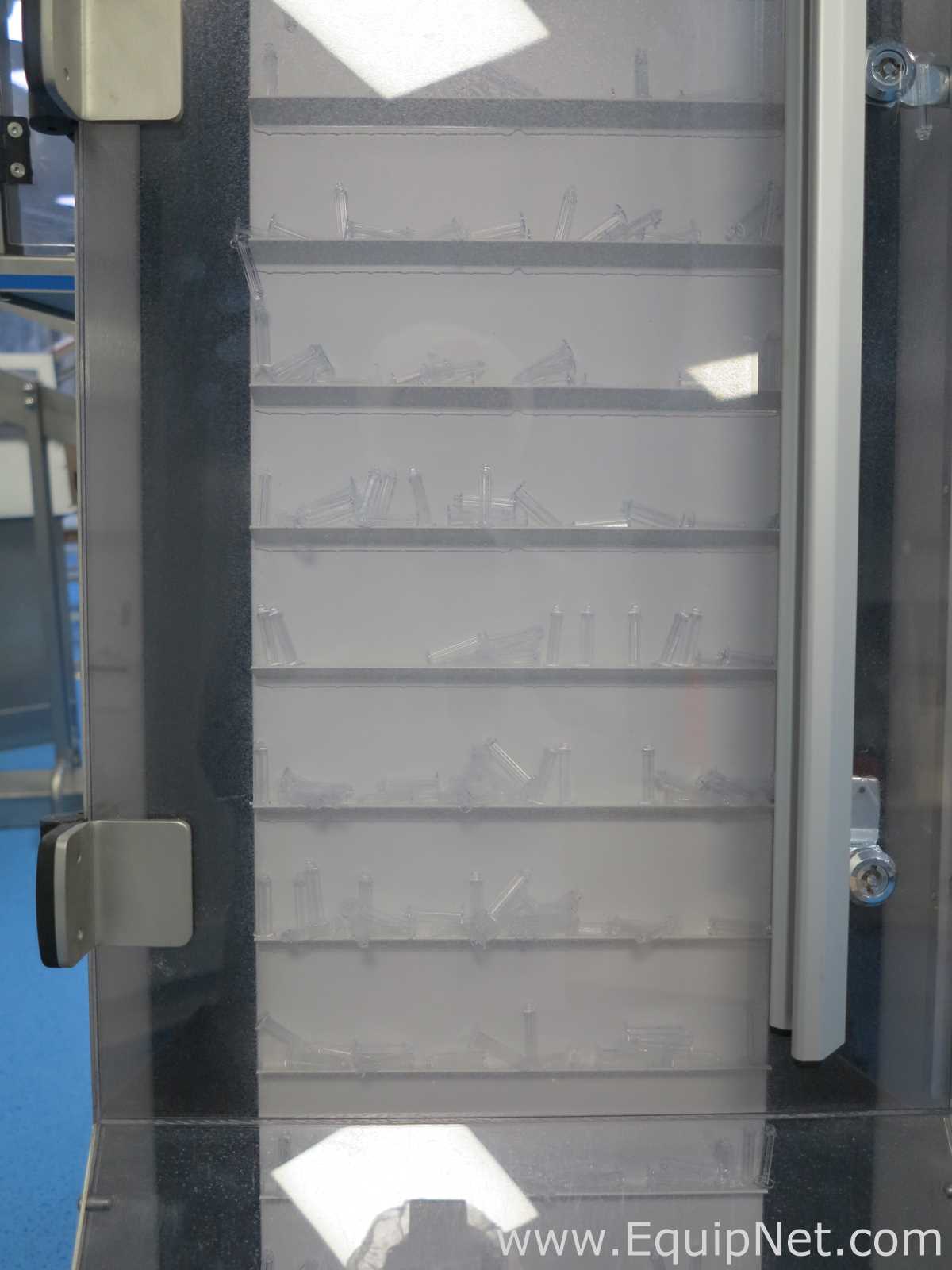

1-10: ADMV 38460 (Type 19394-13) Feeder
Orients and feeds syringes into the line
Year: 2015

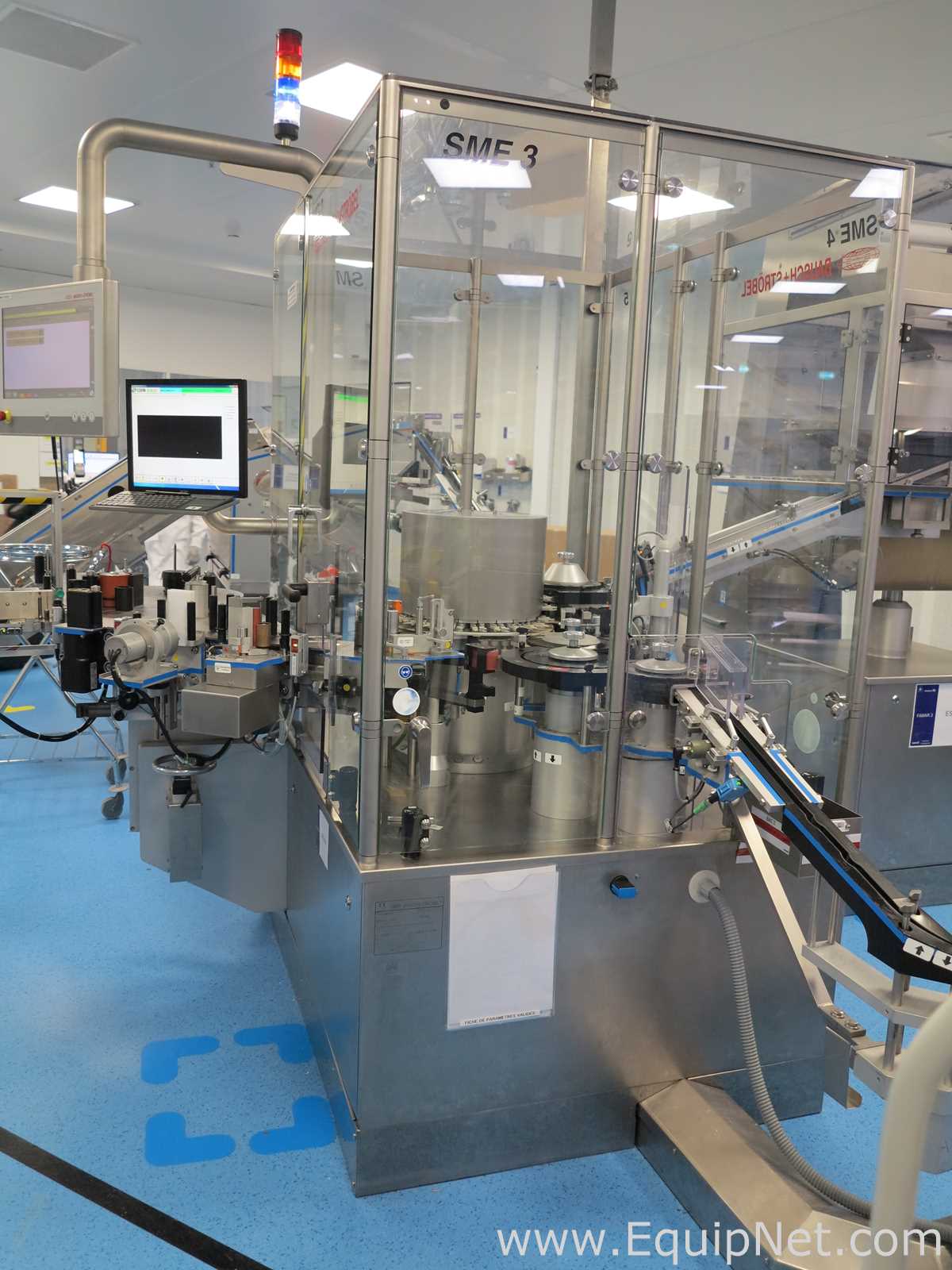

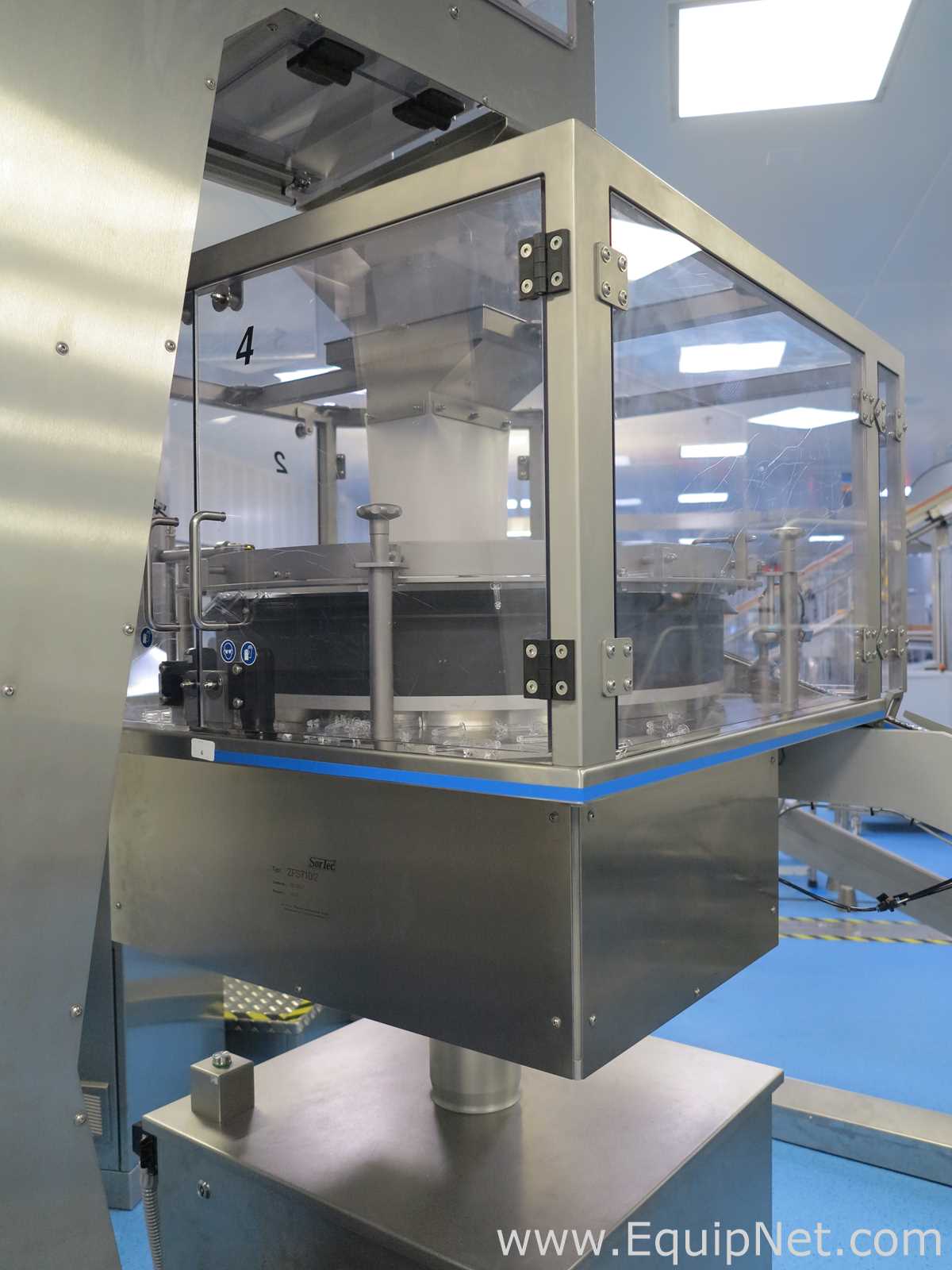

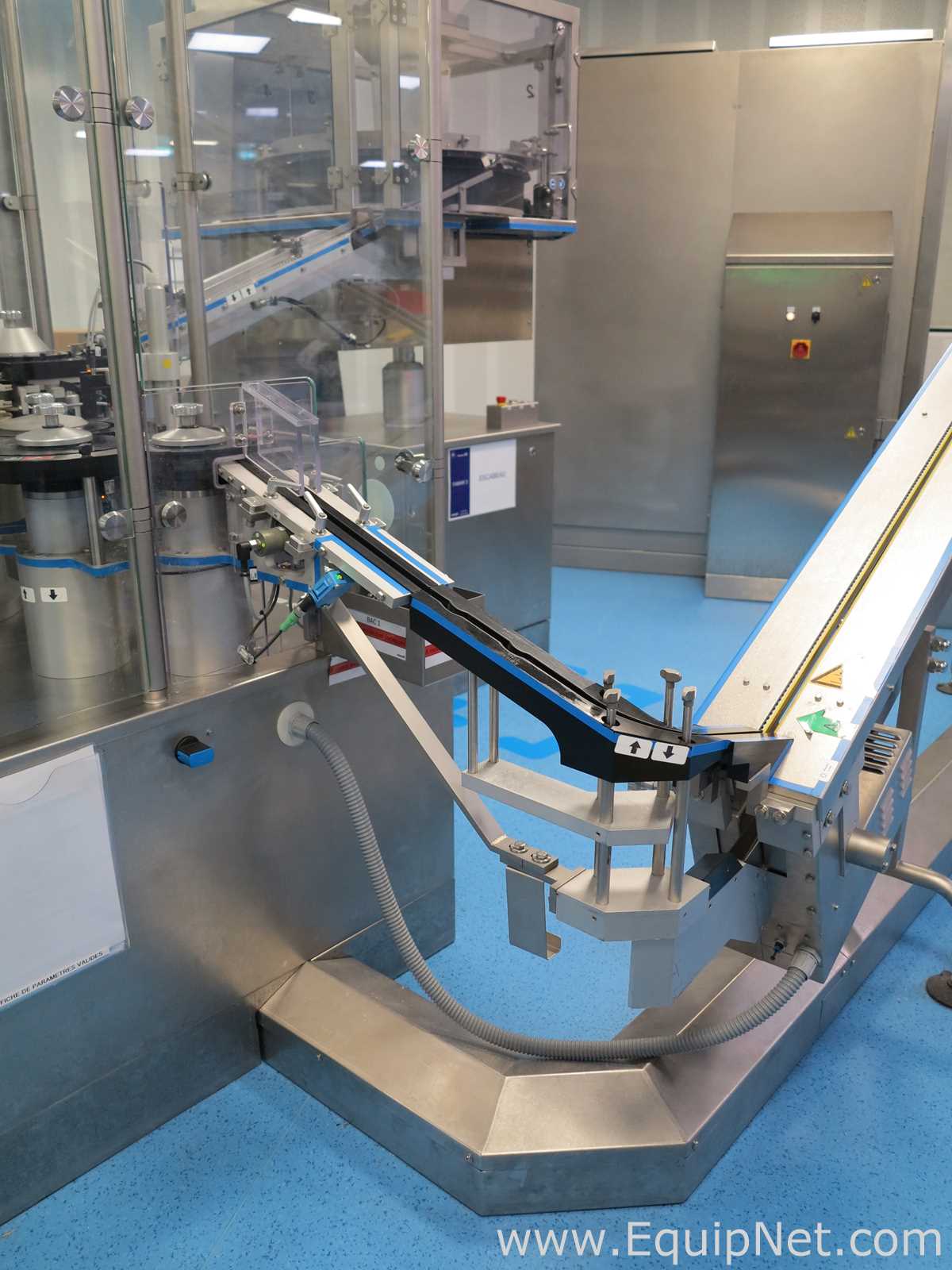

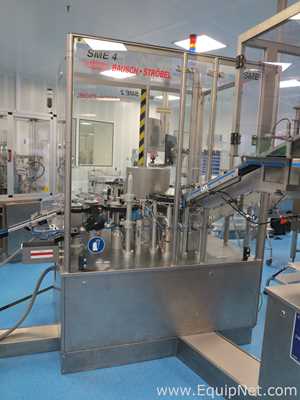

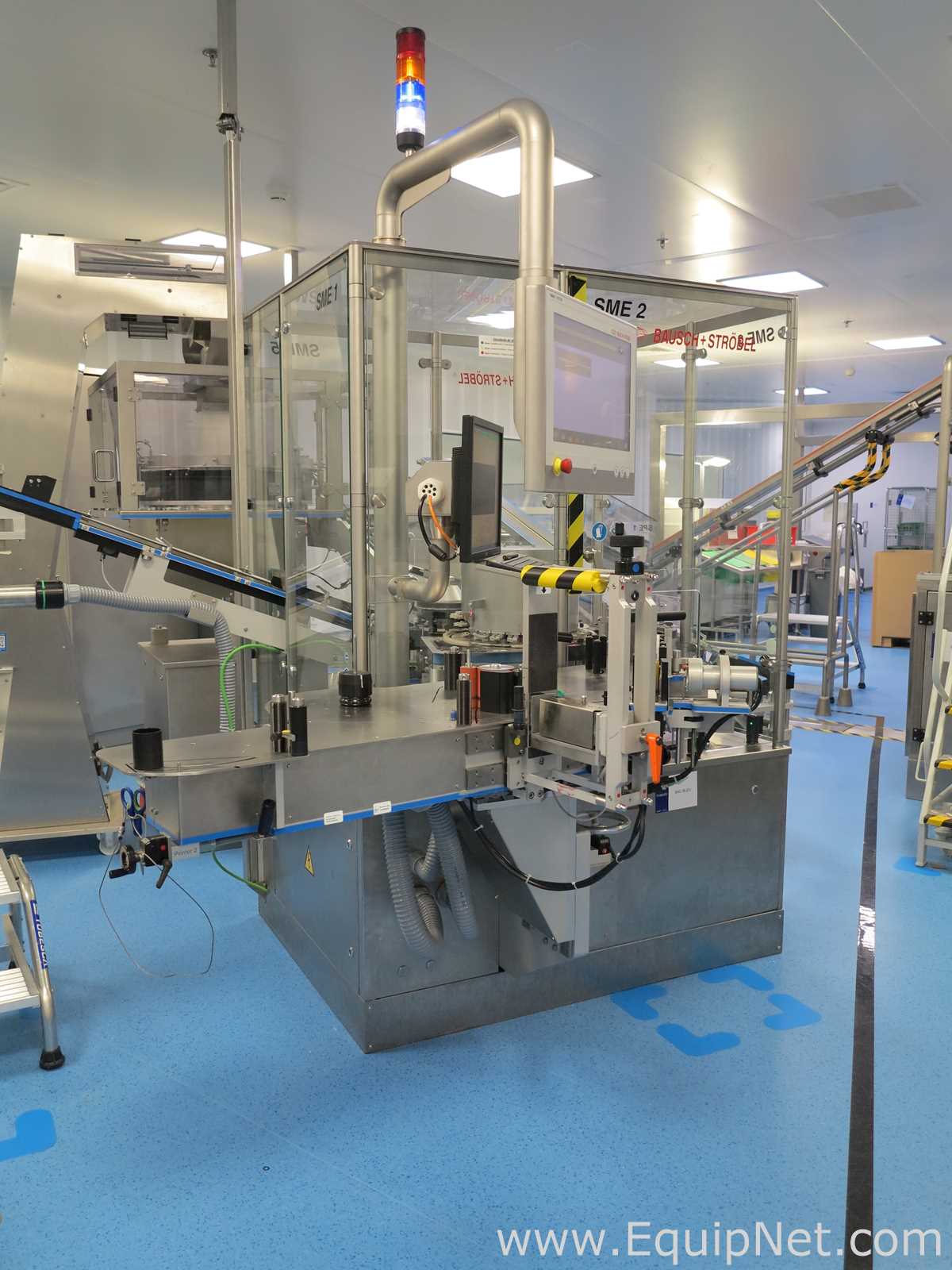

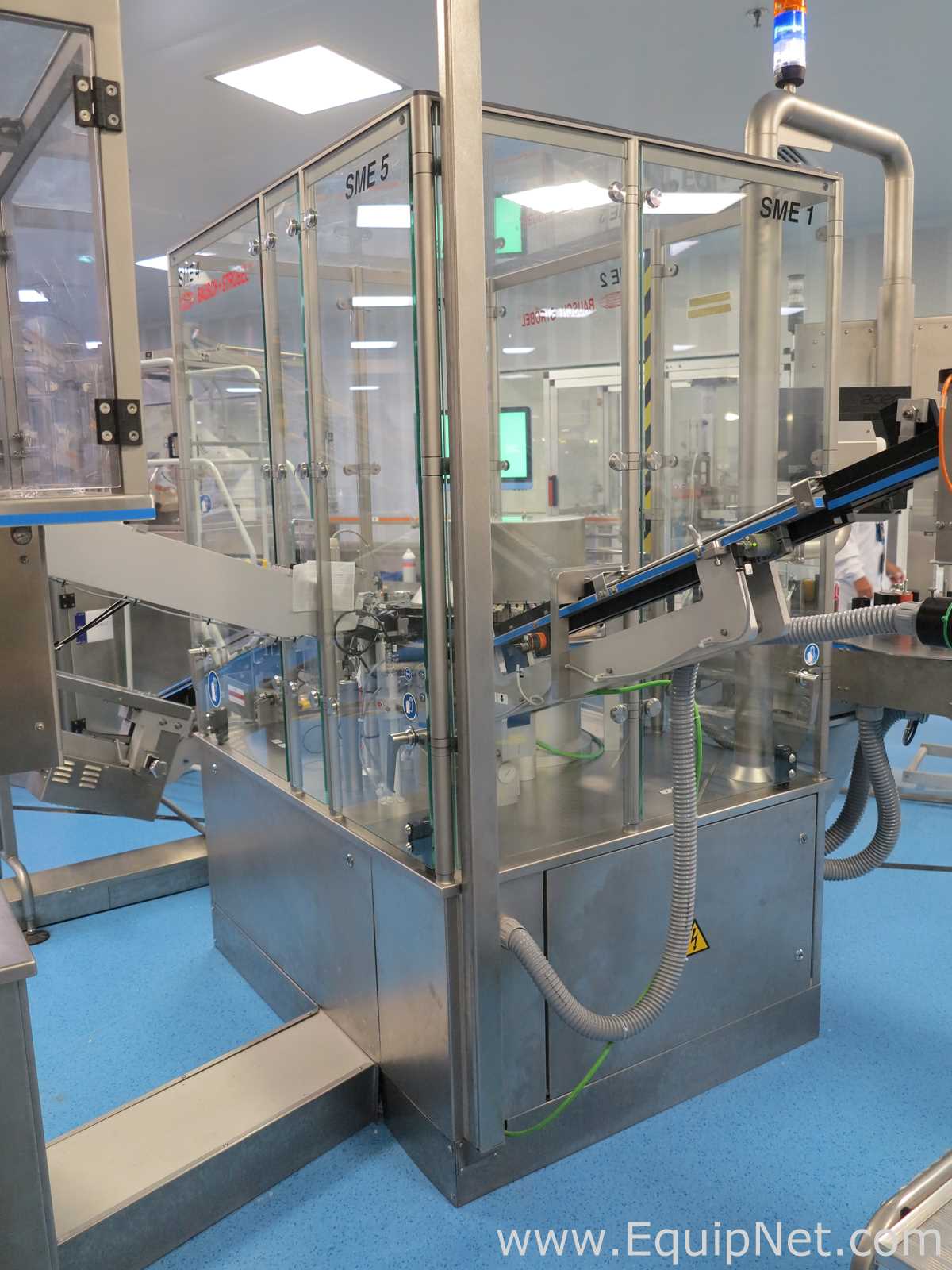

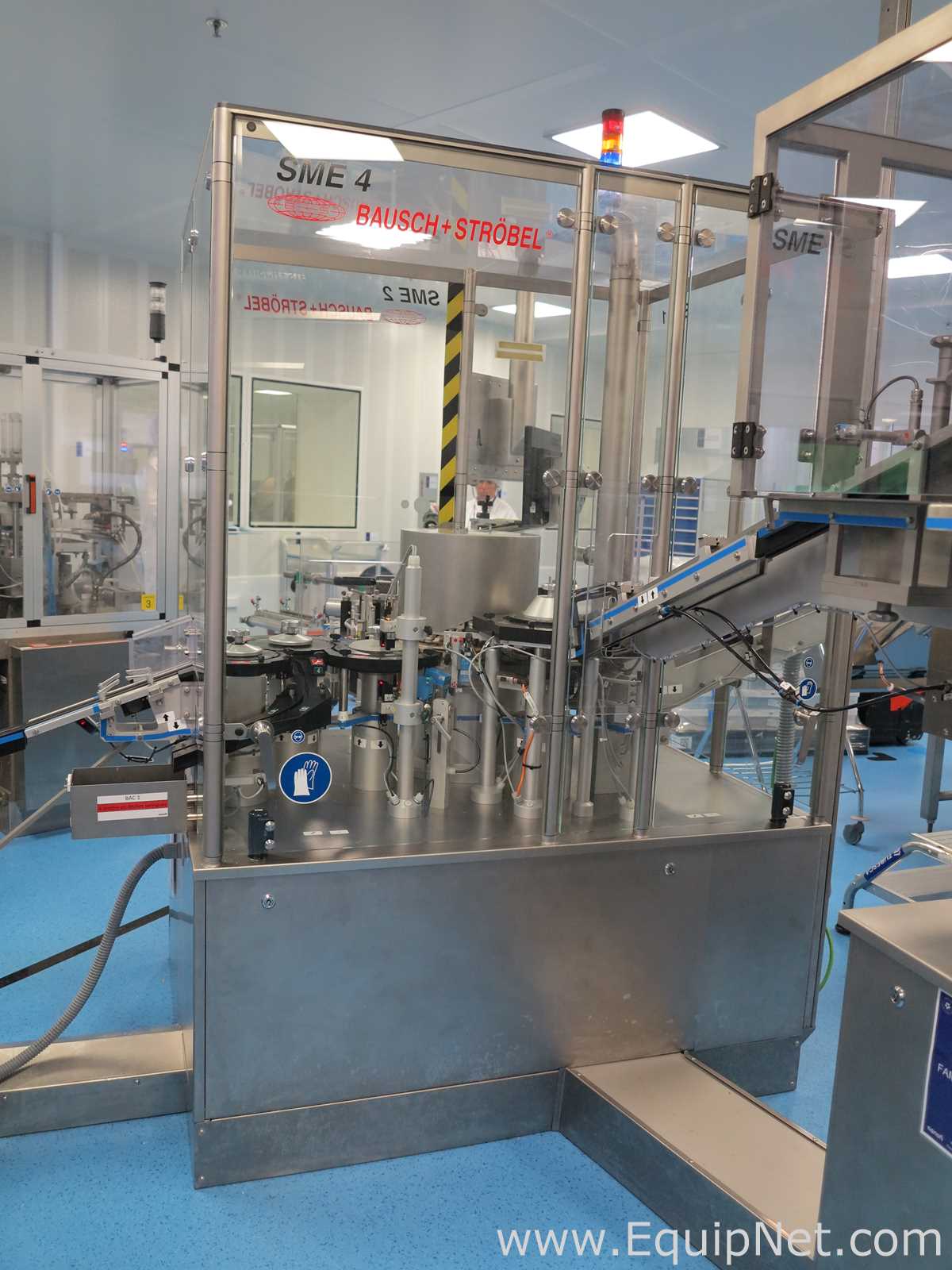

2-10: Bausch+Ströbel SME 6060 Assembly and Labelling Machine with SorTec ZFS710/2 and SorTec DE60 Filling and Closing Machine
Syringe assembly- applies labels, inserts plunger rods; SorTec units handle filling and closing.
SorTec ZFS710/2: S/N: 18.159.03; Year: 2019
SorTec DE60: S/N: 18.159.01; Year: 2019

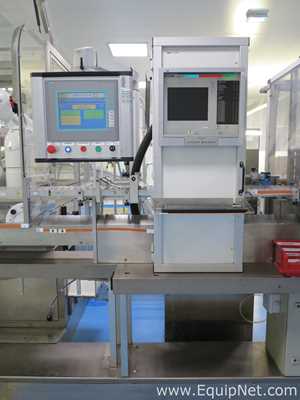

3-10: Bausch+Ströbel with Bizerba Luceo Pharma Vision Inspection System
Syringe assembly with integrated vision inspection of labels and fills
Bizerba Luceo Pharma Vision Inspection System: S/N: L252321-1; Year: 2015
4-10: Famar Ritecno Syringe Filling and Closing Machine

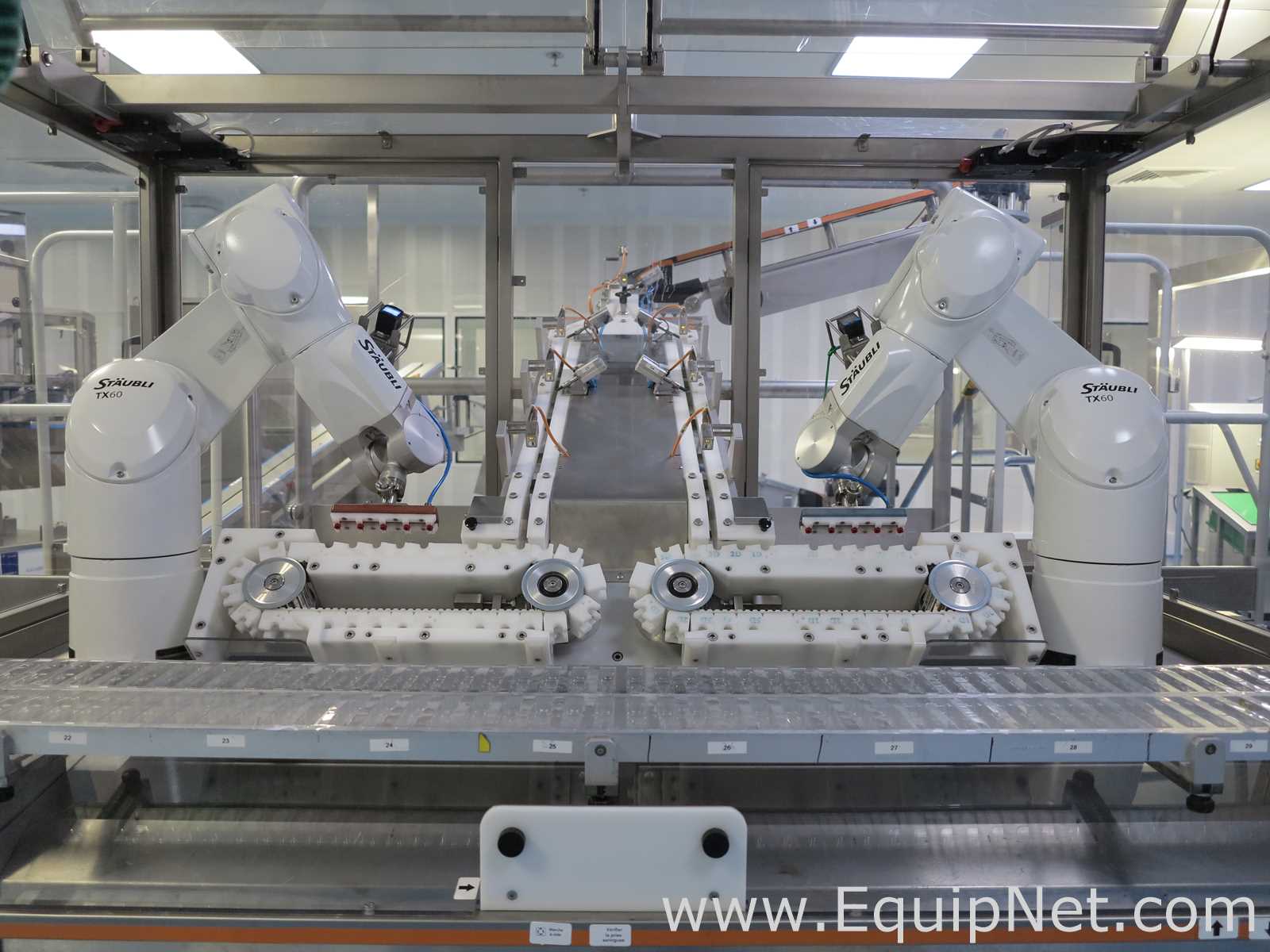

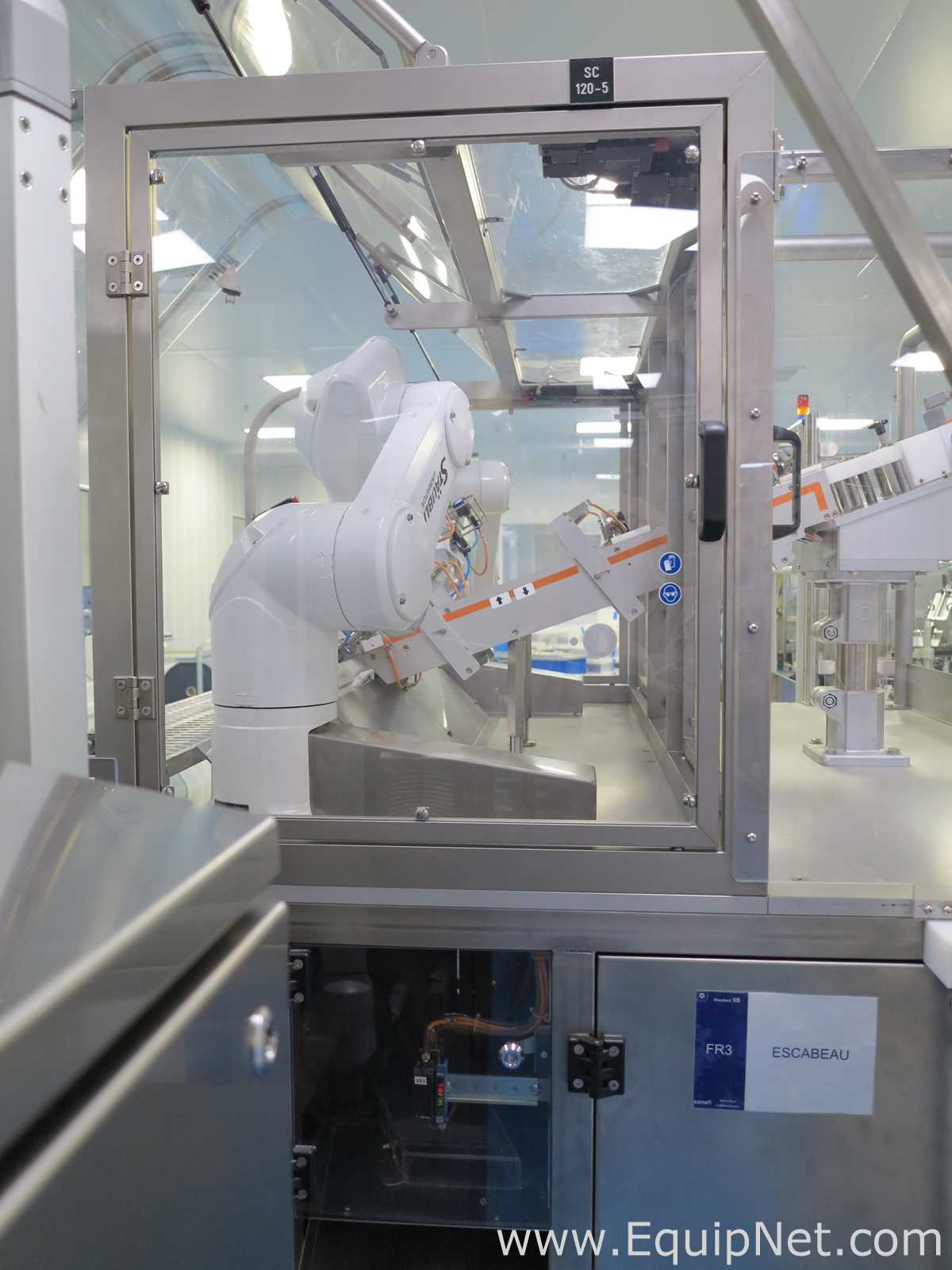

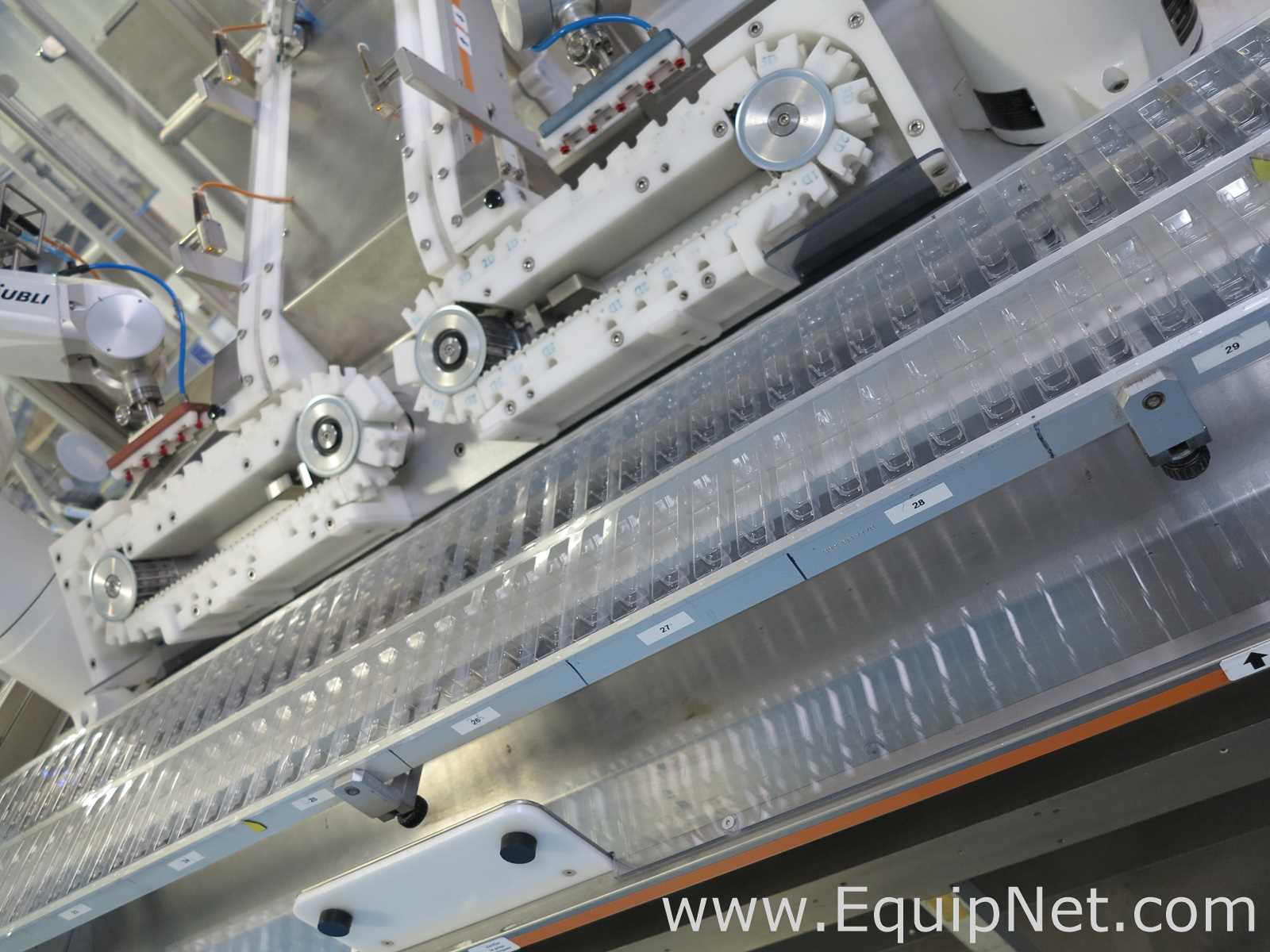

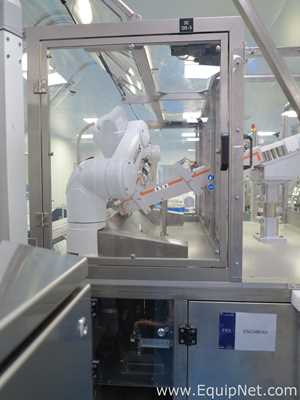

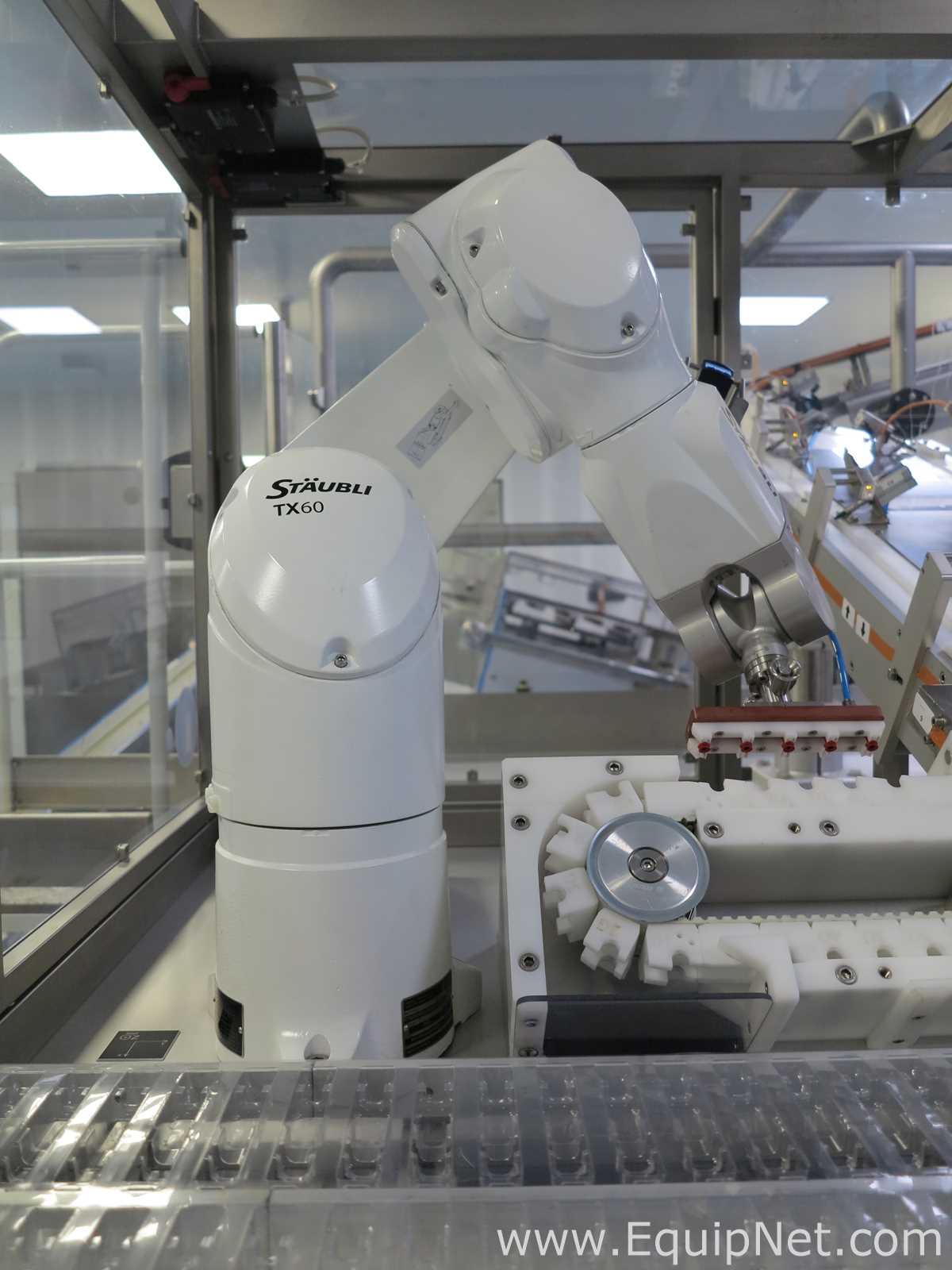

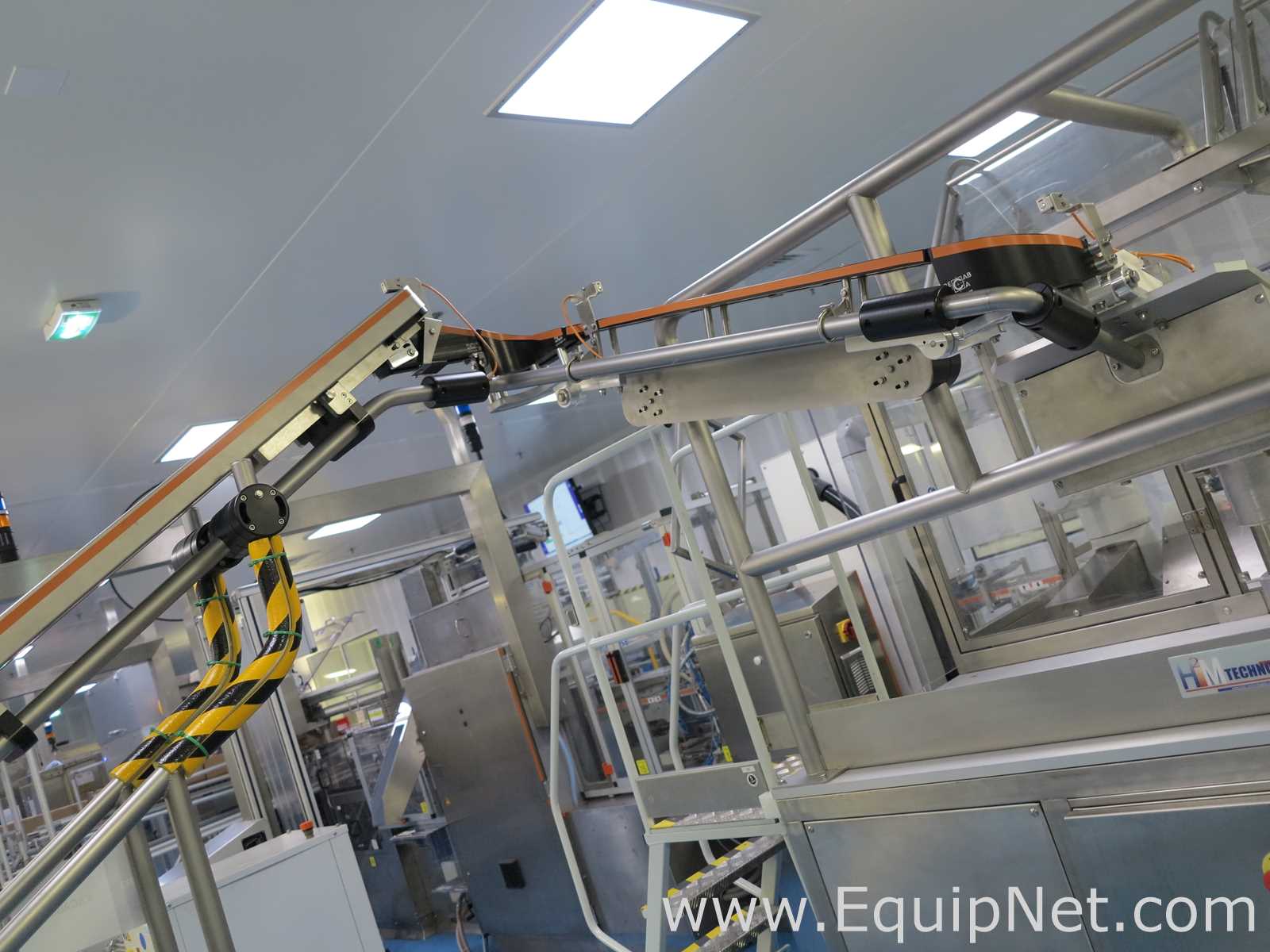

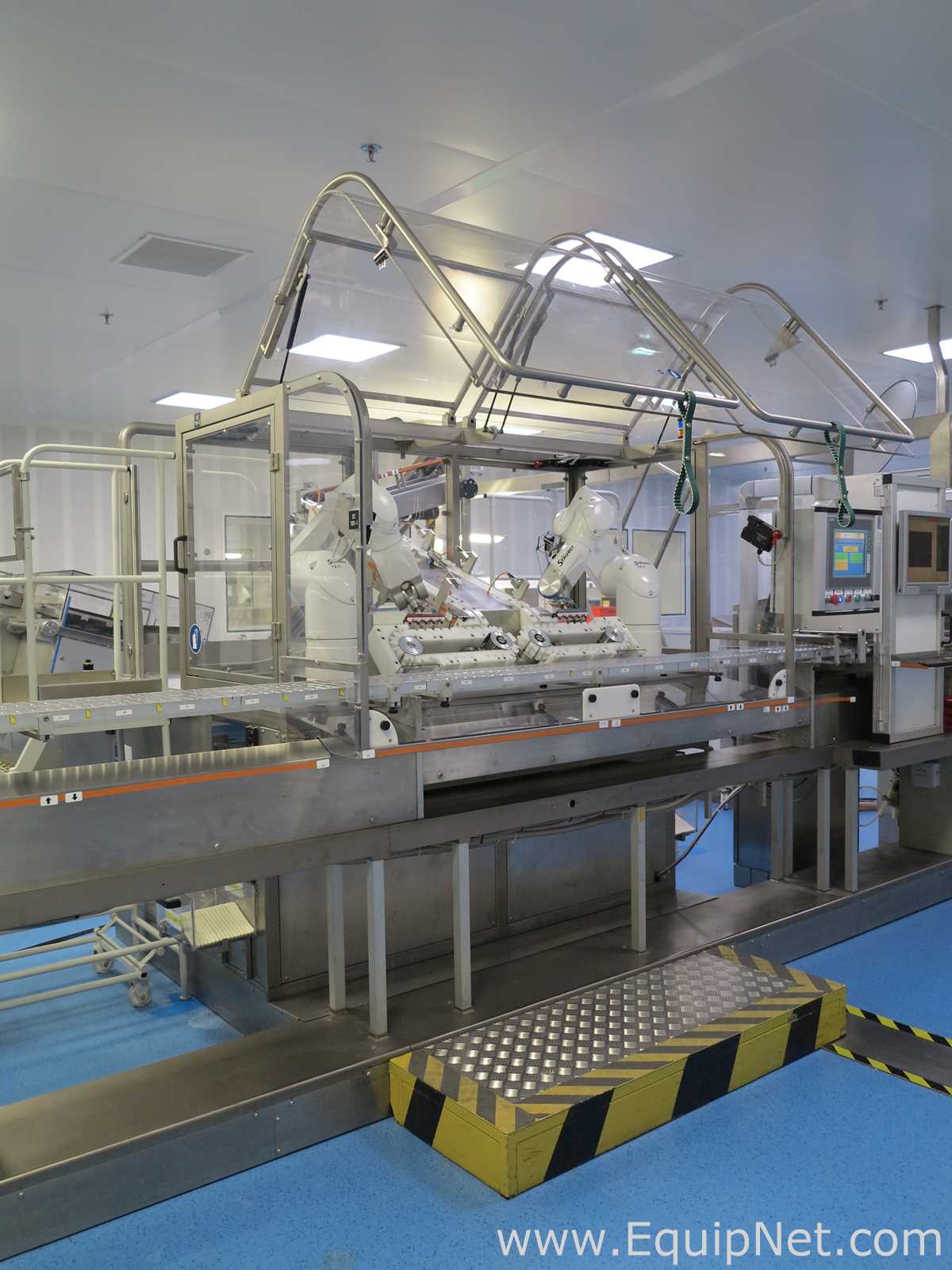

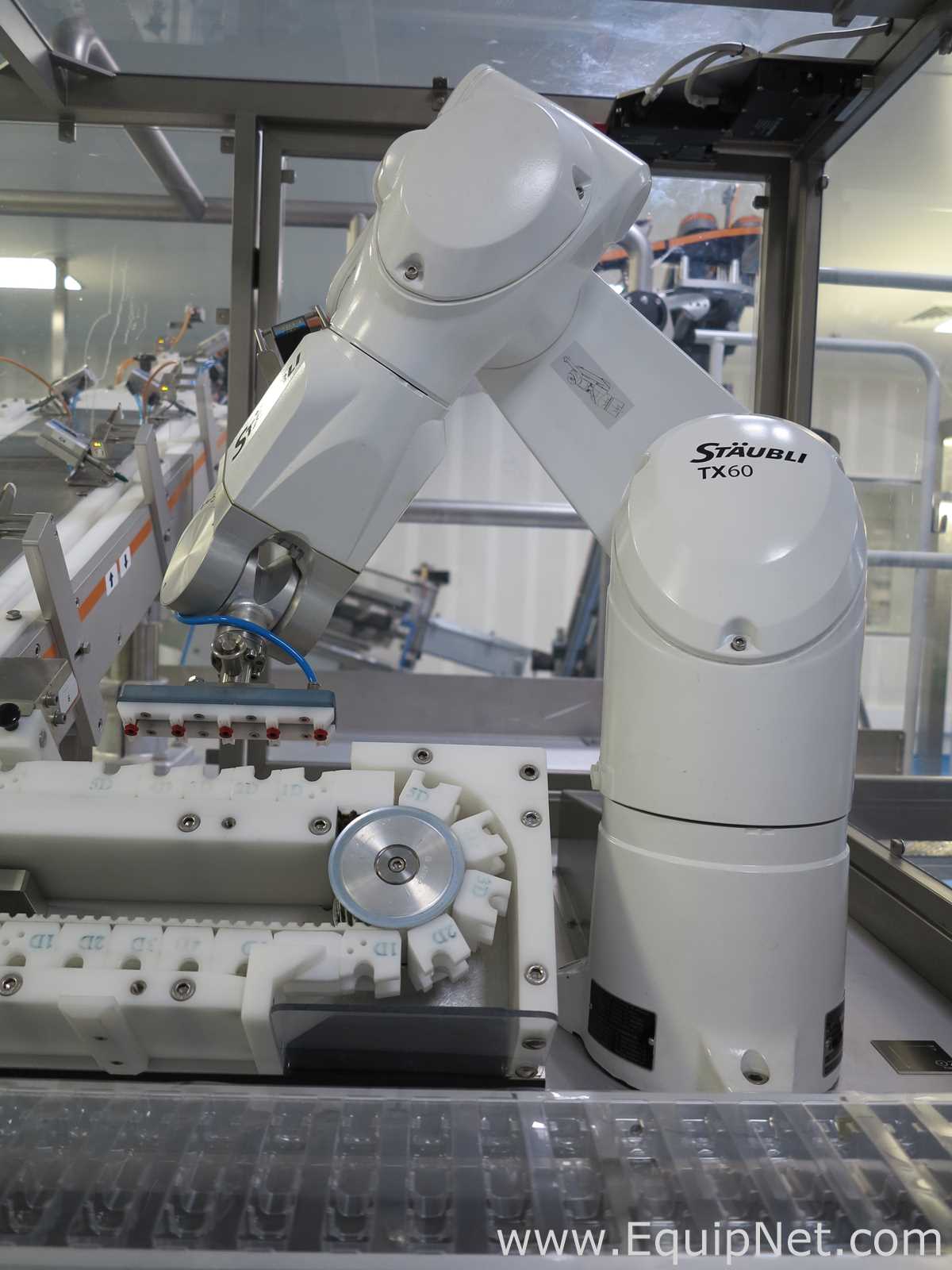

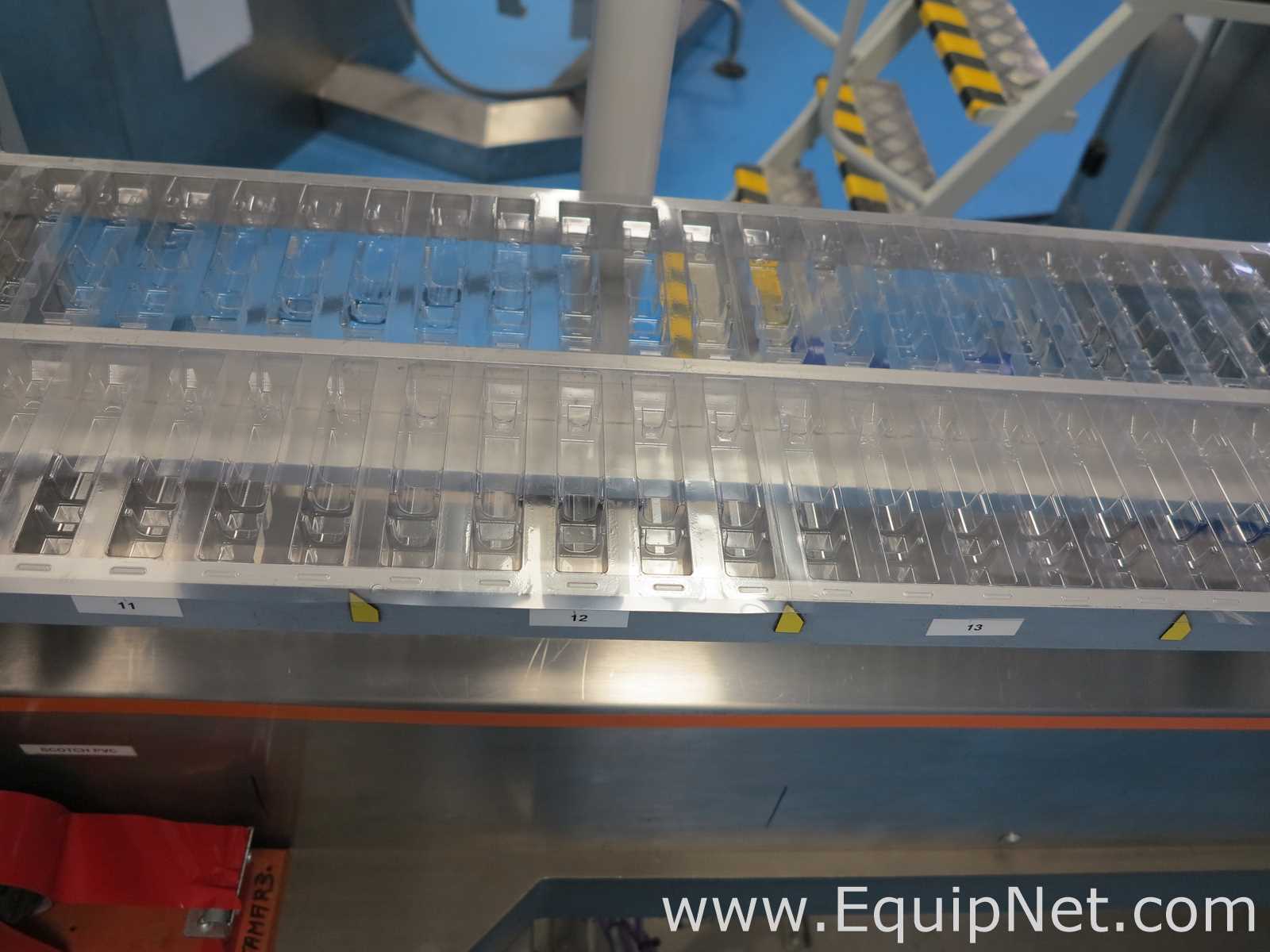

5-10: 2 Staubli TX60 Industrial Robots with H2M Technologies Conveyor Belt
Pick and place robots transfer syringes onto conveyor for next station
H2M Technologies Conveyor Belt: S/N: 18-025-0000; Year: 2019

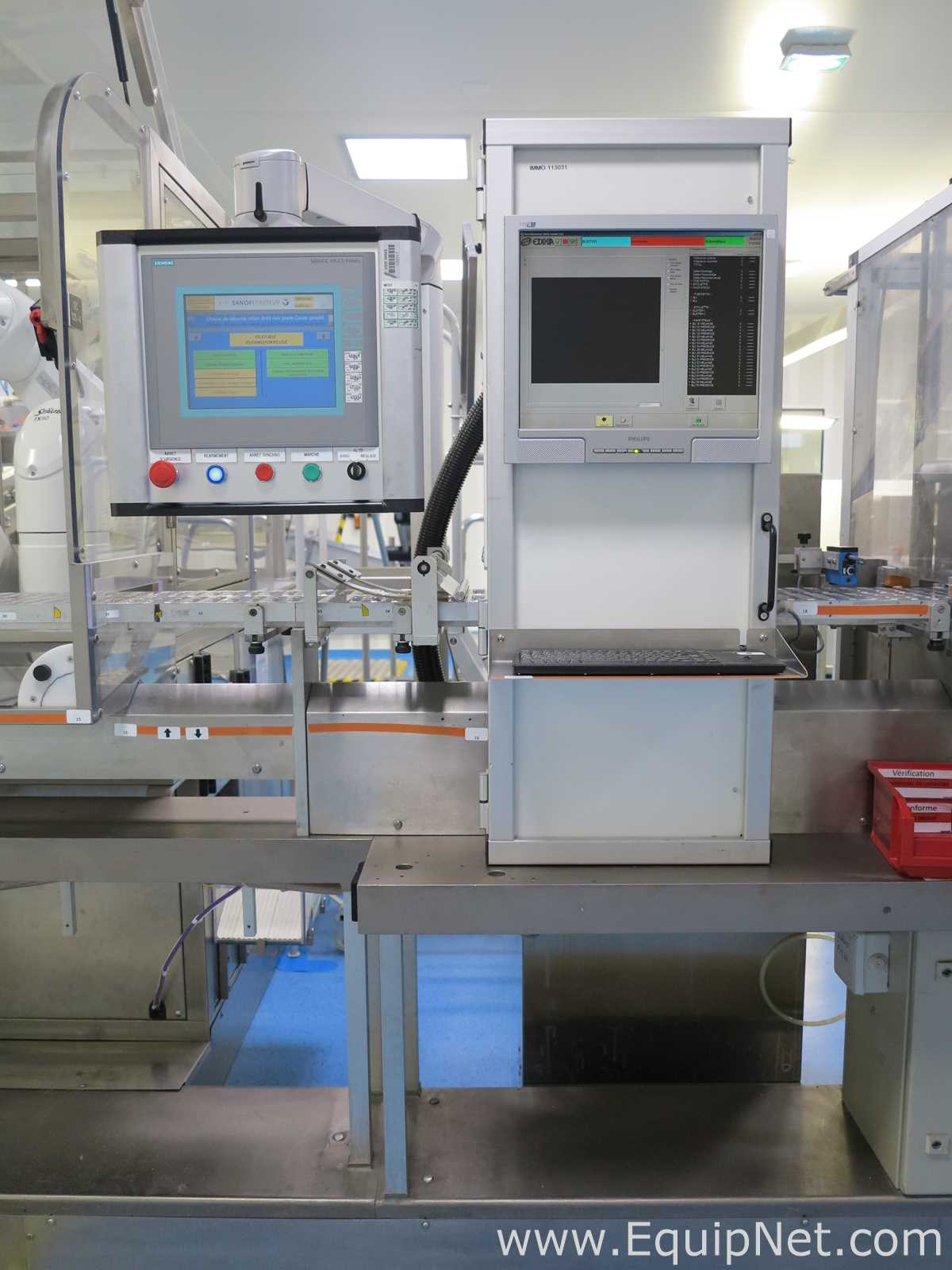

6-10: Bizerba Luceo Pharma Vision Inspection System
100 % automated visual inspection of syringe integrity, labels and seals
S/N: L252321-1; Year: 2015

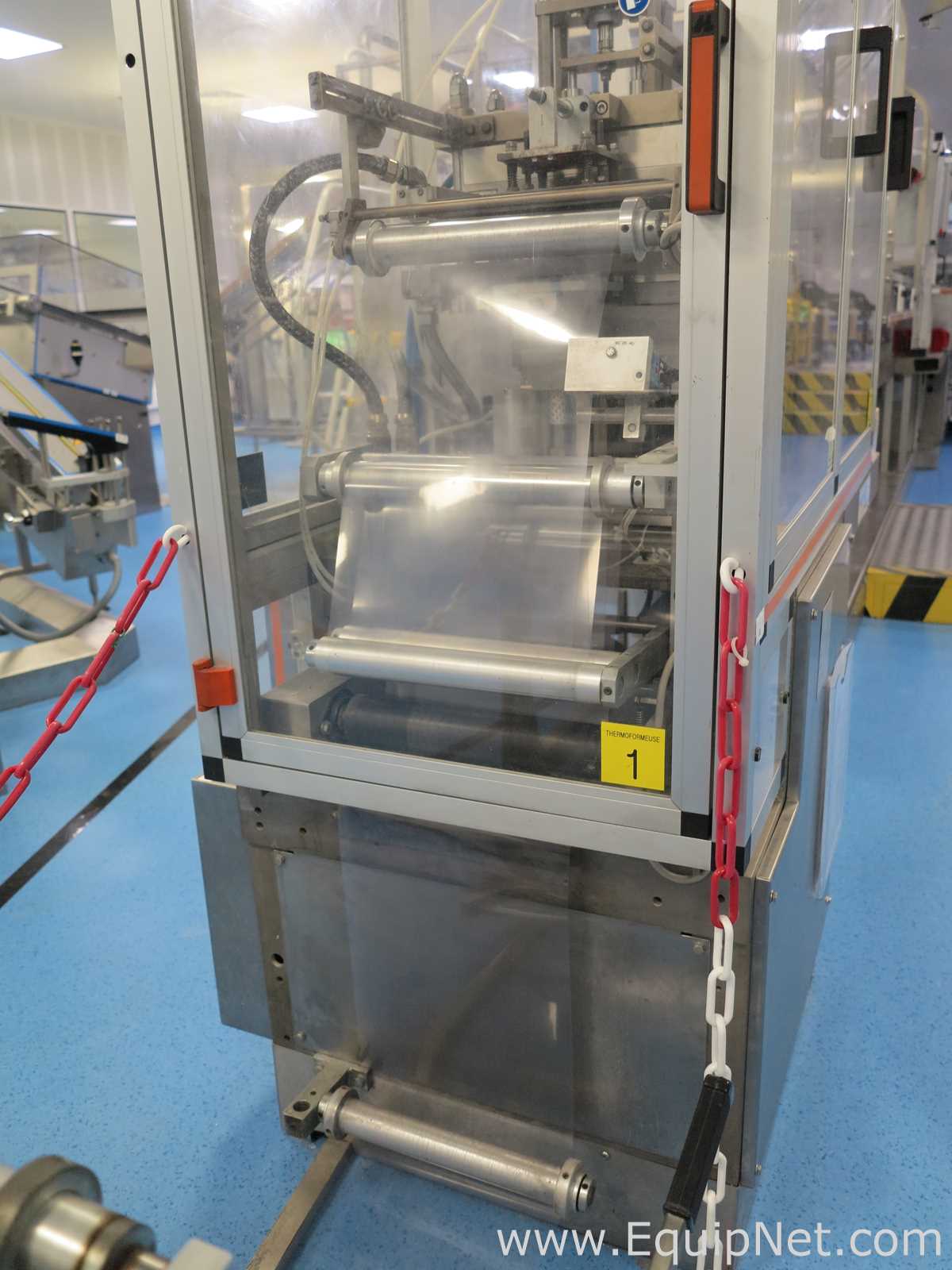

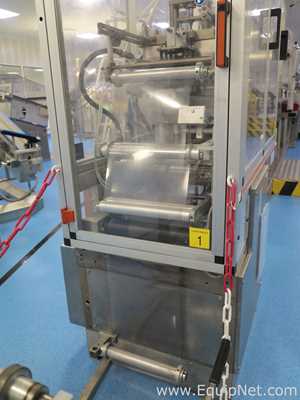

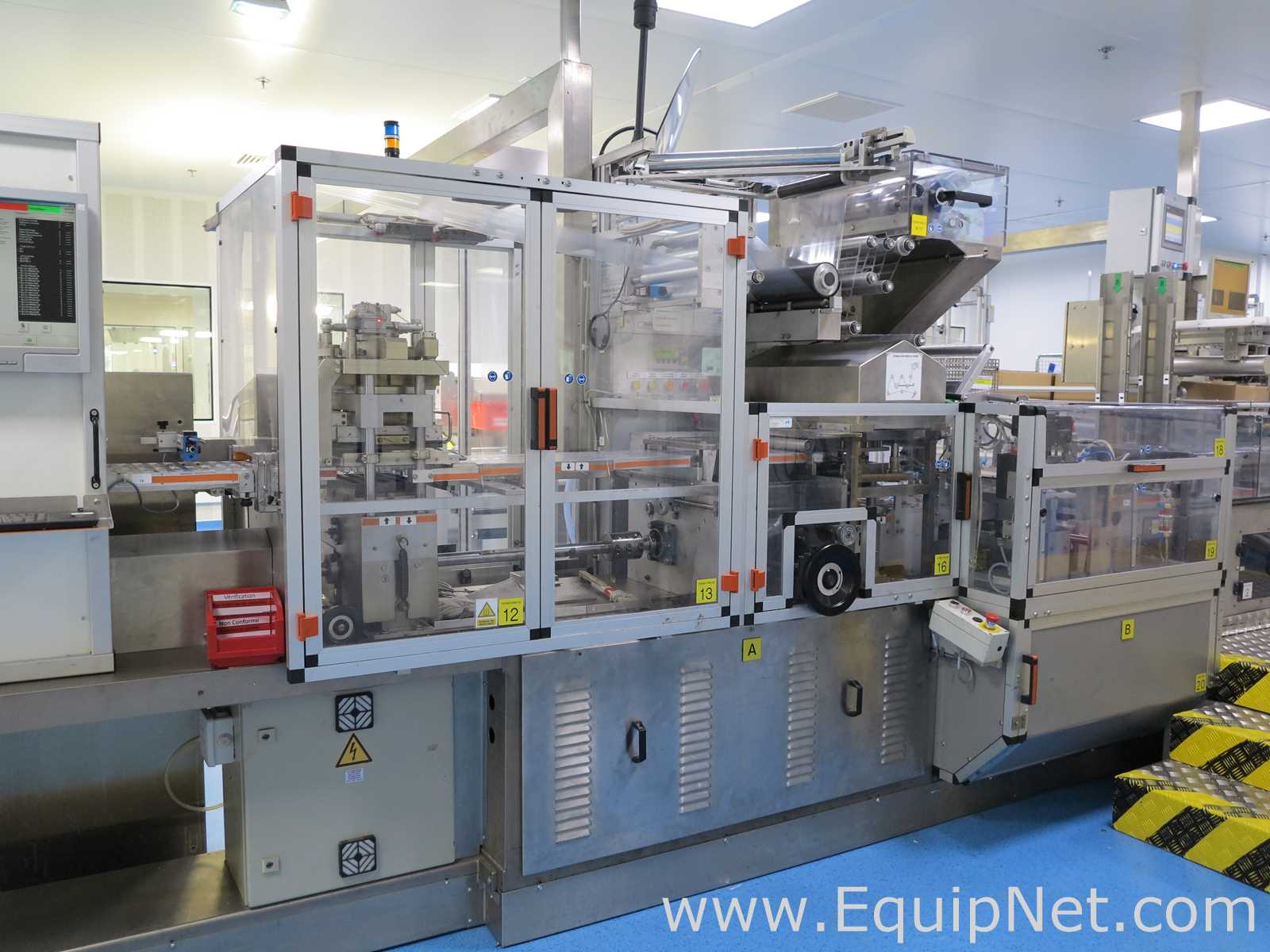

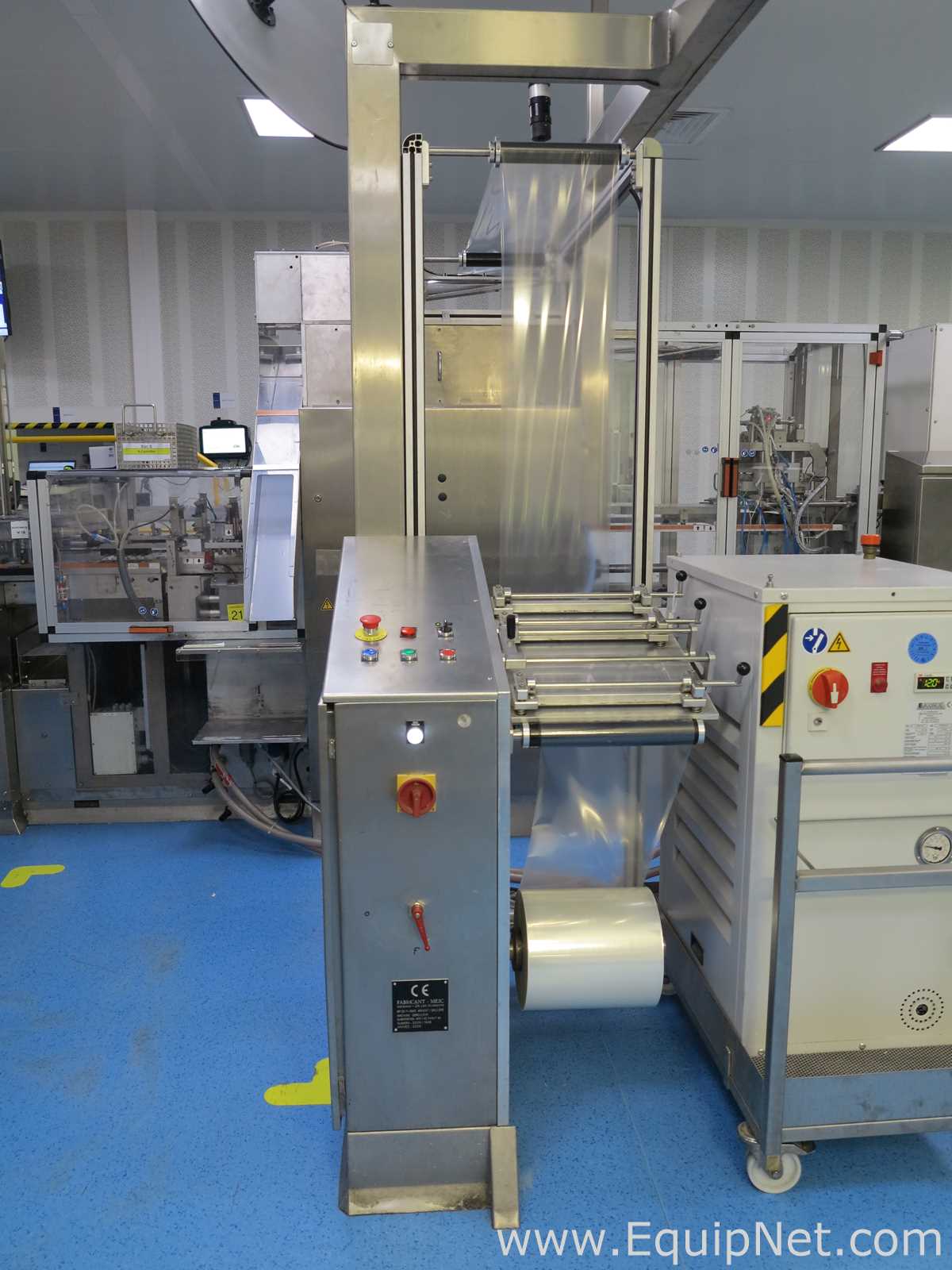

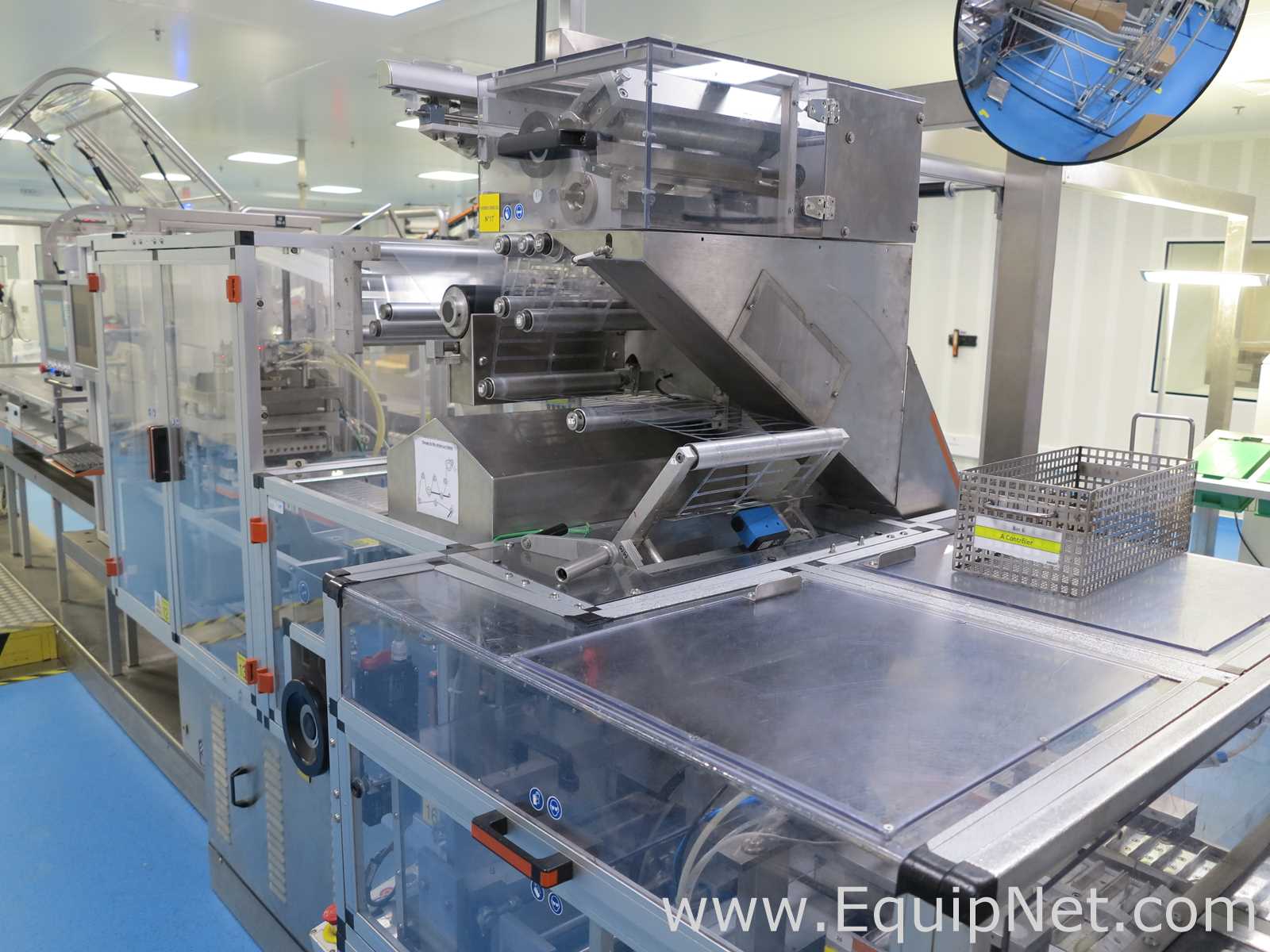

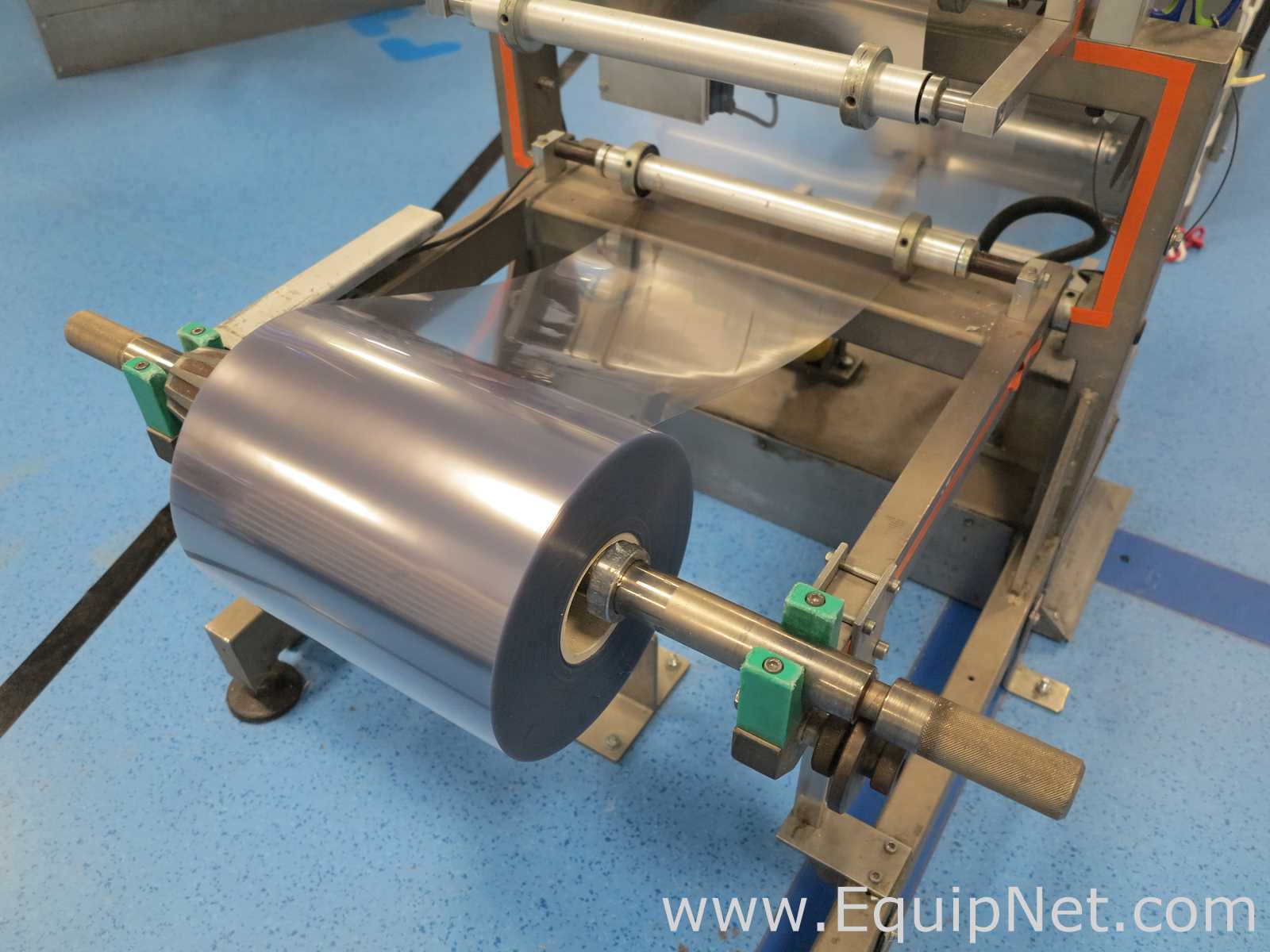

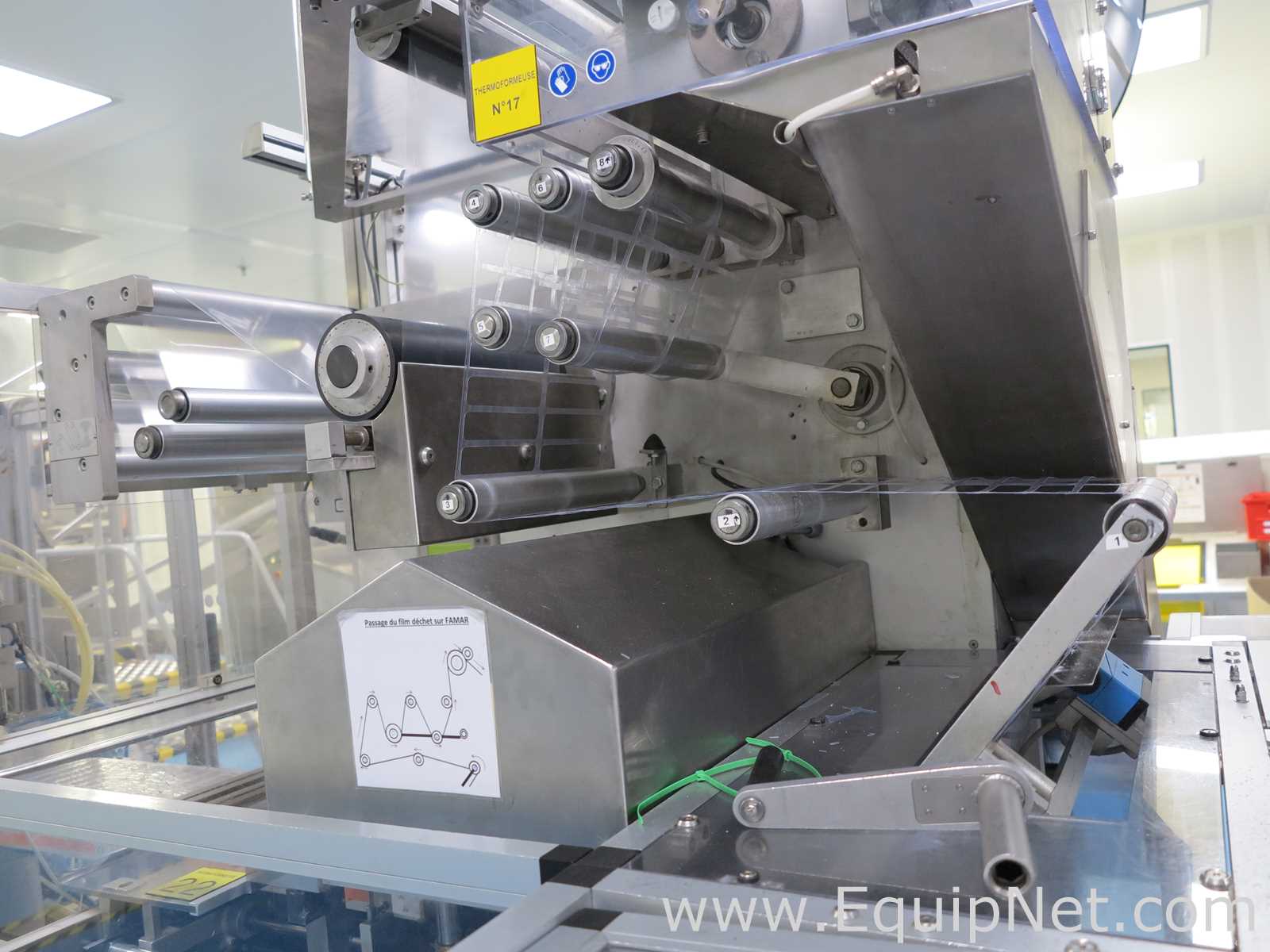

7-10: Farmar RFS (Wrapmatic) Former
Wraps syringes individually in film for primary packaging
S/N: 430363500194; Year: 1994

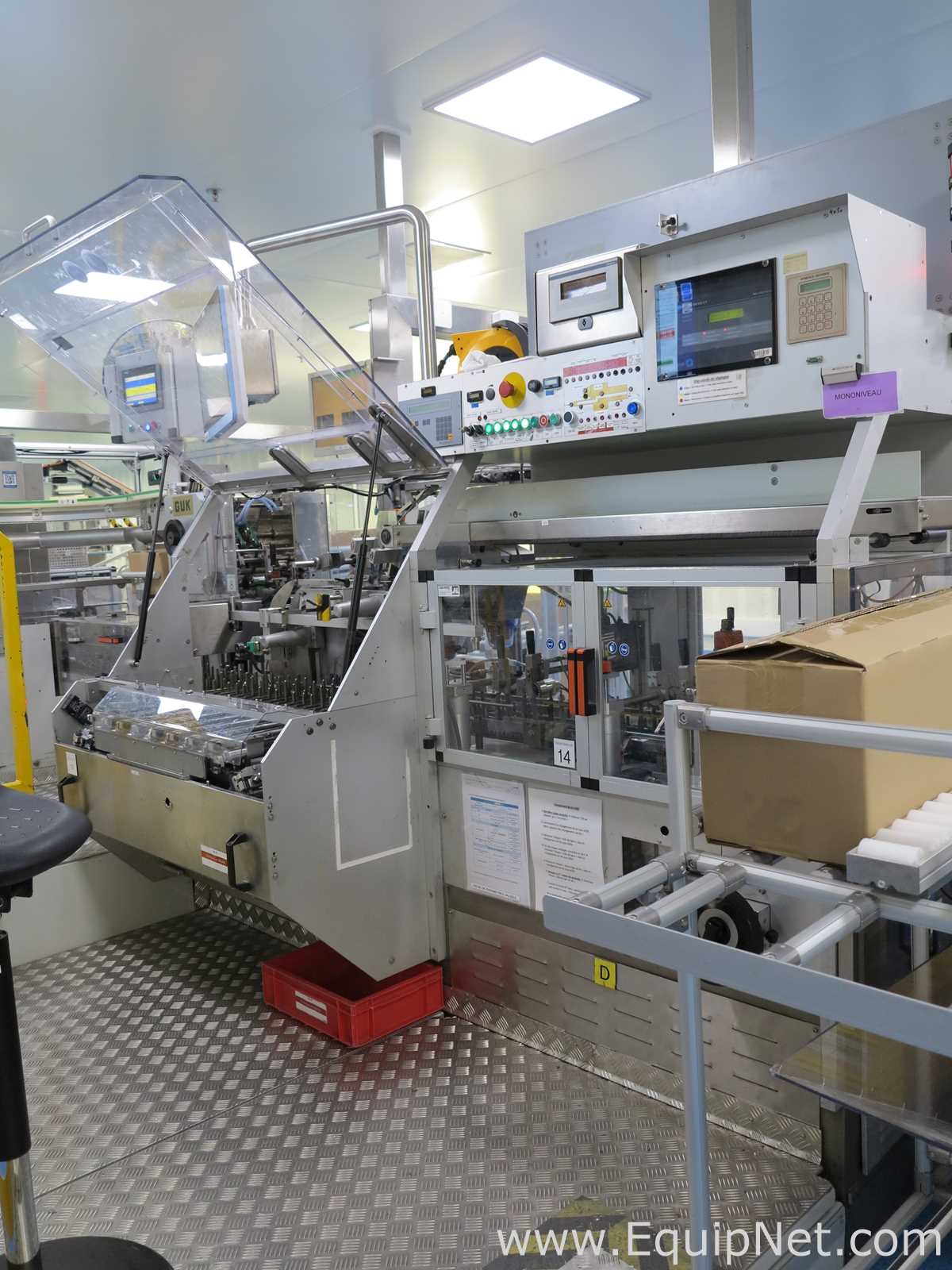

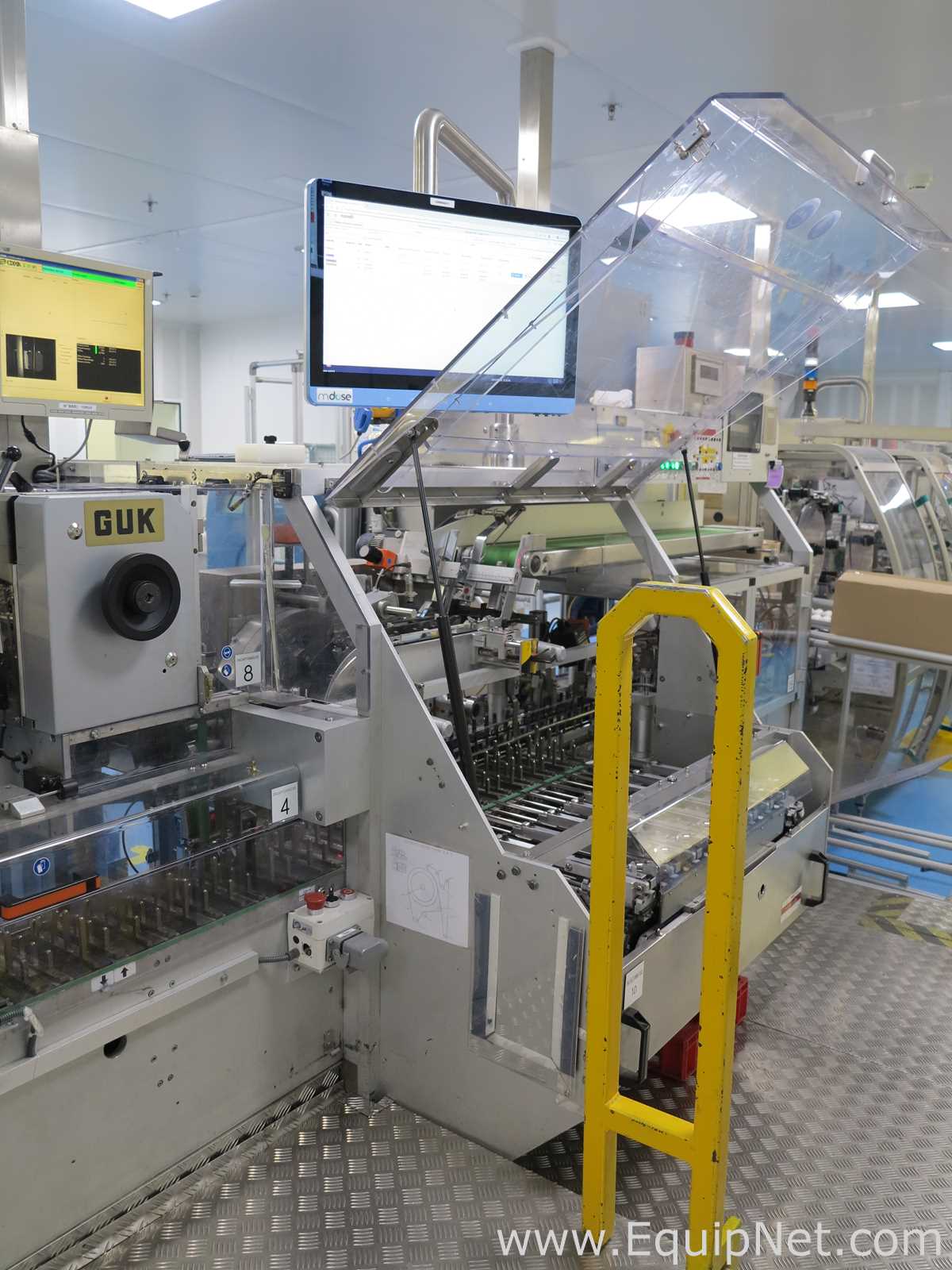

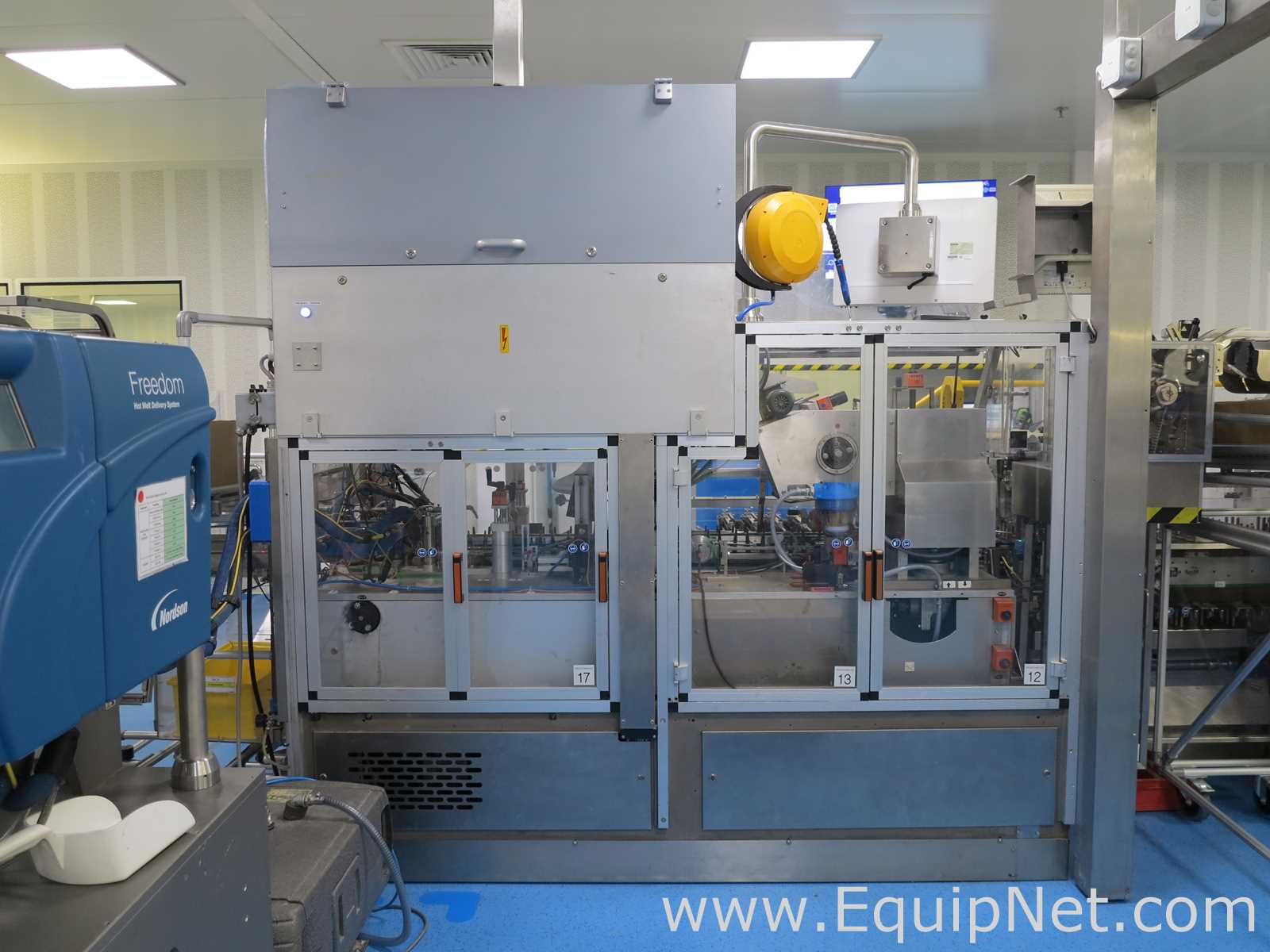

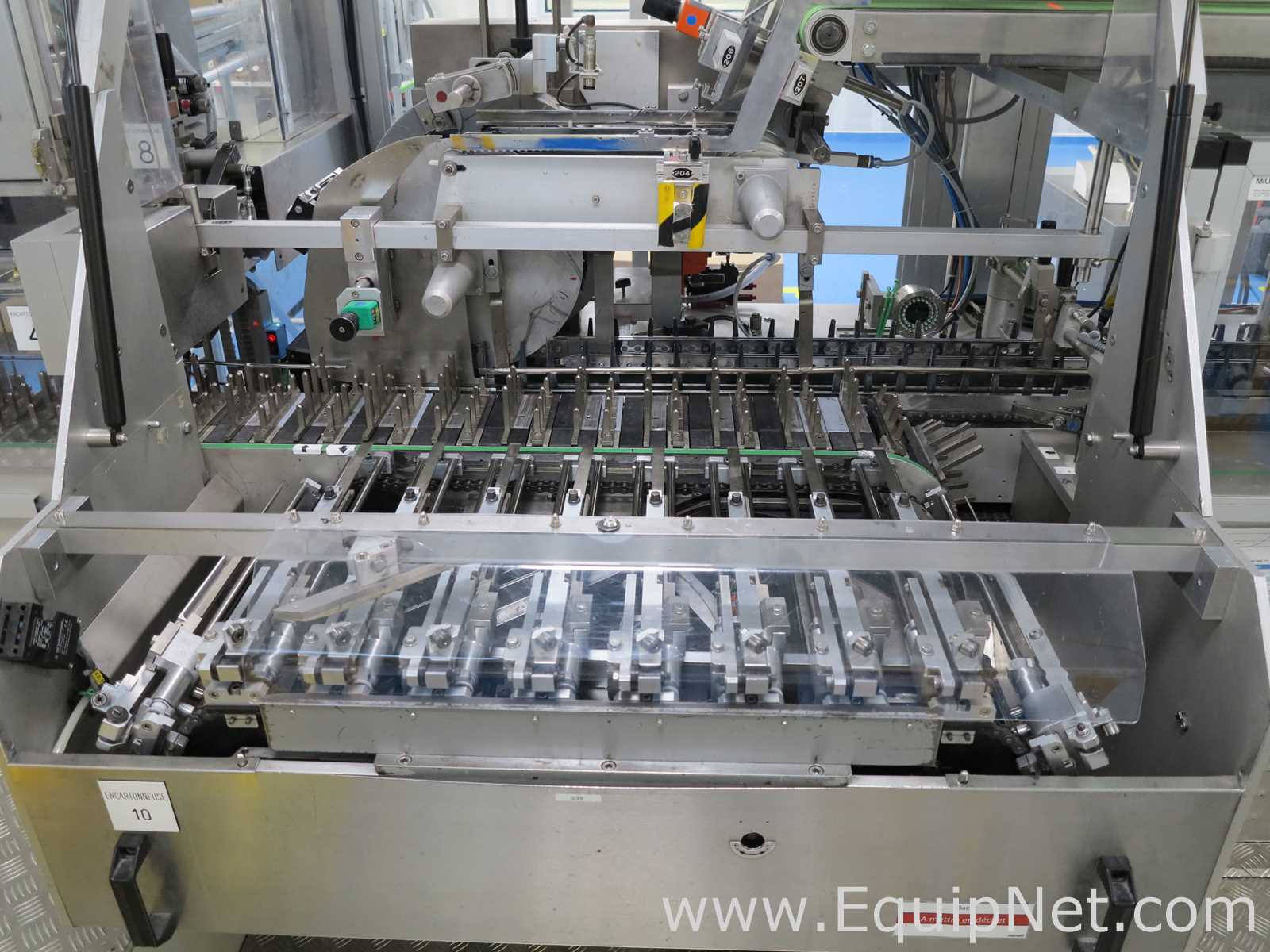

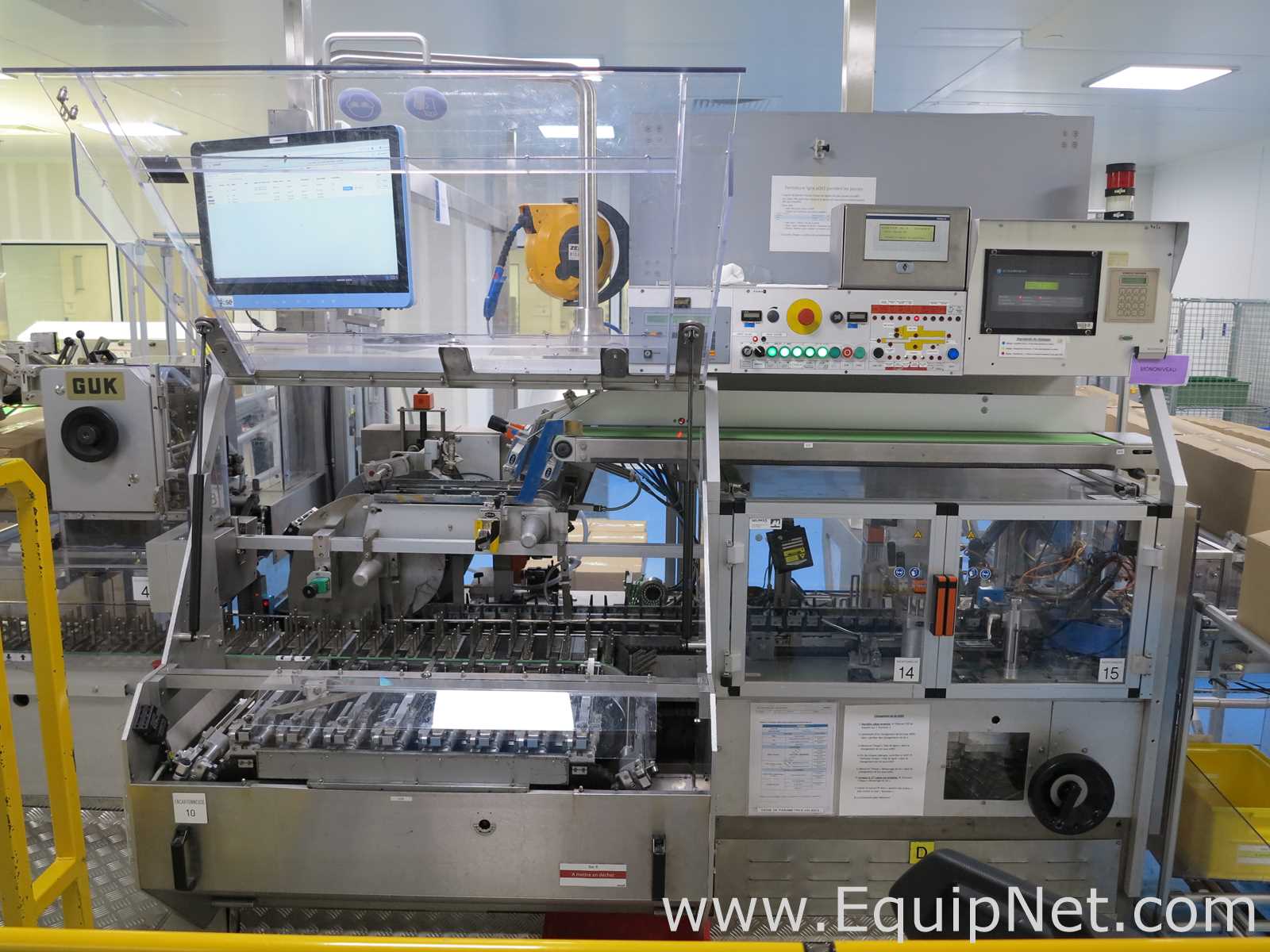

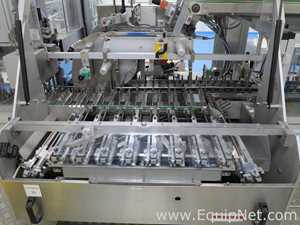

8-10: Farmar A4 Cartoner with Nordson Freedom Hotmelt Adhesive Dispensing System and GUK Folded-Leaflet Inserting System
Cartoning with glue application and leaflet folding and insertion.
Farmar A4 Cartoner: S/N: 430460000234; Year: 1994
GUK Folded-Leaflet Inserting System; S/N: 67113; Year: 2017

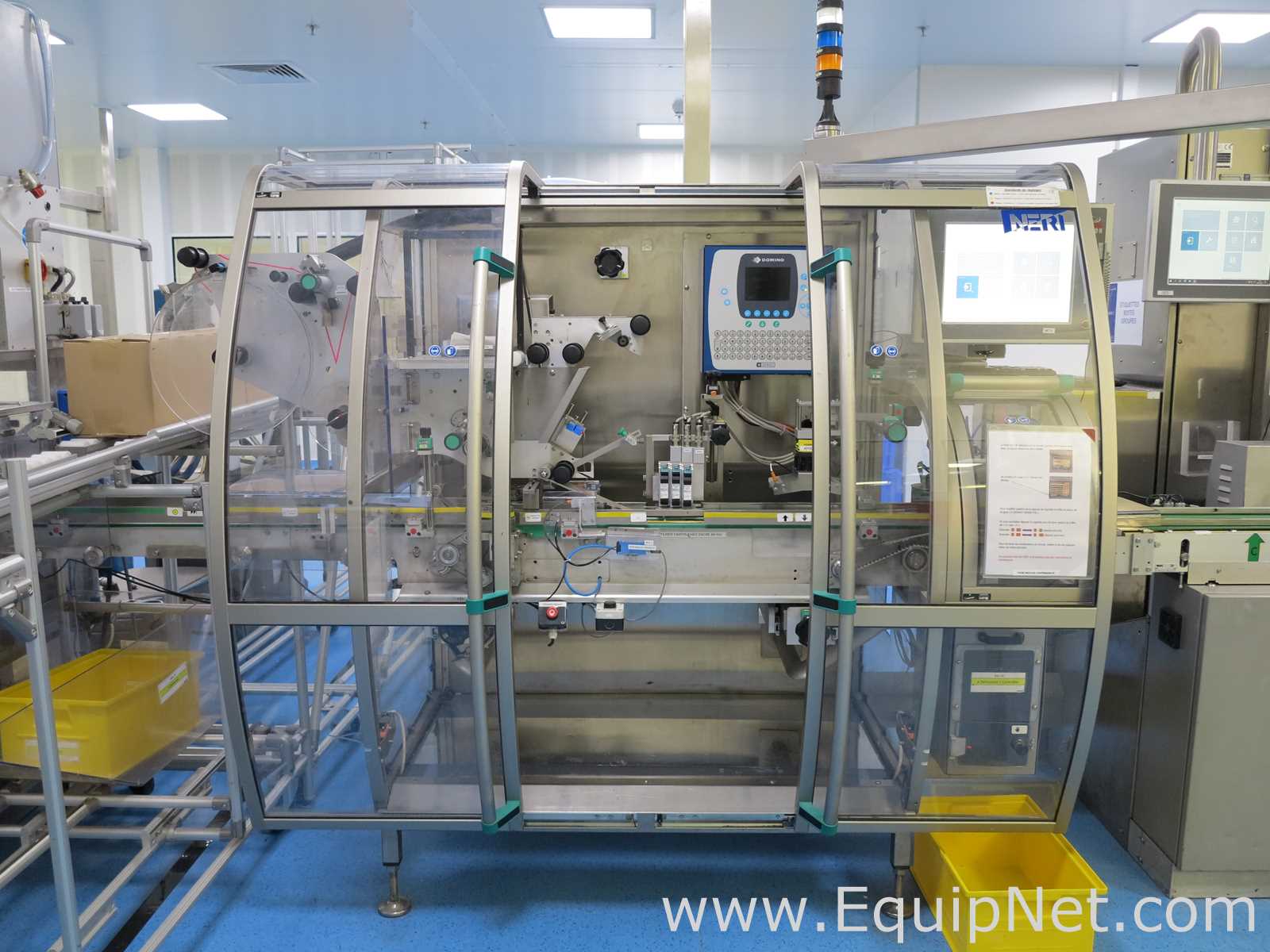

9-10: Neri Marchesini Group BL460 Tamper-Evident Labeler
Applies self-adhesive labels and tamper-evident seals to cartons
S/N: MBVA036; Year: 2008
10-10: CAM (Assispack) TE250 Case Packer with Antares Vision VM1300_073 Serialization and Track-And-Trace Machine
CAM (Assispack) TE250 Case Packer: Year: 2016
Antares Vision VM1300_073 Serialization and Track-And-Trace Machine; S/N: 13765; Year: 2016
Overall Length Of The Line: 25,000 mm
Fill Volume:0.5 mL per syringe
Items included:
Specifications:
Standard
Metric
Manufacturer Name
Famar
Capacity Speed:
350
U/MIN
350
U/MIN
CE Marked:
YES
YES
Recommended Packaging Form:
PALLET
PALLET
Dimensions:
Standard
Metric
See all item dimensions
Item #1:
51.18 x 74.80 x 70.87 IN - 1,984.16 LBS
1300.00 x 1900.00 x 1800.00 MM - 900.00 KGS
Item #2:
94.49 x 82.68 x 78.74 IN - 3,968.32 LBS
2400.00 x 2100.00 x 2000.00 MM - 1,800.00 KGS
Item #3:
74.8 x 86.61 x 51.18 IN - 6,613.86 LBS
1900.00 x 2200.00 x 1300.00 MM - 3,000.00 KGS
Item #4:
354.33 x 59.06 x 90.55 IN - 6,613.86 LBS
9000.00 x 1500.00 x 2300.00 MM - 3,000.00 KGS
Item #5:
47.24 x 74.80 x 39.37 IN - 1,763.70 LBS
1200.00 x 1900.00 x 1000.00 MM - 800.00 KGS
Item #6:
196.85 x 78.74 x 62.99 IN - 3,306.93 LBS
5000.00 x 2000.00 x 1600.00 MM - 1,500.00 KGS
Item #7:
39.37 x 74.80 x 51.18 IN - 1,322.77 LBS
1000.00 x 1900.00 x 1300.00 MM - 600.00 KGS
Item #8:
106.3 x 70.87 x 47.24 IN - 1,984.16 LBS
2700.00 x 1800.00 x 1200.00 MM - 900.00 KGS
Item #9:
216.54 x 98.43 x 74.80 IN - 5,511.55 LBS
5500.00 x 2500.00 x 1900.00 MM - 2,500.00 KGS
Item #10:
86.61 x 70.87 x 55.12 IN - 2,204.62 LBS
2200.00 x 1800.00 x 1400.00 MM - 1,000.00 KGS
Overall:
1267.72 x 98.43 x 90.55 in - 35273.60 lb
32200 x 2500 x 2300 MM - 16000 KGS
