Listing# 956165
Famar 4- Syringe Packaging Line
Make An Offer
Location: France
Level of Removal: Uncrated/Loose
*All offers are submitted in Seller’s Acceptable Currency
Don't see what you're looking for? We'll find it for you
Asset Documents
Equipment Description

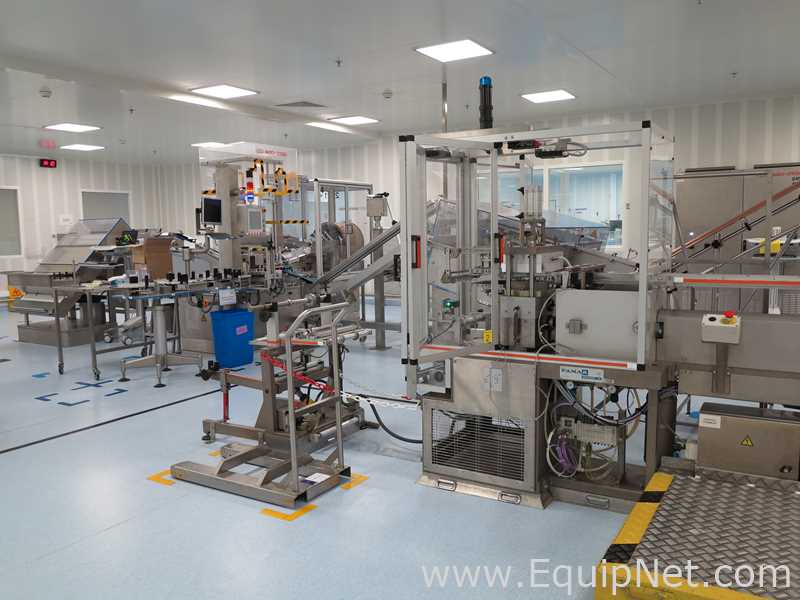

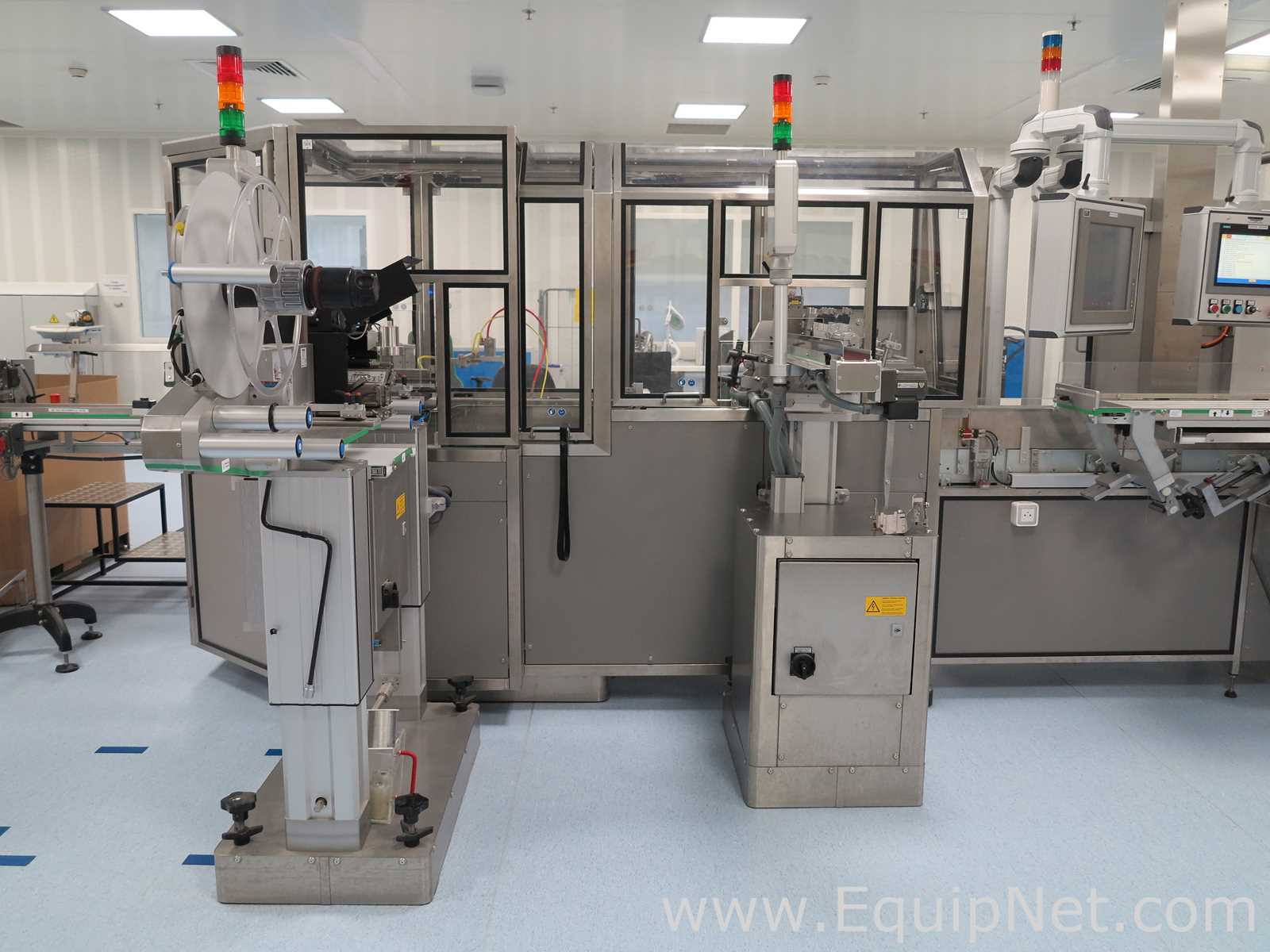

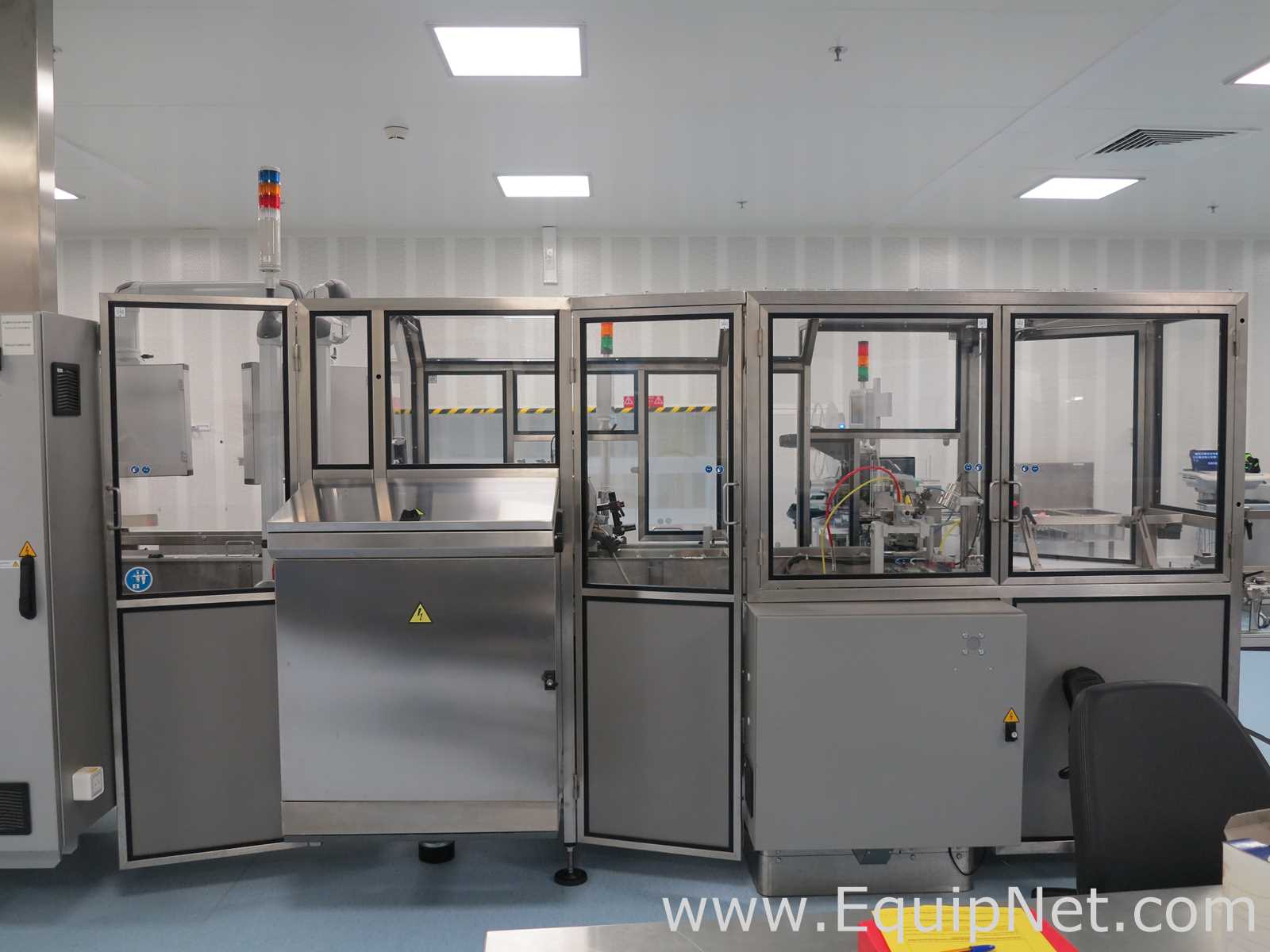

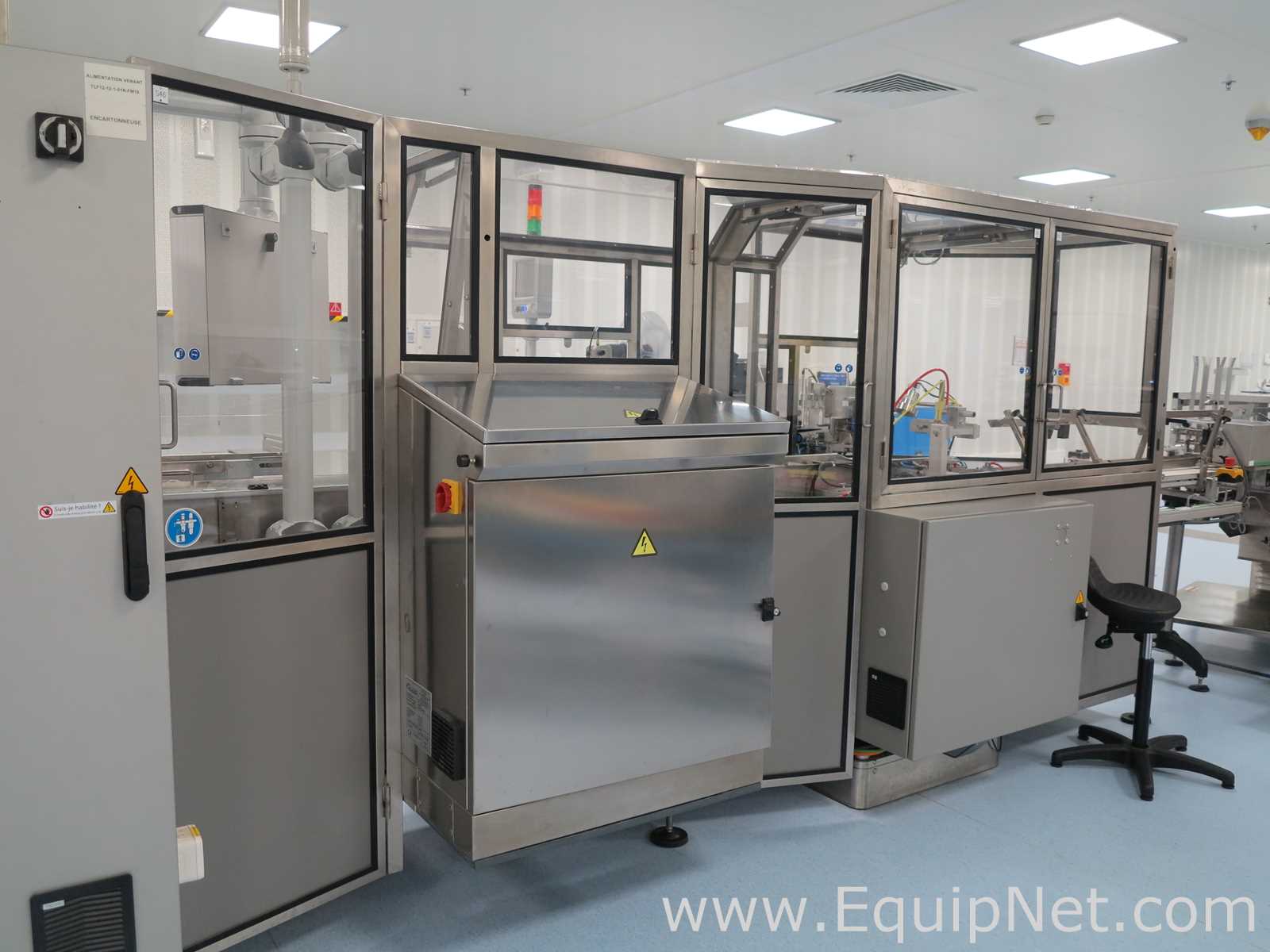

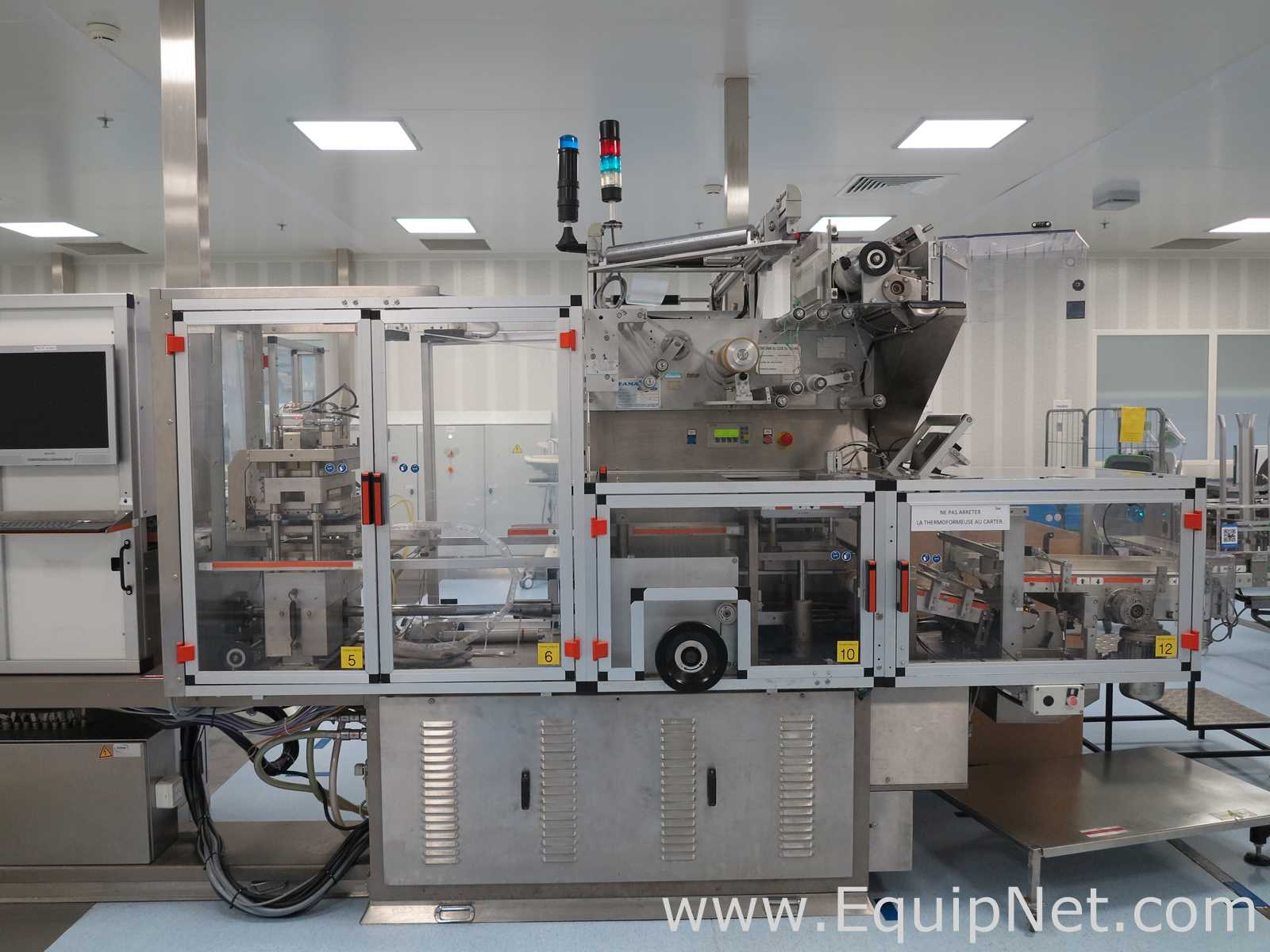

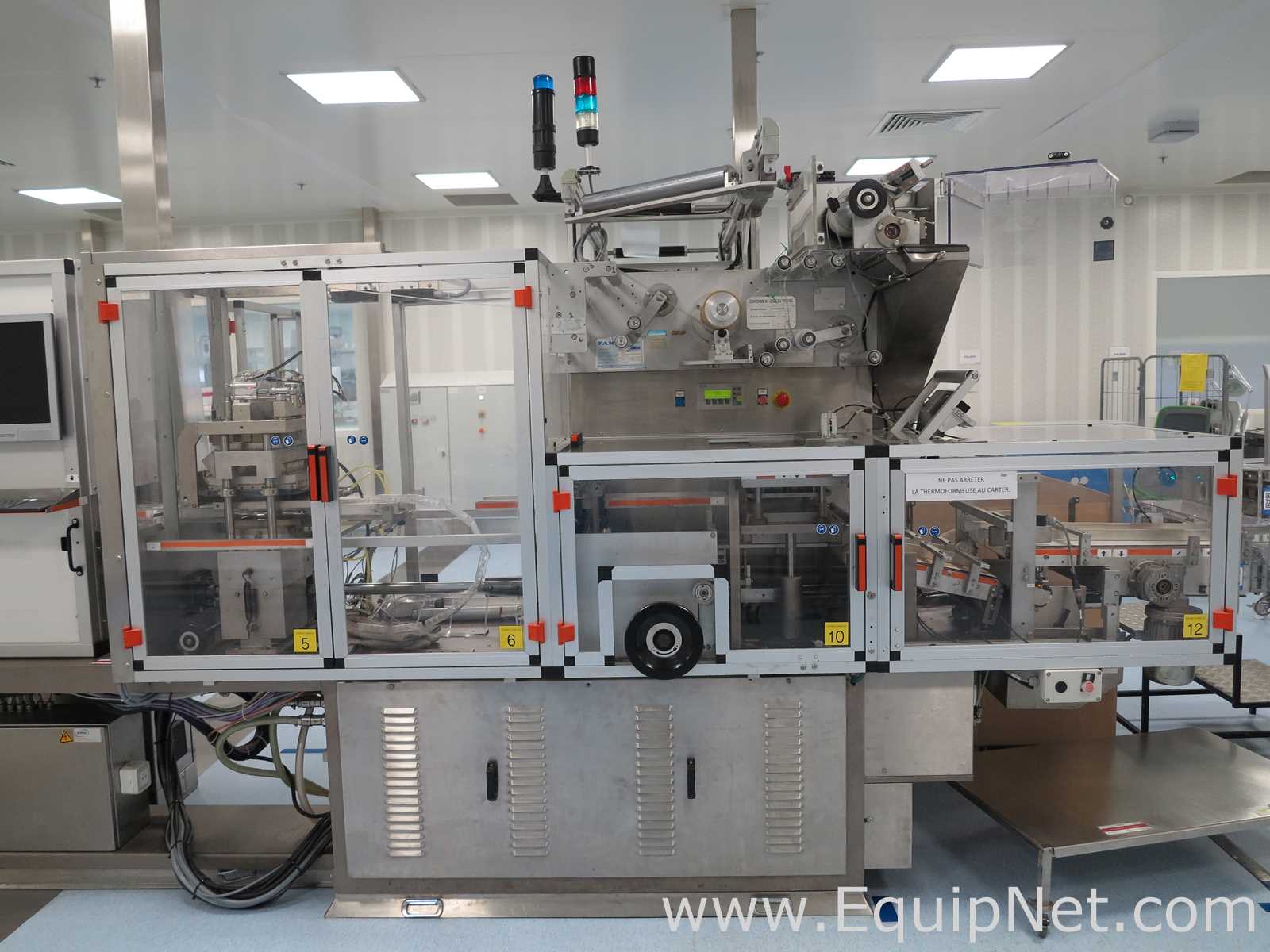

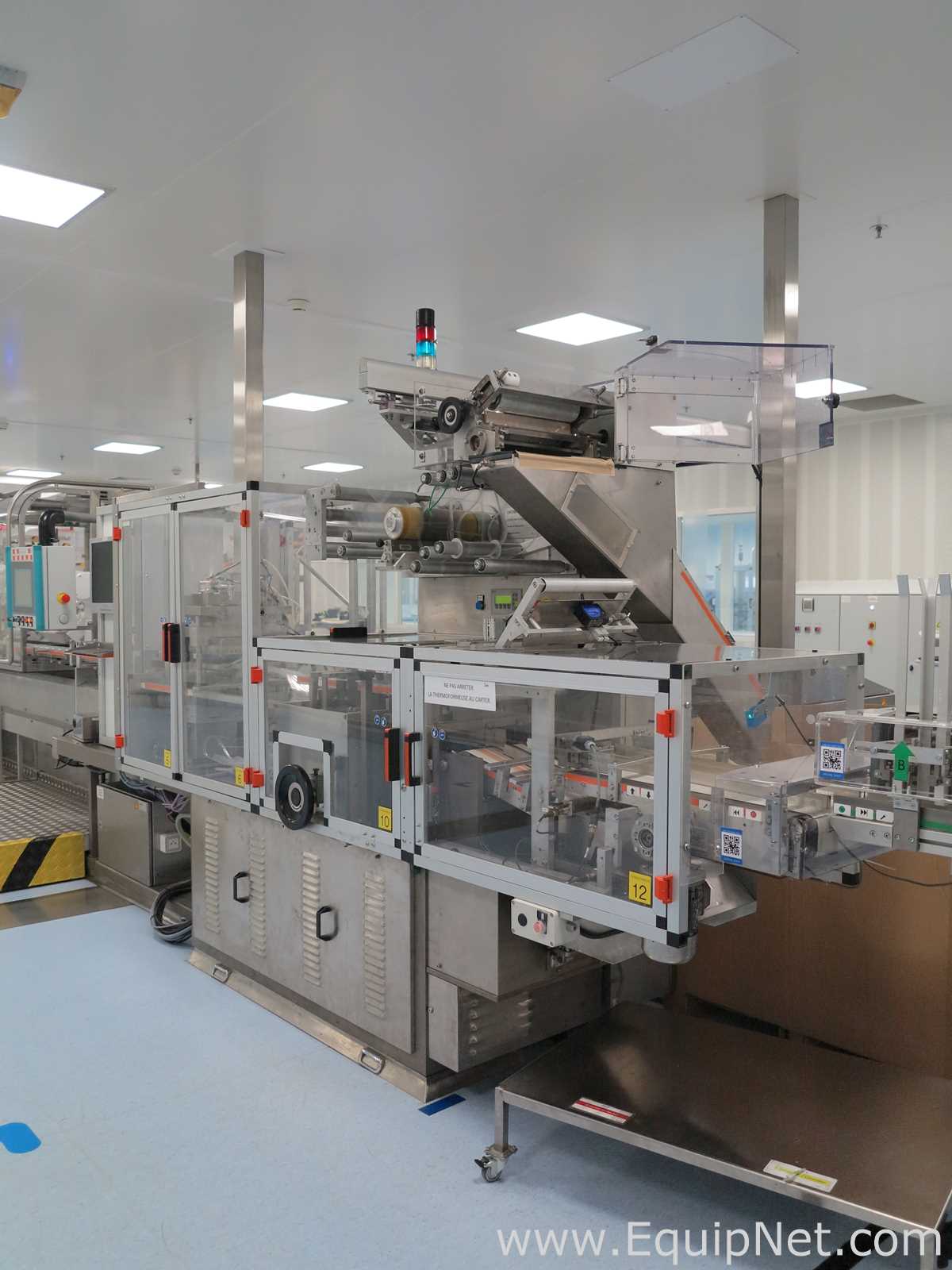

Famar 4- Syringe Packaging Line
Items included:

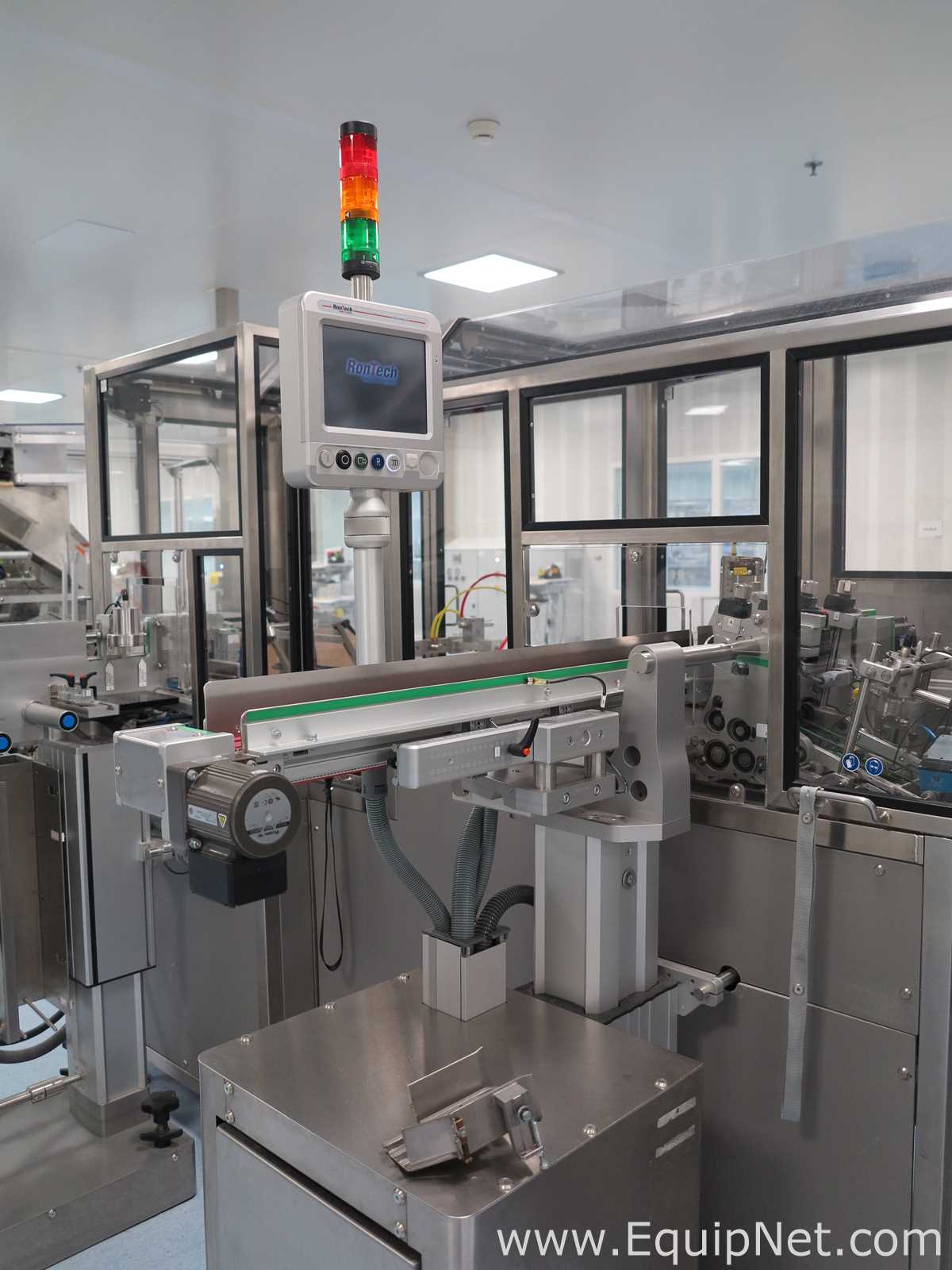

1-11: Seidenader SYWALKER LR Feeder / Transport System
Orients and feeds filled syringes into the packaging line
Machine No.: 87310B
Year: 2011
400V/PE; N; 3Ph; 50Hz; 1kW

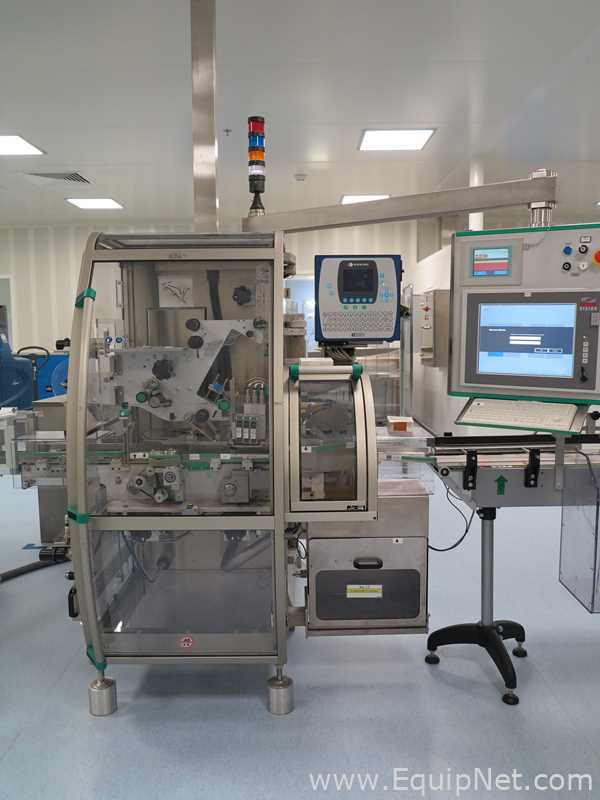

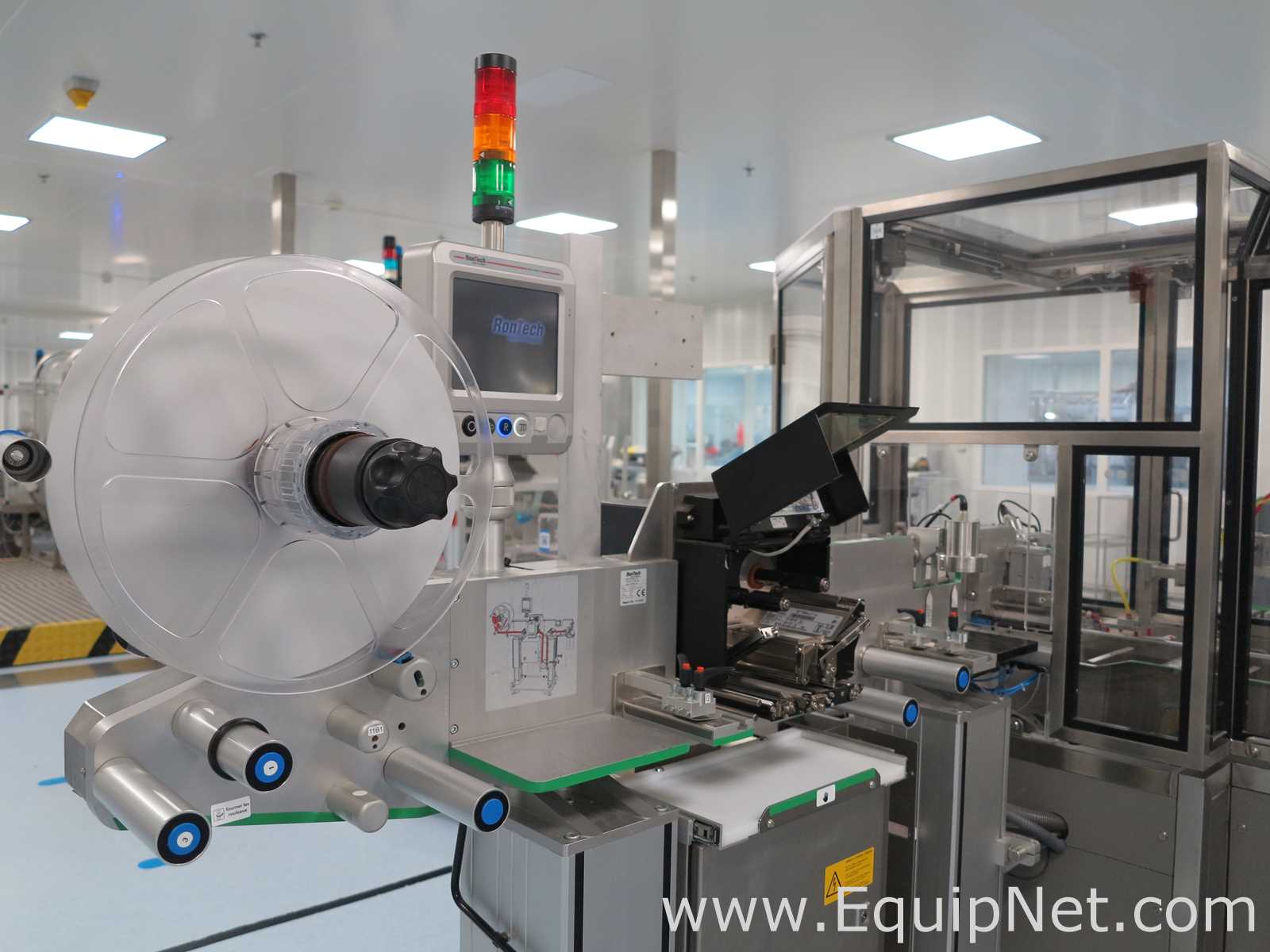

2-11: Bausch+Strobel SME2018 Labeling System
Applies self-adhesive labels to syringes
Serial No.: 54980
Year: 2012
3-11: Bausch+Ströbel SPE 606 Syringe Processing and Assembly Unit
Year: 2012

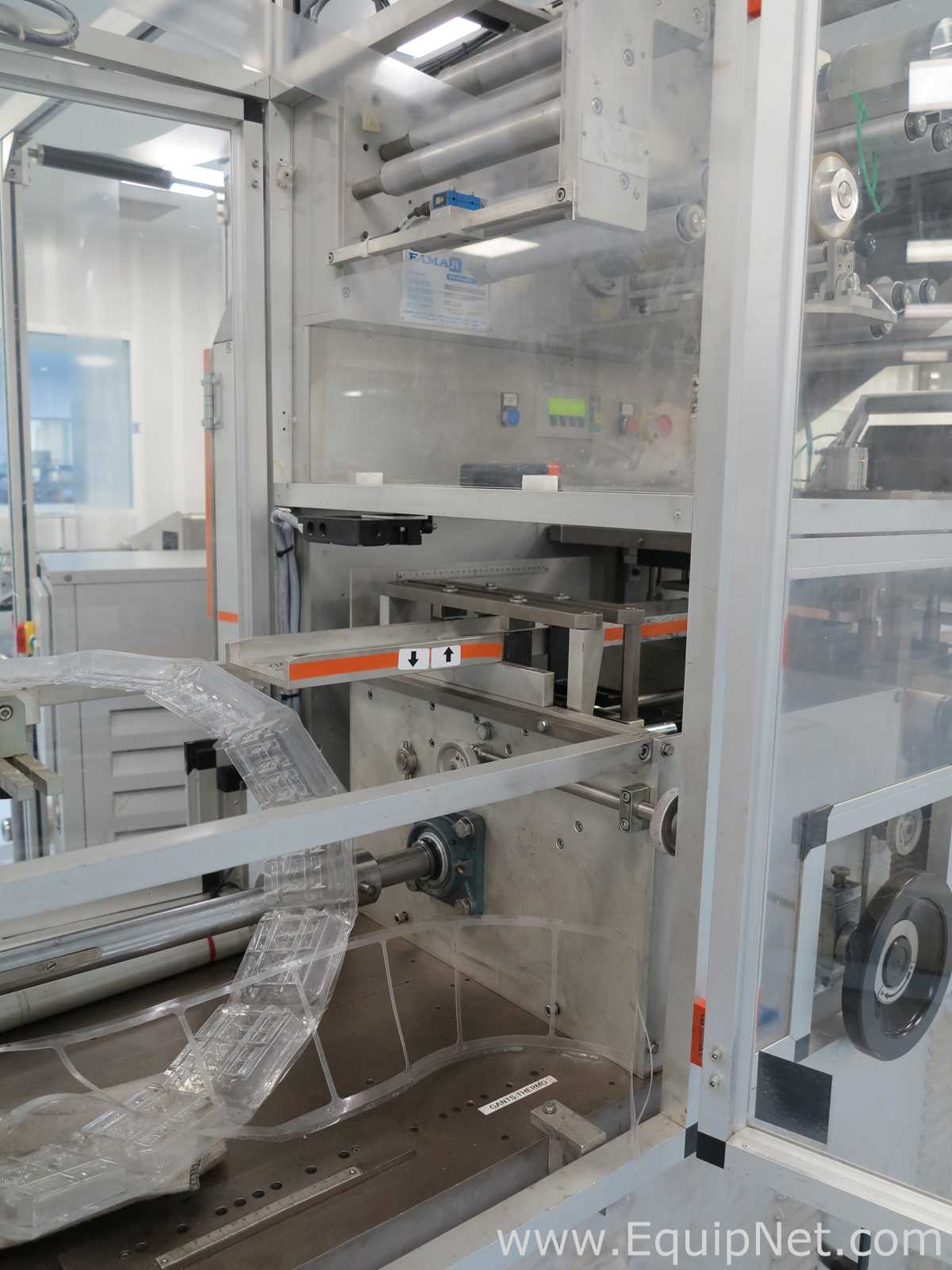

4-11: Famar Wrapmatic Former
Forms the packaging material wrap around groups of 5 syringes

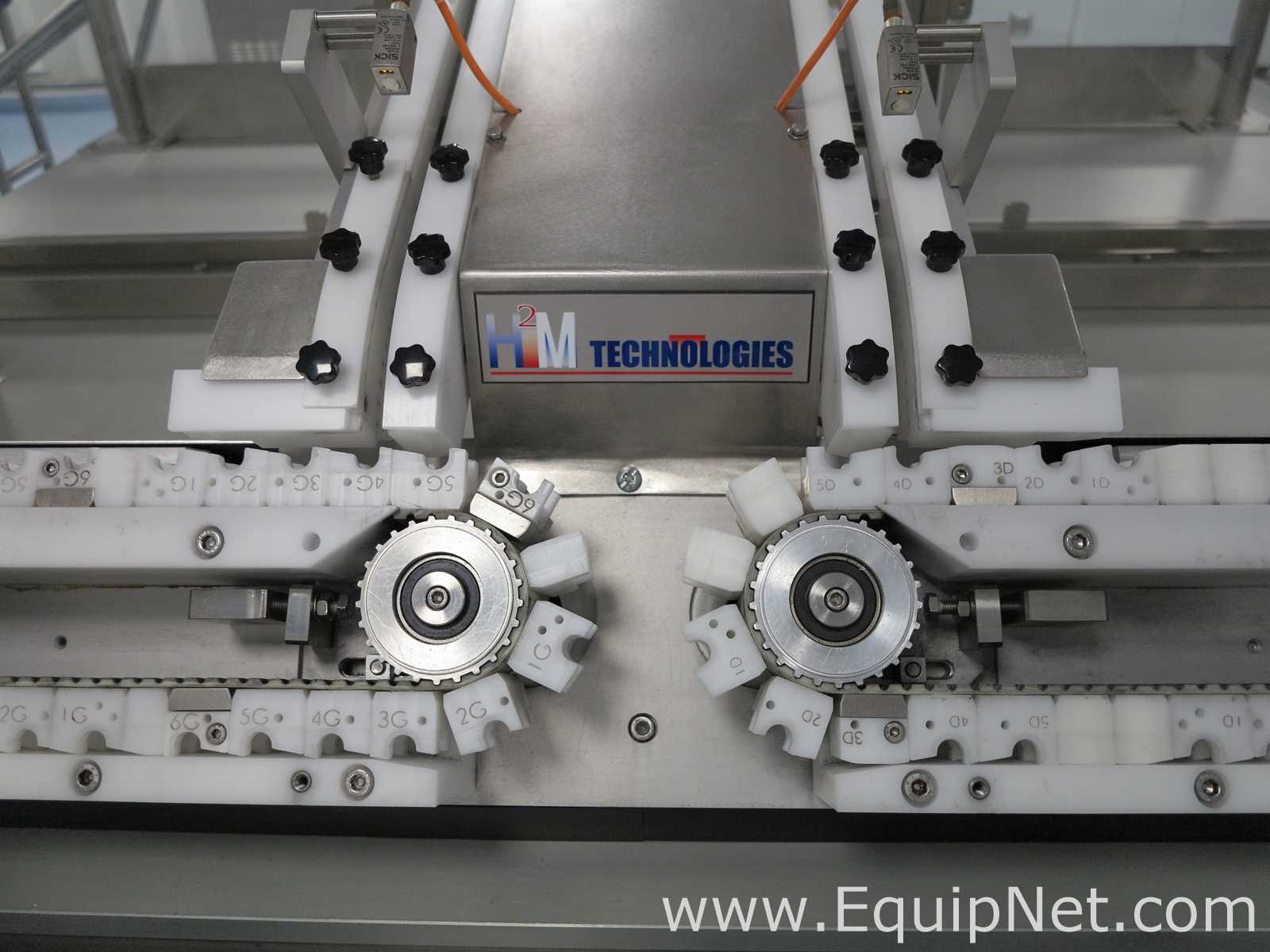

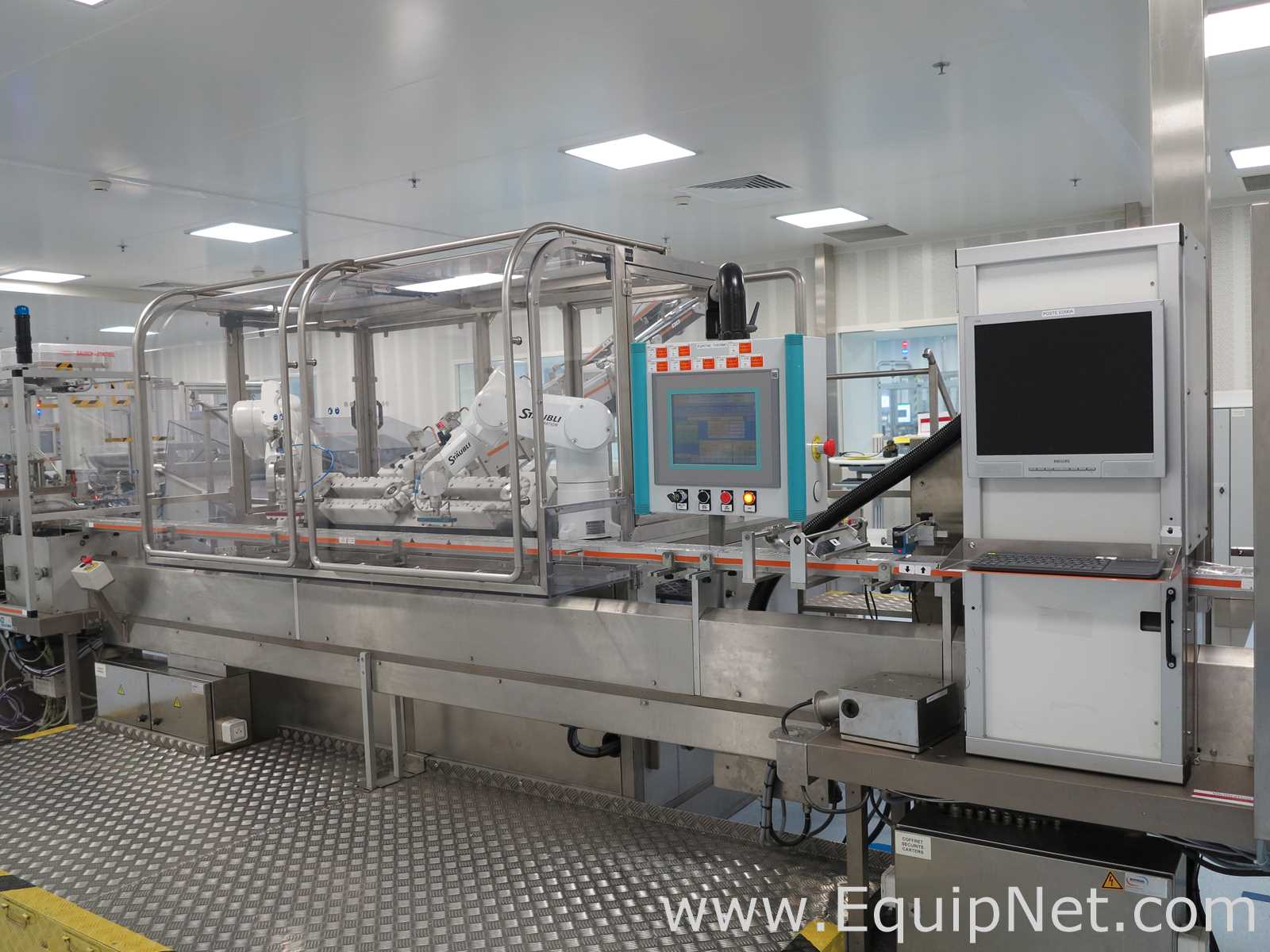

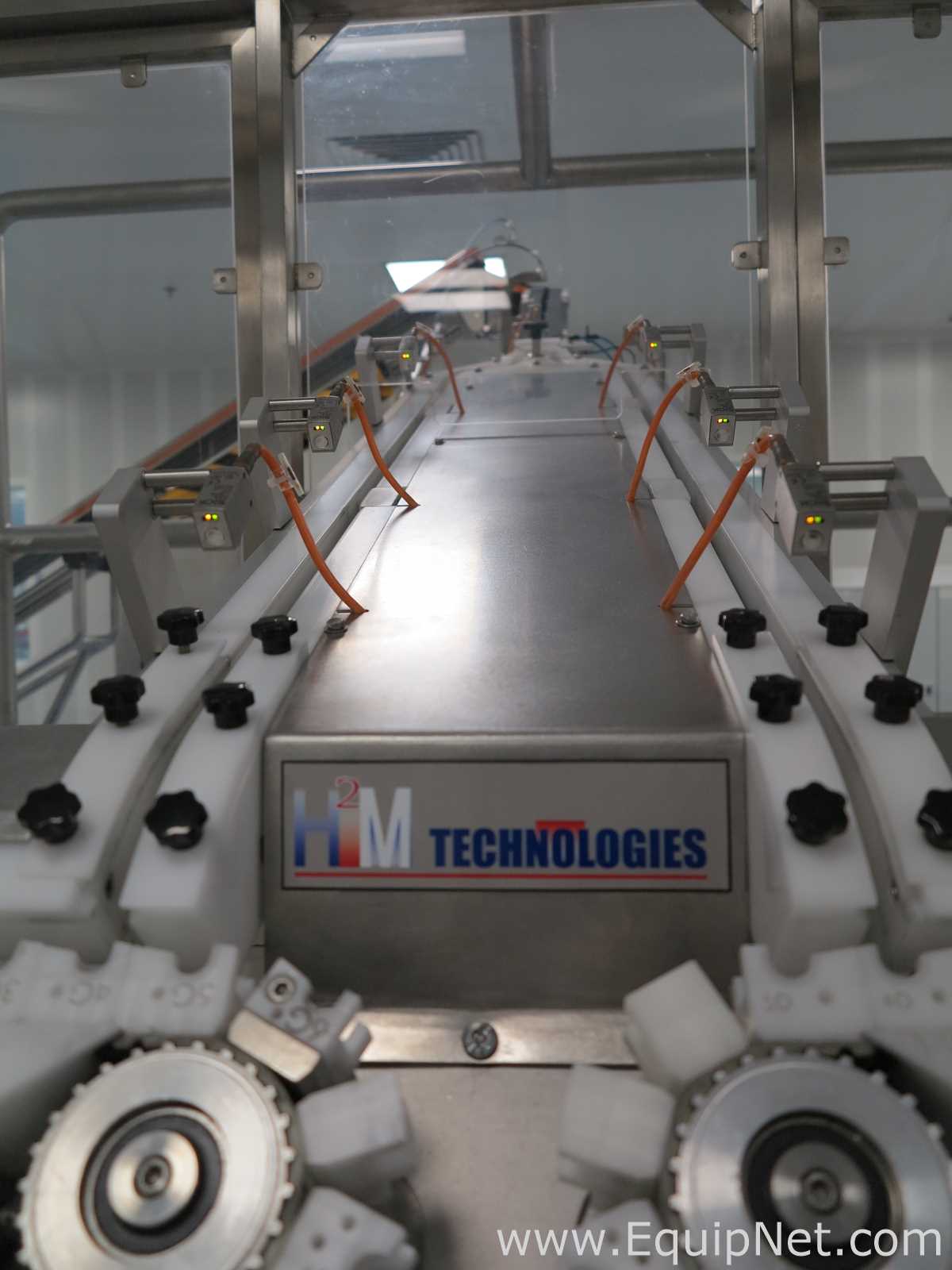

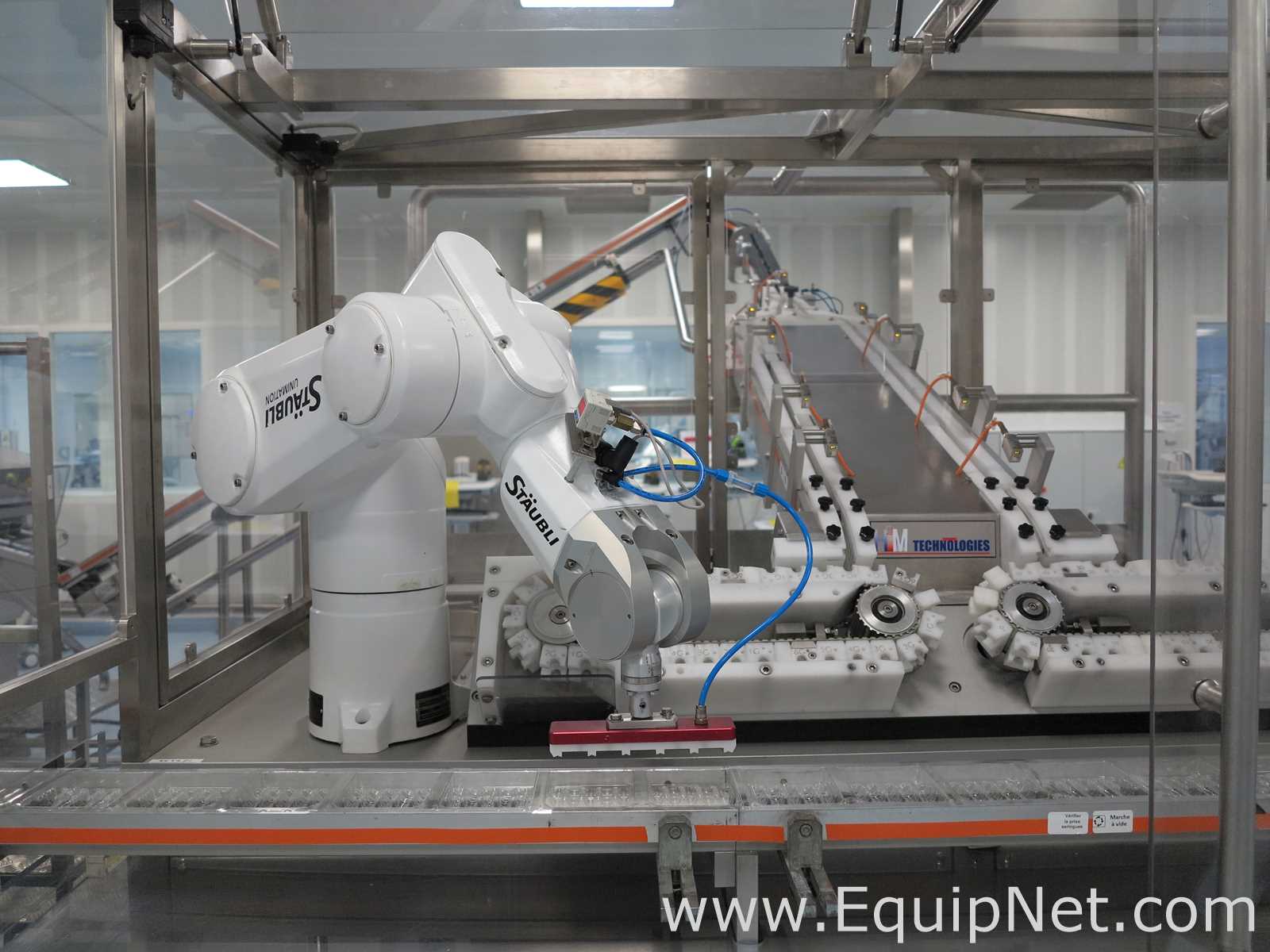

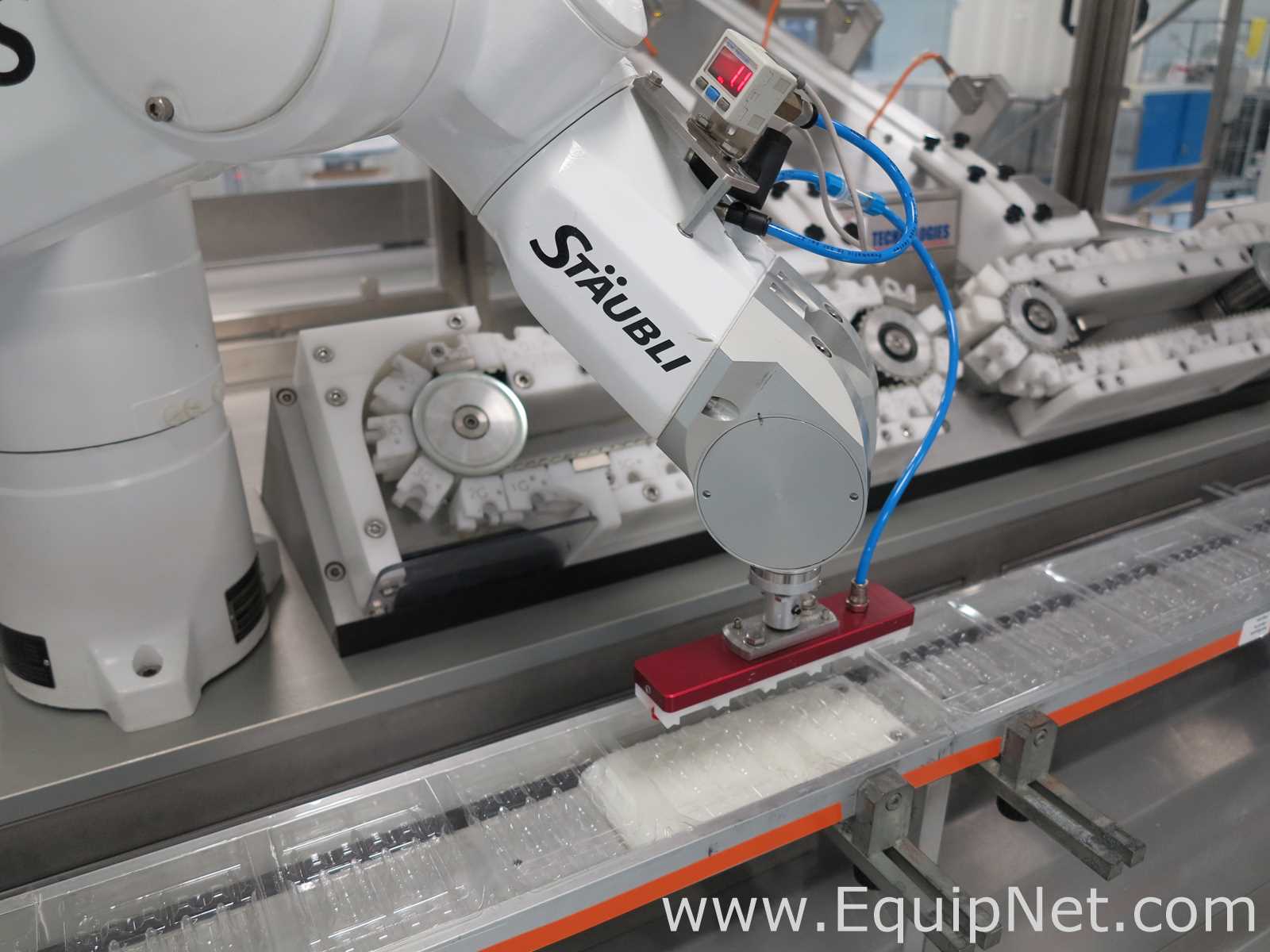

5-11: H2M Technologies Robotic Syringe Dispensing Machine with 2 Staubli TX2 6-Axis Industrial Robots
Picks syringes and places them onto conveyor towards Luceo Robotic Syringe Placement System
H2M Technologies- S/N: 13-049-001; Year: 2013
Staubli TX2 6-Axis Industrial Robot- Year: 2013

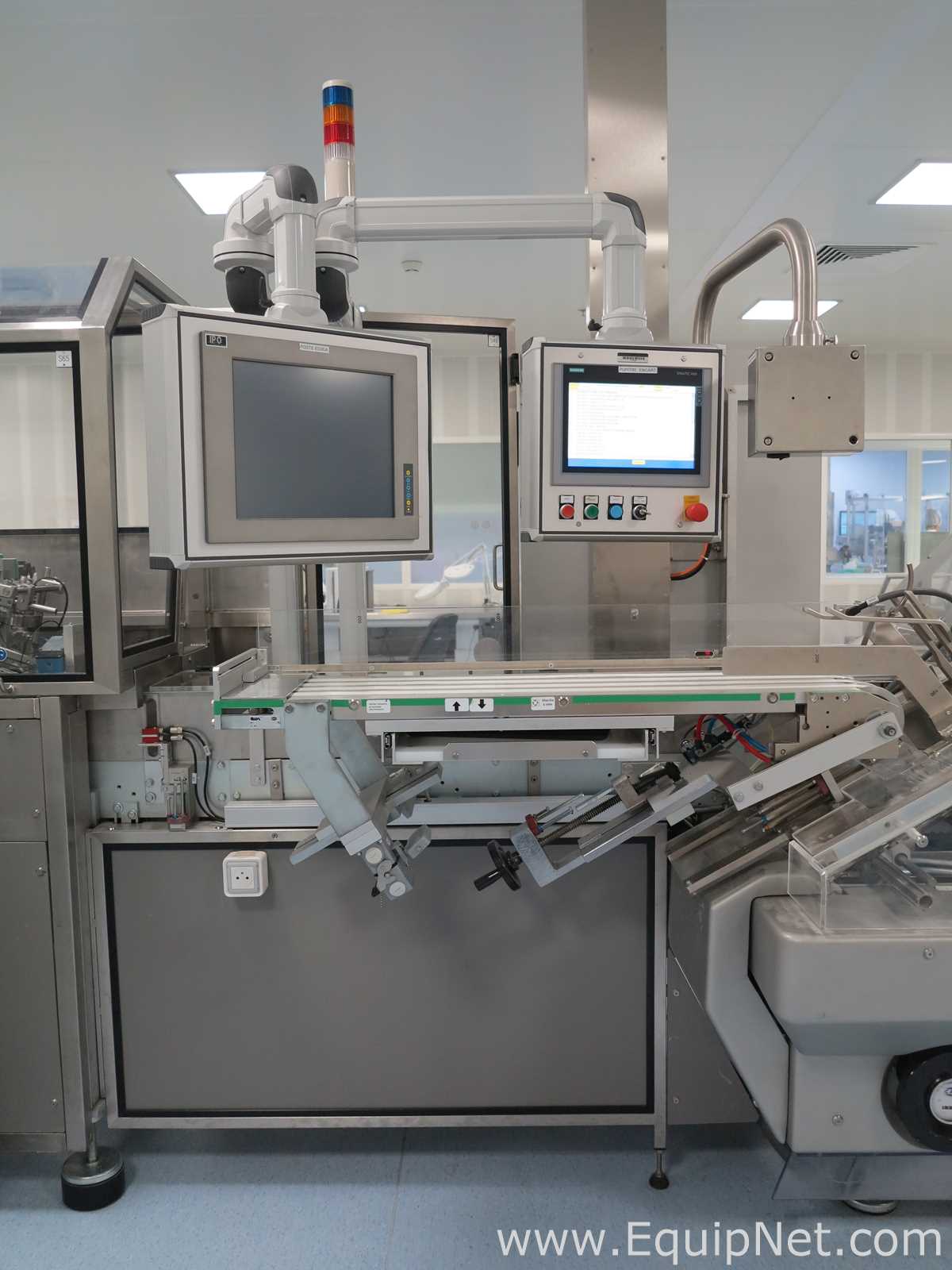

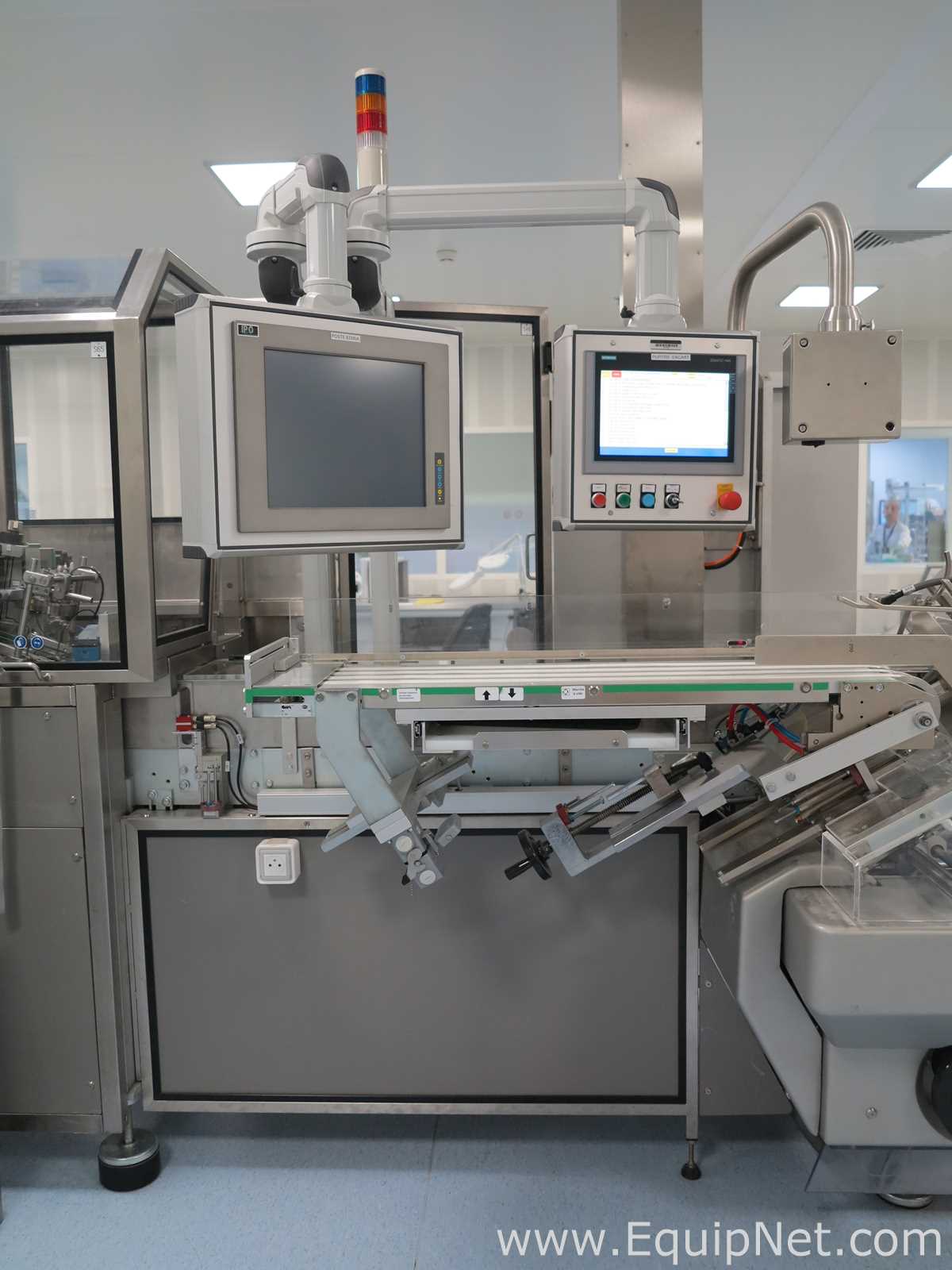

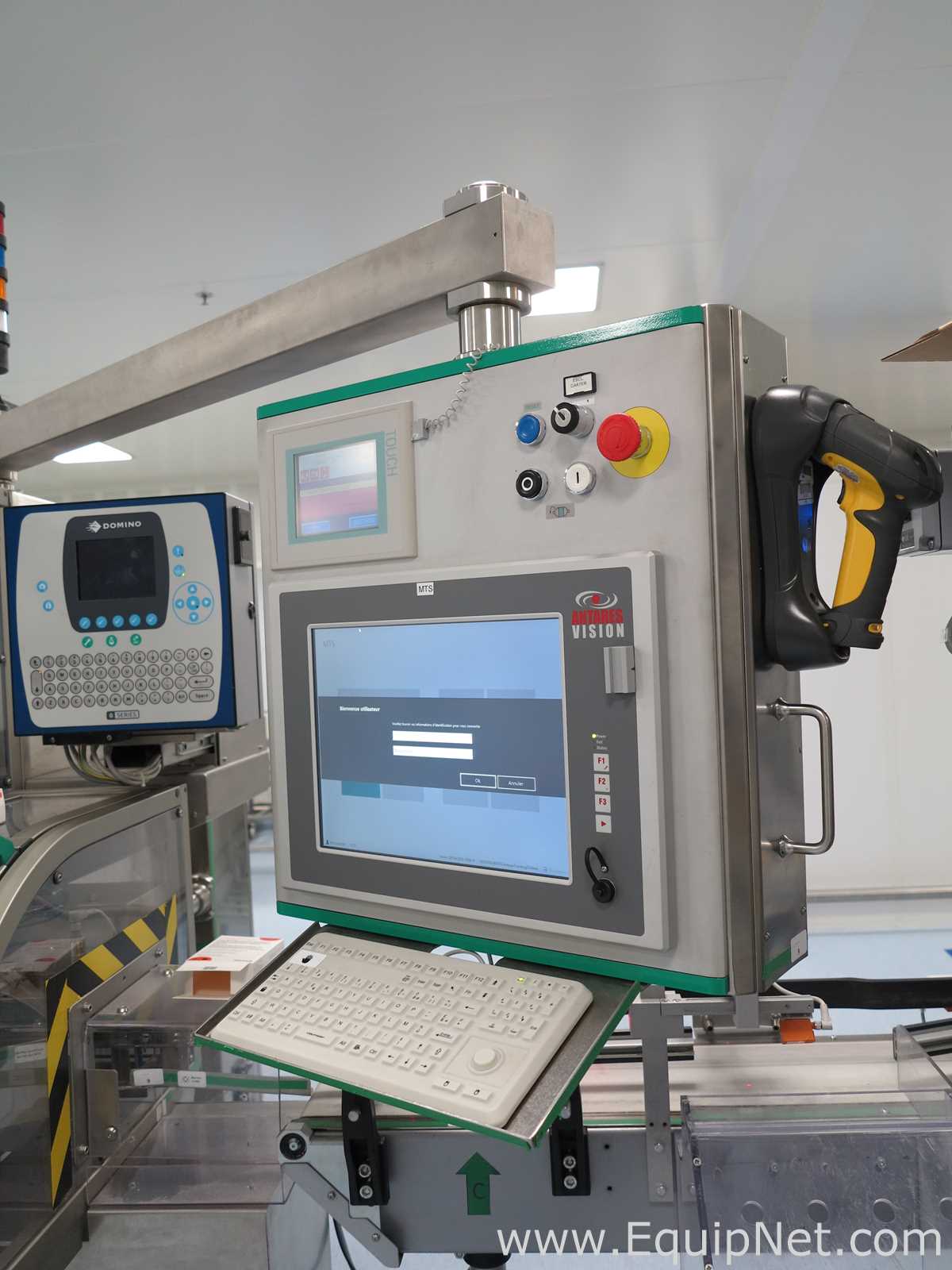

6-11: Luceo Pharma Vision Control Unit
A 100% automated vision inspection and rejects pass to guillotine (Famar RF)
Serial No.: 232131-1E
Year: 2013
230V; 1Ph; 50Hz; 450W
7-11: Famar RF Guillotine and Waste Sorting Unit
Cuts and separates packaging; sorts and removes waste/rejected product
Serial No.: 1810
Year: 1993
380V; 50Hz
8-11: Rontechi (LC Specific) with Luceo Calia Vision Inspection Machine
LC-specific processing unit with integrated Luceo Celia vision inspection
Luceo Calia Vision Inspection Machine- S/N: 232155-1; Year: 2013
1Ph; 230V; 50Hz; 500W

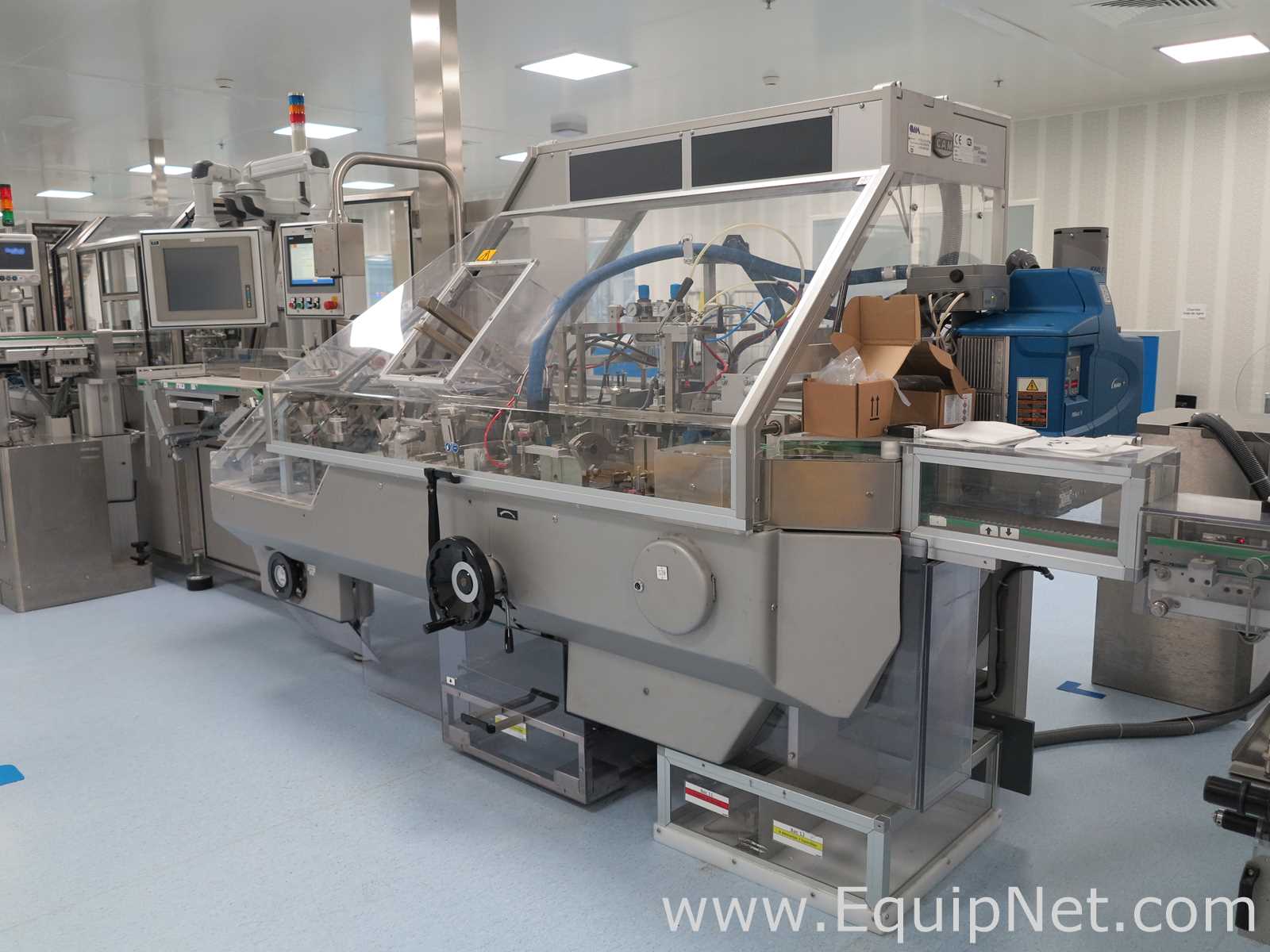

9-11: CAM Assispack PG Case Packer
Automated case packing-groups packs into outer cases
Year: 2013

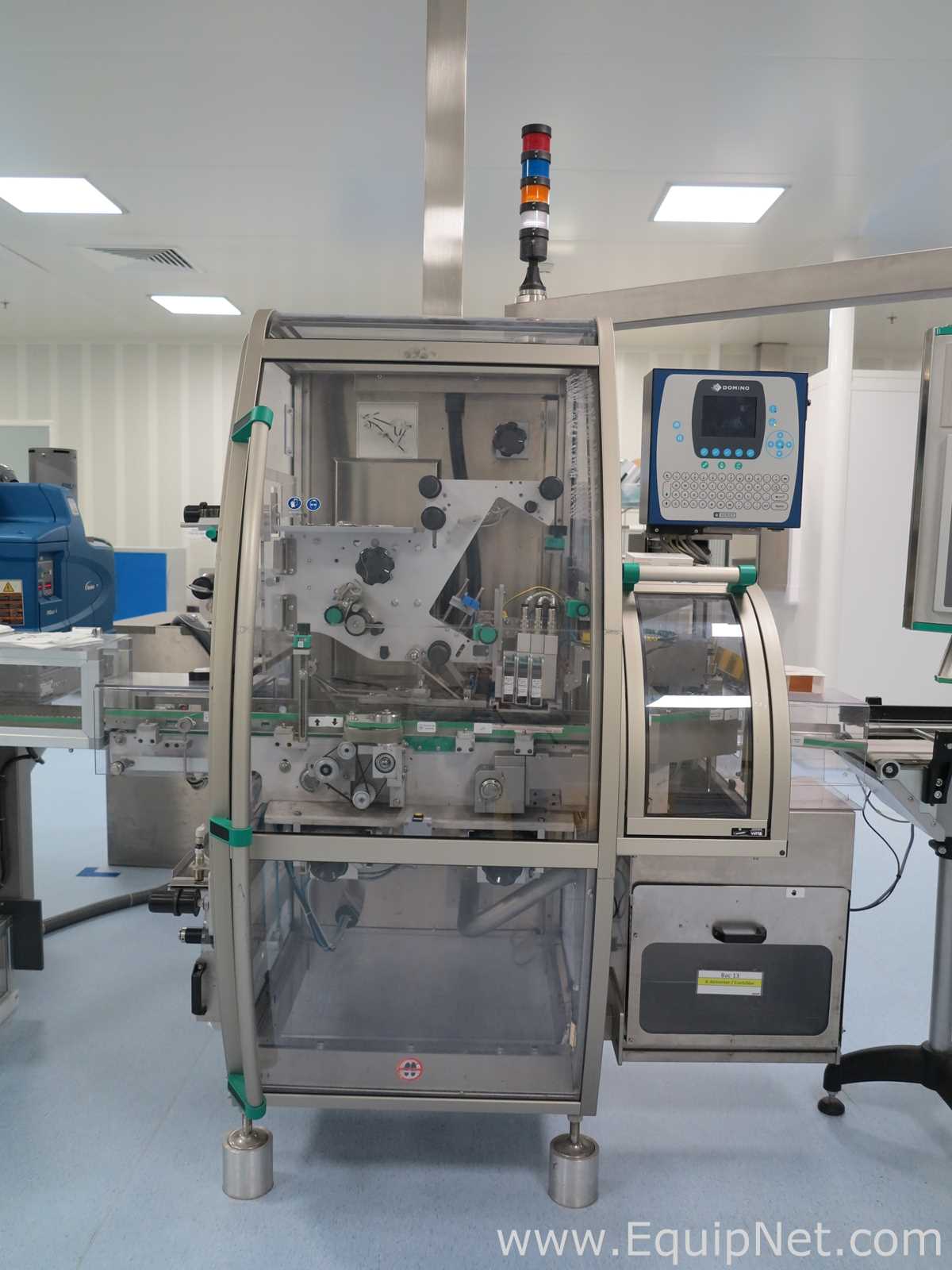

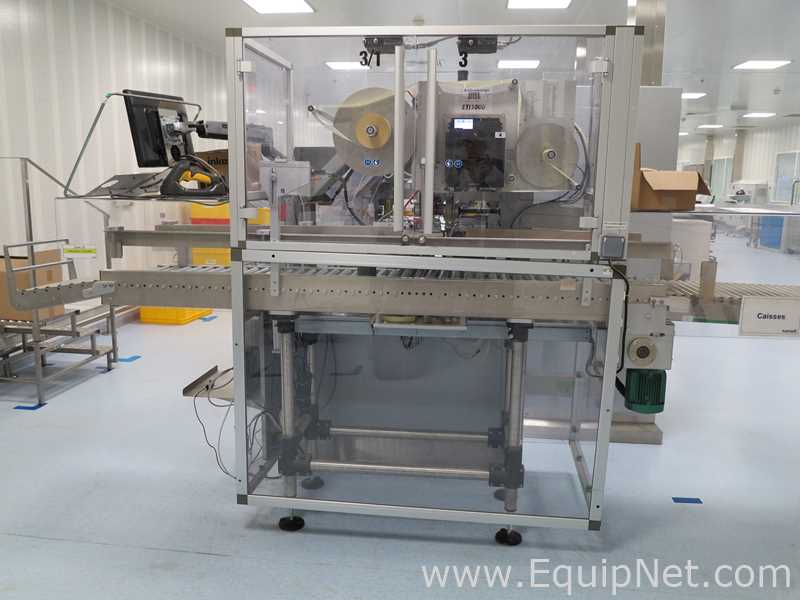

10-11: Neri Marchesini Group BL400VXL High-Speed Labeler
Applies vignette and tamper-evident seals to cartons
Year: 2011

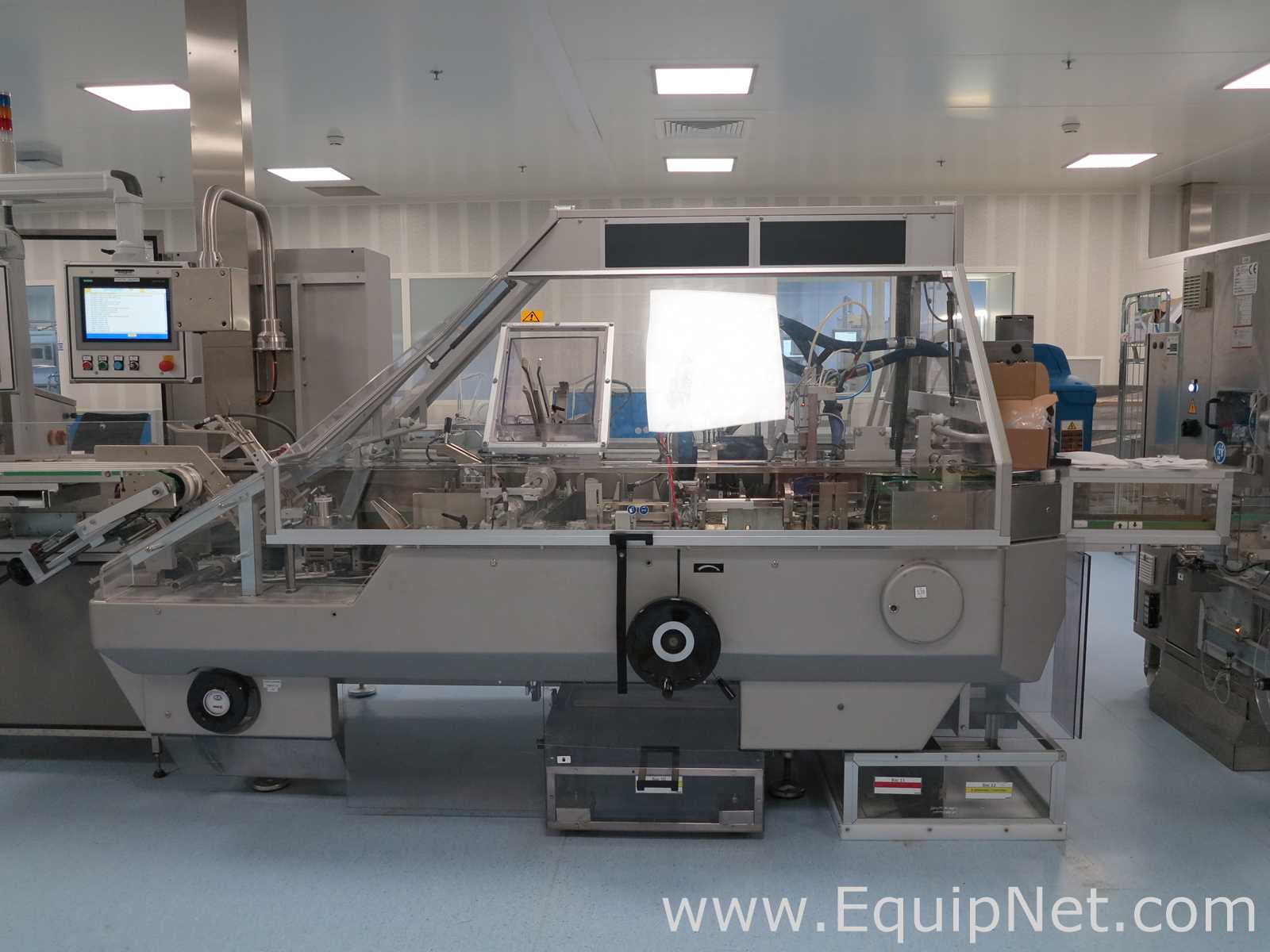

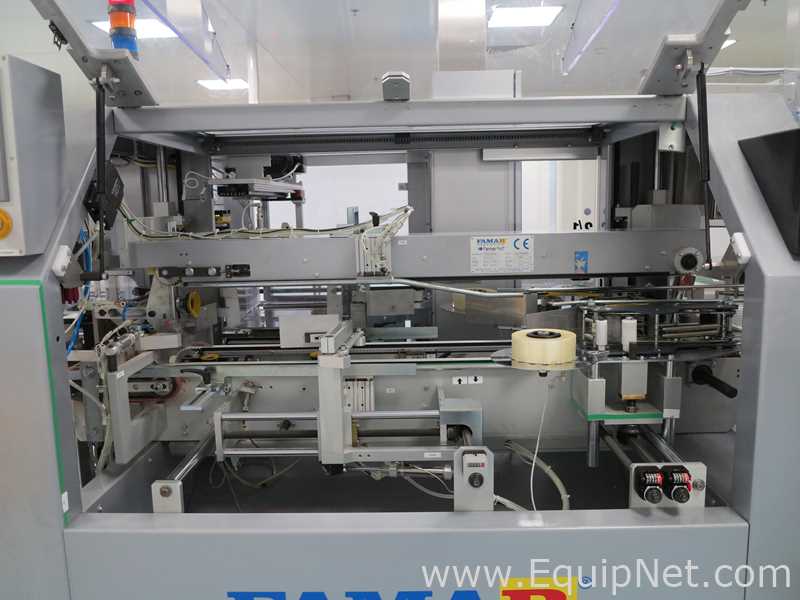

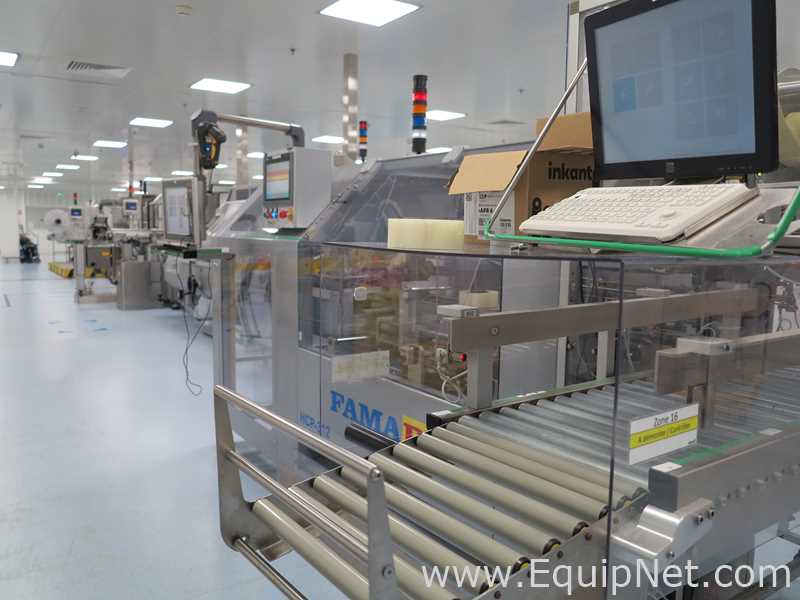

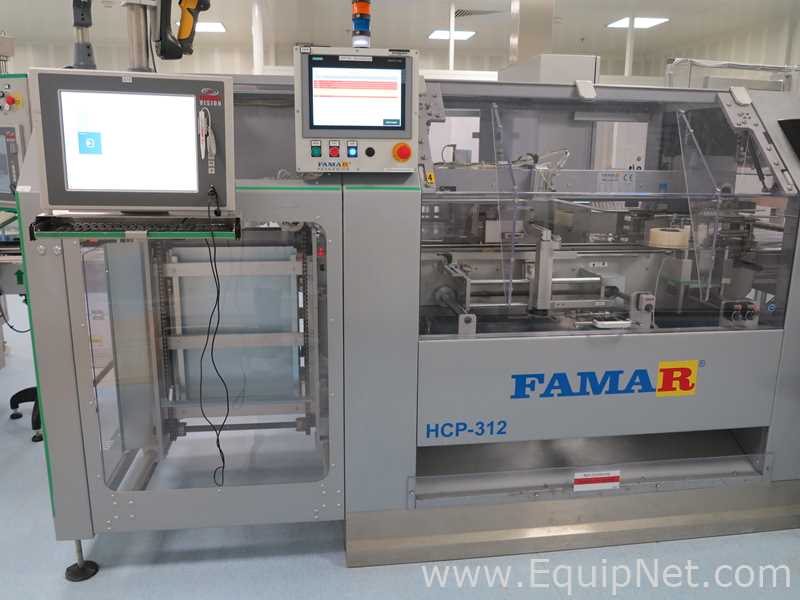

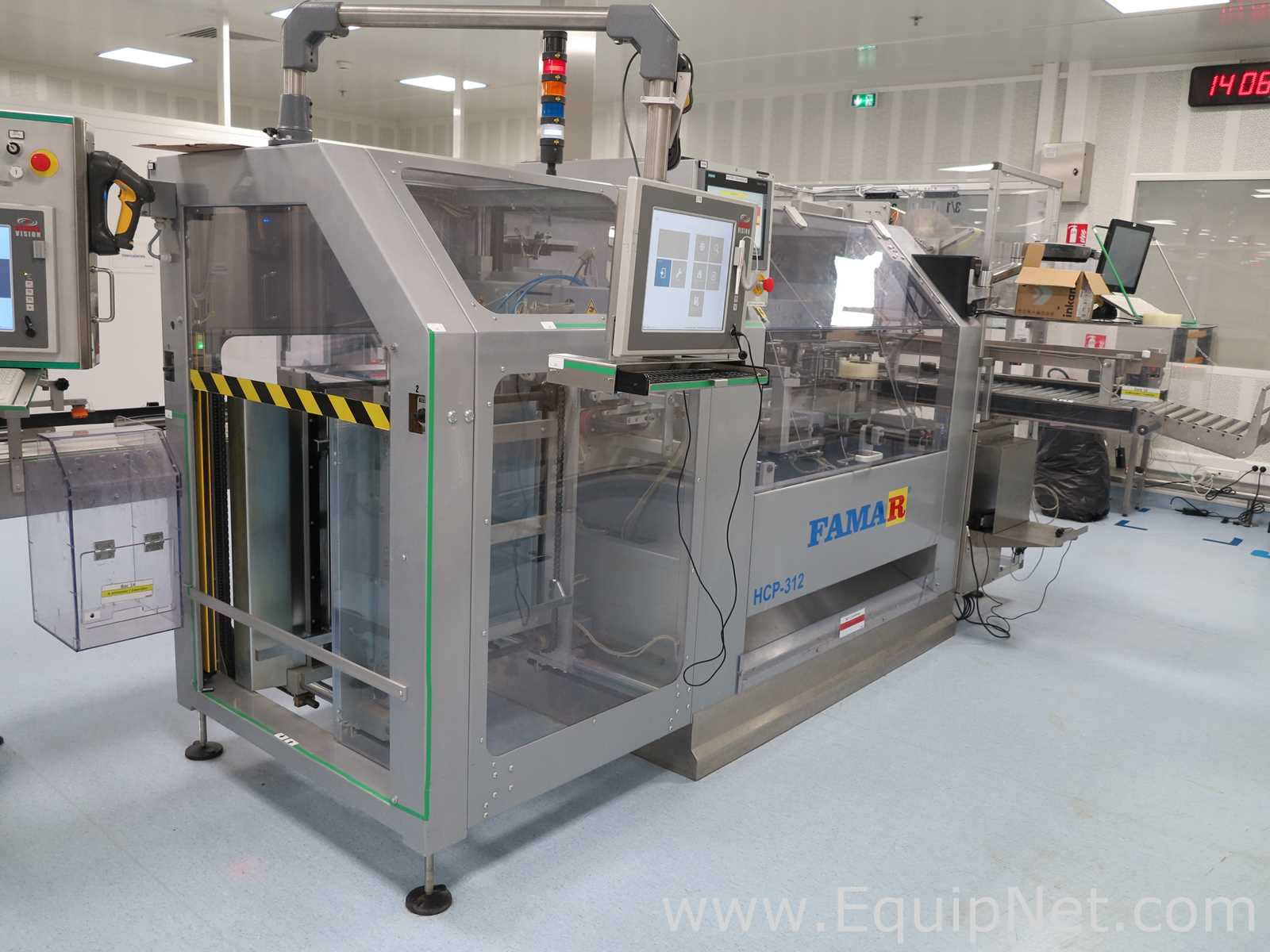

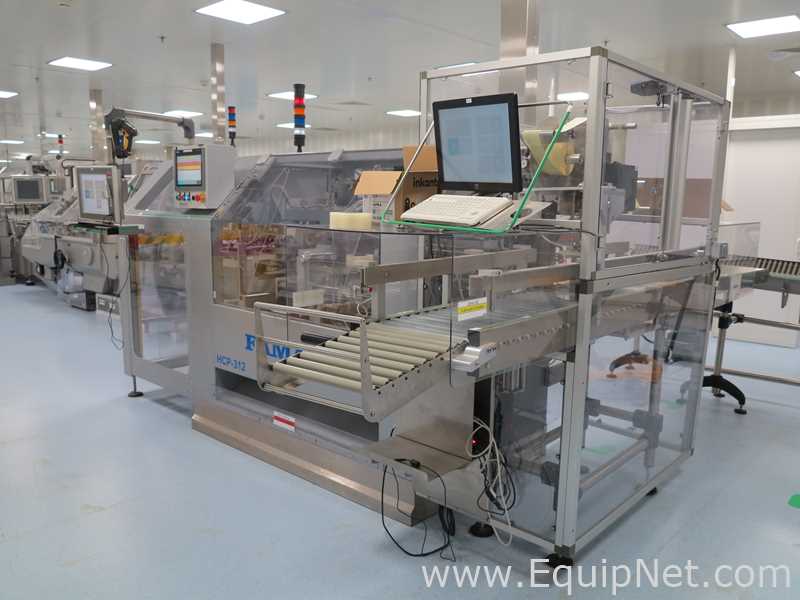

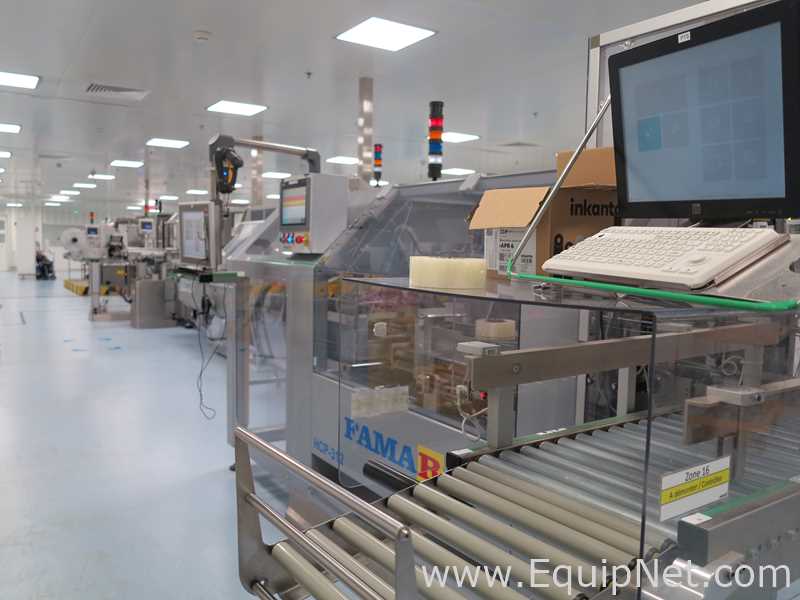

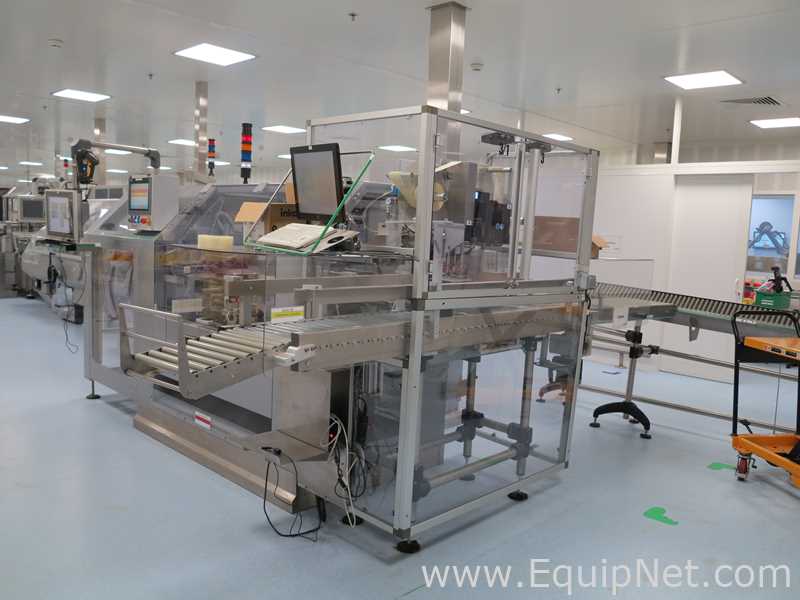

11-11: Famar HCP-312 Horizontal Side-Load Case Packer
End-of-line handling, conveying and palletizing unit
Serial No.: 930002287
Year: 2016
400C;50Hz; 7.5A; 3Ph
The line is configured to pack 5 syringes per pack.
Overall line length: approximately 34 m long
Items included:
Specifications:
Standard
Metric
Manufacturer Name
Famar
Products Run:
Syringes
Syringes
CE Marked:
YES
YES
Capacity Speed:
250
U/MIN
250
U/MIN
Recommended Packaging Form:
PALLET
PALLET
Dimensions:
Standard
Metric
See all item dimensions
Item #1:
157.48 x 47.24 x 59.06 IN - 2,645.55 LBS
4000.00 x 1200.00 x 1500.00 MM - 1,200.00 KGS
Item #2:
118.11 x 59.06 x 78.74 IN - 4,409.24 LBS
3000.00 x 1500.00 x 2000.00 MM - 2,000.00 KGS
Item #3:
236.22 x 137.80 x 118.11 IN - 11,023.11 LBS
6000.00 x 3500.00 x 3000.00 MM - 5,000.00 KGS
Item #4:
98.43 x 59.06 x 78.74 IN - 1,984.16 LBS
2500.00 x 1500.00 x 2000.00 MM - 900.00 KGS
Item #5:
137.8 x 70.87 x 78.74 IN - 1,675.51 LBS
3500.00 x 1800.00 x 2000.00 MM - 760.00 KGS
Item #6:
118.11 x 59.06 x 70.87 IN - 3,306.93 LBS
3000.00 x 1500.00 x 1800.00 MM - 1,500.00 KGS
Item #7:
196.85 x 98.43 x 86.61 IN - 7,716.18 LBS
5000.00 x 2500.00 x 2200.00 MM - 3,500.00 KGS
Item #8:
78.74 x 47.24 x 78.74 IN - 2,645.55 LBS
2000.00 x 1200.00 x 2000.00 MM - 1,200.00 KGS
Item #9:
98.43 x 59.06 x 78.74 IN - 3,968.32 LBS
2500.00 x 1500.00 x 2000.00 MM - 1,800.00 KGS
Item #10:
118.11 x 70.87 x 86.61 IN - 4,850.17 LBS
3000.00 x 1800.00 x 2200.00 MM - 2,200.00 KGS
Item #11:
177.17 x 86.61 x 86.61 IN - 6,613.86 LBS
4500.00 x 2200.00 x 2200.00 MM - 3,000.00 KGS
Overall:
1535.43 x 137.80 x 118.11 in - 50838.07 lb
39000 x 3500 x 3000 MM - 23060 KGS
