Listing# 1098175

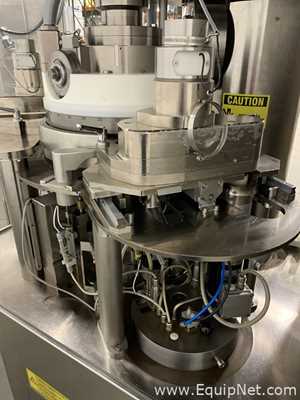

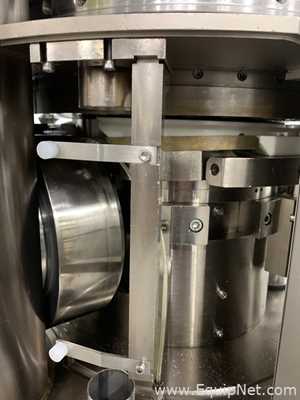

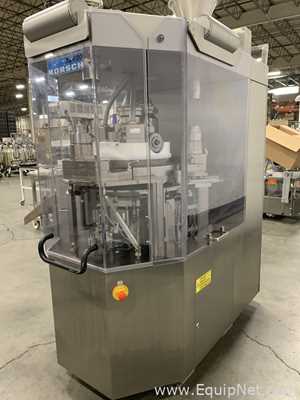

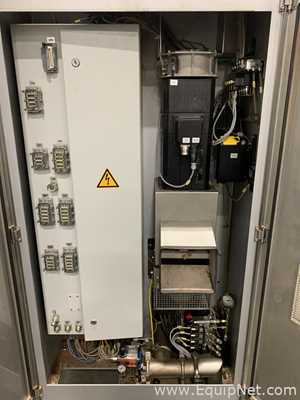

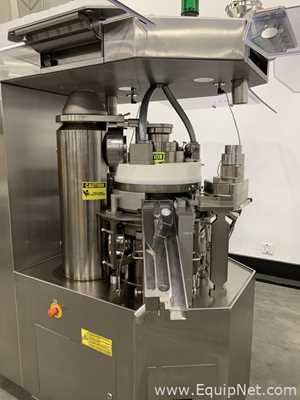

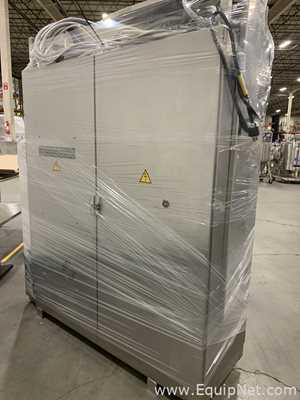

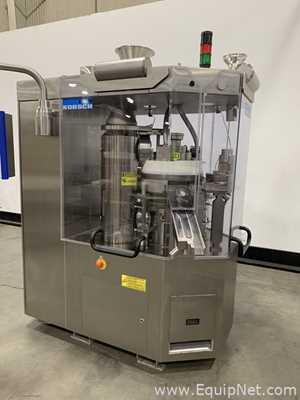

Korsch XL 400 Bi-layer Tablet Press


Make an Inquiry

There is an accepted offer on this item already


Make Backup Offer


NOTICE: There is an accepted offer on this item. If you want more information or wish to submit a backup offer, please Click Here



Location:  MA, USA

Level of Removal:  Uncrated/Loose

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you

Click here to view the sales agreement.





Equipment Description
  • Model: XL400
  • Serial #: K1500146
  • Year of construction: 2002
  • Electrics: 480volt, 60hz, 3ph, 35 amp
  • Stainless steel construction
  • Swing arm mounted operator interface
  • Lift up safety guards with interlocks

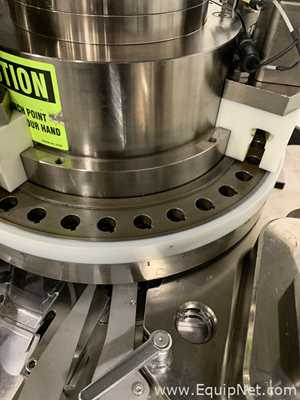

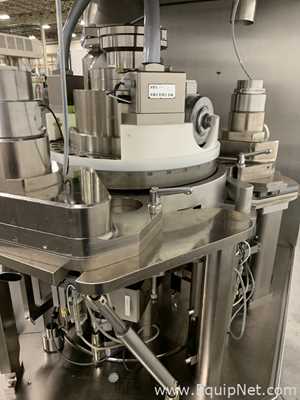

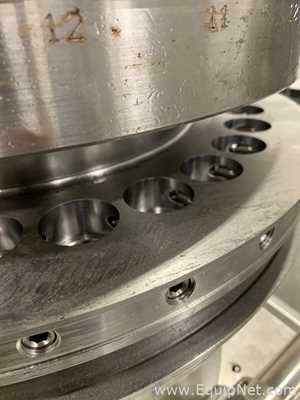

  • 35 station turret mounted on machine
  • Keyed upper punch bores
  • Power feeders
  • 'B' tooled

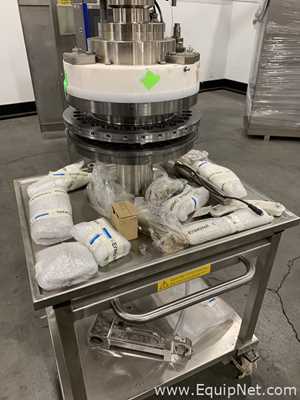

  • Includes an additional 29 station 'D' turret on turret cart
  • Approximate output with 35 station turret (B): 126,000 tablets per hour (bi-layer production)
  • Maximum tablet diameter with 35 station turret (B): 16mm
  • Approximate output with 29 station turret (D): 87,000 tablets per hour (bi-layer production)
  • Maximum tablet diameter with 29 station turret (D): 25mm
  • Turret speed (bi-layer): 5 to 60 rpm for the 39 station and 5 to 50 rpm for the 29 station


  • Specifications:
    Standard
    Metric
    Manufacturer Name
    Korsch


    Year:
    2007
    2007

    Serial Number:
    K1500146
    K1500146

    CE Marked:
    YES
    YES

    Model:
    XL 400
    XL 400

    No. of Stations:
    35
    35

    Maximum capacity (tablets per minute or hour):
    126,000 TPH
    126,000 TPH

    Capacity Size (tooling - 'bb', 'B' or 'D'):
    B
    B

    Tooling type (IPT, EU, Other):
    IPT
    IPT

    Maximum tablet diameter:
    0.63 in
    16 MM

    Keyed upper punch bores:
    YES
    YES

    Pre-compression:
    YES
    YES

    Voltage:
    480 VOLTS
    480 VOLTS

    Frequency:
    60 HERTZ
    60 HERTZ

    Phase:
    3
    3

    Current:
    35 AMPS
    35 AMPS

    Recommended Packaging Form:
    CUSTOM PALLET
    CUSTOM PALLET


    Dimensions:
    Standard
    Metric

    See all item dimensions

    Item #1:
    72 x 54.00 x 87.00 IN - 0.08 LBS
    72.00 x 54.00 x 87.00 IN - 8,000.00 LBS

    Item #2:
    27 x 75.00 x 94.00 IN - 0.02 LBS
    27.00 x 75.00 x 94.00 IN - 1,500.00 LBS

    Item #3:
    43 x 39.00 x 71.00 IN - 0.01 LBS
    43.00 x 39.00 x 71.00 IN - 1,000.00 LBS

    Item #4:
    48 x 44.00 x 40.00 IN - 0.01 LBS
    48.00 x 44.00 x 40.00 IN - 500.00 LBS

    Overall:
    190 x 75 x 94 IN - 11000 LBS
    4826.00 x 1905.00 x 2387.60 mm - 4989.60 kg

    Disclaimer

    DEA Regulated Sale

    NOTE: Because this listing is a tabletting machine, capsule filler or encapsulation machine, the seller will need to notify the DEA of any transaction involving this machine. They will need to supply the DEA with the Model, Serial number, the buyer company, contact, address, telephone and fax number, and the buyer’s tax ID or DEA Registration number. The DEA requires at least 15 business days after payment has been received for this notification to occur before the press can be released for shipment. If you intend to make an offer on this machine you will be required to provide your company’s Tax ID or DEA Registration #.

    This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in

    MA

    This equipment is subject to a removal and loading charge.

    Please Note The seller of this equipment requires the buyer to accept a sales agreement. Click here to view the sales agreement.


    The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

    Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.

    Any license associated with this equipment is non-transferable.
