Listing# 1085711

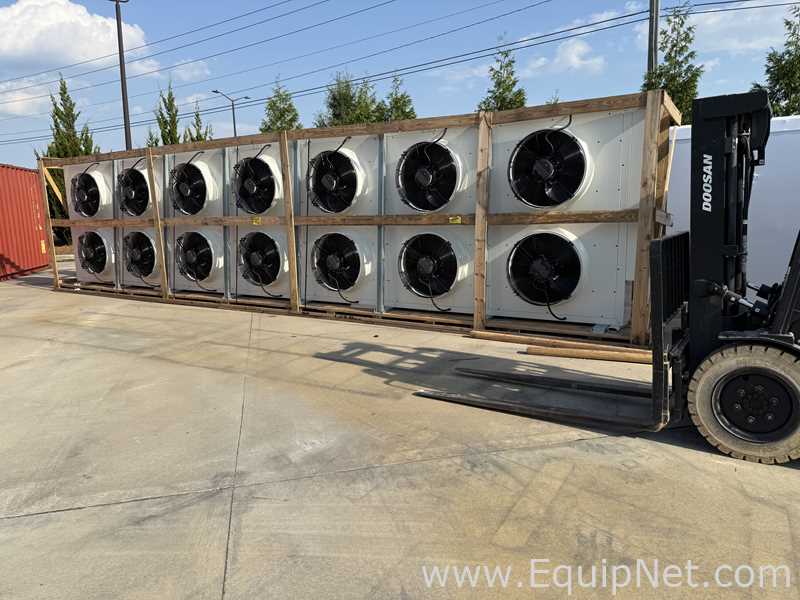

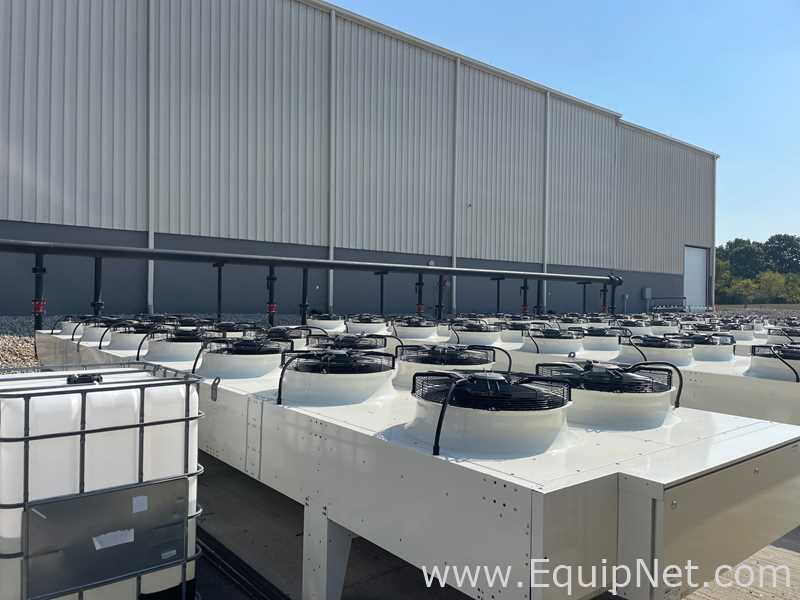

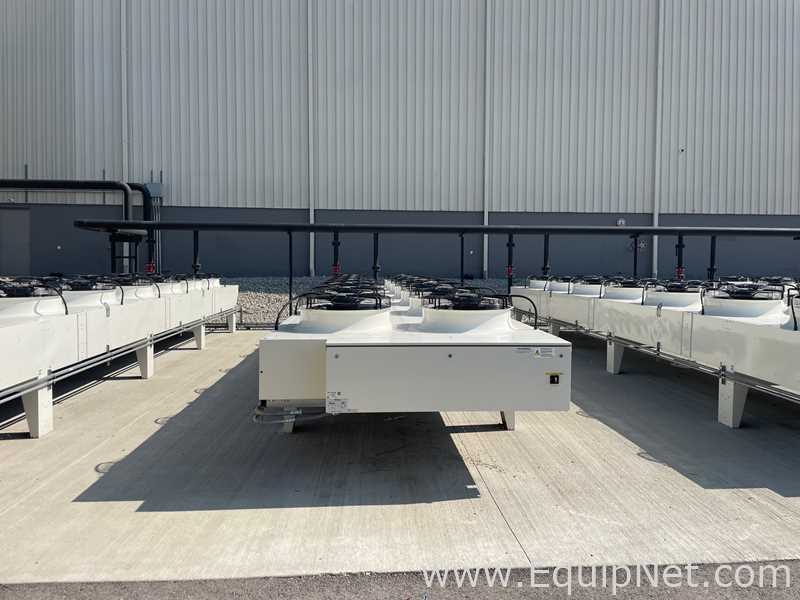

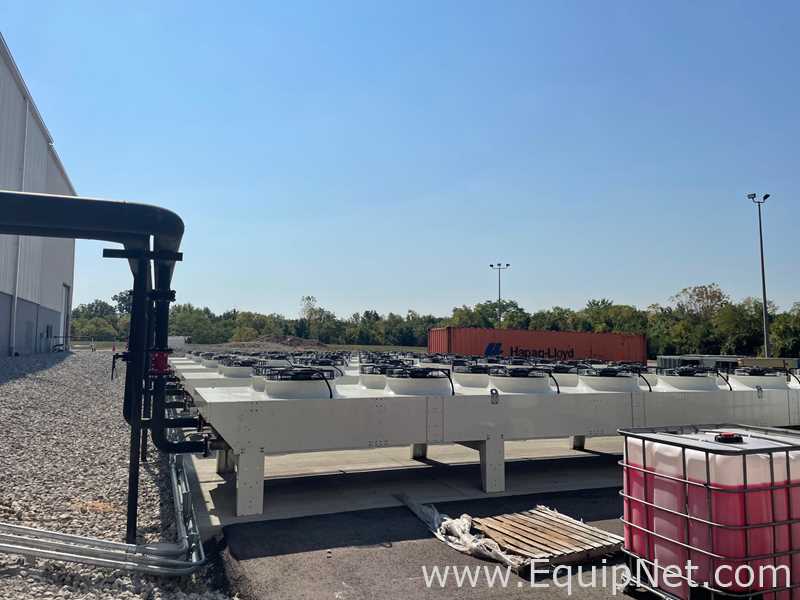

Modine LFV8227-4C9-4N Fluid Cooler

Download High Res Photos

Make an Inquiry

Make An Offer

Request Price Information

Location: GA, USA

Level of Removal: Uncrated/Loose

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you

Asset Documents

DRAWING.pdf (1)
(PDF) Requires® Adobe® Acrobat)

Equipment Description

Modine LFV8227-4C9-4N Fluid Cooler
Design Conditions

Ambient temp: 97F.

Fluid flow rate: 135 GPM.

Entering fluid temp: 118.8F.

Leaving fluid temp: 100.4F.

Fluid type/Glycol%: Propylene Glycol 30%.
Model Specifications

Total heat of rej MBH: 1,208.13.

Leaving fluid temp: 100F.

Fluid pressure drop psi: 2.74.

Design pressure psi: 320.

Fin spacing FPI: 12.

Motor quantity/BHP: 14 / 1,75.

Fan speed: 1000 RPM.

Total airflow (ACFM): 142658.
Physical Specifications

Configuration: 2x7.

Casing material/coating: Pre galvanized/painted.

Specifications:

Standard

Metric

Manufacturer Name

Modine

Model:

LFV8227-4C9-4N

Voltage:

460 VOLTS

Frequency:

60 HERTZ

Phase:

Recommended Packaging Form:

CUSTOM PALLET

Dimensions:

Standard

Metric

Overall:

429 x 92 x 55 IN - 6910 LBS

10896.60 x 2336.80 x 1397.00 mm - 3134.38 kg

Disclaimer

This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in

This equipment is subject to a removal and loading charge.

The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.

Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.

Any license associated with this equipment is non-transferable.
