Listing# 1108158

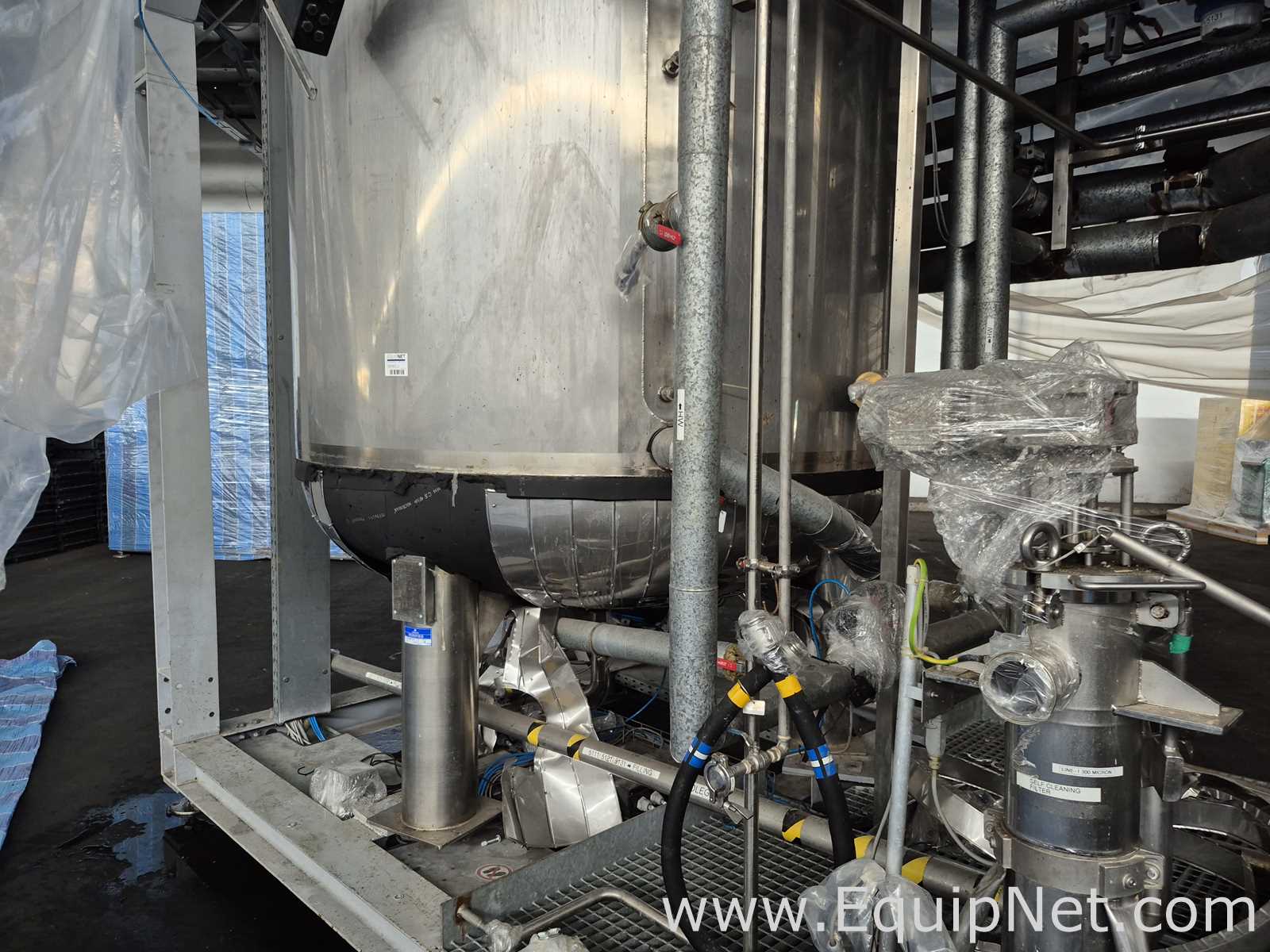

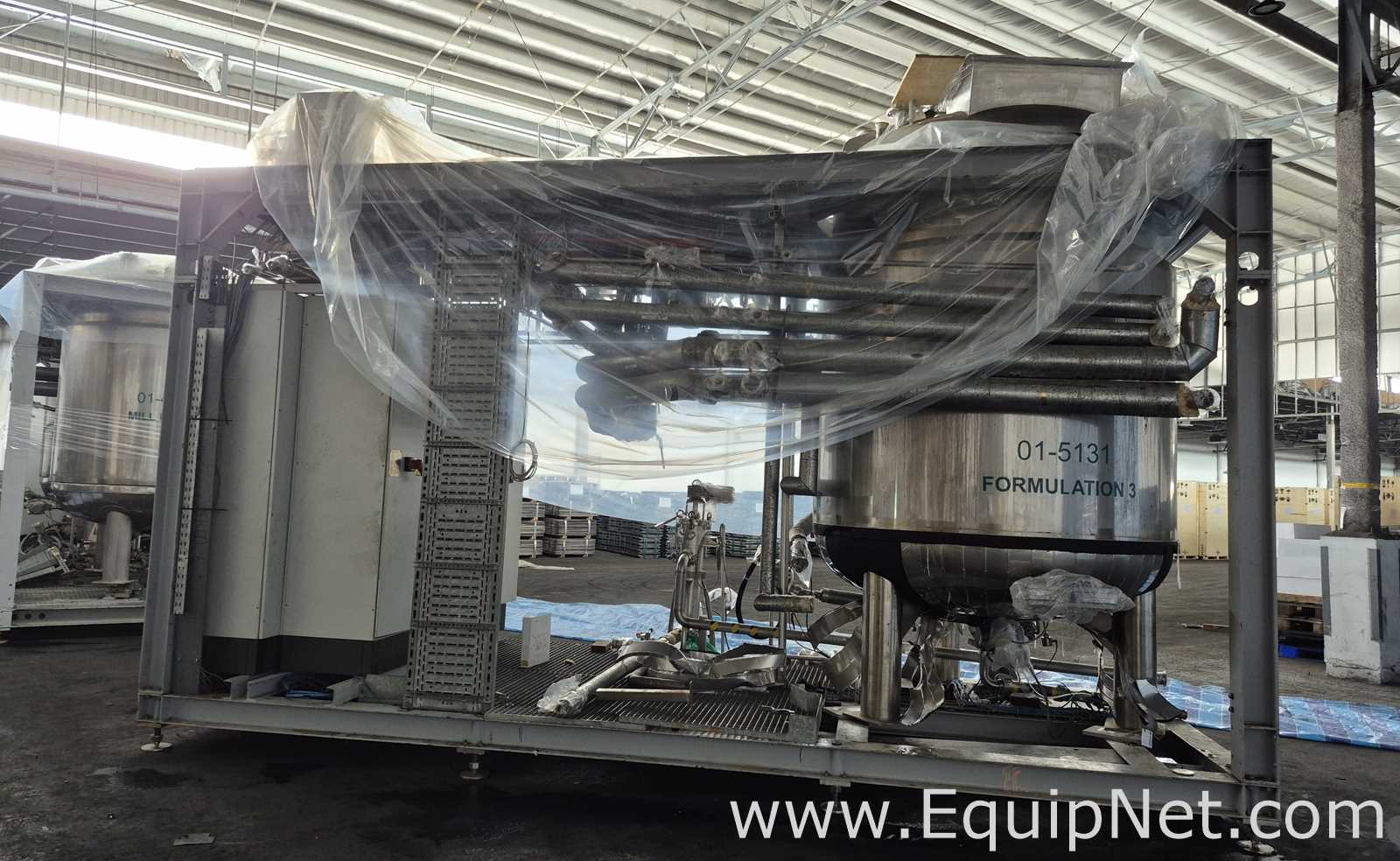

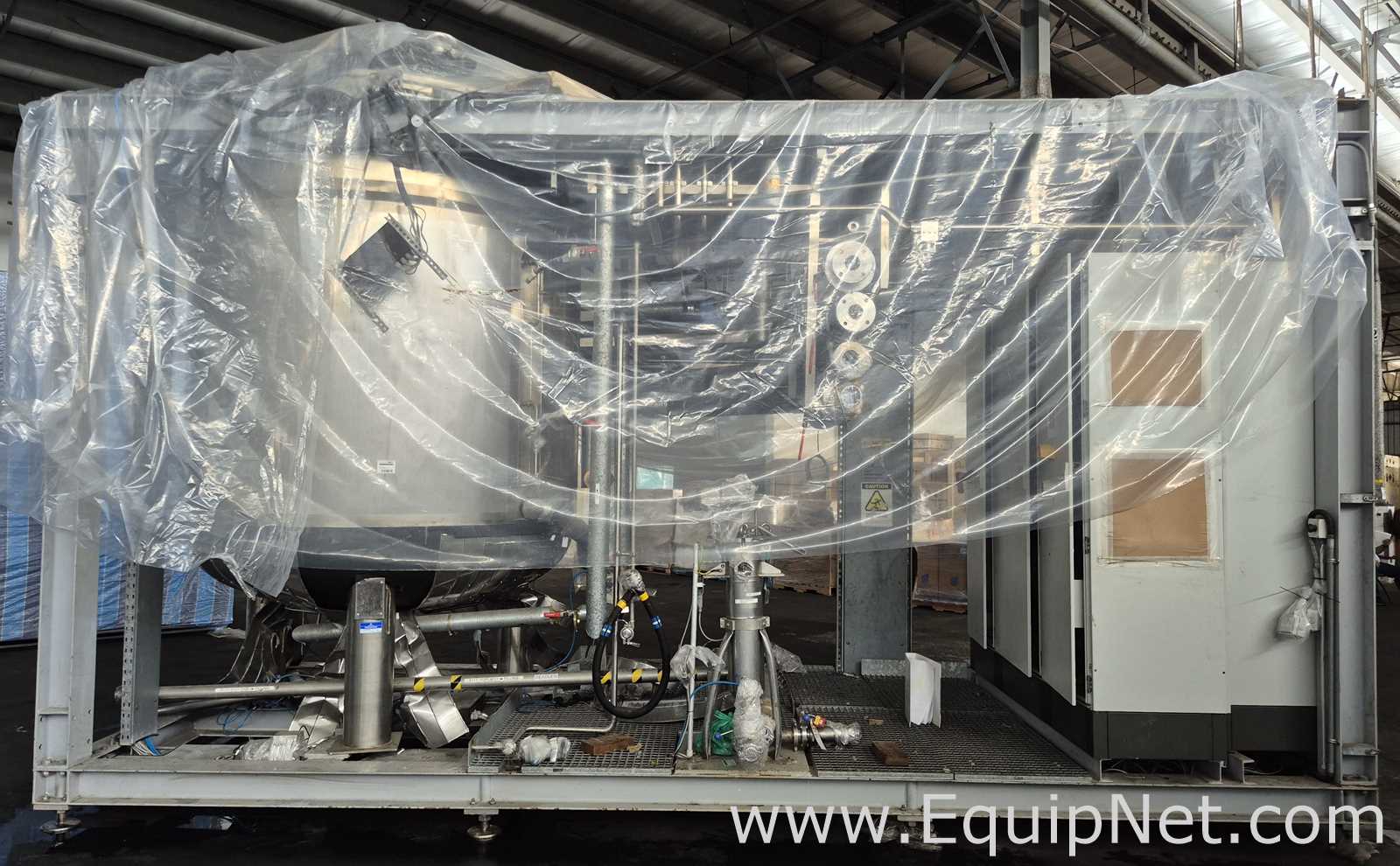

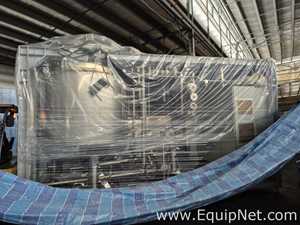

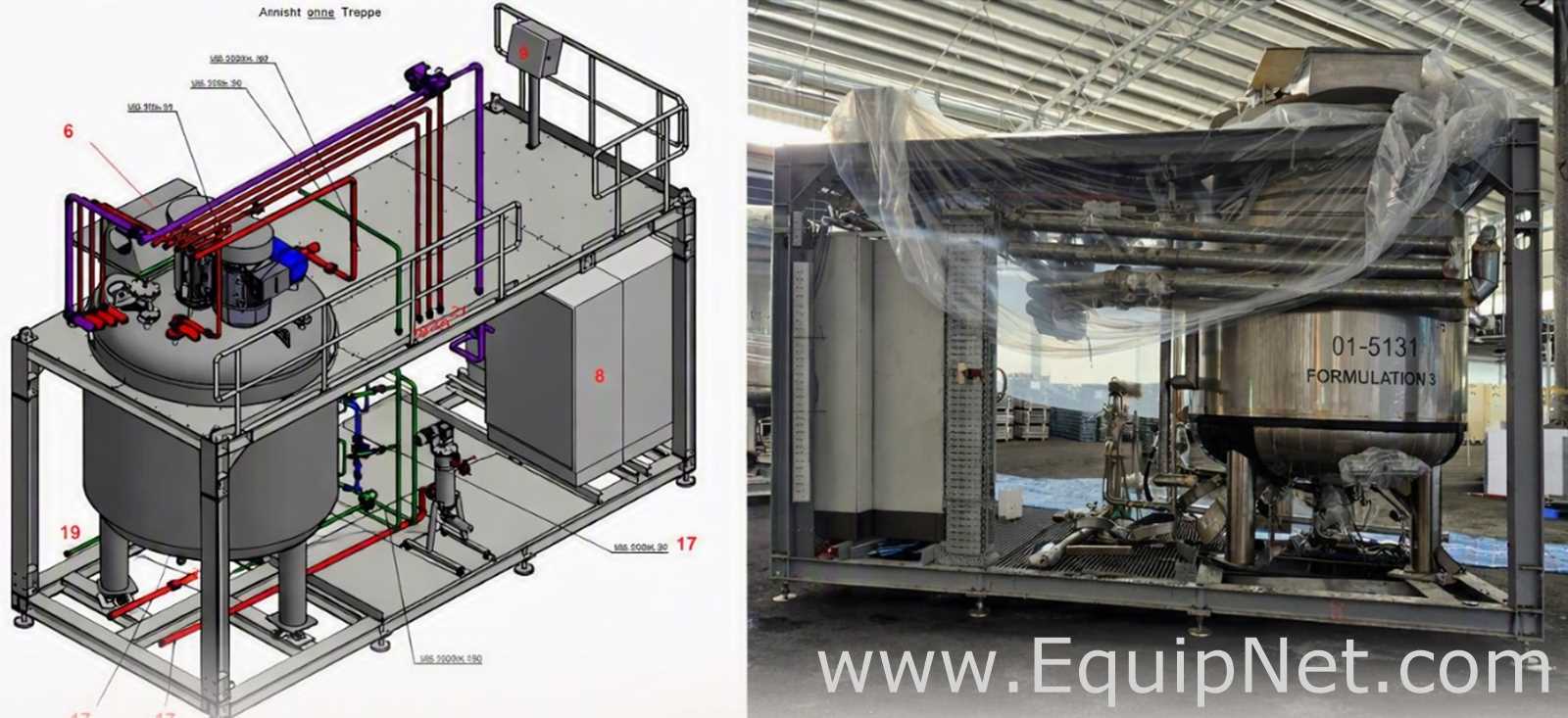

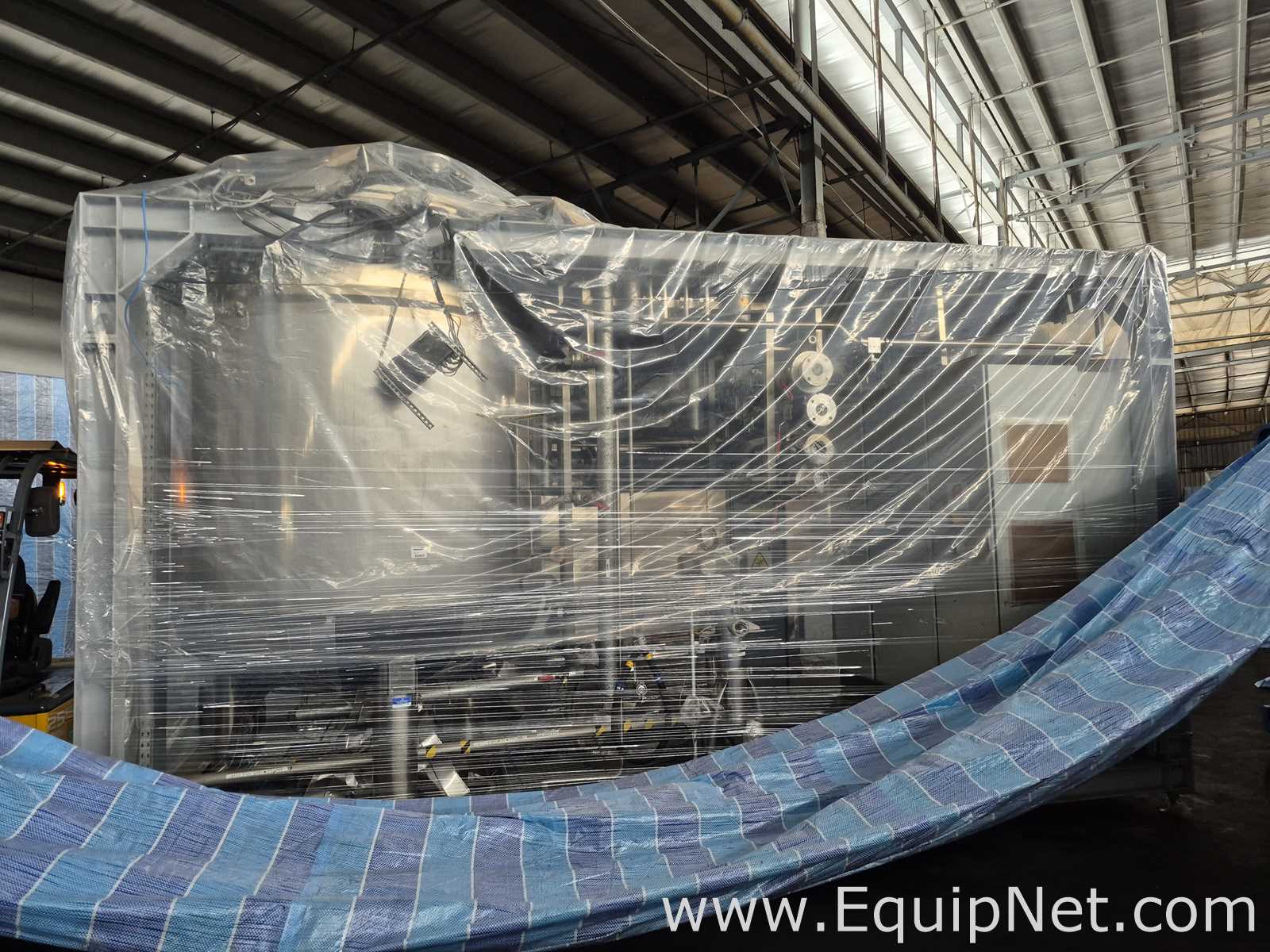

Netzsch 6.000 Lt Mixing Vessel with Self-Cleaning Filter and Electrical Board - Formulation Skid 4-2
THIS IS A MULTI-LISTING. VIEW INDIVIDUAL LISTINGS BY SCROLLING DOWN.
Pre-Owned NETZSCH Mixing Vessel for Sale
Seller's Acceptable Currency:
$45,000.00 USD
Request More Info Make An OfferLocation: Singapore
Level of Removal: Already Crated
*All offers are submitted in Seller’s Acceptable Currency
Don't see what you're looking for? We'll find it for you
Equipment Description
Includes:
Netzsch 6000L Formulation 3 Mixing Vessel 5131.
Netzsch Platform Structure.
Netzsch Self Cleaning Filter.
Netzsch Electrical Control Cabinet And HMI.
Line 1 - Pipes Formulation 2 5131 - Pallet No 15.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Year:
2018
2018
CE Marked:
YES
YES
Tank Material of Construction:
STAINLESS STEEL
STAINLESS STEEL
Capacity Size of Vessel:
1585.56
gal
6000
L
Jacketed:
YES
YES
Type of Top Head:
DISHED
DISHED
Type of Bottom Head:
DISHED
DISHED
Agitation:
YES
YES
Recommended Packaging Form:
CRATE
CRATE
Dimensions:
Standard
Metric
Overall:
0.04 x 0.04 x 0.04 in - 2.20 lb
1 x 1 x 1 MM - 1 KGS
Disclaimer:
This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in
East Asia/Pacific
This equipment is subject to a removal and loading charge.
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Multi-Listing Includes:
Back to Top
Multi-Listing #1050608

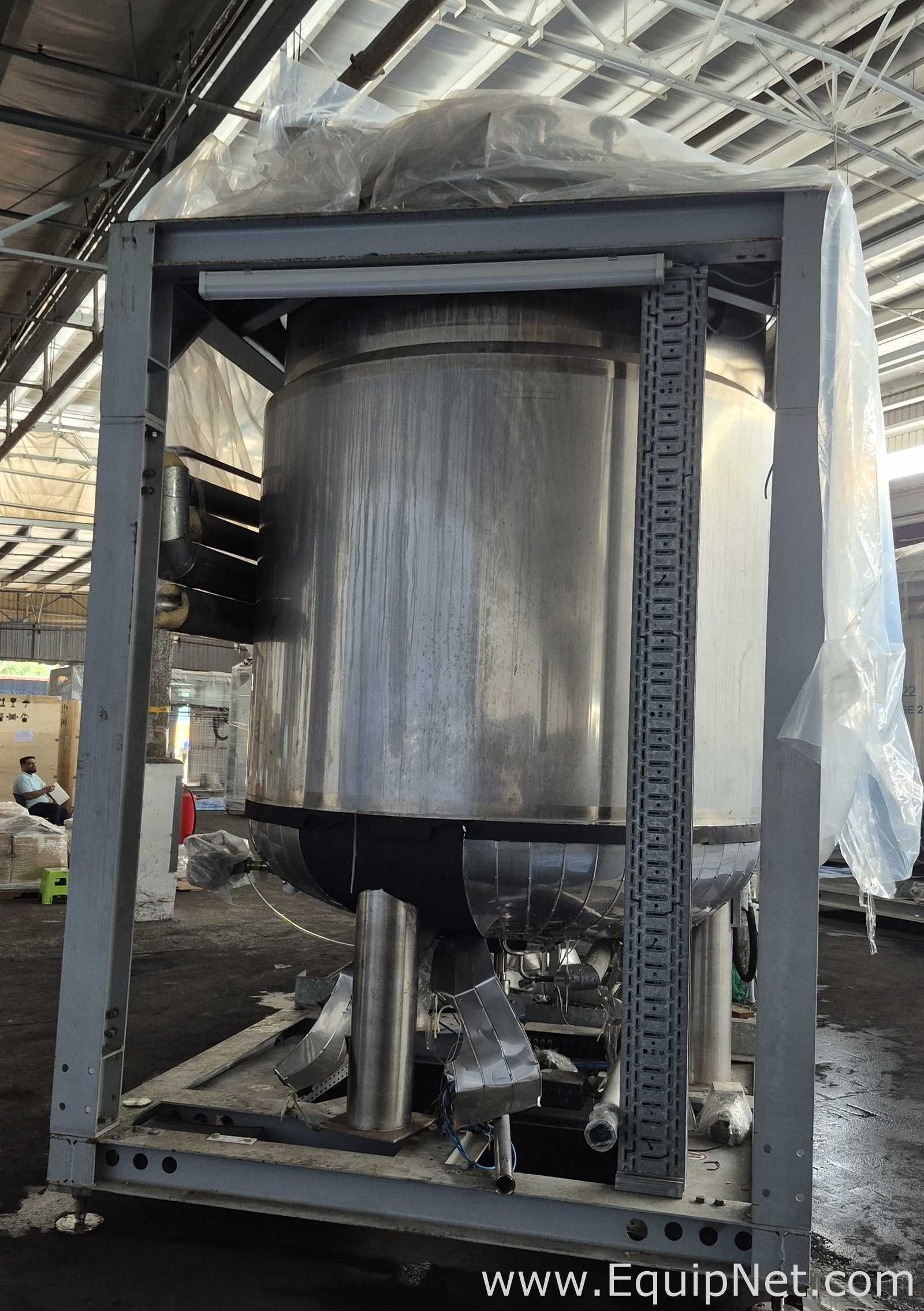

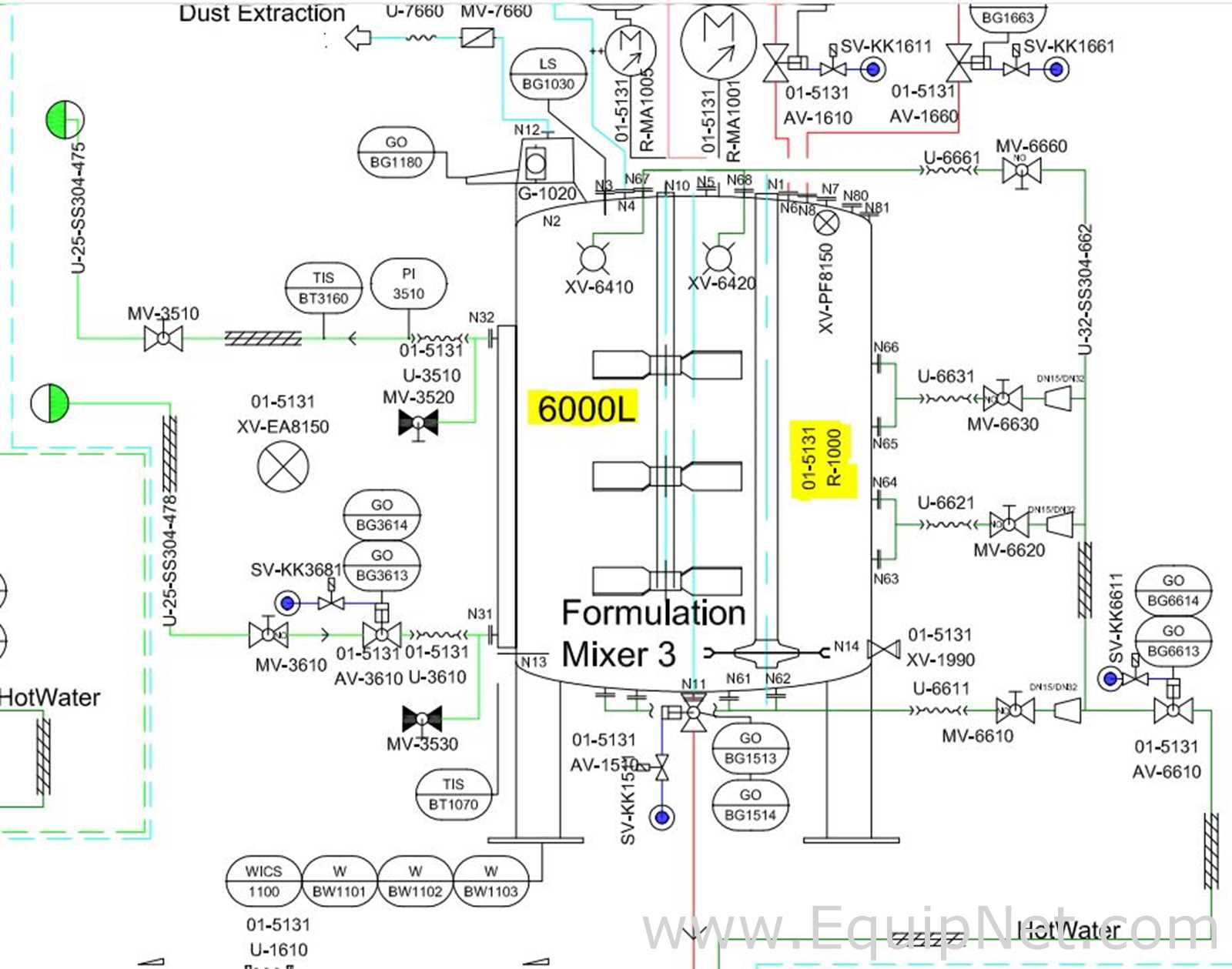

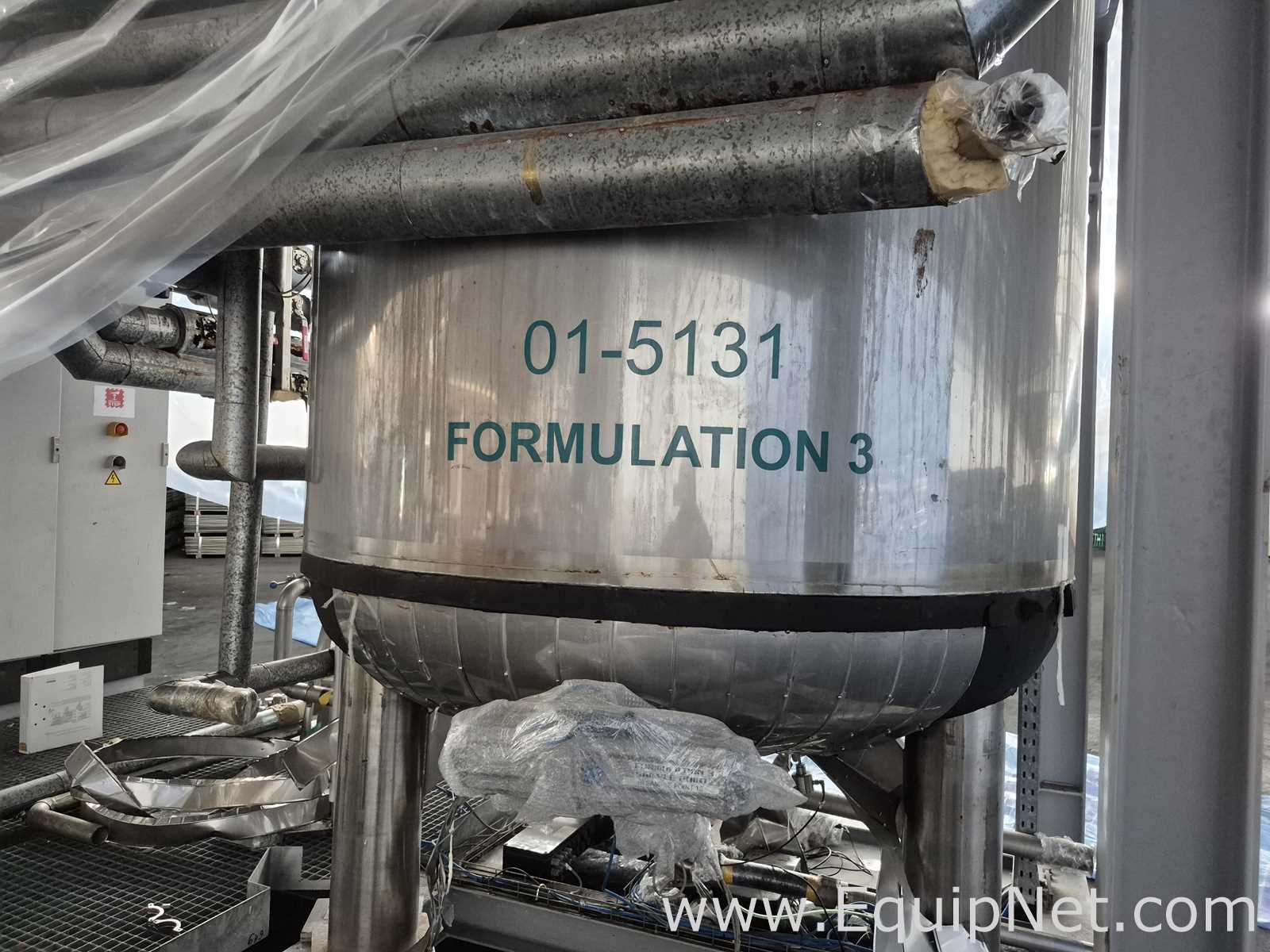

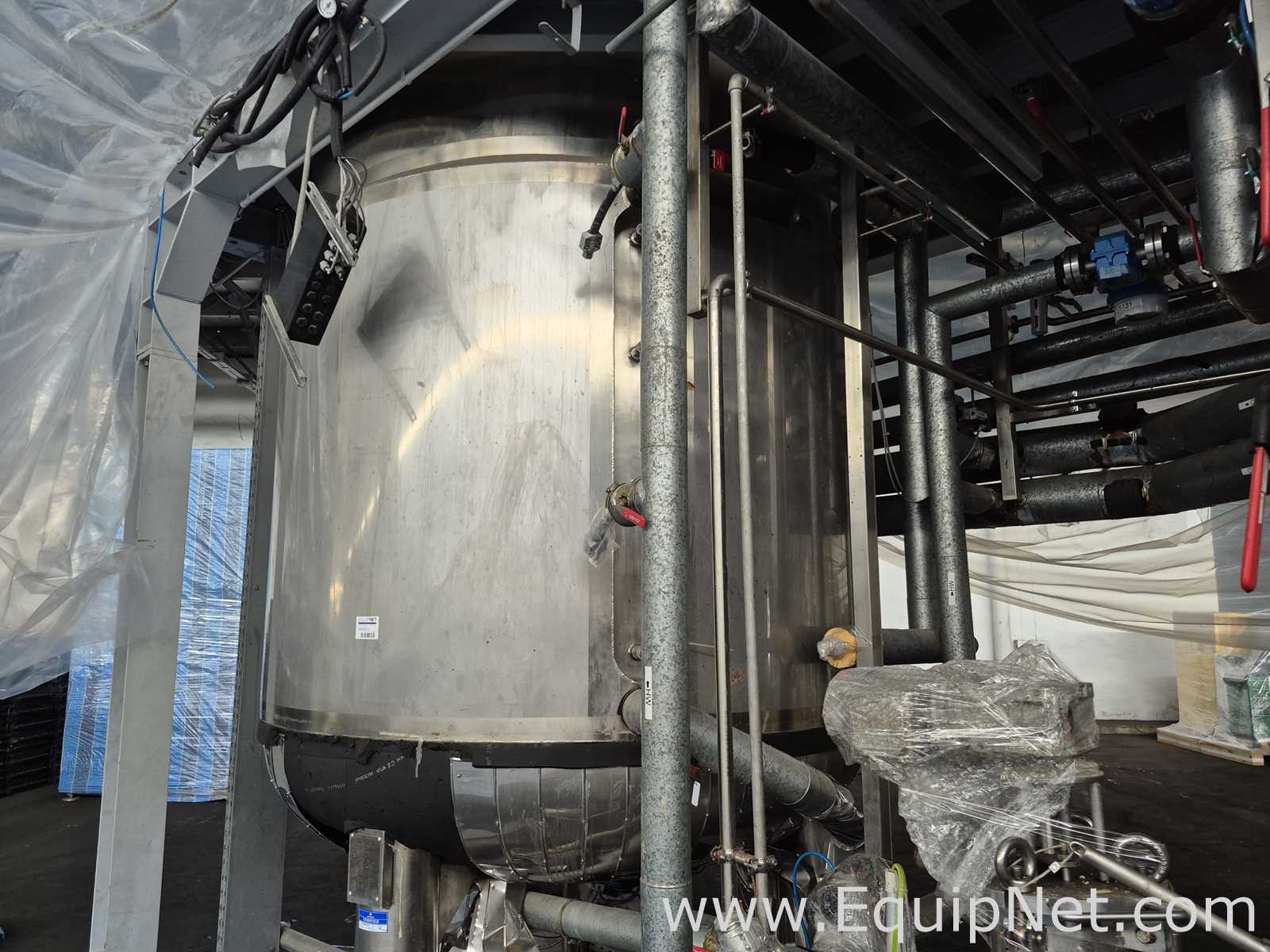

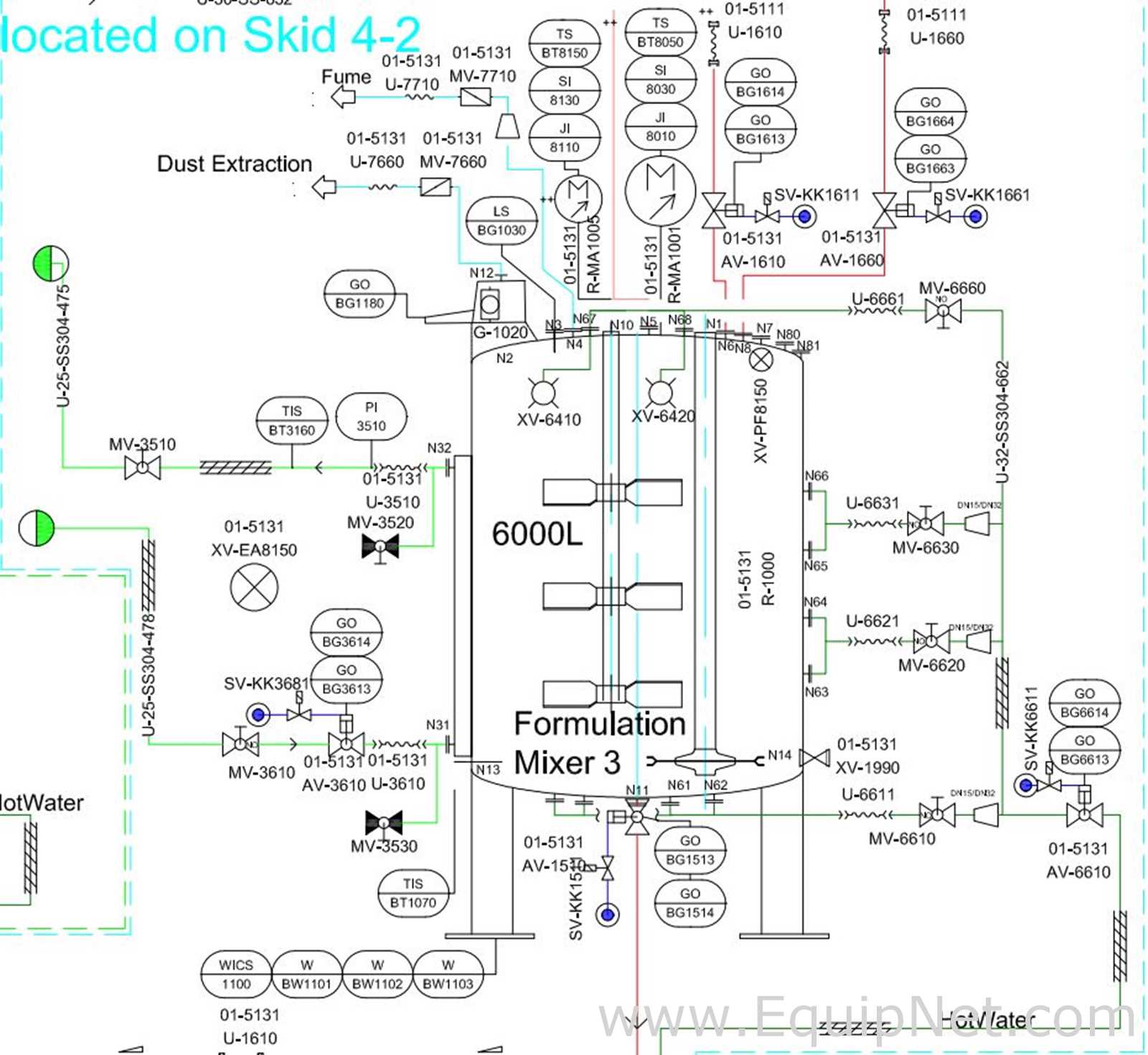

Netzsch 6000L Formulation 3 Mixing Vessel 5131 - Skid 4-2
Equipment Description

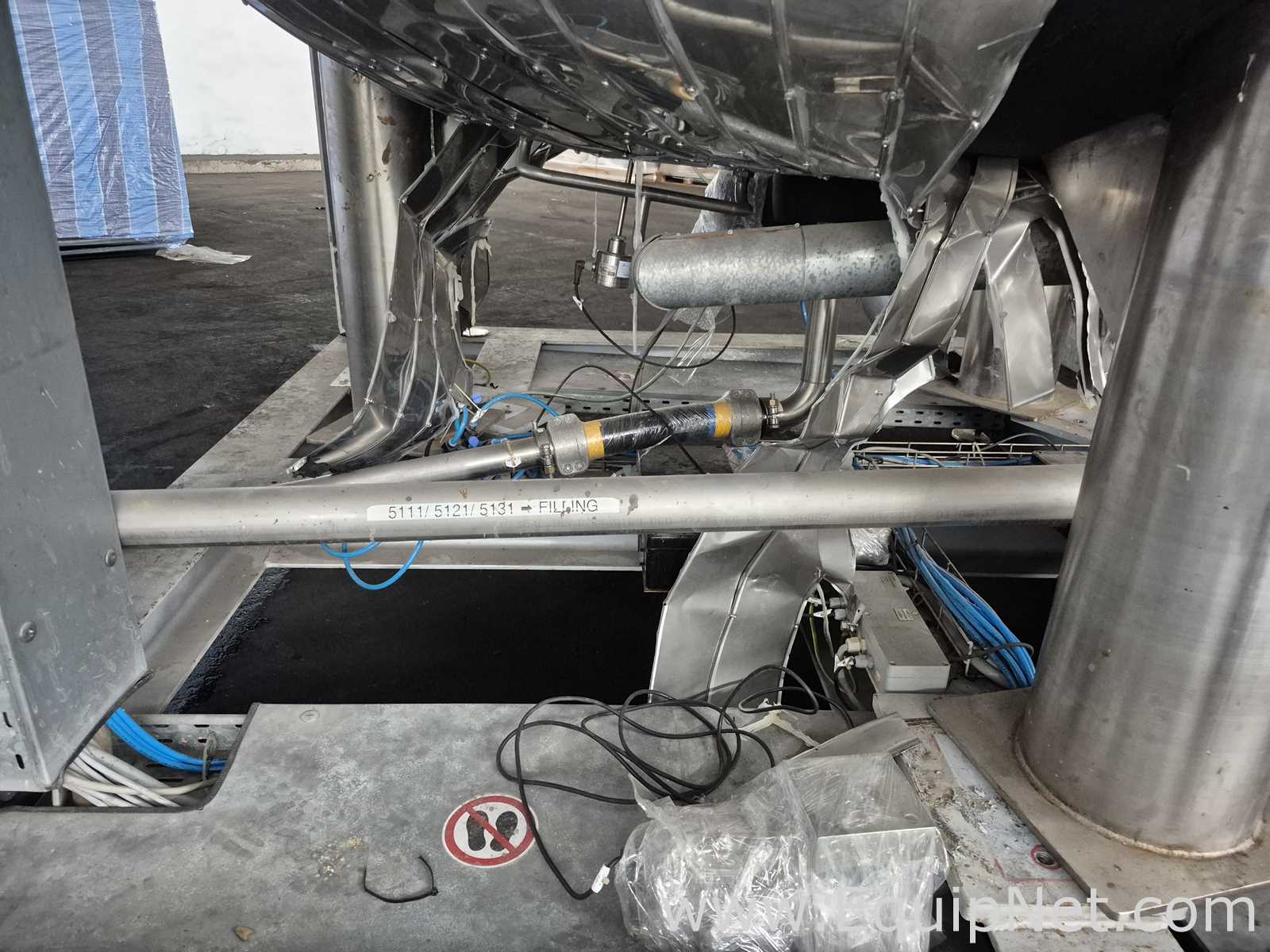

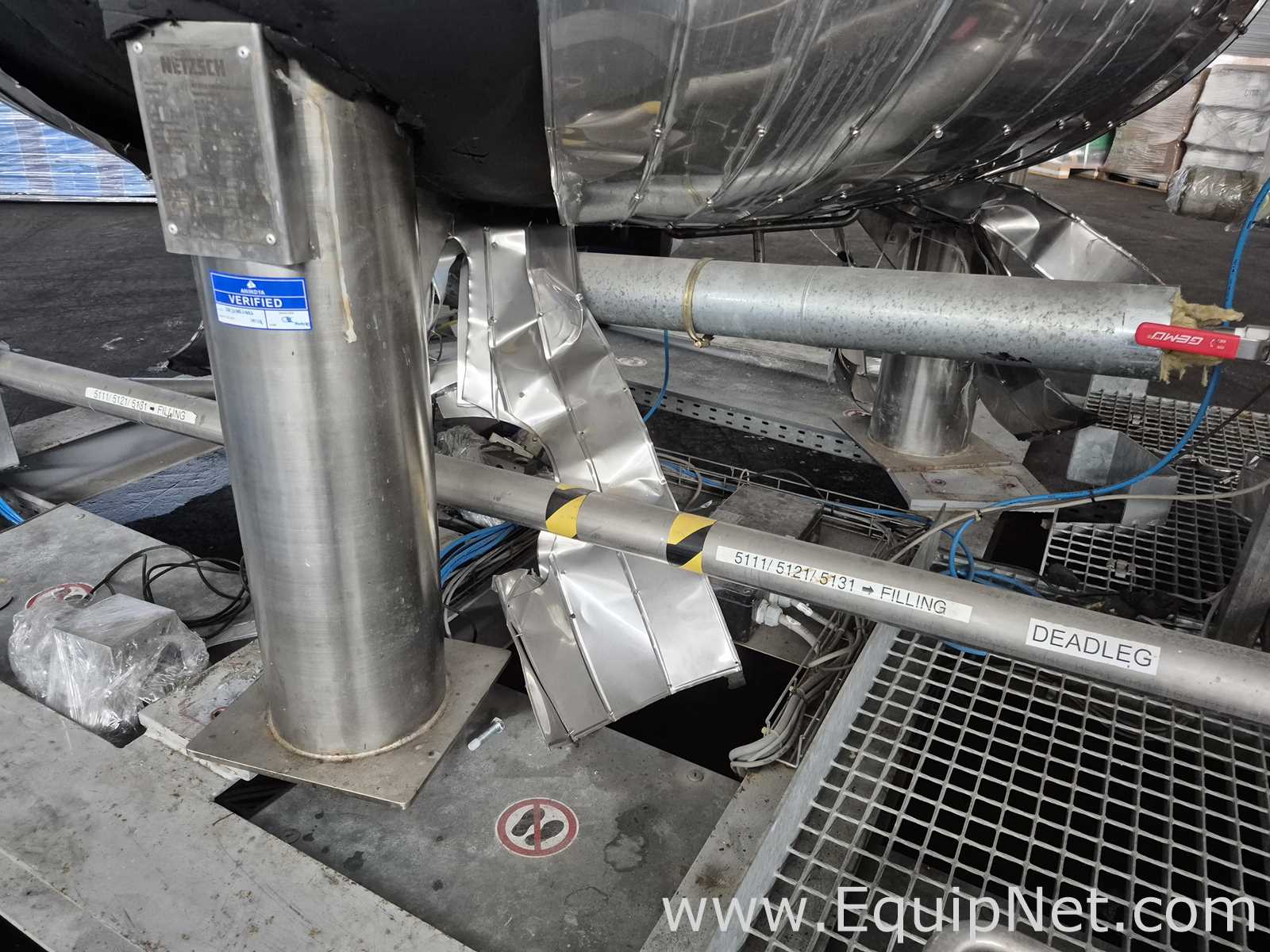

Netzsch 6000L Formulation 3 Mixing Vessel 5131 - Skid 4-2
Designed for Max. operating pressure: atm.
Designed for Max. operating temperature: 90C.
Designed for Max. Max. cooling water pressure: 3 bar.
Product-wetted parts: stainless steel 1.4301 (304) surface Ra < 0.8 µm.

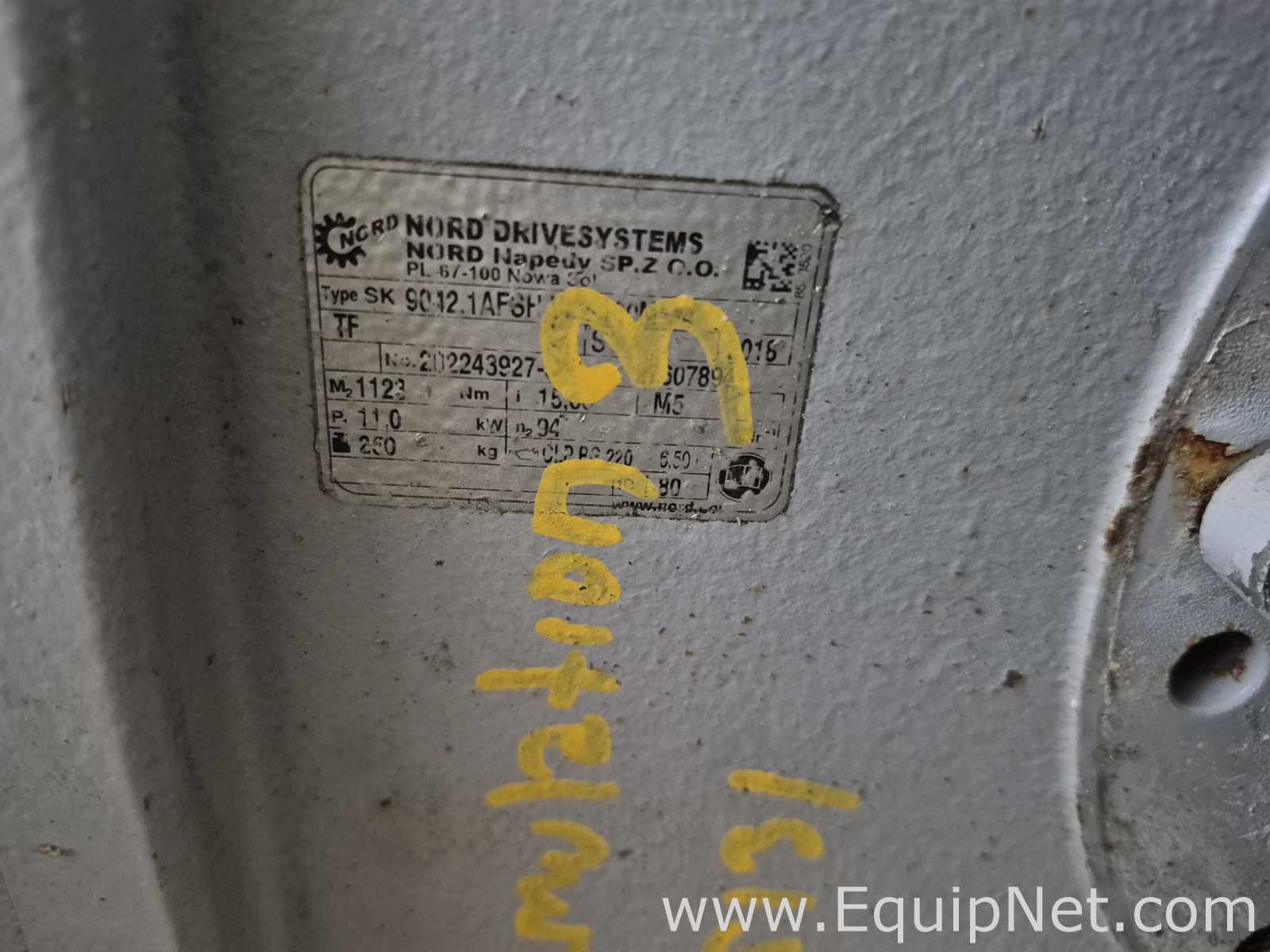

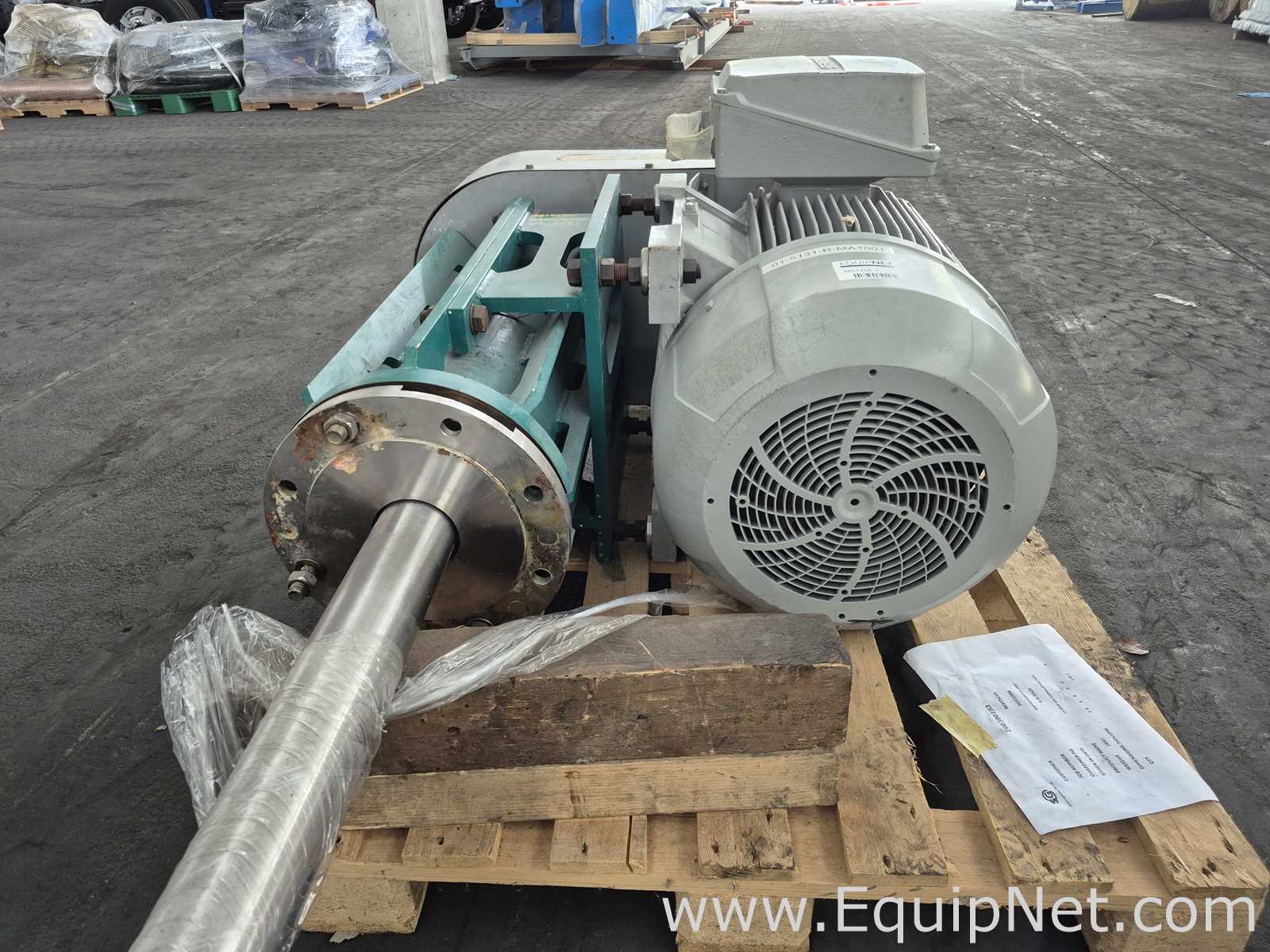

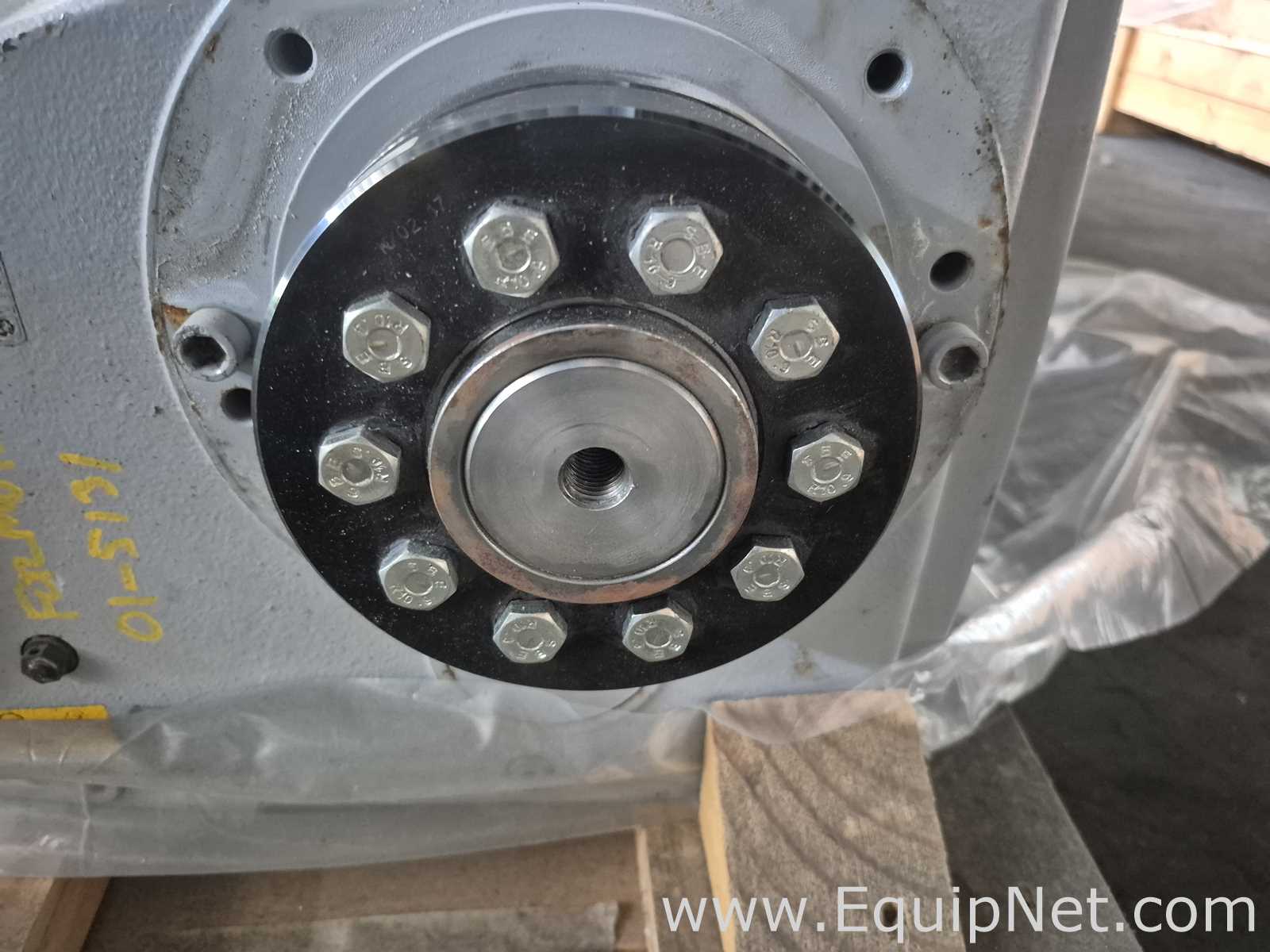

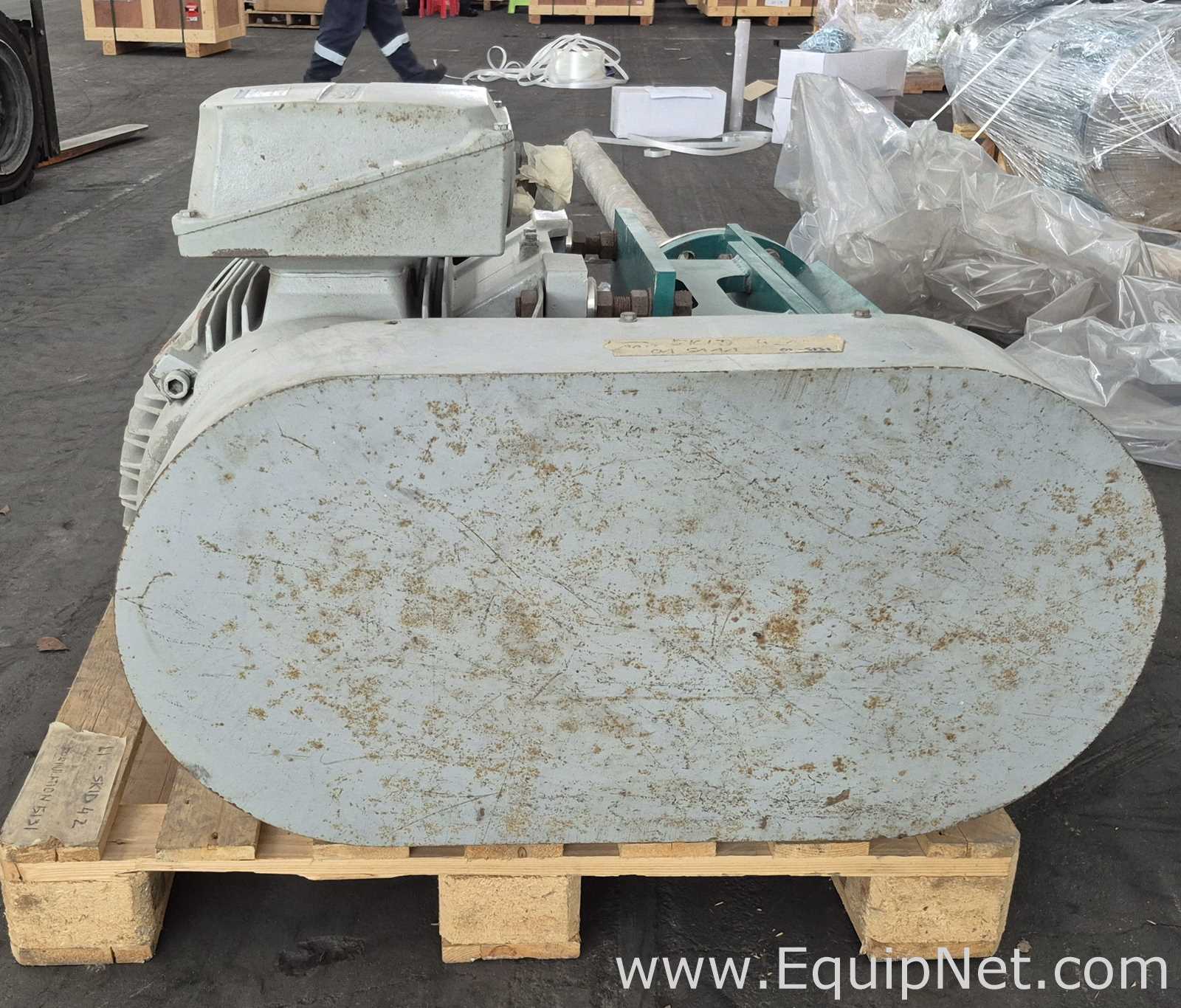

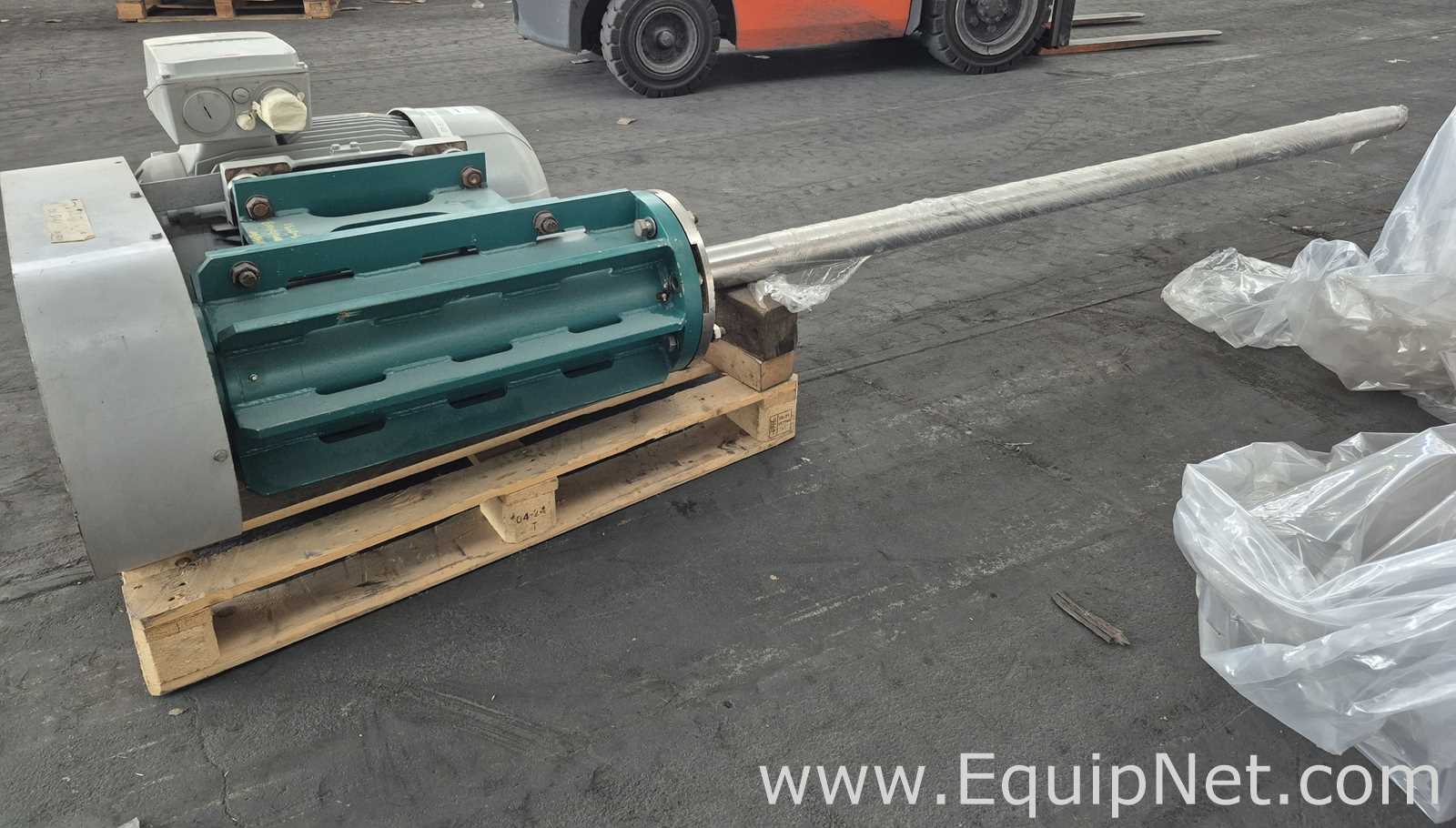

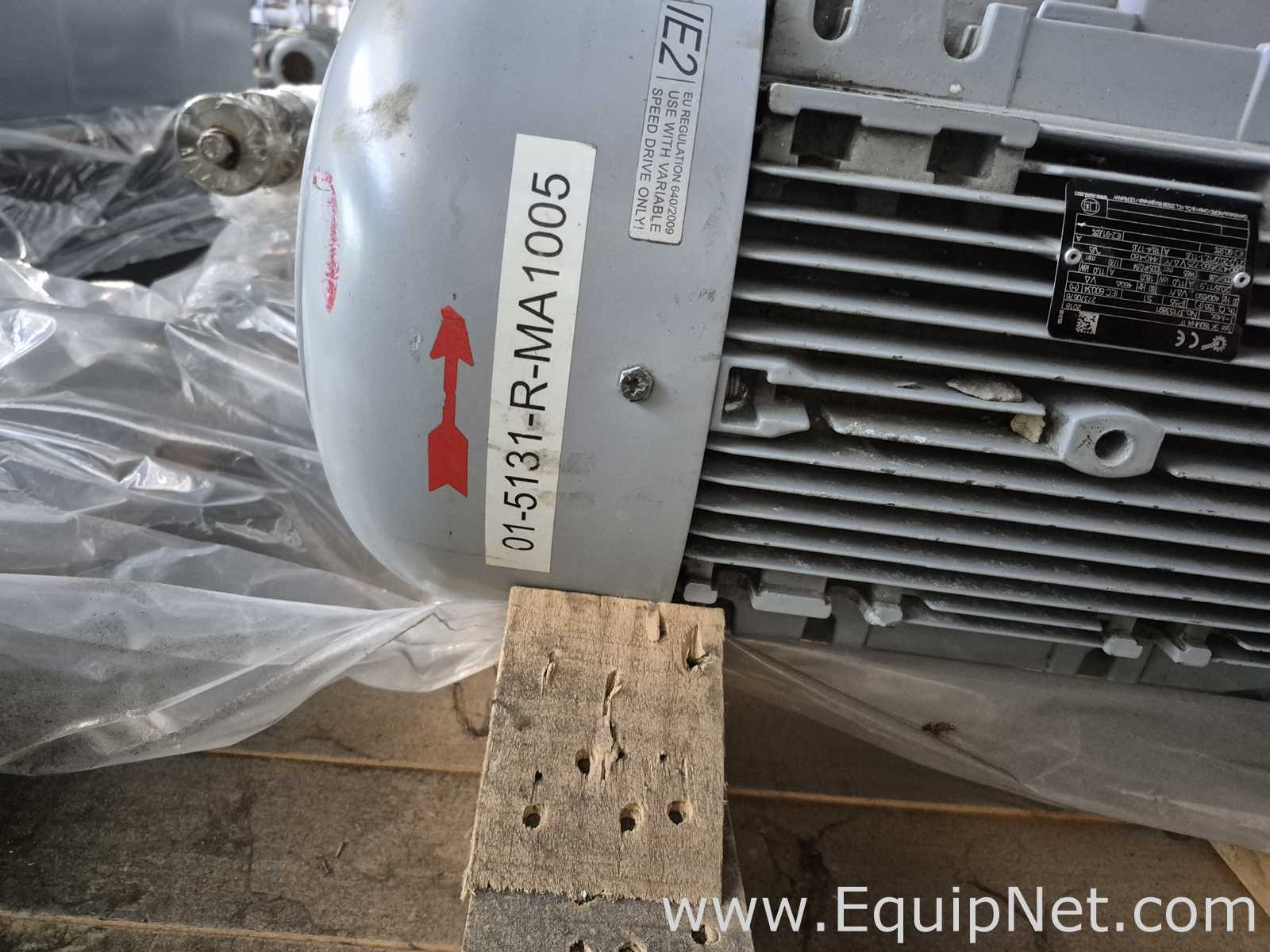

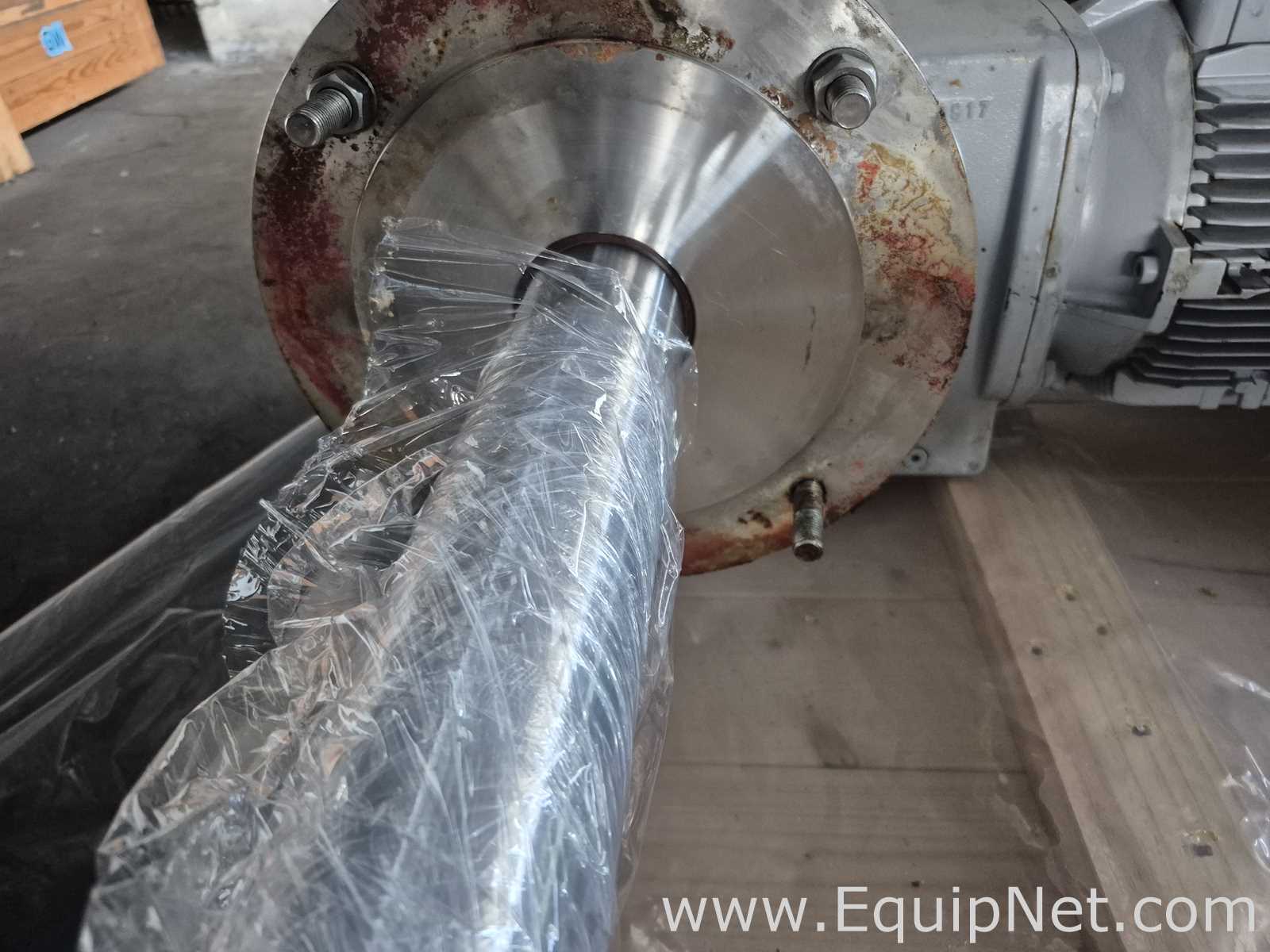

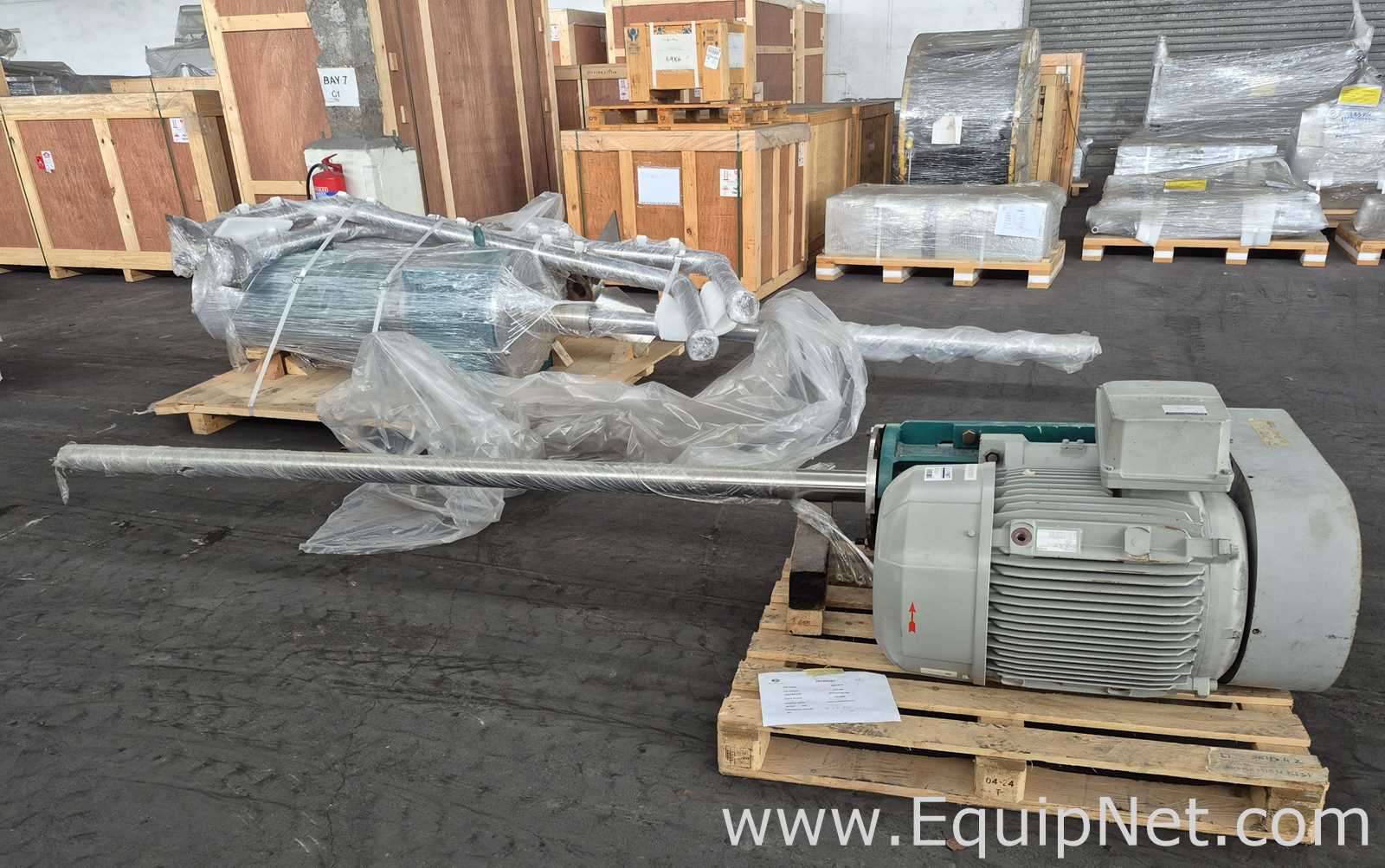

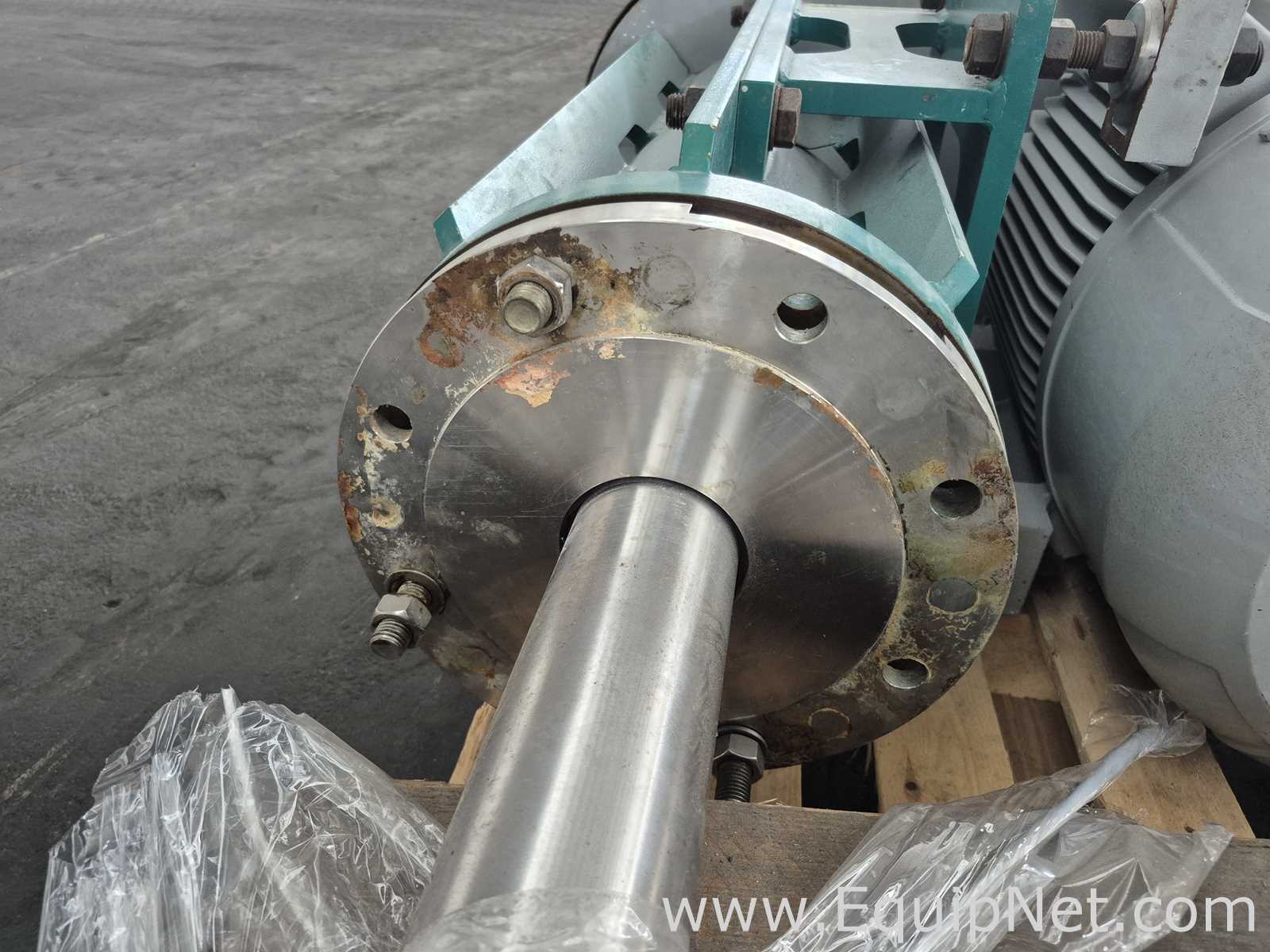

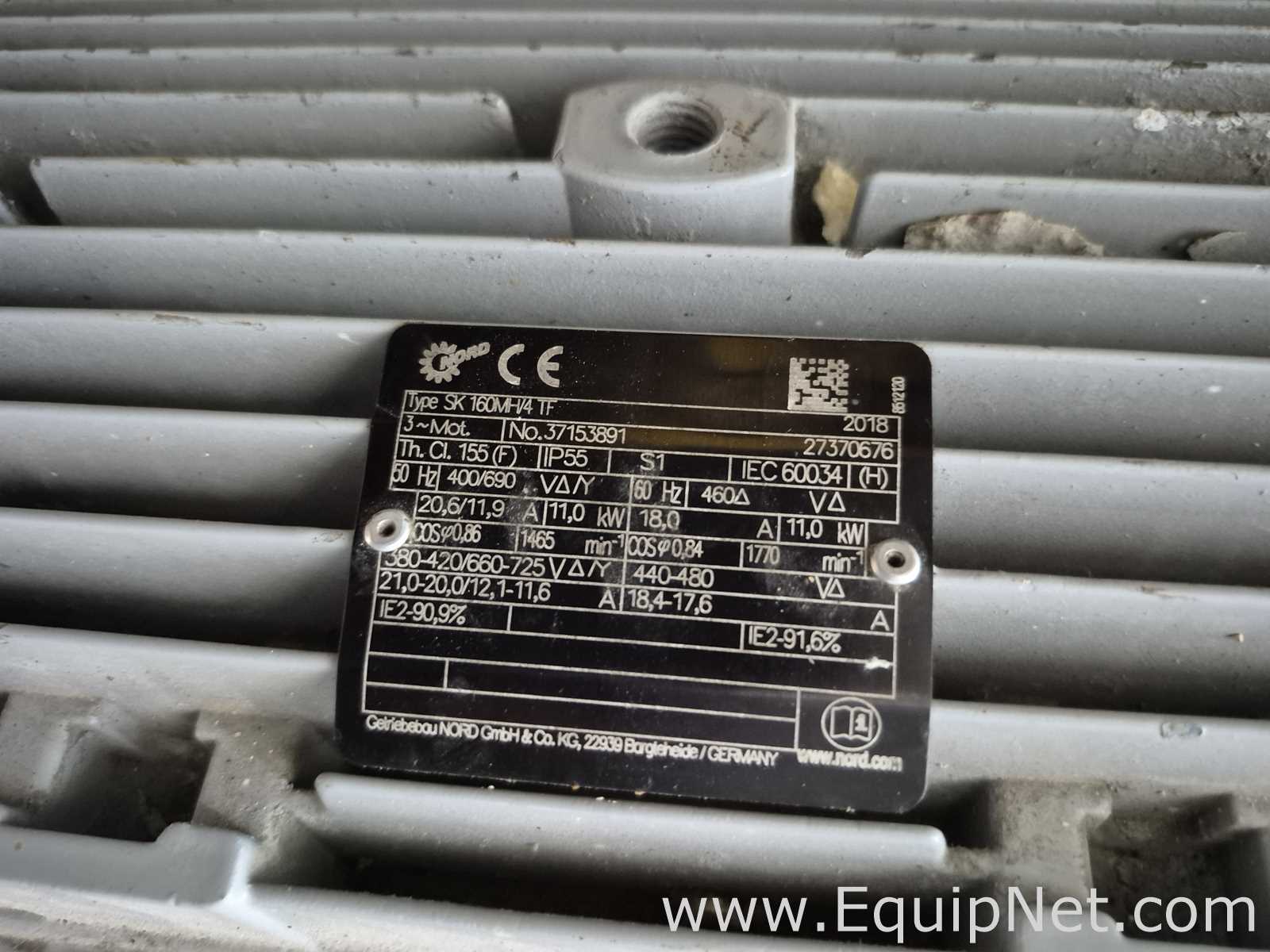

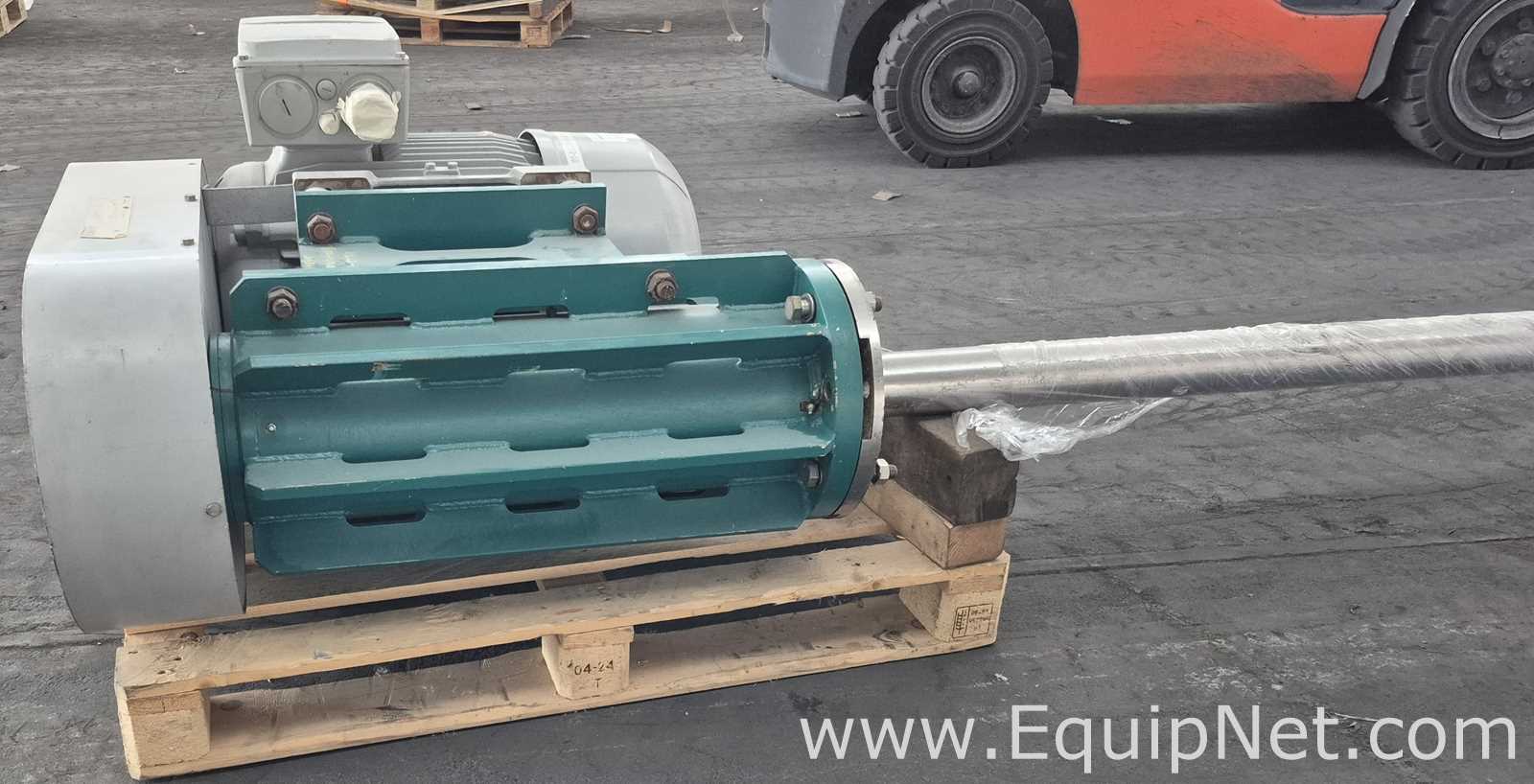

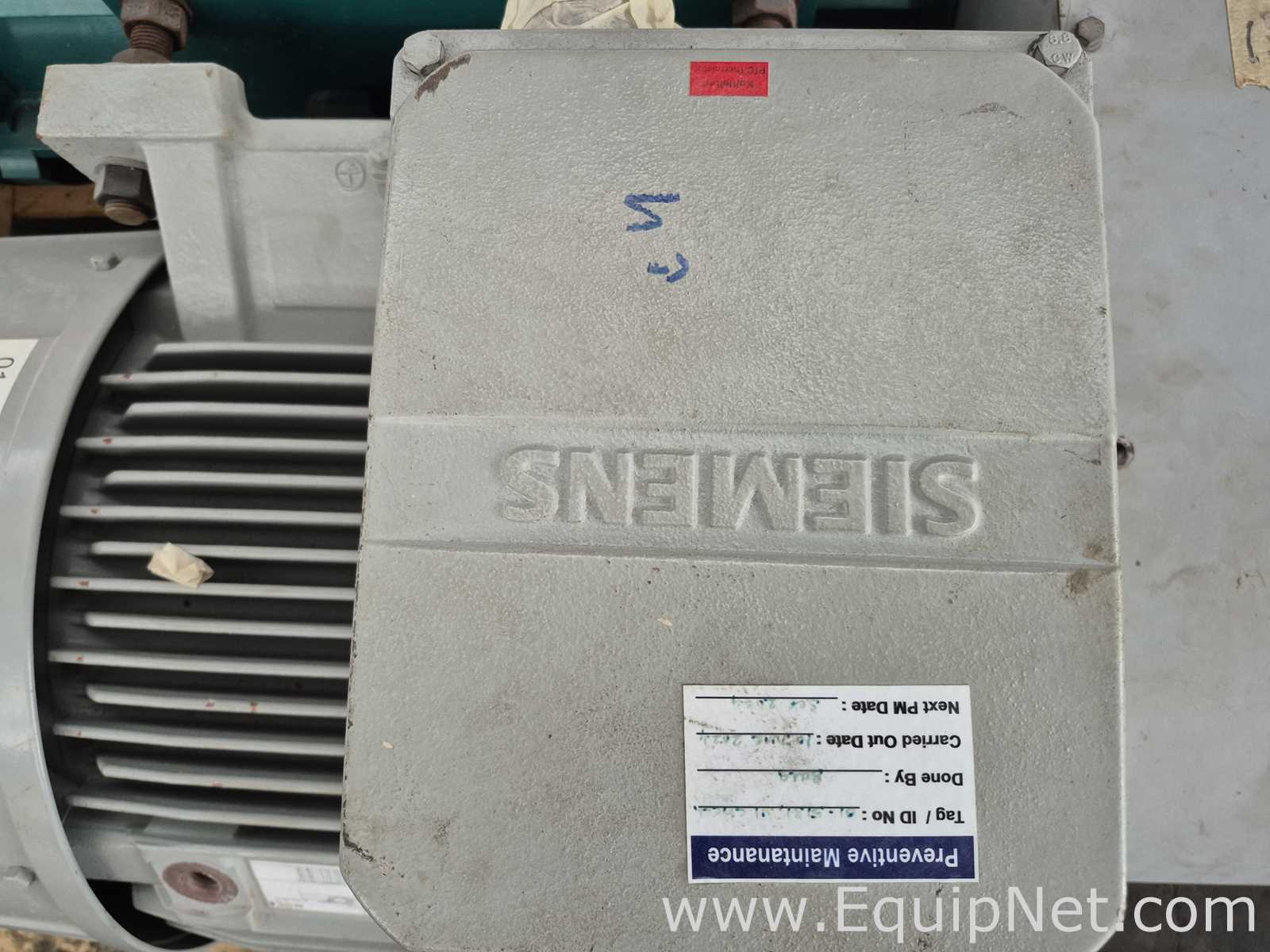

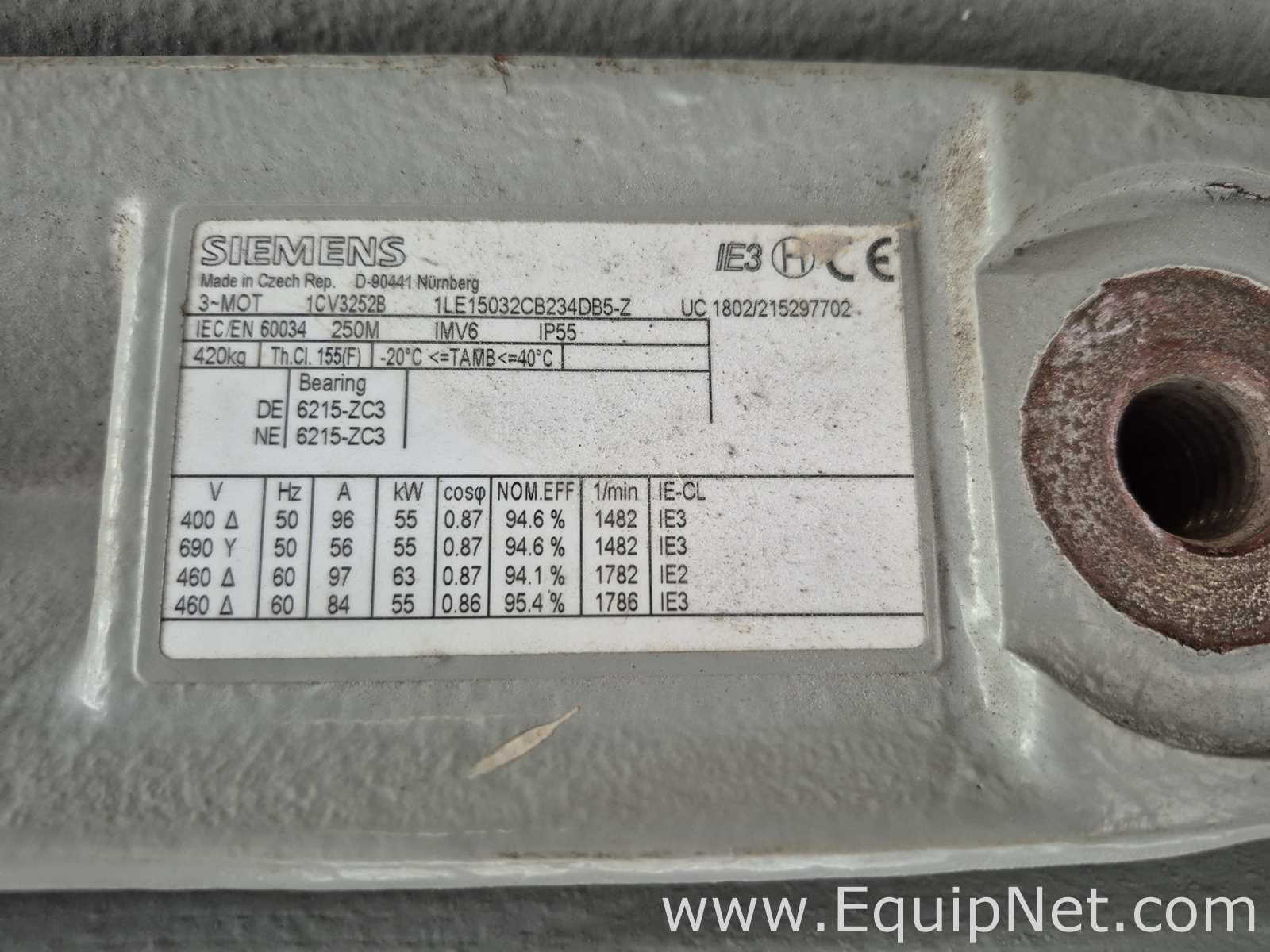

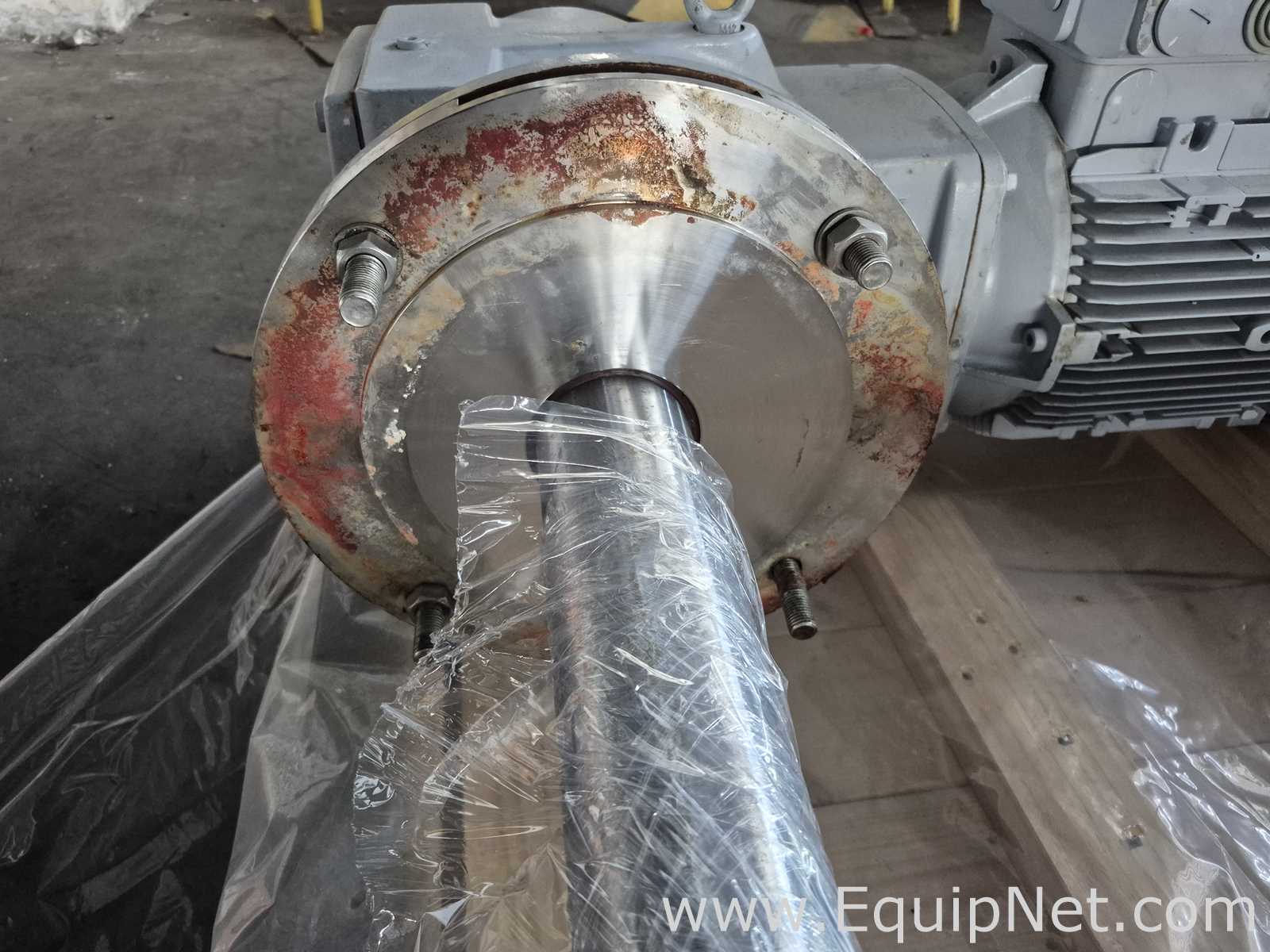

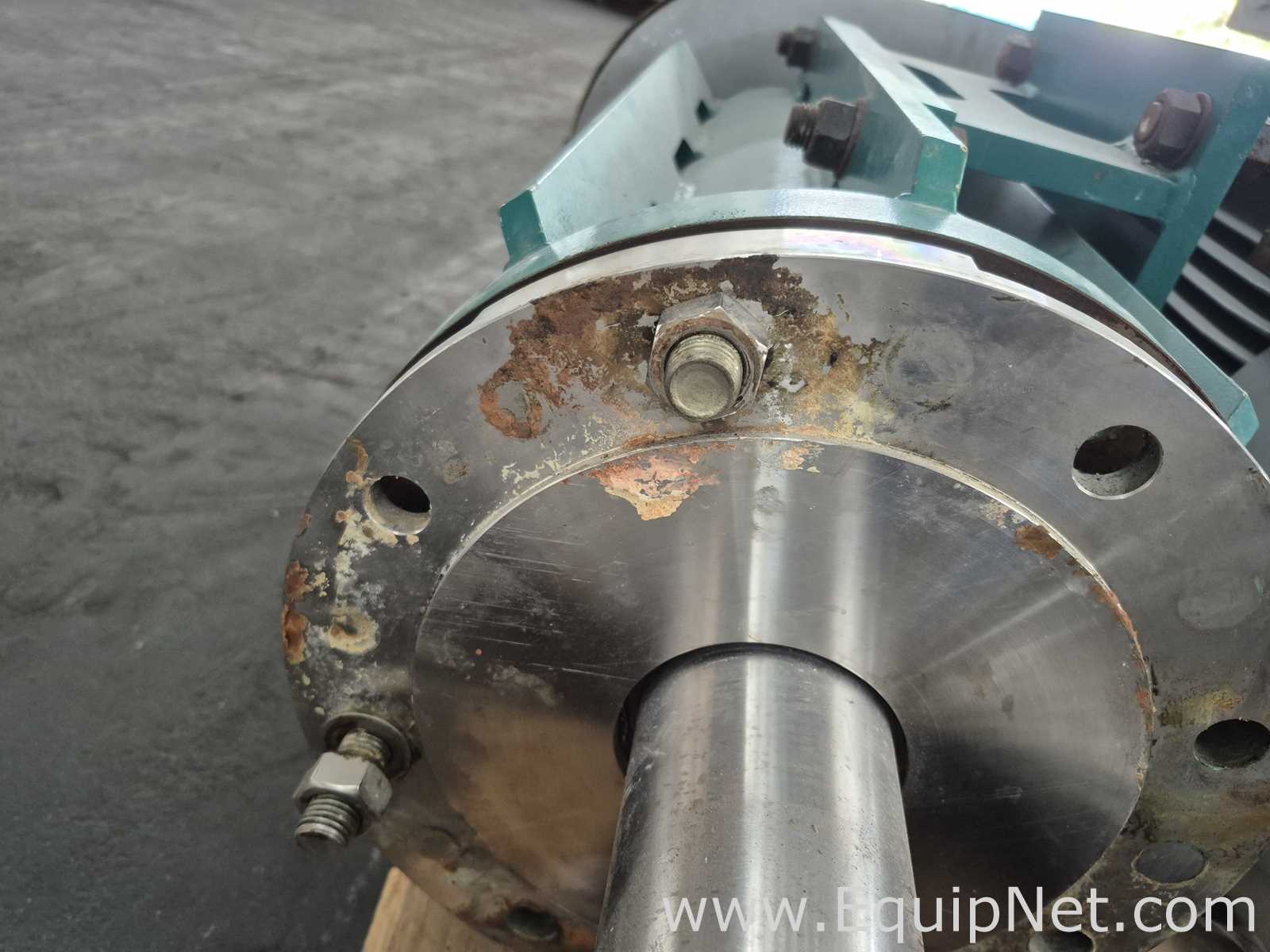

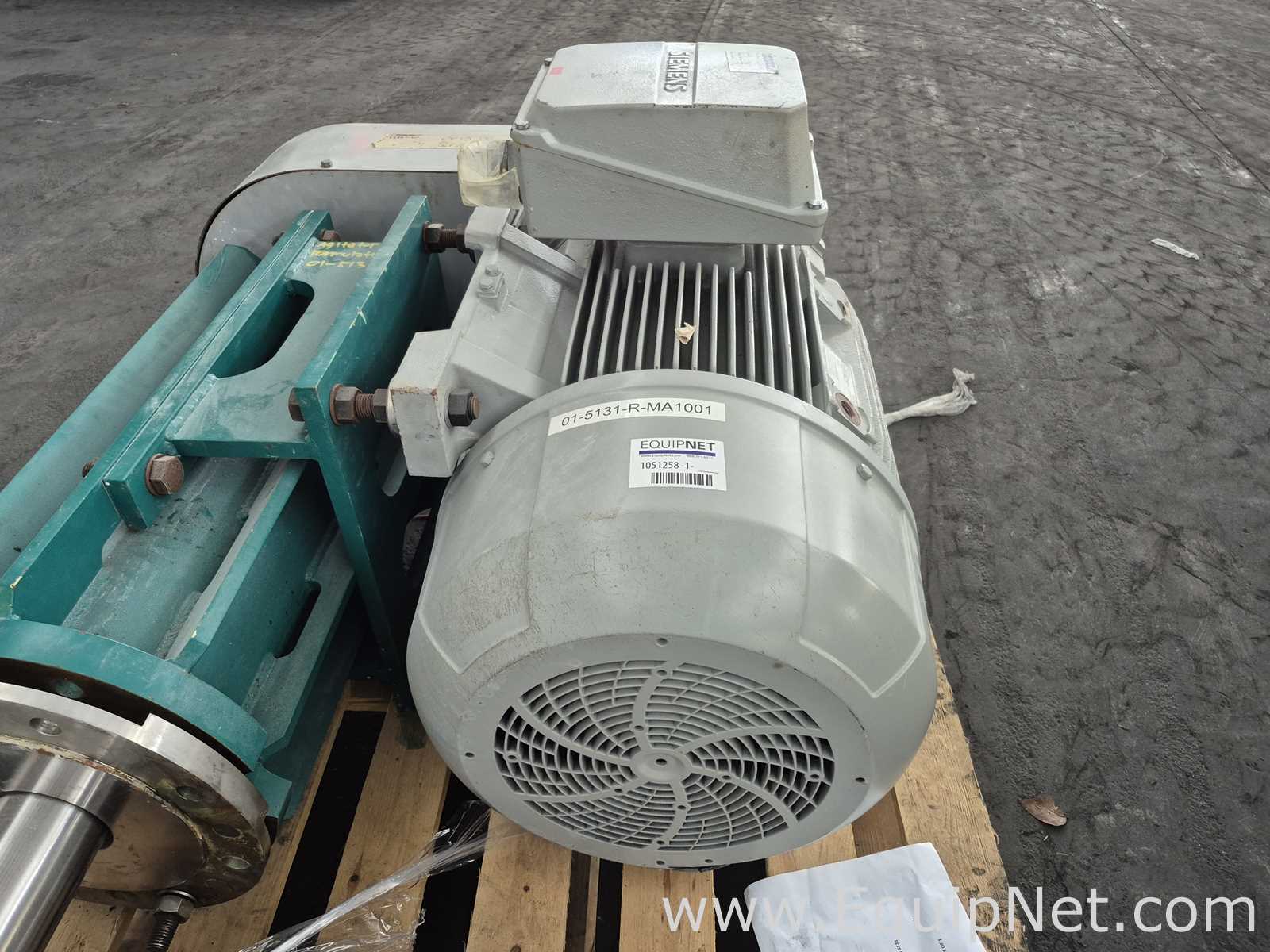

Disperser drive: 160 – 800 rpm. mixing element Tooth disk approx. 600 mm. Mixer drive 55 kW, protection class IP 55 / not explosion-proof infinitely variable via frequency inverter.

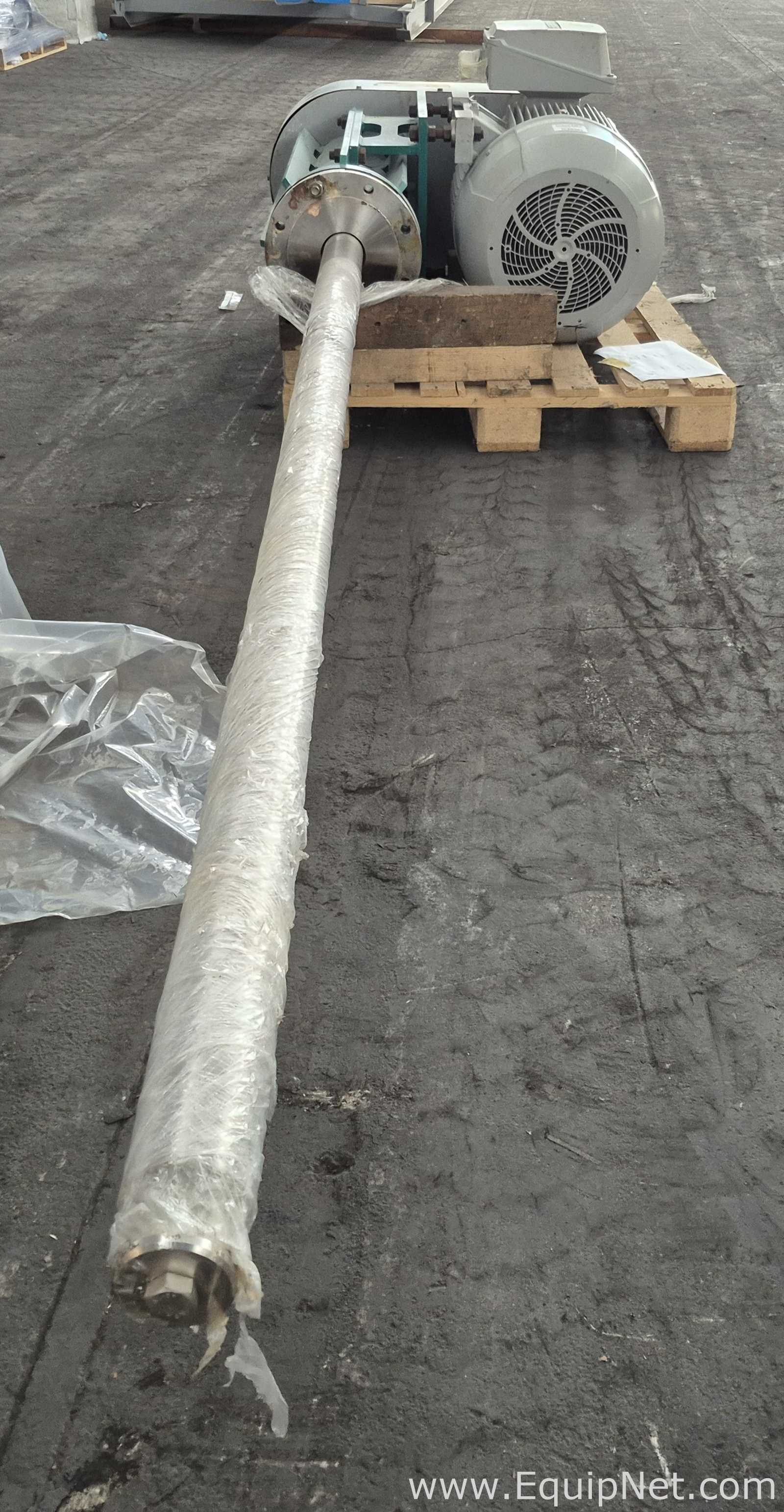

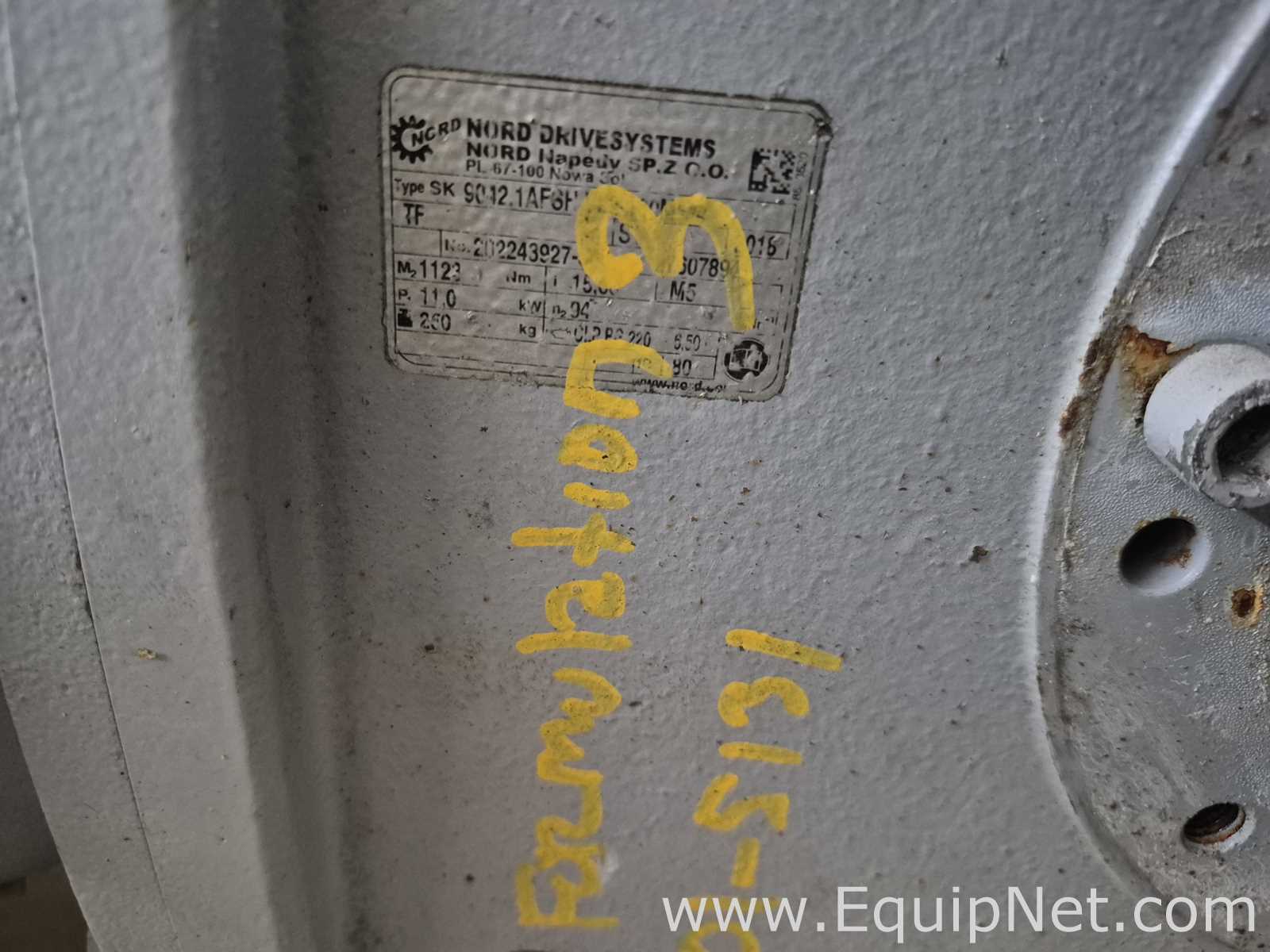

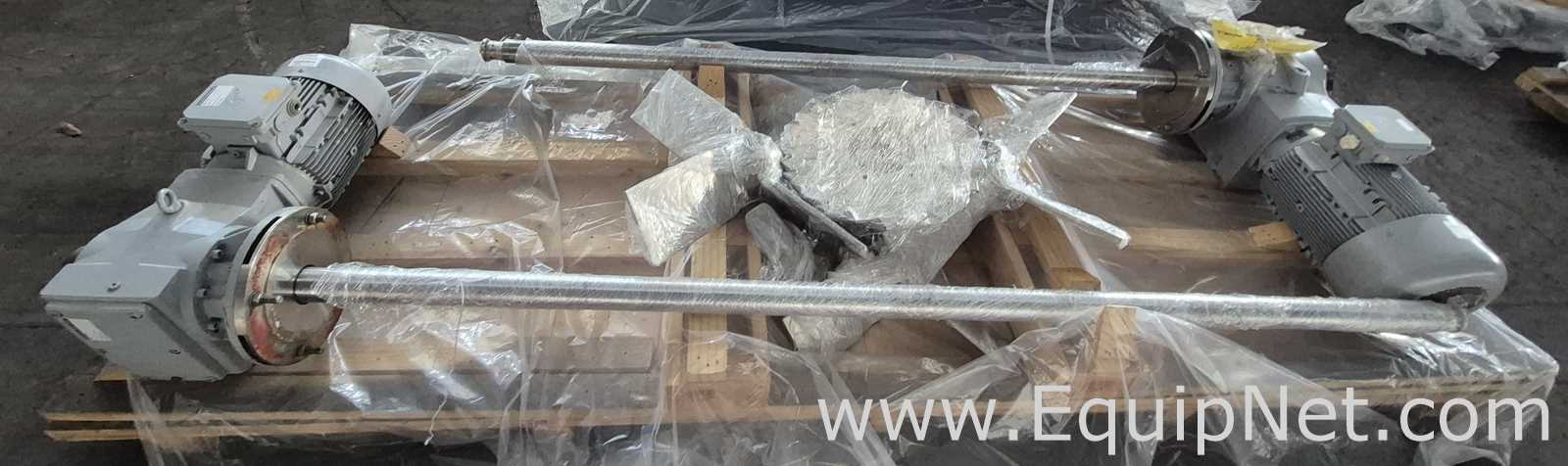

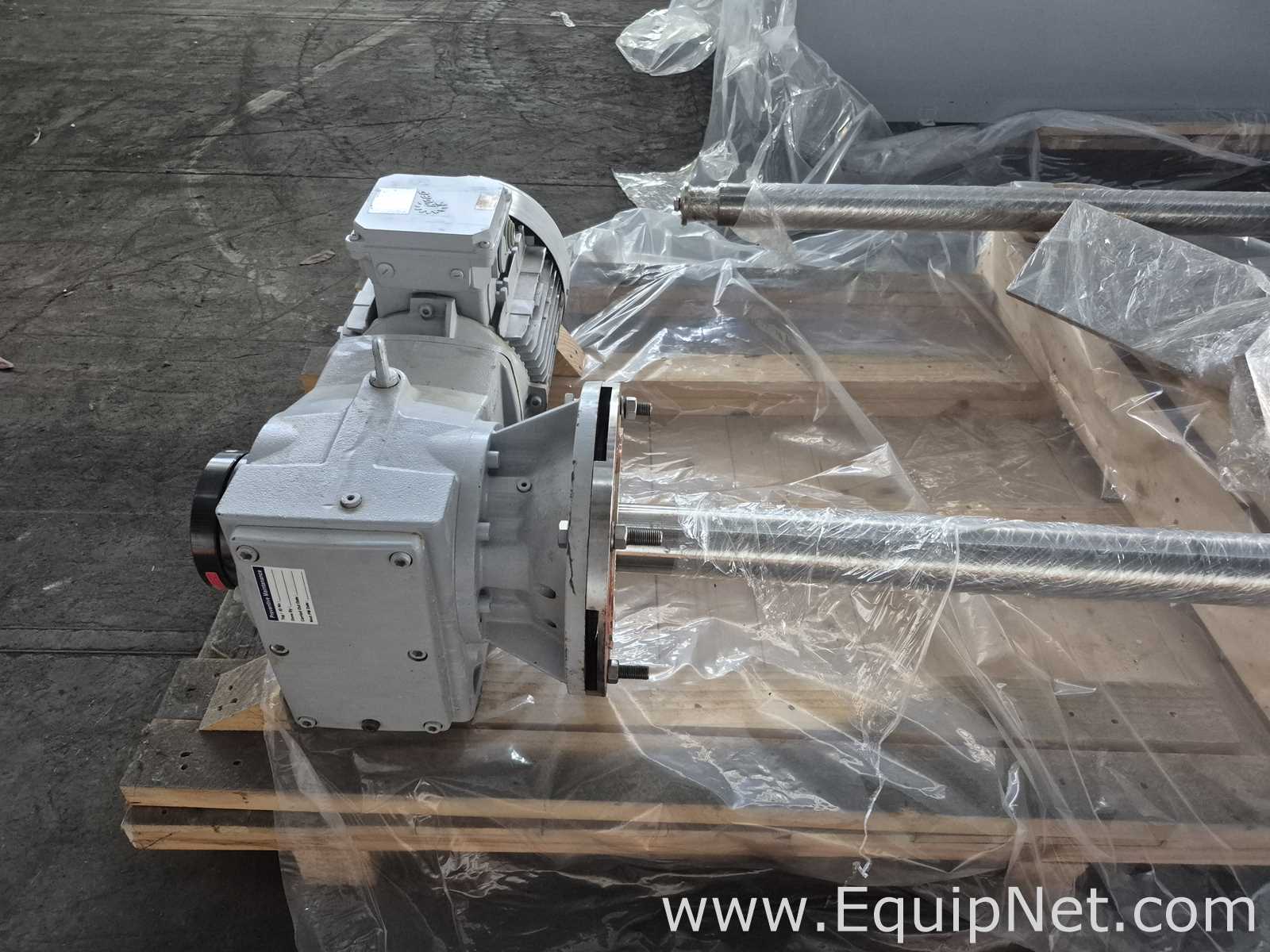

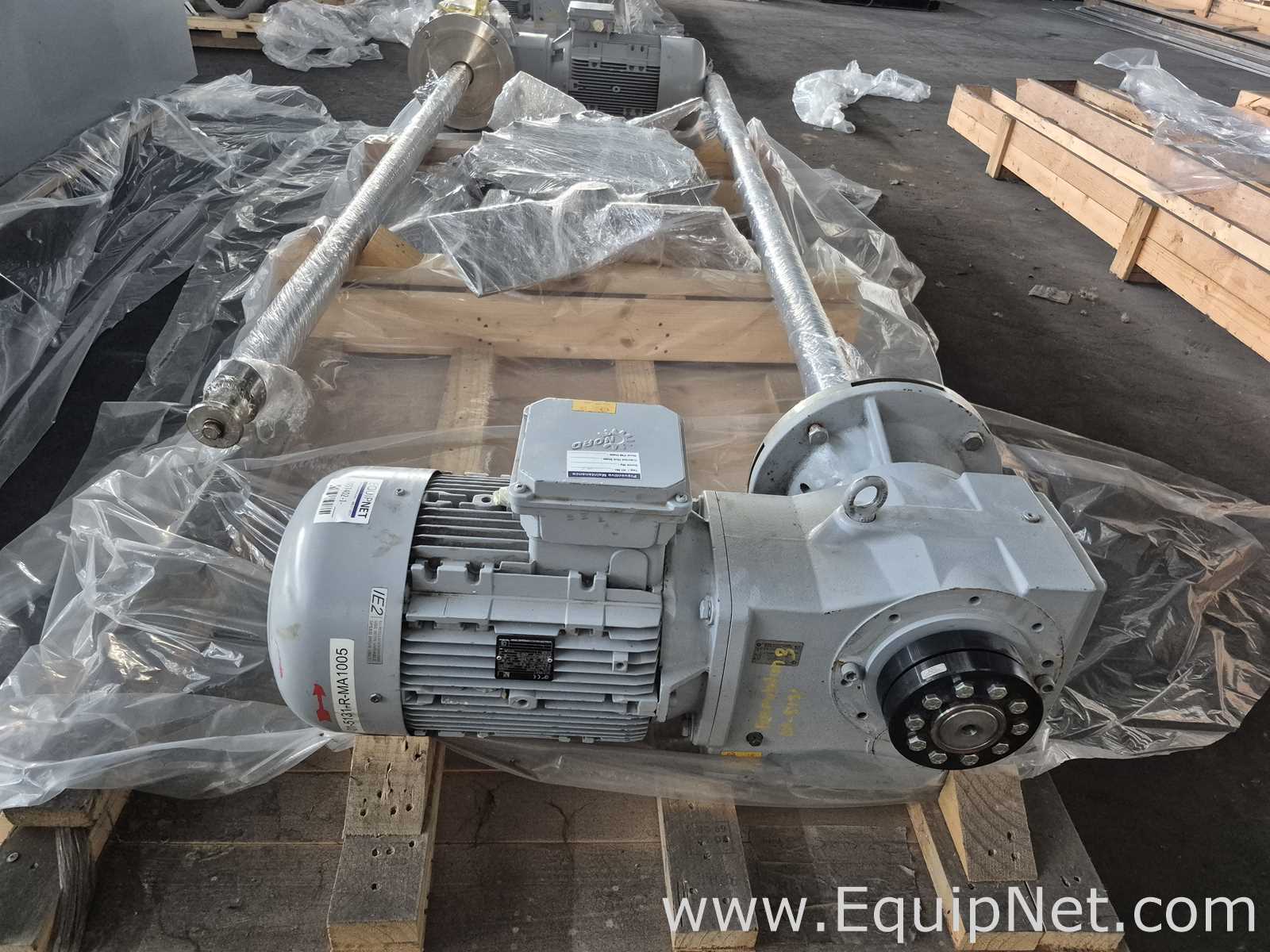

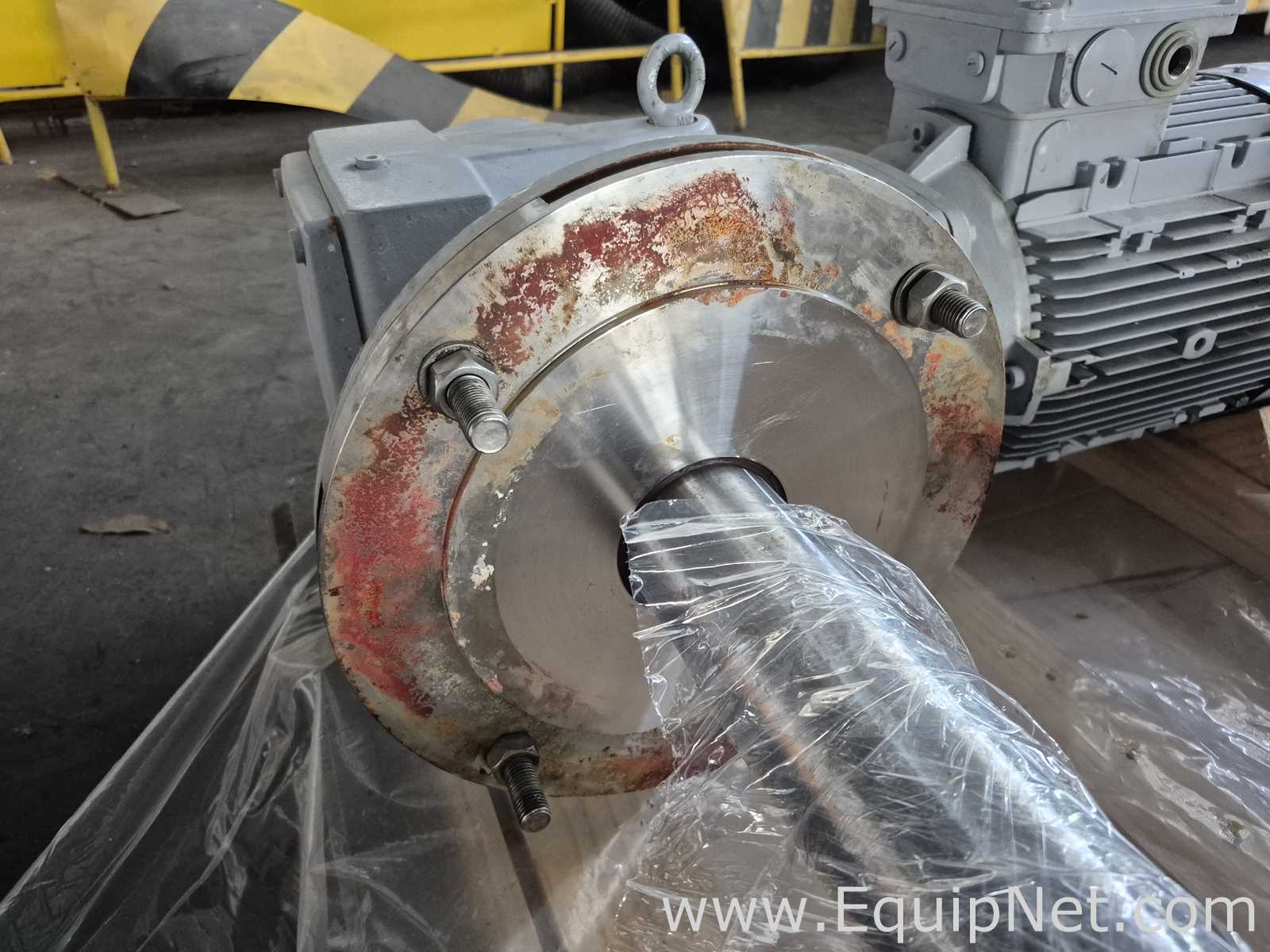

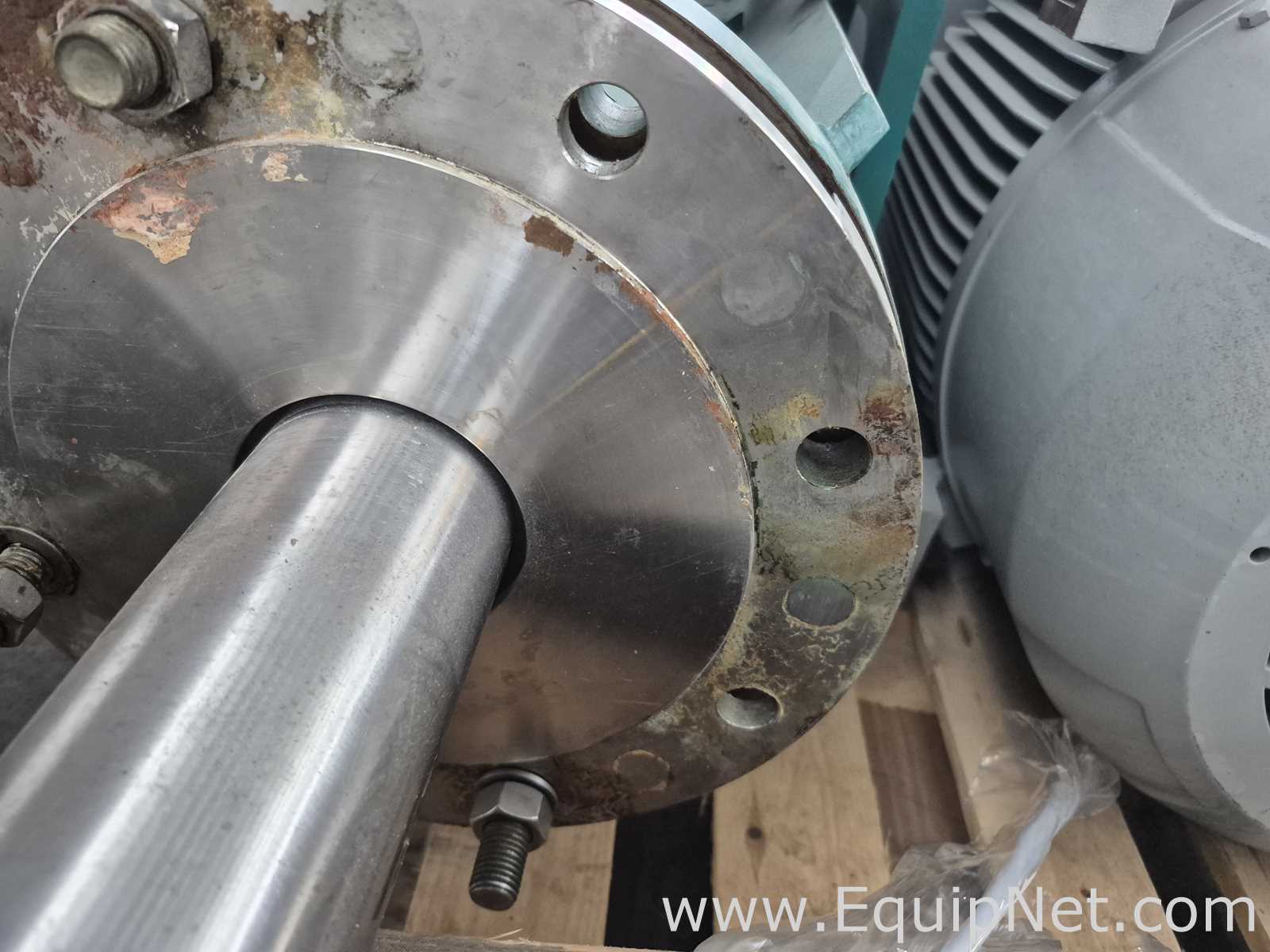

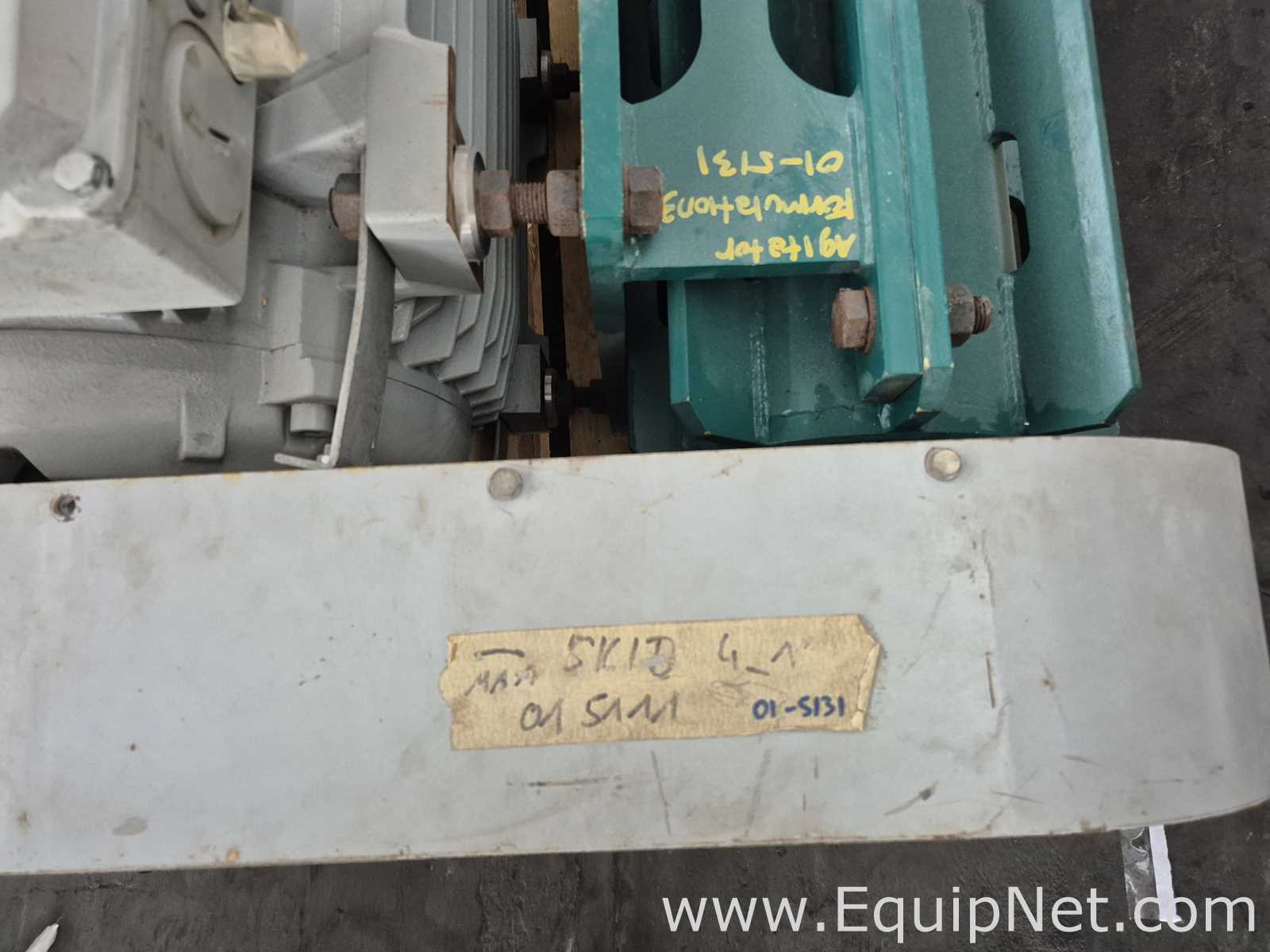

Mixer drive: off centre. Spindle speed 26 – 130 rpm. Mixing elements 2 x 4 blade axial flow about 800 mm, 1 x 4 blade axial flow about 350 mm. Mixer drive radially clamped two half shells 11 kW, protection class IP 55/ not explosion-proof infinitely variable via frequency inverter.
Cooling: cooling coils stainless steel 1.4301 (304). max. 3 bar with open outlet. cooling water outlet temperature via PT100 and pressure via analog pressure gauge
Insulation: For vessel wall in cooling area.
Cleaning system: with 2 cleaning heads type Turbo SSB and a total of 6 cleaning nozzles in the tank, with central connection point.
Load cell system: 3 load cells each 5 t and mounting kit.
Temperature control with limit switch: resistance thermometer PT100.
Overfilling safety: Level limit switch FTL51.
Sampling valve: Valve with minimized dead space design for sampling di- rectly from the vessel.

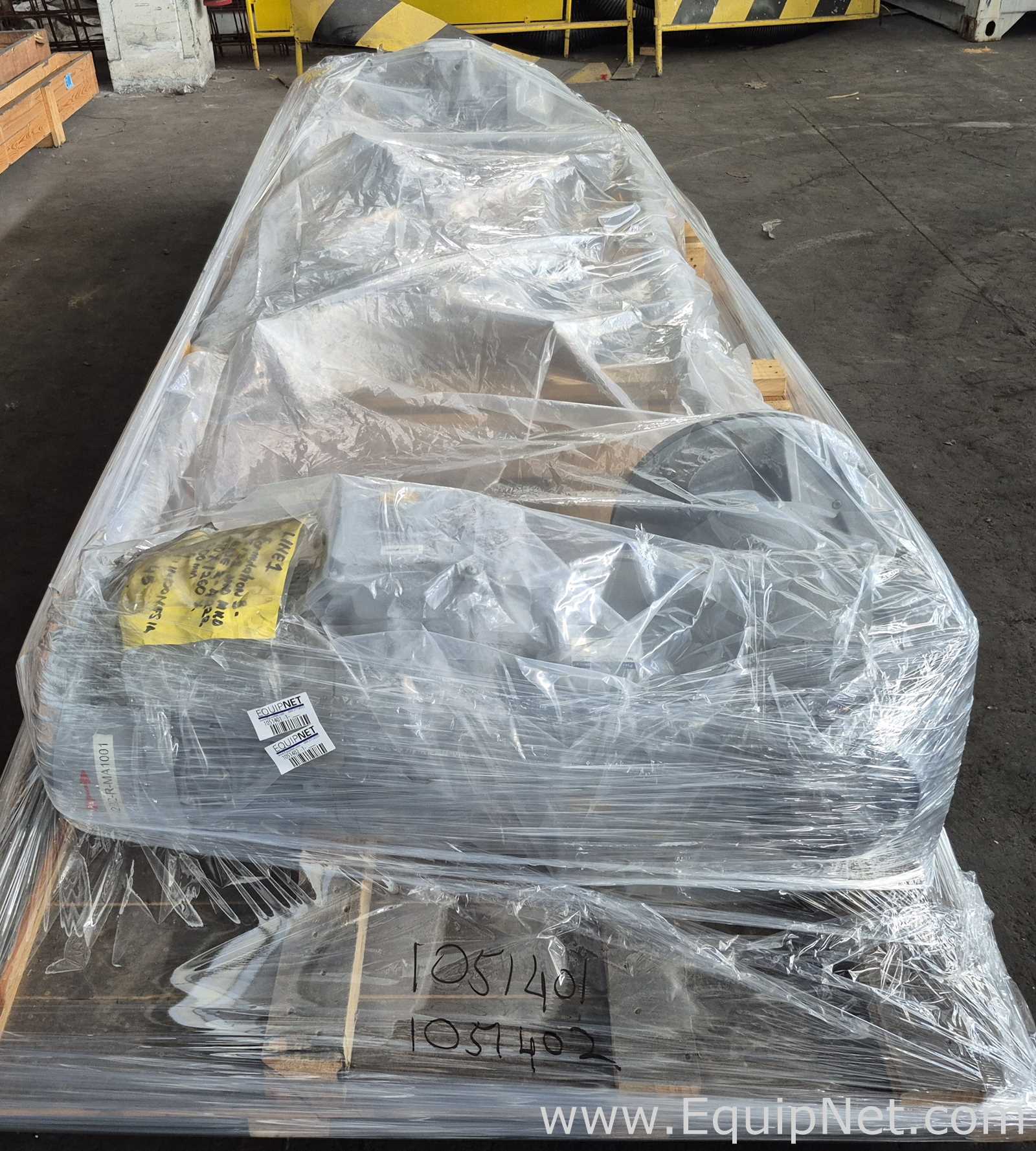

Includes Listing 1051258
Includes Listing 1051402
Includes Listing 1051258
Includes Listing 1051402
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Year:
2018
2018

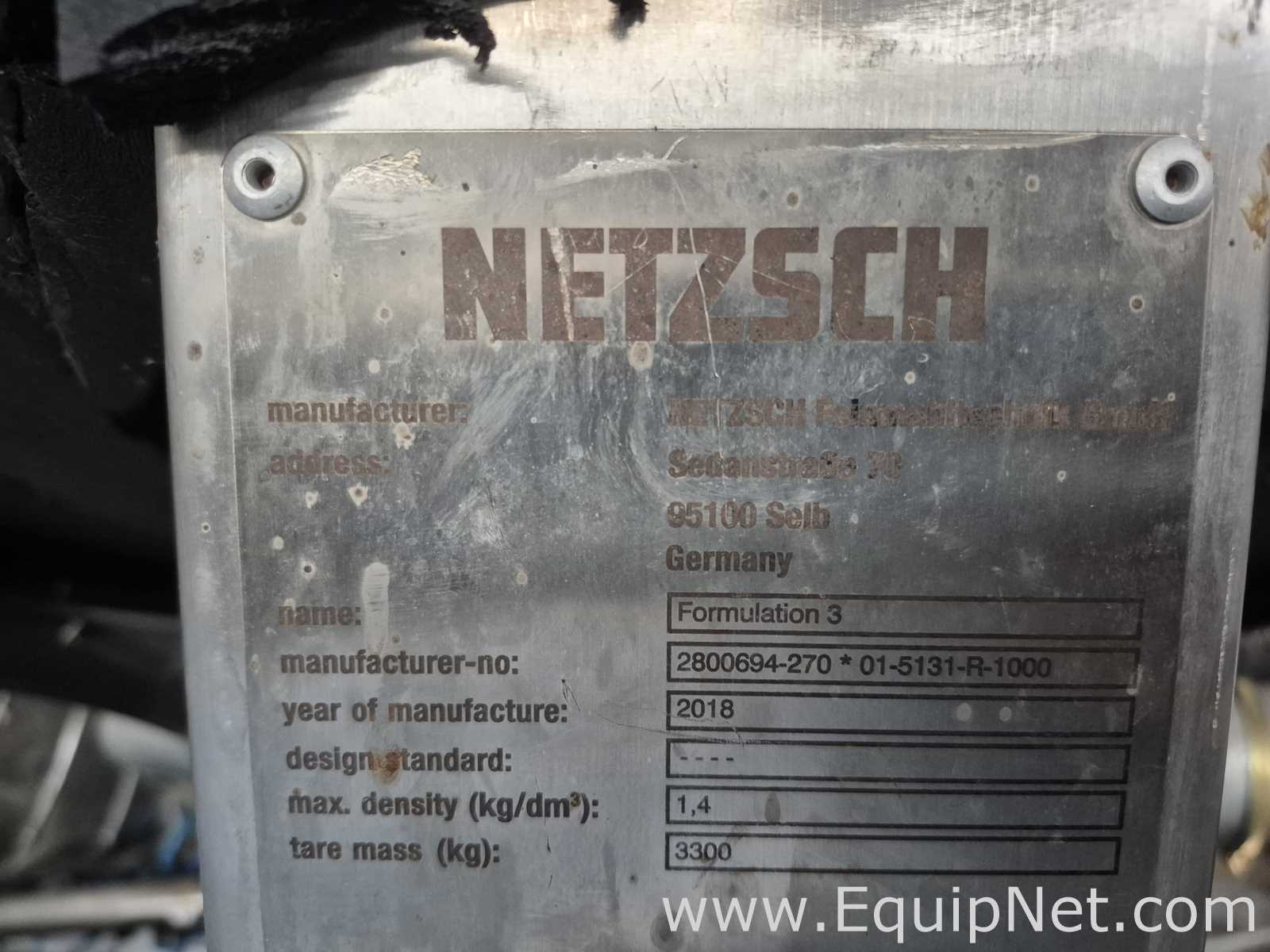

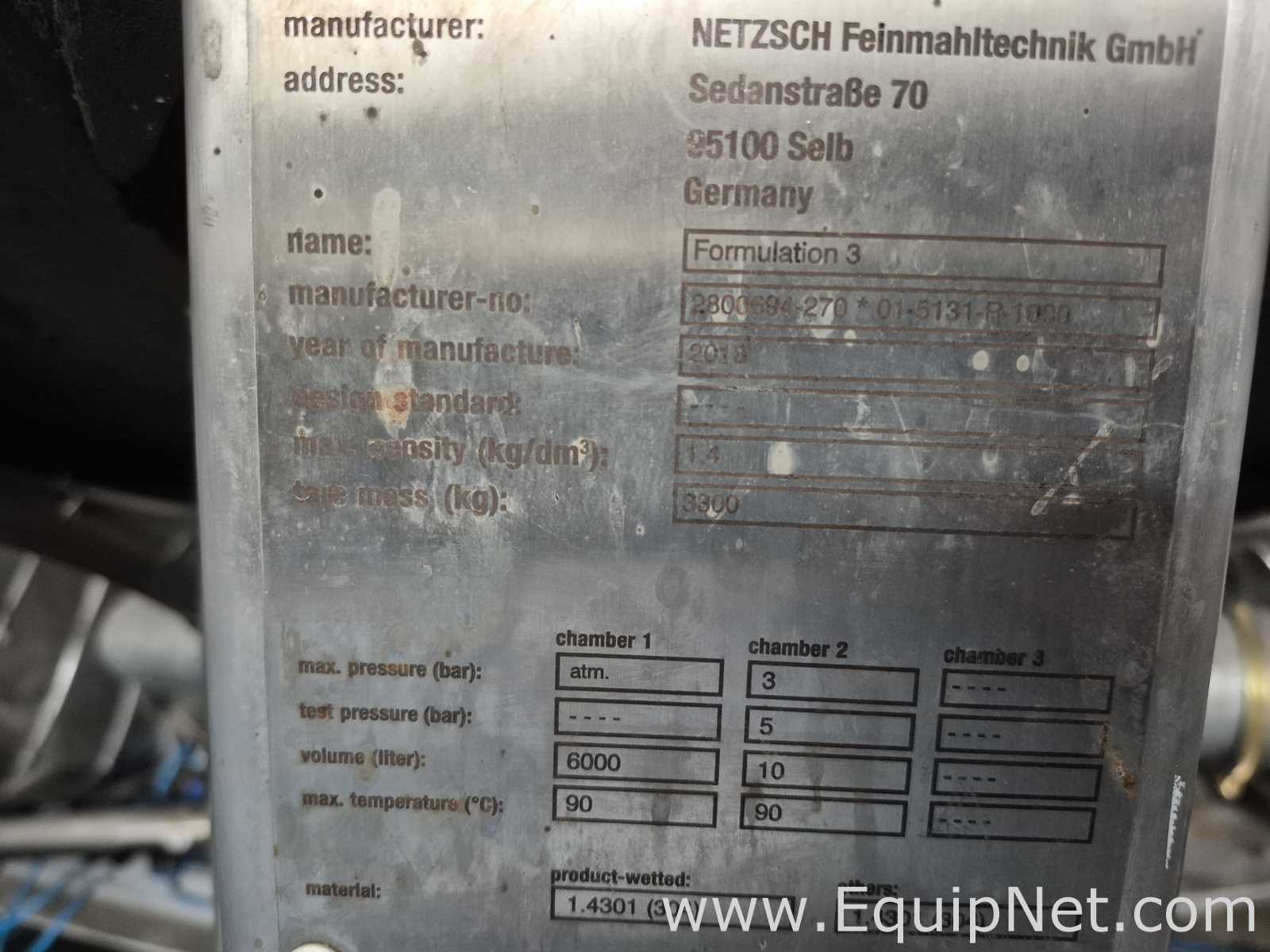

Serial Number:
2800694-270
2800694-270
Tank Material of Construction:
STAINLESS STEEL
STAINLESS STEEL
Capacity Size of Vessel:
1585.56
gal
6000
L
Jacketed:
YES
YES
Type of Top Head:
DISHED
DISHED
Type of Bottom Head:
DISHED
DISHED
Agitation:
YES
YES
HP or KW:
55
KW
55
KW
Recommended Packaging Form:
CRATE
CRATE
Voltage:
VOLTS
VOLTS
Frequency:
50
HERTZ
50
HERTZ
Dimensions:
Standard
Metric
Overall:
74.80 x 74.80 x 120.75 in - 7275.18 lb
1900 x 1900 x 3067 MM - 3300 KGS
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1050617

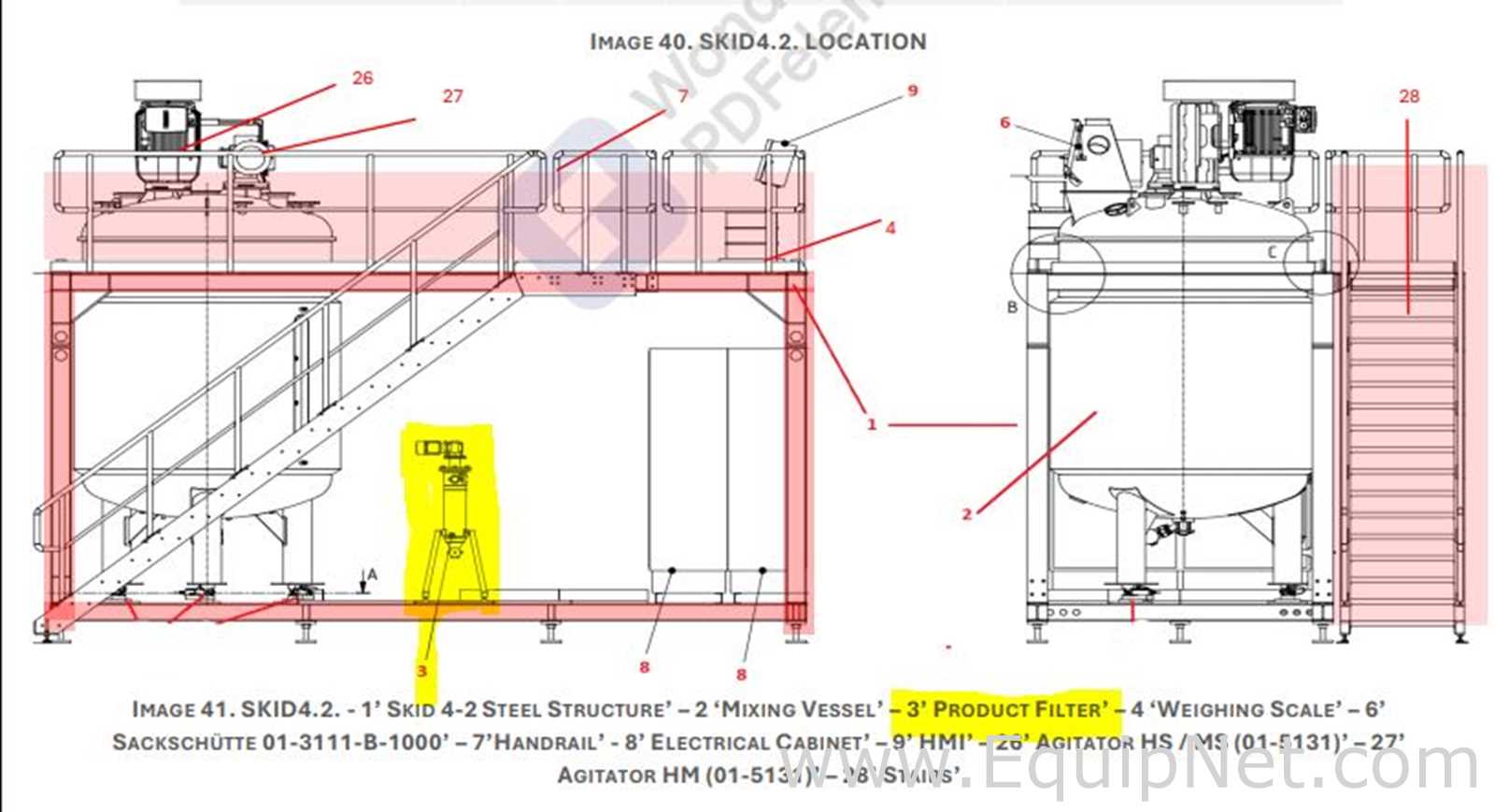

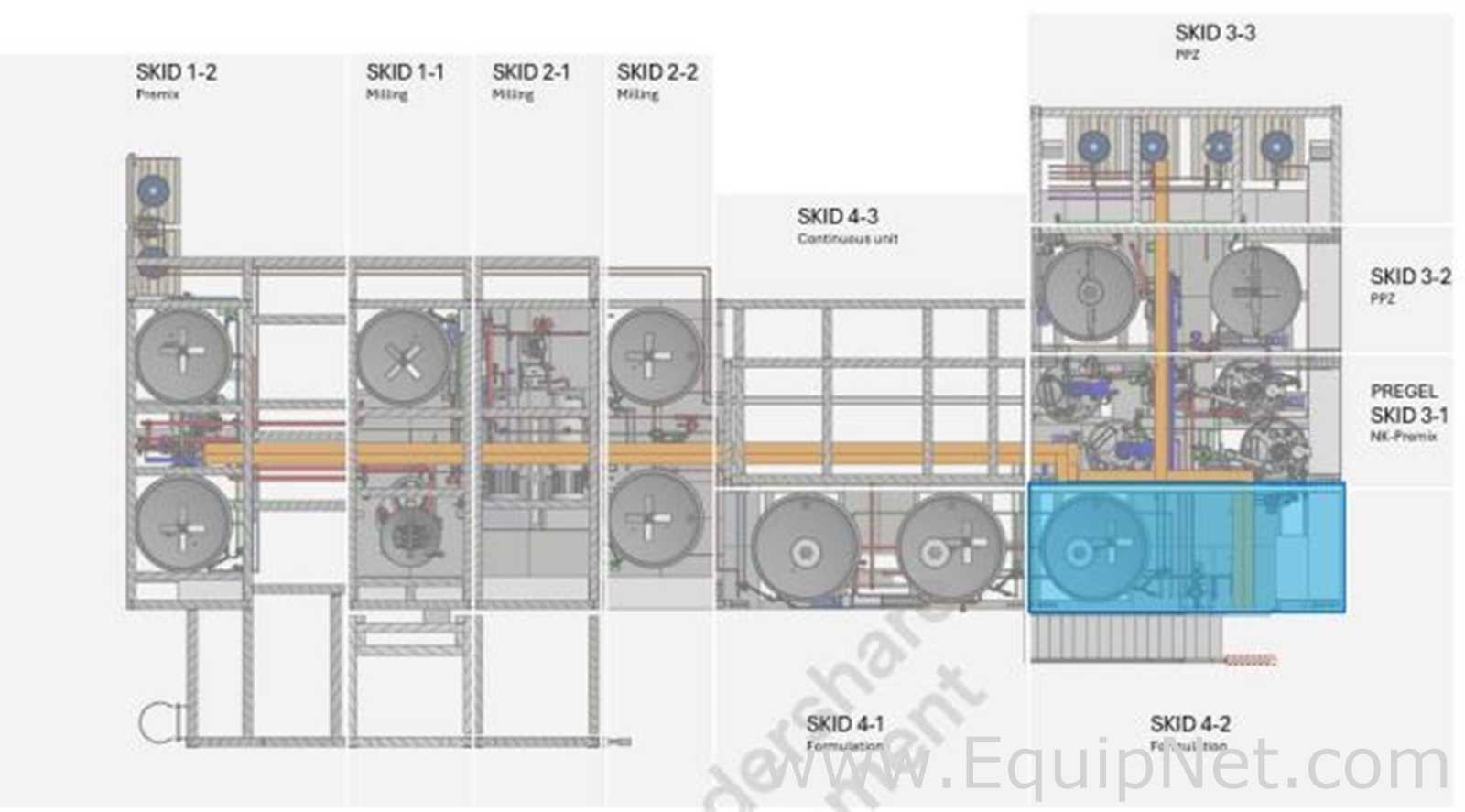

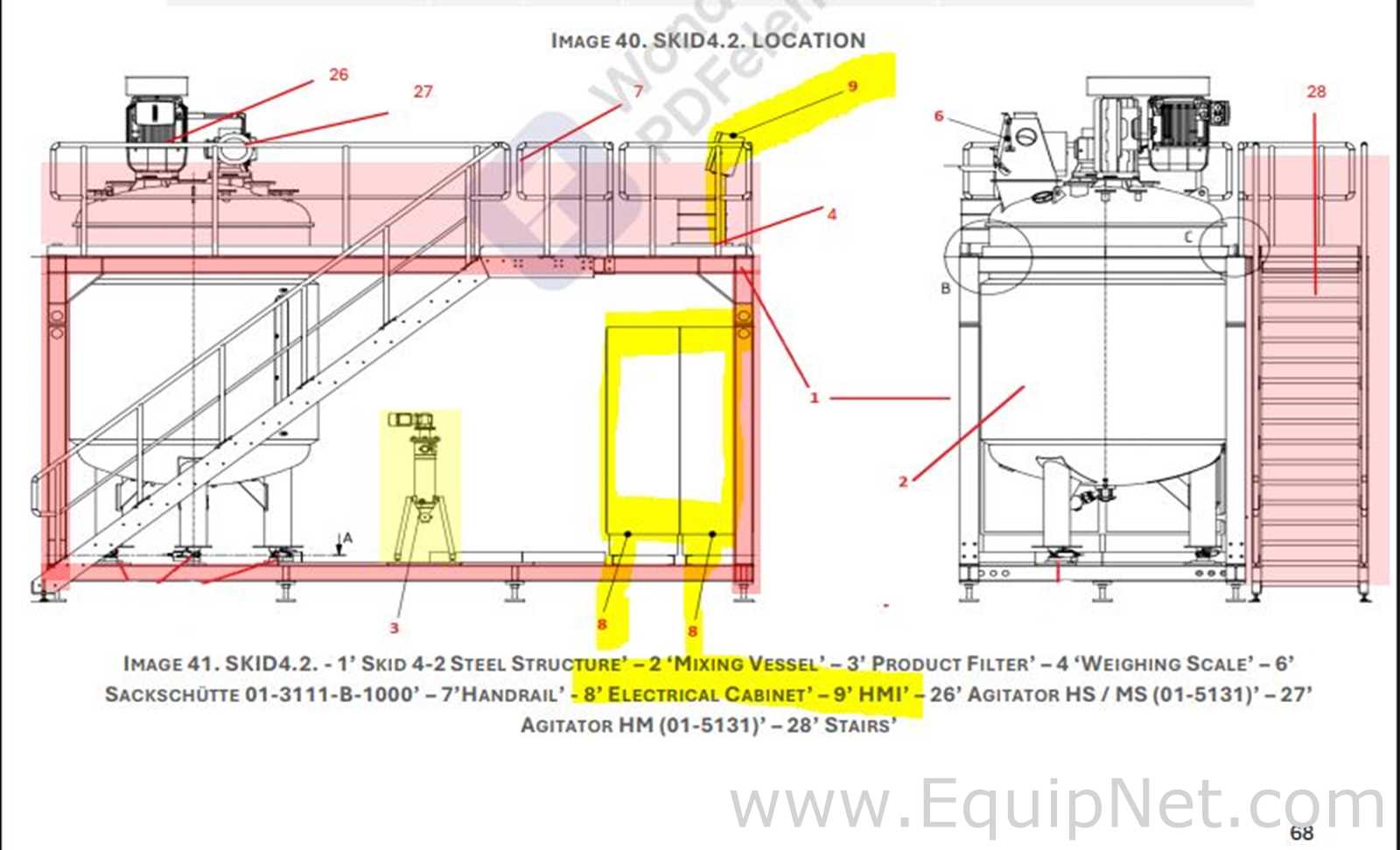

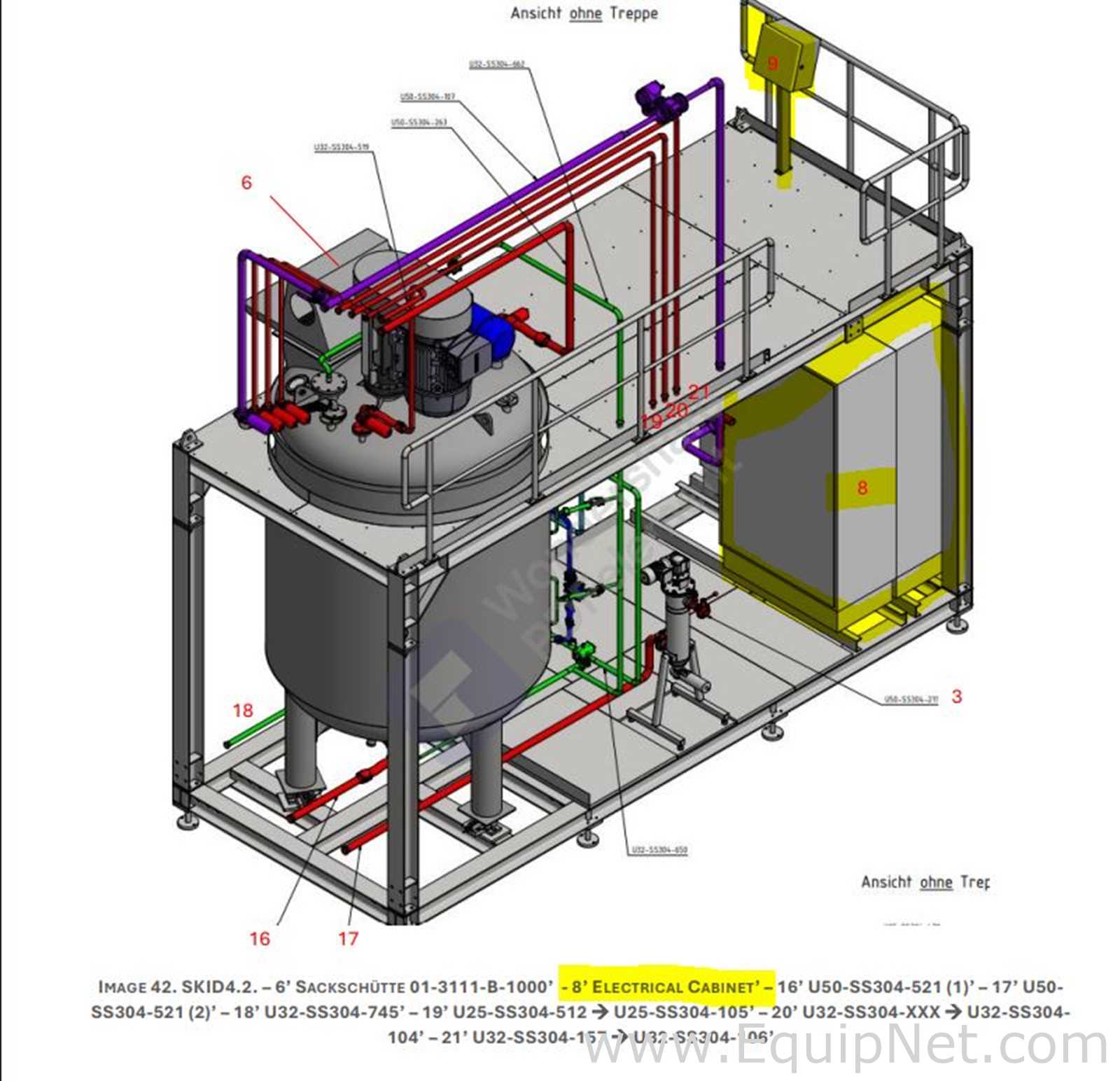

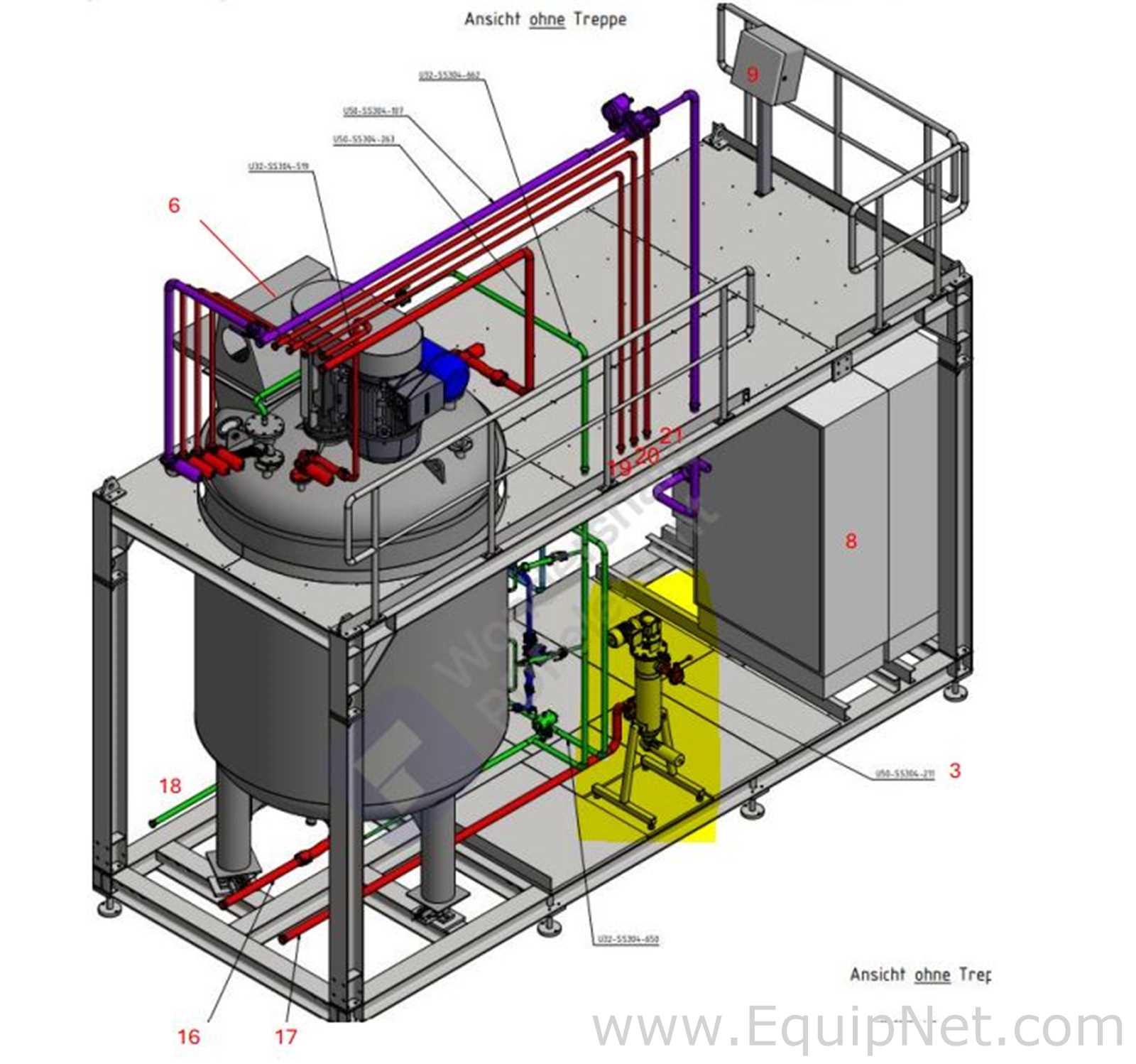

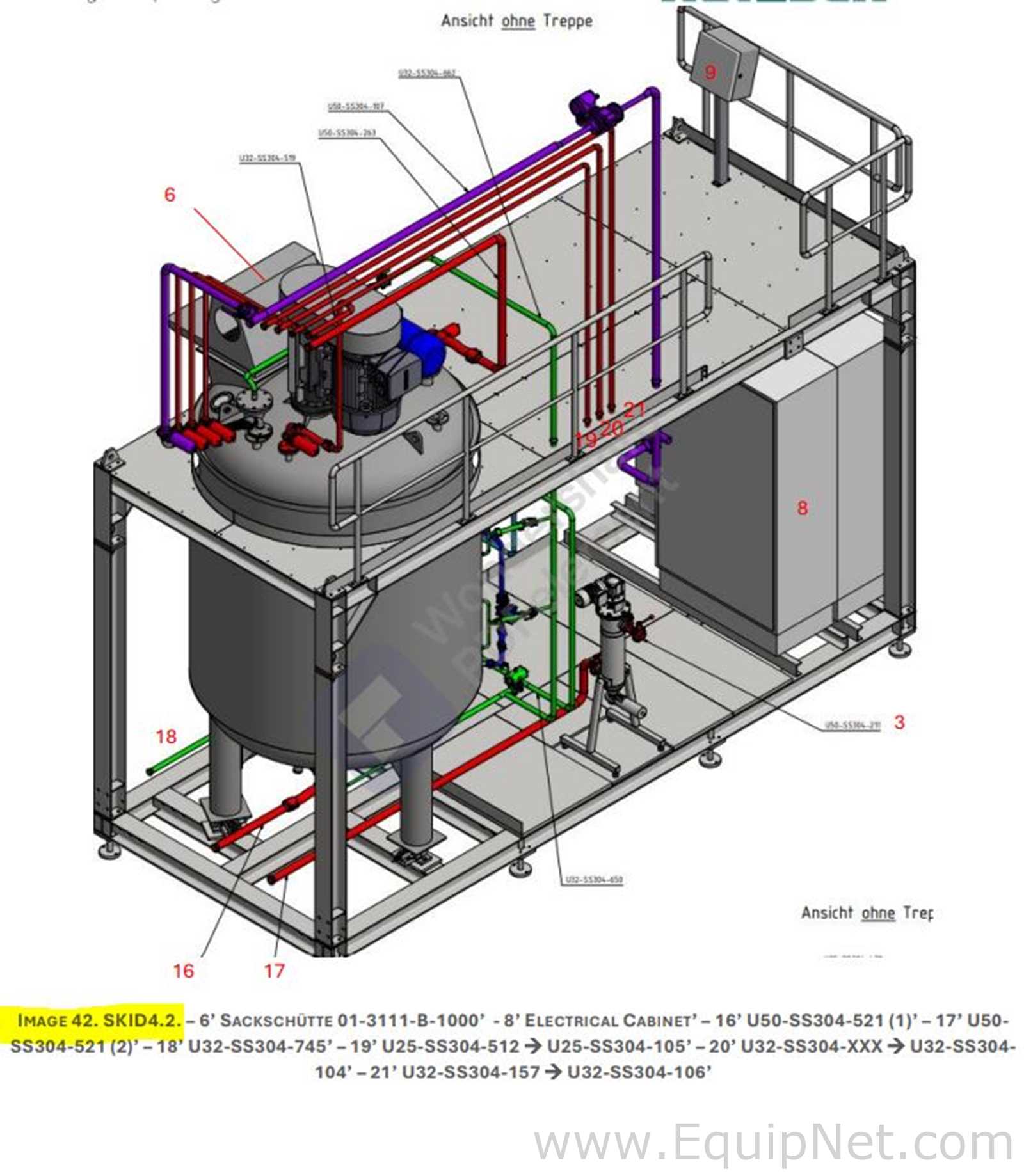

Netzsch Platform Structure Skid 4-2 Master Equipment List
Equipment Description

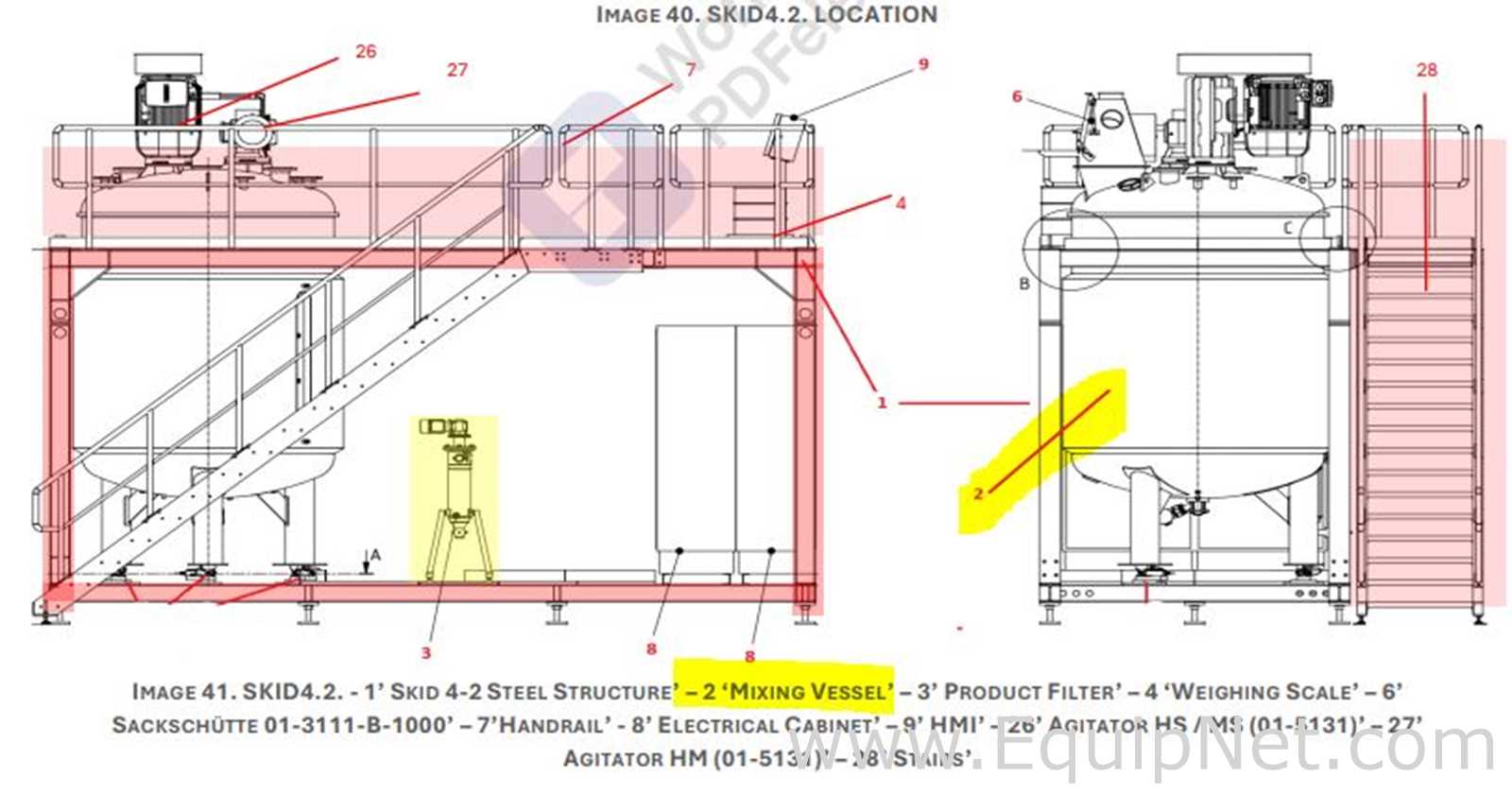

Netzsch Platform Structure Skid 4-2 Master Equipment List

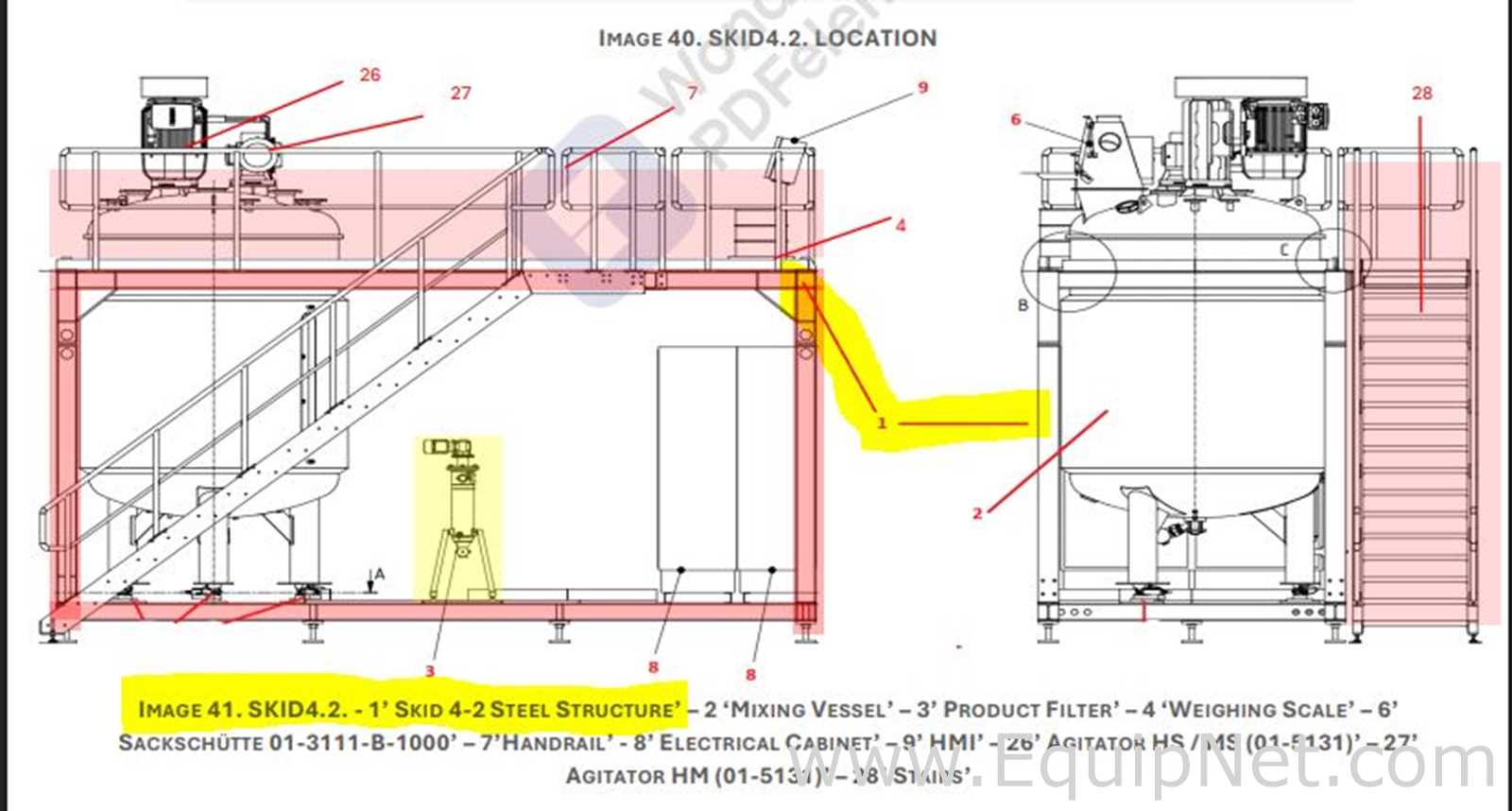

1 Skid 4-2 Steel Structure Structural frame (Linie 1 Skid 4-2 (Stahlbau)) Skid 4.2 Line-1 Skid 4-2
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Recommended Packaging Form:
CRATE
CRATE
Dimensions:
Standard
Metric
Overall:
1 x 1 x 1 IN - 1 LBS
25.40 x 25.40 x 25.40 mm - 0.45 kg
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1050618

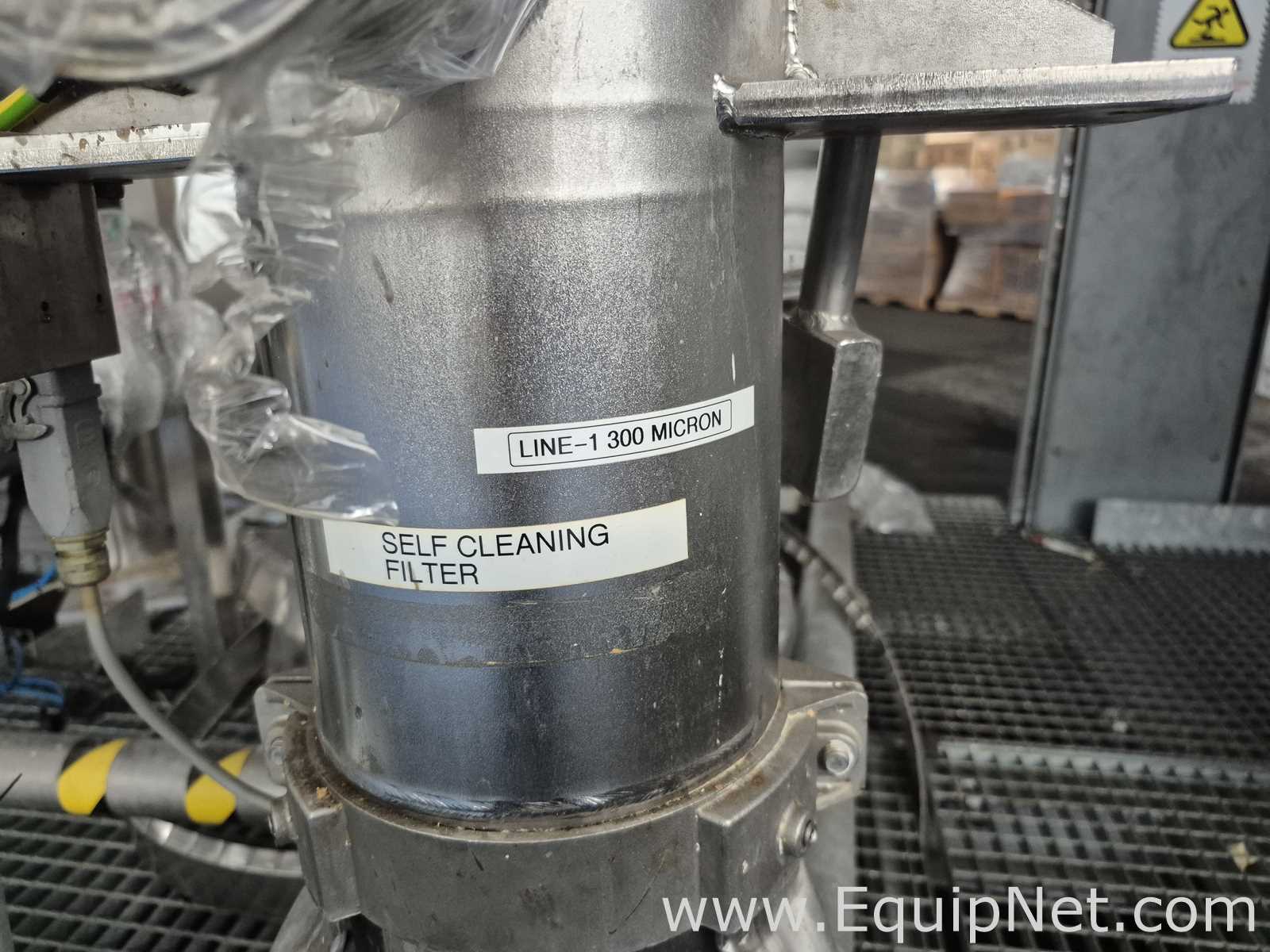

Netzsch Self Cleaning Filter Skid 4-2
Equipment Description

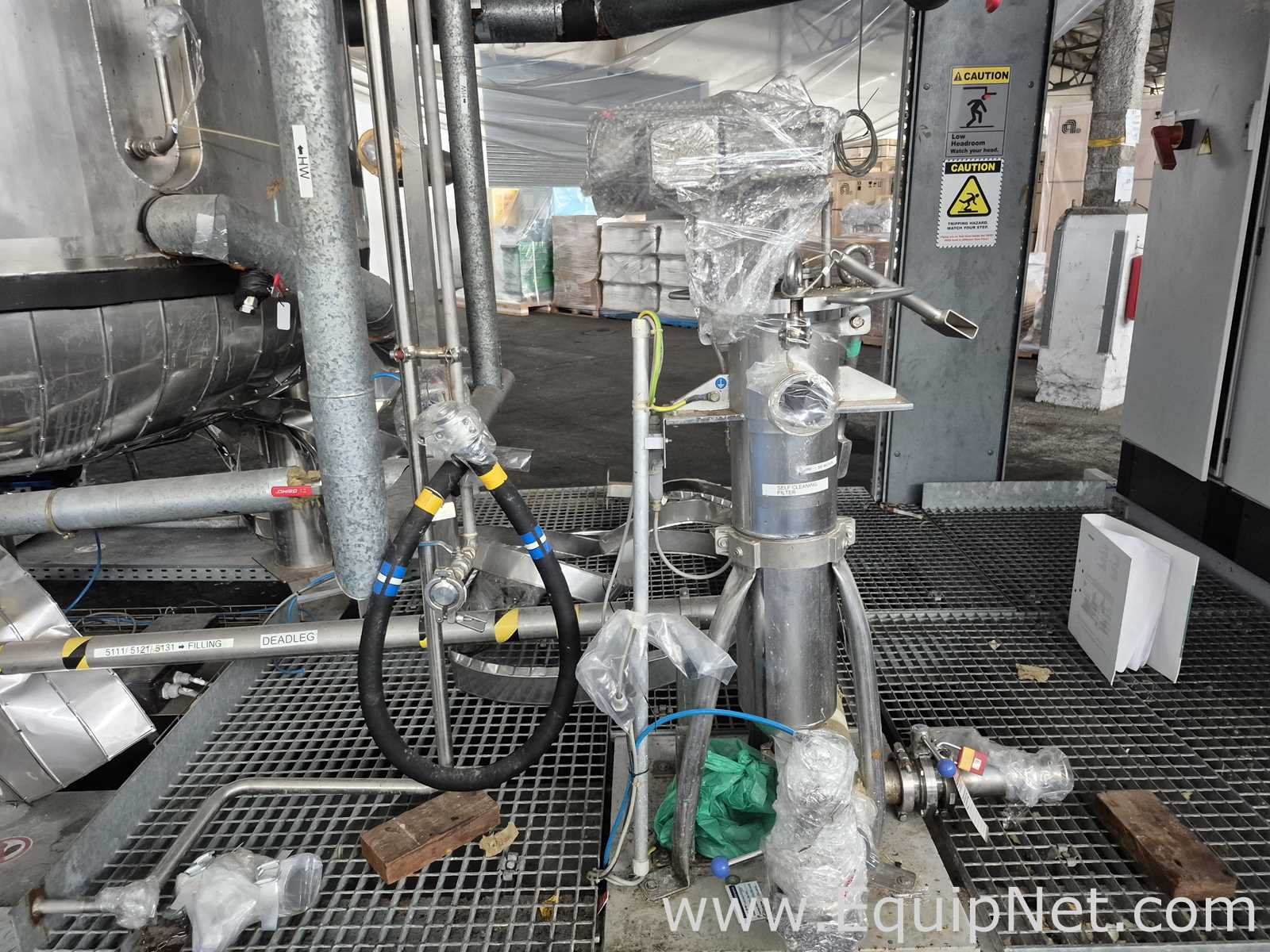

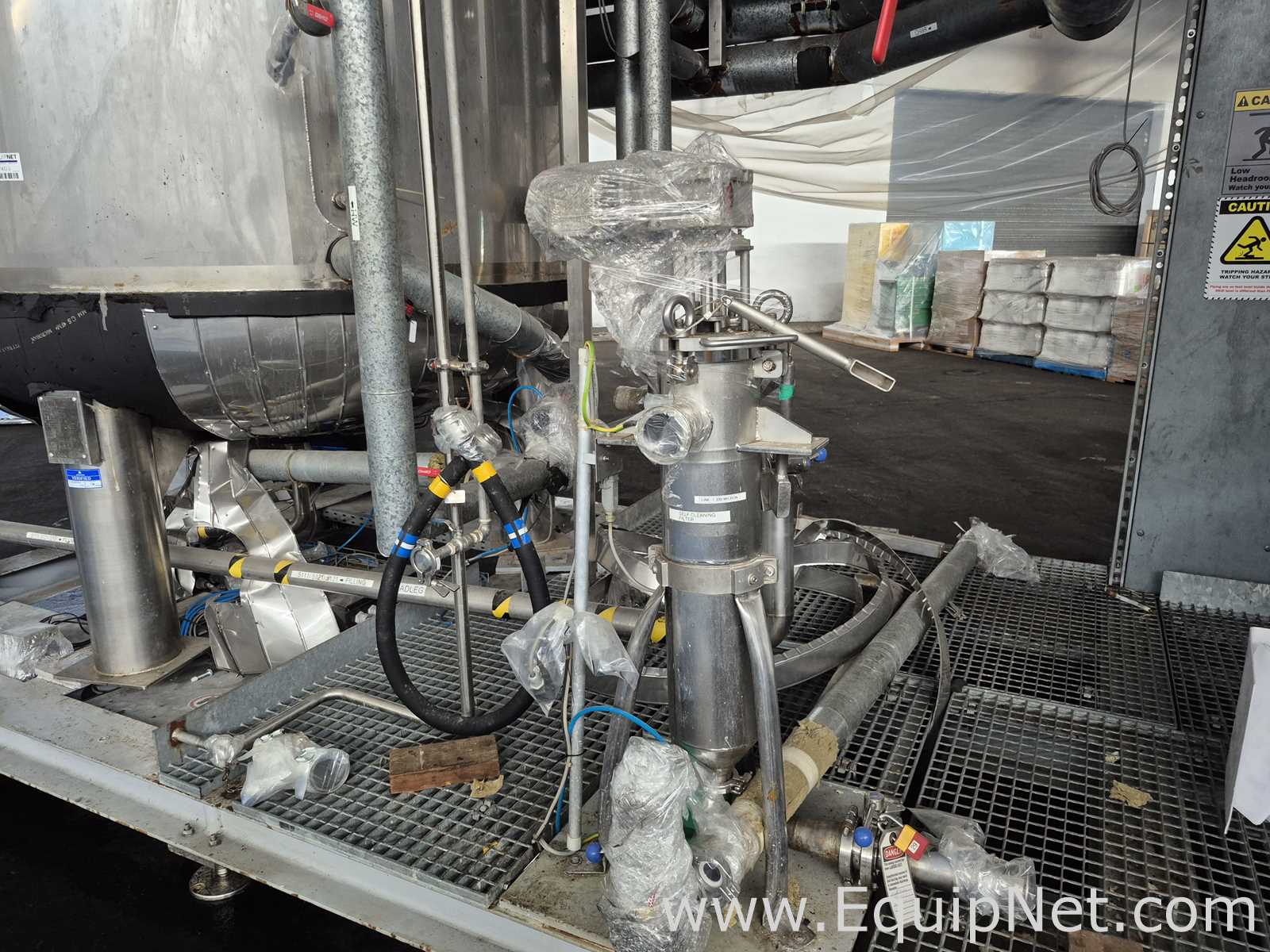

Netzsch Self Cleaning Filter Skid 4-2
Product-wetted parts: stainless steel AISI 316.
Surface housing outside: Glass bead blasted.
Surface housing inside: polished 0.8 µm.
Seals: FKM.
Rotary unit consisting of: stainless steel shaft with rotating scrapers electric motor 0.12 kW / not explosion-proof
speed 13 rpm Scraper material 4x PEEK Coupling with split pin.
Filter fineness: 100 µm gap.
Filter surface: 1300 cm2.
Volume: 15 Lt.
Max. permissible pressure: 10 bar.
Working pressure: 1-2 bar.
Max. difference pressure: 3 bar.
Connection inlet/outlet: DN65, Triclamp.
speed 13 rpm Scraper material 4x PEEK Coupling with split pin.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Recommended Packaging Form:
CRATE
CRATE
Dimensions:
Standard
Metric
Overall:
1 x 1 x 1 IN - 1 LBS
25.40 x 25.40 x 25.40 mm - 0.45 kg
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1050623

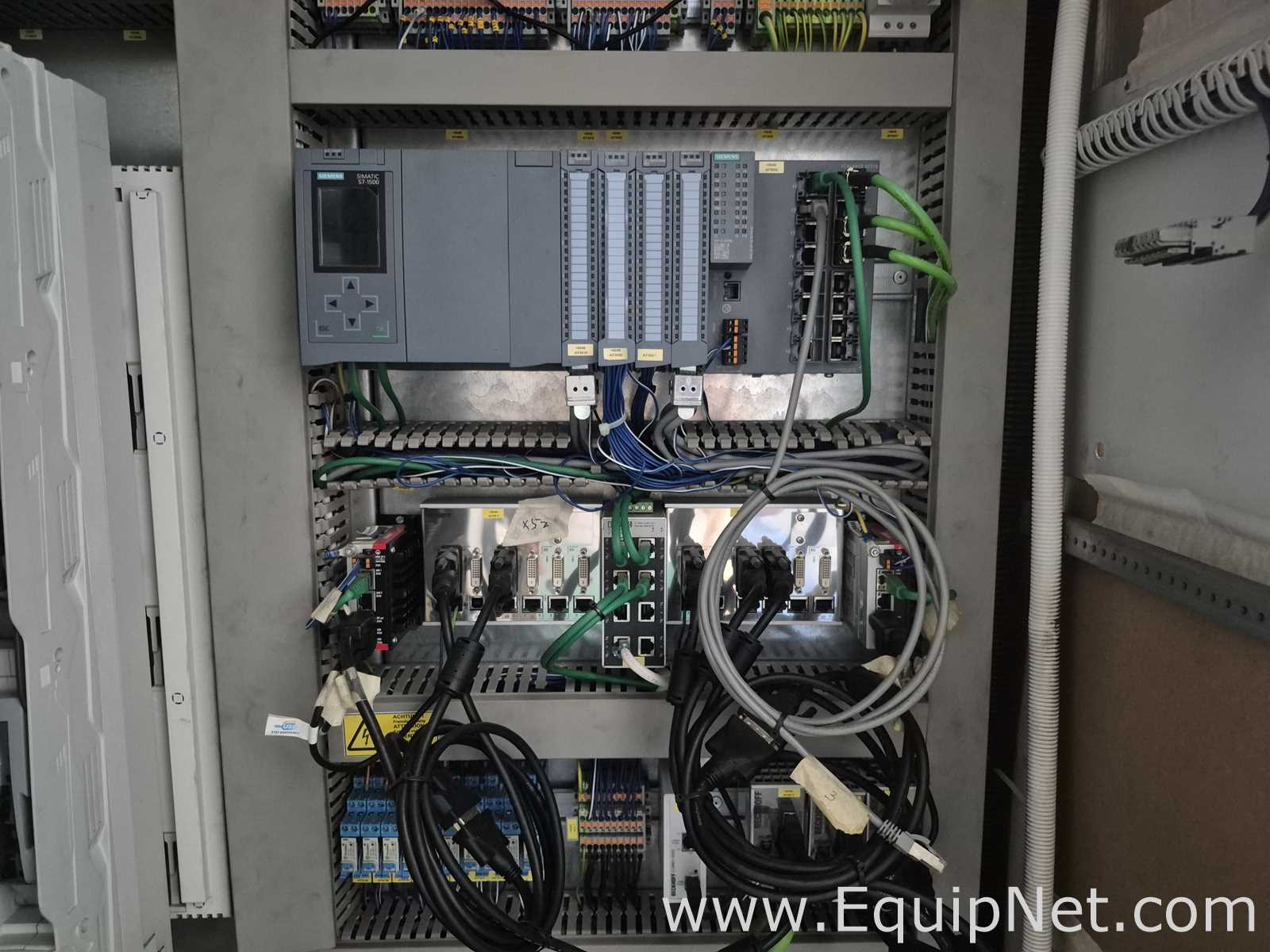

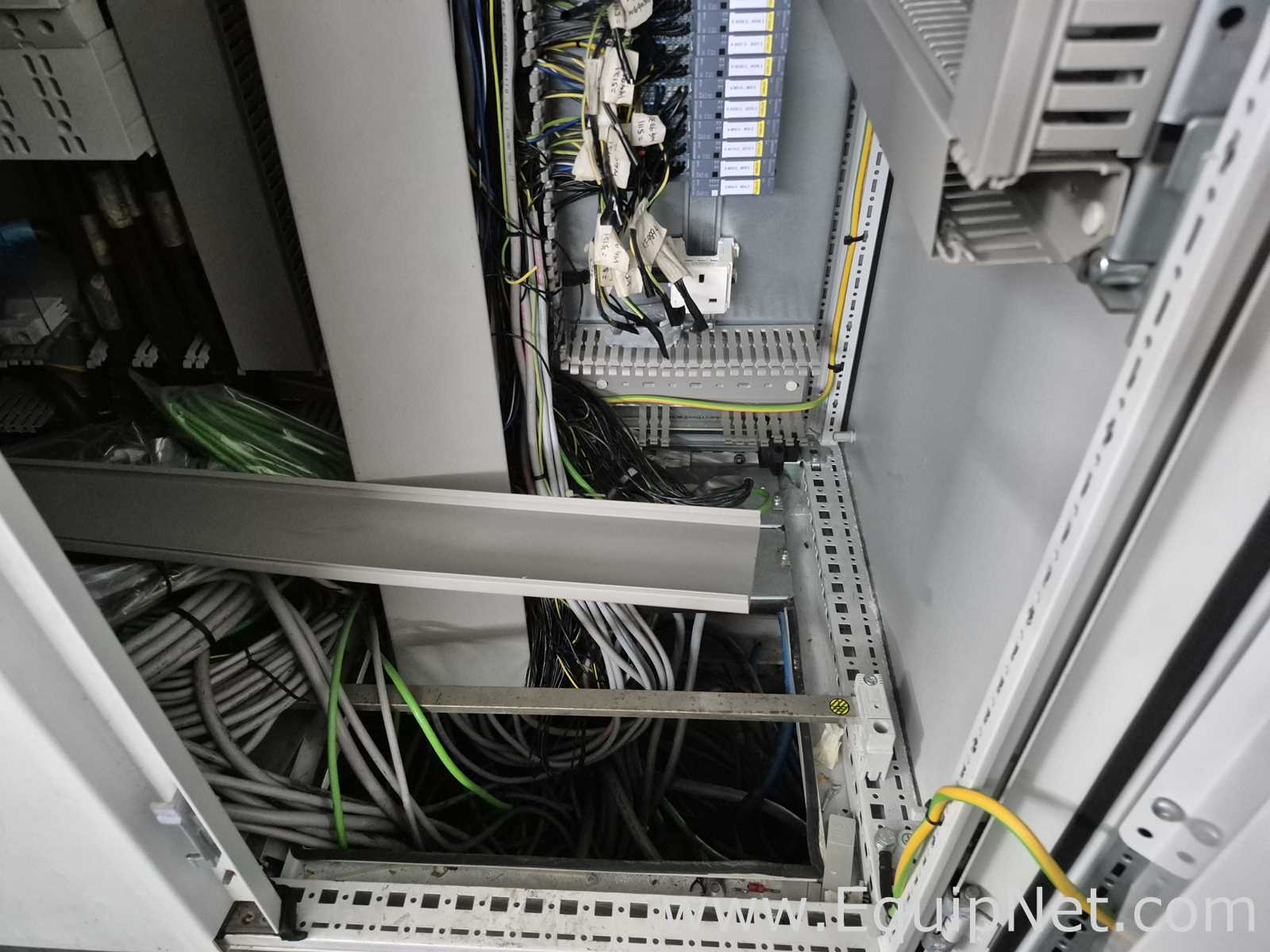

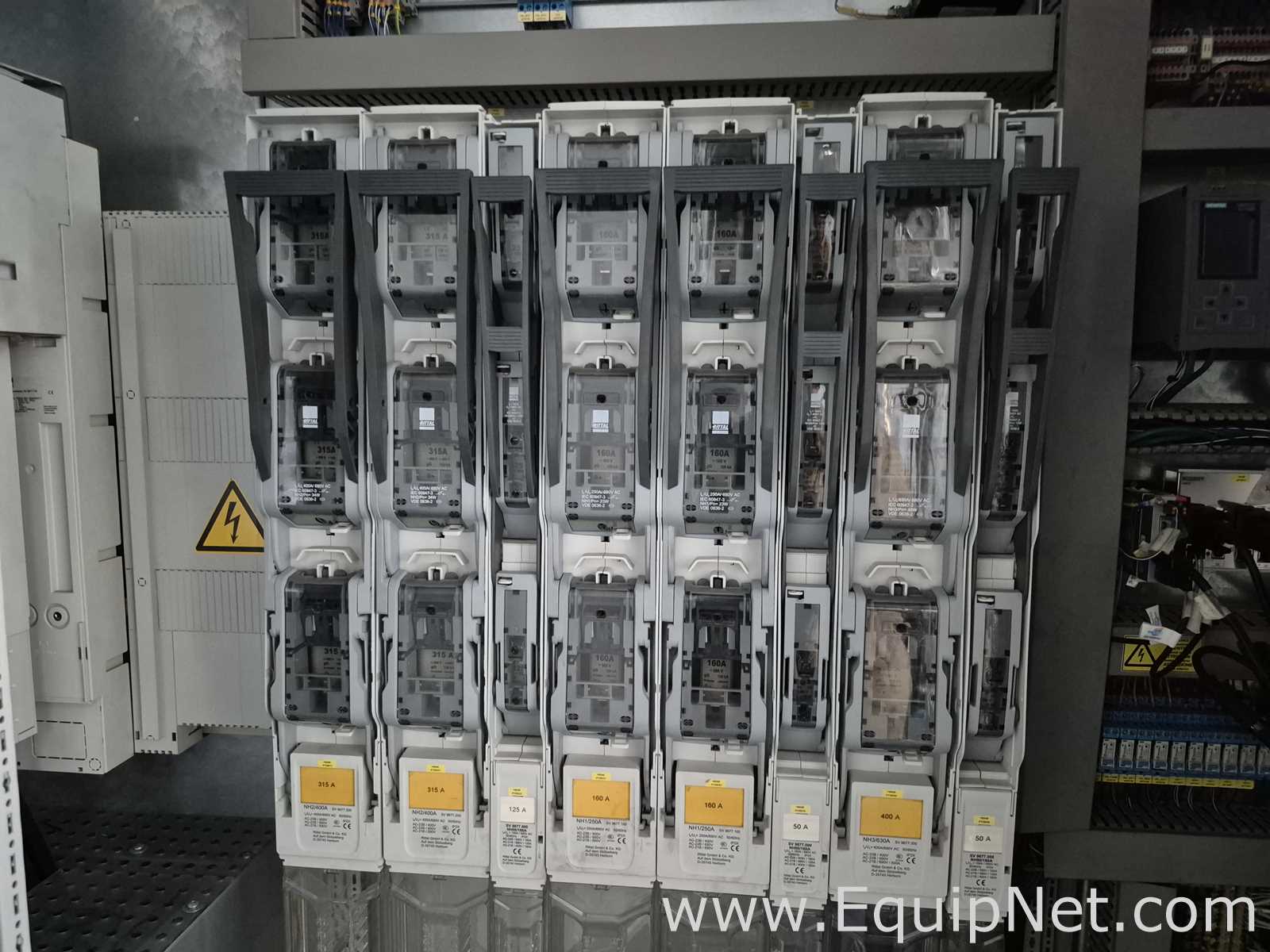

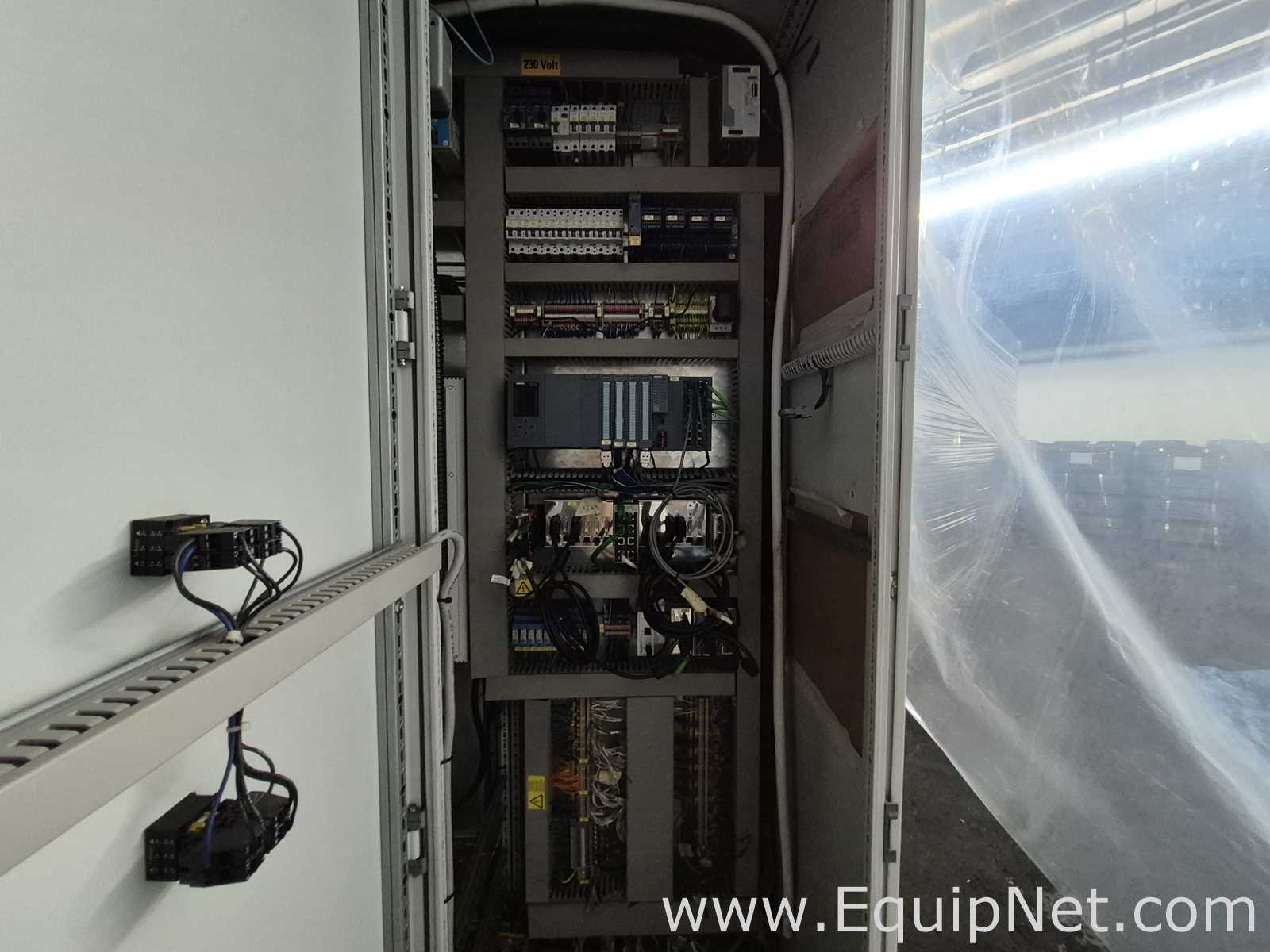

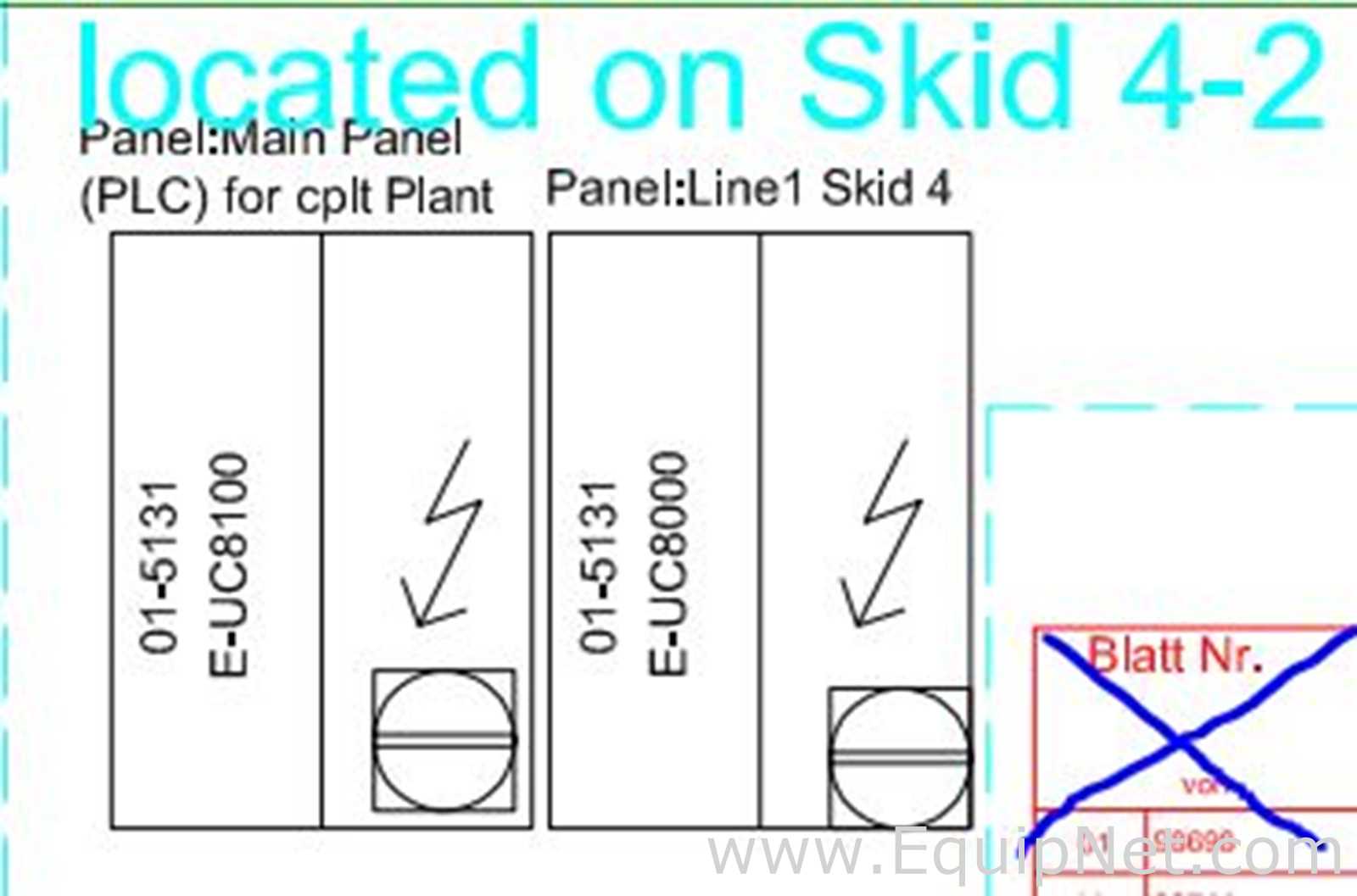

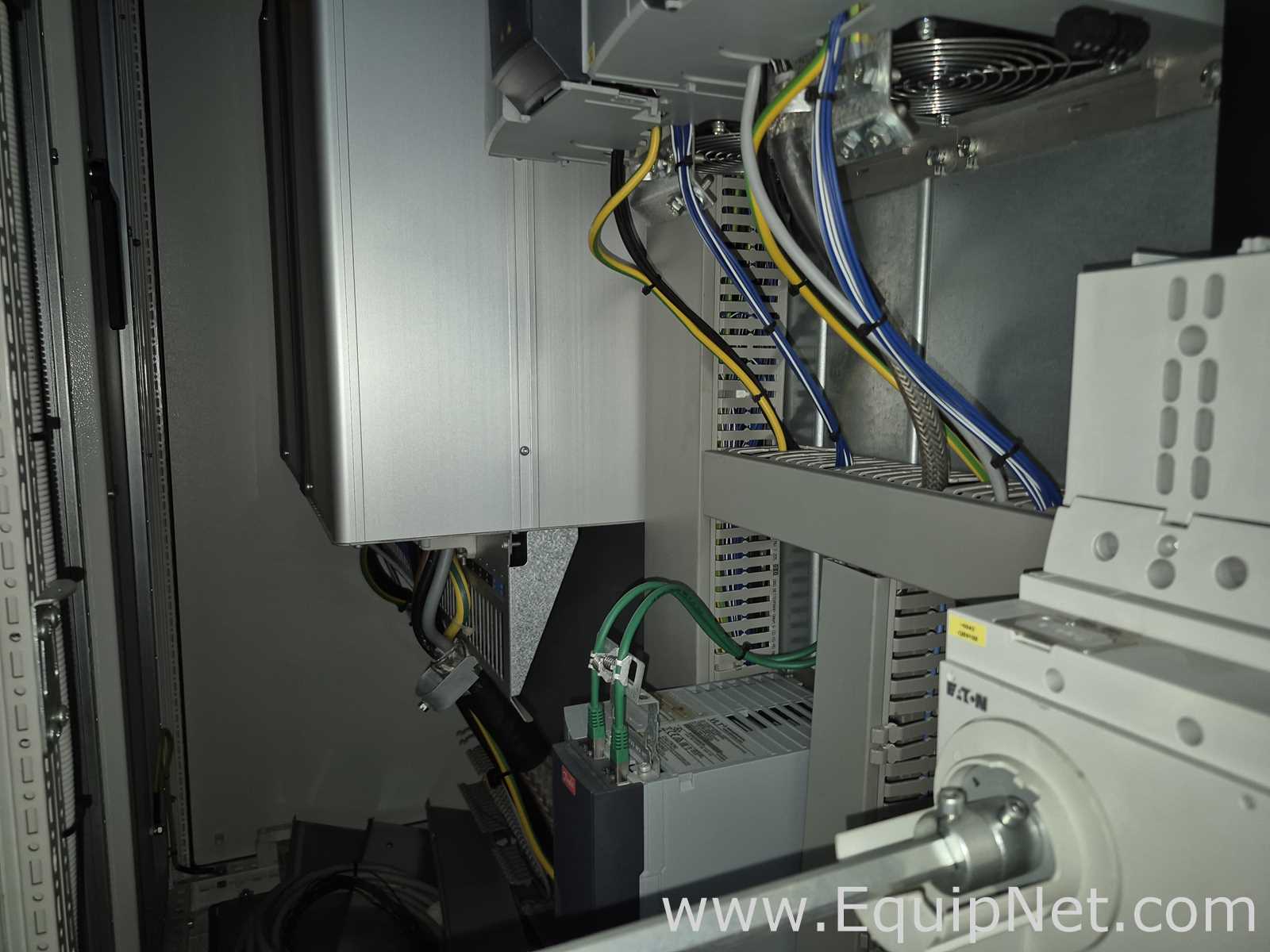

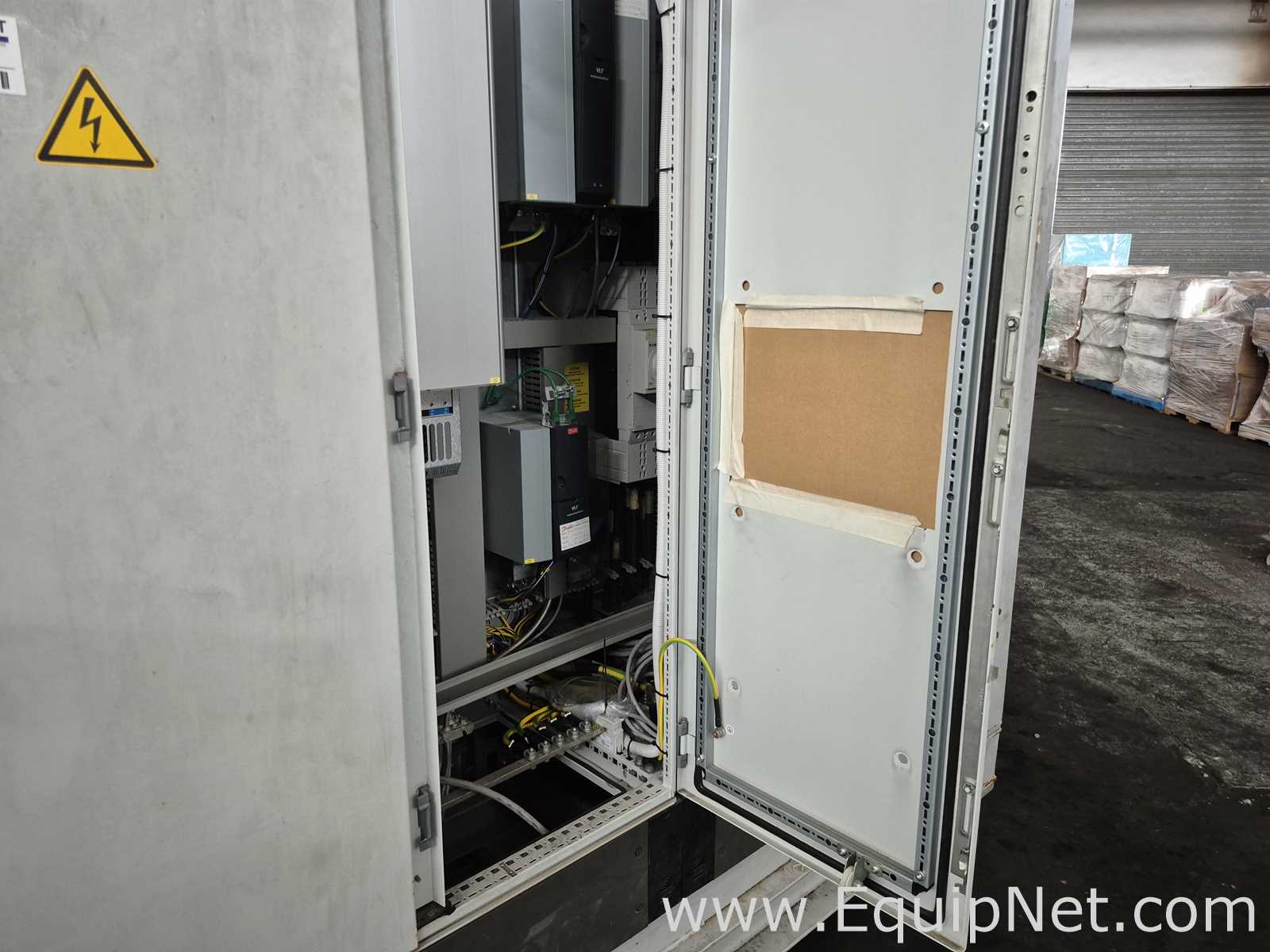

Netzsch Electrical Control Cabinet And HMI Skid 4-2 Master Equipment List
Equipment Description

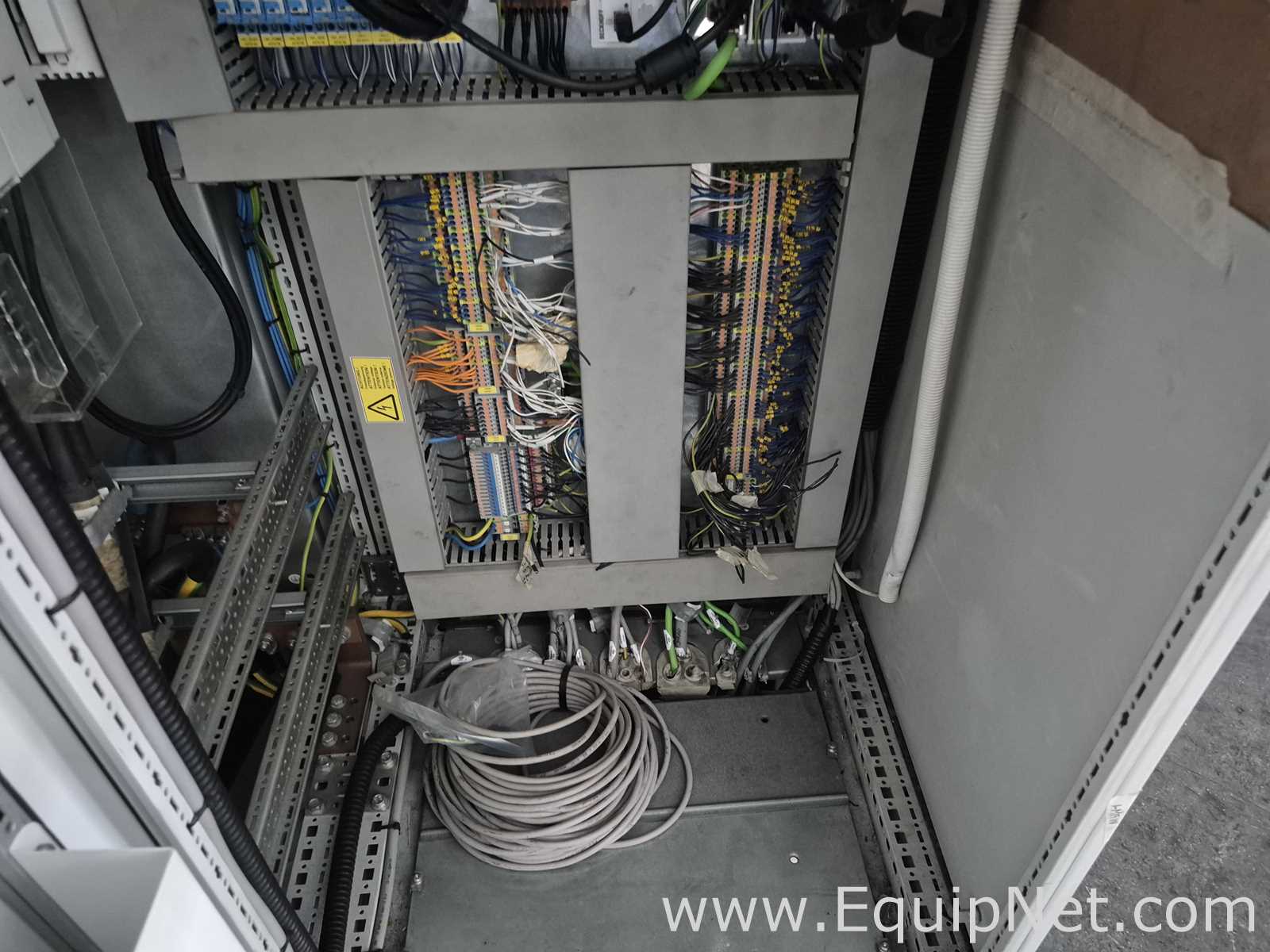

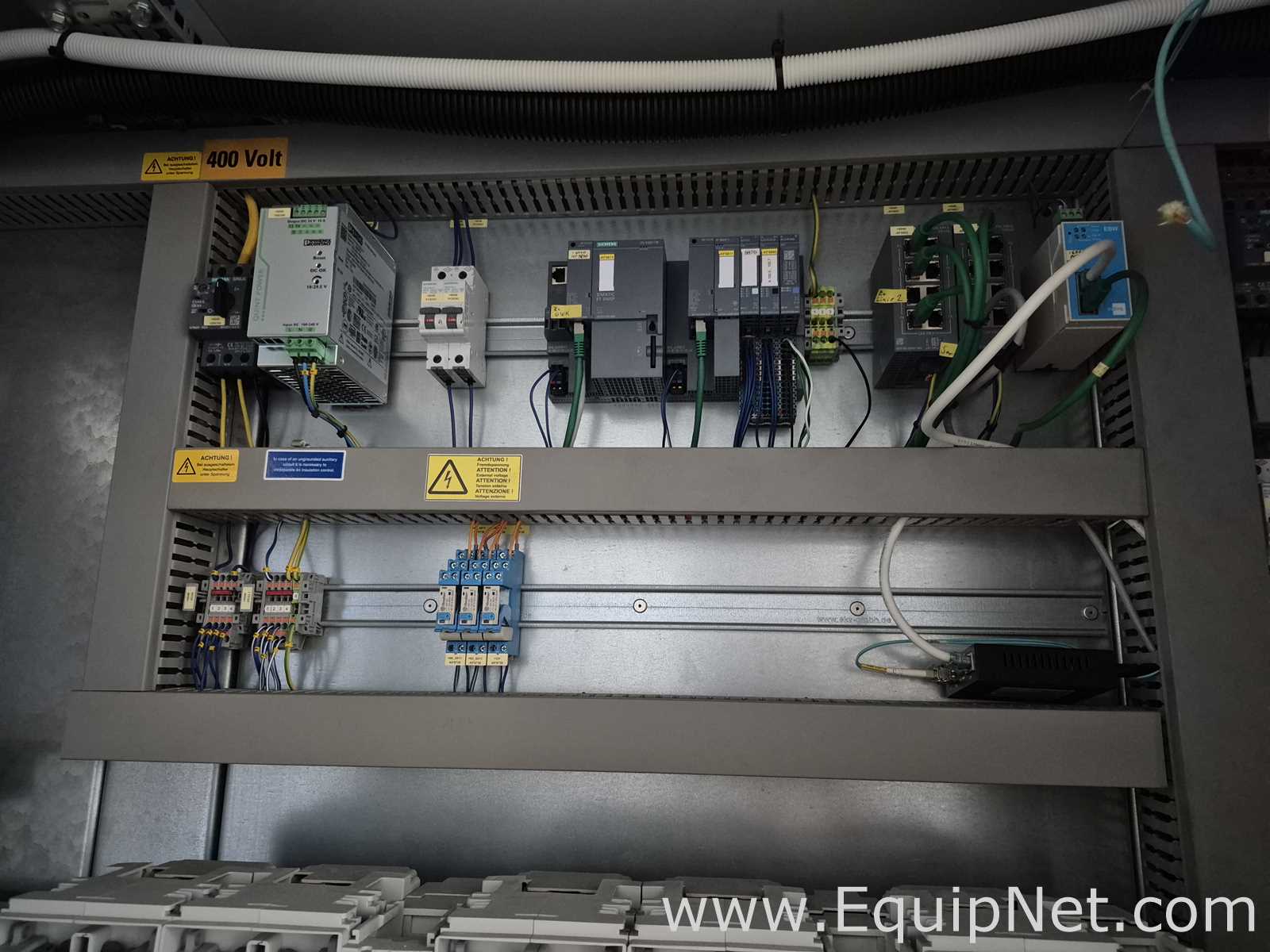

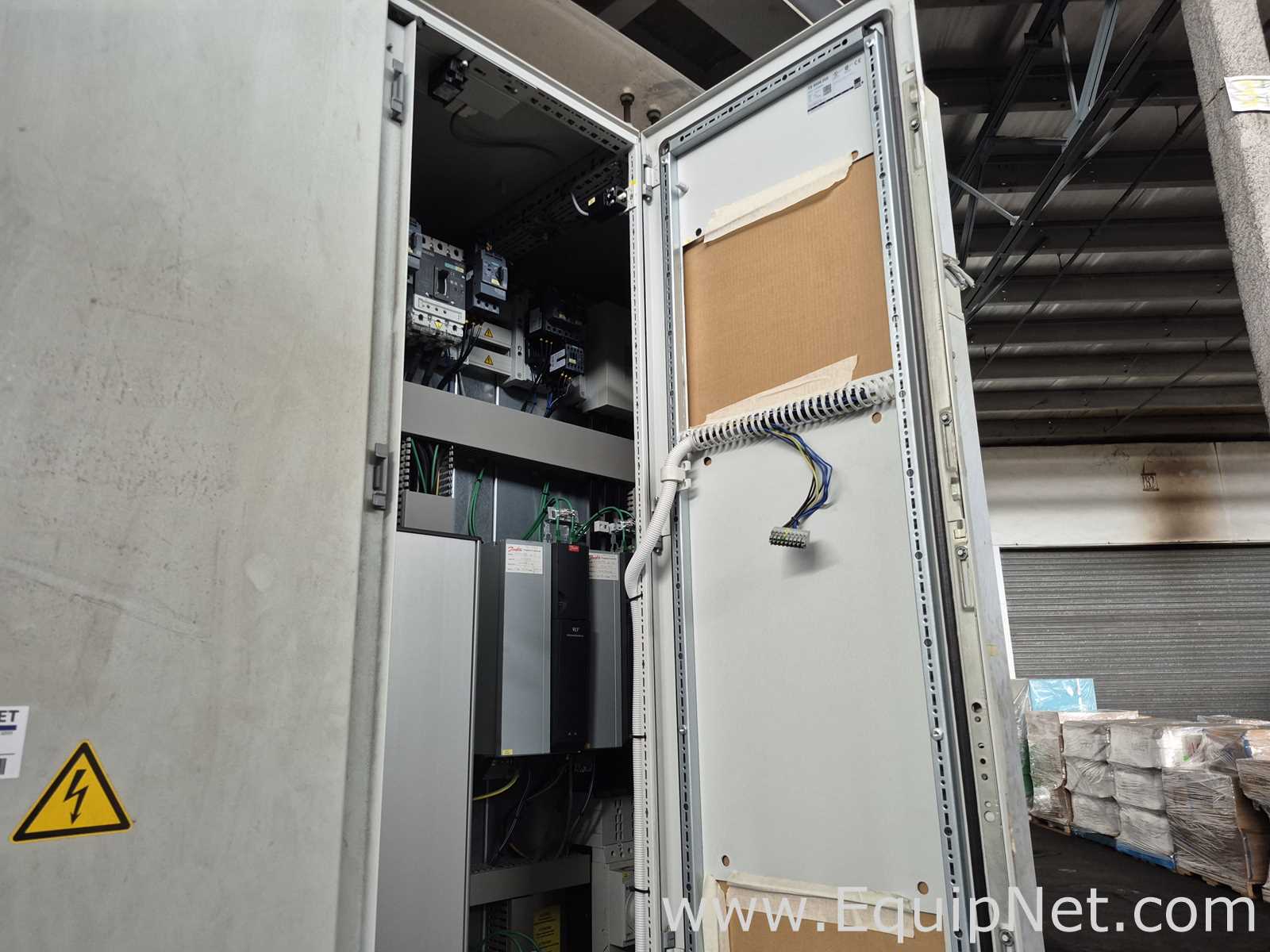

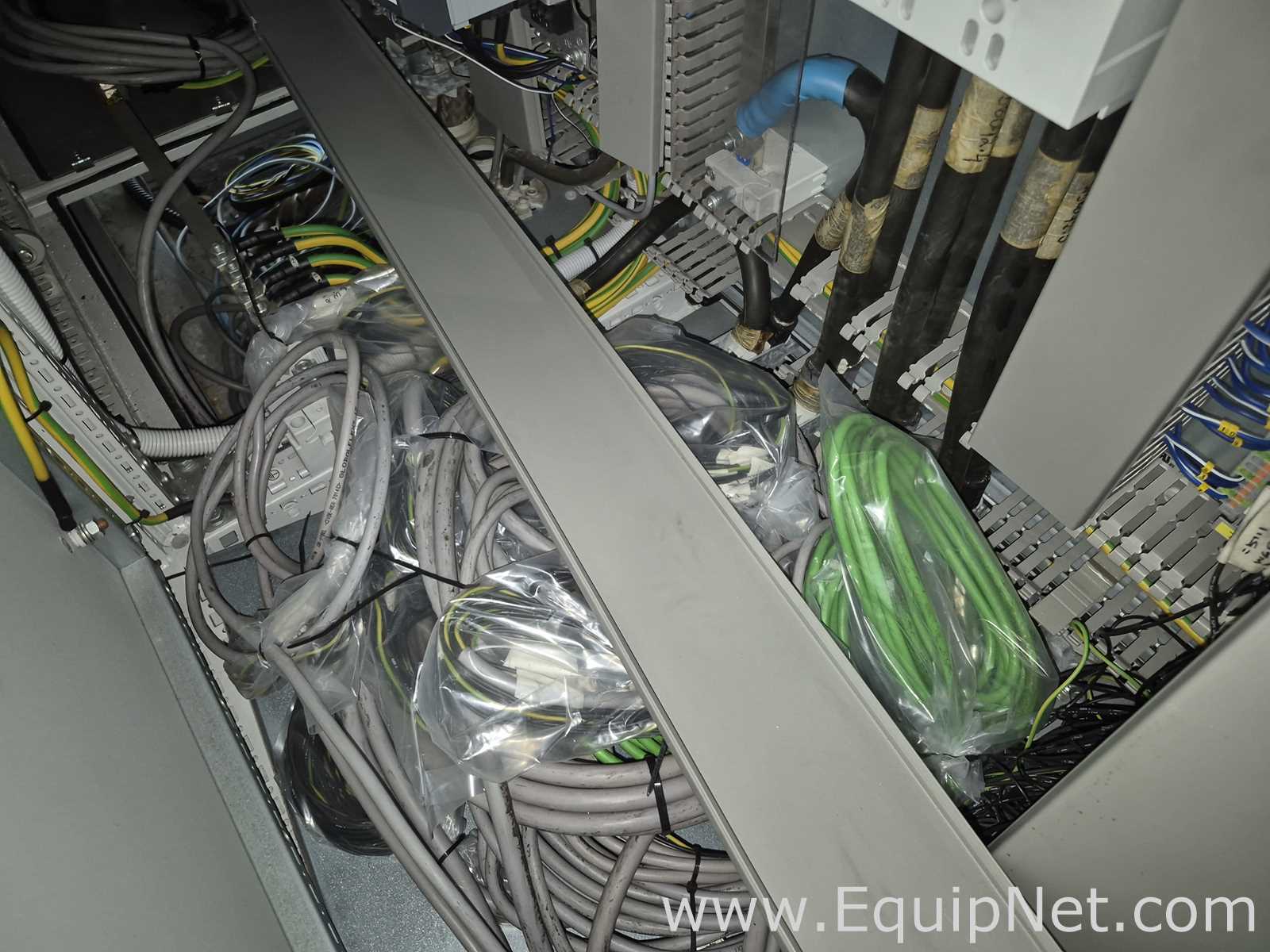

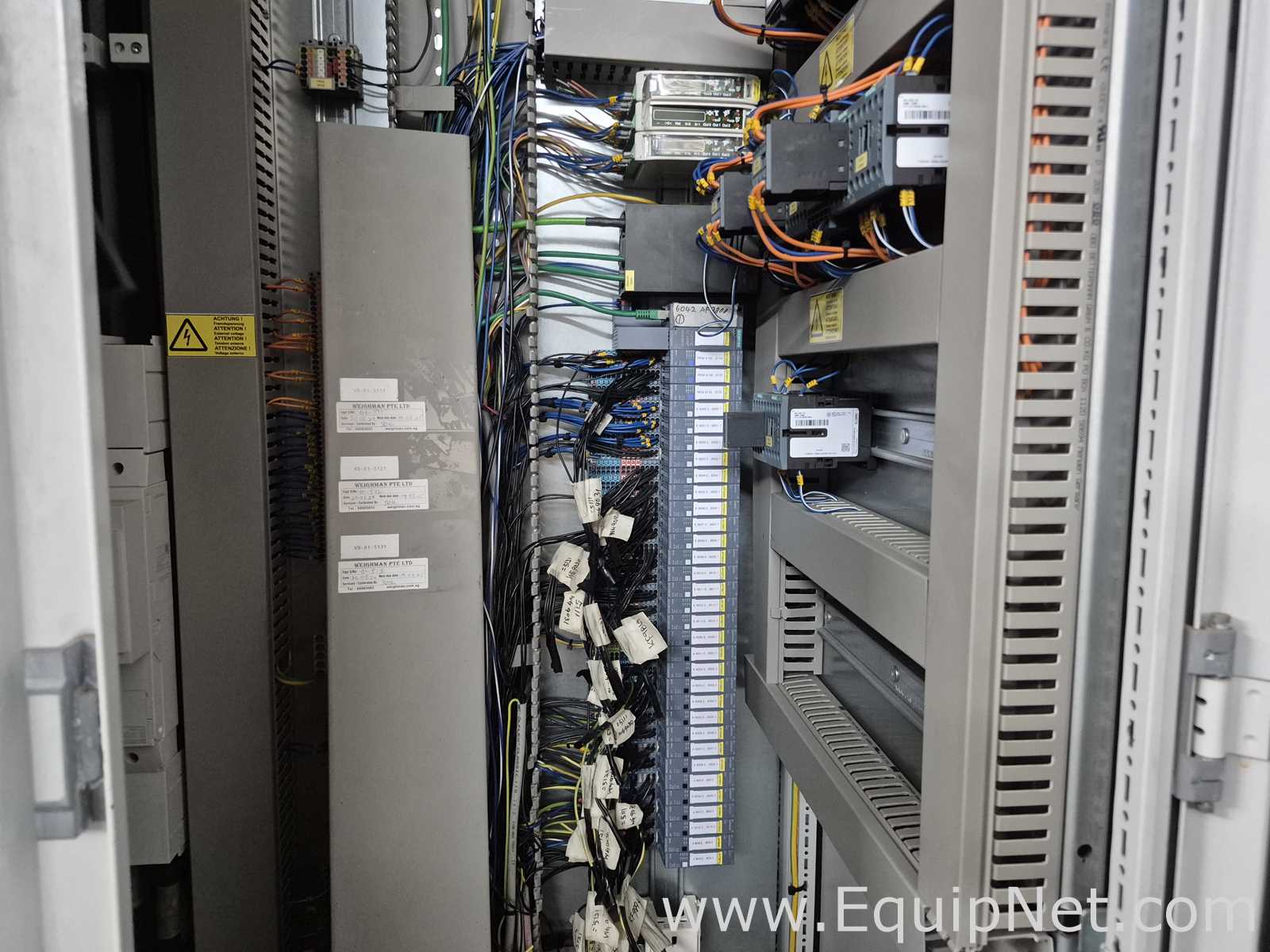

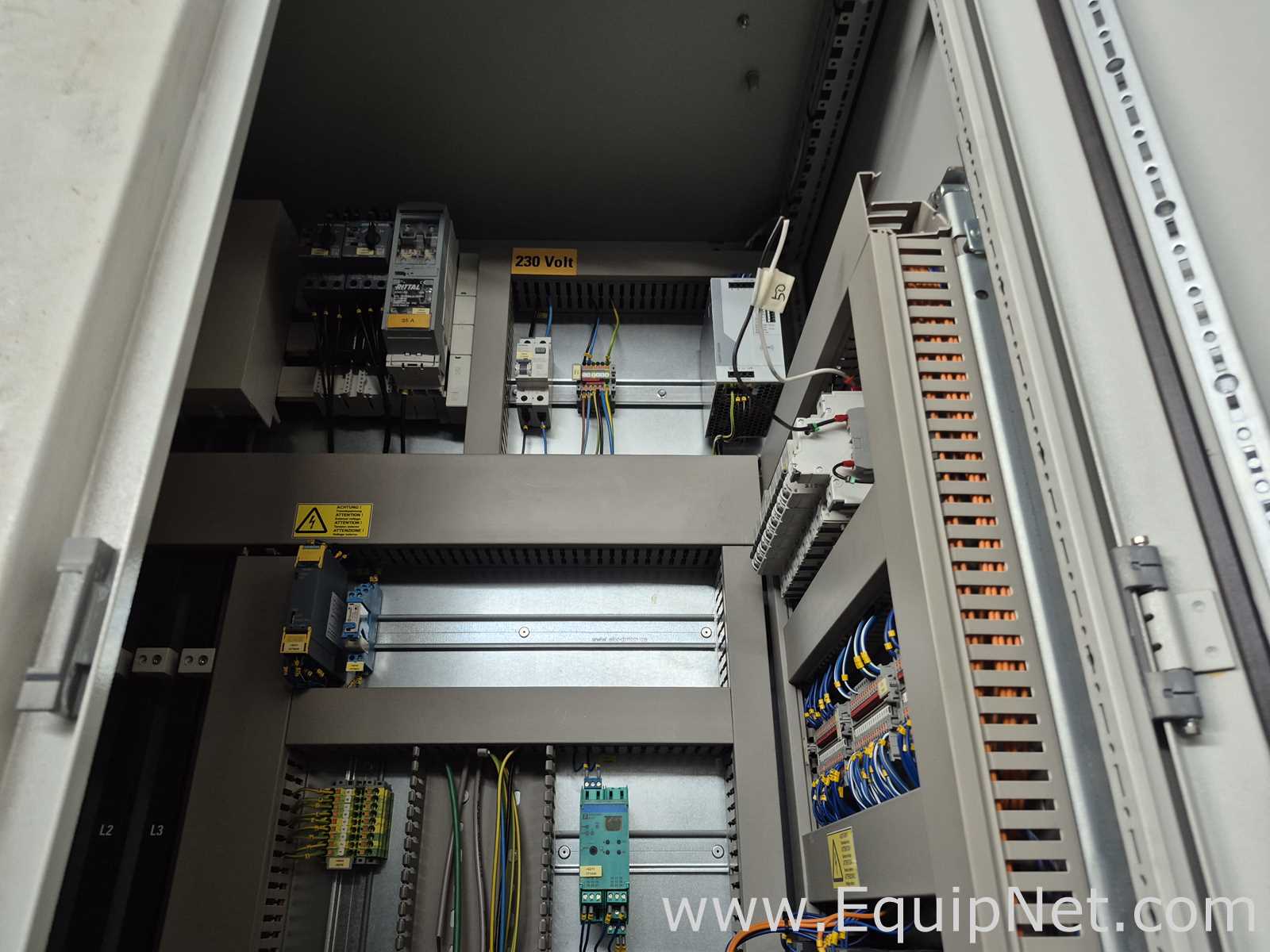

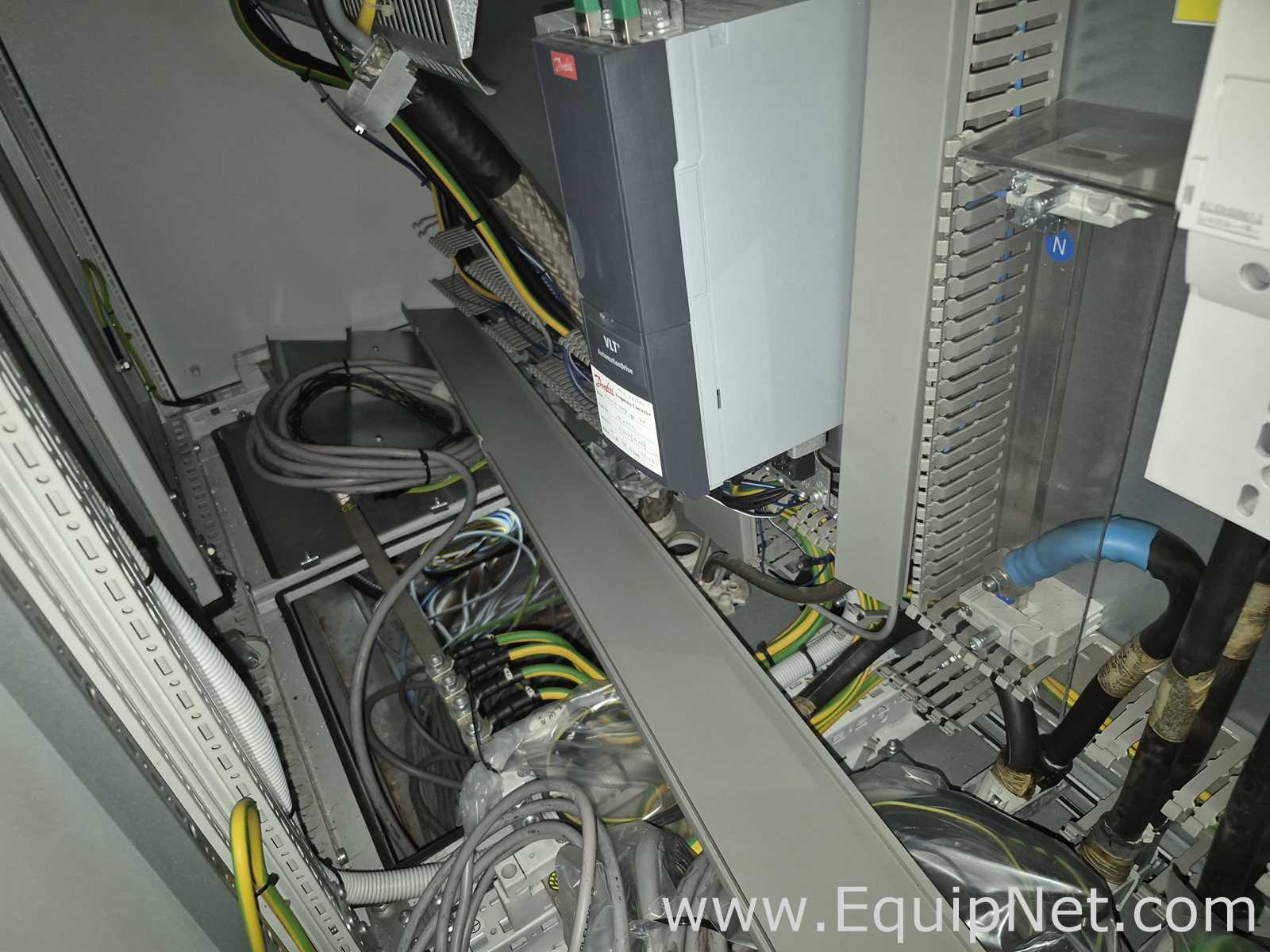

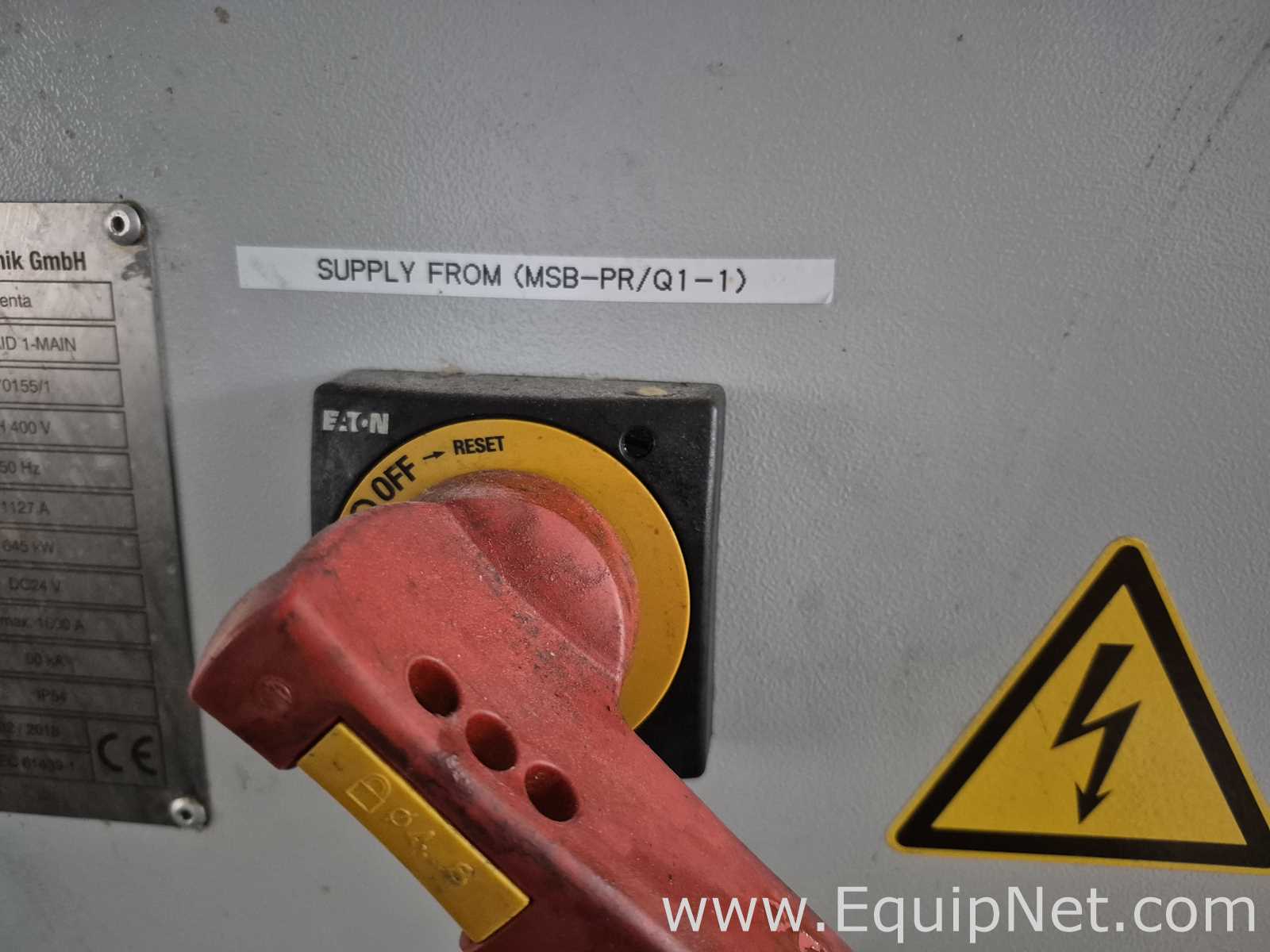

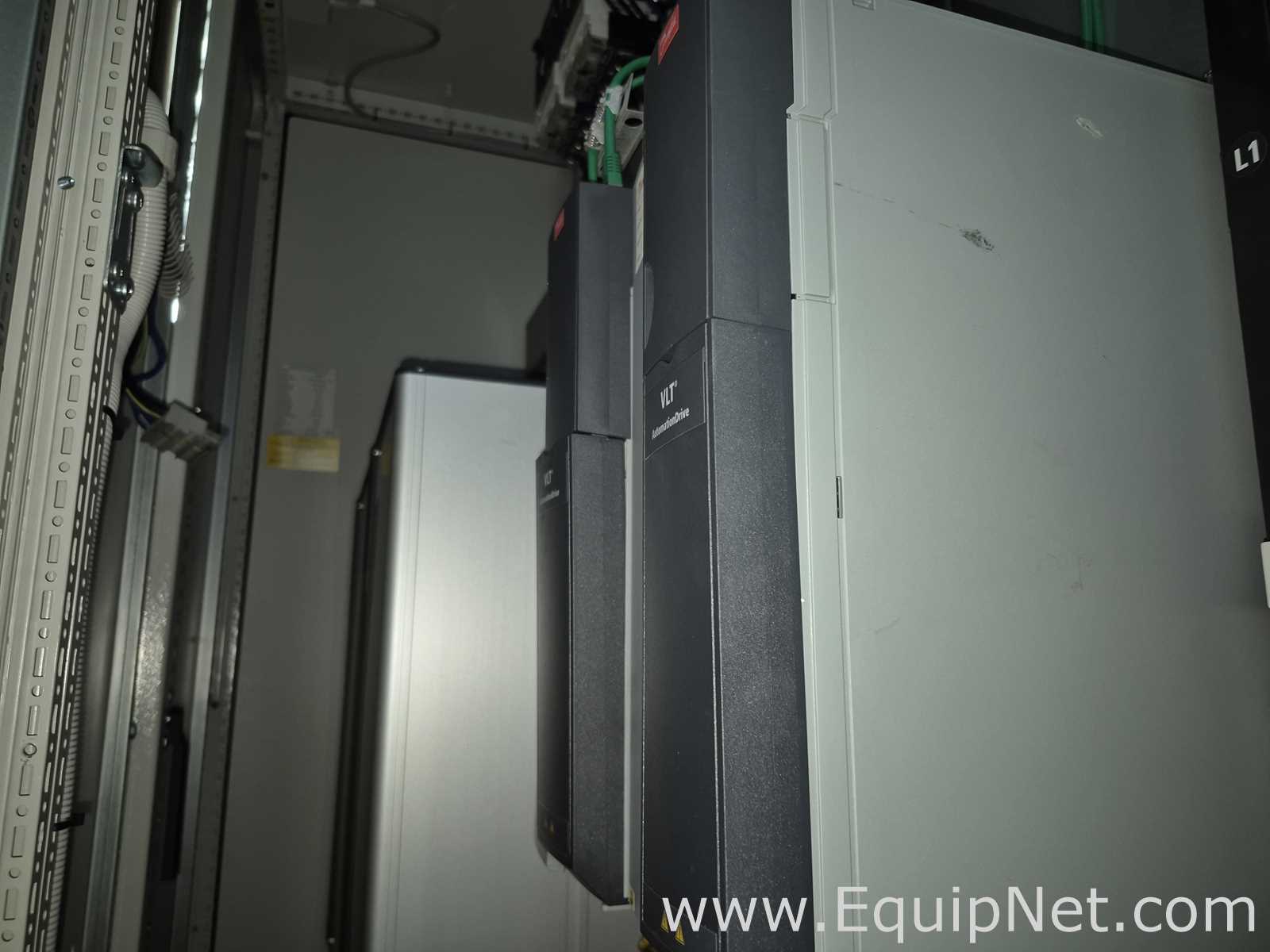

Netzsch Electrical Control Cabinet And HMI Skid 4-2 Master Equipment List

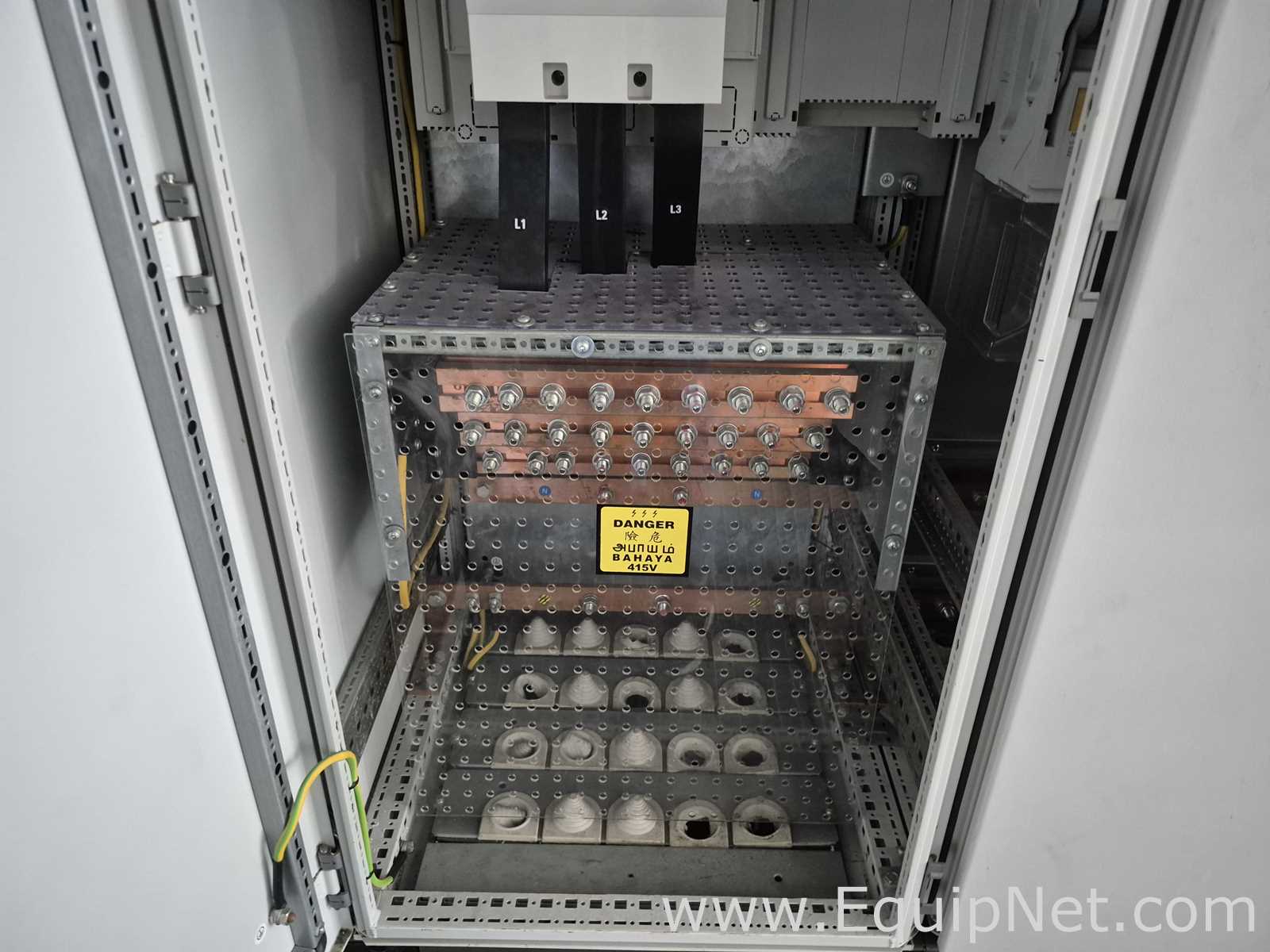

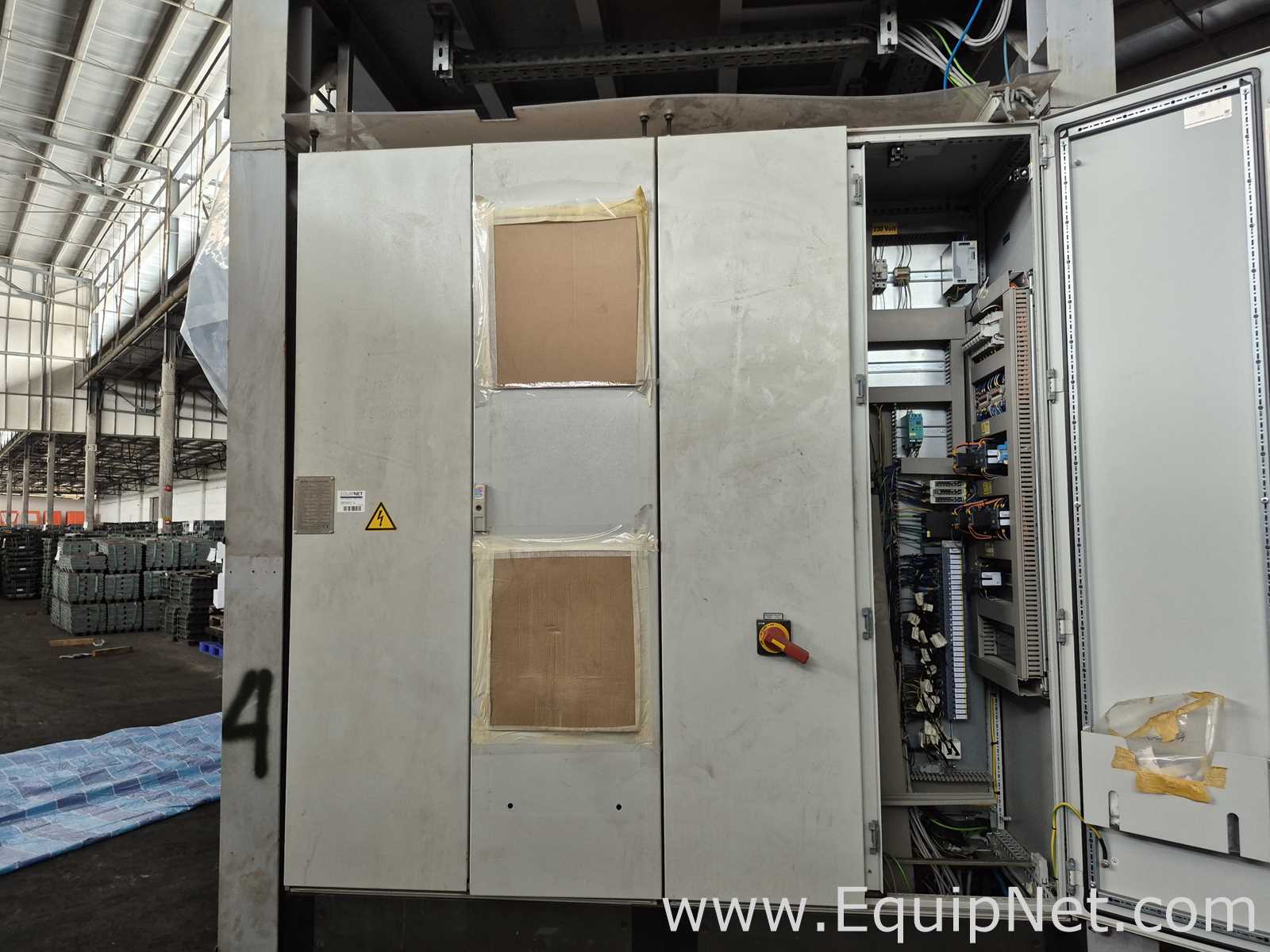

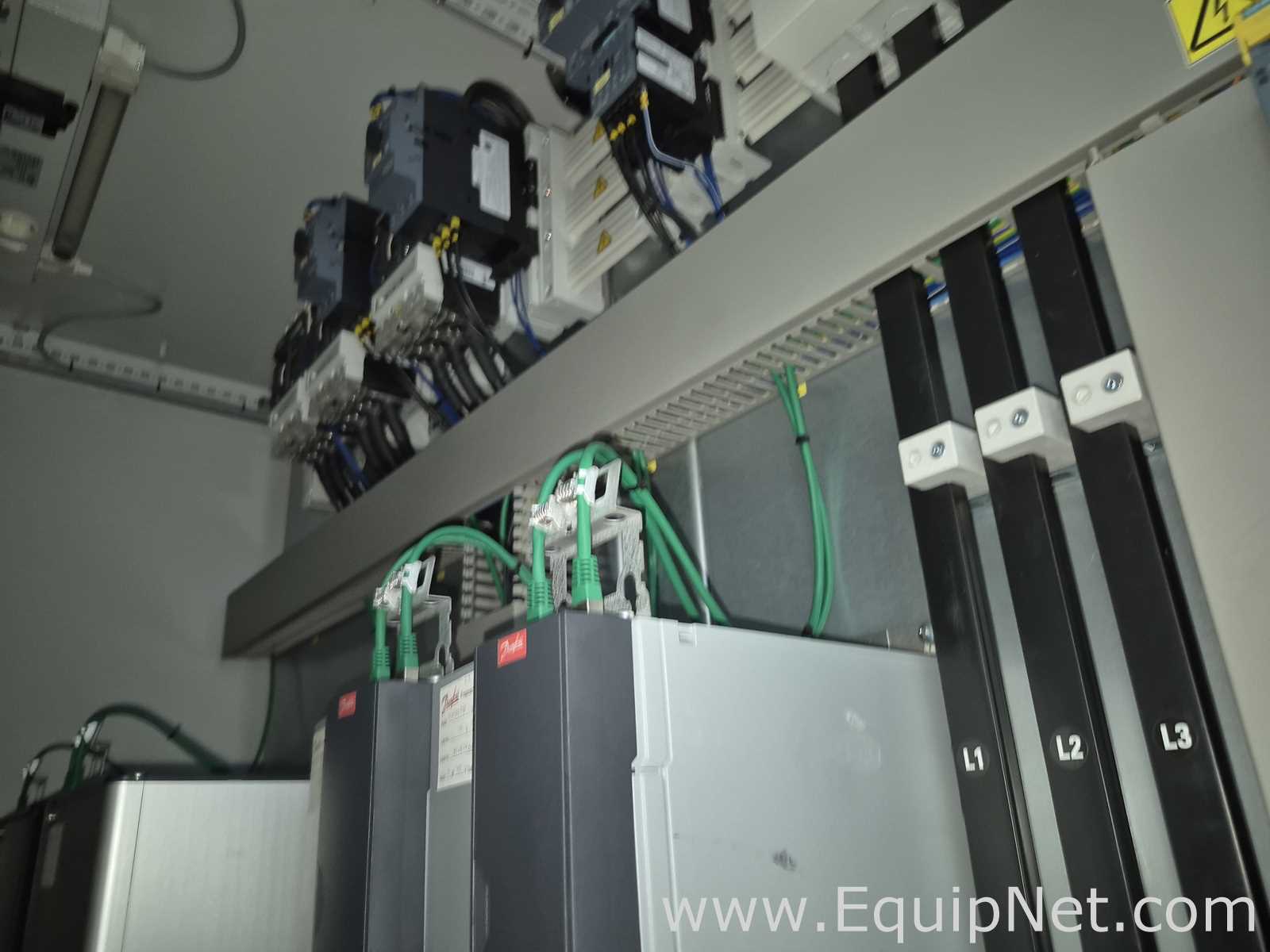

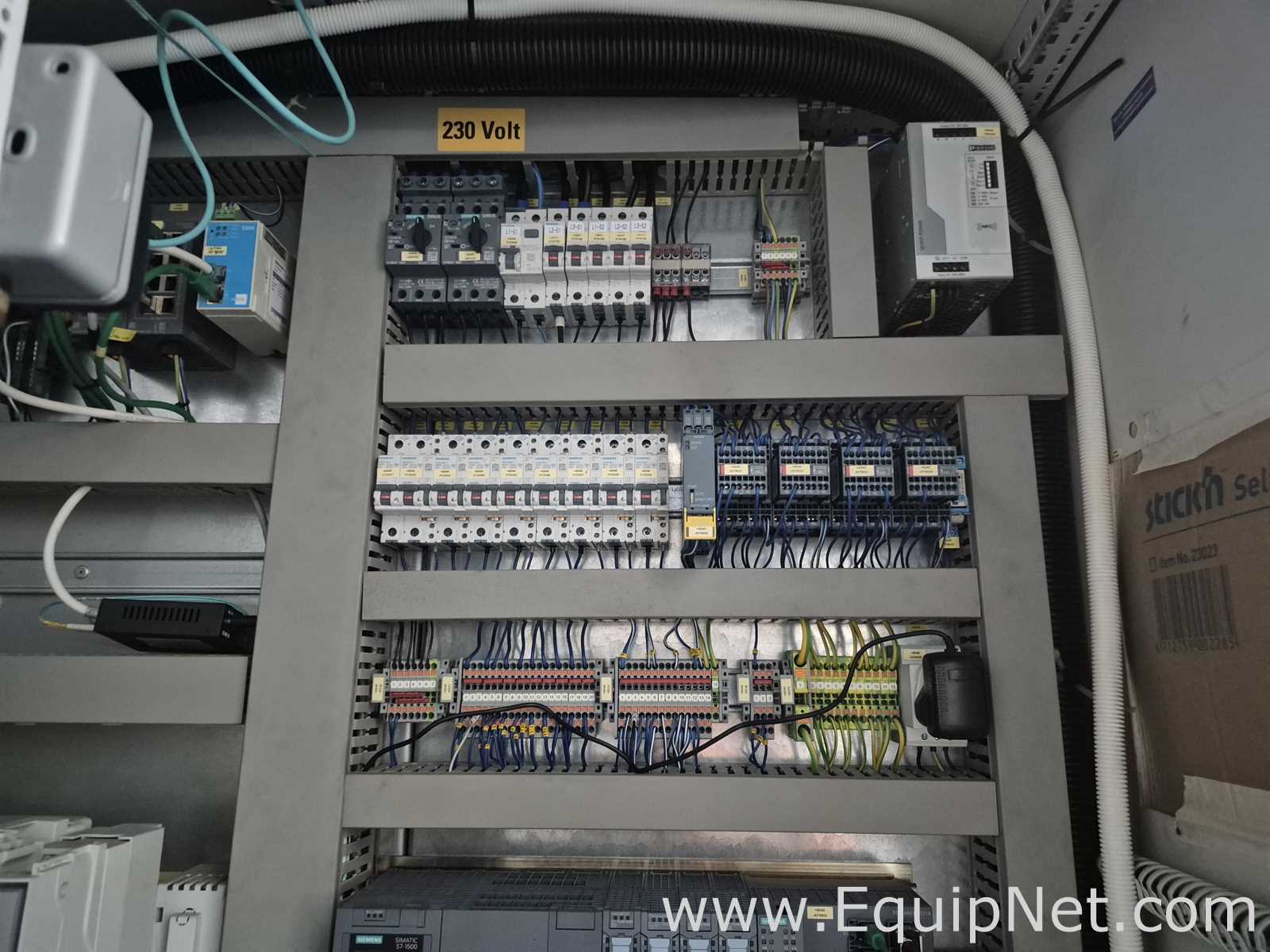

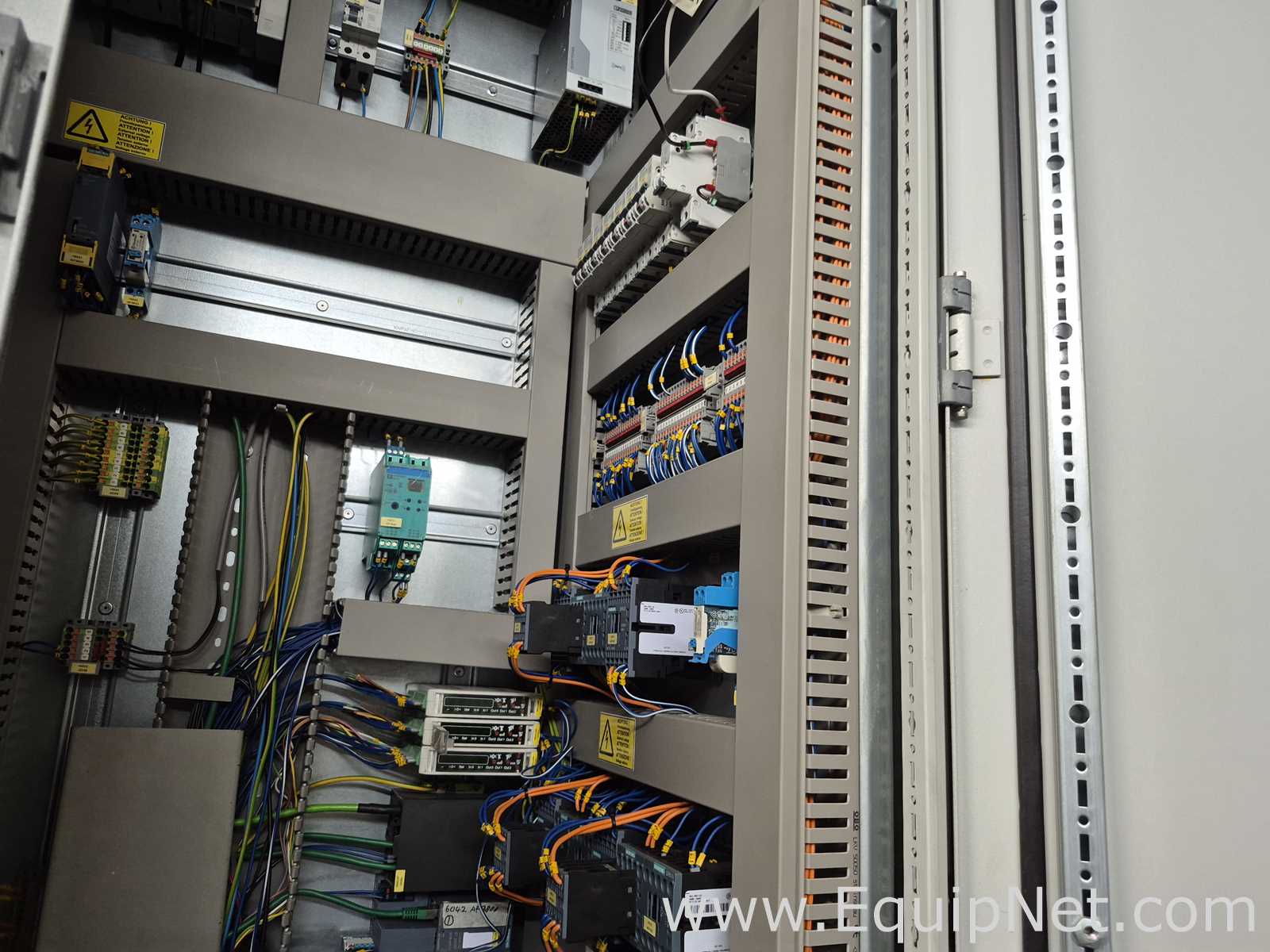

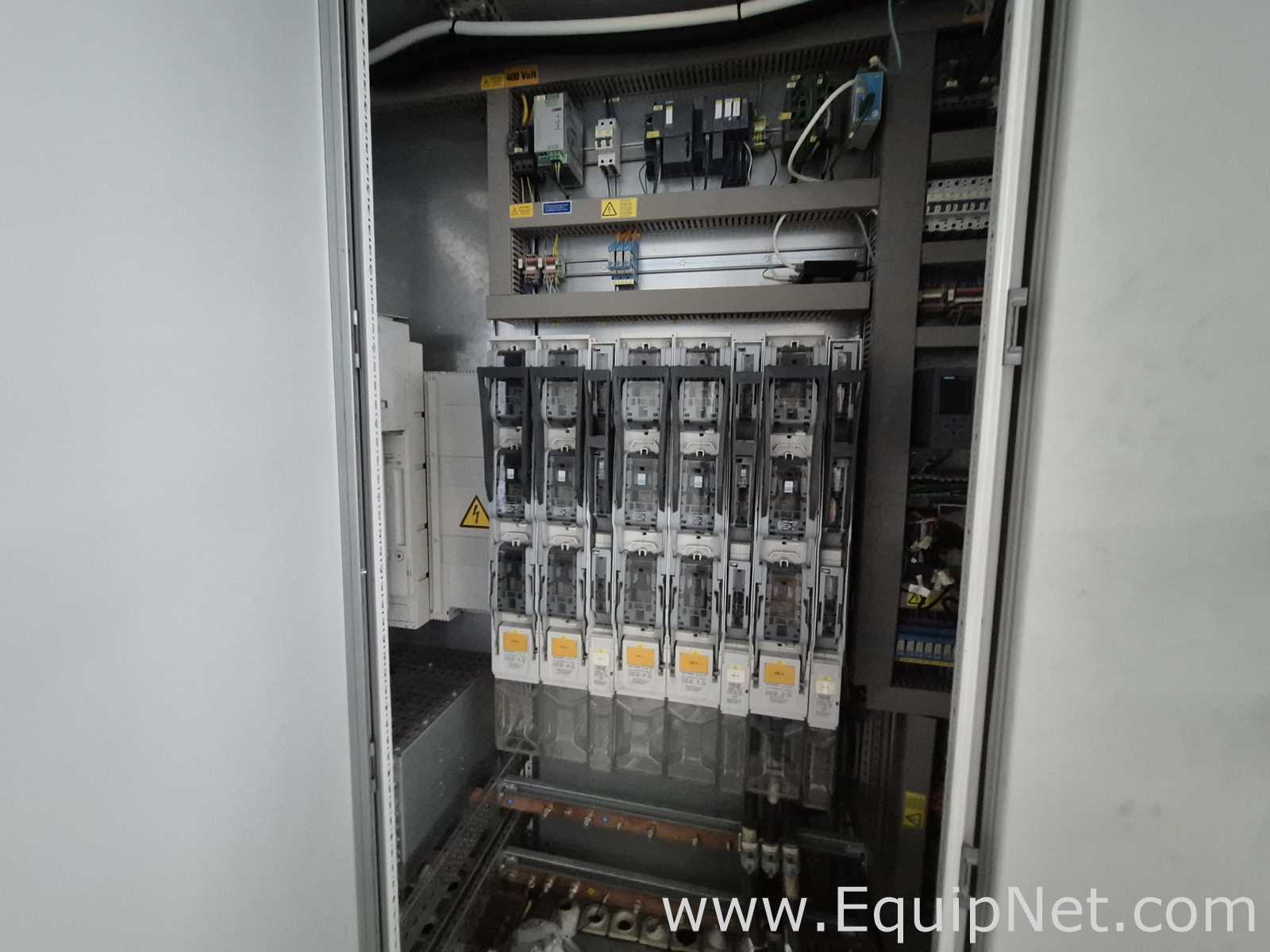

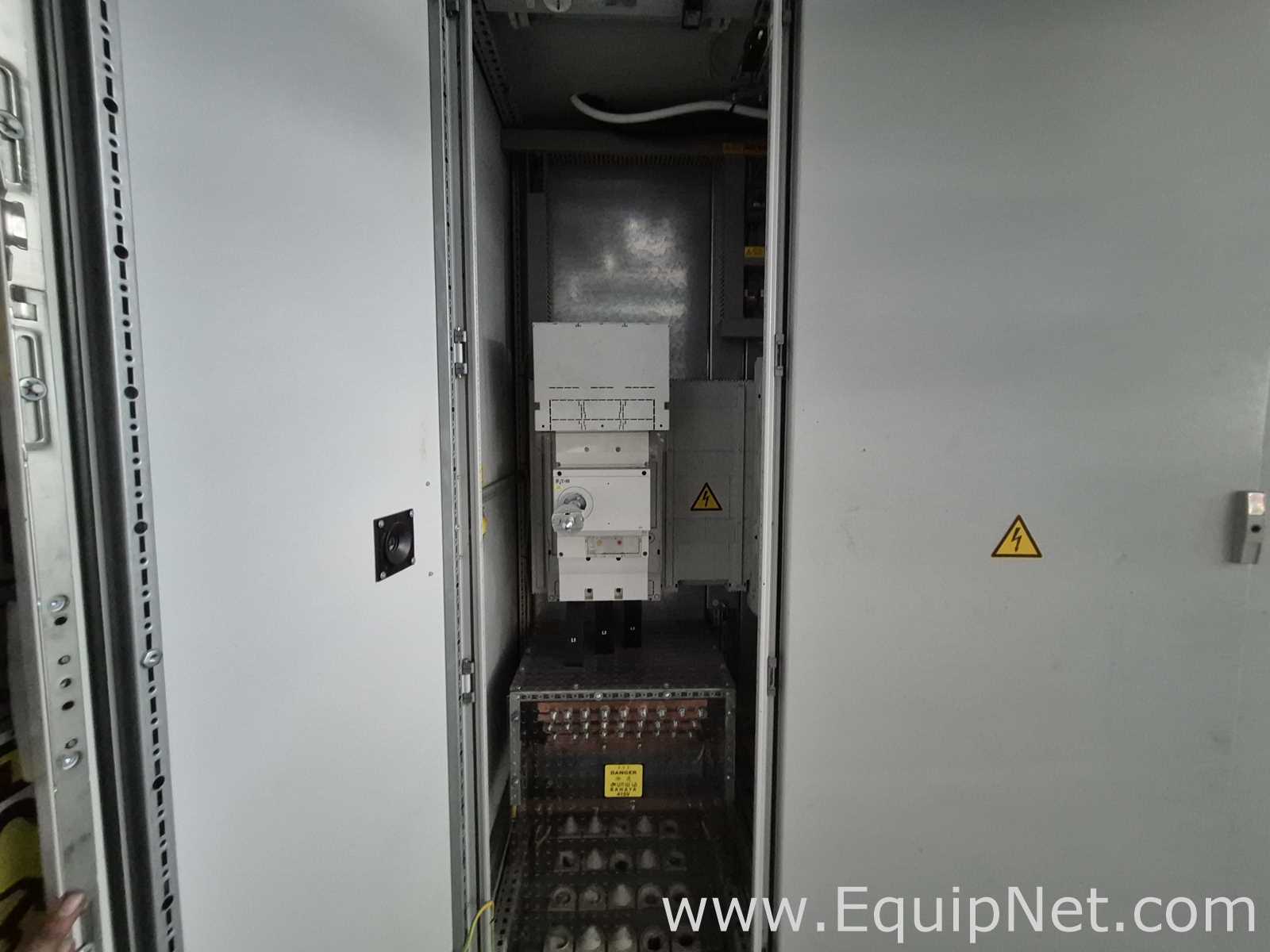

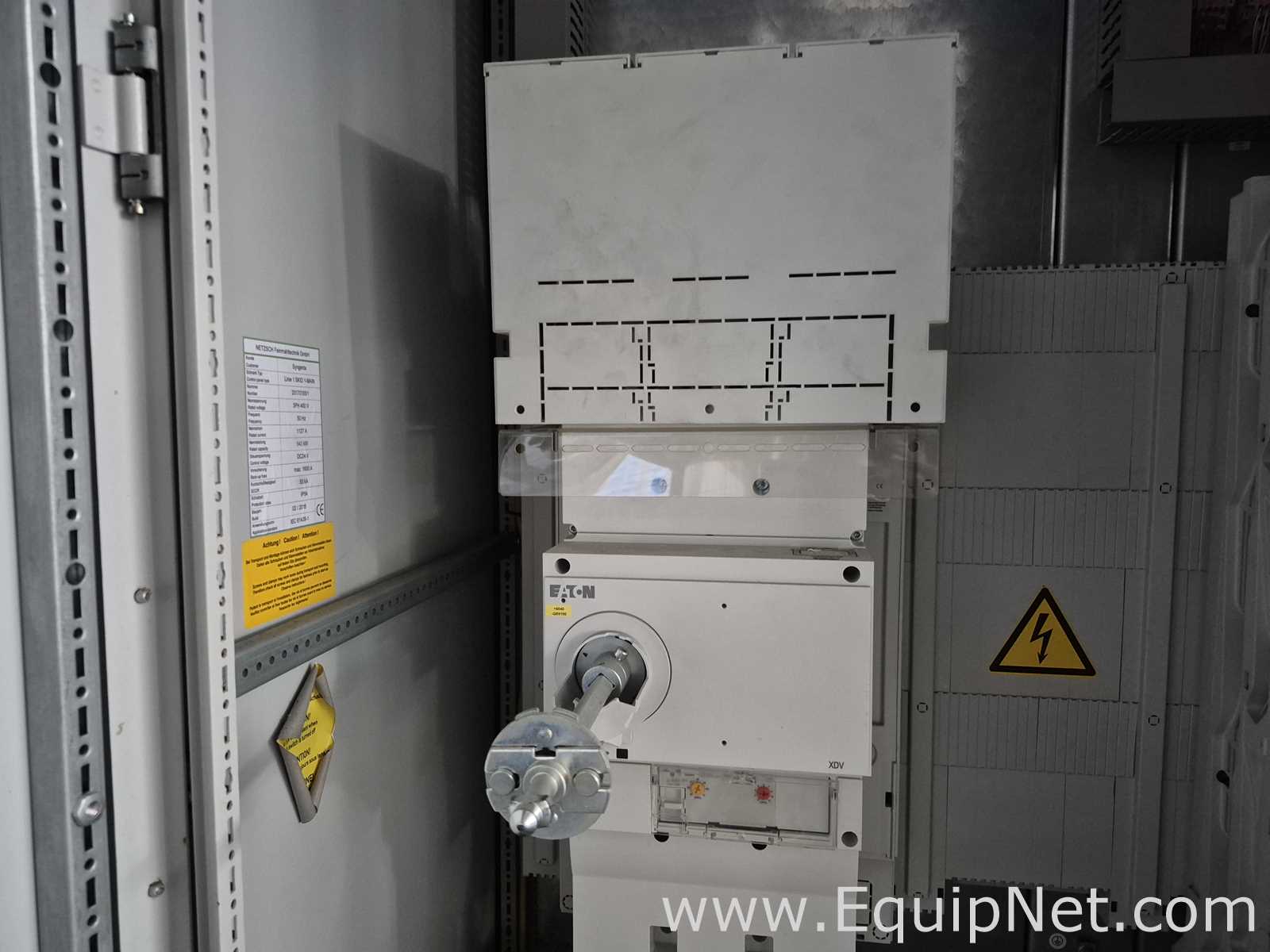

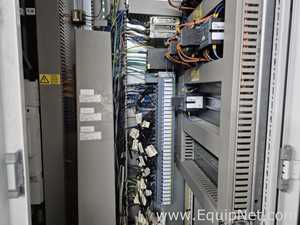

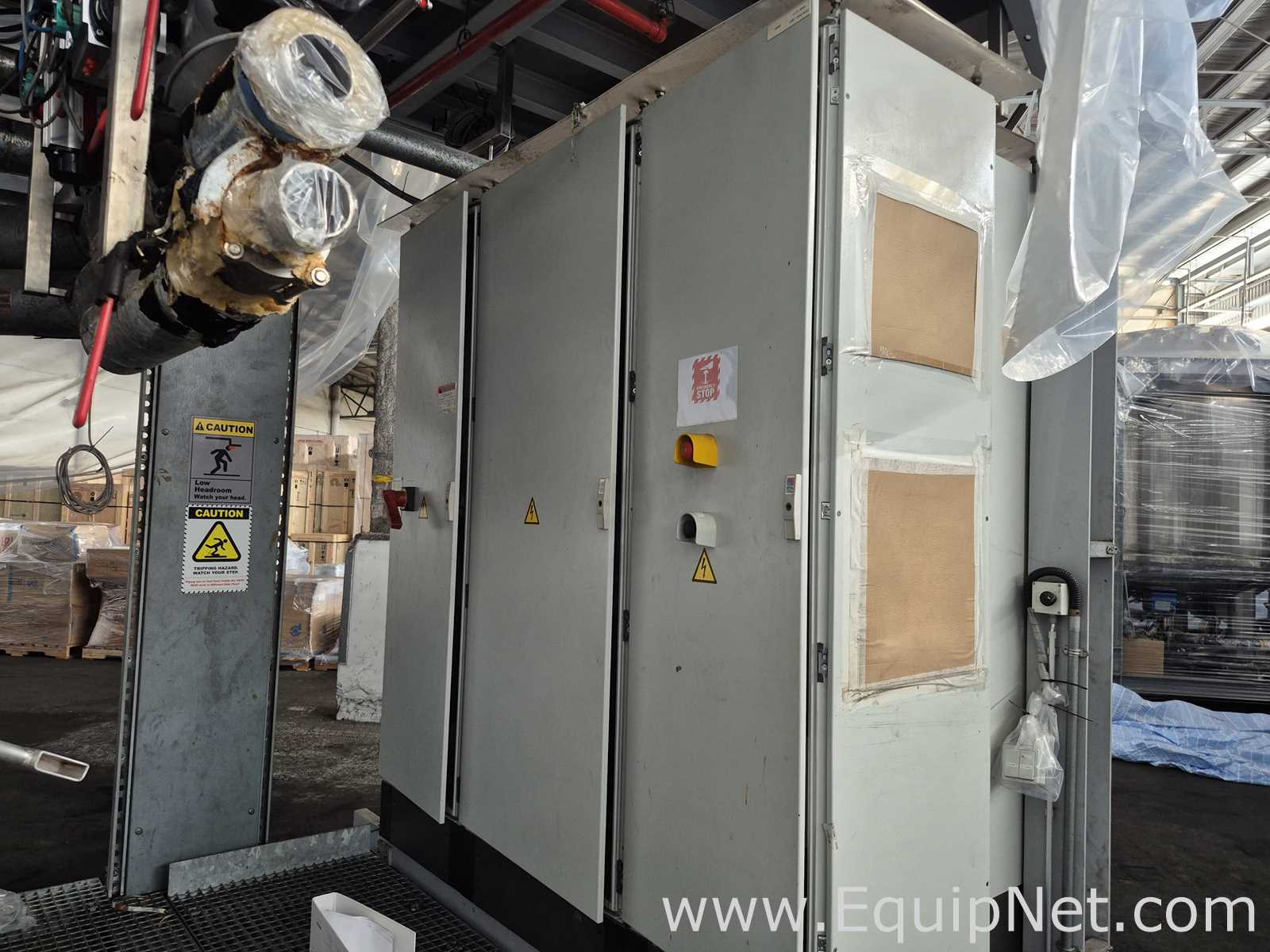

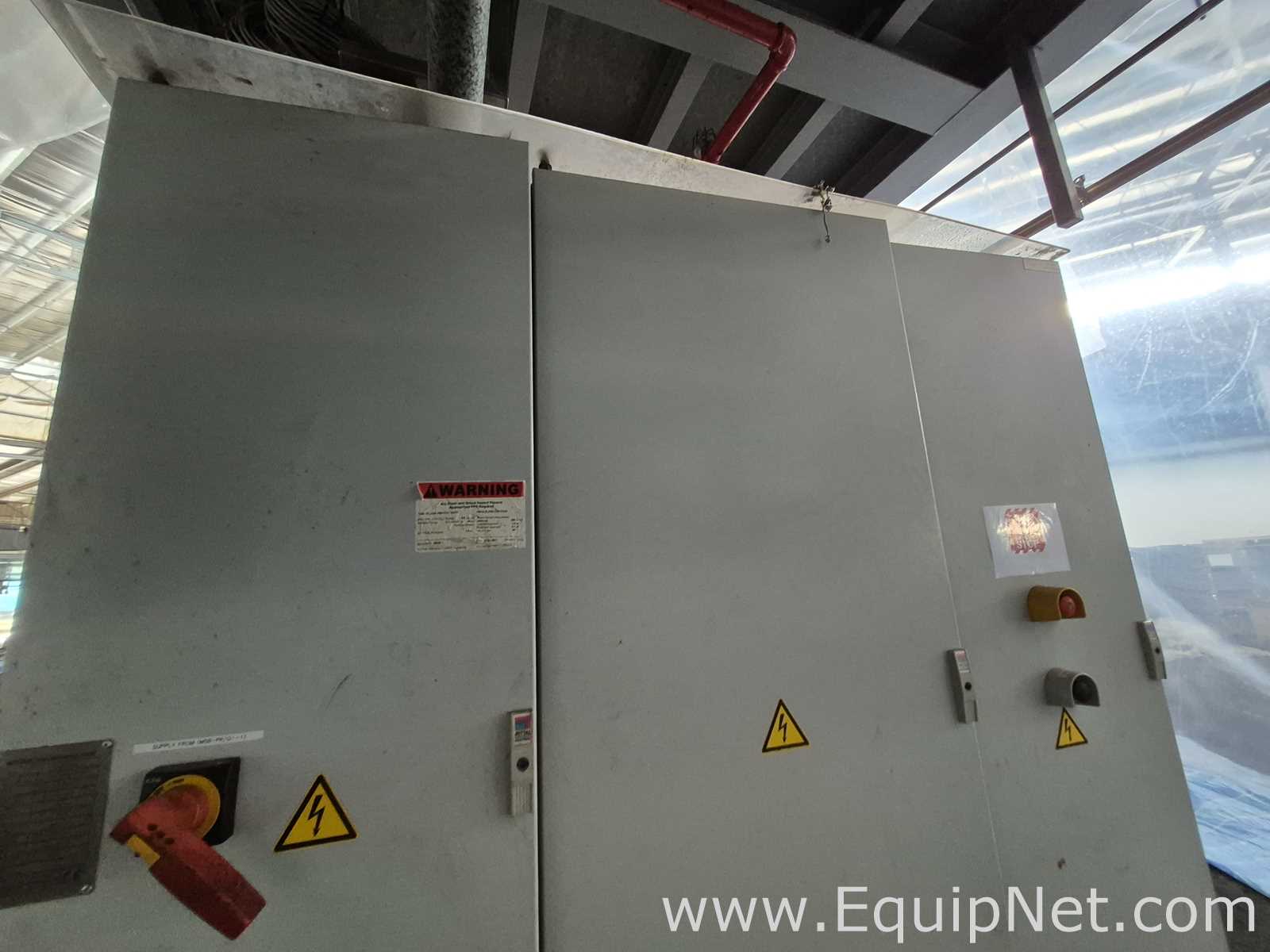

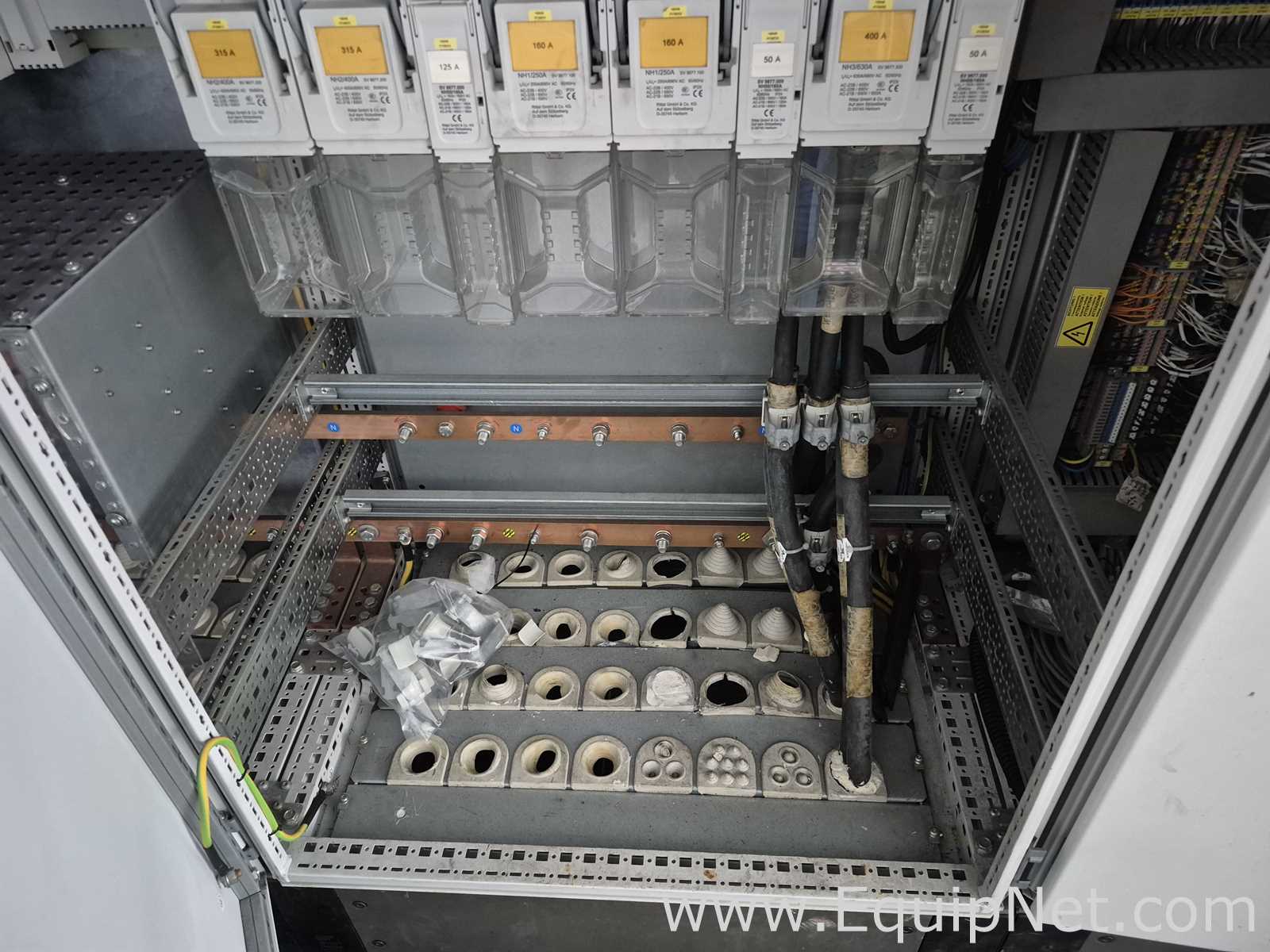

8 Electrical Cabinet Electrical Cabinet 2000 × 2000 × 600 mm Skid 4.2 DOWN Pallet-19 - Line-1 Panel Cooling Unit (2-1 / 2-2 / 2-3)
9 HMI Operator Panel Housing Skid 4.2 TOP
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Recommended Packaging Form:
CRATE
CRATE
Dimensions:
Standard
Metric
Overall:
1 x 1 x 1 IN - 1 LBS
25.40 x 25.40 x 25.40 mm - 0.45 kg
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1056181

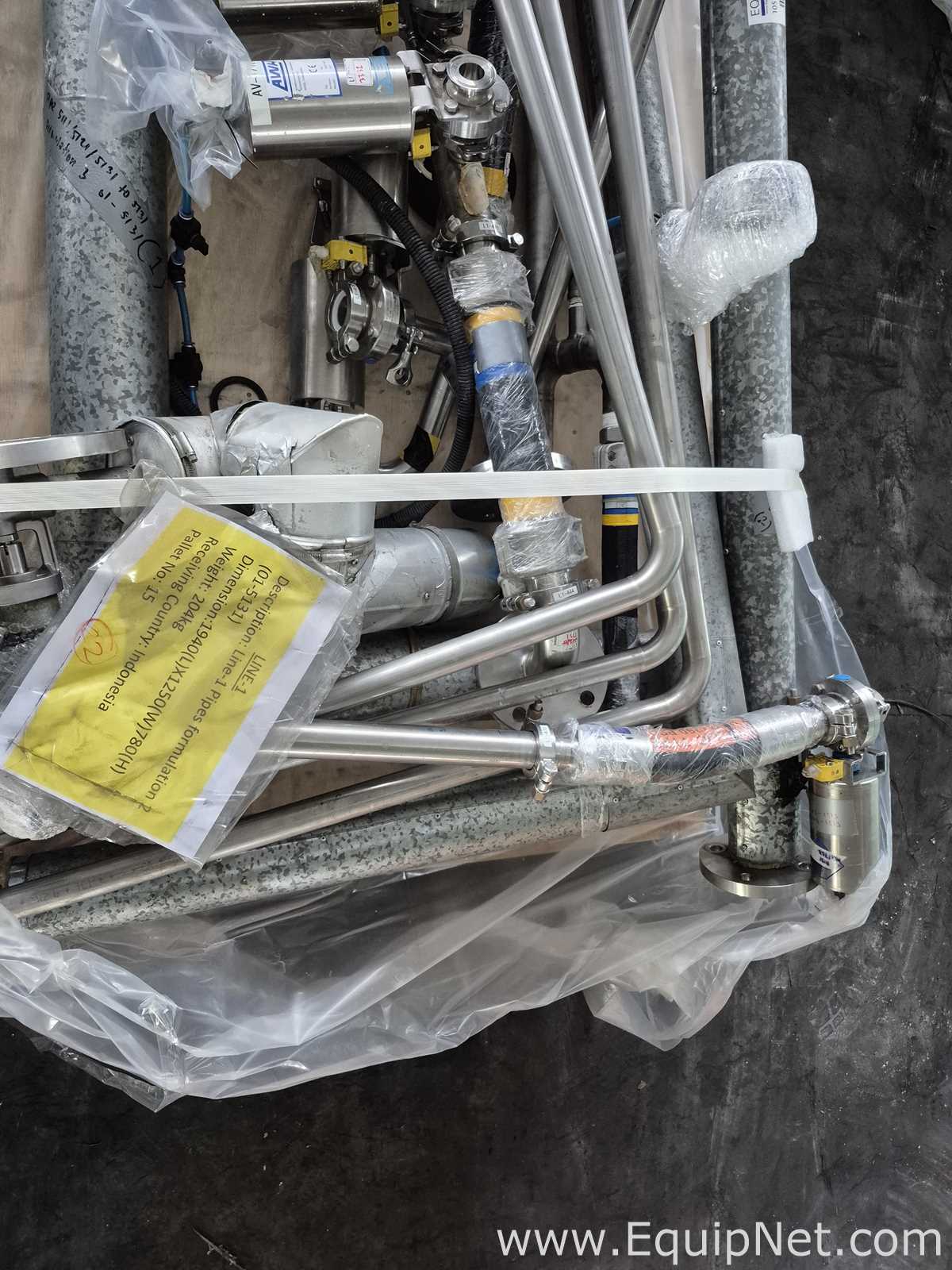

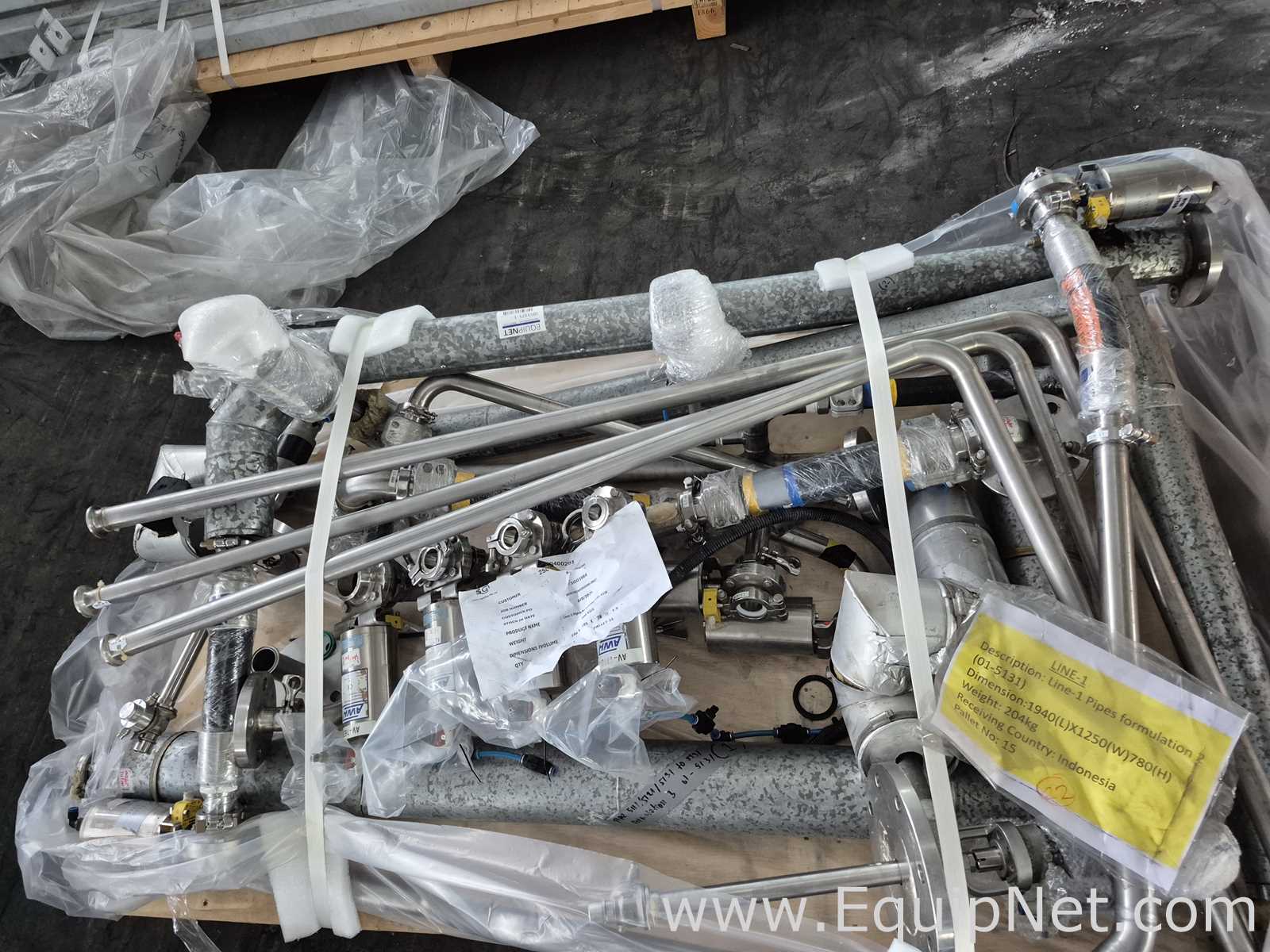

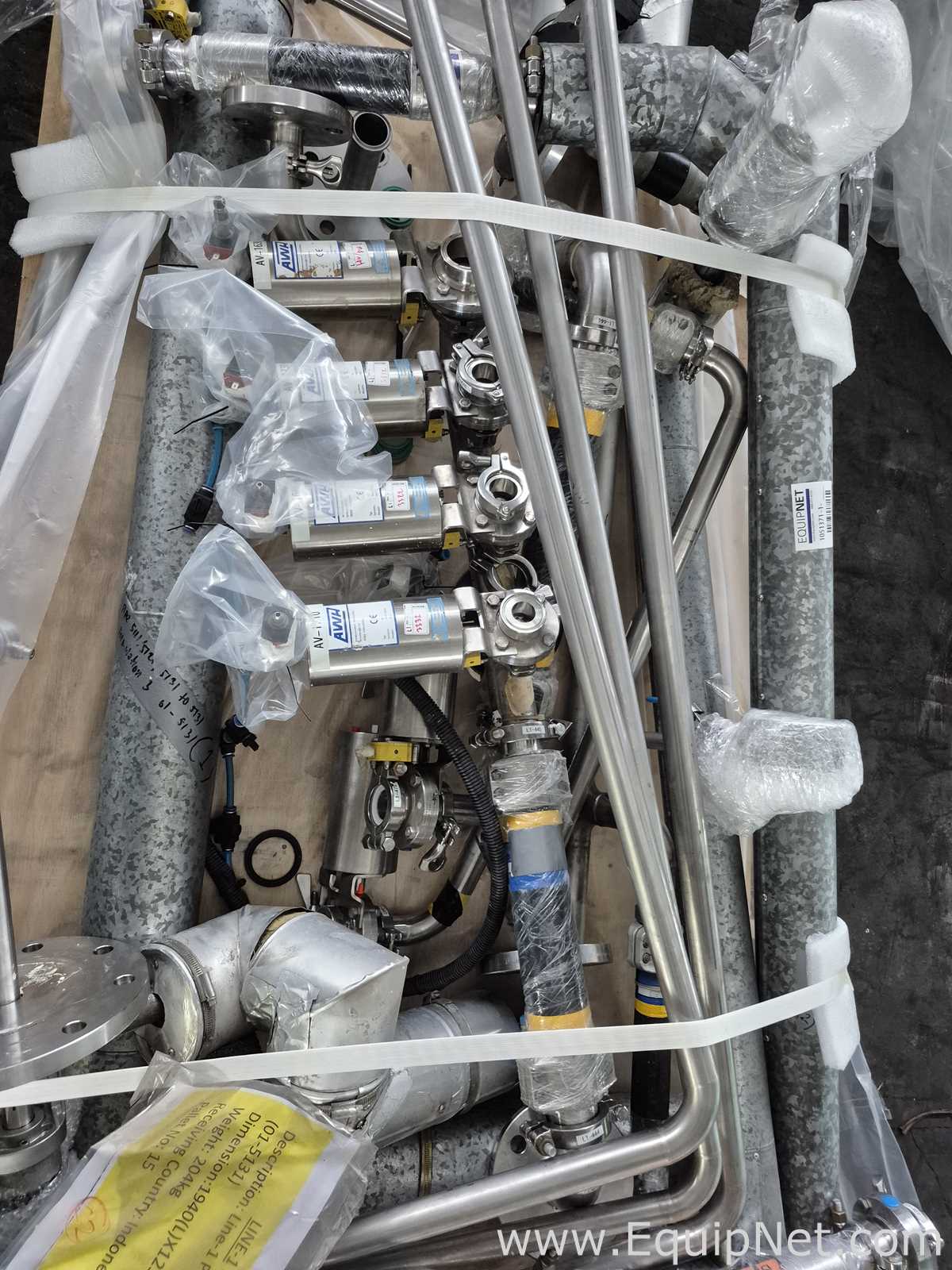

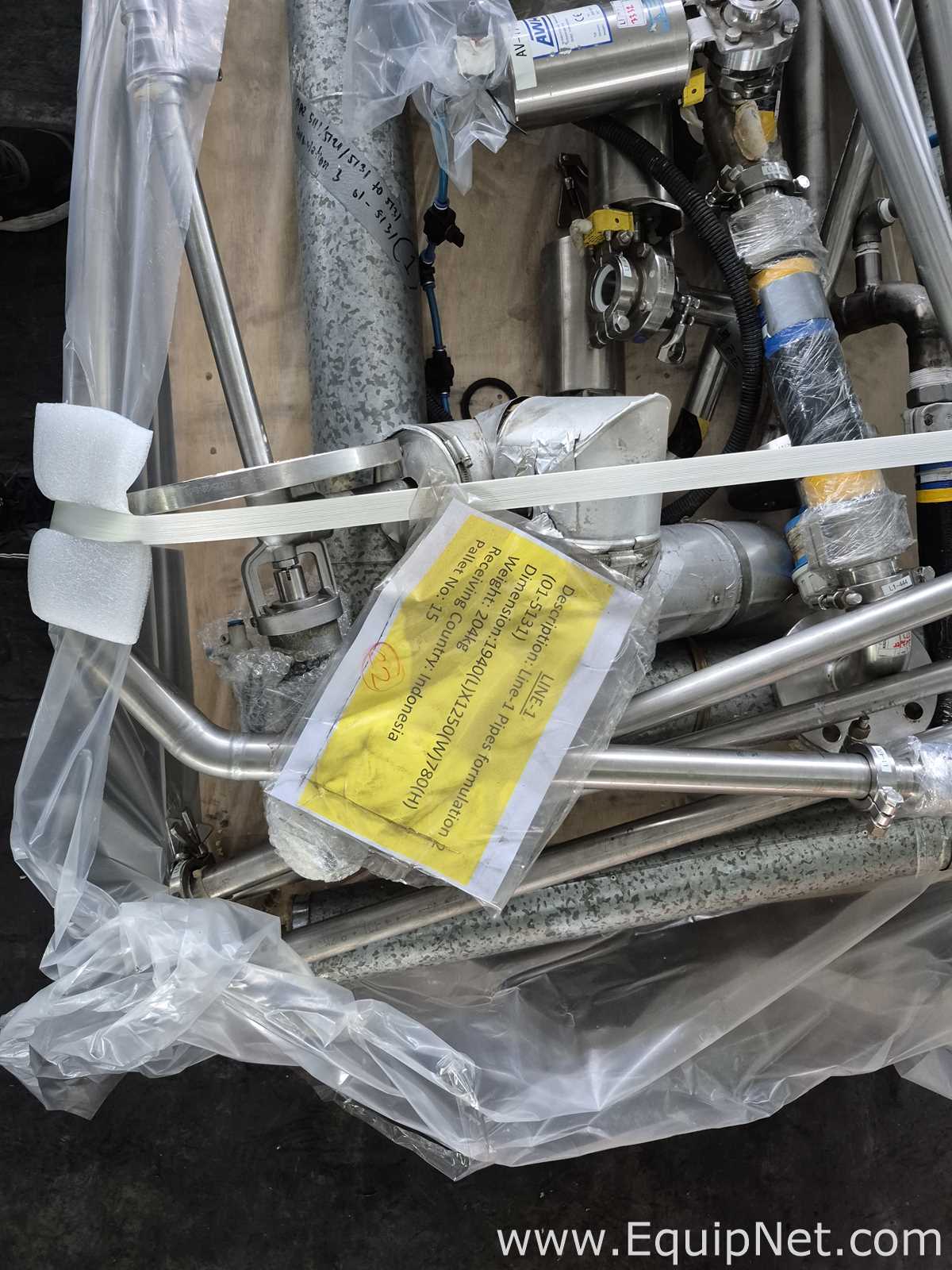

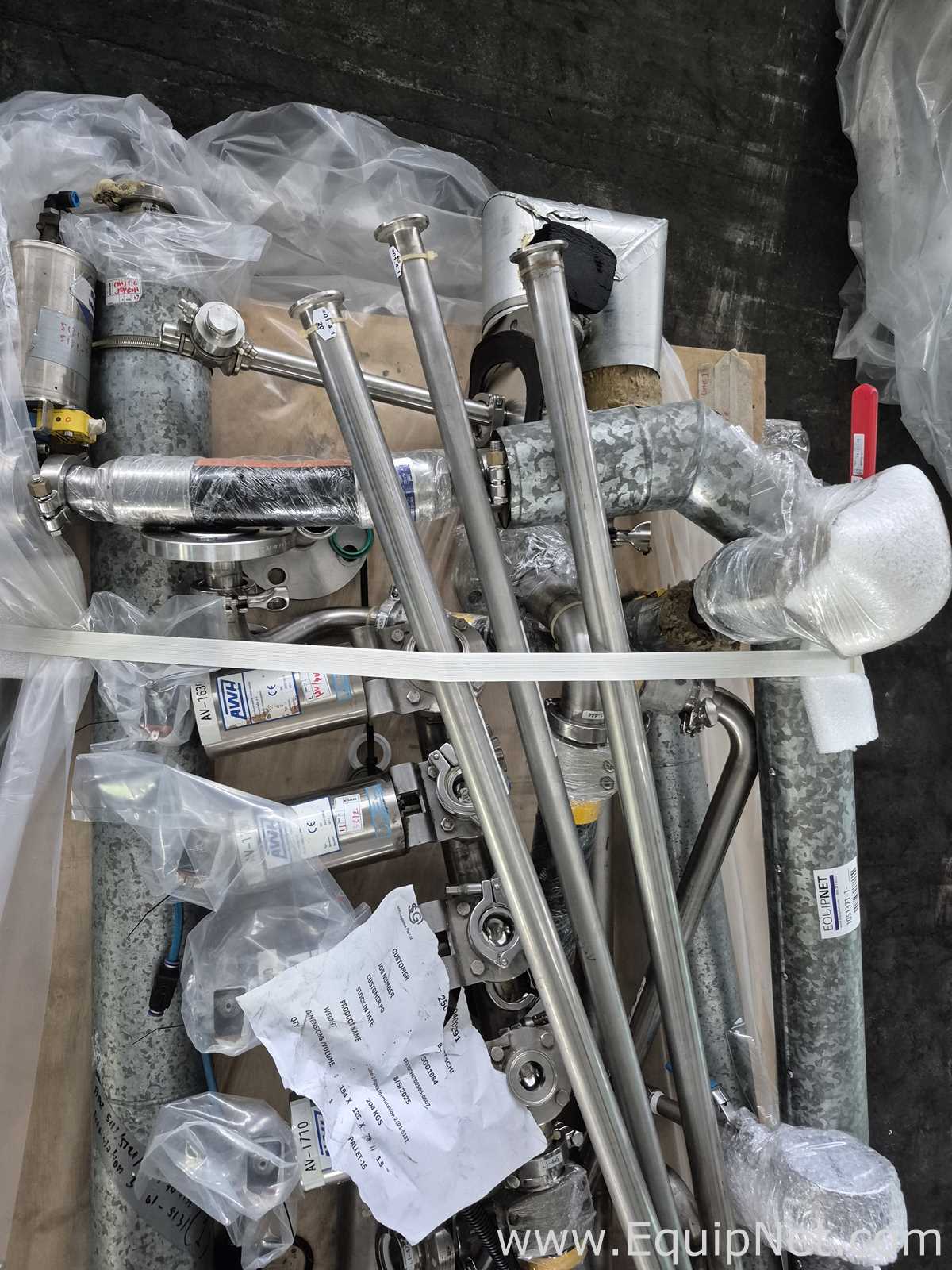

Line 1 - Pipes Formulation 2 5131 - Pallet No 15
Equipment Description
Line 1 - Pipes Formulation 2 5131 - Pallet No 15
Specifications:
Standard
Metric
Manufacturer Name
Various
Recommended Packaging Form:
CRATE
CRATE
Dimensions:
Standard
Metric
Overall:
76.38 x 49.21 x 39.37 in - 449.74 lb
1940 x 1250 x 1000 MM - 204 KGS
