Listing# 1108009

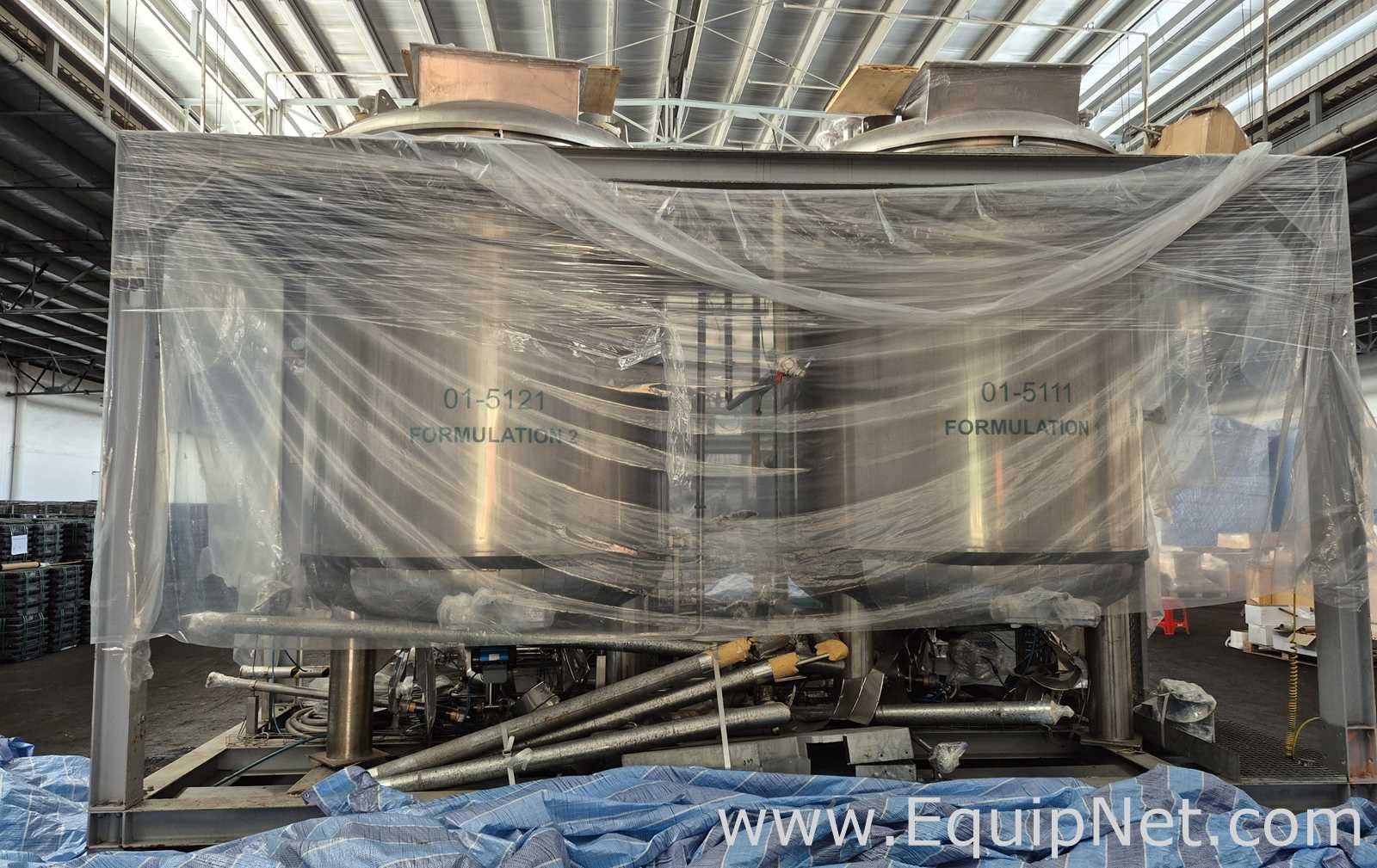

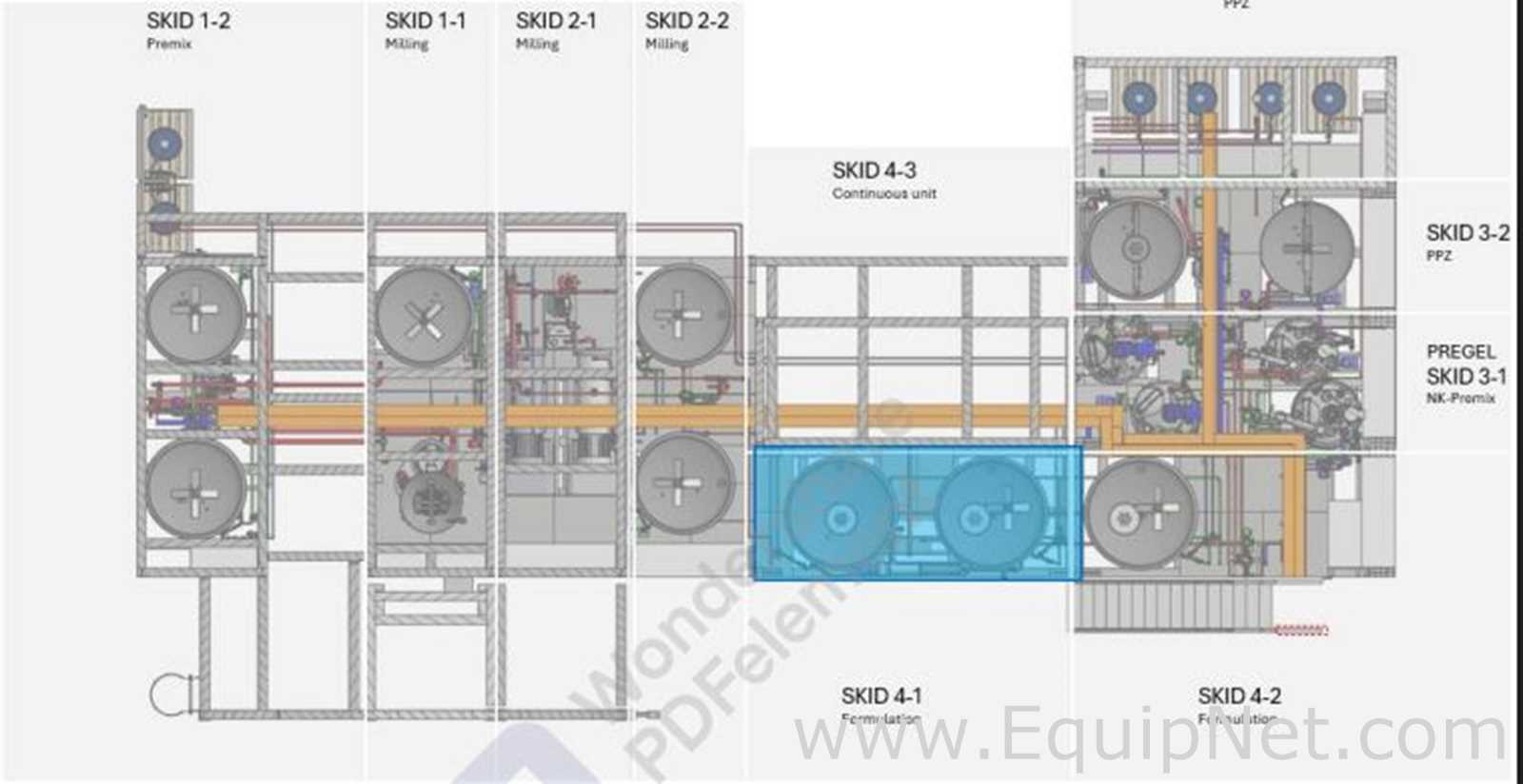

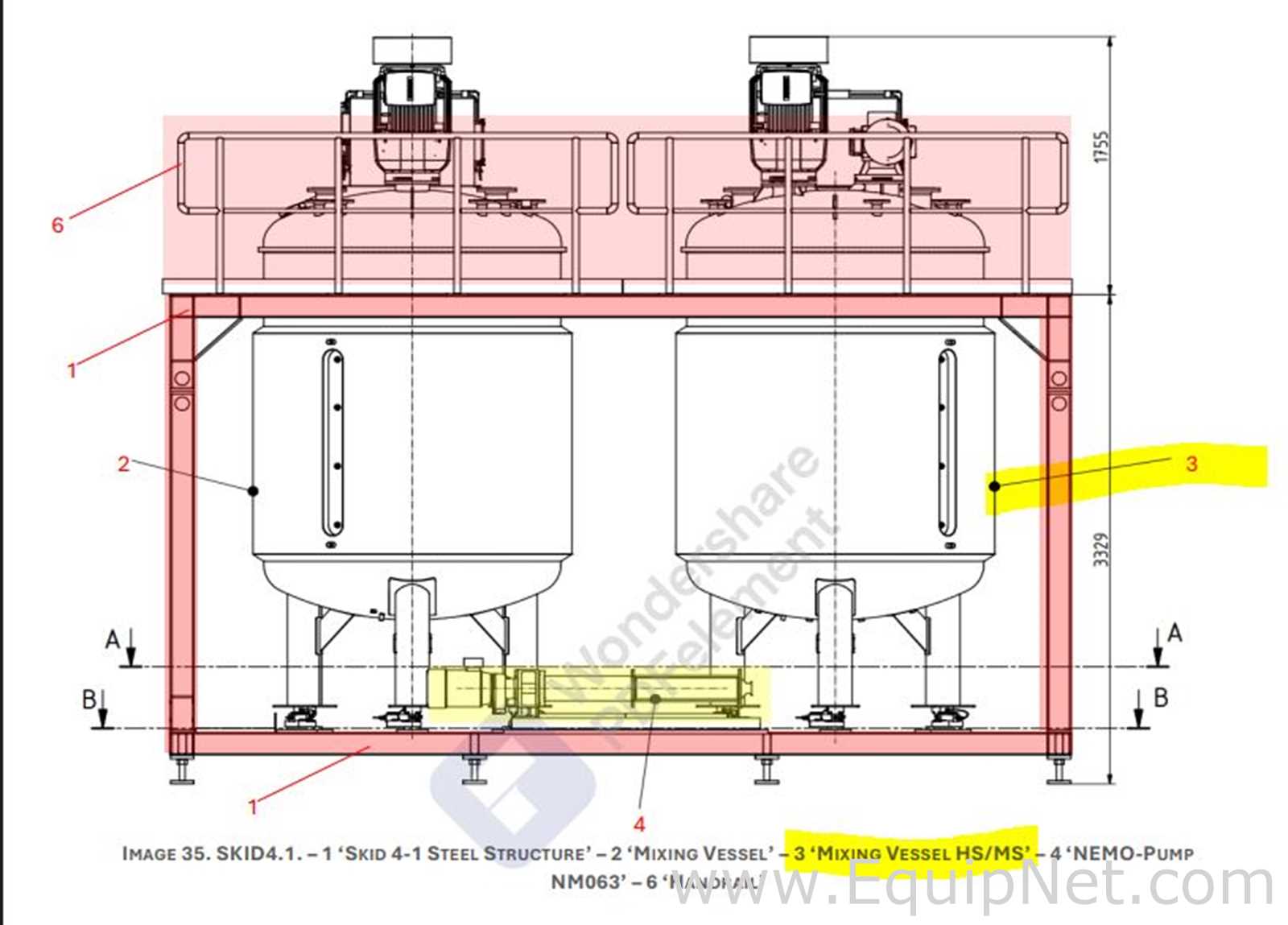

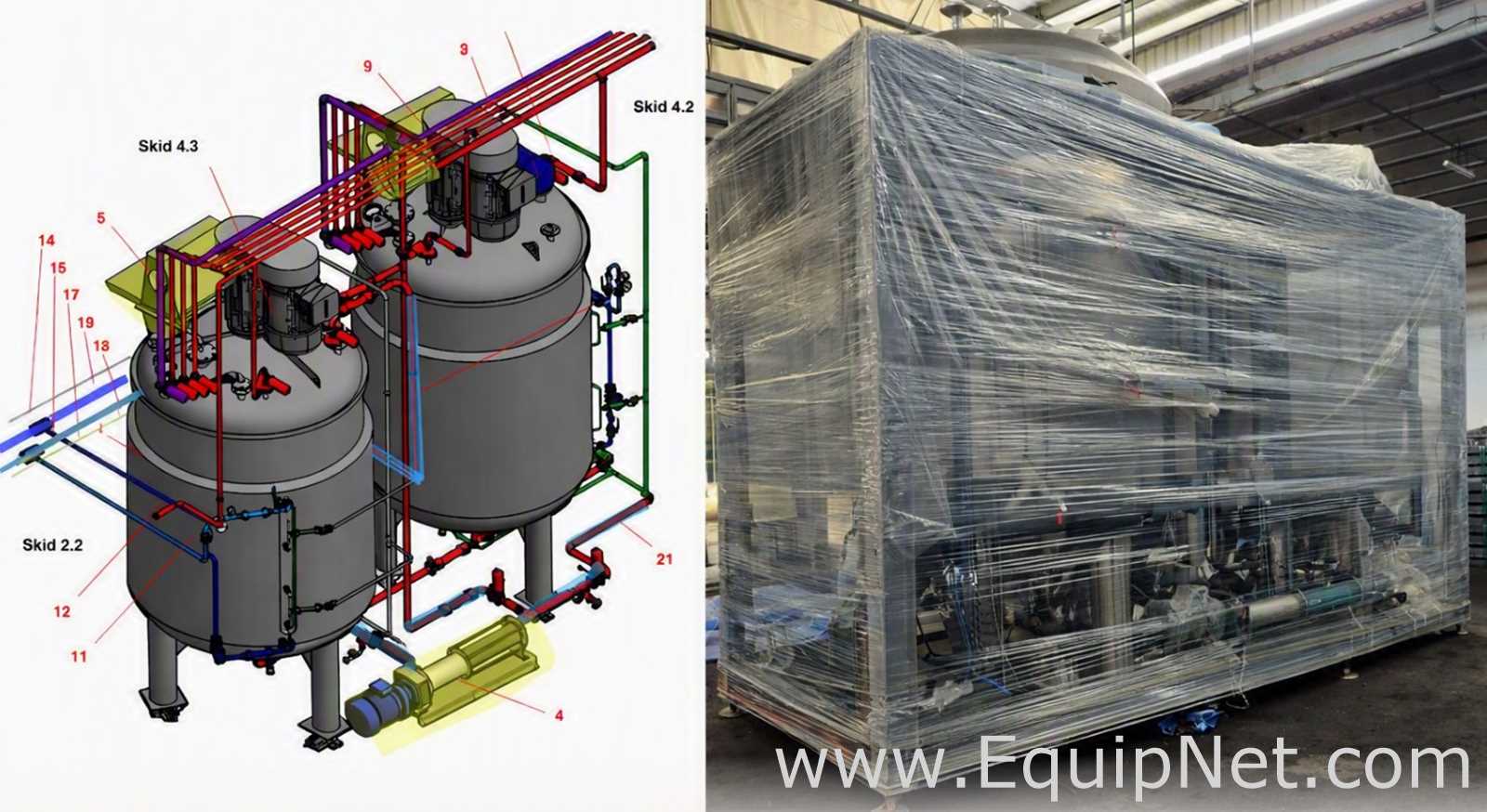

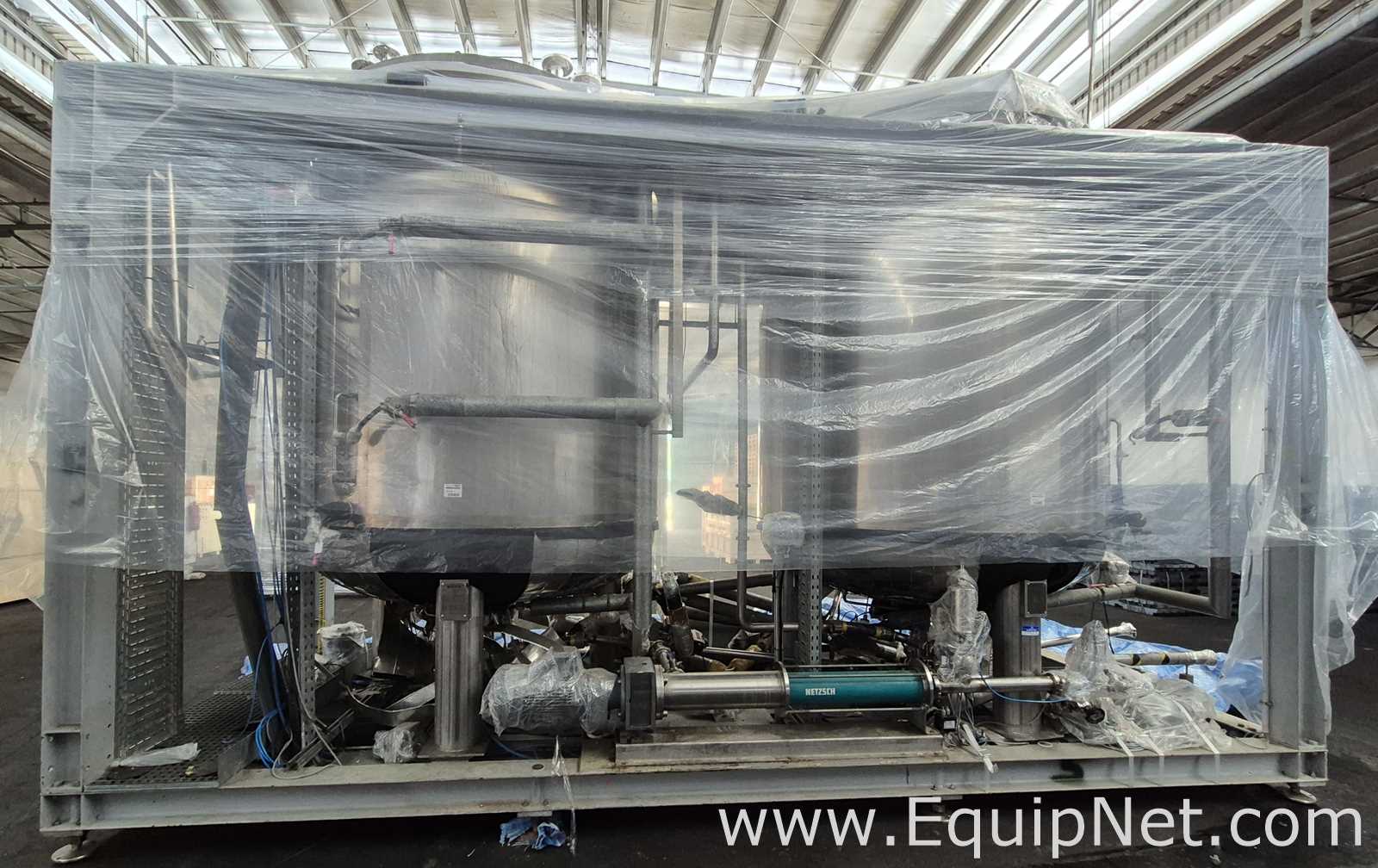

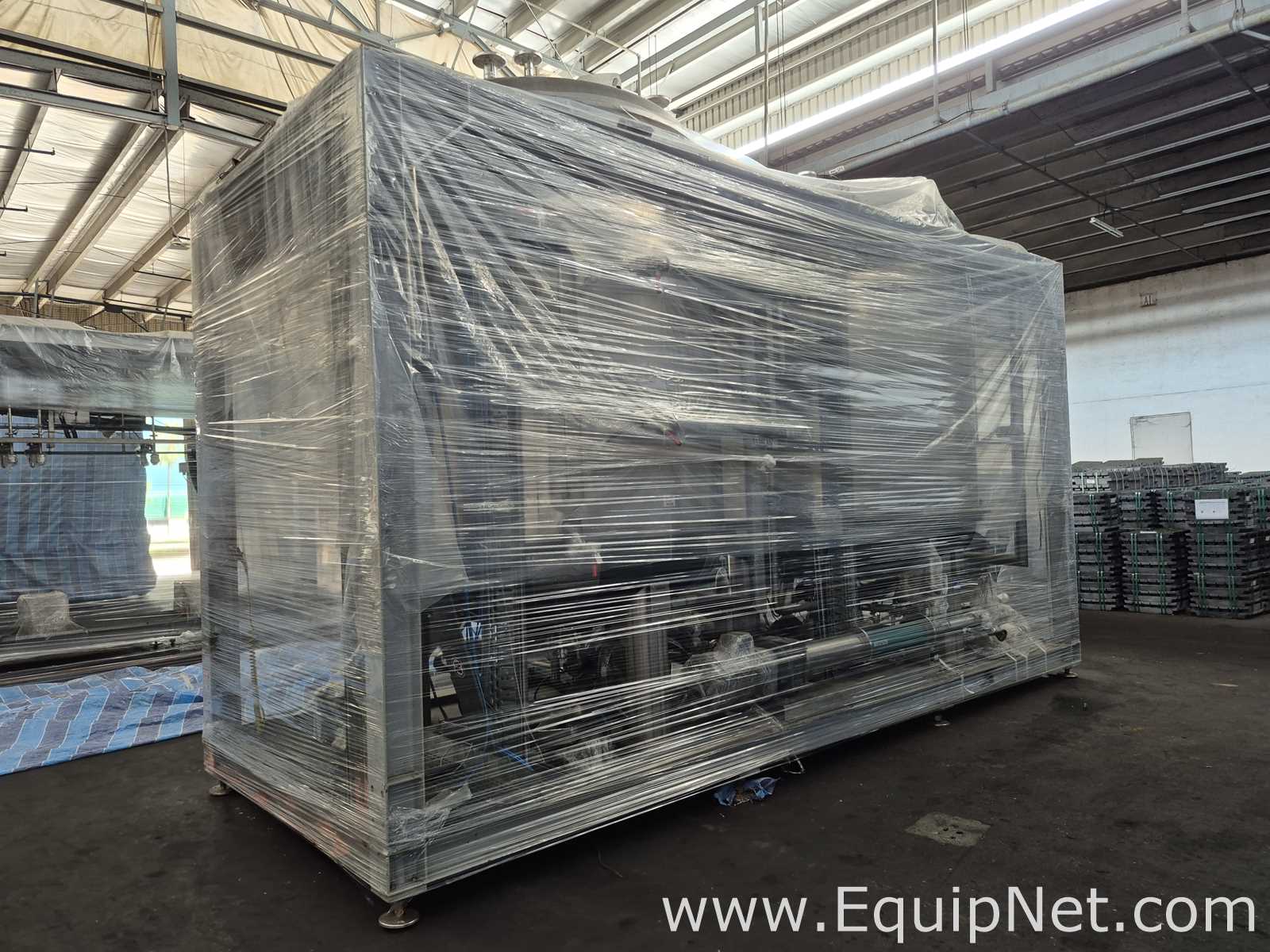

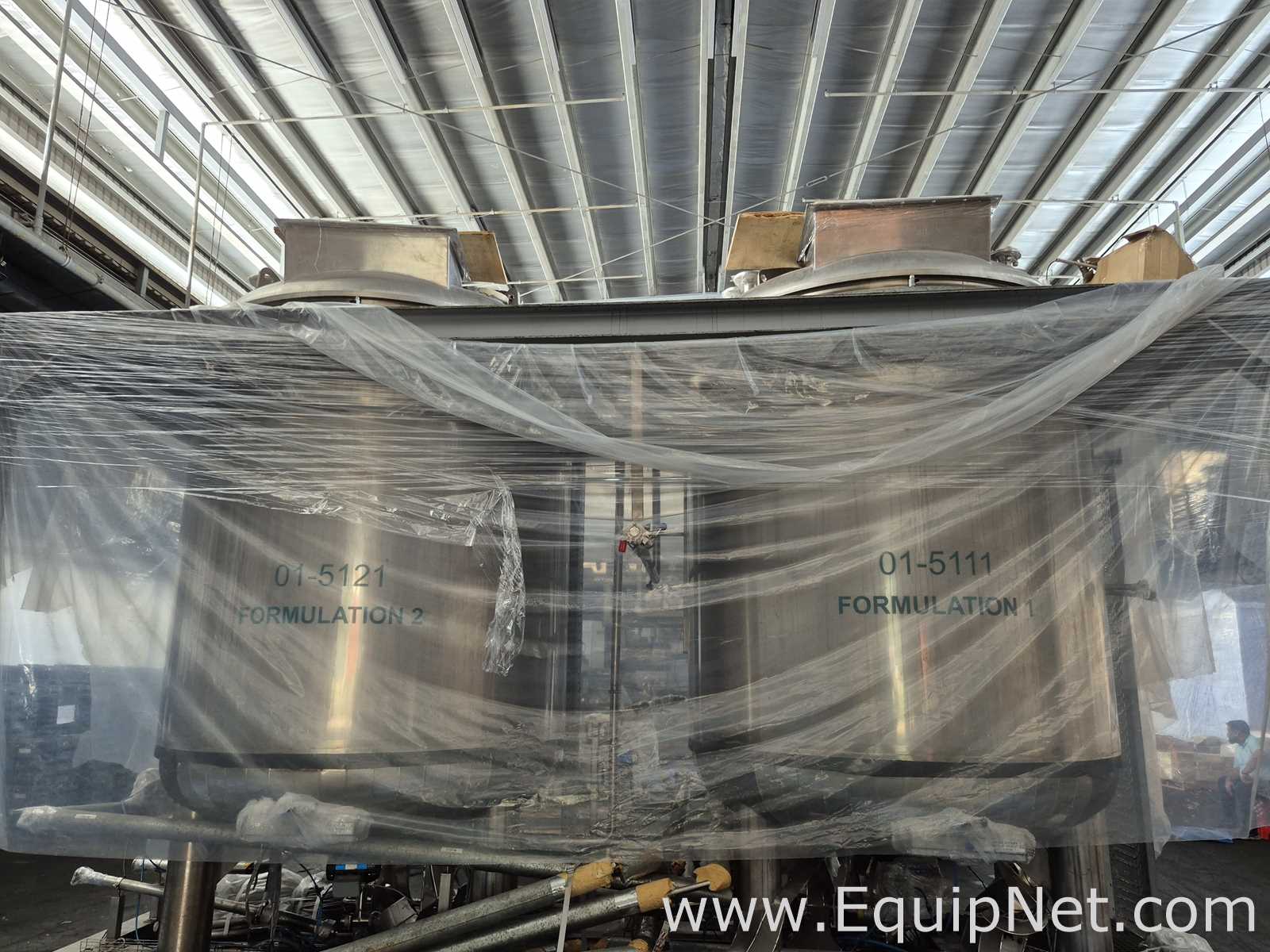

Netzsch 6000L Formulation 2 High Speed Mixing Vessel 5121 - Skid 4-1 Cooling-Buffer Transfer Station
THIS IS A MULTI-LISTING. VIEW INDIVIDUAL LISTINGS BY SCROLLING DOWN.
Pre-Owned NETZSCH Mixing Vessel for Sale
Seller's Acceptable Currency:
$90,000.00 USD
Request More Info Make An OfferLocation: Singapore

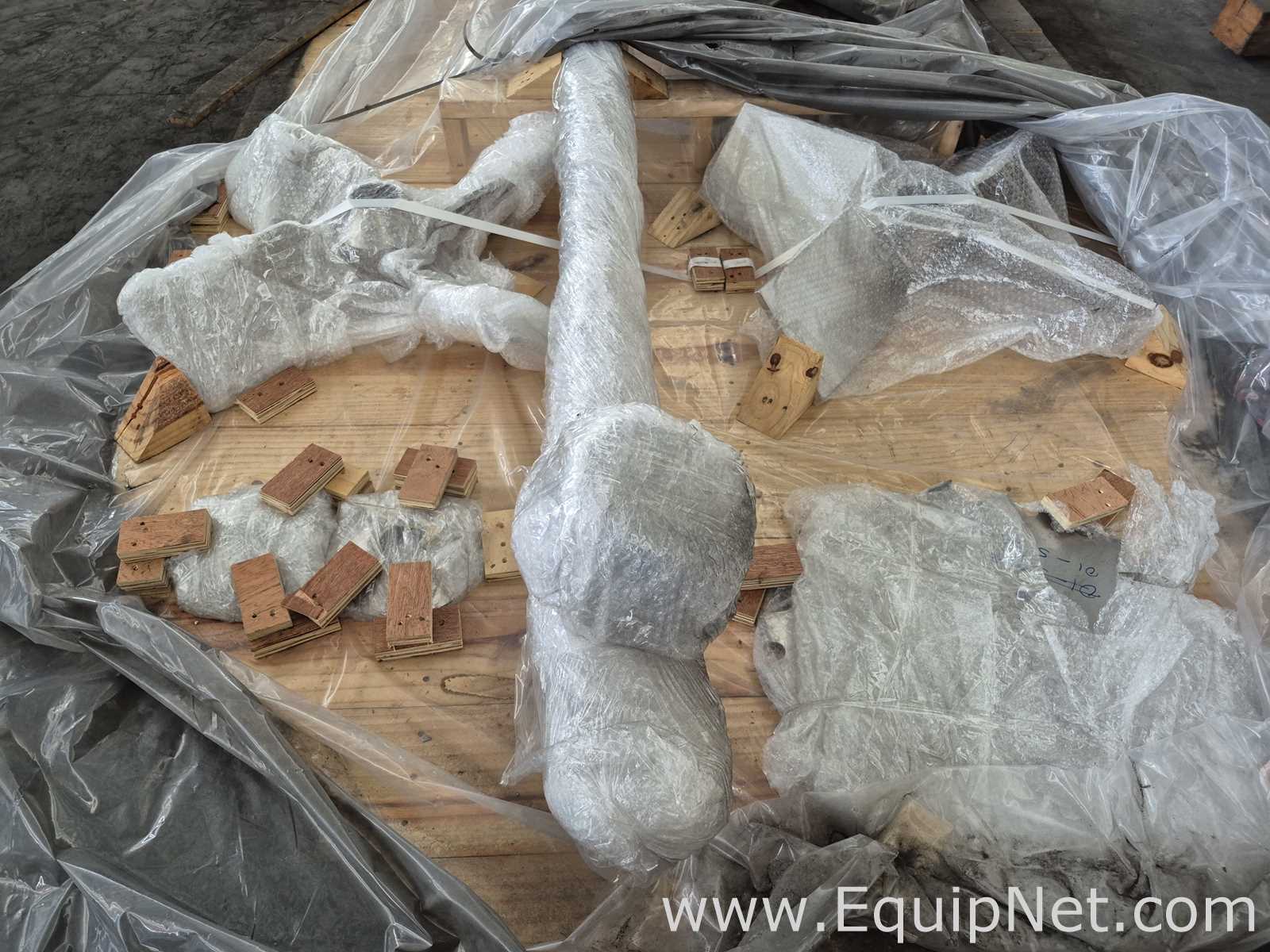

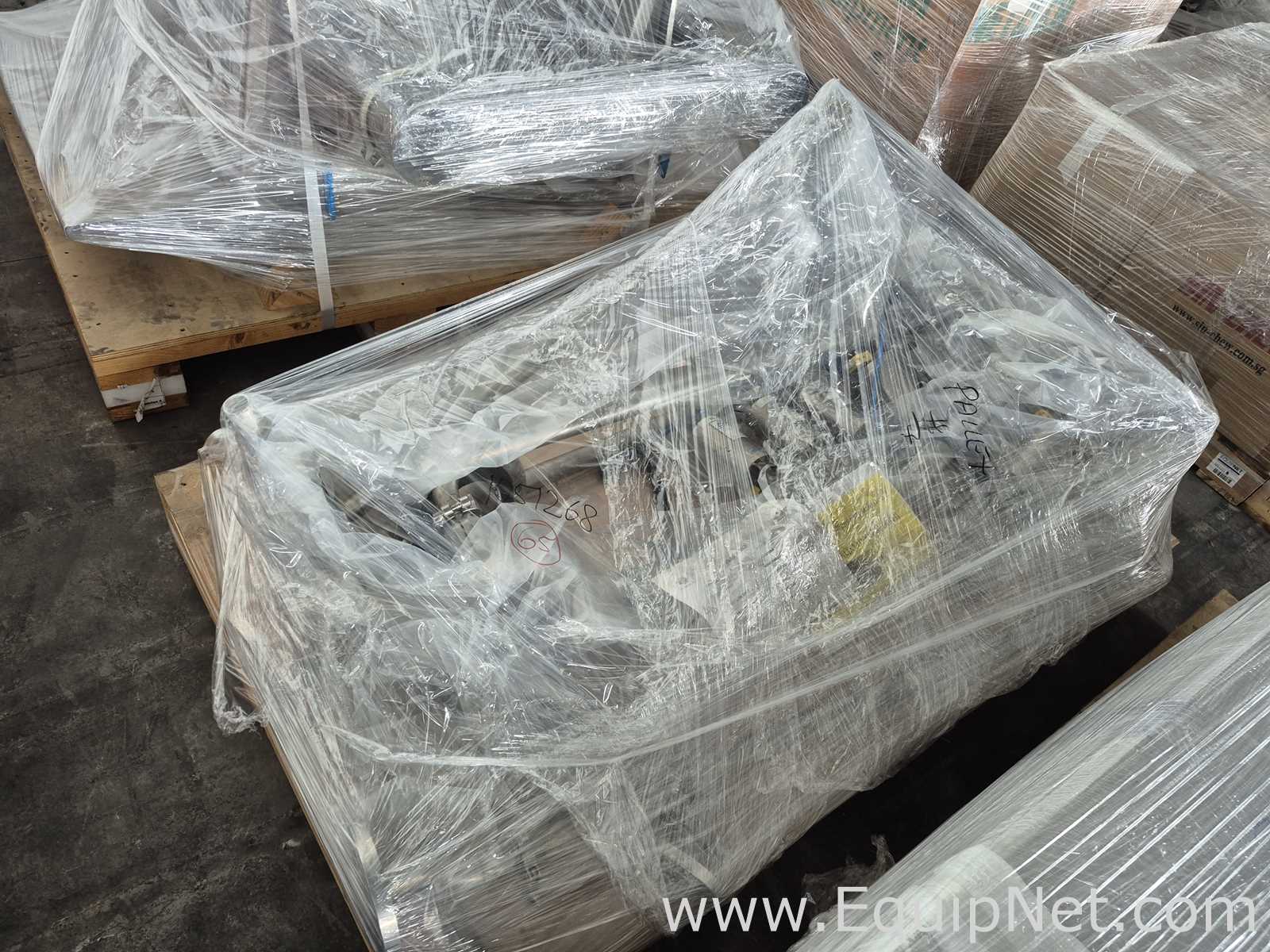

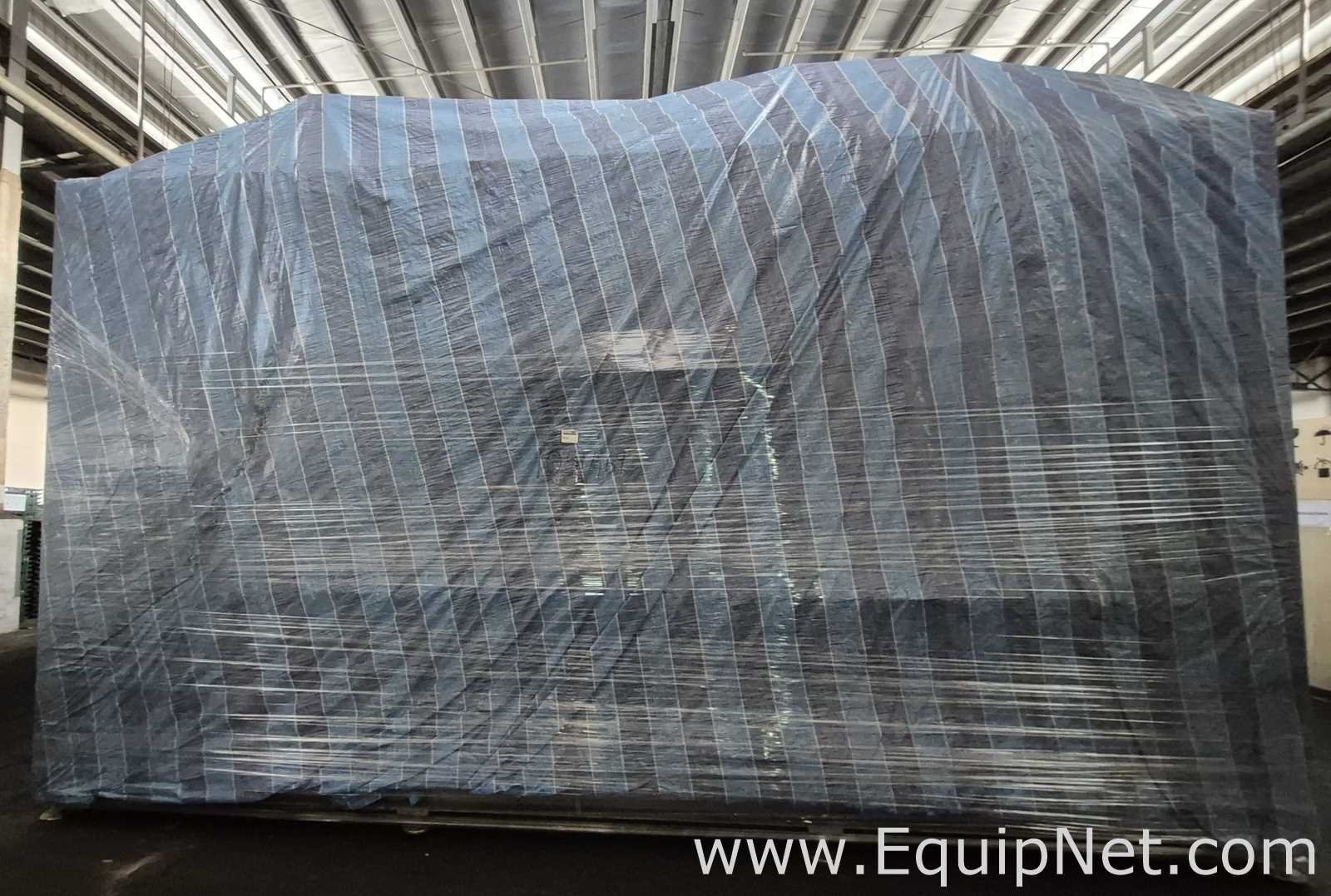

Level of Removal: Already Crated
*All offers are submitted in Seller’s Acceptable Currency
Don't see what you're looking for? We'll find it for you
Equipment Description
Includes:
Netzsch 6000L Formulation 2 High Speed Mixing Vessel 5121.
Netzsch 6000L Formulation 1 High-Speed Mixing Vessel 5111.
Netzsch Formulation Discharge Pump Nemo 5211.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Tank Material of Construction:
STAINLESS STEEL
STAINLESS STEEL
Jacketed:
YES
YES
Type of Top Head:
DISHED
DISHED
Type of Bottom Head:
DISHED
DISHED
Agitation:
YES
YES
Inside Diameter:
0
0
Overall Height:
0
0
Straight Side:
0
0
Recommended Packaging Form:
CRATE
CRATE
Dimensions:
Standard
Metric
Overall:
0.00 x 0.00 x 0.00 in - 0.00 lb
0 x 0 x 0 MM - 0 KGS
Disclaimer:
This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in
East Asia/Pacific
This equipment is subject to a removal and loading charge.
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Multi-Listing Includes:
Back to Top
Multi-Listing #1050545

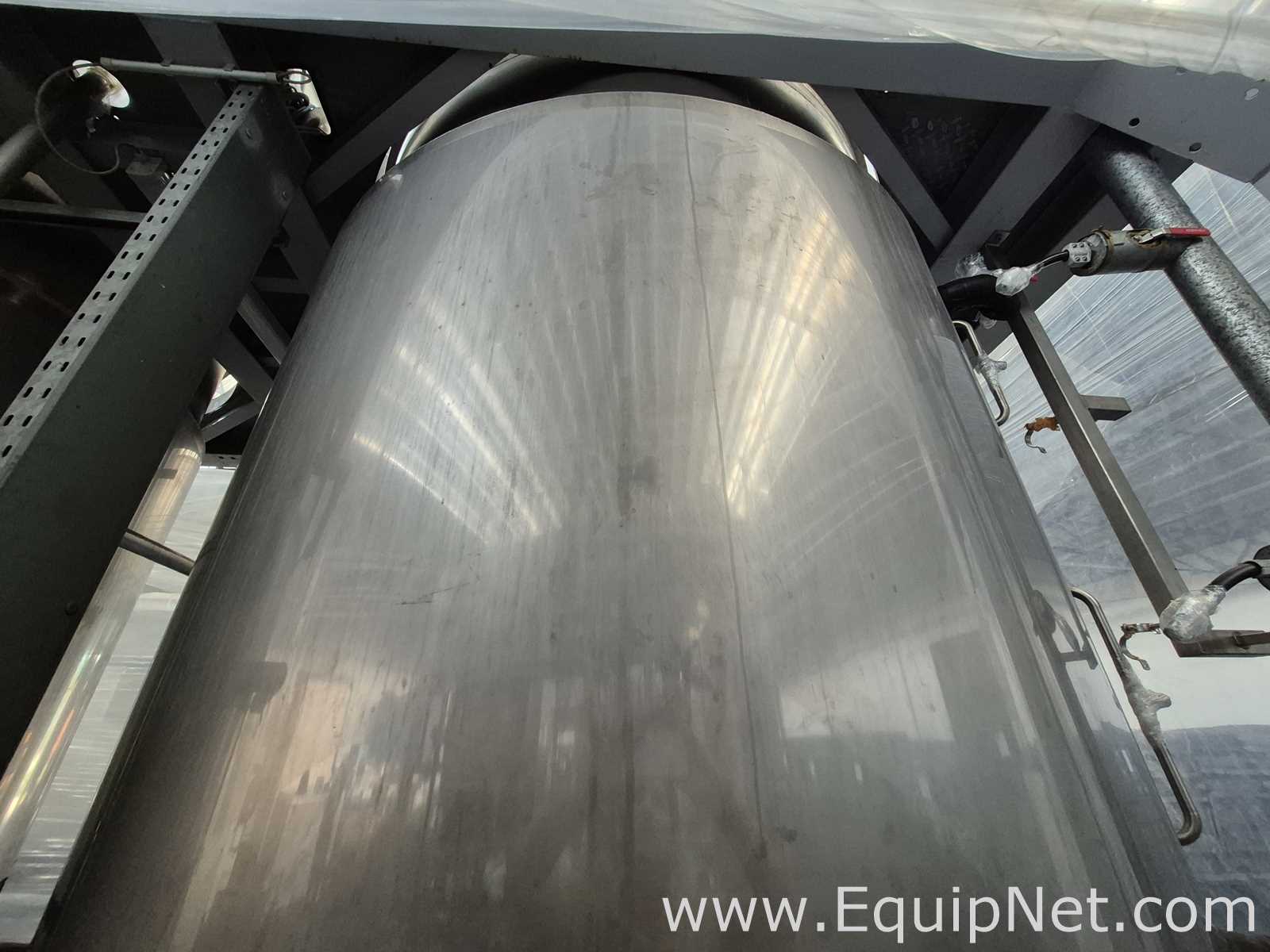

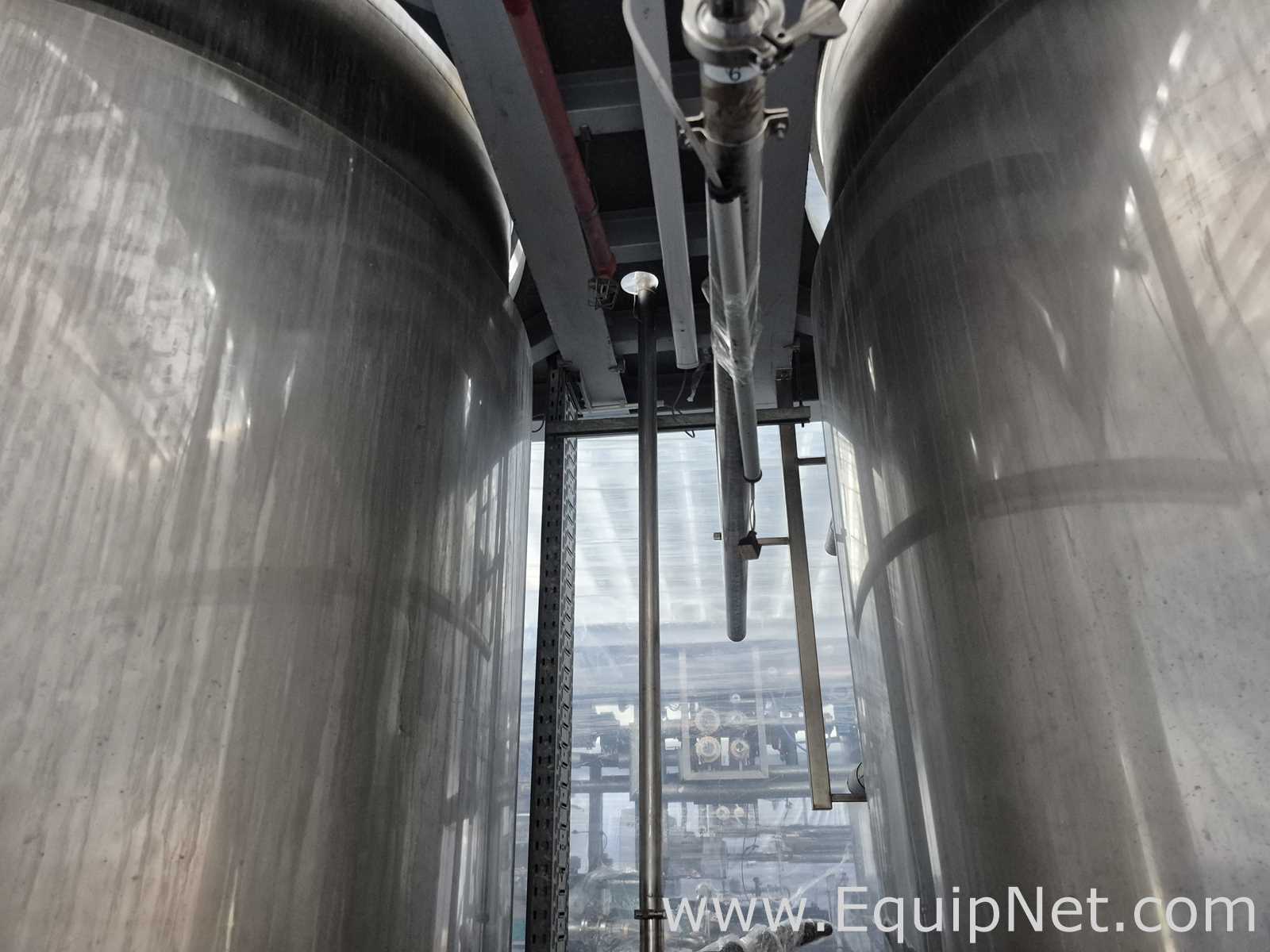

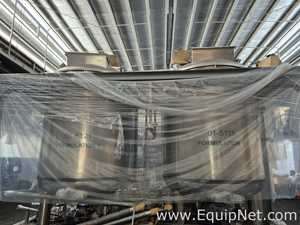

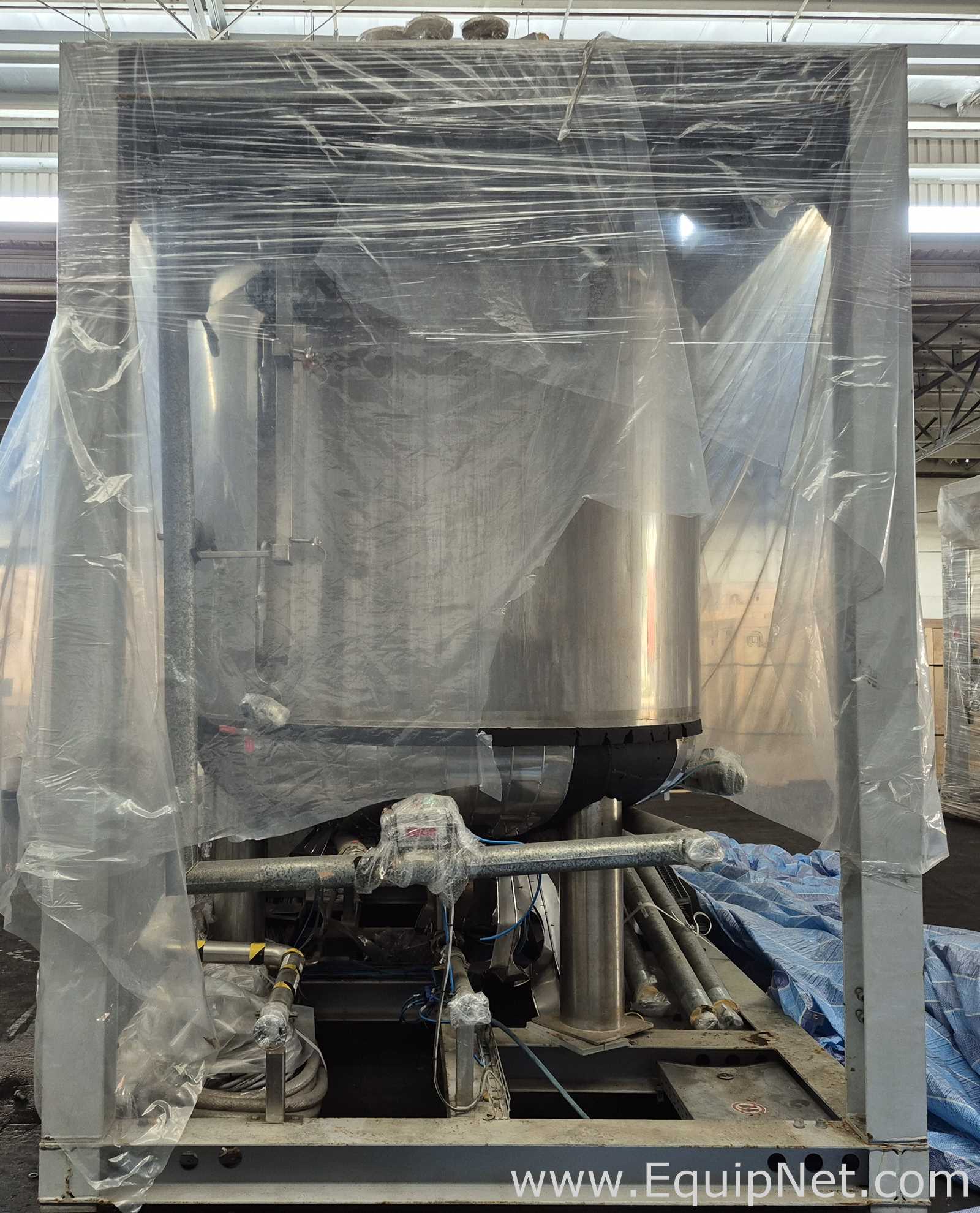

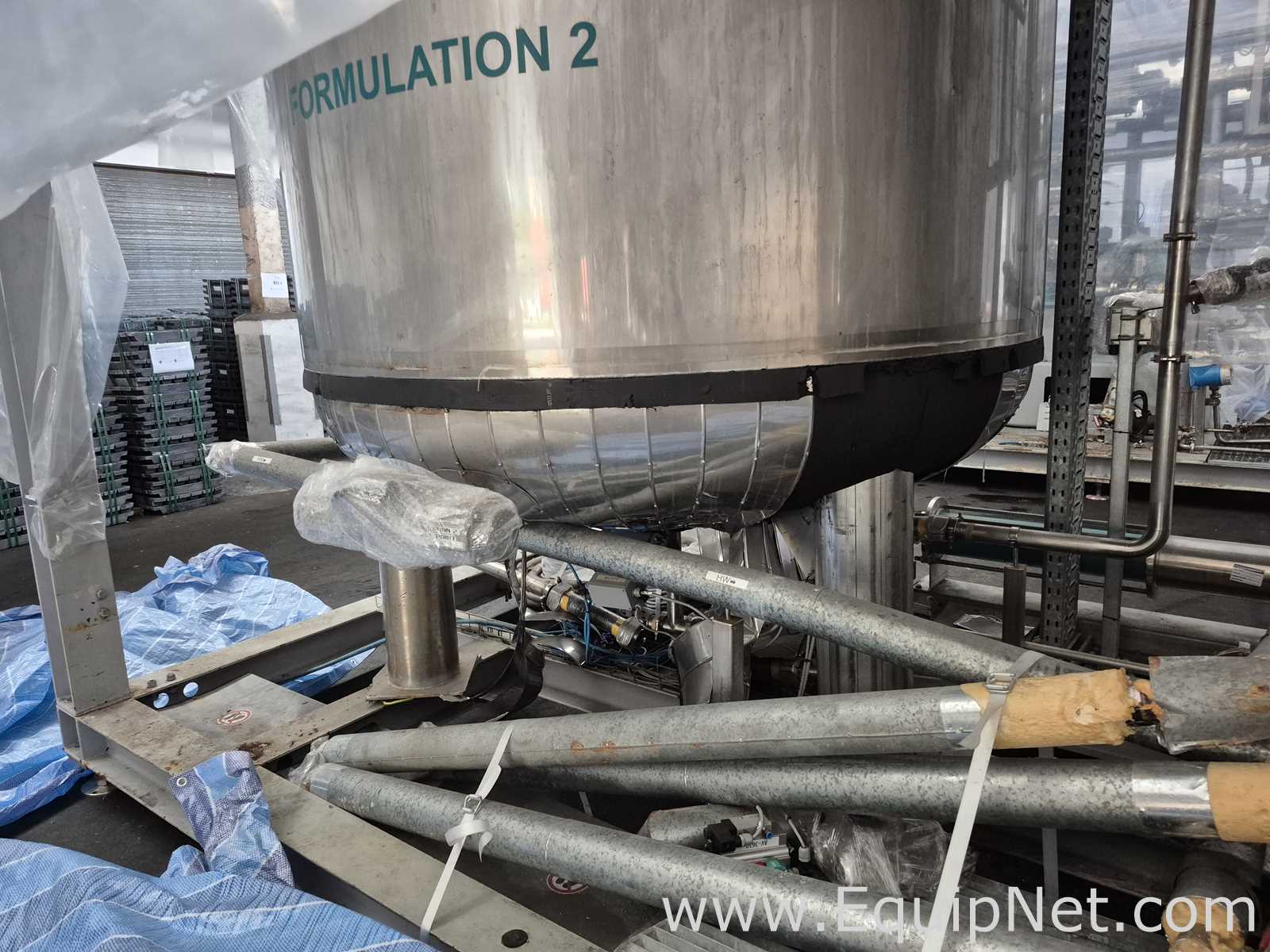

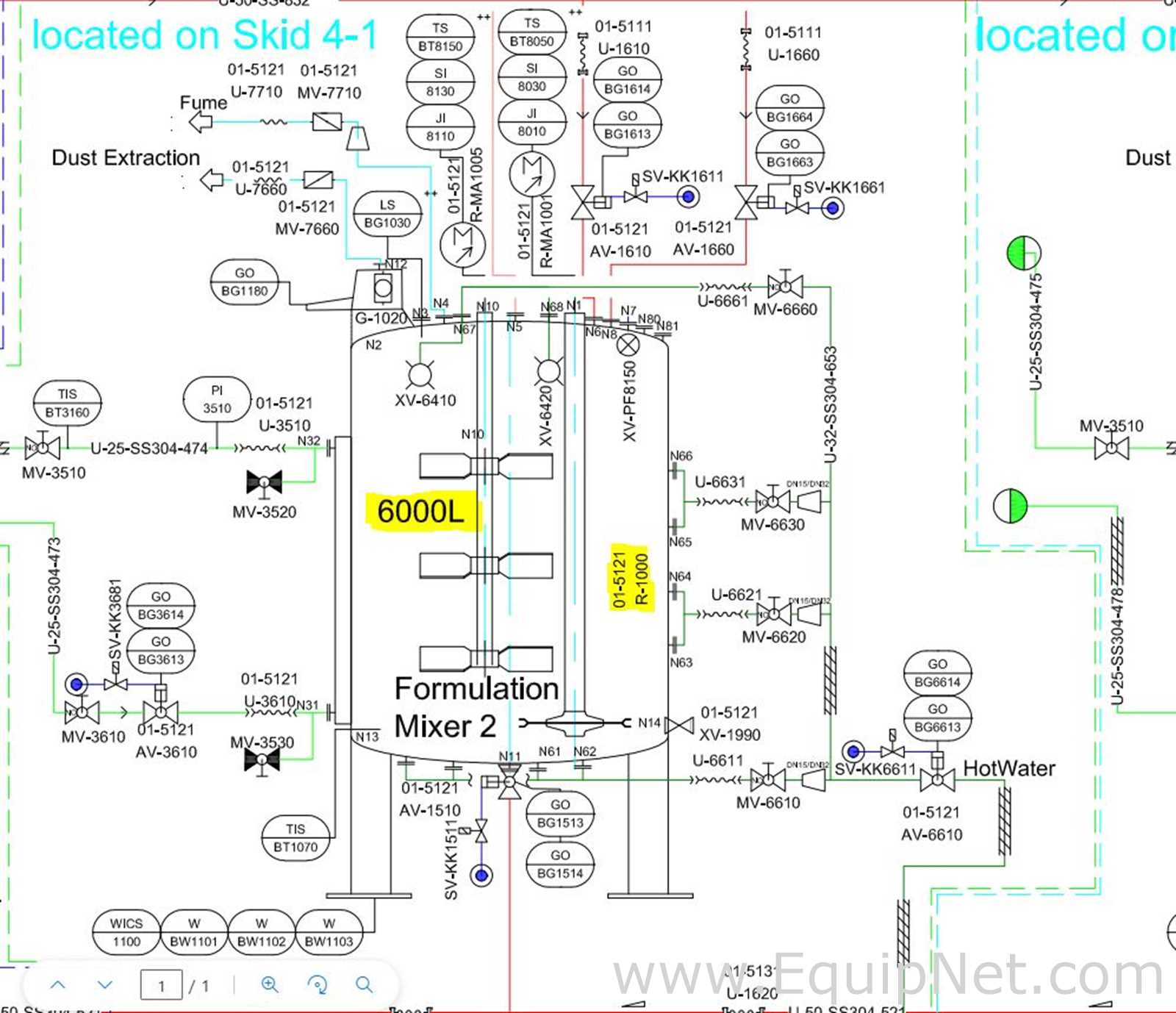

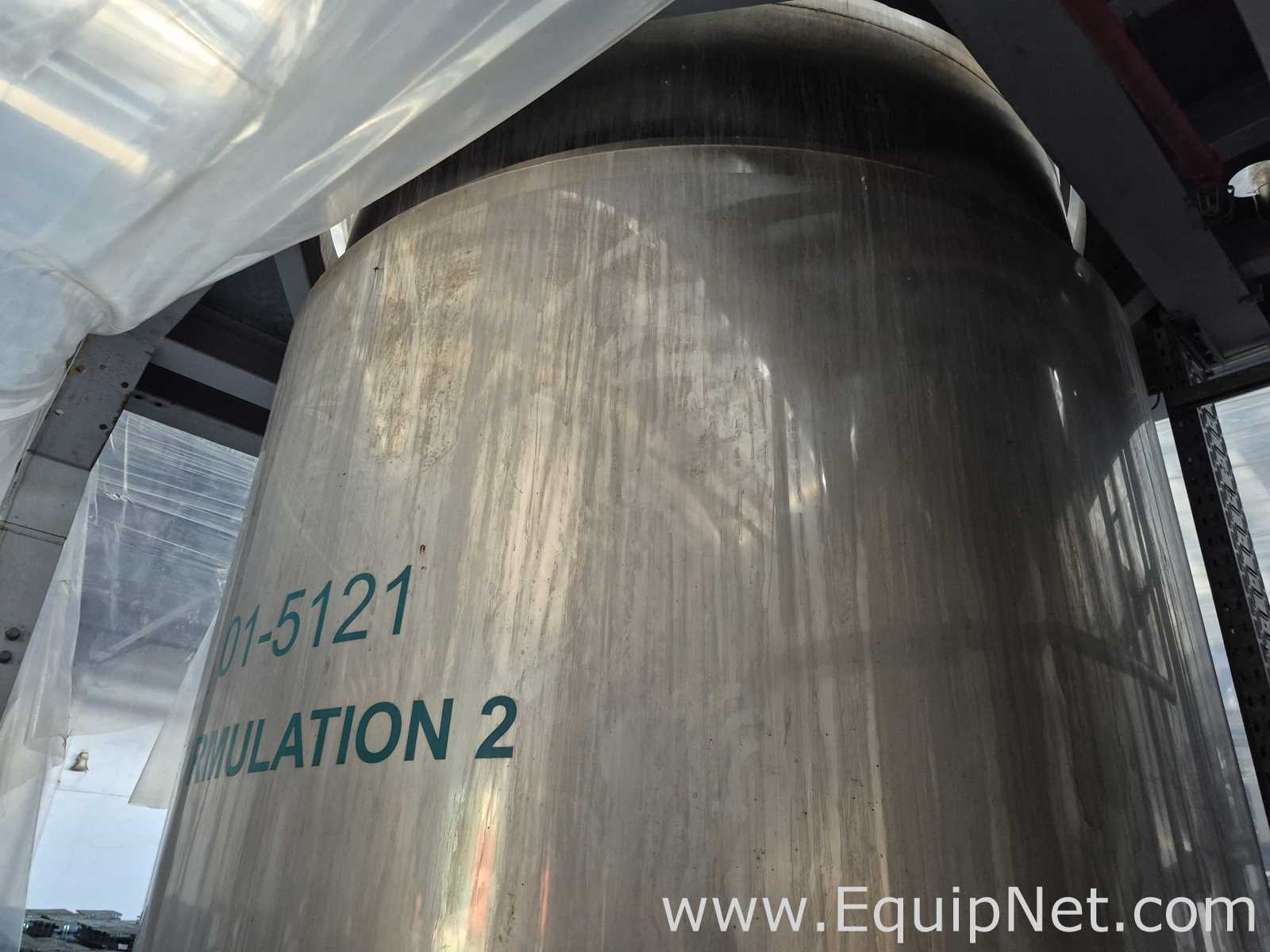

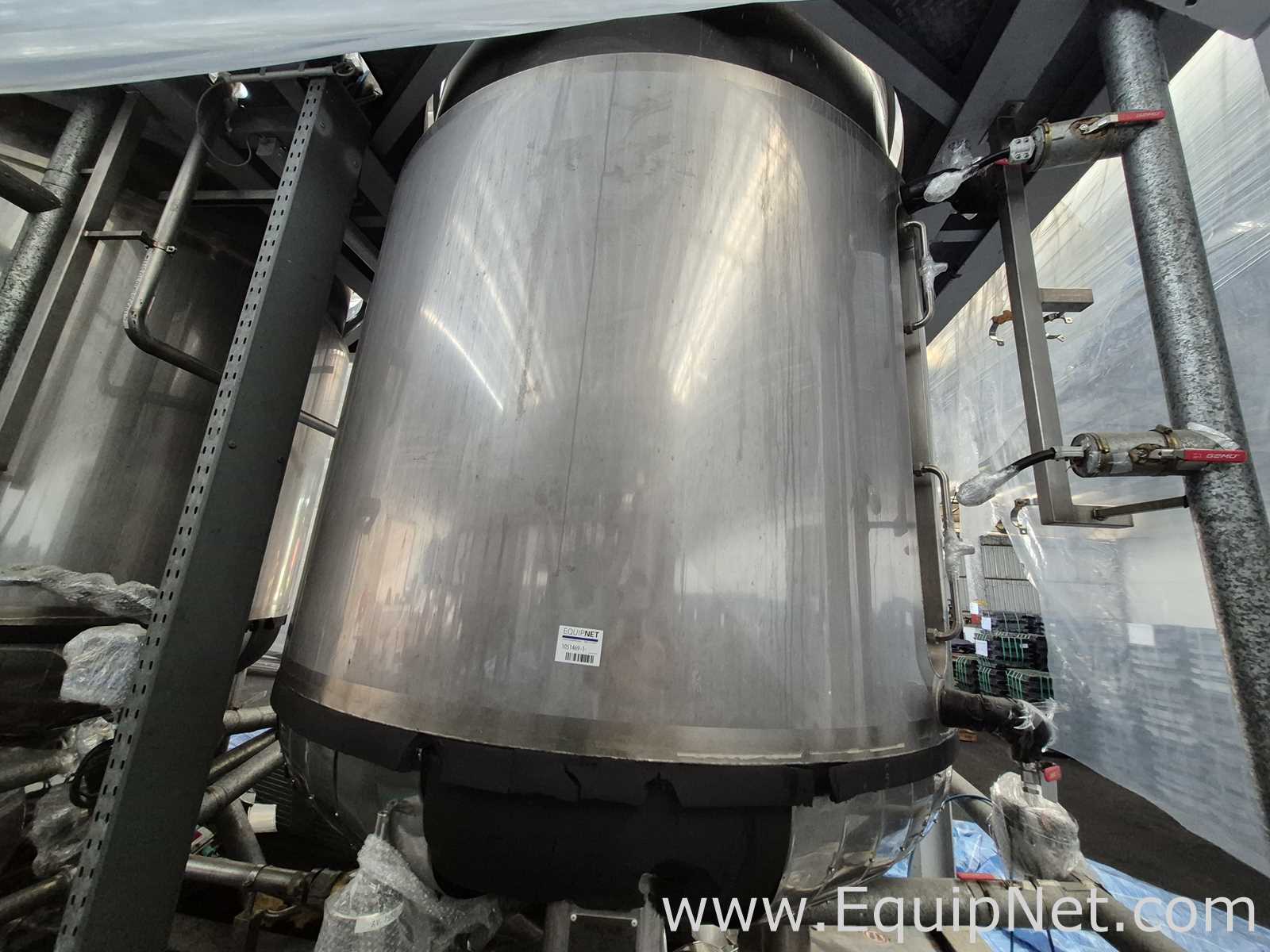

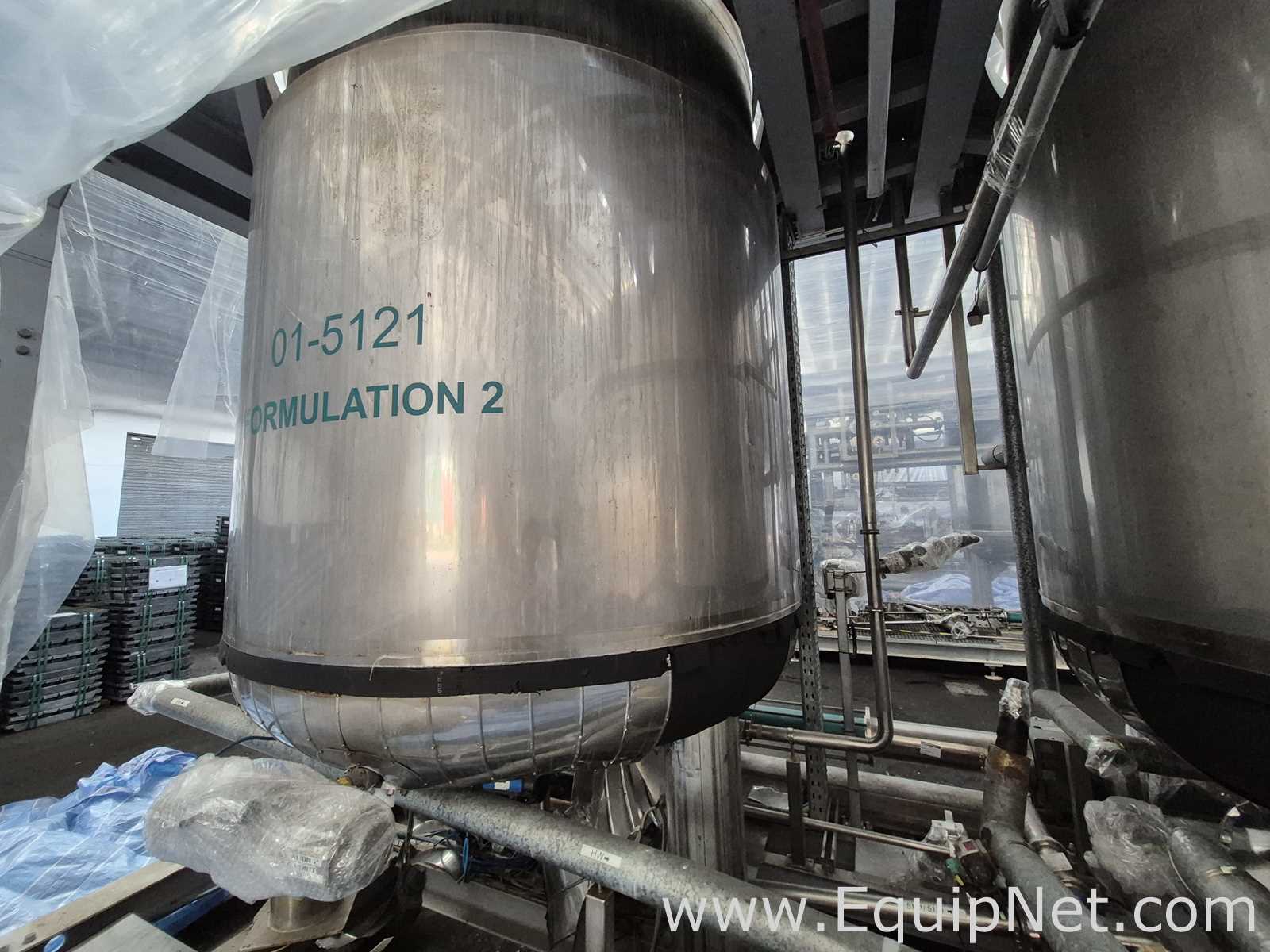

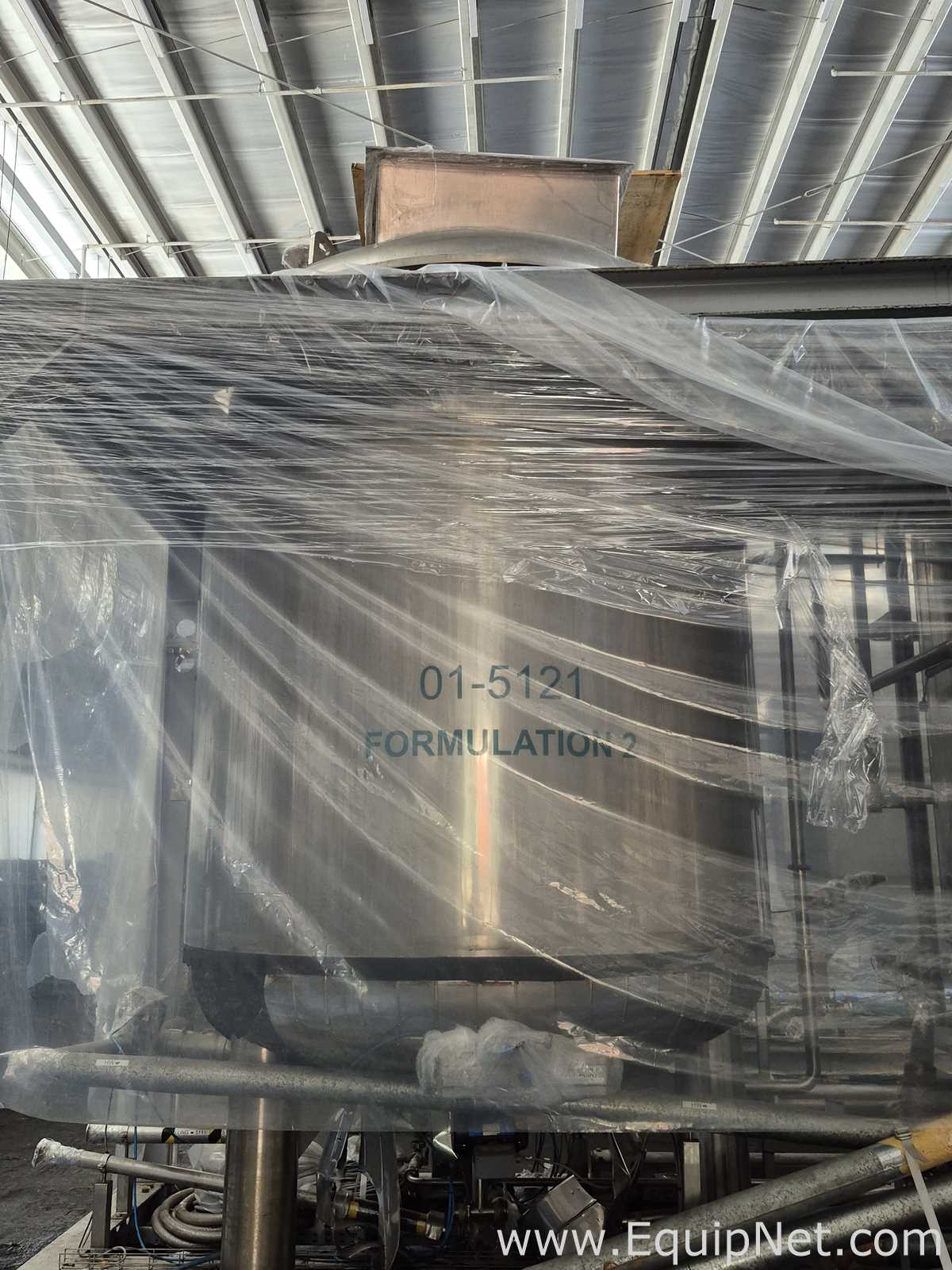

Netzsch 6000L Formulation 2 High Speed Mixing Vessel 5121 - Skid 4-1 Cooling-Buffer Transfer Station
Equipment Description

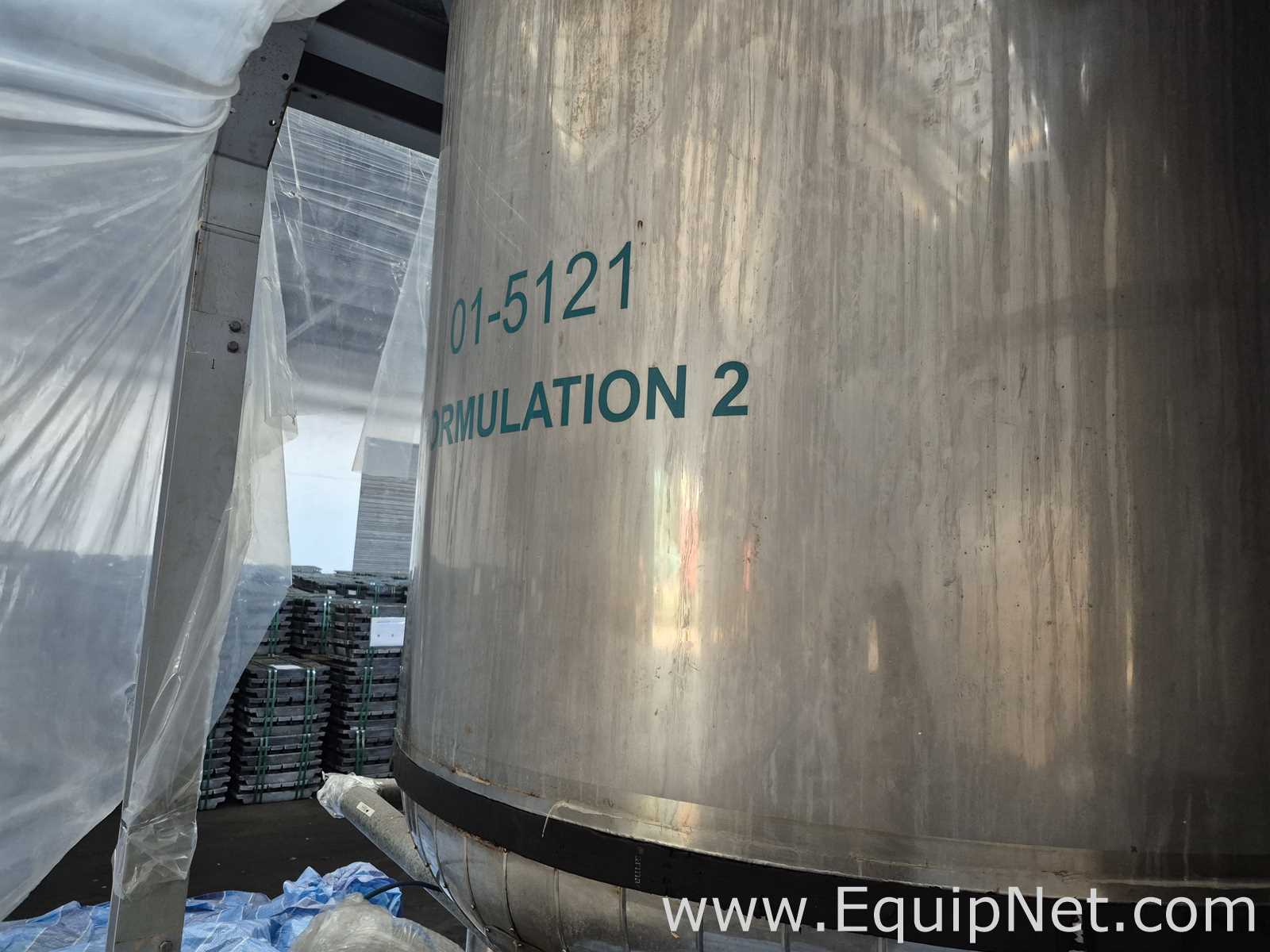

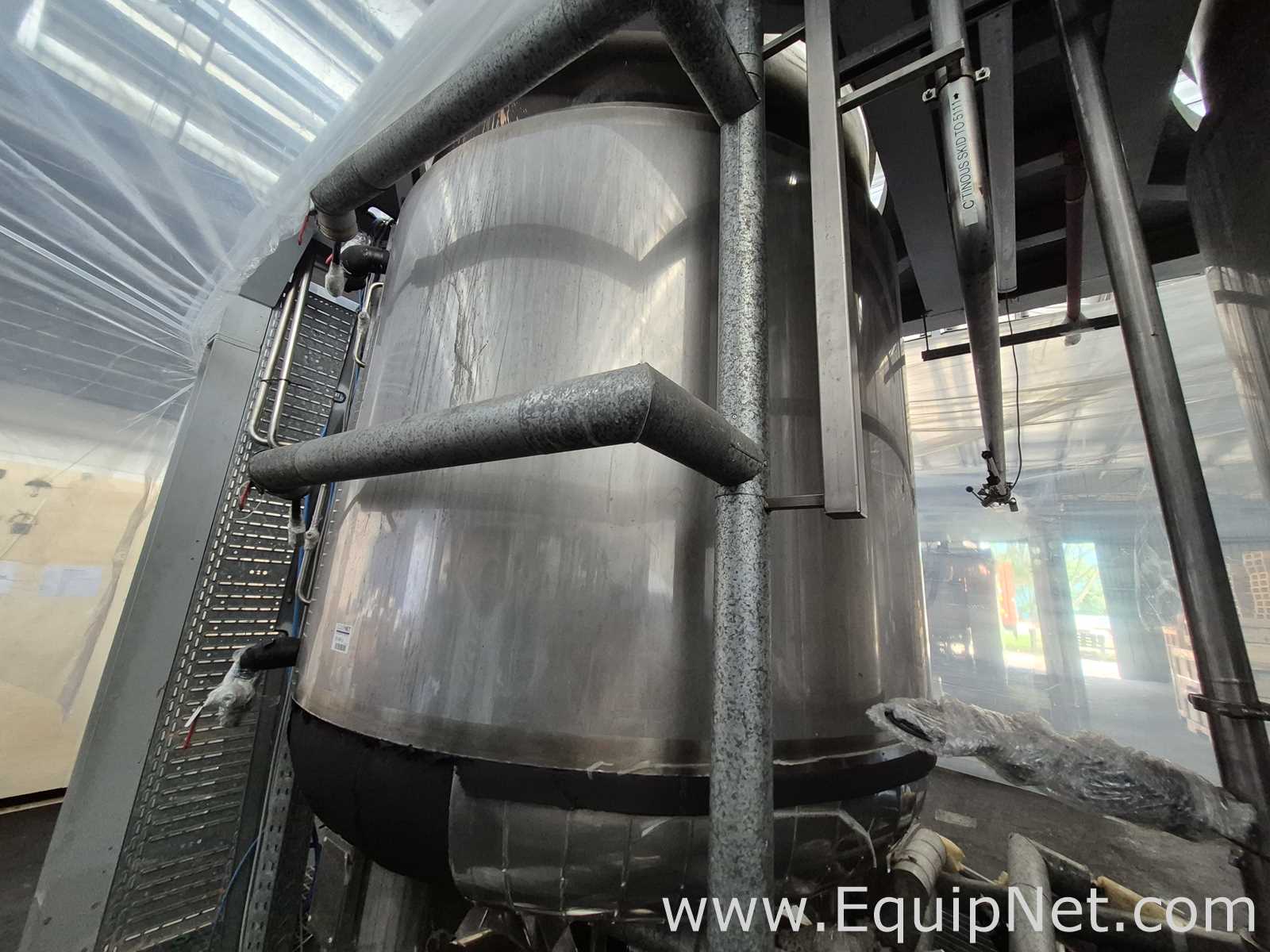

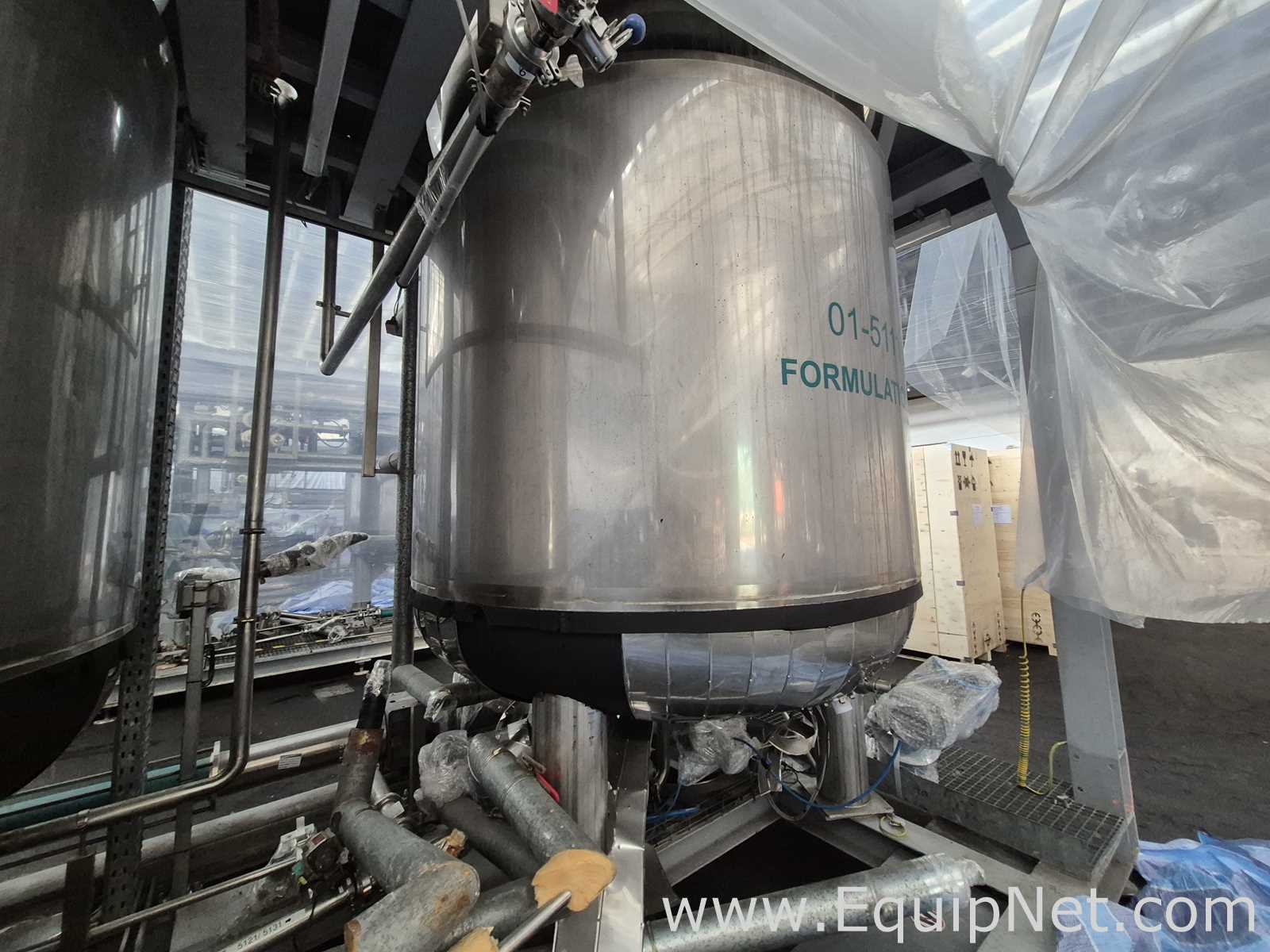

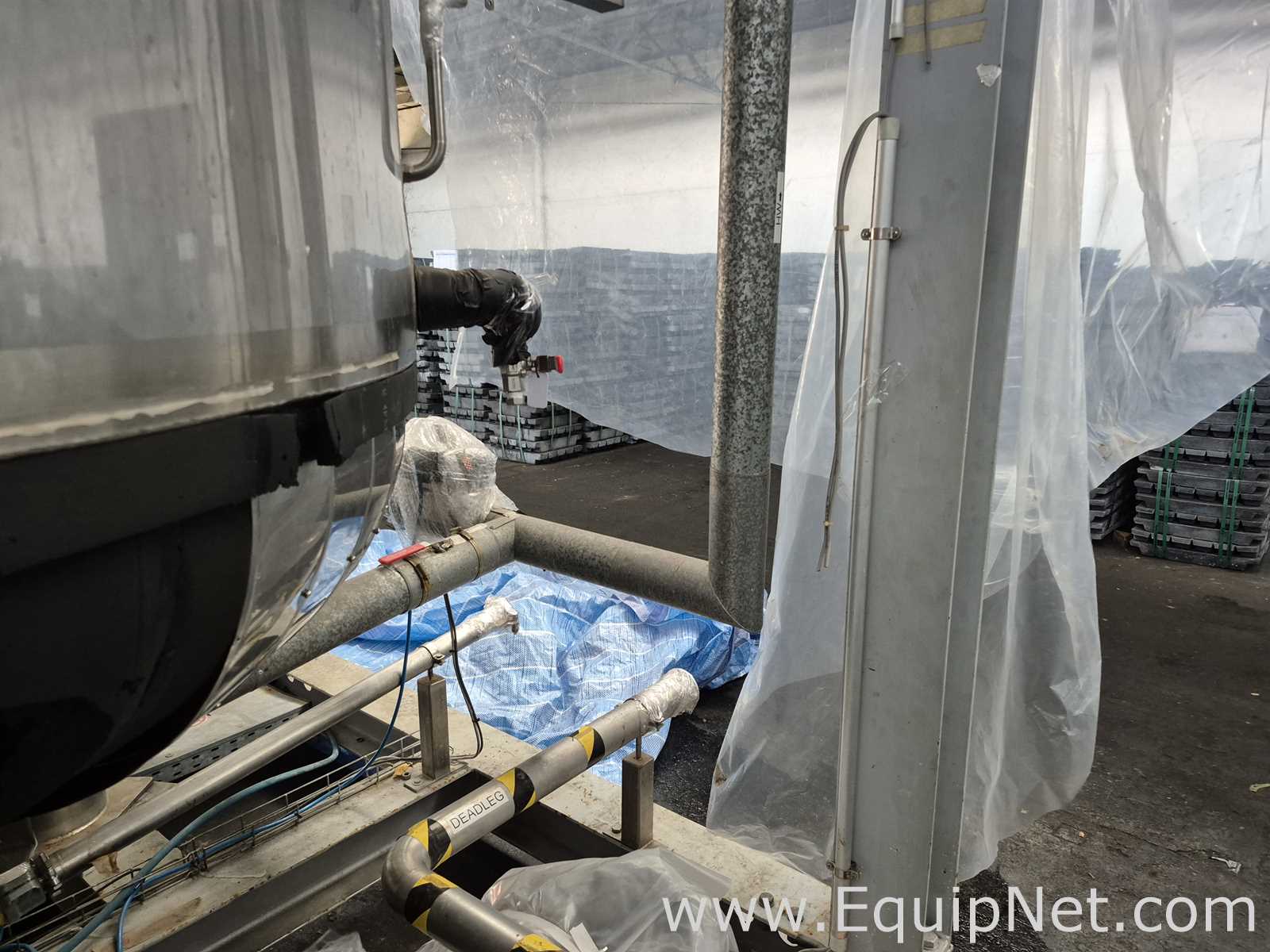

Netzsch 6000L Formulation 2 High Speed Mixing Vessel 5121 - Skid 4-1 Cooling-Buffer Transfer Station
Designed for Max operating pressure: Atm.
Designed for Max operating temperature: 90C.
Designed for Max cooling water pressure: 3 bar.
Product-wetted parts: stainless steel 1.4301 (304).

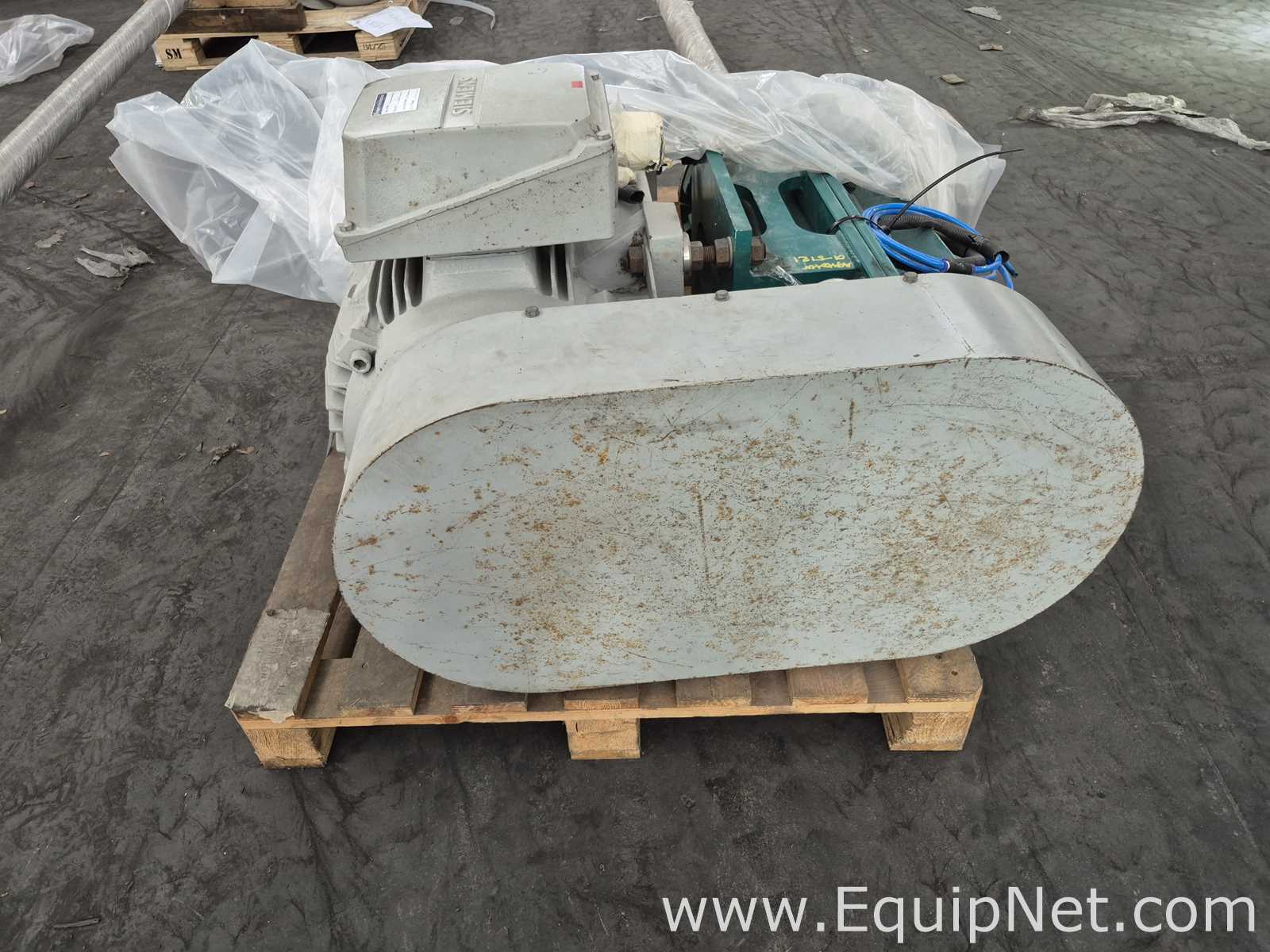

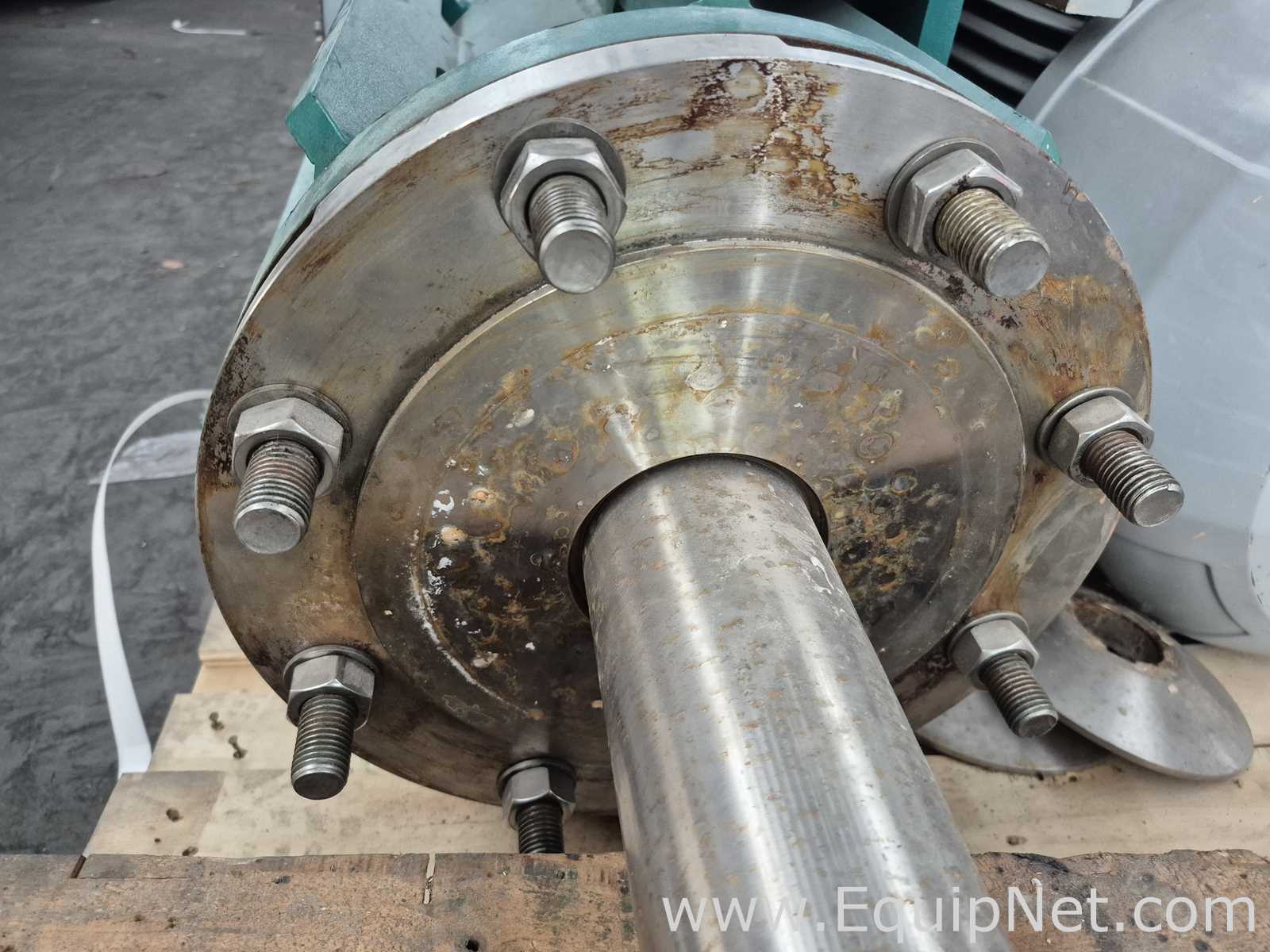

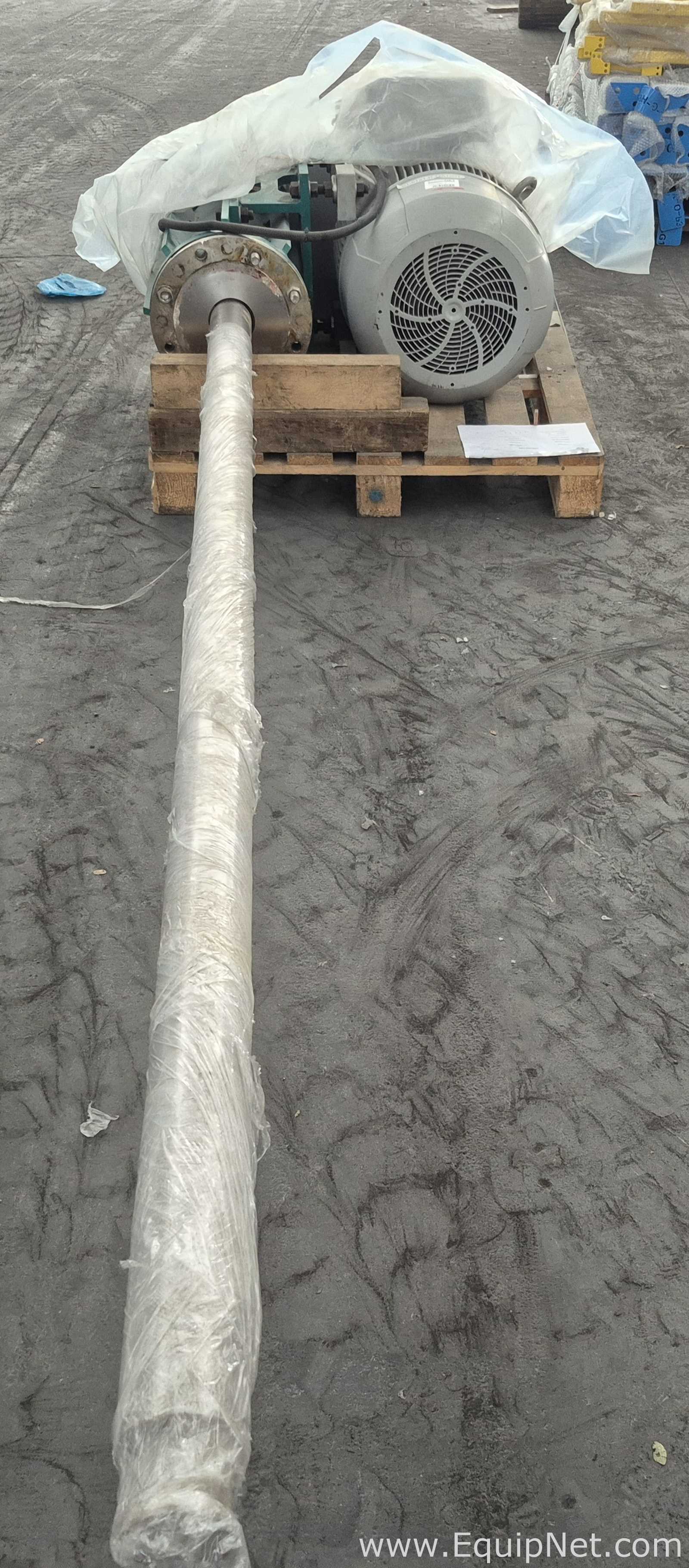

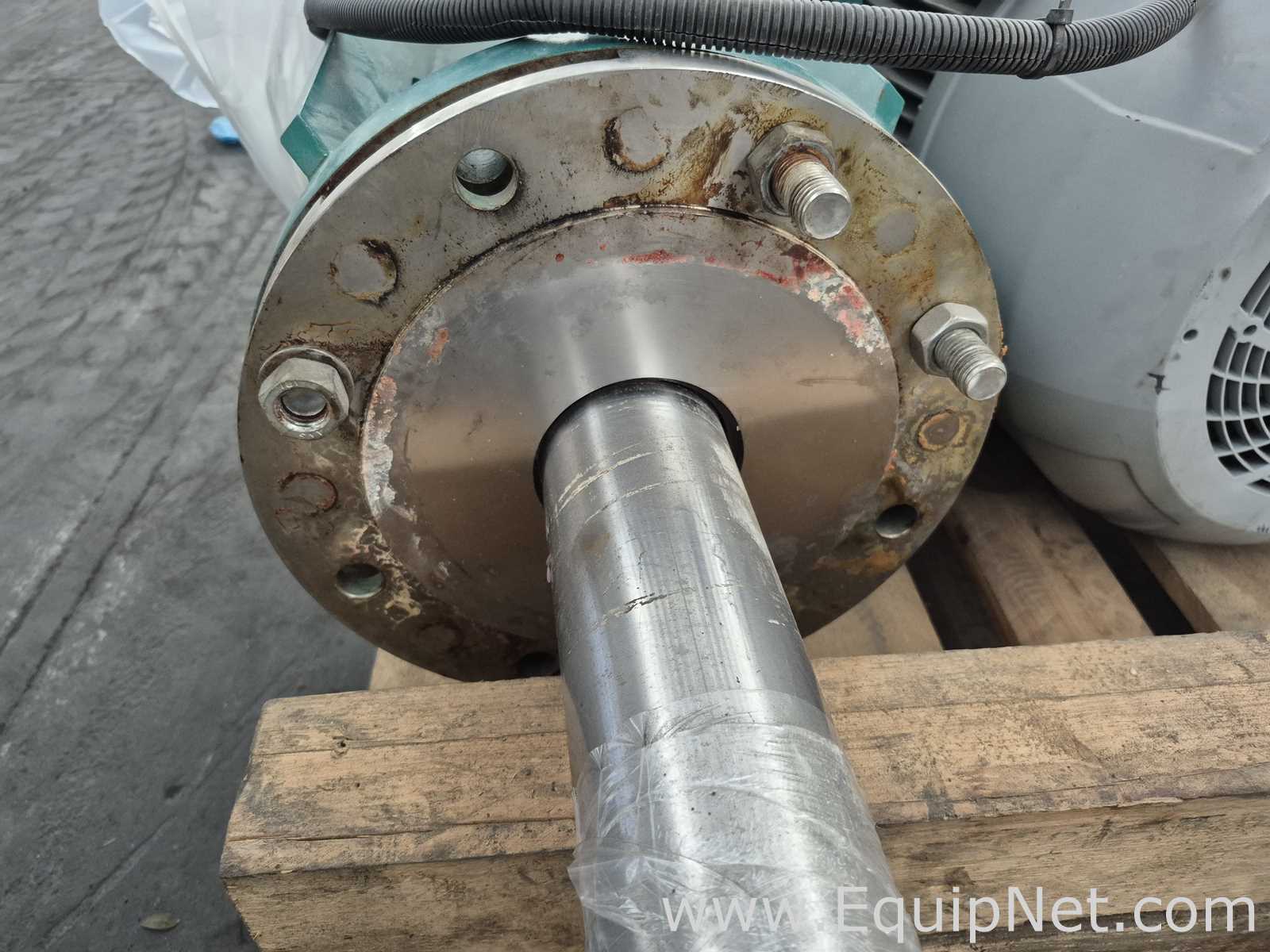

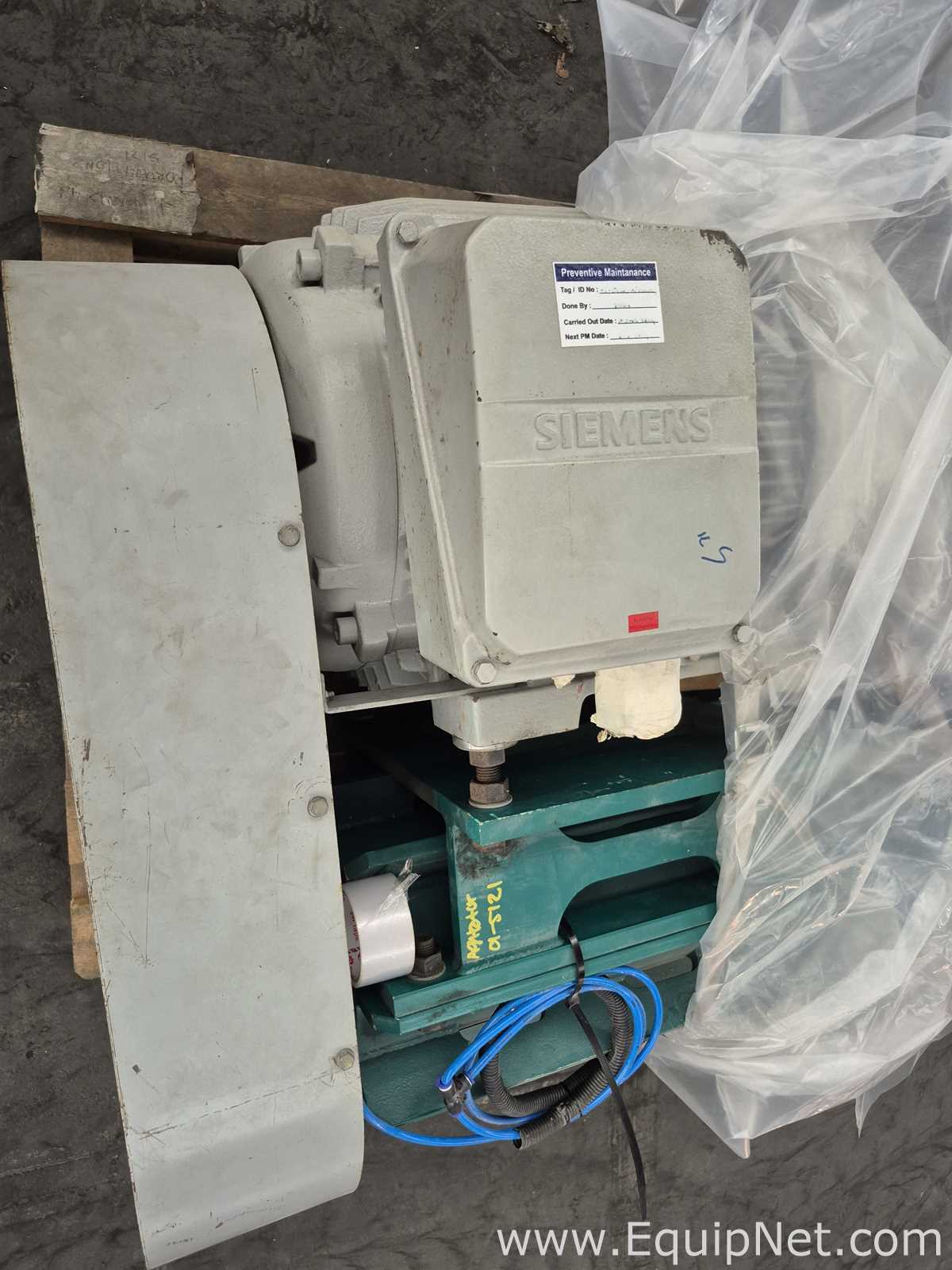

Disperser drive: Off centre. Spindle speed 160-800RPM. Mixing element tooth disk approx 600mm. Mixer drive 55 kW, protection class IP 55 / not explosion-proof infinitely variable via frequency inverter.

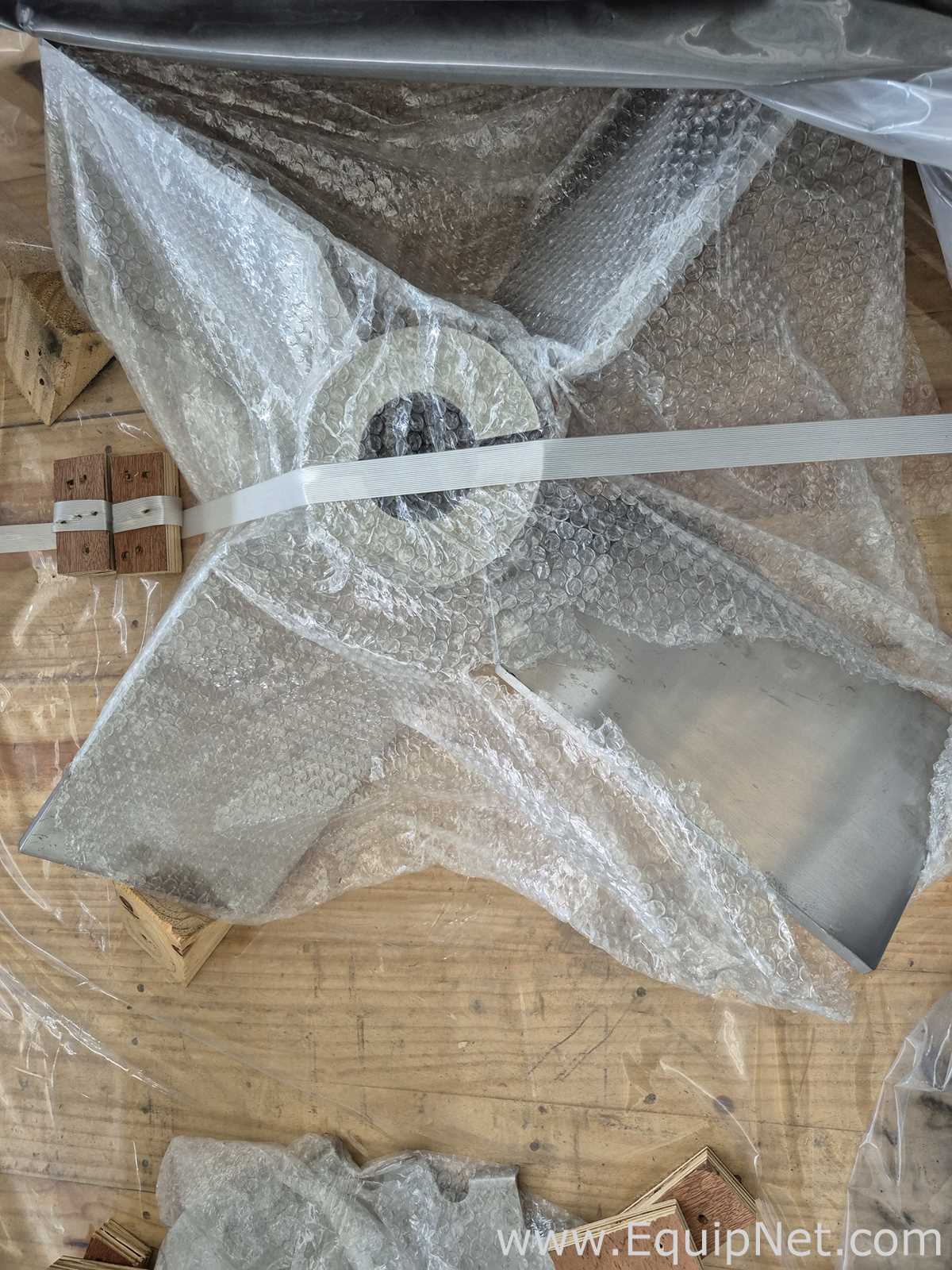

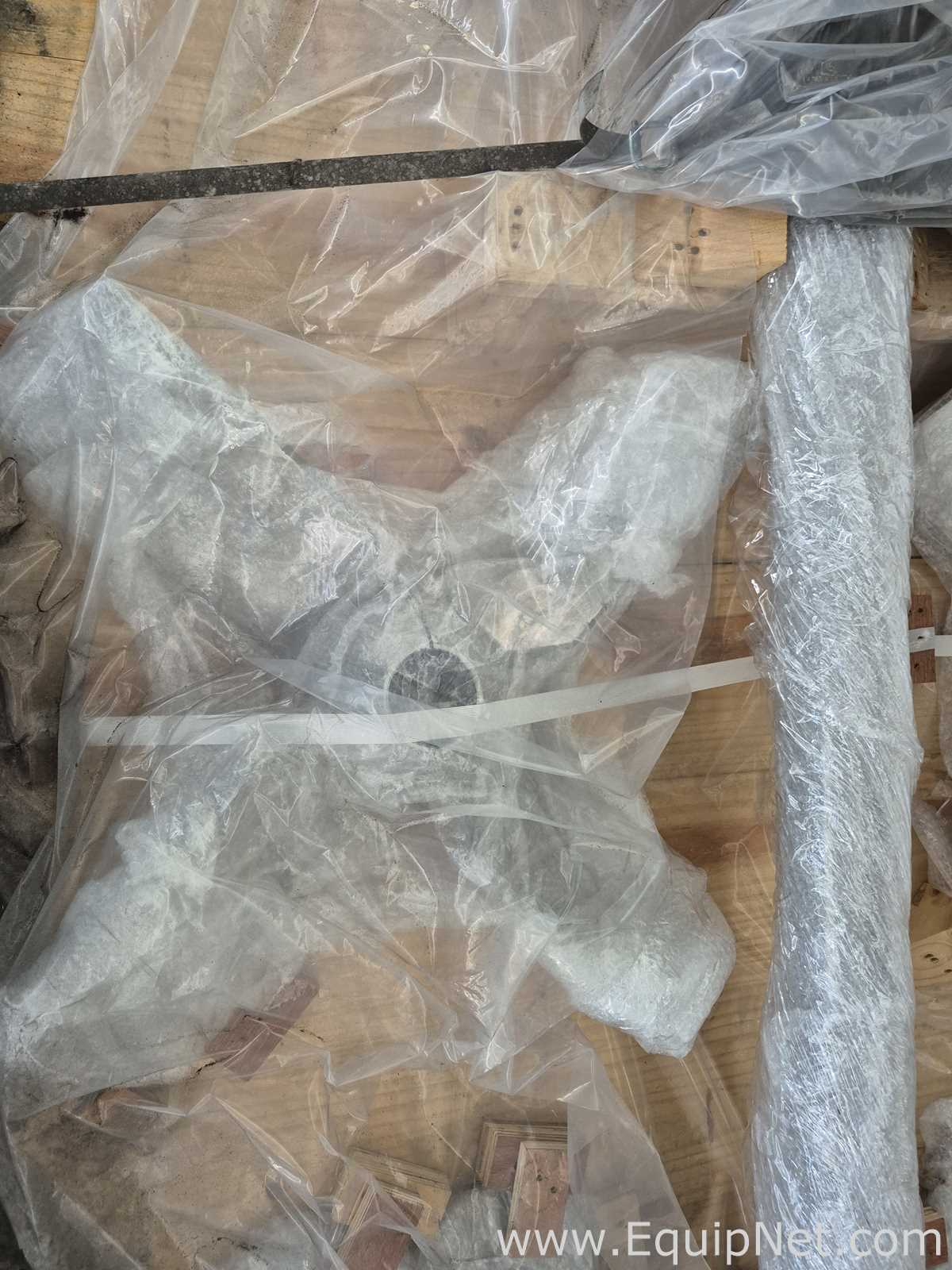

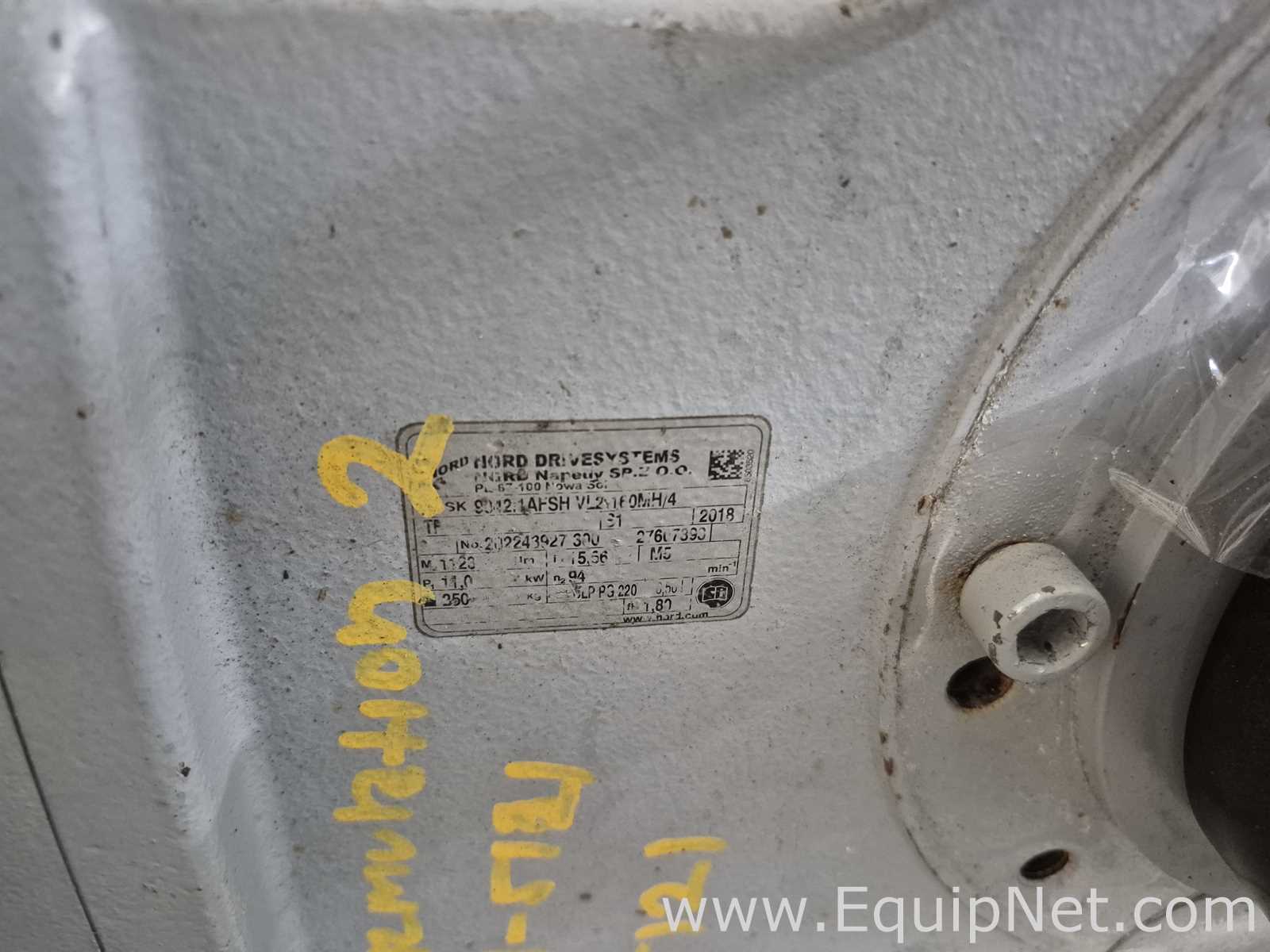

Mixer dirve: Off centre. Spindle speed 26-130 rpm. Mixing elements 2 x 4 blade axial flow about 800 mm and 1 x 4 blade axial flow about 350 mm. Mixer drive radially clamped two half shells, 11 kW, protection class IP 55/ not explosion-proof infinitely variable via frequency inverter.
Cooling: cooling coils stainless steel 1.4301 (304). max. 3 bar with open outlet cooling water outlet temperature via PT100 and pressure via analog pressure gauge.
Insulation: for vessel wall in cooling area.
Cleaning system: With 2 cleaning heads type Turbo SSB and a total of 6 cleaning nozzles in the tank, with central connection point.
Load cell system: 3 load cells each 5 t and mounting kit.
Temperature control with limit switch: Resistance thermometer PT100.
Overfilling safety: Level limit switch FTL51.

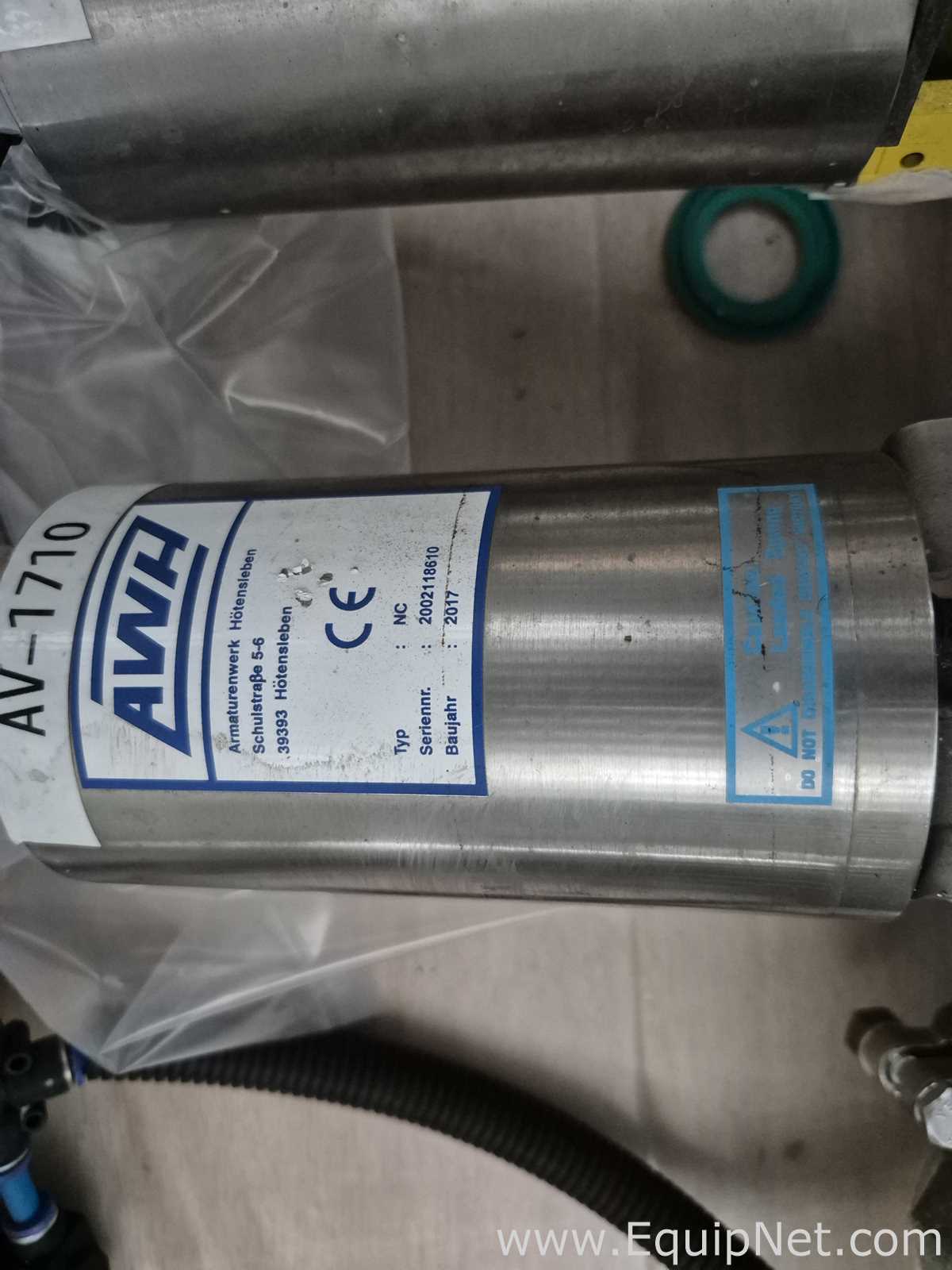

Sampling valve: Valve with minimized dead space design for sampling di-rectly from the vessel.
Includes listing 1051260.
Includes listing 1051268.
Includes listing 1051271.
Includes listing 1051425.
Includes listing 1051260.
Includes listing 1051268.
Includes listing 1051271.
Includes listing 1051425.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Year:
2018
2018
Serial Number:
2800694-260
2800694-260
Tank Material of Construction:
STAINLESS STEEL
STAINLESS STEEL
Capacity Size of Vessel:
1585.56
gal
6000
L
Jacketed:
YES
YES
Type of Top Head:
DISHED
DISHED
Type of Bottom Head:
DISHED
DISHED
Agitation:
YES
YES
HP or KW:
55
KW
55
KW
Recommended Packaging Form:
CRATE
CRATE
Voltage:
VOLTS
VOLTS
Frequency:
50
HERTZ
50
HERTZ
Dimensions:
Standard
Metric
Overall:
74.80 x 74.80 x 120.75 in - 7275.18 lb
1900 x 1900 x 3067 MM - 3300 KGS
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1050542

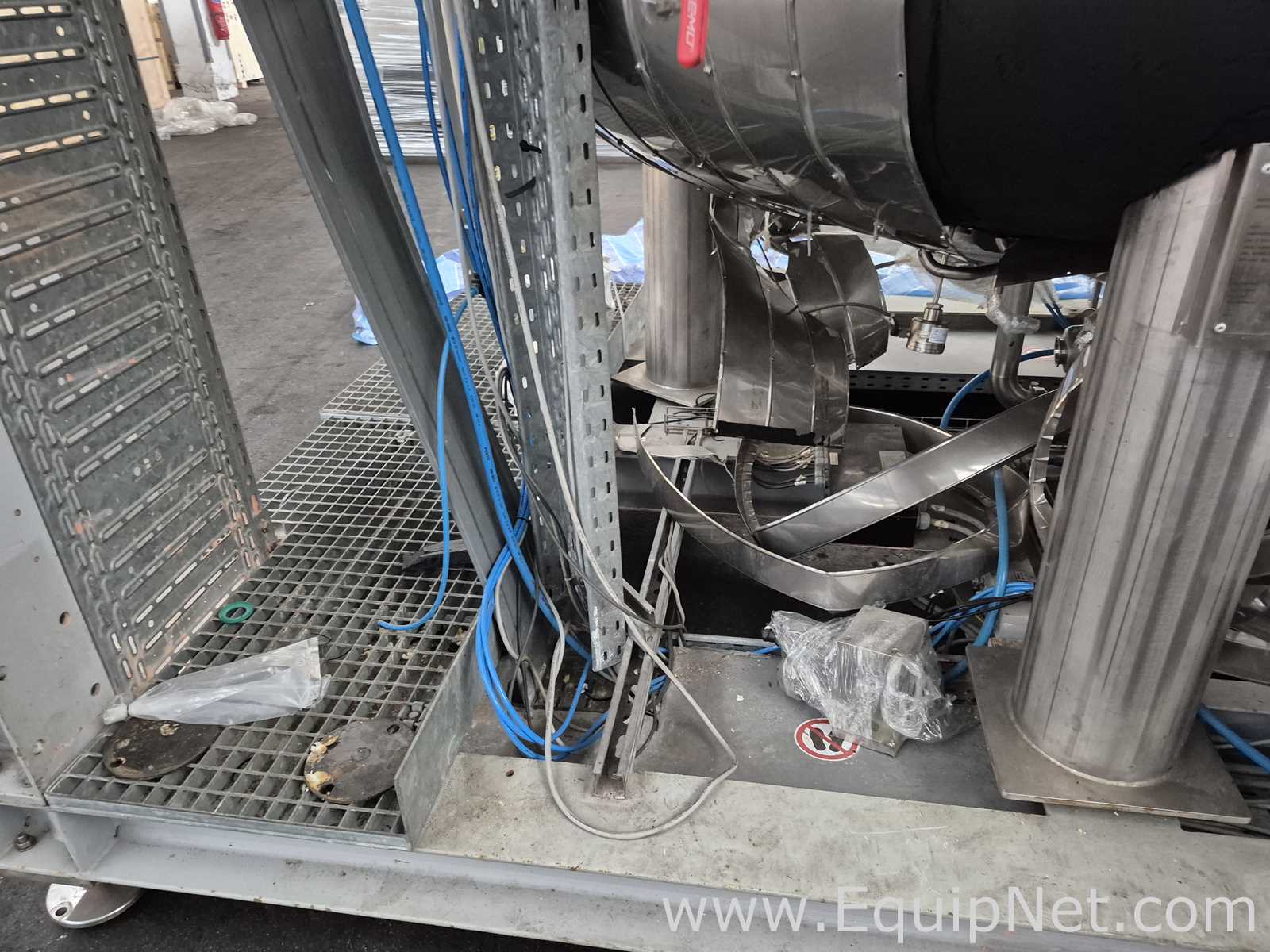

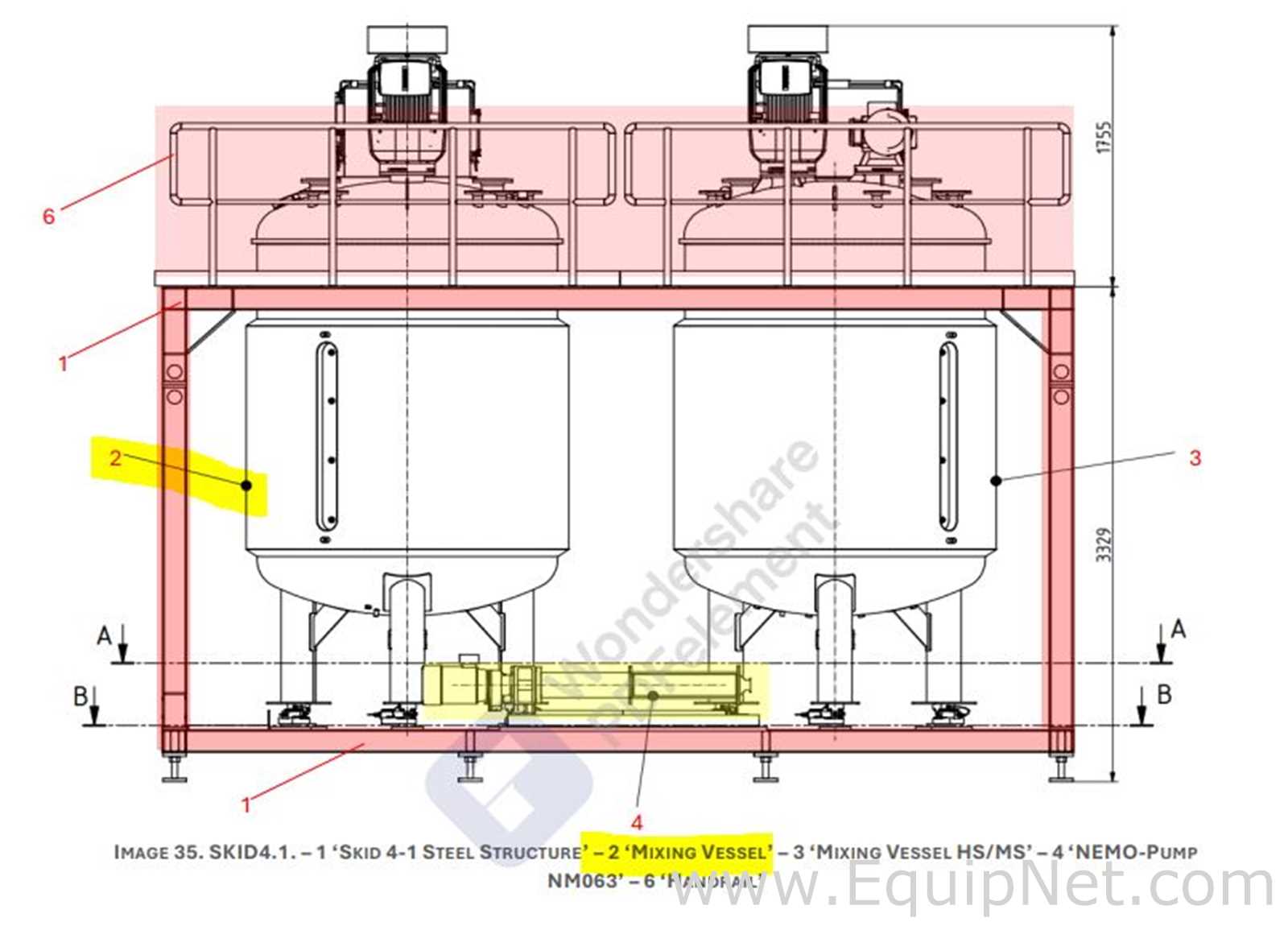

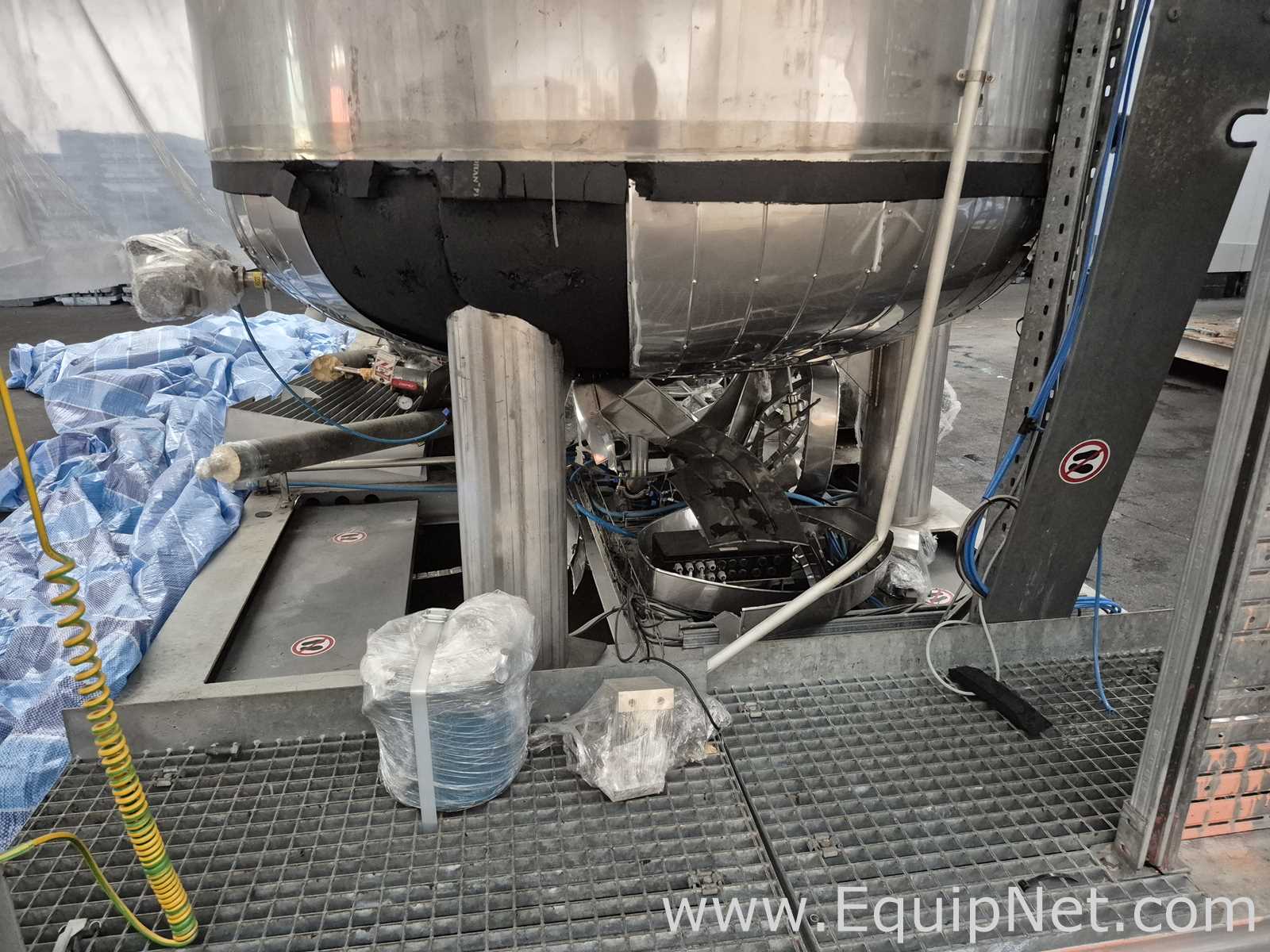

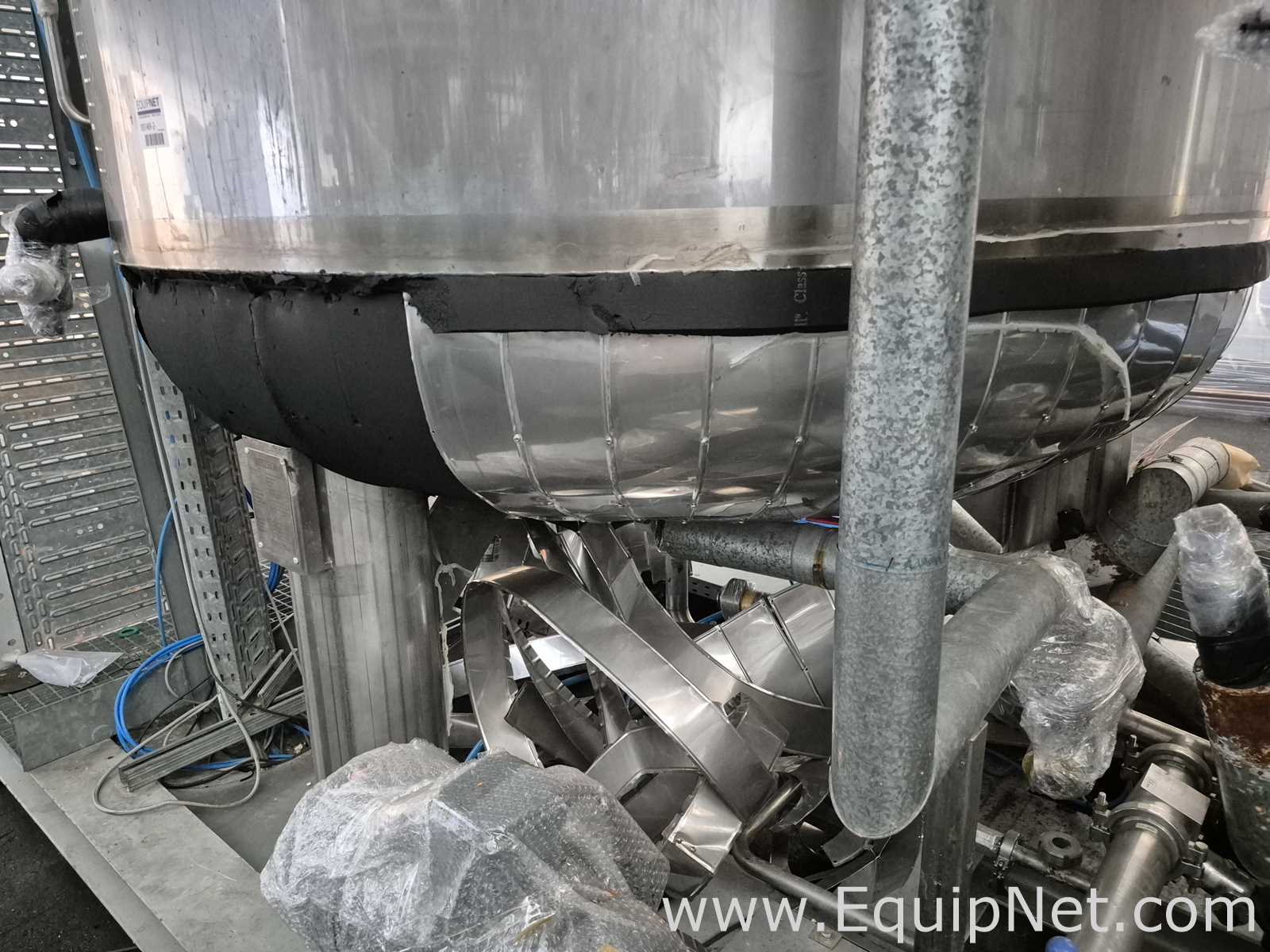

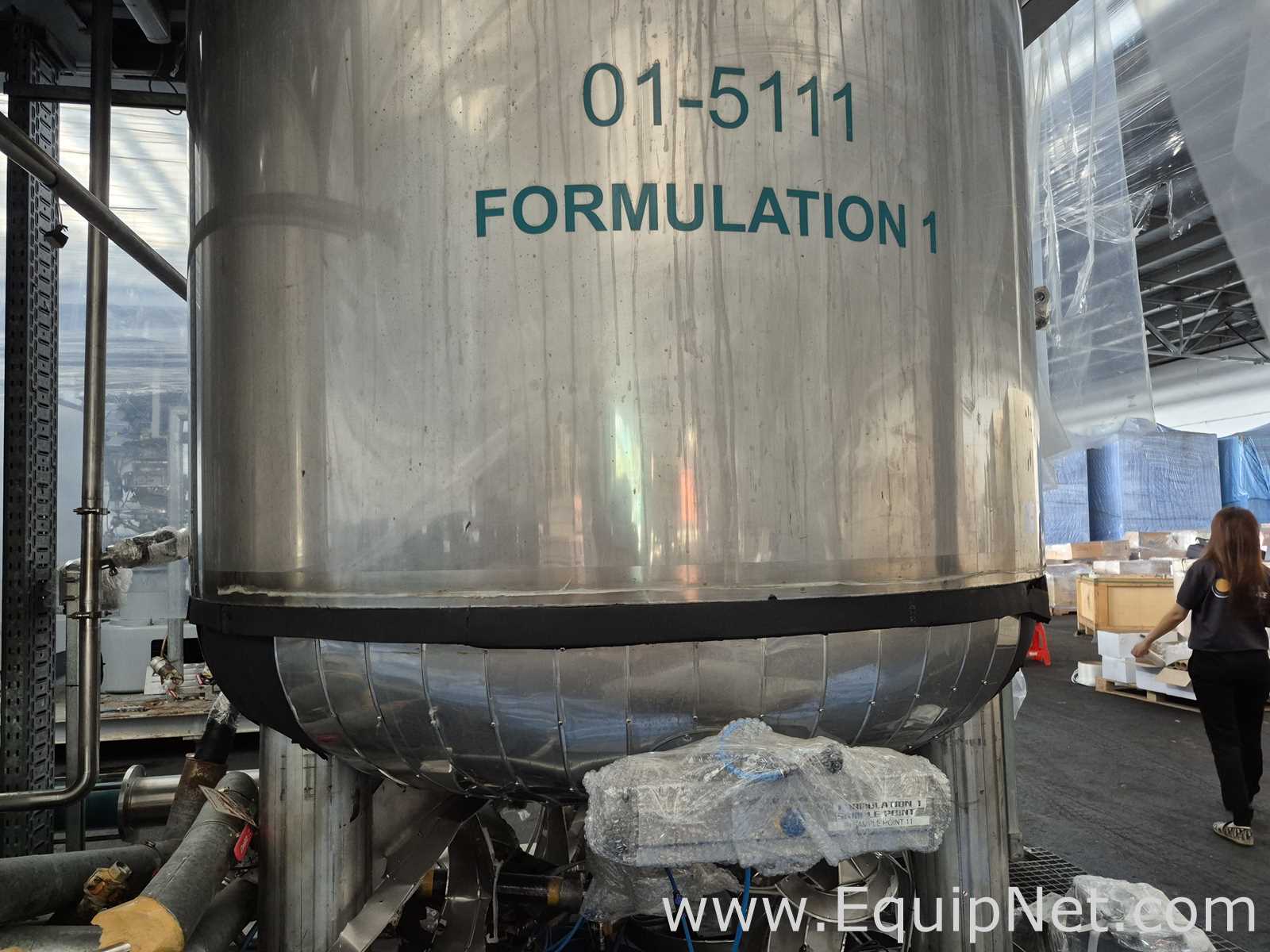

Netzsch 6000L Formulation 1 High-Speed Mixing Vessel 5111 - Skid 4-1 Cooling Buffer Transfer Station
Equipment Description

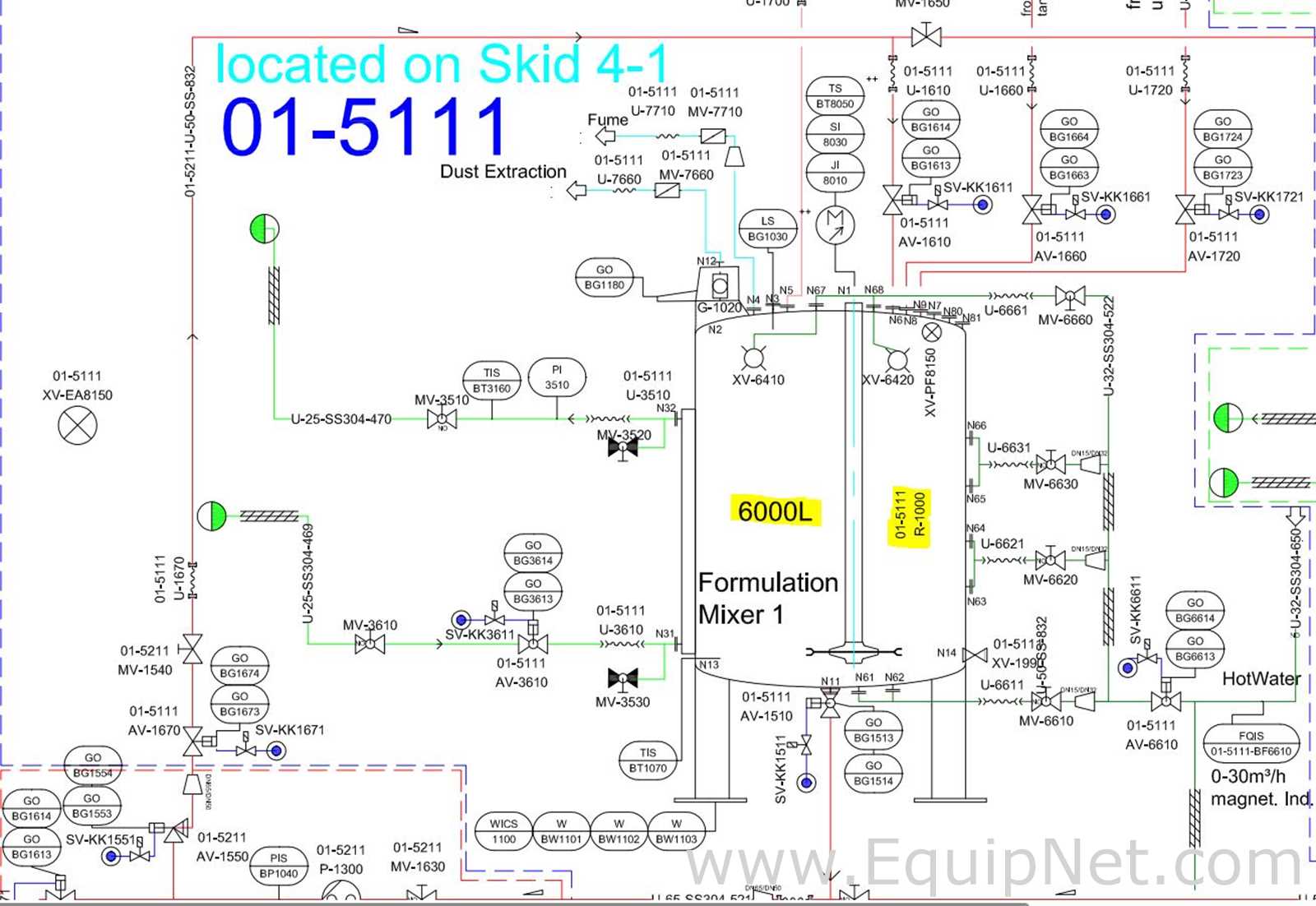

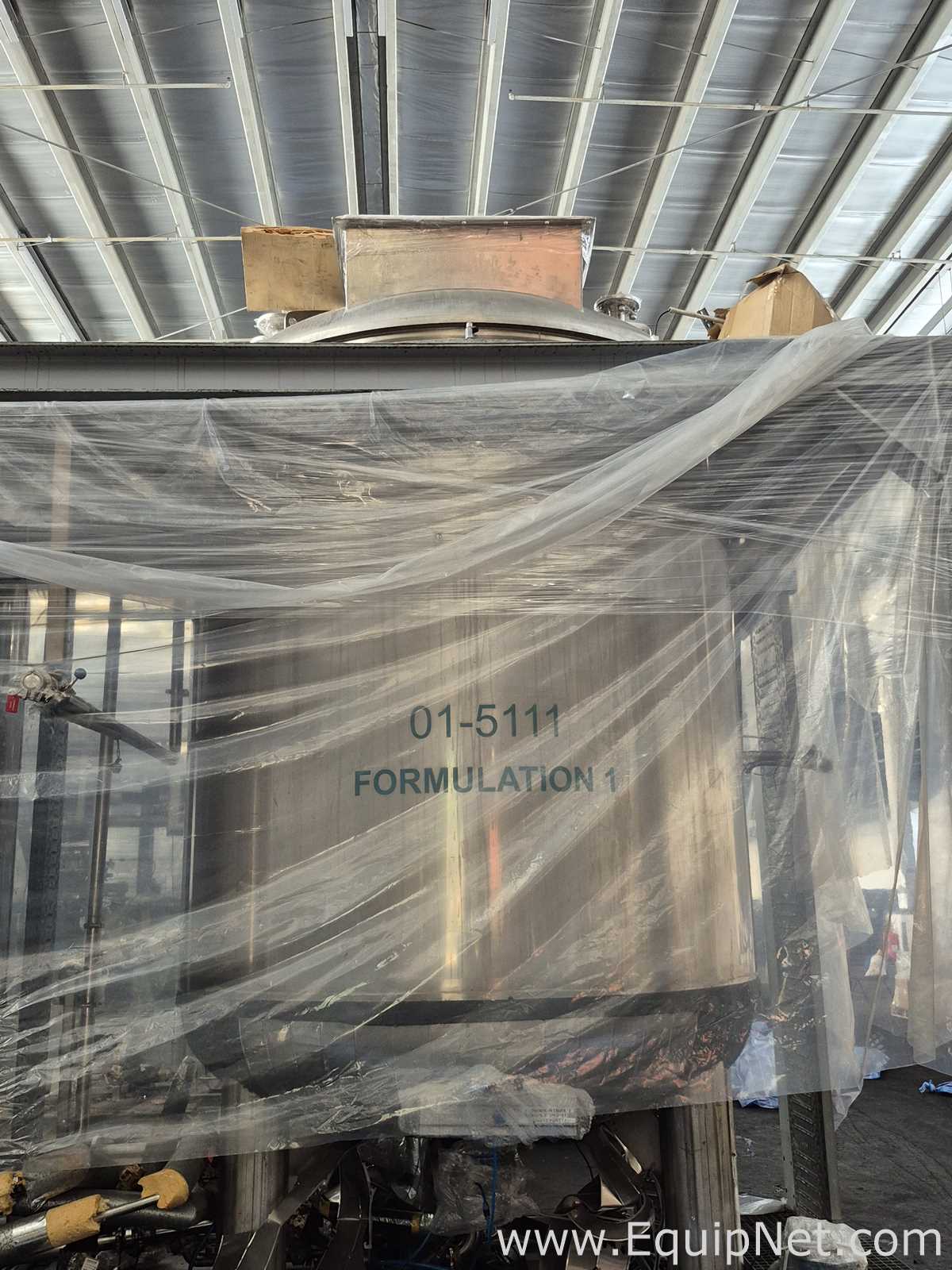

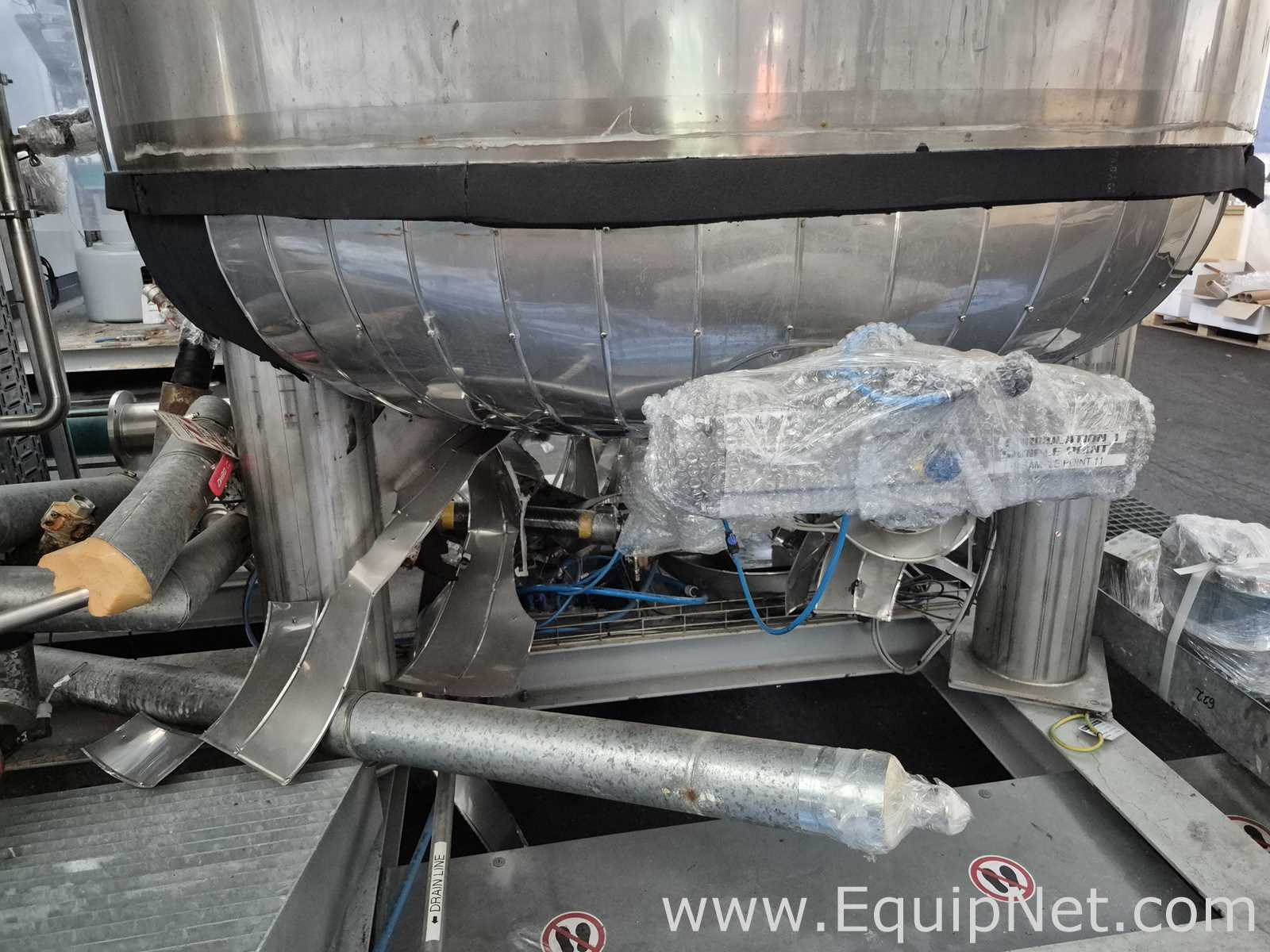

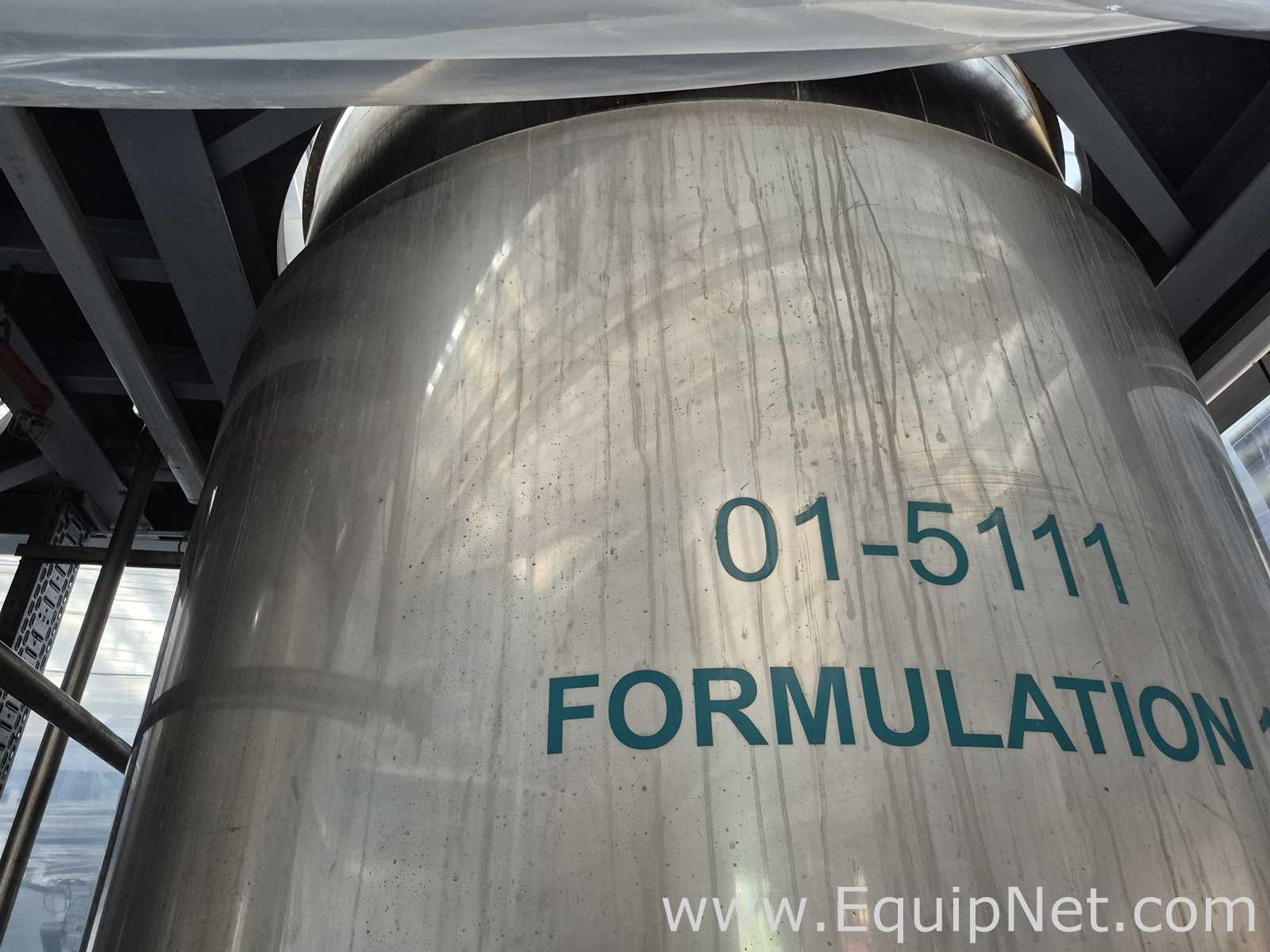

Netzsch Mixer 6000L HS Cooled 01-5111-R-1000 Skid 4-1 Cooling / Buffer Transfer Station
Designed for Max operating pressure: Atm.
Designed for Max operating temperature: 90C.
Designed for Max cooling water pressure: 3 bar.

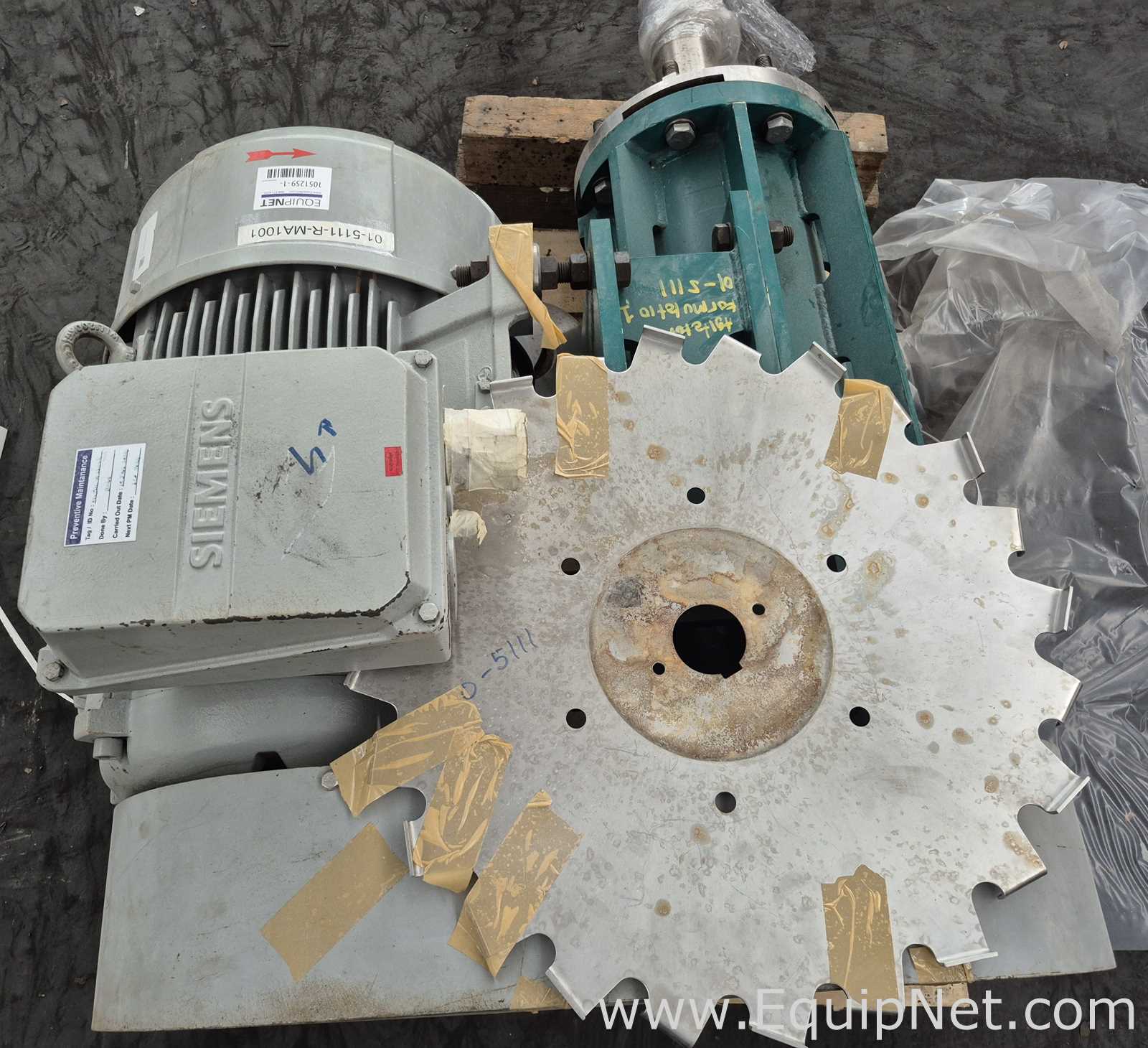

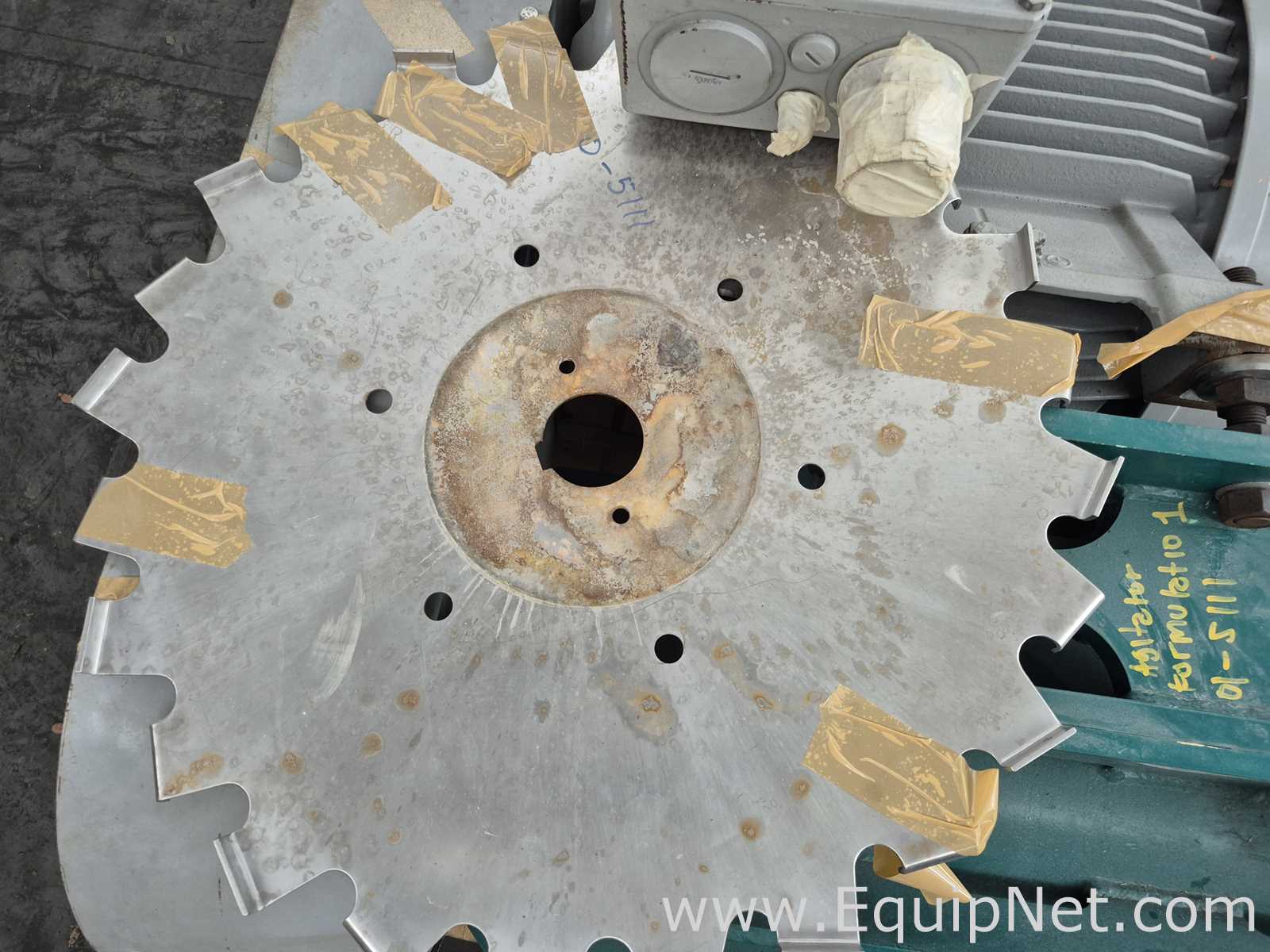

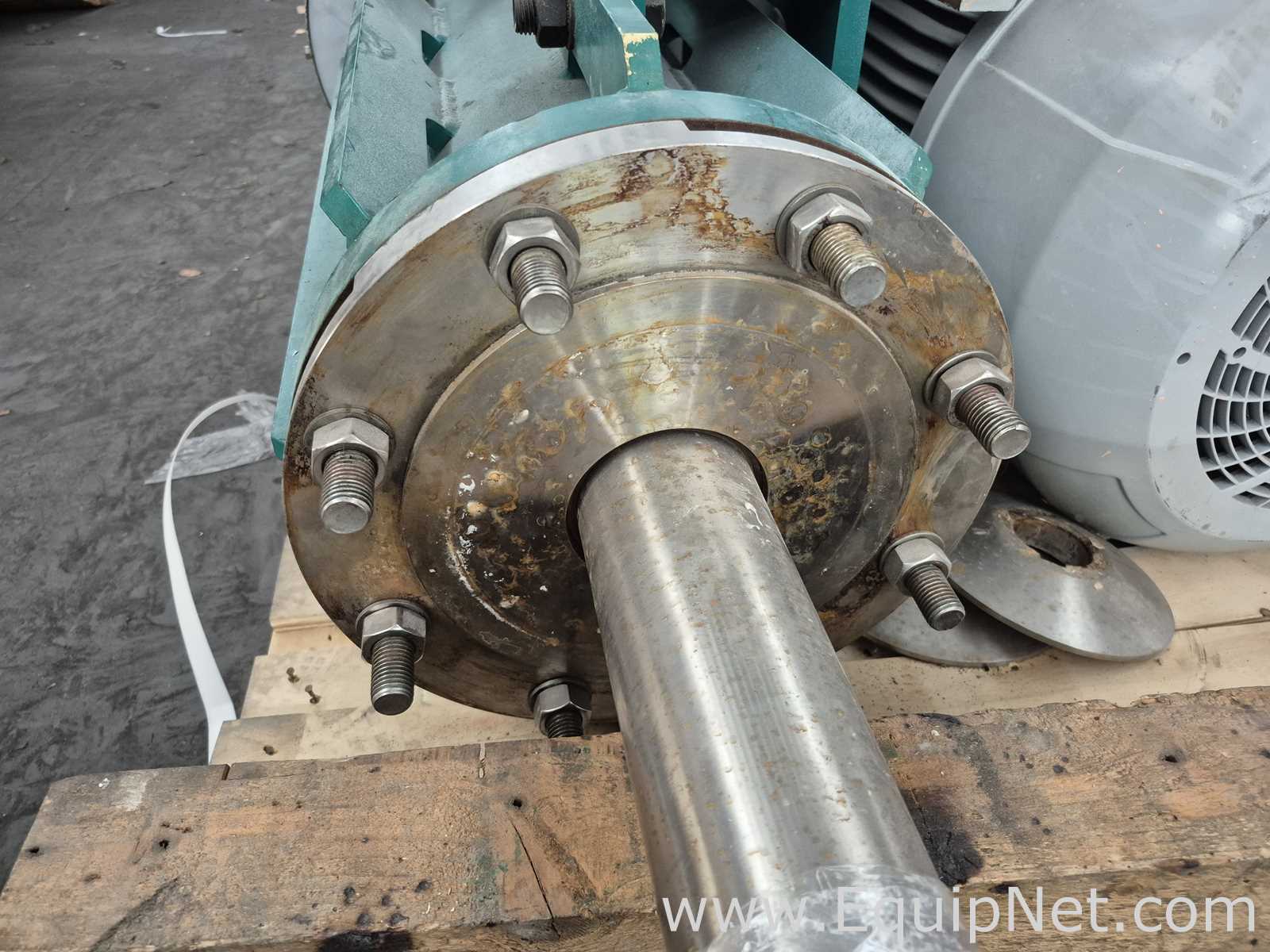

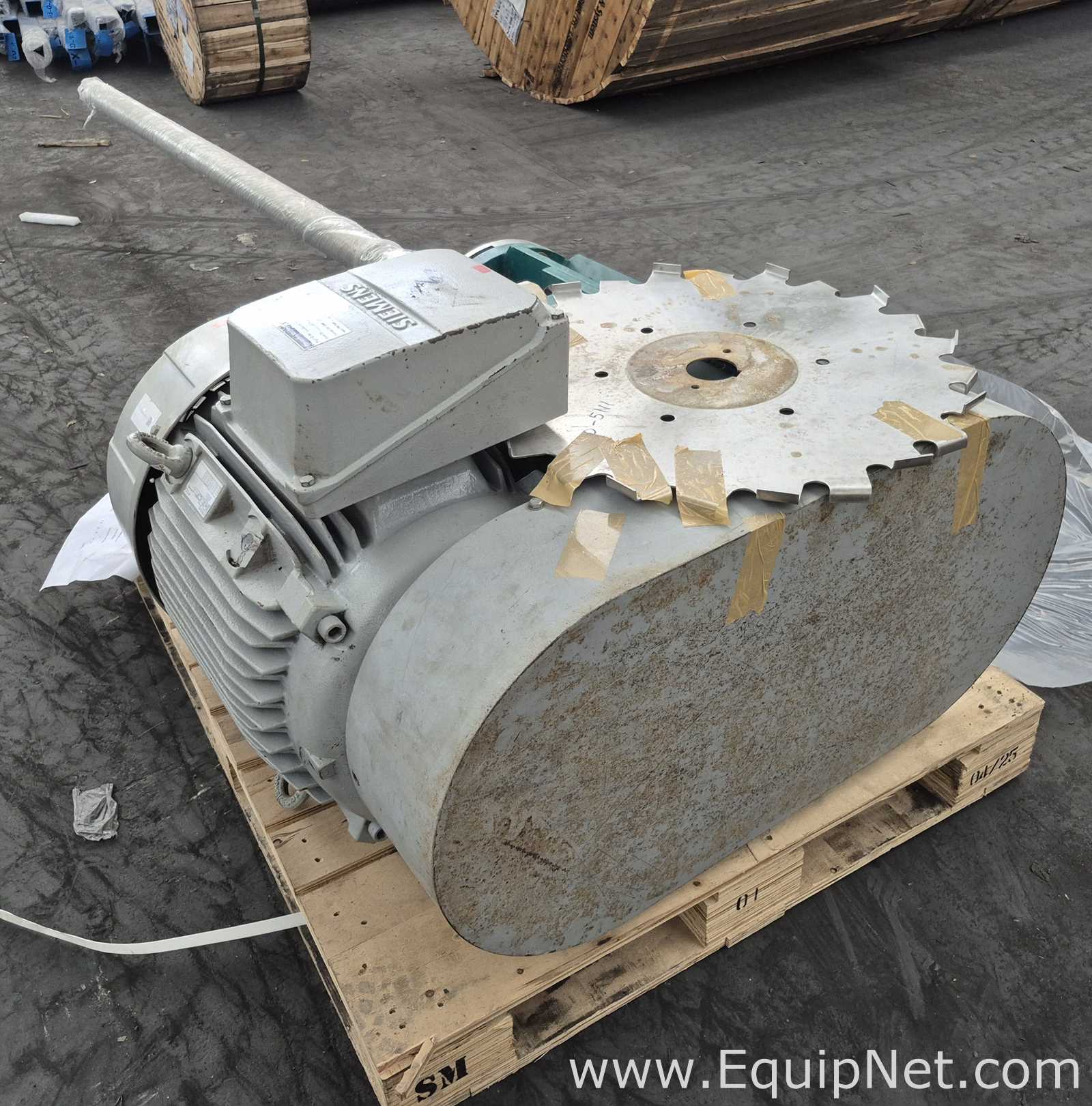

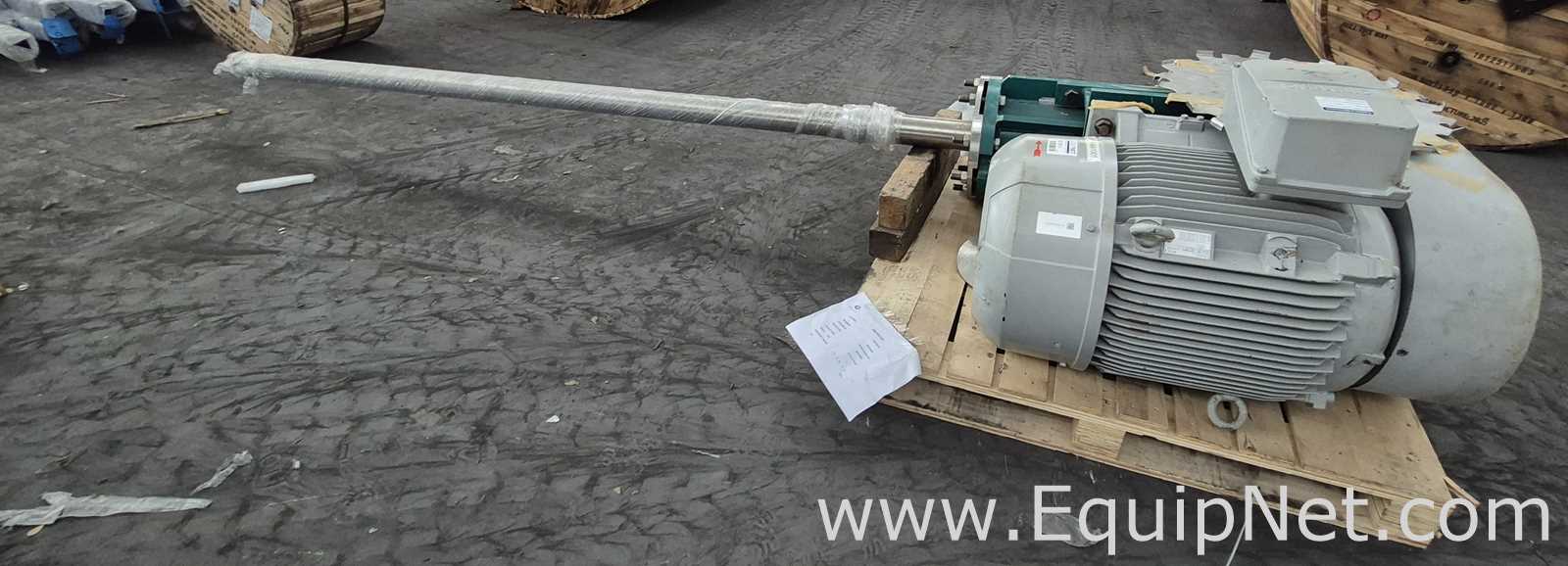

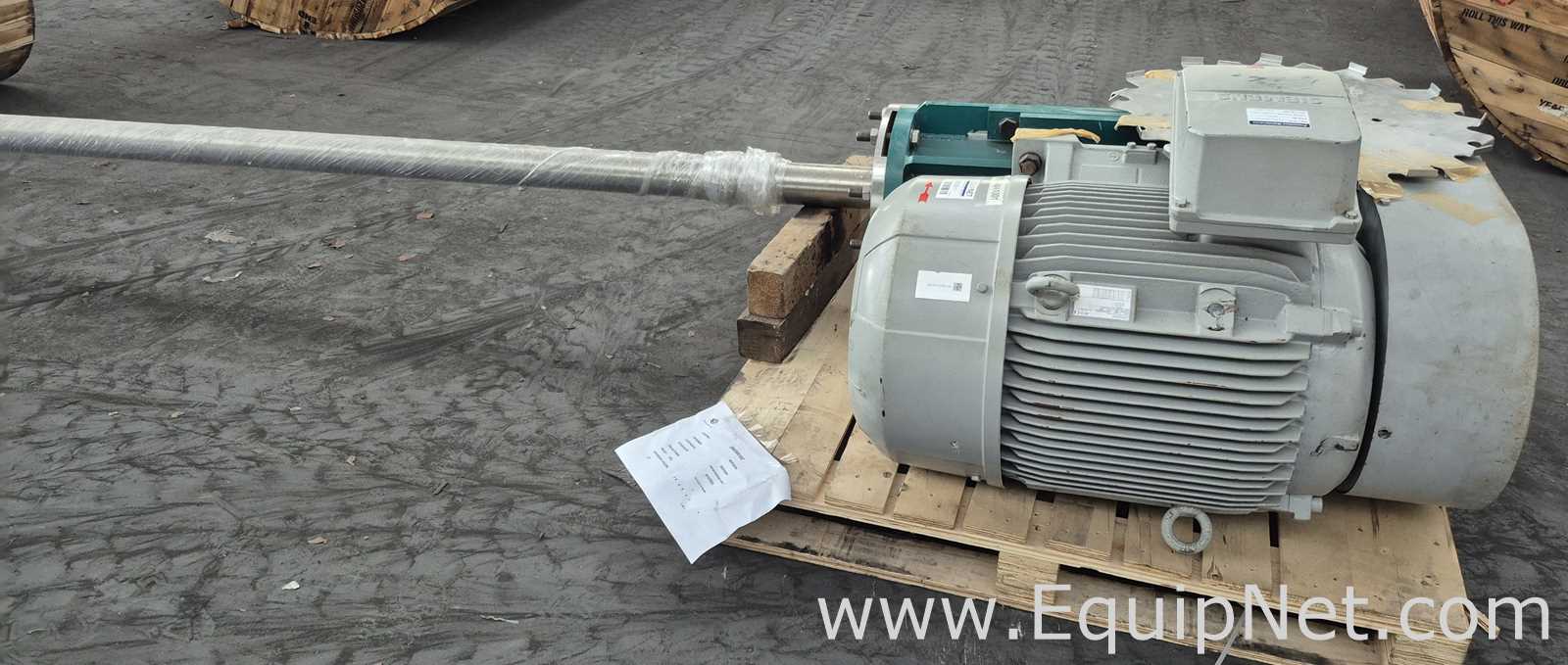

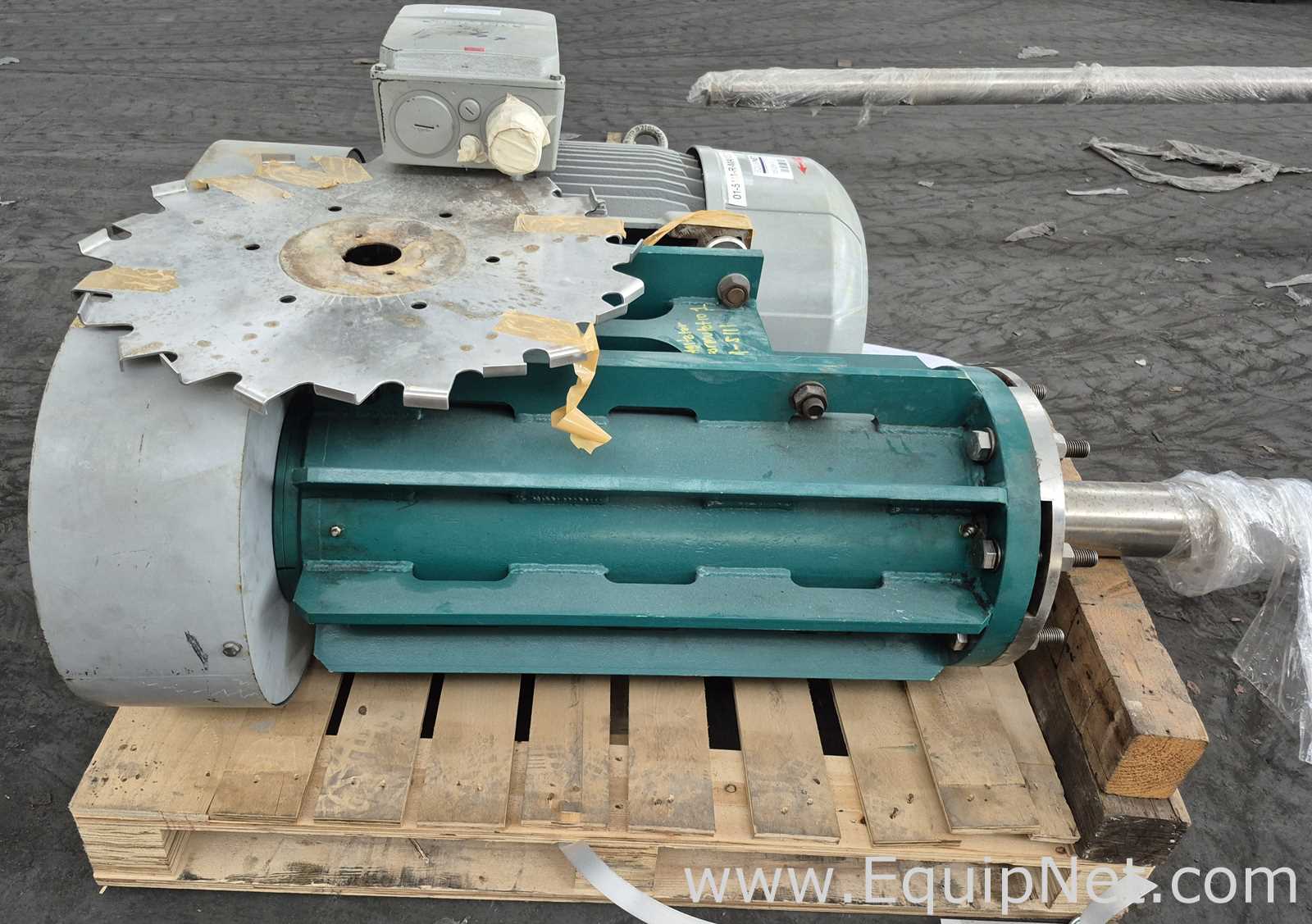

Disperser drive: Speed 160-800 rpm. Mixing element Tooth disk approx. 600 mm. Mixer drive 55 kW, protection class IP 55 / not explosion-proof infinitely variable via frequency inverter.
Cooling: cooling coils stainless steel 1.4301 (304). Max. 3 bar with open outlet. Cooling water outlet temperature via PT100 and pressure via analog pressure gauge.
Insulation: For vessel wall in cooling area.
Cleaning system: With 2 cleaning heads type Turbo SSB and a total of 6 cleaning nozzles in the tank, with central connection point.
Load cell system: 3 load cells each 5 t and mounting kit.
Temperature control with limit switch: Resistance thermometer PT100.
Overfilling safety: Level limit switch FTL51.

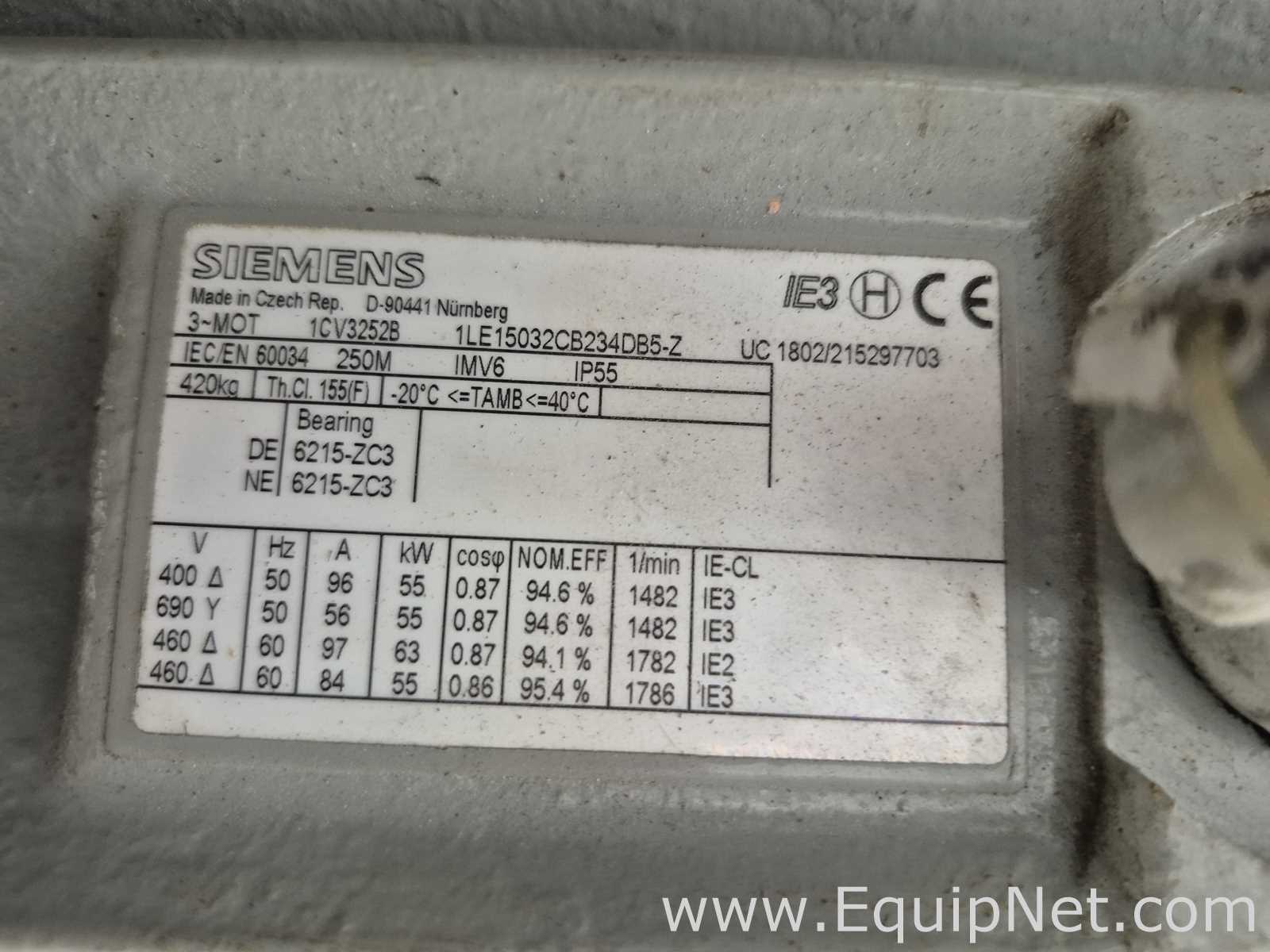

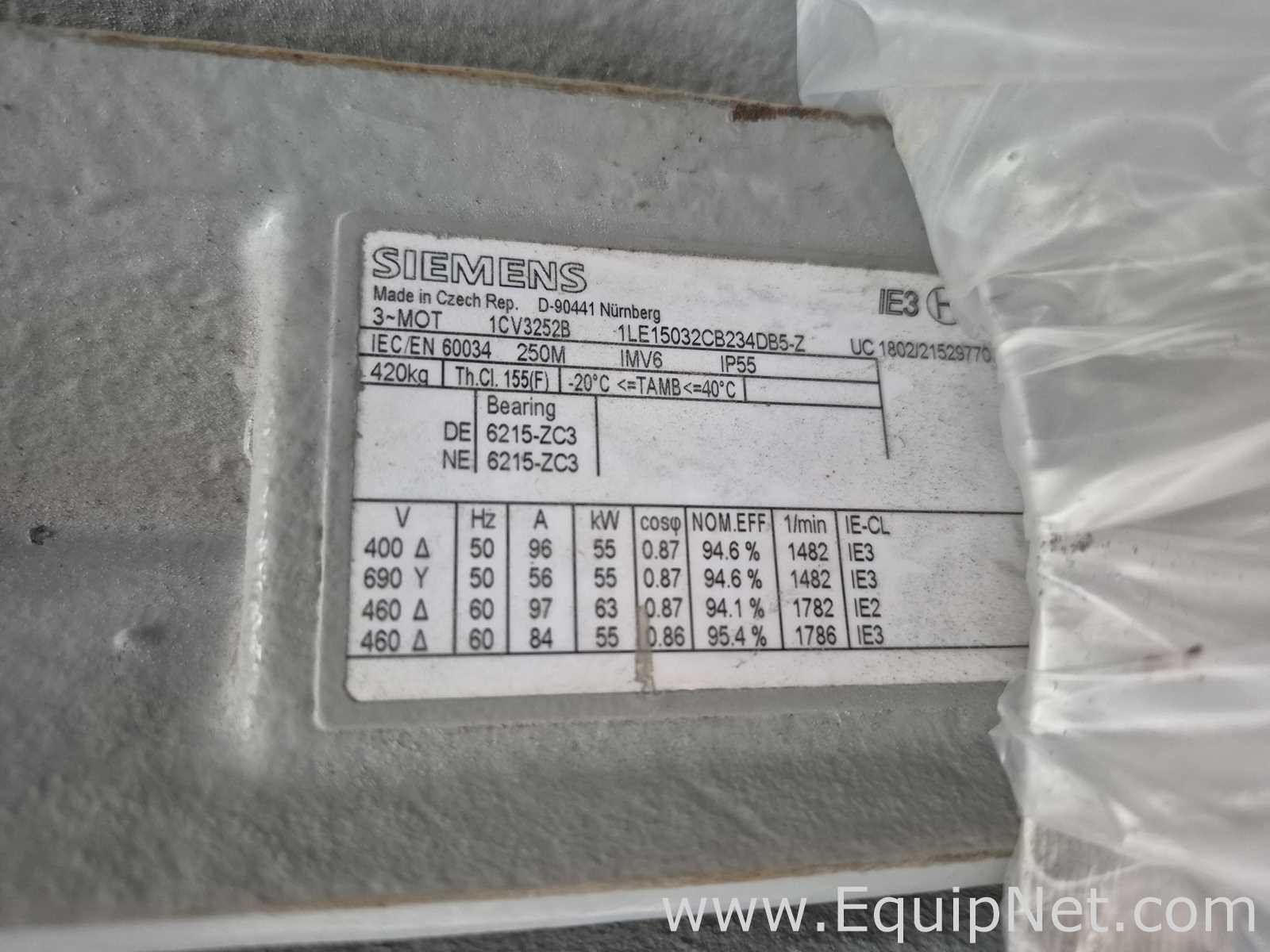

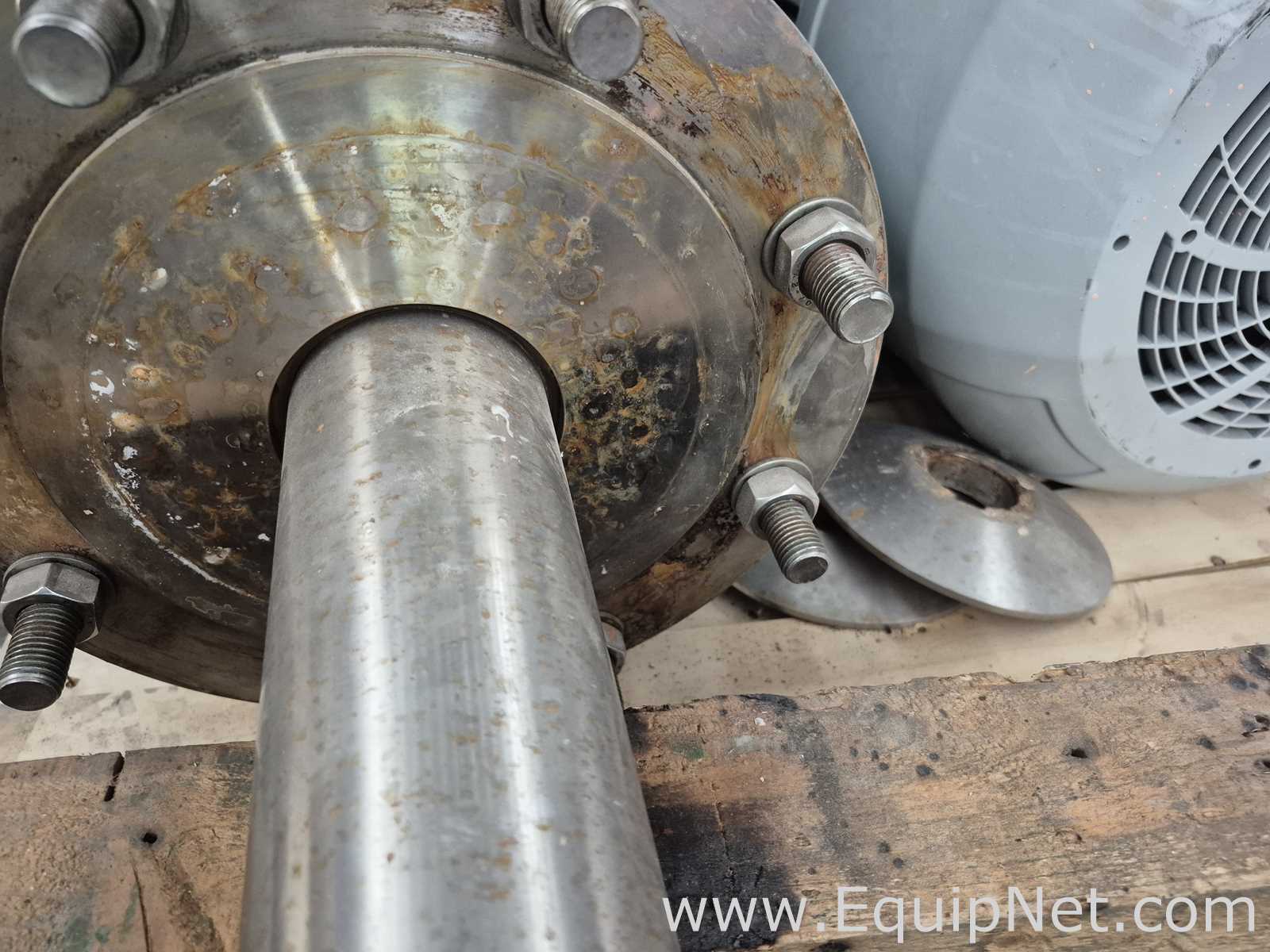

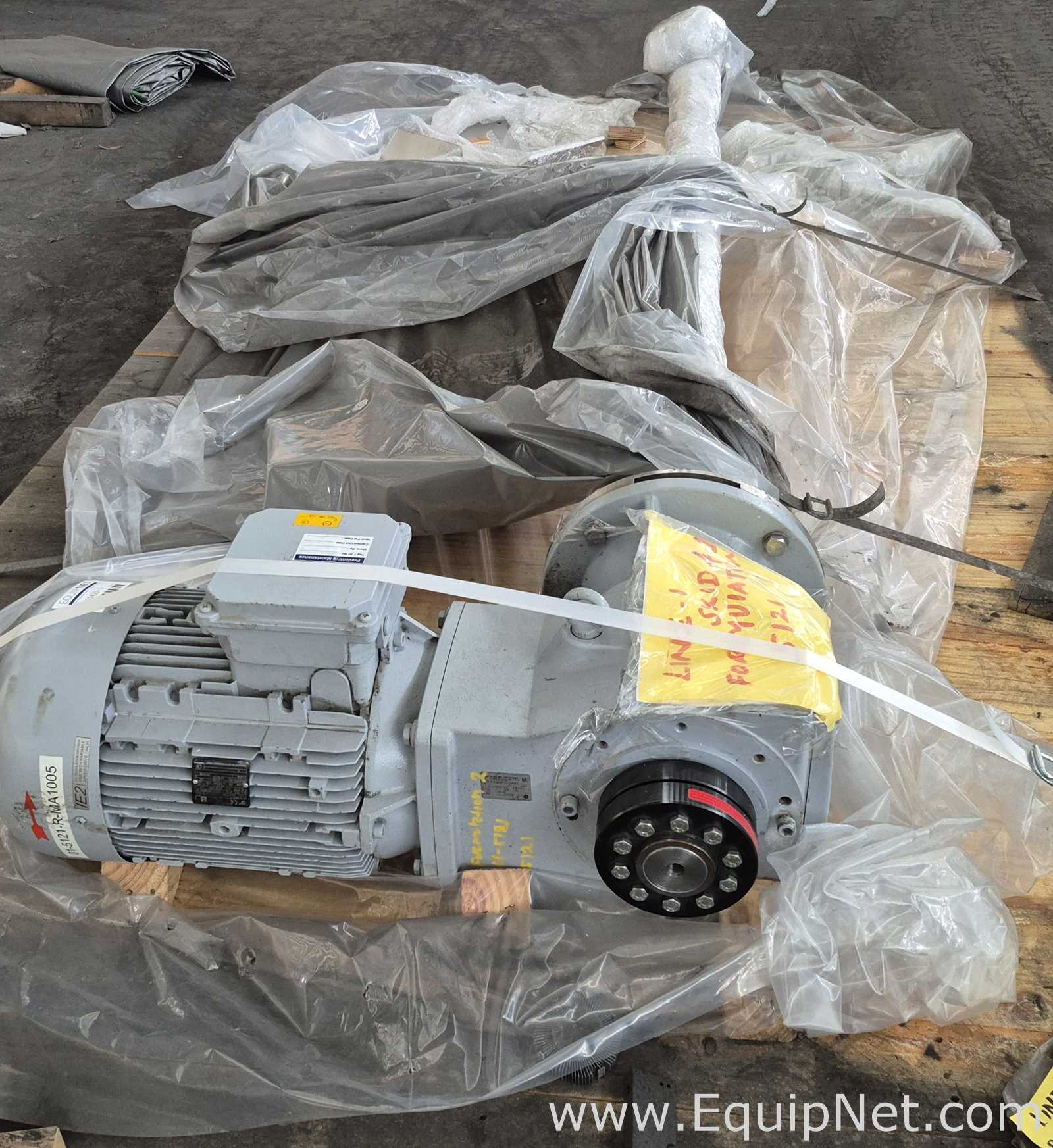

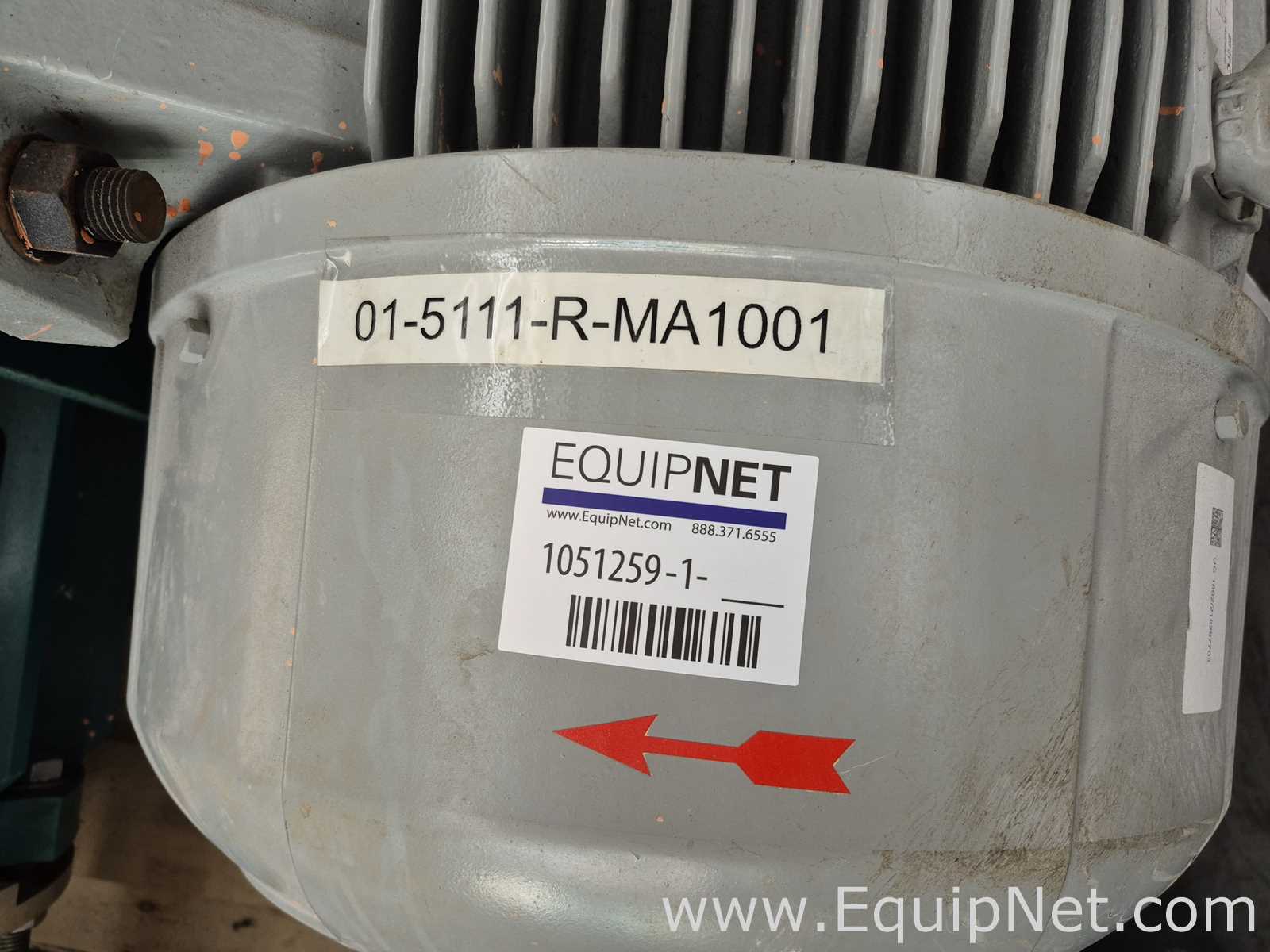

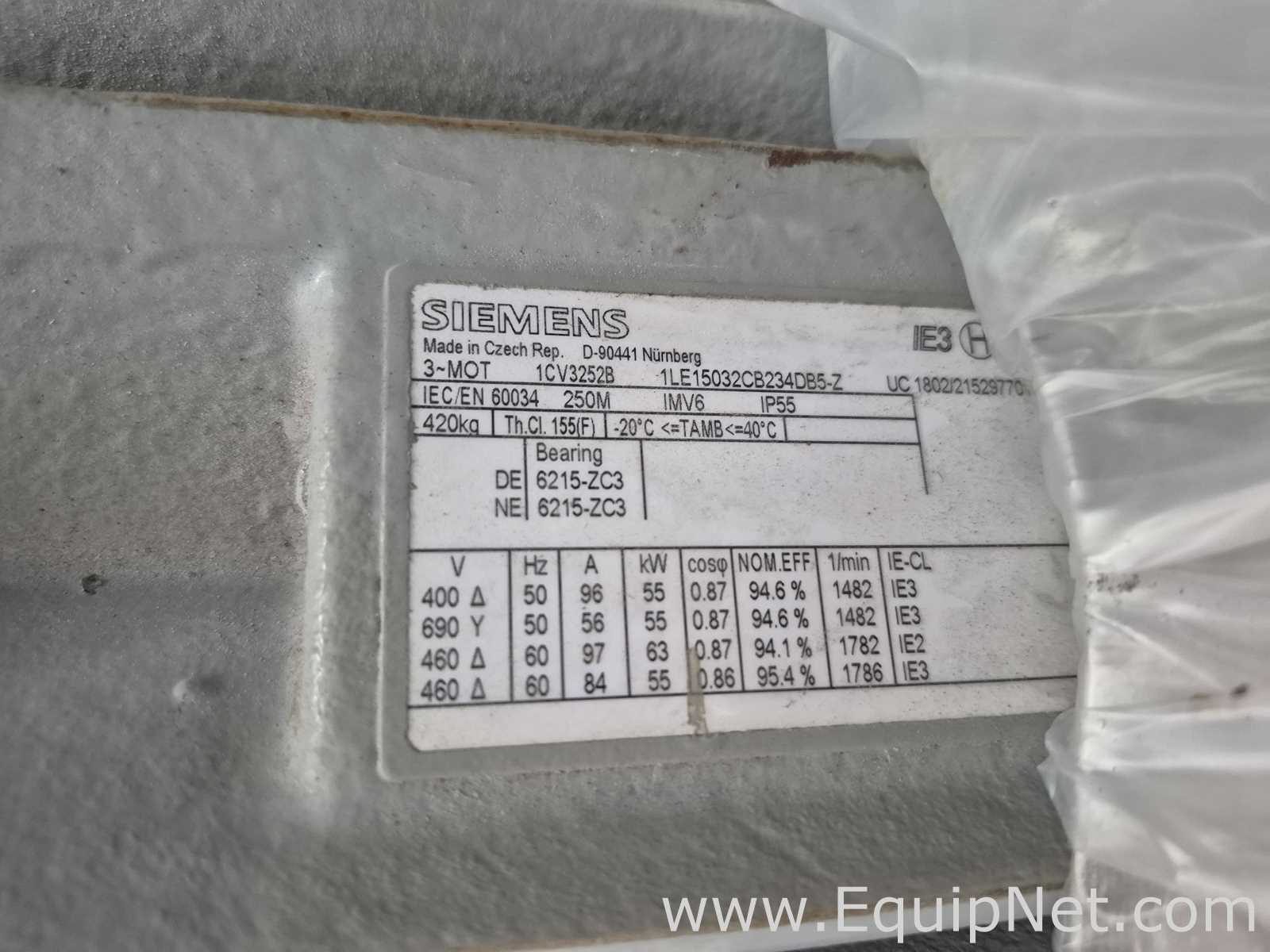

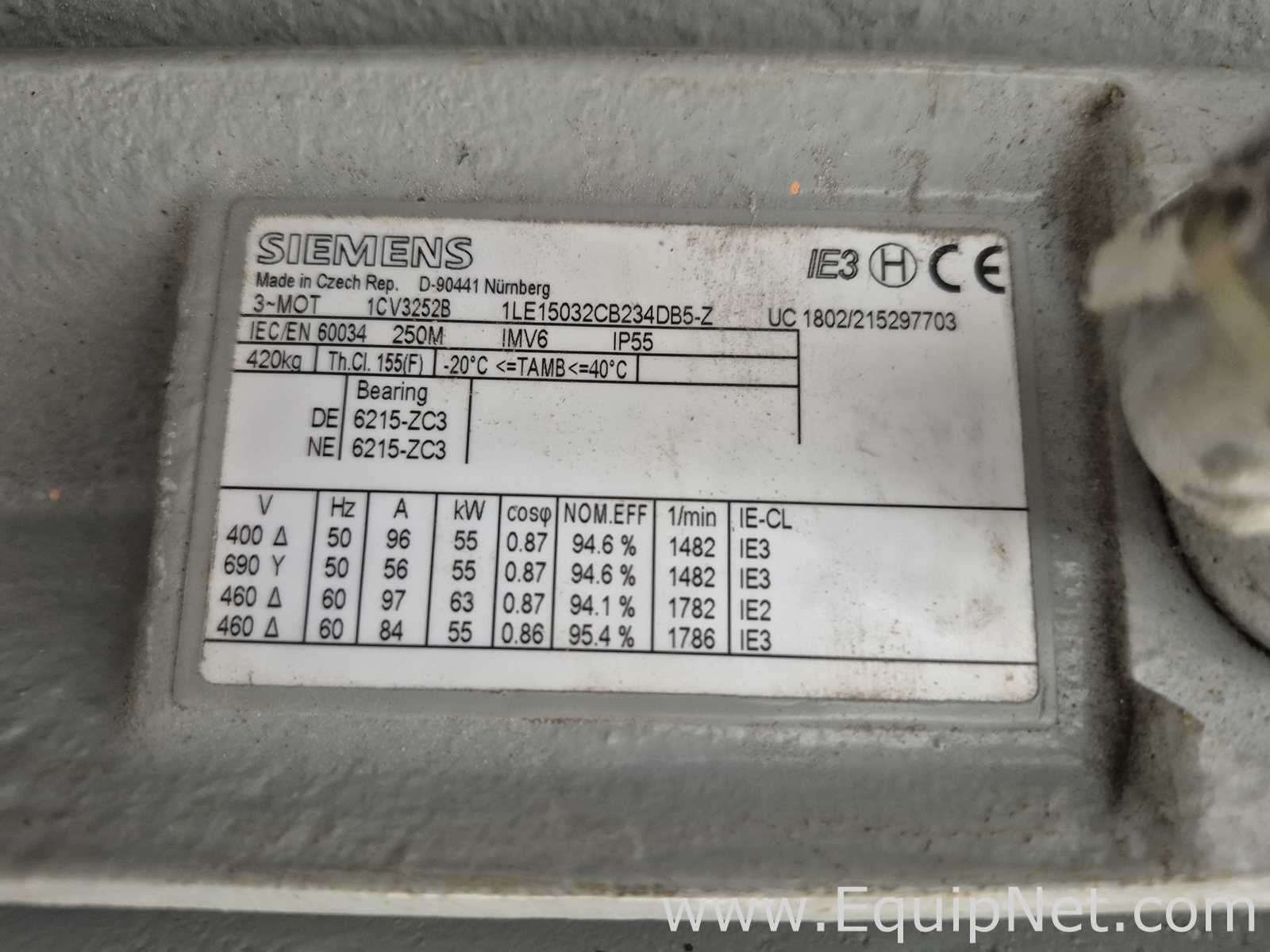

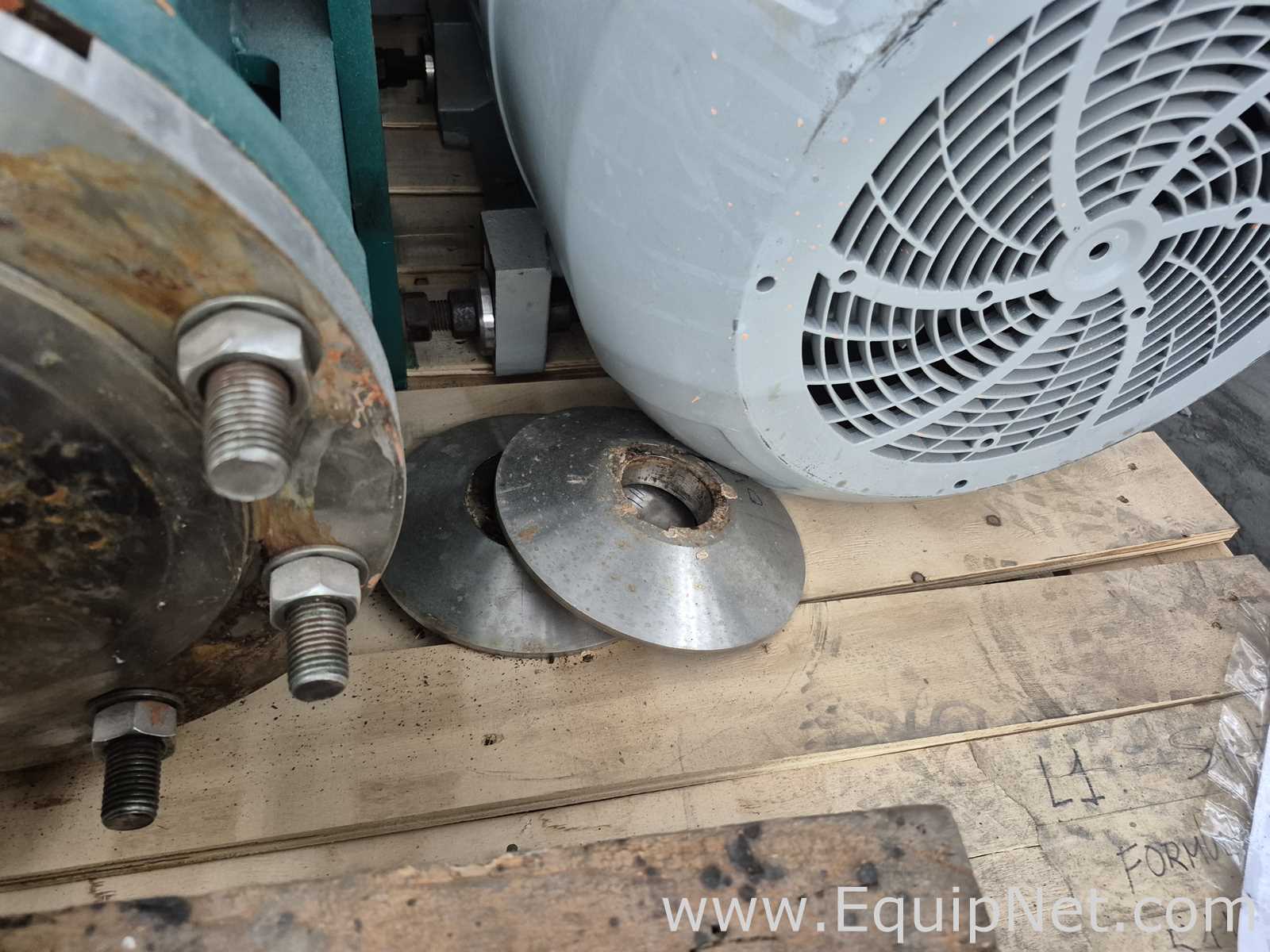

Includes Listing 1051259 Siemens 55kW motor
Includes Listing 1051259 Siemens 55kW motor
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Year:
2018
2018
CE Marked:
YES
YES
Tank Material of Construction:
STAINLESS STEEL
STAINLESS STEEL
Capacity Size of Vessel:
1585.56
gal
6000
L
Jacketed:
YES
YES
Type of Top Head:
DISHED
DISHED
Type of Bottom Head:
DISHED
DISHED
Agitation:
YES
YES
HP or KW:
55
KW
55
KW
Recommended Packaging Form:
CRATE
CRATE
Voltage:
VOLTS
VOLTS
Frequency:
50
HERTZ
50
HERTZ
Dimensions:
Standard
Metric
Overall:
74.80 x 74.80 x 120.75 in - 6172.88 lb
1900 x 1900 x 3067 MM - 2800 KGS
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1050514

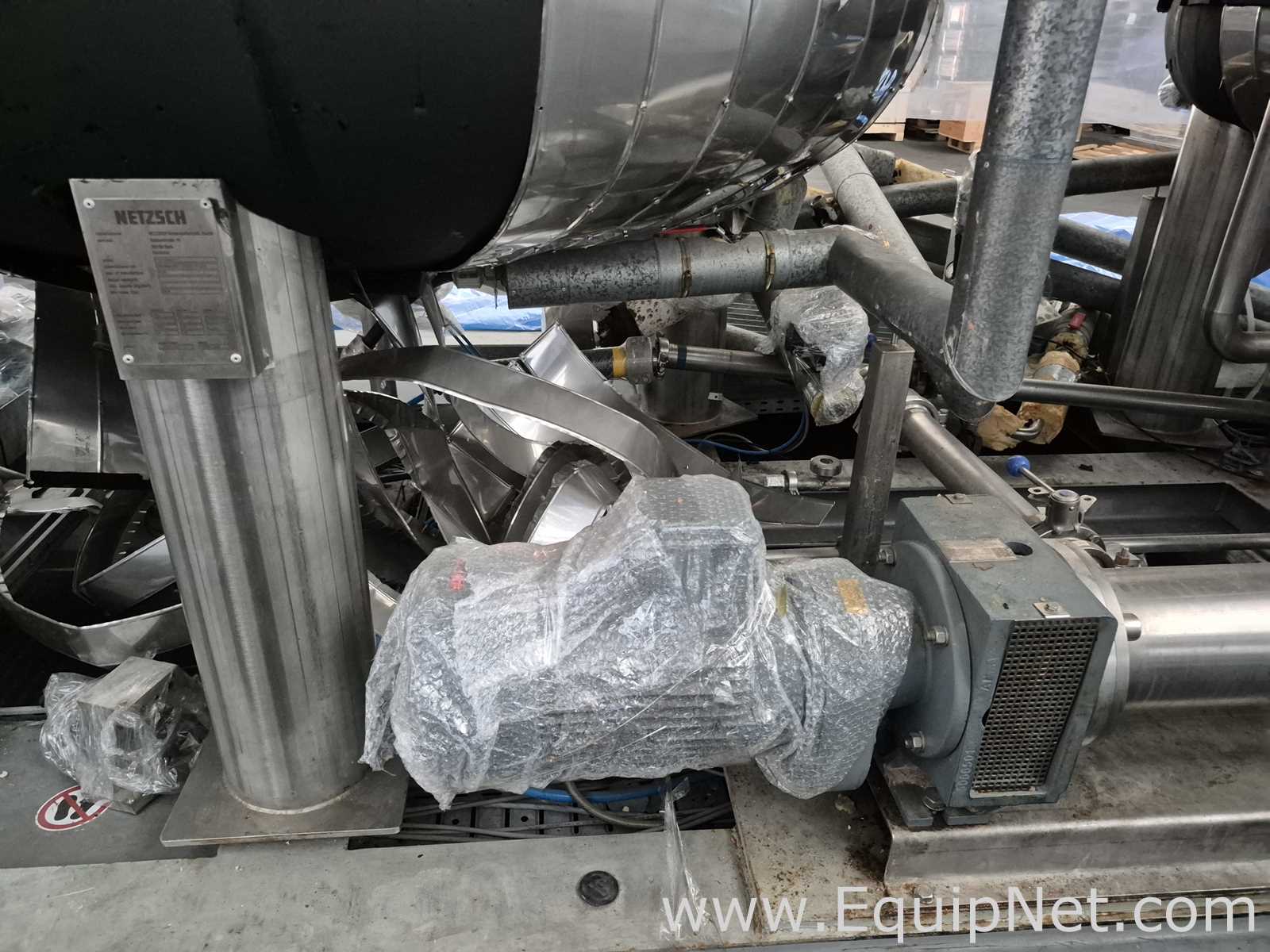

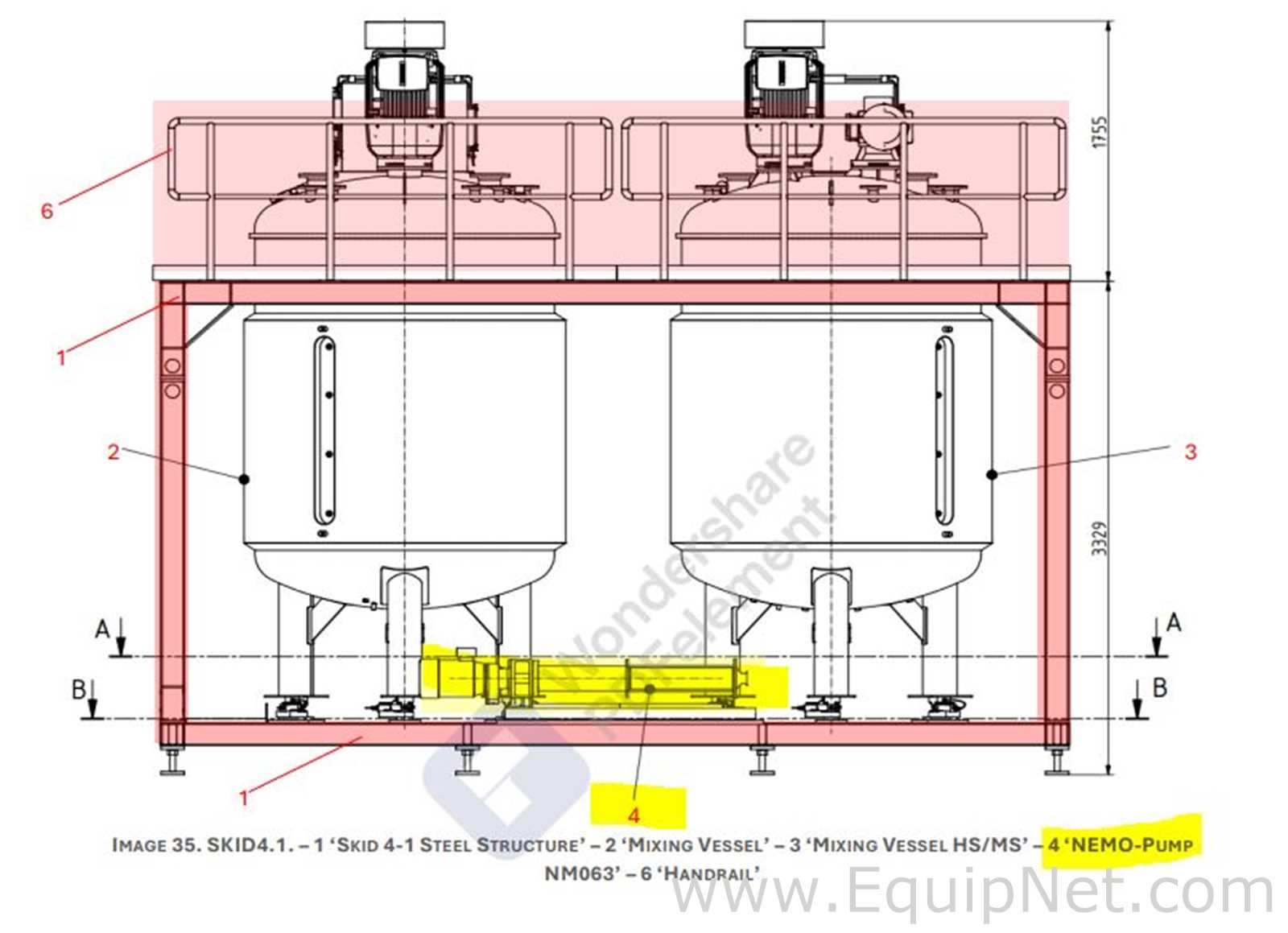

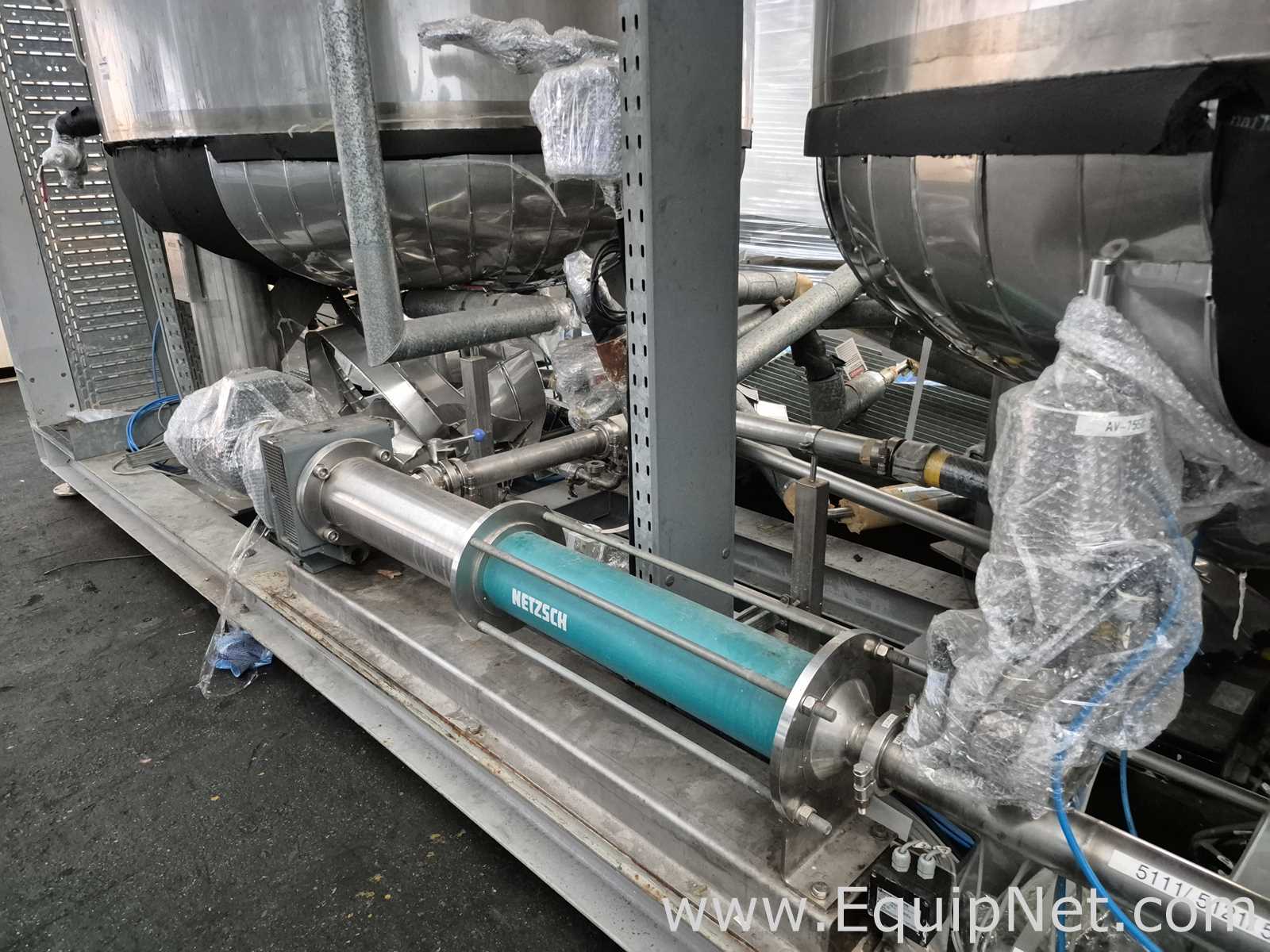

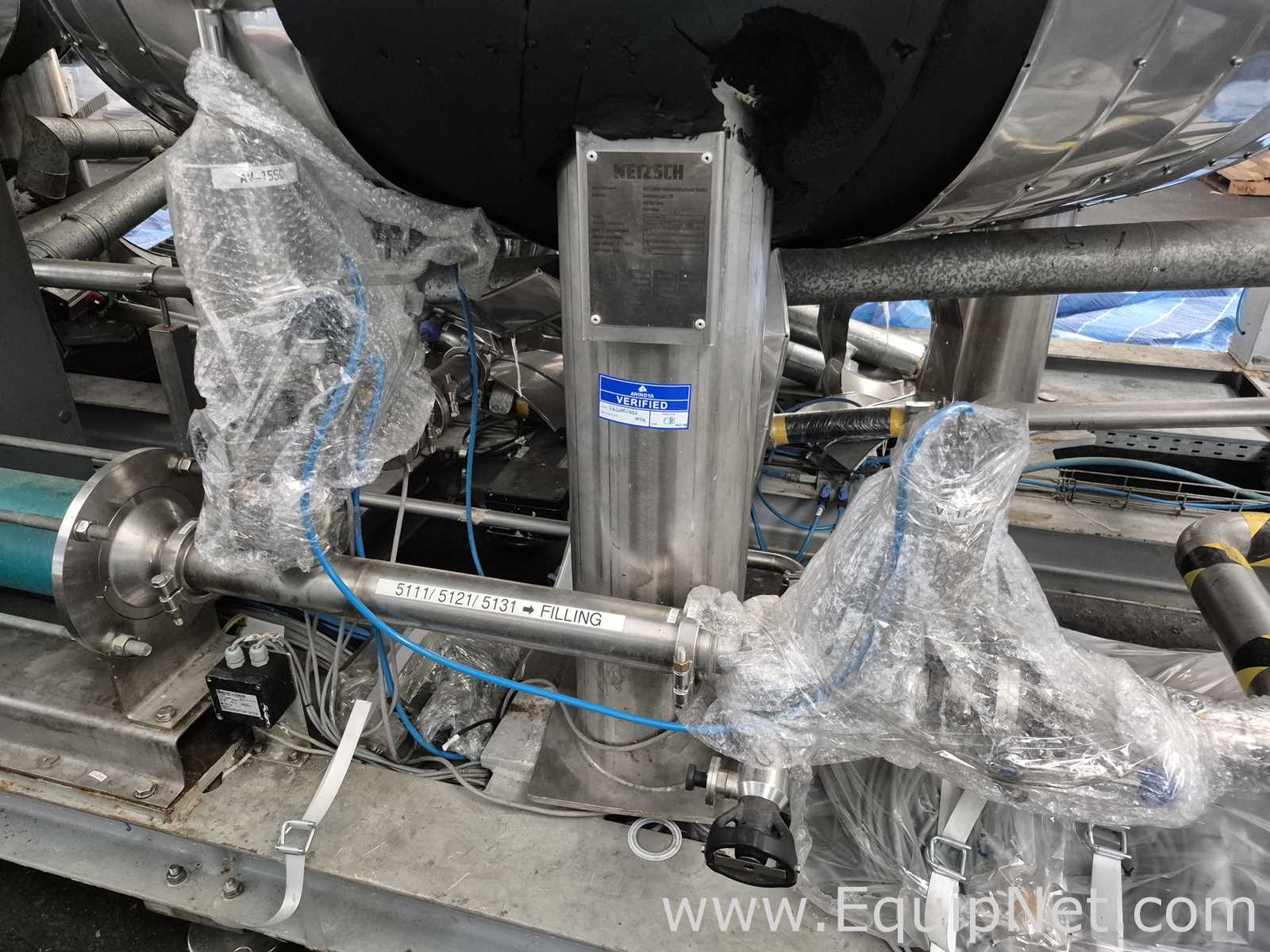

Netzsch Formulation Discharge Pump Nemo 5211 - Skid 4-1 Cooling / Buffer Transfer Station
Equipment Description

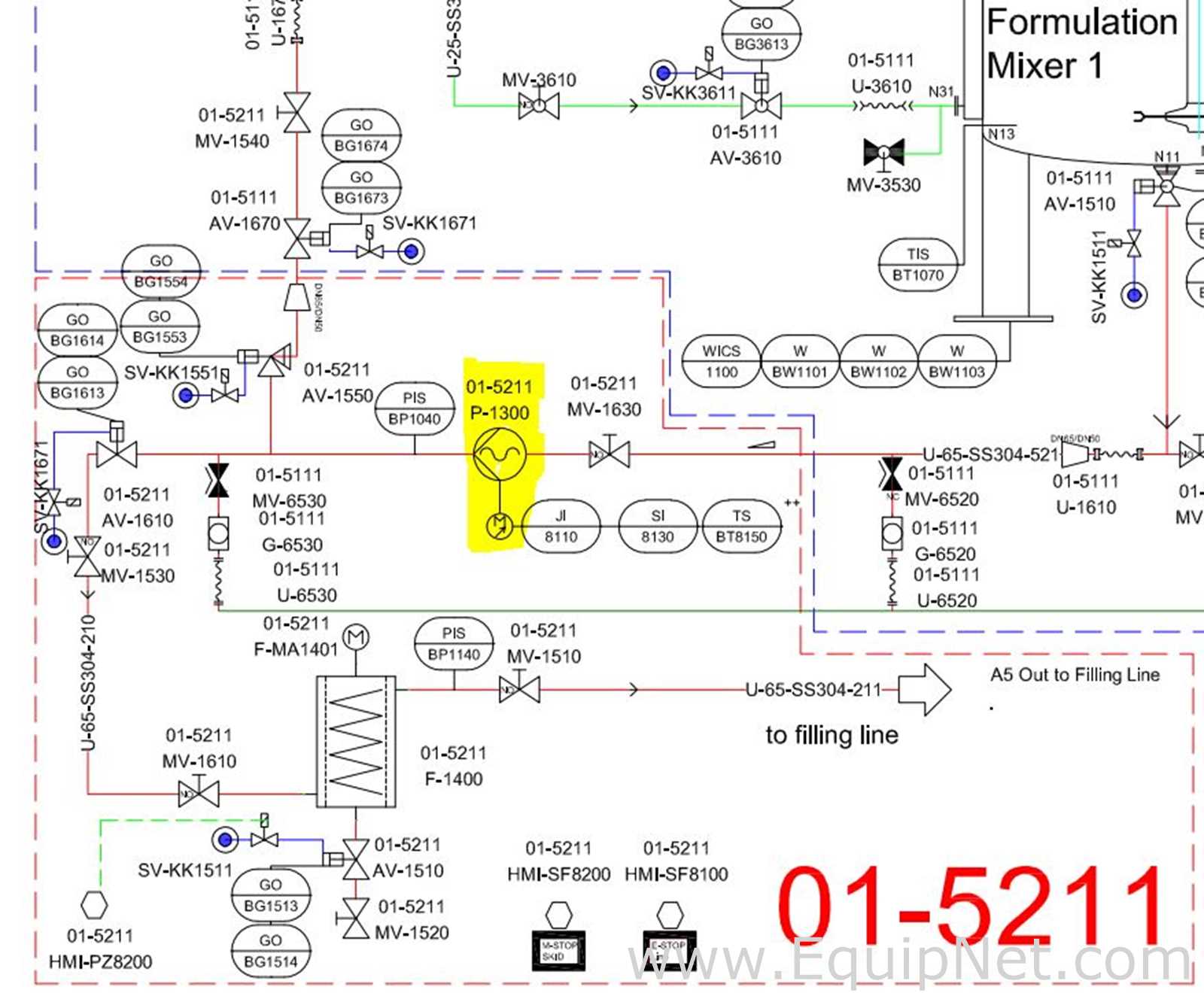

Netzsch Nemo Pump NM063 01-5211-P-1300 Skid 4-1 Cooling / Buffer Transfer Station
Flow rate:6-24 m3/hr.
Connection size and type: DN65, TriClamp.
Designed for Max. mechanical pressure: 12 bar.
Designed for Max. operating temperature: 65C.
Safety Equipment: outlet pressure via pressure sensor with MAX switching contact.
Housing material: AISI 316.
Rotor: AISI 316.
Drive: Infinitely variable via frequency inverter.
Motor power: 7.5 kW, protection class IP 55/ not explosion-proof.
Baseplate material: stainless steel AISI 304.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Frequency:
50
HERTZ
50
HERTZ
Phase:
3
3
Voltage:
400/690
VOLTS
400/690
VOLTS
Horsepower:
7,5
KW
7,5
KW
Recommended Packaging Form:
CRATE
CRATE
Dimensions:
Standard
Metric
Overall:
1 x 1 x 1 IN - 1 LBS
25.40 x 25.40 x 25.40 mm - 0.45 kg
