Listing# 1107451

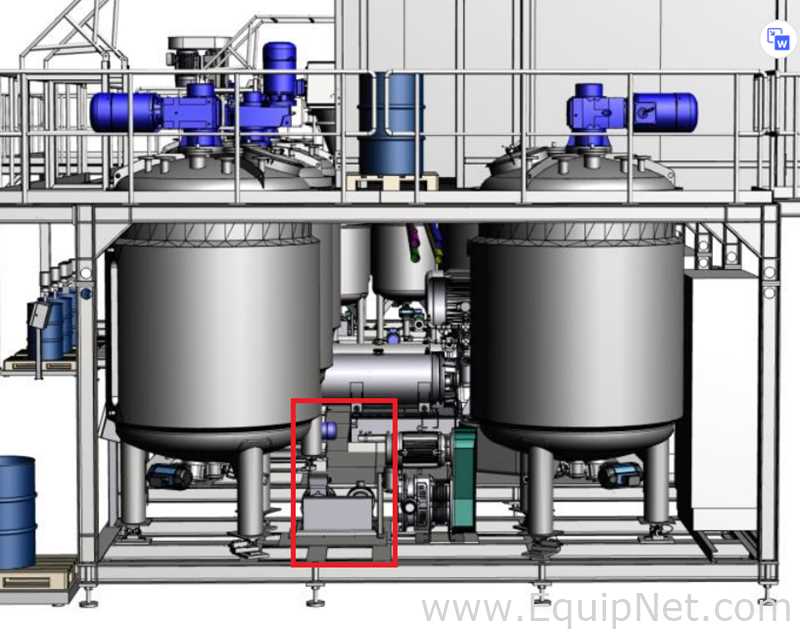

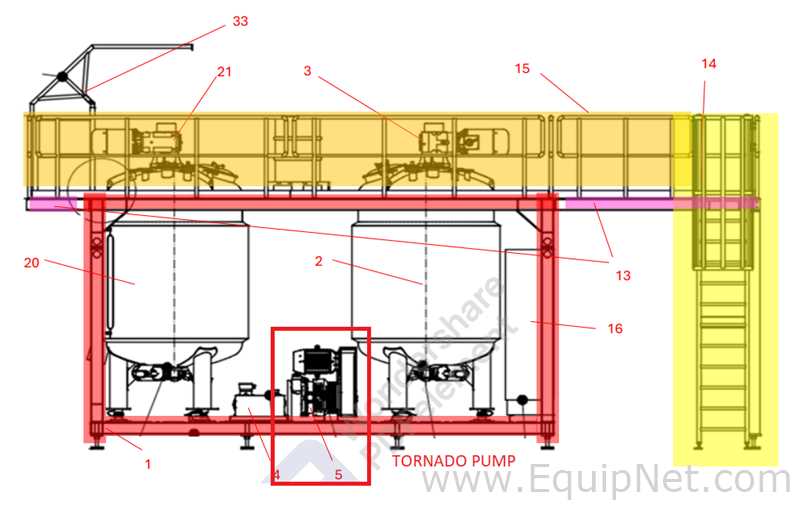

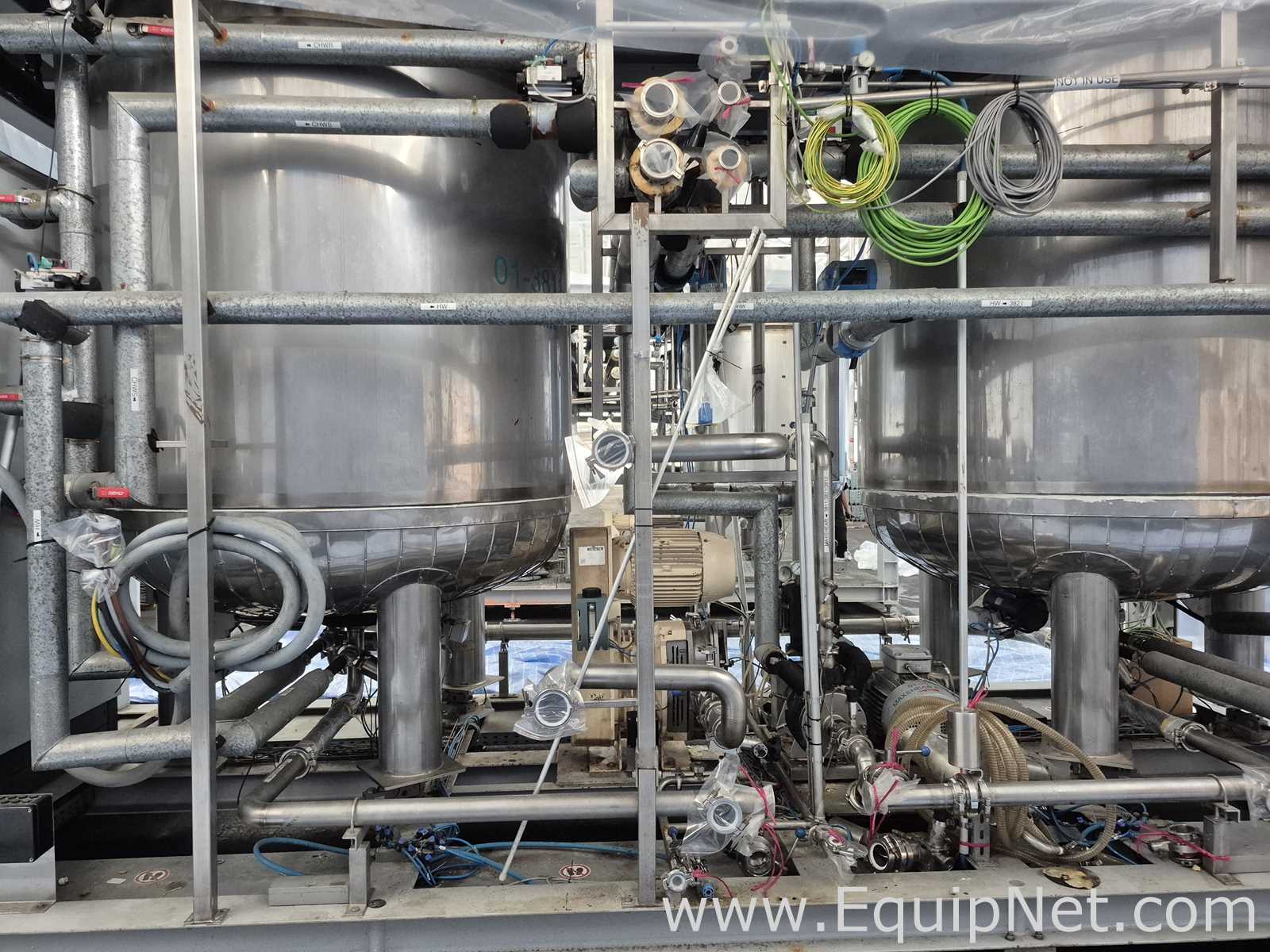

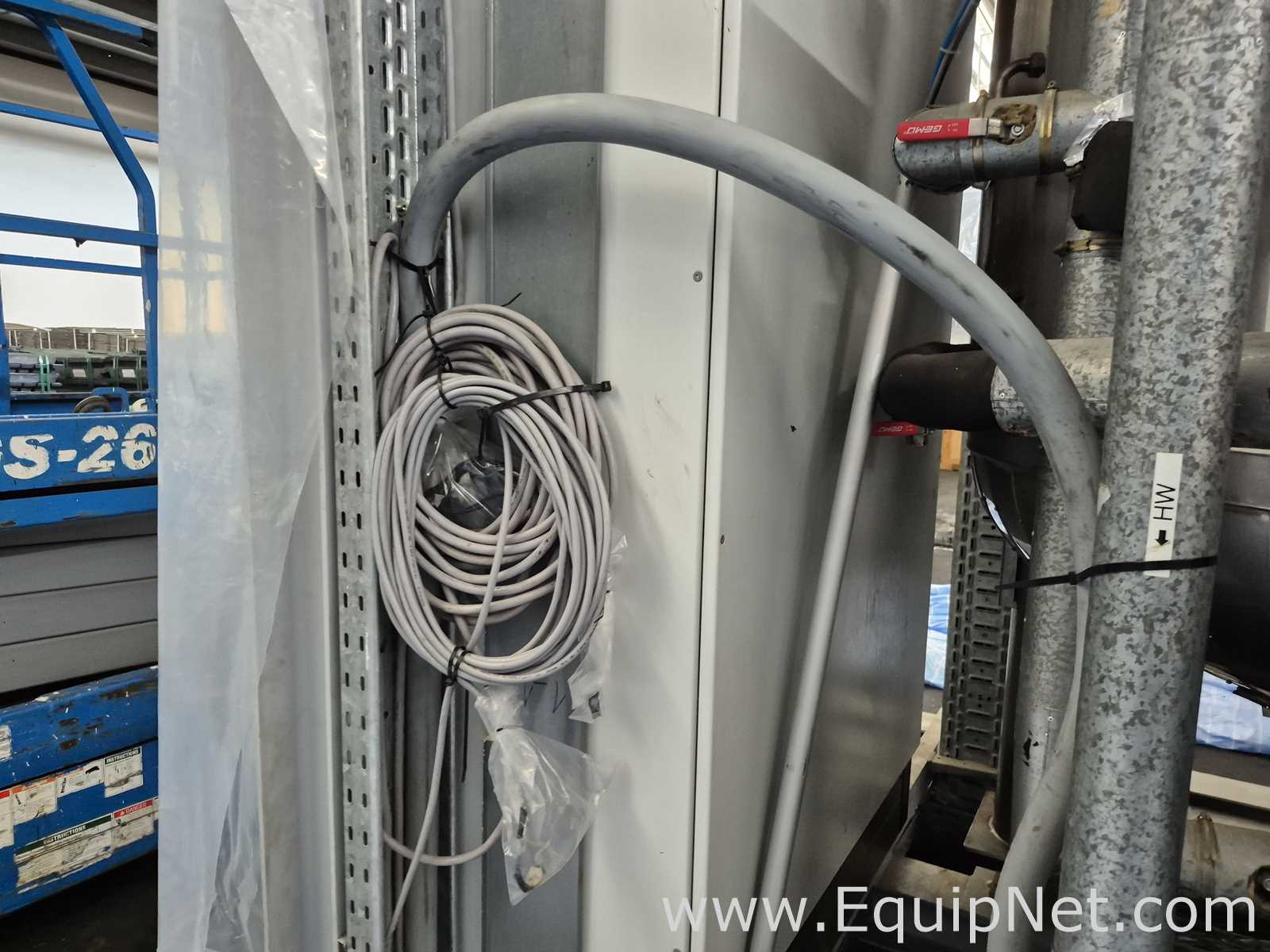

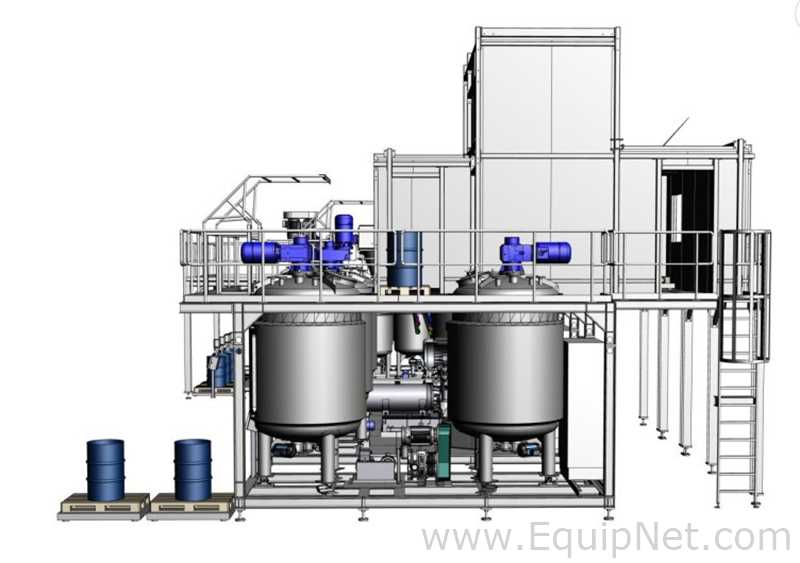

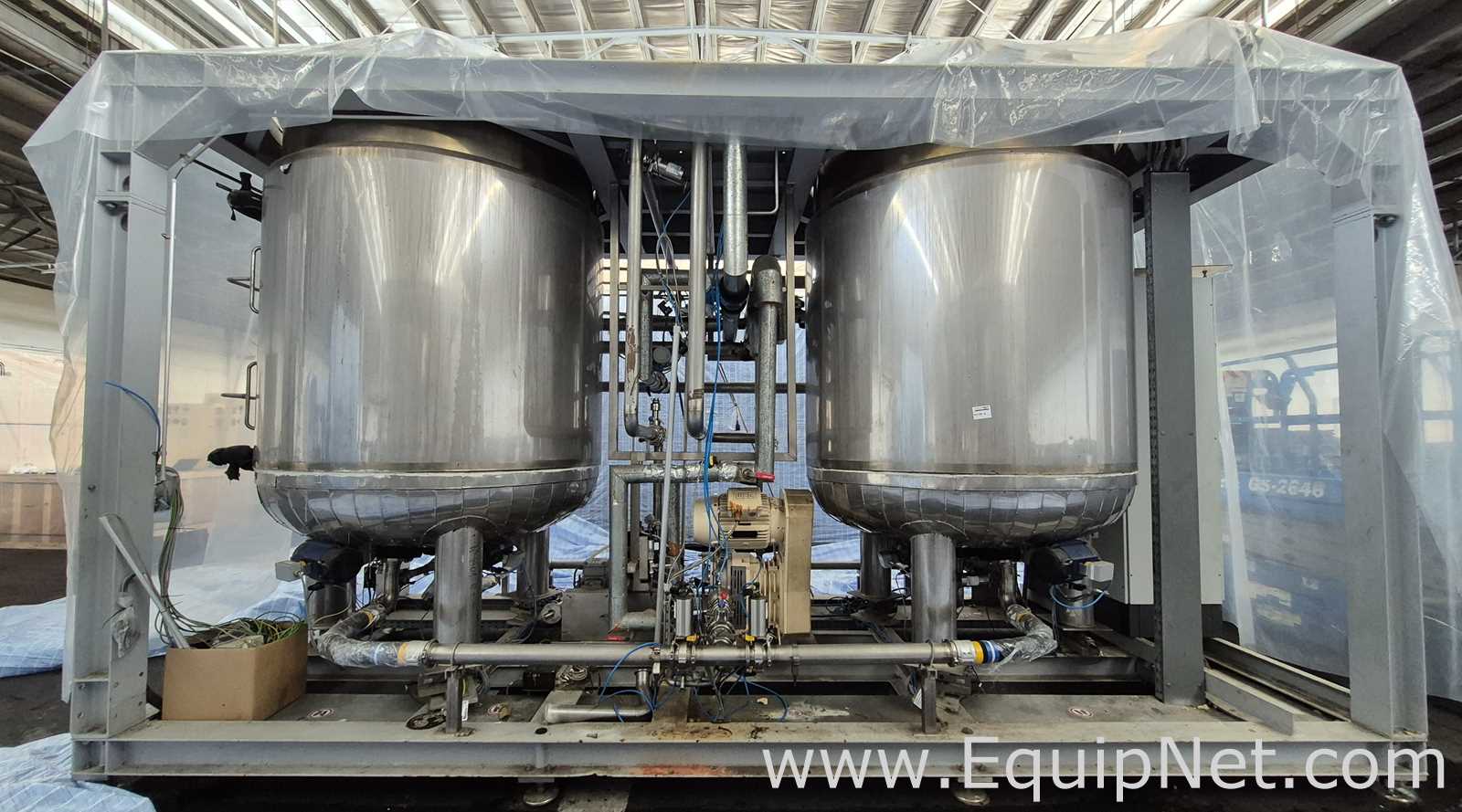

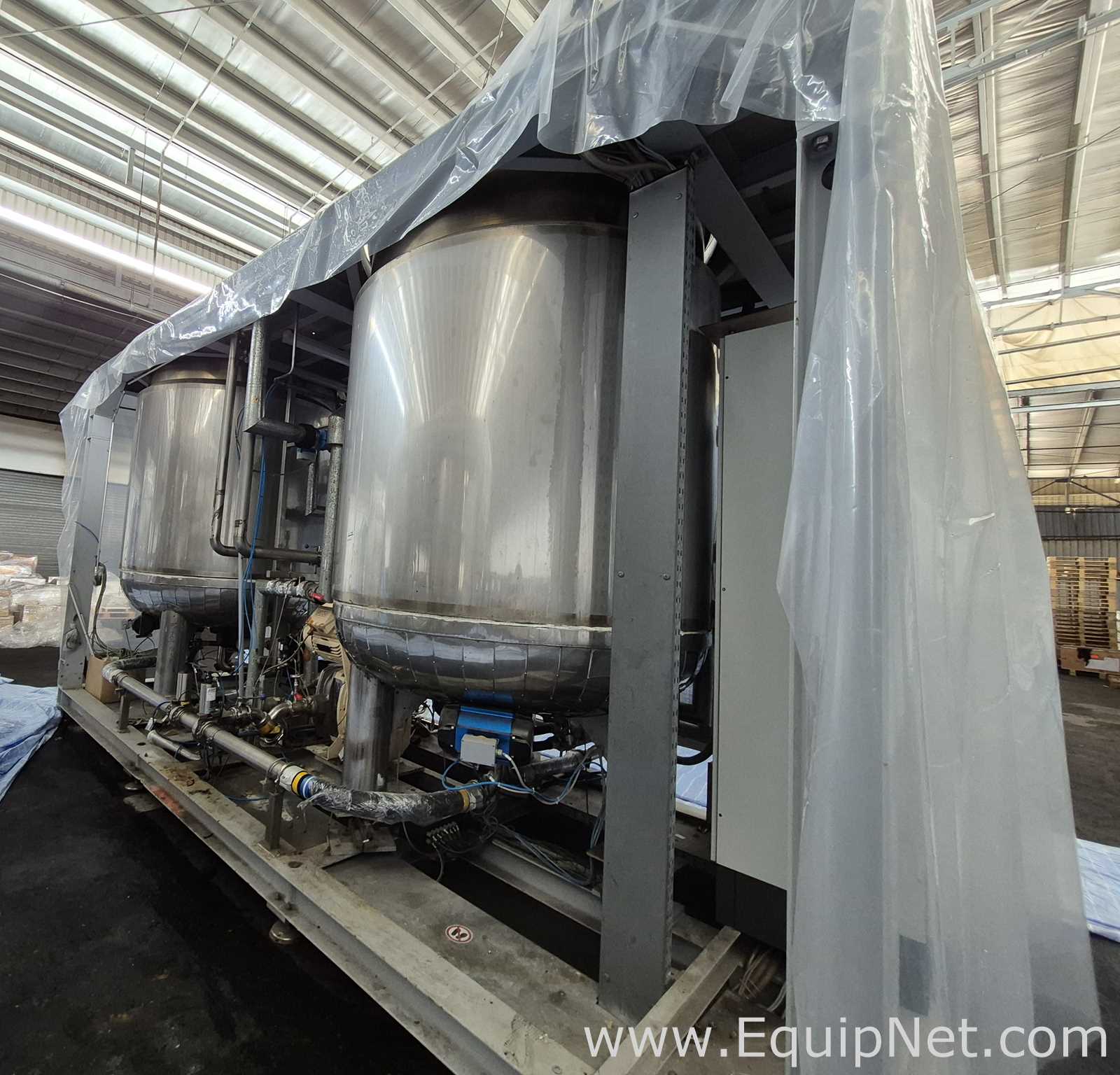

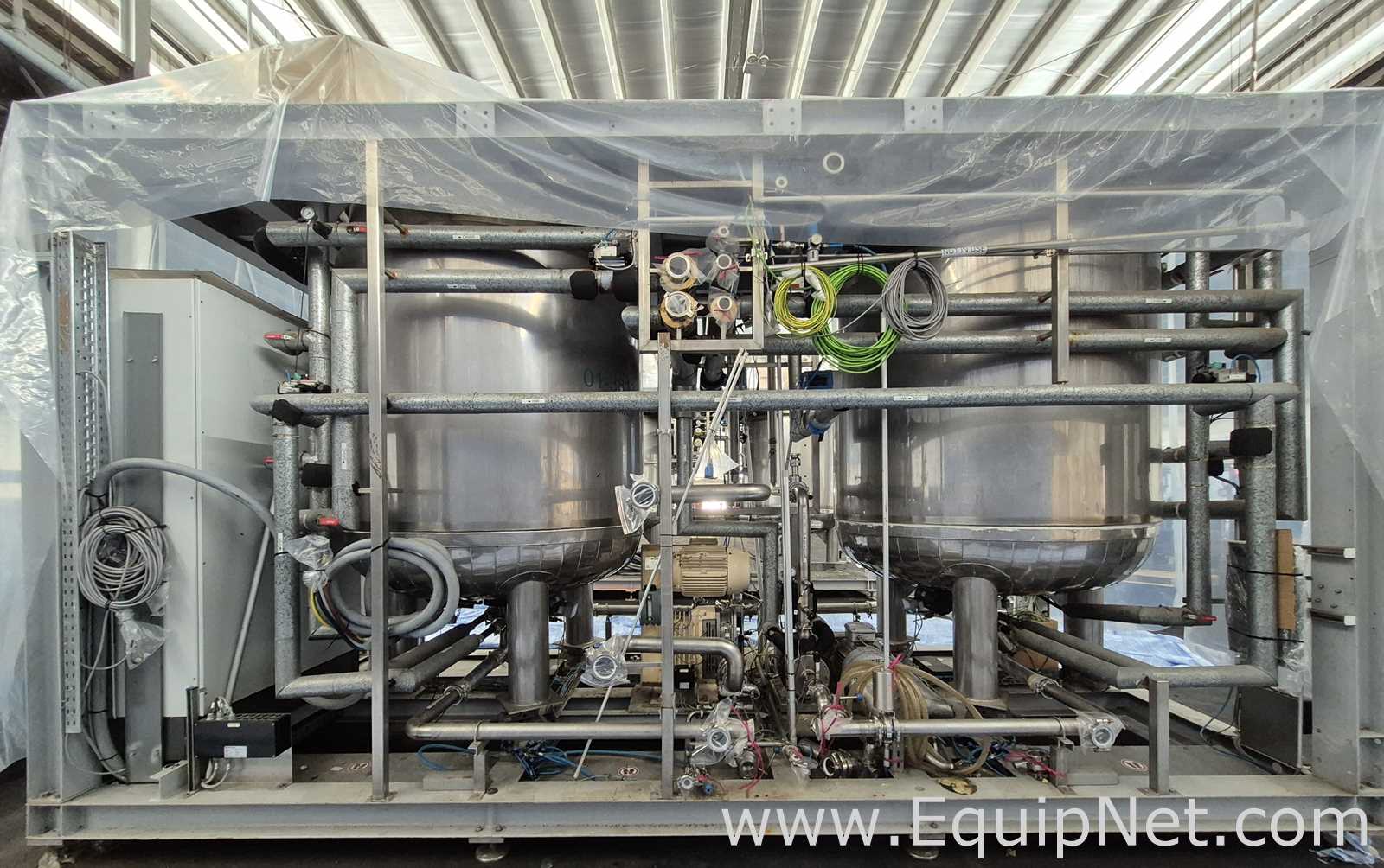

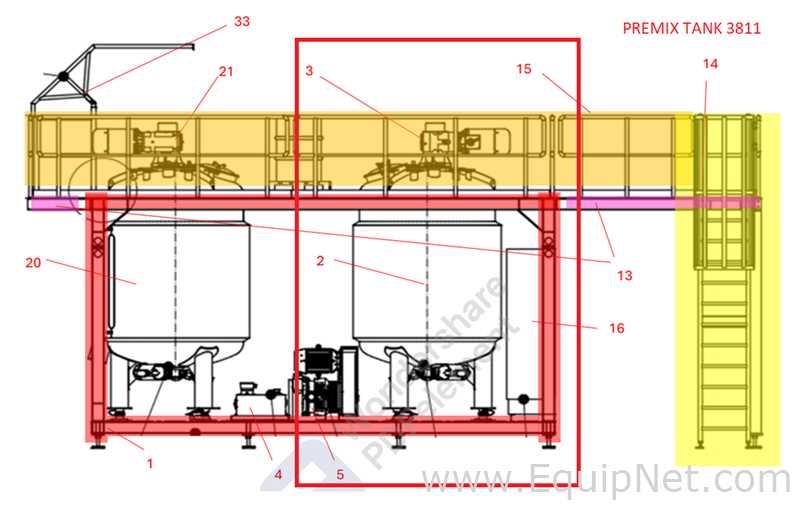

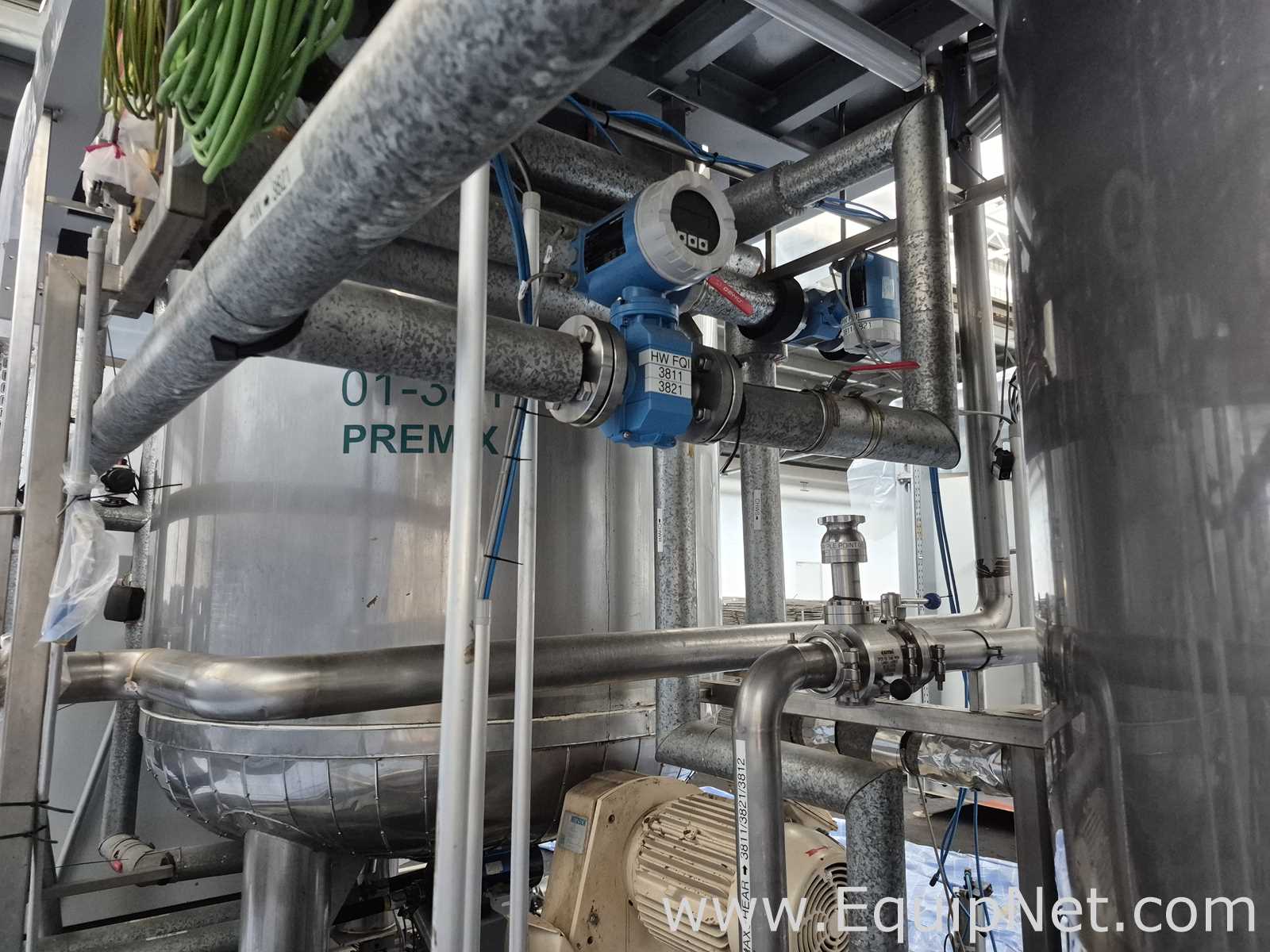

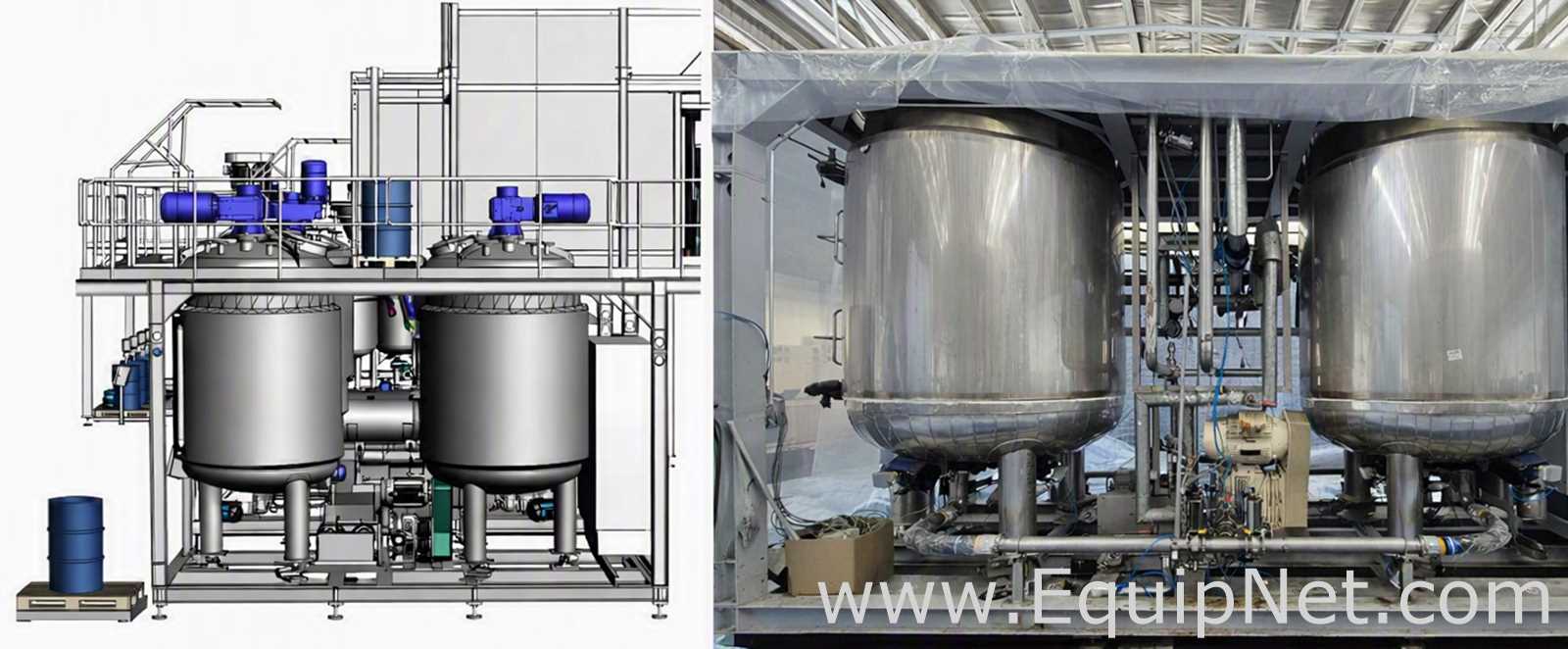

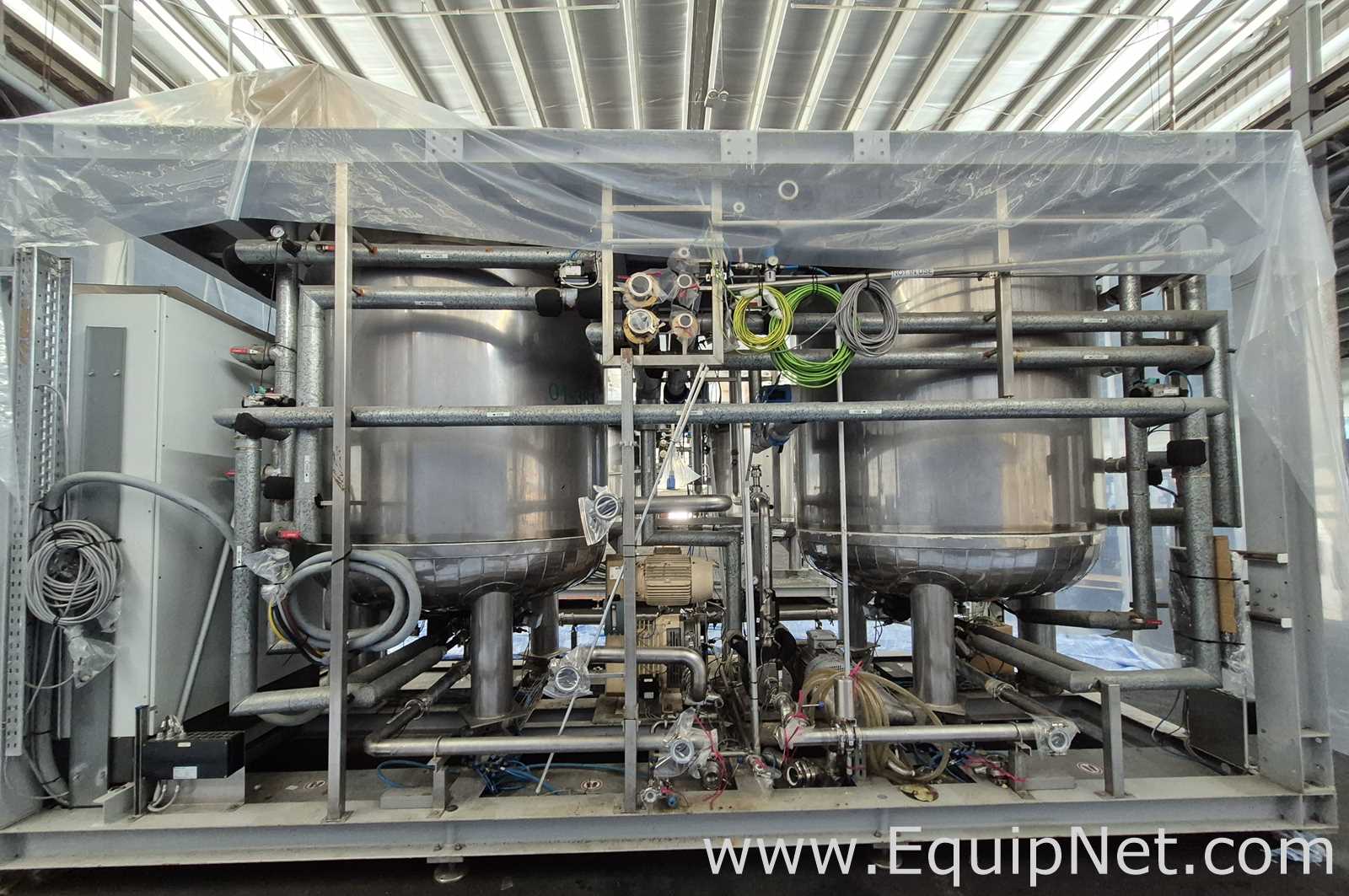

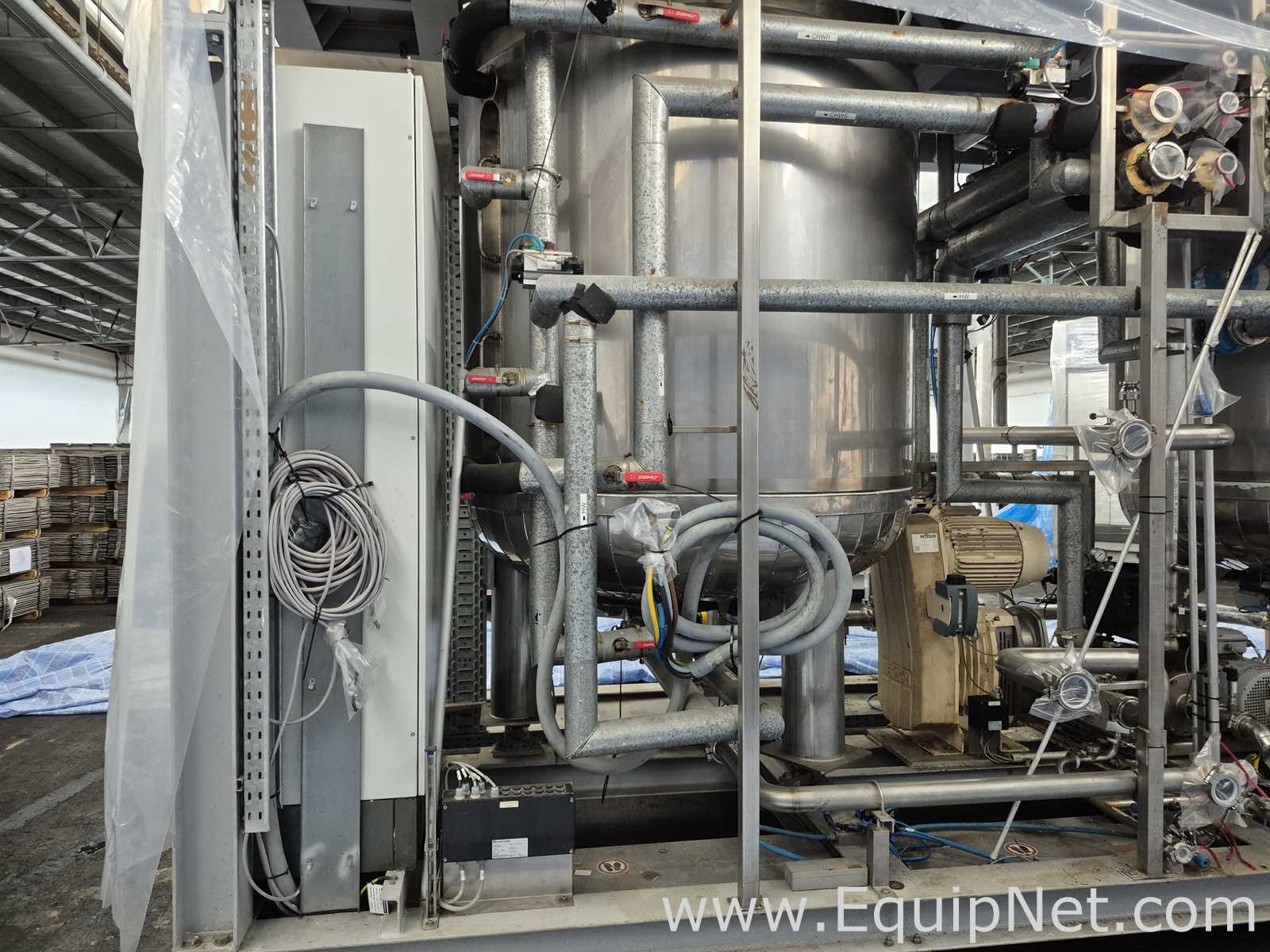

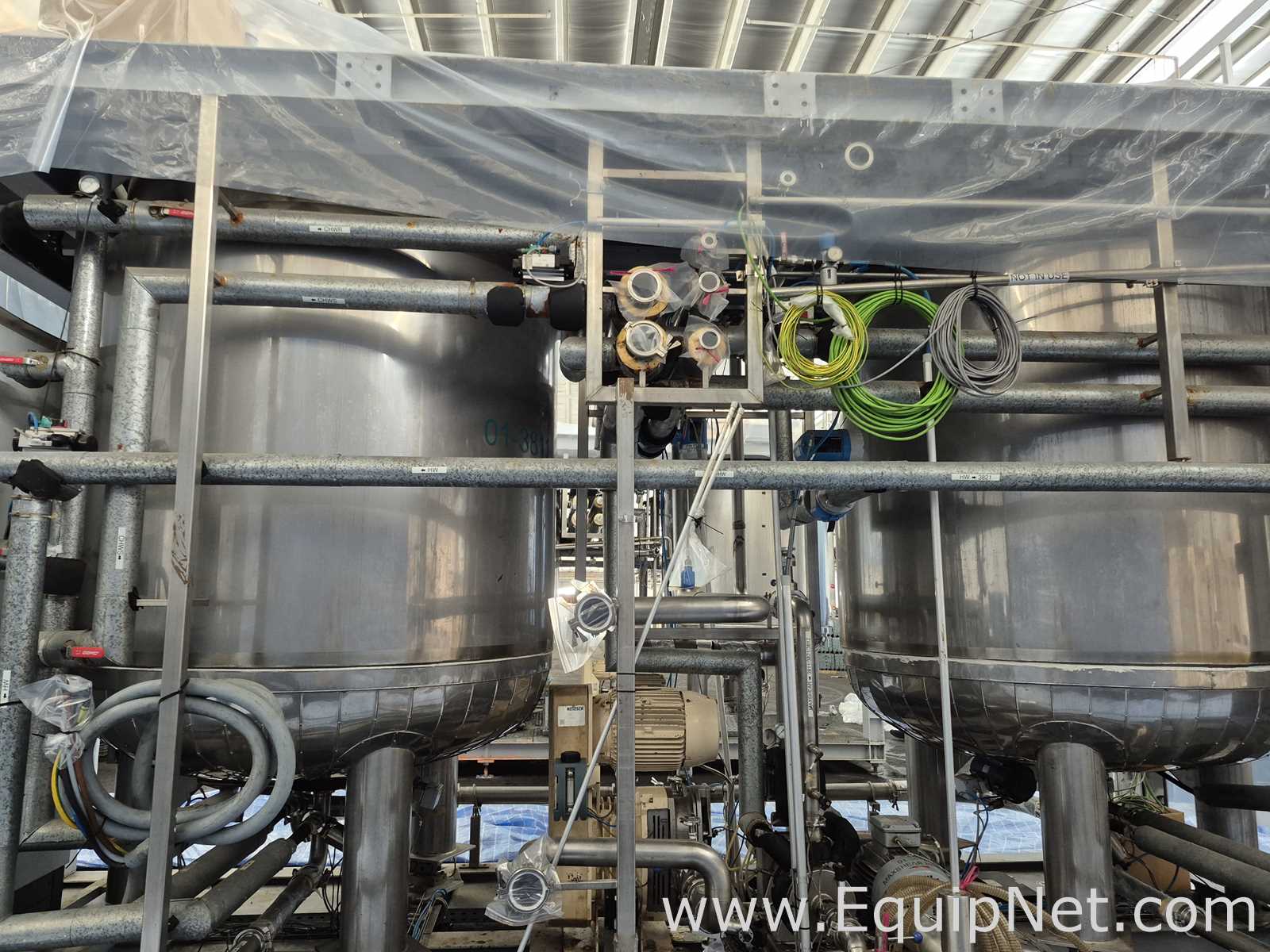

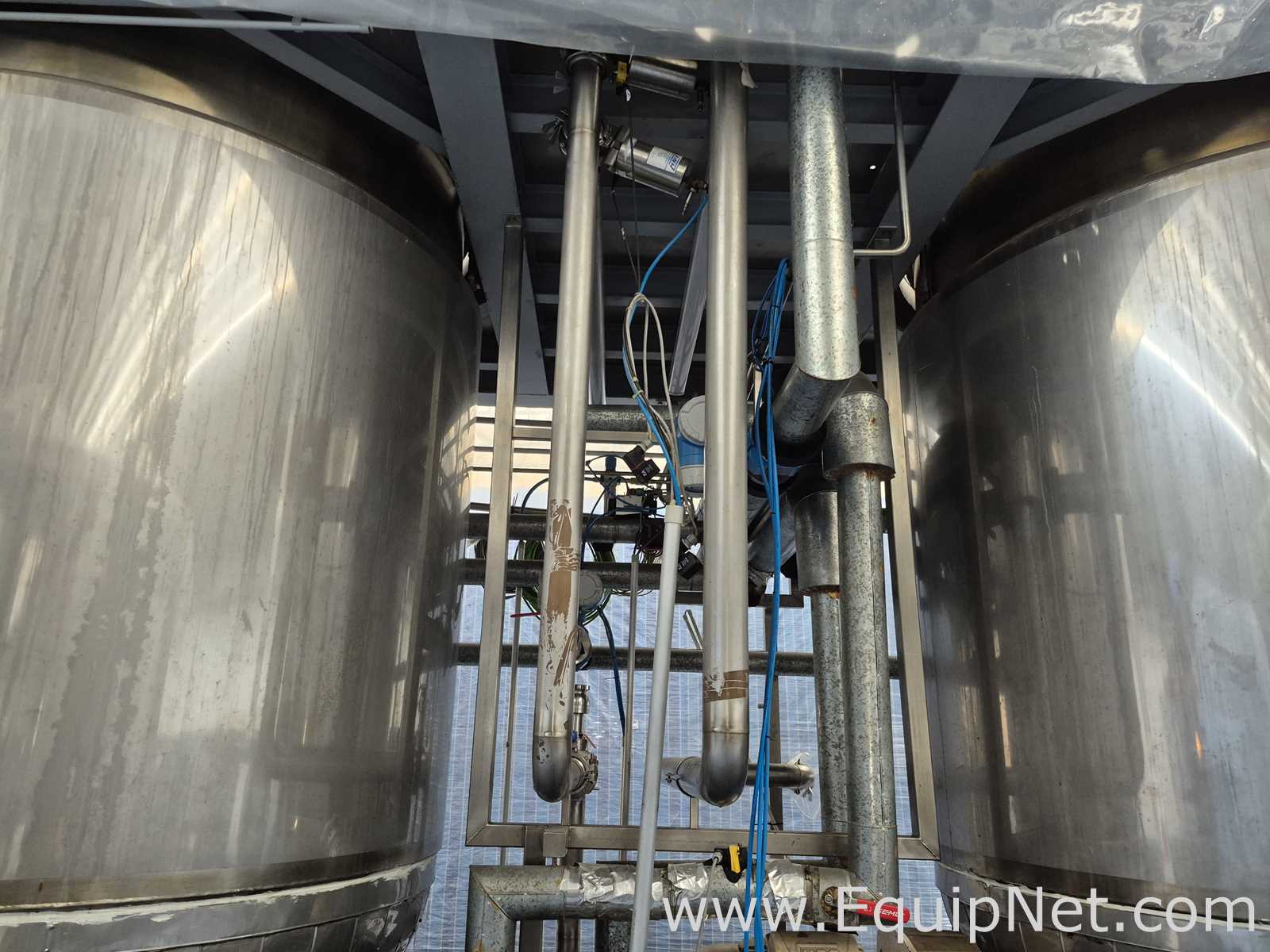

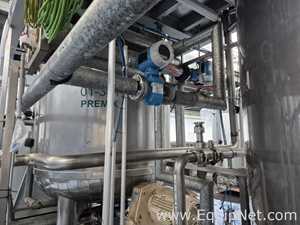

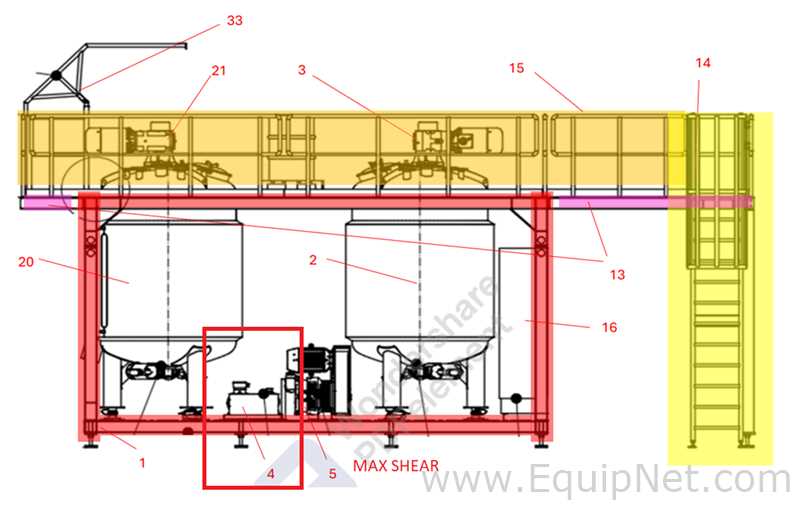

NETZSCH Industrial Premix Extension Skid 1-2 - Two 4,000 L Agitator Tanks, Maxshear Mixer and Pump
THIS IS A MULTI-LISTING. VIEW INDIVIDUAL LISTINGS BY SCROLLING DOWN.
Pre-Owned NETZSCH Tank for Sale
Seller's Acceptable Currency:
$110,000.00 USD
Request More Info Make An OfferLocation: Singapore

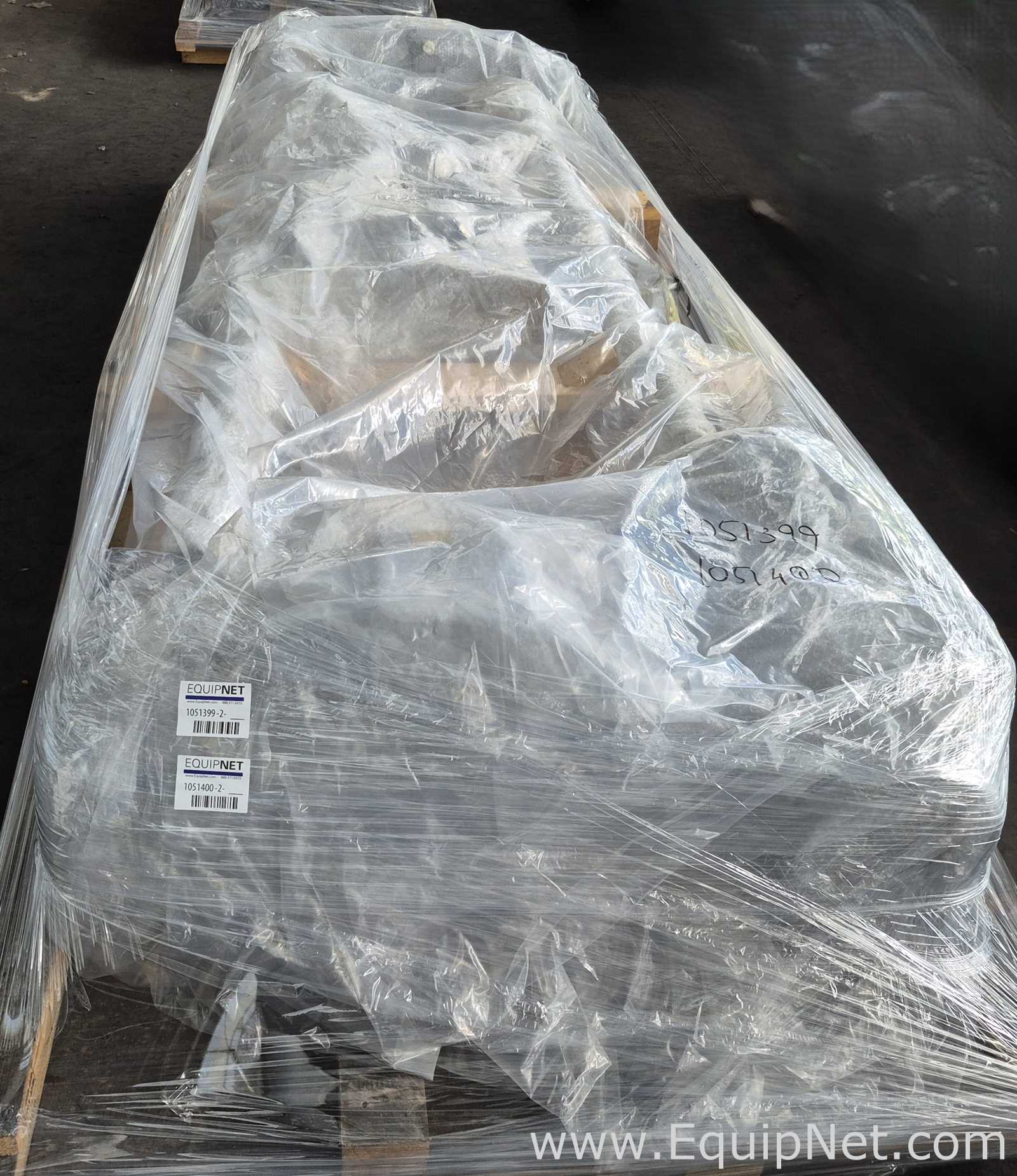

Level of Removal: Already Crated
*All offers are submitted in Seller’s Acceptable Currency
Don't see what you're looking for? We'll find it for you
Equipment Description
Includes:
Netzsch 4000 Lt Main Mixing Tank 3821.
Netzsch Tornado Twin Screw Pump 3511.
Netzsch 4000 Lt Premix Tank 3811.
Netzsch MaxShear Inline Mixer 3512.

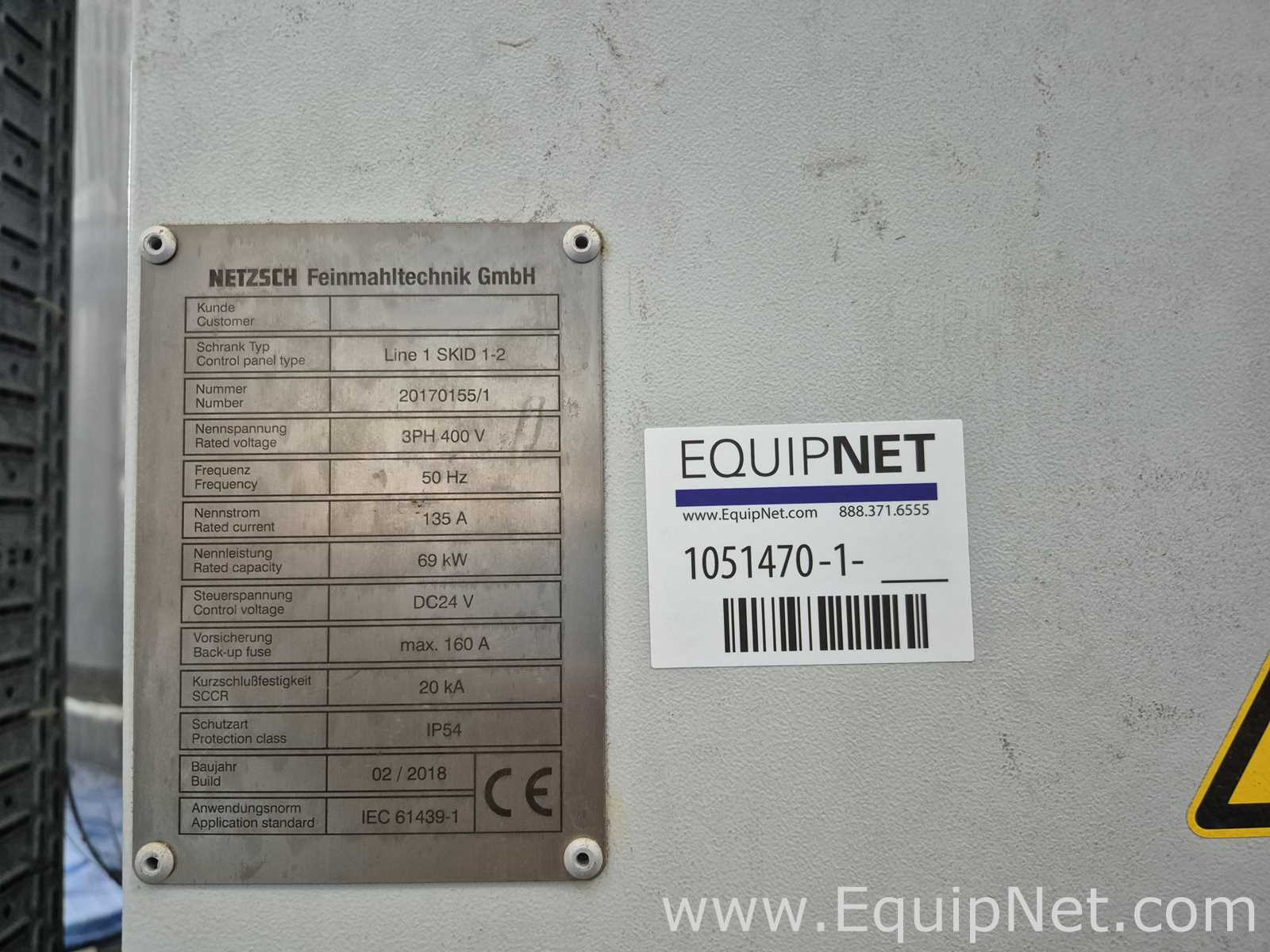

Netzsch Control Panel 01-3811.
Technical Specifications:
Flow rate: 5-45 m3/hr.
Designed for Max mechanical pressure: 6 bar.
Designed for Max operating temperature: 95C.
Safety Equipment:
Outlet pressure via pressure sensor with MAX switching contact.
Technical Specifications:
Safety Equipment:
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Year:
2018
2018
Serial Number:
20170155/1
20170155/1
CE Marked:
YES
YES
Capacity of Tank:
1057.04
gal
4000
L
Tank Material of Construction:
STAINLESS STEEL
STAINLESS STEEL
Jacketed:
YES
YES
Agitation:
YES
YES
Recommended Packaging Form:
CUSTOM PALLET
CUSTOM PALLET
Voltage:
400
VOLTS
400
VOLTS
Frequency:
50
HERTZ
50
HERTZ
Phase:
3
3
Dimensions:
Standard
Metric
Overall:
1 x 1 x 1 IN - 1 LBS
25.40 x 25.40 x 25.40 mm - 0.45 kg
Disclaimer:
This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in
East Asia/Pacific
This equipment is subject to a removal and loading charge.
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Multi-Listing Includes:
Back to Top
Multi-Listing #1038244

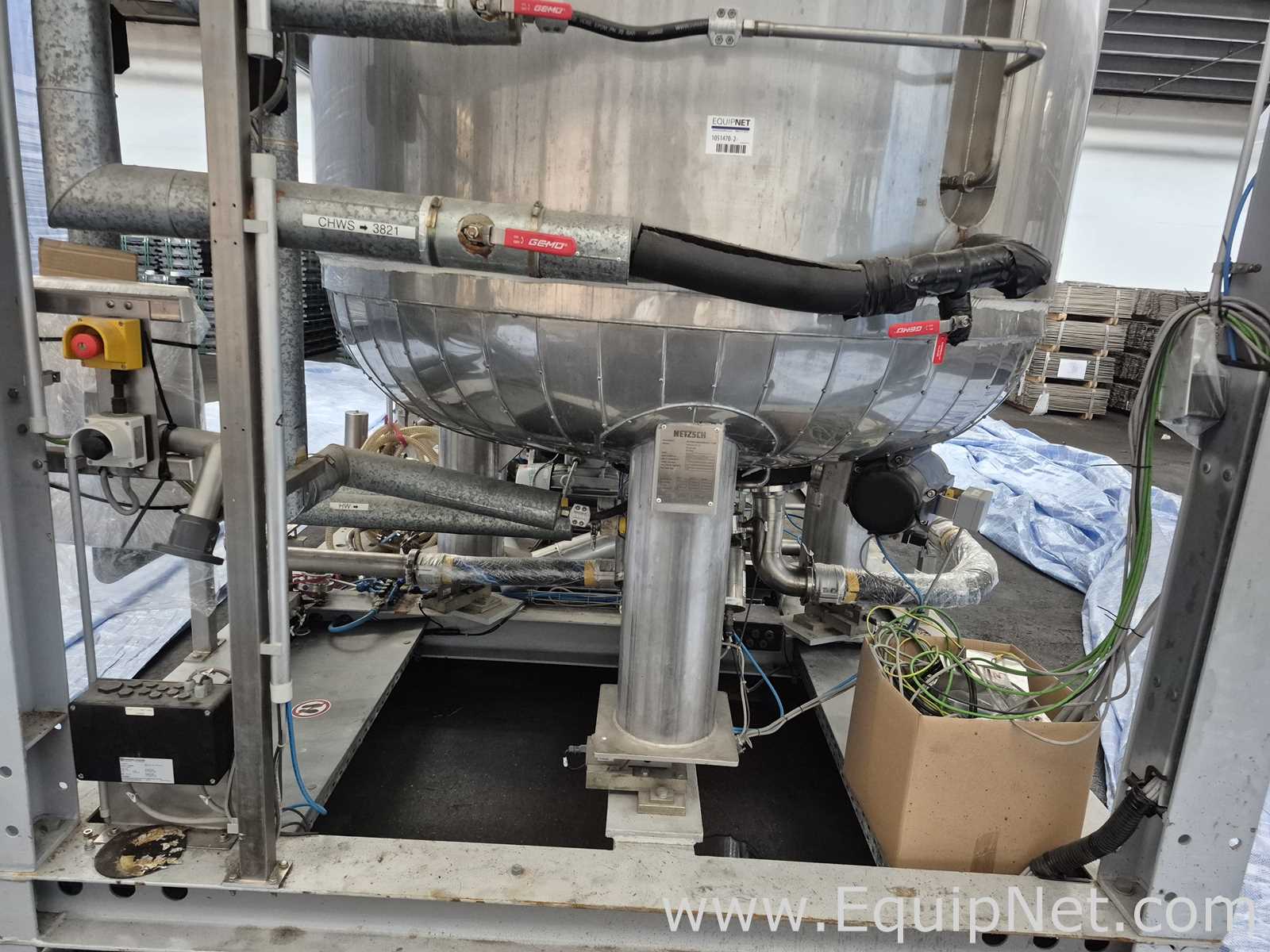

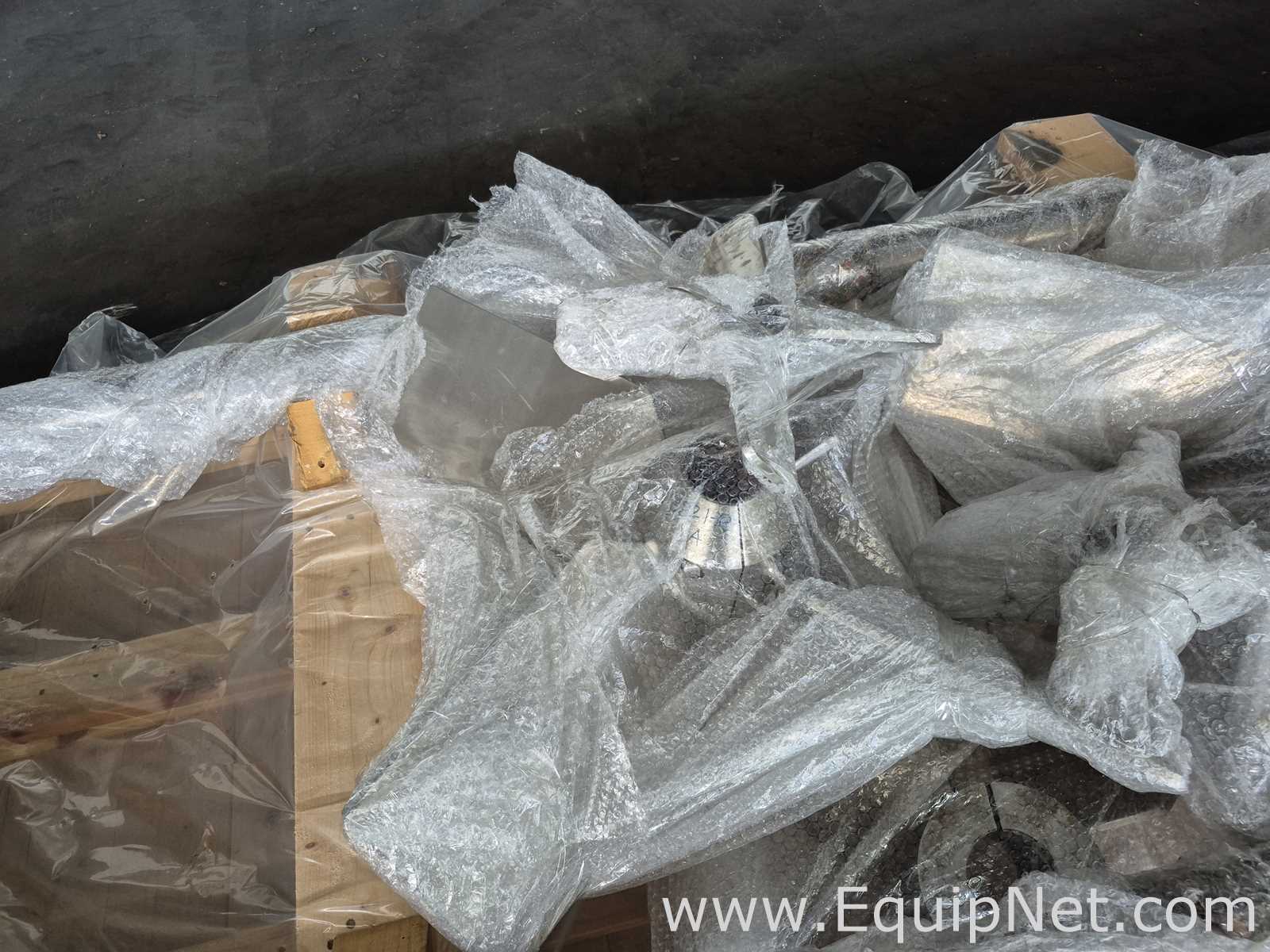

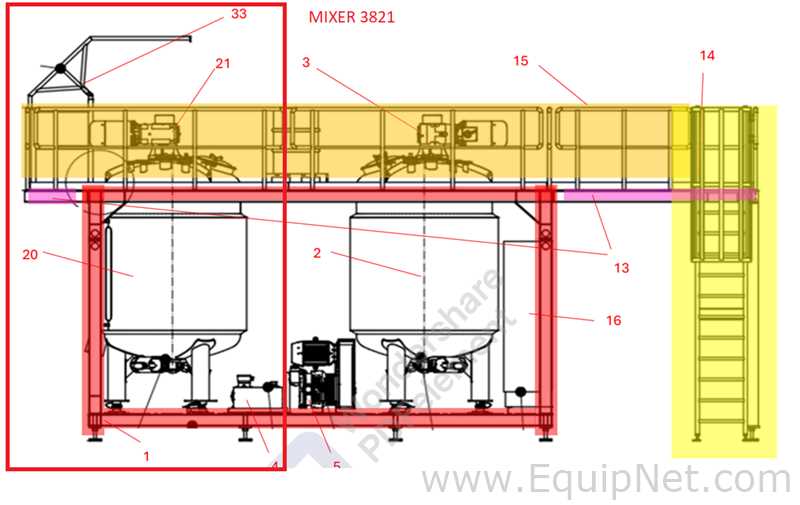

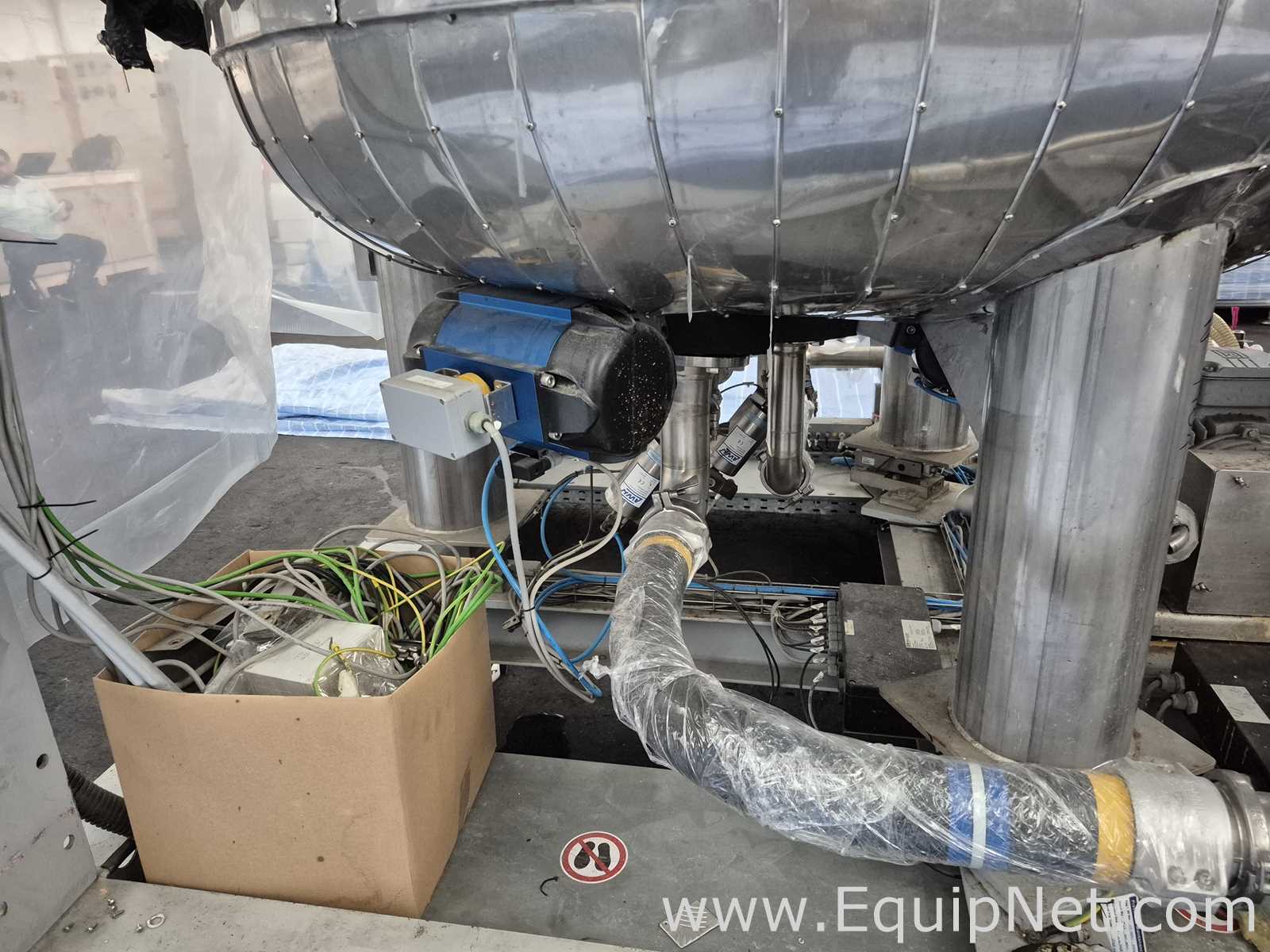

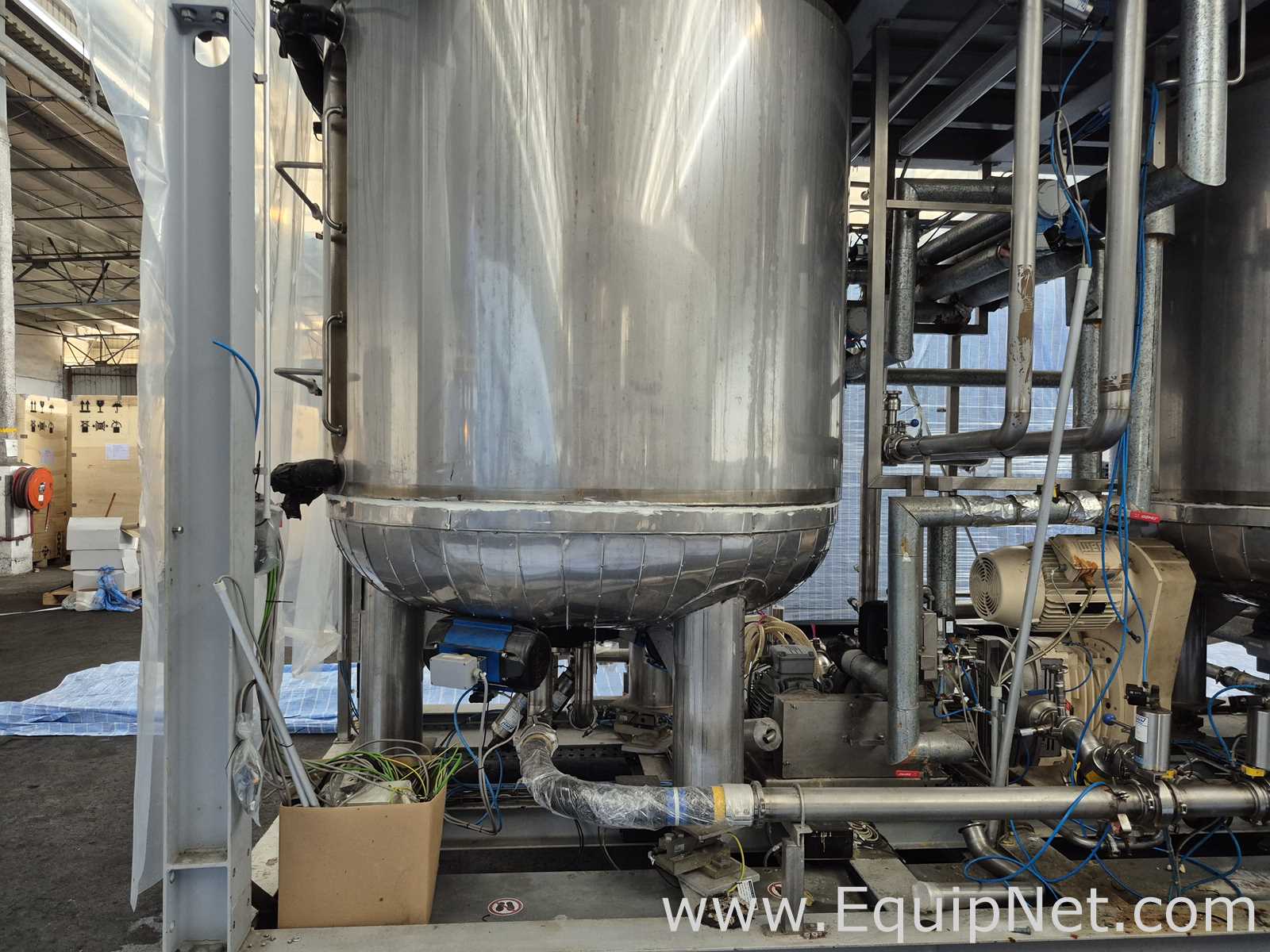

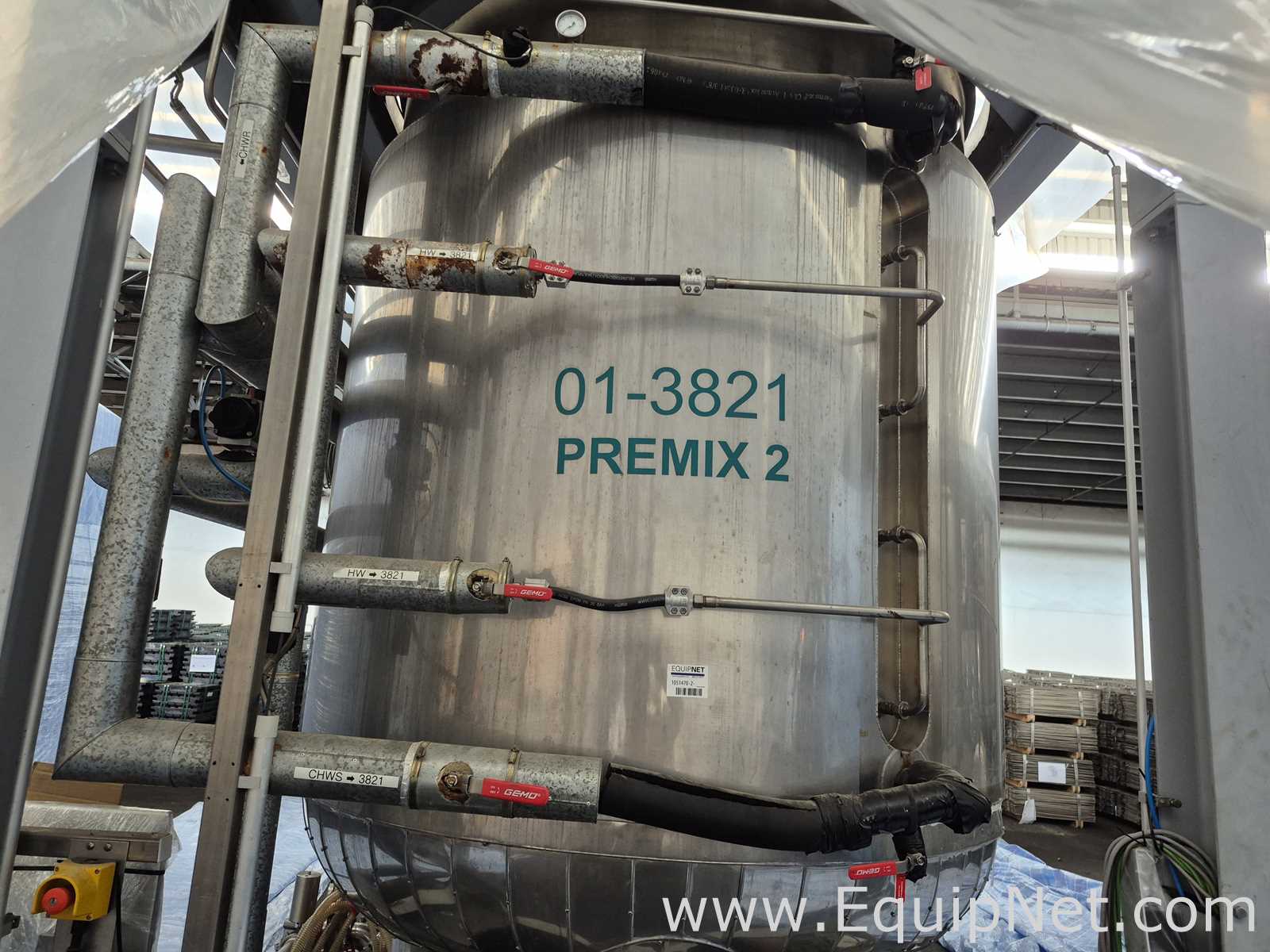

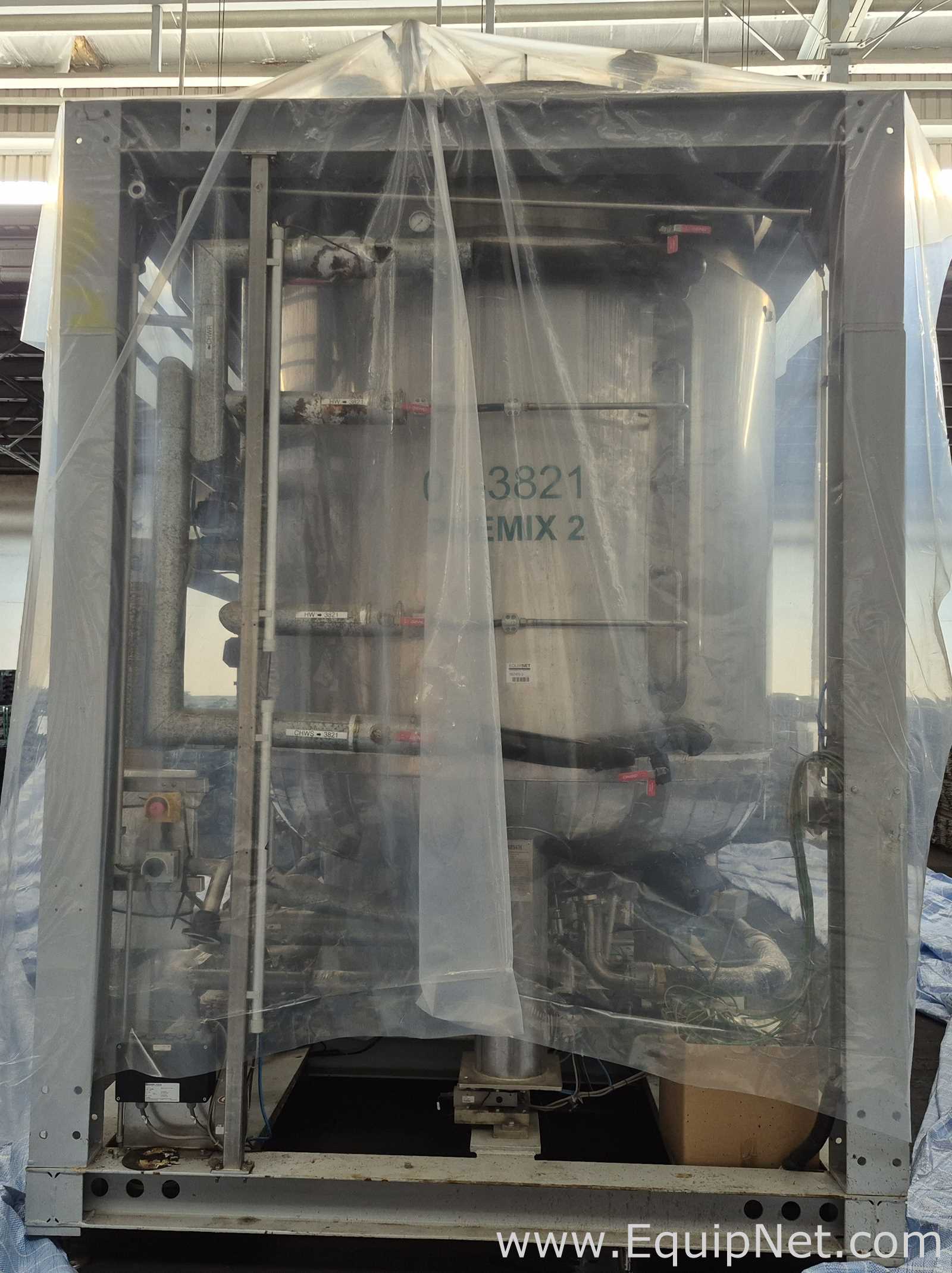

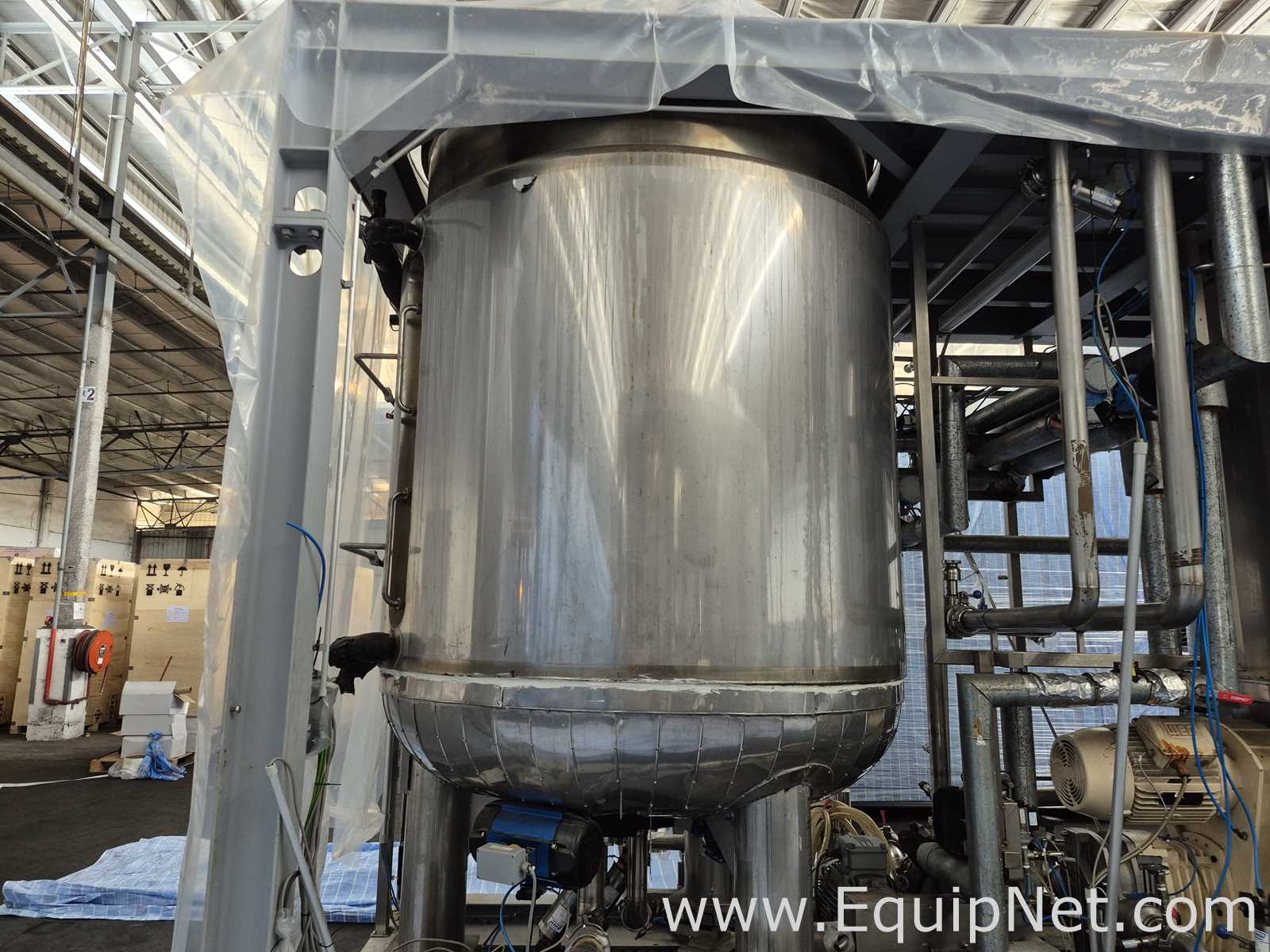

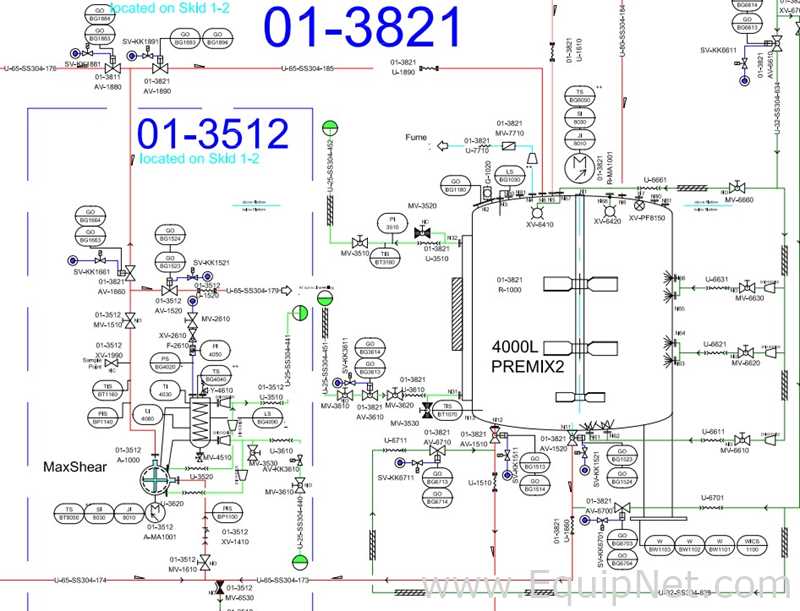

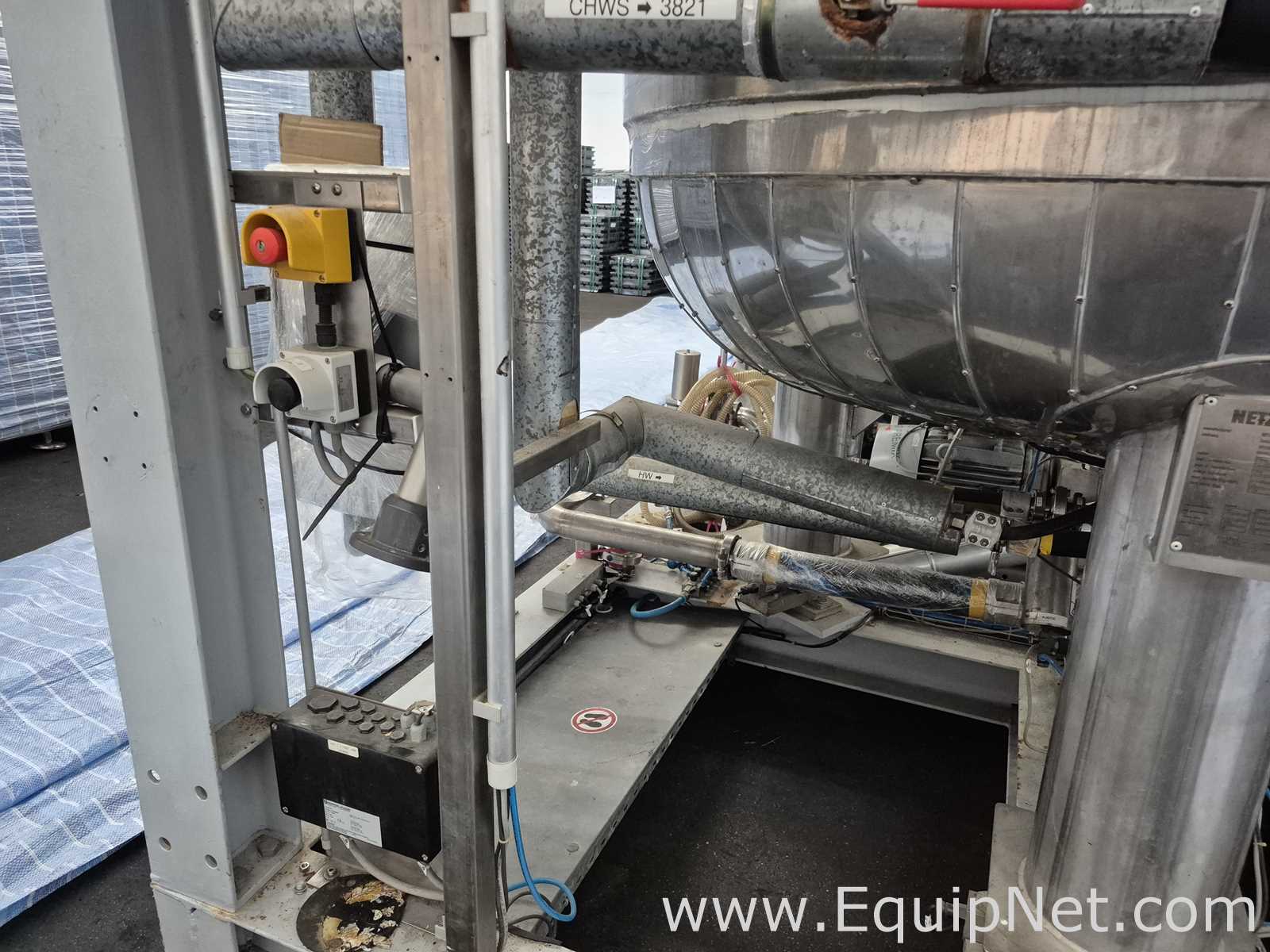

Netzsch 4000 Lt Main Mixing Tank 3821 - Skid 1-2 Premix Extension
Equipment Description

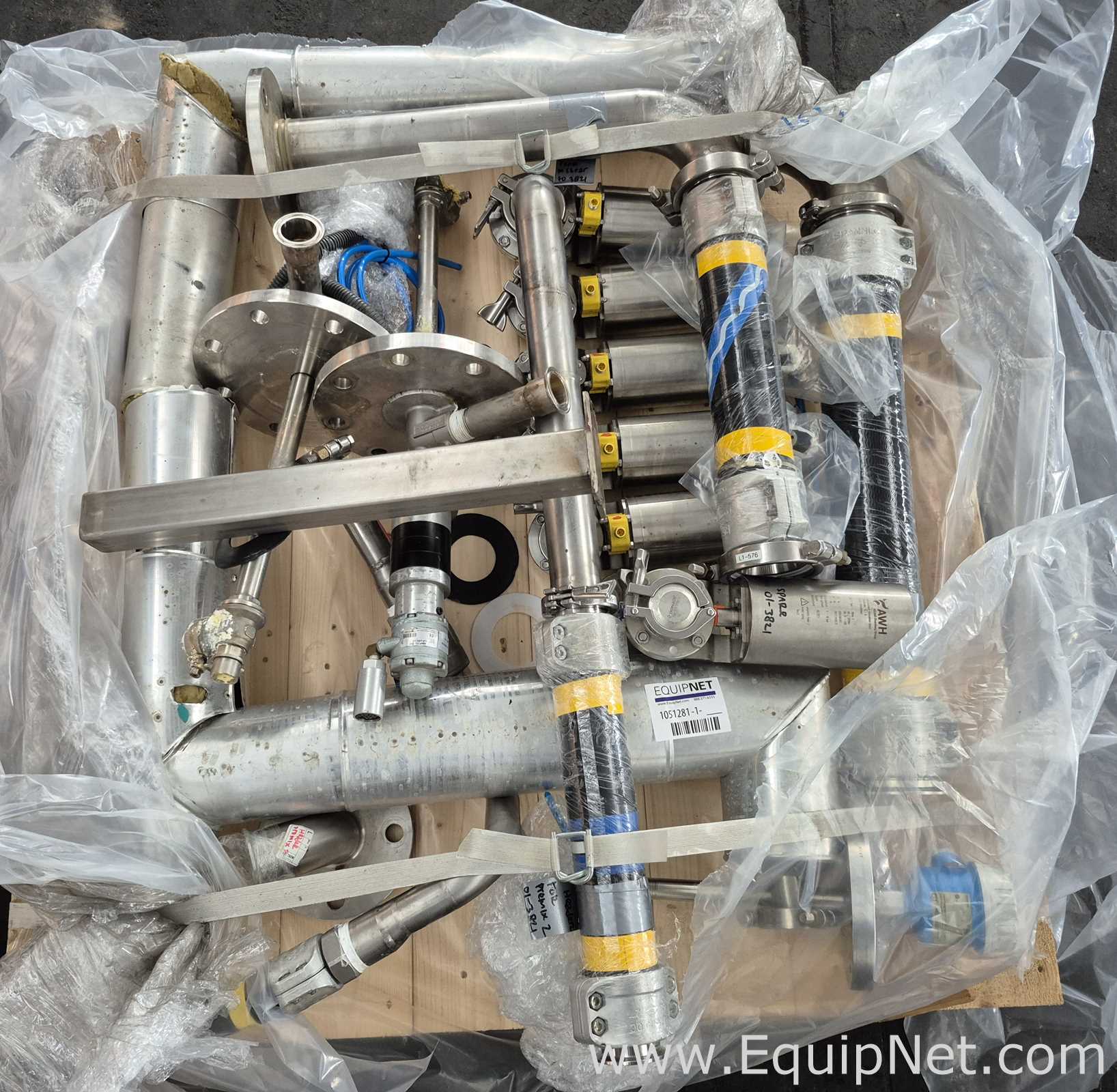

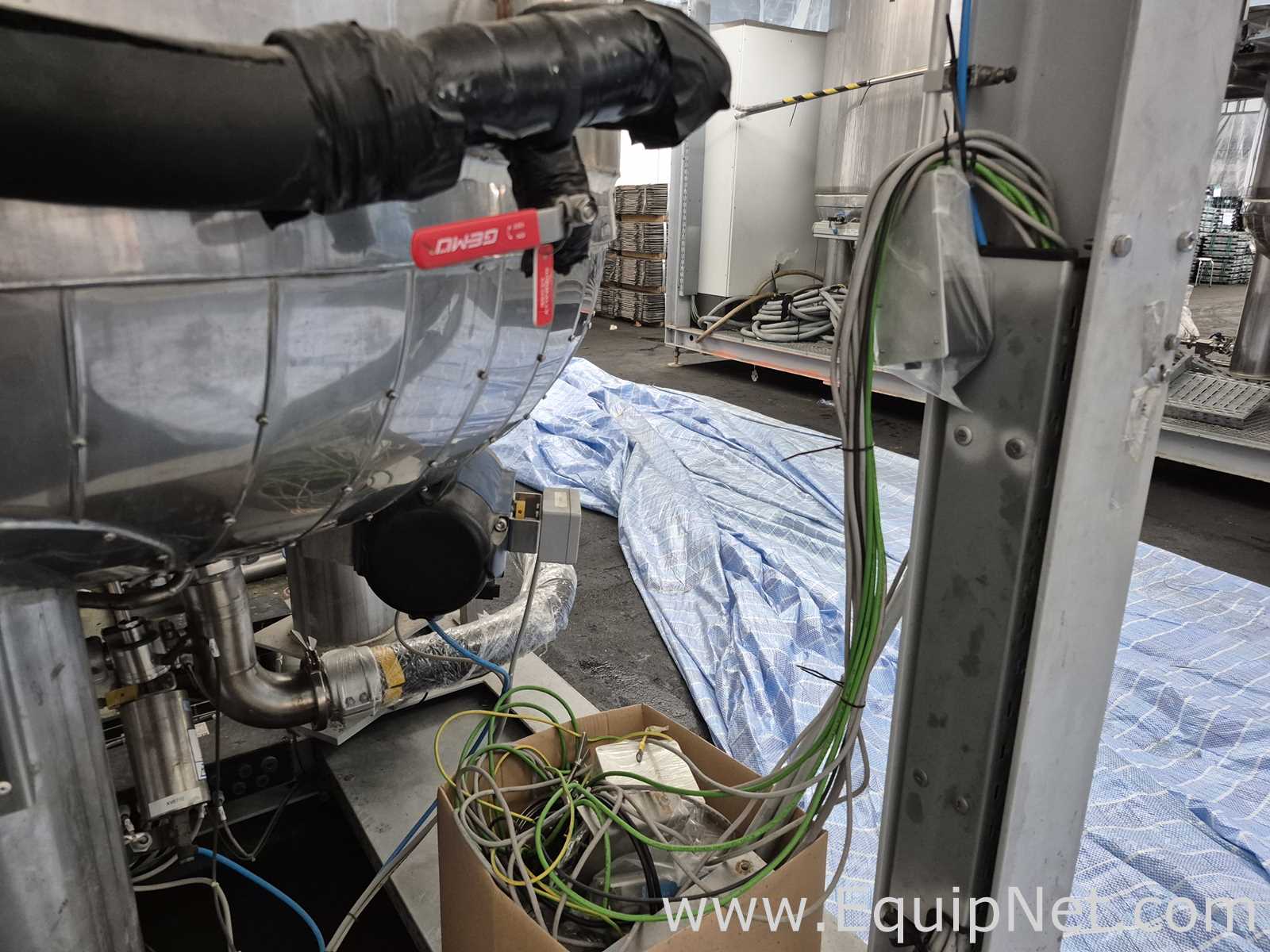

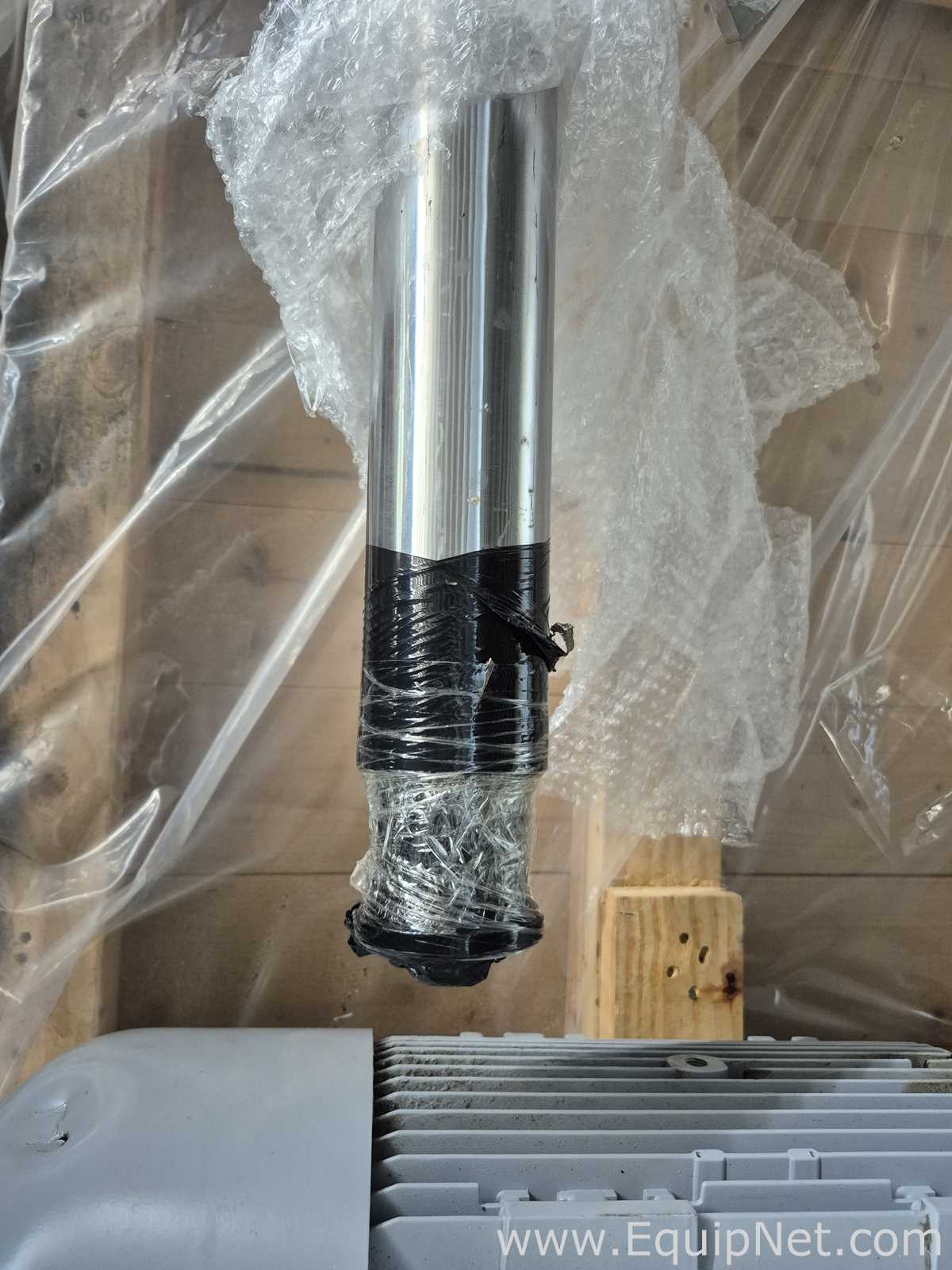

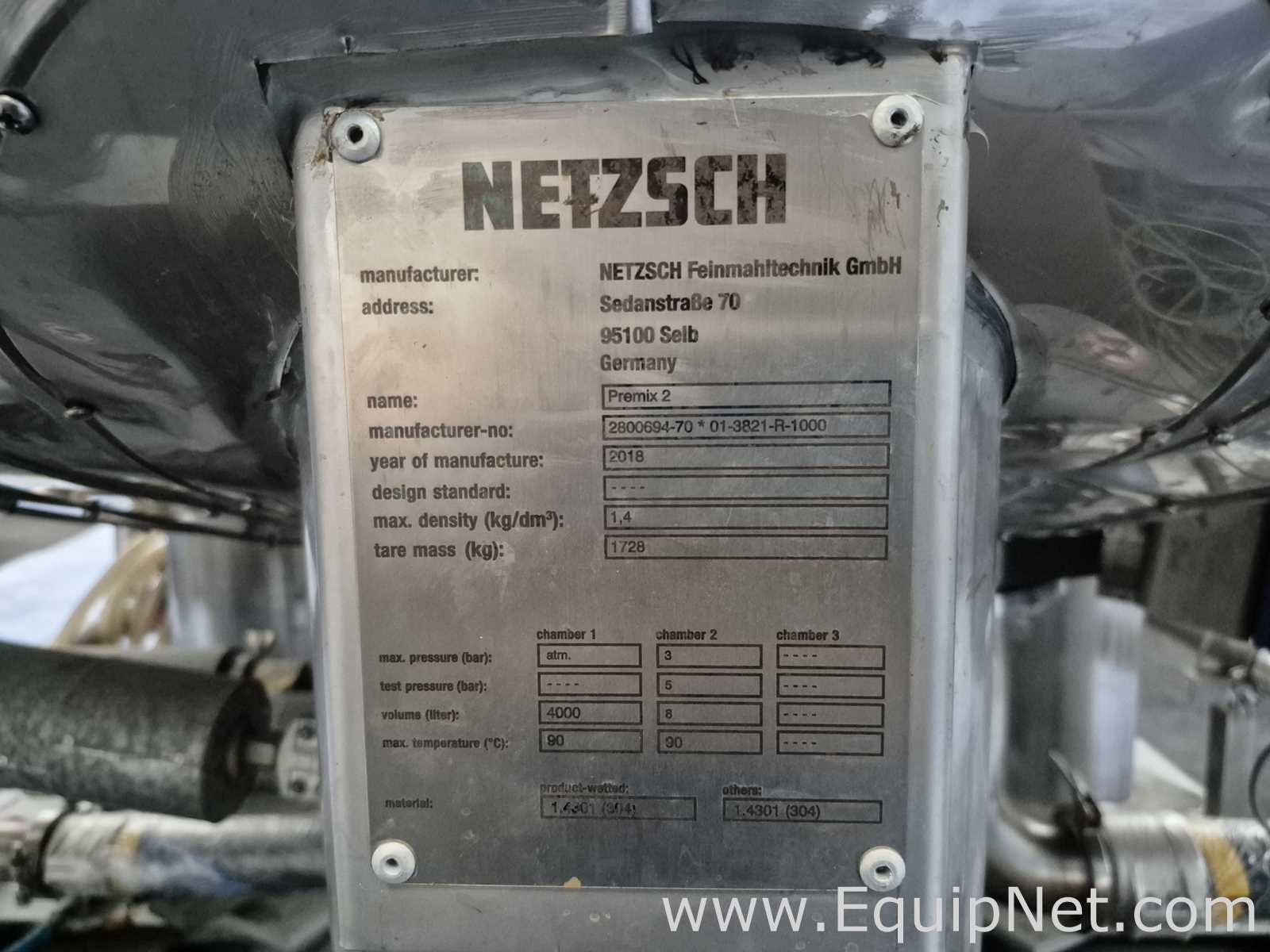

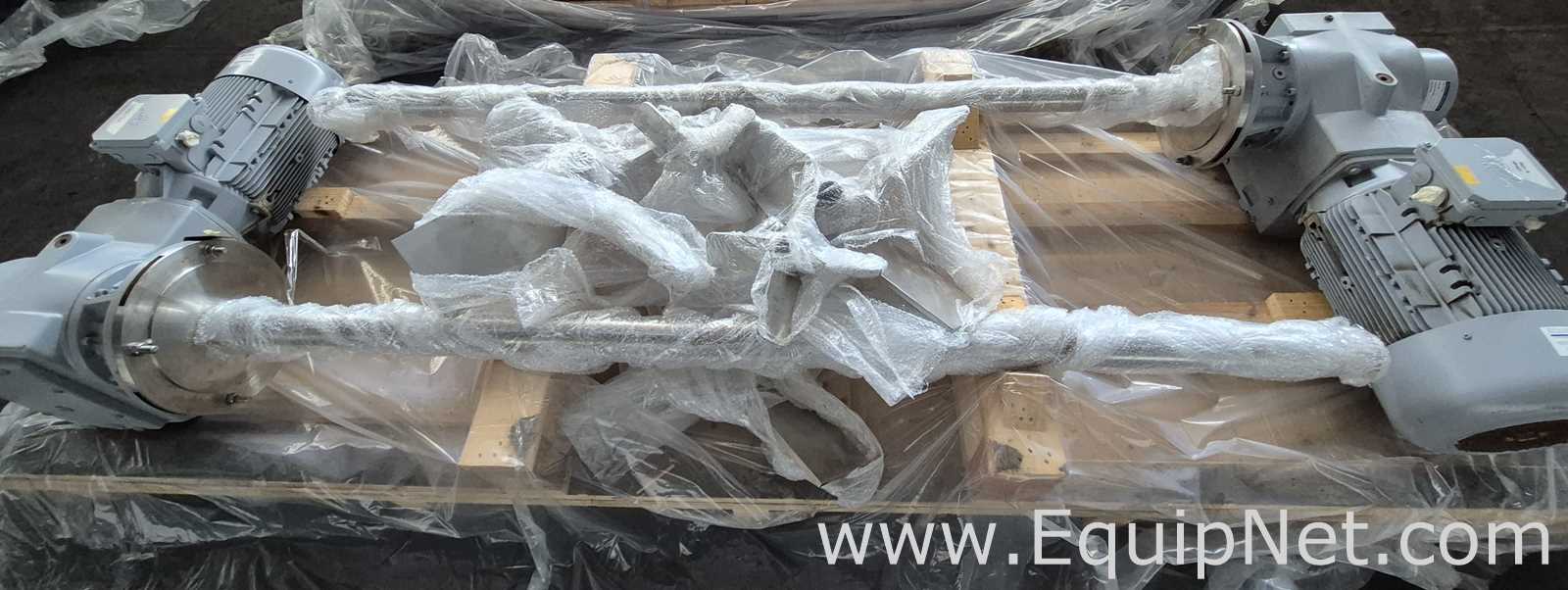

Netzsch 4000 Lt Main Mixing Tank 3821 - Skid 1-2 Premix Extension

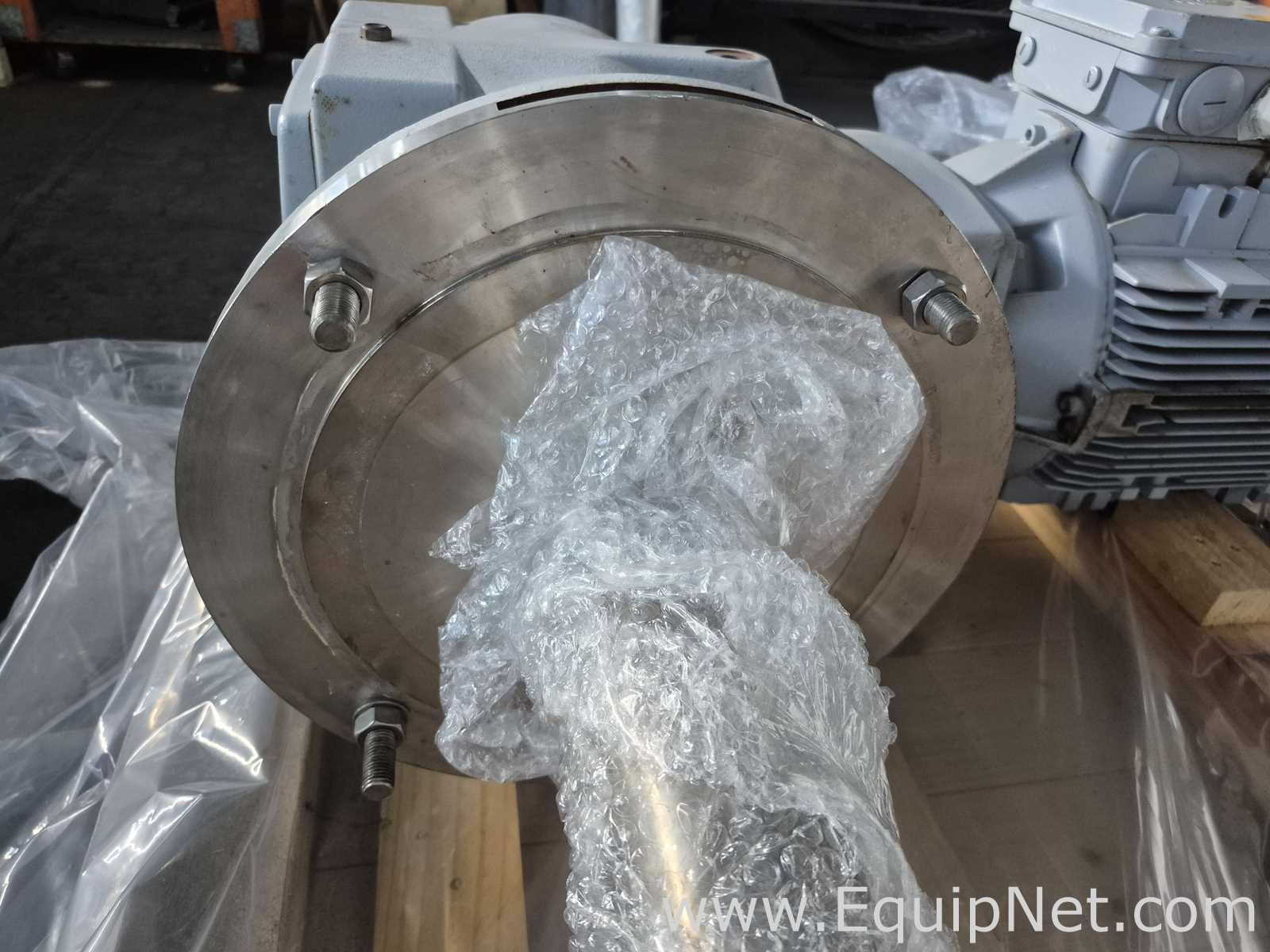

Agitator 3821.
Axial flow blades 850 mm.
1475 RPM.

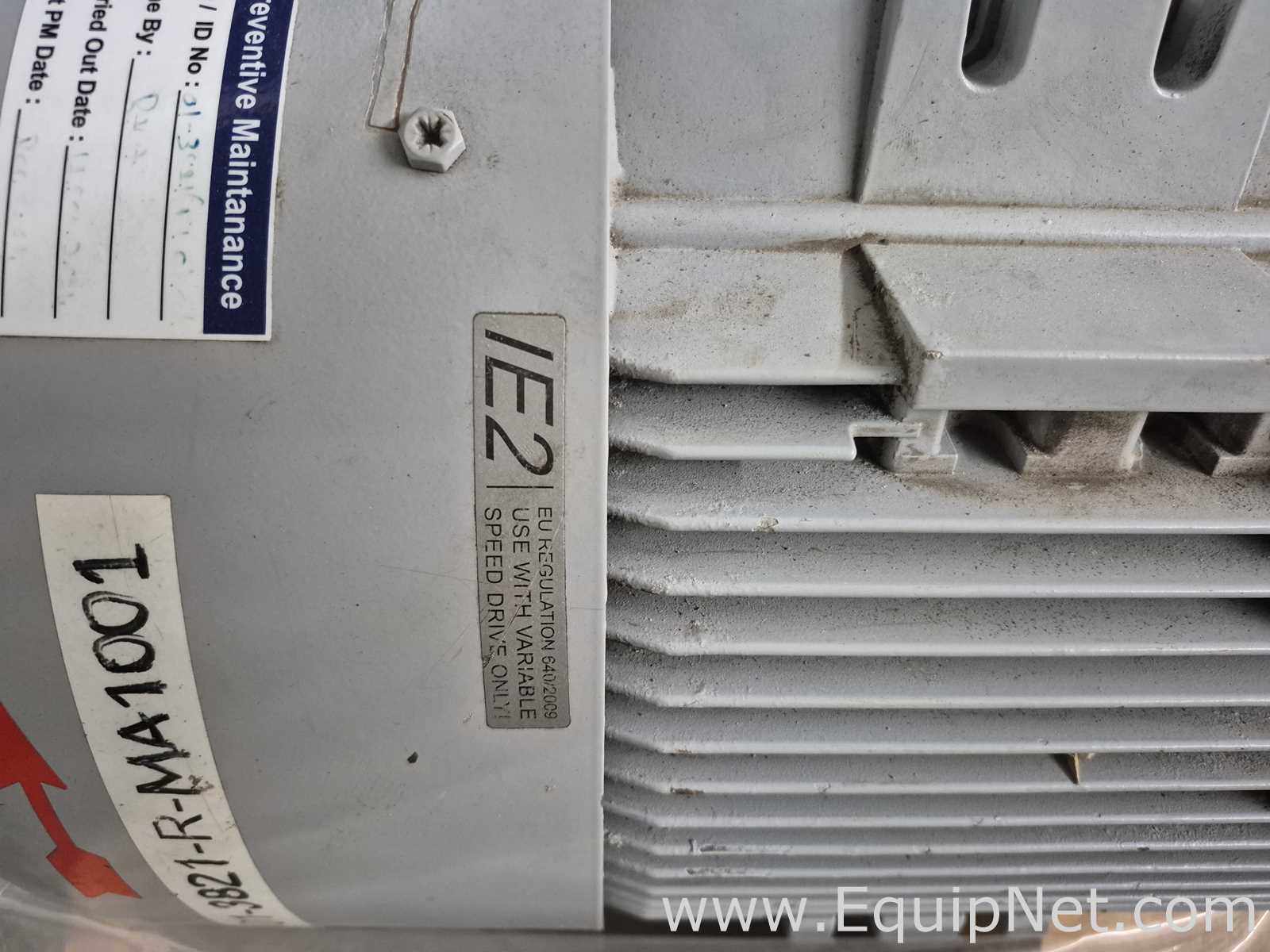

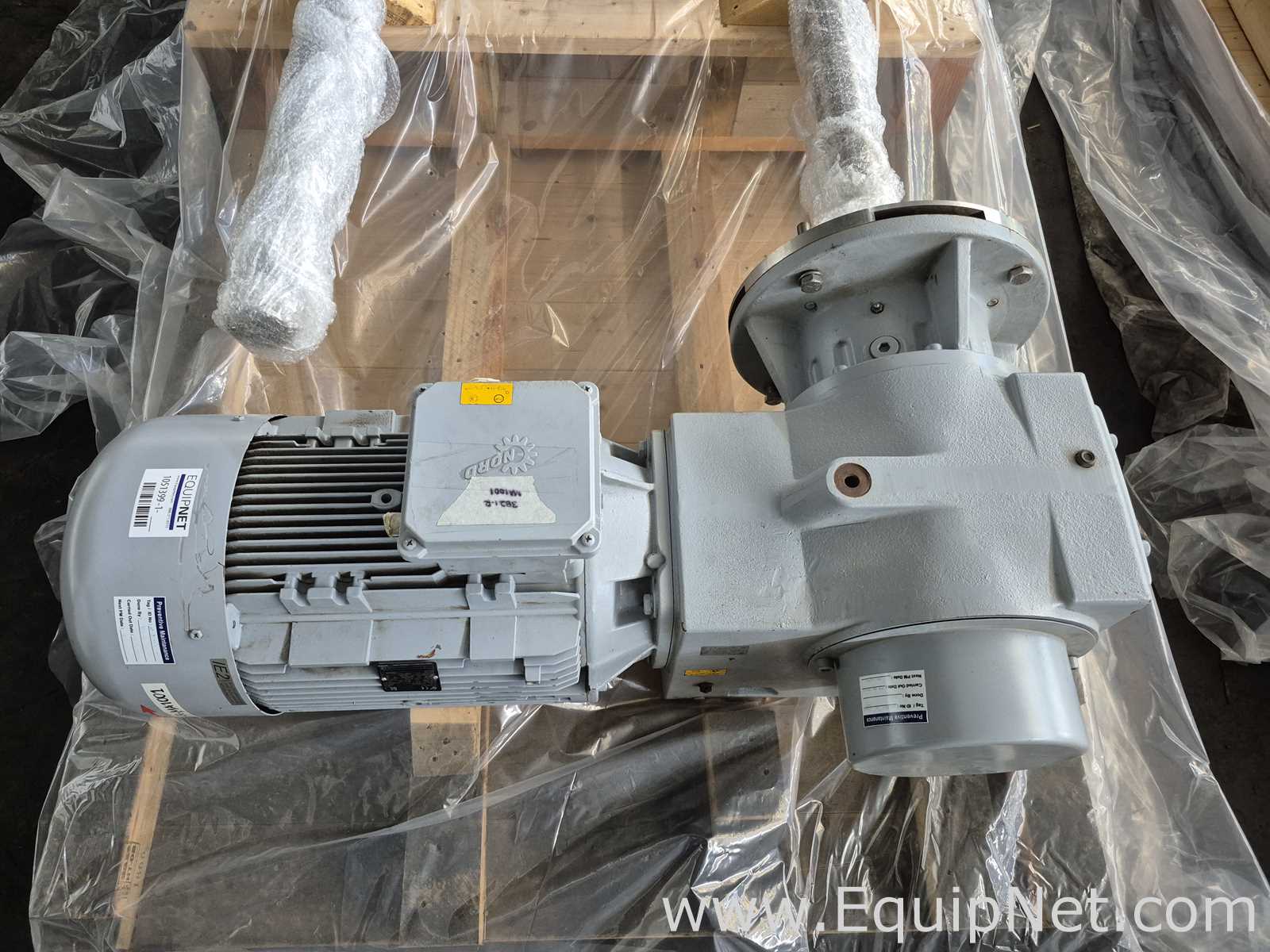

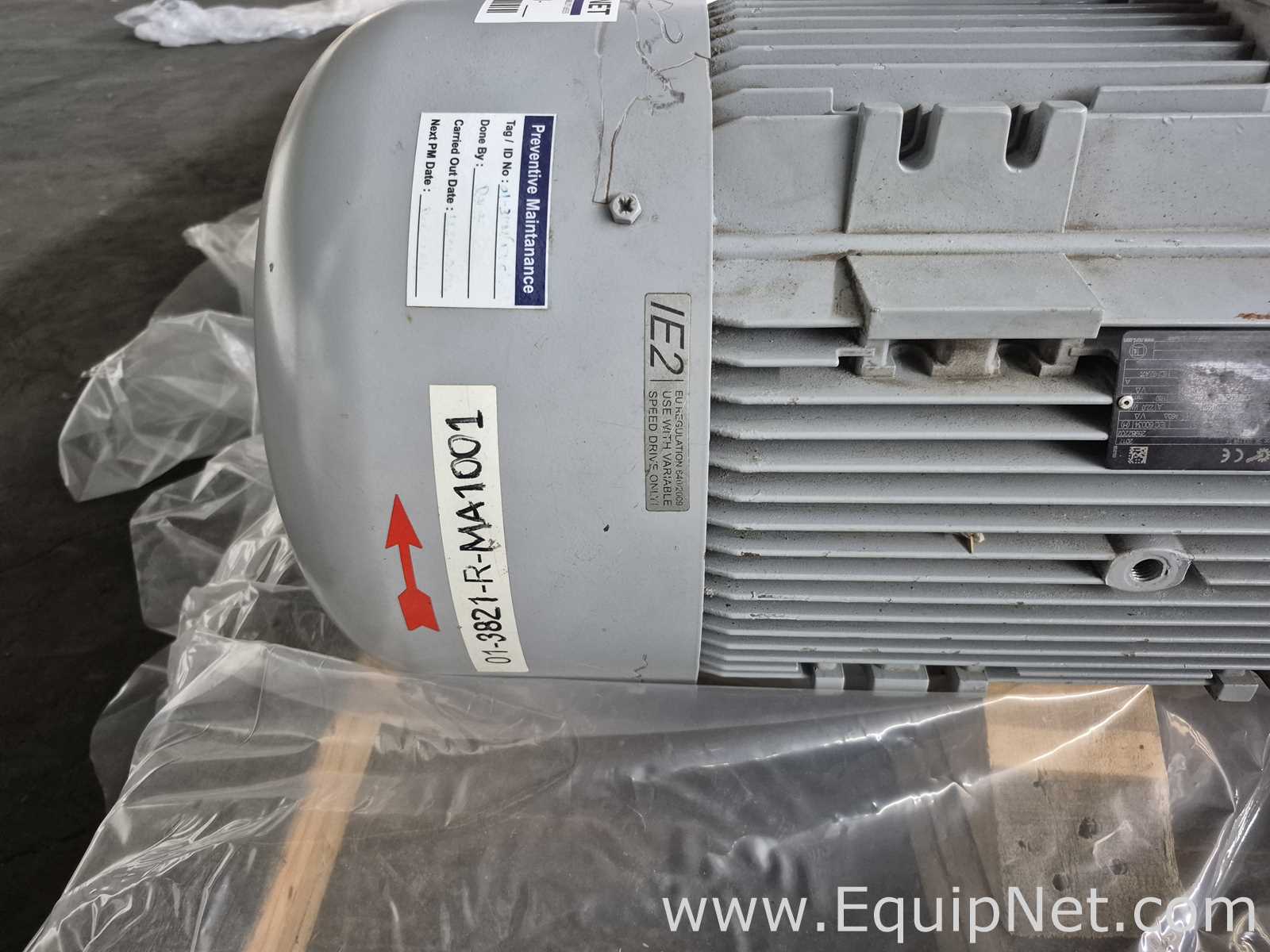

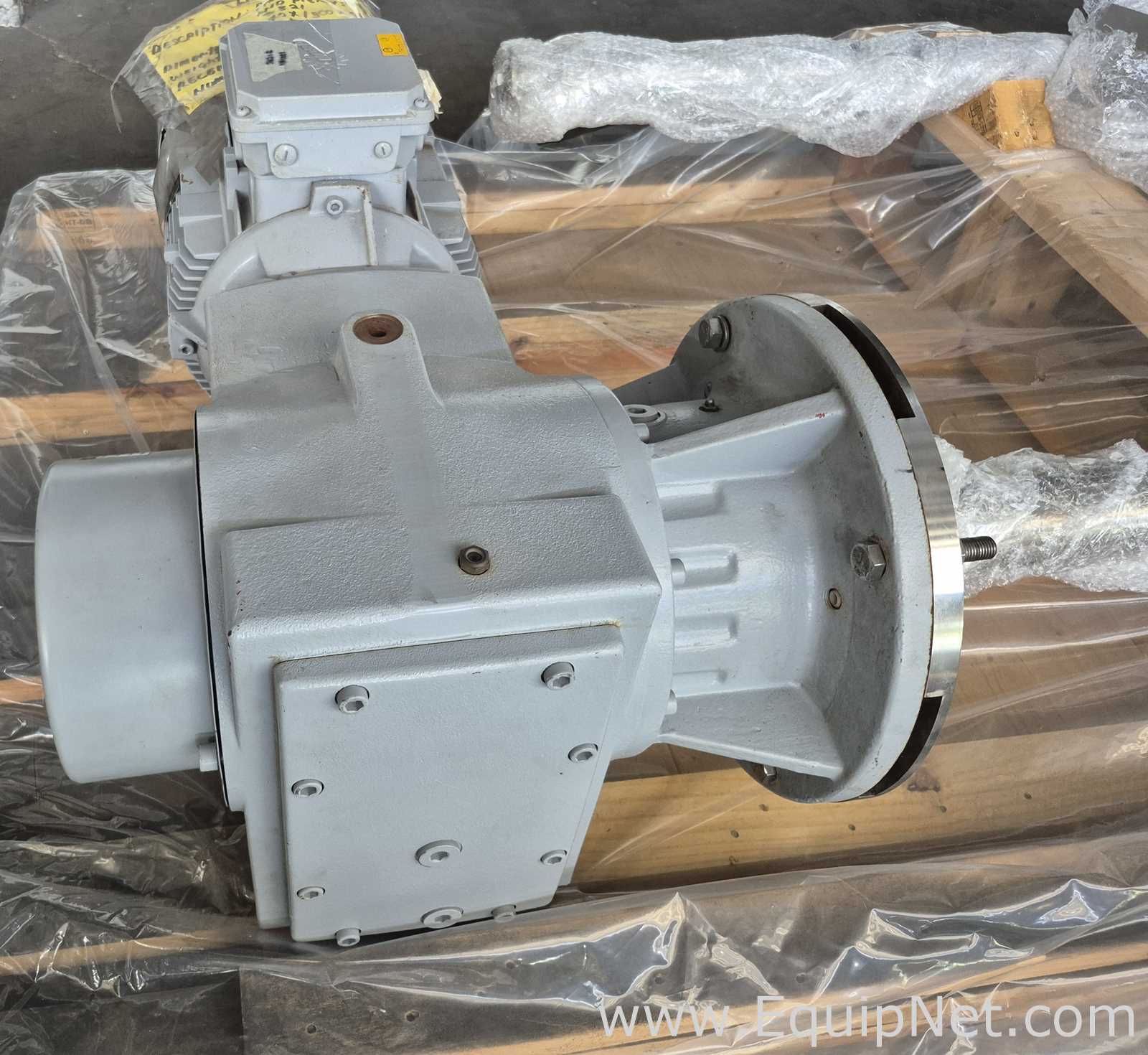

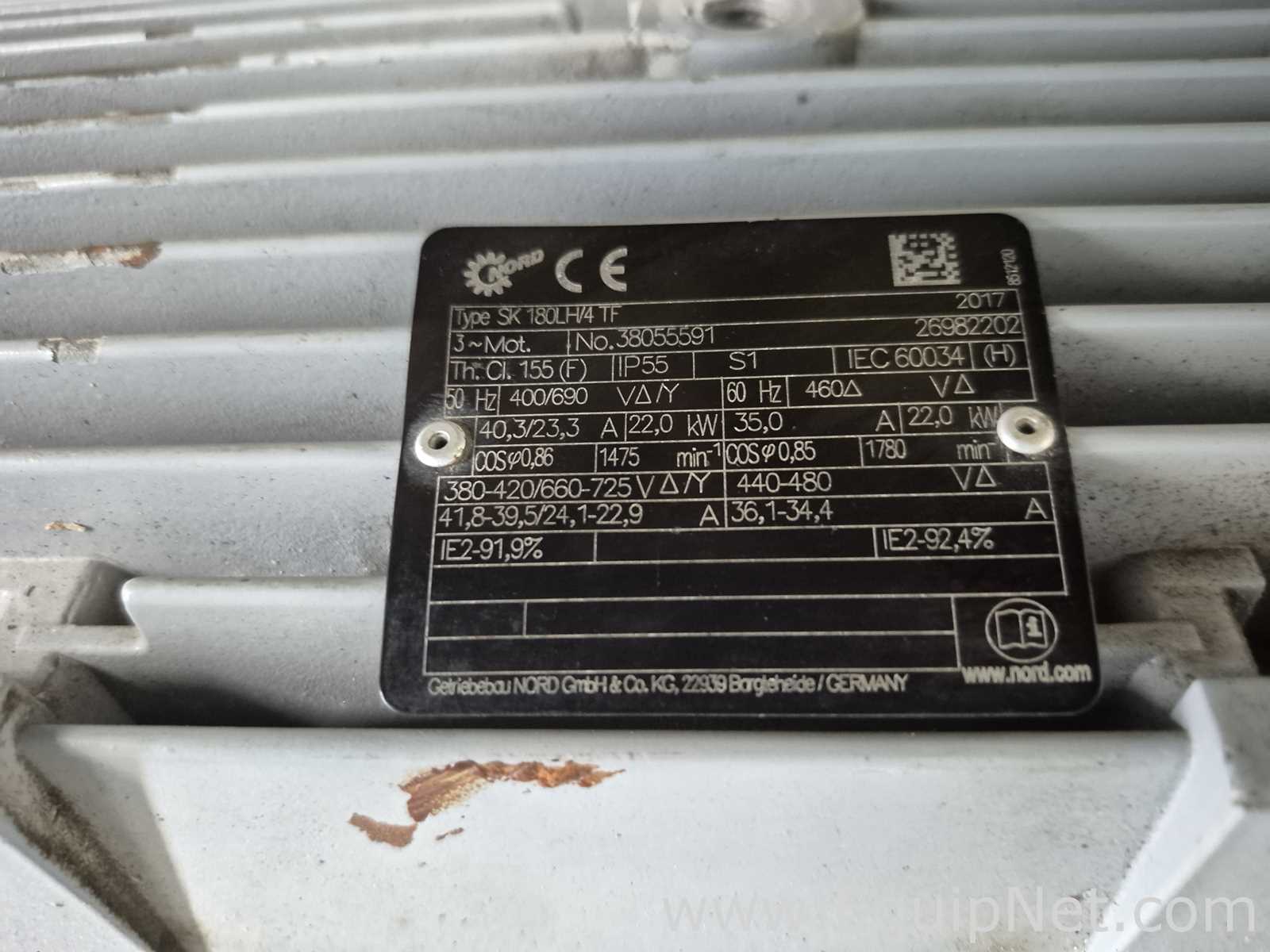

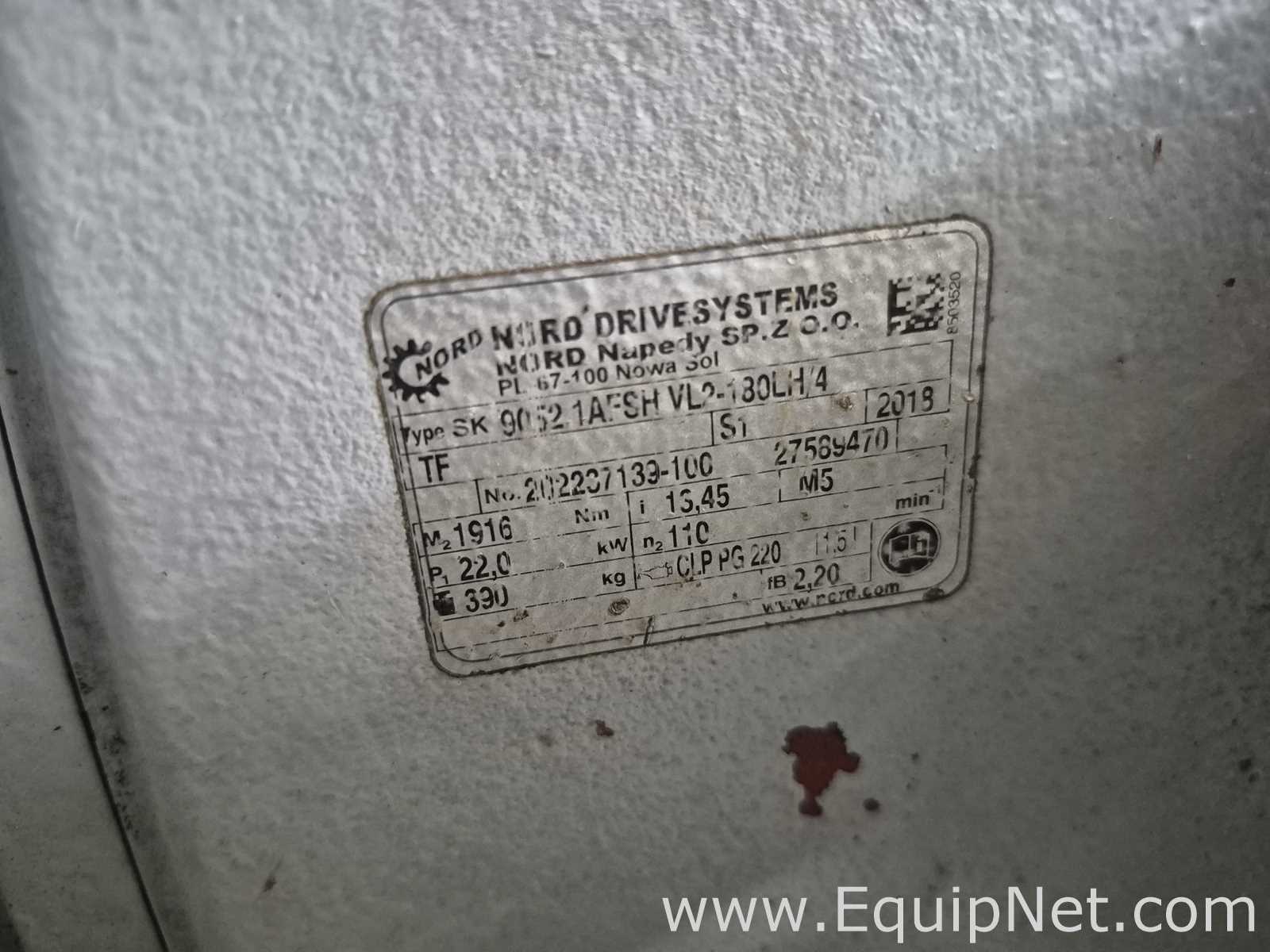

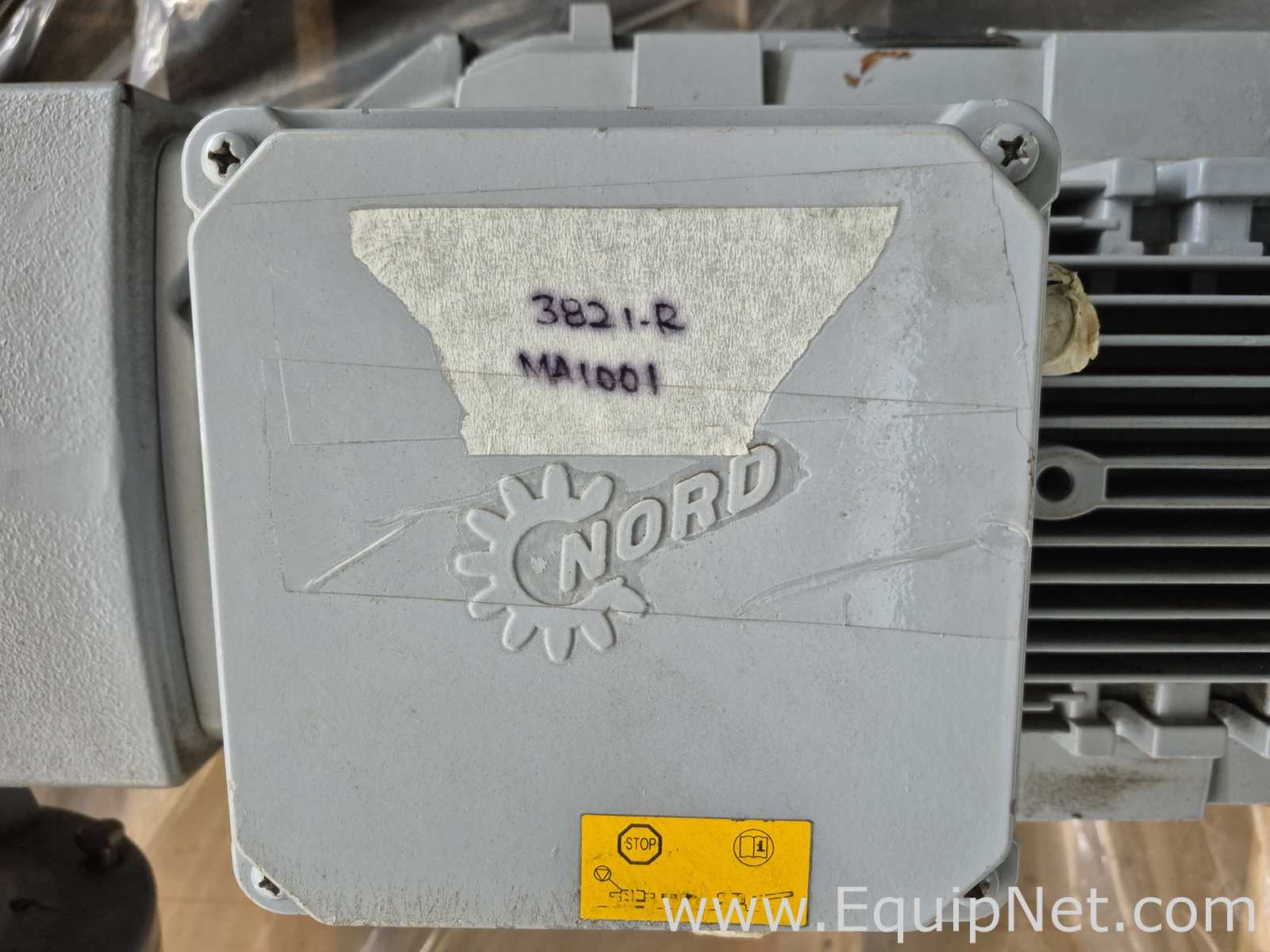

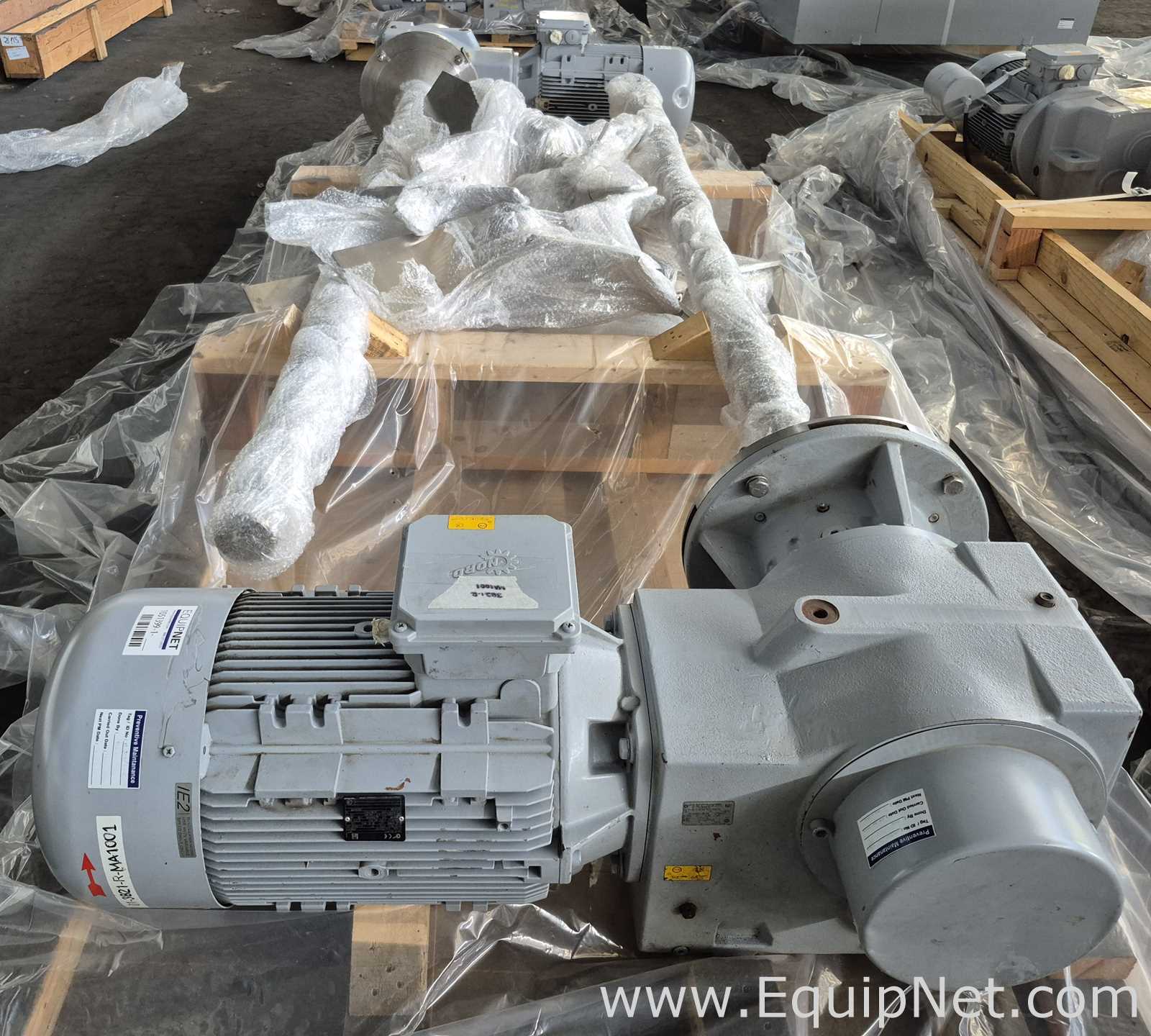

Motor agitator: 22kW. 400V. 110RPM - 50 HZ. 33-165 RPM - 15-75 HZ. frequency inverter.
Operating temperature: 25-65C. Hot/Cold water jacket.
Max temperature: Tank 90C. Jacket 90C.
Volume: Tank 4000Lt. Jacket 8Lt.
Max pressure: Tank ATM. Jacket 3bar.
Test pressure: Jacket 3bar.
CIP flow rate: 3 m3/h. Automatic loop.
Material of construction: SS304. Parts in contact with product SS316. Polished<=0.8 µm Ra.

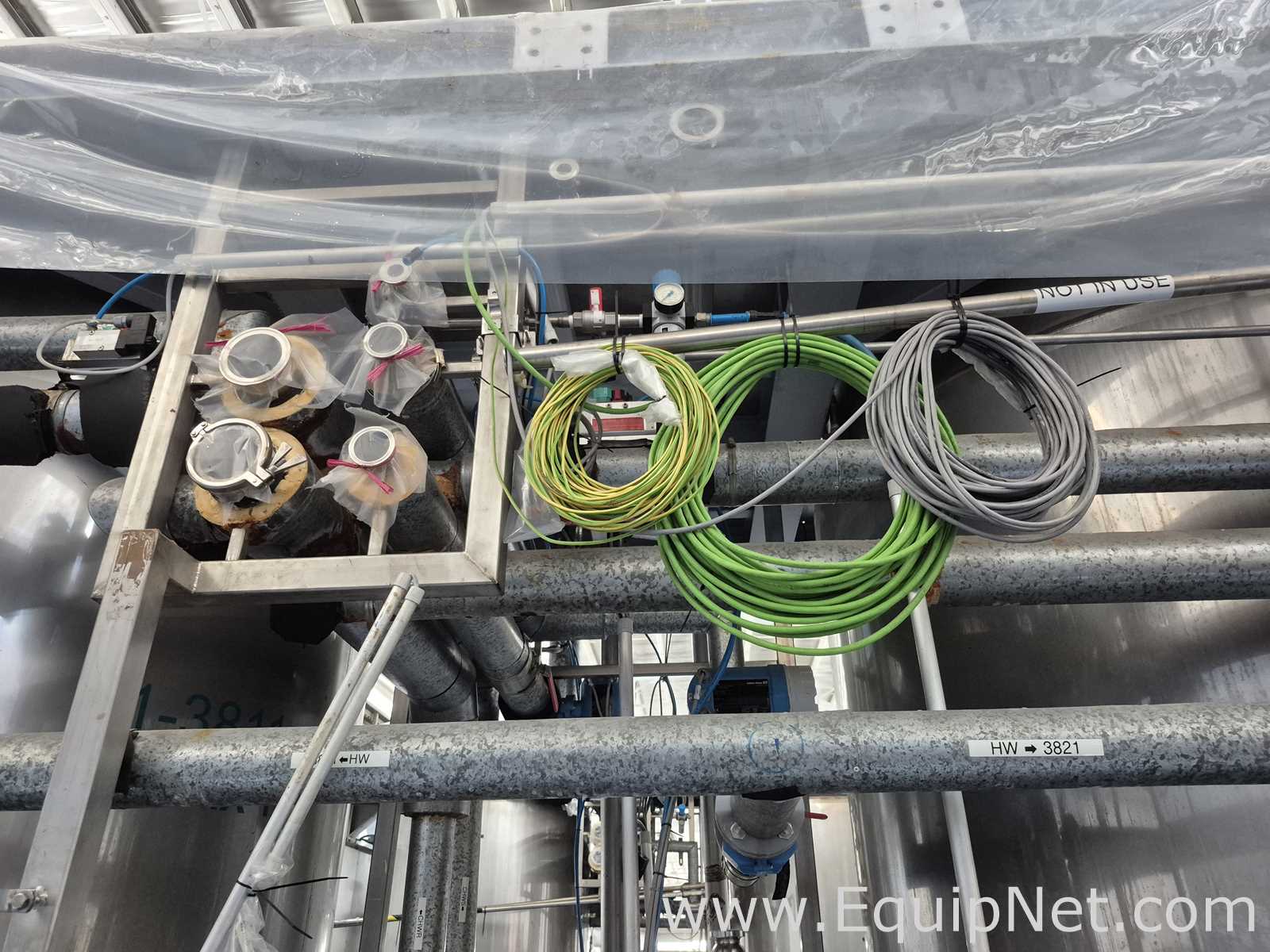

Utilities connected: Air/PW/HW/CIP/Product.

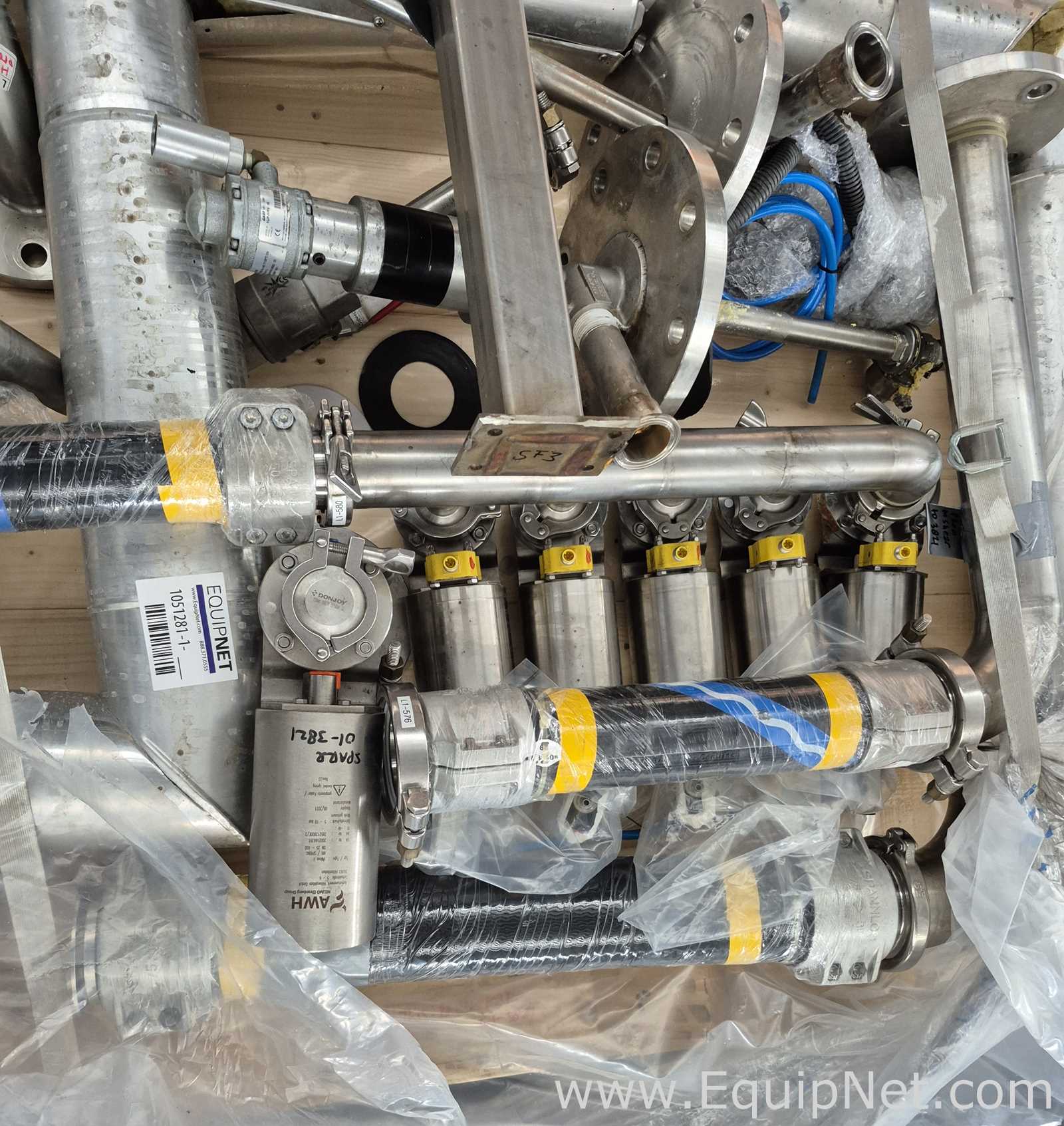

Includes: Listing 1051281.
Includes: Listing 1051399.
Includes: Listing 1051281.
Includes: Listing 1051399.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Year:
2018
2018
Serial Number:
2800694-70
2800694-70
Capacity of Tank:
1057.04
gal
4000
L
Tank Material of Construction:
STAINLESS STEEL
STAINLESS STEEL
Grade of Stainless Steel:
304
304
Jacketed:
YES
YES
Type of Top Head:
DISHED
DISHED
Type of Bottom Head:
DISHED
DISHED
Vertical or Horizontal:
VERTICAL
VERTICAL
Agitation:
YES
YES
Installation Type:
LEGS
LEGS
Recommended Packaging Form:
CUSTOM PALLET
CUSTOM PALLET
Dimensions:
Standard
Metric
Overall:
66.93 x 66.93 x 107.64 in - 1 LBS
1700 x 1700 x 2734 MM - 0.45 kg
Asset Documents
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1038441

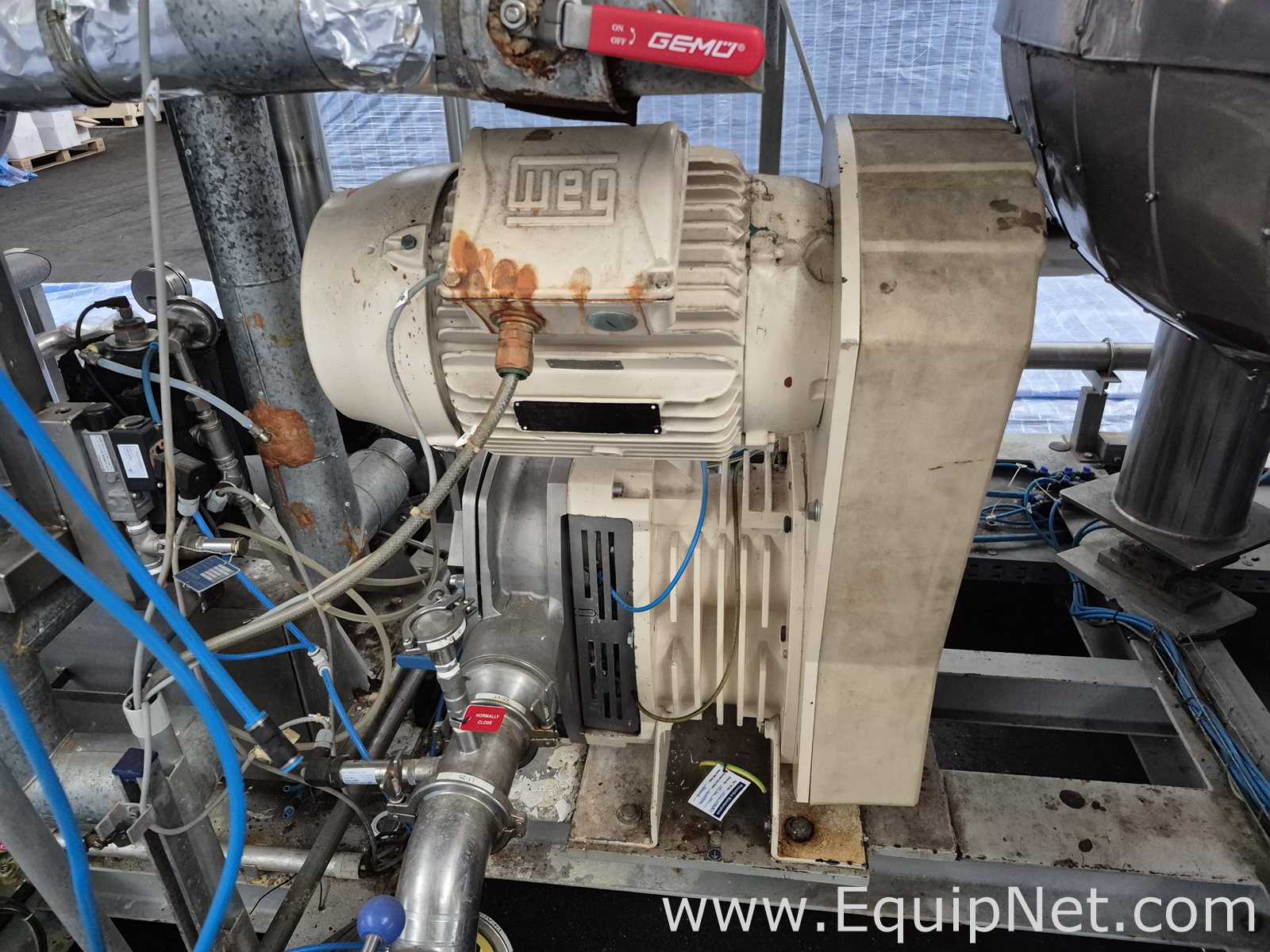

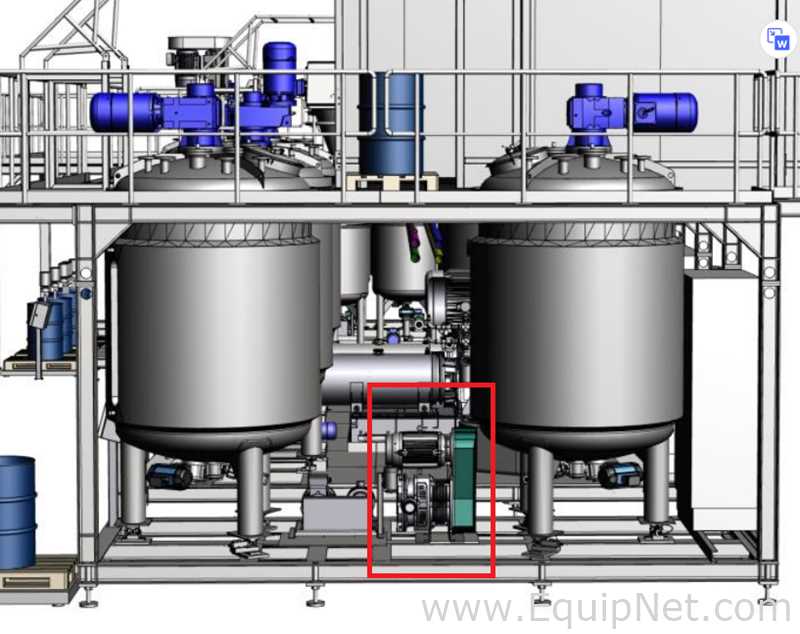

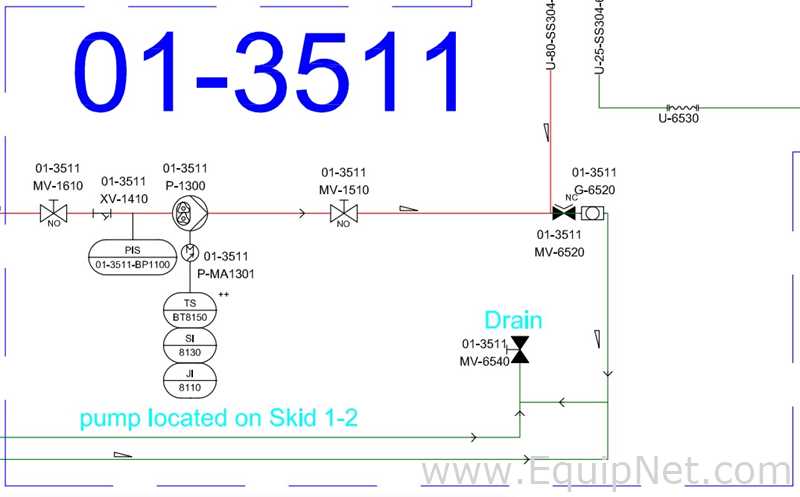

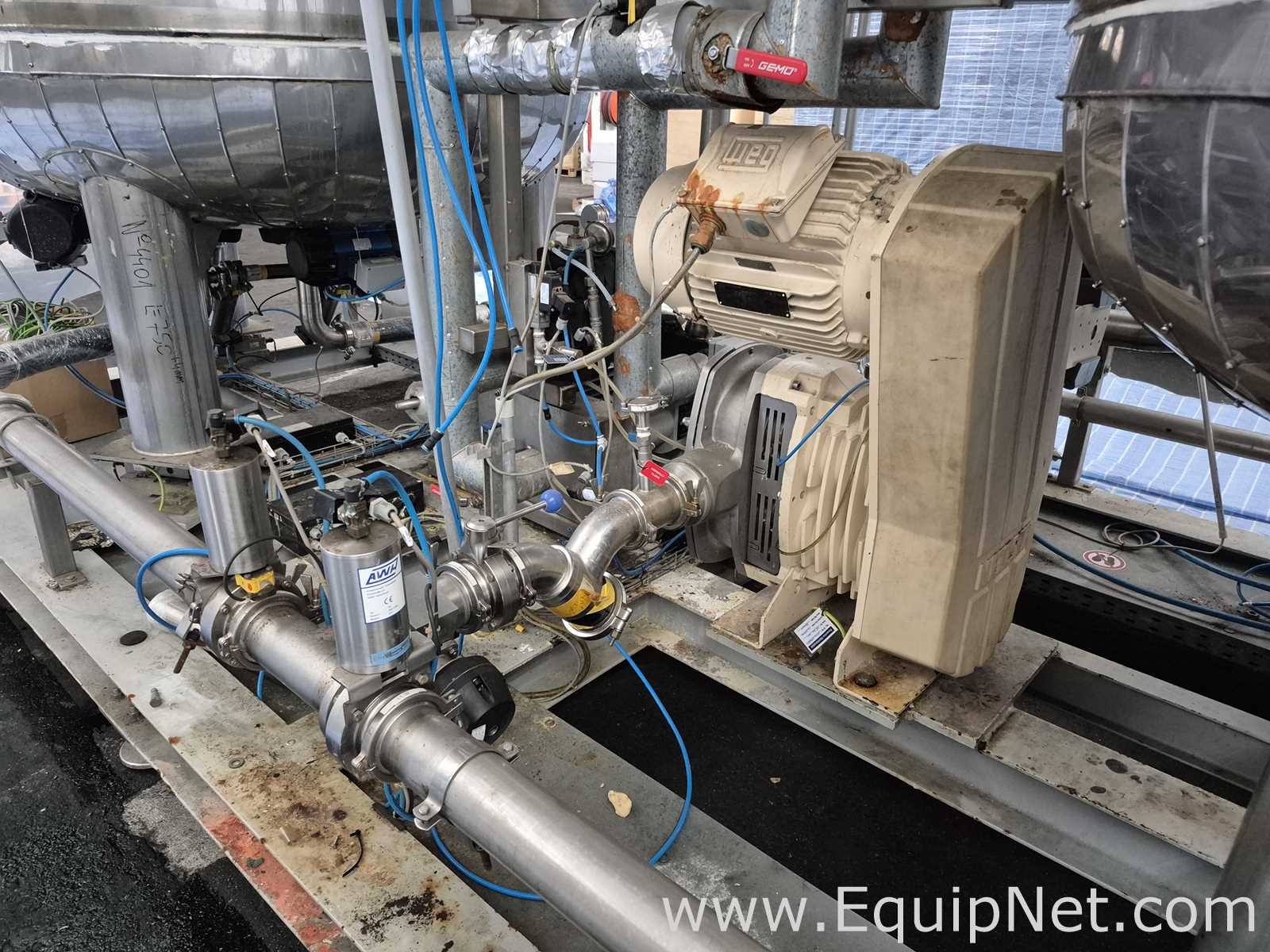

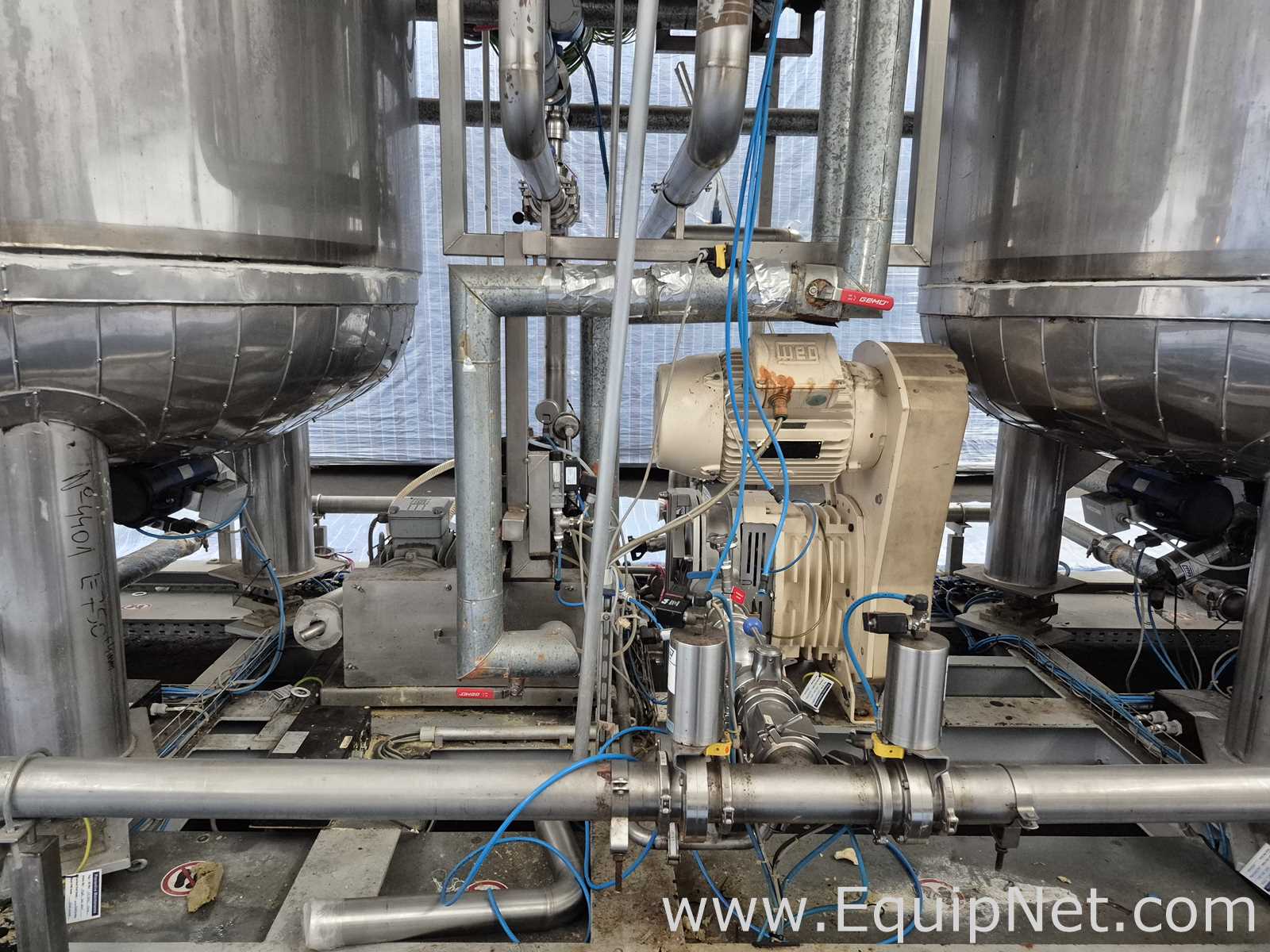

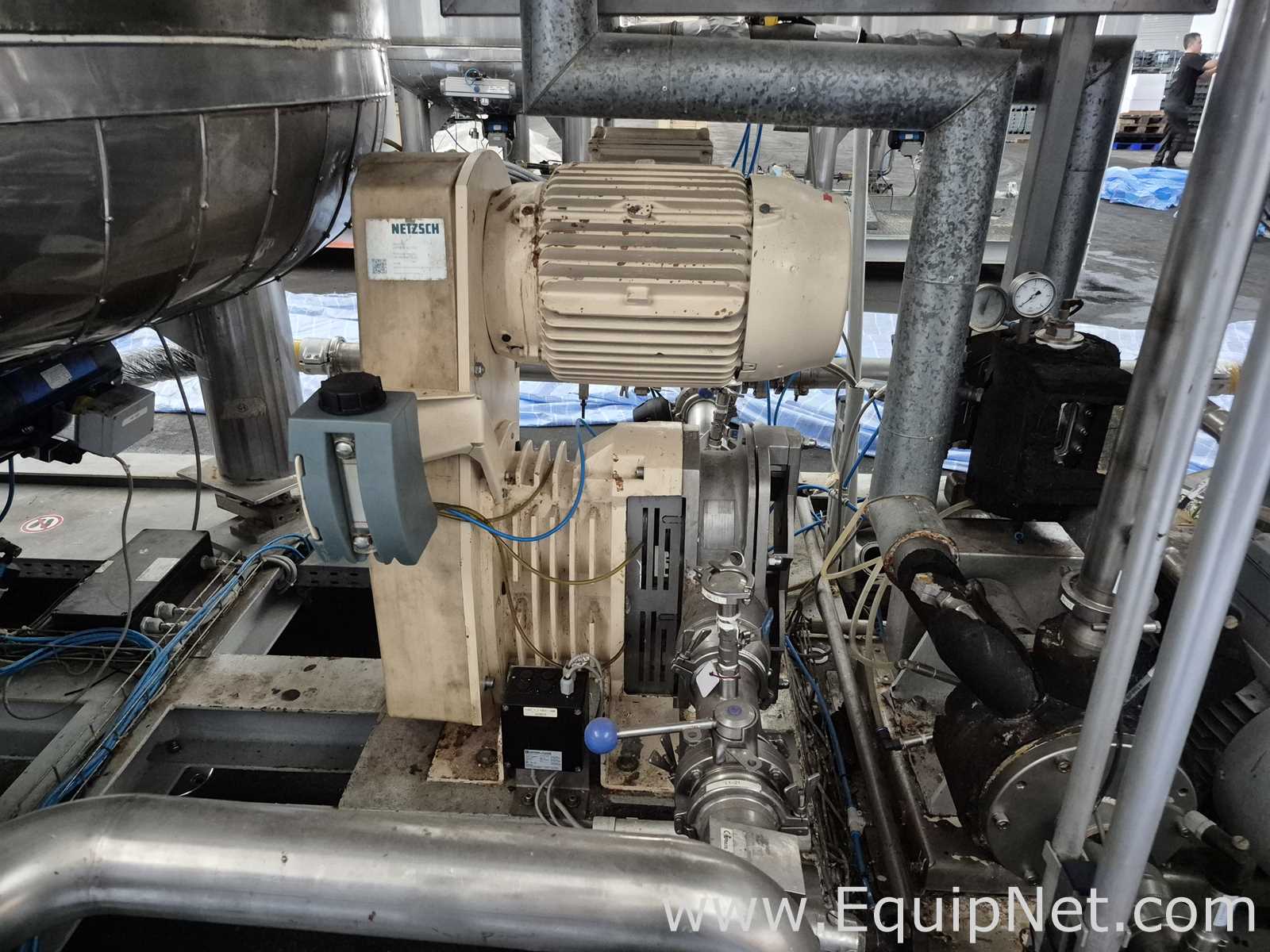

Netzsch Tornado Twin Screw Pump 3511 - Skid 1-2 Premix Extension
Equipment Description
Netzsch Tornado Twin Screw Pump 3511 - Skid 1-2 Premix Extension
NETZSCH Tornado T.Proc 08/100 BD-M.
5-45 m3/hr. (247-426 RPM).
11 kW. 970 RPM.

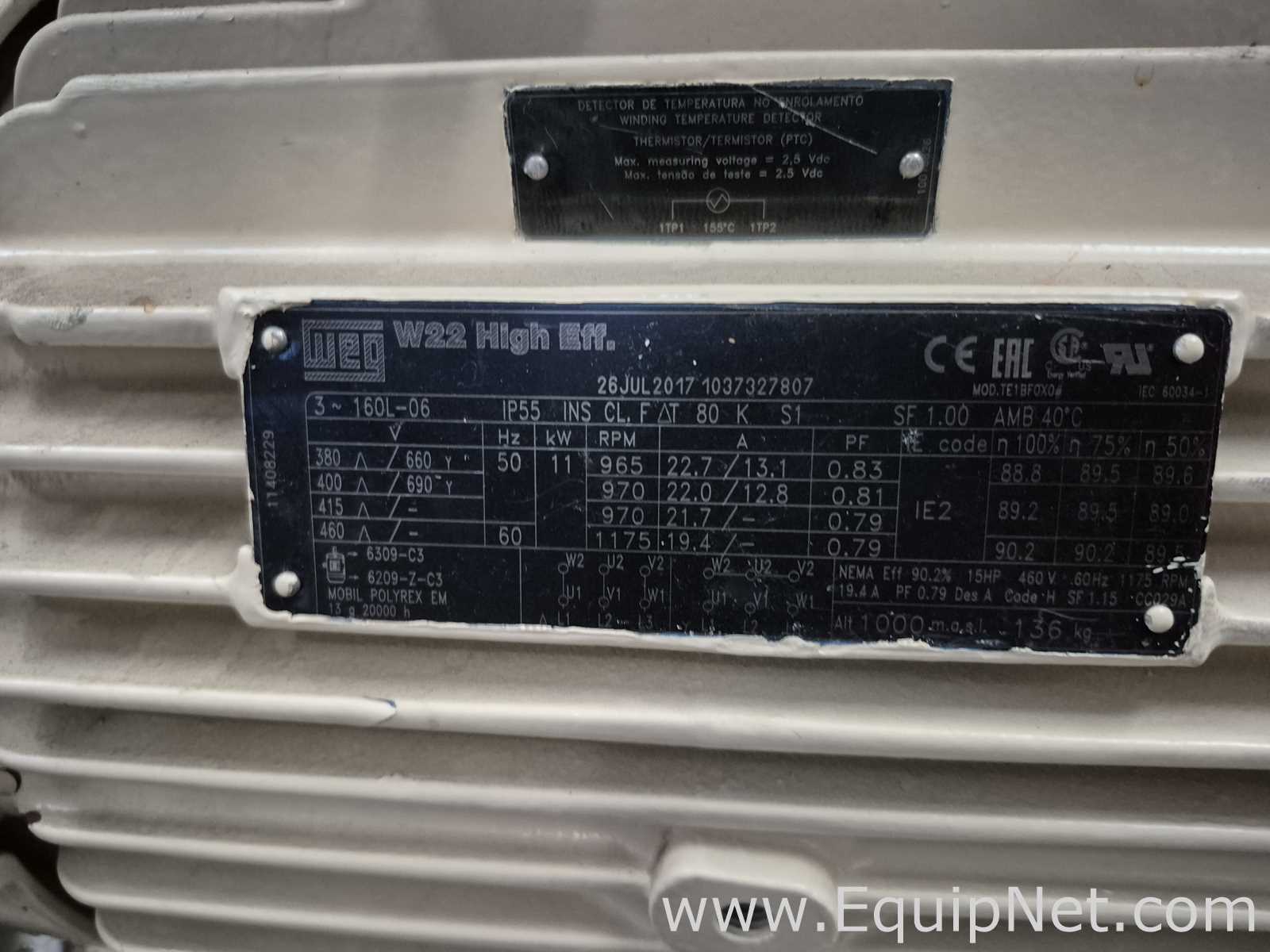

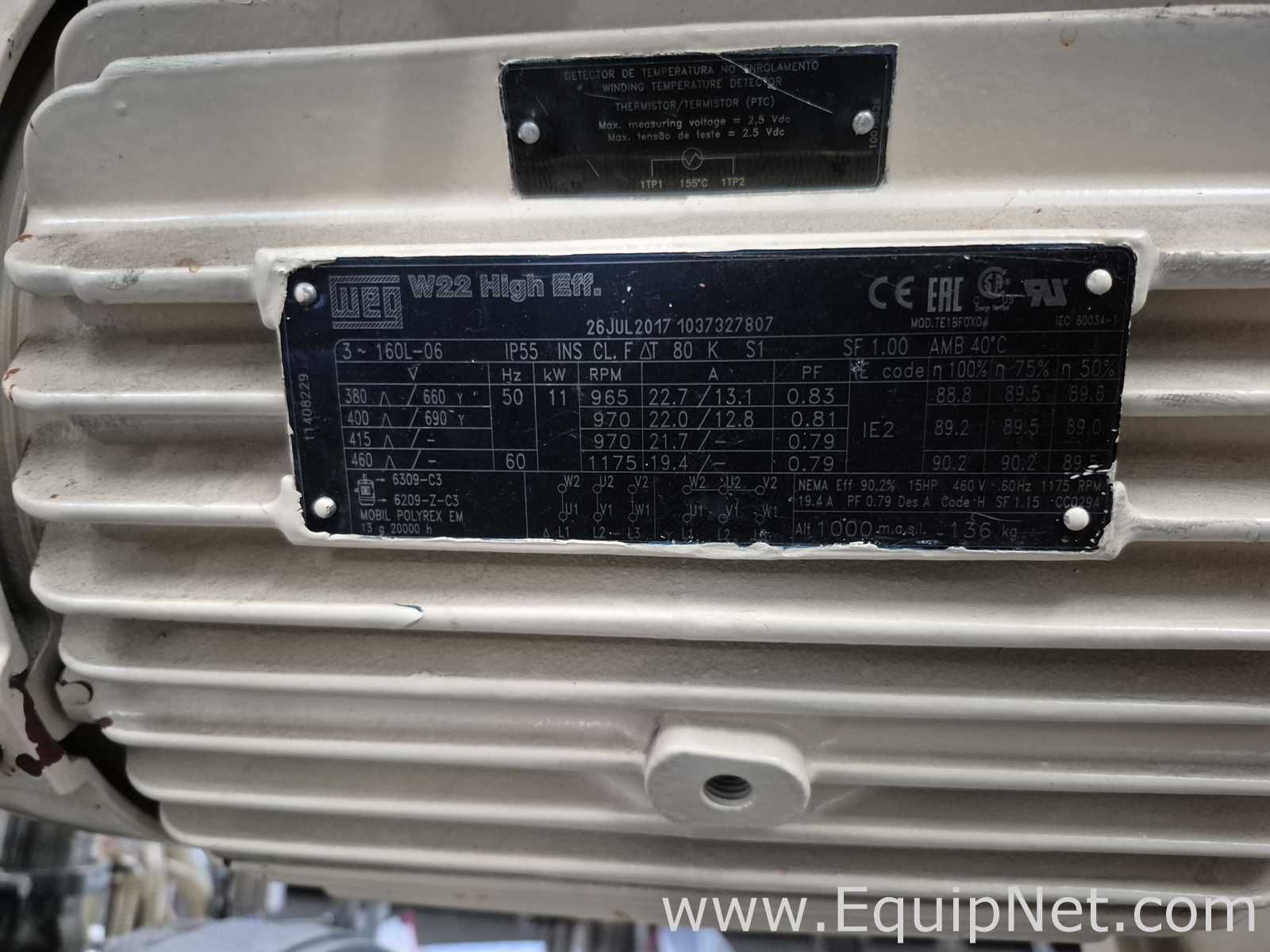

WEG Motor speed adj: 11 kW. 380-460V. 50-60 HZ. 965-1175 RPM.
Design for Max mechanical pressure: 6 bar.
Designed for Max operating temperature: 95C.
Housing material: AISI 316.
Execution rotary lobe: Bi lobe.
Rotor materials: AISI 316.
Base plate material: Stainless steel AISI 304.
Safety Equipment:
Outlet pressure via pressure sensor with MAX switching contact.
Safety Equipment:
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Voltage:
380-460
VOLTS
380-460
VOLTS
Frequency:
50/60
HERTZ
50/60
HERTZ
Phase:
3
3
Current:
22.7-19.4
AMPS
22.7-19.4
AMPS
Recommended Packaging Form:
PALLET
PALLET
Dimensions:
Standard
Metric
Overall:
0.04 x 0.04 x 0.04 in - 2.20 lb
1 x 1 x 1 MM - 1 KGS
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1038419

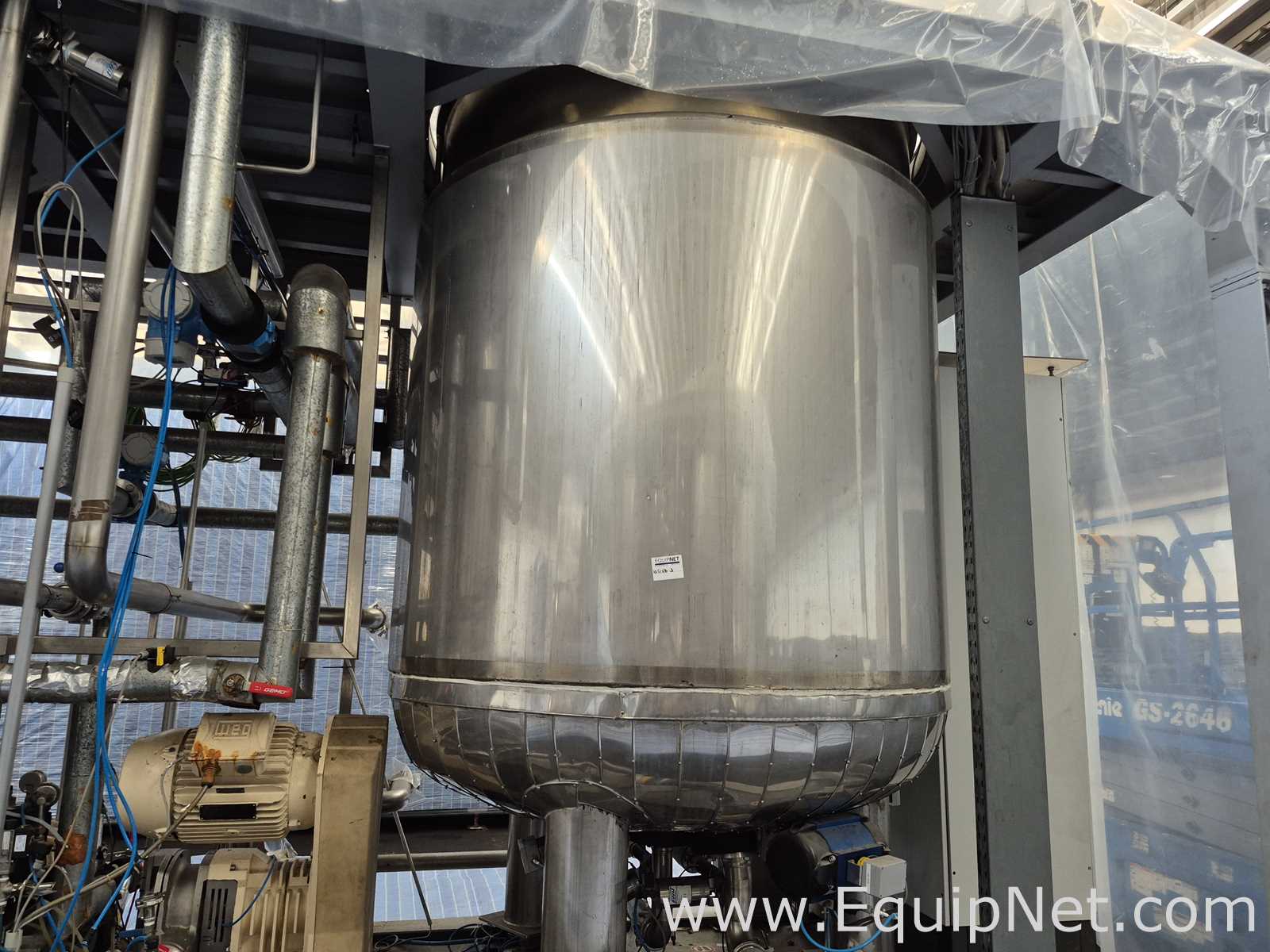

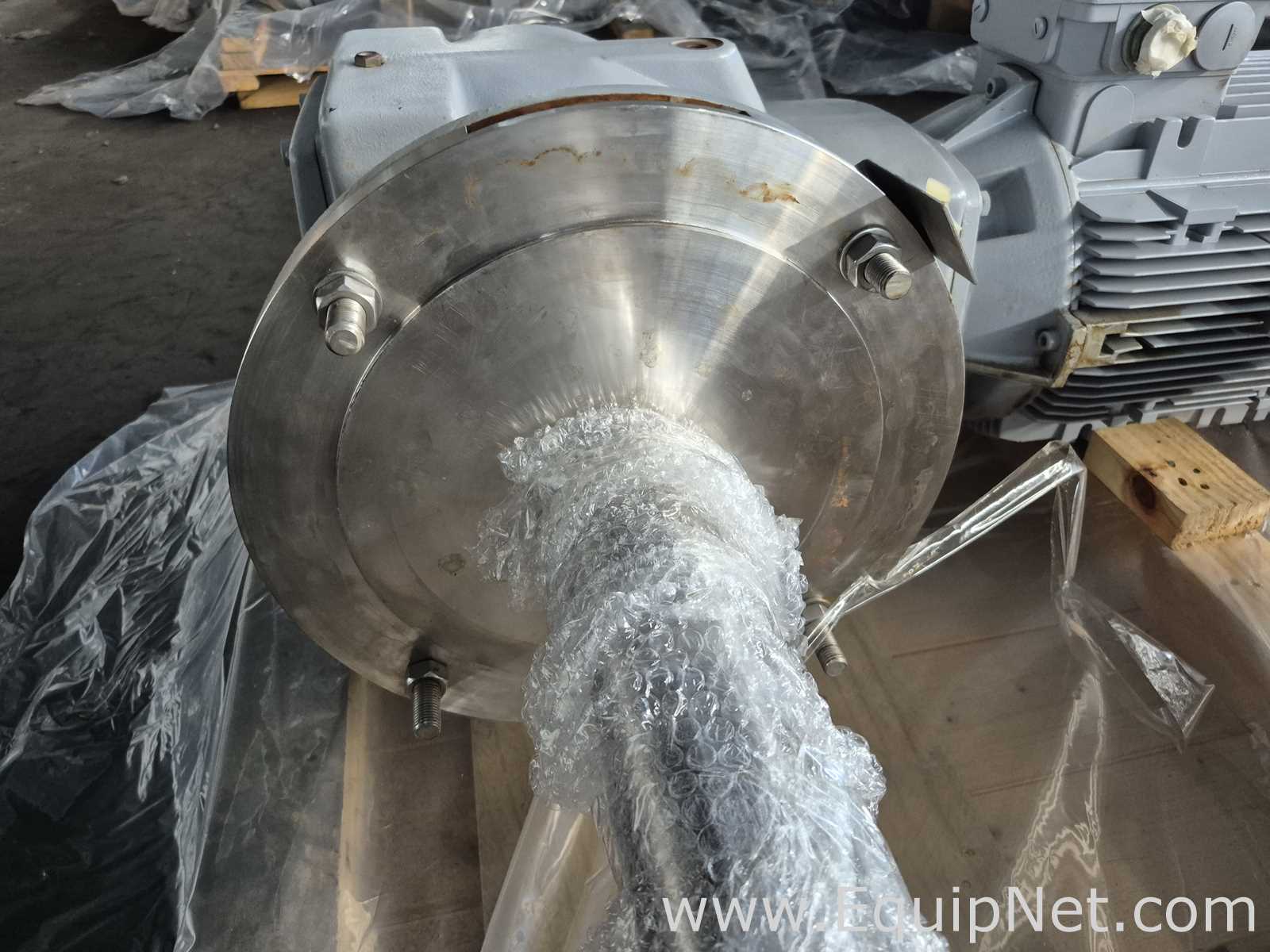

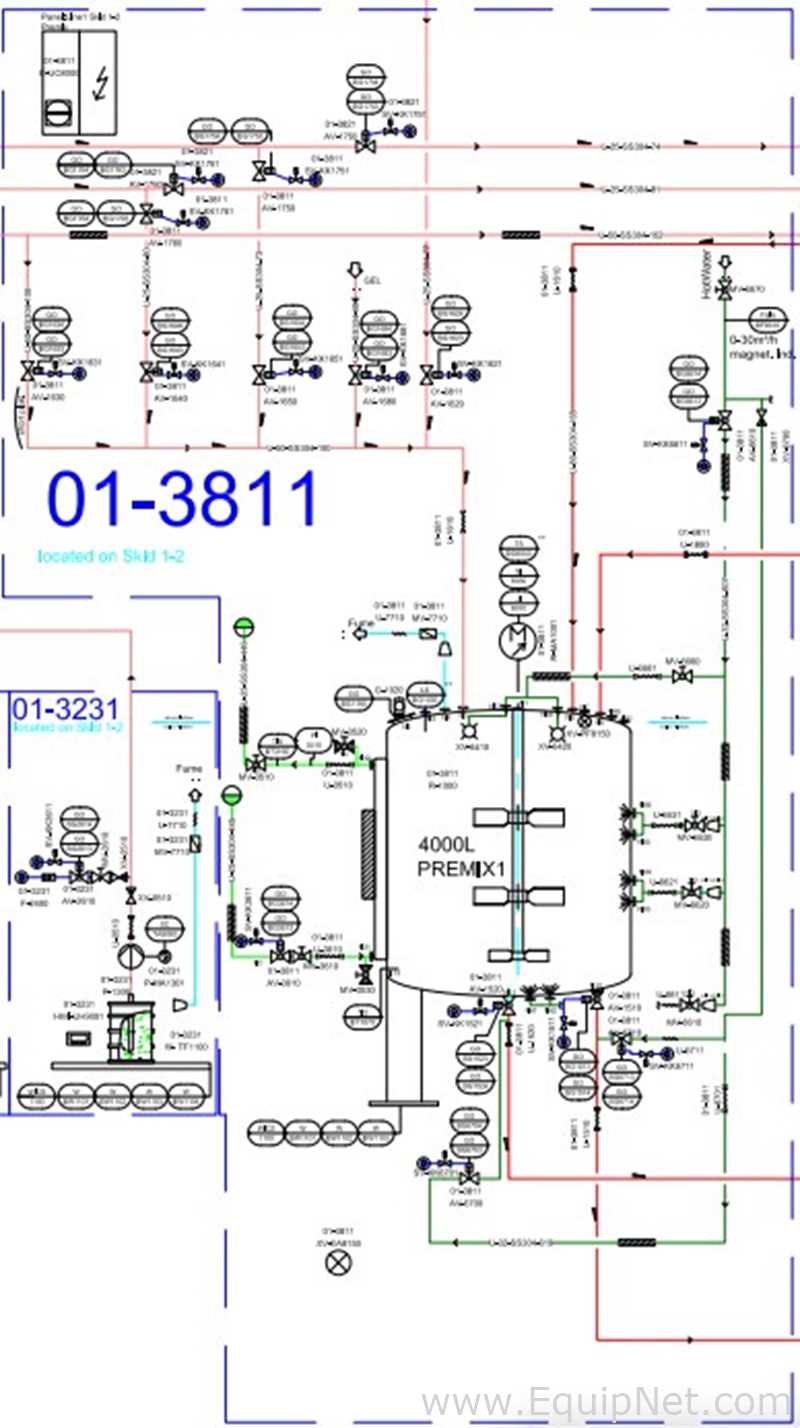

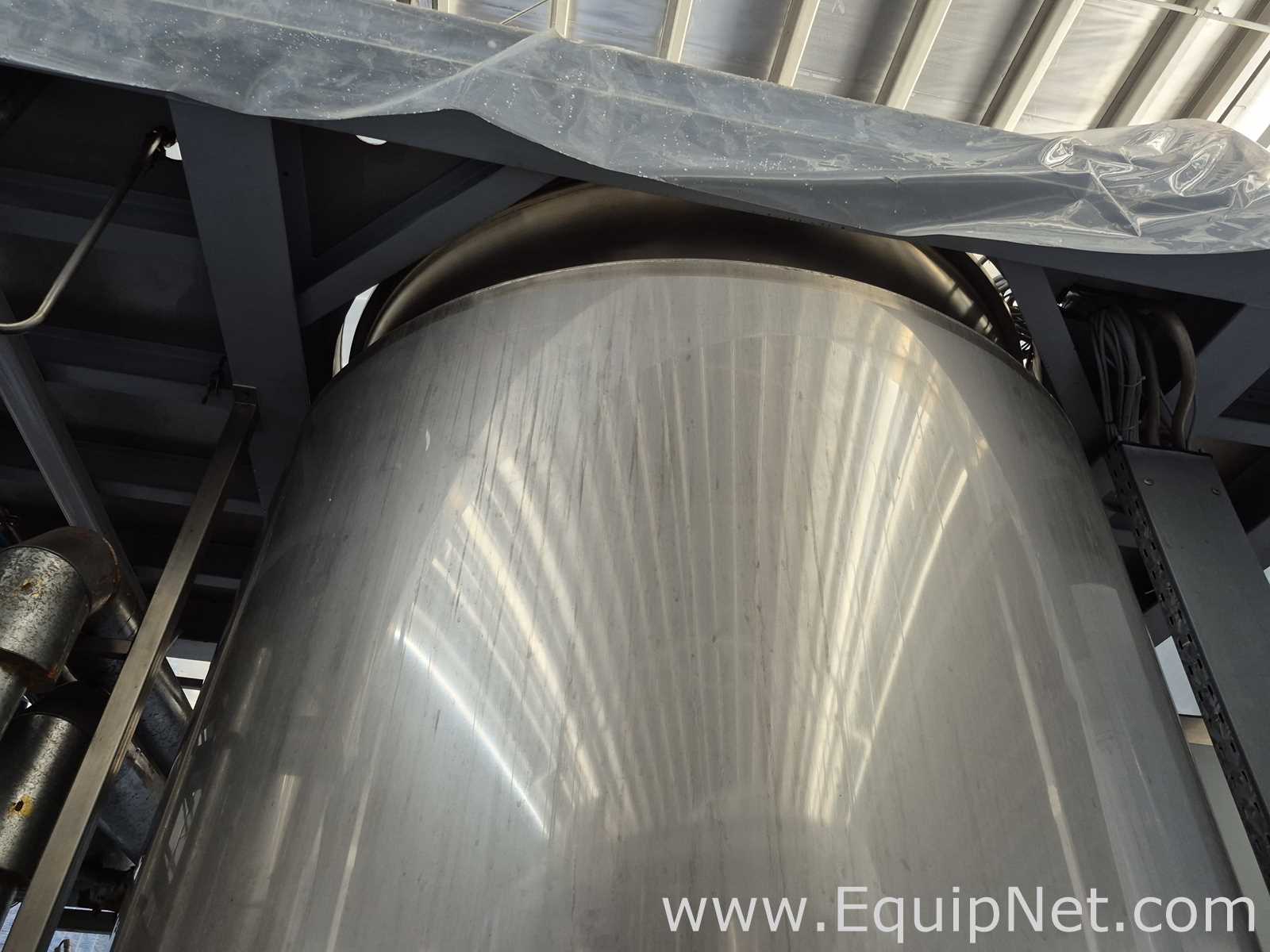

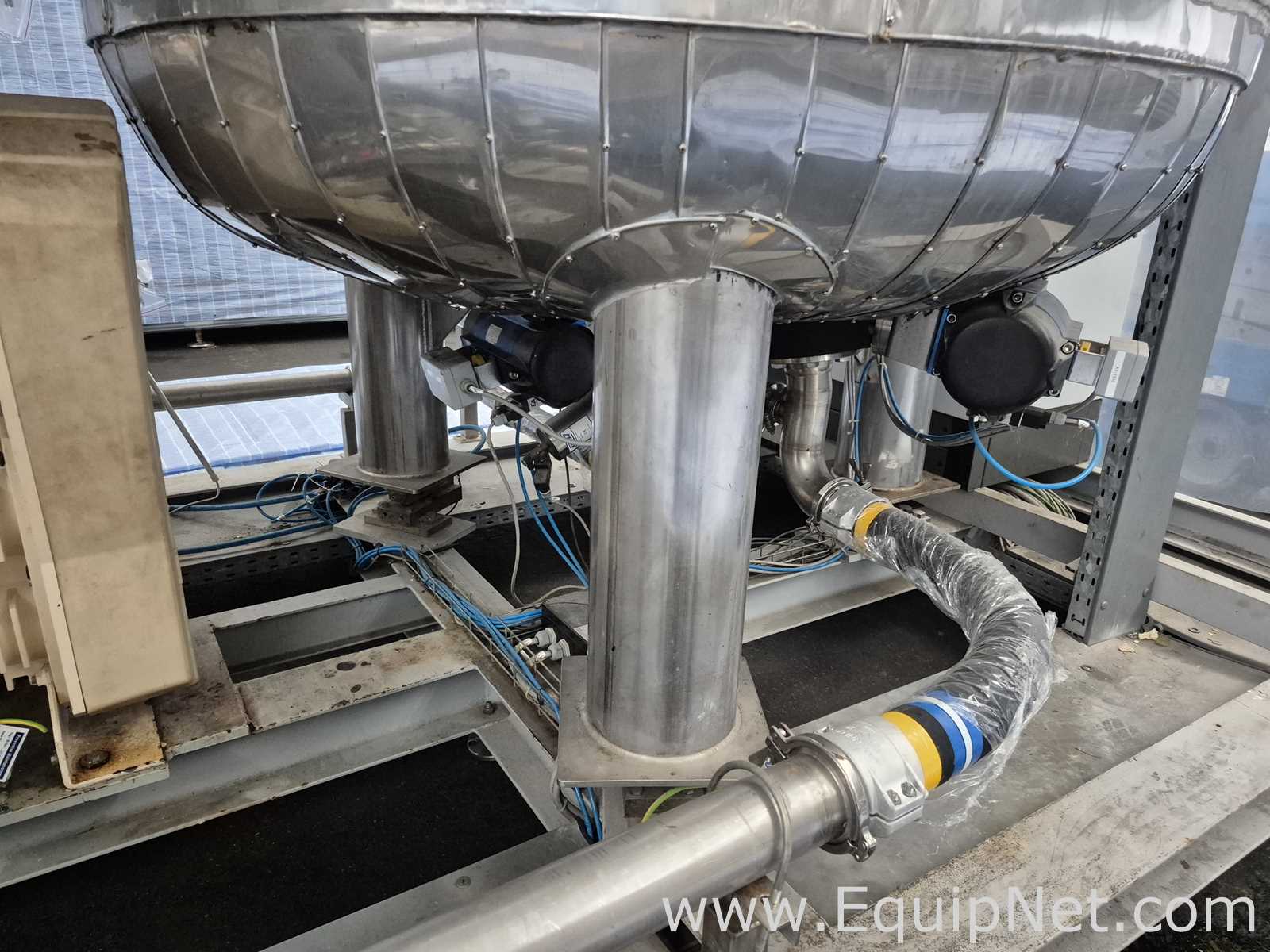

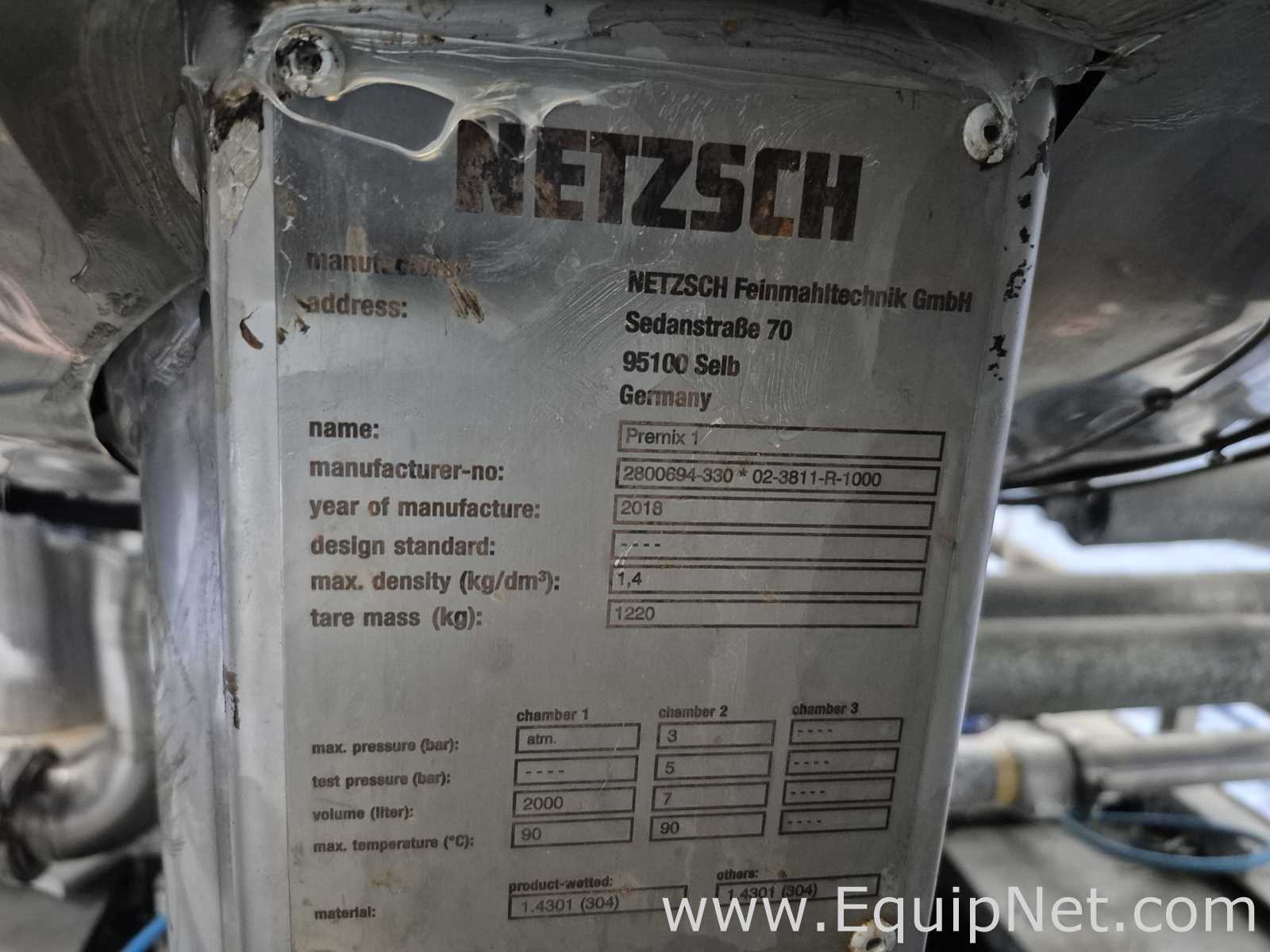

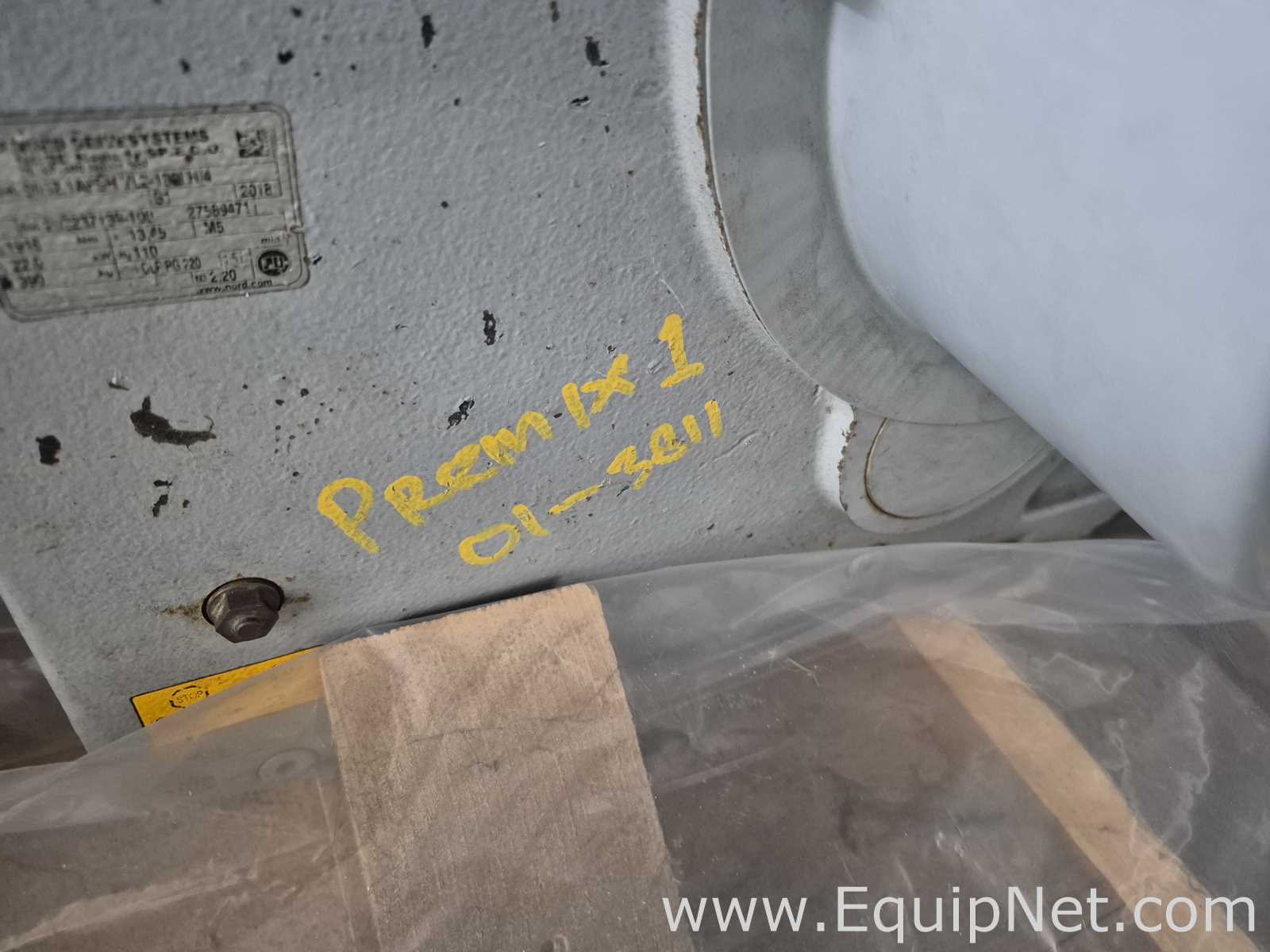

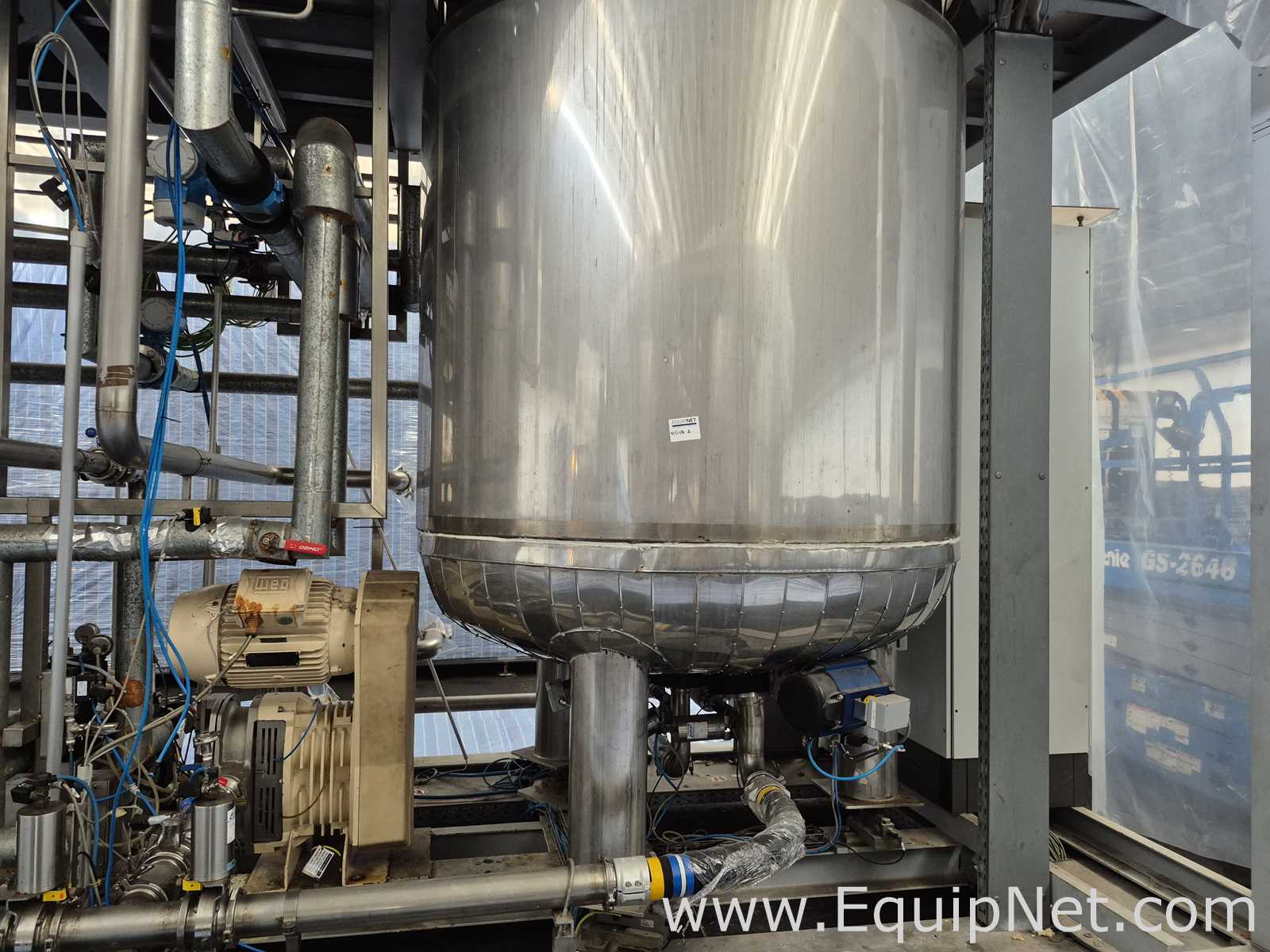

Netzsch 4000 Lt Premix Tank 3811 - Skid 1-2 Premix Extension
Equipment Description

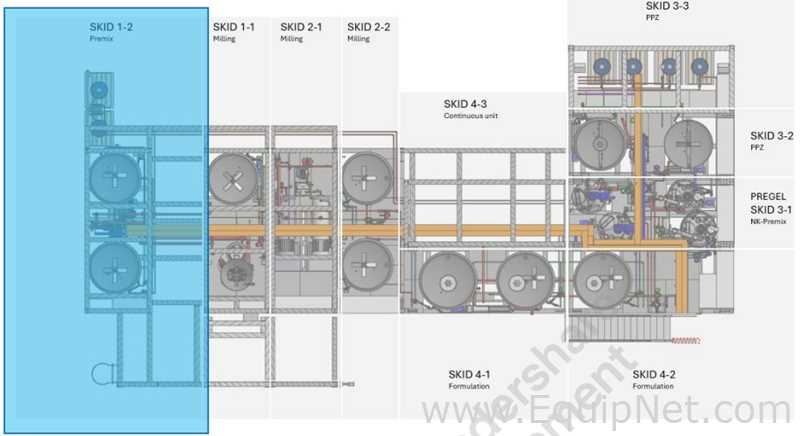

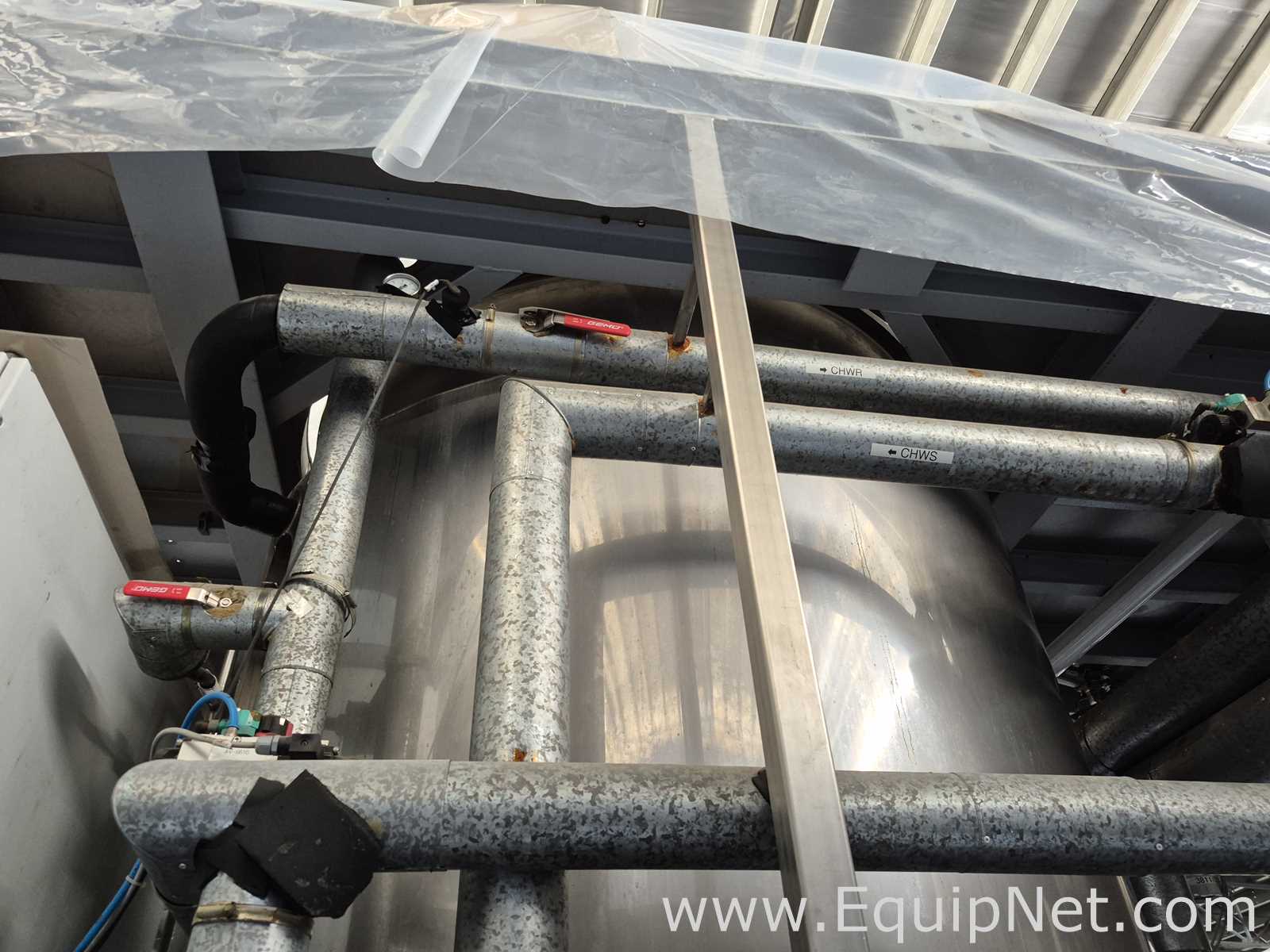

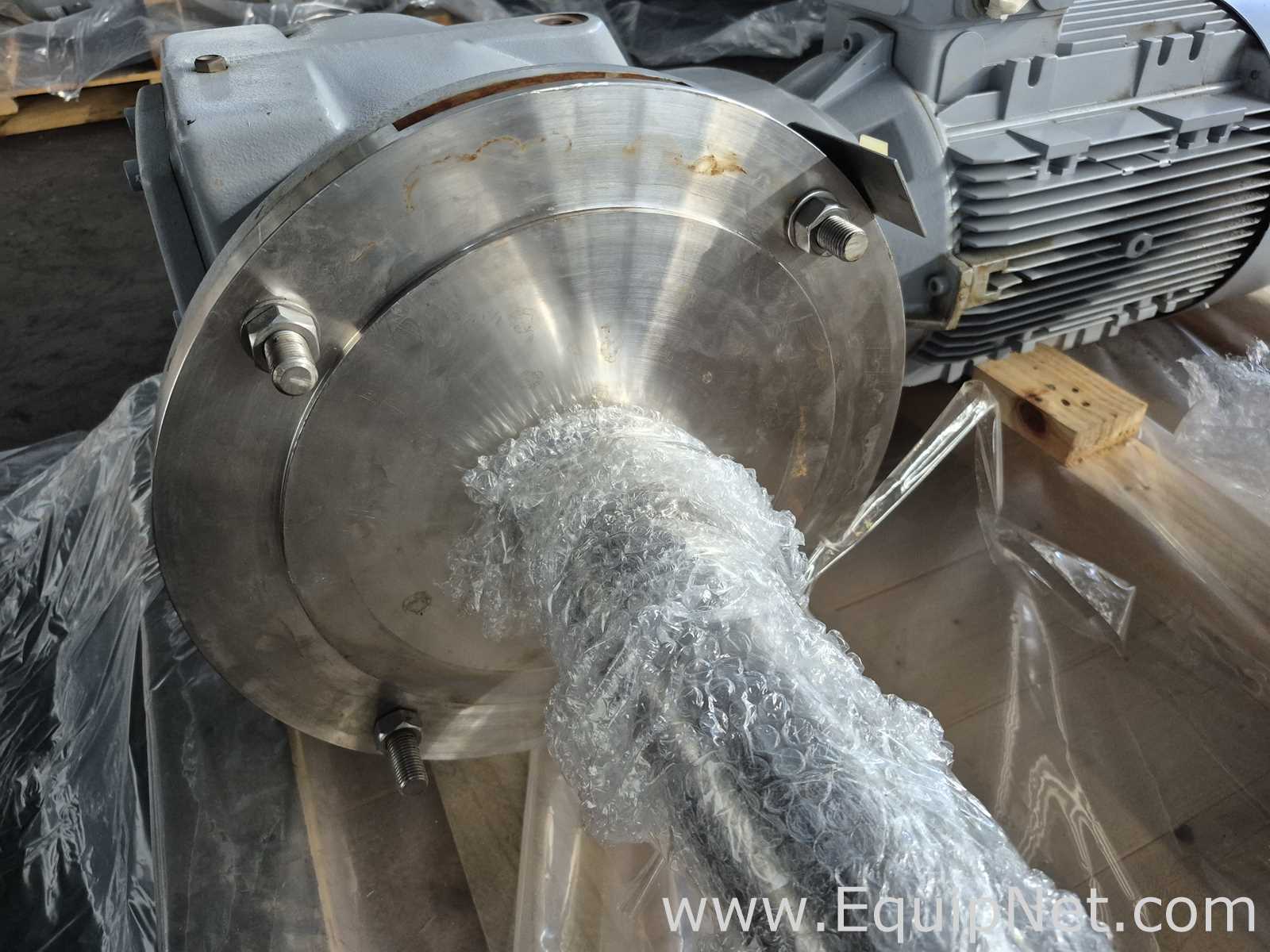

Netzsch 4000 Lt Premix Tank - Skid 1-2 Premix Extension
Mixer 4000L MS Cooled.

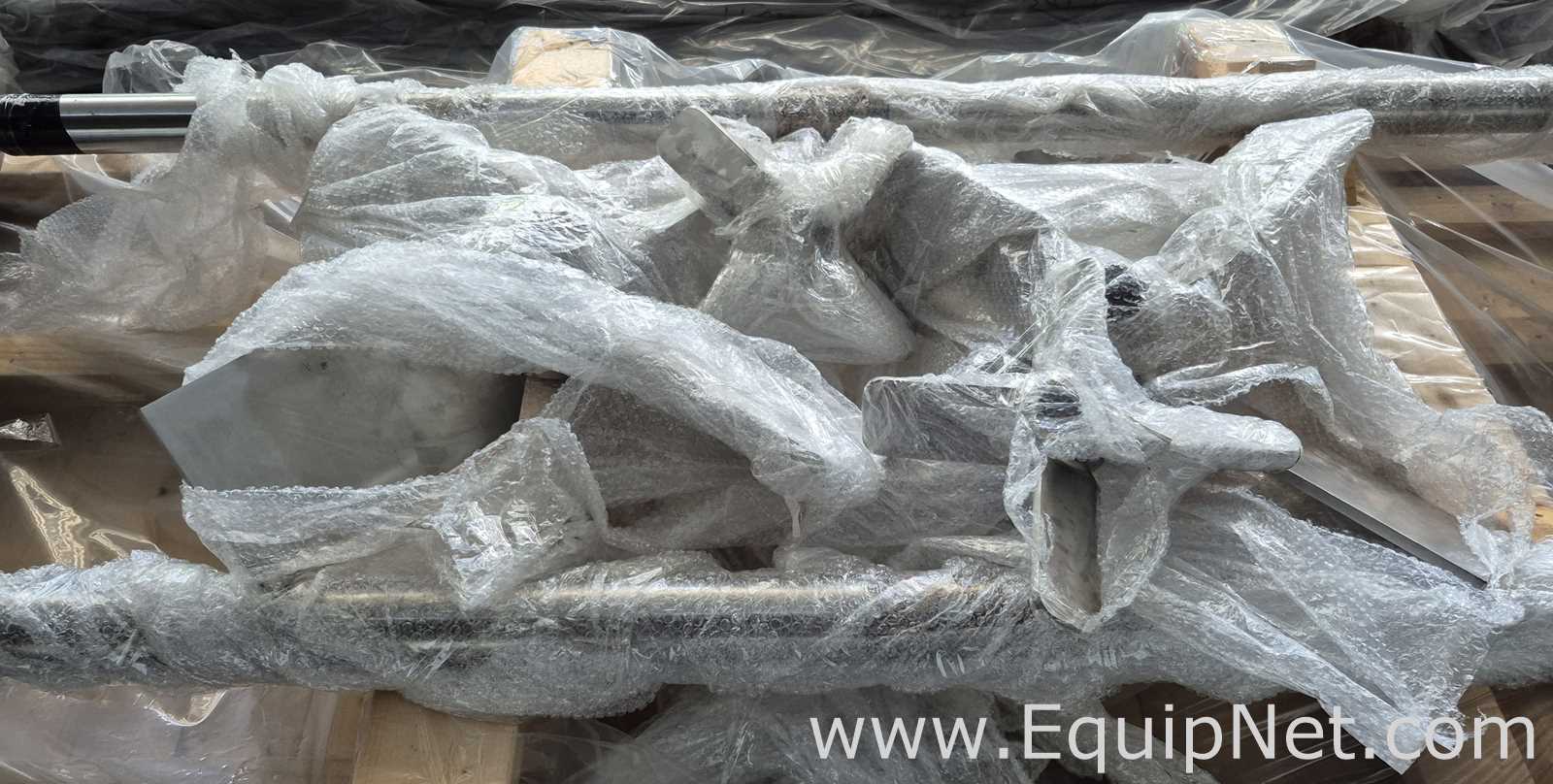

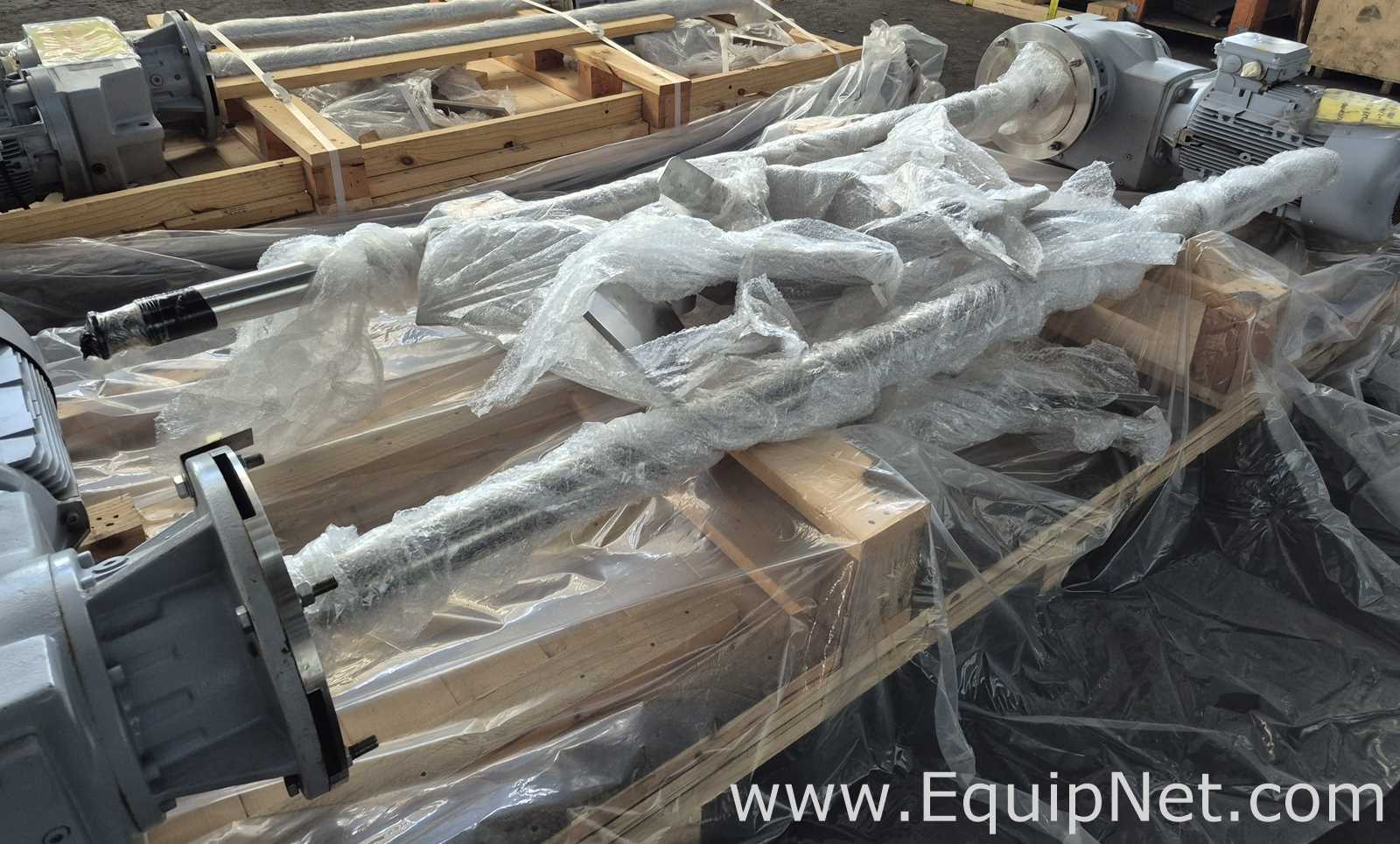

Axial flow blades 850mm.
Material: Stainless steel 304. Parts in contact with product Stainless steel 316.

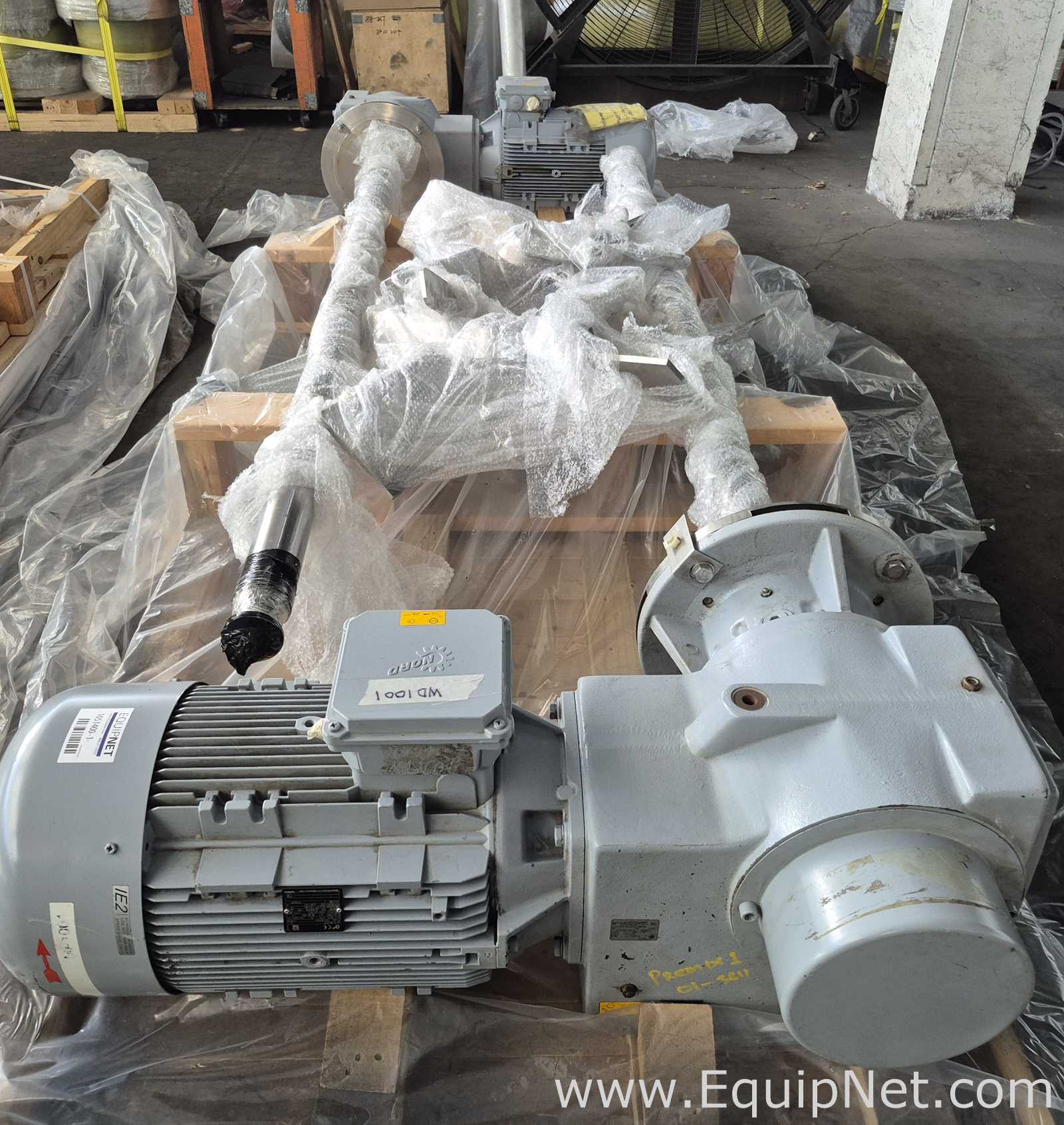

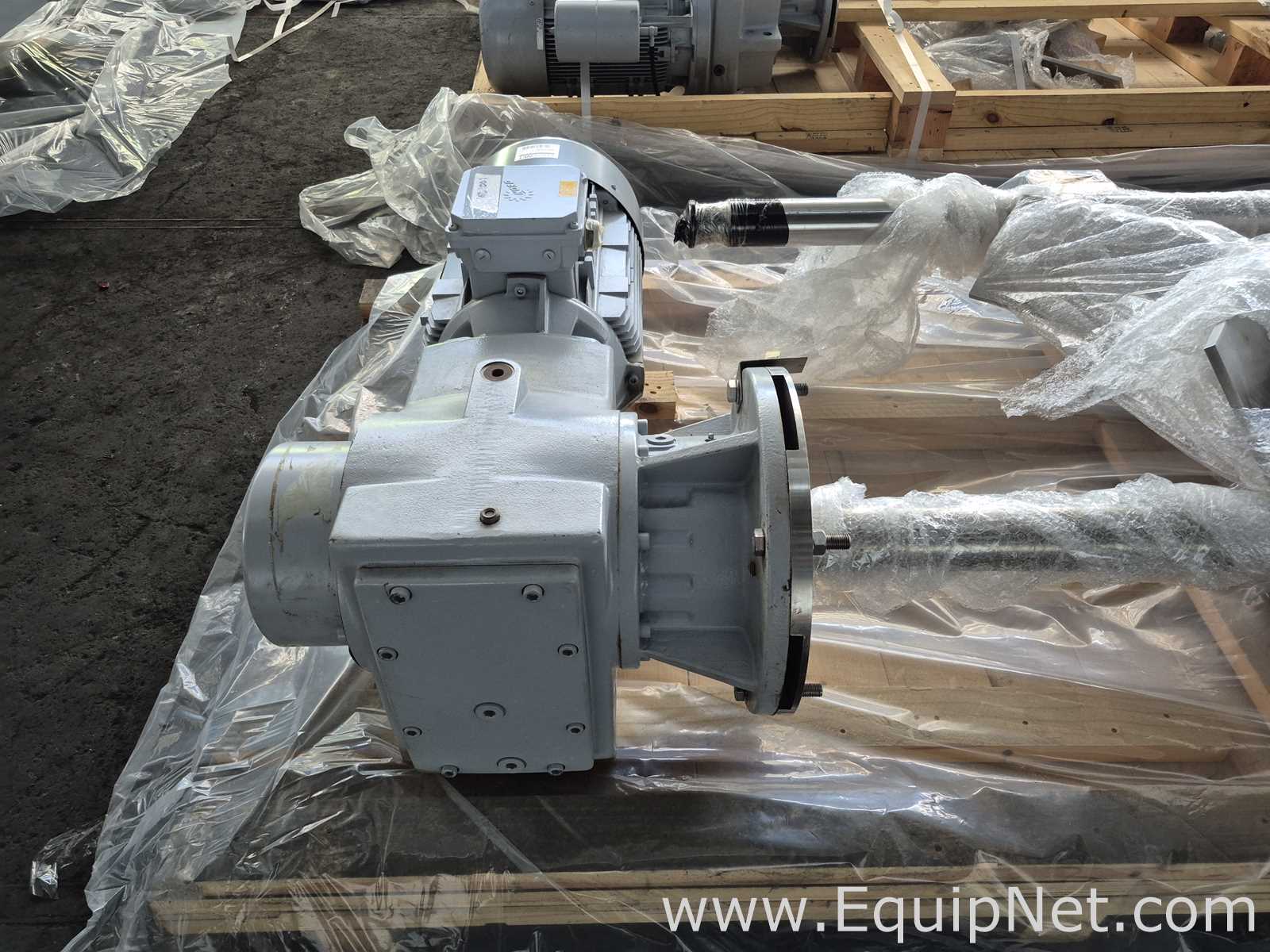

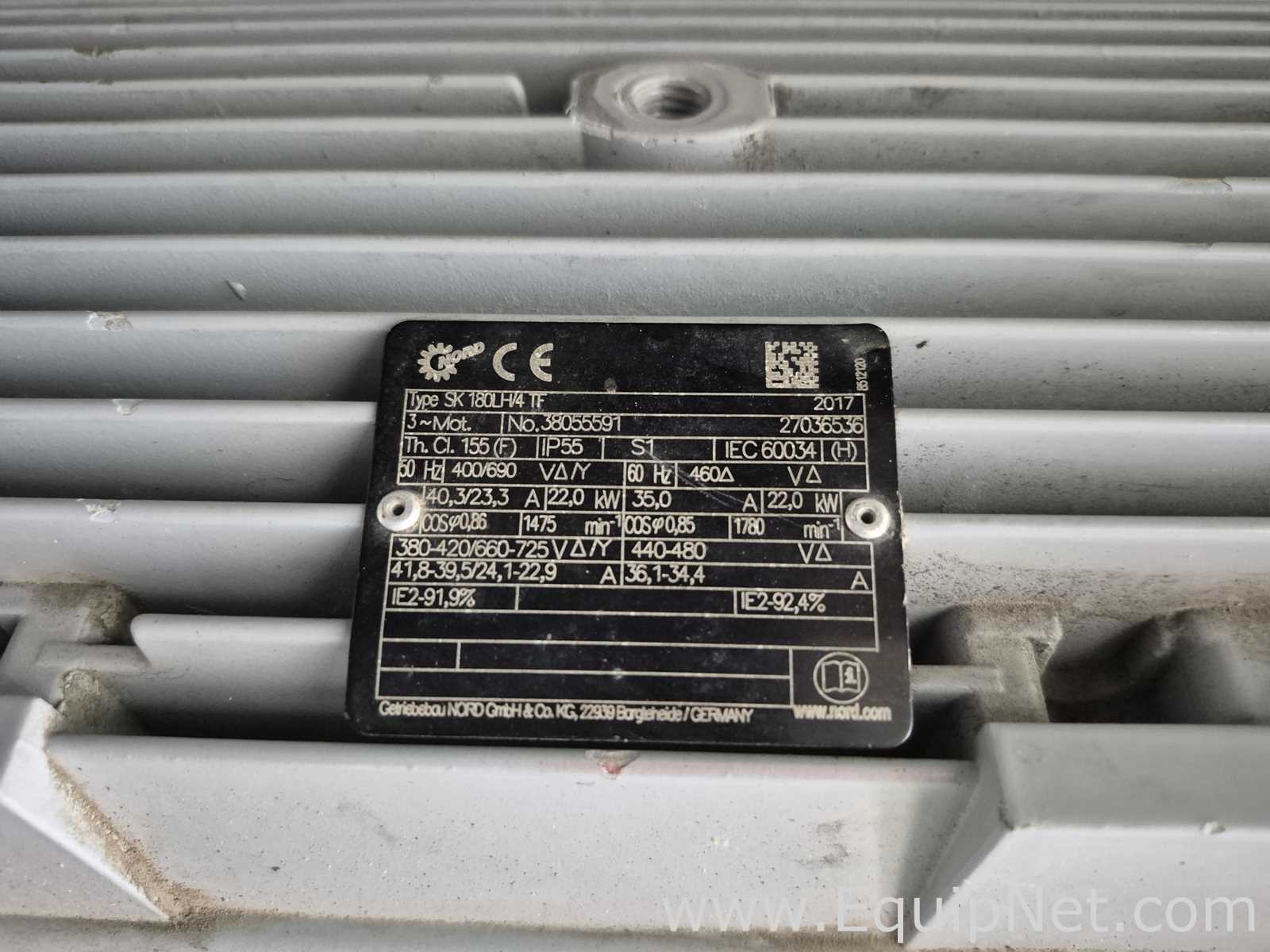

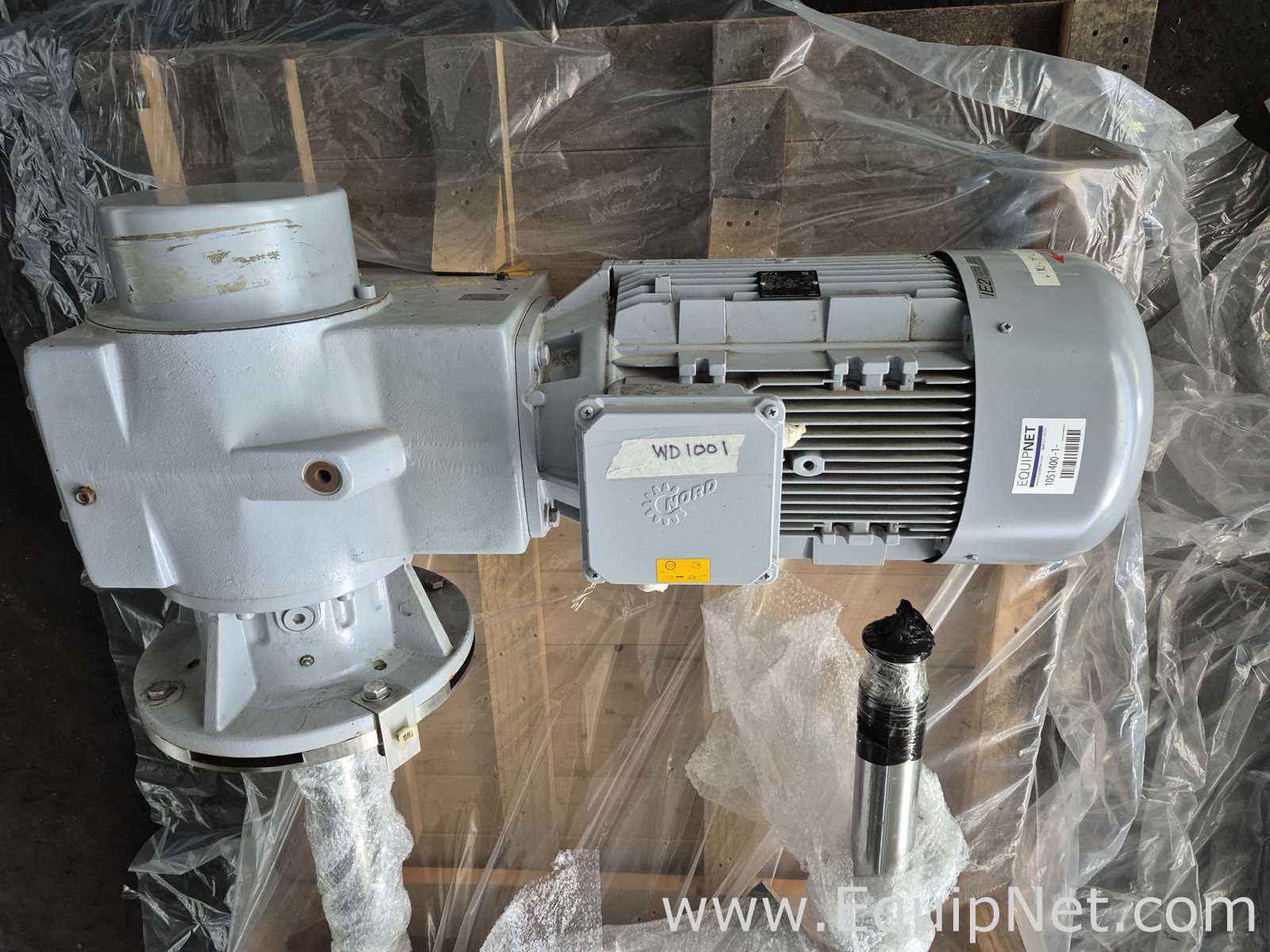

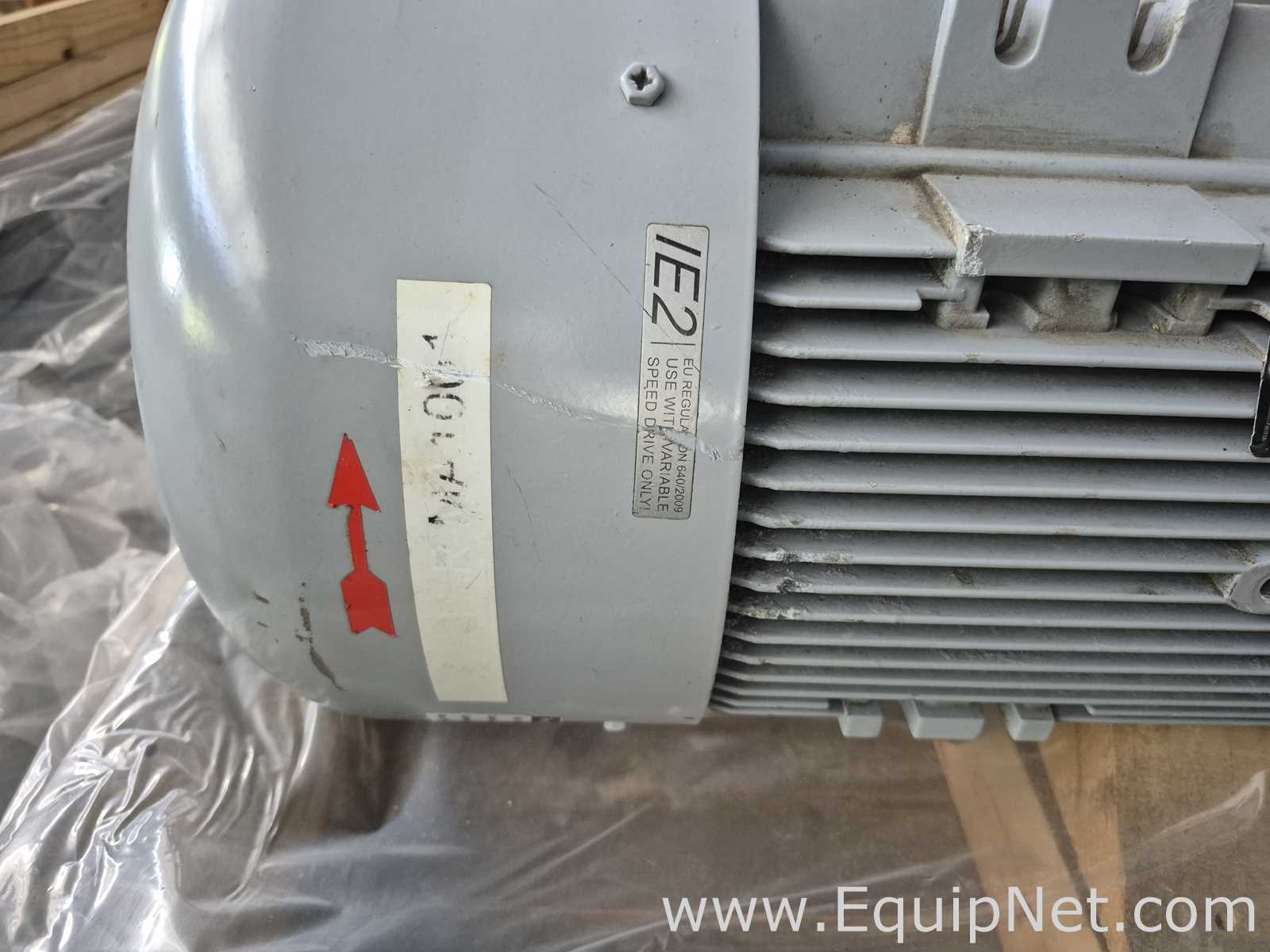

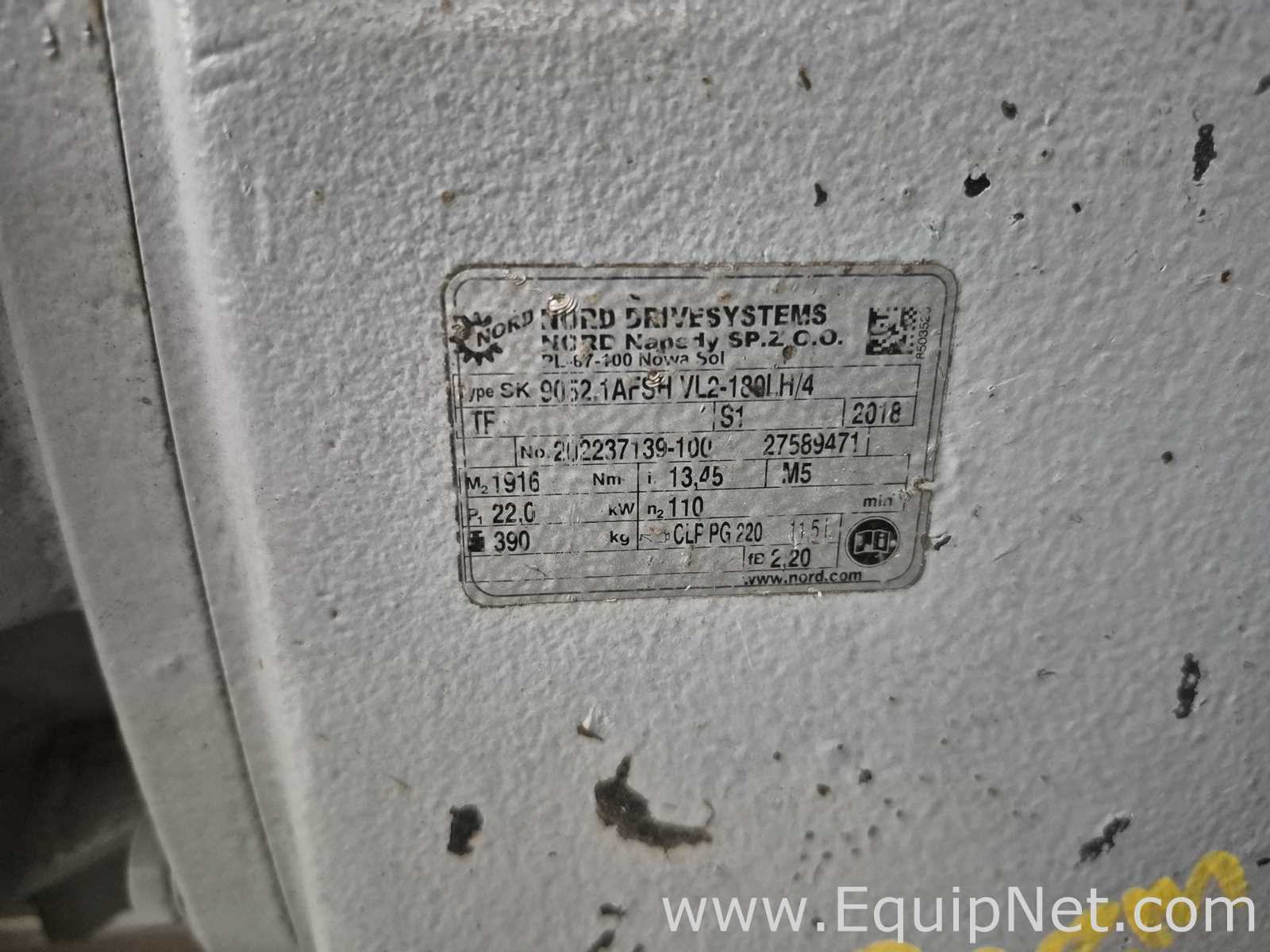

Agitator: Motor speed adj 22kW. 400V. 110RPM-50hz. 33-165RPM (15-75 hz). Via frequency inverter.
Max density: 1.4 kg/dm3.
Max pressure: atm. Jacket 3bar.
Test pressure: Jacket 5bar.
Volume: Tank 4000 Lt. Jacket 7Lt.
Max temperature: Tank 90C. Jacket 90C.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Year:
2018
2018
Serial Number:
2800694-330
2800694-330
Capacity of Tank:
1057.04
gal
4000
L
Tank Material of Construction:
STAINLESS STEEL
STAINLESS STEEL
Grade of Stainless Steel:
304
304
Jacketed:
YES
YES
Type of Top Head:
DISHED
DISHED
Type of Bottom Head:
DISHED
DISHED
Vertical or Horizontal:
VERTICAL
VERTICAL
Agitation:
YES
YES
Installation Type:
LEGS
LEGS
Recommended Packaging Form:
CUSTOM PALLET
CUSTOM PALLET
Dimensions:
Standard
Metric
Overall:
66.93 x 66.93 x 107.64 in - 2689.61 lb
1700 x 1700 x 2734 MM - 1220 KGS
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1038439

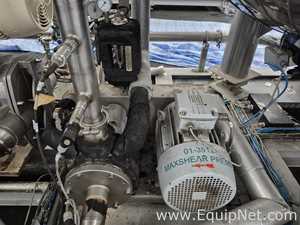

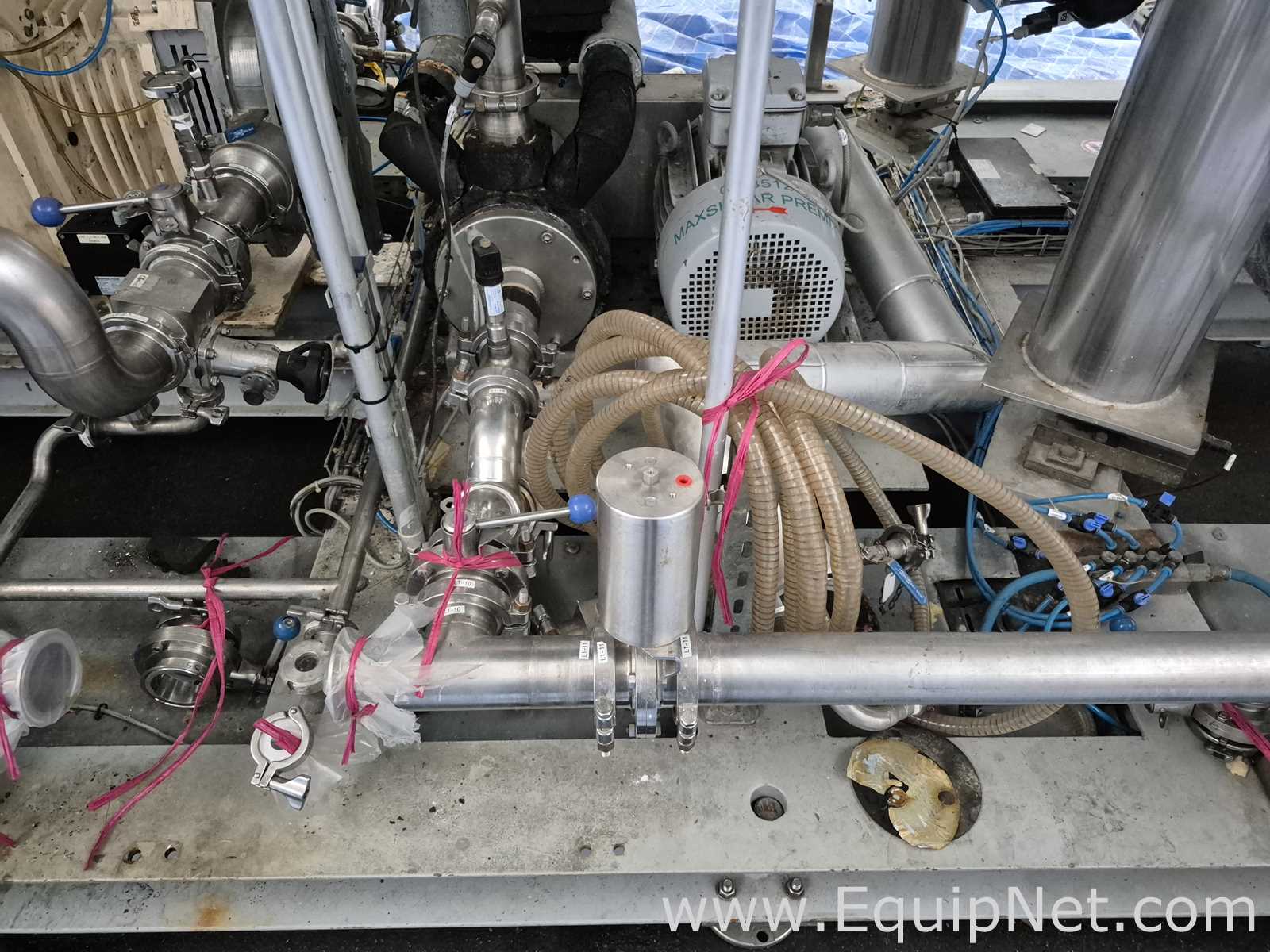

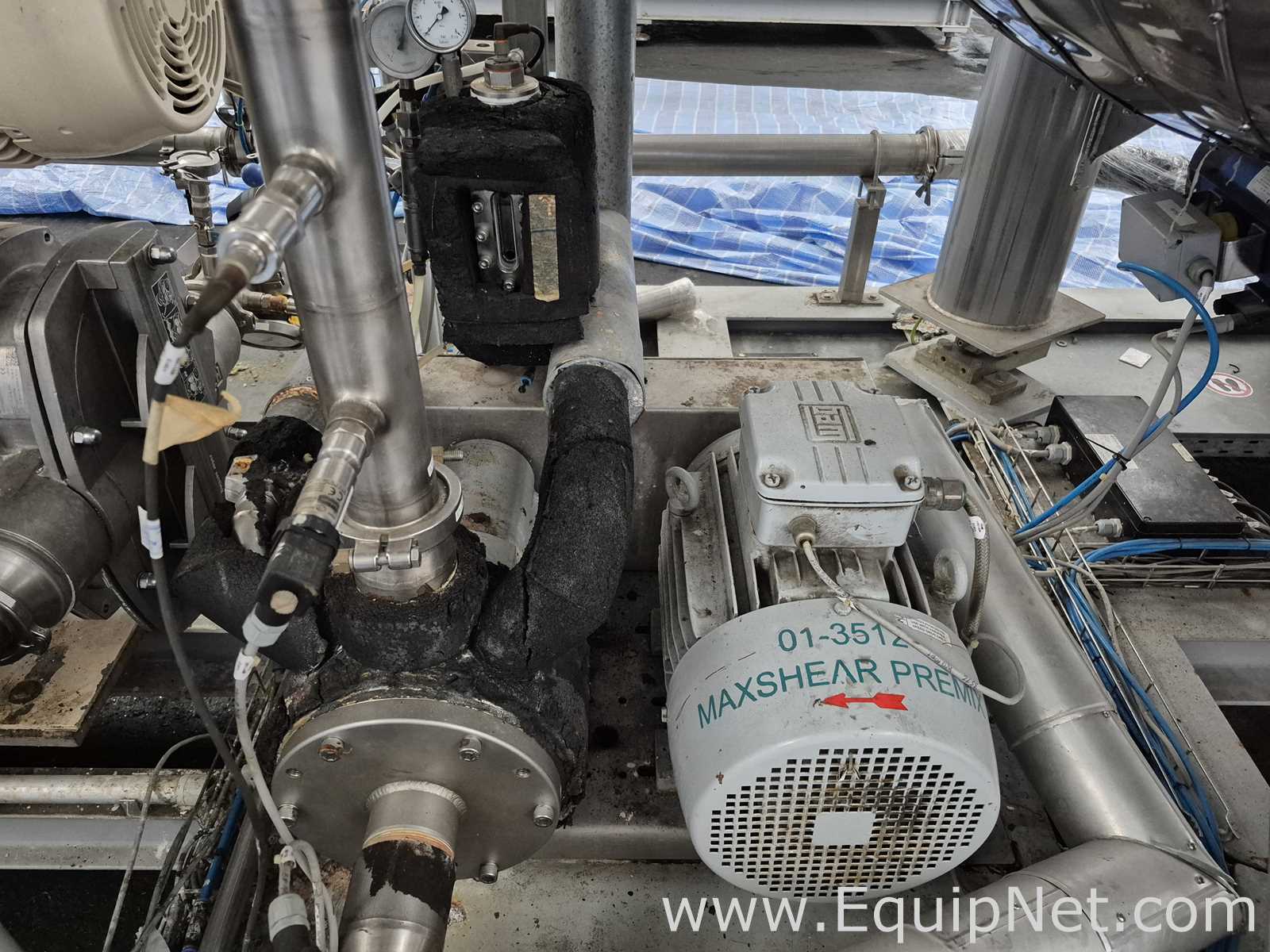

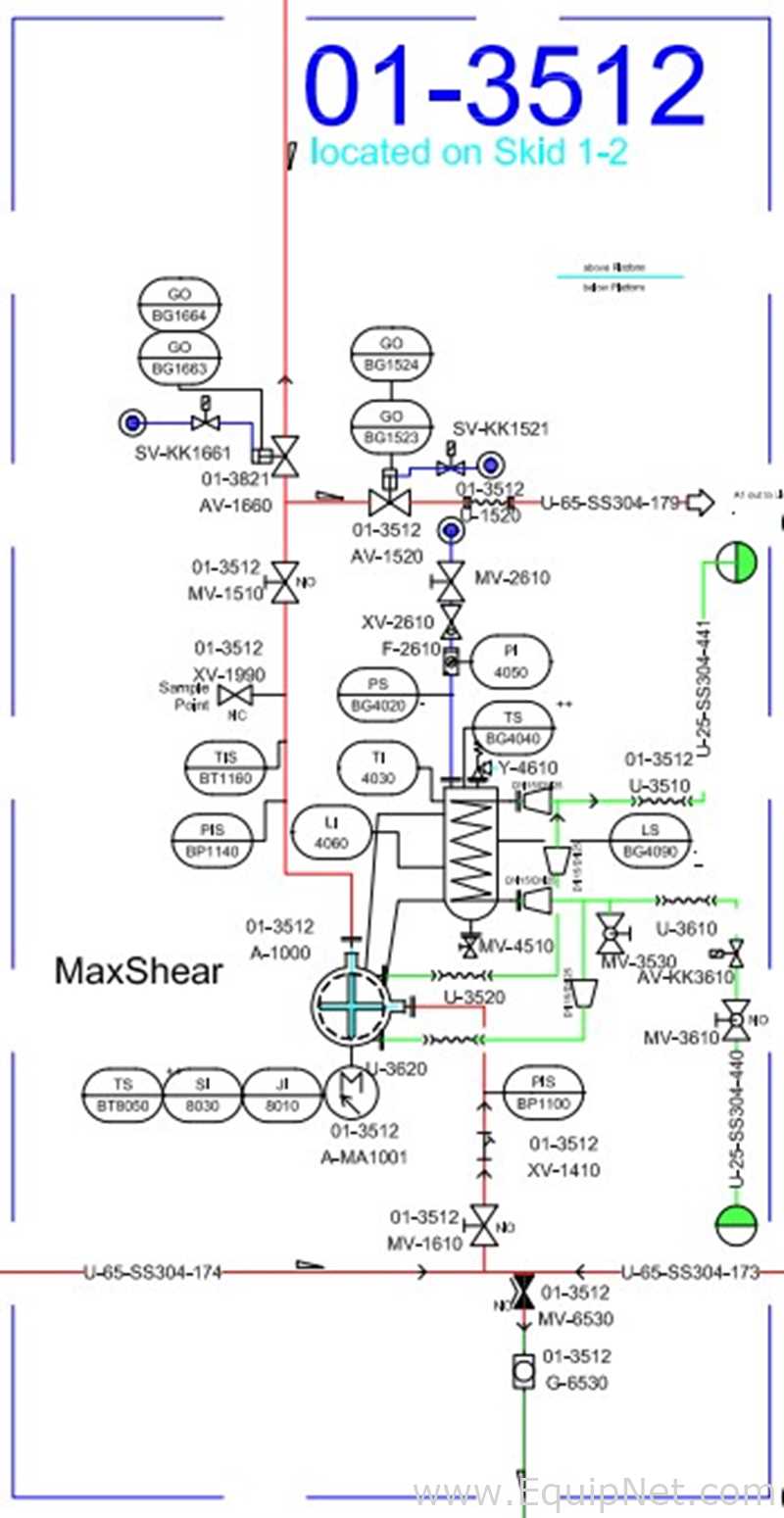

Netzsch MaxShear Inline Mixer 3512 - Skid 1-2 Premix Extension
Equipment Description
Netzsch MaxShear Inline Mixer 3512 - Skid 1-2 Premix Extension
11 kW.
Rotor-Stator.
Maxshear 6.
WEG Motor Speed adj: 11kW. 400V. 3 PH. FU 3000 RPM. 25-60 HZ. 1250-3600 RPM Via frequency inverter.
Designed for Max operating pressure: 3.5 bar.
Designed operating temperature: 90C.
Max cooling water pressure: 3 bar.
Rotor dianeter: Approx 149 mm.
Stator: Slot width 1.5 mm.
Material of rotor/stator: Stainless steel 1.4301.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Type of mixer:
HIGH SHEAR
HIGH SHEAR
Model:
0
0
Recommended Packaging Form:
PALLET
PALLET
Dimensions:
Standard
Metric
Overall:
38.19 x 38.19 x 29.53 in - 551.15 lb
970 x 970 x 750 MM - 250 KGS
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1038446

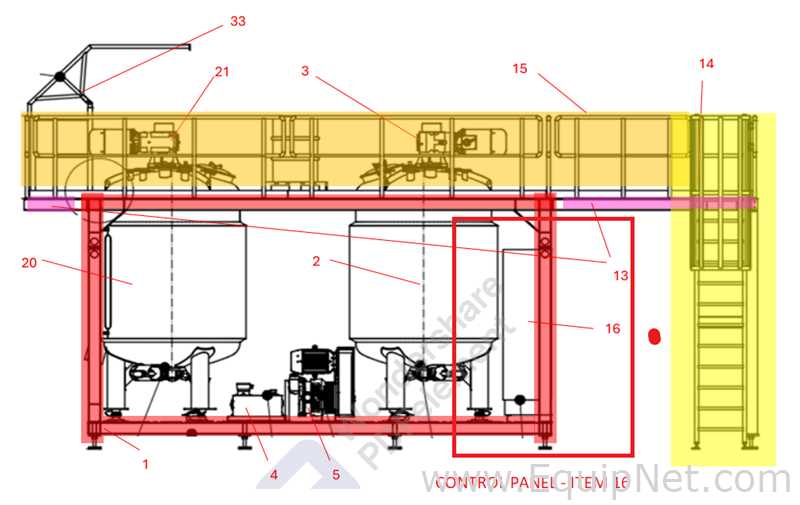

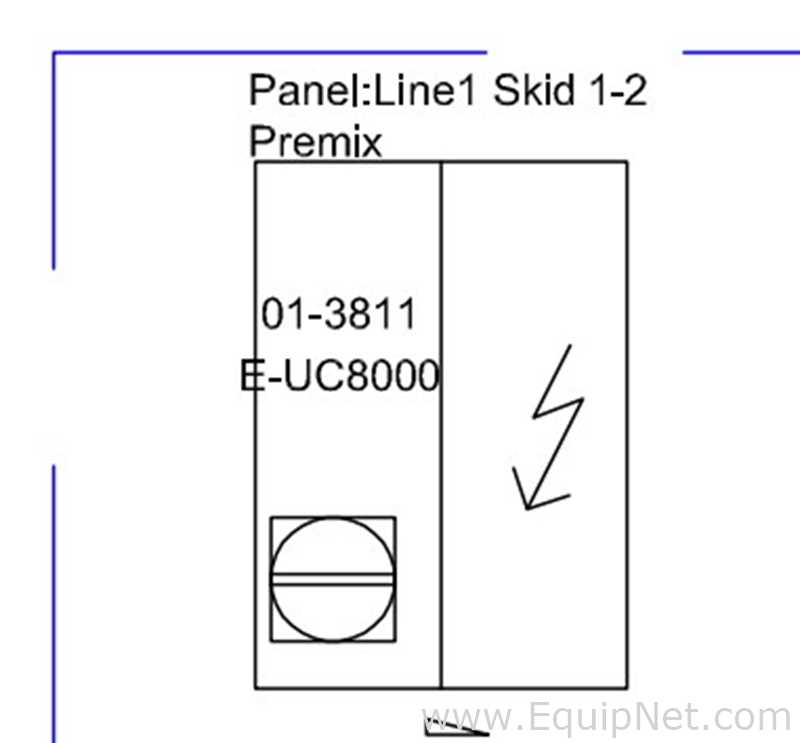

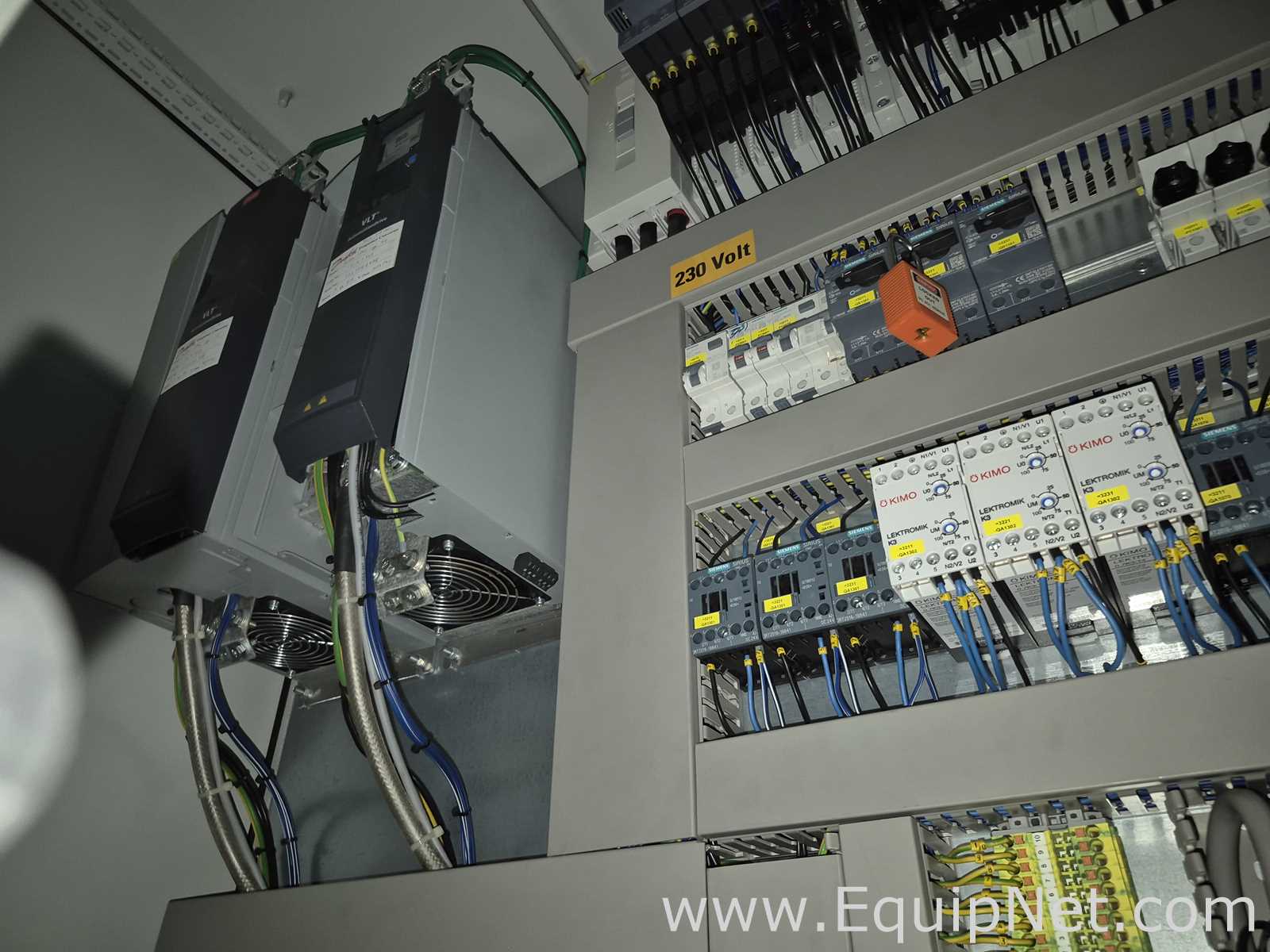

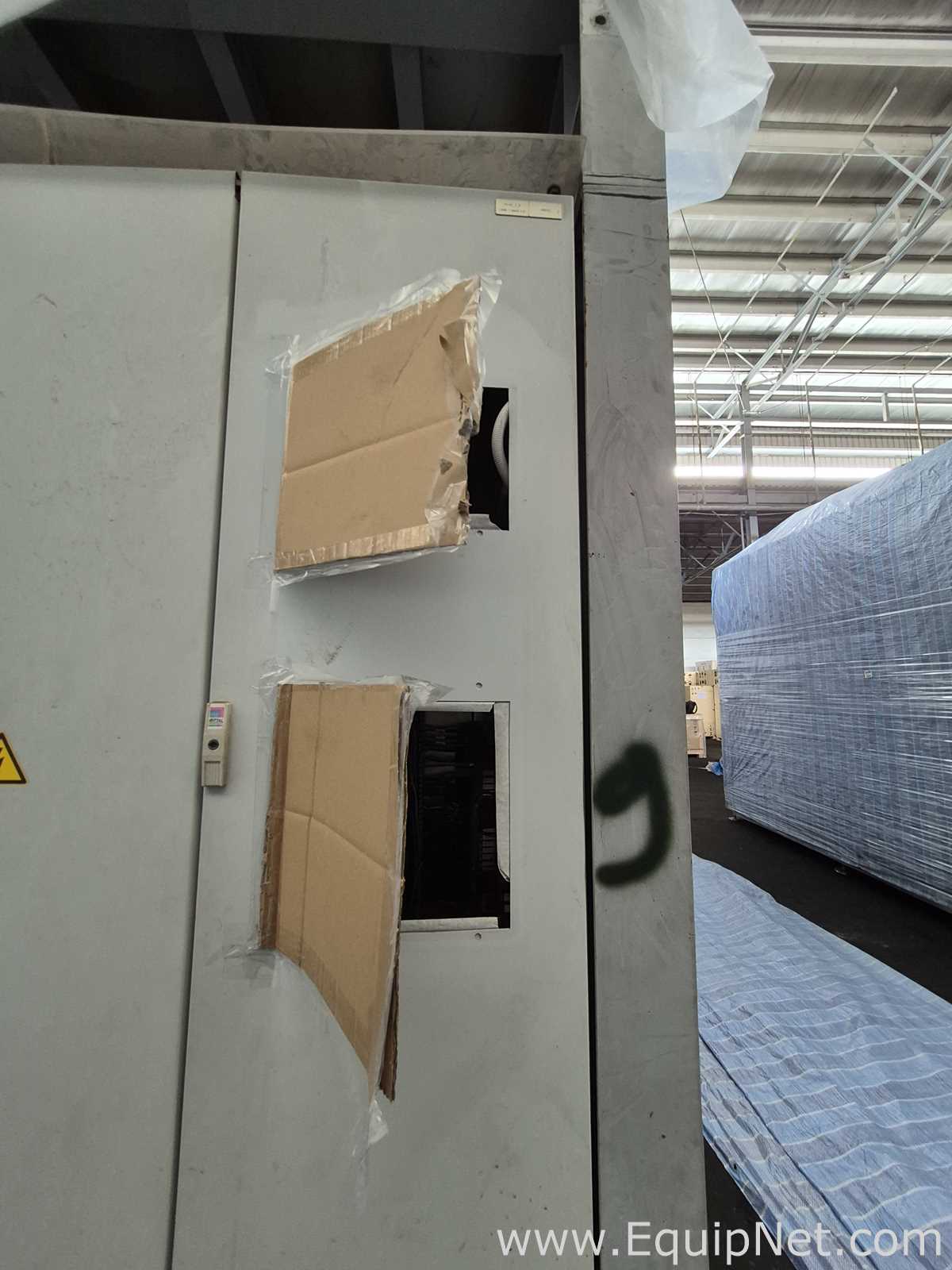

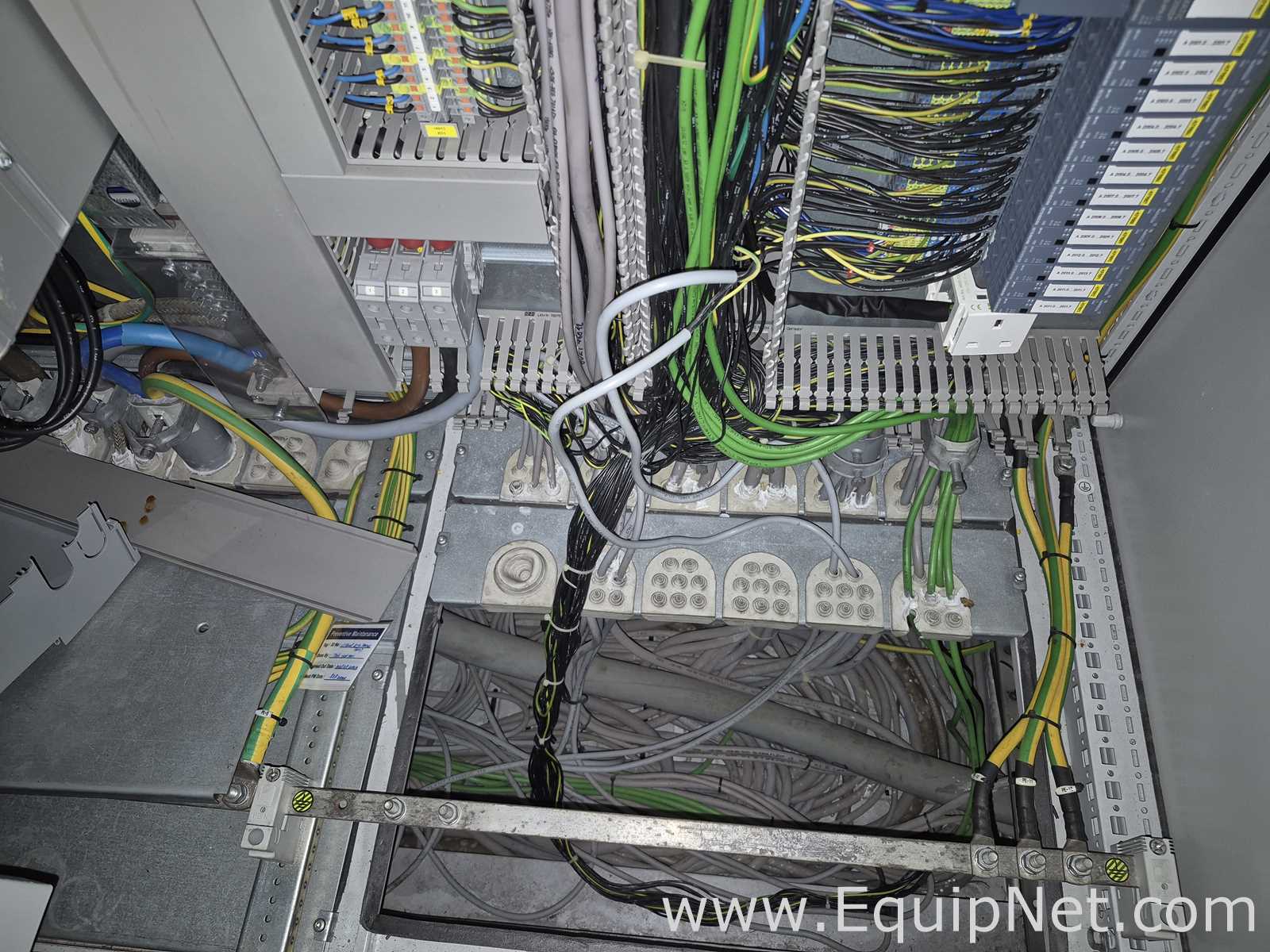

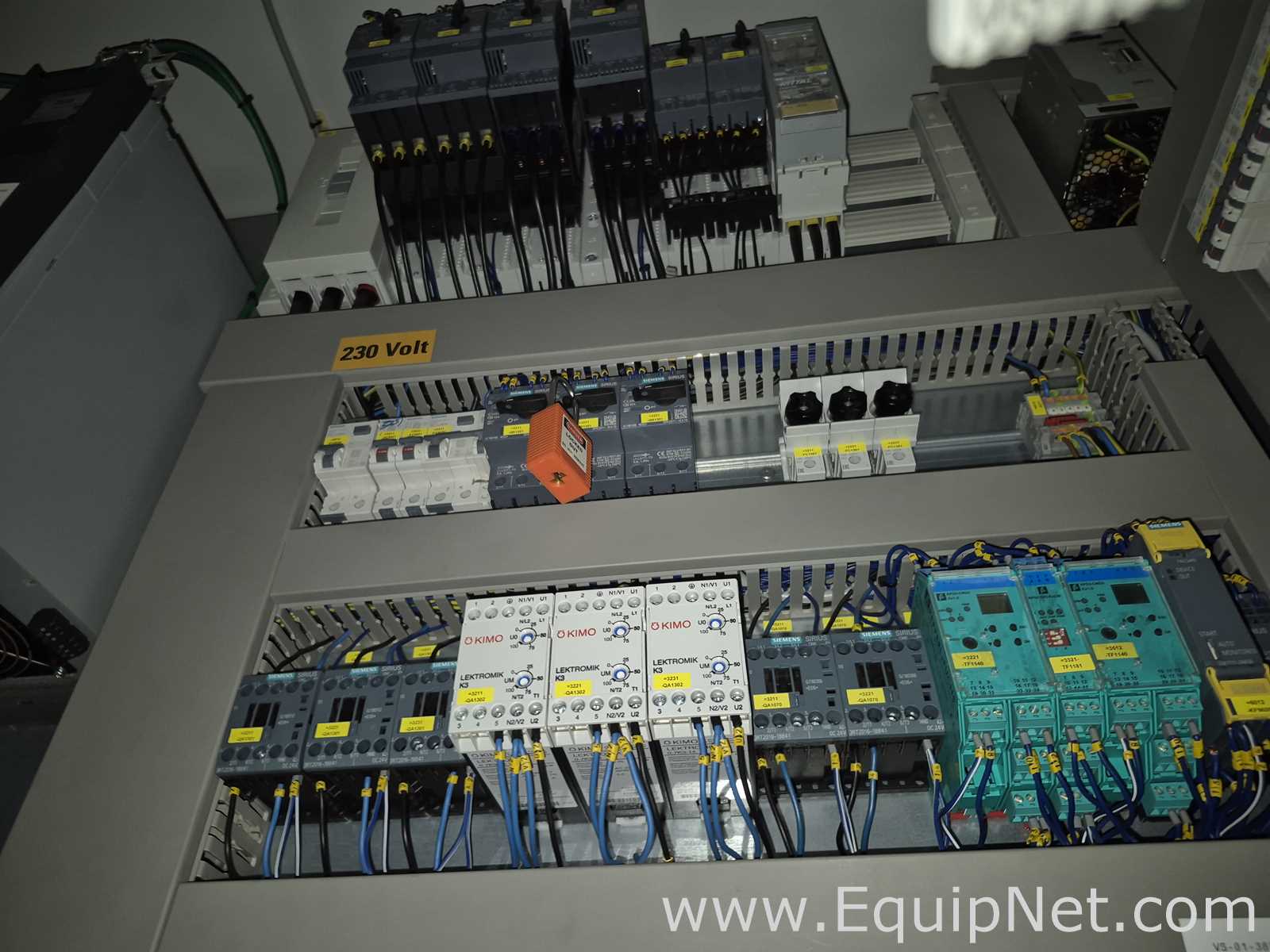

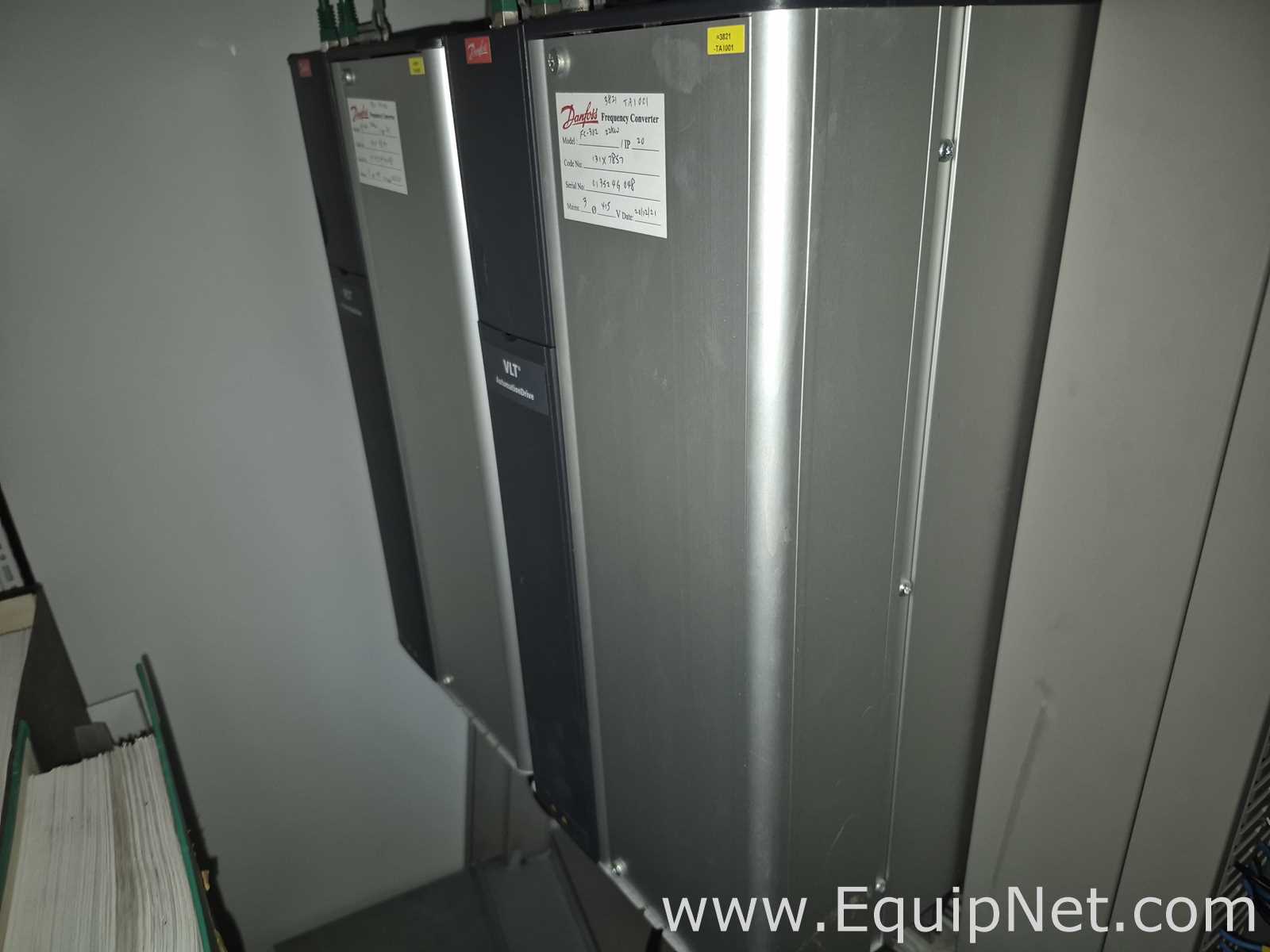

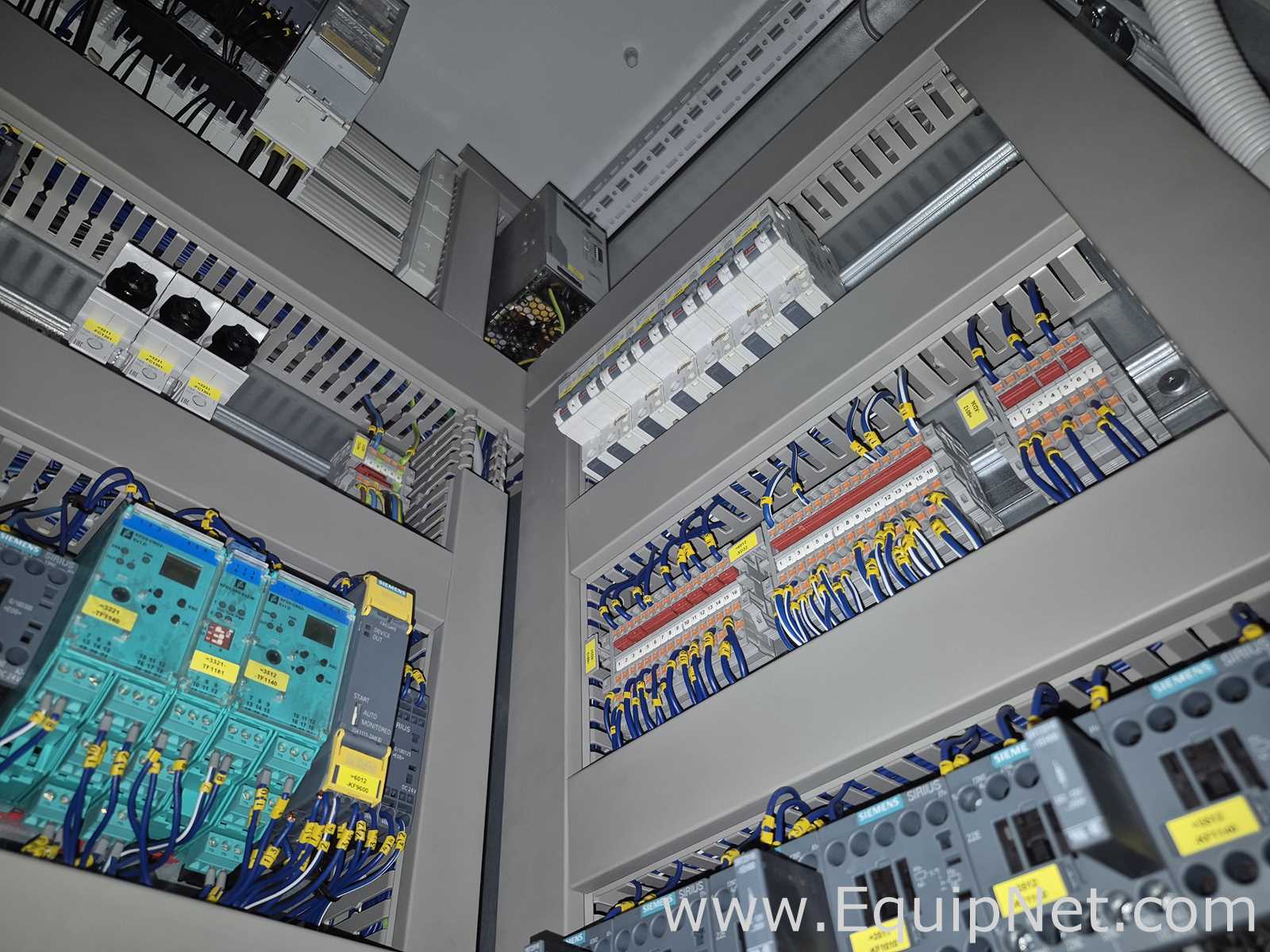

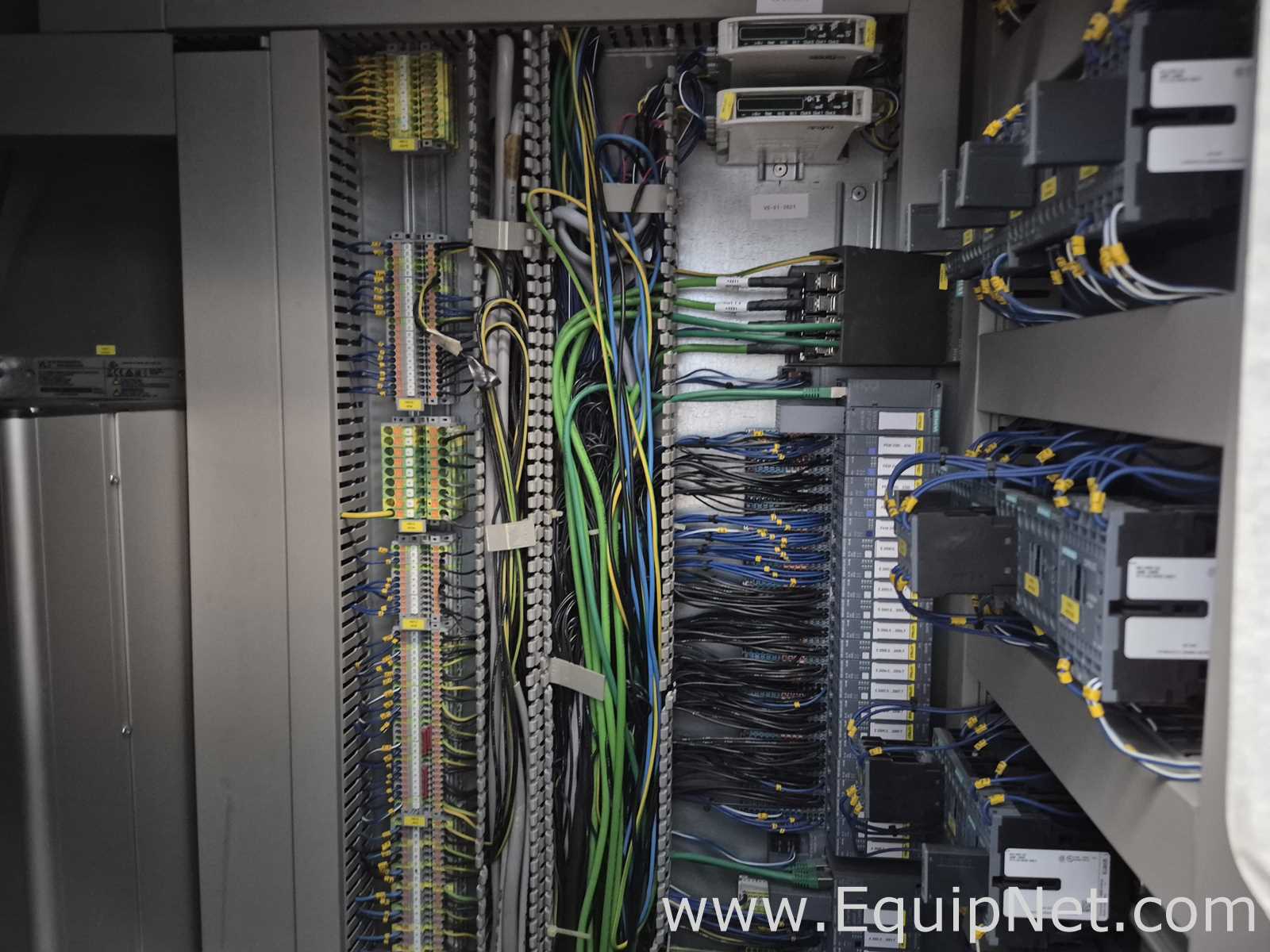

Netzsch Control Panel 01-3811 - Skid 1-2 Premix Extension
Equipment Description

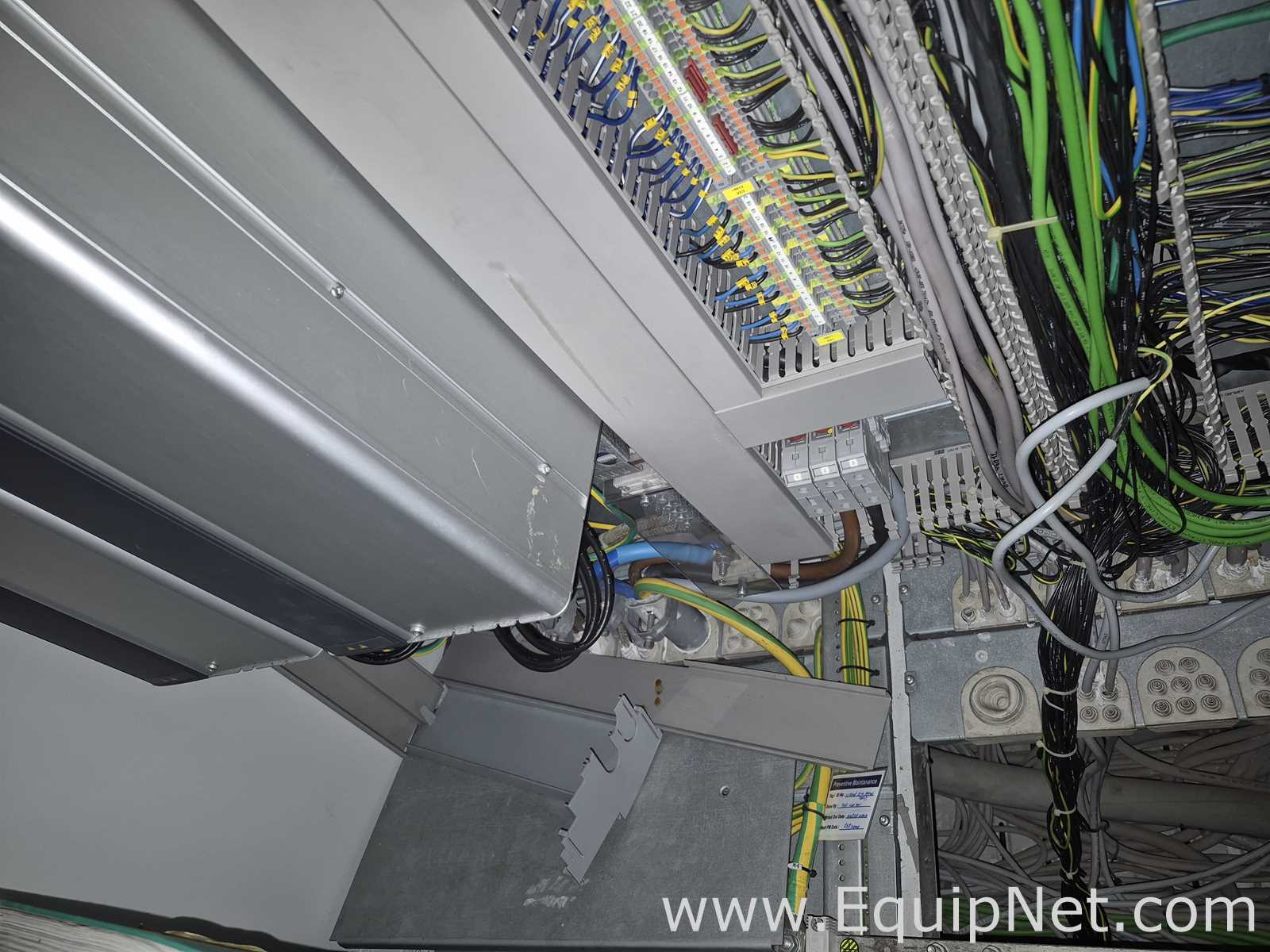

Netzsch Control Panel 01-3811 - Skid 1-2 Premix Extension
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Recommended Packaging Form:
PALLET
PALLET
Dimensions:
Standard
Metric
Overall:
1 x 1 x 1 IN - 1 LBS
25.40 x 25.40 x 25.40 mm - 0.45 kg
