Listing# 1107781

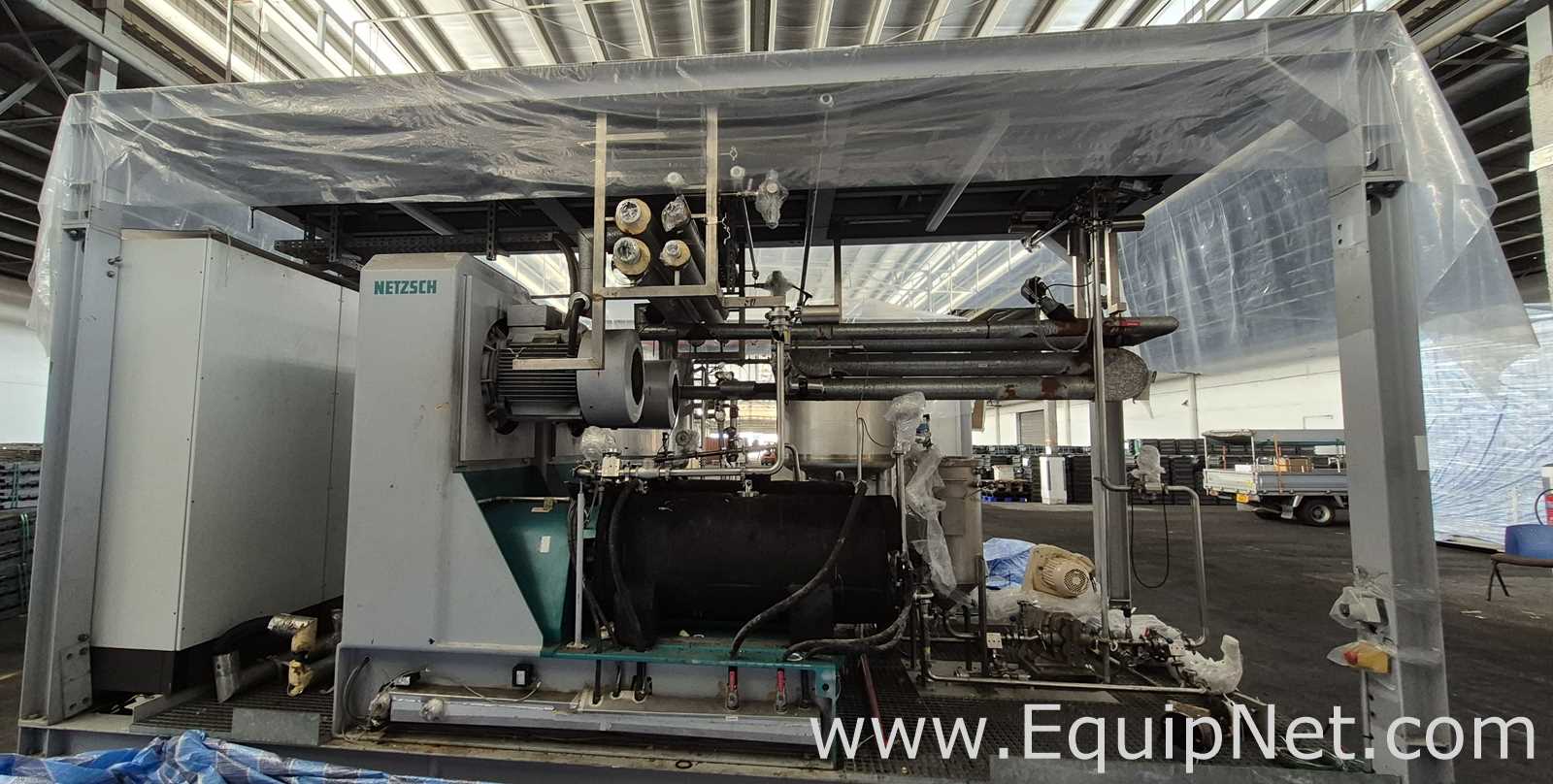

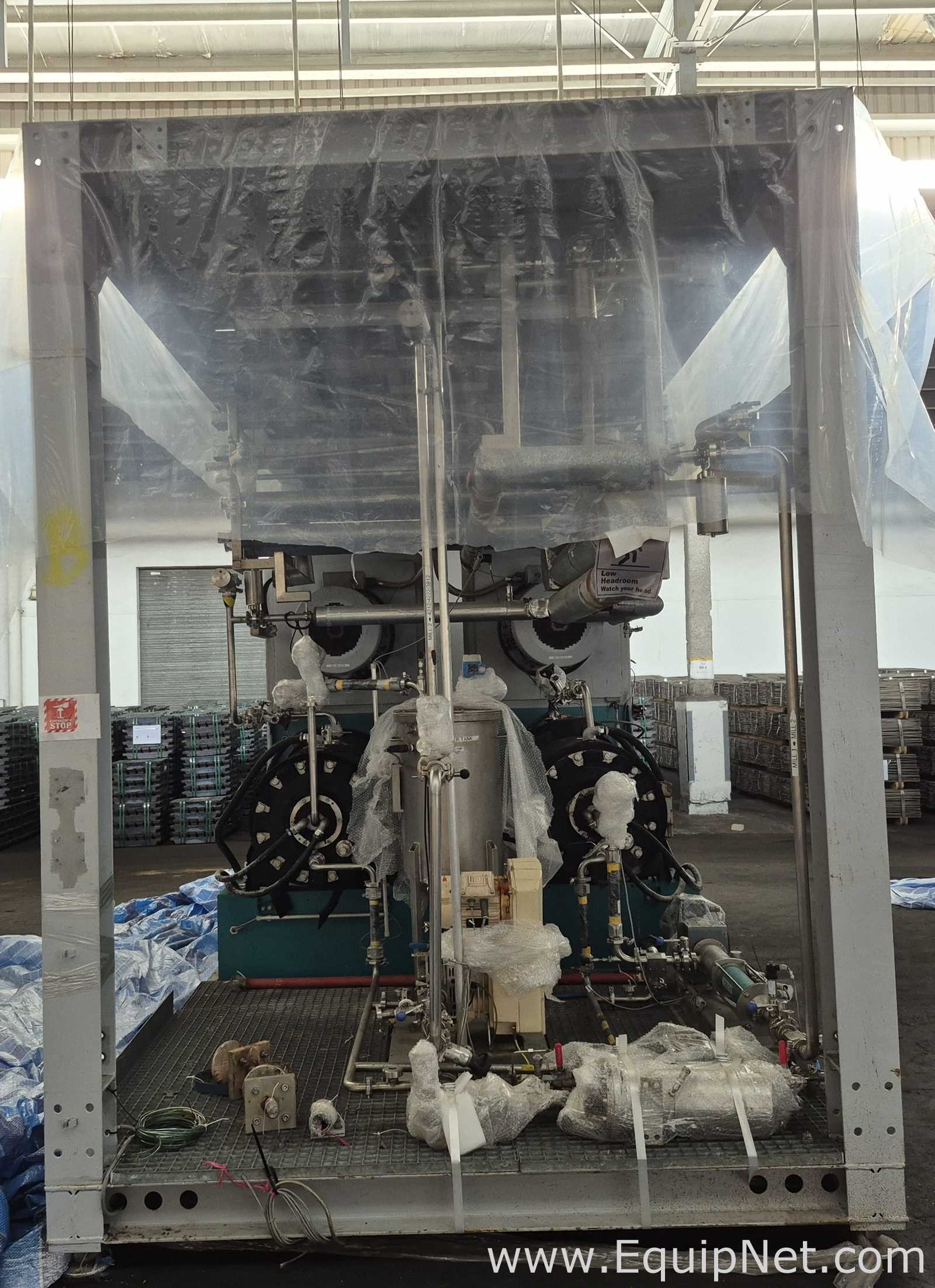

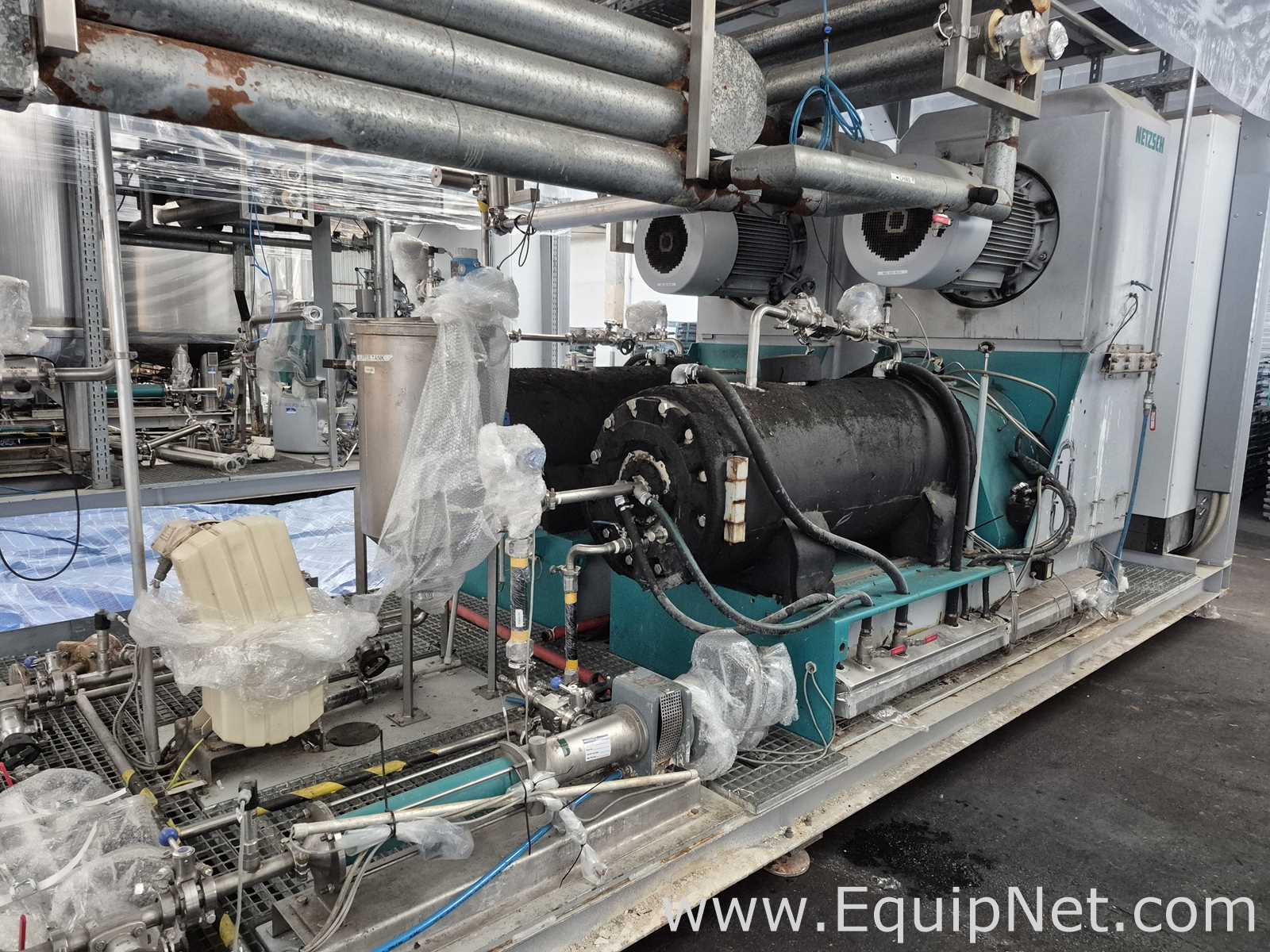

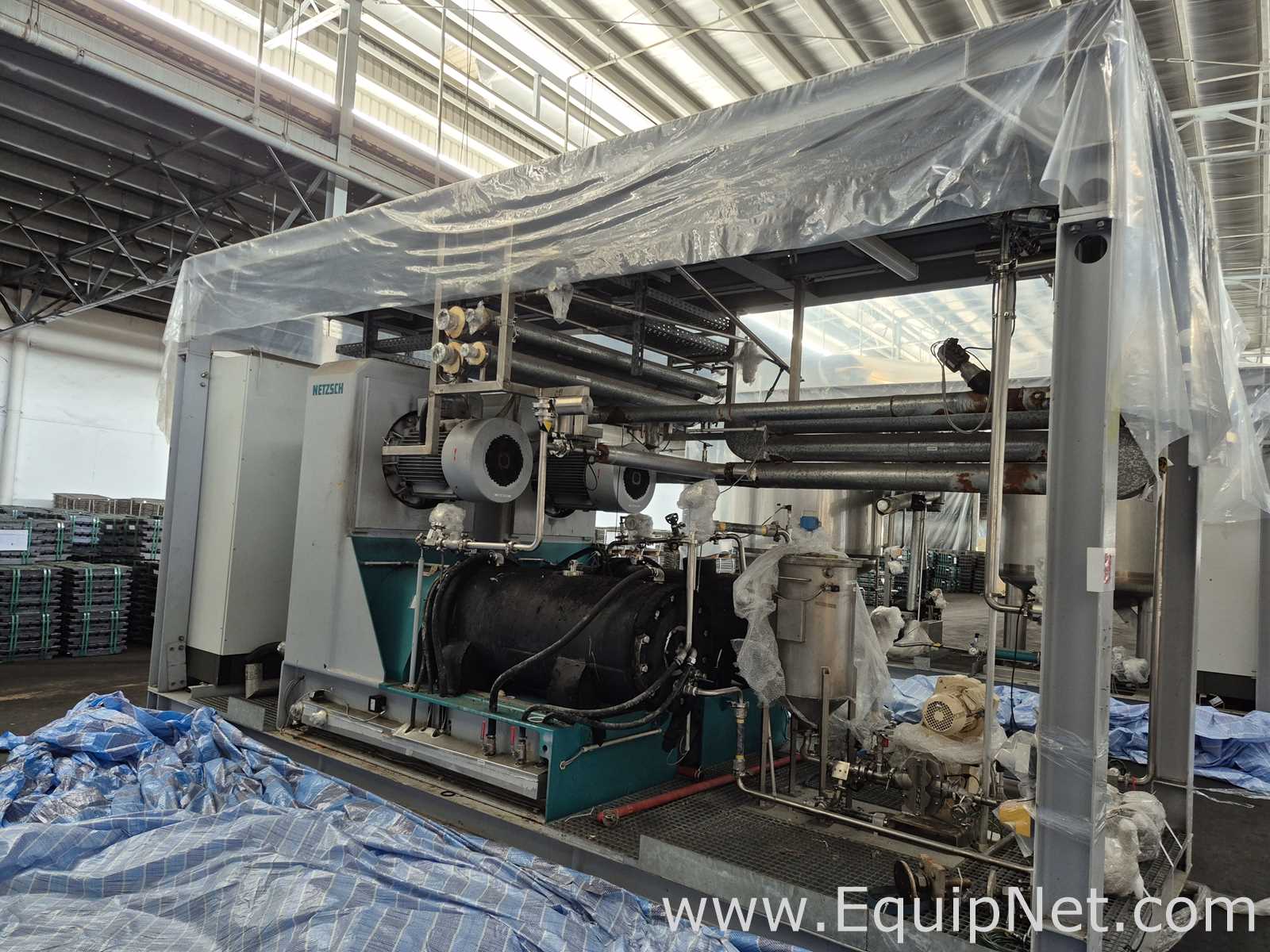

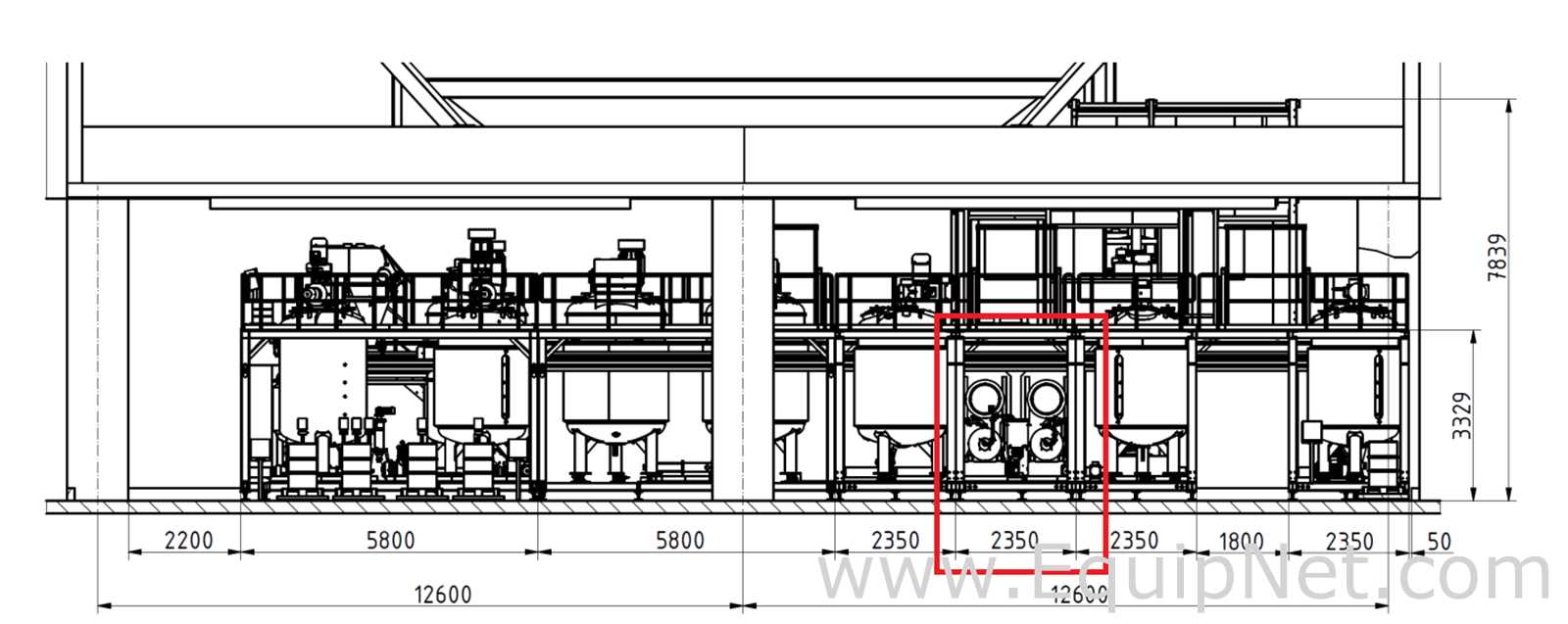

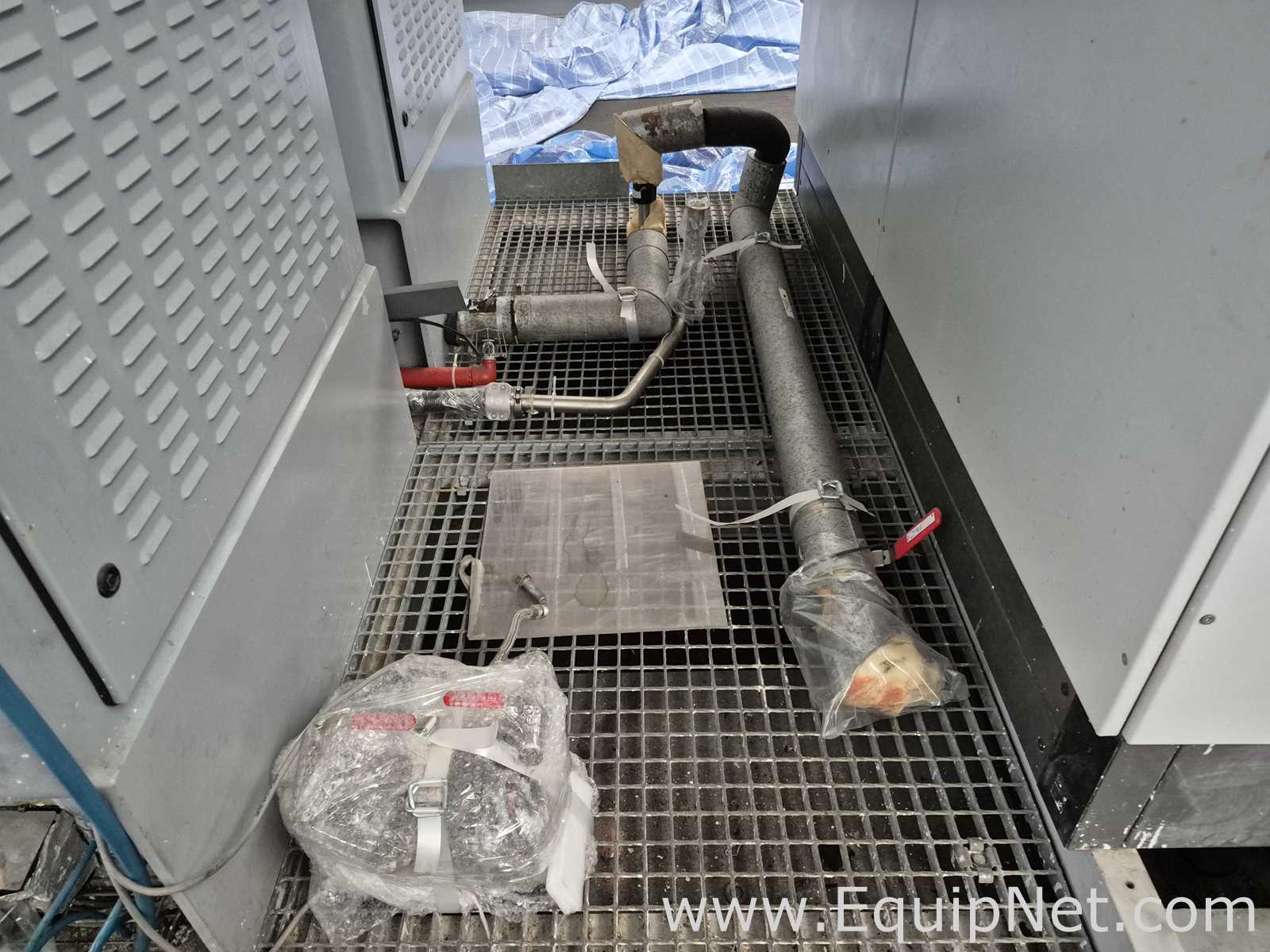

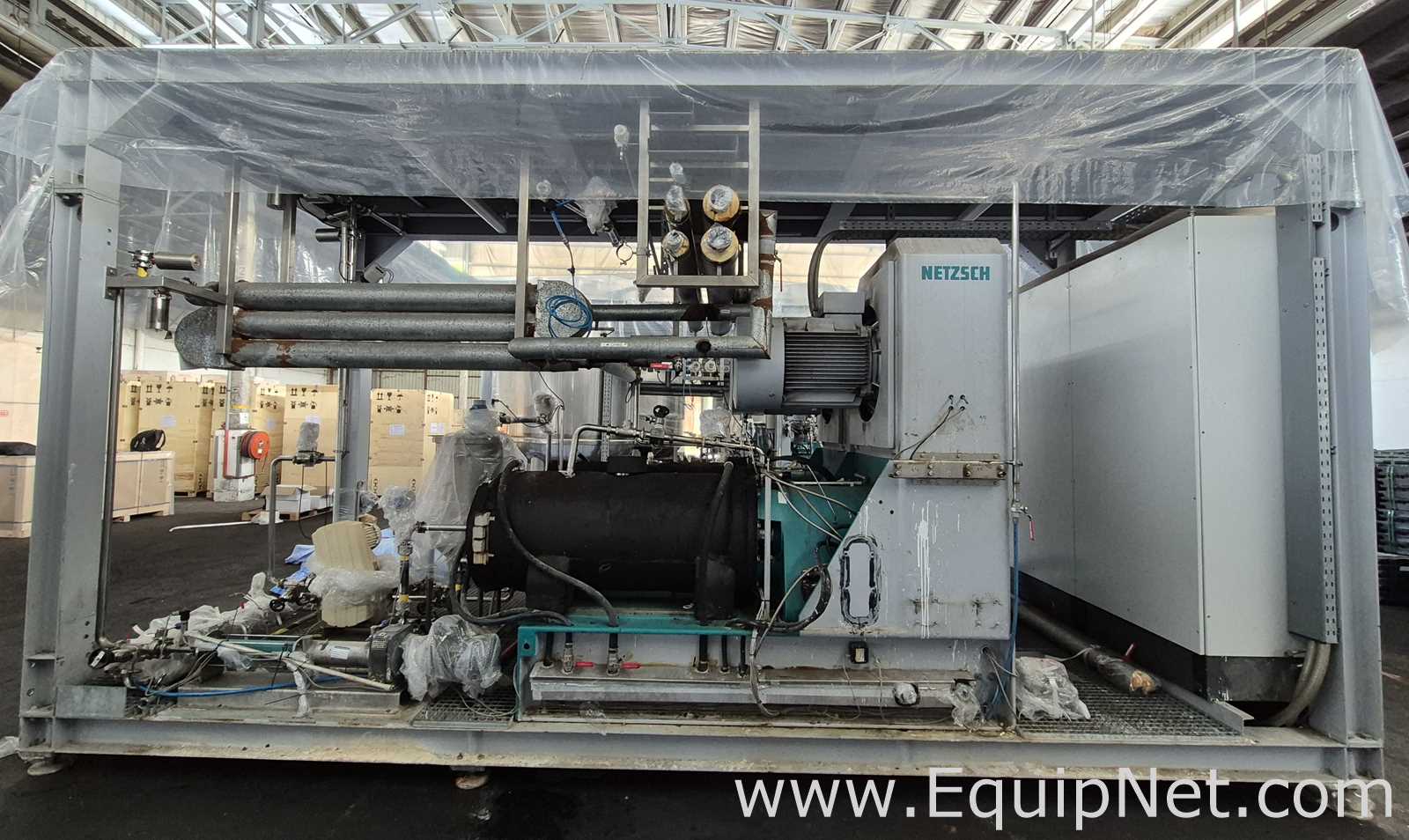

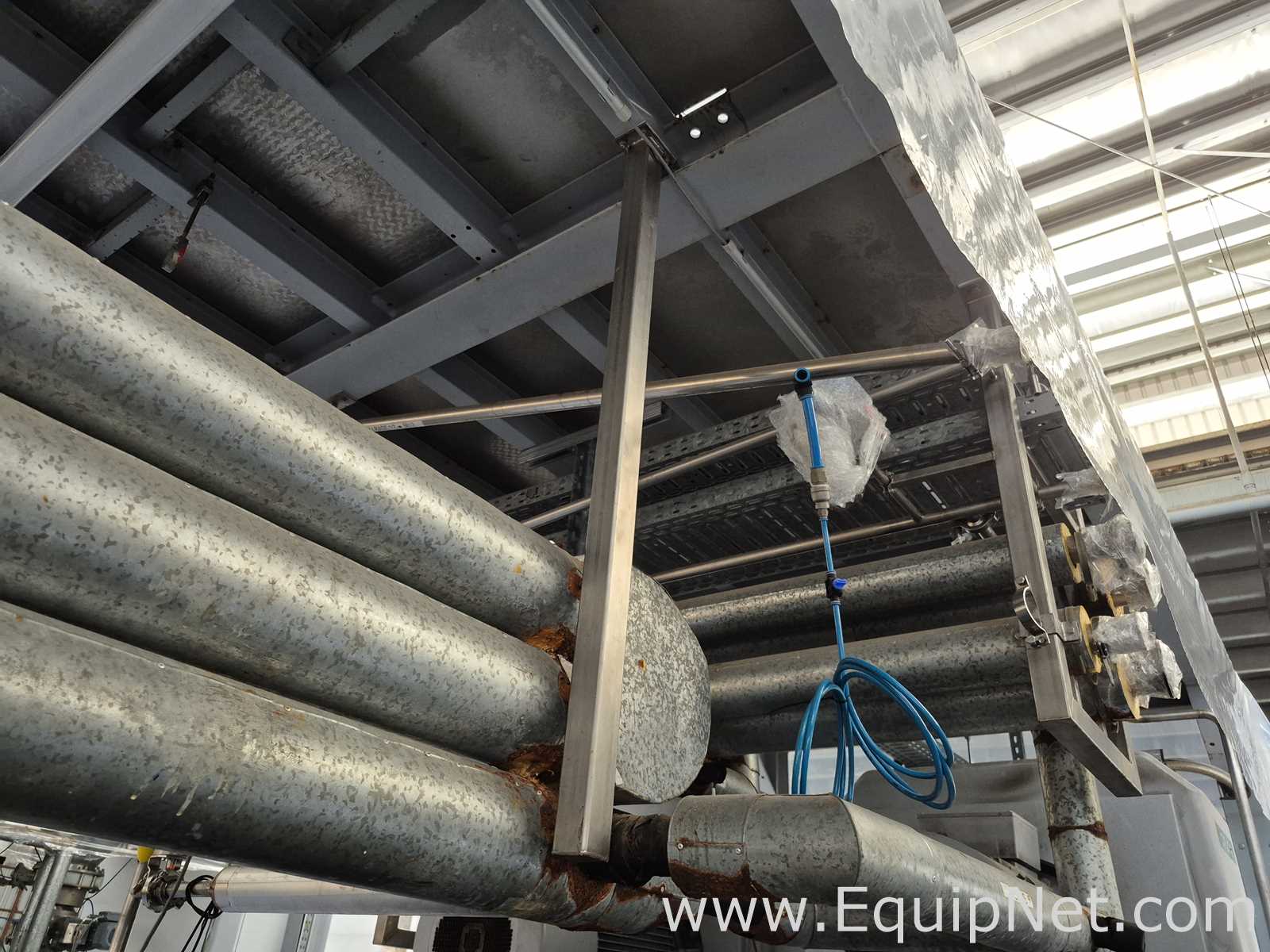

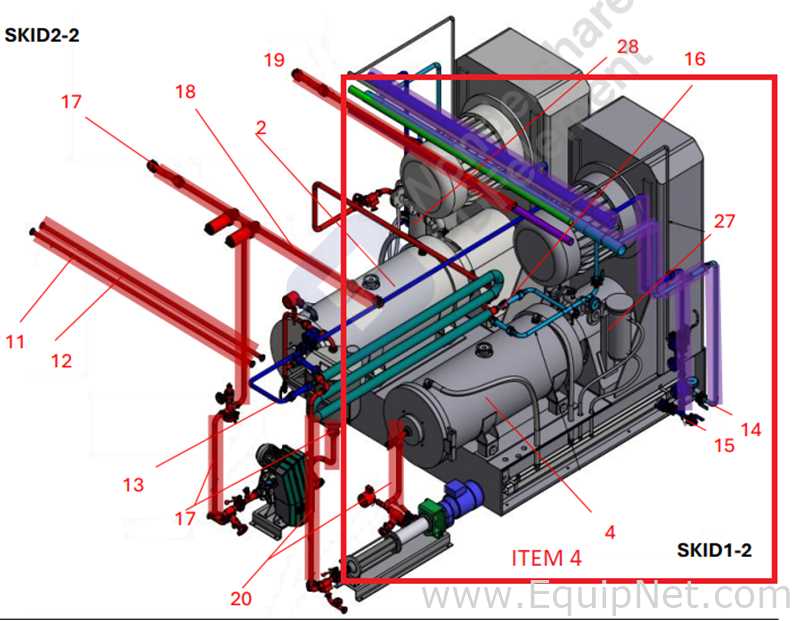

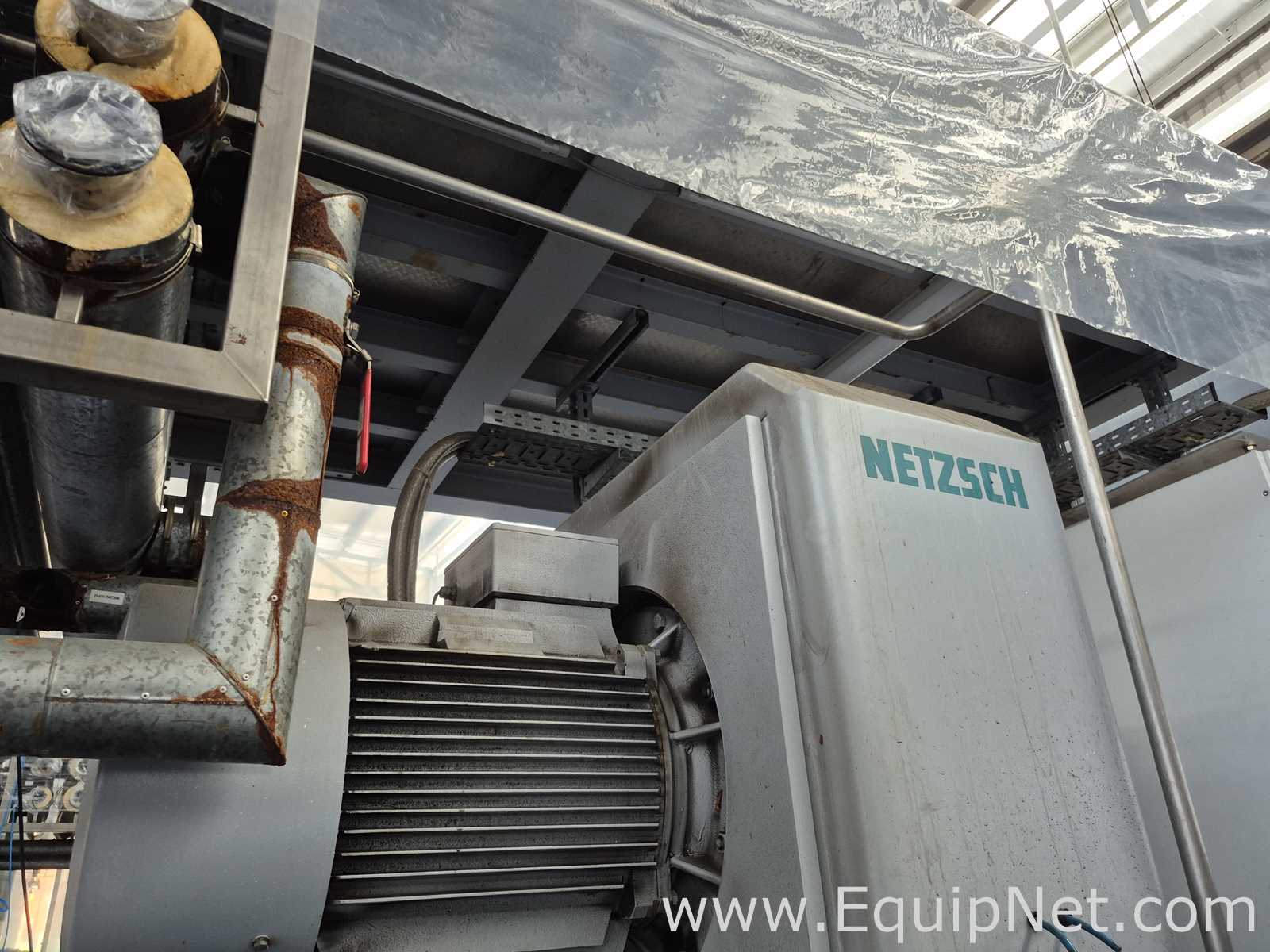

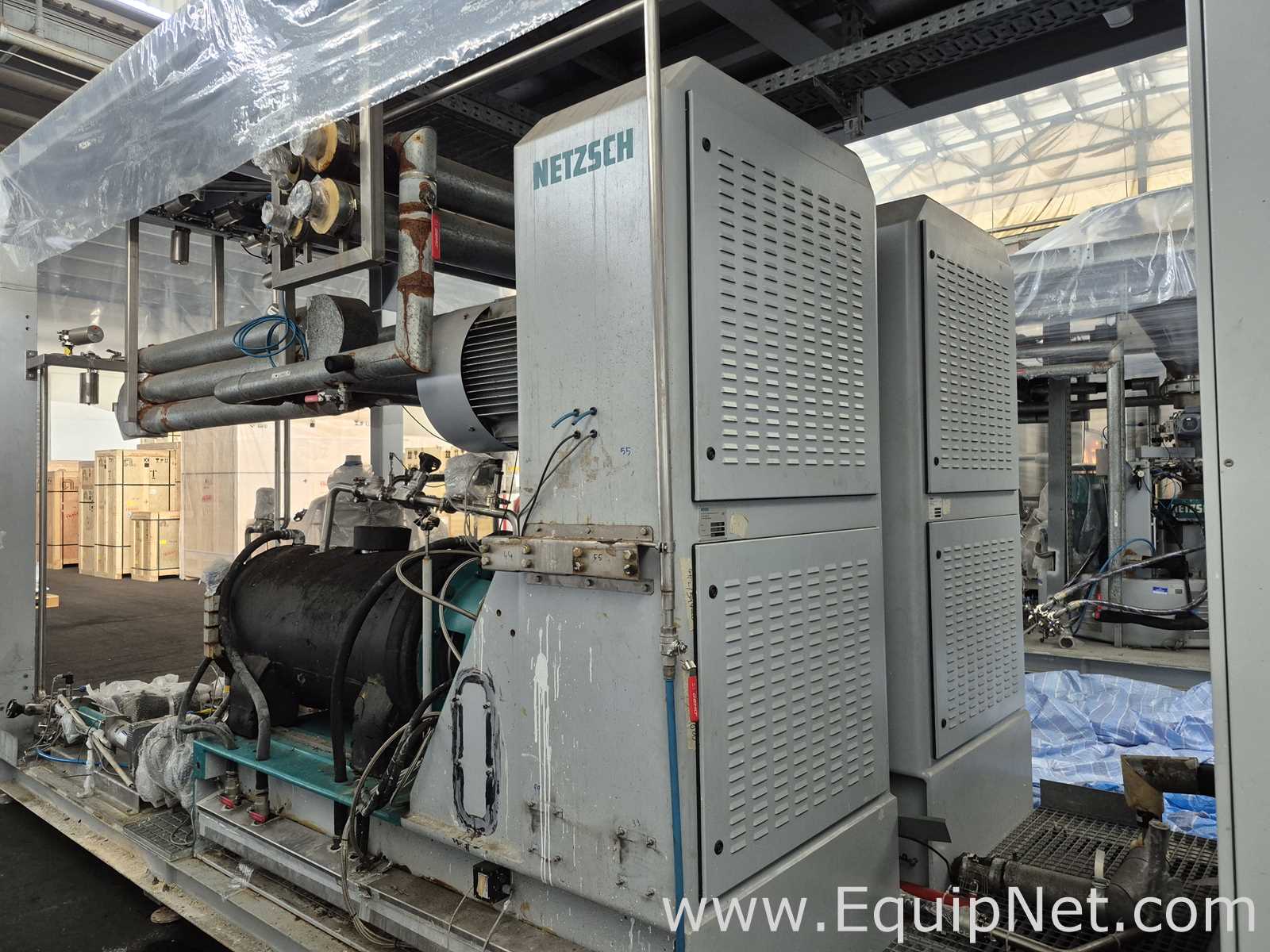

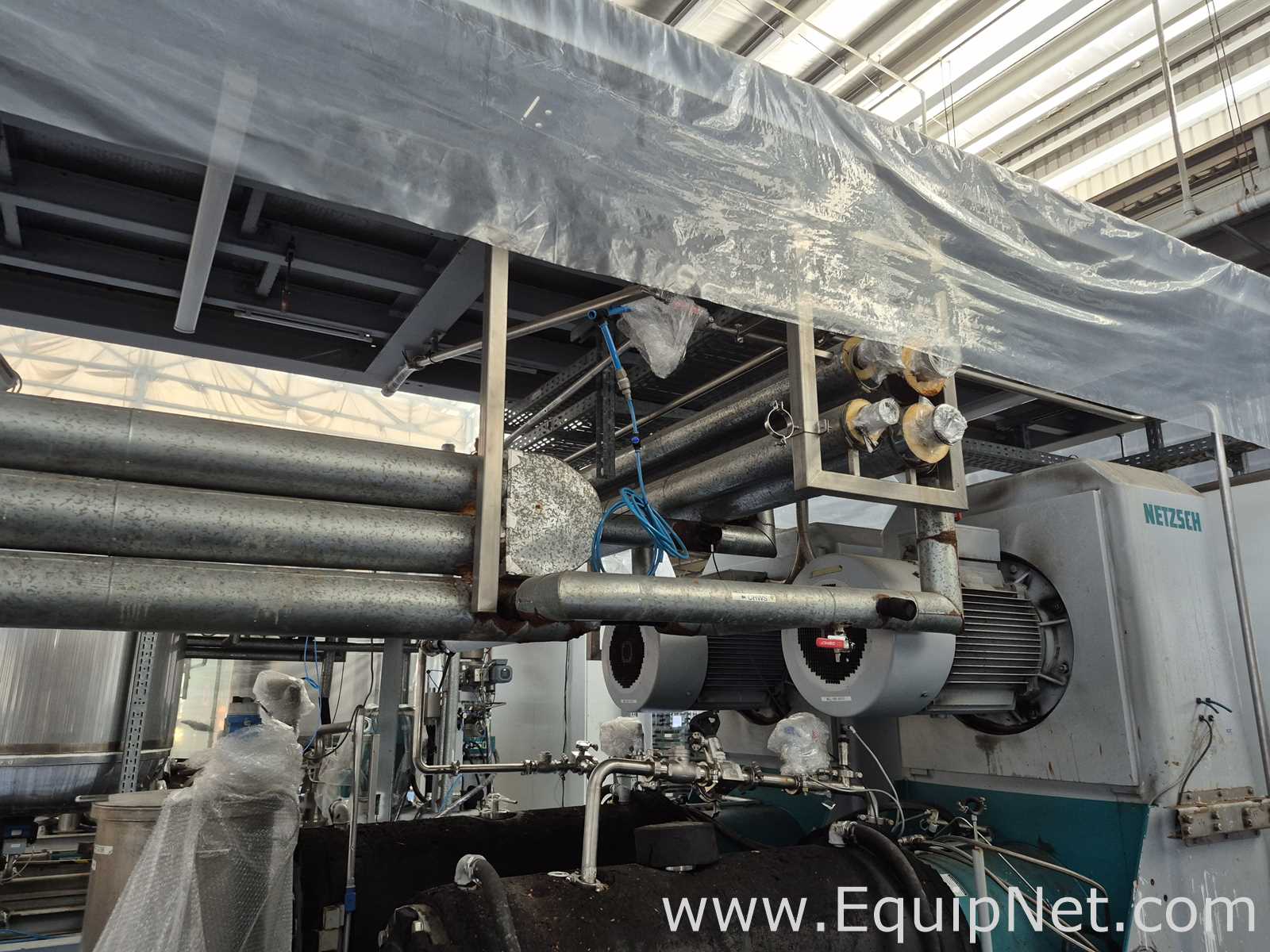

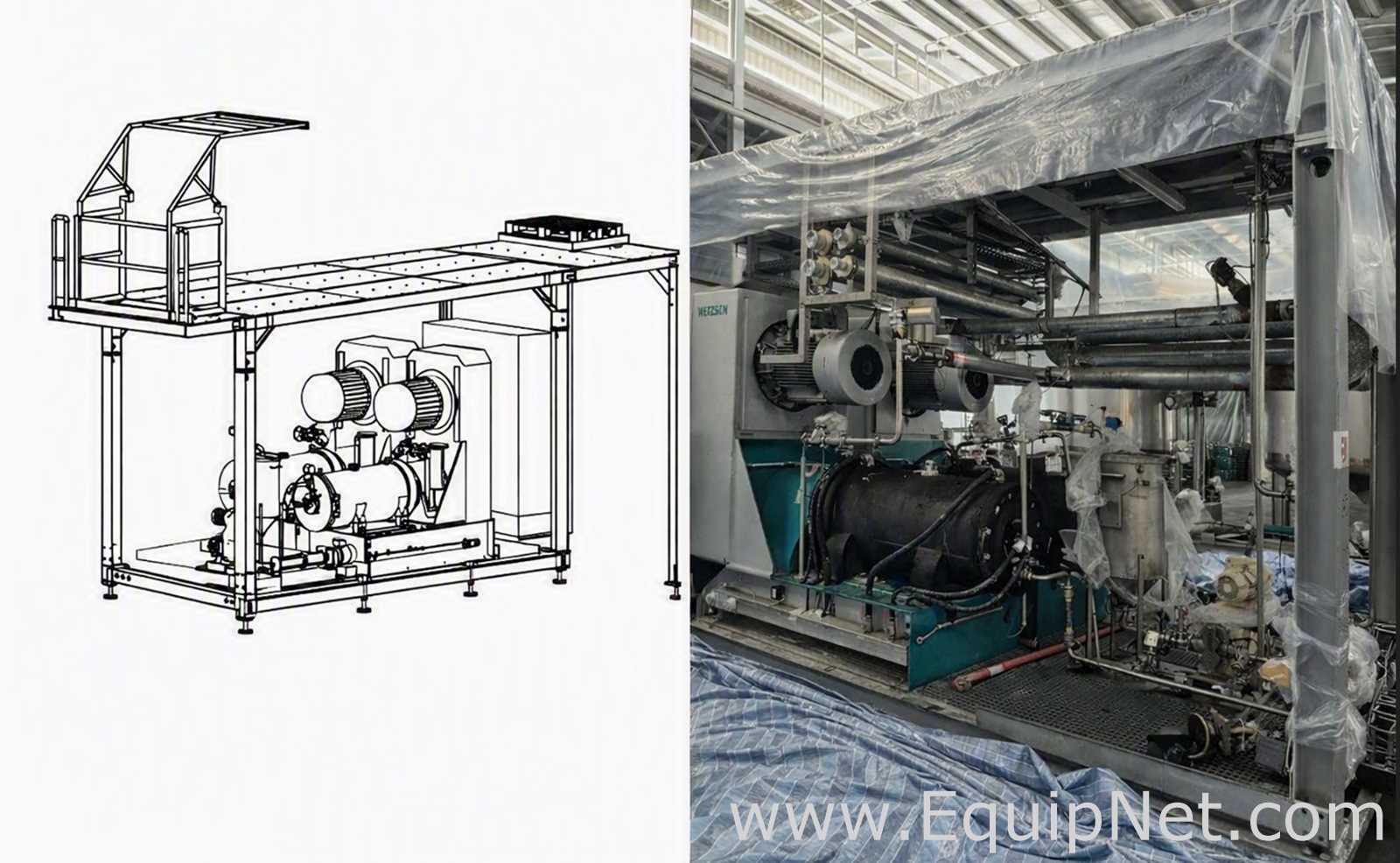

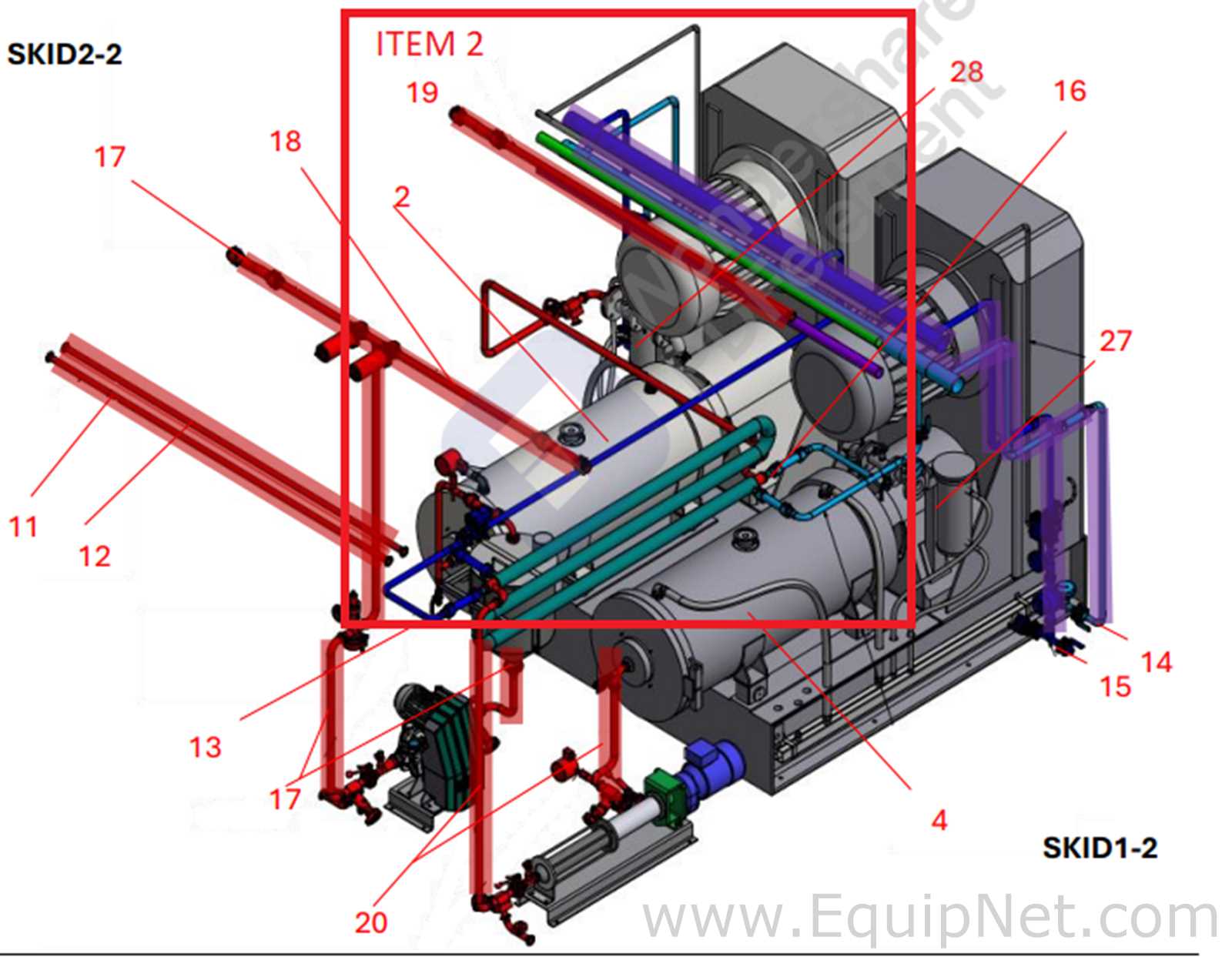

NETZSCH Milling Skid with Two Netzsch LME200 Bead Mills and Support Equip - Milling System Skid 2-1
THIS IS A MULTI-LISTING. VIEW INDIVIDUAL LISTINGS BY SCROLLING DOWN.
Pre-Owned NETZSCH Disc Mill for Sale
Seller's Acceptable Currency:
$120,000.00 USD
Request More Info Make An OfferLocation: Singapore

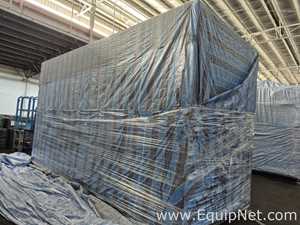

Level of Removal: Already Crated
*All offers are submitted in Seller’s Acceptable Currency
Don't see what you're looking for? We'll find it for you
Equipment Description

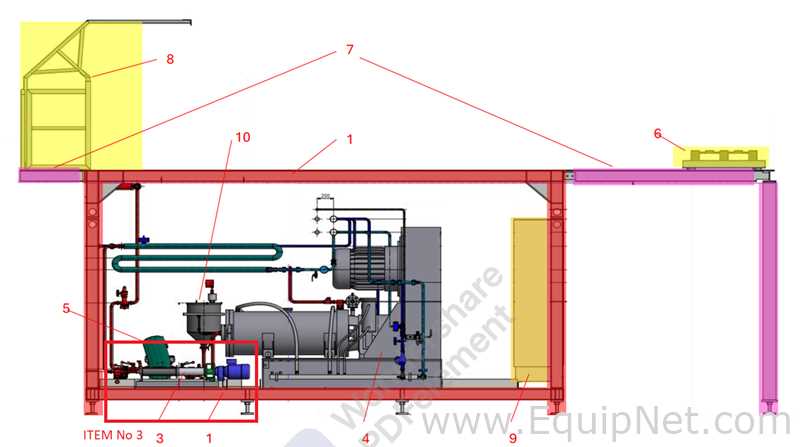

Includes:
Netzsch LME 200 Left Discus 150K Mill 01-4112.
Netzsch LME 200 Right Discus 150K Mill 01-4111.
Netzsch NemoPump NM038 DN32 Feed Pump.
Netzsch Tornado Pump - Transfer Circulation Pump DN50.
Netzsch Mixing - Service Tank.

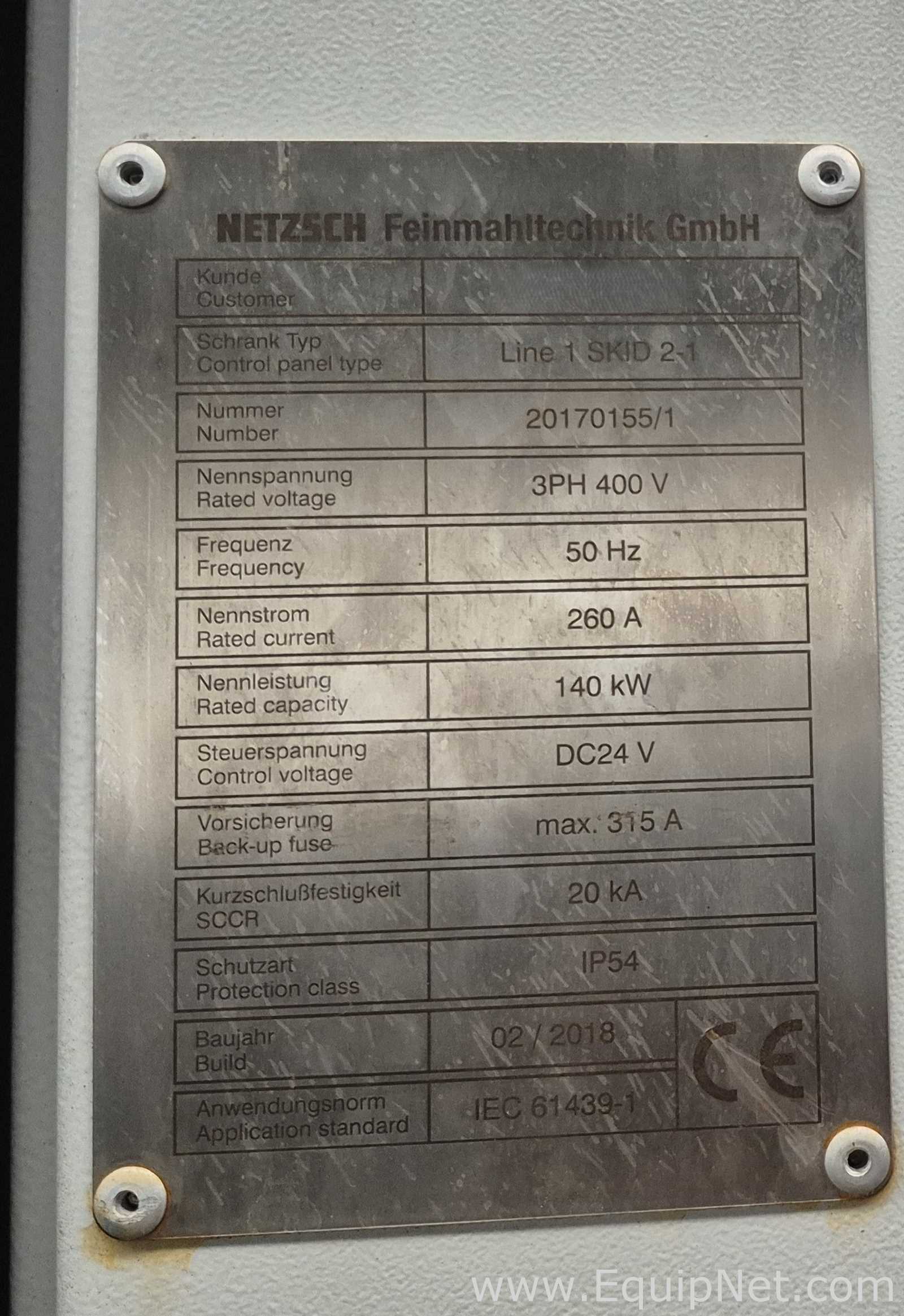

Netzsch Control Panel - Skid 2-1.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Year:
2018
2018
Serial Number:
20170155/1
20170155/1
CE Marked:
YES
YES
Voltage:
400
VOLTS
400
VOLTS
Frequency:
50
HERTZ
50
HERTZ
Phase:
3
3
Recommended Packaging Form:
CUSTOM PALLET
CUSTOM PALLET
Dimensions:
Standard
Metric
Overall:
1 x 1 x 1 IN - 1 LBS
25.40 x 25.40 x 25.40 mm - 0.45 kg
Disclaimer:
This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in
East Asia/Pacific
This equipment is subject to a removal and loading charge.
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Multi-Listing Includes:
Back to Top
Multi-Listing #1038879

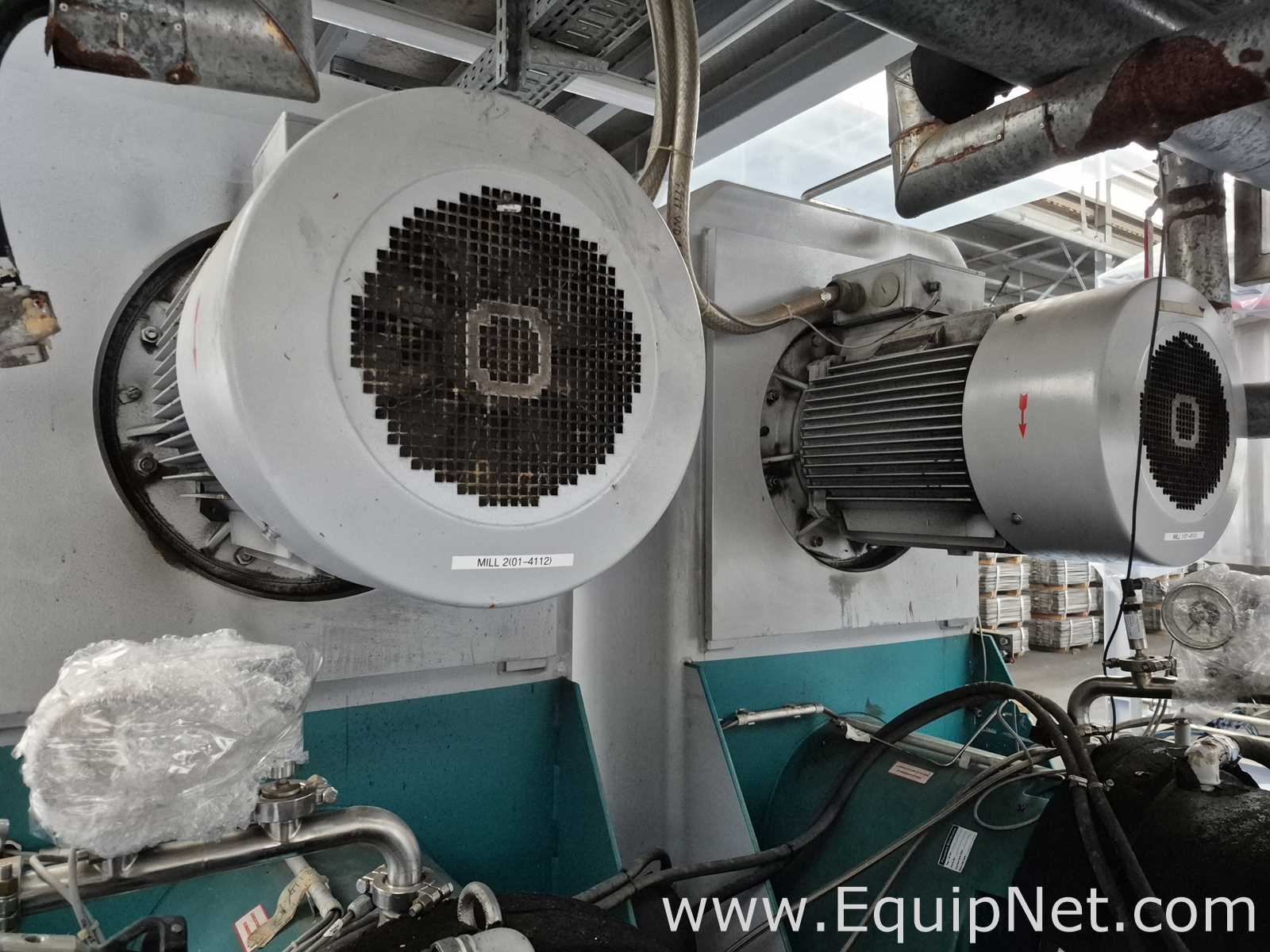

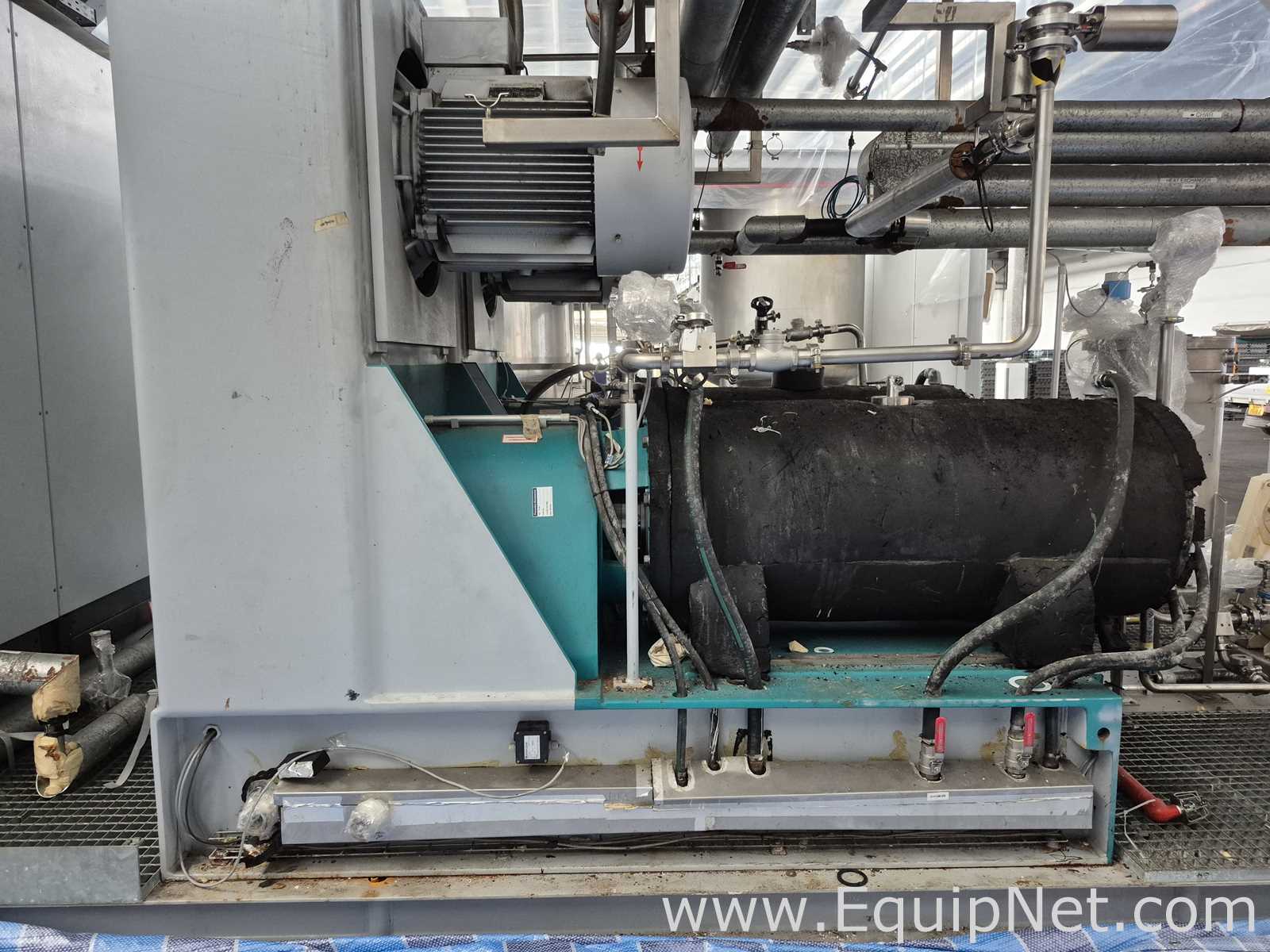

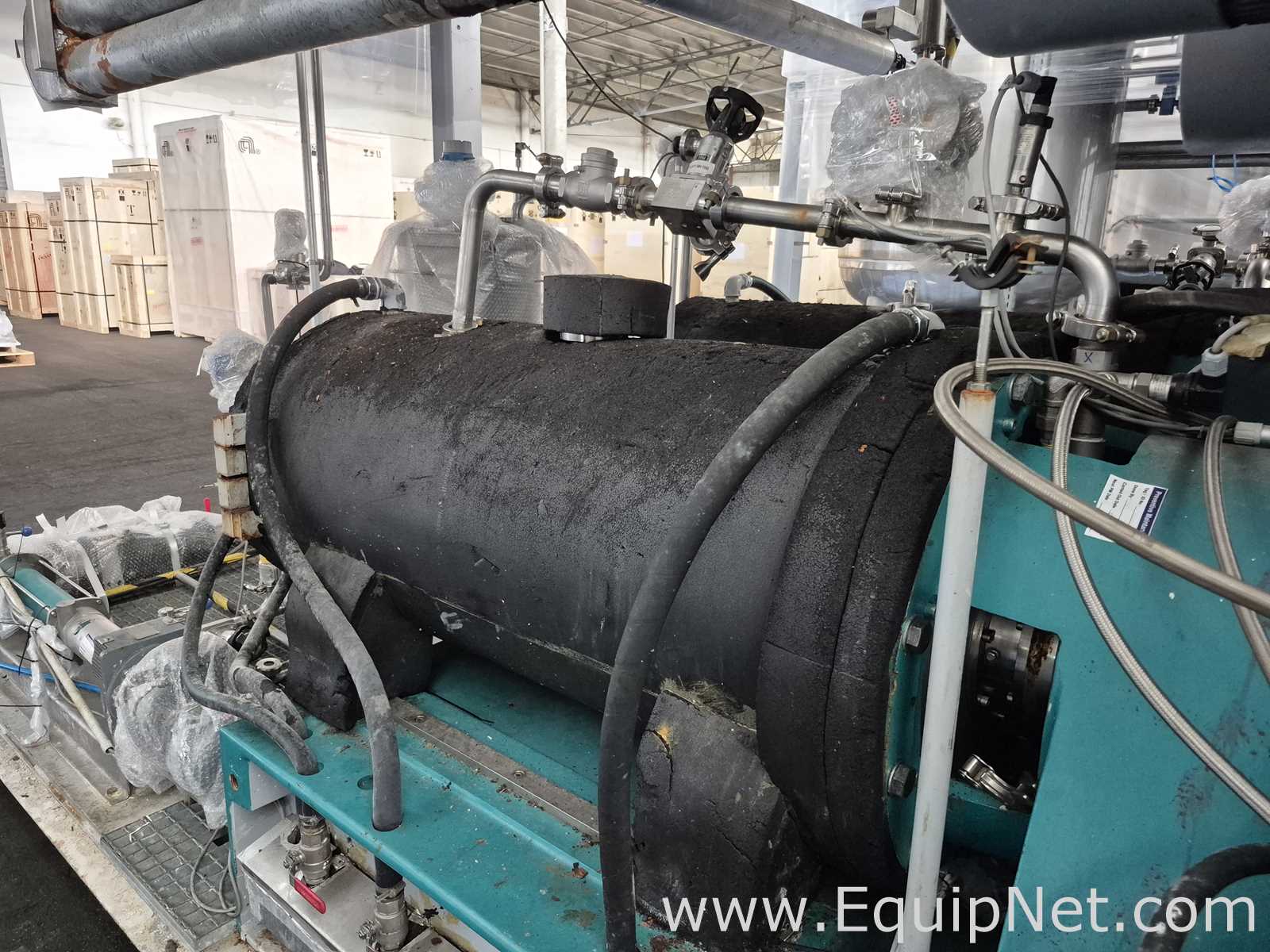

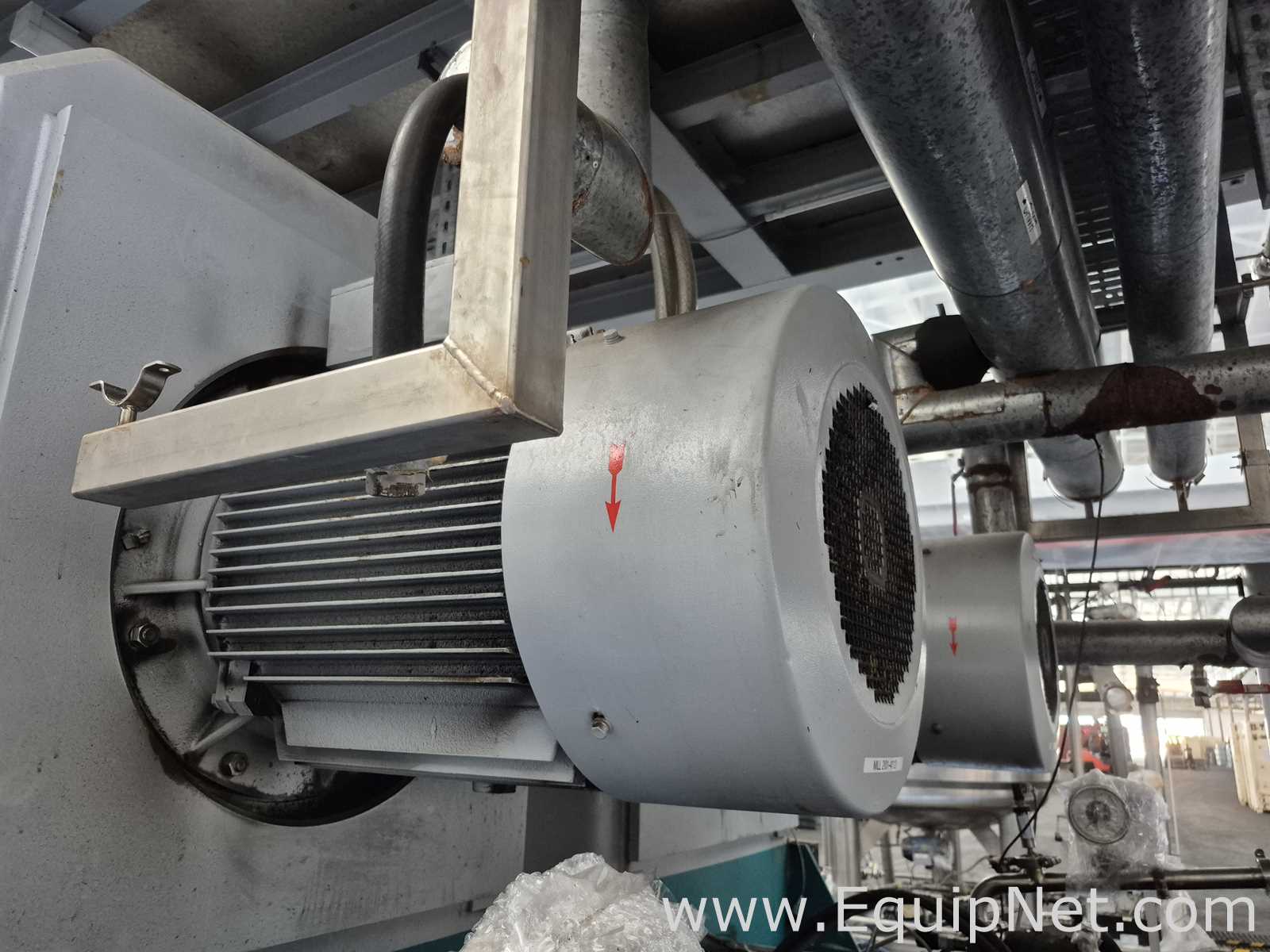

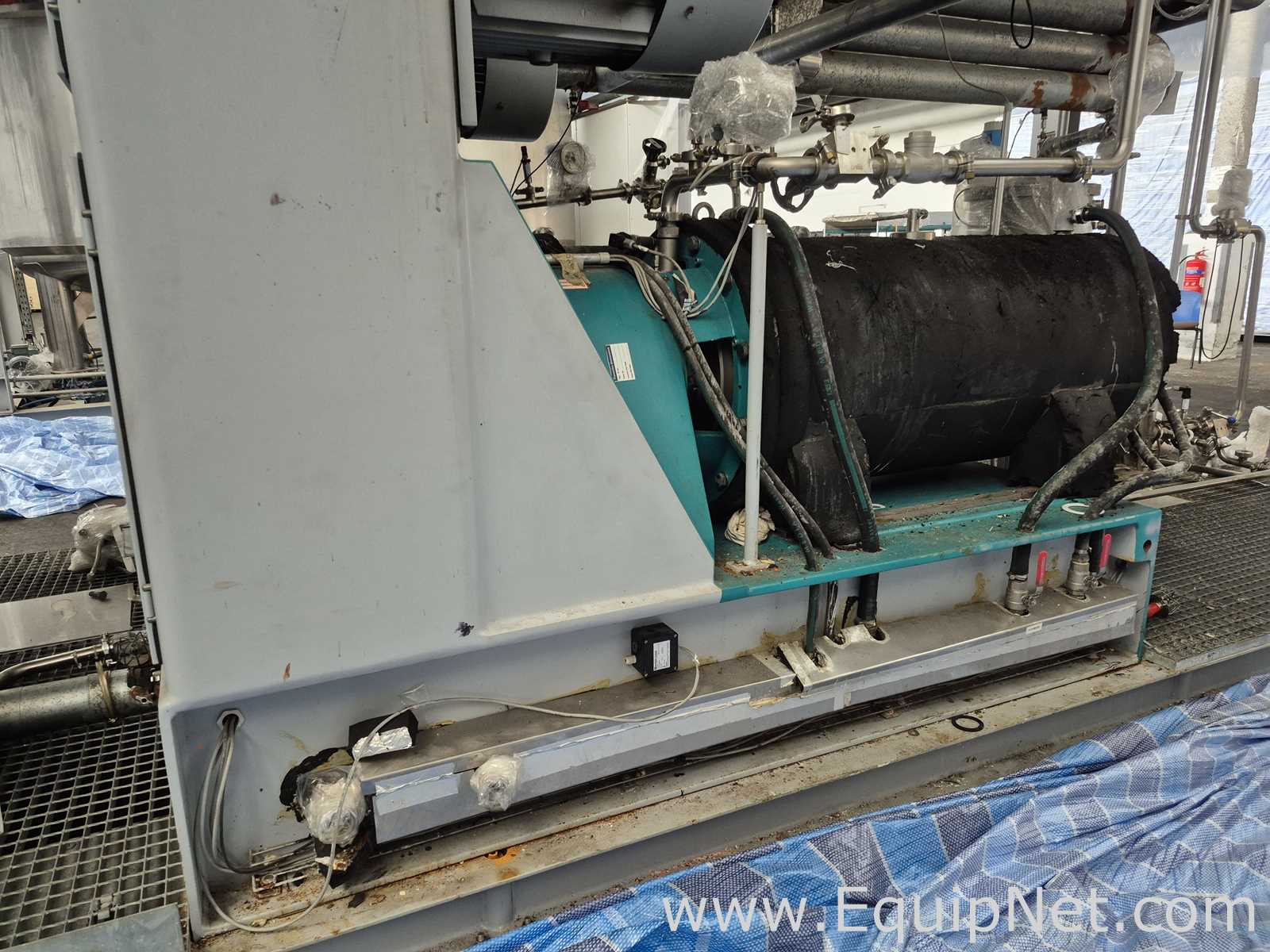

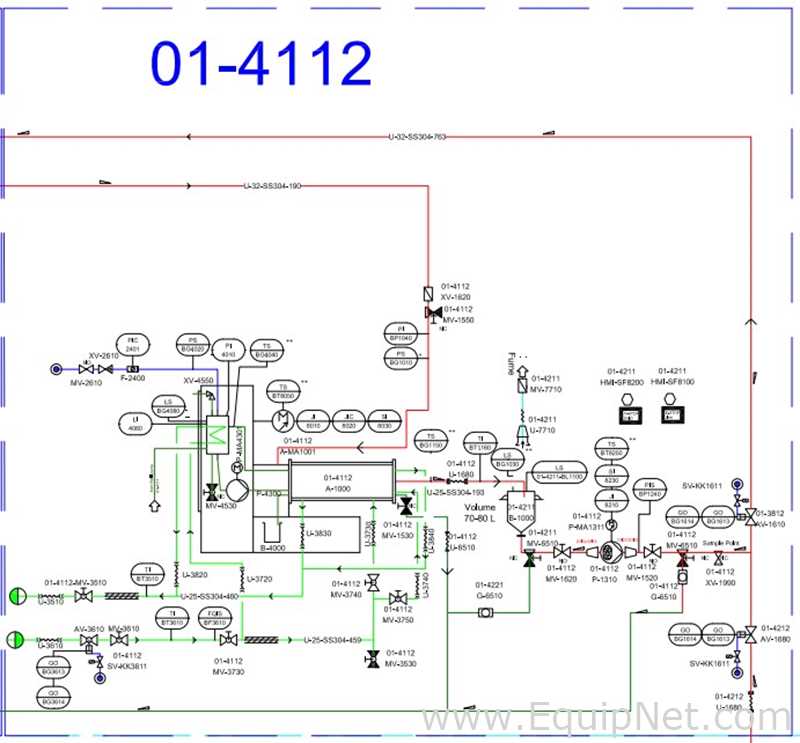

Netzsch LME 200 Left Discus 150K Mill 01-4112 - Skid 2-1 Milling System
Equipment Description
Netzsch LME 200 Left Discus 150K Mill 01-4112 - Skid 2-1 Milling System
01-4112-A-1000 Horizontal Disc Mill LM200: 6 to 13 m/s (31-67.2 hz). PUdiscs (100%-127,7l GML). Chamber Stainless Steel 1.4301/304. 55kW *50hz-9.7m/s).
Designed for Max operating pressure: 3 bar.
Designed for Max operating temperature: 90C.
Max cooling water pressure: 3 bar.
Machine stand: steel welded.
Material: mild steel with finish.
Assembly aid: tank removal system (mild steel with finish).
Grinding chamber: carriage-type.
Grinding chamber volume: approx. 160 l.
Grinding chamber design: stainless steel 1.4301 / NElast-2-90-A (PU yellow).
Outer shell: steel with finish.
Inner jacket: exchangeable, with steel coils for intensive cooling.
Inner pipe: stainless steel 1.4301.
Agitator shaft: NElast-2-90-A-coated.
Grinding disks: TetraNex grinding disks, NElast-2-90-A-coated.
Product inlet flange: stainless steel, NElast-2-90-A-coated.
Chamber bottom: stainless steel, NElast-2-90-A-coated.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Year:
2018
2018

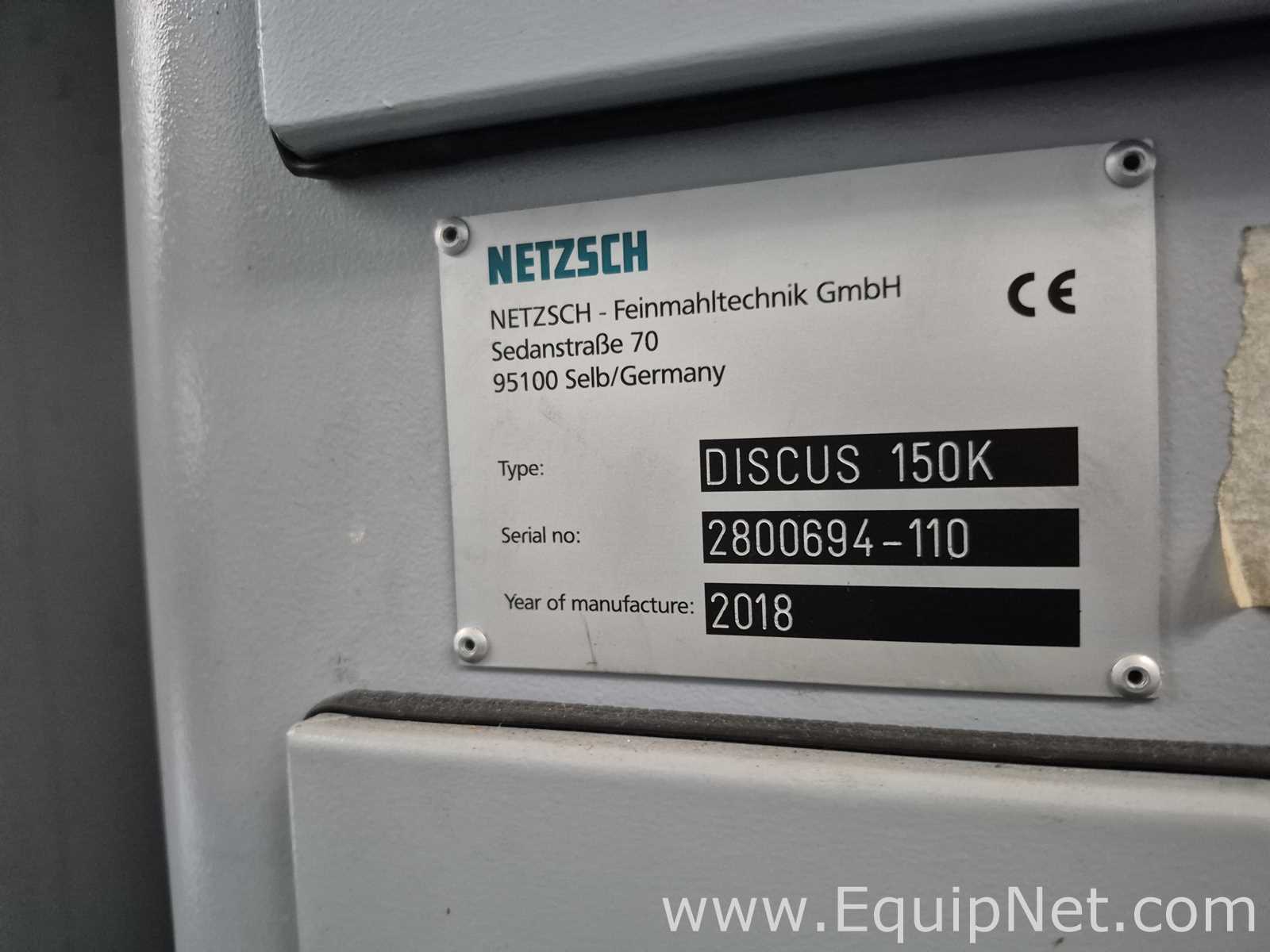

Serial Number:
2800694-110
2800694-110
CE Marked:
YES
YES
Model:
LME 200
LME 200
Recommended Packaging Form:
CUSTOM PALLET
CUSTOM PALLET
Dimensions:
Standard
Metric
Overall:
1 x 1 x 1 IN - 1 LBS
25.40 x 25.40 x 25.40 mm - 0.45 kg
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1038881

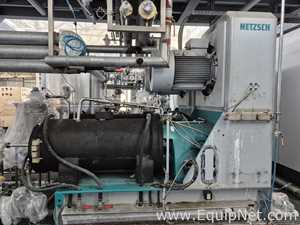

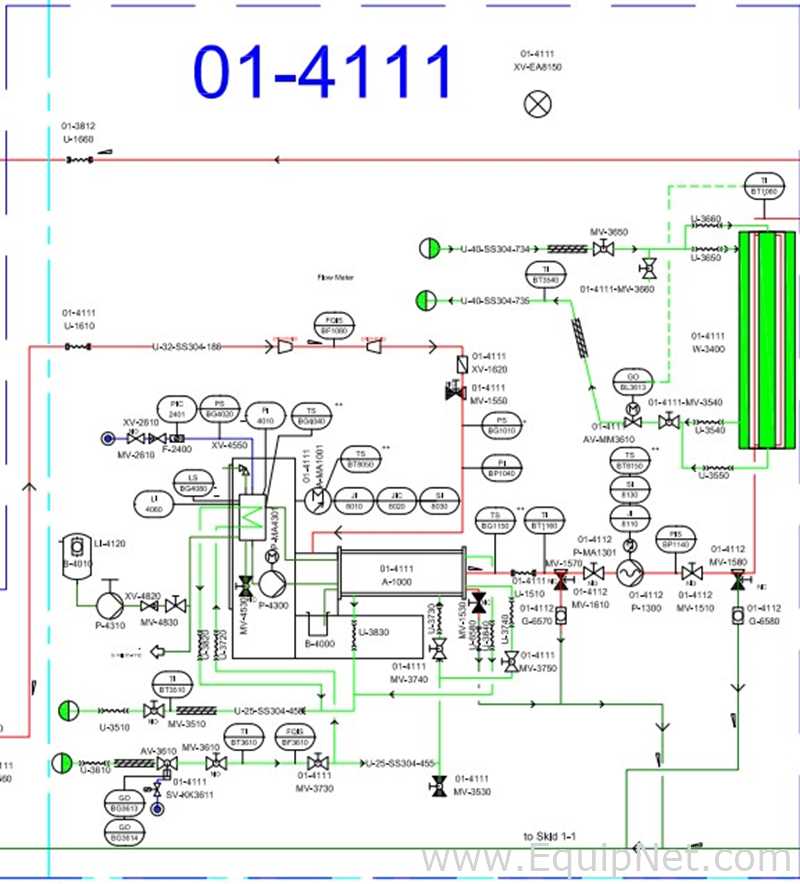

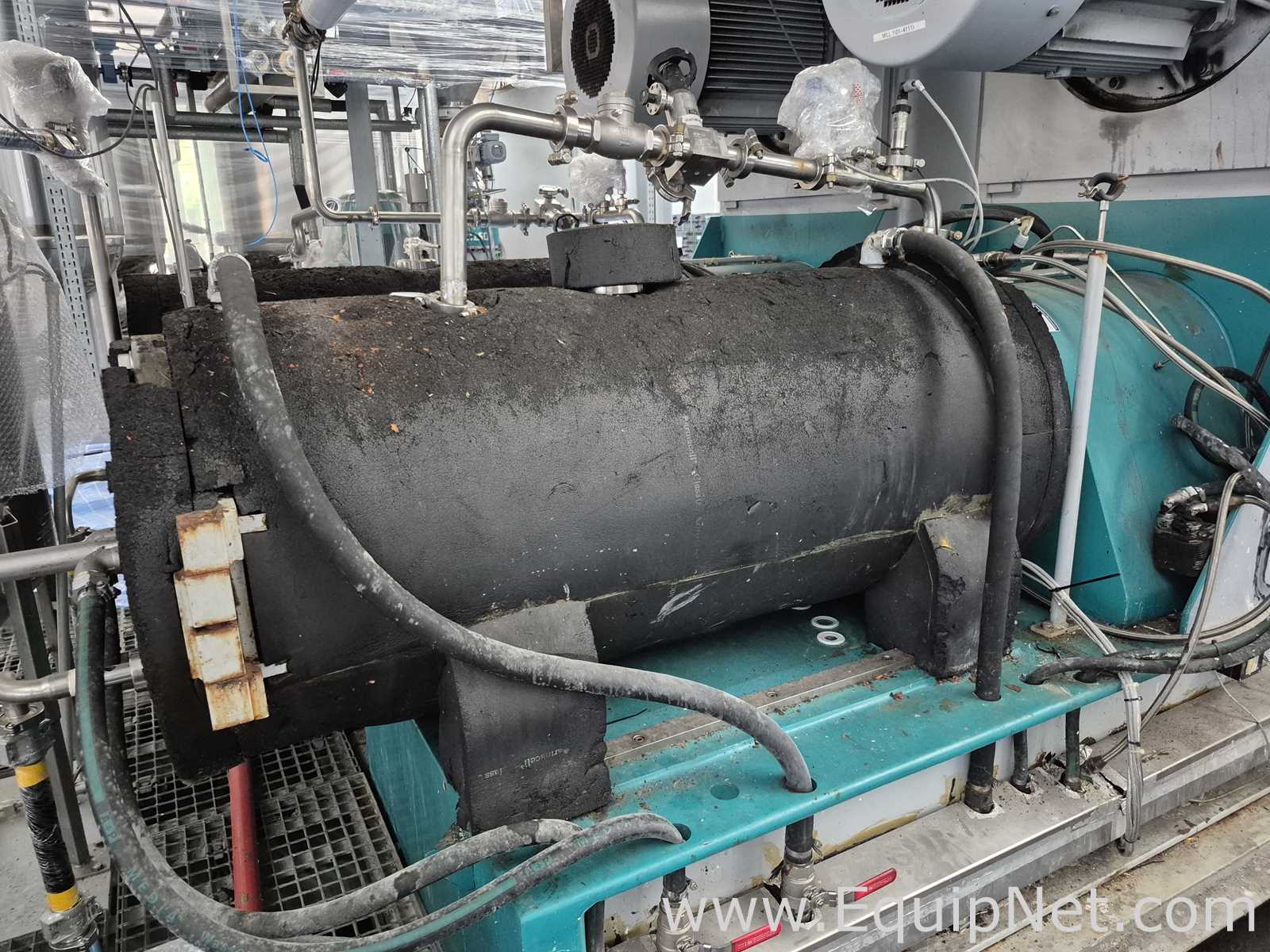

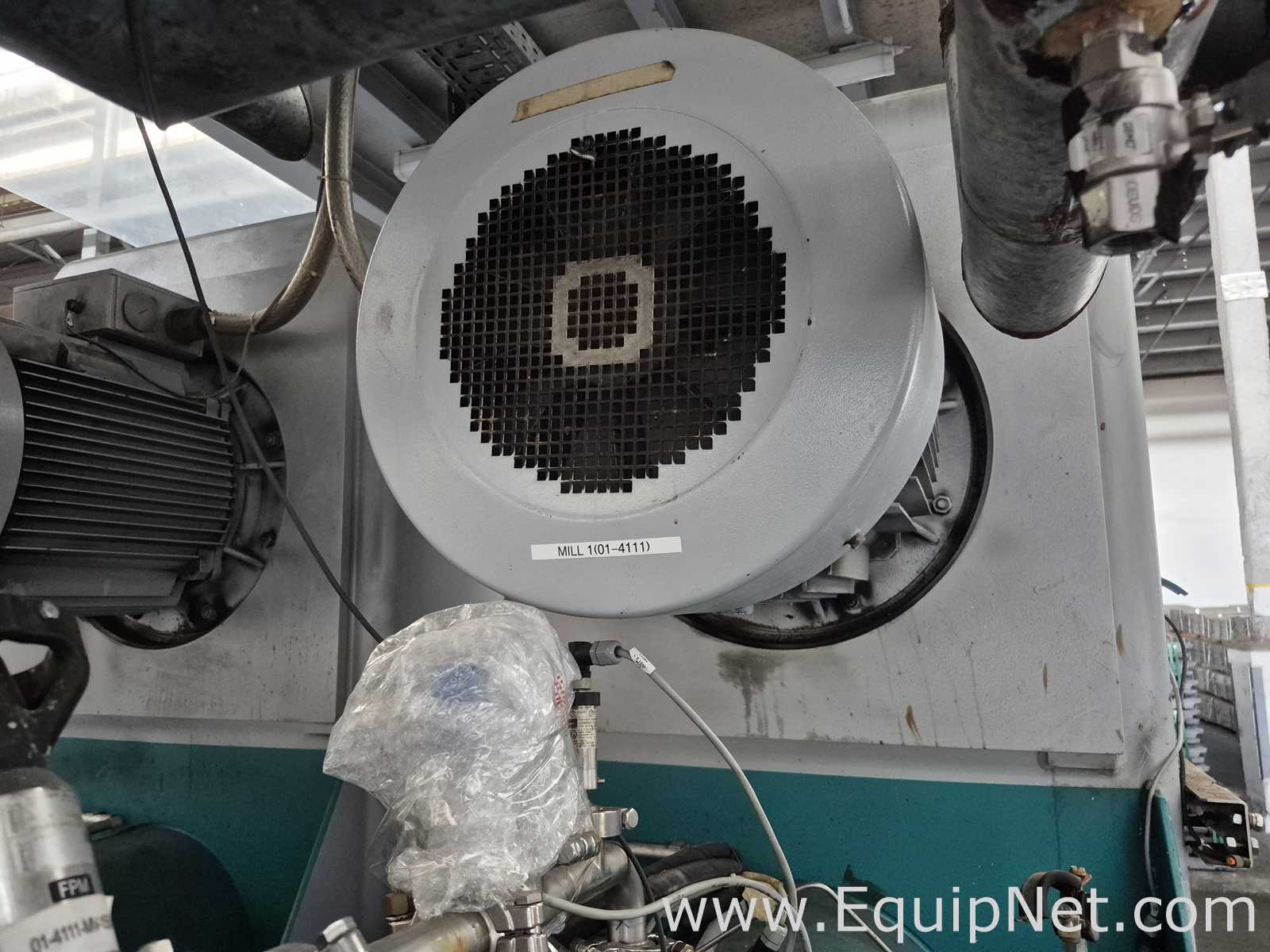

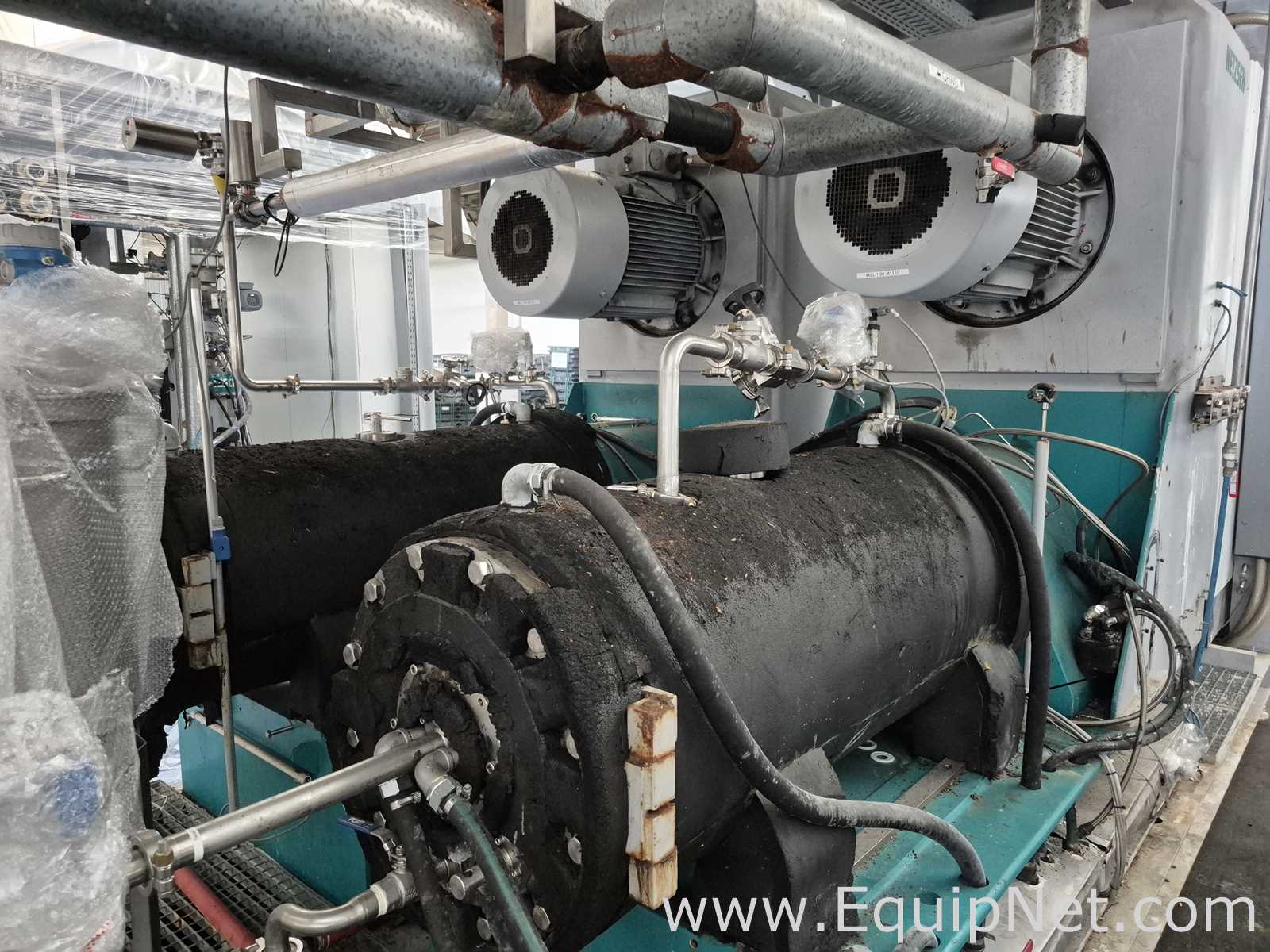

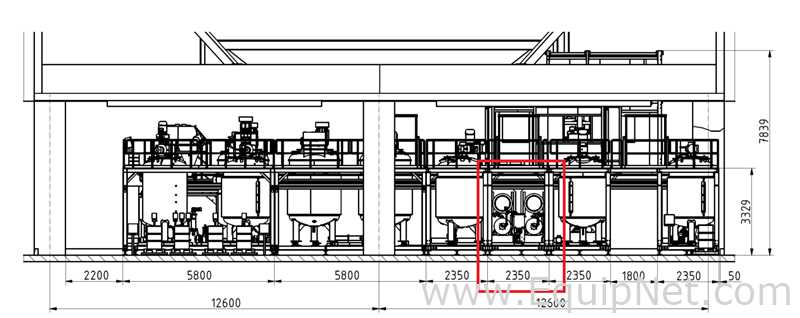

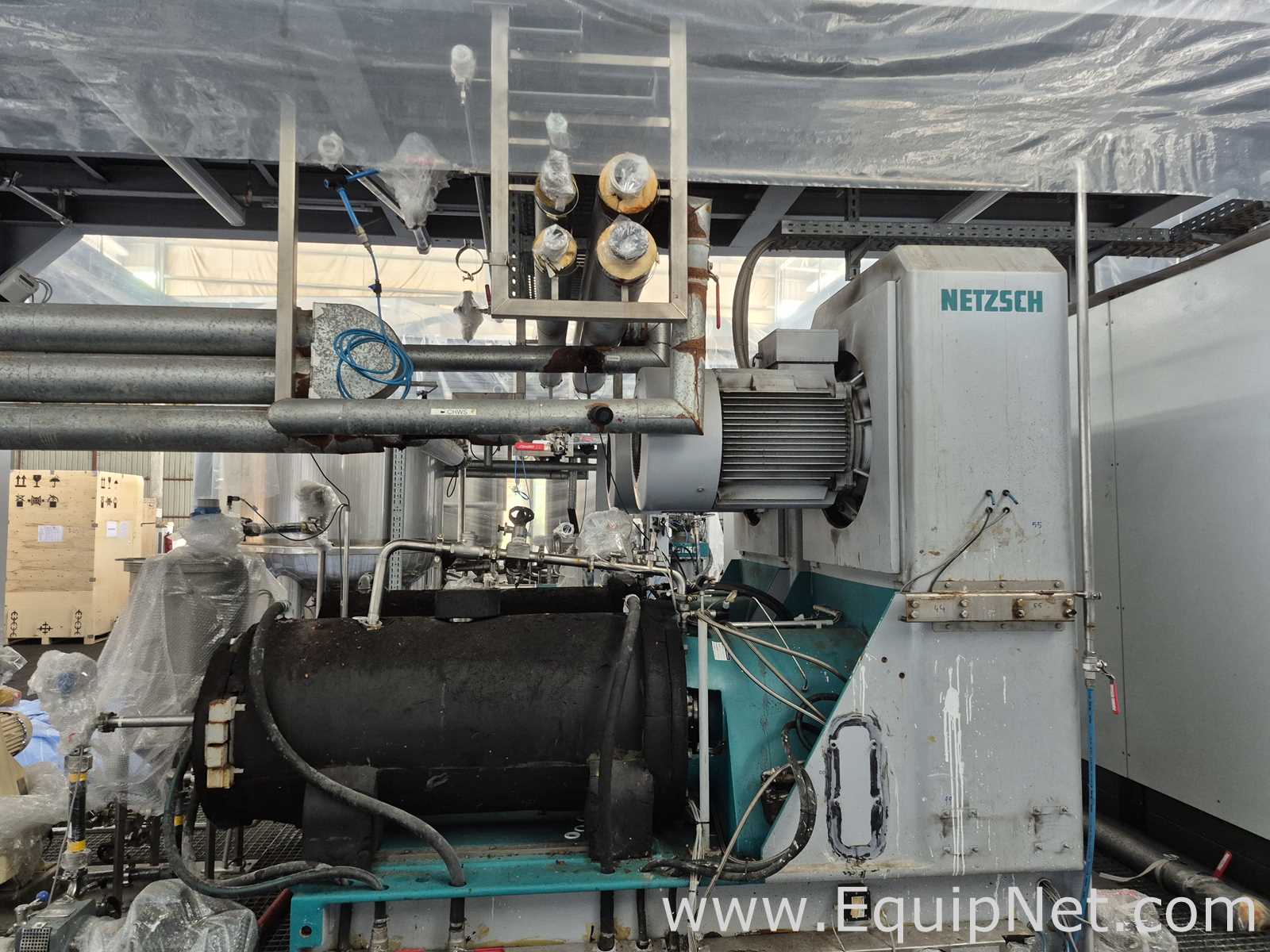

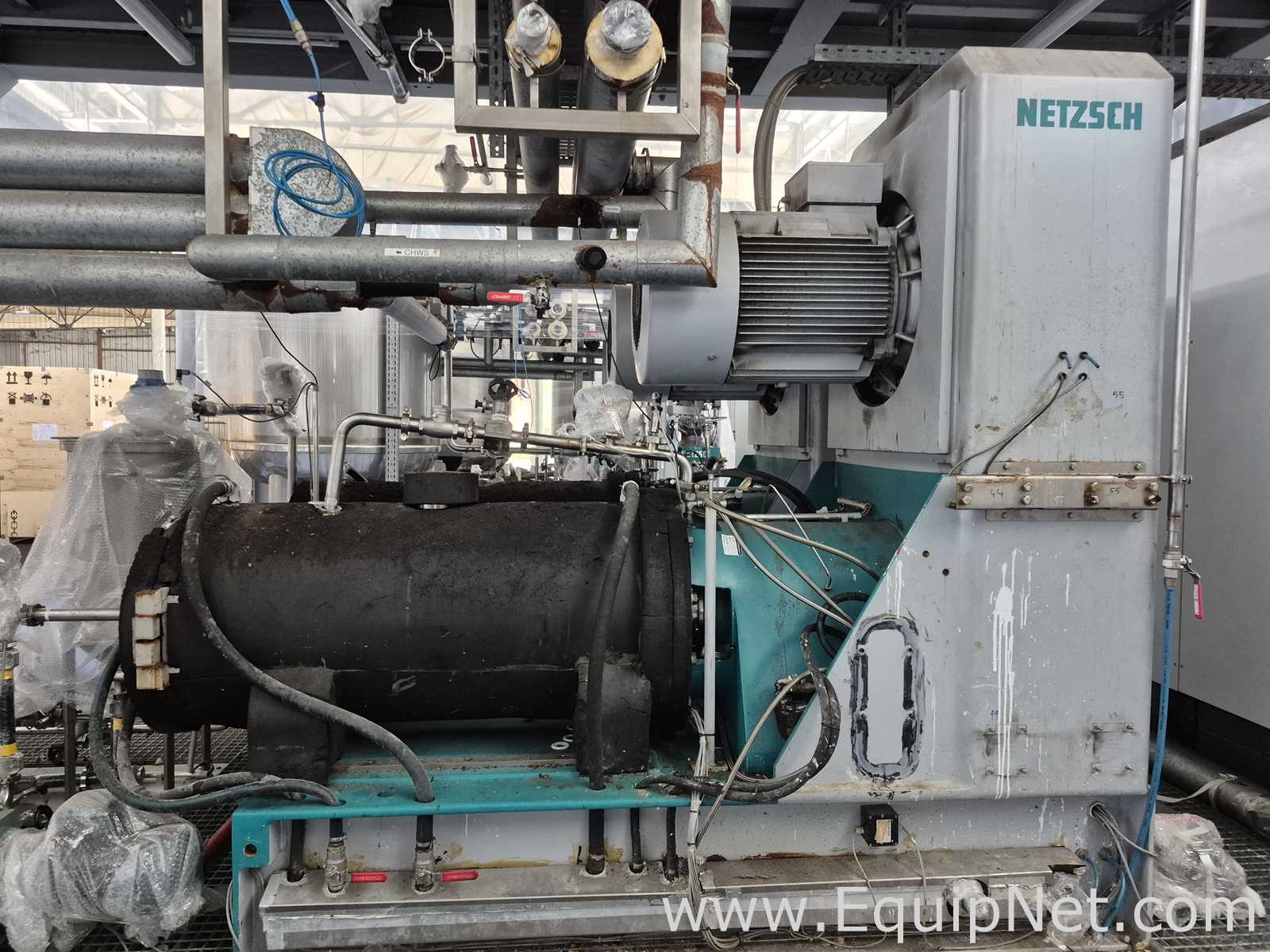

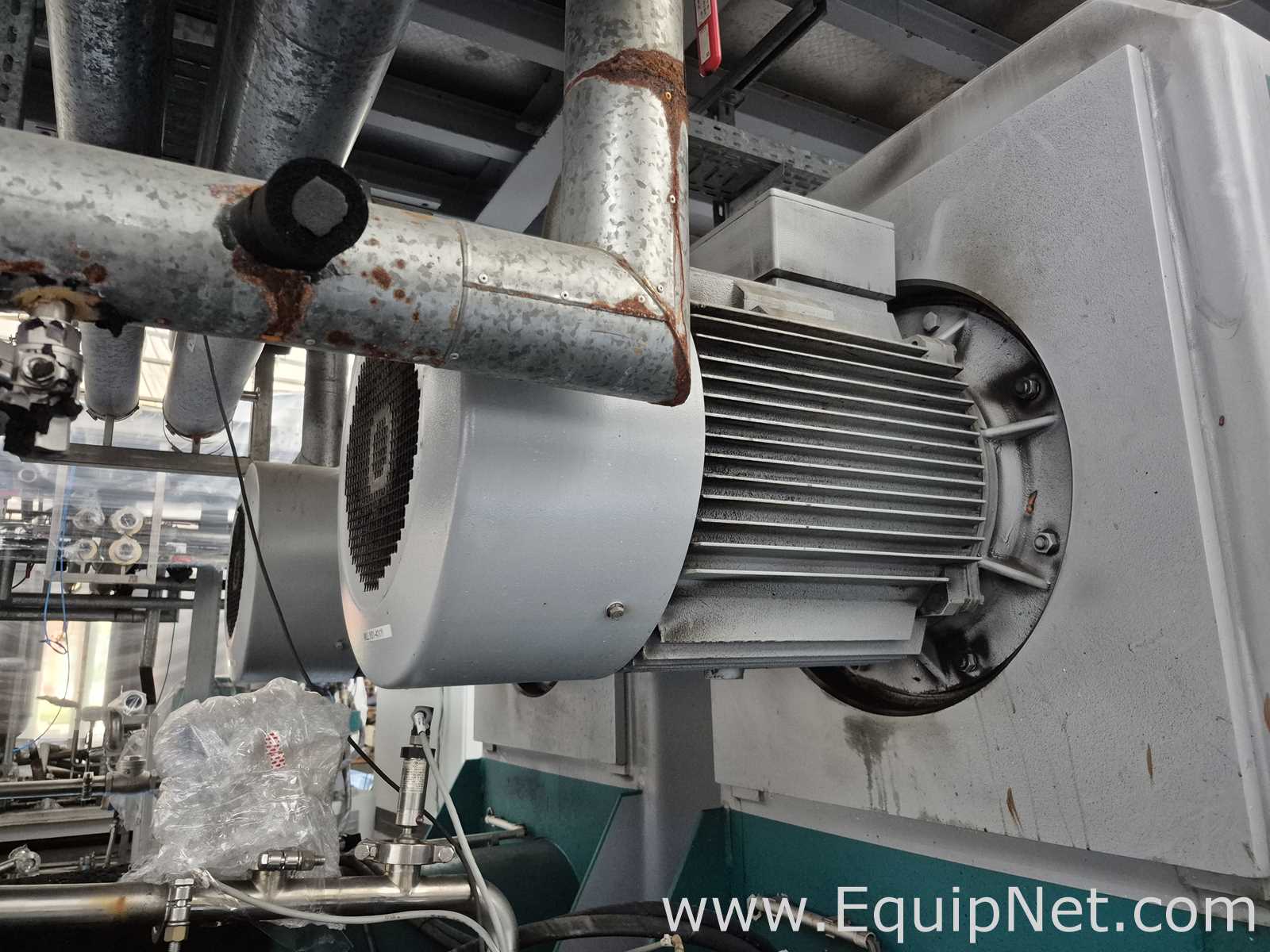

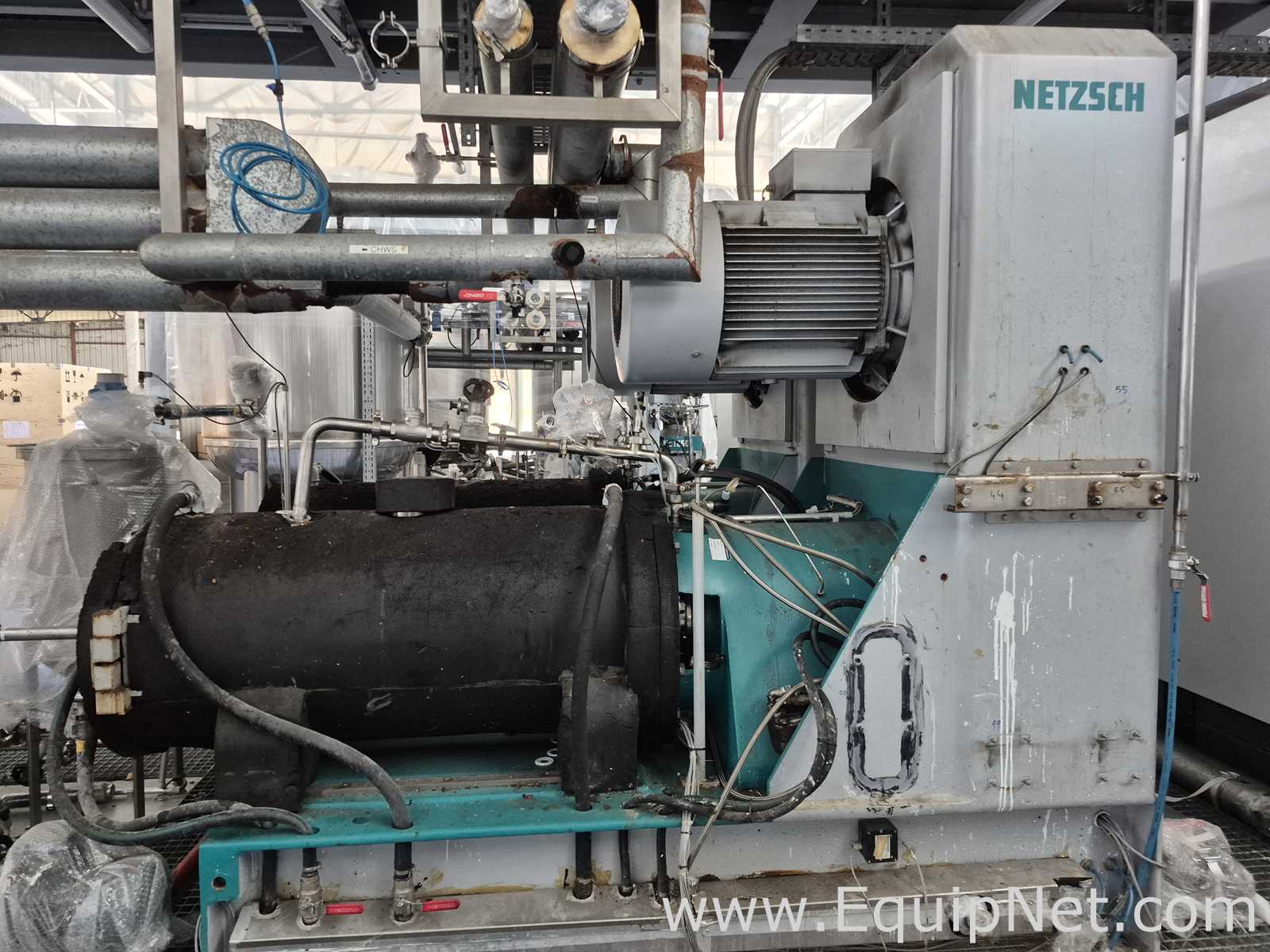

Netzsch LME 200 Right Discus 150K Mill 01-4111 - Skid 2-1 Milling System
Equipment Description
Netzsch LME 200 Right Discus 150K Mill 01-4111 - Skid 2-1 Milling System
01-4111-A-1000 Horizontal Disc Mill LM200: 6 to 13 m/s (31-67.2 hz). PUdiscs (100%-127,7l GML). Chamber Stainless Steel 1.4301/304. 55kW *50hz-9.7m/s).
Designed for Max operating pressure: 3 bar.
Designed for Max operating temperature: 90C.
Max cooling water pressure: 3 bar.
Machine stand: steel welded.
Material: mild steel with finish.
Assembly aid: tank removal system (mild steel with finish).
Grinding chamber: carriage-type.
Grinding chamber volume: approx. 160 l.
Grinding chamber design: stainless steel 1.4301 / NElast-2-90-A (PU yellow).
Outer shell: steel with finish.
Inner jacket: exchangeable, with steel coils for intensive cooling.
Inner pipe: stainless steel 1.4301.
Agitator shaft: NElast-2-90-A-coated.
Grinding disks: TetraNex grinding disks, NElast-2-90-A-coated.
Product inlet flange: stainless steel, NElast-2-90-A-coated.
Chamber bottom: stainless steel, NElast-2-90-A-coated.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Year:
2018
2018

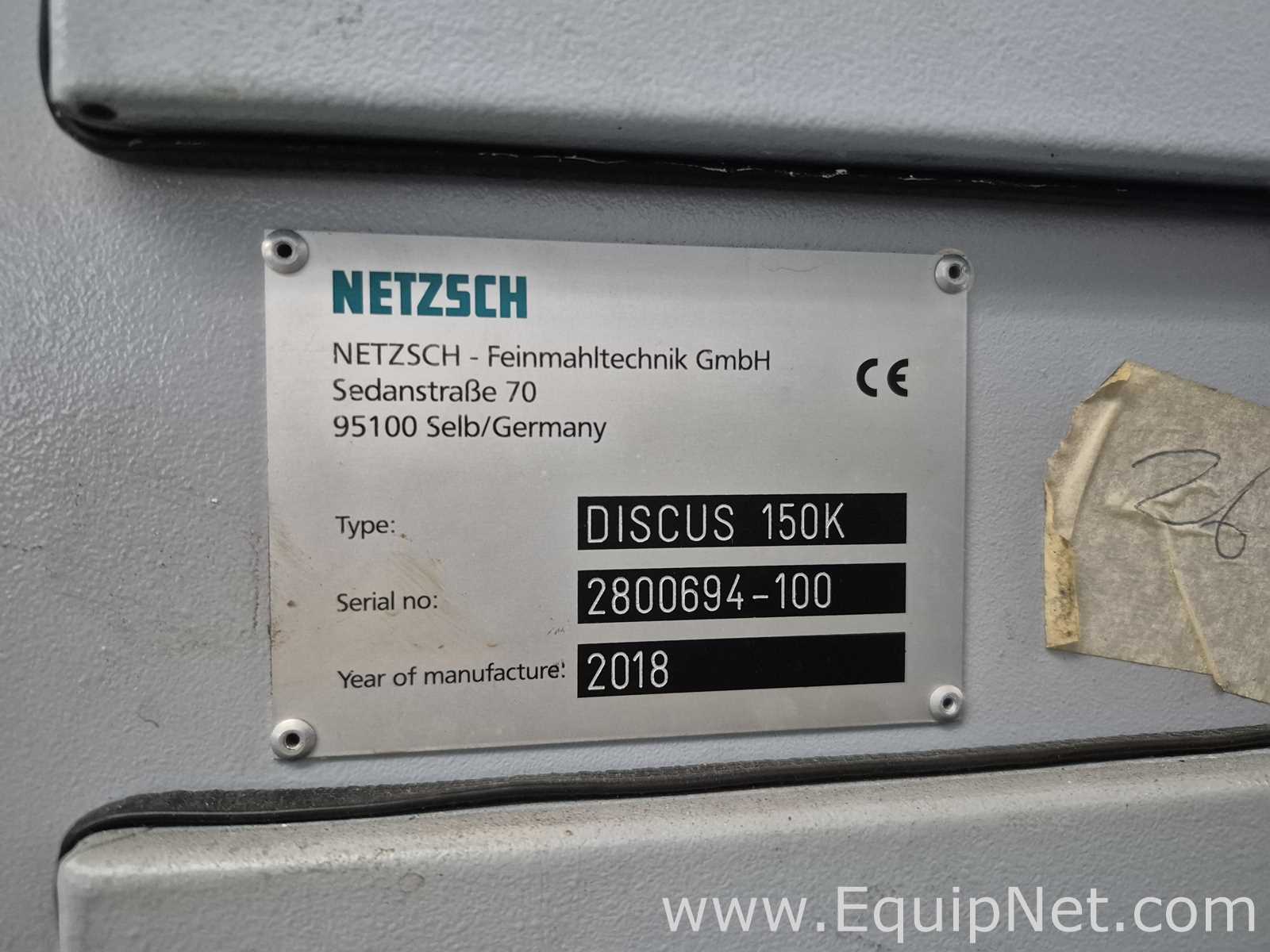

Serial Number:
2800694-100
2800694-100
CE Marked:
YES
YES
Model:
LME 200
LME 200
Recommended Packaging Form:
CUSTOM PALLET
CUSTOM PALLET
Dimensions:
Standard
Metric
Overall:
1 x 1 x 1 IN - 1 LBS
25.40 x 25.40 x 25.40 mm - 0.45 kg
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1038886

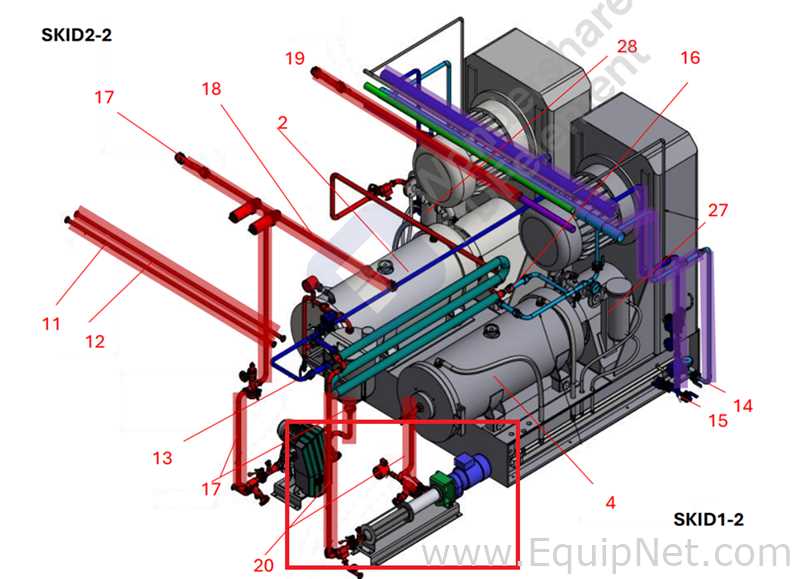

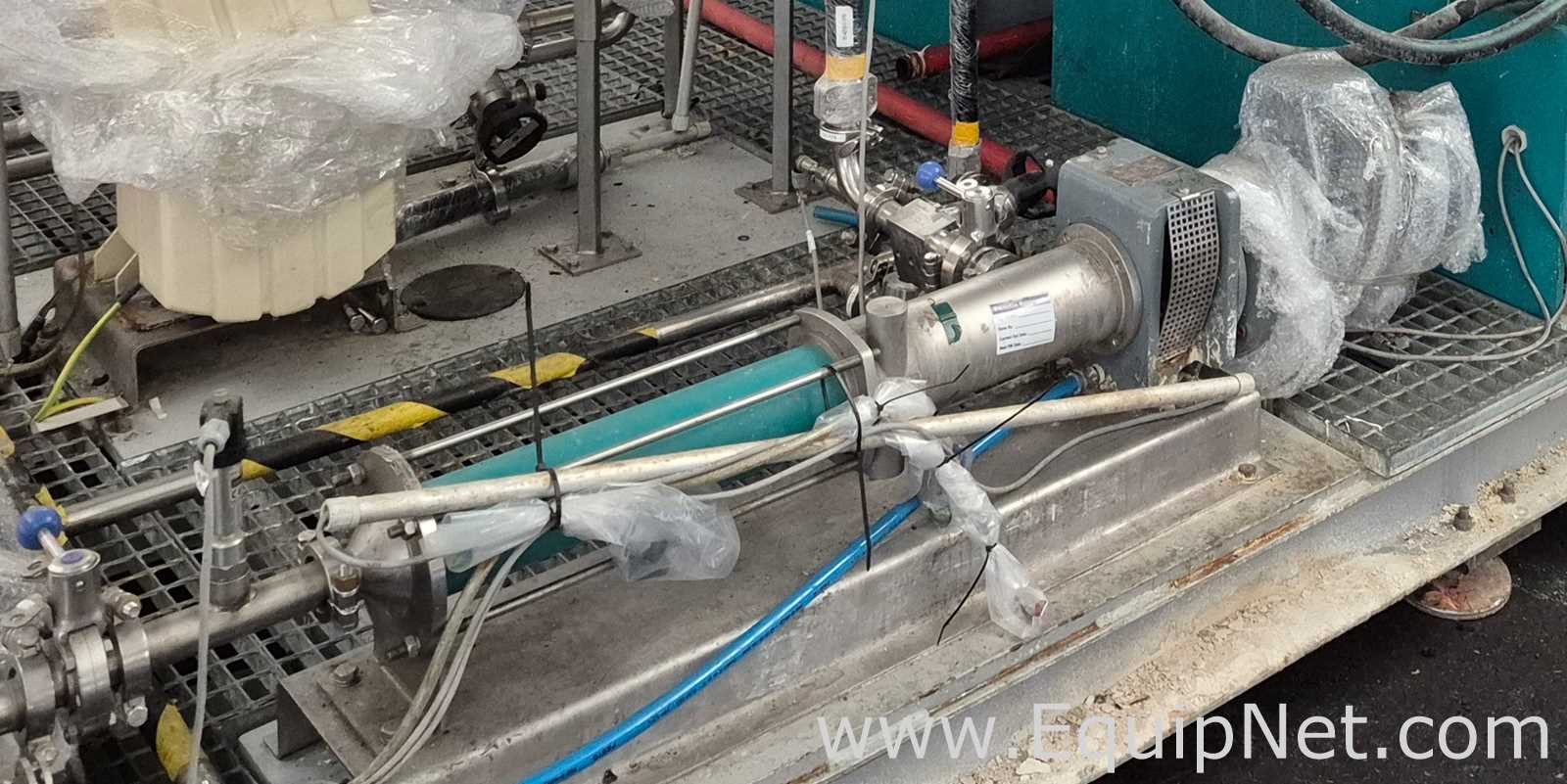

Netzsch NemoPump NM038 DN32 Feed Pump - Skid 2-1 Milling System
Equipment Description
Netzsch NemoPump NM038 DN32 Feed Pump - Skid 2-1 Milling System
NEMO NM038: 50-357RPM (10-72 Hz). 1m3-8m3/hr. 2.2 kW 230/400V. 50hz. I:5.8.
Connection size and type: DN32, TriClamp.
Design for Max mechanical pressure: 6 bar.
Design for Max operating temperature: 95 C.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Model:
NM038
NM038
Recommended Packaging Form:
PALLET
PALLET
Dimensions:
Standard
Metric
Overall:
1 x 1 x 1 IN - 1 LBS
25.40 x 25.40 x 25.40 mm - 0.45 kg
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1038894

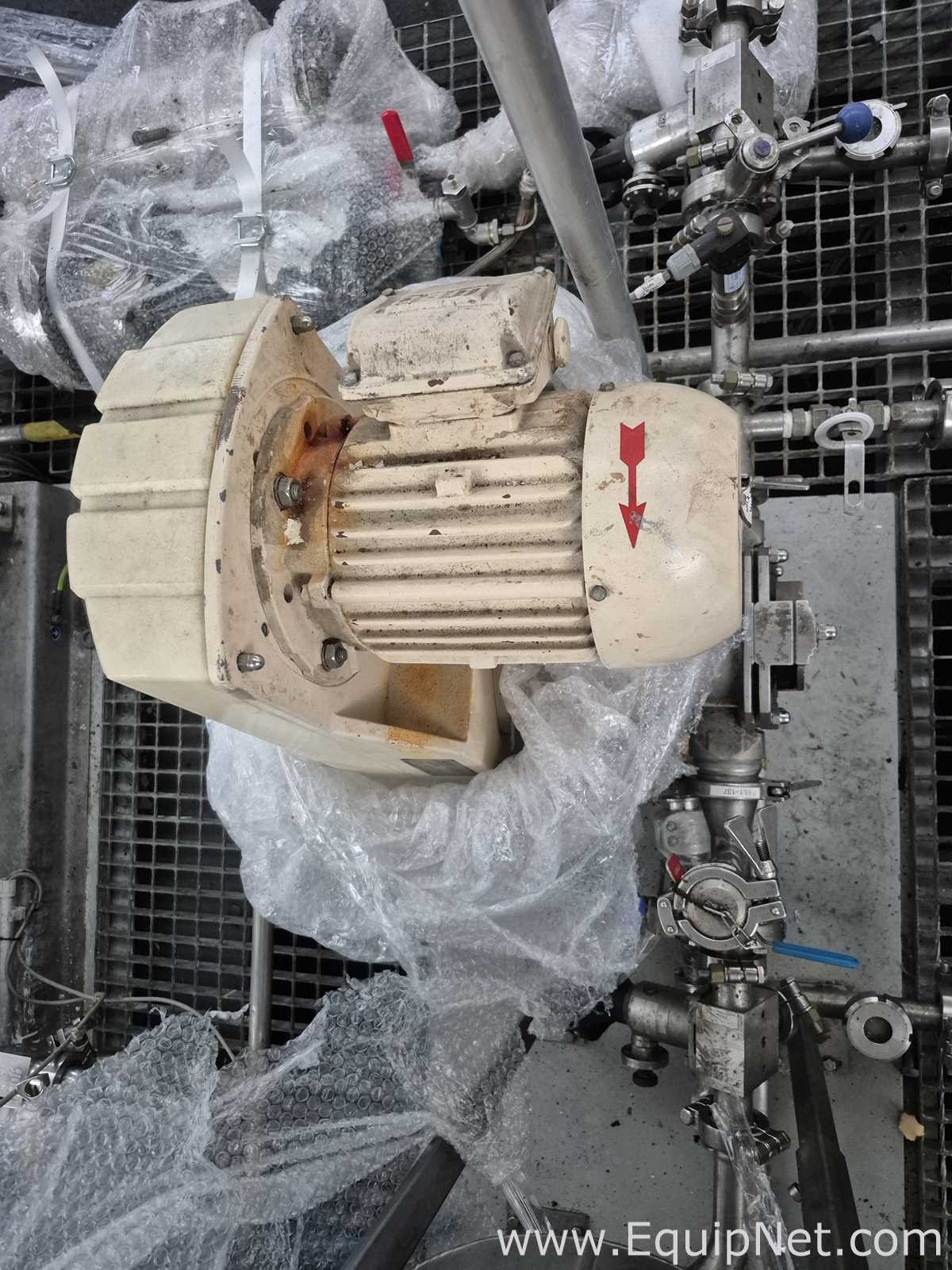

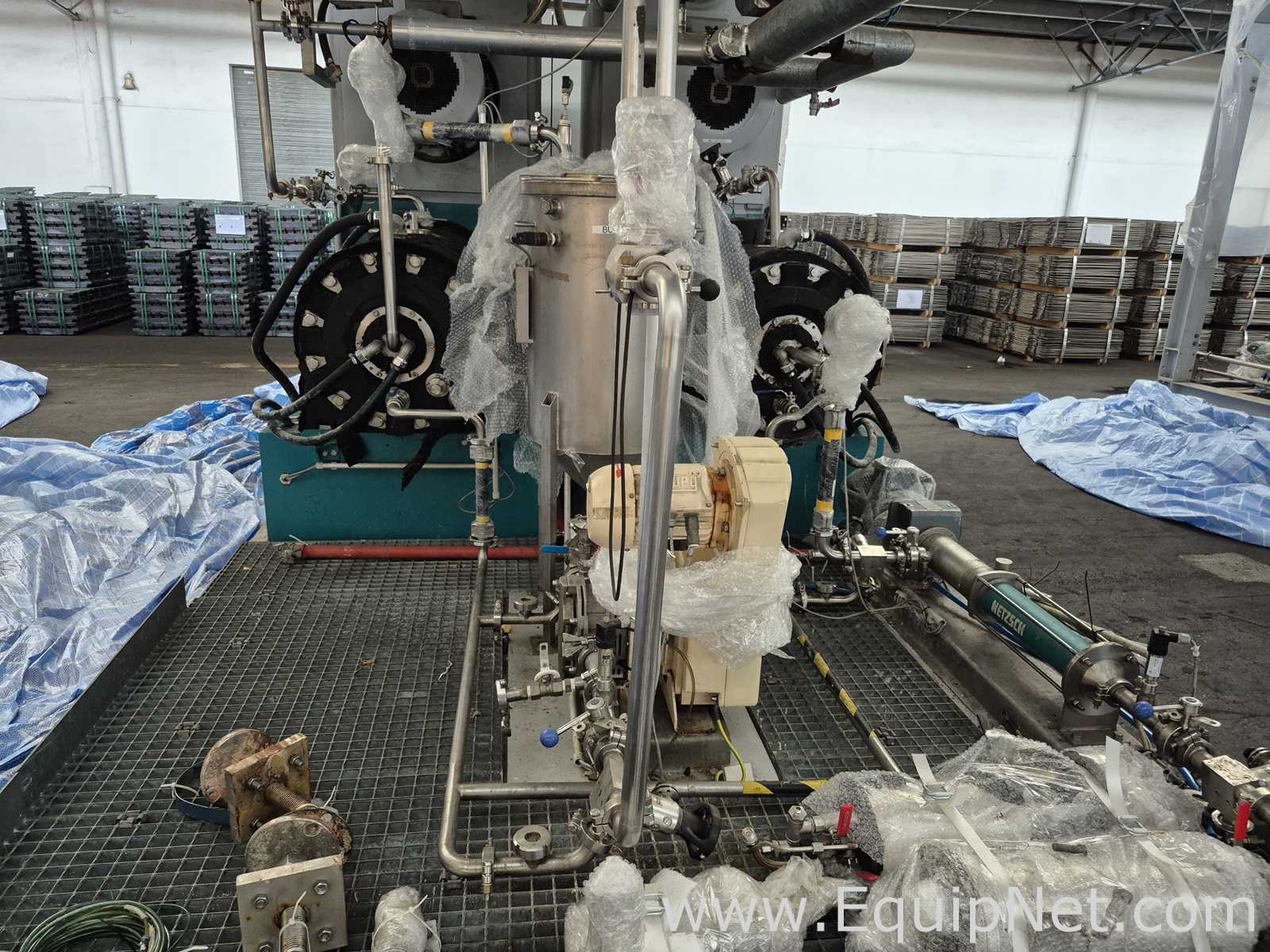

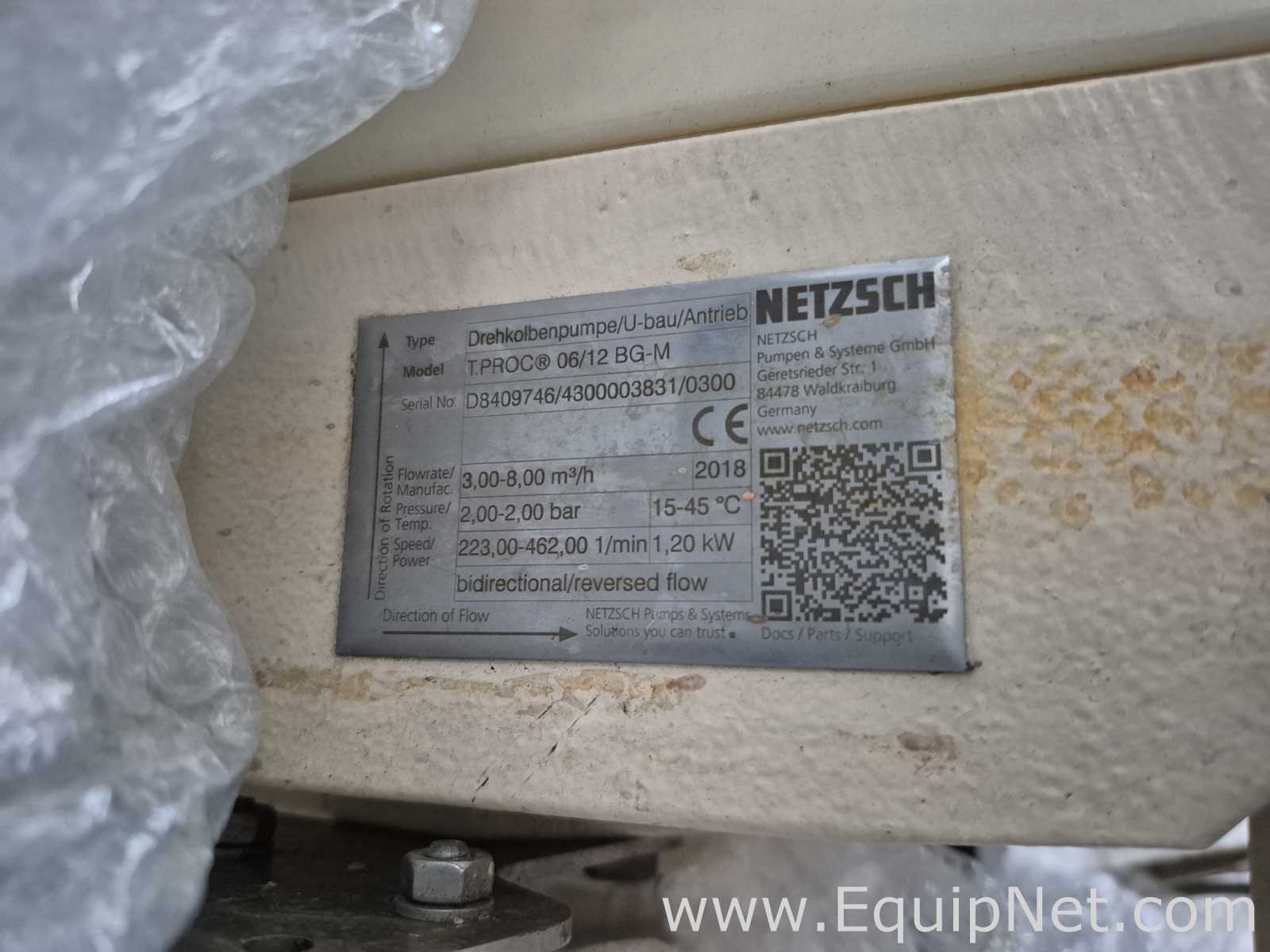

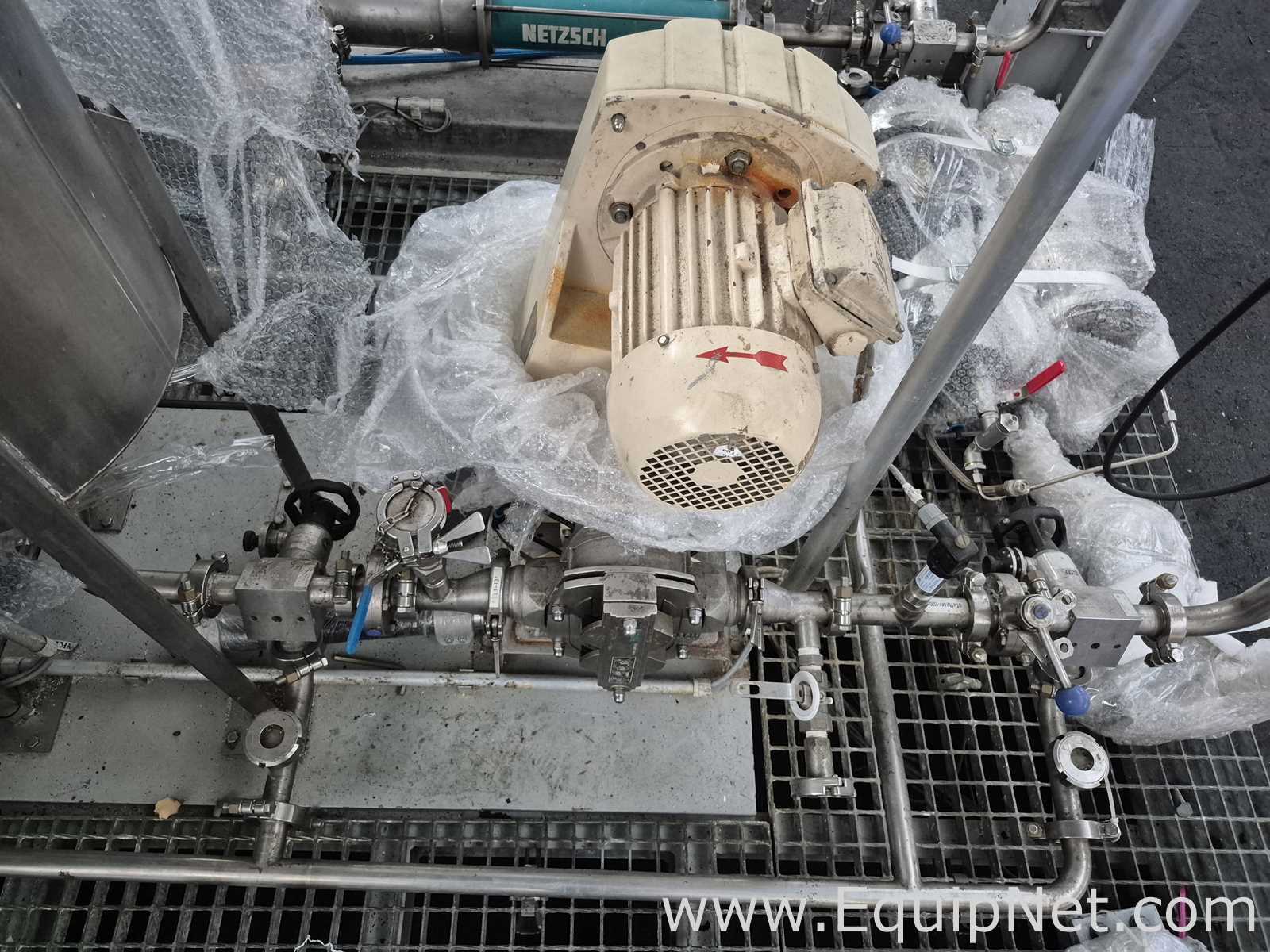

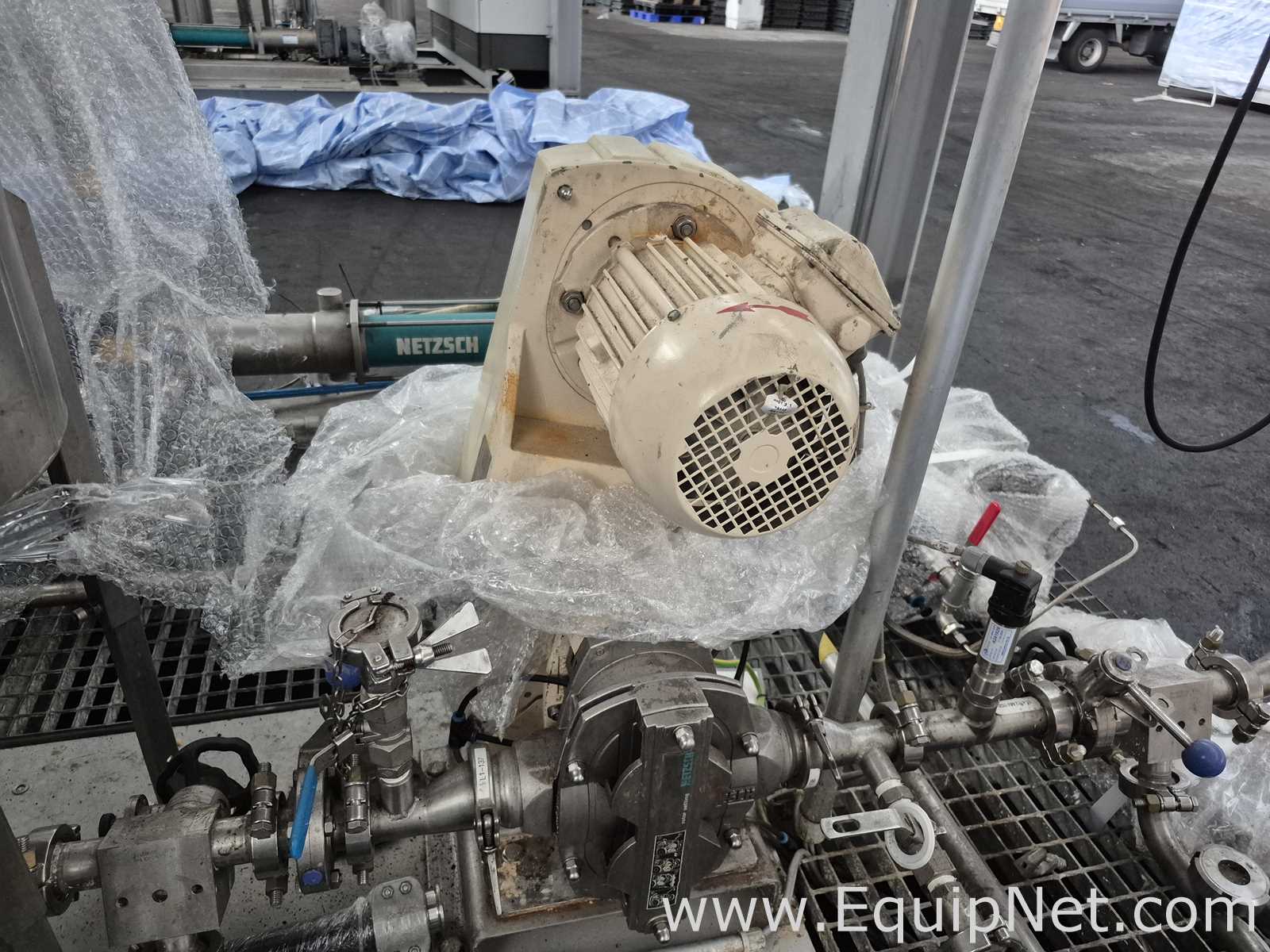

Netzsch Tornado Pump - Transfer Circulation Pump DN50 - Skid 2-1 Milling System
Equipment Description
Netzsch Tornado Pump - Transfer Circulation Pump DN50 - Skid 2-1 Milling System
Flow rate: 3-8 m3/hr.
Pressure: 2 bar.
Temp: 15-45C.
Speed: 223-462 RPM.
1.2 kW.
Bidirectional/reversed flow.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Serial Number:
D8409746/4300003831/0300
D8409746/4300003831/0300
Year:
2018
2018
CE Marked:
YES
YES
Model:
T.Proc 06/12 BG-M
T.Proc 06/12 BG-M
Recommended Packaging Form:
PALLET
PALLET
Dimensions:
Standard
Metric
Overall:
1 x 1 x 1 IN - 1 LBS
25.40 x 25.40 x 25.40 mm - 0.45 kg
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1038911

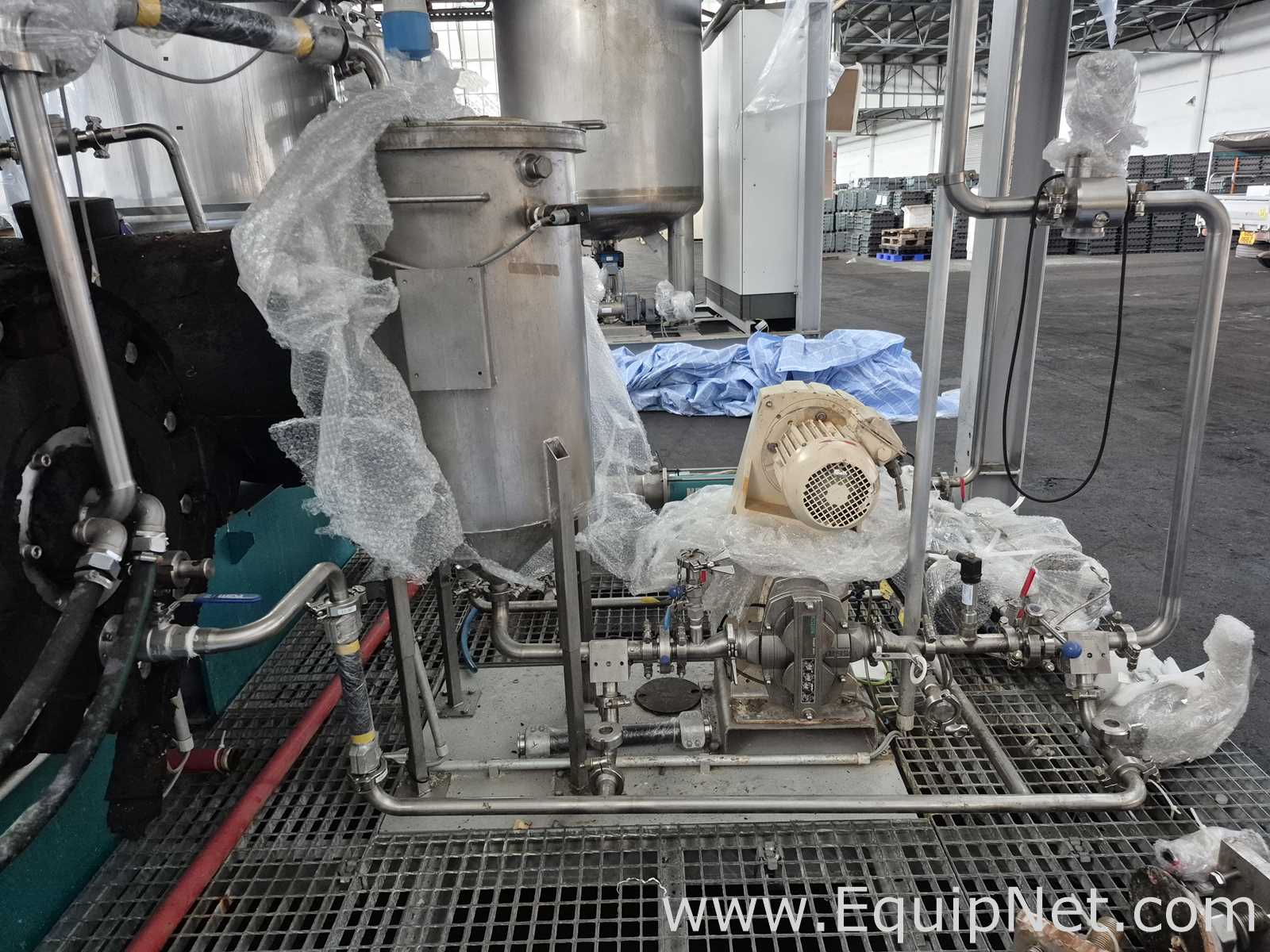

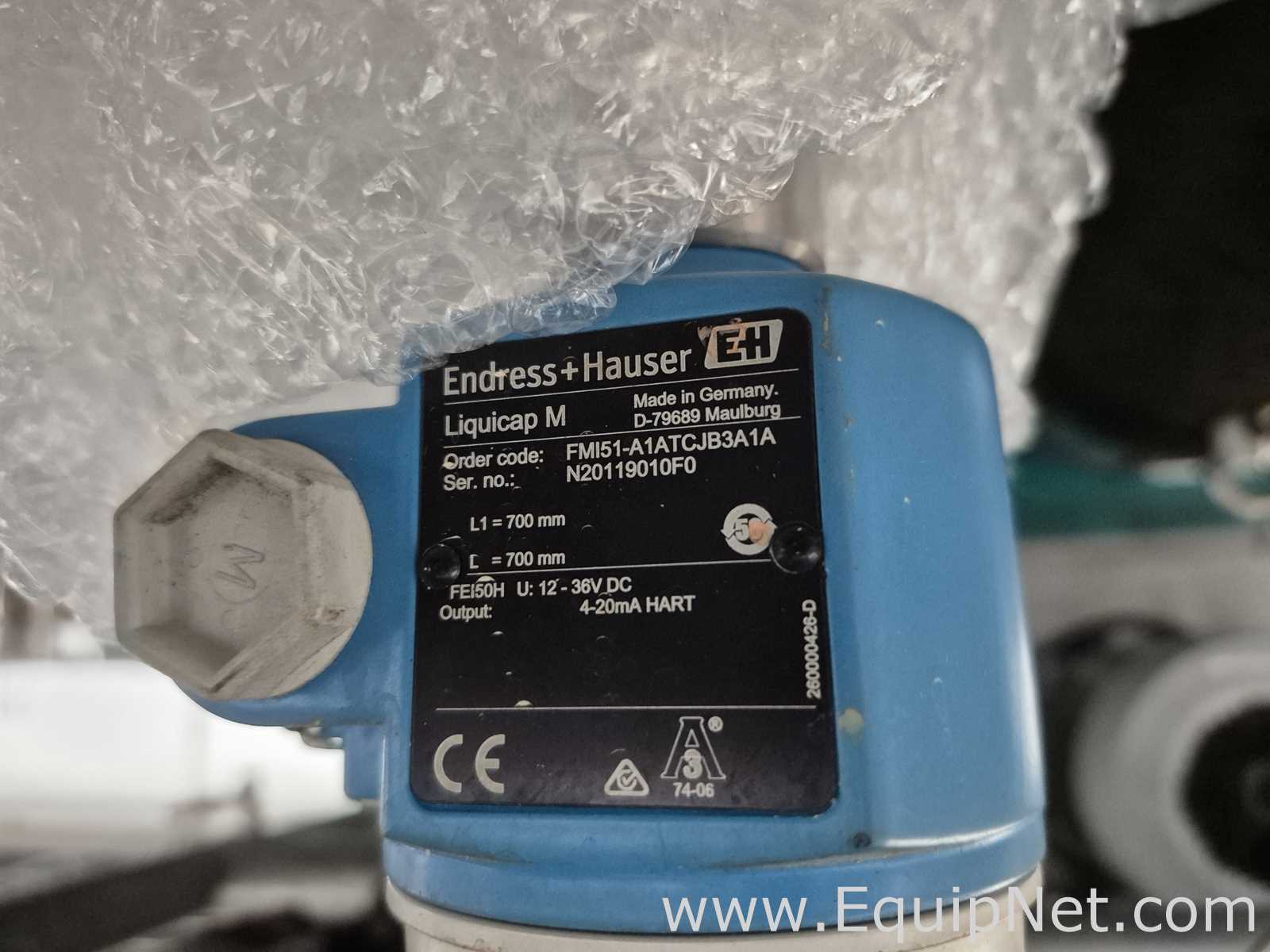

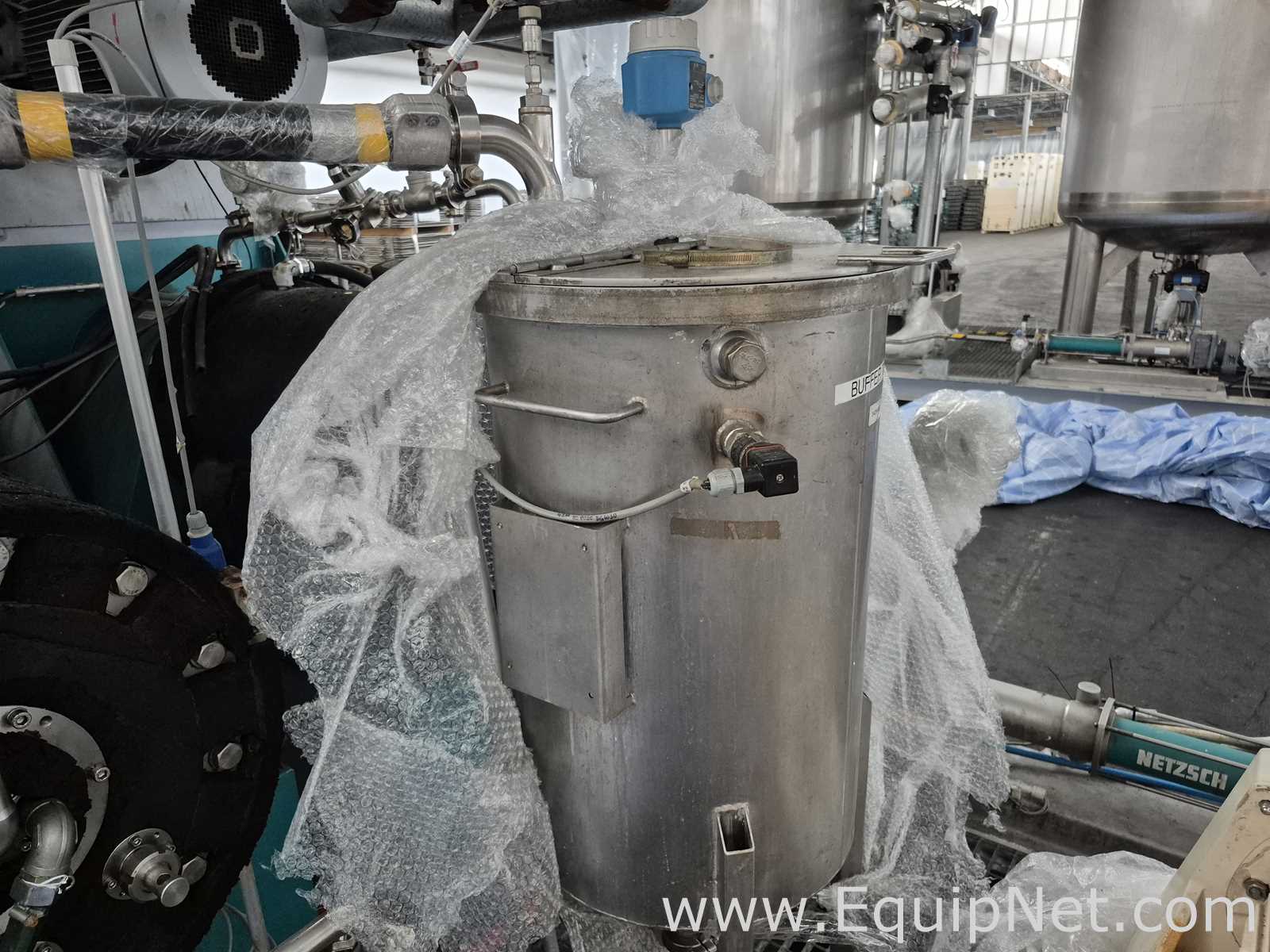

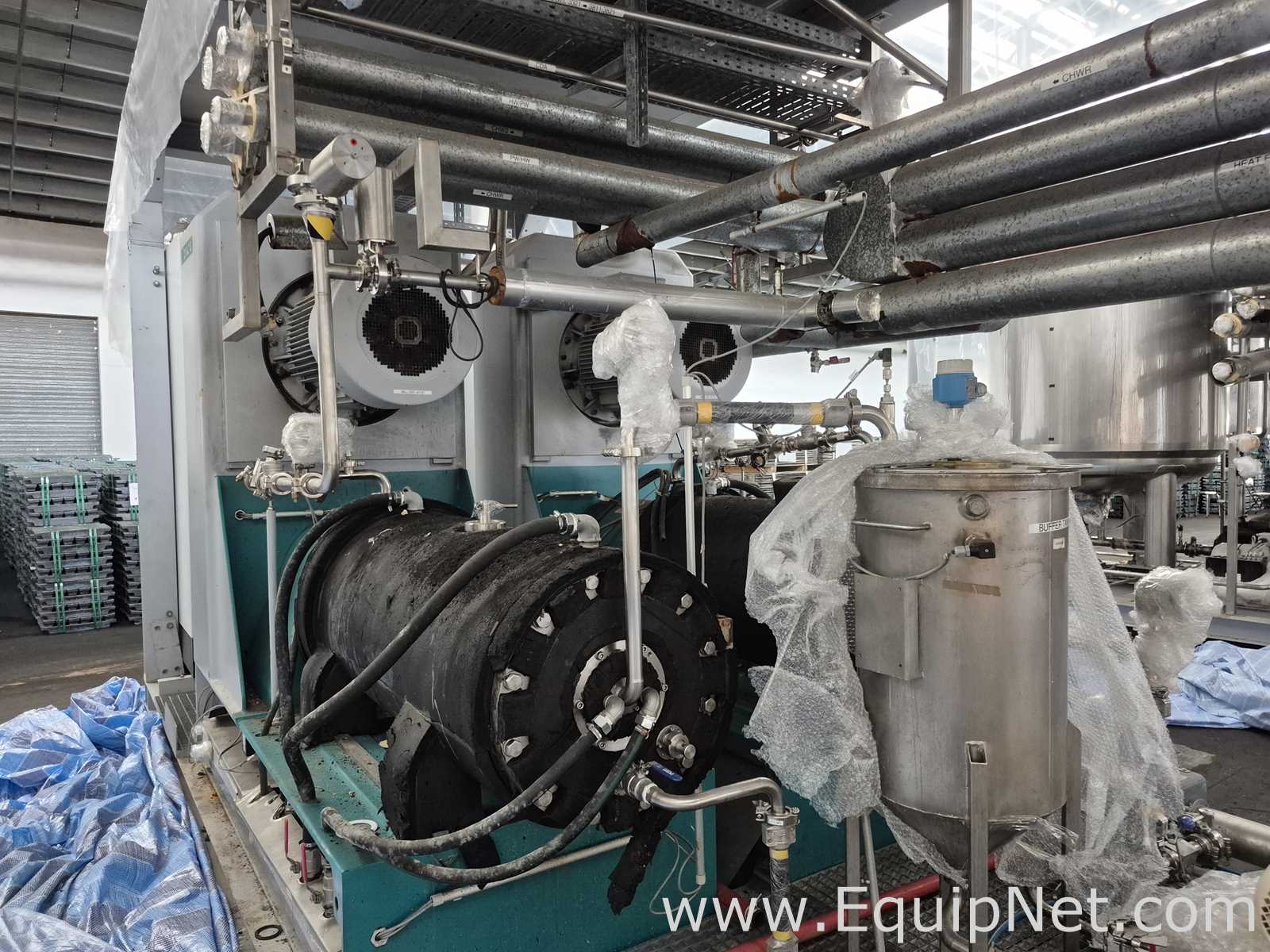

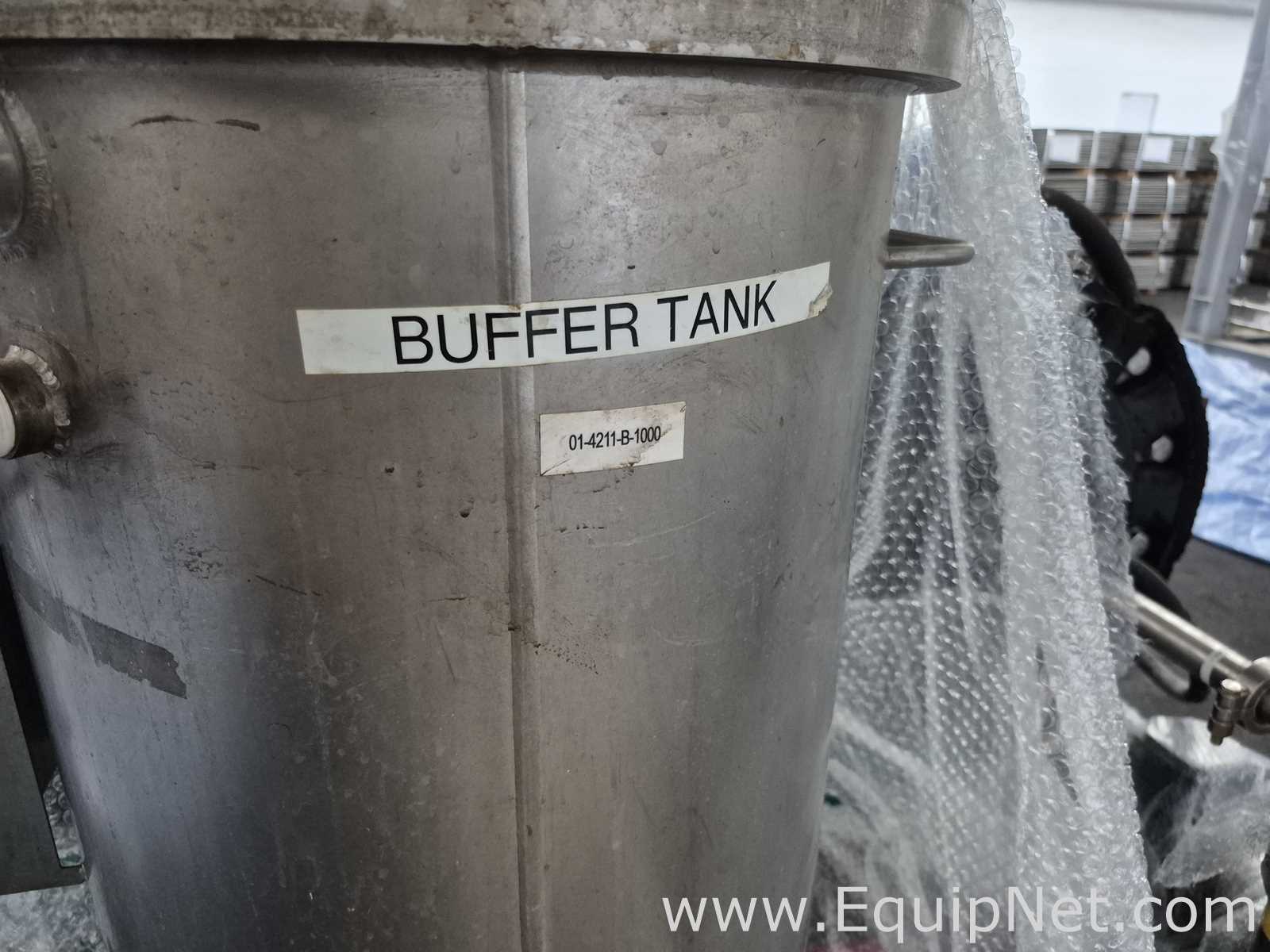

Netzsch Mixing - Service Tank - Skid 2-1 Milling System
Equipment Description

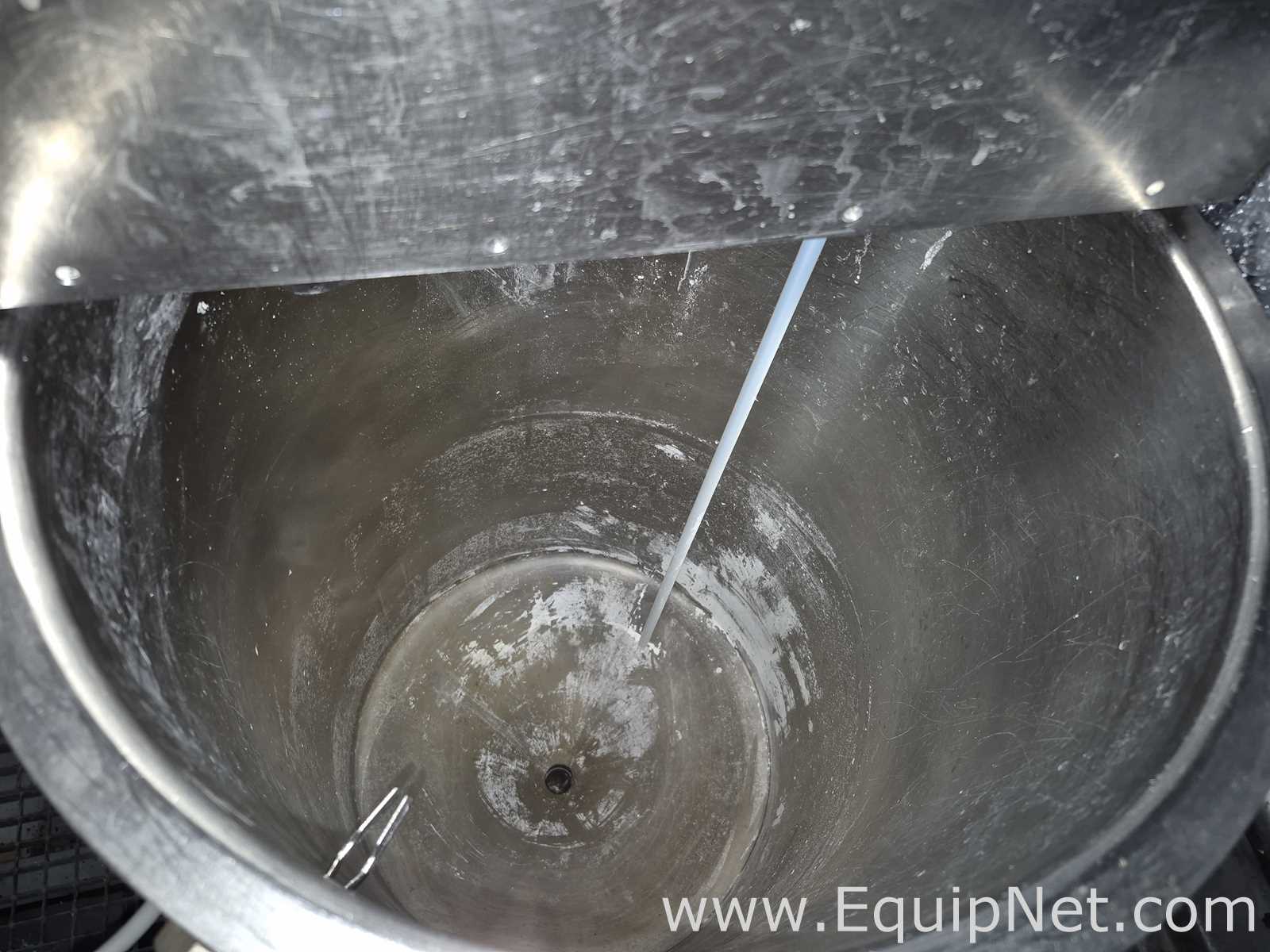

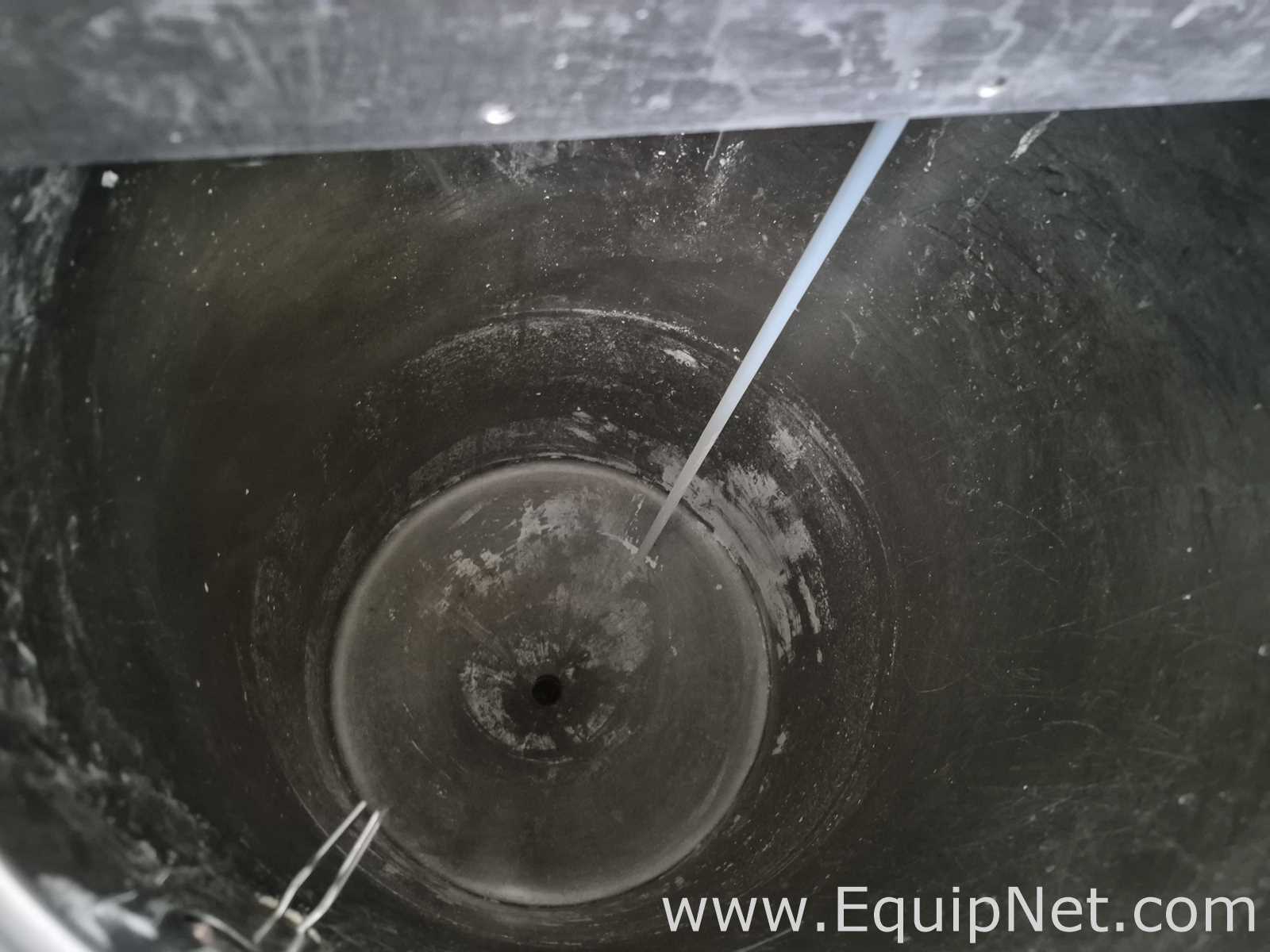

Netzsch Mixing - Service Tank - Skid 2-1 Milling System
Designed for Max operating pressure: Atm.
Designed for Max operating temperature: 90C.
Volume: 70-80 Lt.
Material: AISI 304.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Jacketed:
NO
NO
Type of Top Head:
FLAT
FLAT
Type of Bottom Head:
CONE
CONE
Vertical or Horizontal:
VERTICAL
VERTICAL
Agitation:
NO
NO
Recommended Packaging Form:
PALLET
PALLET
Dimensions:
Standard
Metric
Overall:
1 x 1 x 1 IN - 1 LBS
25.40 x 25.40 x 25.40 mm - 0.45 kg
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1038928

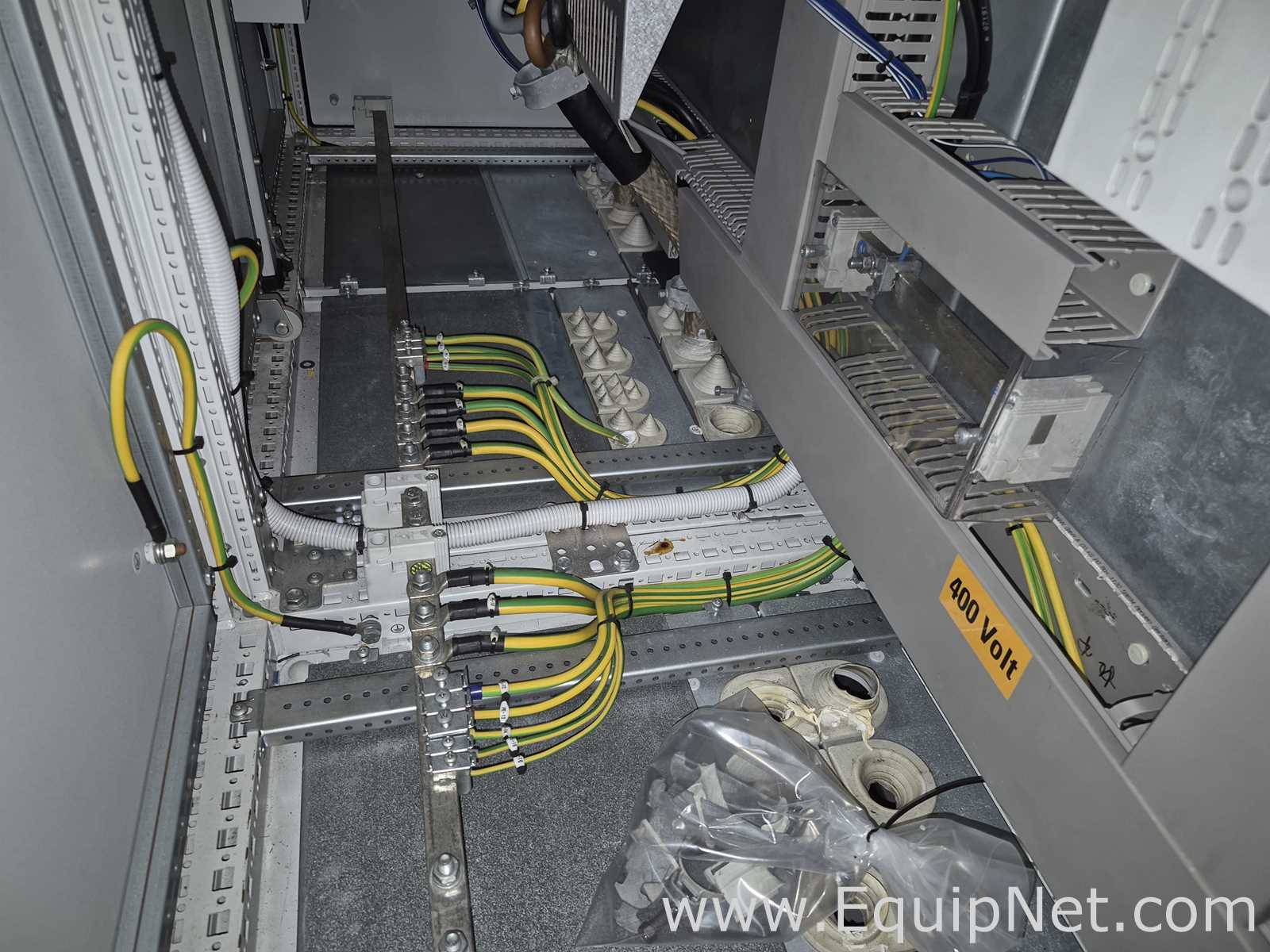

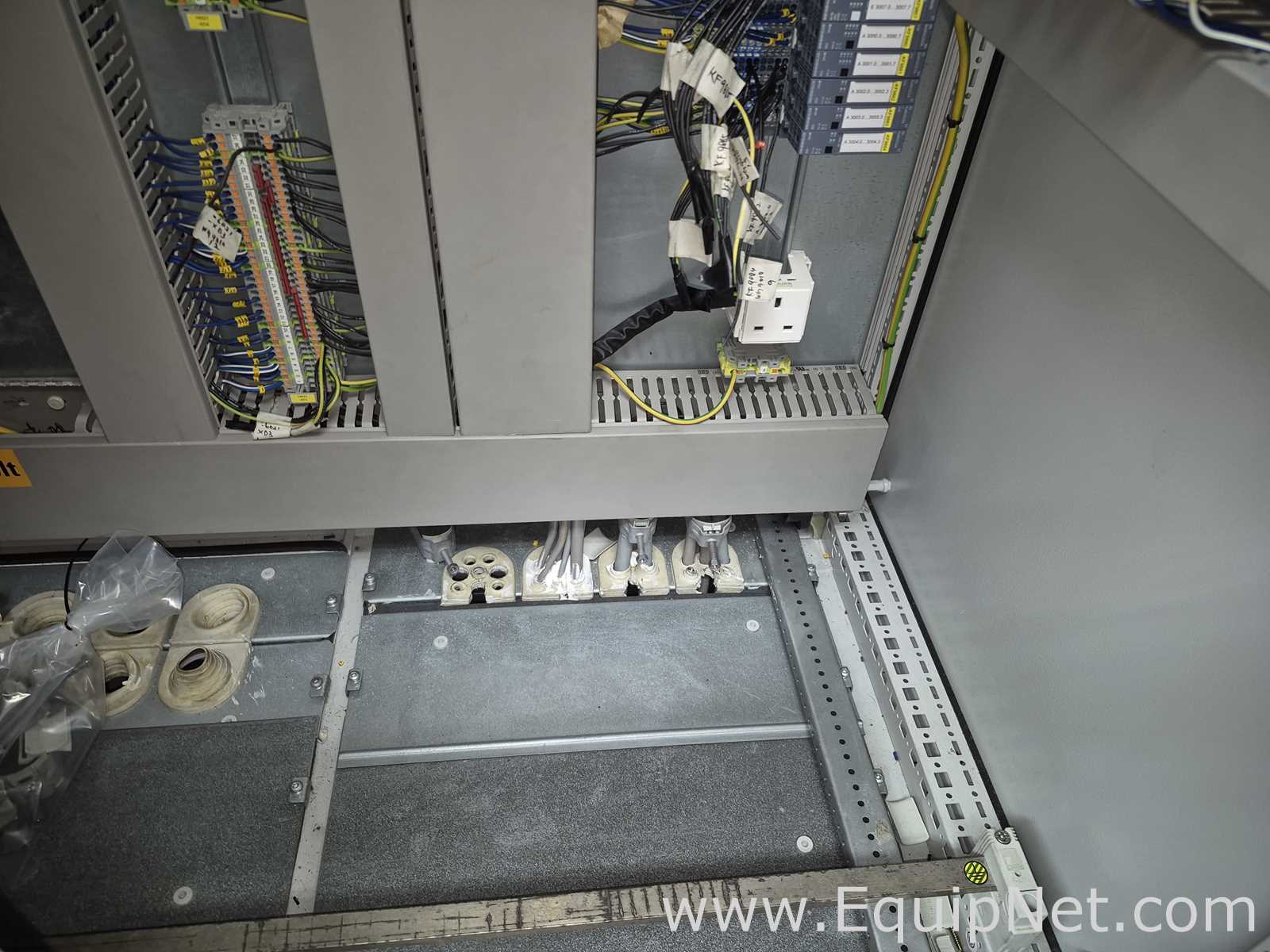

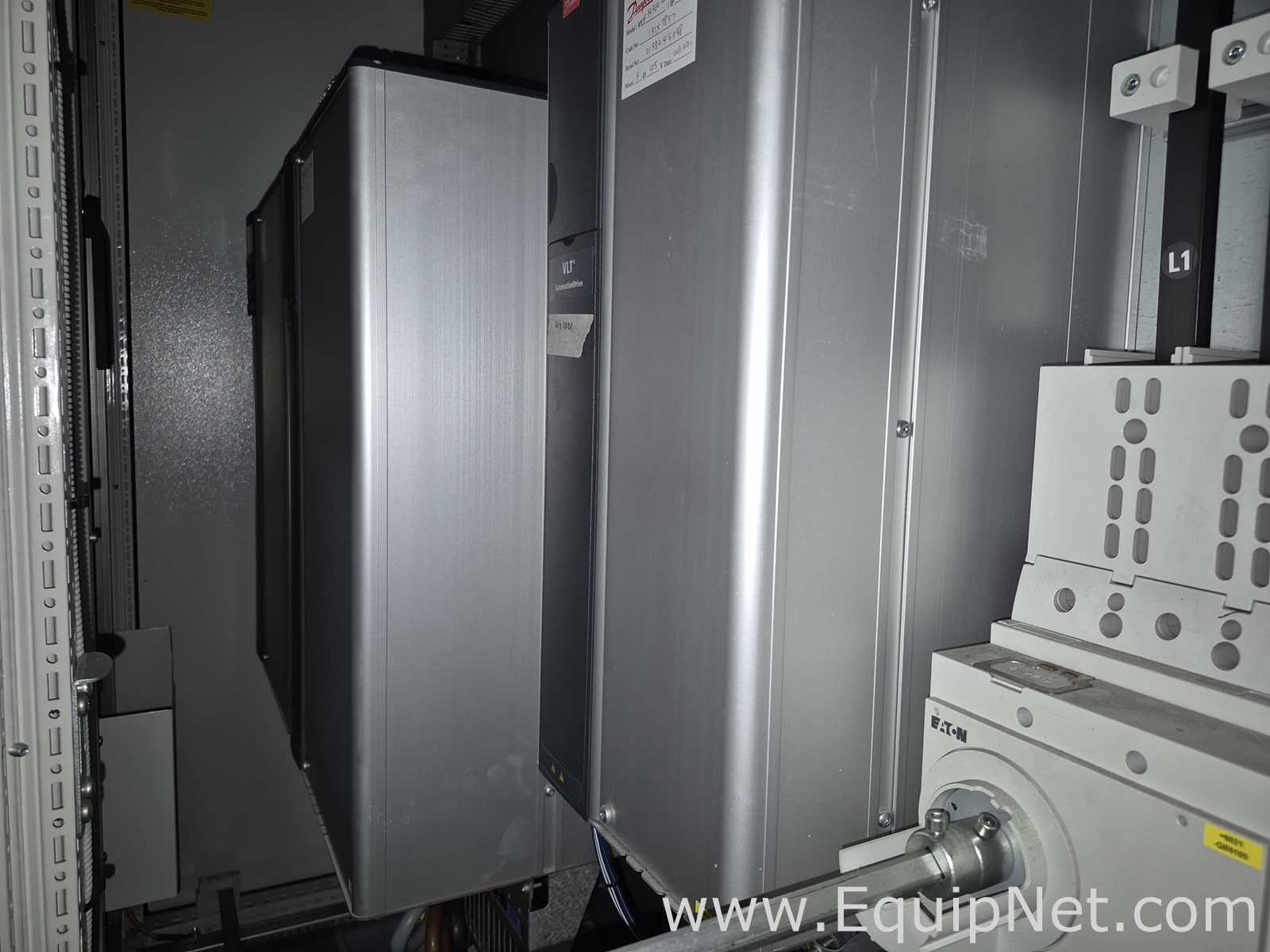

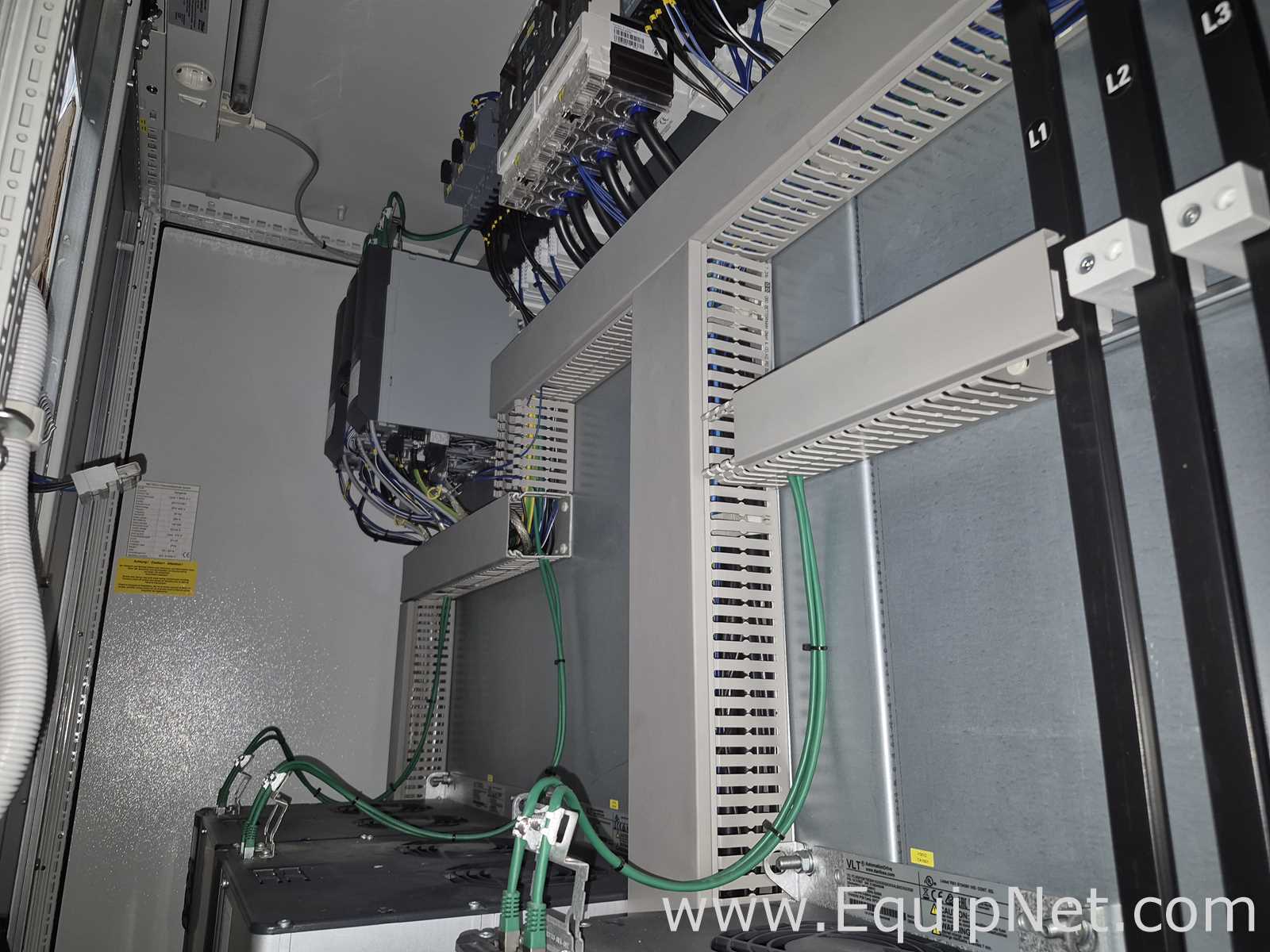

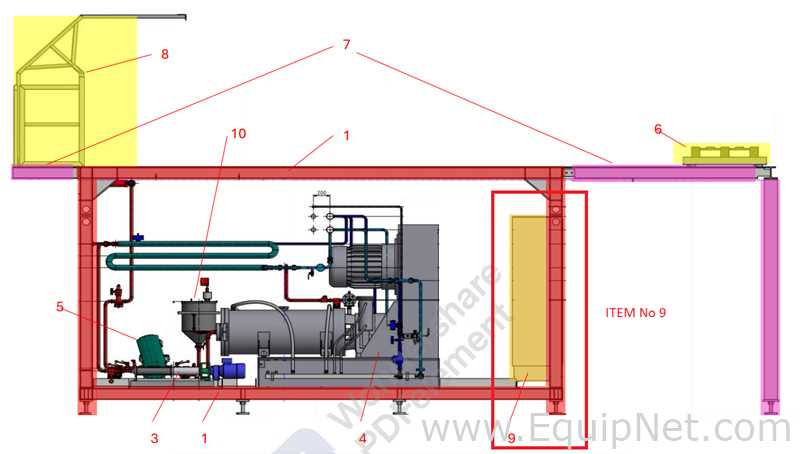

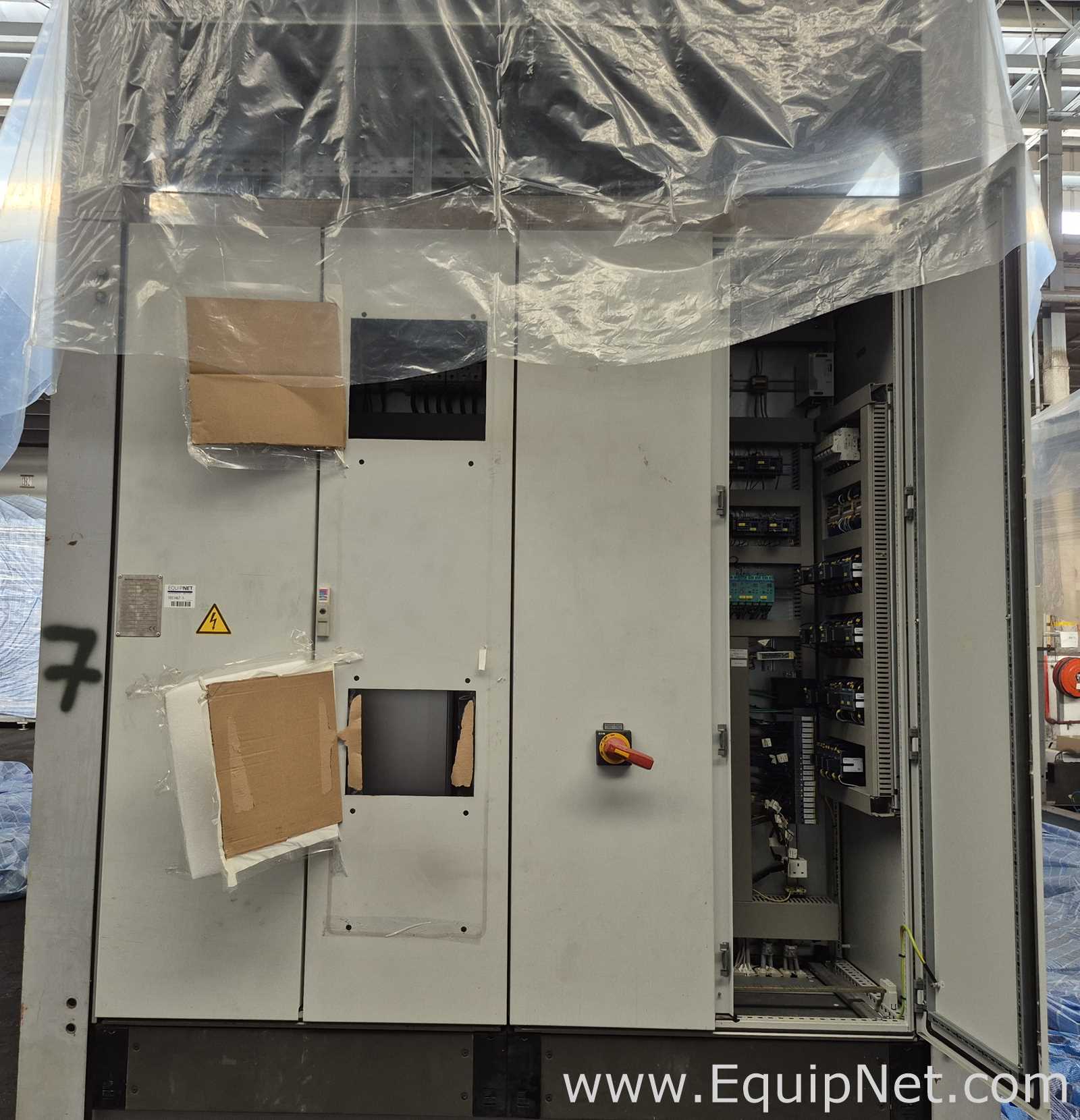

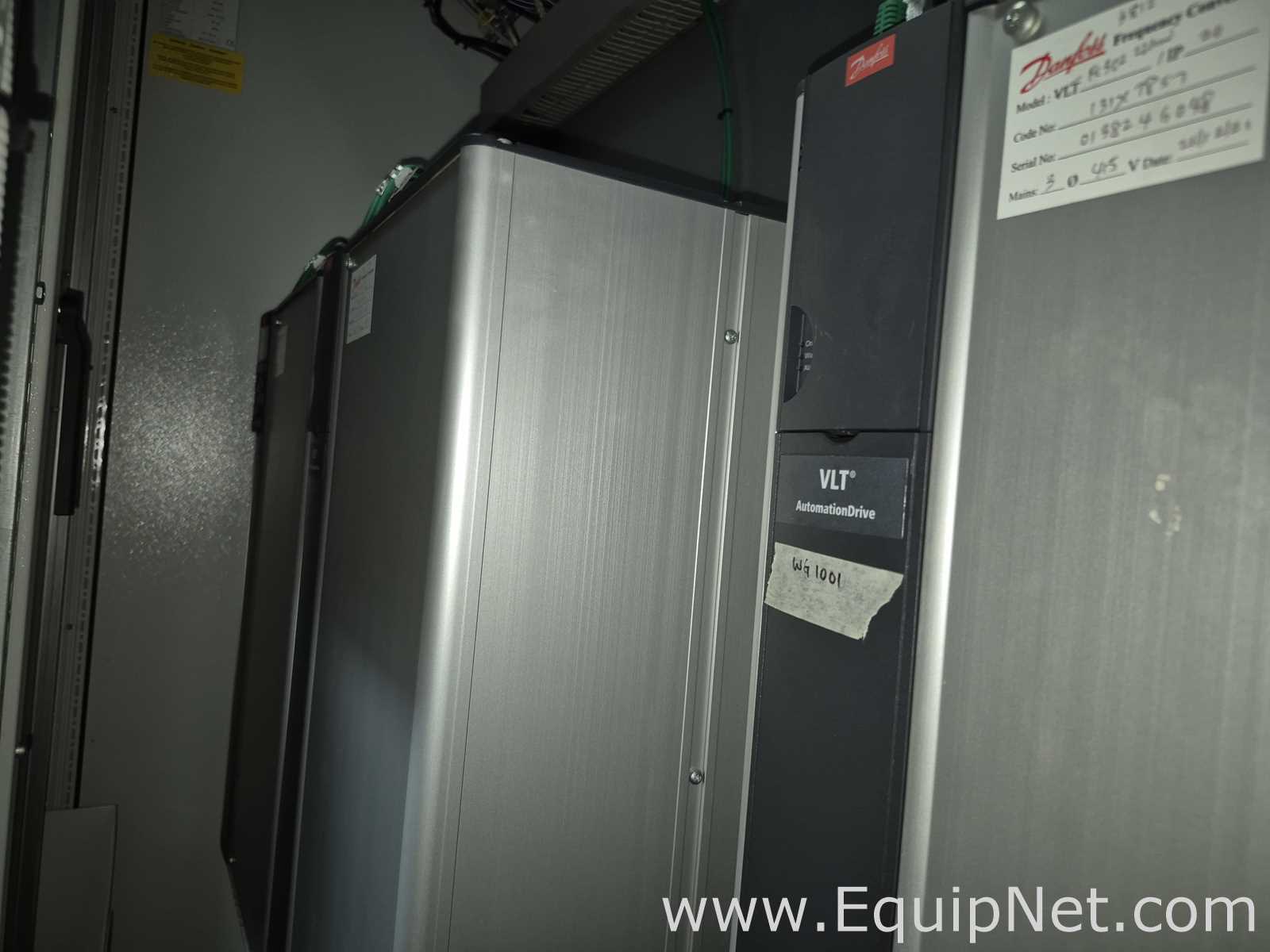

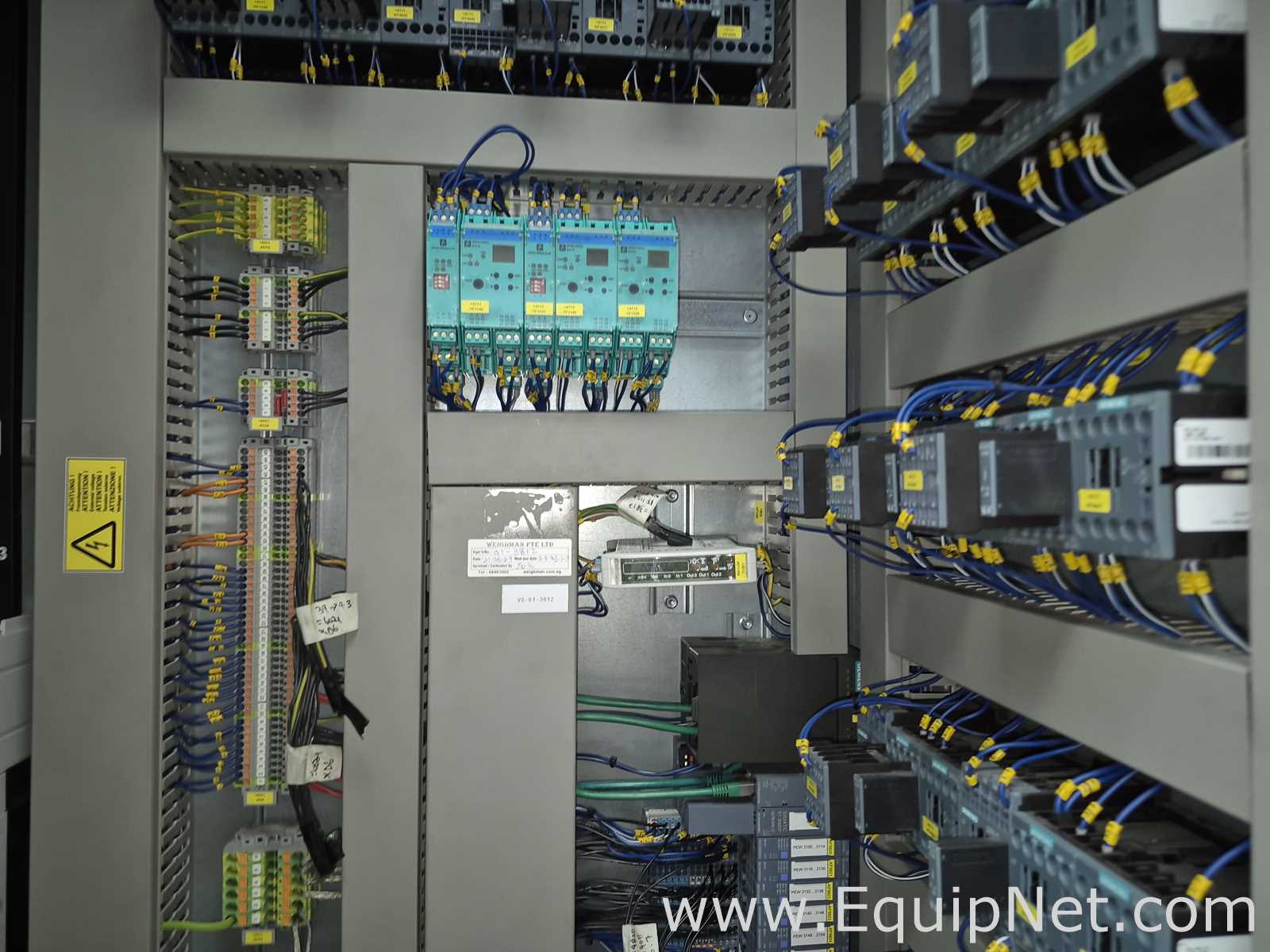

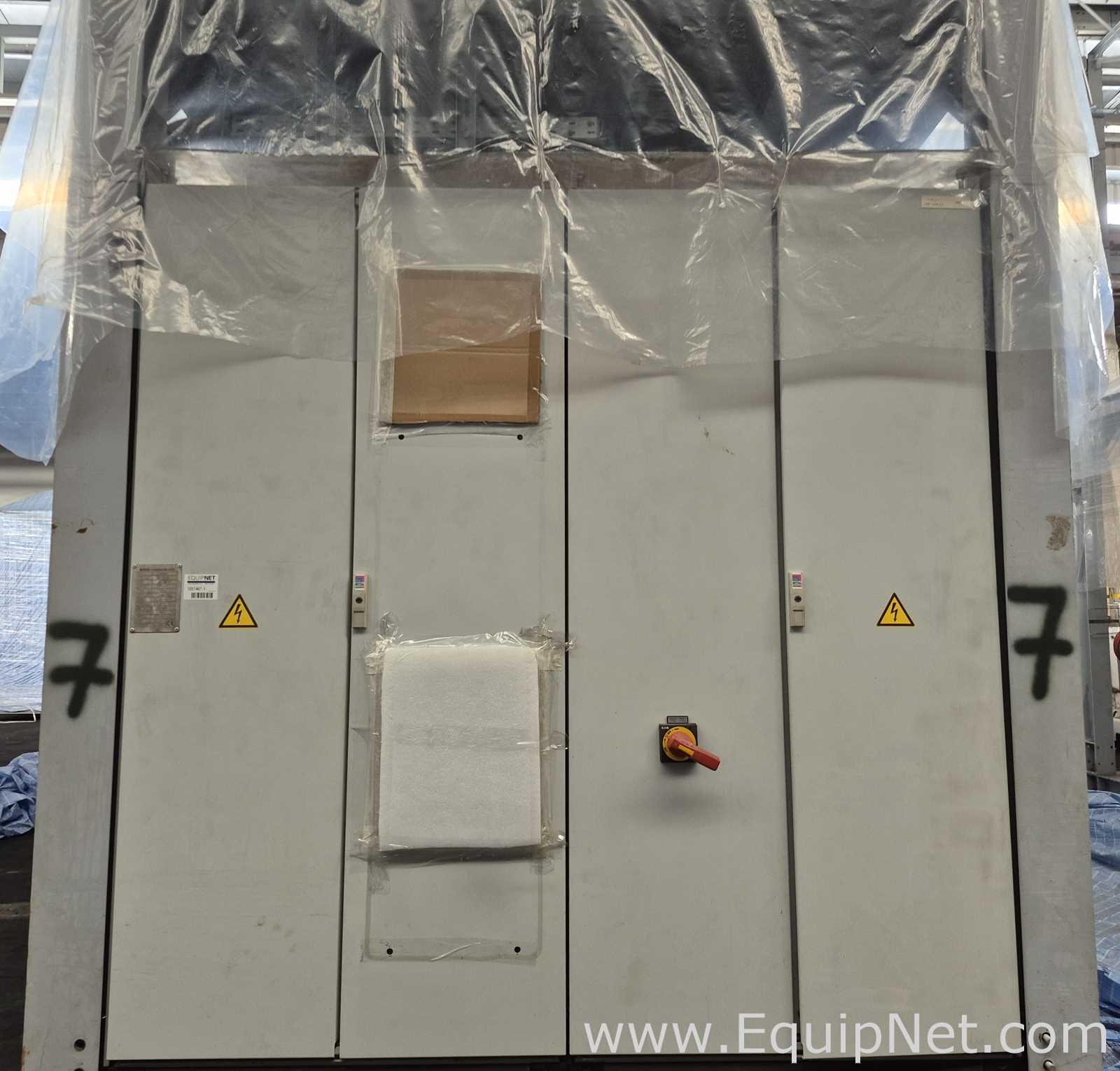

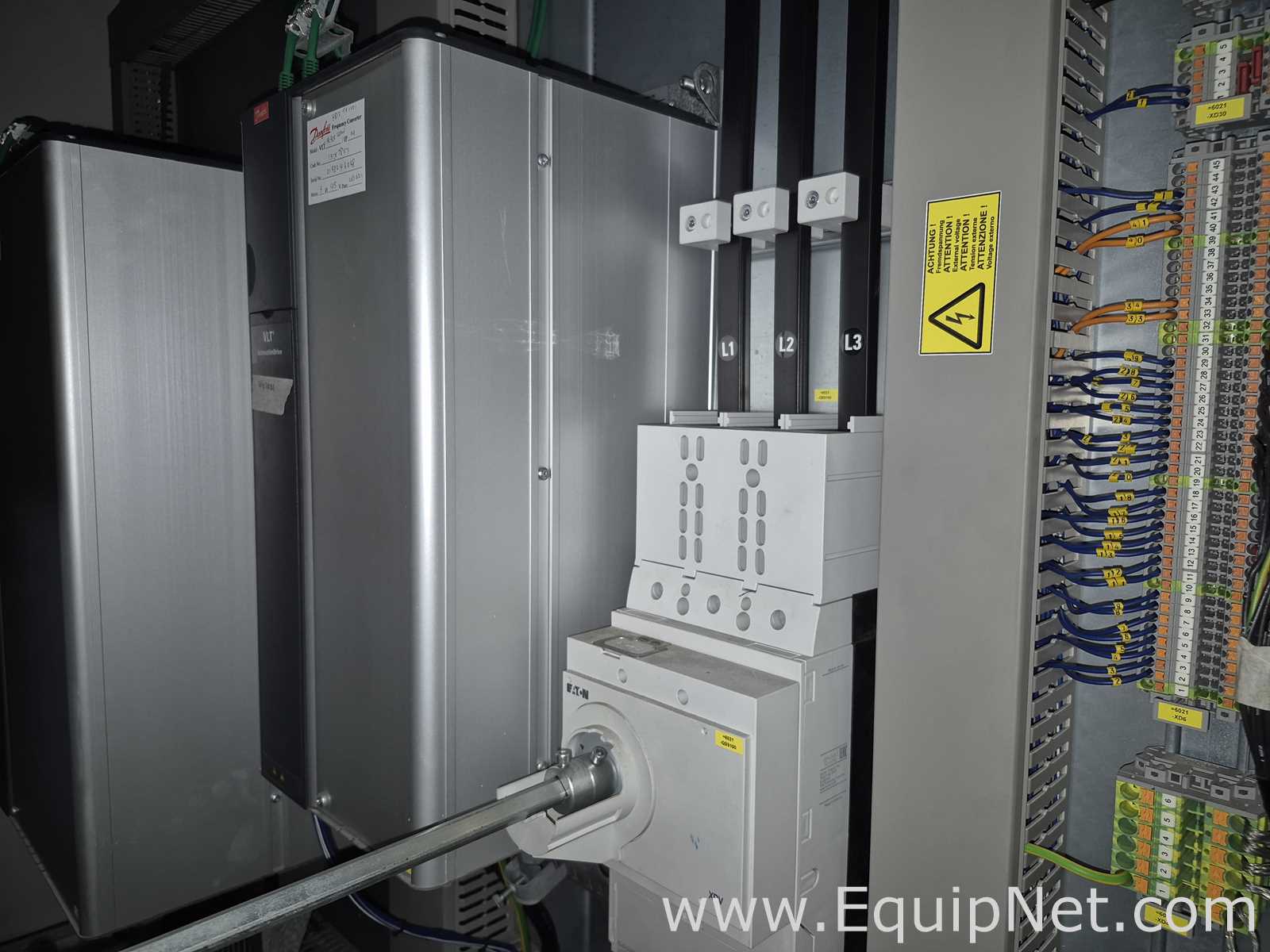

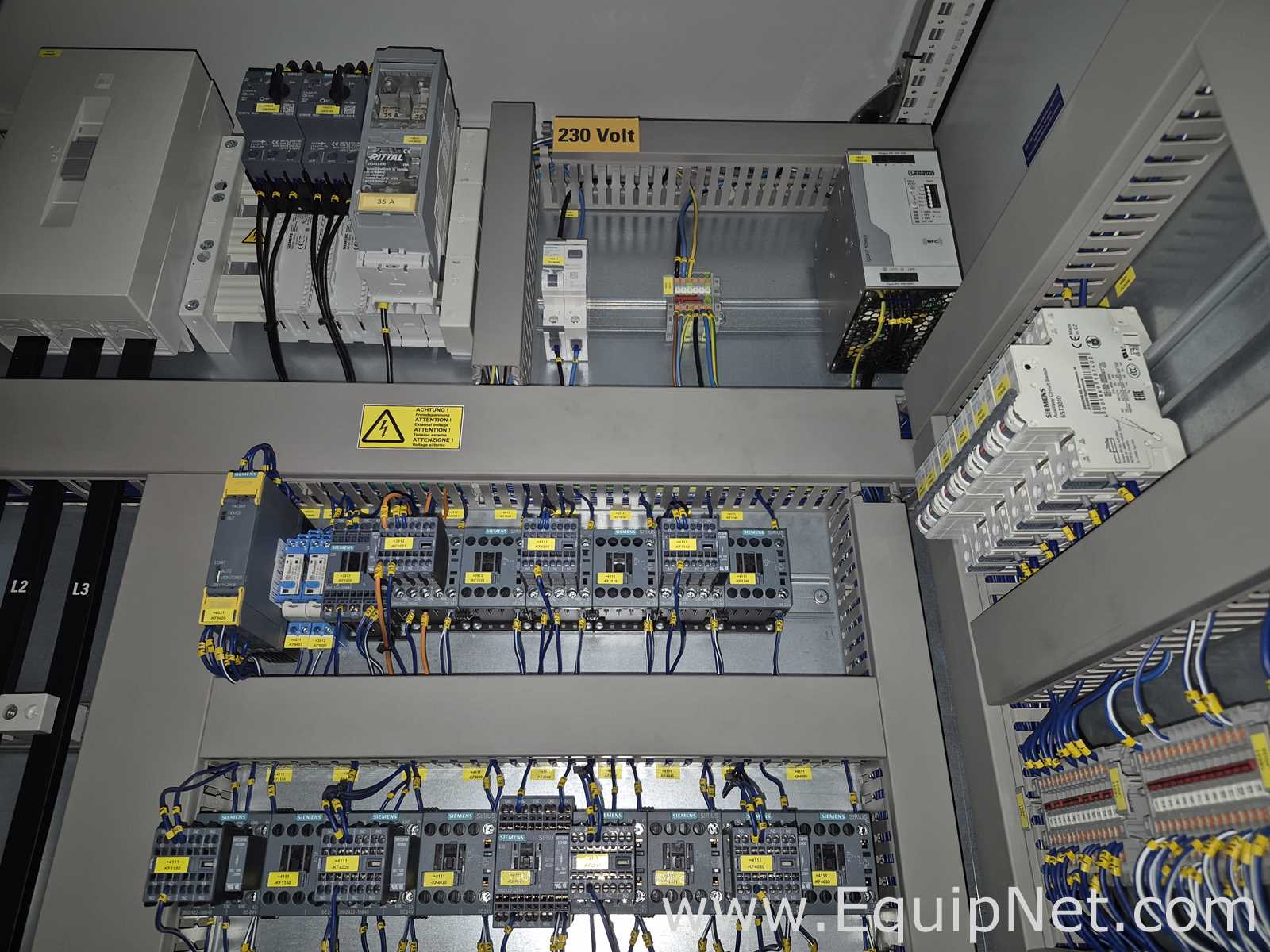

Netzsch Control Panel - Skid 2-1 Milling System
Equipment Description
Netzsch Control Panel - Skid 2-1 Milling System

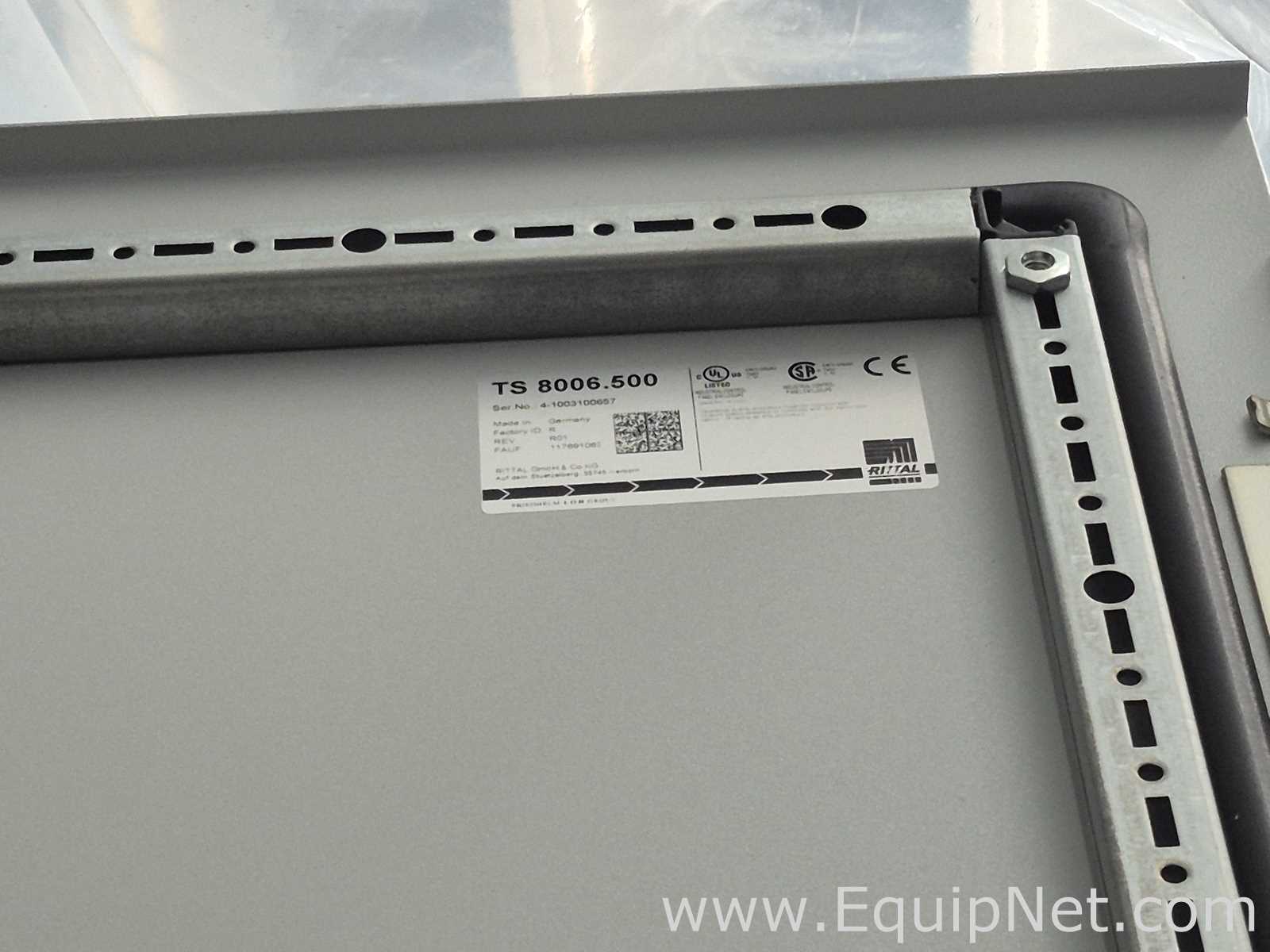

Switch cabinet 2000X2000X600 mm.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Recommended Packaging Form:
PALLET
PALLET
Dimensions:
Standard
Metric
Overall:
78.74 x 78.74 x 23.62 in - 440.92 lb
2000 x 2000 x 600 MM - 200 KGS
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
