Listing# 1107805

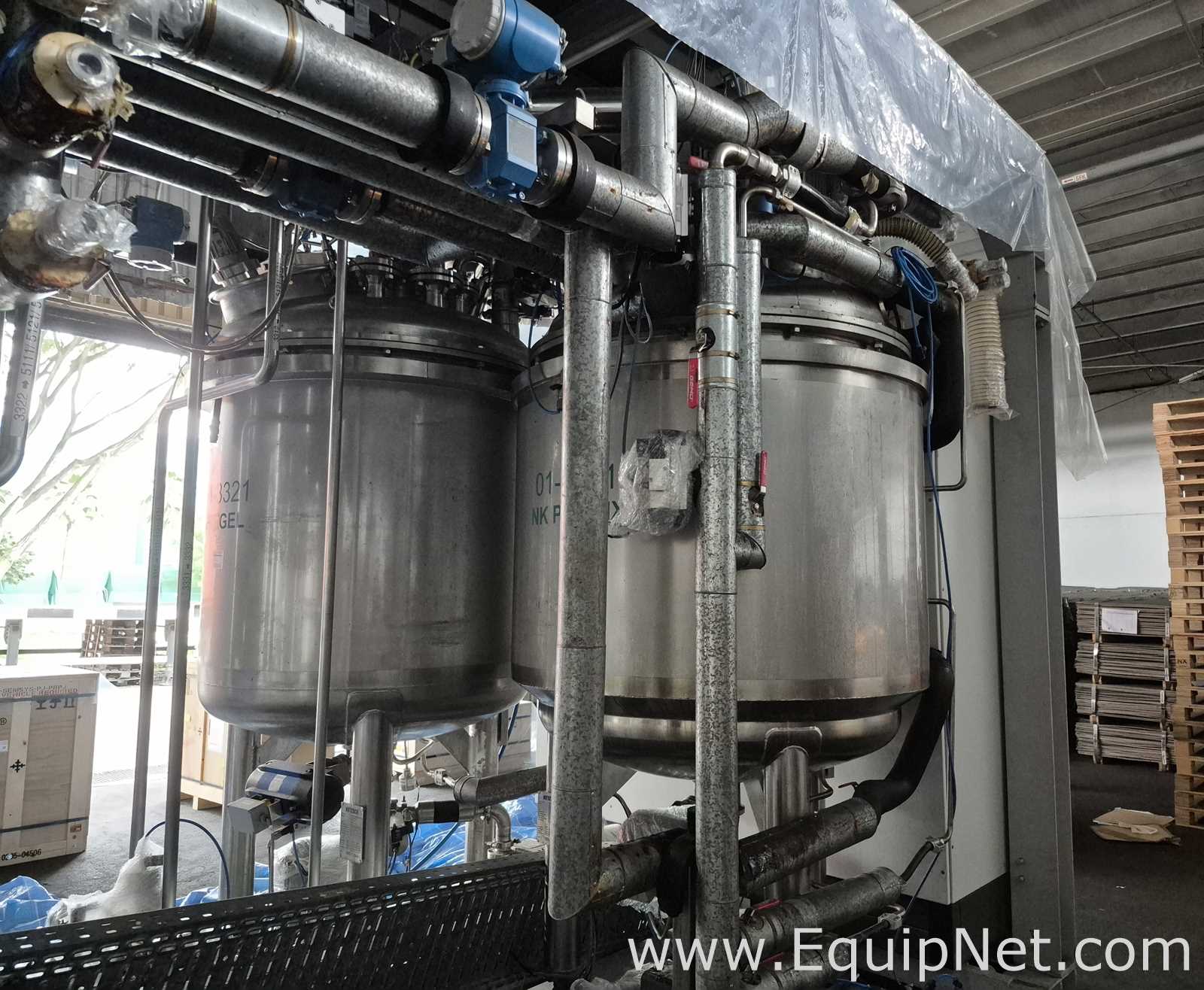

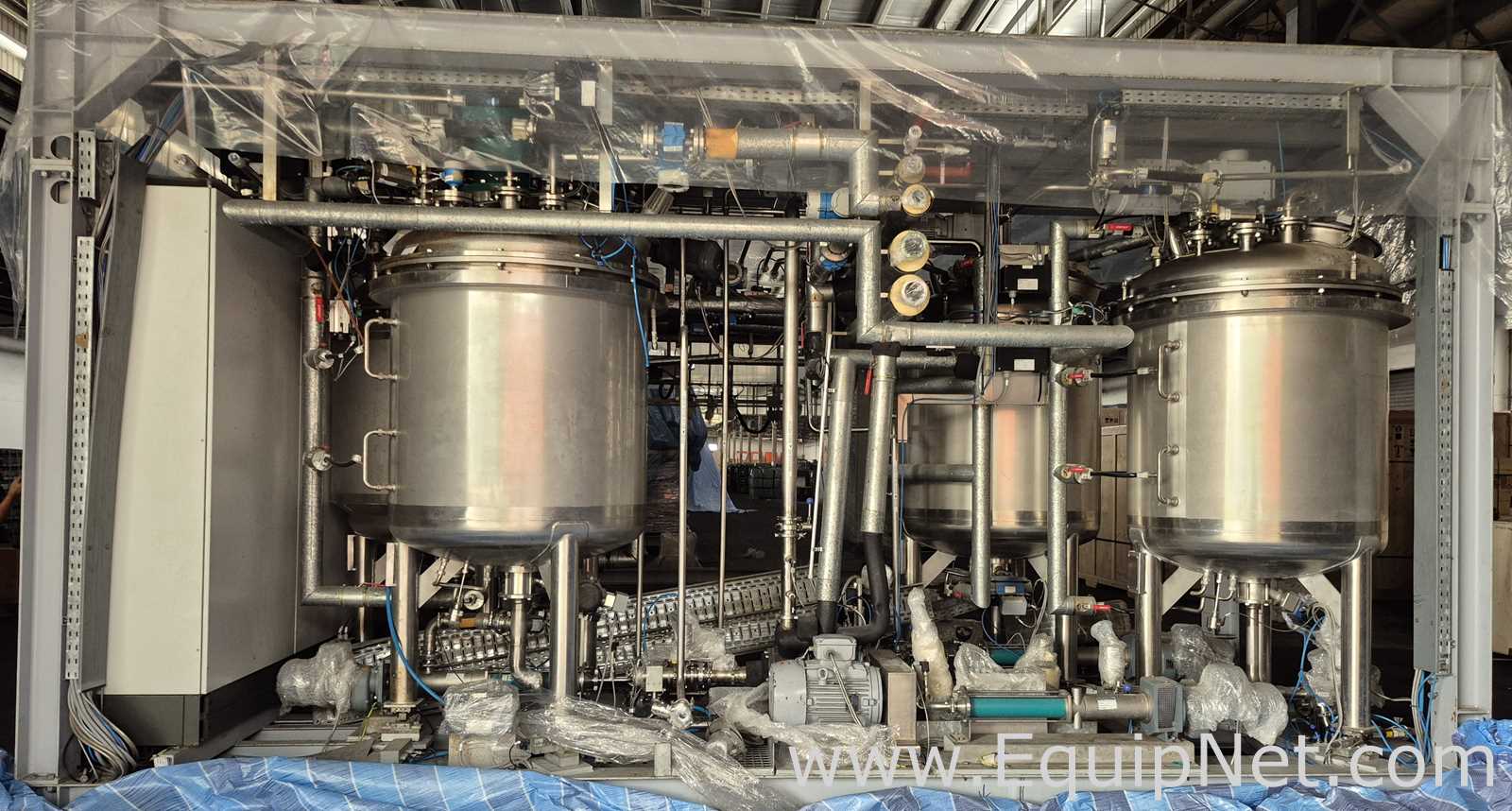

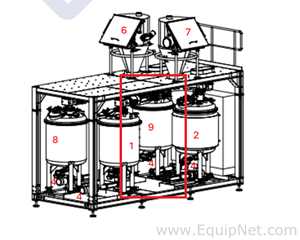

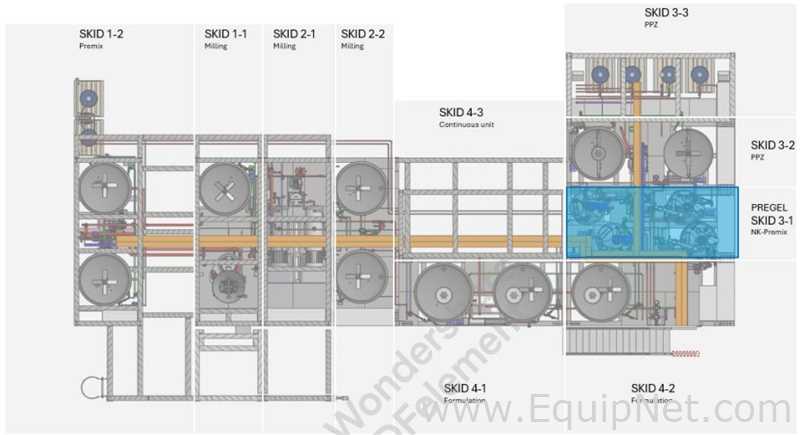

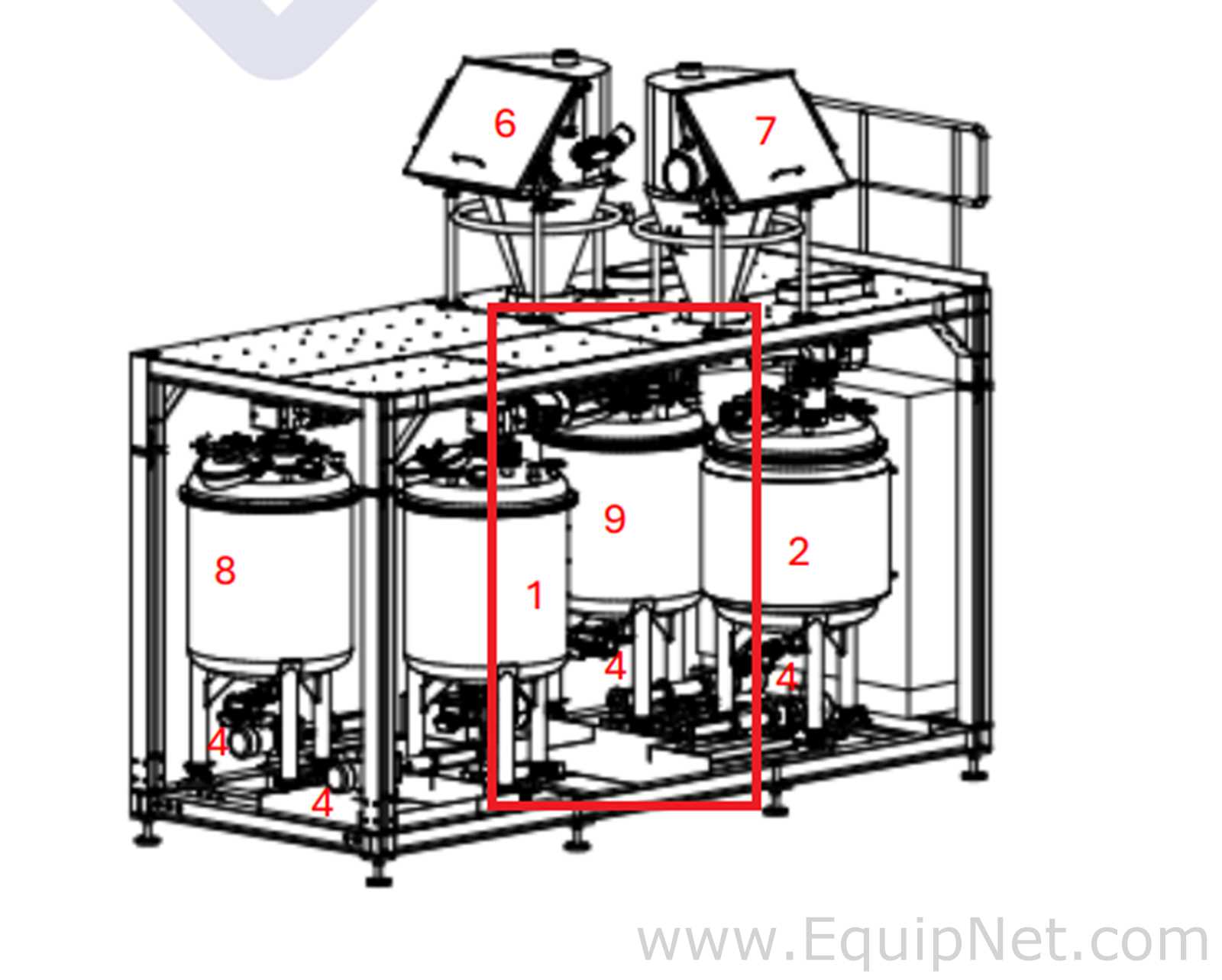

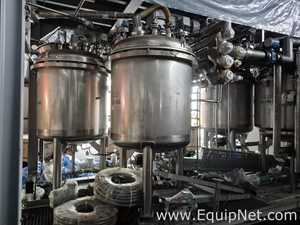

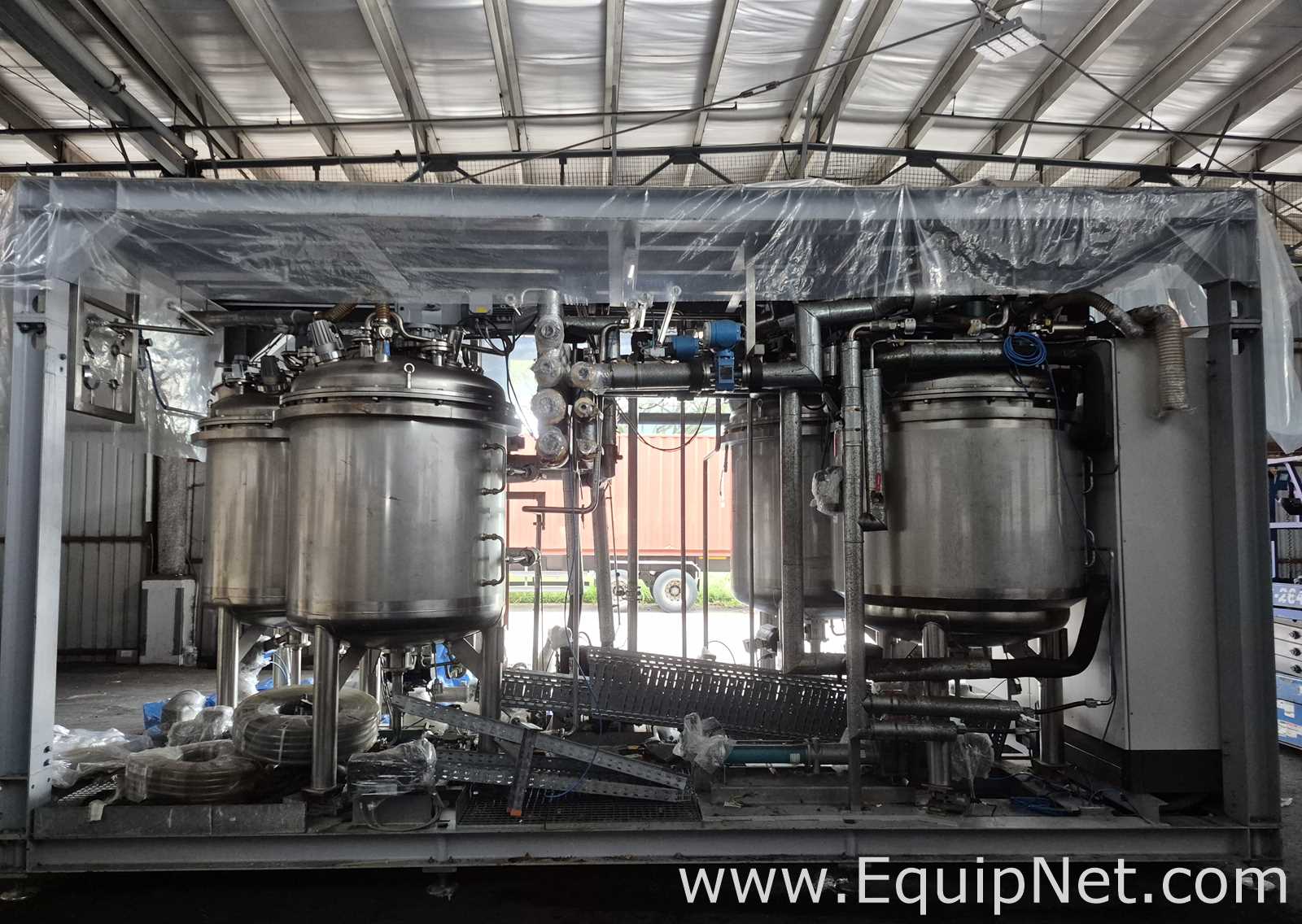

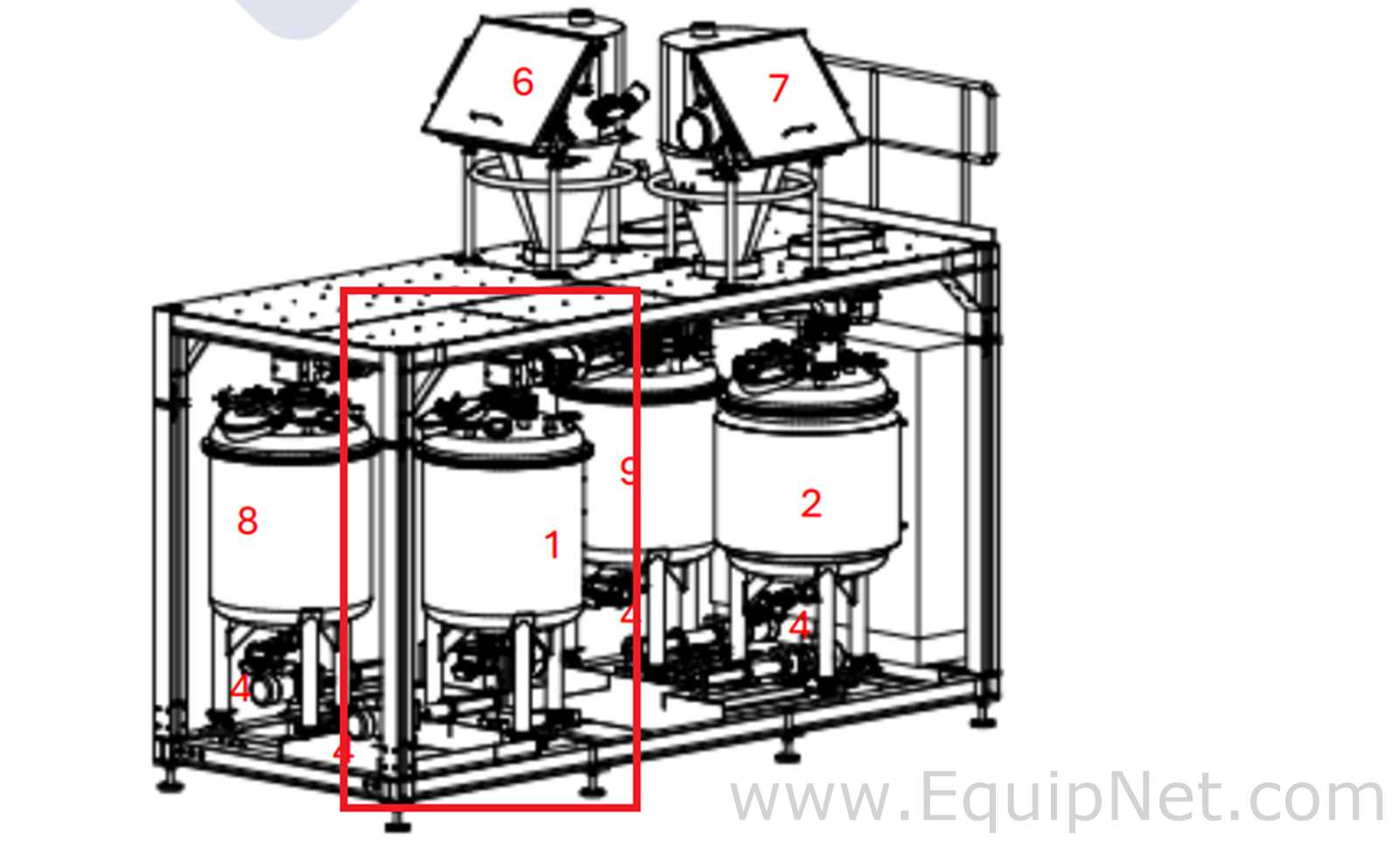

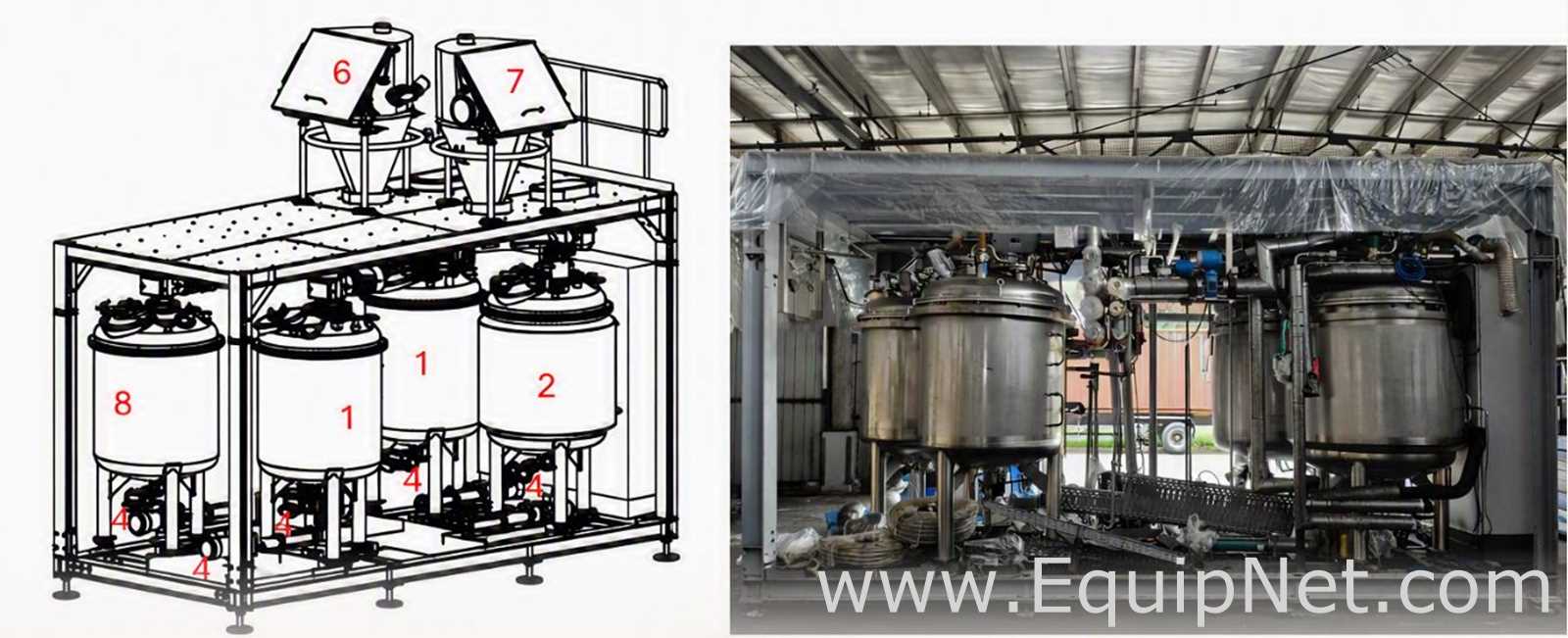

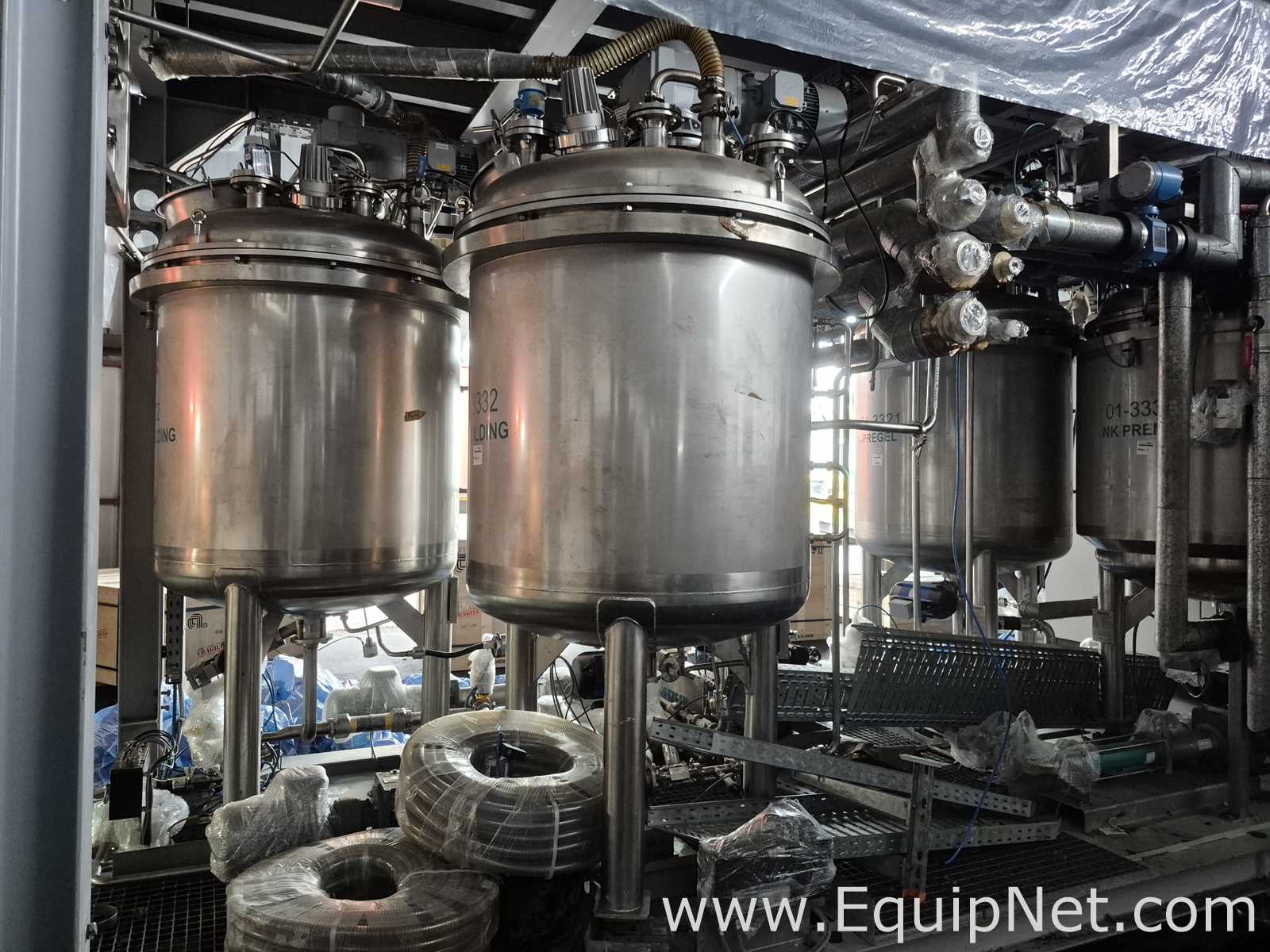

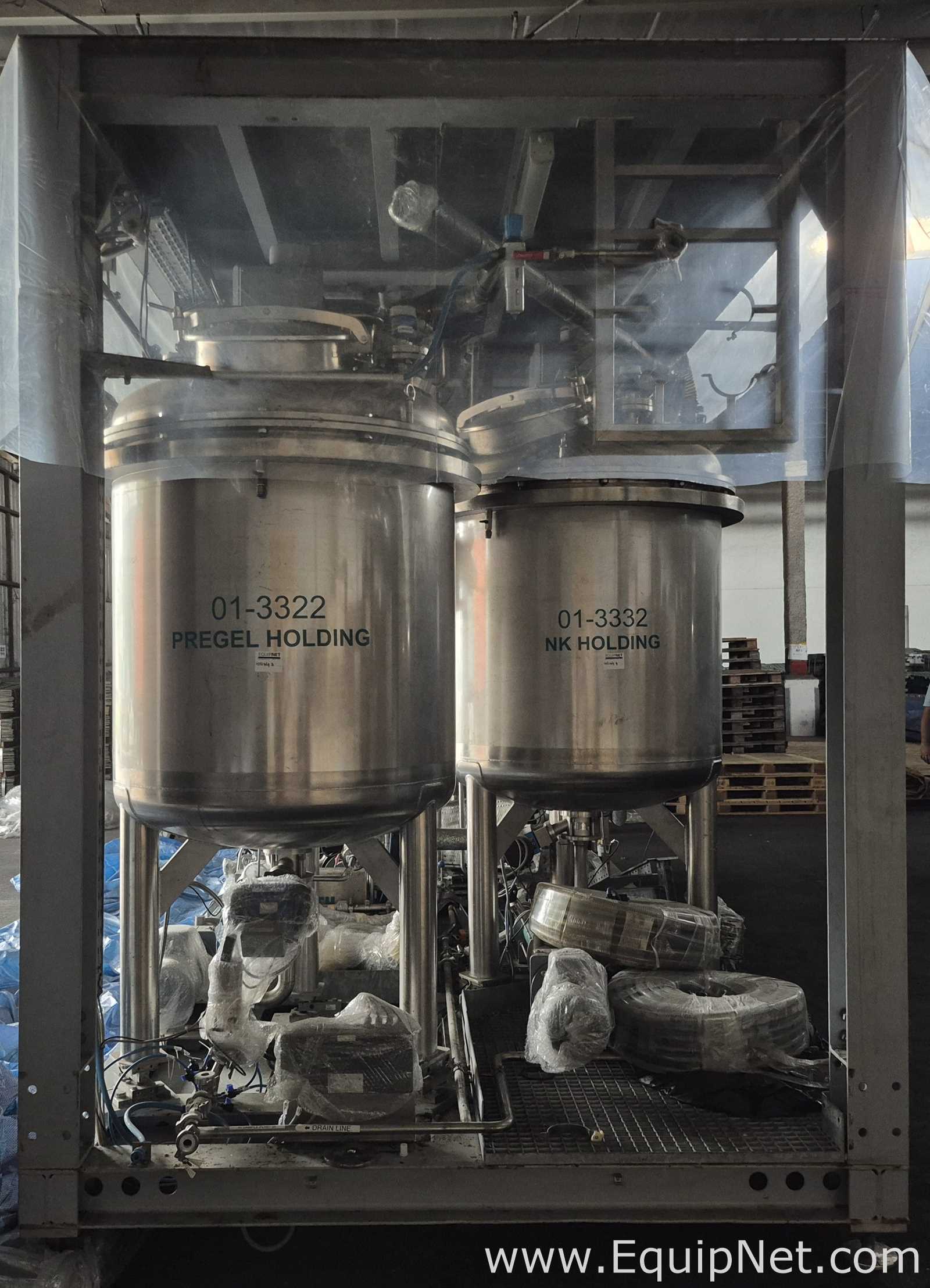

Netzsch Skid w Four 1000L SS Mix Tanks Netzsch Maxshear High Shear Mixer - Pregel NK-Premix Skid 3-1
THIS IS A MULTI-LISTING. VIEW INDIVIDUAL LISTINGS BY SCROLLING DOWN.
Pre-Owned NETZSCH Tank for Sale
Seller's Acceptable Currency:
$150,000.00 USD
Request More Info Make An OfferLocation: Singapore
Level of Removal: Still Installed
*All offers are submitted in Seller’s Acceptable Currency
Don't see what you're looking for? We'll find it for you
Equipment Description

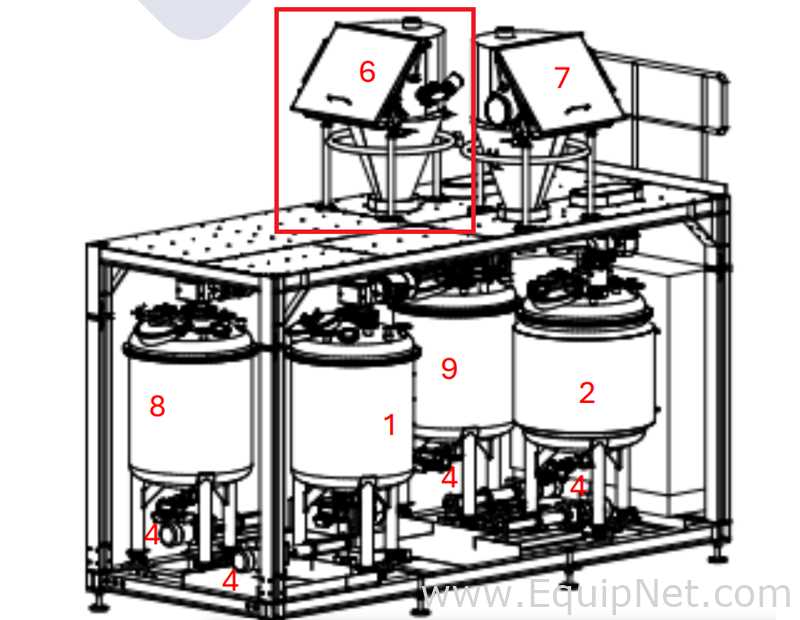

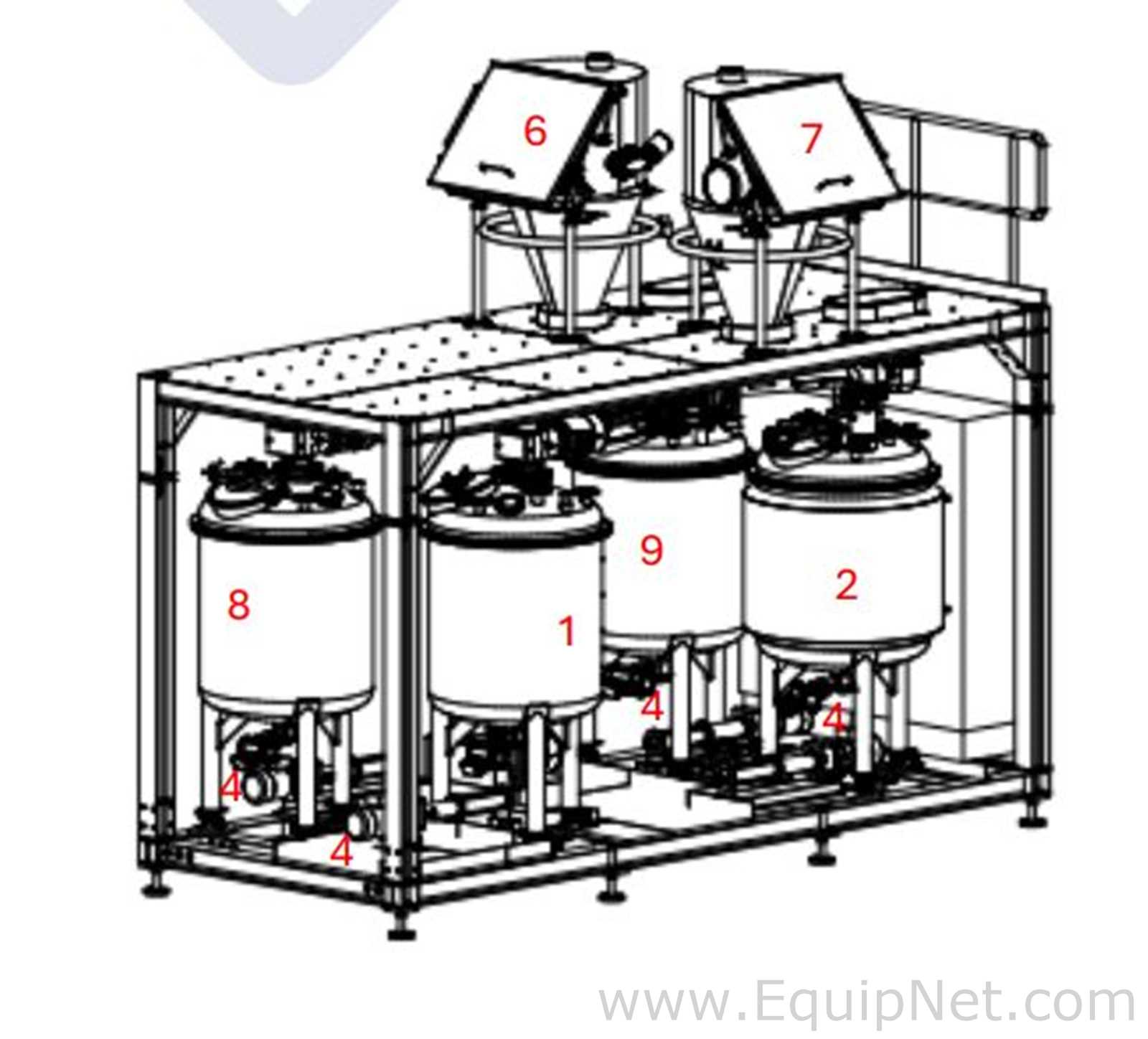

Includes:
Netzsch NK Pre Blend Tank 1000 L 01-3332.
Netzsch NK Premix Tank 1000 L 01-3331.
Netzsch NK-Premix Vessel 1000 L 01-3322.
Netzsch Pregel Tank 1000 L 01-3321.
Netzsch MaxShear Inline Mixer 01-3521-A-1000.
Netzsch NEMO NM038 Pumps x4.

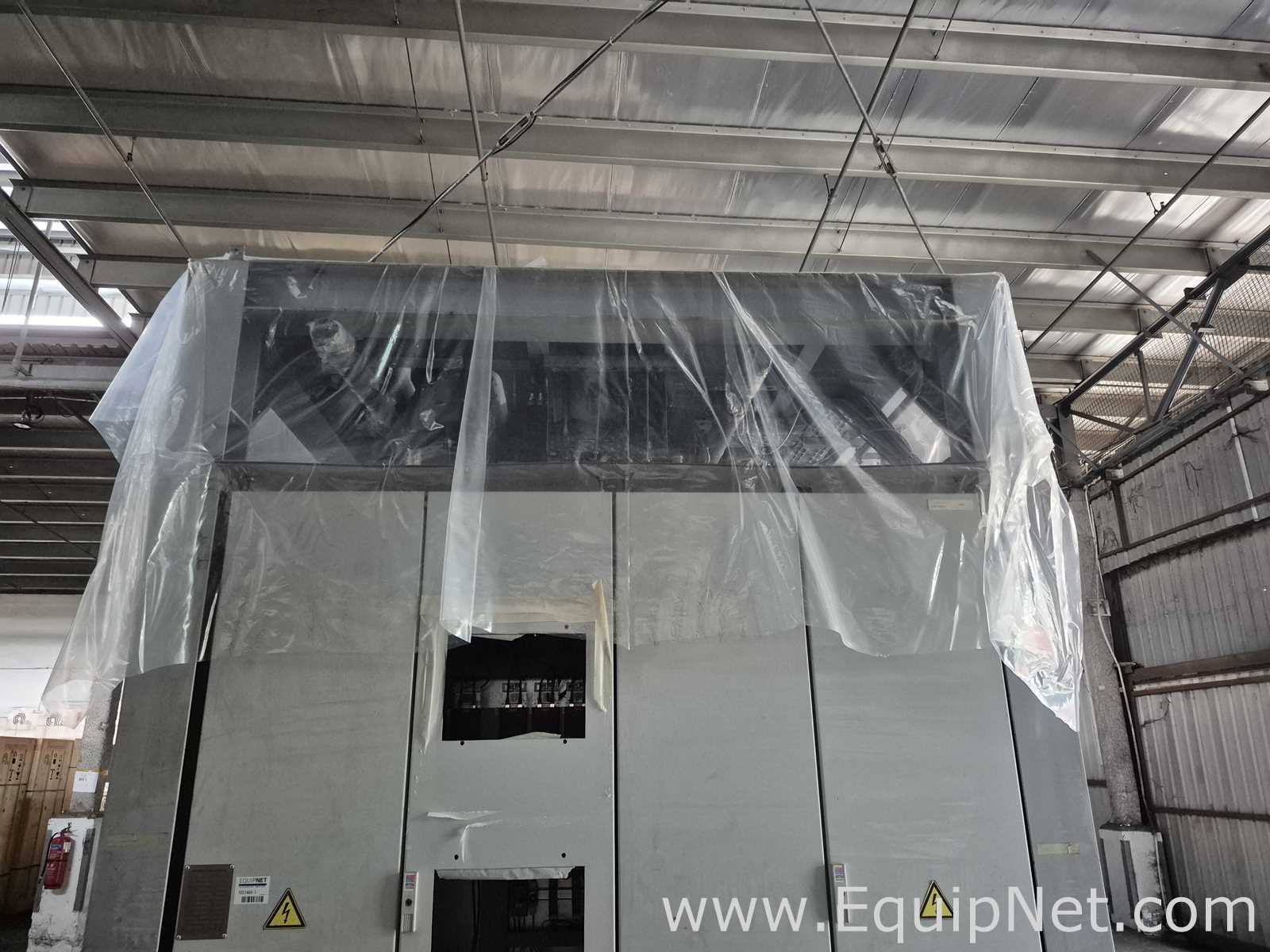

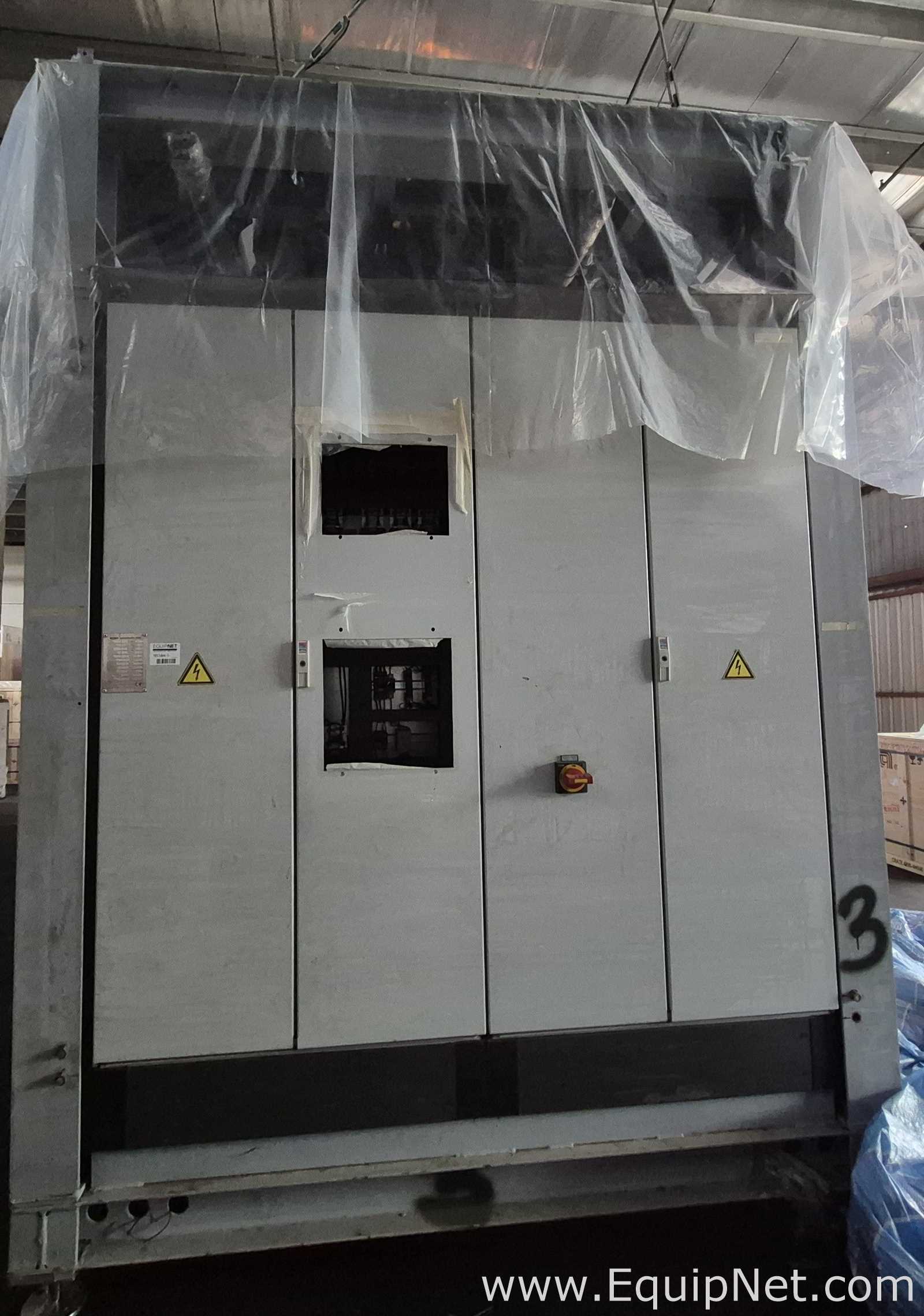

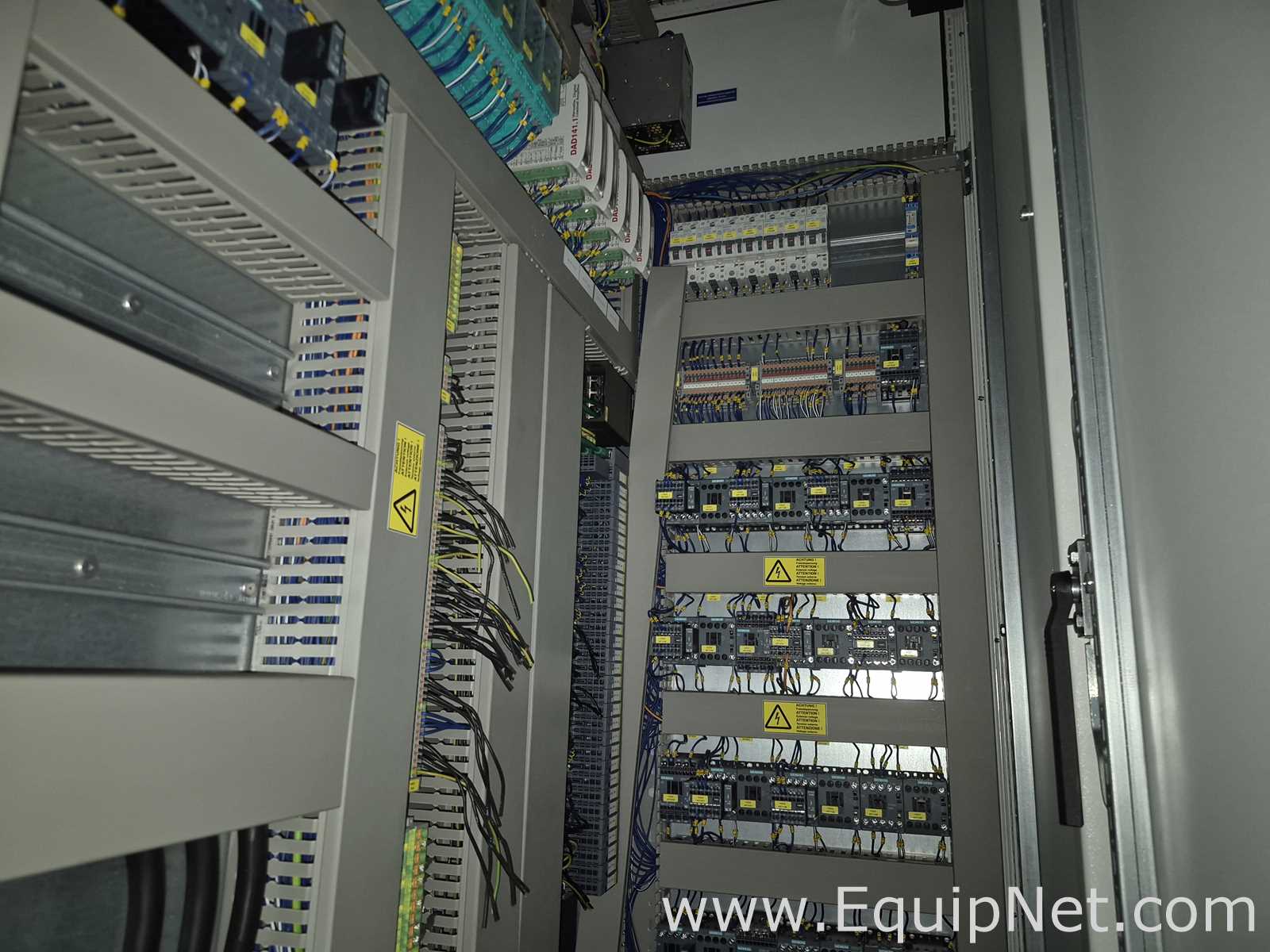

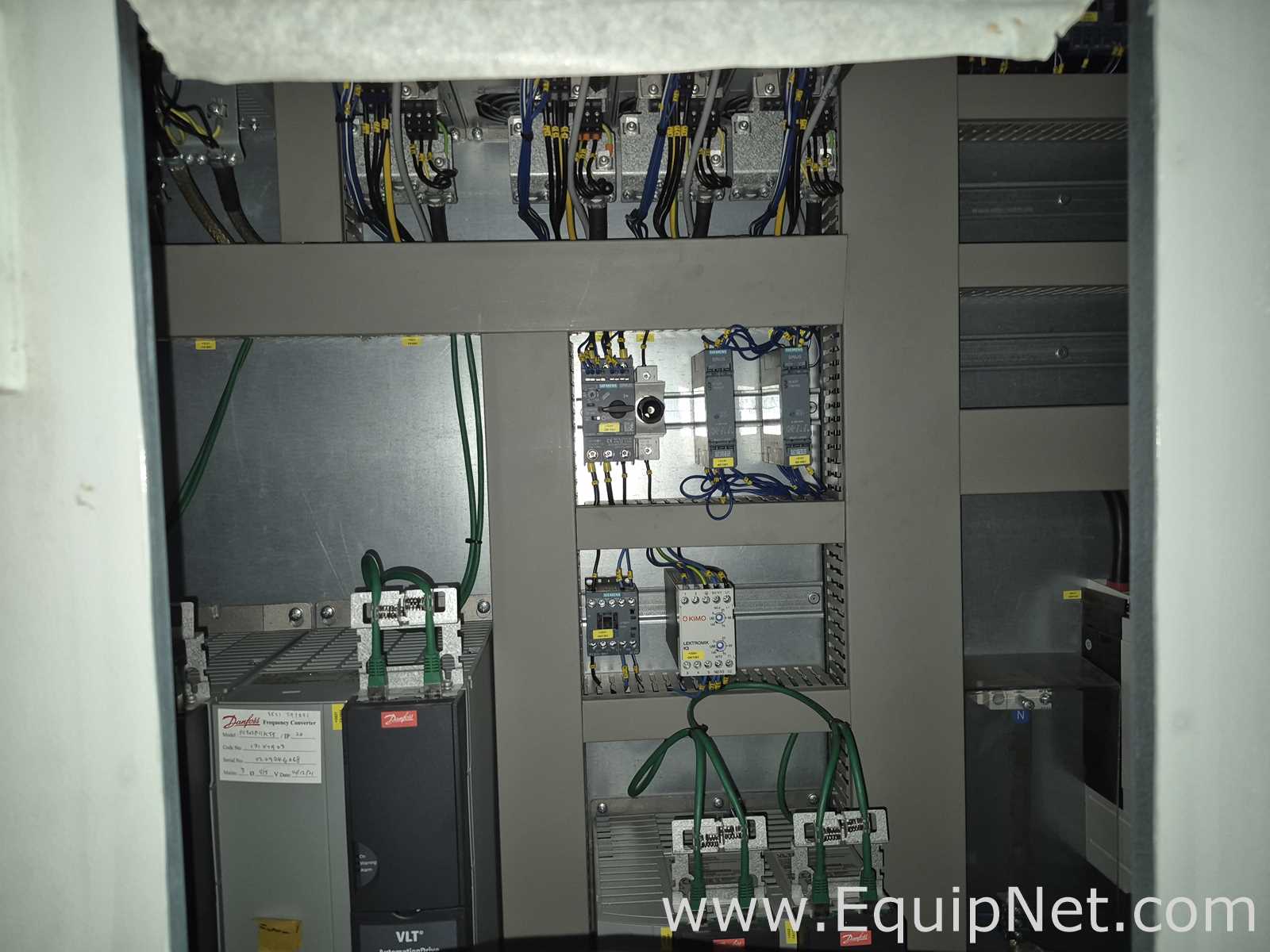

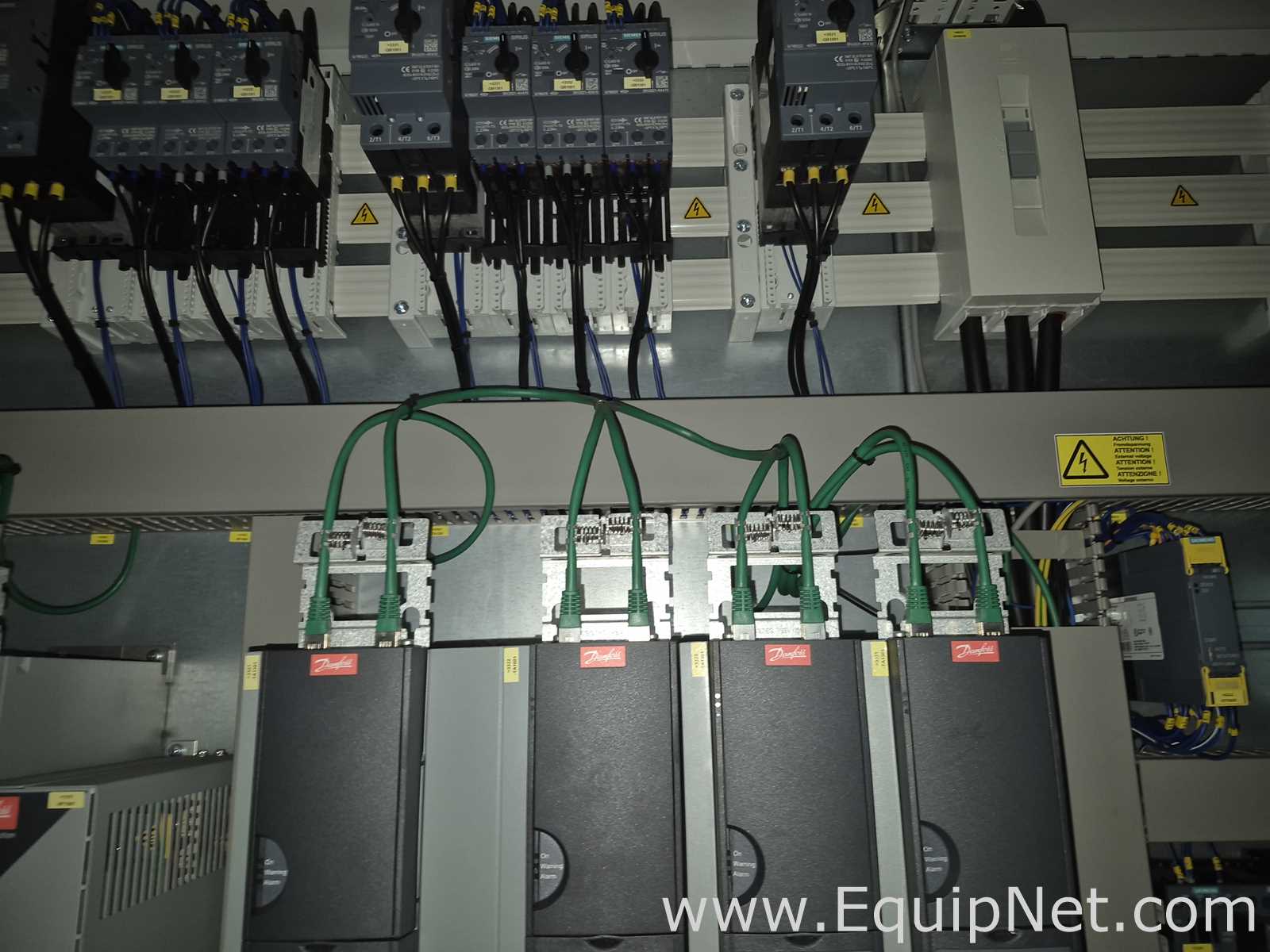

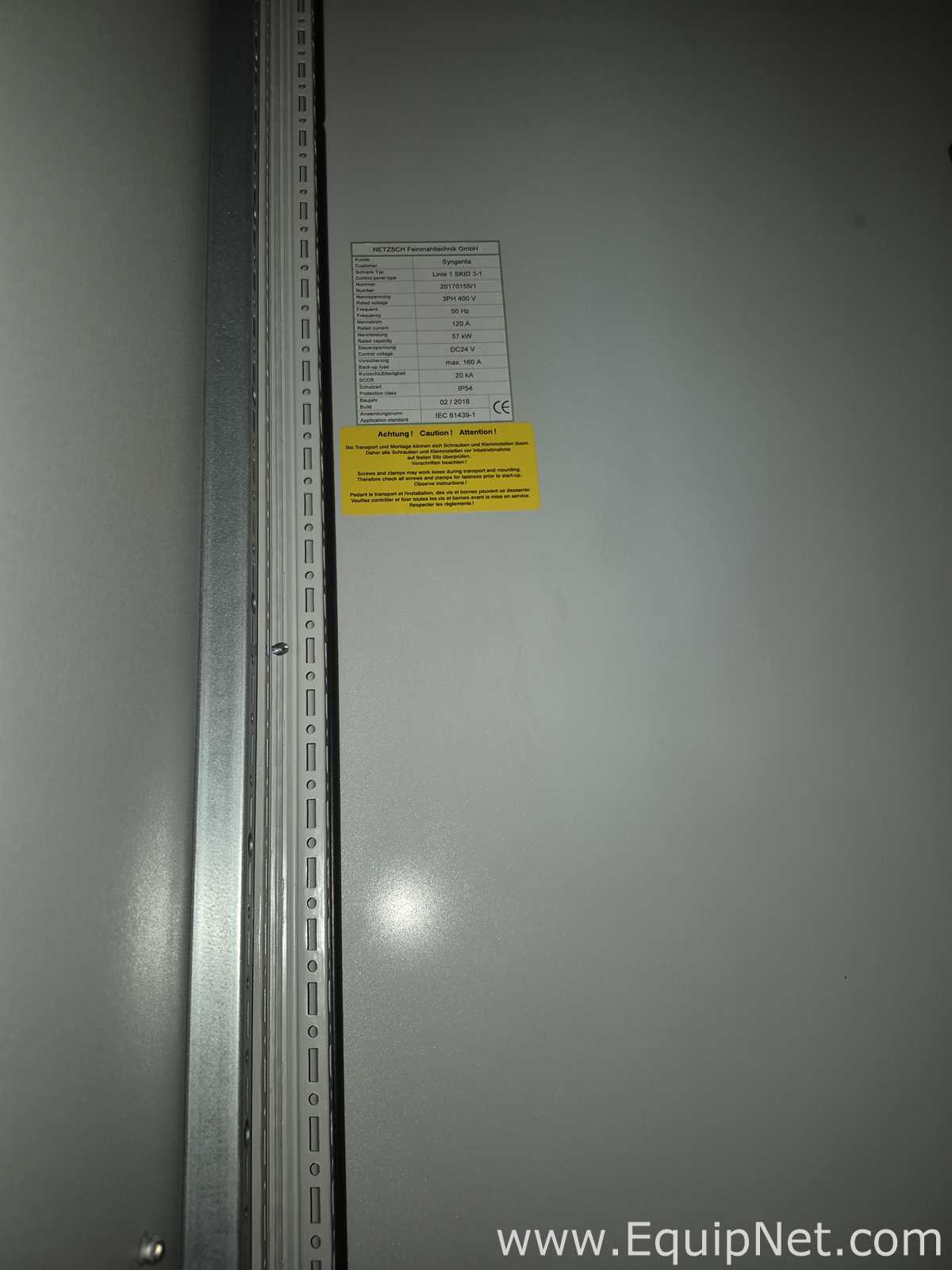

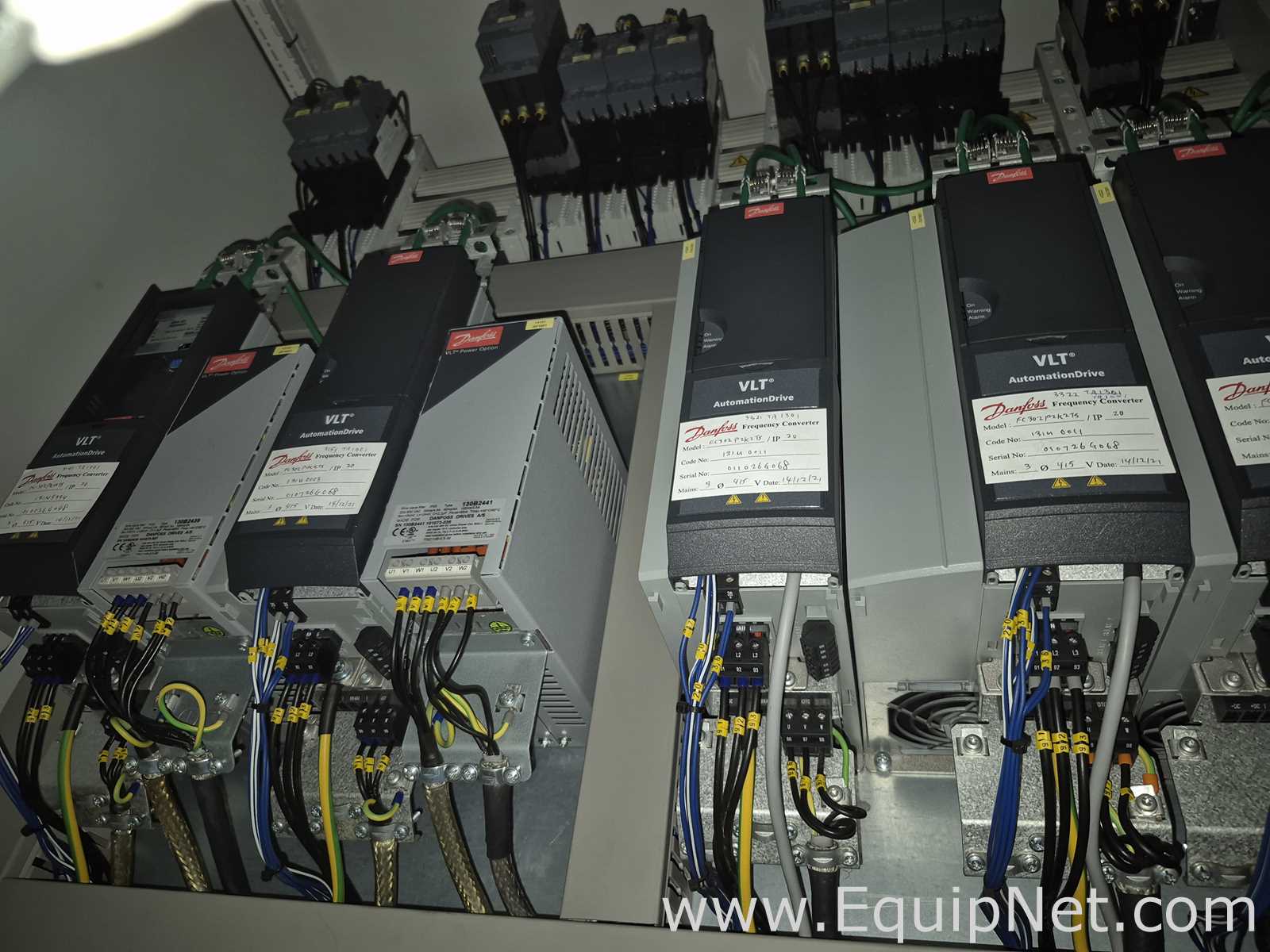

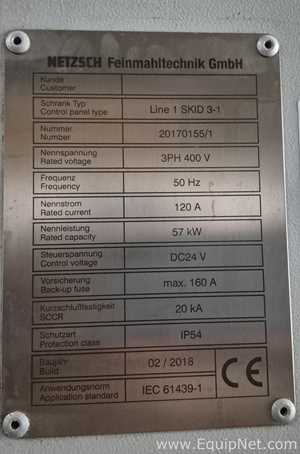

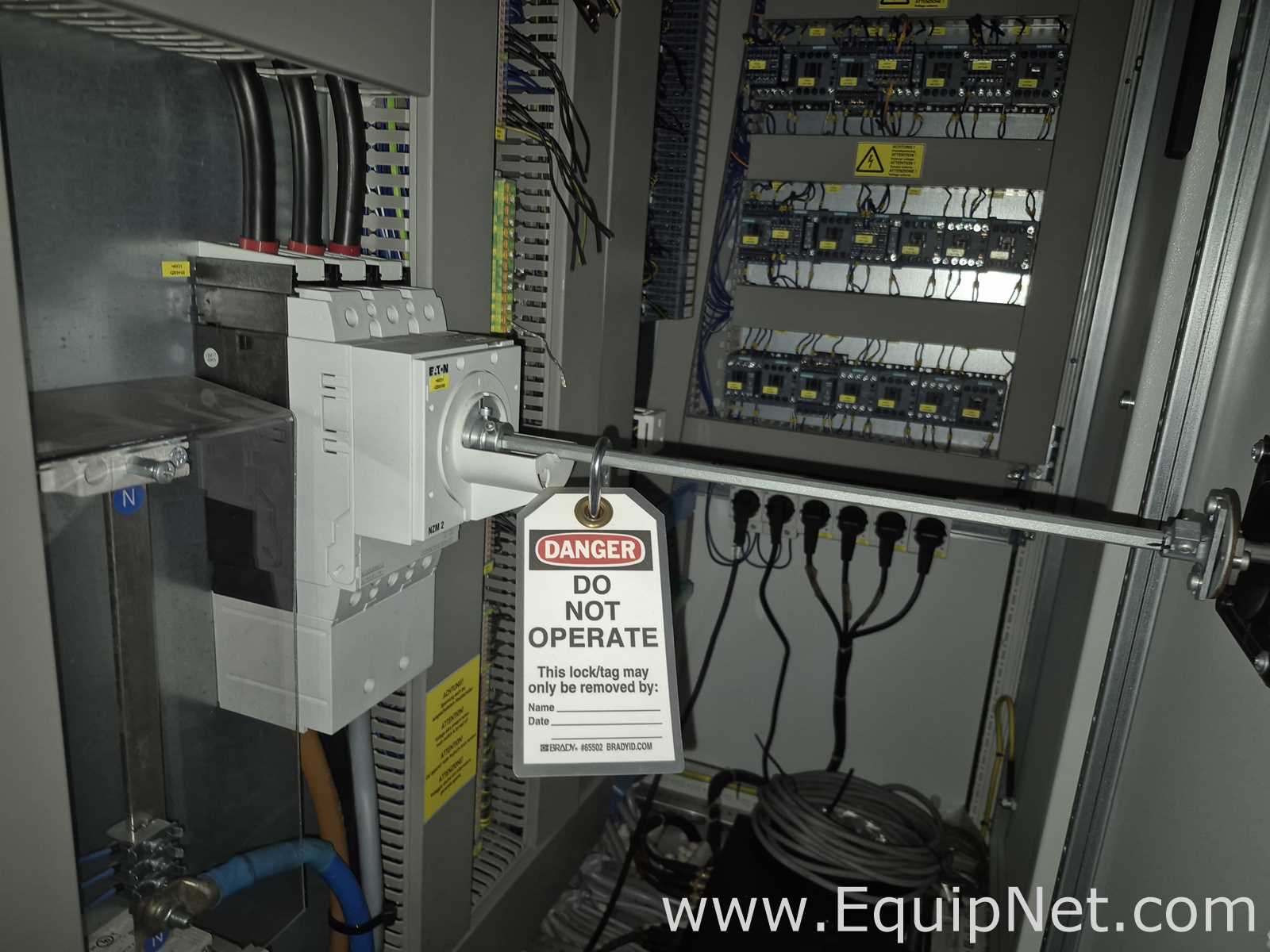

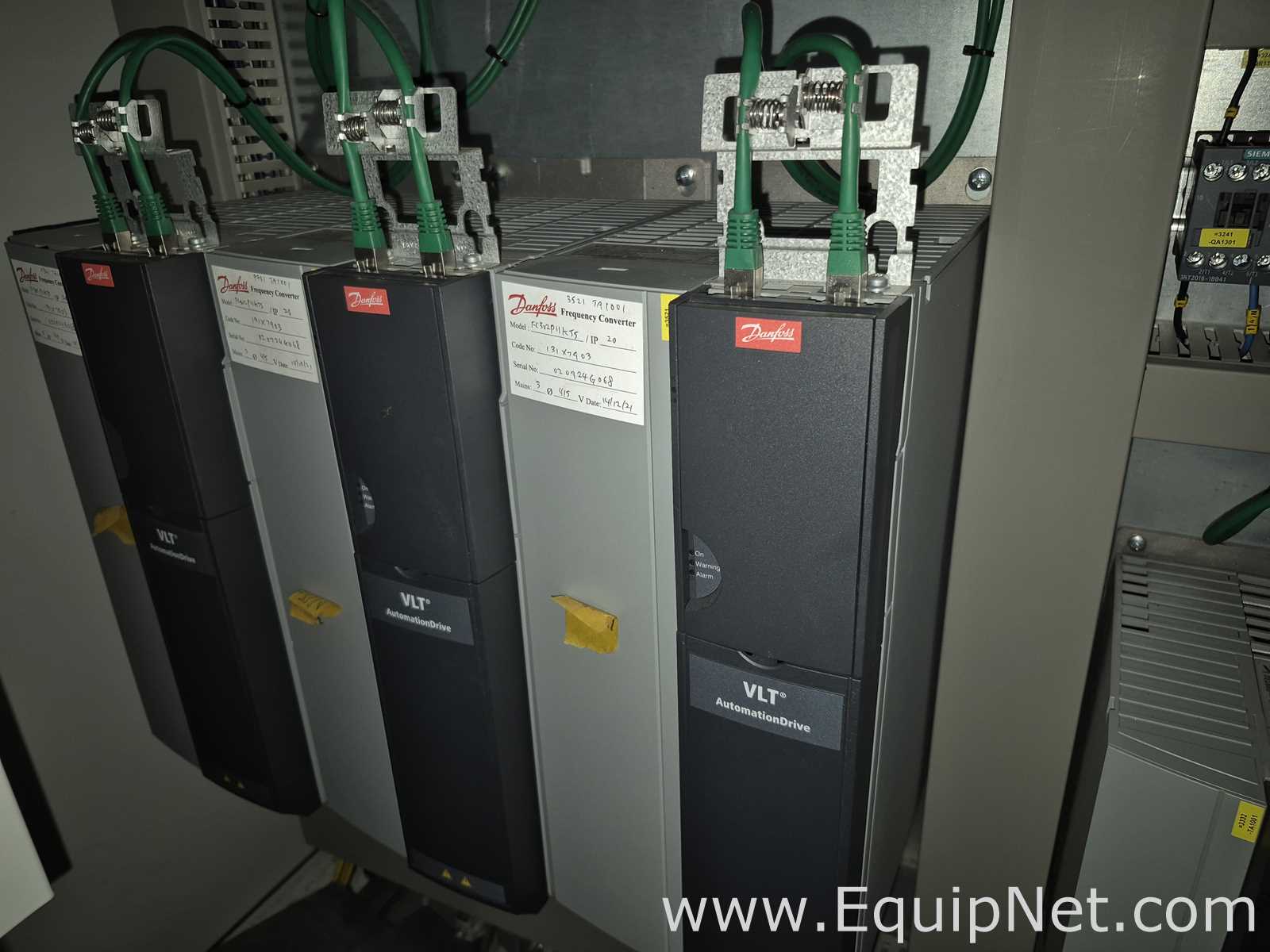

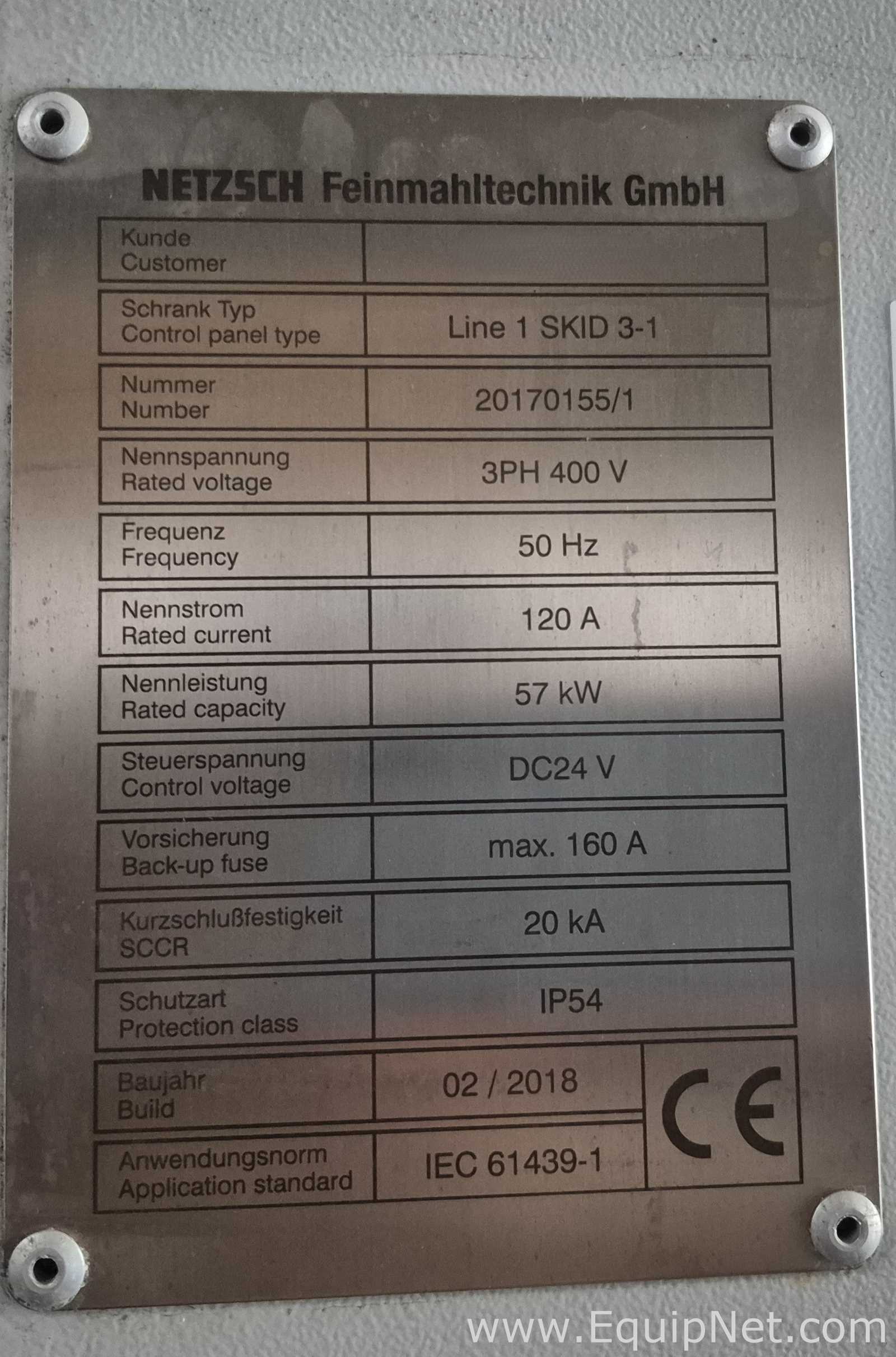

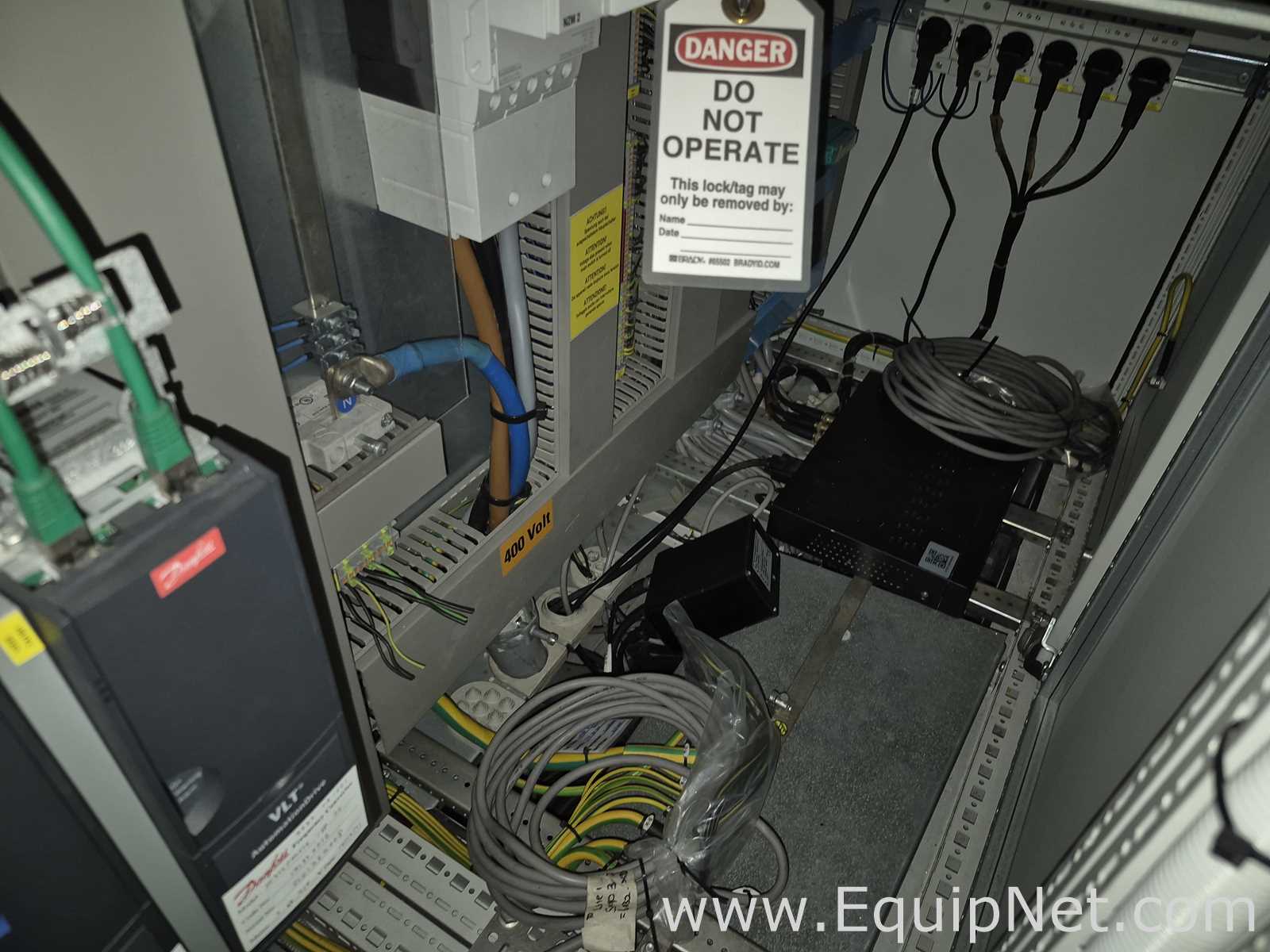

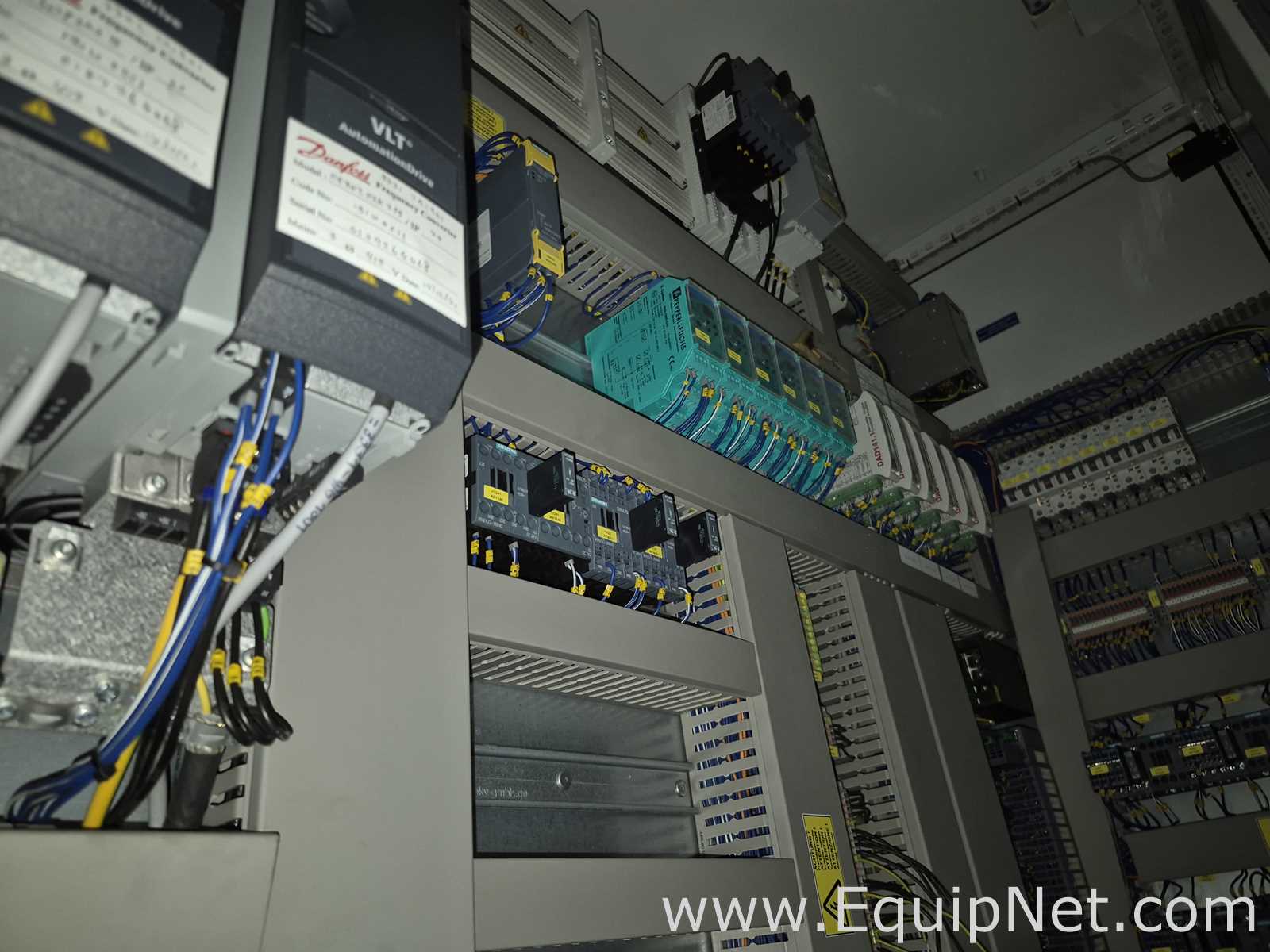

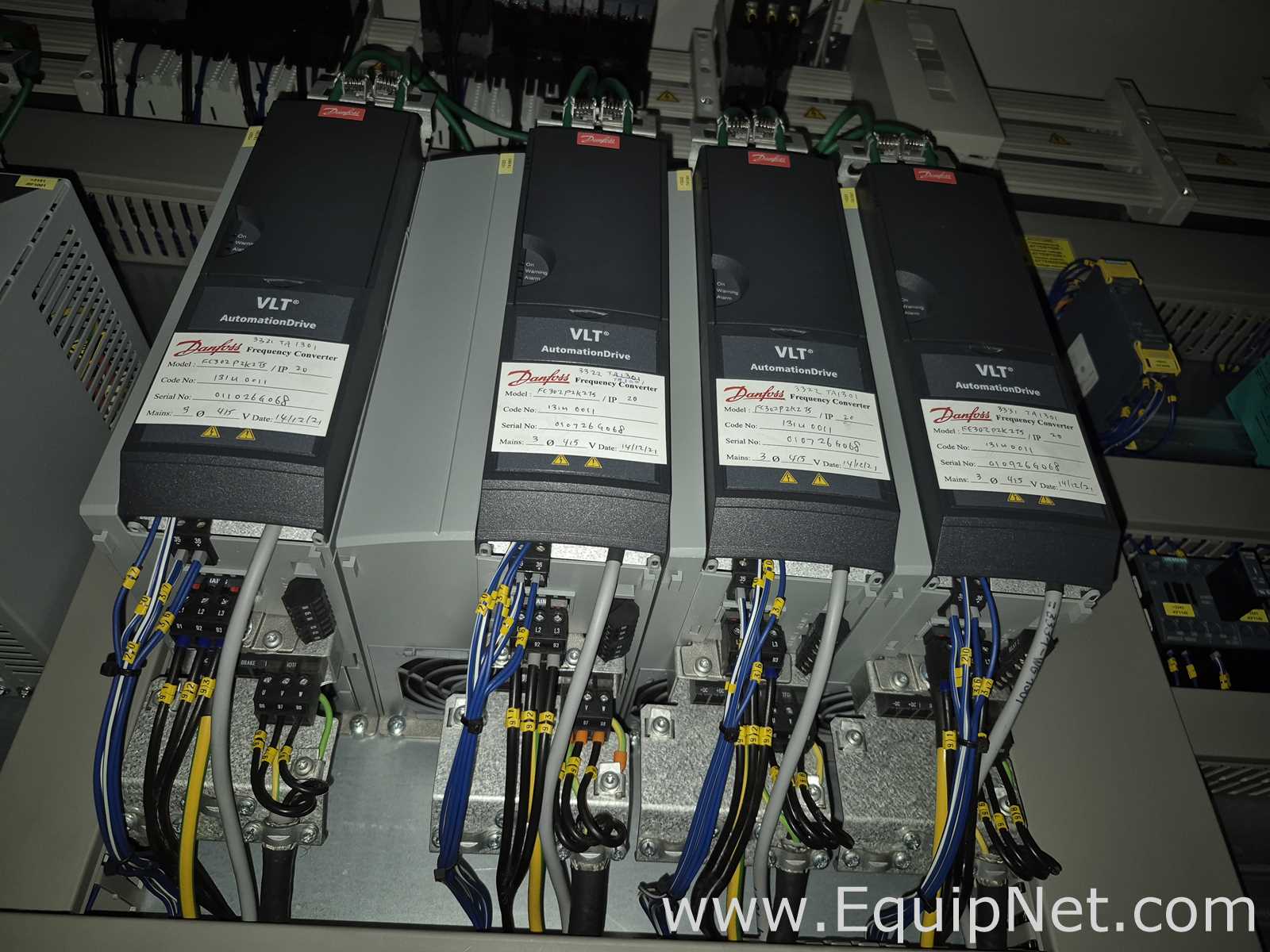

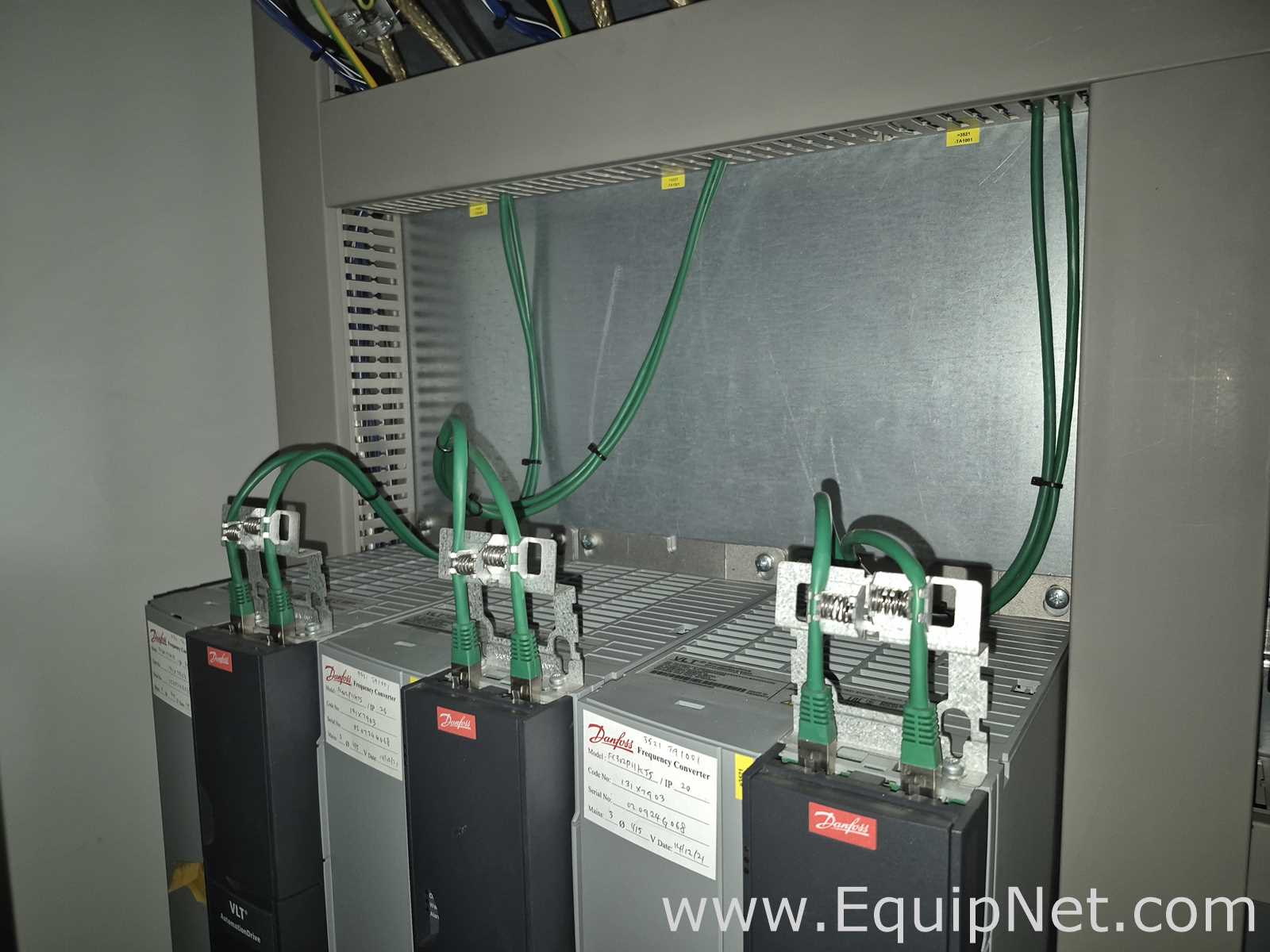

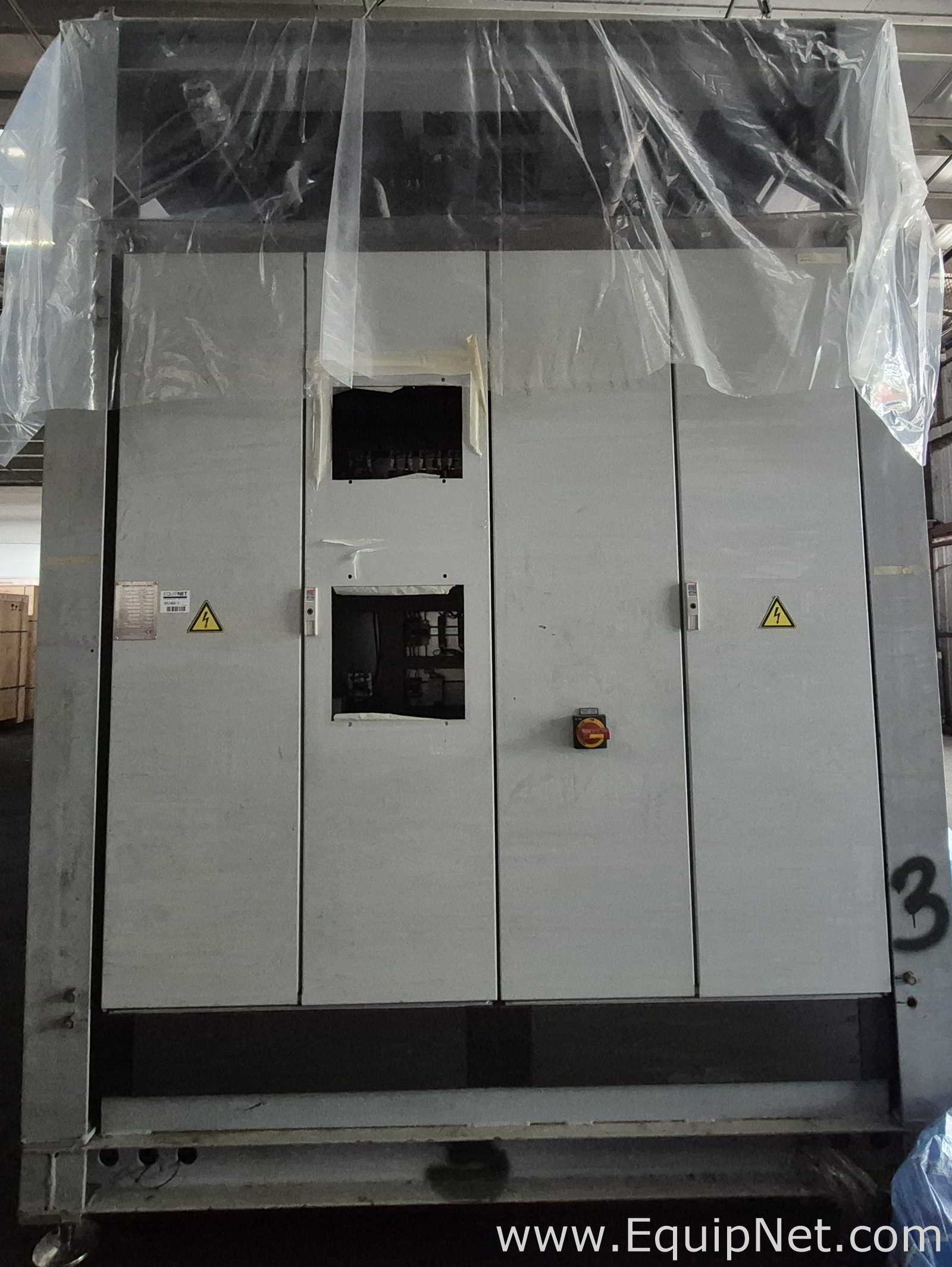

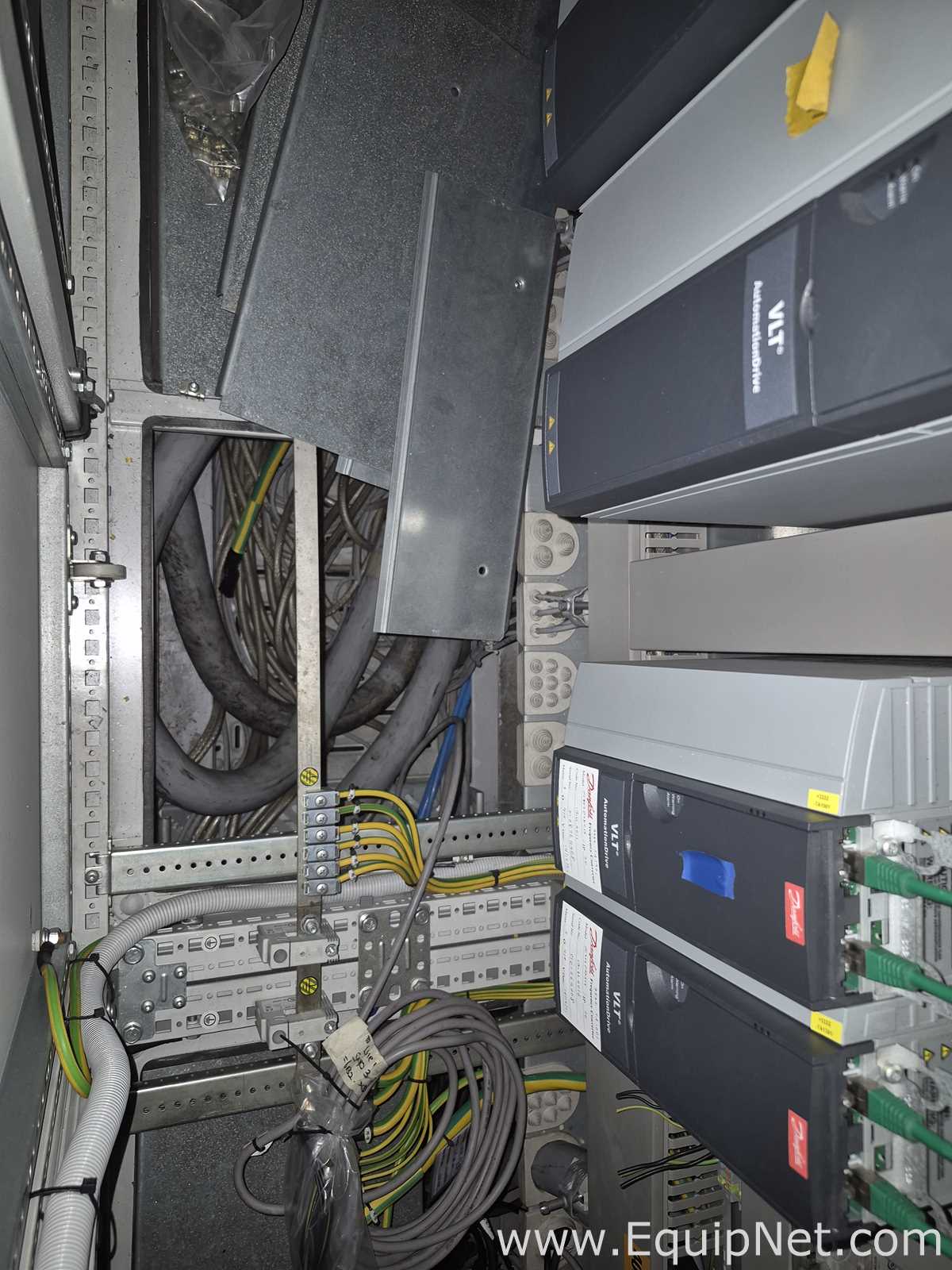

Netzsch Electrical Cabinet.

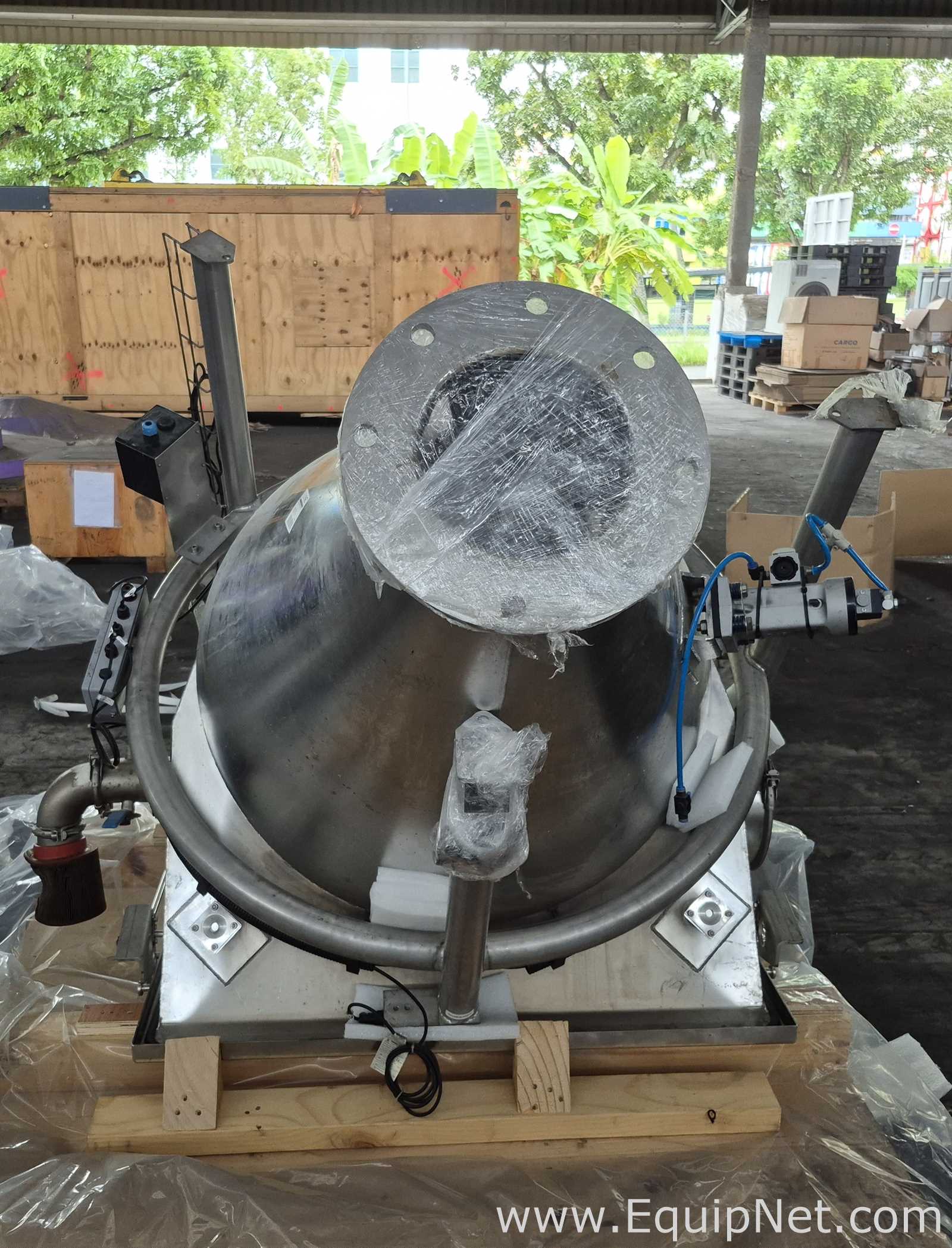

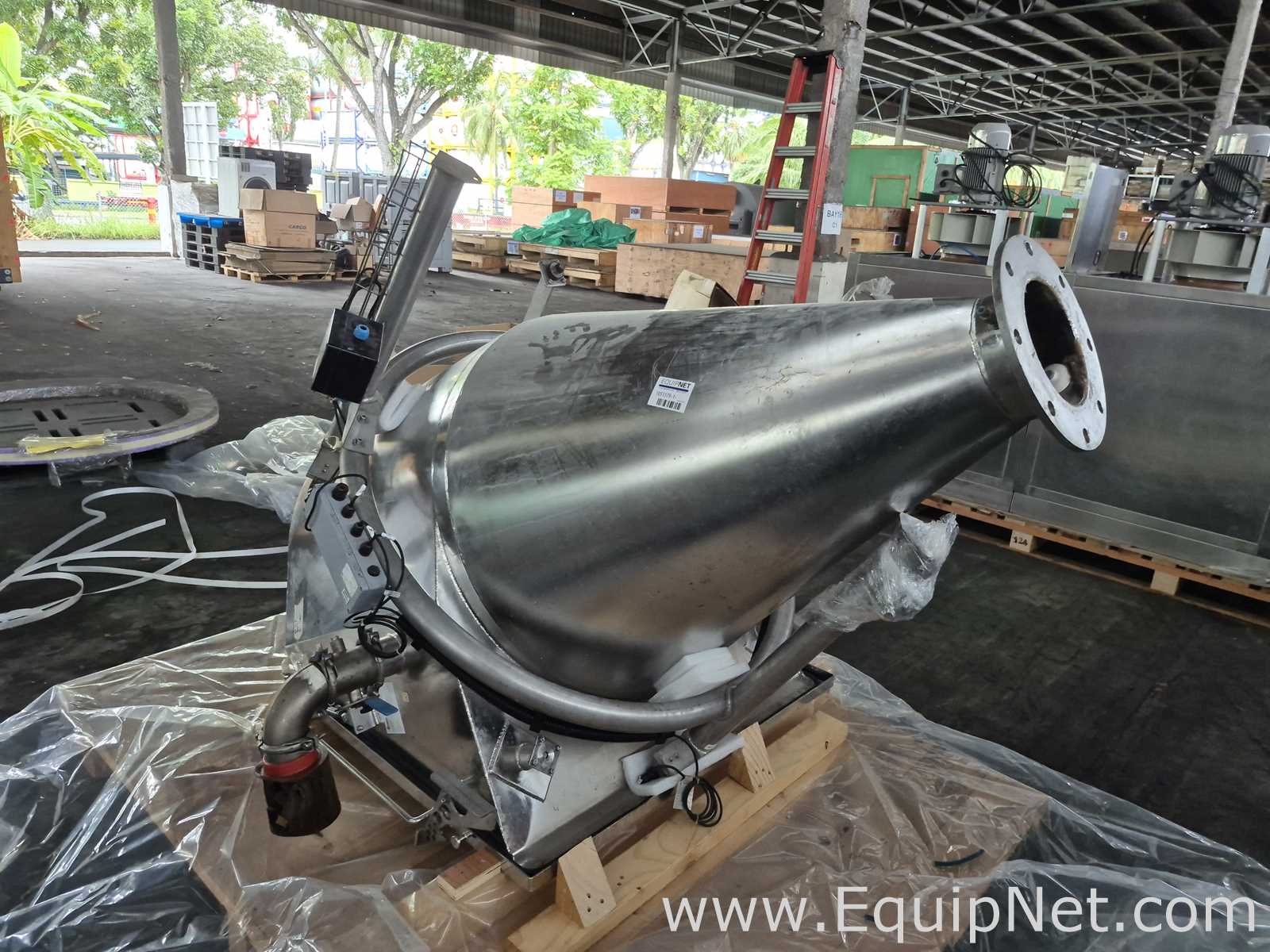

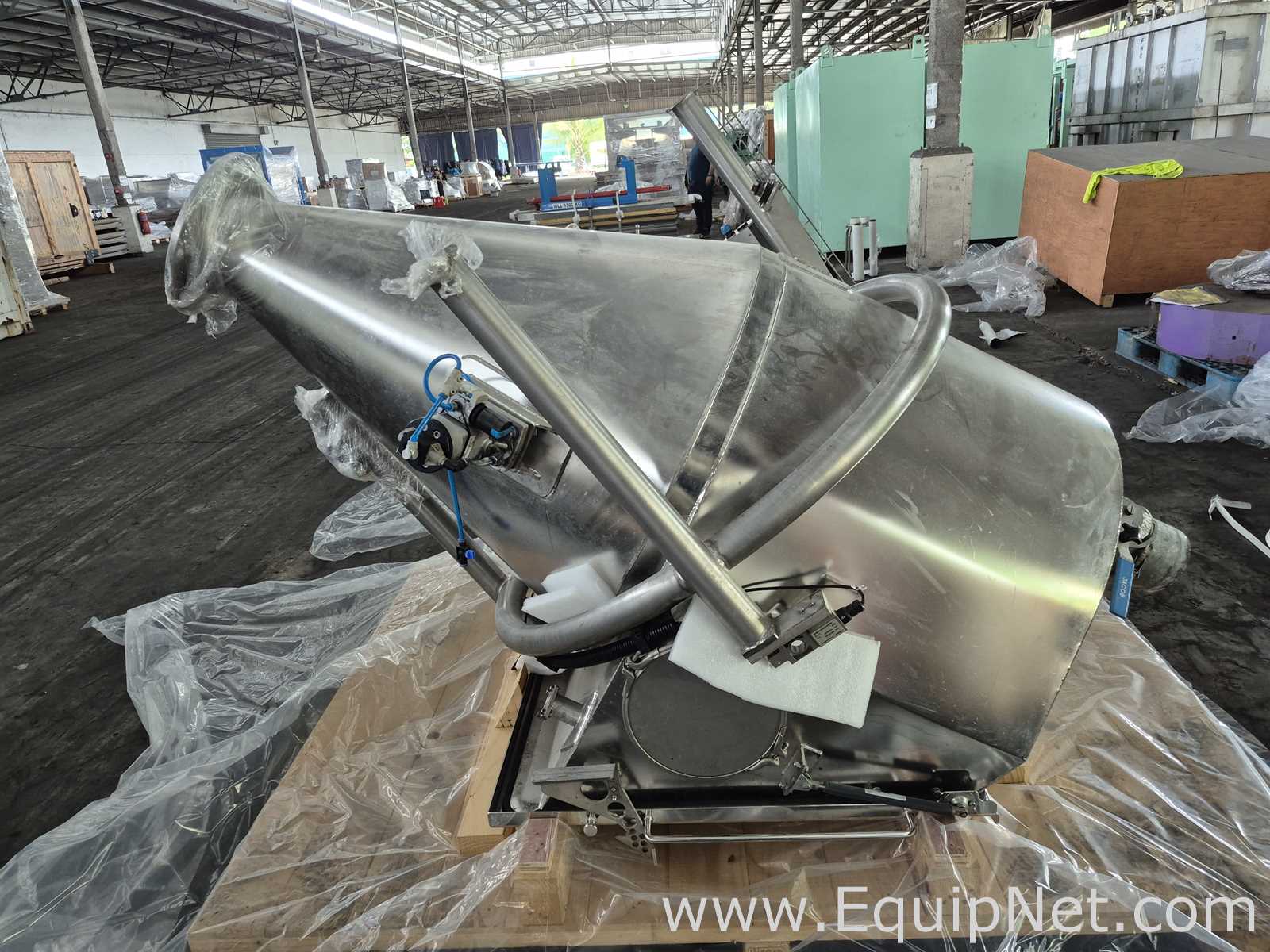

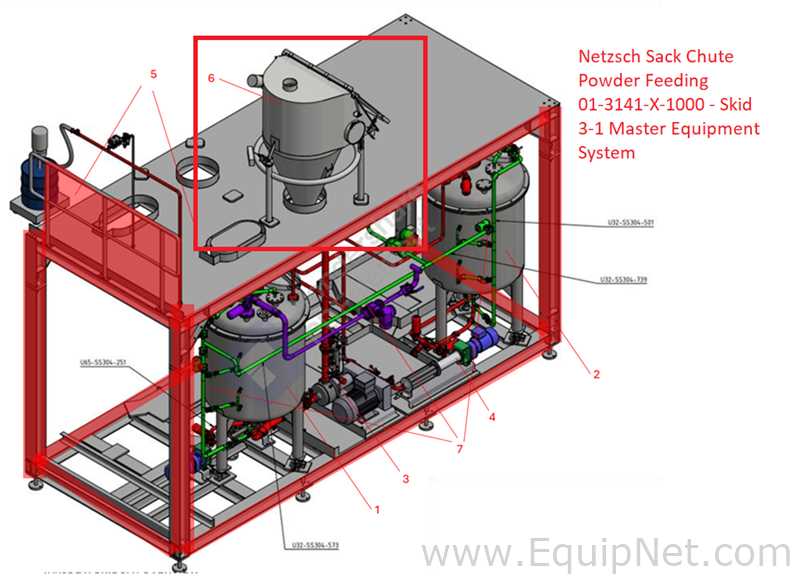

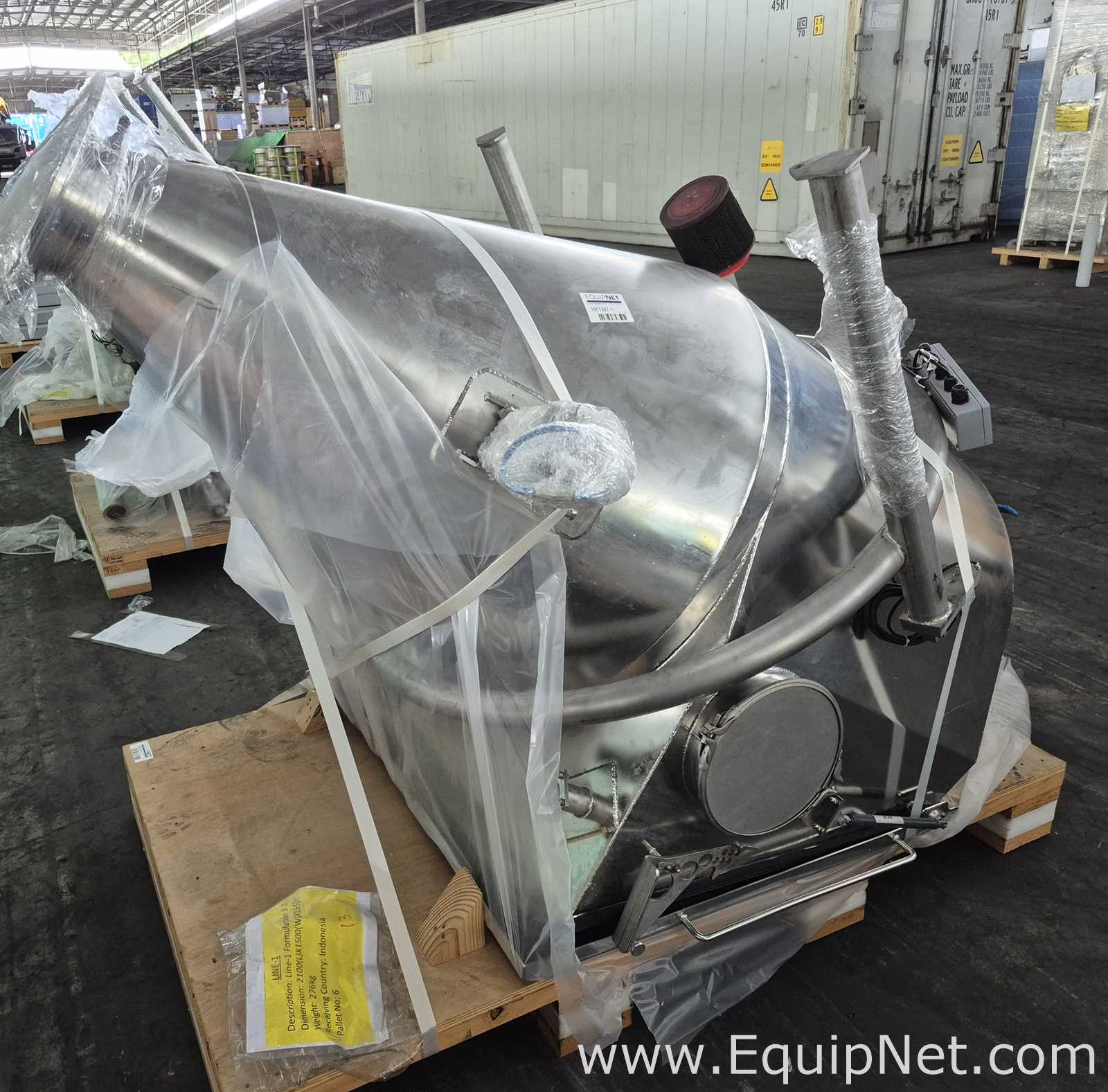

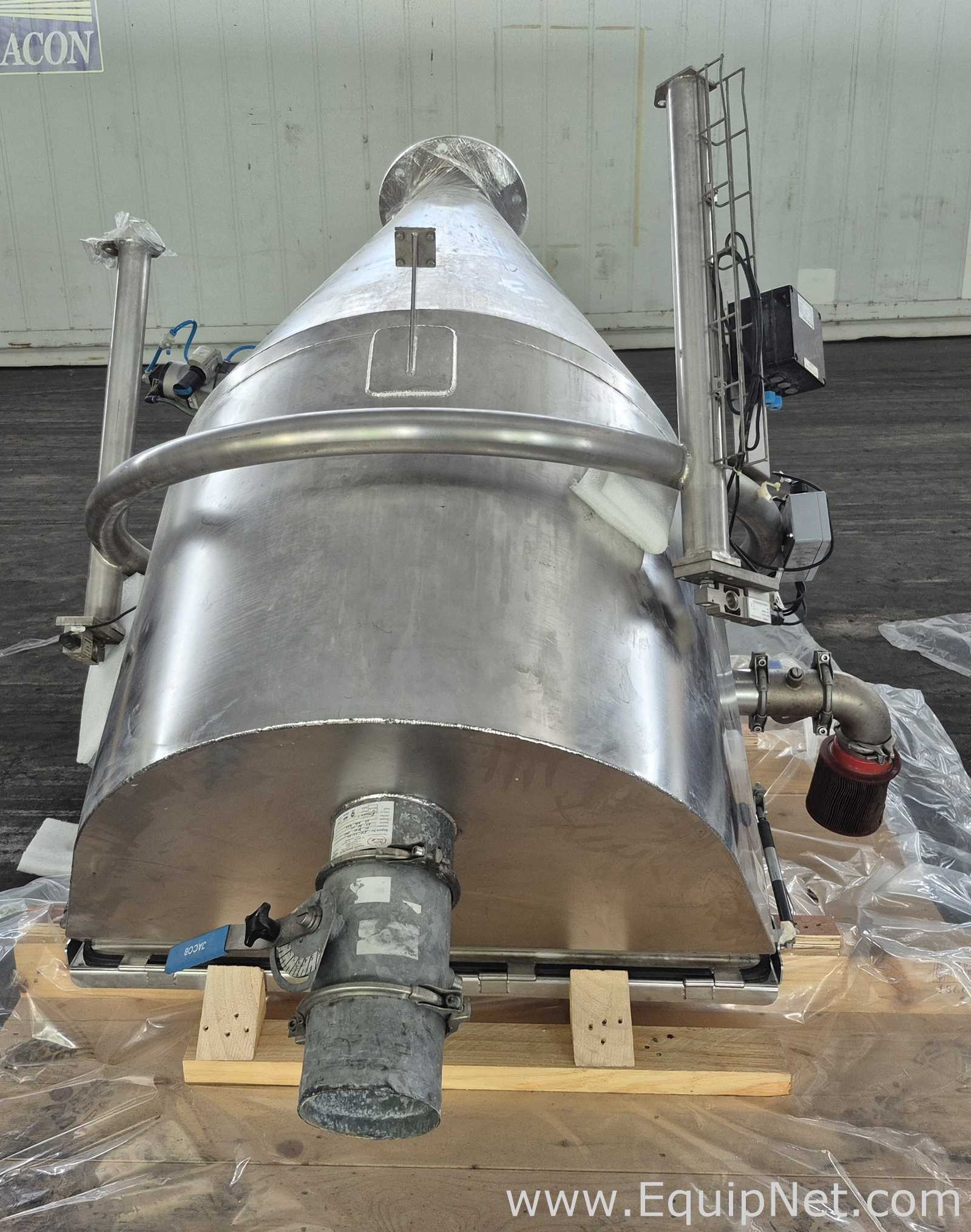

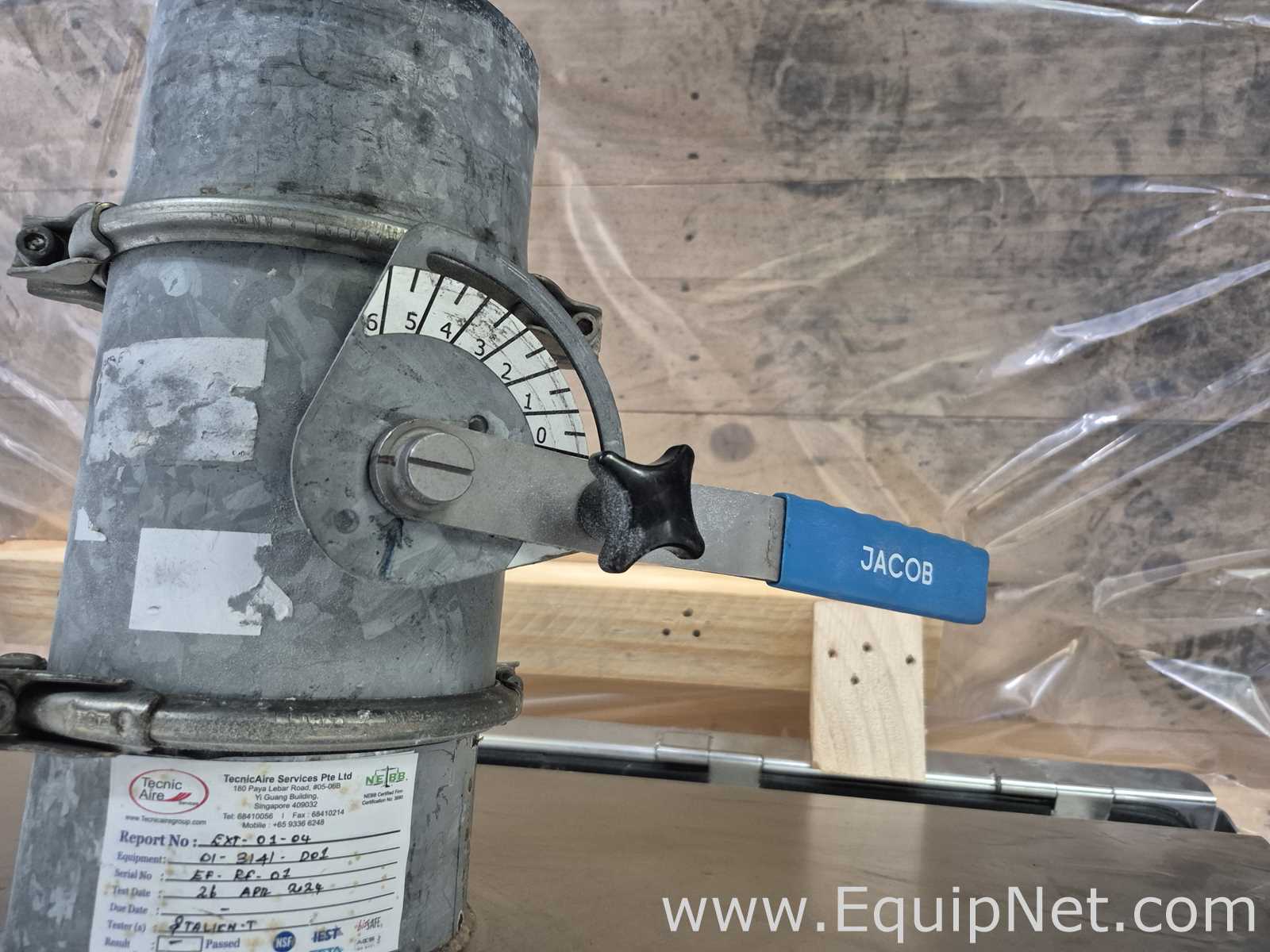

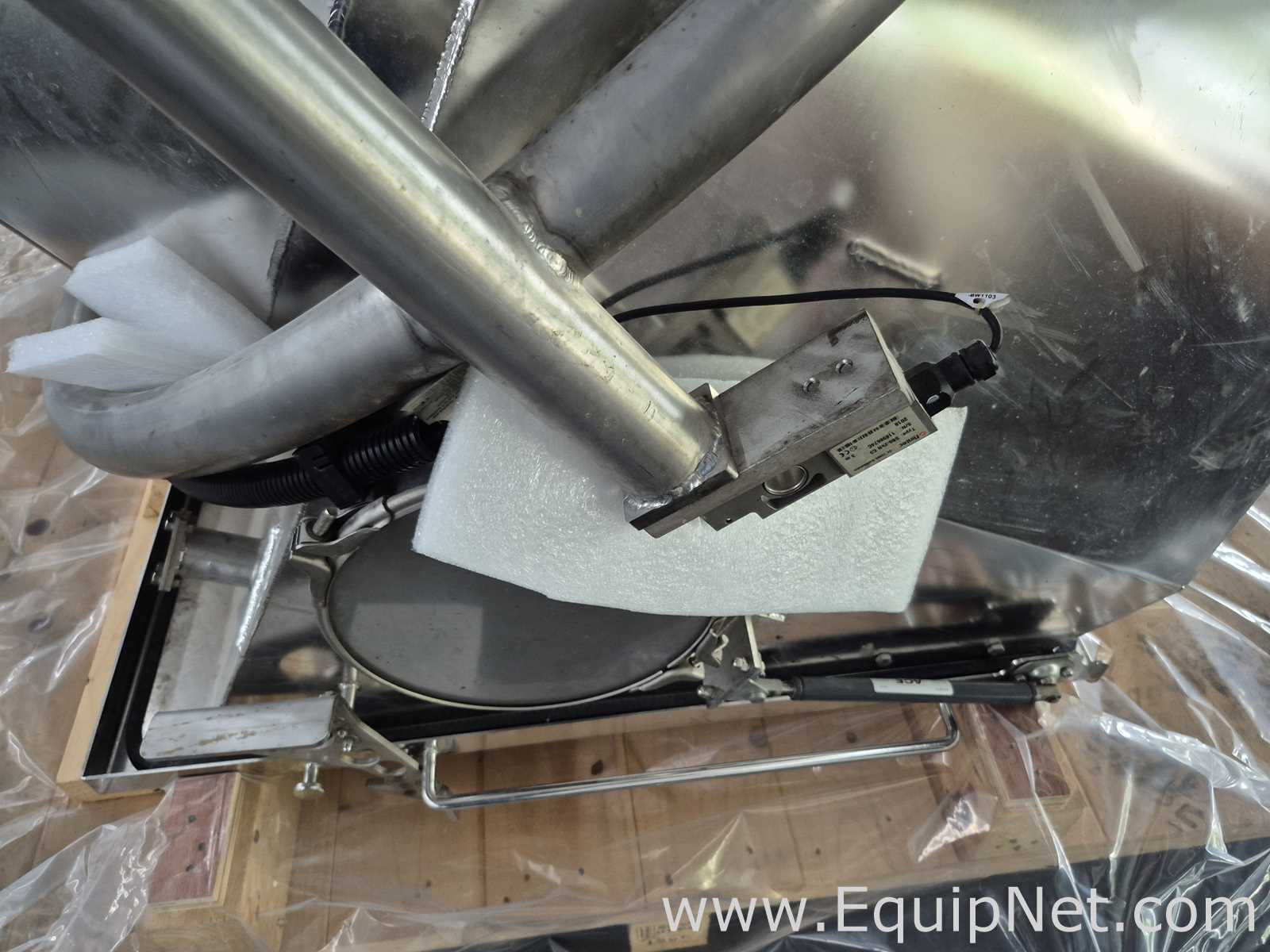

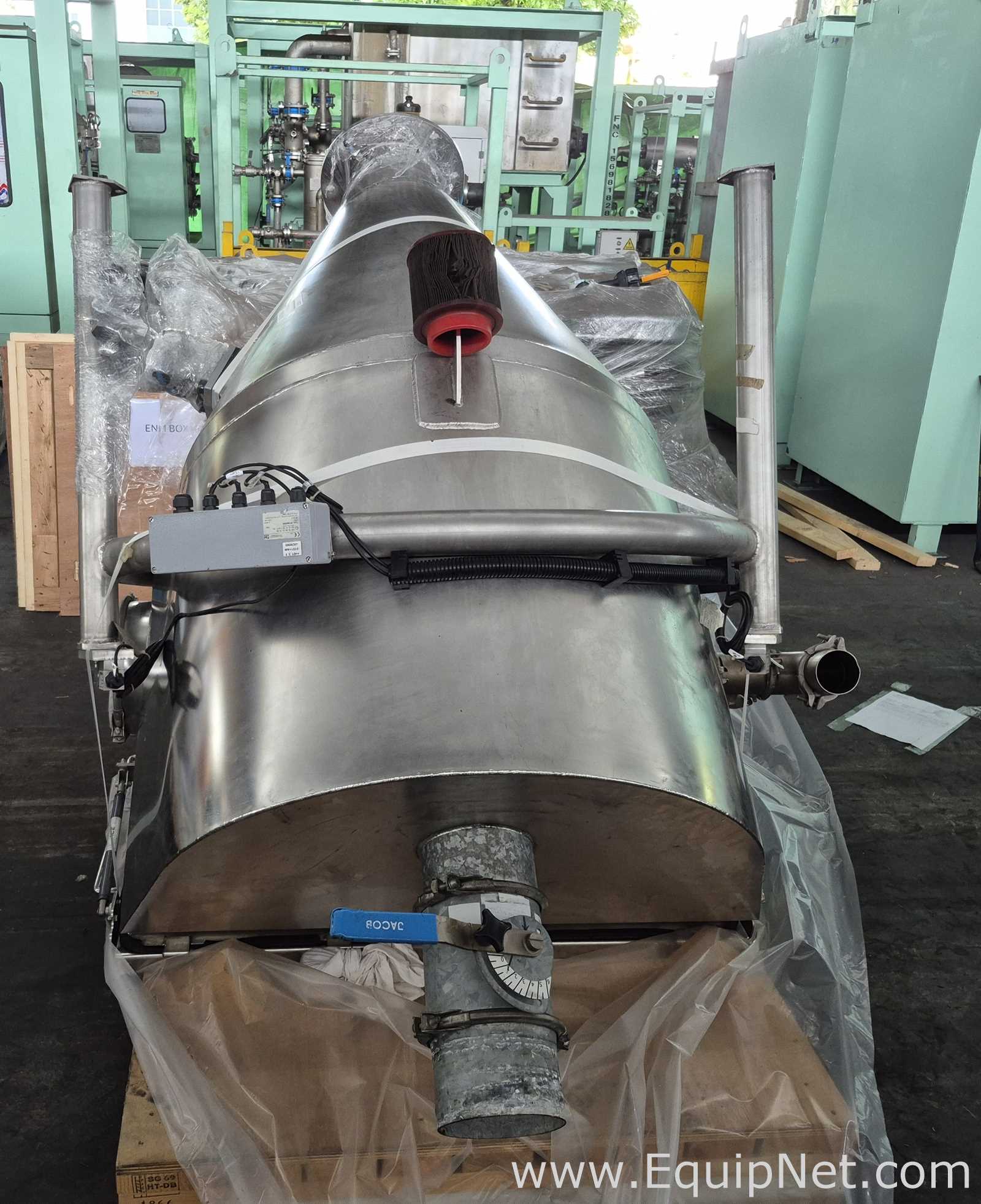

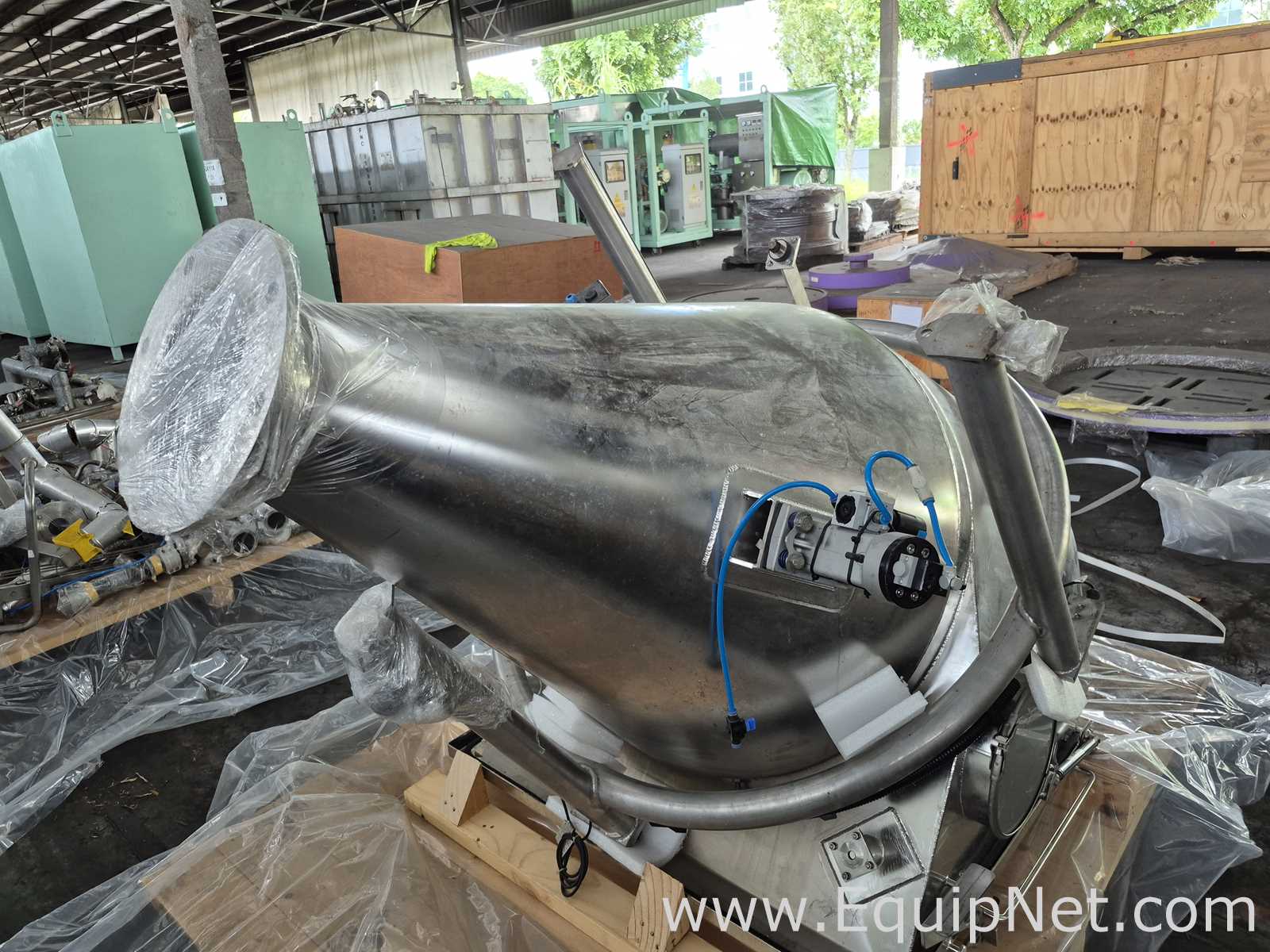

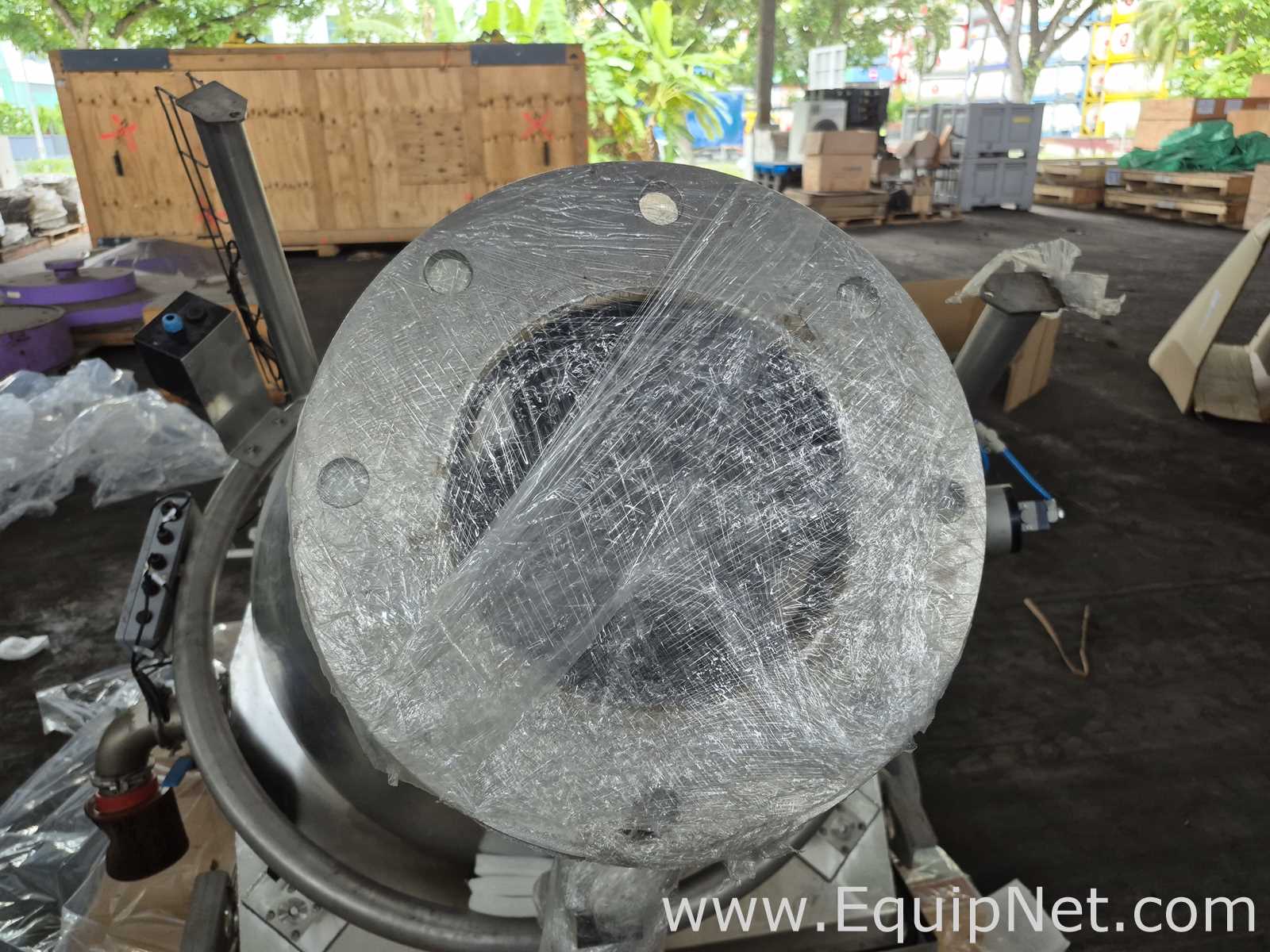

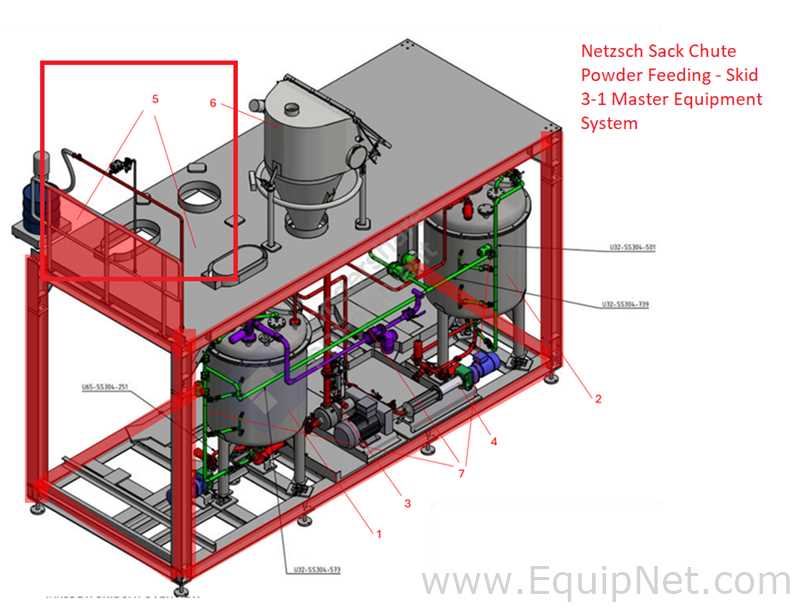

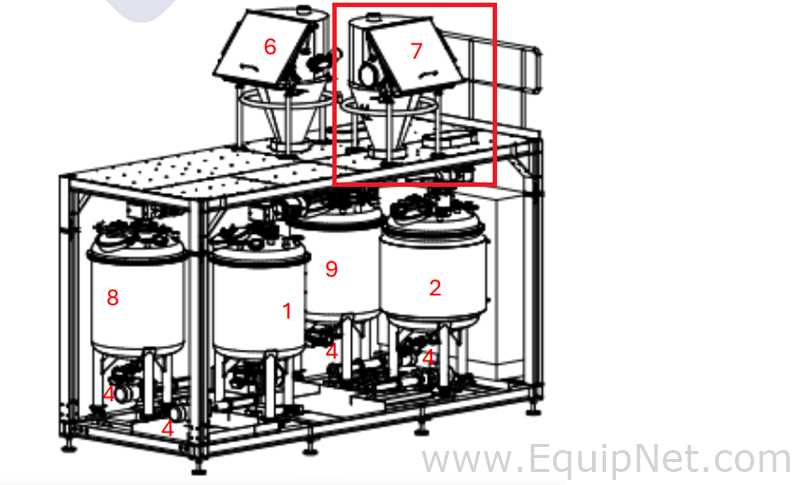

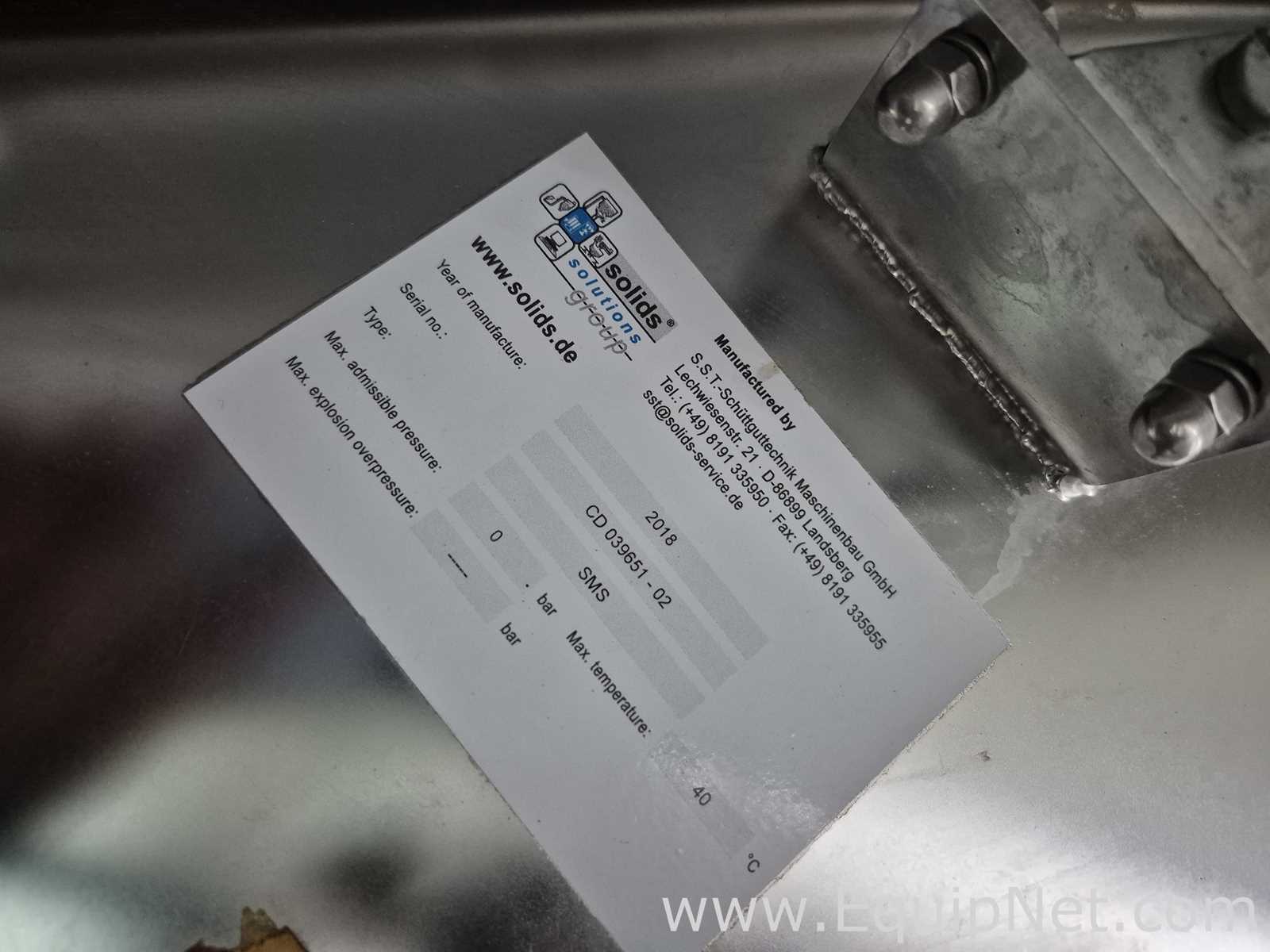

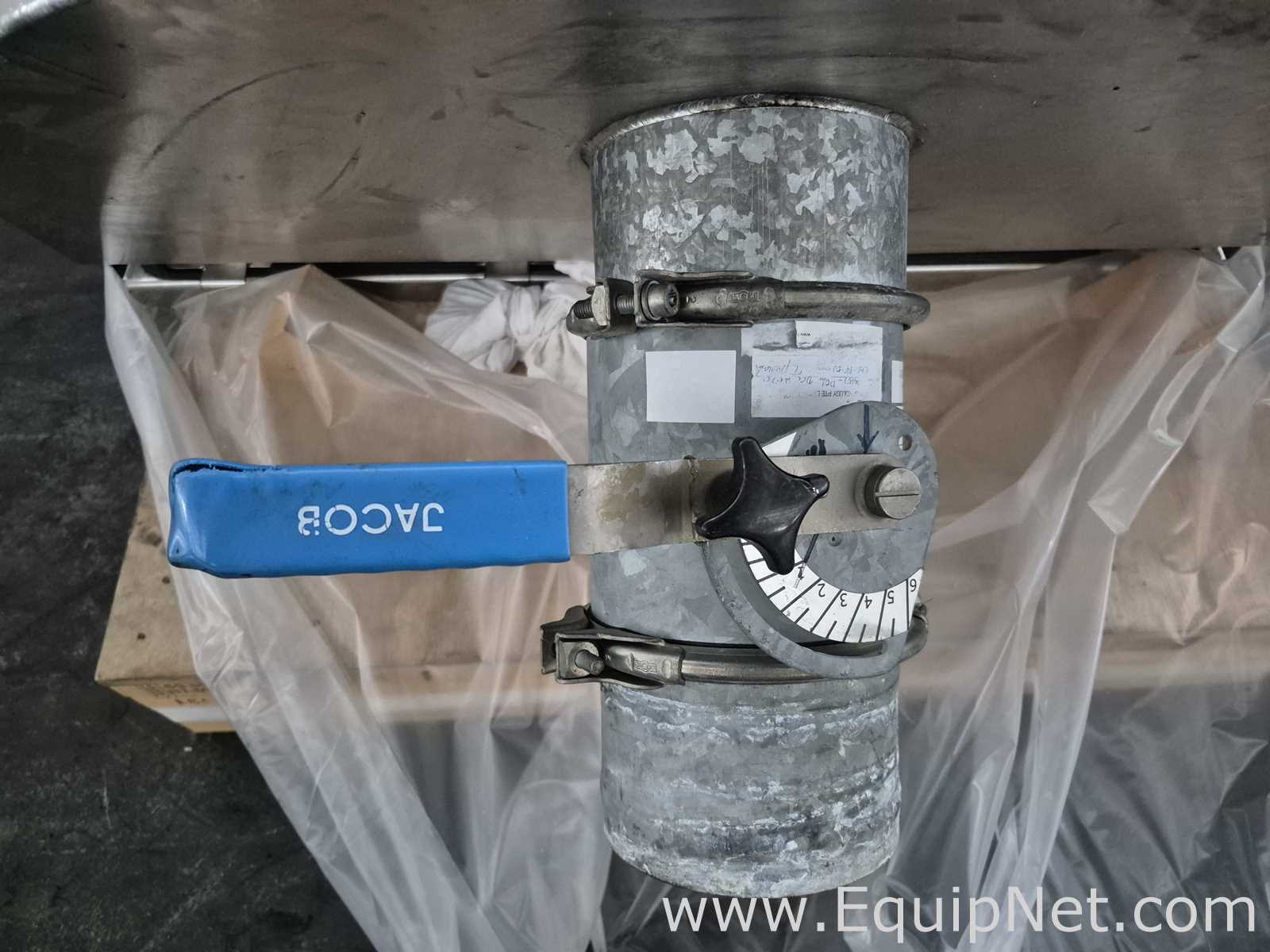

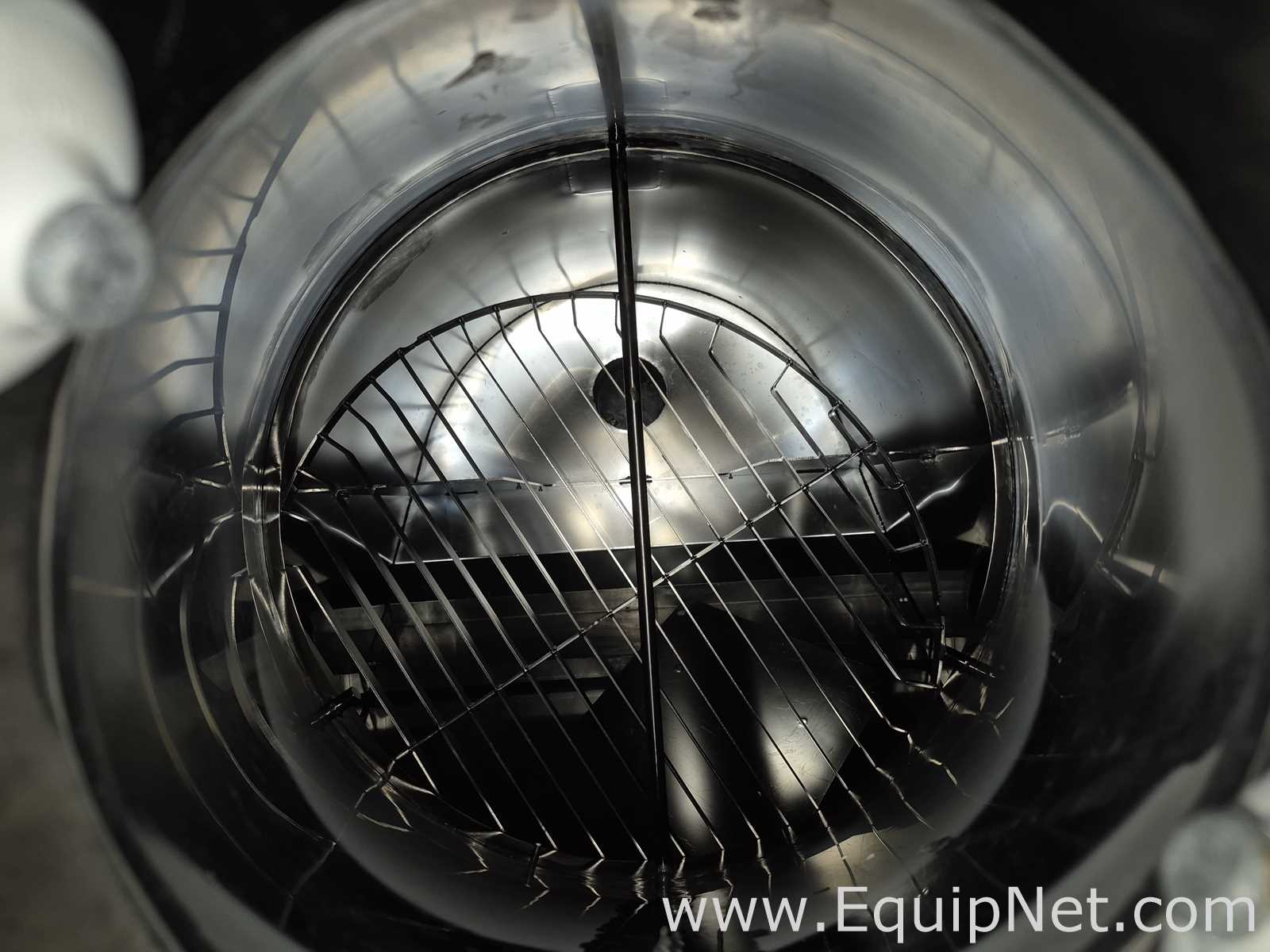

Netzsch Sack Chute Powder Feeding.

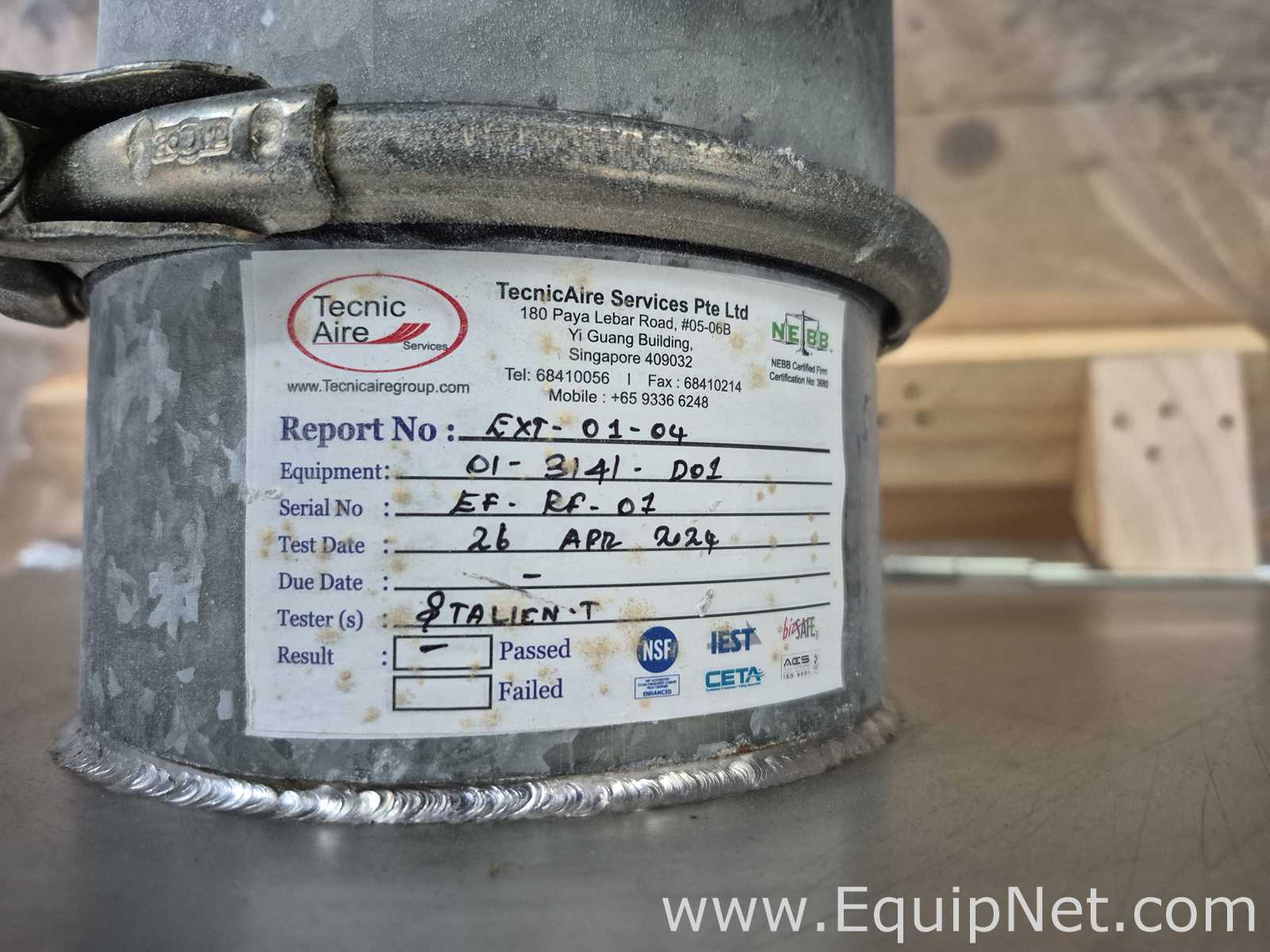

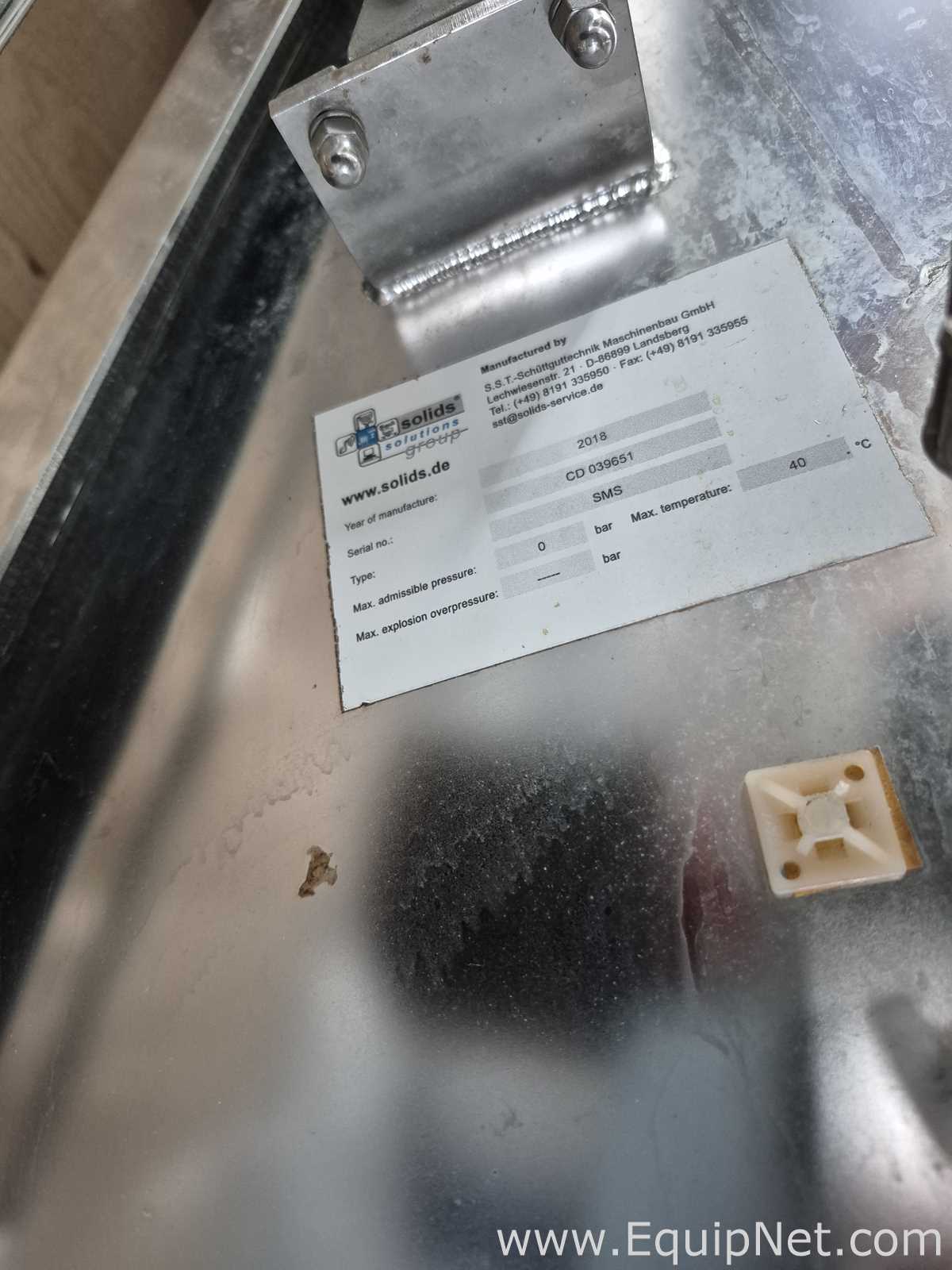

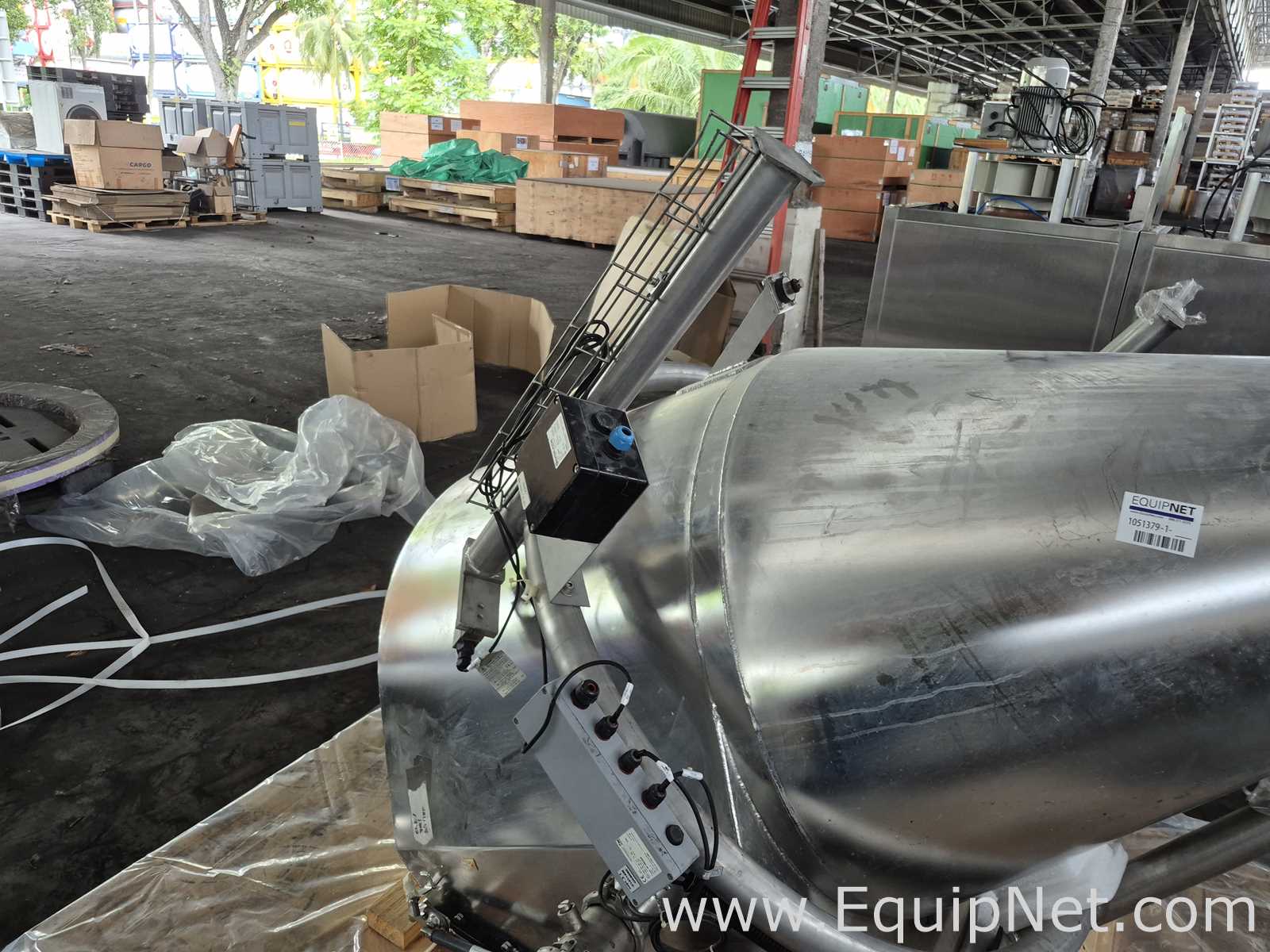

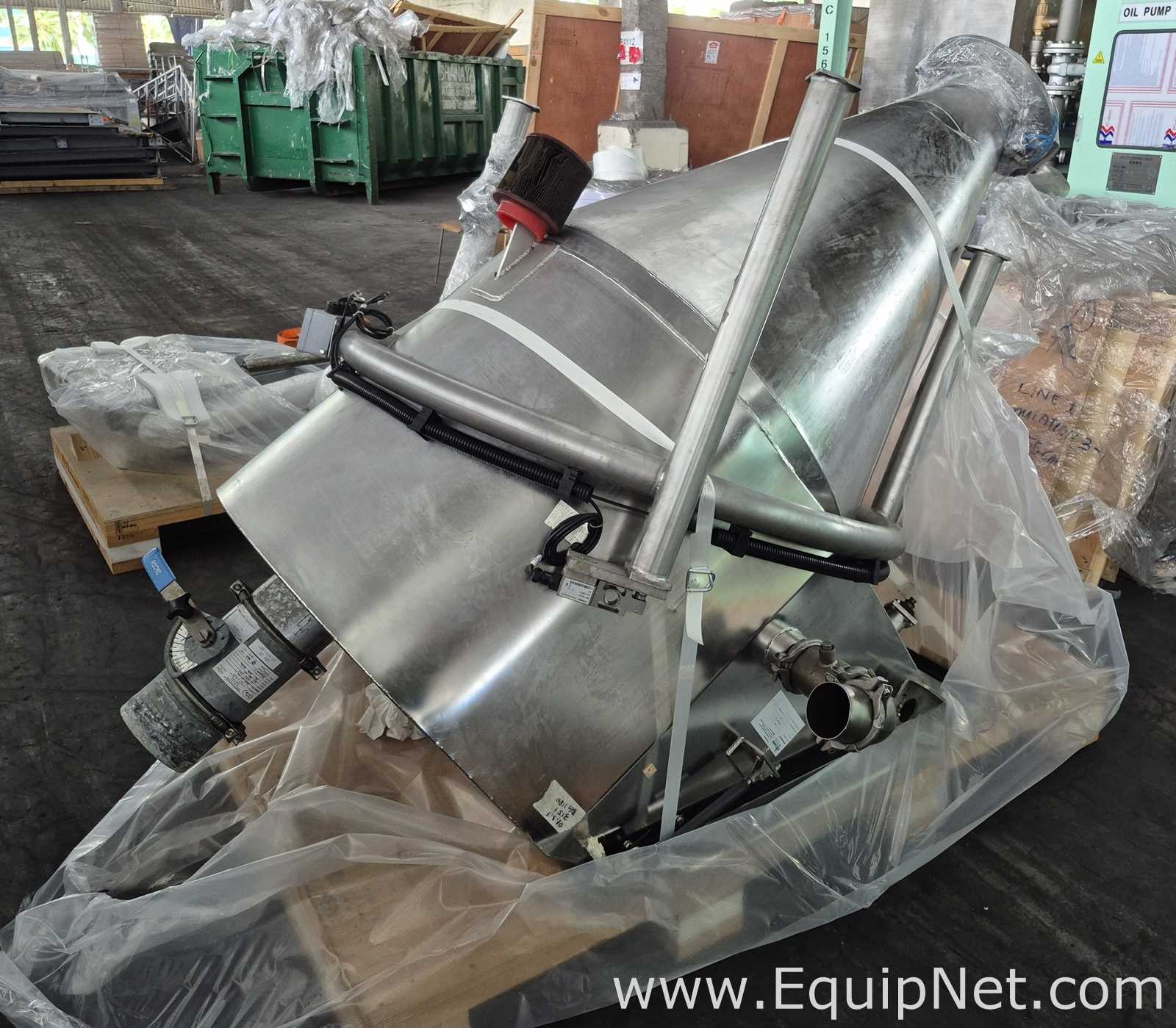

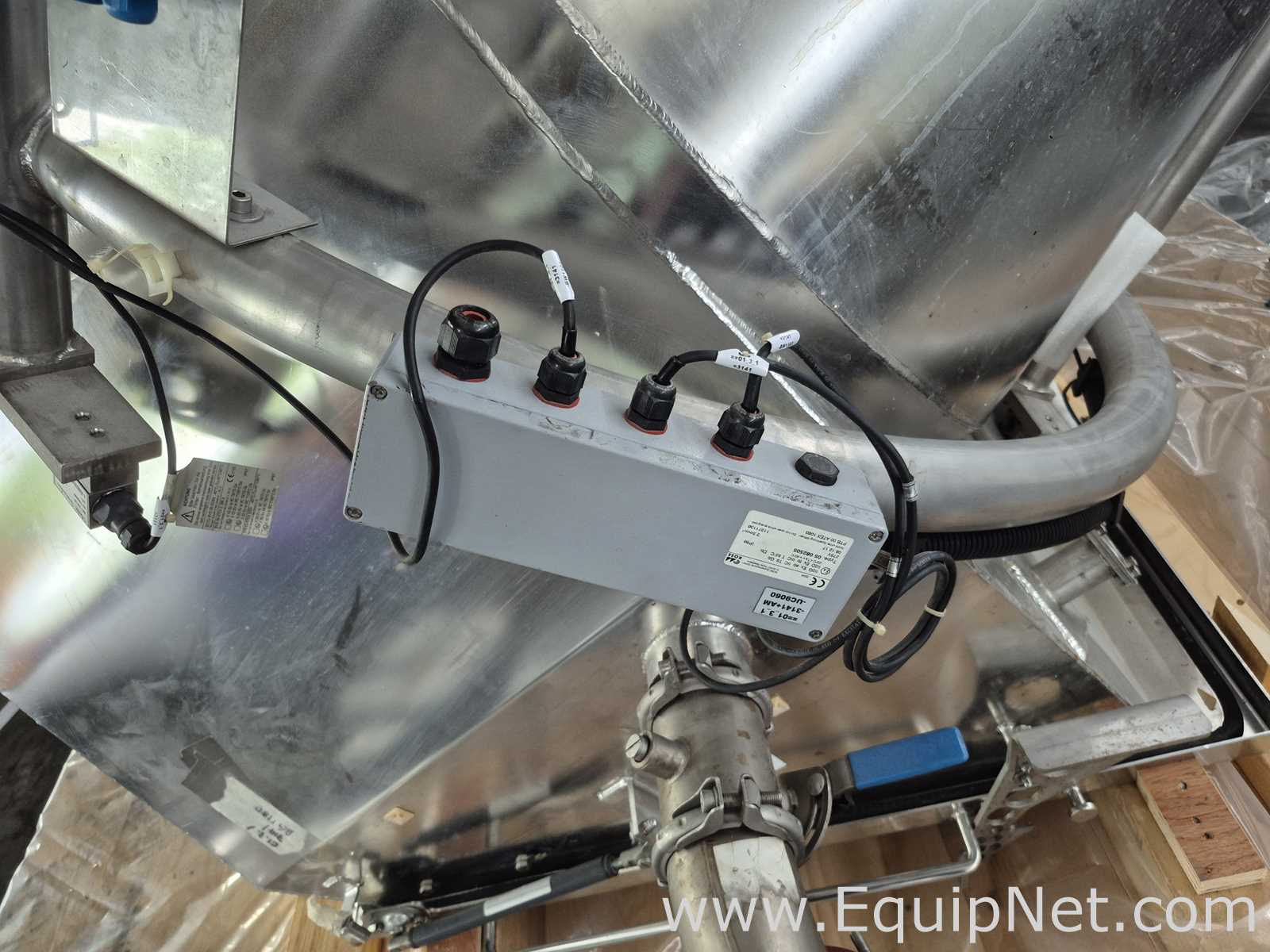

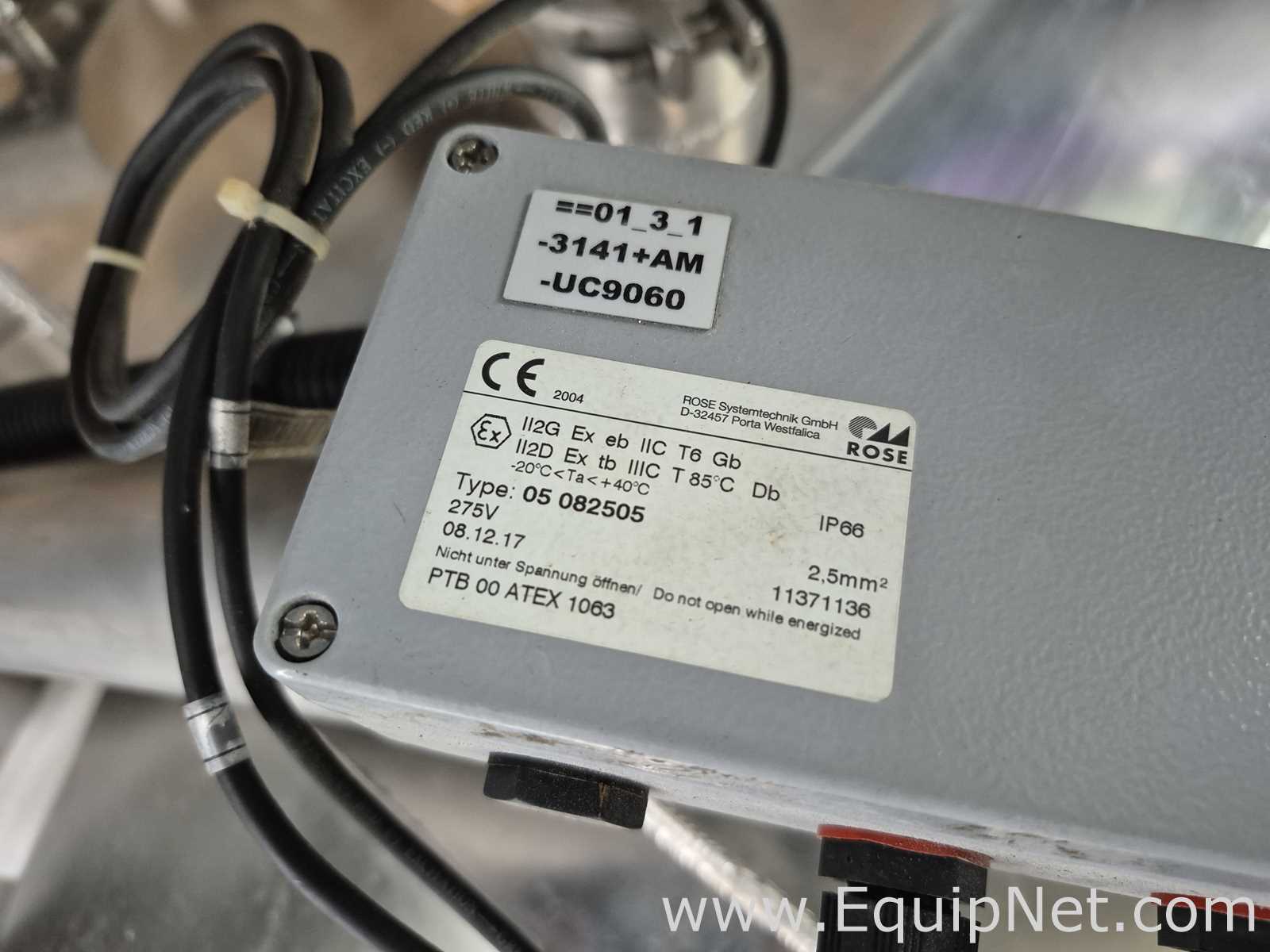

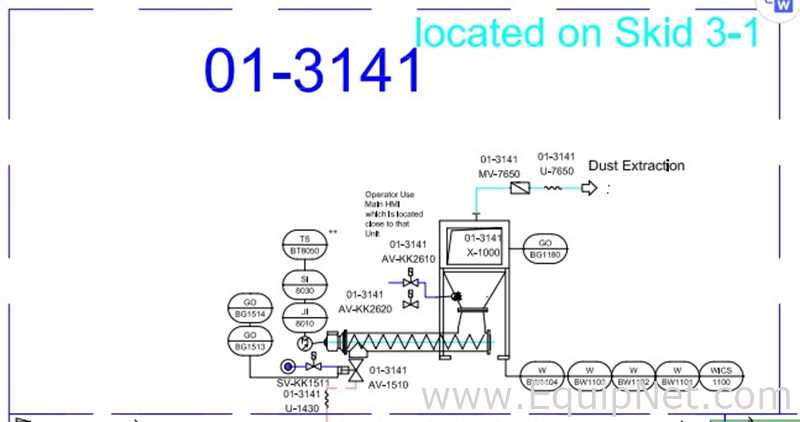

Netzsch Sack Chute Powder Feeding 01-3141.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Year:
2018
2018
CE Marked:
YES
YES
Capacity of Tank:
264.26
gal
1000
L
Tank Material of Construction:
STAINLESS STEEL
STAINLESS STEEL
Jacketed:
NO
NO
Agitation:
YES
YES
Recommended Packaging Form:
CUSTOM PALLET
CUSTOM PALLET
Voltage:
400
VOLTS
400
VOLTS
Frequency:
50
HERTZ
50
HERTZ
Phase:
3
3
Current:
120
AMPS
120
AMPS
Dimensions:
Standard
Metric
Overall:
0.04 x 0.04 x 0.04 in - 2.20 lb
1 x 1 x 1 MM - 1 KGS
Disclaimer:
This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in
East Asia/Pacific
This equipment is subject to a removal and loading charge.
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Multi-Listing Includes:
Back to Top

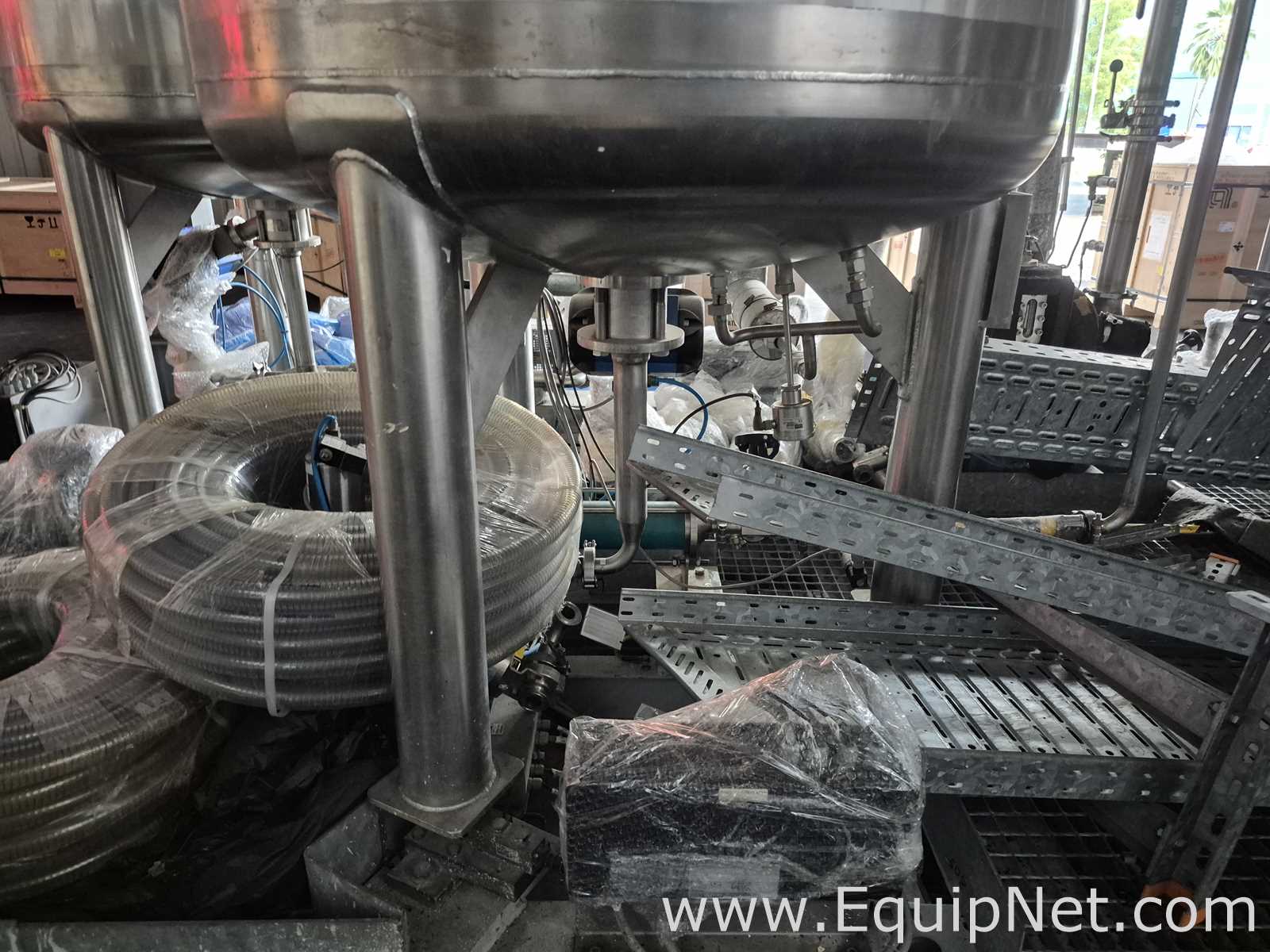

Multi-Listing #1053877

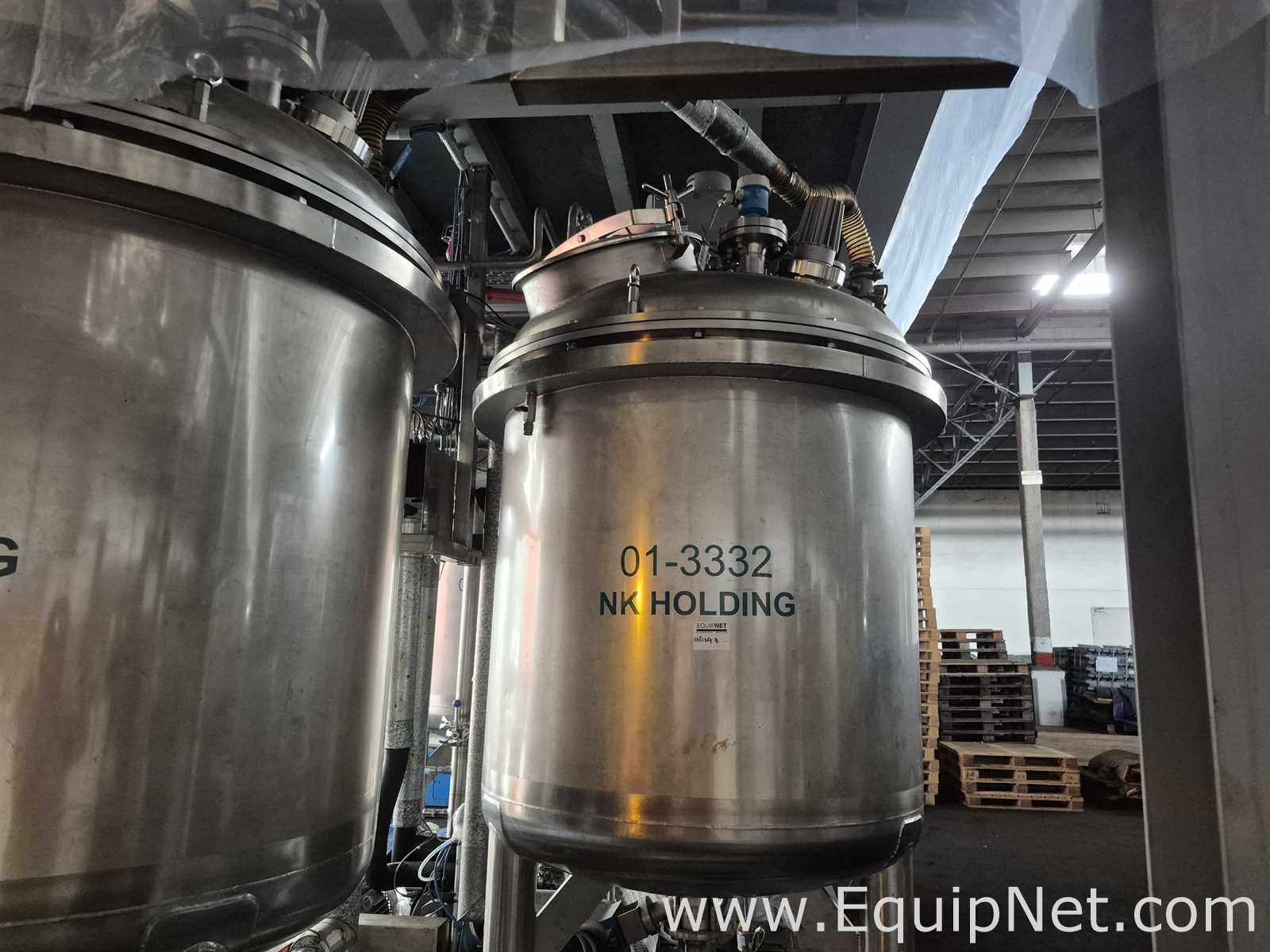

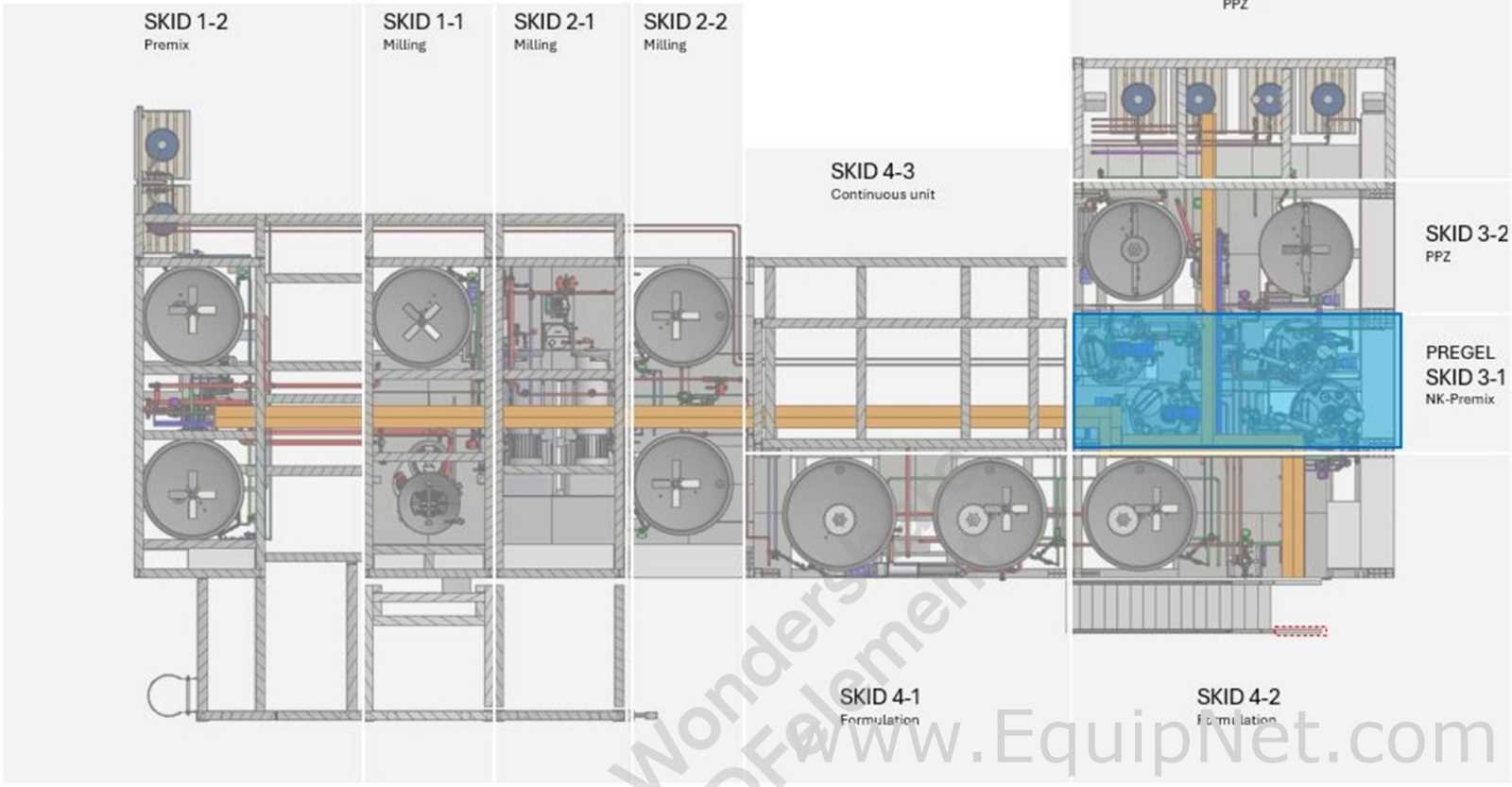

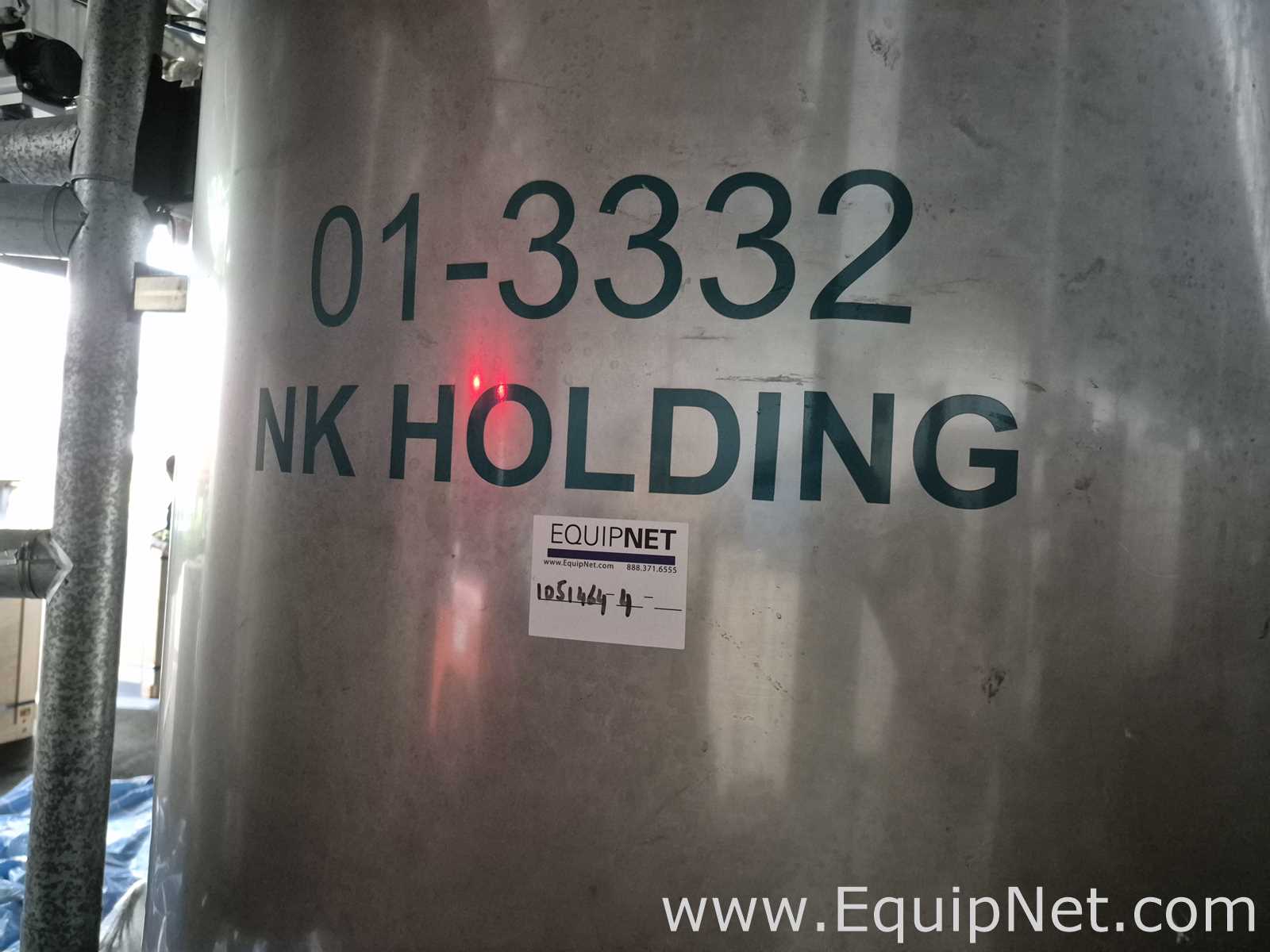

Netzsch NK Pre Blend Tank 1000 L 01-3332 - Skid 3-1 Master Equipment System
Equipment Description

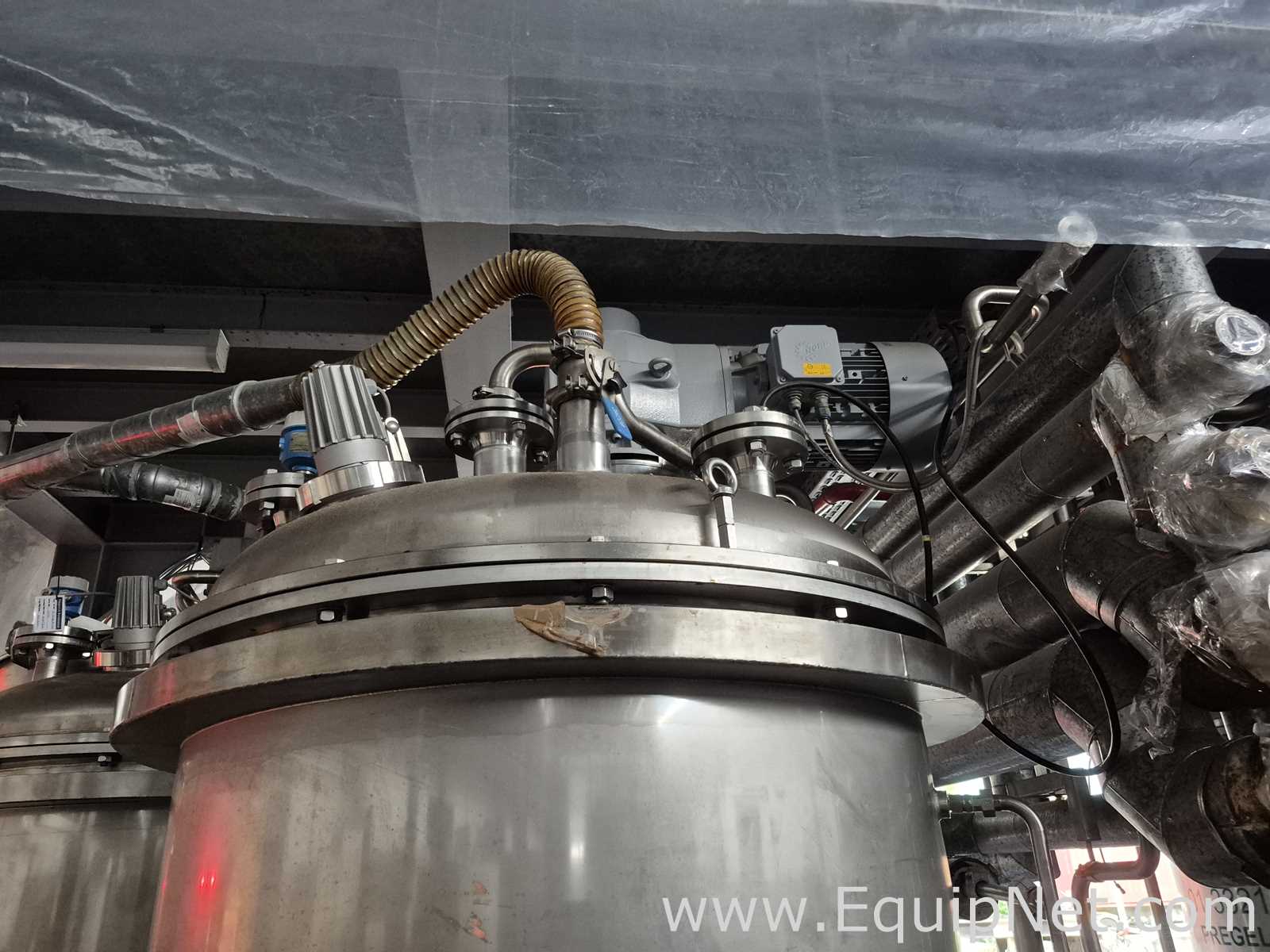

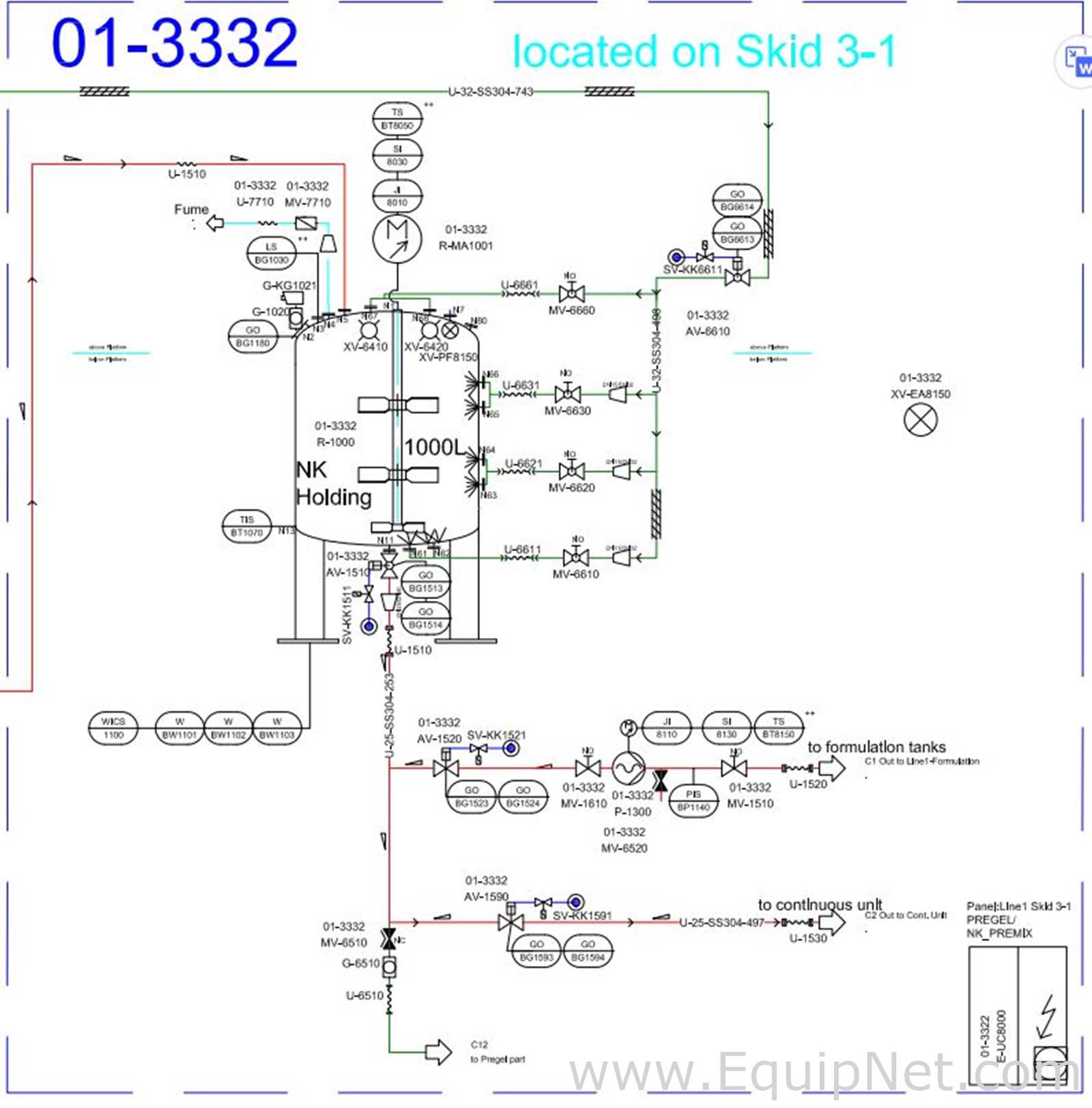

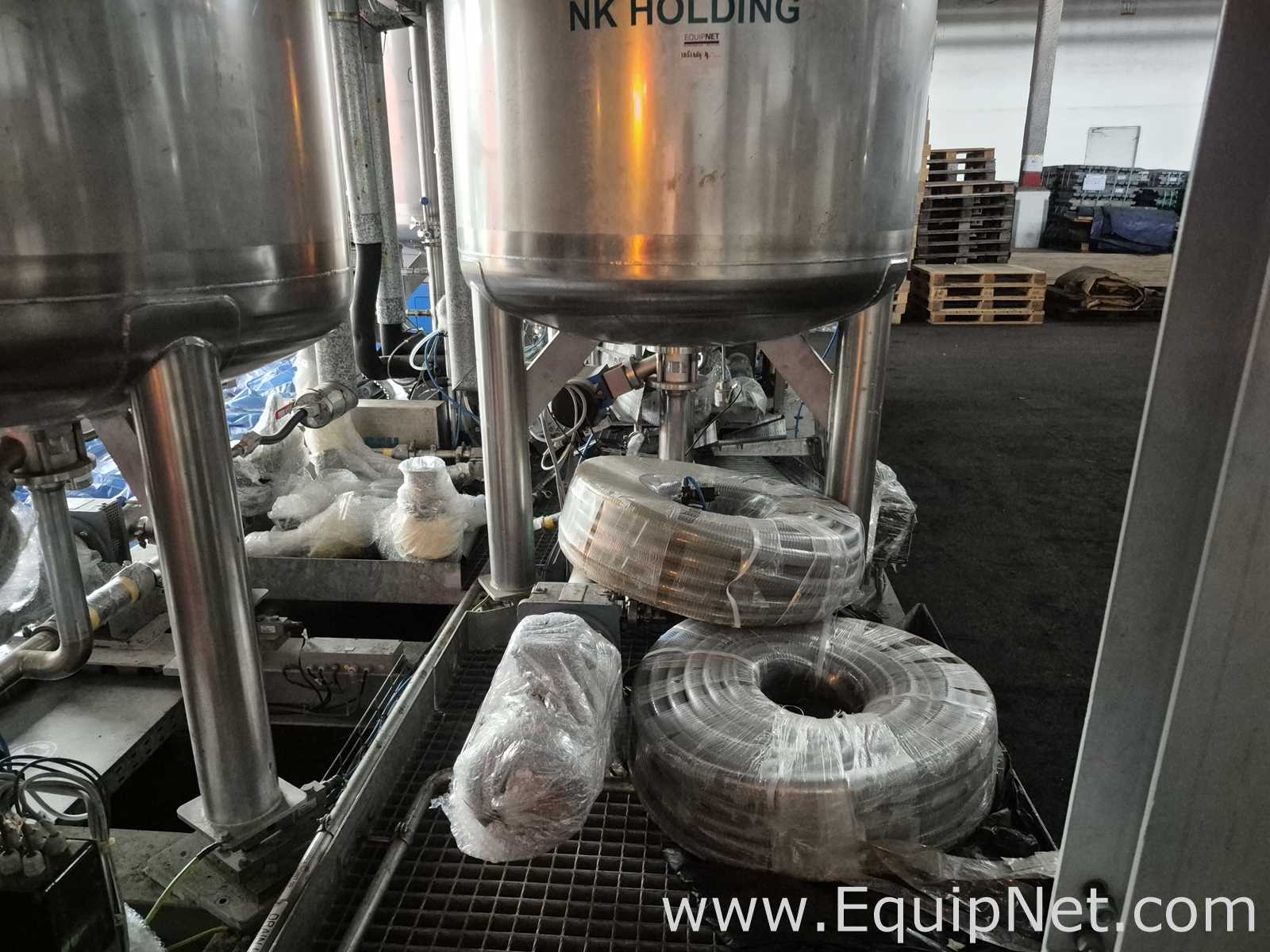

Netzsch NK Pre Blend Tank 1000 L 01-3332 - Skid 3-1 Master Equipment System

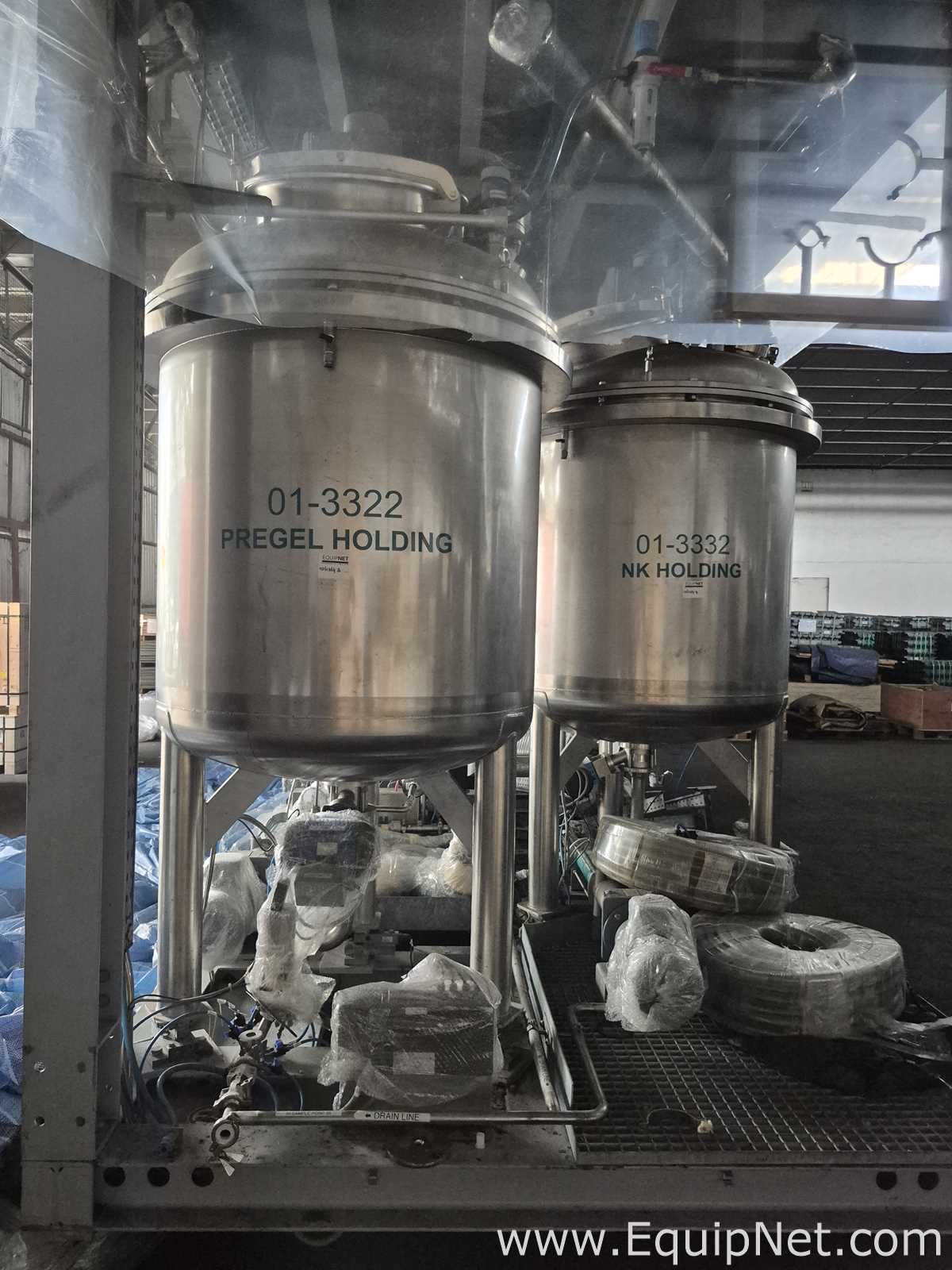

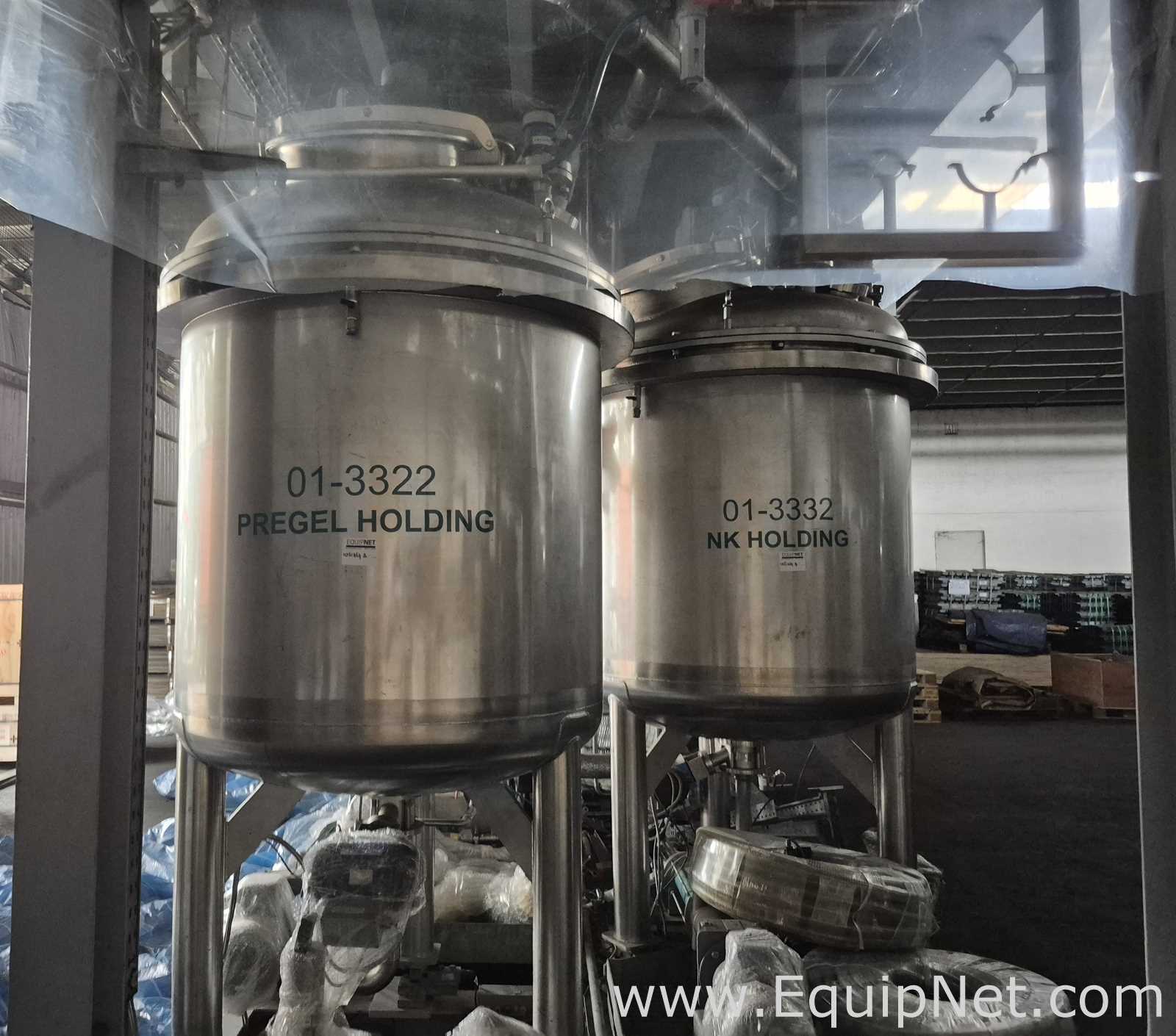

1000 Lt NK Pre Blend Holding Medium Speed Mixing Vessel.
Designed for Max operating pressure: ATM.
Designed for Max operating temperature: 90C.
Mixing elements: 2 x 4 blade axial flow about 550 mm. 1 x 4 blade axial flow about 300 mm. radially clamped two half shells.
Mixer drive: 5.5 kW protection class IP 55/ not explosion-proof infinitely variable via frequency inverter.

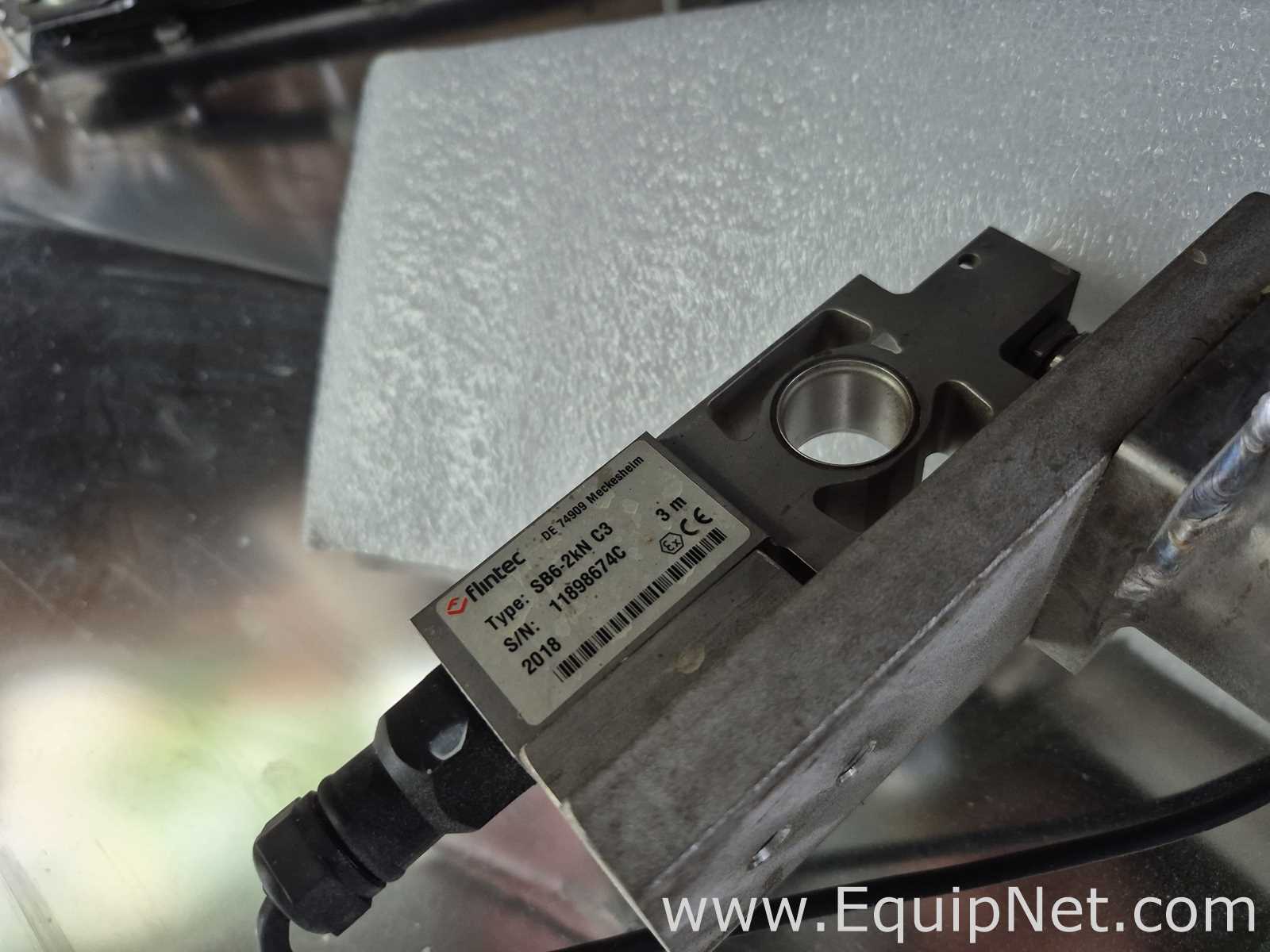

Load cell system: 3 load cells each 1 t and mounting kit.
Temperature control with limit switch: resistance thermometer PT100.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Year:
2018
2018
Capacity of Tank:
264.26
gal
1000
L
Tank Material of Construction:
STAINLESS STEEL
STAINLESS STEEL
Grade of Stainless Steel:
304
304
Jacketed:
NO
NO
Agitation:
YES
YES
Recommended Packaging Form:
CUSTOM PALLET
CUSTOM PALLET
Dimensions:
Standard
Metric
Overall:
43.31 x 43.31 x 67.72 in - 1807.77 lb
1100 x 1100 x 1720 MM - 820 KGS
Asset Documents
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1053876

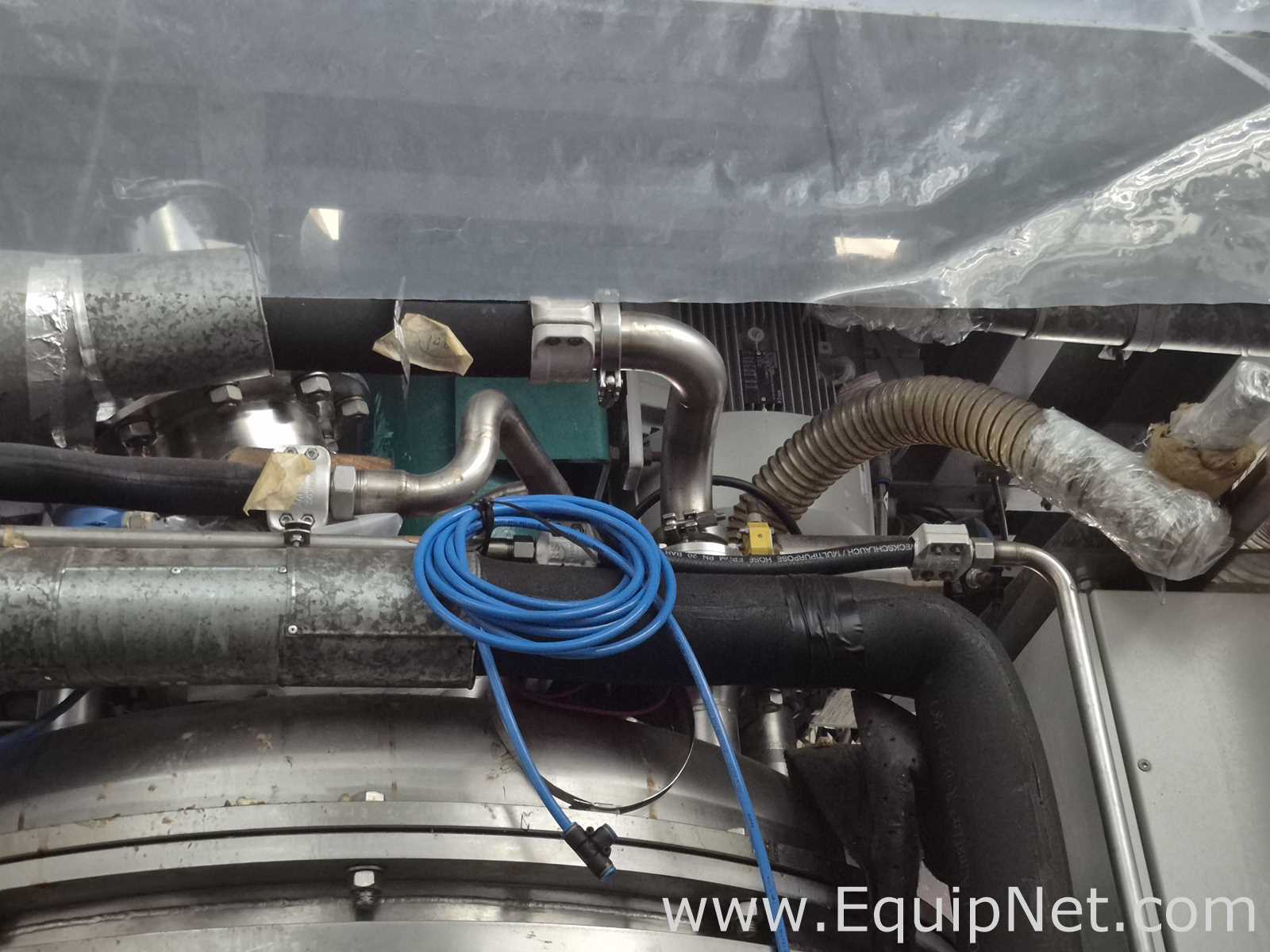

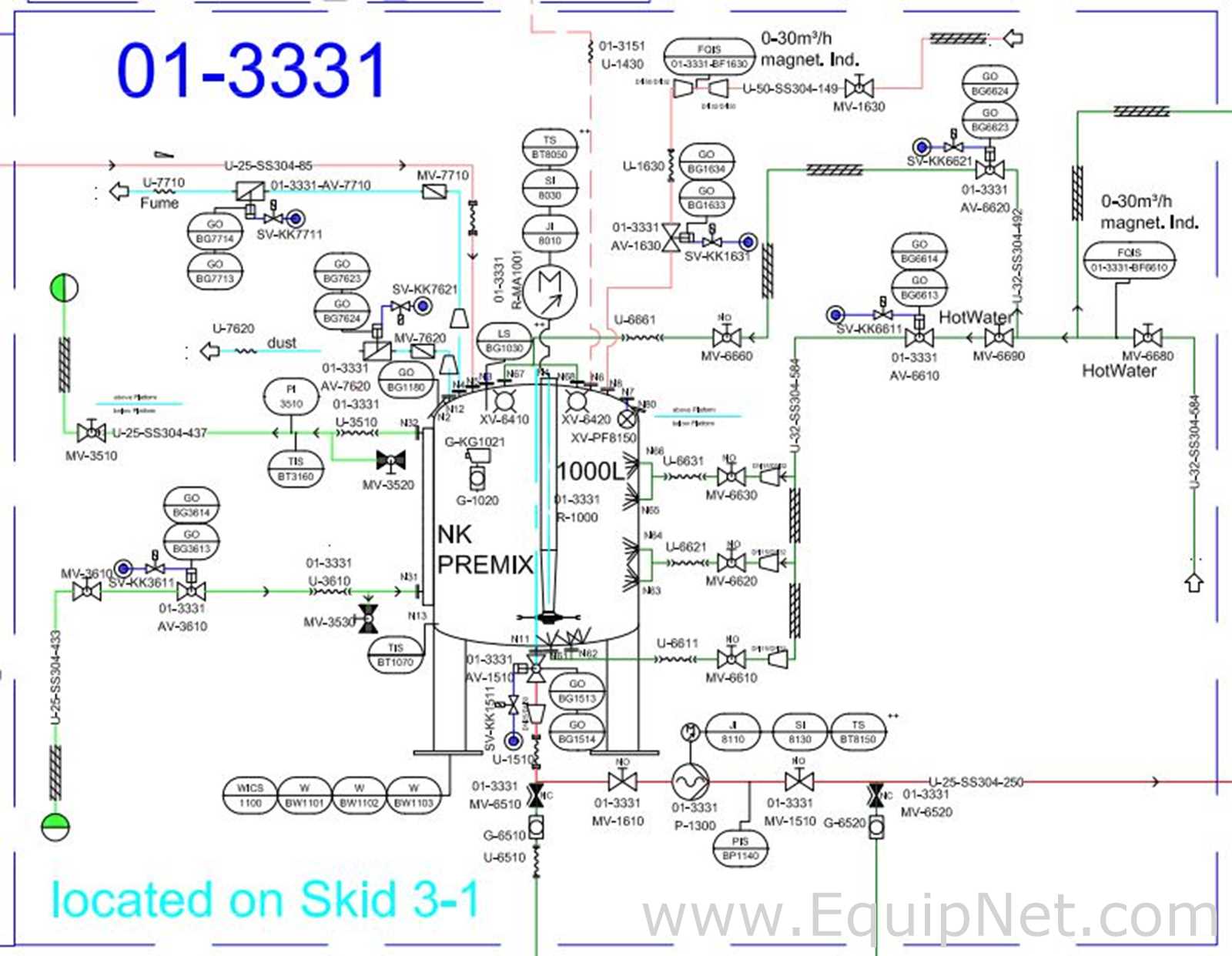

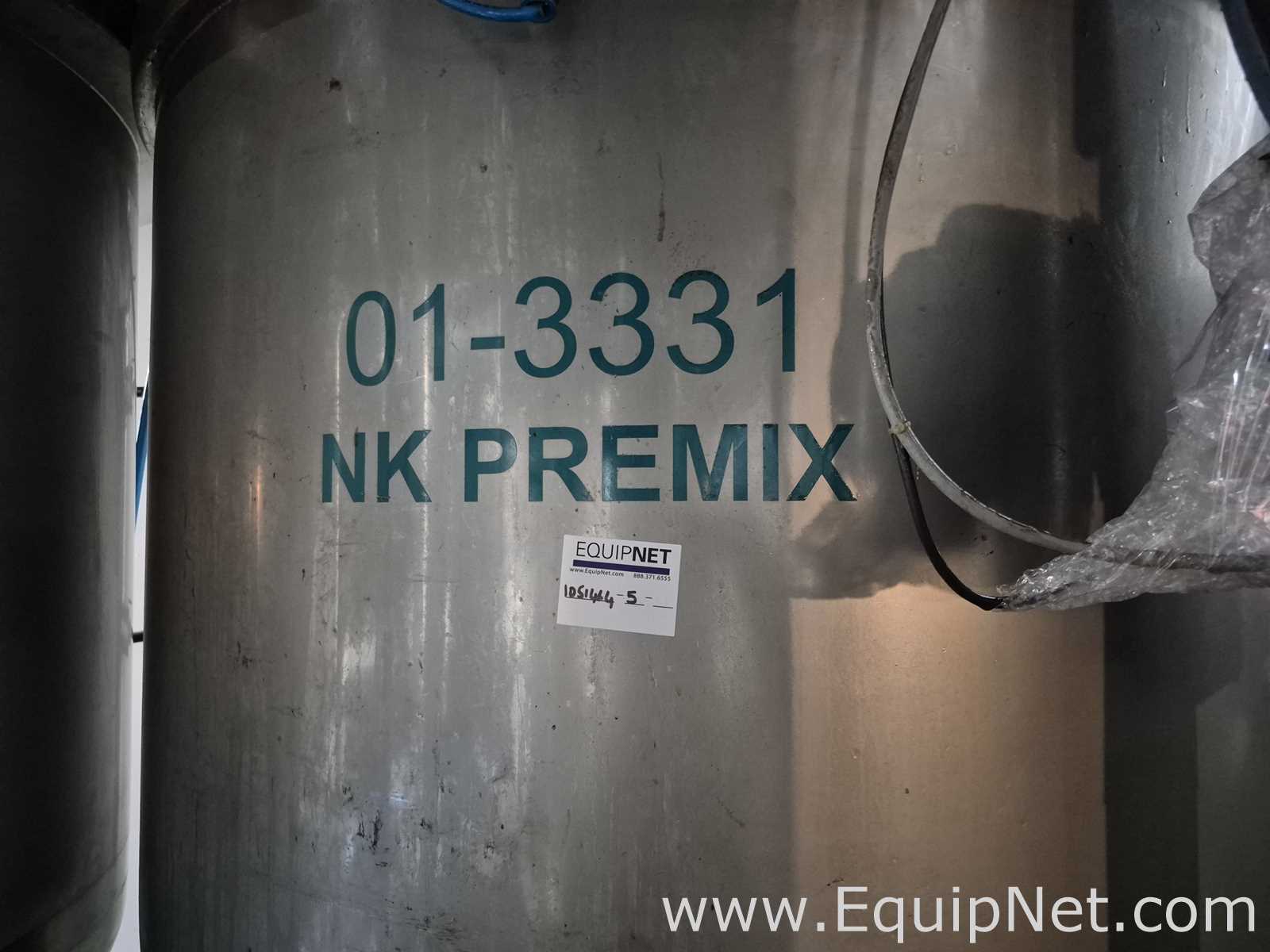

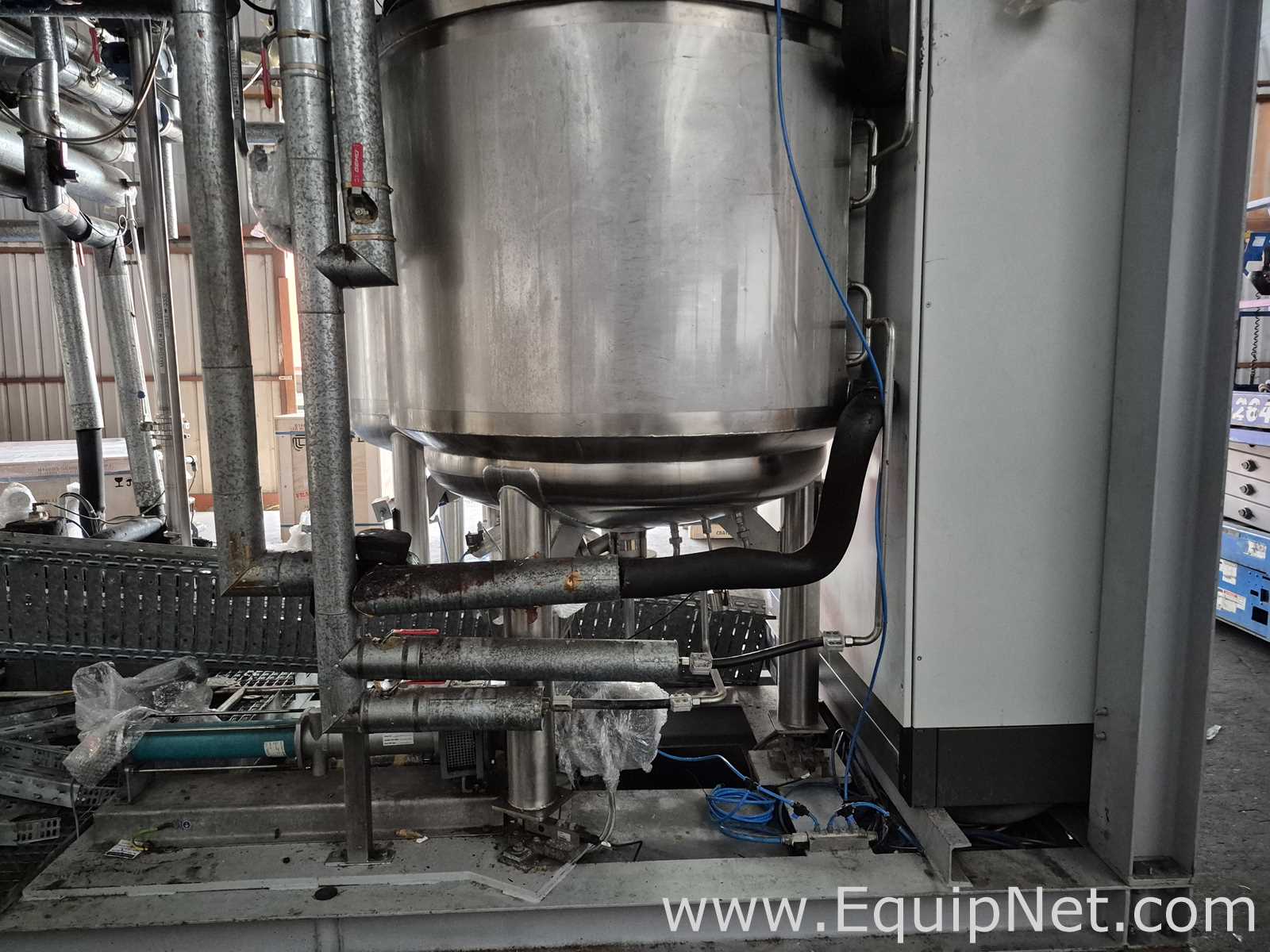

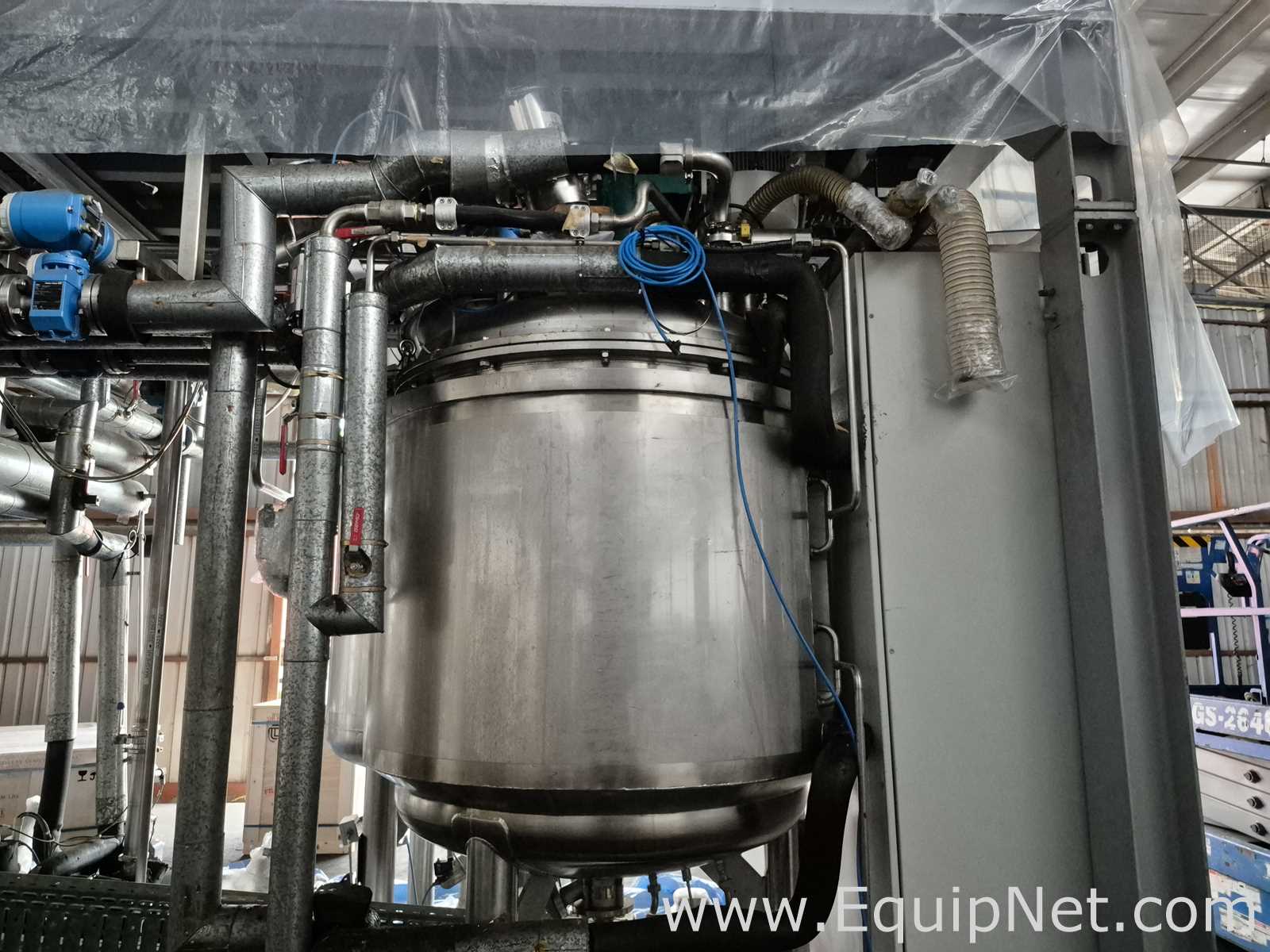

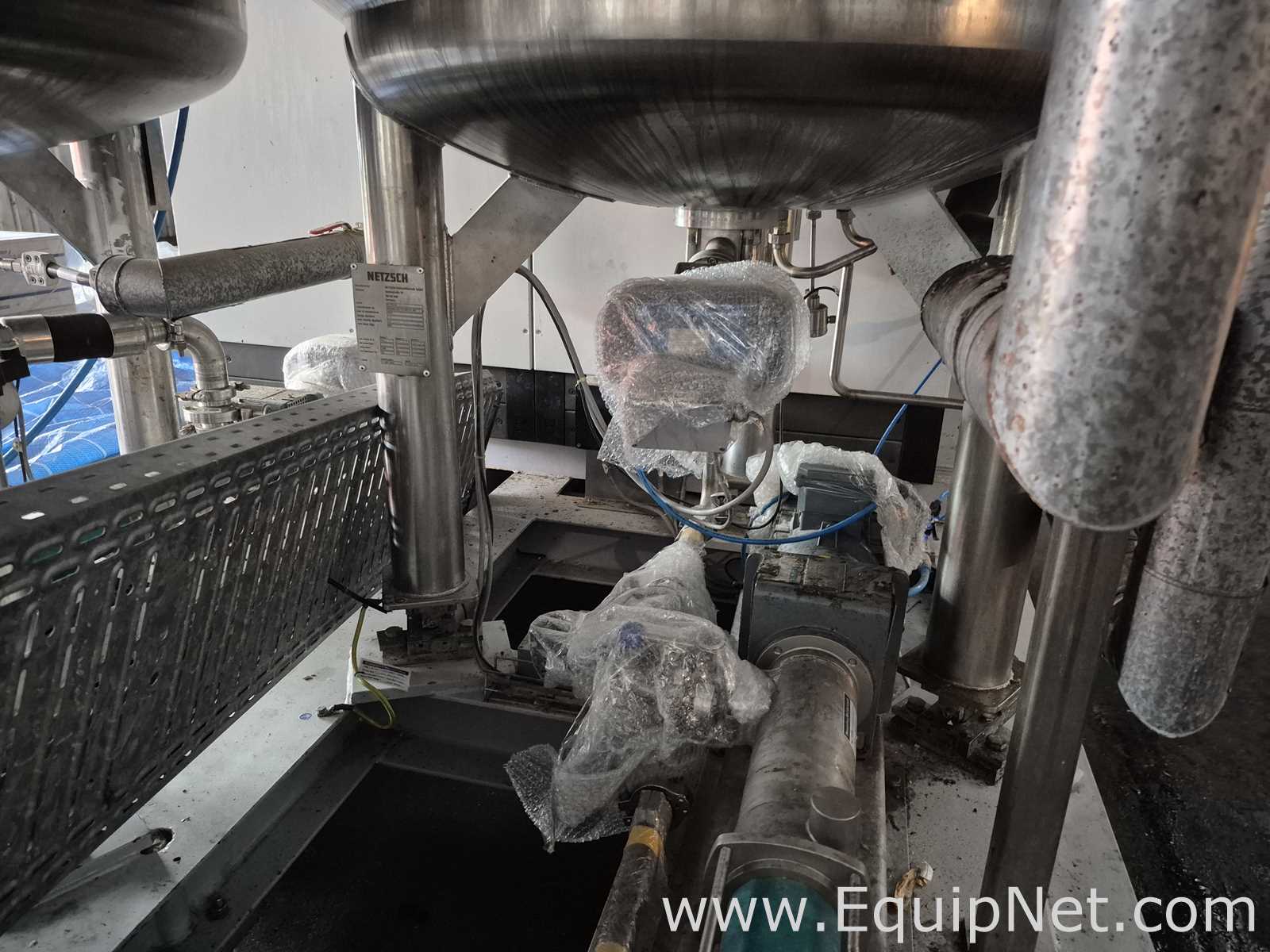

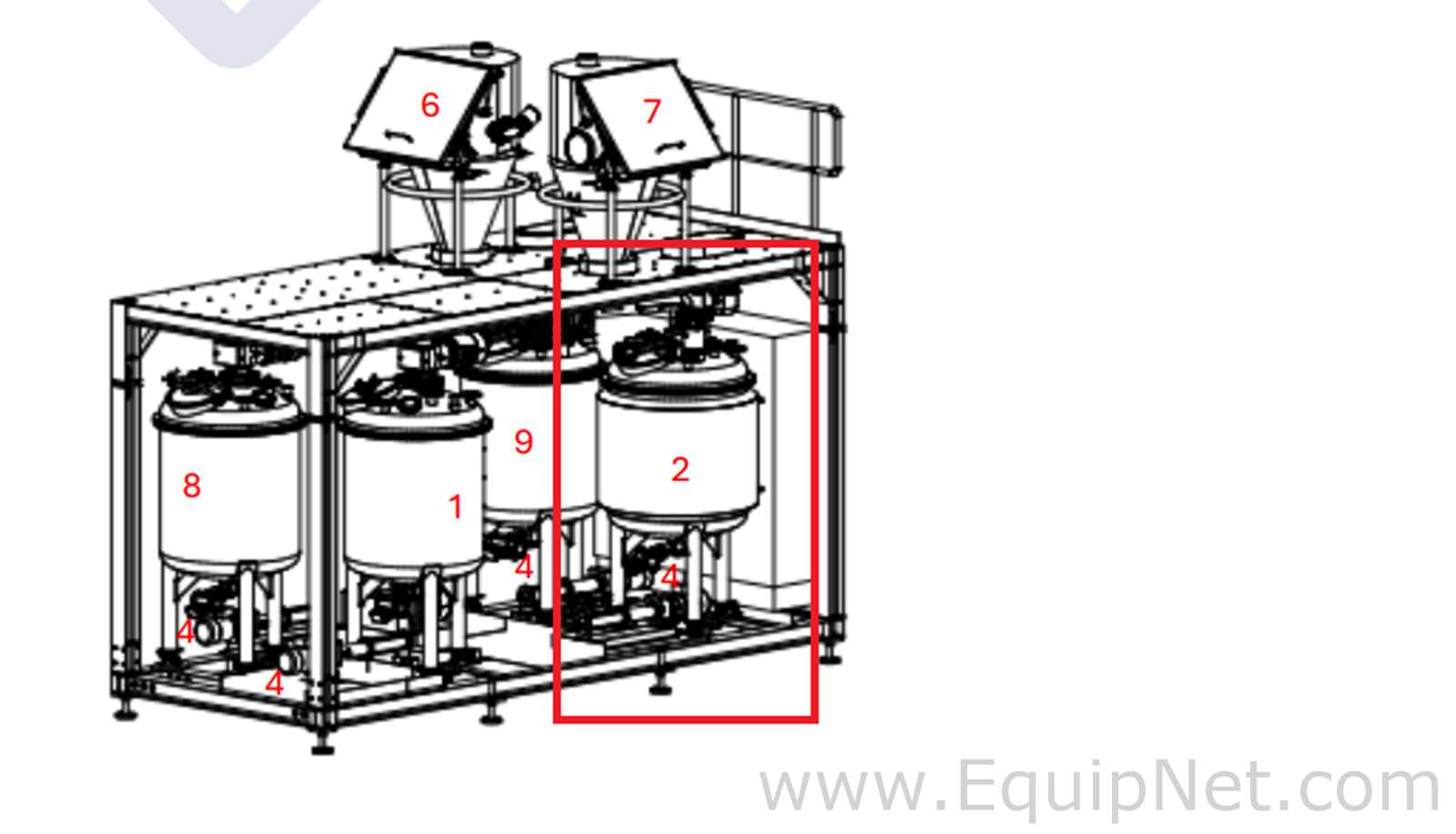

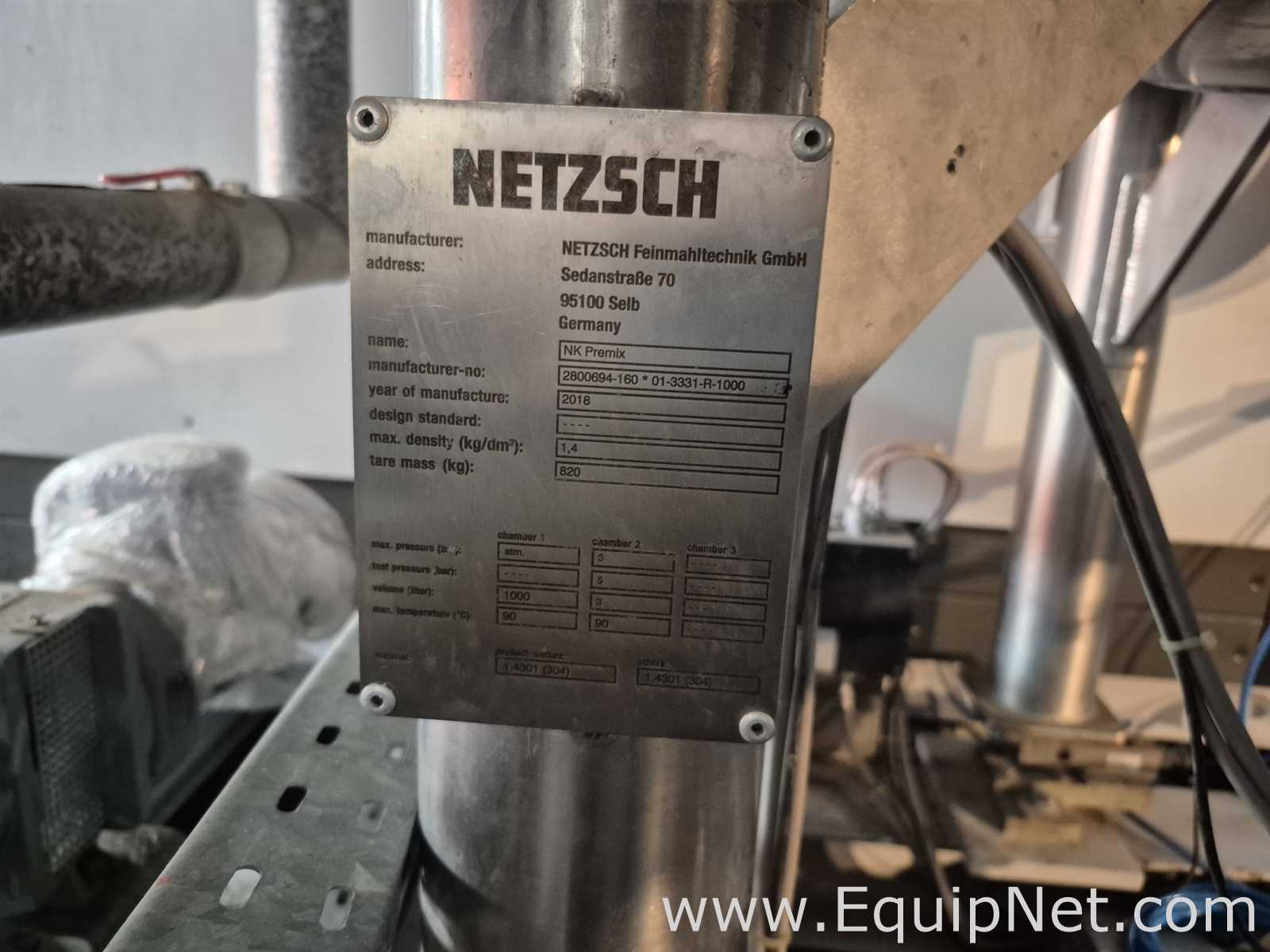

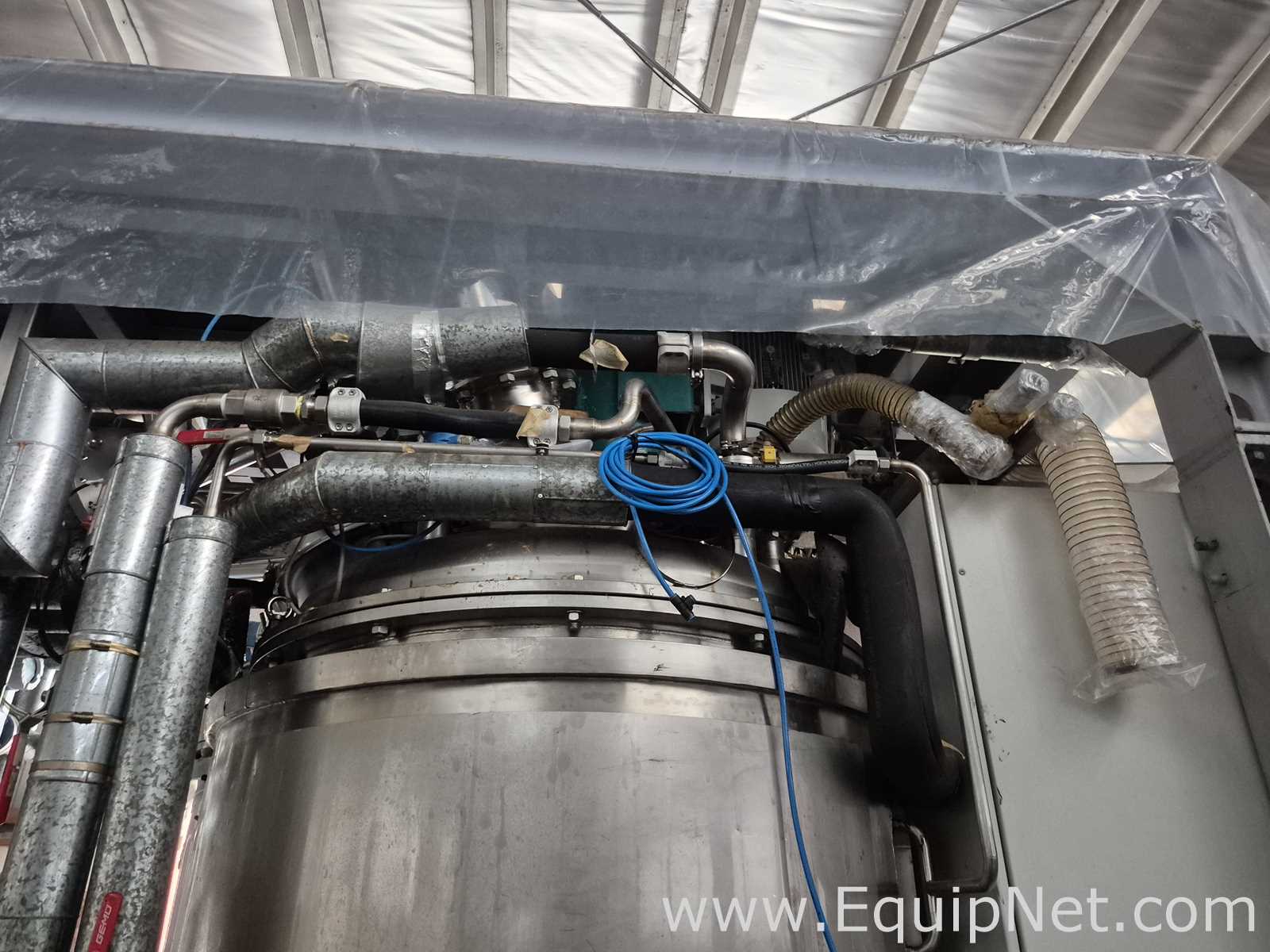

Netzsch NK Premix Tank 1000 L 01-3331 - Skid 3-1 Master Equipment System
Equipment Description
Netzsch NK Premix Tank 1000 L 01-3331 - Skid 3-1 Master Equipment System
1000 l NK PRE BLEND high speed mixing vessel. Cooled.
Mixer 1000L HS Cooled: Saw tooth blade: 350 mm.
HS11kW: 15-50hz. 8.1-27m/s.
Motor: 11kW. 1475 RPM. 50hz.
Designed for Max operating pressure: ATM.
Designed for Max operating Temperature: 90C.
Designed for Max cooling water pressure: 3 bar.
Cooled and insolated.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Year:
2018
2018
Serial Number:
2800694-160
2800694-160
Capacity of Tank:
264.26
gal
1000
L
Tank Material of Construction:
STAINLESS STEEL
STAINLESS STEEL
Grade of Stainless Steel:
304
304
Jacketed:
NO
NO
Agitation:
YES
YES
Recommended Packaging Form:
CUSTOM PALLET
CUSTOM PALLET
Dimensions:
Standard
Metric
Overall:
43.31 x 43.31 x 66.93 in - 1807.77 lb
1100 x 1100 x 1700 MM - 820 KGS
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1045766

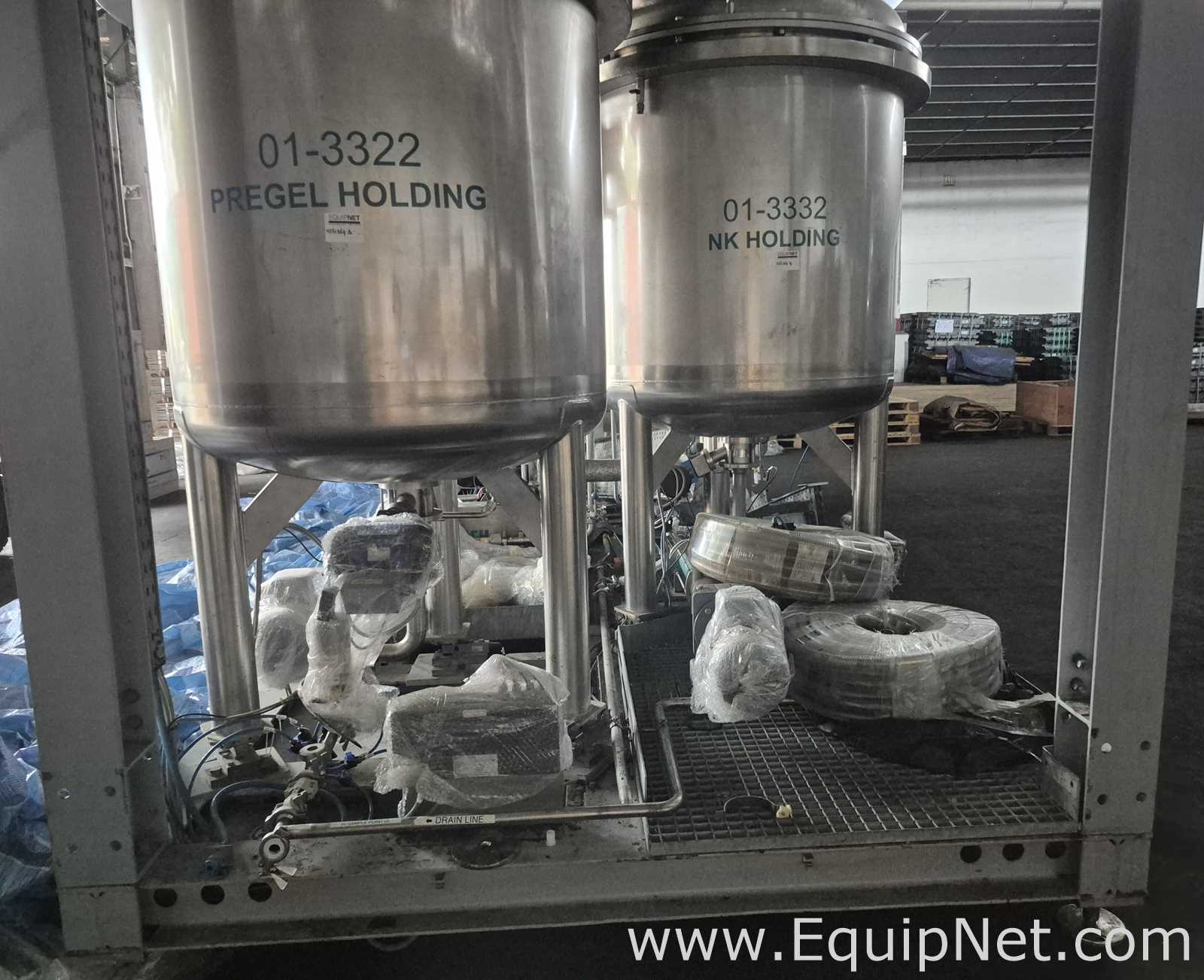

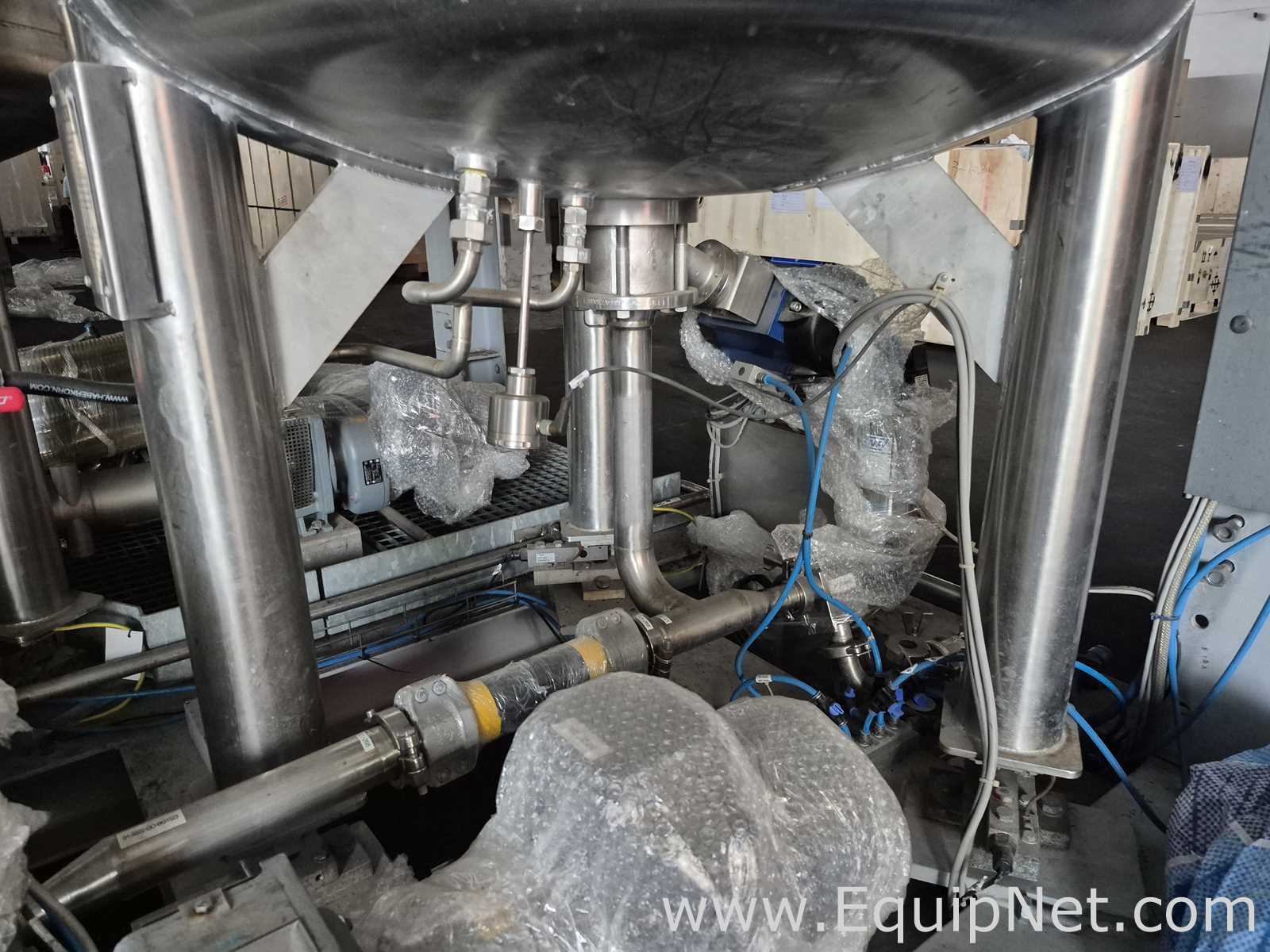

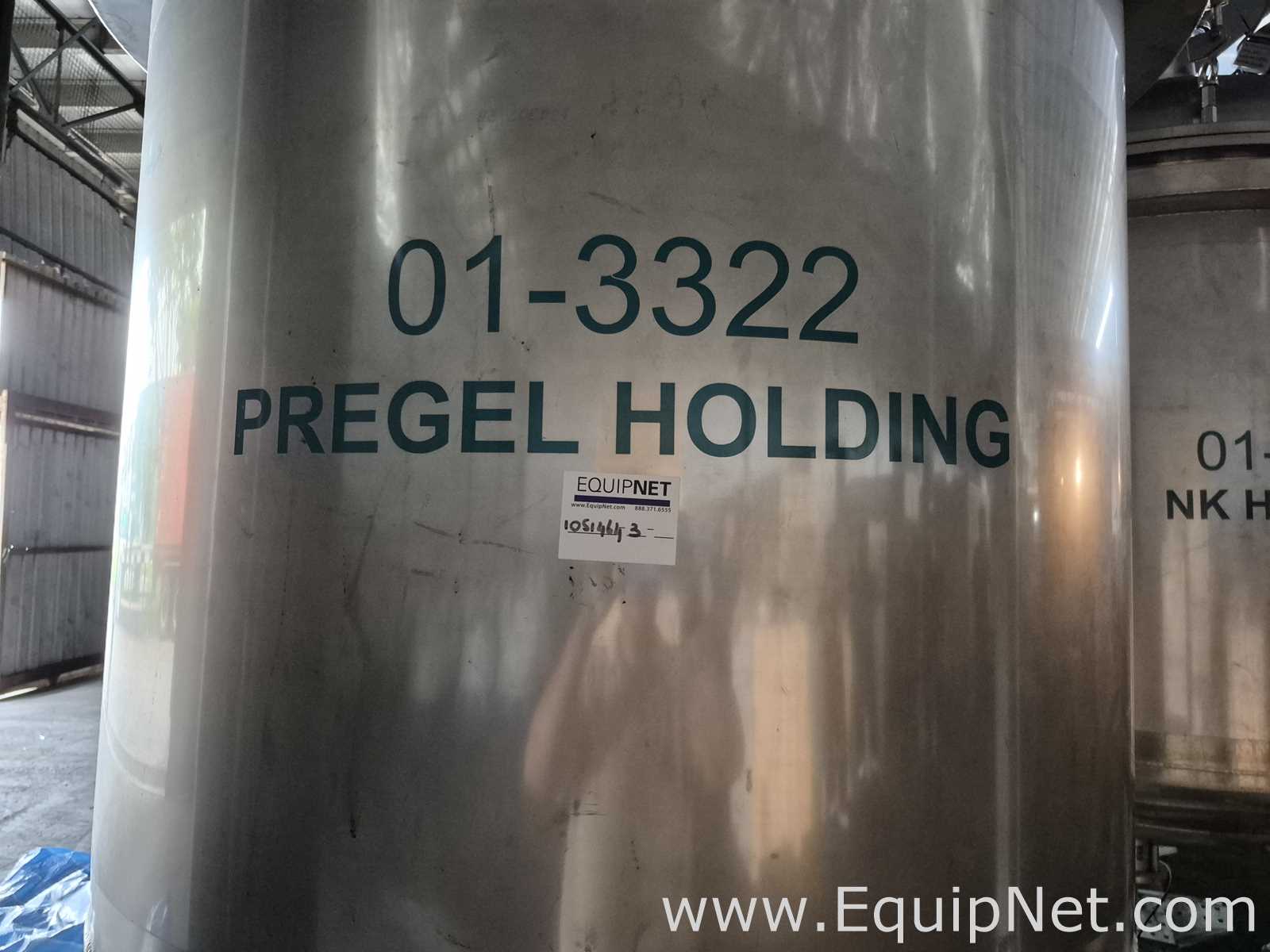

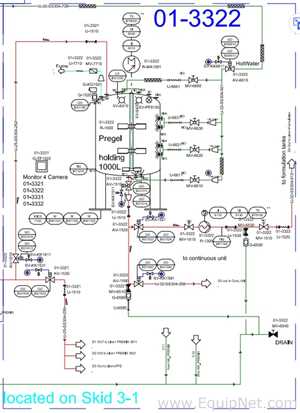

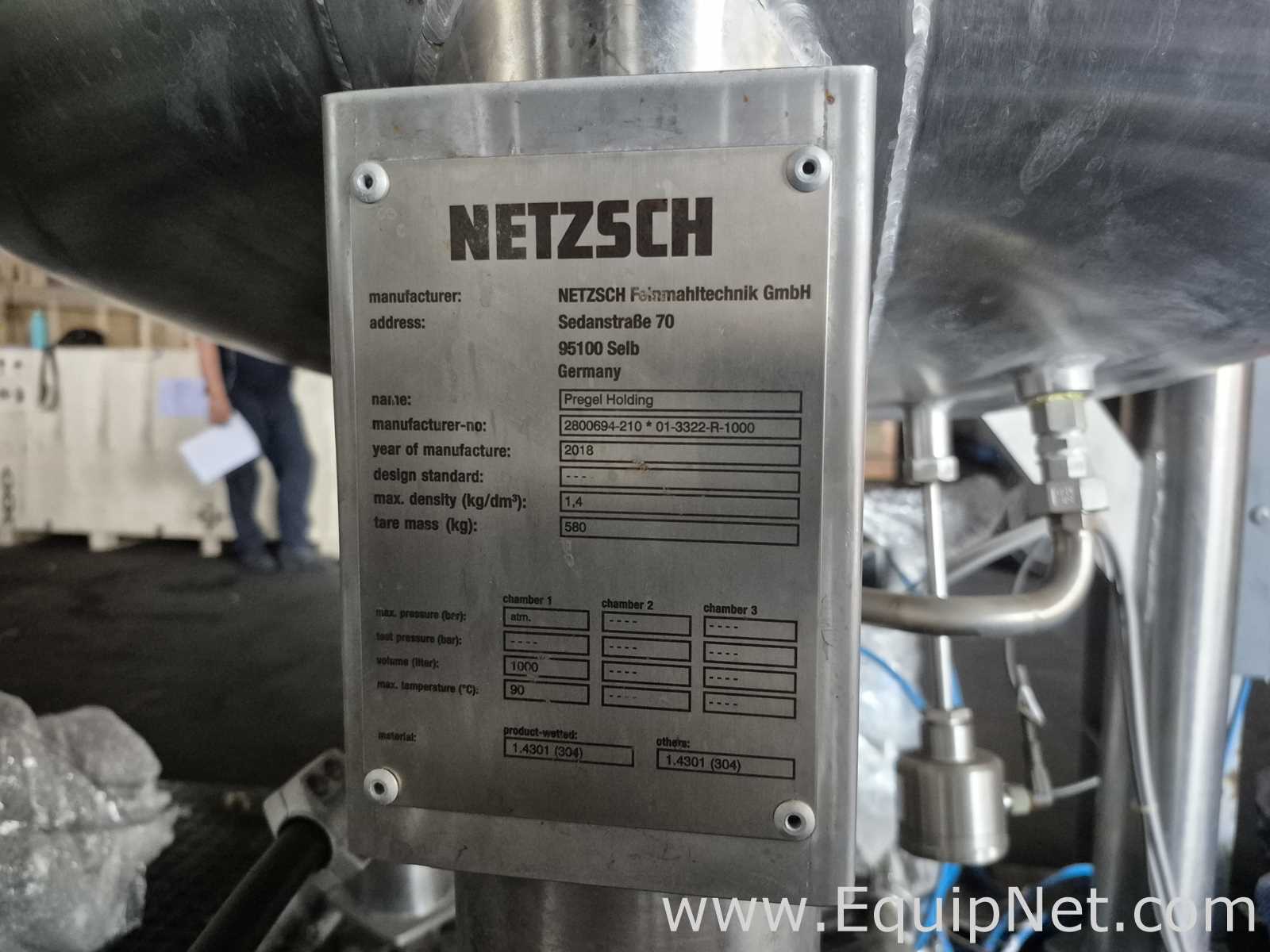

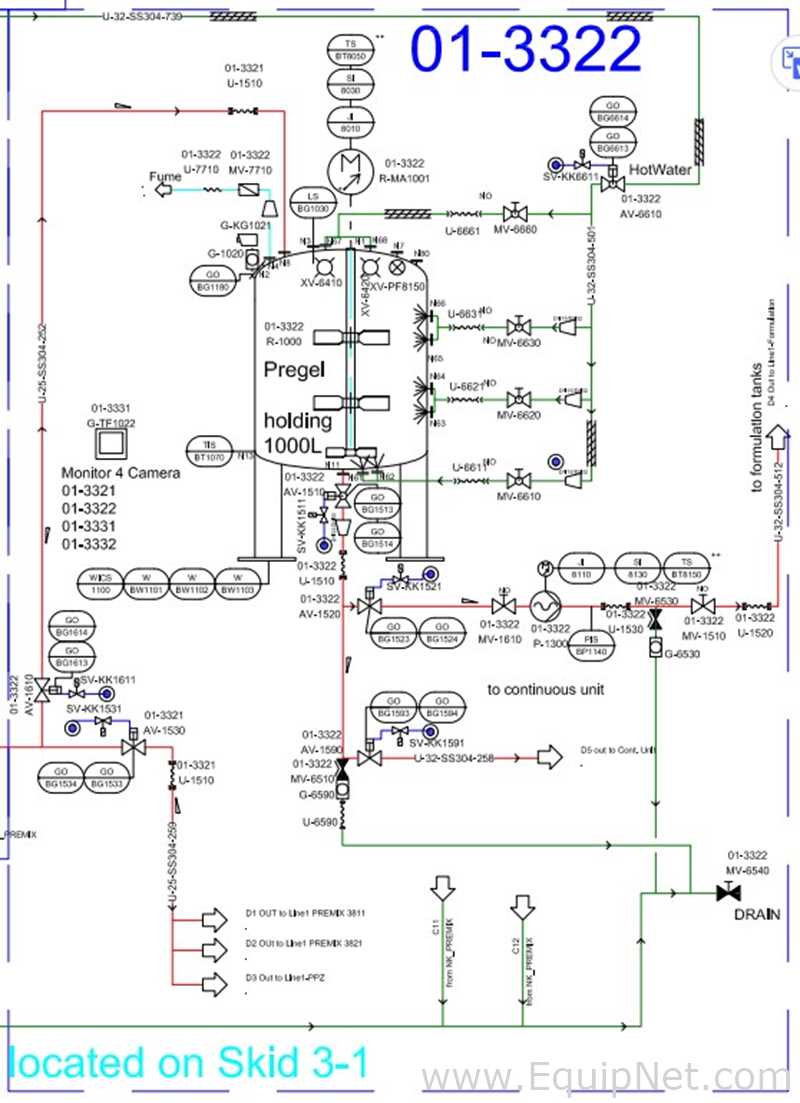

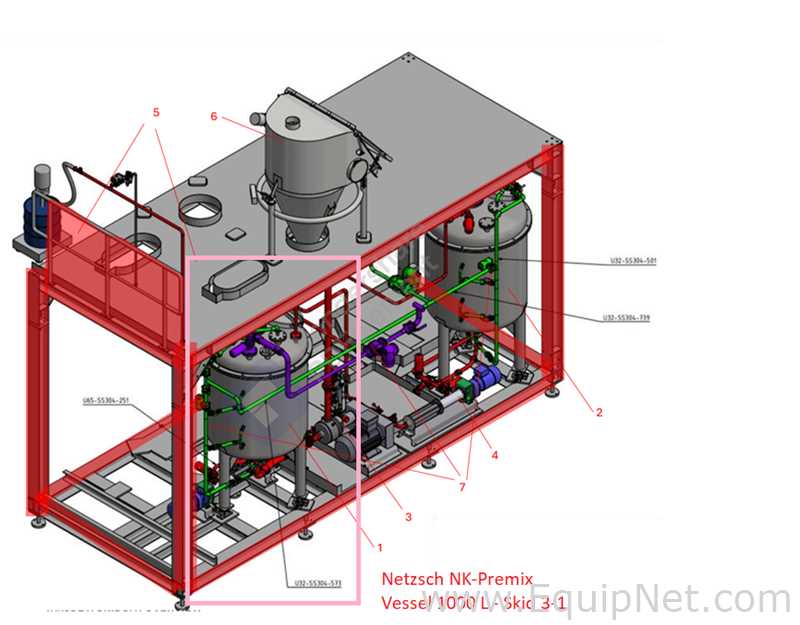

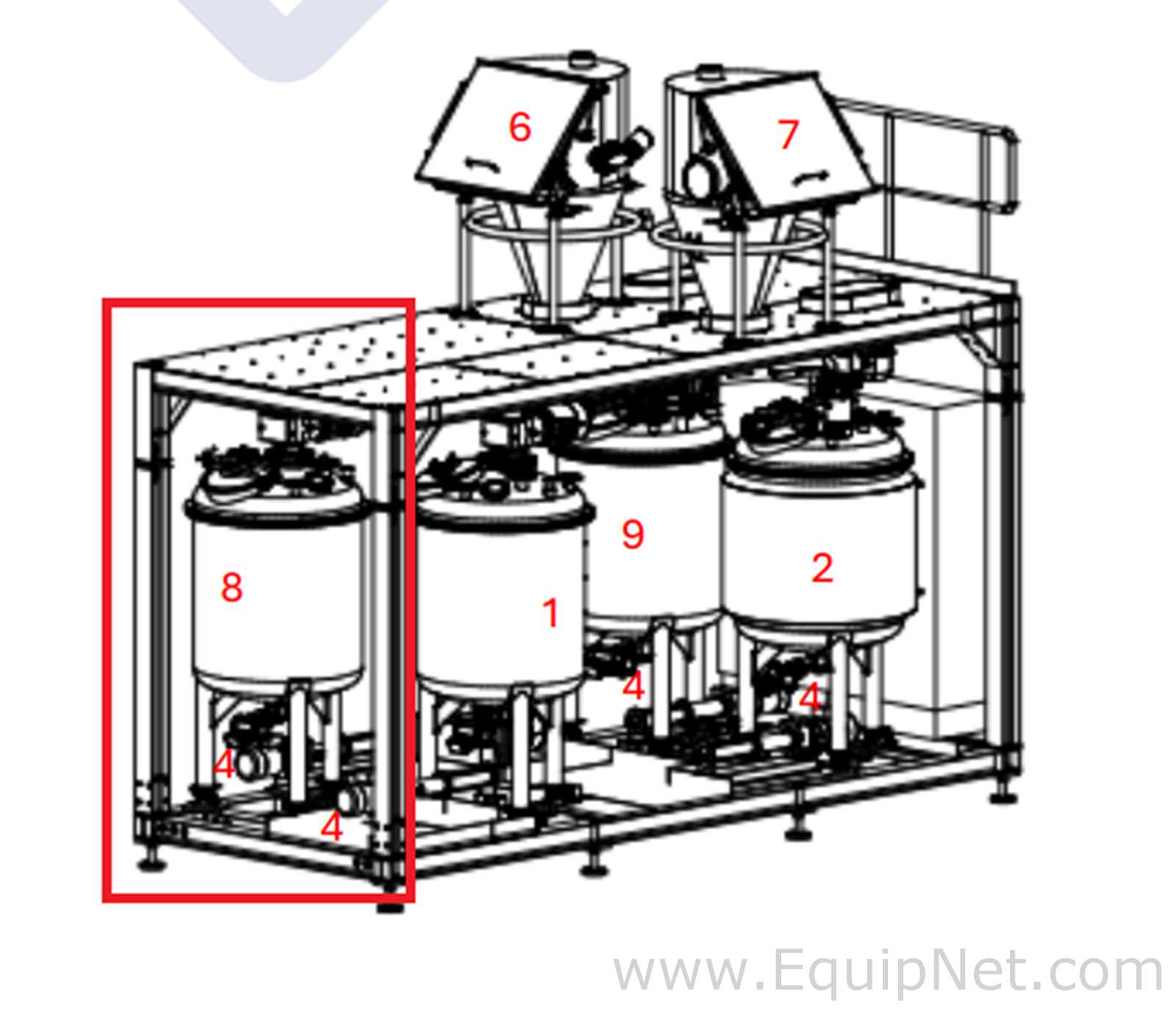

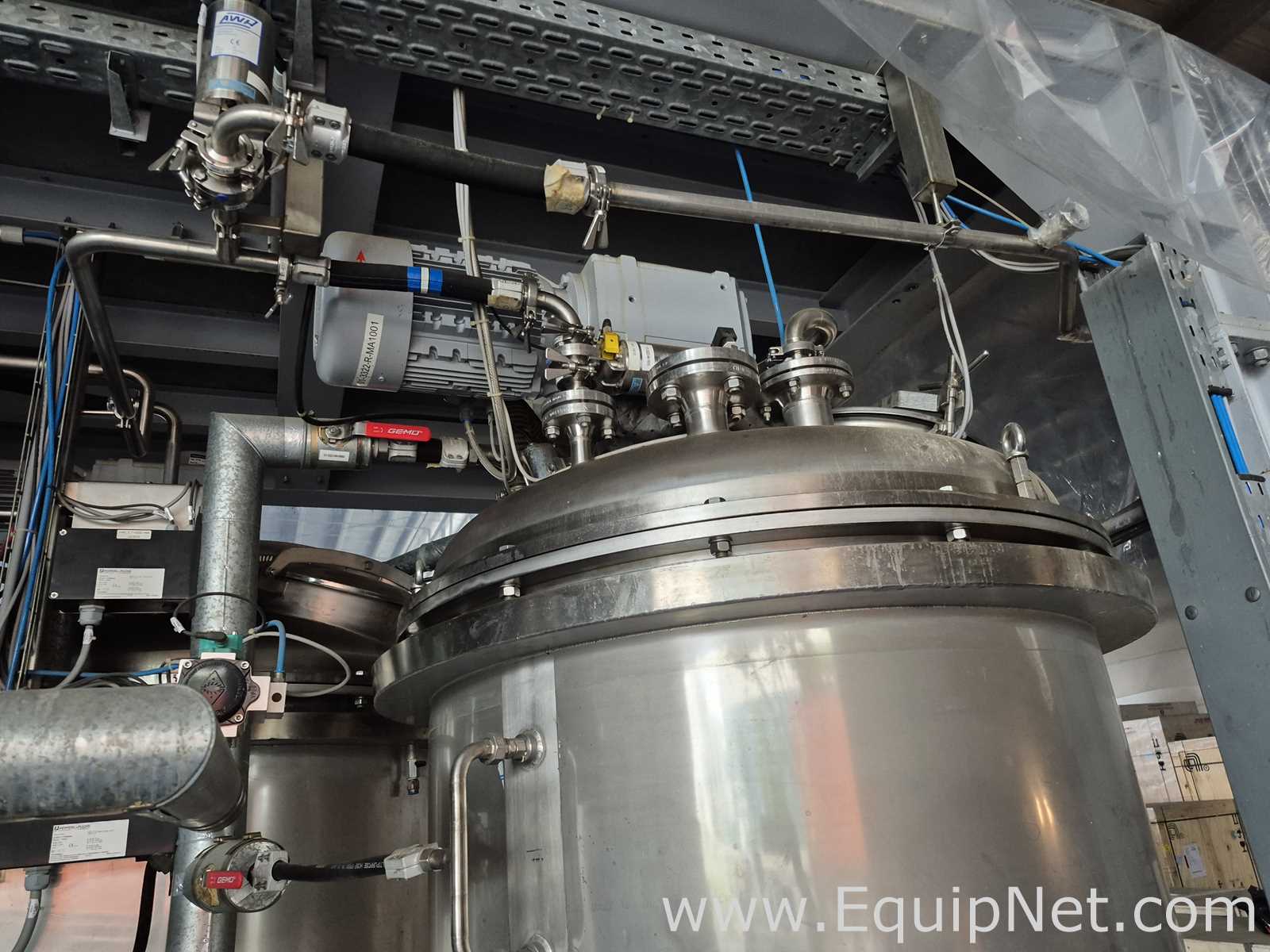

Netzsch NK-Premix Vessel 1000 L 01-3322 - Skid 3-1 Master Equipment System
Equipment Description

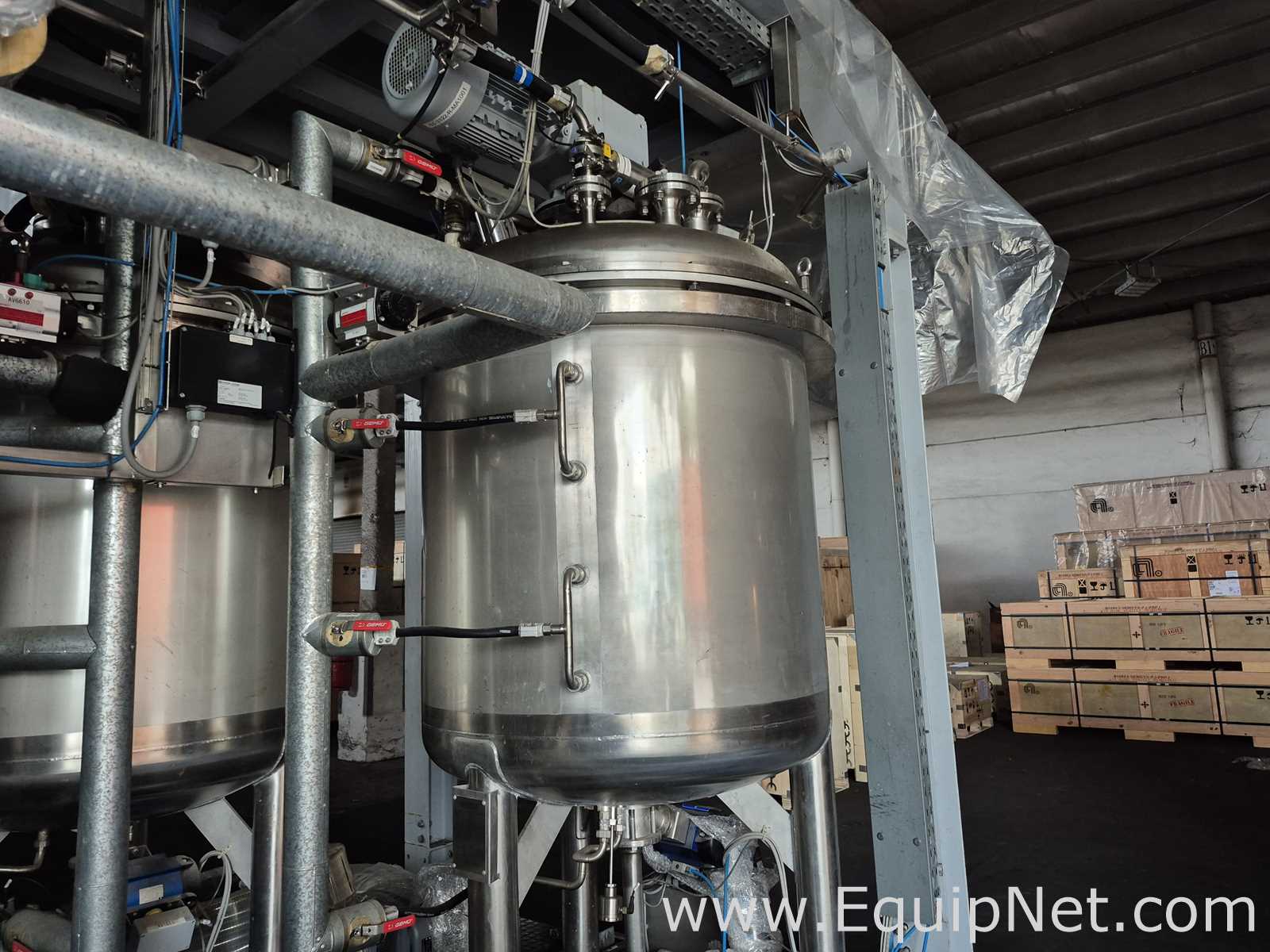

Netzsch NK-Premix Vessel 1000 L - Skid 3-1 Master Equipment System
15-75HZ. (1.18-5.88 m/s).
Axial flow blades: 550 mm.
MS5.5kW.
SS304.
Motor speed adj via 01-3322-R-MA1001: 5.5kW (1475RPM). I=10.73 (50hz). 15-75hz (40.8-204.1 RPM).
Designed for Max operating pressure: ATM.
designed for Max operating temperature: 90C.
Material: SS304.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Tank Material of Construction:
STAINLESS STEEL
STAINLESS STEEL
Capacity Size of Vessel:
264.26
gal
1000
L
Jacketed:
NO
NO
Type of Top Head:
DISHED
DISHED
Type of Bottom Head:
DISHED
DISHED
Vertical or Horizontal:
VERTICAL
VERTICAL
Agitation:
YES
YES
Recommended Packaging Form:
CUSTOM PALLET
CUSTOM PALLET
Dimensions:
Standard
Metric
Overall:
43.31 x 43.31 x 67.72 in - 1278.67 lb
1100 x 1100 x 1720 MM - 580 KGS
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top

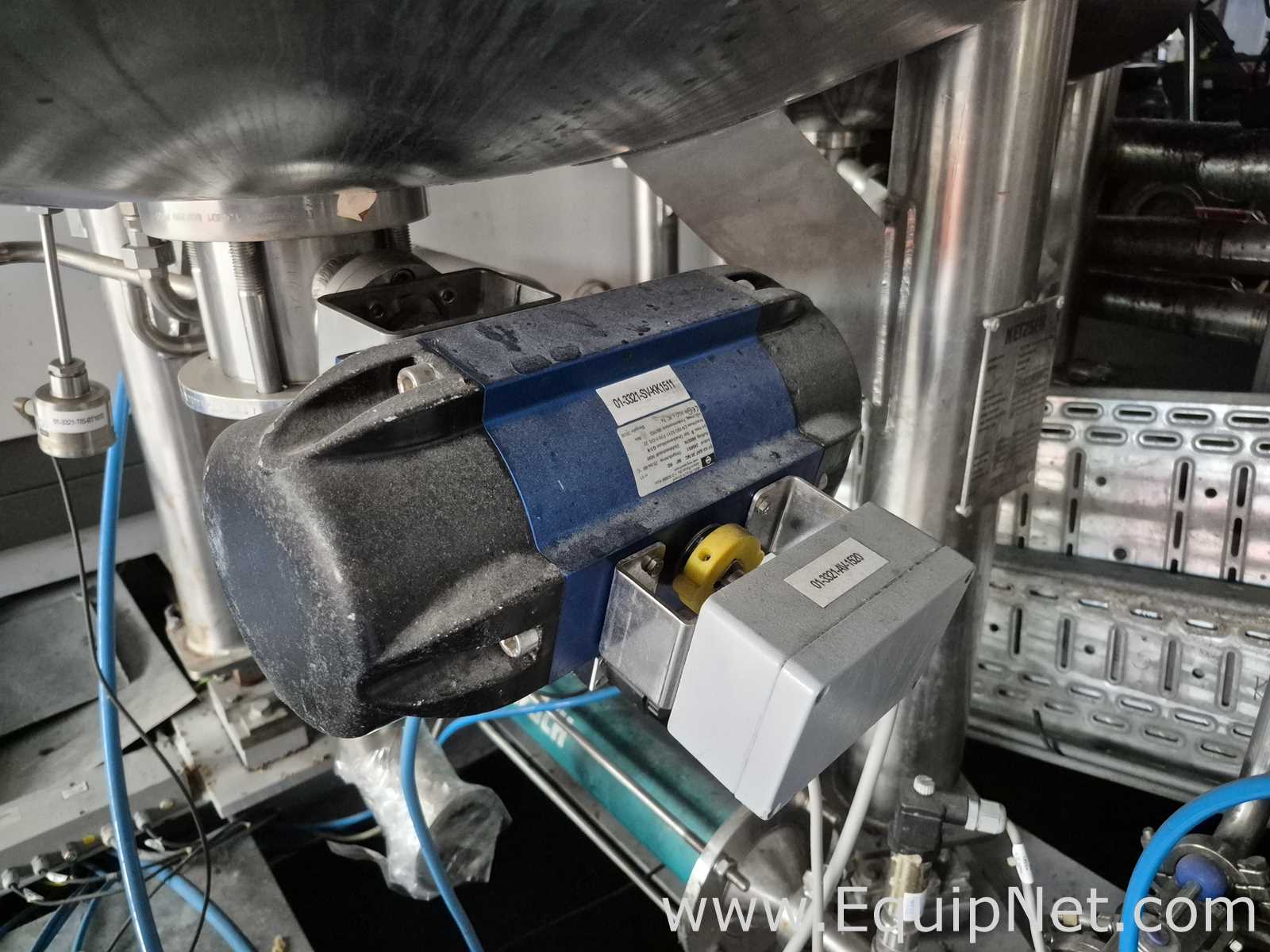

Multi-Listing #1045771

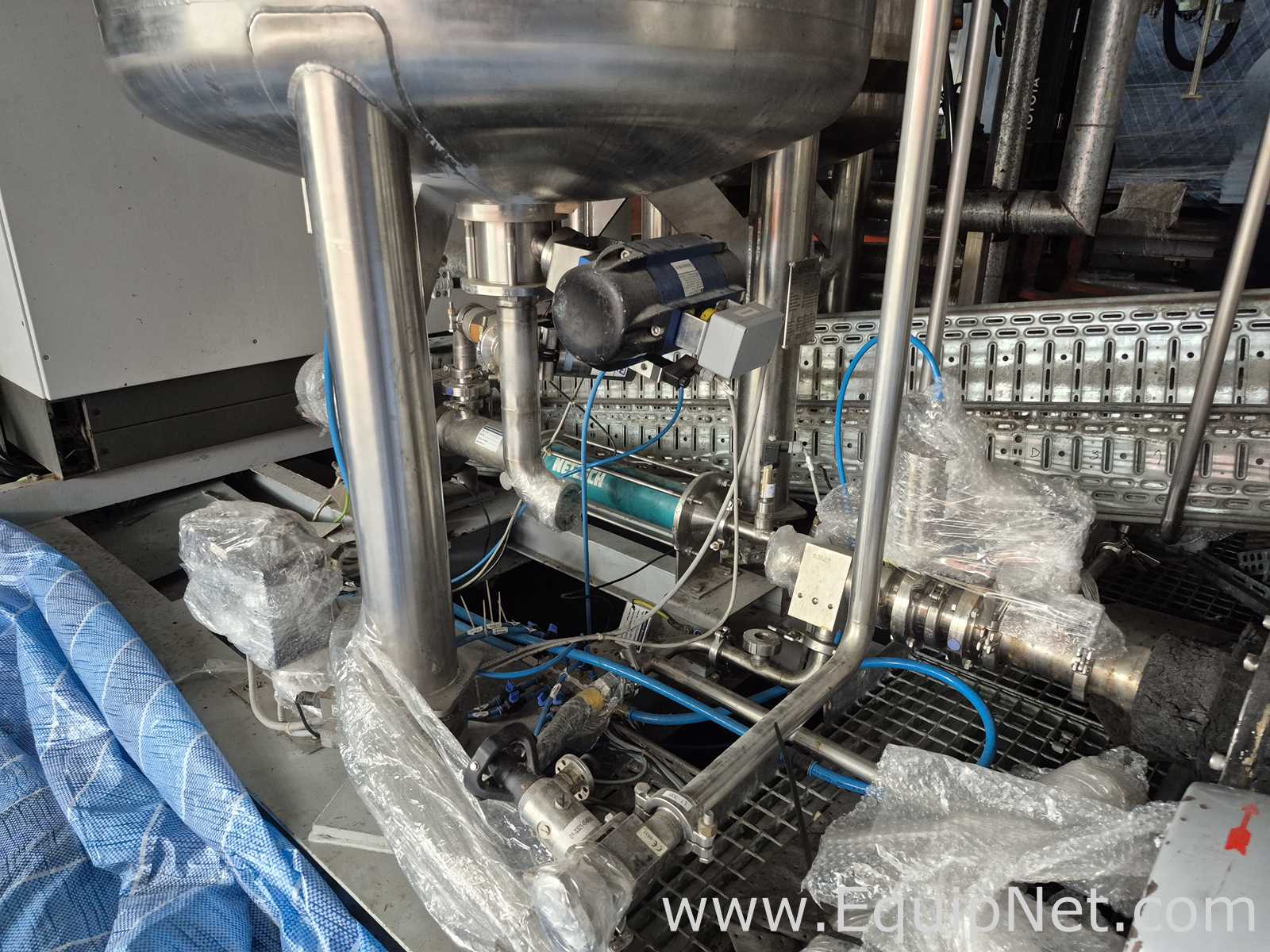

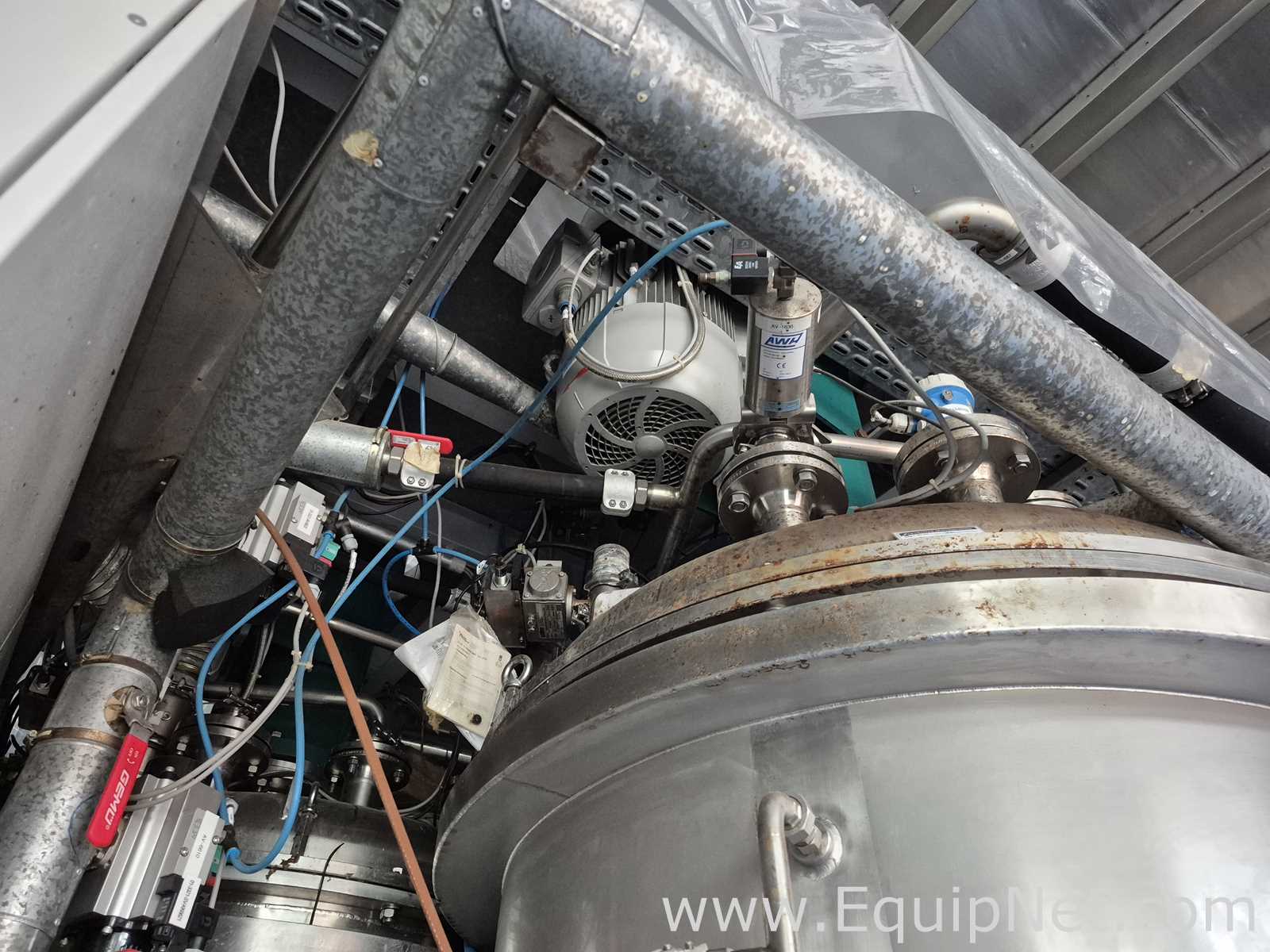

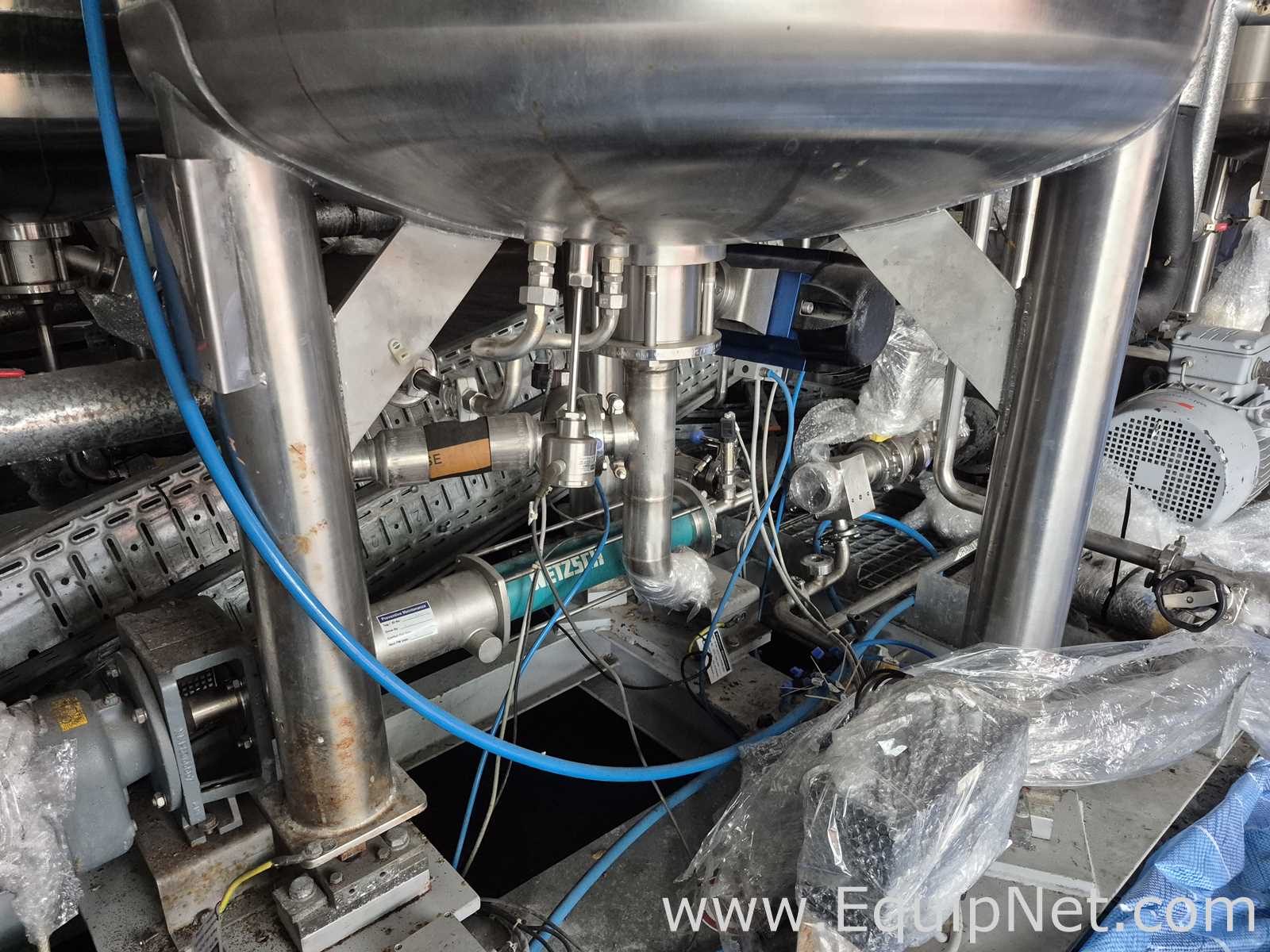

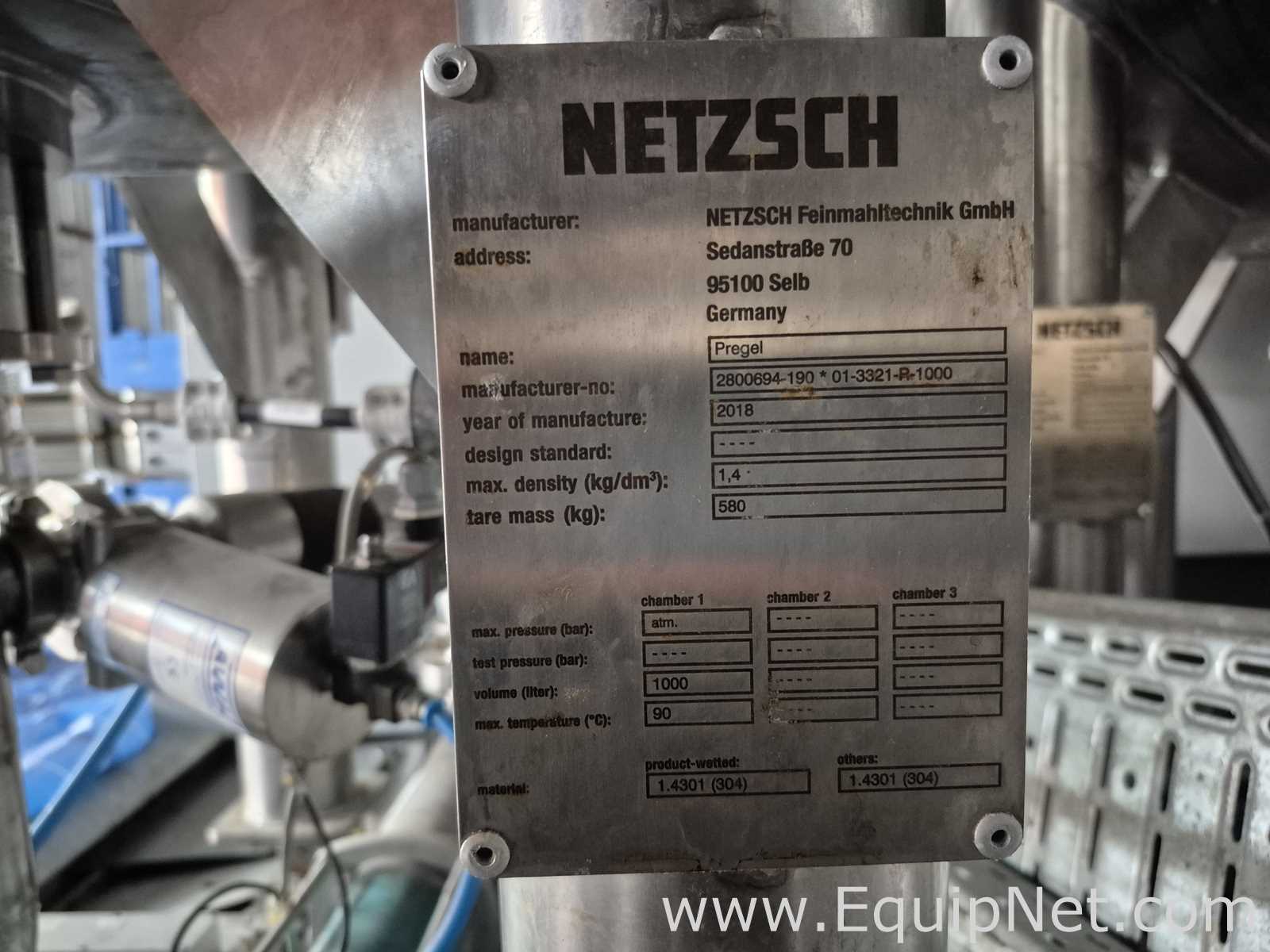

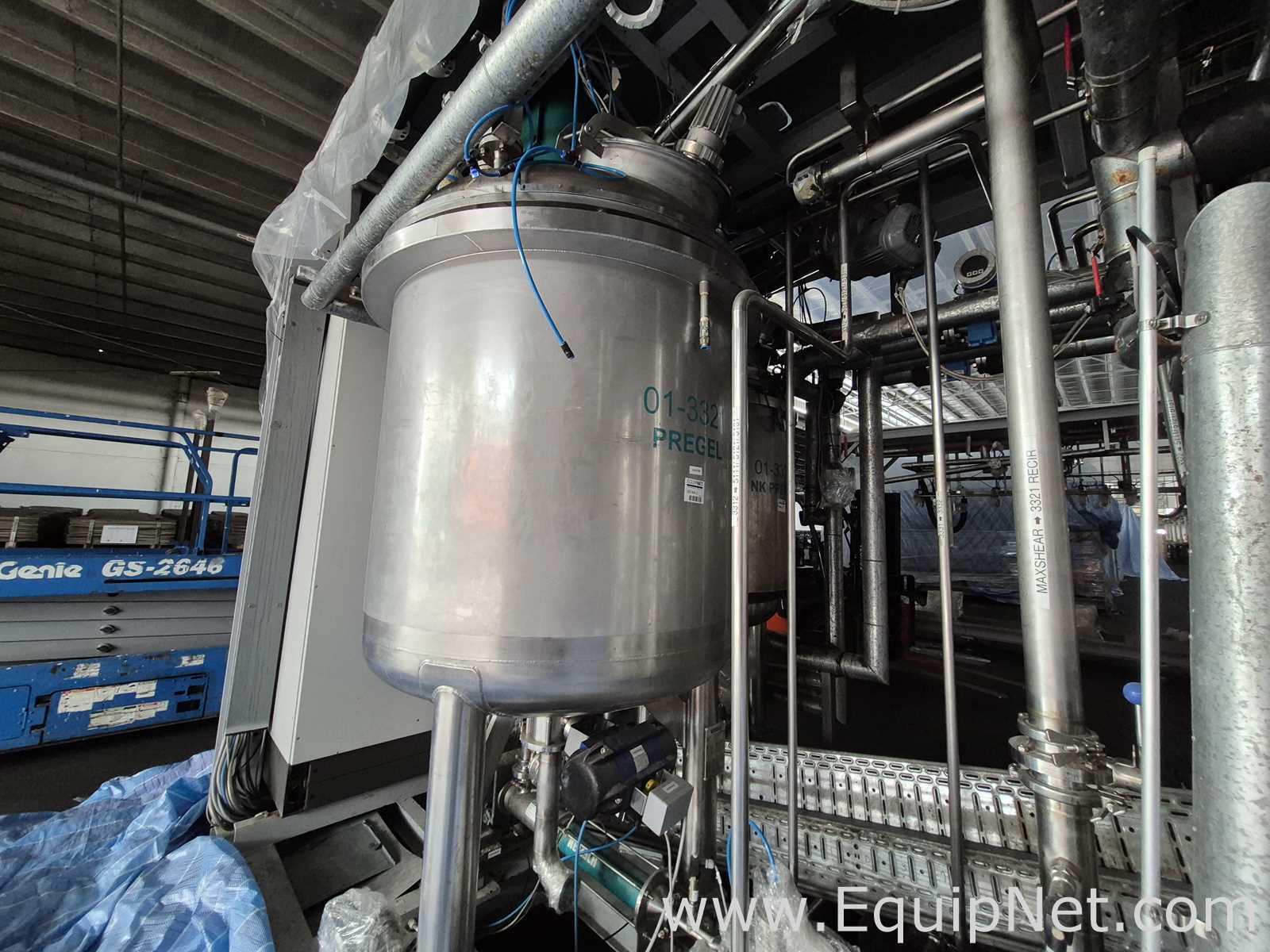

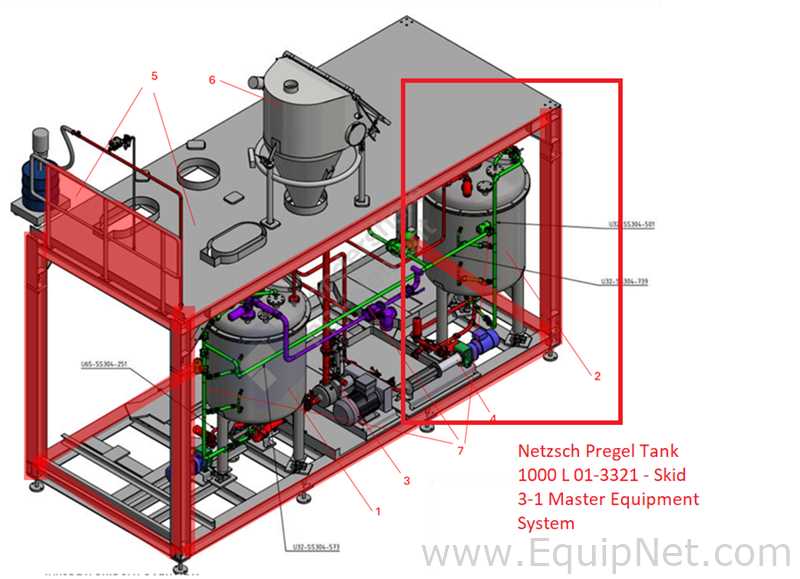

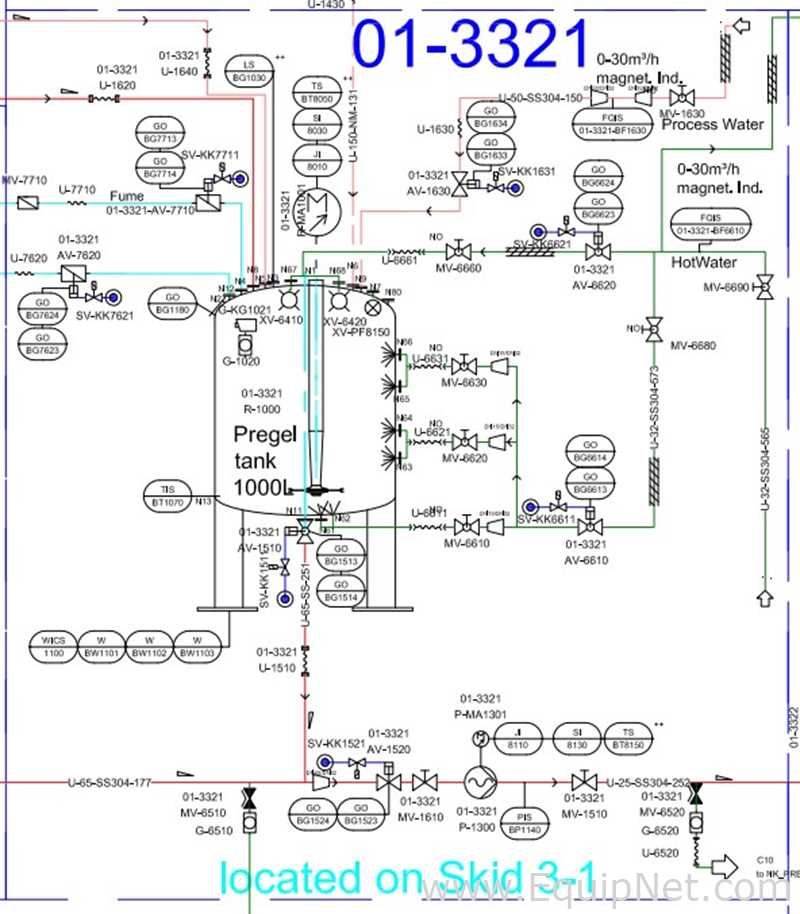

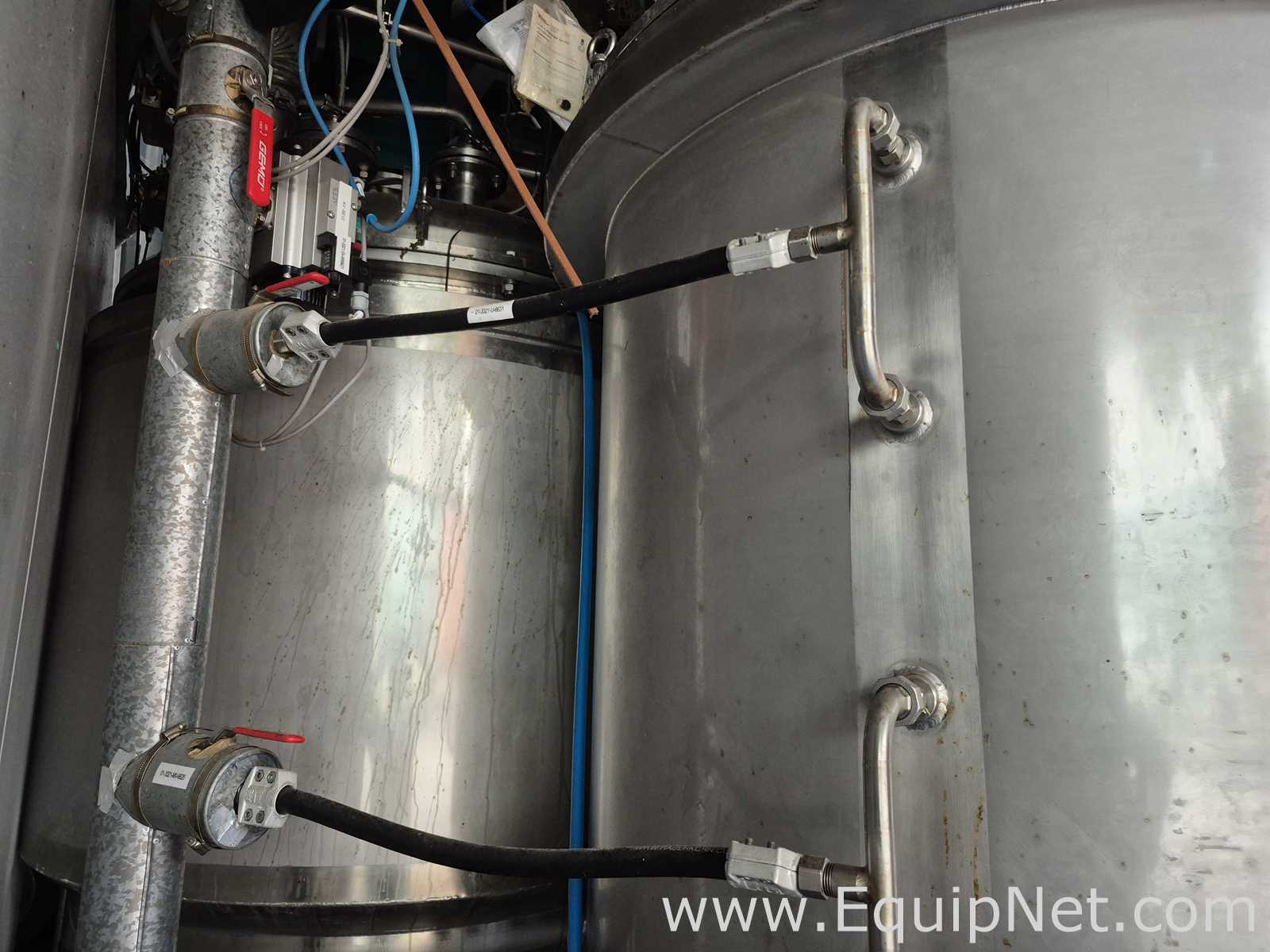

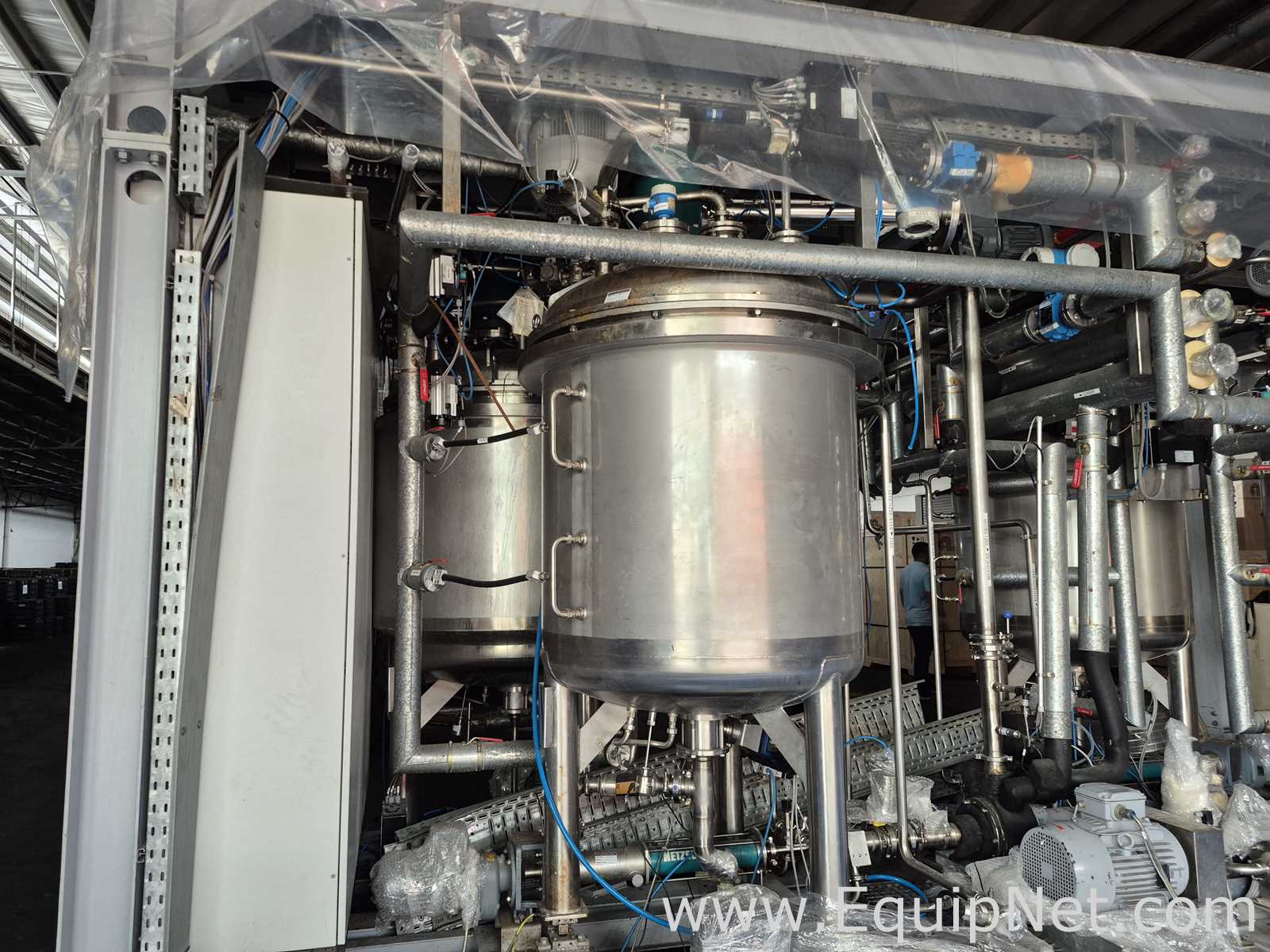

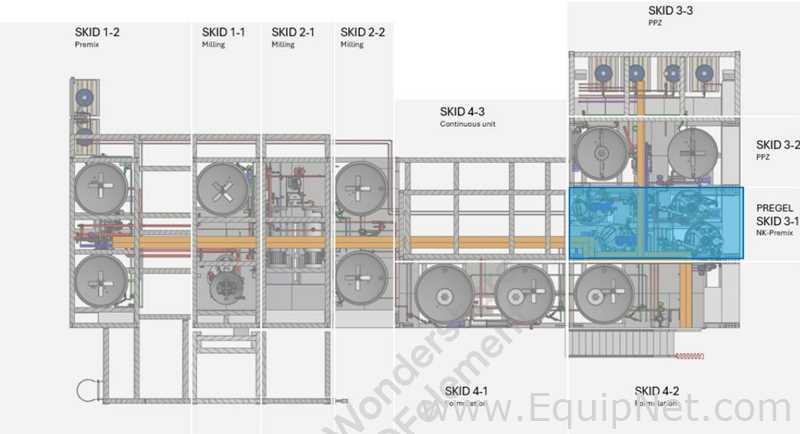

Netzsch Pregel Tank 1000 L 01-3321 - Skid 3-1 Master Equipment System
Equipment Description

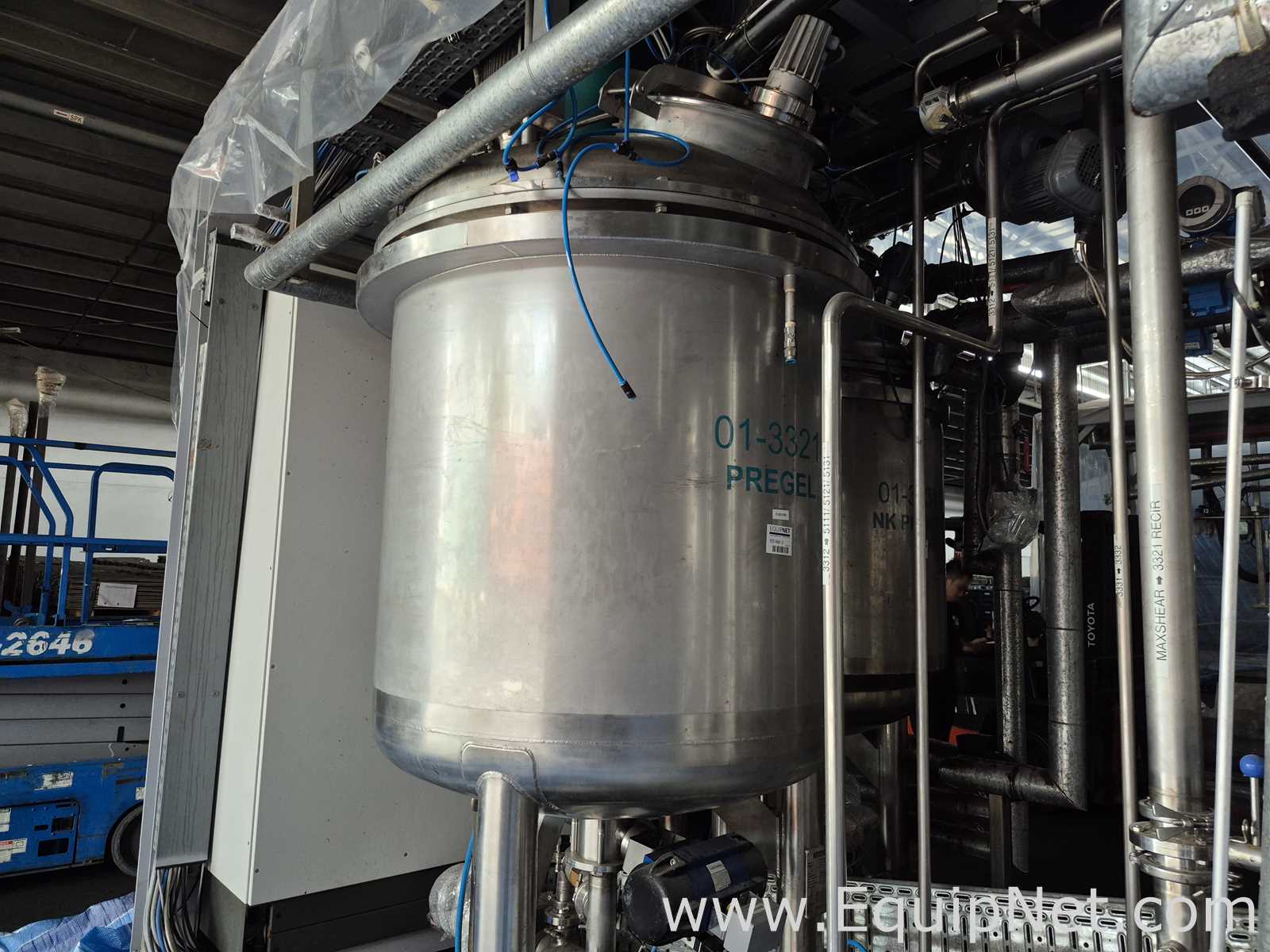

Netzsch Pregel Tank 1000 L 01-3321 - Skid 3-1 Master Equipment System
15-50 hz (8.11-27 m/s).
Saw tooth blade: 350 mm.
HS11 kW belt drive.
SS304 HS non cooled.
Motor speed adj 01-3321-R-MA1001: 11kW (1475 RPM-50HZ). I=1. 15-50 HZ (442.5-1475 RPM). Via frequency inverter.
Design for Max operating pressure: ATM.
Designed for Max operating temperature: 90C.
Load cell system: 3 load cells each 1 t and mounting kit.
Temperature control with limit switch: resistance thermometer PT100.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Year:
2018
2018
Serial Number:
2800694-190
2800694-190
Capacity of Tank:
264.26
gal
1000
L
Tank Material of Construction:
STAINLESS STEEL
STAINLESS STEEL
Grade of Stainless Steel:
304
304
Jacketed:
NO
NO
Type of Top Head:
DISHED
DISHED
Type of Bottom Head:
DISHED
DISHED
Vertical or Horizontal:
VERTICAL
VERTICAL
Agitation:
YES
YES
Recommended Packaging Form:
CUSTOM PALLET
CUSTOM PALLET
Dimensions:
Standard
Metric
Overall:
43.31 x 43.31 x 66.97 in - 1278.67 lb
1100 x 1100 x 1701 MM - 580 KGS
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1045772

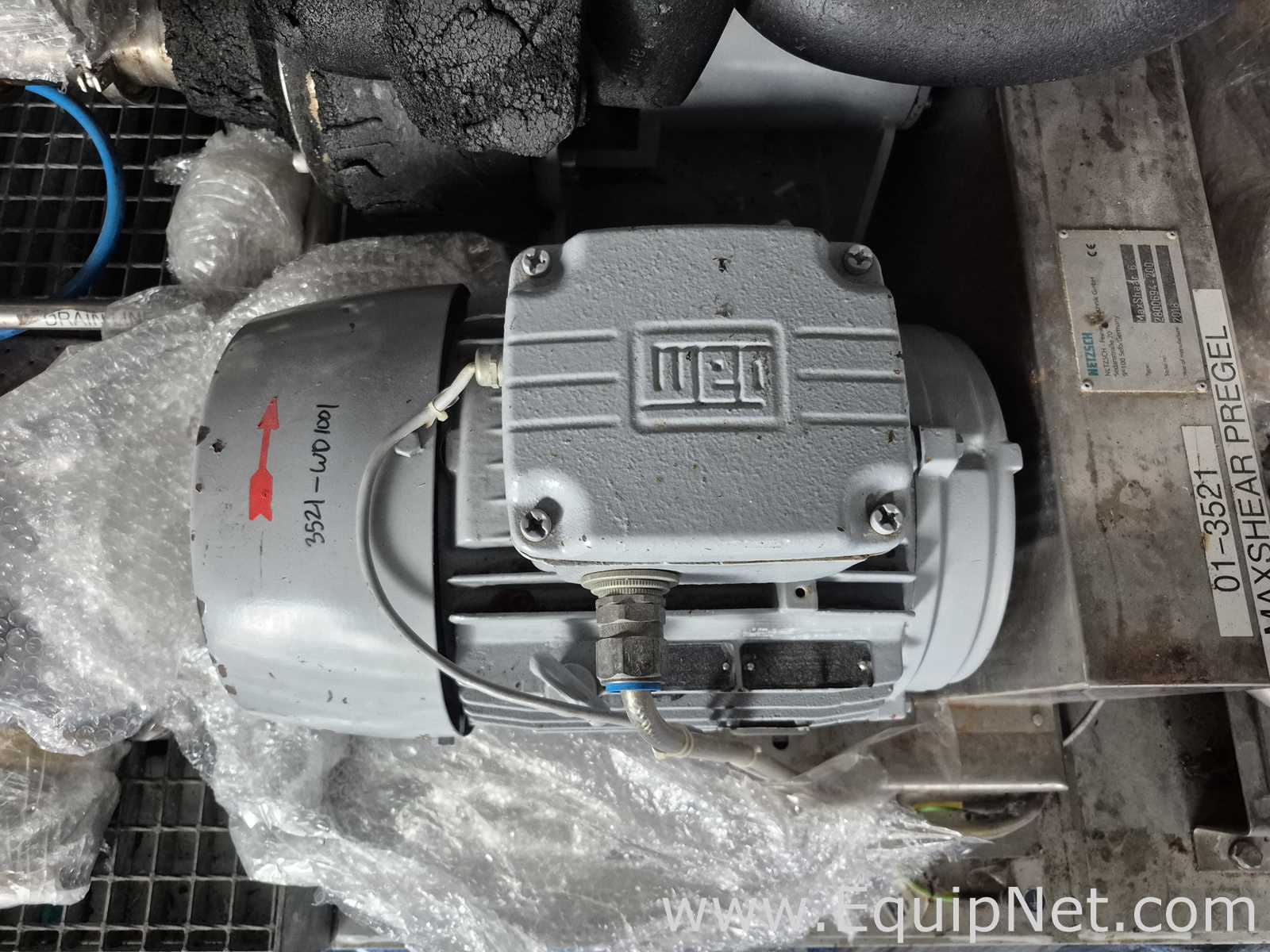

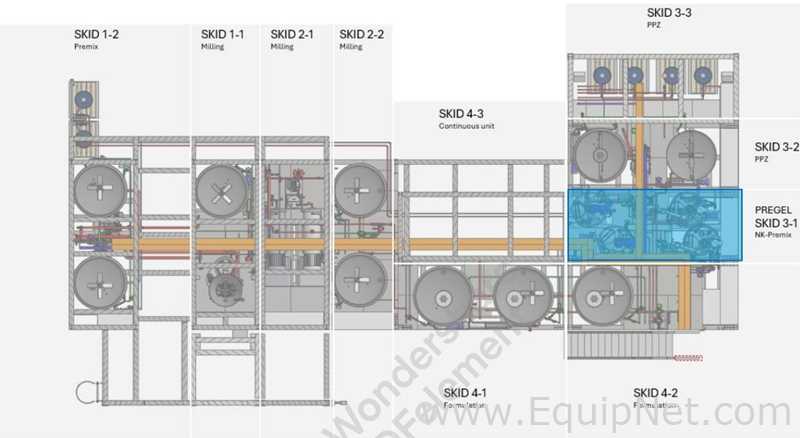

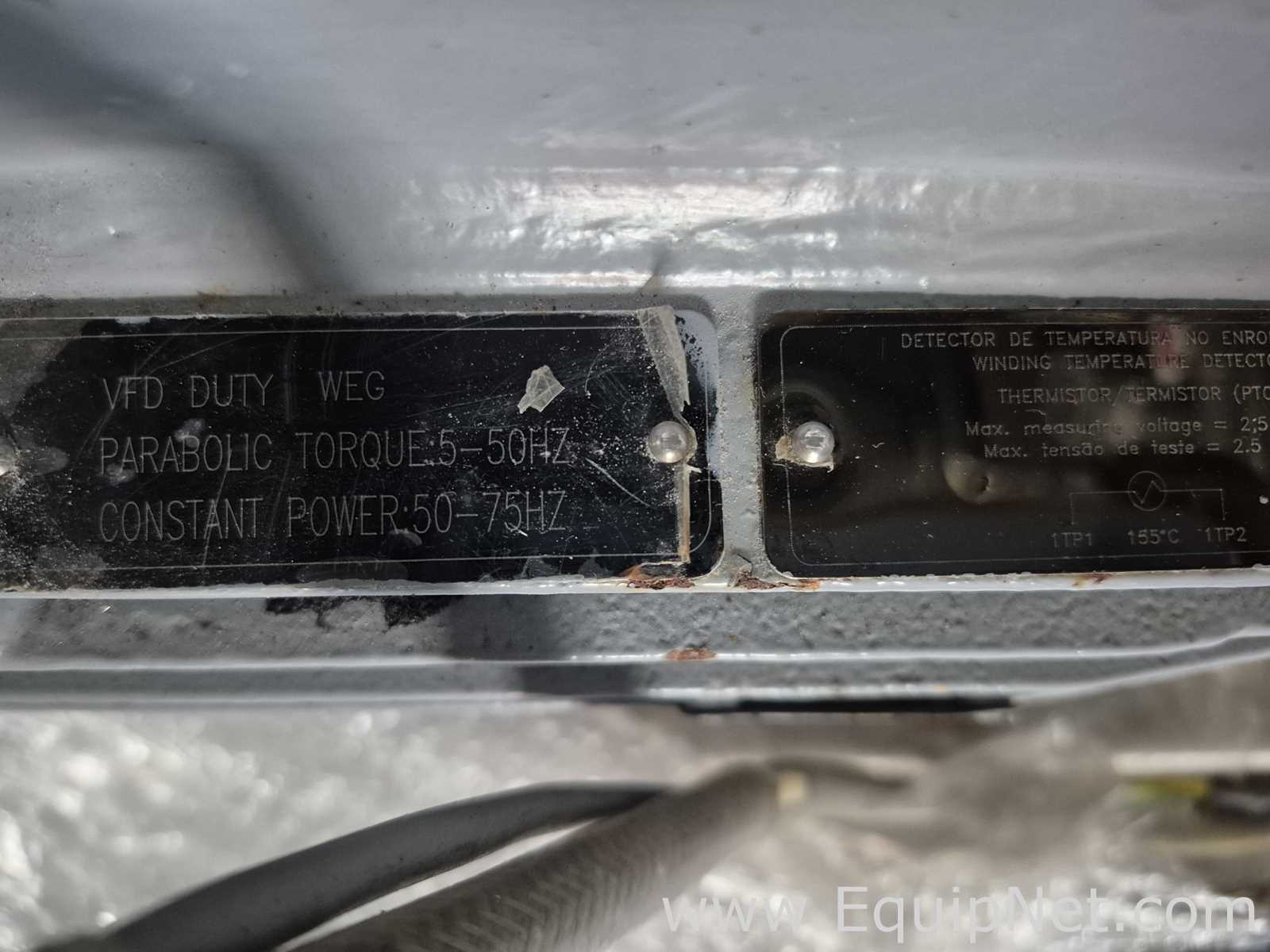

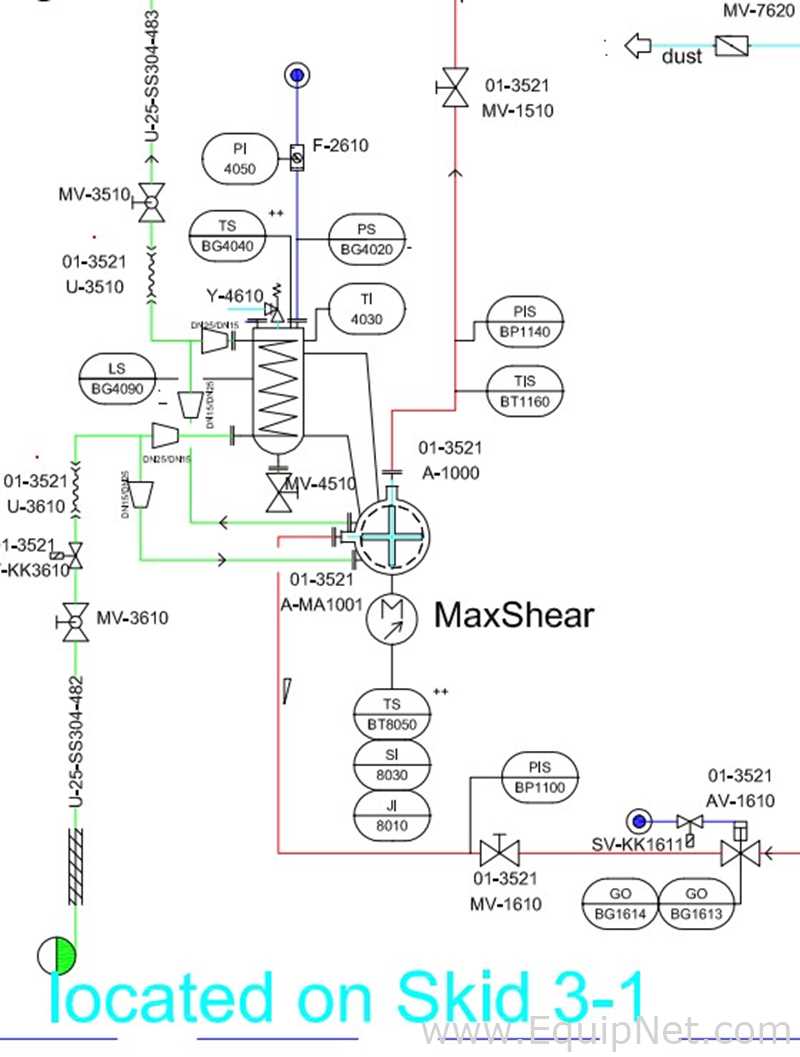

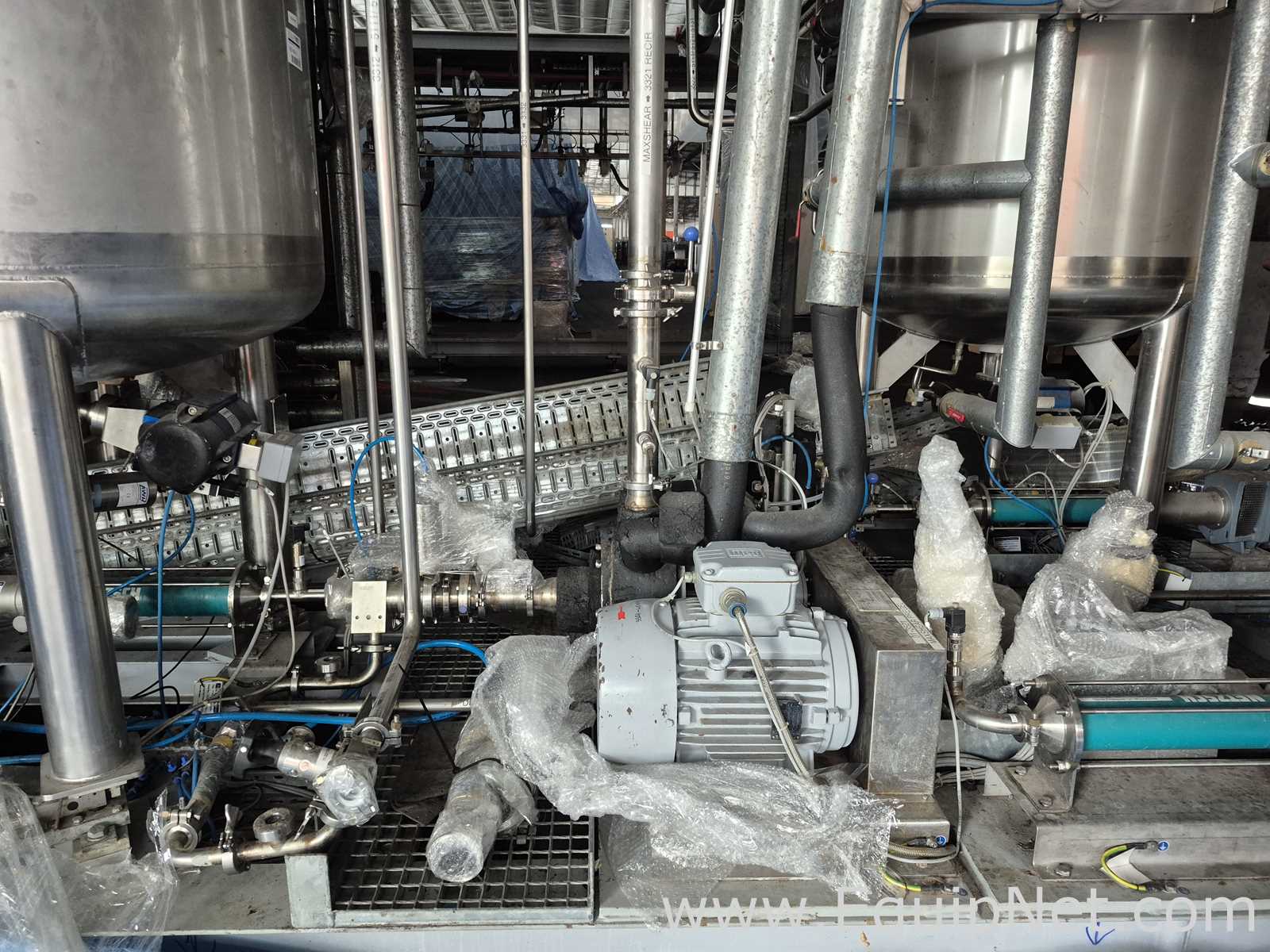

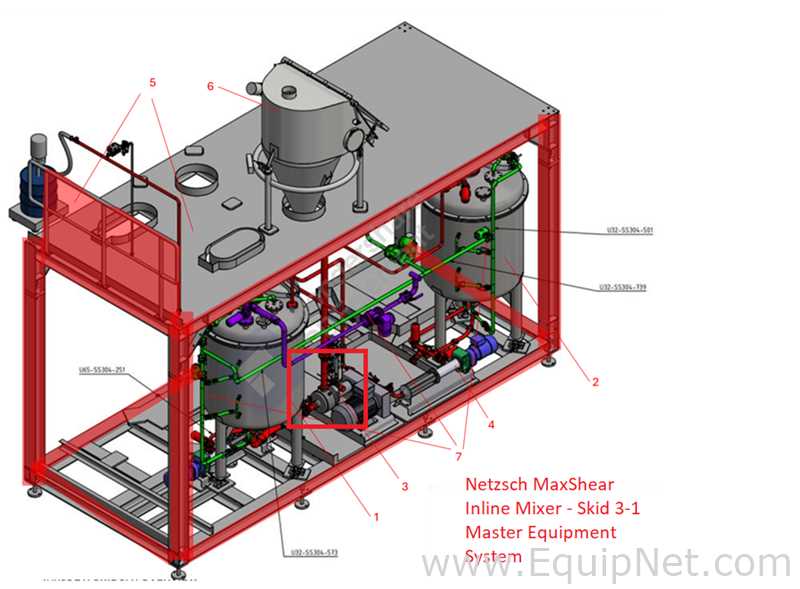

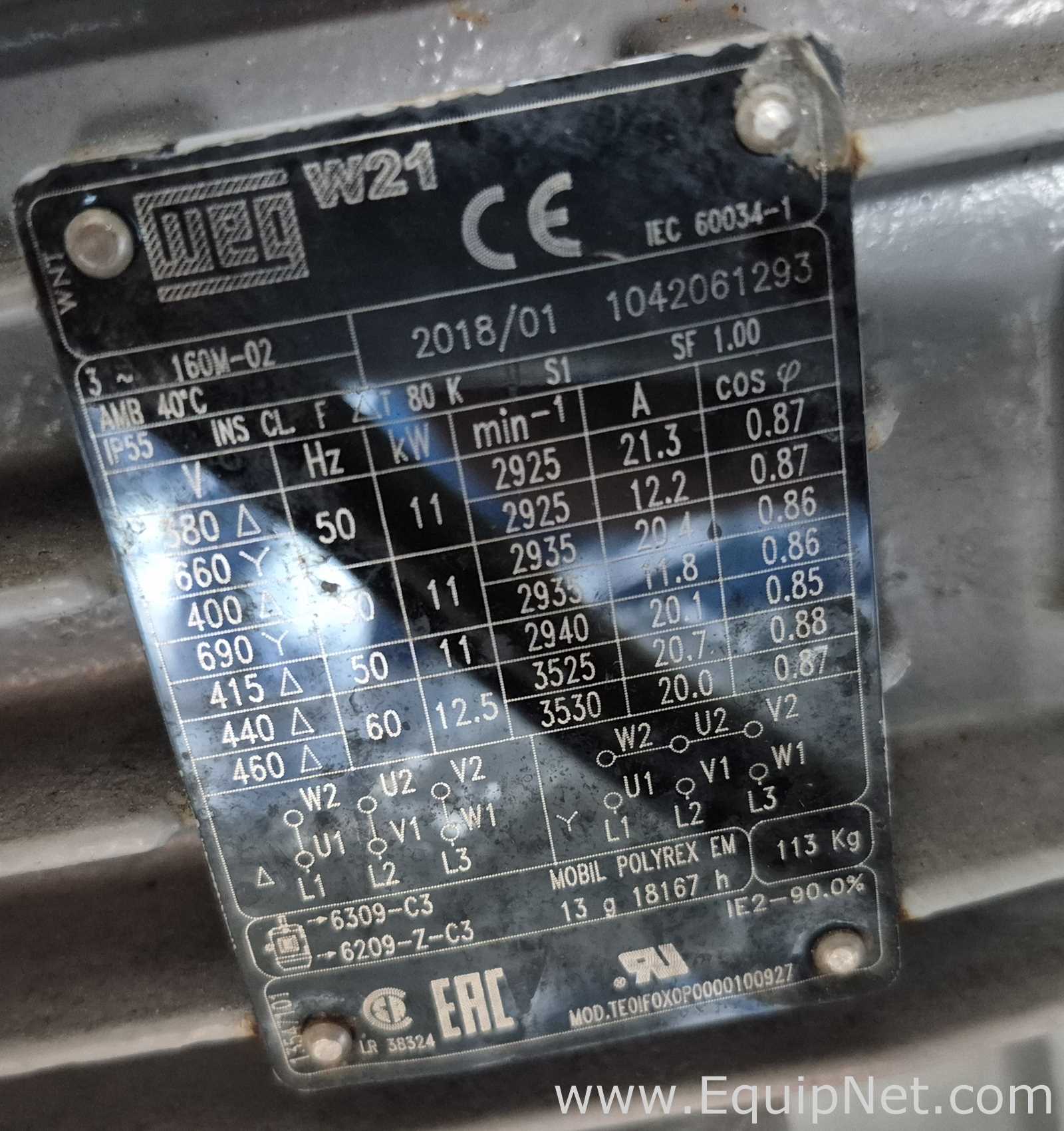

Netzsch MaxShear Inline Mixer 01-3521-A-1000 - Skid 3-1 Master Equipment System
Equipment Description
Netzsch MaxShear Inline Mixer - Skid 3-1 Master Equipment System
20-65HZ (1029-3343 RPM)
Rotor Stator.
MaxShear: 6in.
Max operating pressure: 3.5 bar.
Max operating temperature: 90C.
Max cooling water pressure: 3 bar.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Type of mixer:
HIGH SHEAR
HIGH SHEAR
Recommended Packaging Form:
PALLET
PALLET
Dimensions:
Standard
Metric
Overall:
38.19 x 38.19 x 29.53 in - 551.15 lb
970 x 970 x 750 MM - 250 KGS
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1045774

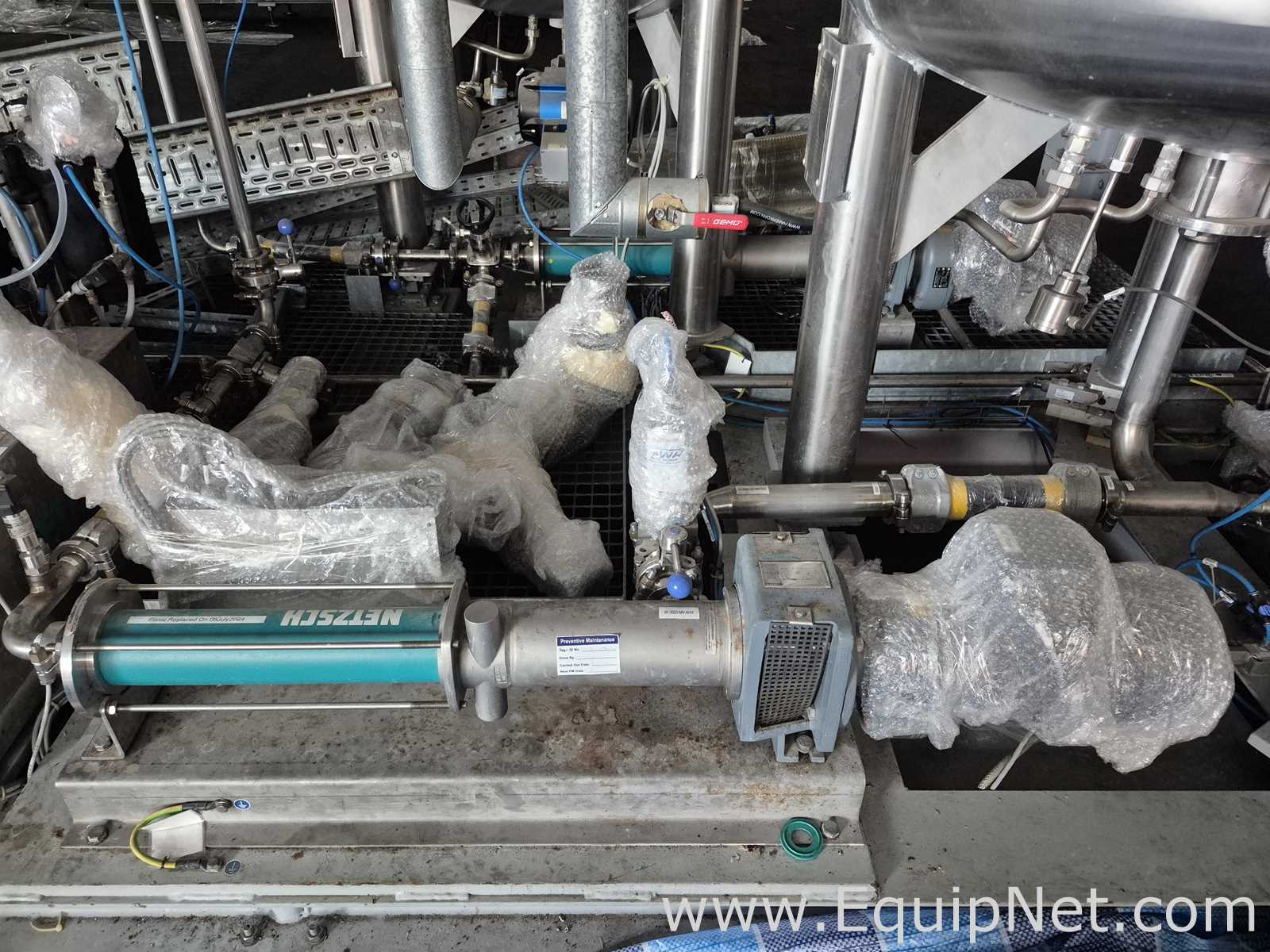

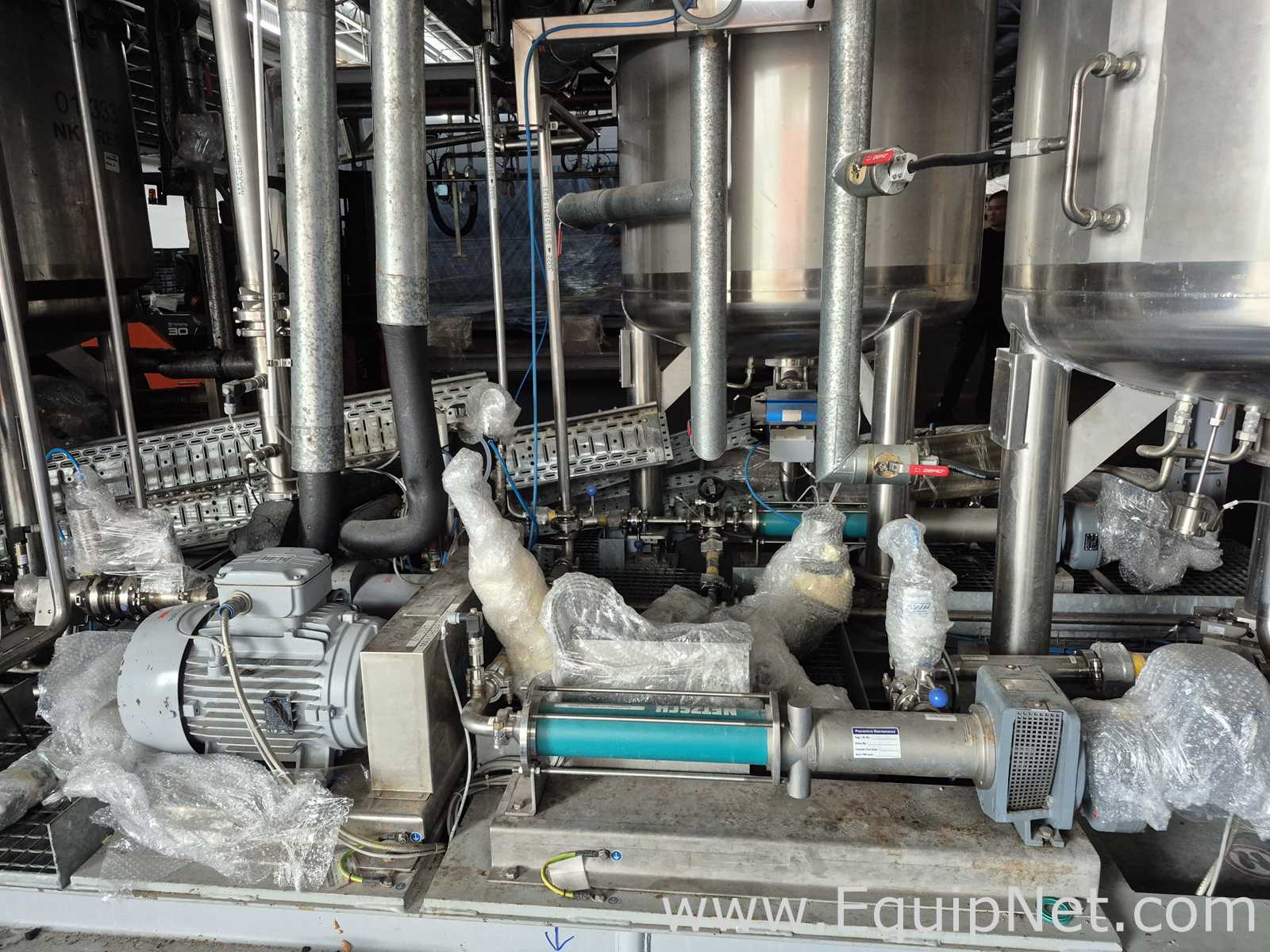

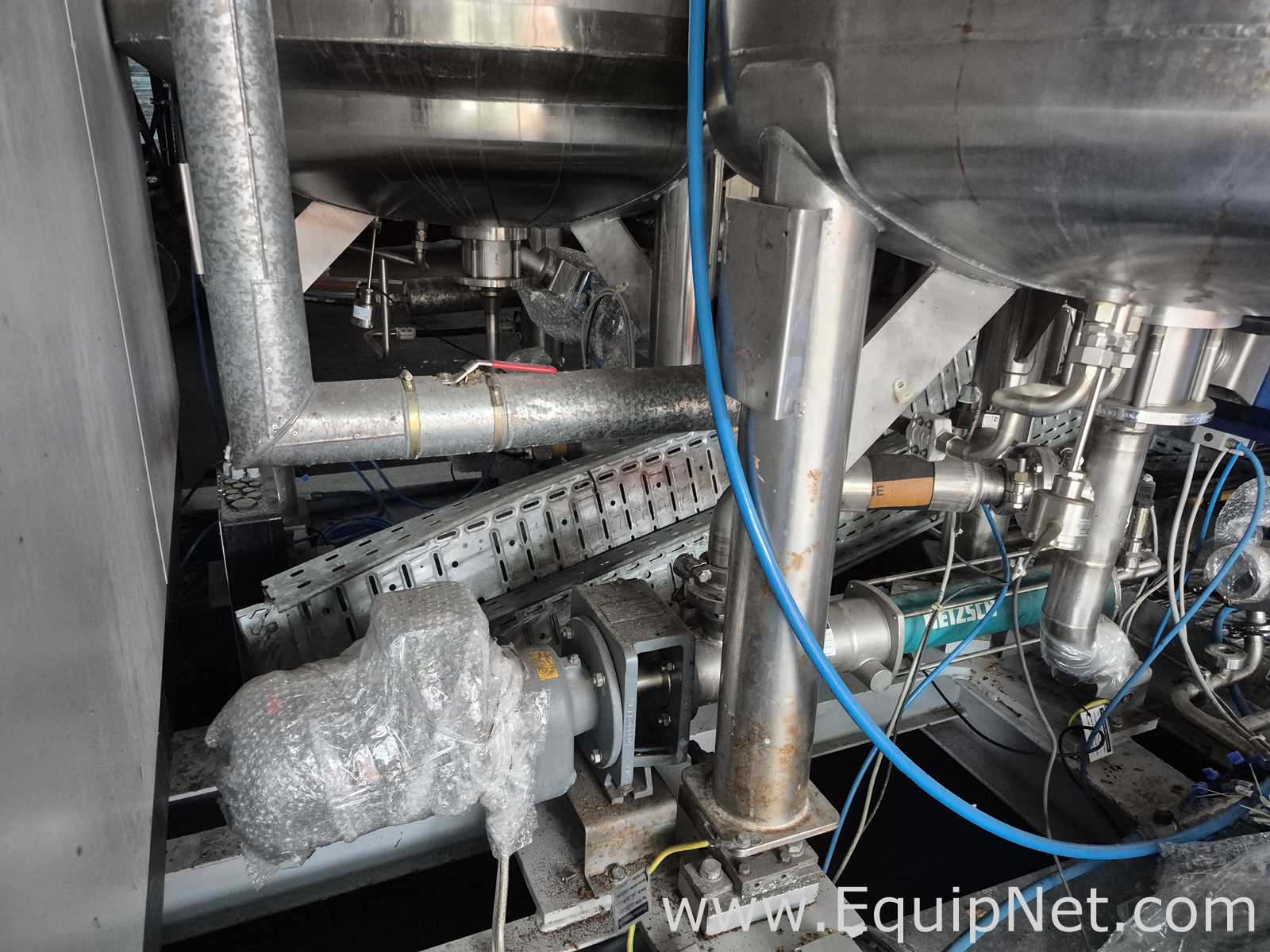

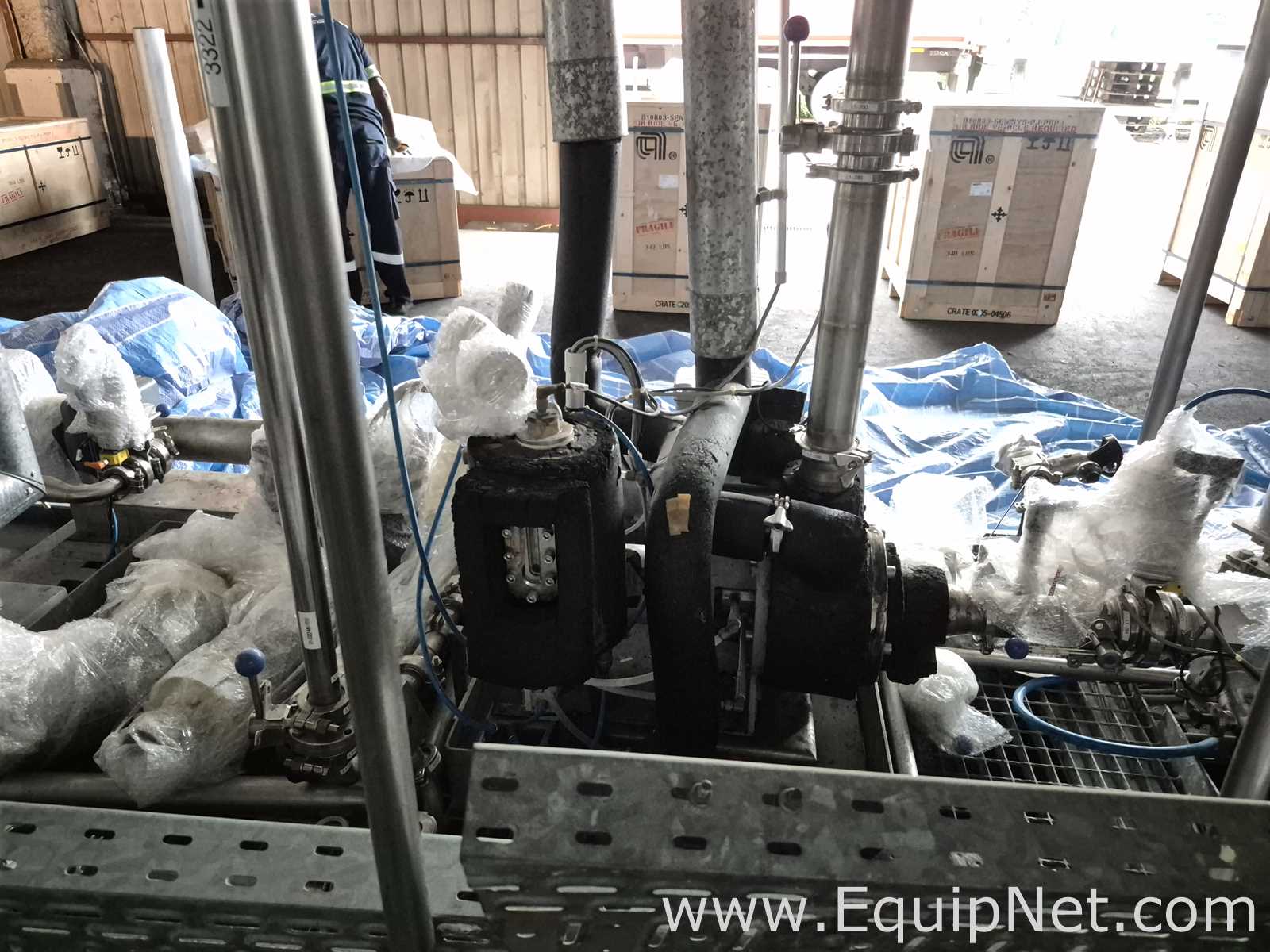

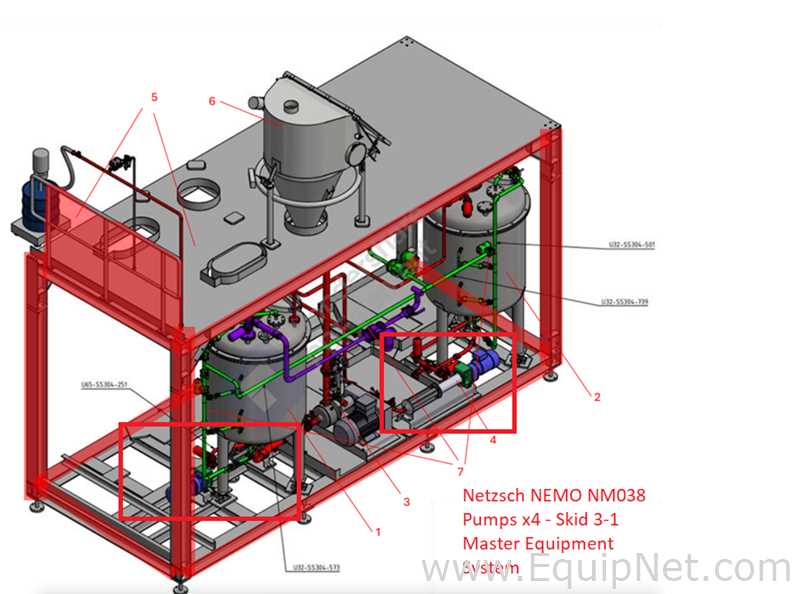

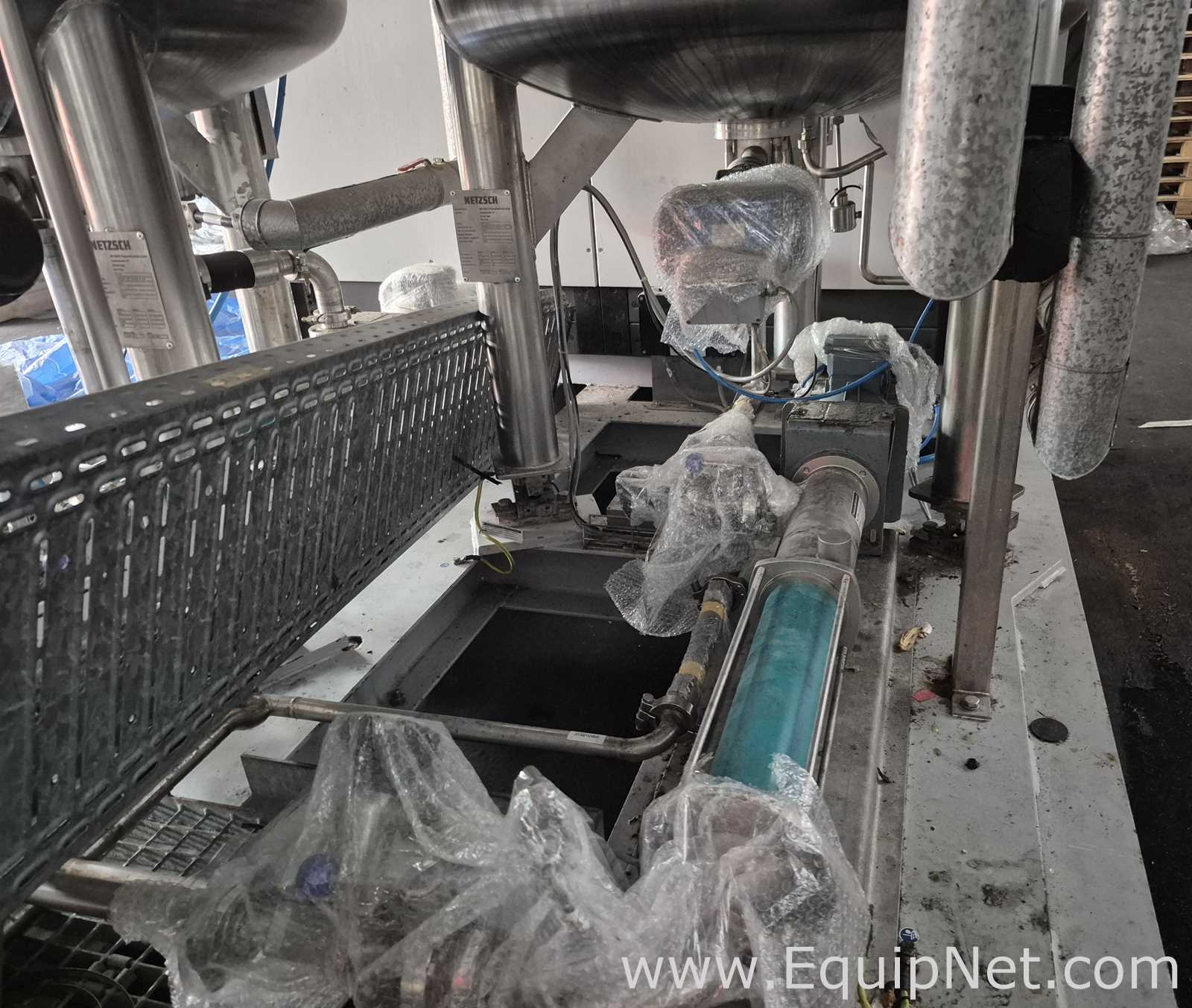

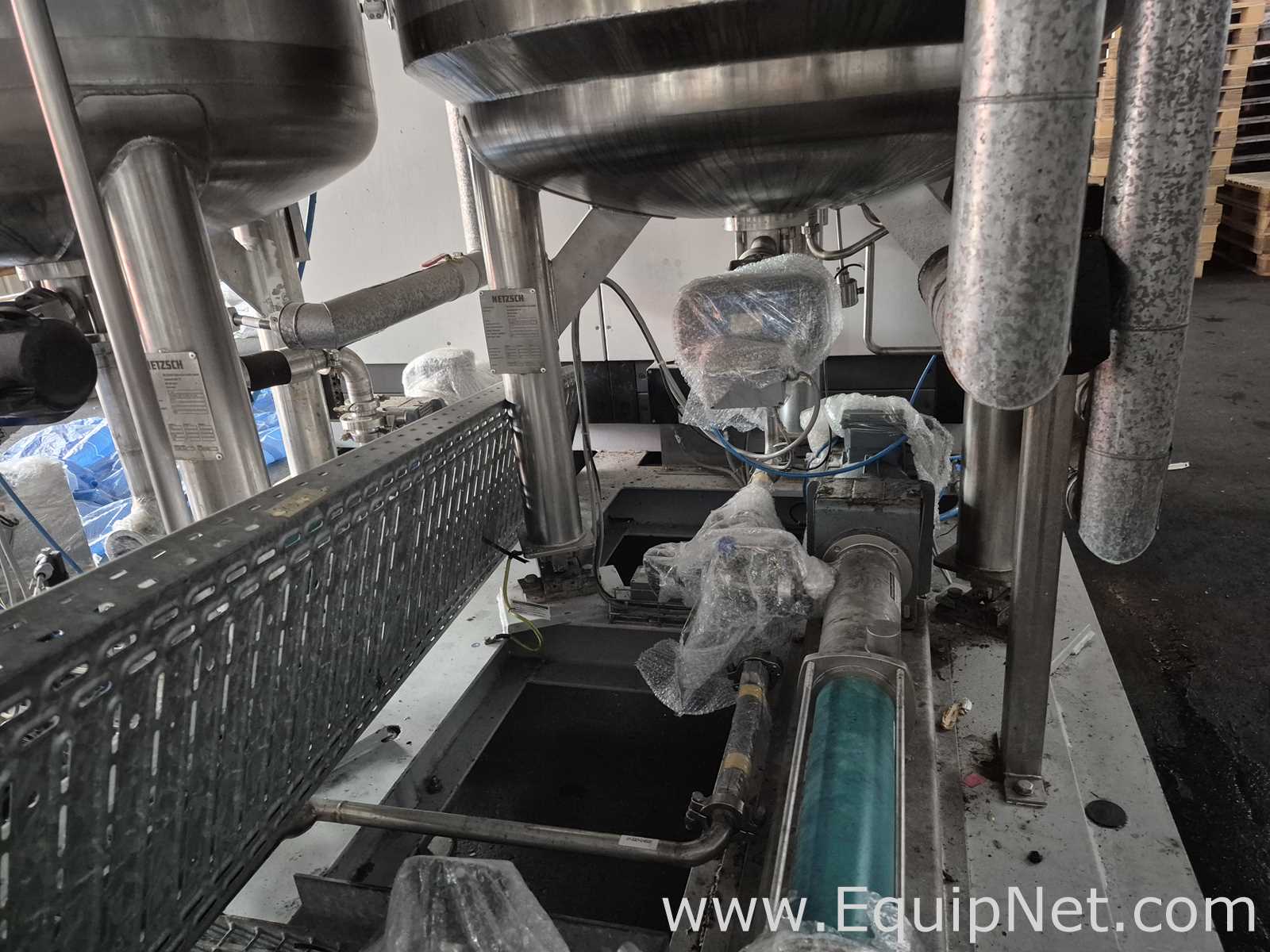

Netzsch NEMO NM038 Pumps x4 - Skid 3-1 Master Equipment System
Equipment Description
Netzsch NEMO NM038 Pumps x4 - Skid 3-1 Master Equipment System
01-3321-P-1300: NEMO NM038 249/1445 RPM I=5.8. 2-6m3/h (19-54Hz). 2.2kW 50 HZ.
01-3322-P-1300: NEMO NM038 249/1445 RPM I=5.8. 2-6m3/h (19-54Hz). 2.2kW 50 HZ.
01-3332-P-1300: NEMO NM038 249/1445 RPM I=5.8. 2-6m3/h (19-54Hz). 2.2kW 50 HZ.
01-3331-P-1300: NEMO NM038 249/1445 RPM I=5.8. 2-6m3/h (19-54Hz). 2.2kW 50 HZ.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Recommended Packaging Form:
PALLET
PALLET
Dimensions:
Standard
Metric
Overall:
1 x 1 x 1 IN - 1 LBS
25.40 x 25.40 x 25.40 mm - 0.45 kg
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1045791
Netzsch Electrical Cabinet - Skid 3-1 Master Equipment System
Equipment Description
Netzsch Electrical Cabinet - Skid 3-1 Master Equipment System
Pallet-18 (Line-1 Panel Cooling Unit (1-Main / 3-1 / 3-2)).
Specifications:
Standard
Metric
Manufacturer Name
Netzch
Recommended Packaging Form:
PALLET
PALLET
Dimensions:
Standard
Metric
Overall:
1 x 1 x 1 IN - 1 LBS
25.40 x 25.40 x 25.40 mm - 0.45 kg
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1045779

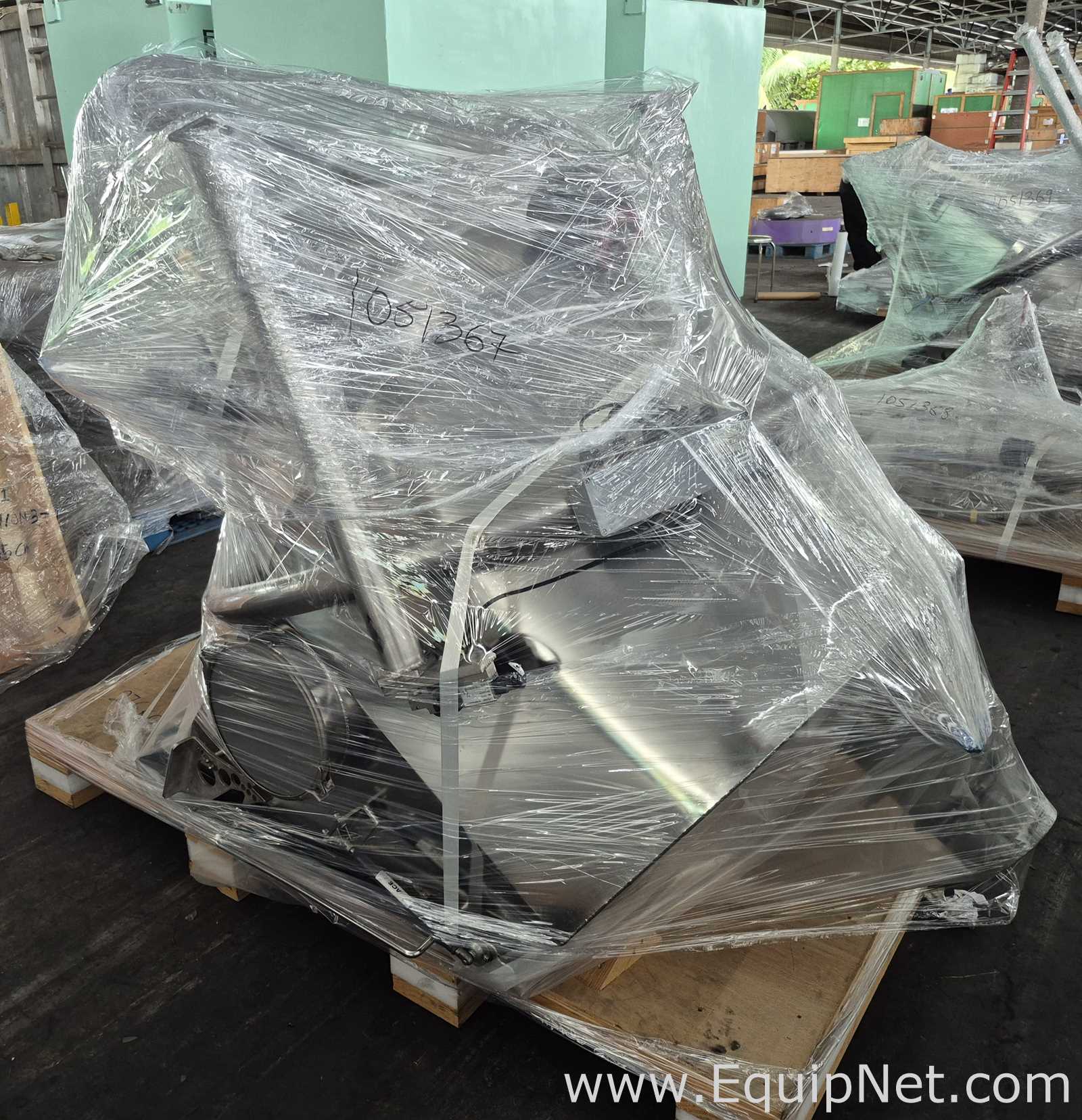

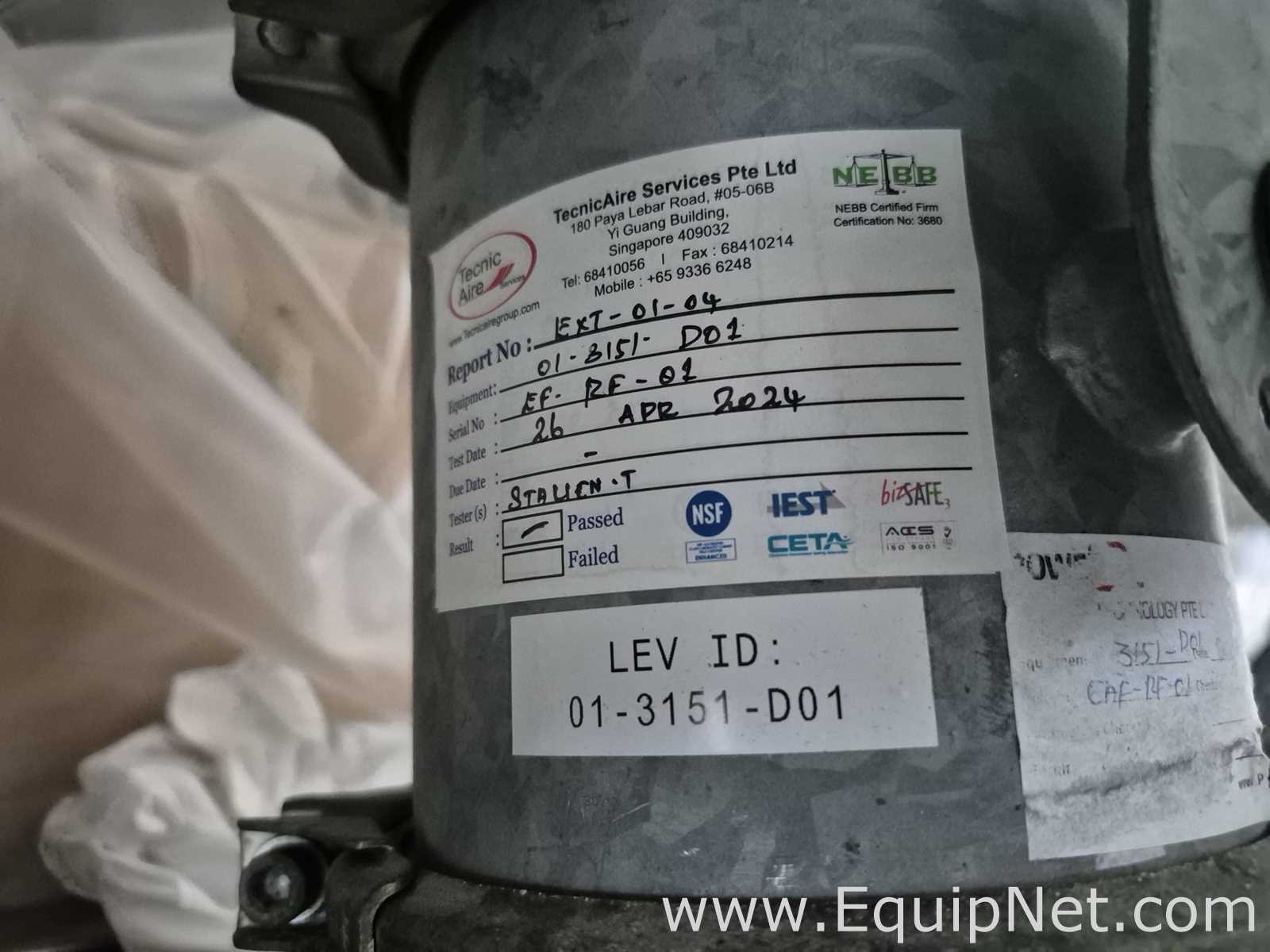

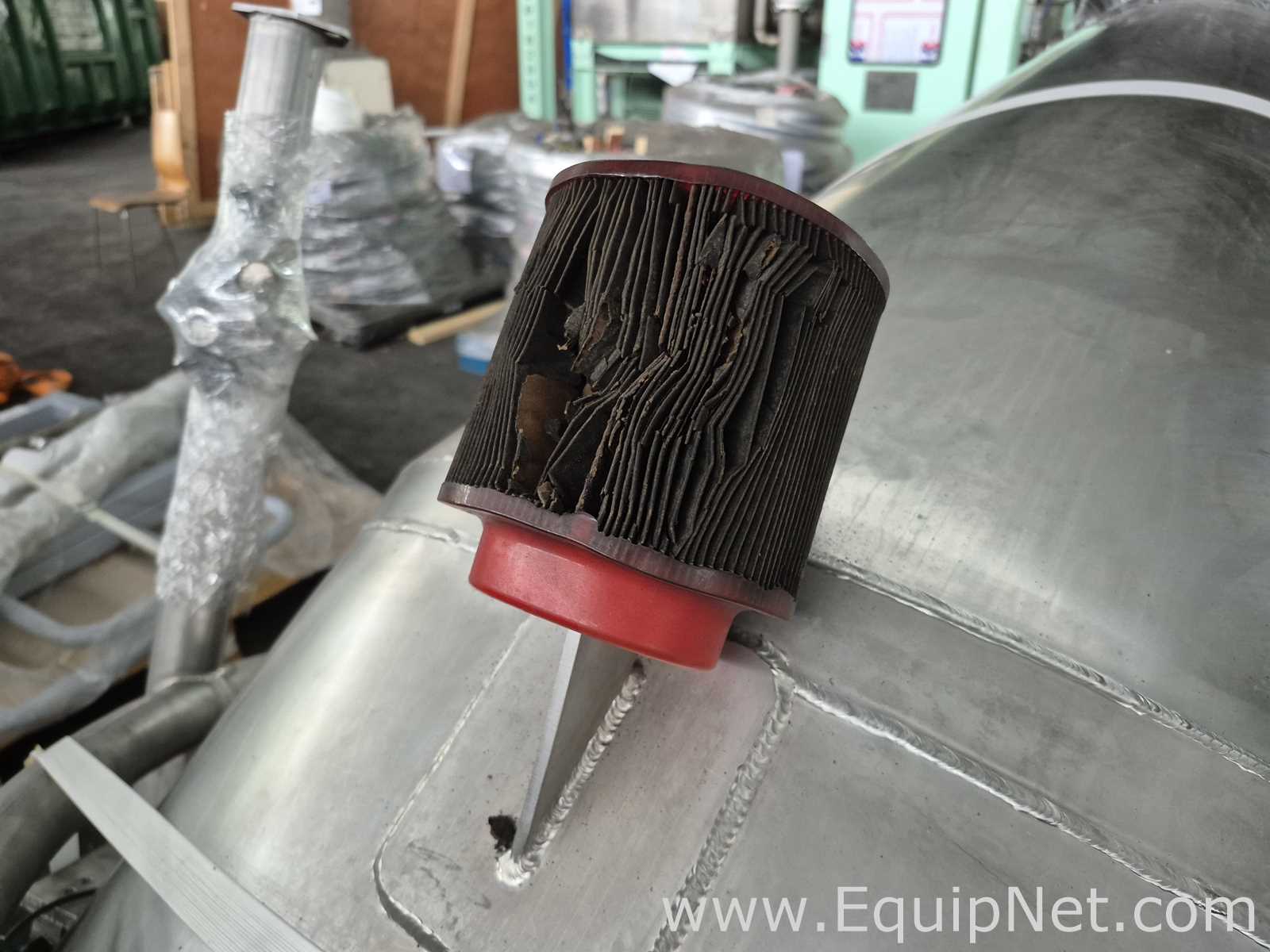

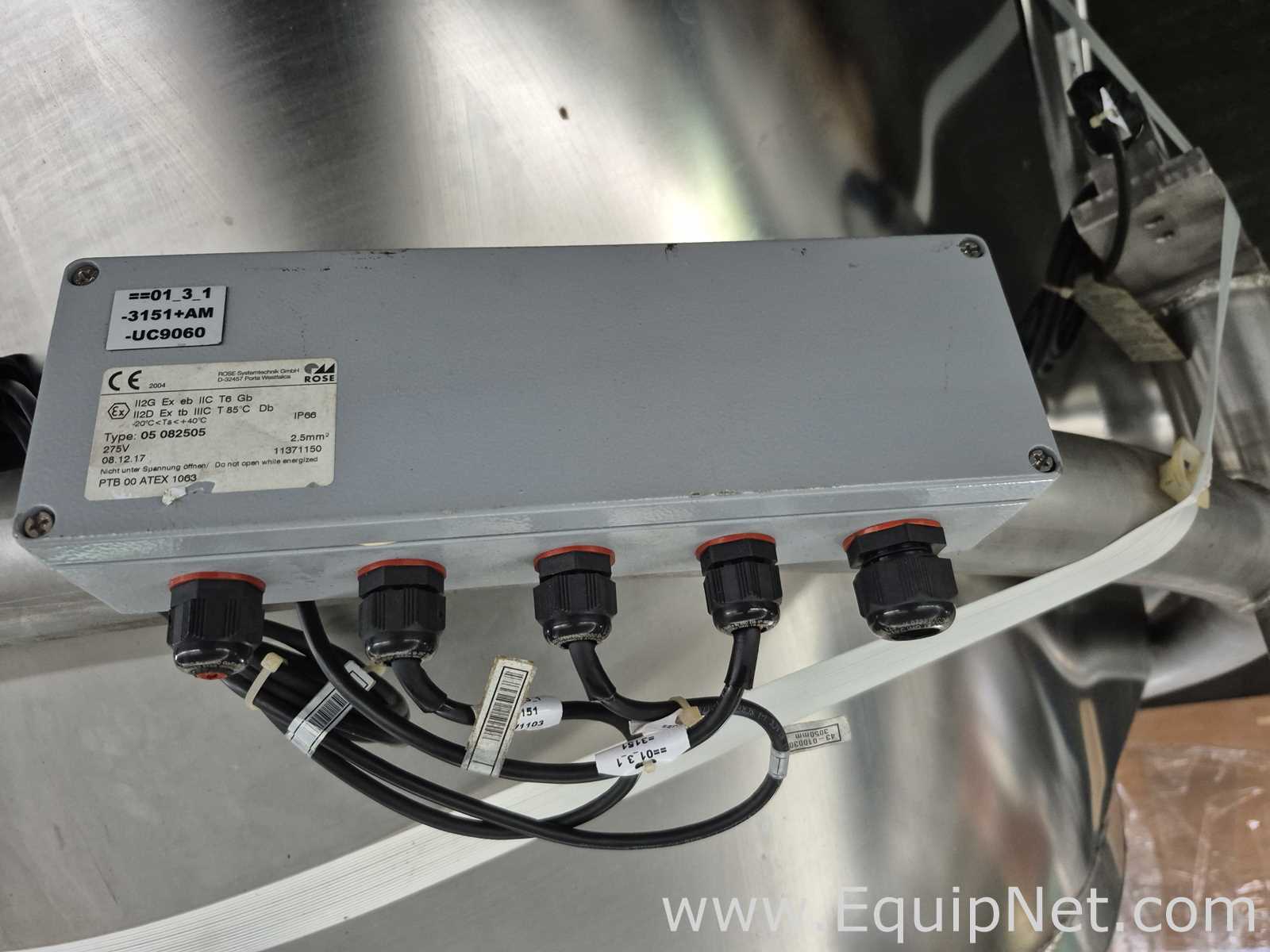

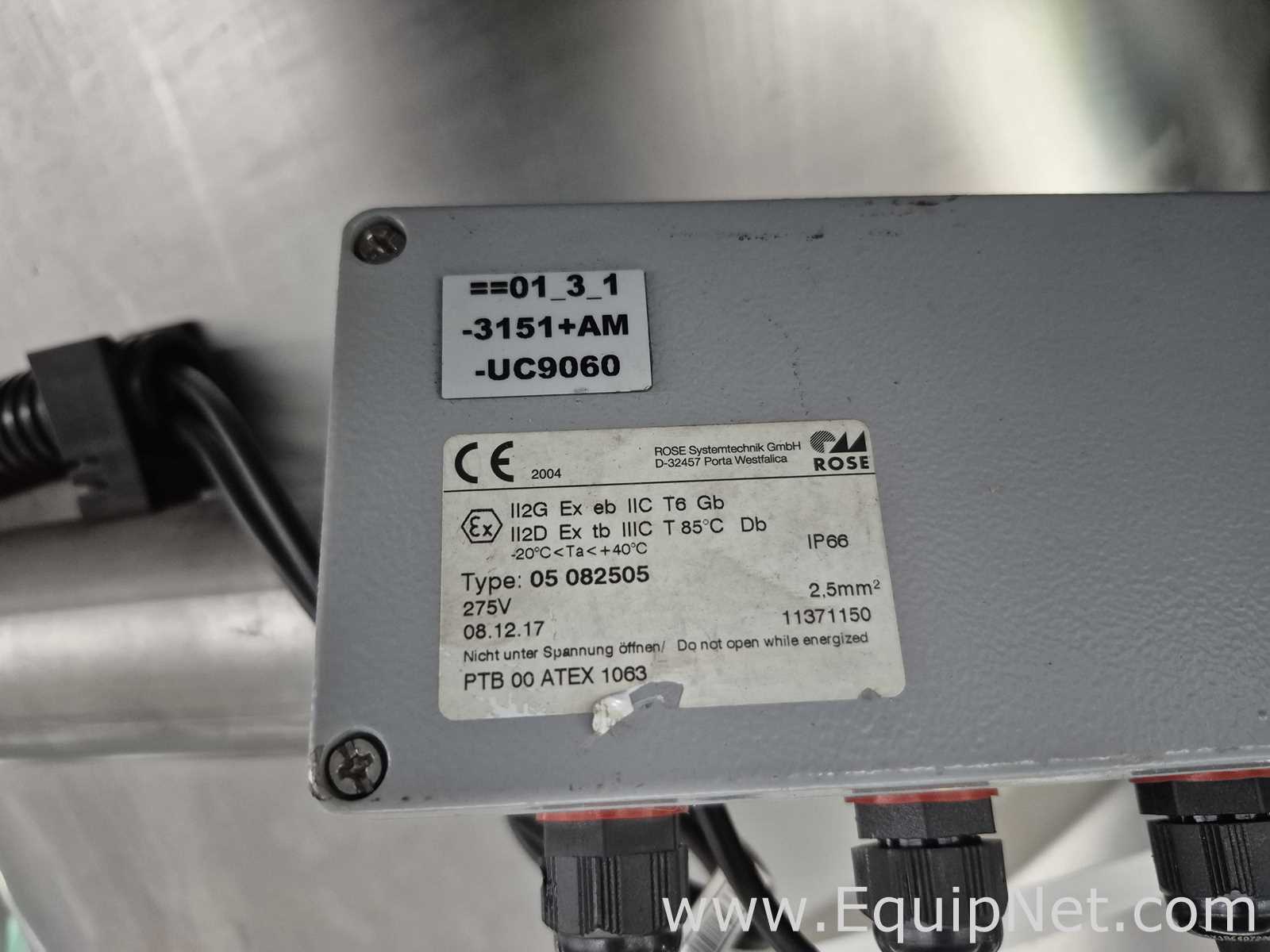

Netzsch Sack Chute Powder Feeding - Skid 3-1 Master Equipment System
Equipment Description
Netzsch Sack Chute Powder Feeding - Skid 3-1 Master Equipment System
Includes Listing 1051367.
Max temp: 40C.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Year:
2018
2018
Serial Number:
CD 039651 - 02
CD 039651 - 02
Capacity Size:
440.92
lb
200
KGS
Recommended Packaging Form:
CUSTOM PALLET
CUSTOM PALLET
Dimensions:
Standard
Metric
Overall:
1 x 1 x 1 IN - 1 LBS
25.40 x 25.40 x 25.40 mm - 0.45 kg
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1045776

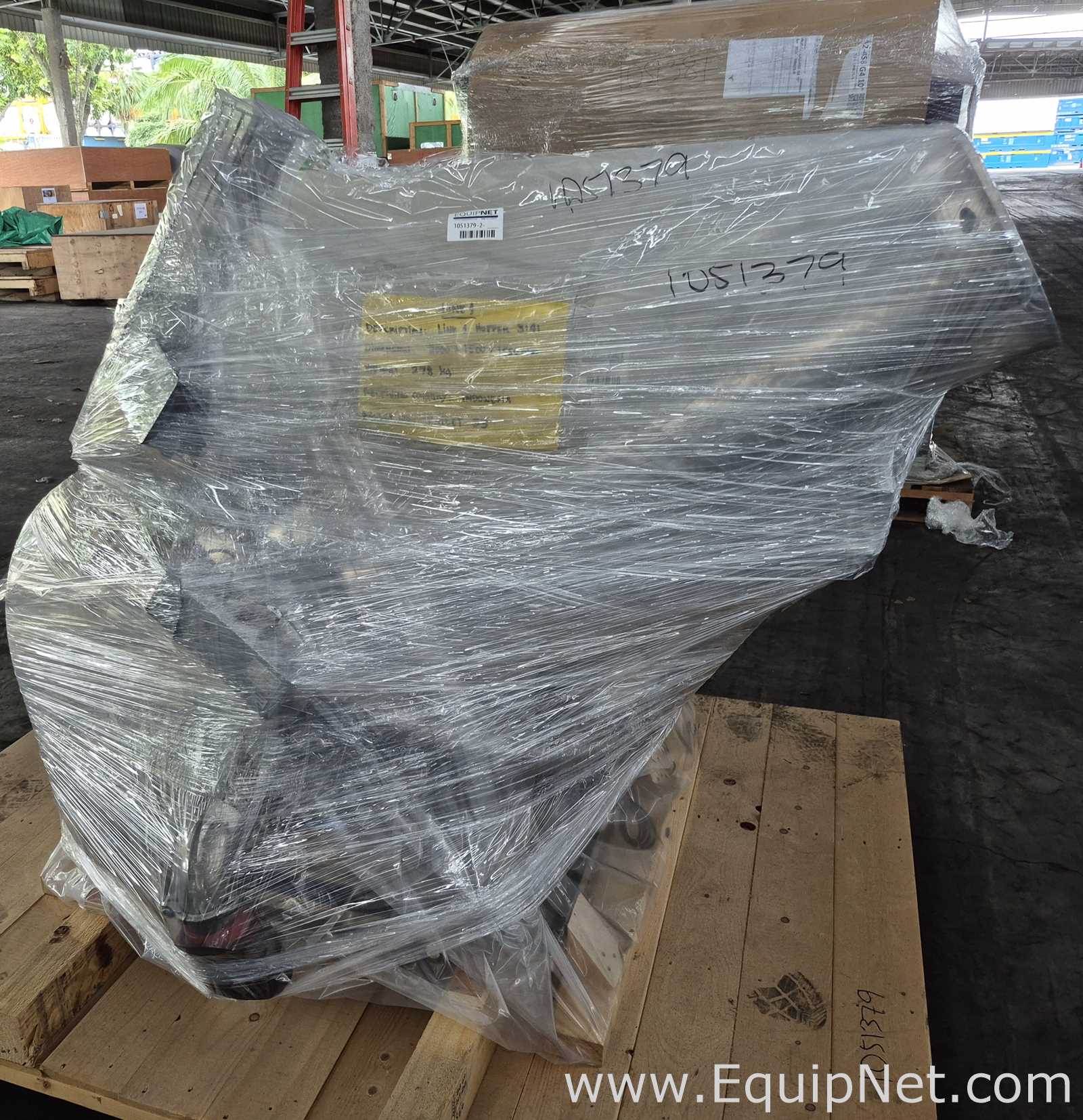

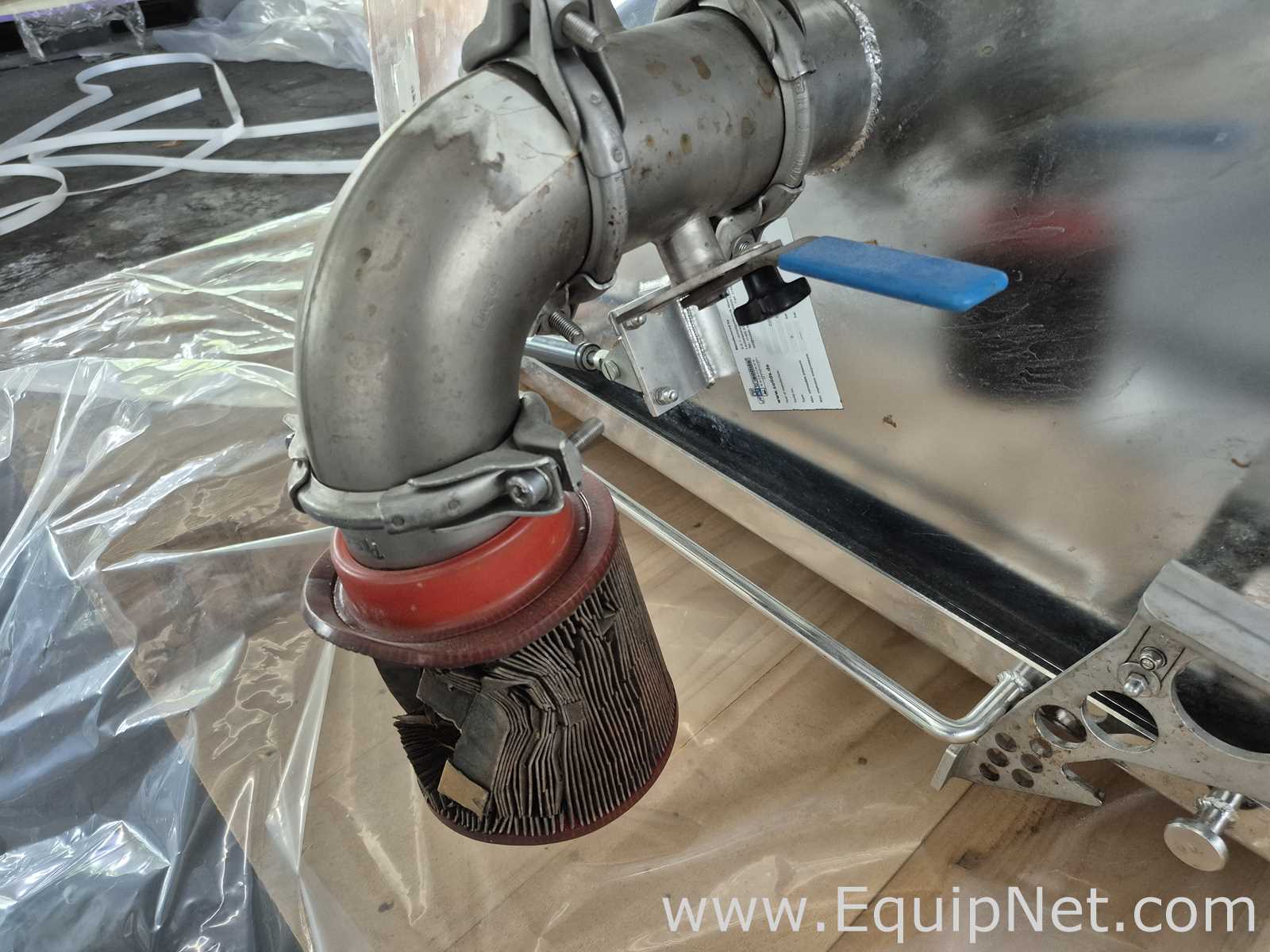

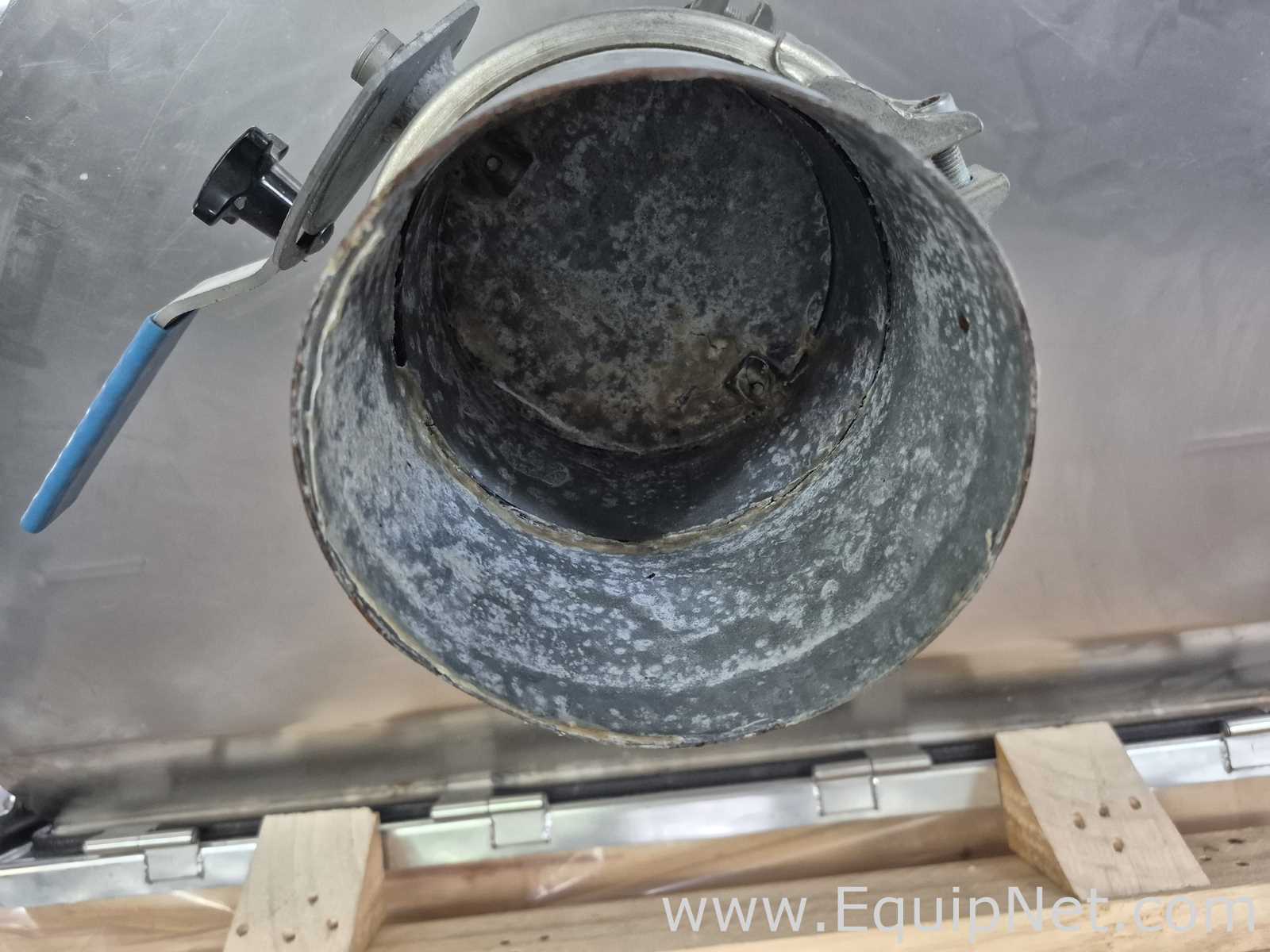

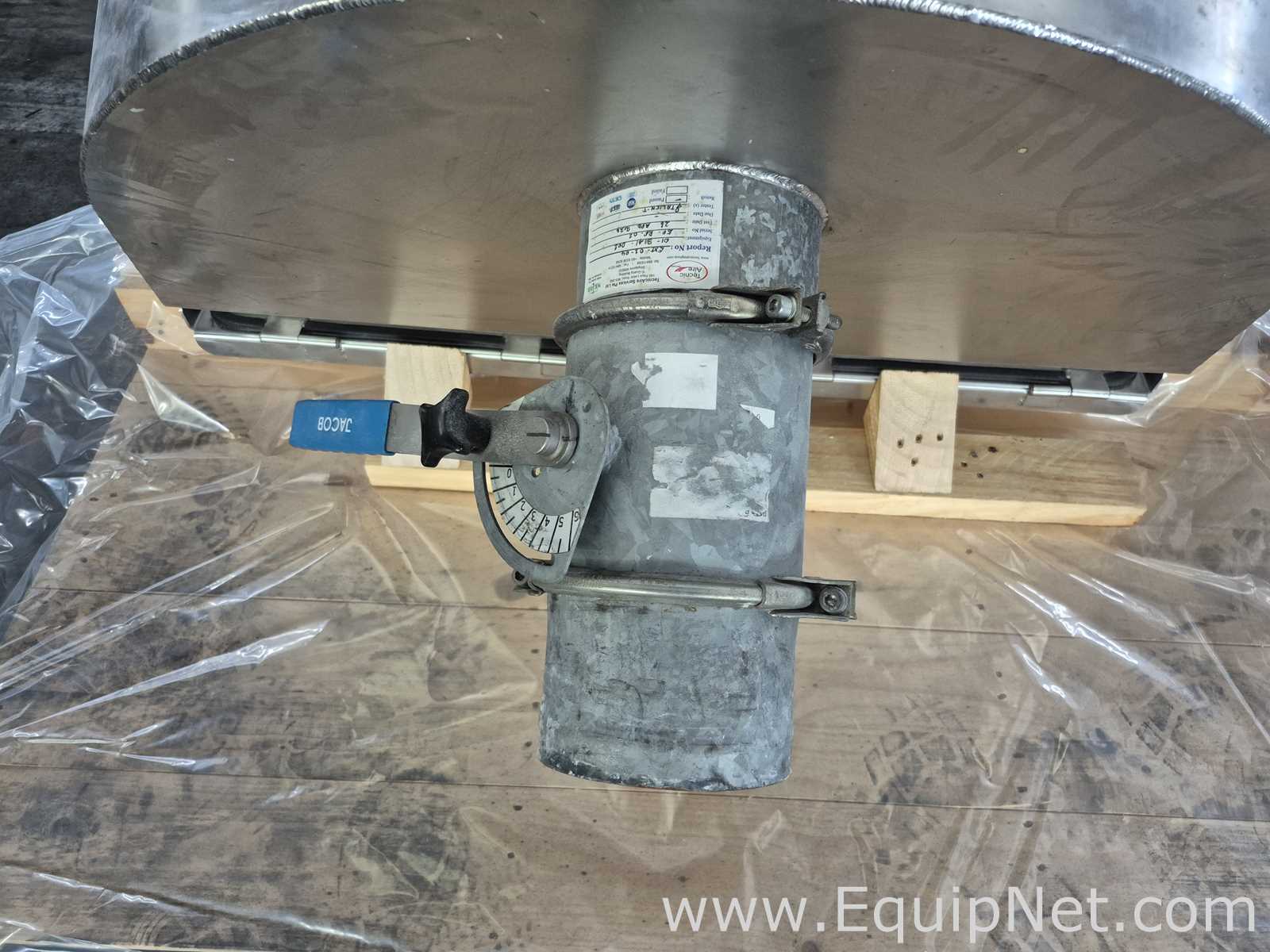

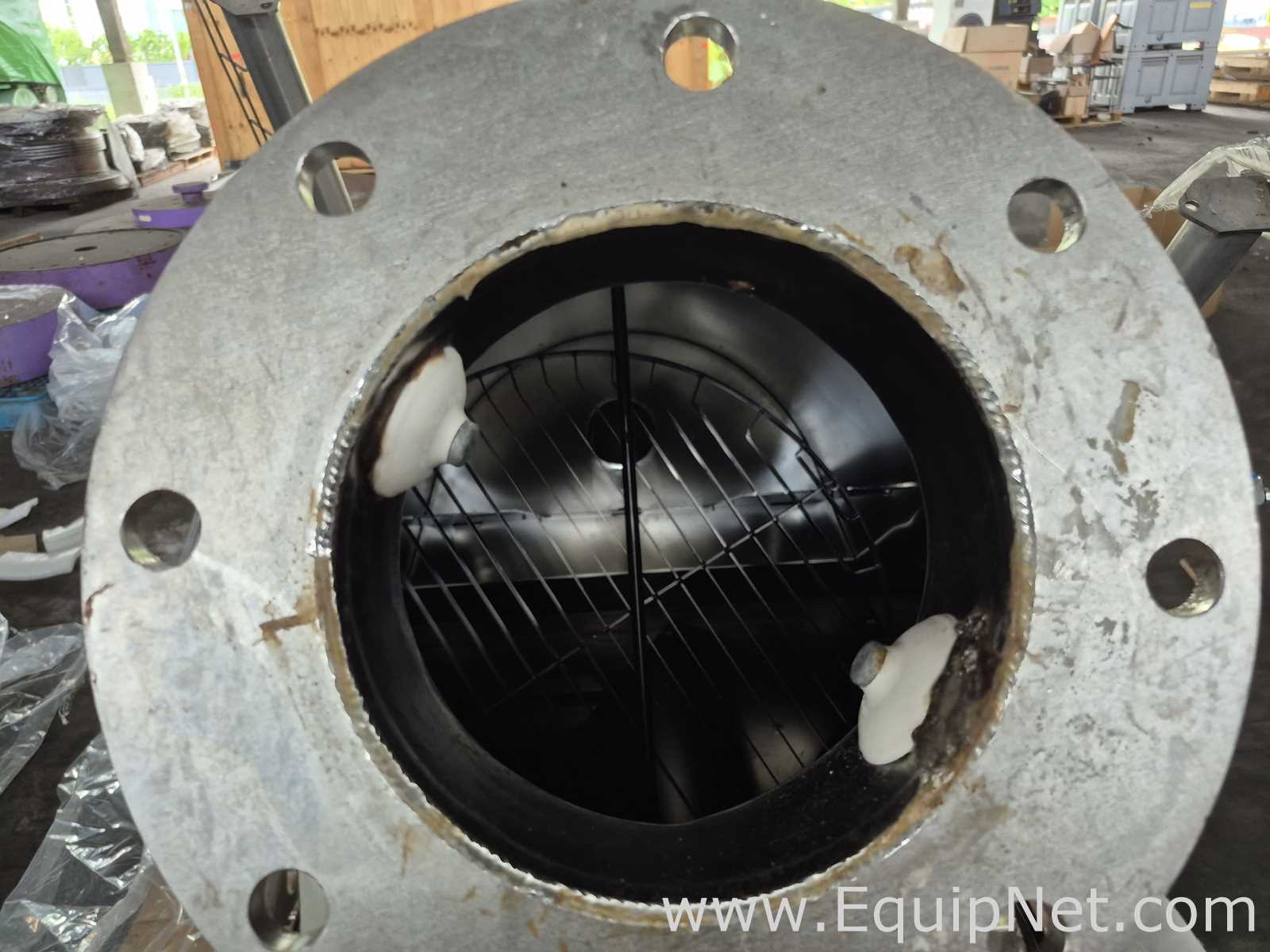

Netzsch Sack Chute Powder Feeding 01-3141-X-1000 - Skid 3-1 Master Equipment System
Equipment Description
Netzsch Sack Chute Powder Feeding - Skid 3-1 Master Equipment System
Lost in weight feeder 01-3141-X-1000 : Sack tip + Screwfeeder DSC80. 4 x load cells a 200 kg. 0.036-0.137 m3/h. 0.37 kW.
Motor speed adj 01-3141-X-MA1001: 0.37 kW. 400V. 3 ph. 20-75 hz (4.4-16.5 RPM).
Material: SS304.
ATEX-Zones: within Zone 20 and outside Zone 22.
Includes listing 1051379.
Includes listing 1051379.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Year:
2018
2018
Serial Number:
CD 039651
CD 039651
Capacity Size:
440.92
lb
200
KGS
Recommended Packaging Form:
CUSTOM PALLET
CUSTOM PALLET
Dimensions:
Standard
Metric
Overall:
1 x 1 x 1 IN - 1 LBS
25.40 x 25.40 x 25.40 mm - 0.45 kg
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
