Listing# 1107818

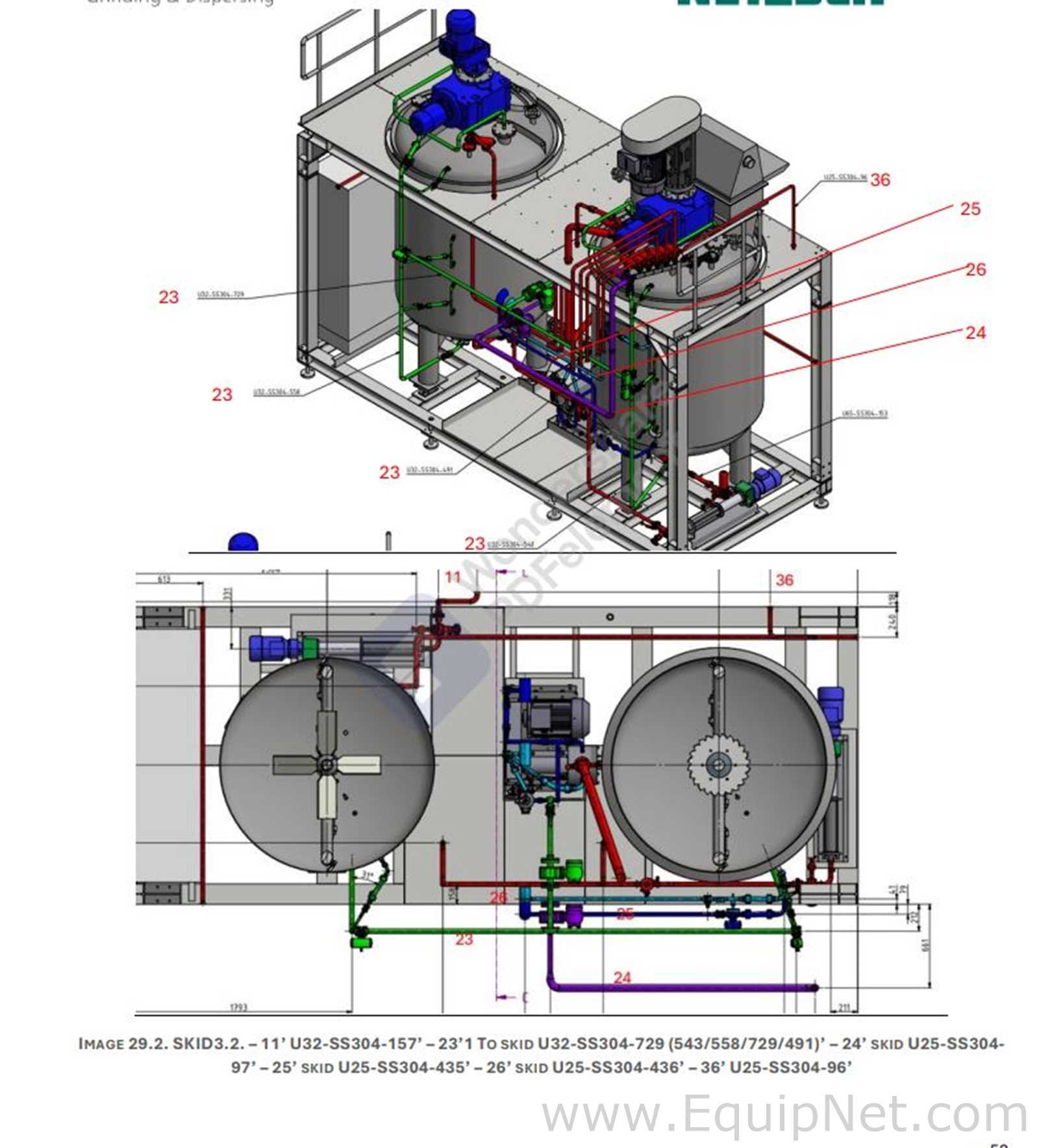

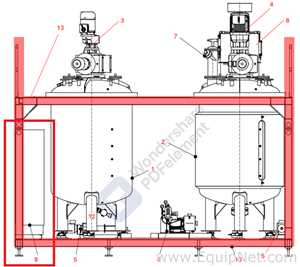

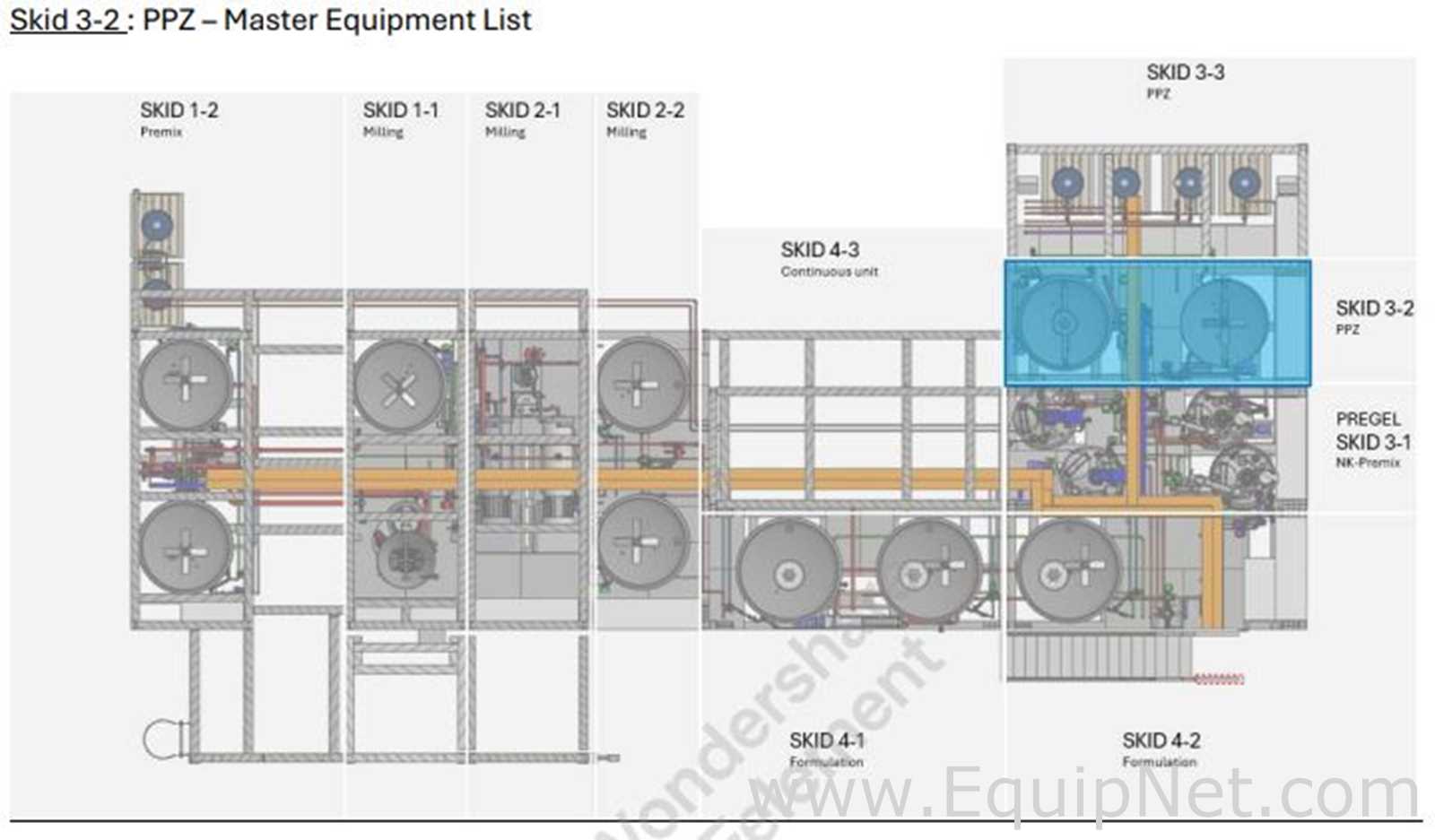

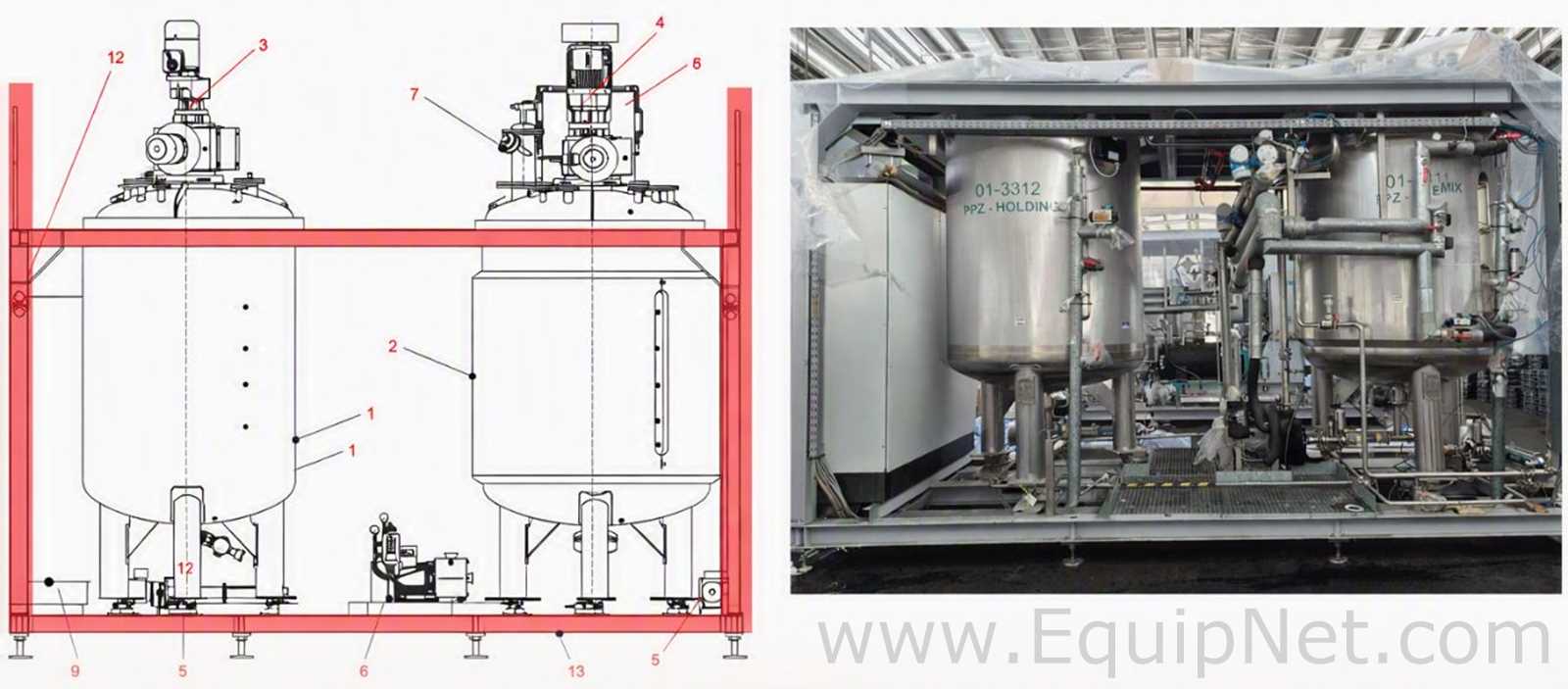

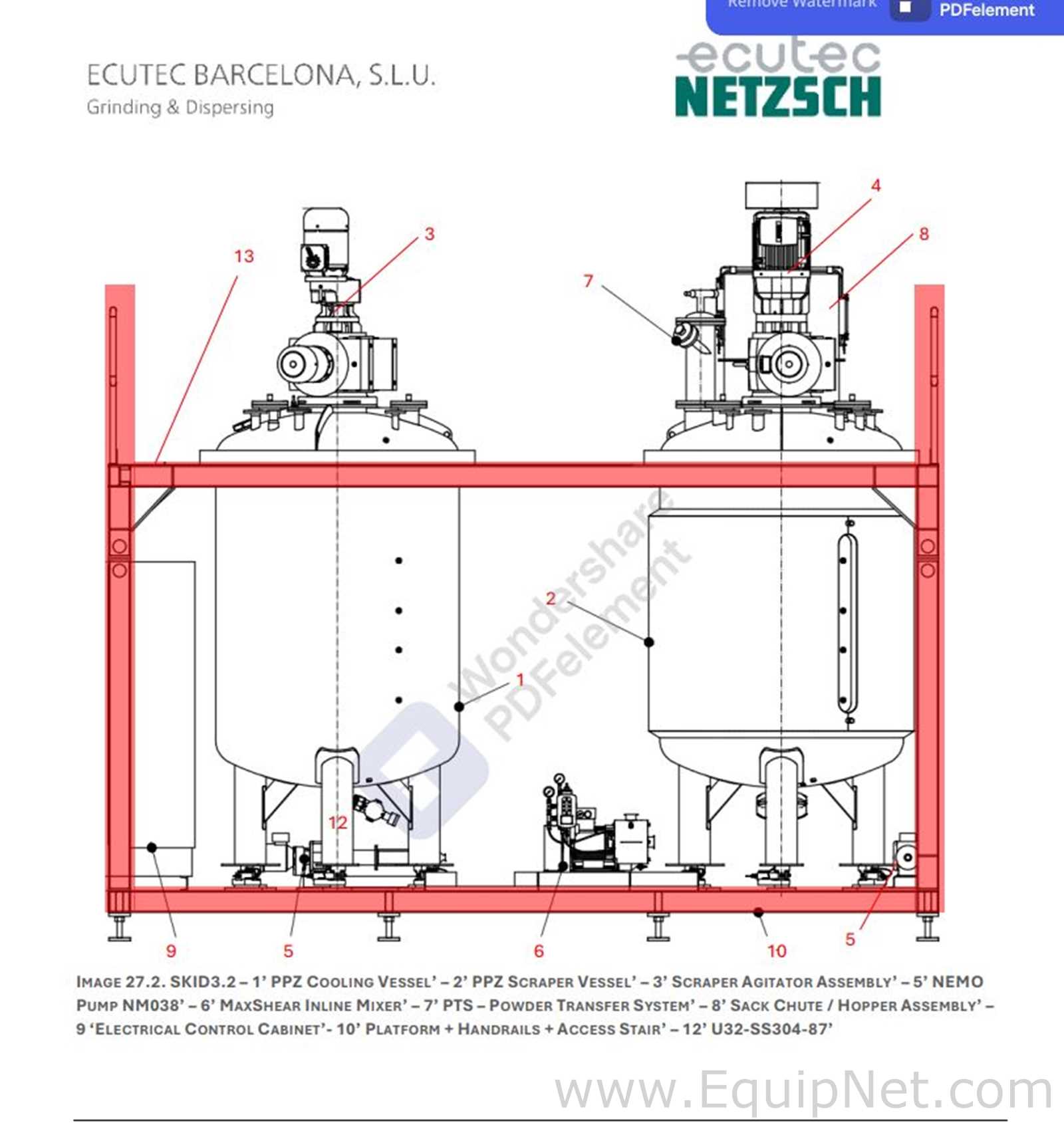

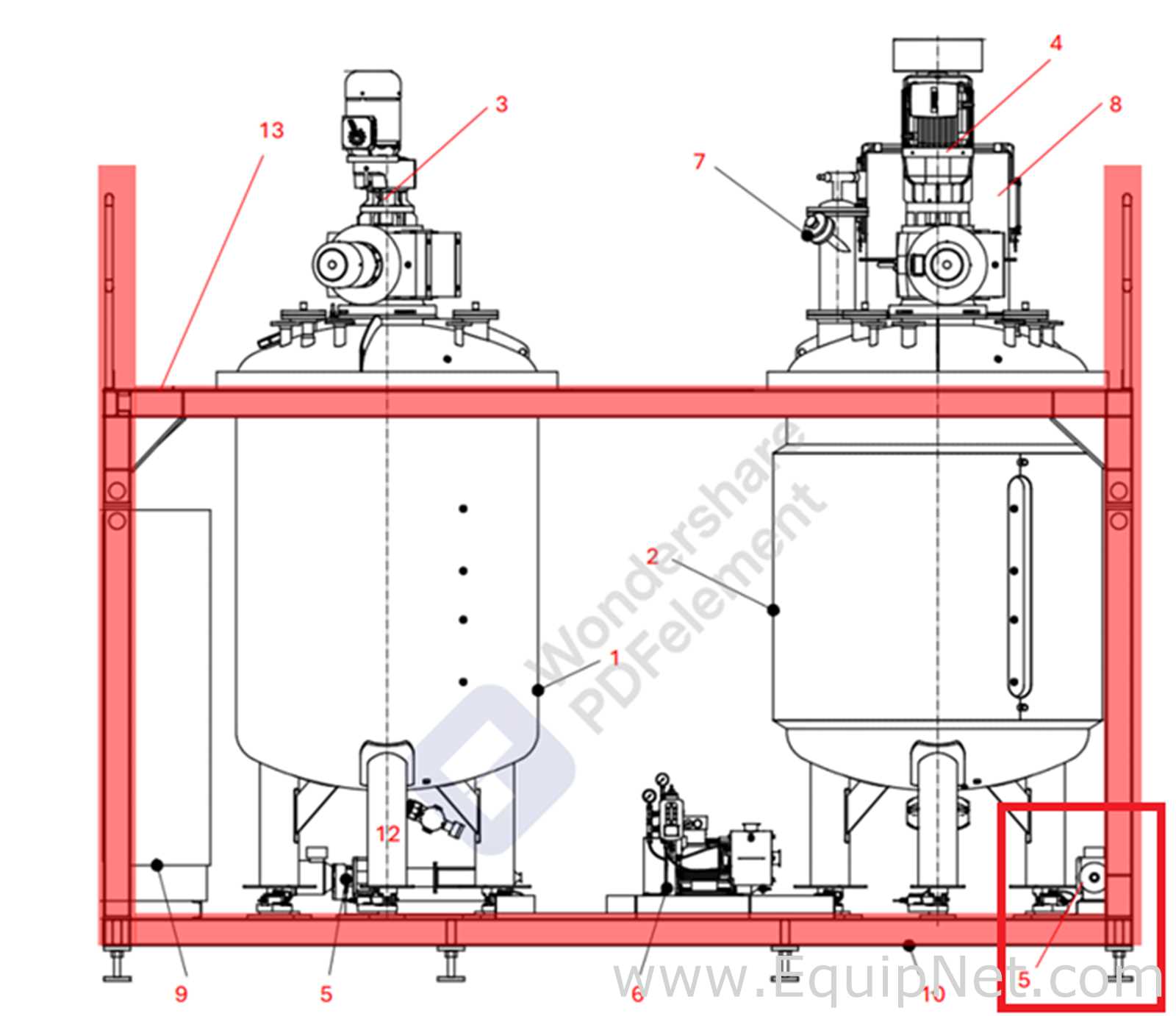

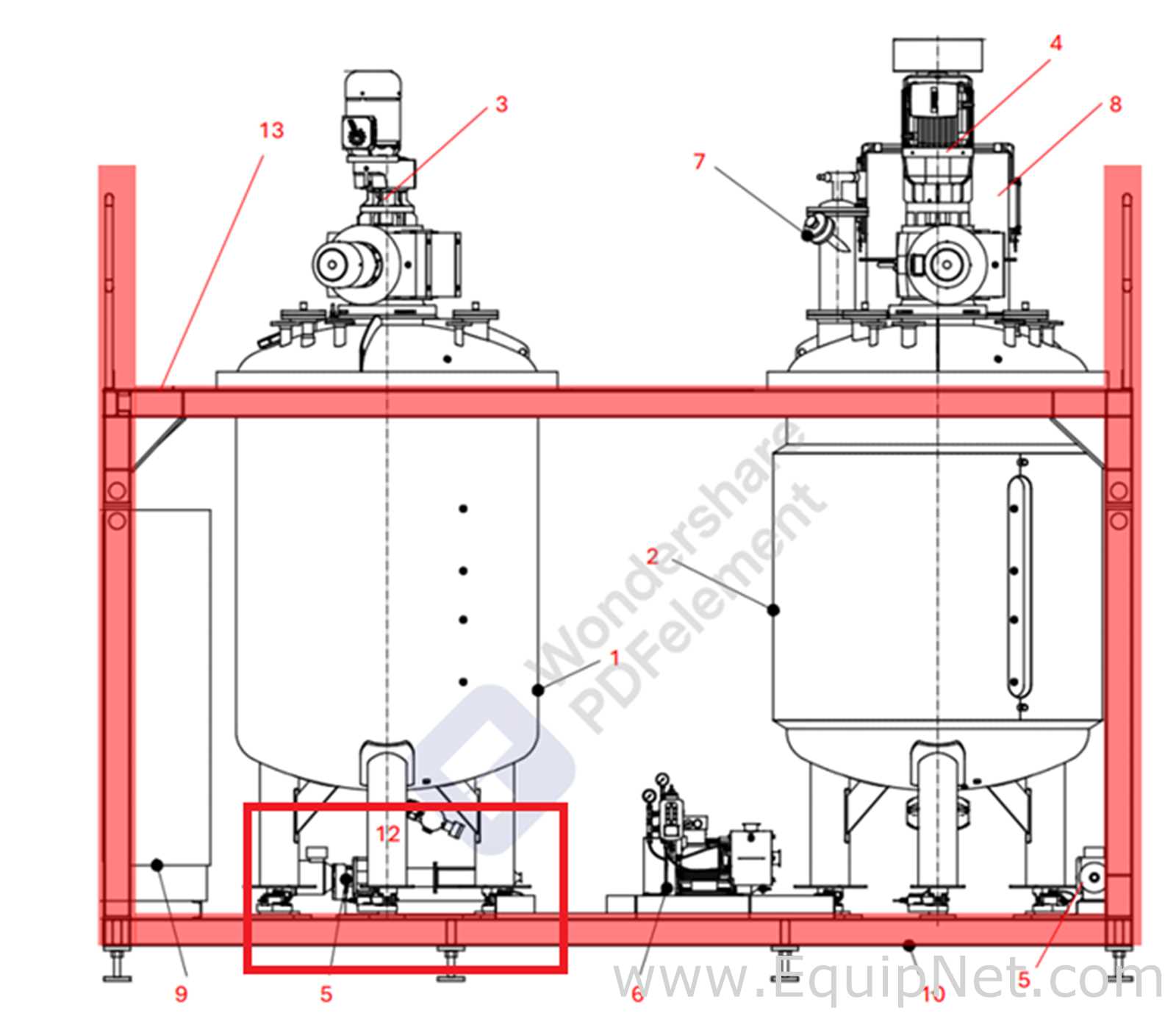

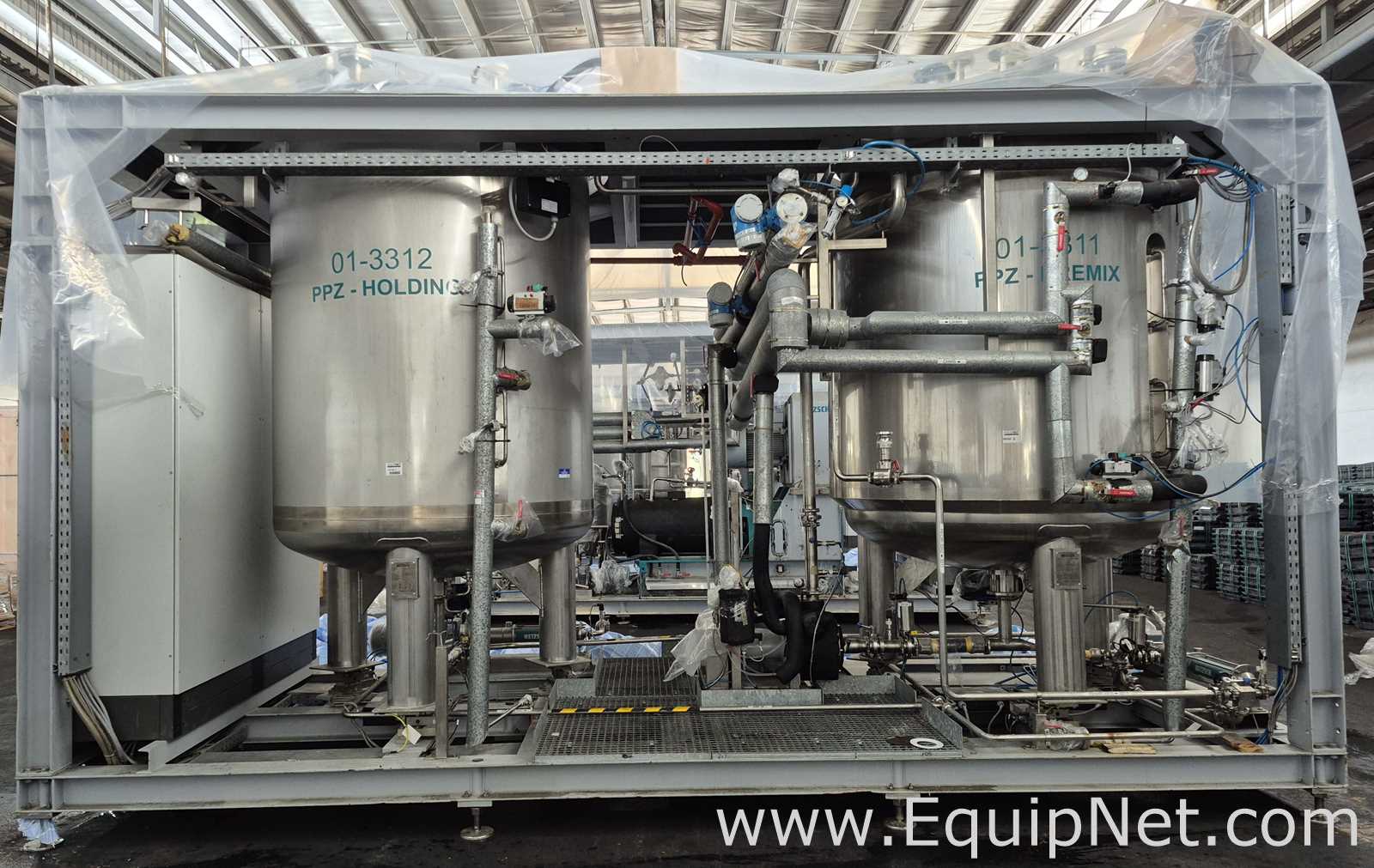

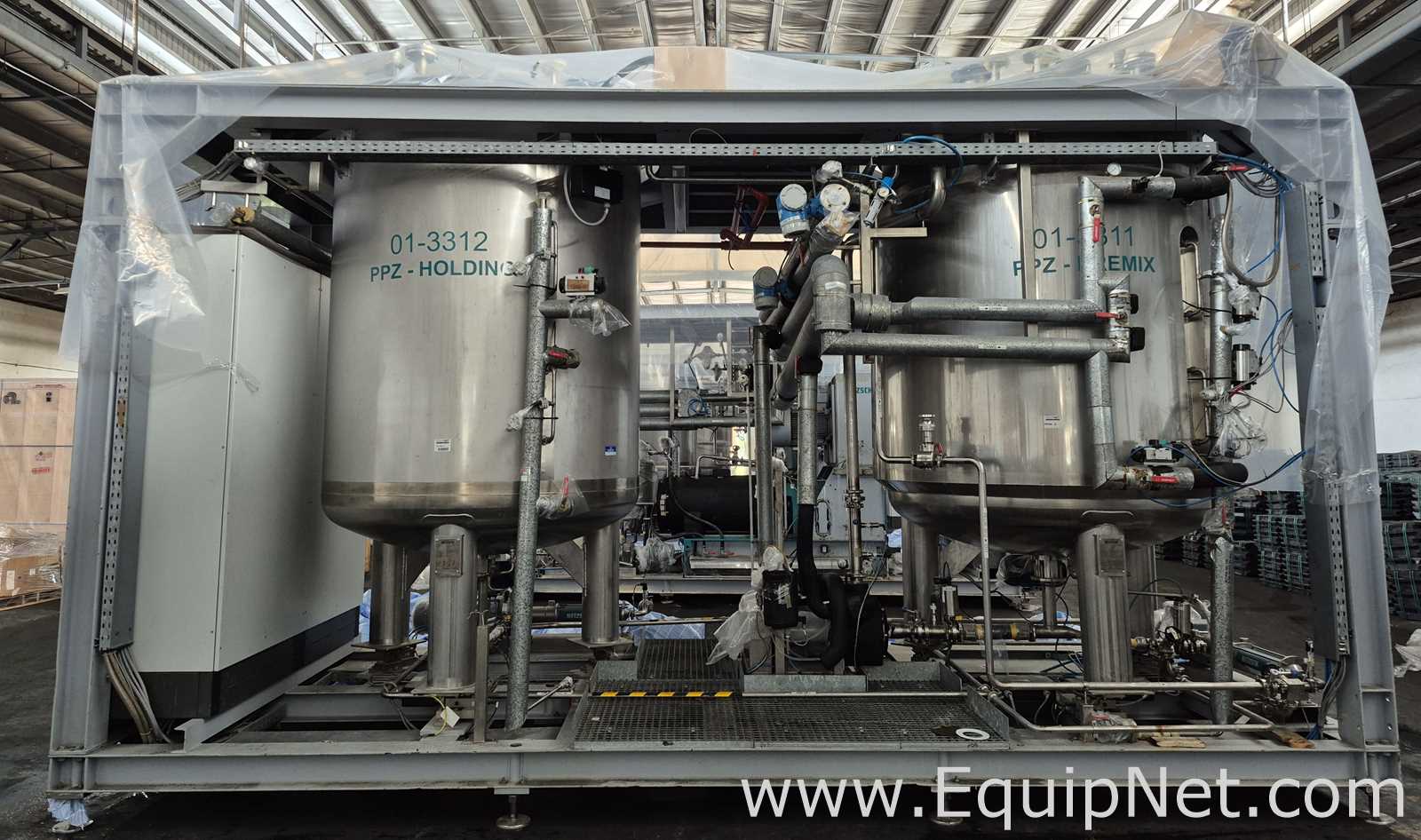

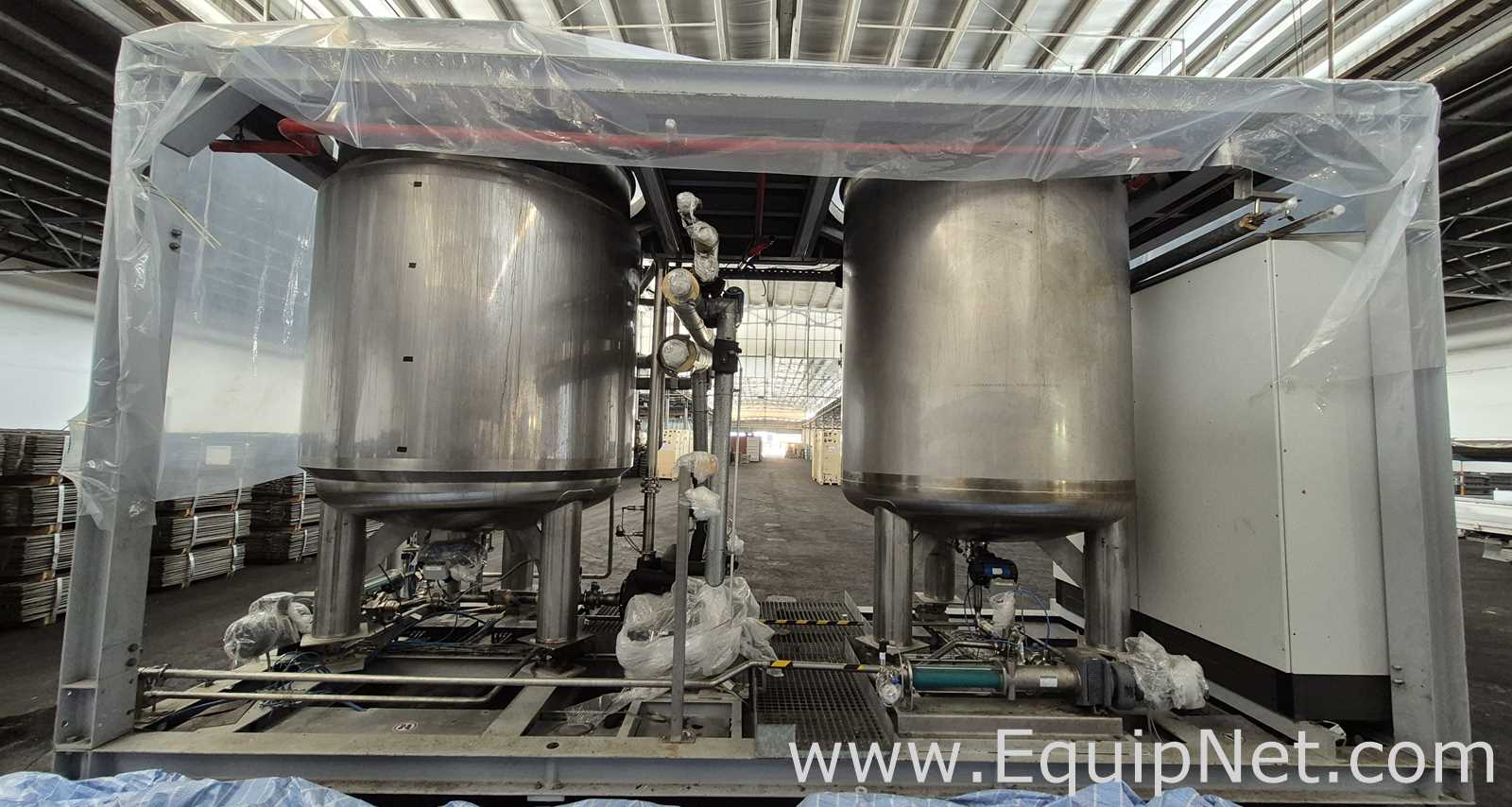

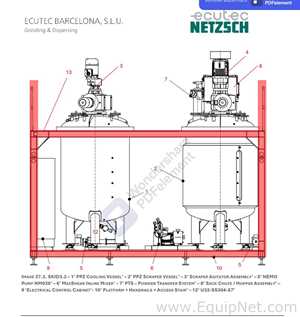

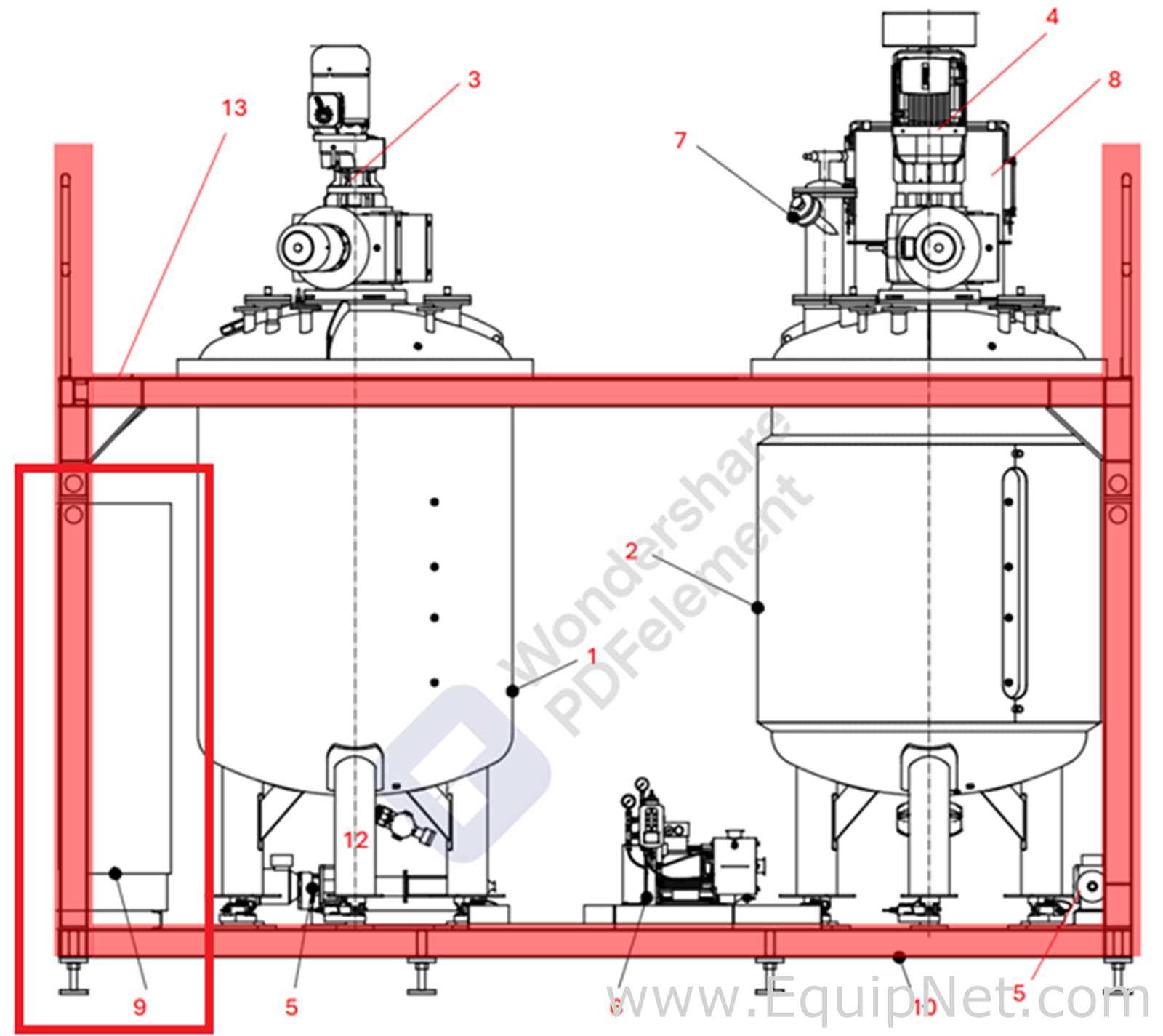

Netzsch Two 4.000 L SS Blending Tanks with Scrapers, High Shear Disperser and Two Pumps - Skid 3-2
THIS IS A MULTI-LISTING. VIEW INDIVIDUAL LISTINGS BY SCROLLING DOWN.
Pre-Owned NETZSCH Mixing Vessel for Sale
Seller's Acceptable Currency:
$125,000.00 USD
Request More Info Make An OfferLocation: Singapore
Level of Removal: Still Installed
*All offers are submitted in Seller’s Acceptable Currency
Don't see what you're looking for? We'll find it for you
Equipment Description
Includes:

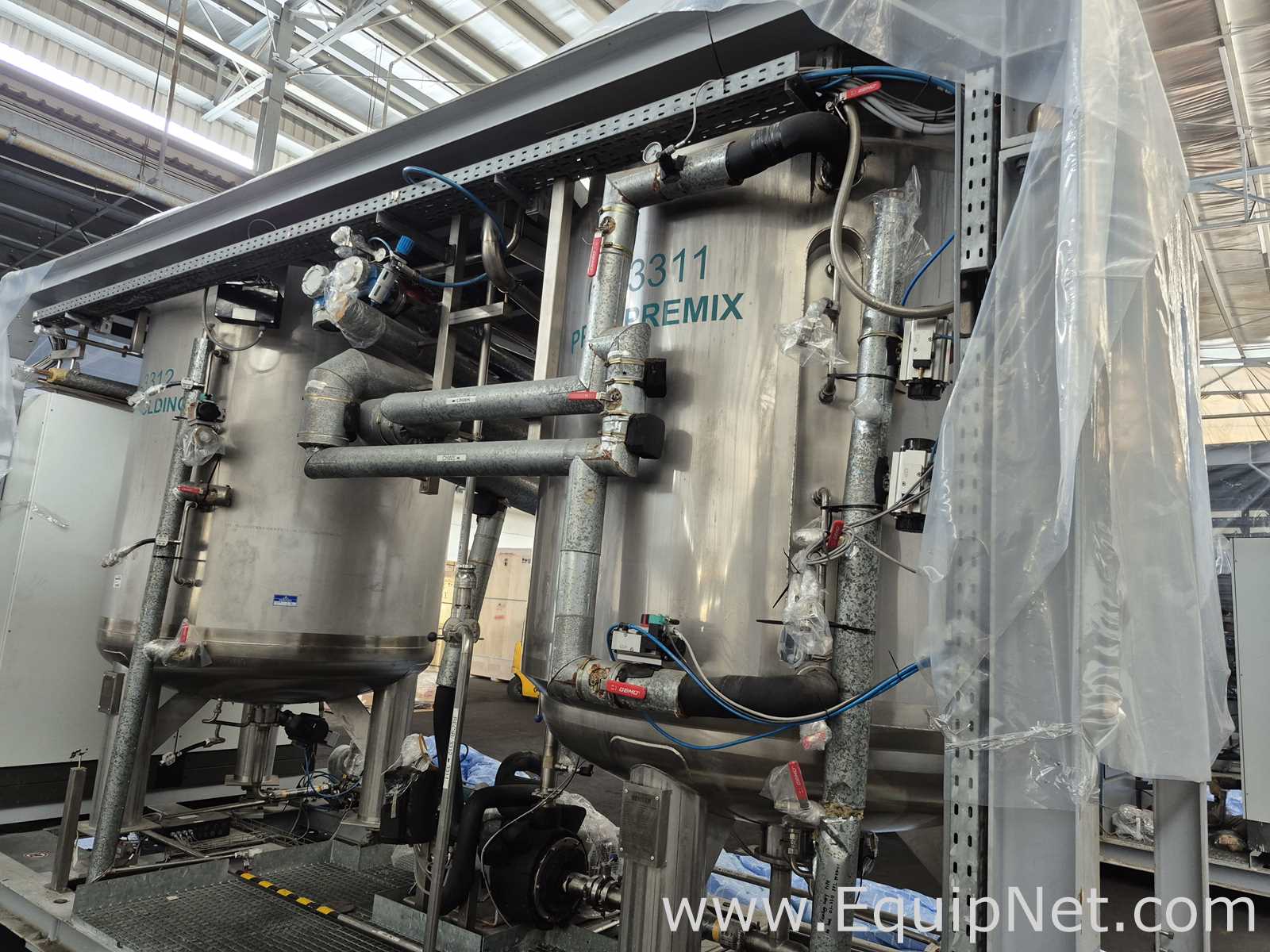

Netzsch 4000L SS Blending High Speed Mixing with Scraper and Cooled Vessel 3311.
Netzsch Nemo Pump NM038 3311.
Netzsch 4000L SS Blending Holding Medium Speed Mixing Vessel with Scraper 3312.
Netzsch Nemo Pump NM038 3312.
Netzsch MaxShear Inline Disperser 01-3531.

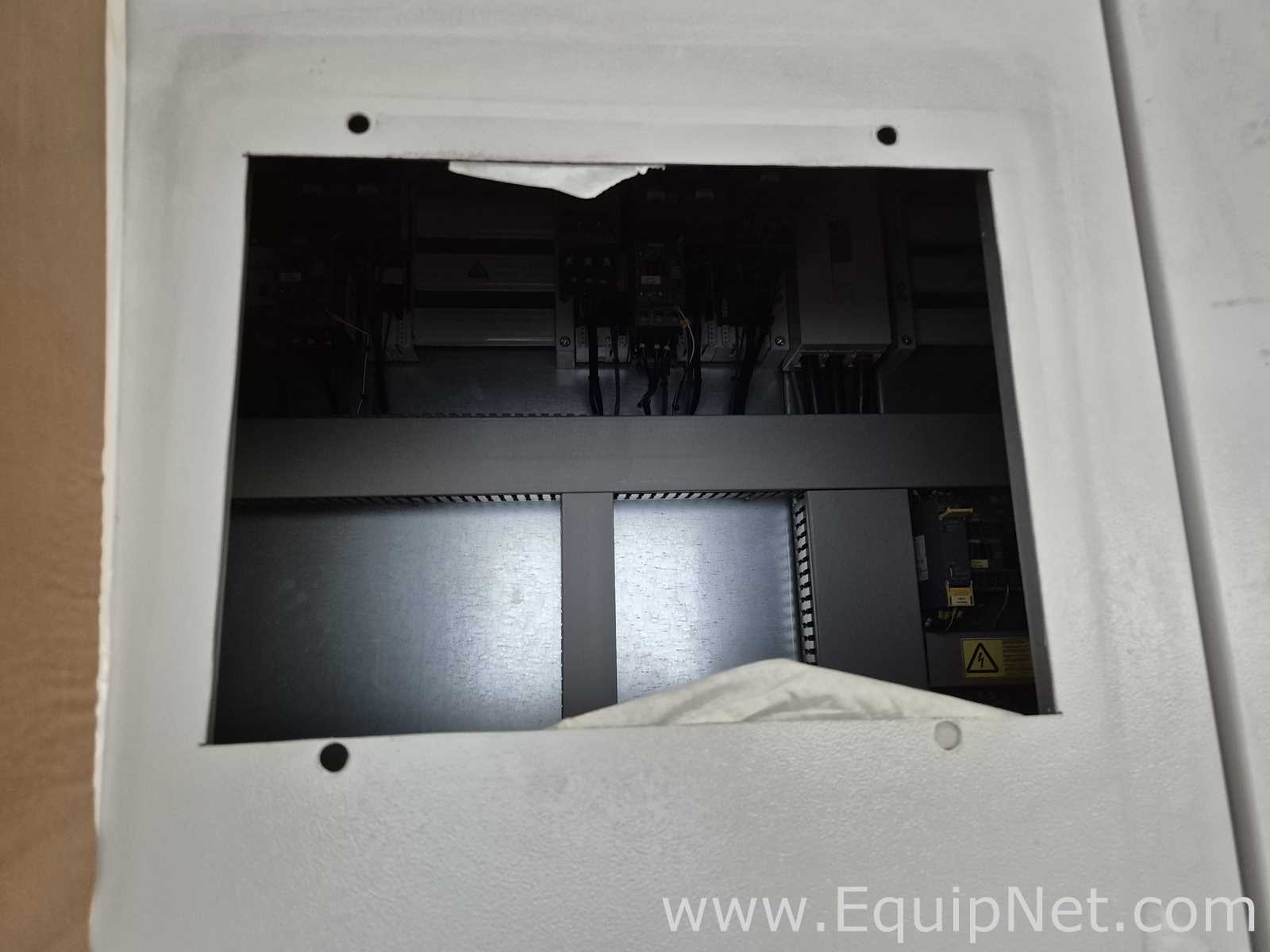

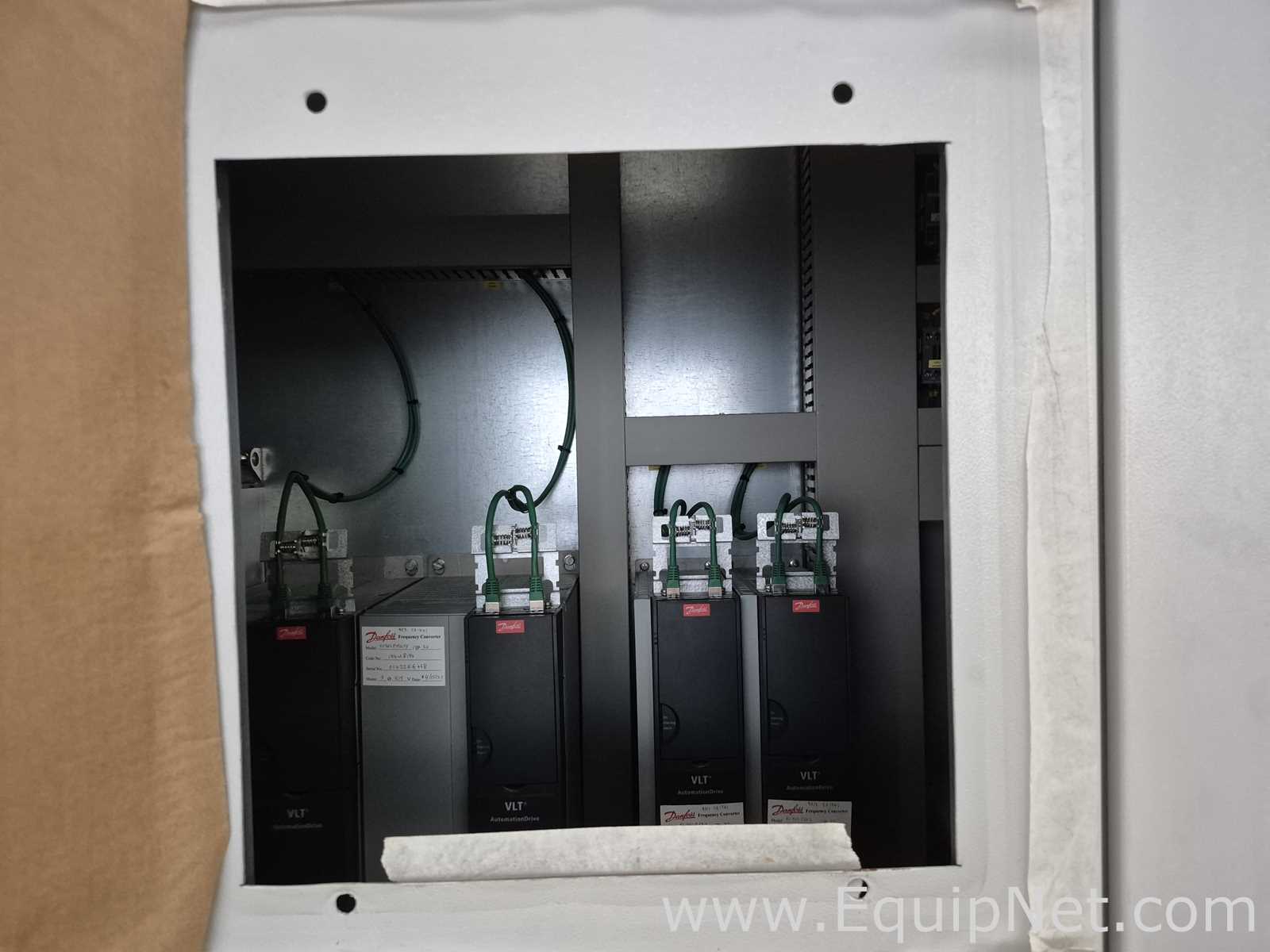

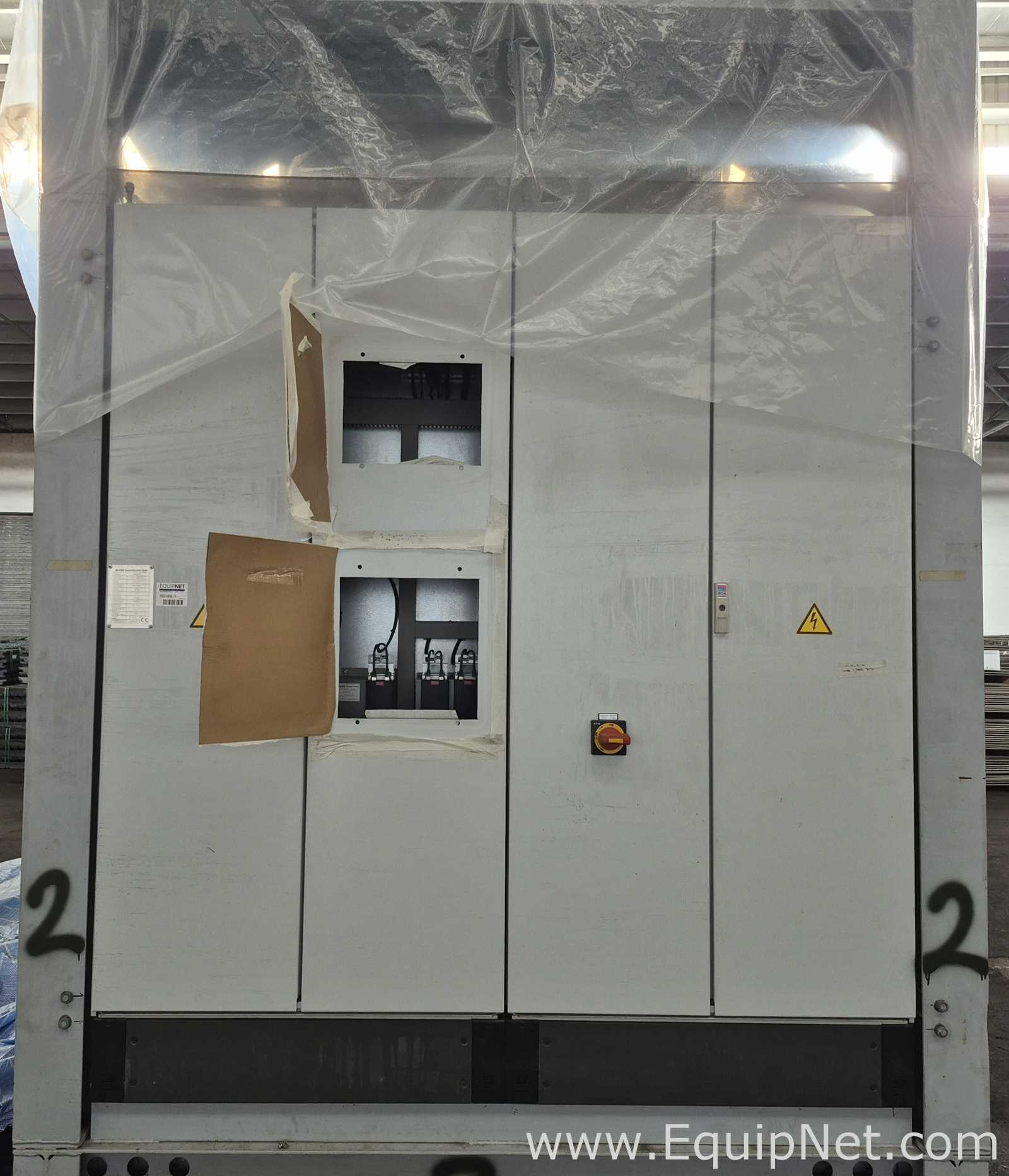

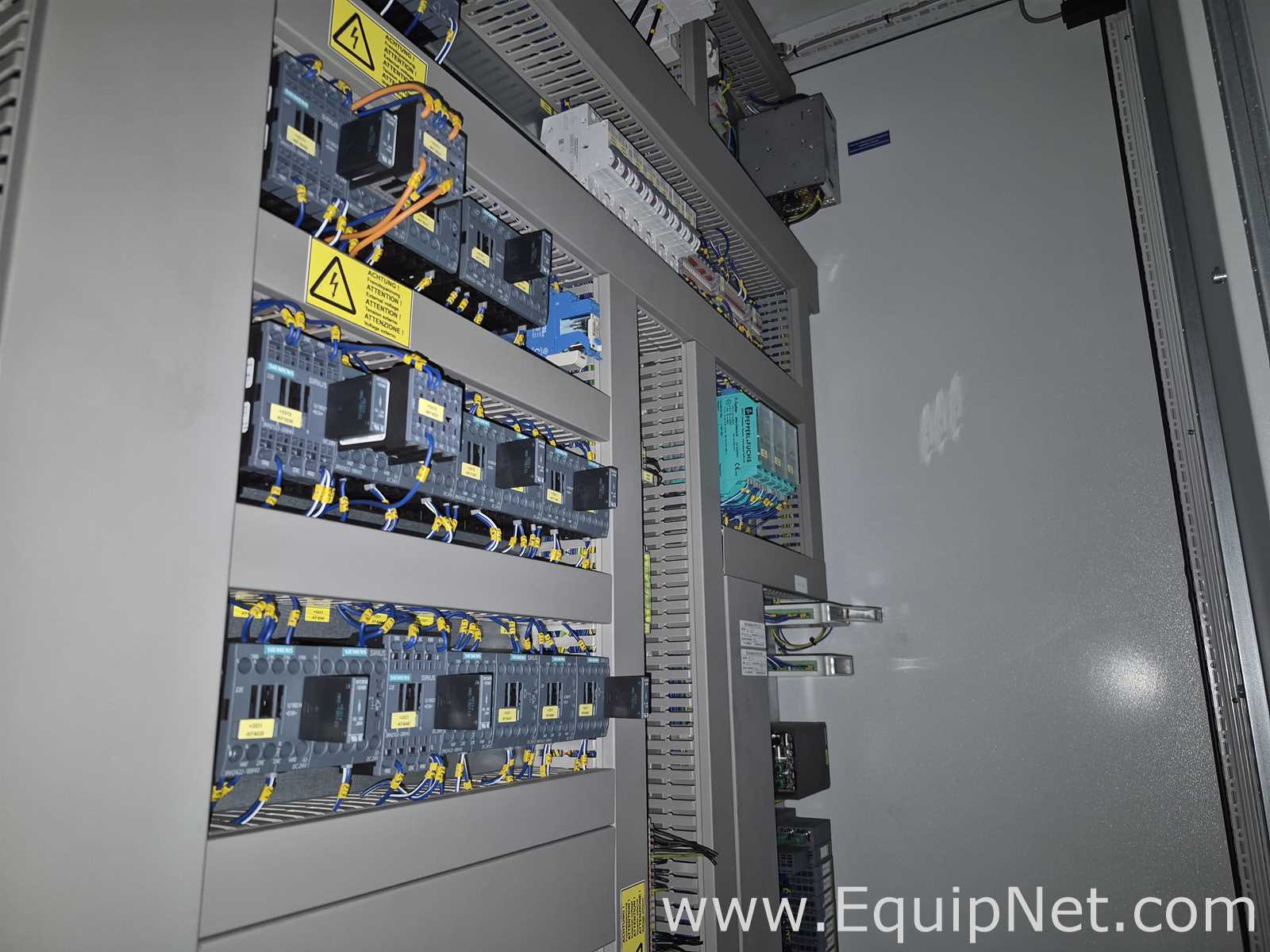

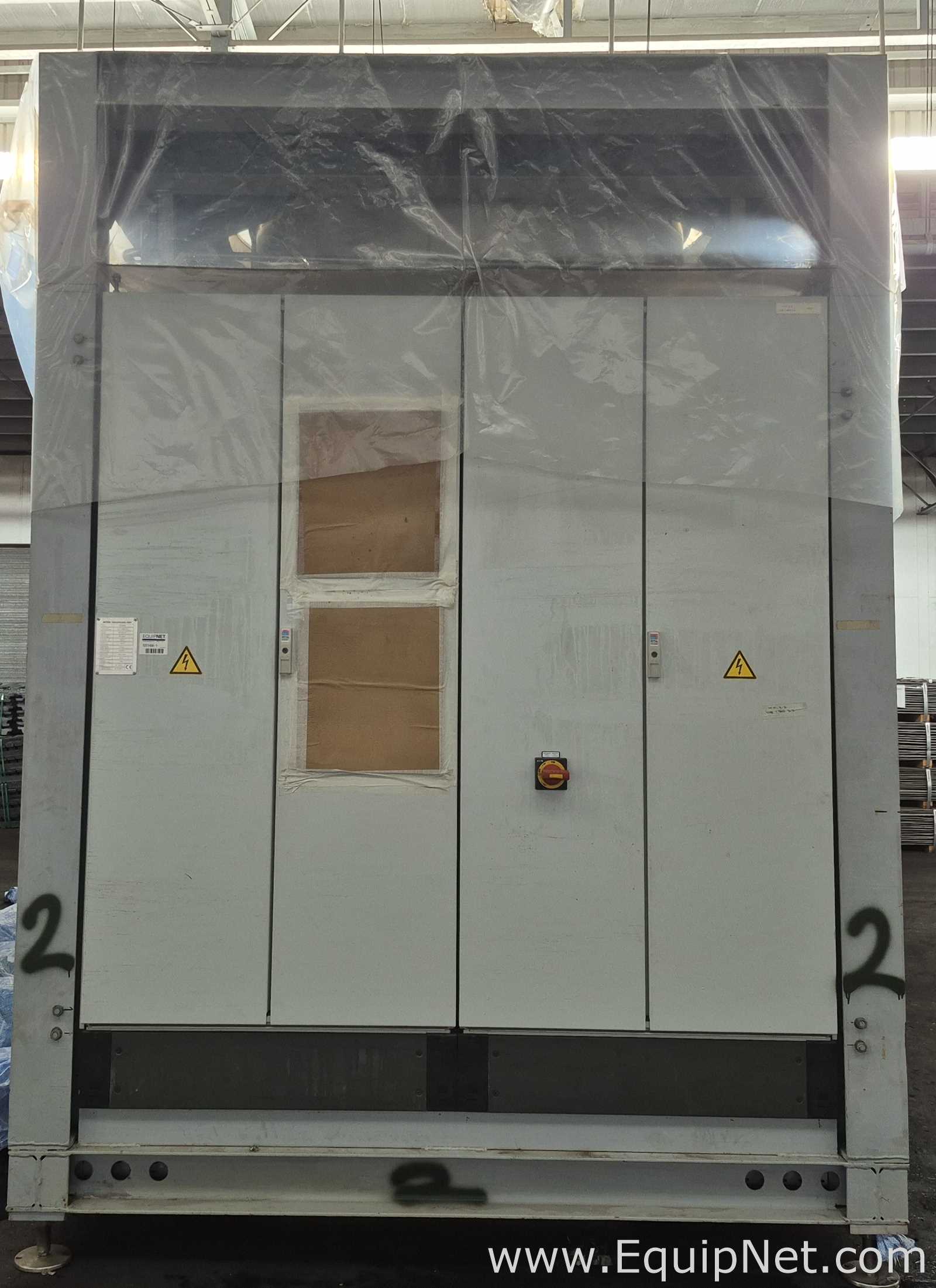

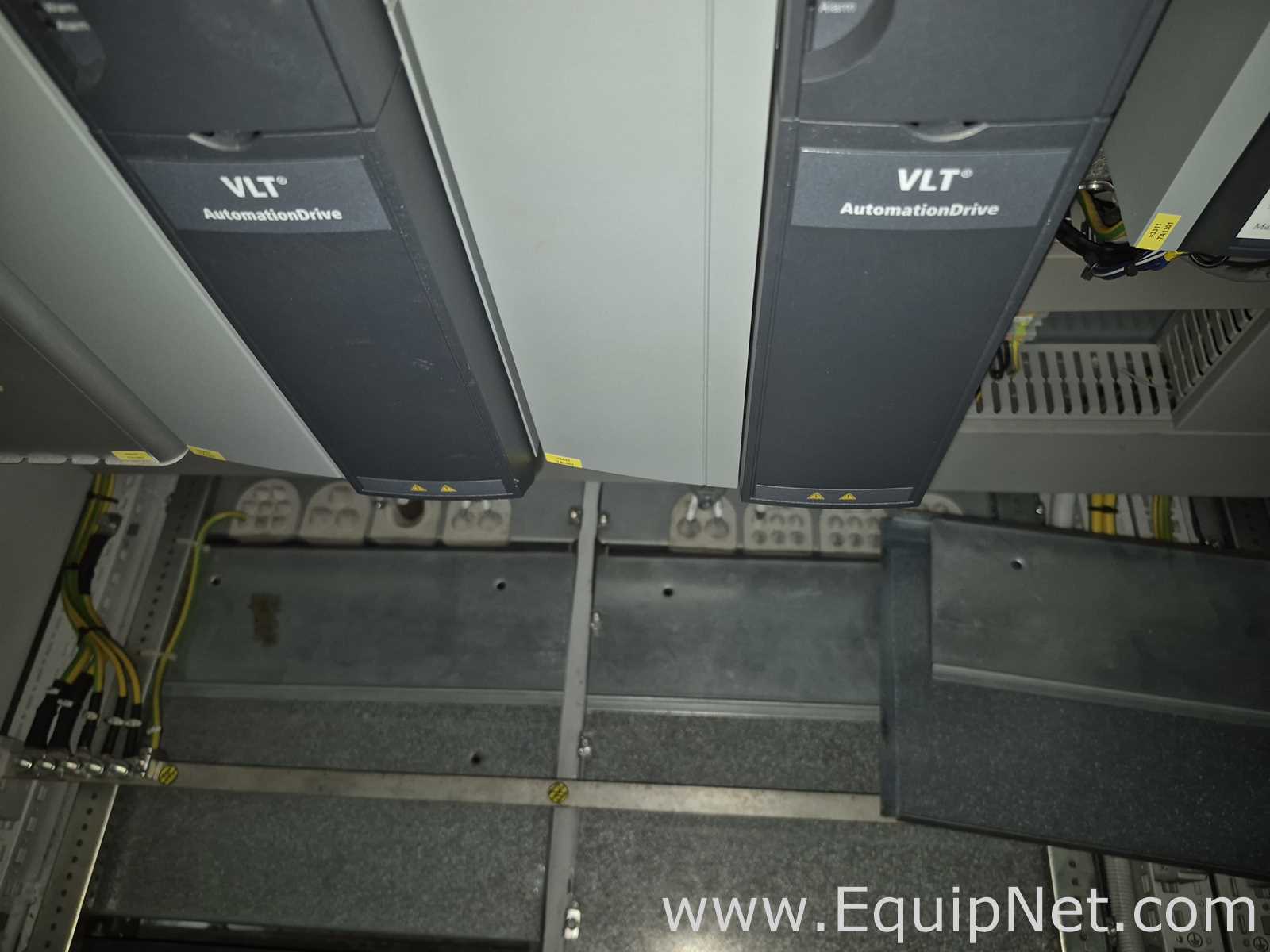

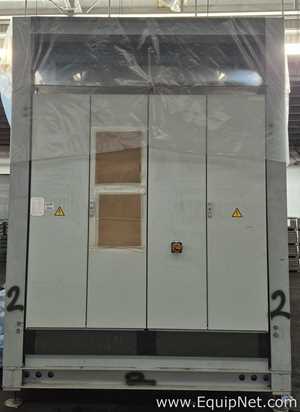

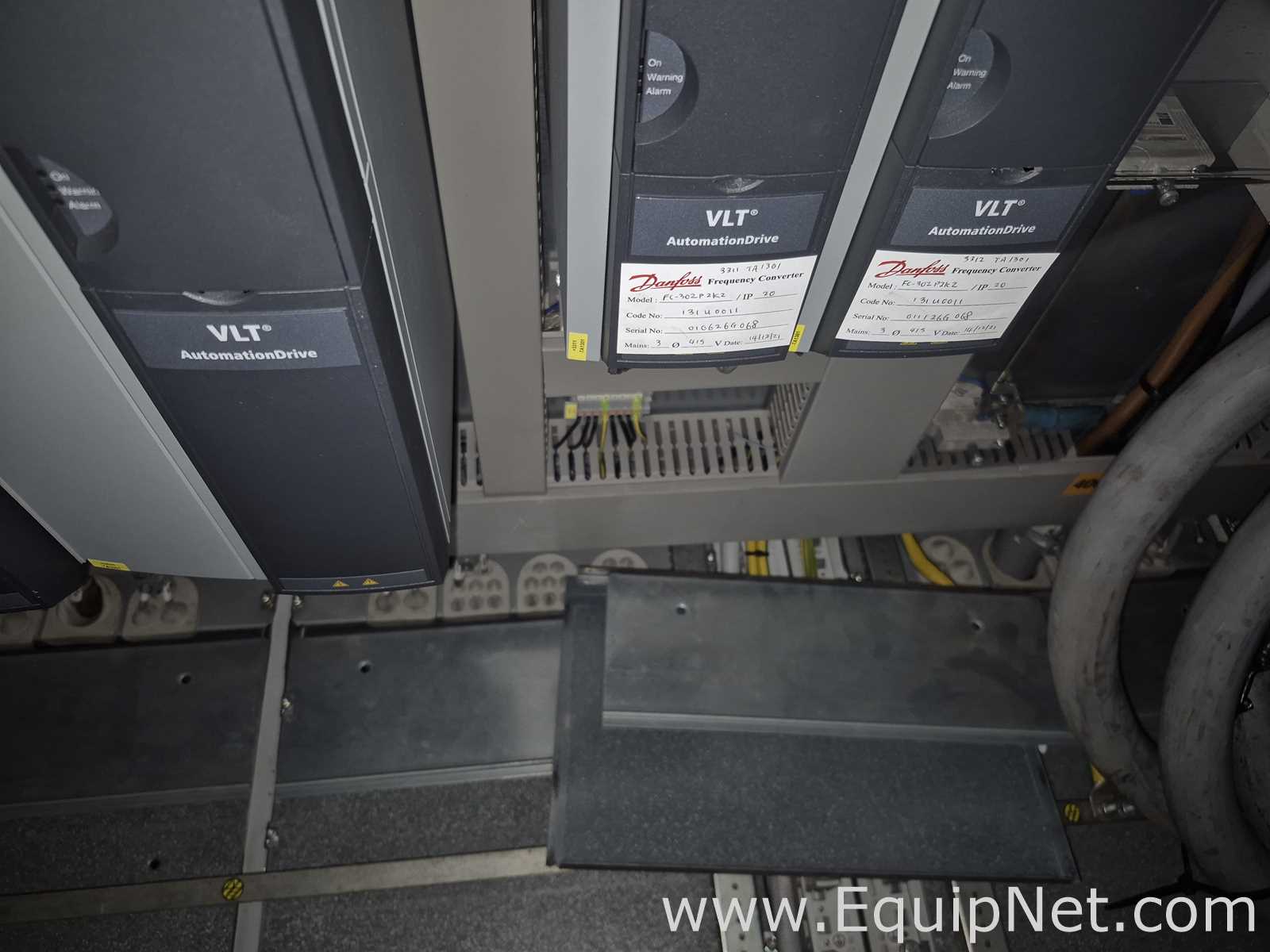

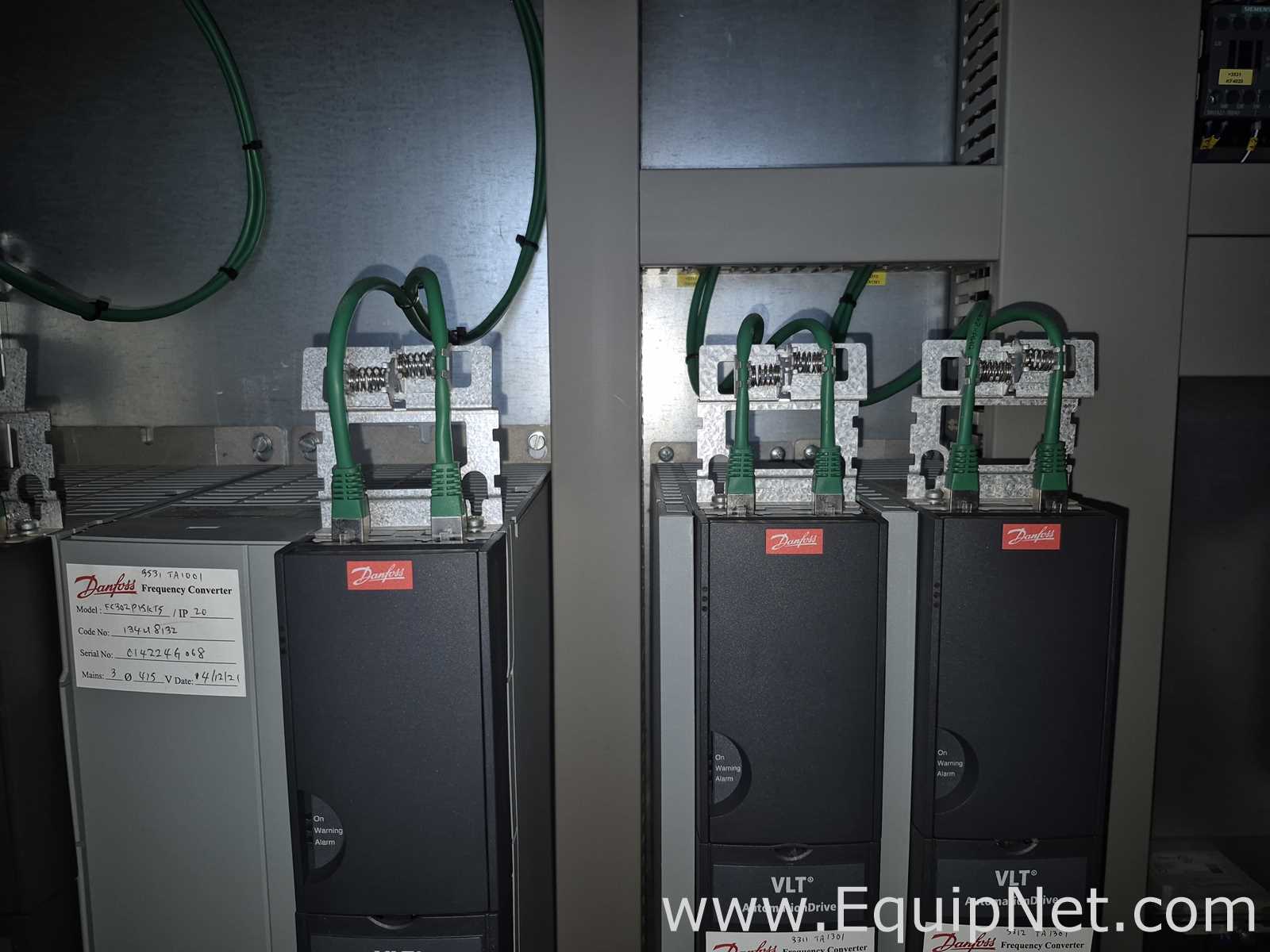

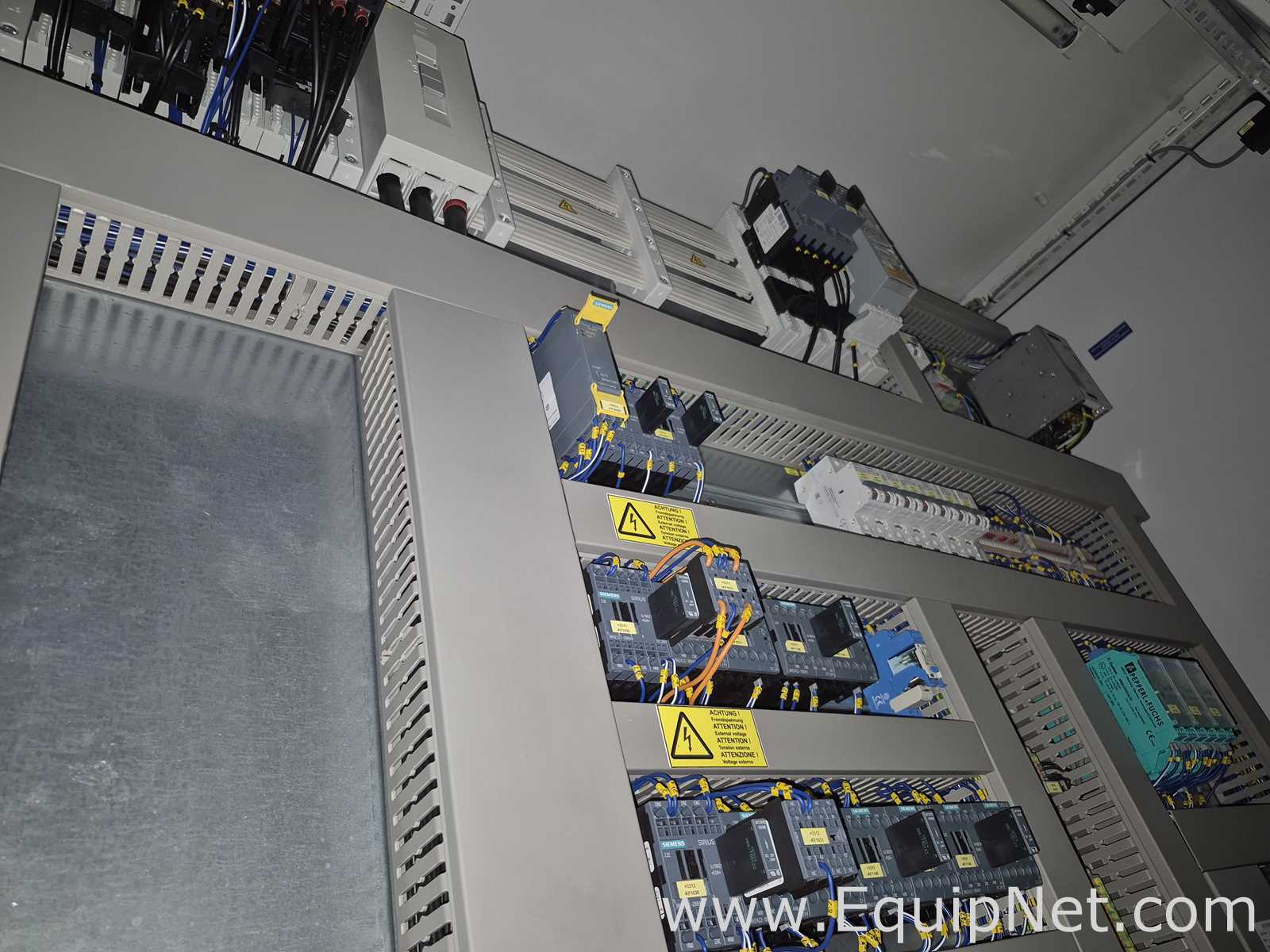

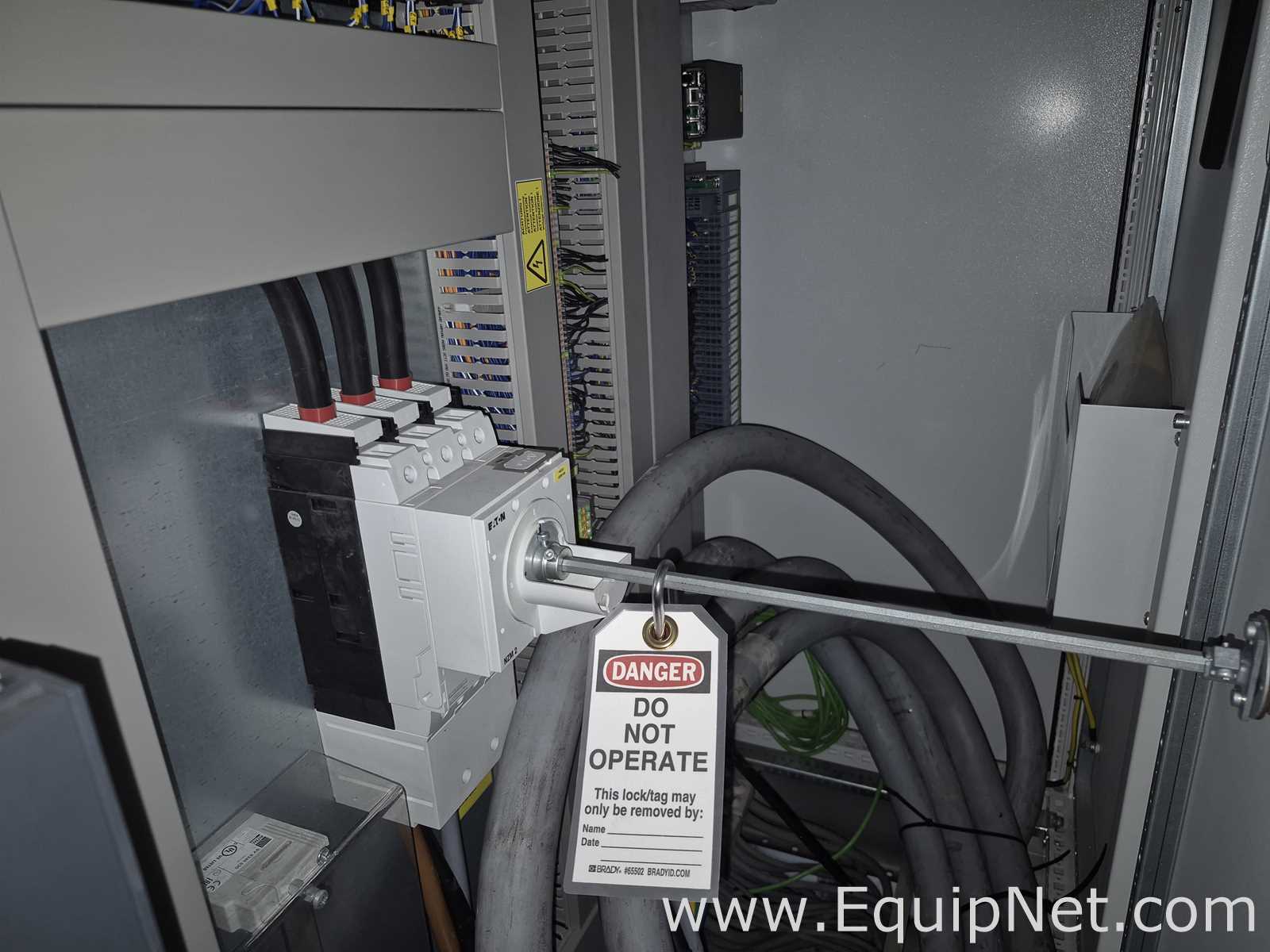

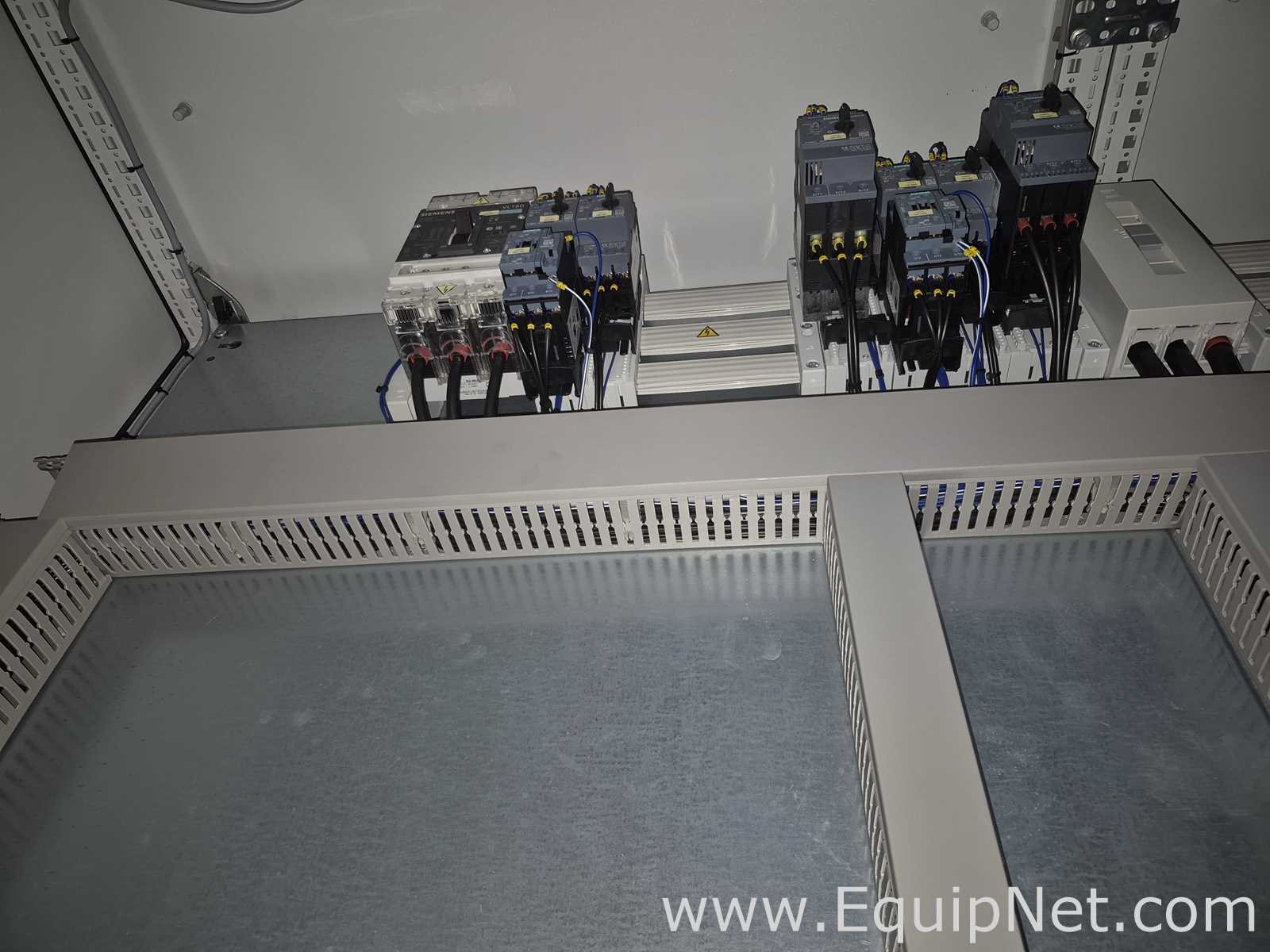

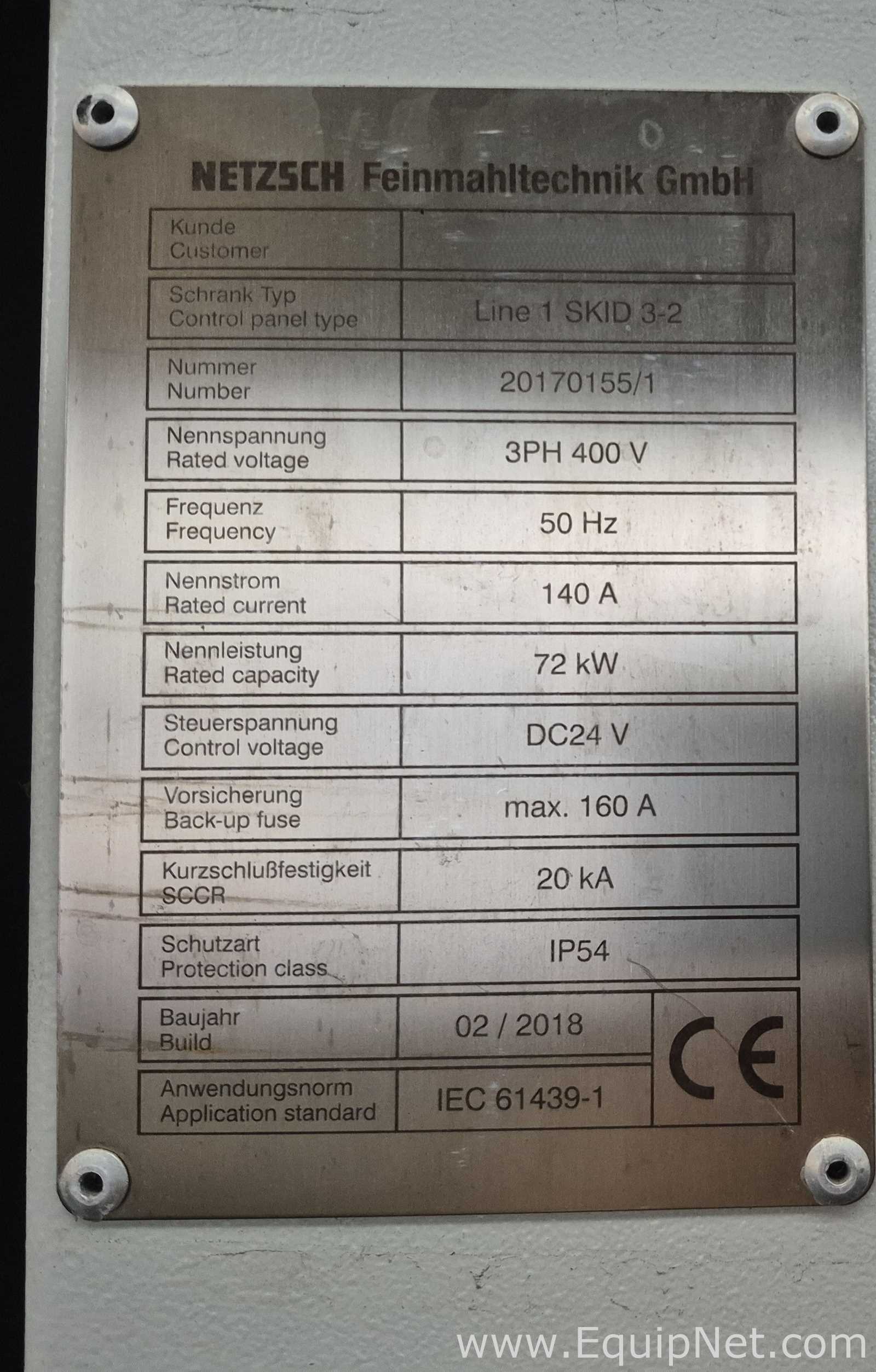

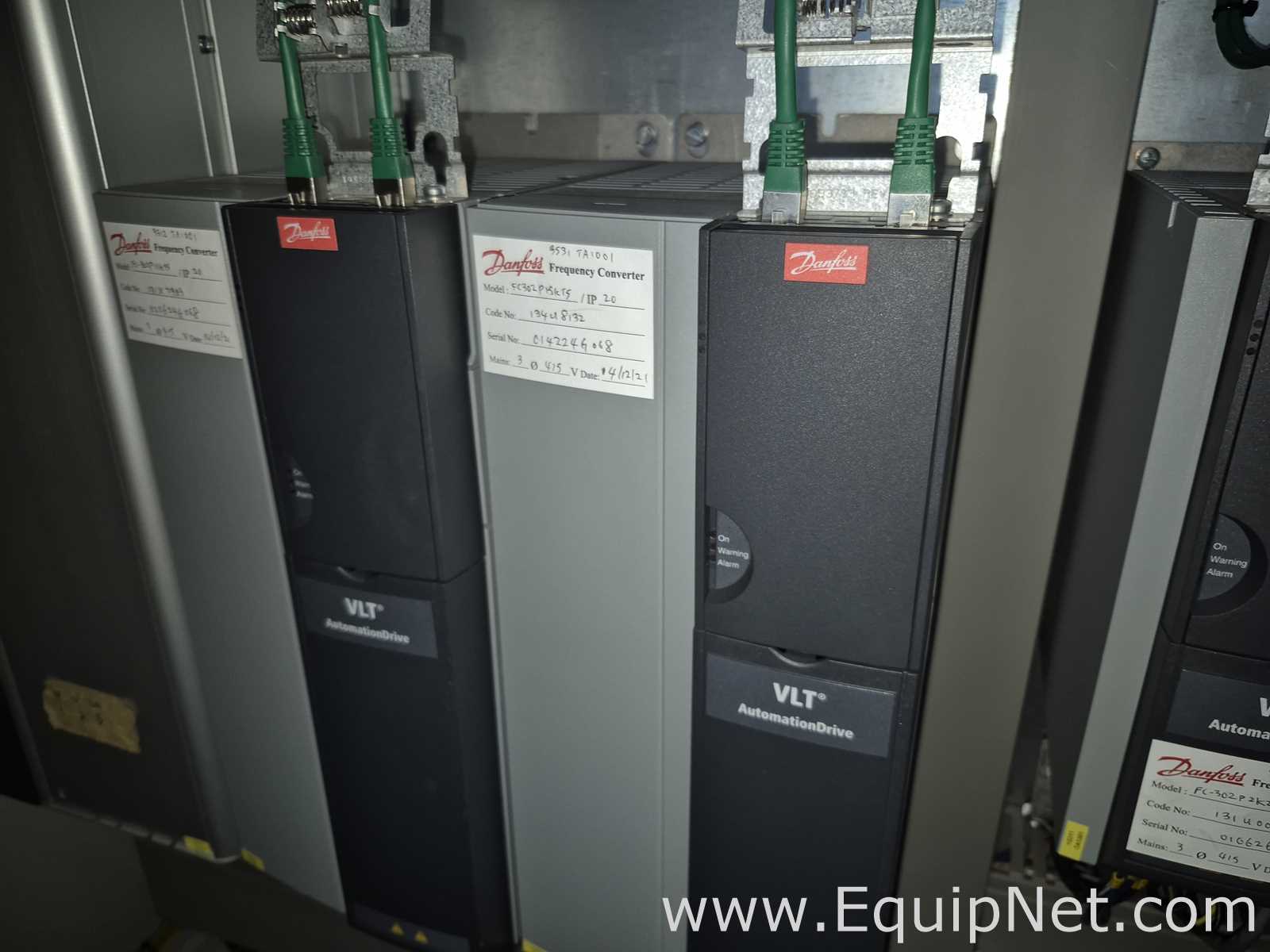

Netzsch Electrical Board.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Year:
2018
2018
CE Marked:
YES
YES
Tank Material of Construction:
STAINLESS STEEL
STAINLESS STEEL
Jacketed:
YES
YES
Type of Top Head:
DISHED
DISHED
Type of Bottom Head:
DISHED
DISHED
Agitation:
YES
YES
Recommended Packaging Form:
PALLET
PALLET
Voltage:
400
VOLTS
400
VOLTS
Frequency:
50
HERTZ
50
HERTZ
Phase:
3
3
Current:
140
AMPS
140
AMPS
Dimensions:
Standard
Metric
Overall:
0.04 x 0.04 x 0.04 in - 2.20 lb
1 x 1 x 1 MM - 1 KGS
Disclaimer:
This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in
East Asia/Pacific
This equipment is subject to a removal and loading charge.
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Multi-Listing Includes:
Back to Top
Multi-Listing #1049529

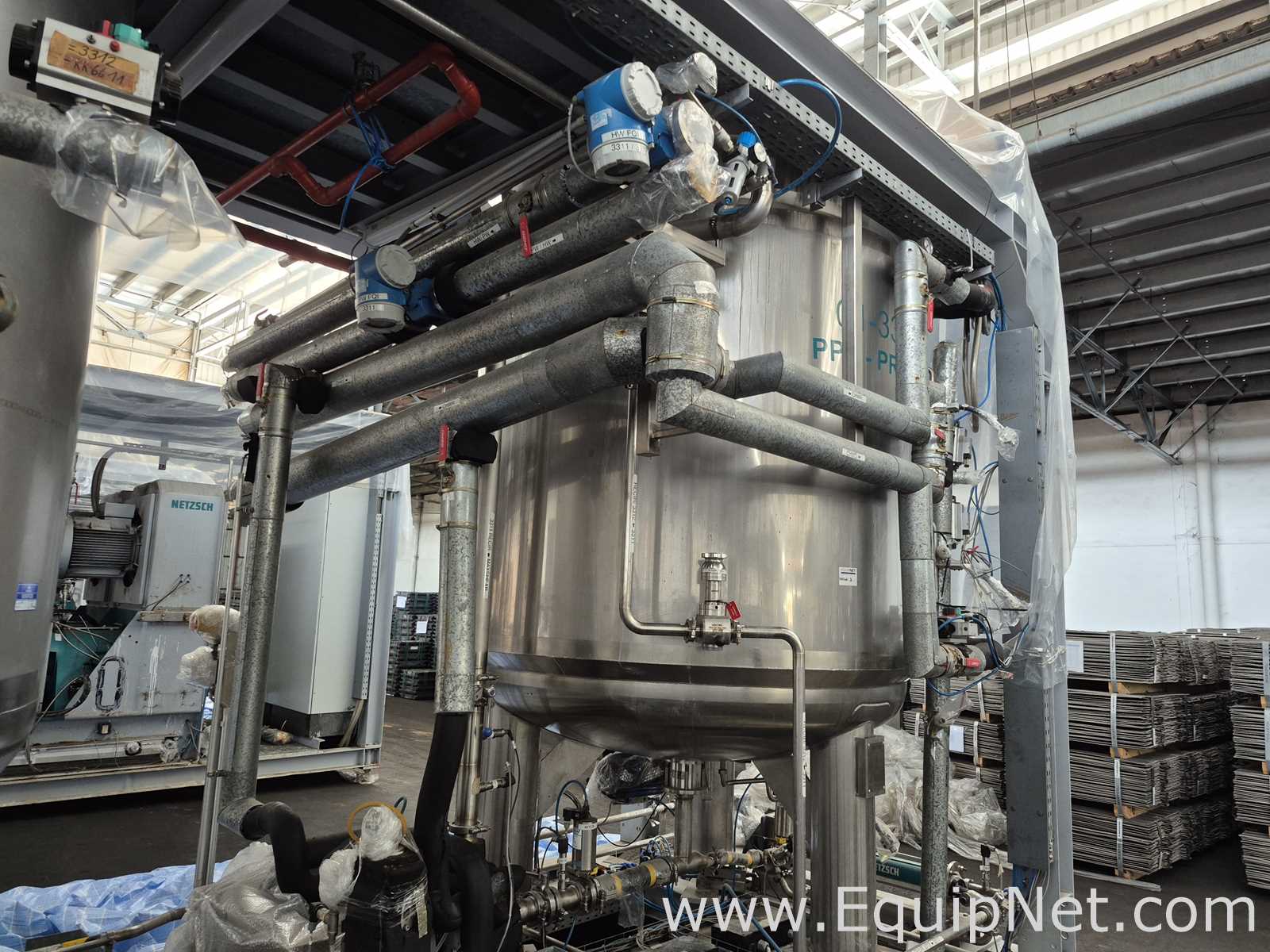

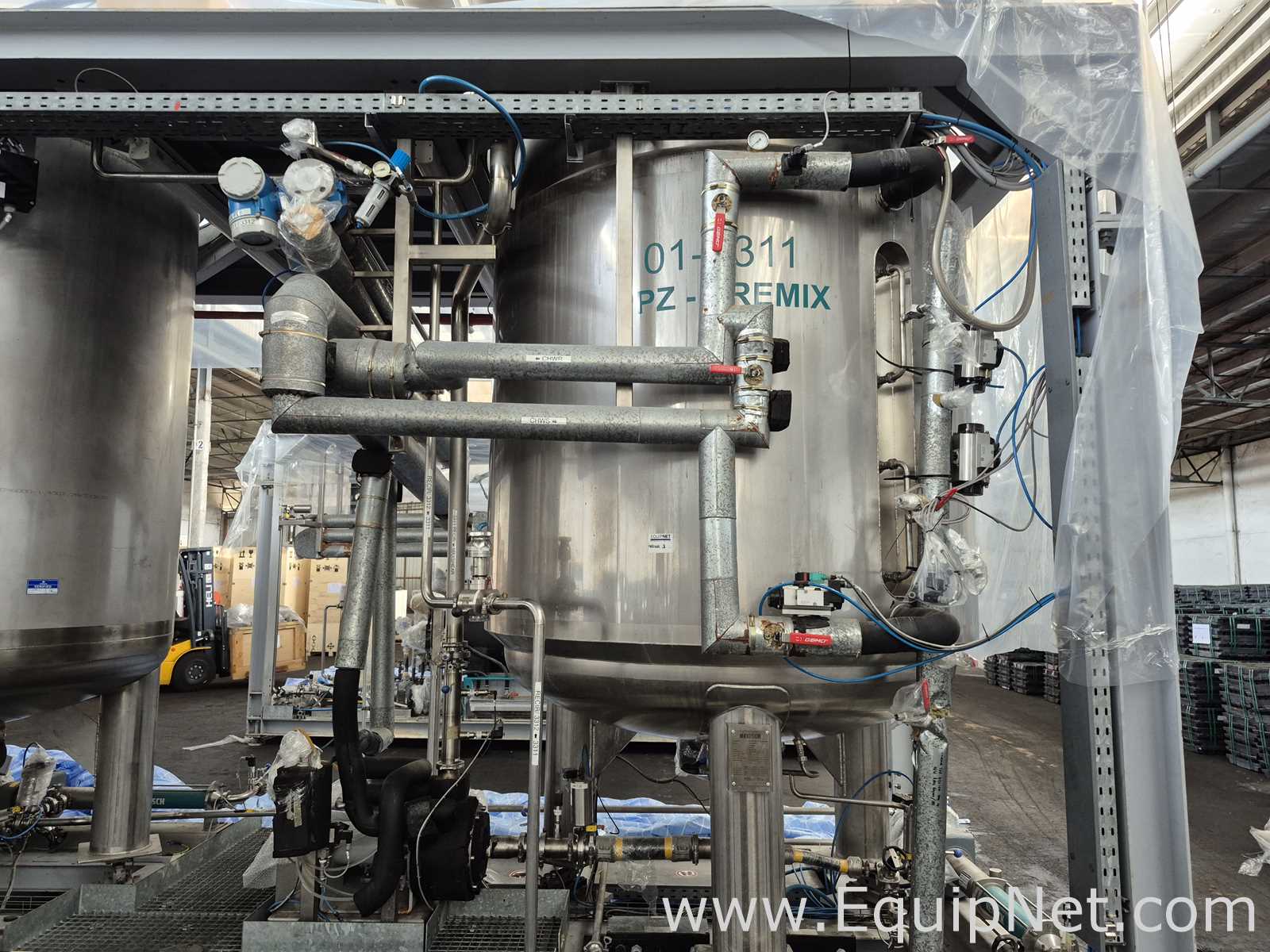

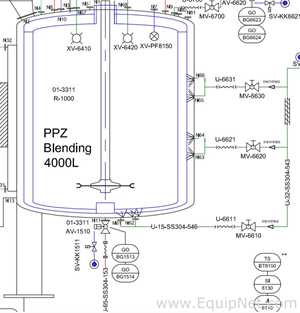

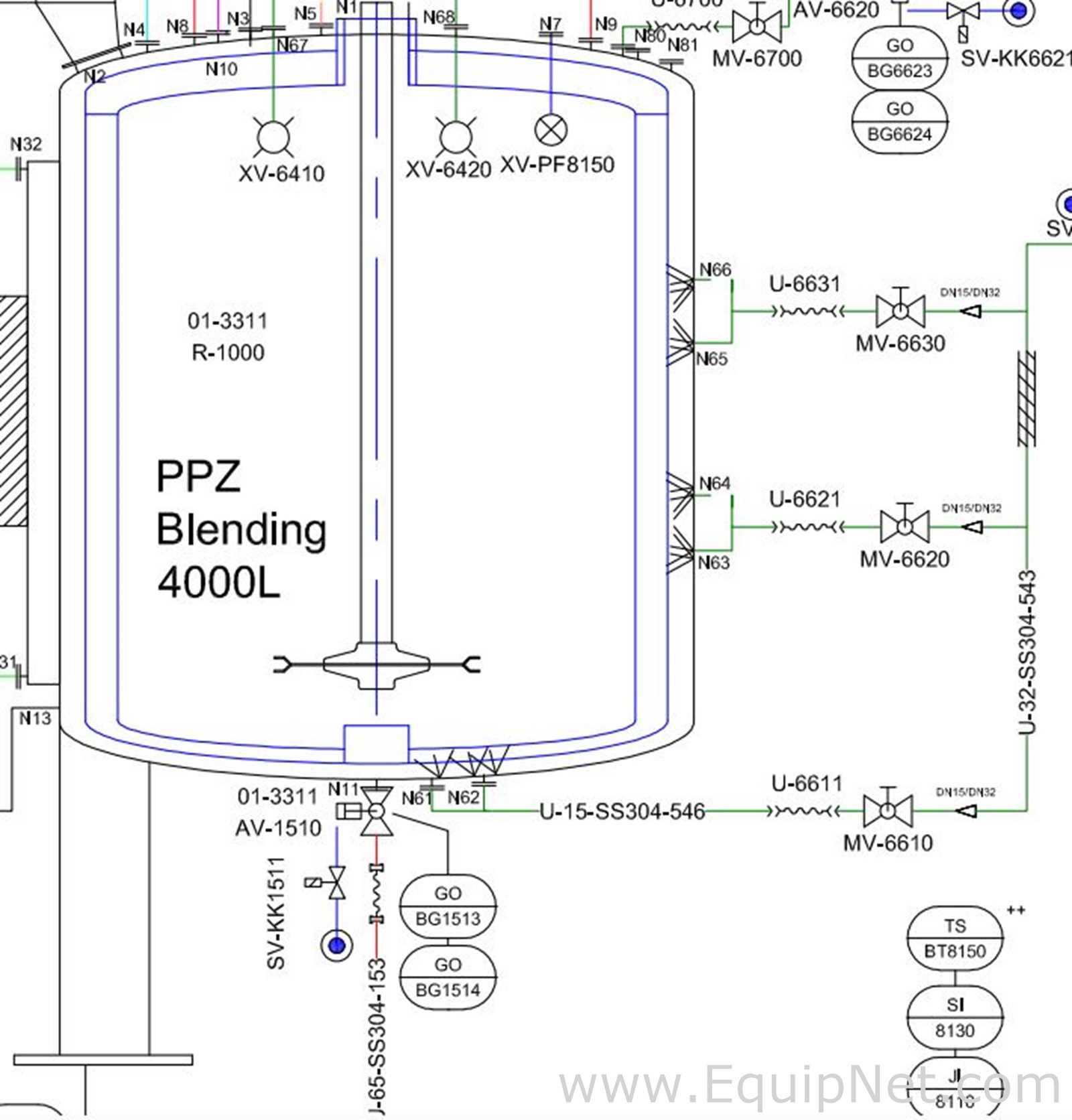

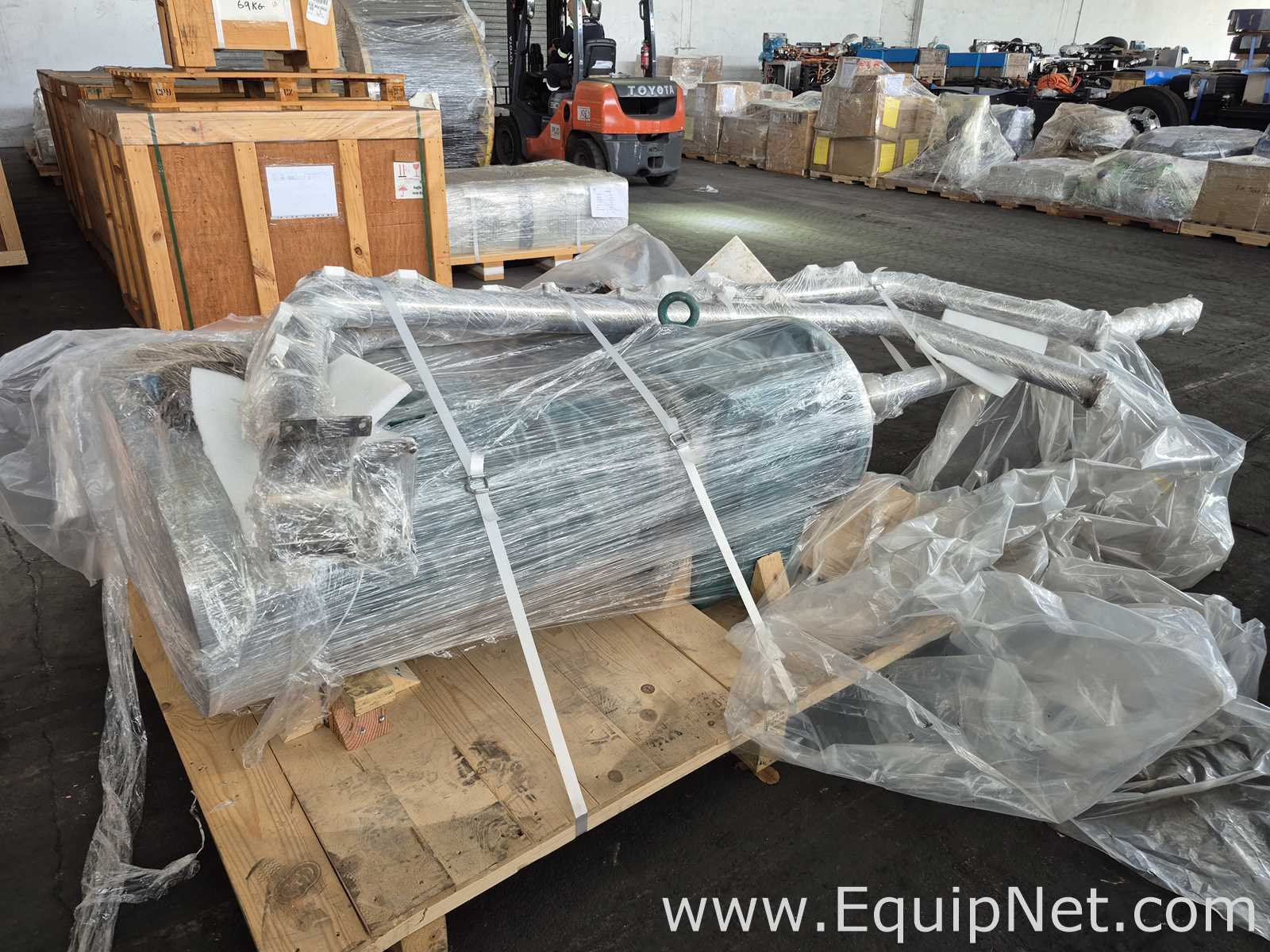

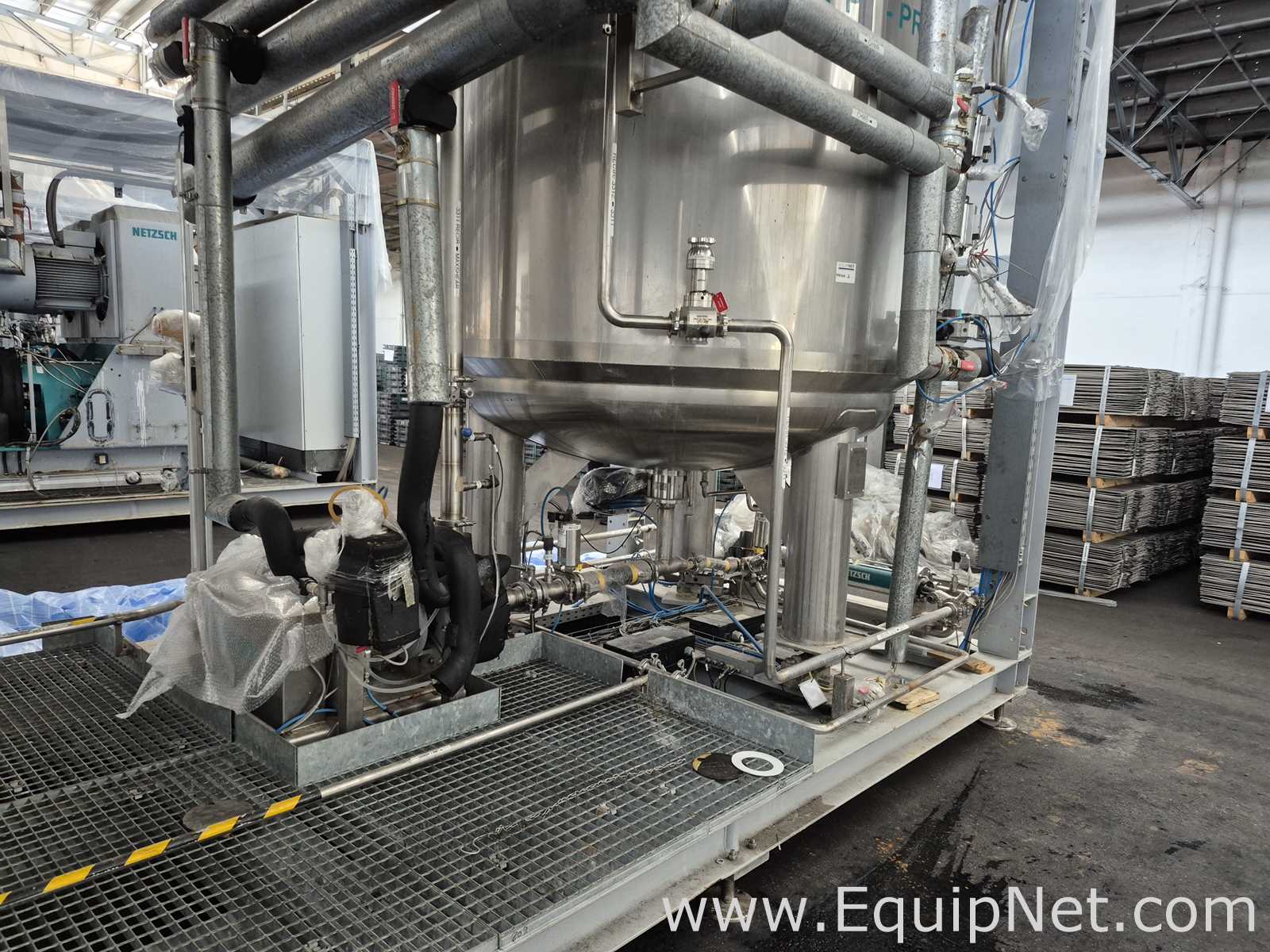

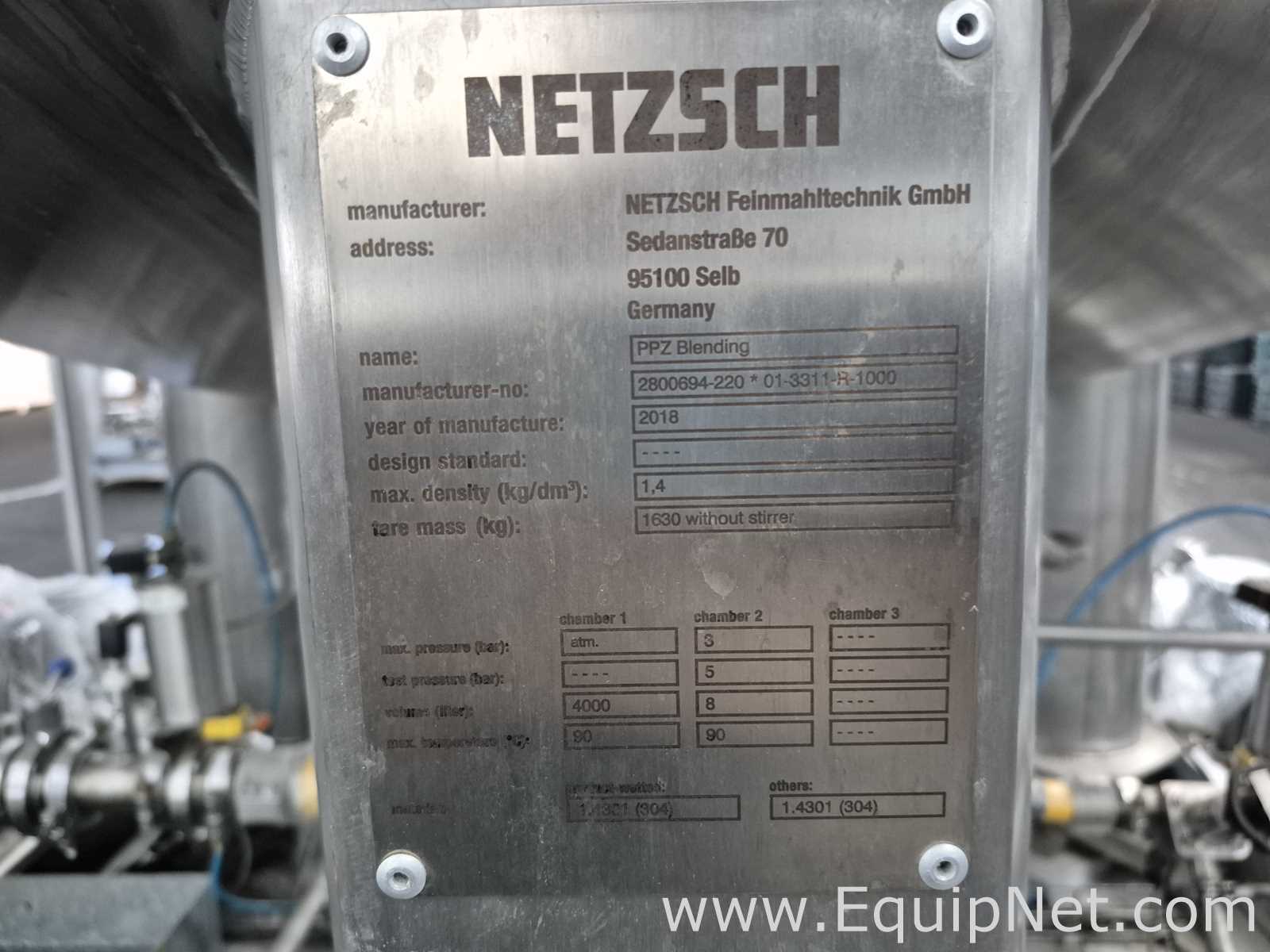

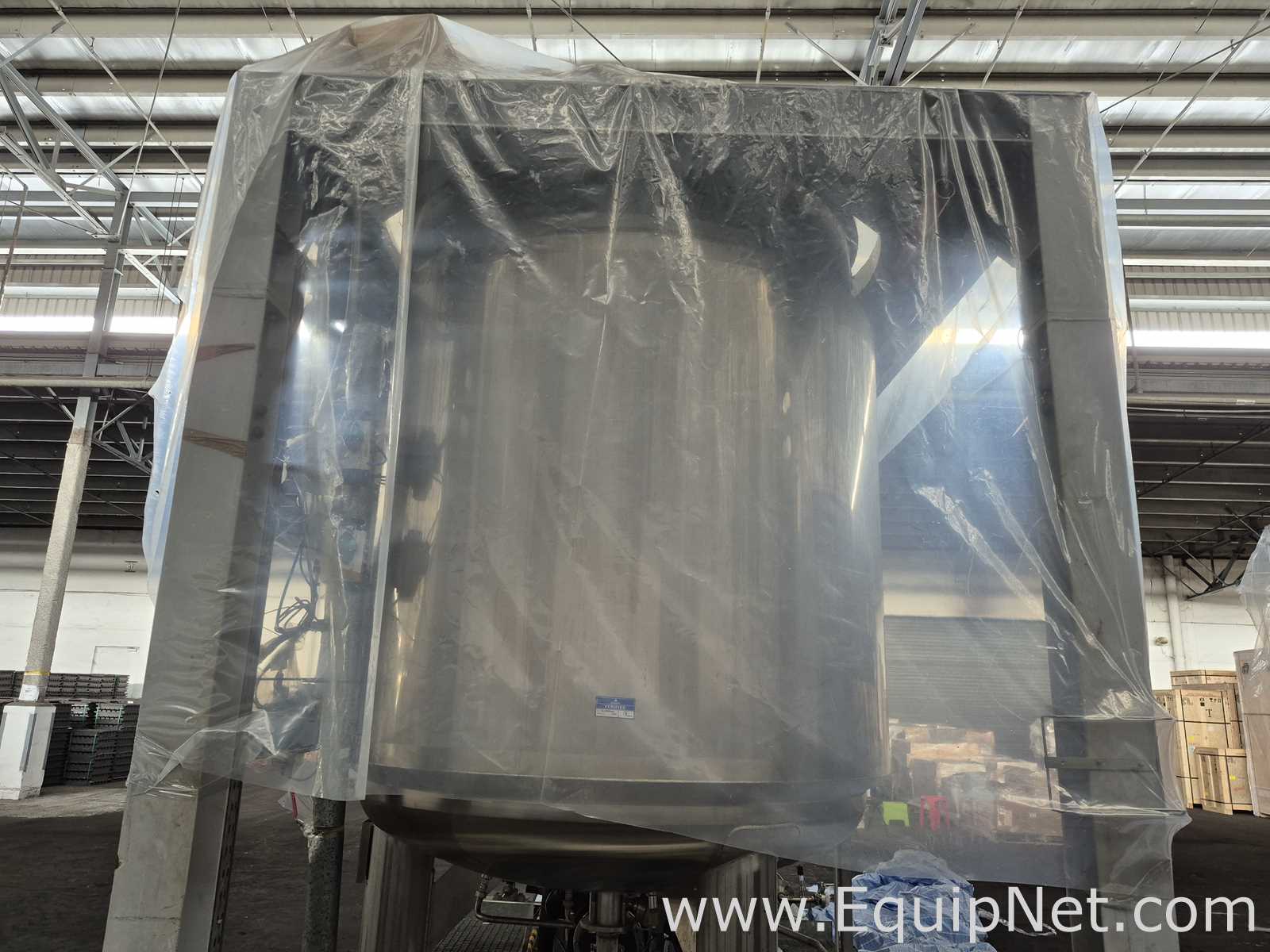

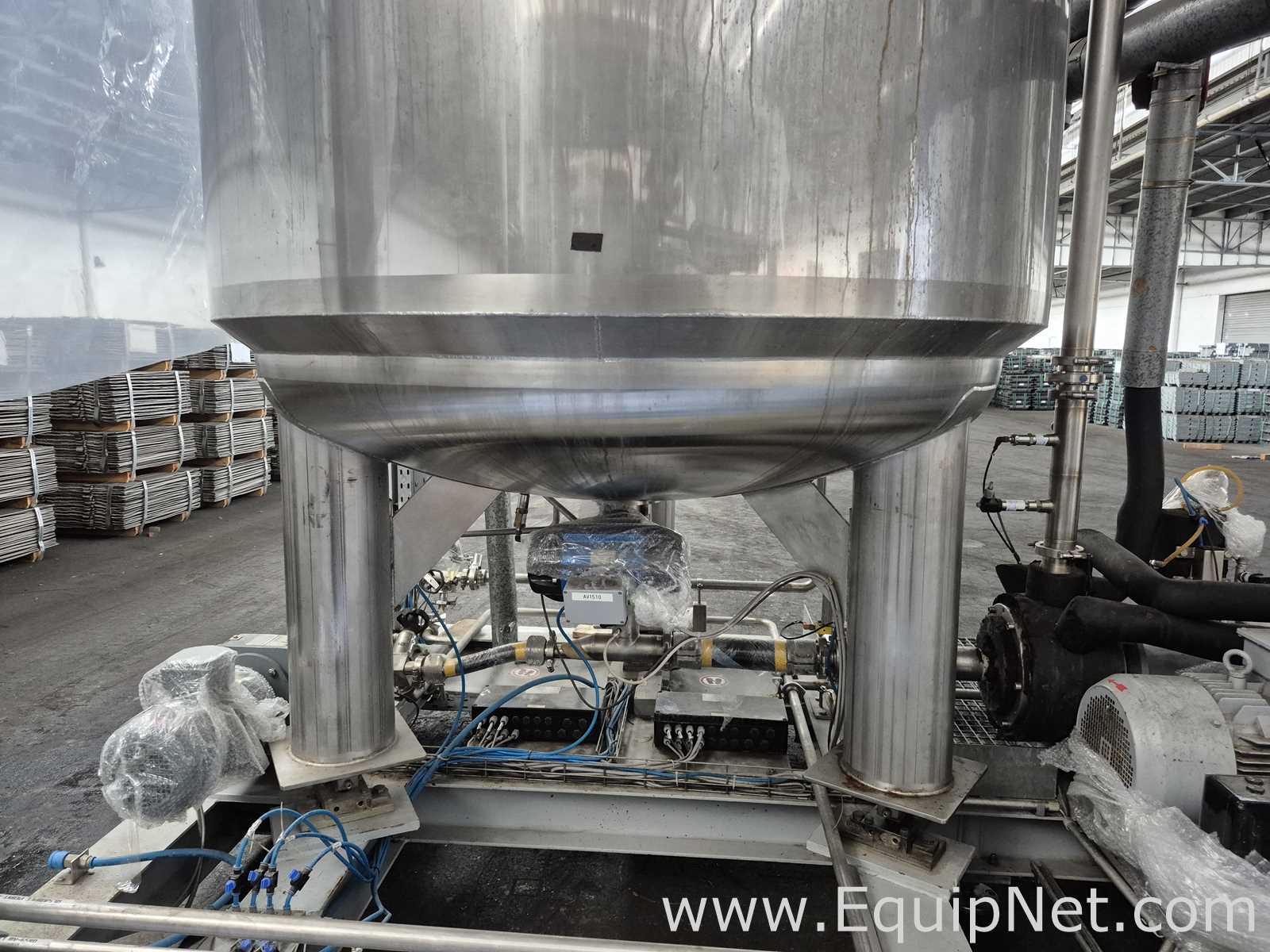

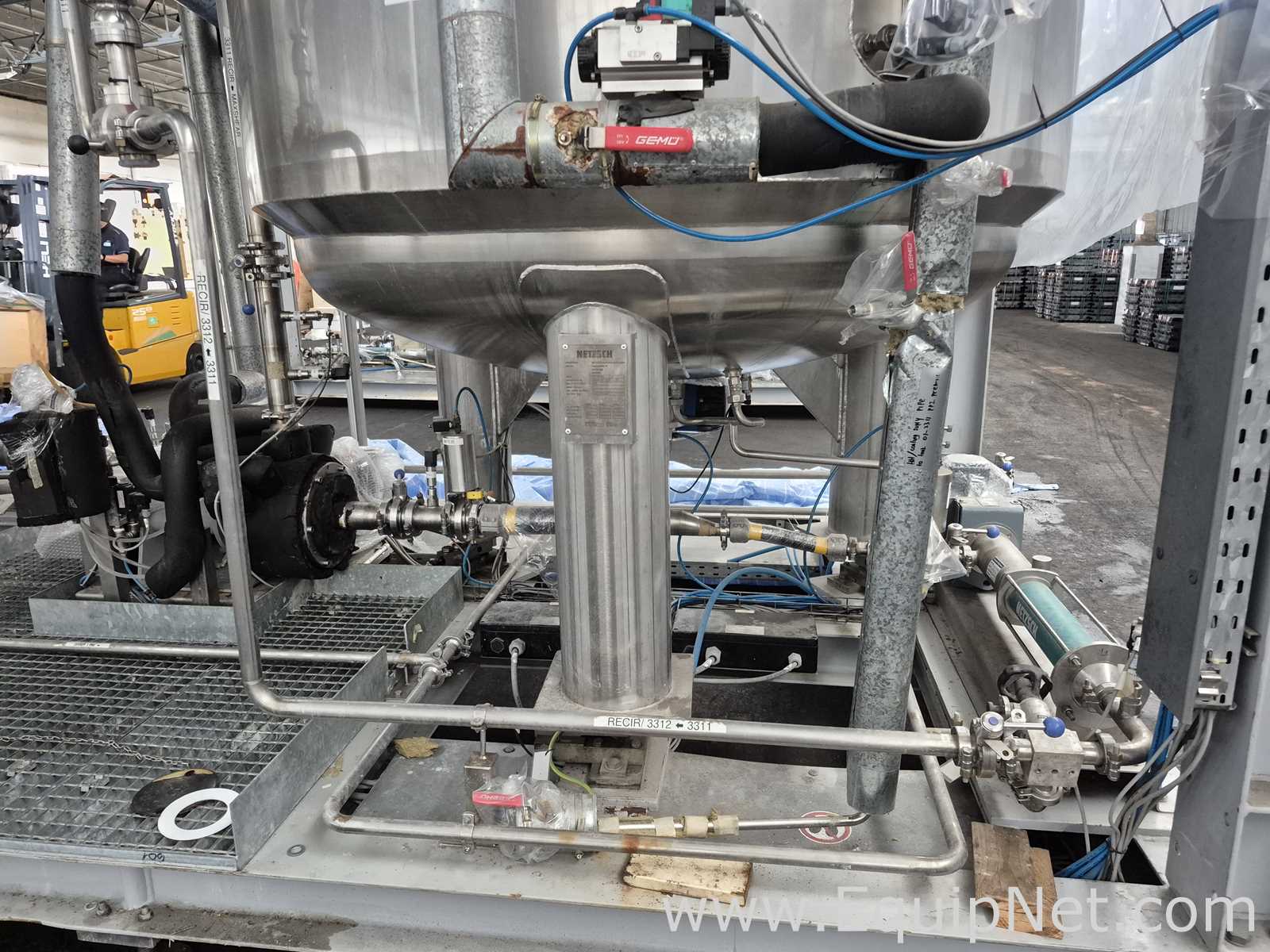

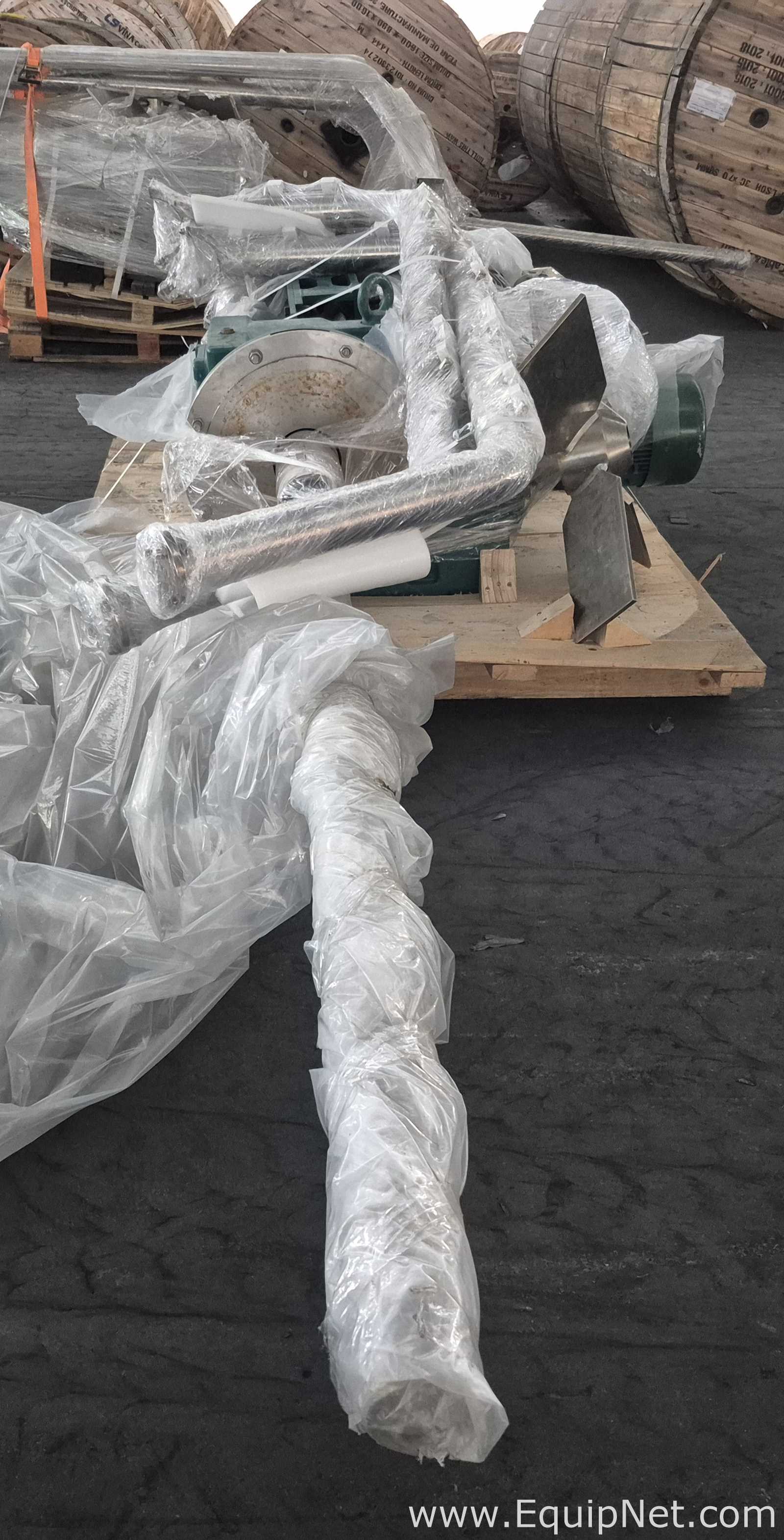

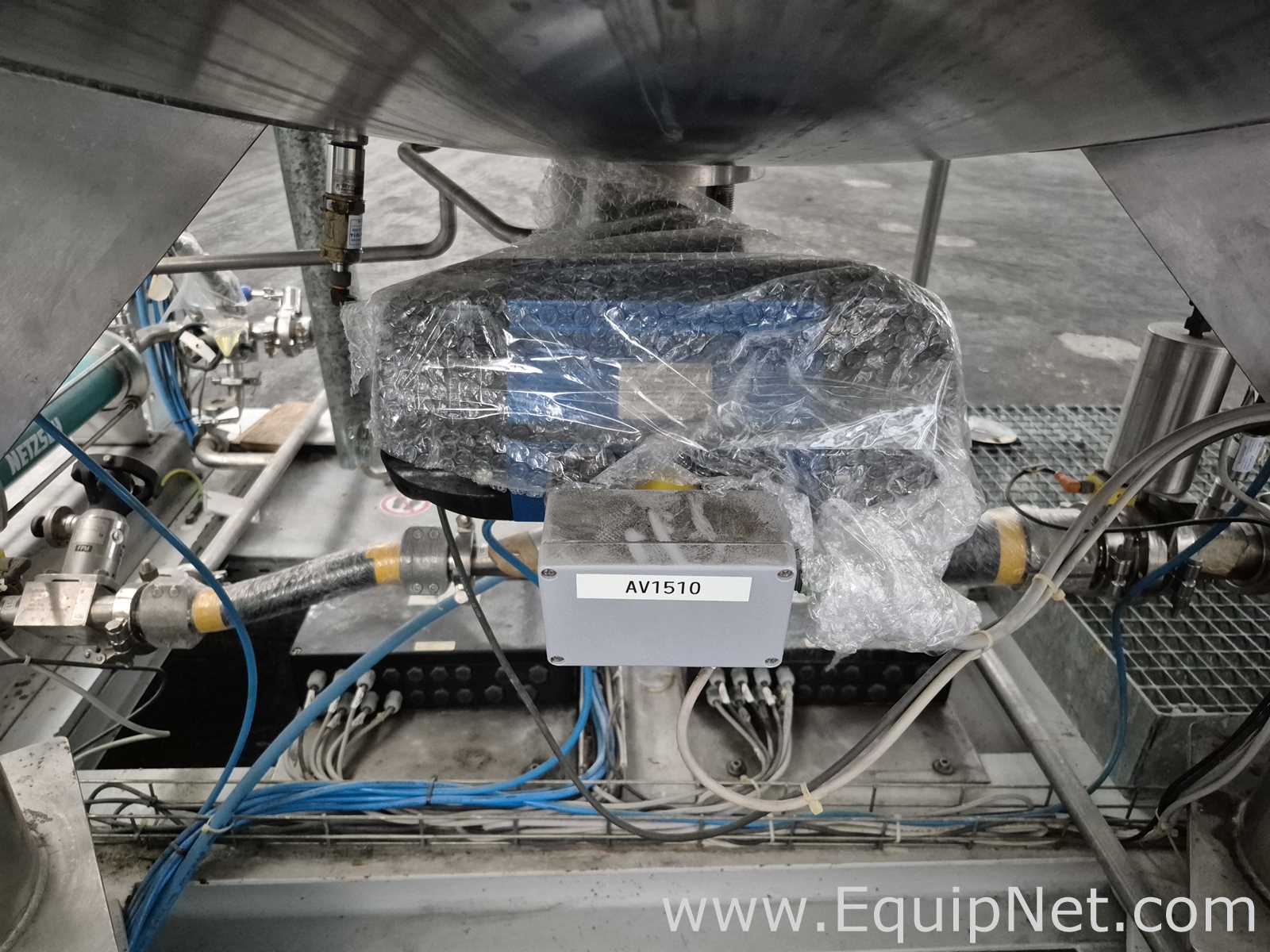

Netzsch 4000L SS Blending High Speed Mixing with Scraper and Cooled Vessel 3311 - Skid 3-2 PPZ
Equipment Description
Netzsch 4000L SS Blending high Speed Mixing with Scraper and Cooled Vessel 3311 - Skid 3-2 PPZ
Designed for Max pressure: atm.
Designed for max temperature: 90C.
Designed for Max cooling water pressure: 3 bar.
Product wetted parts: SS304.
Other parts: Mild steel.

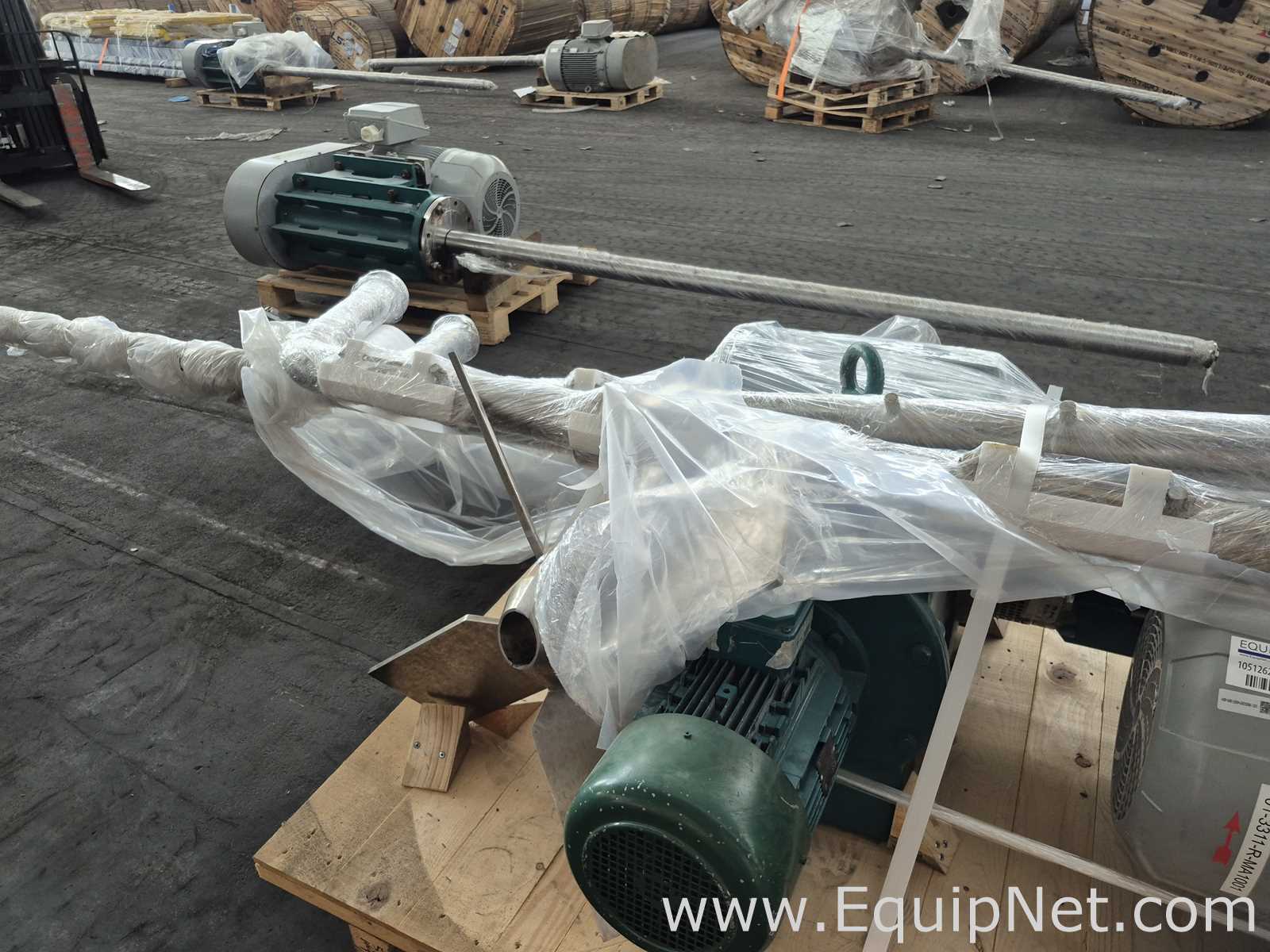

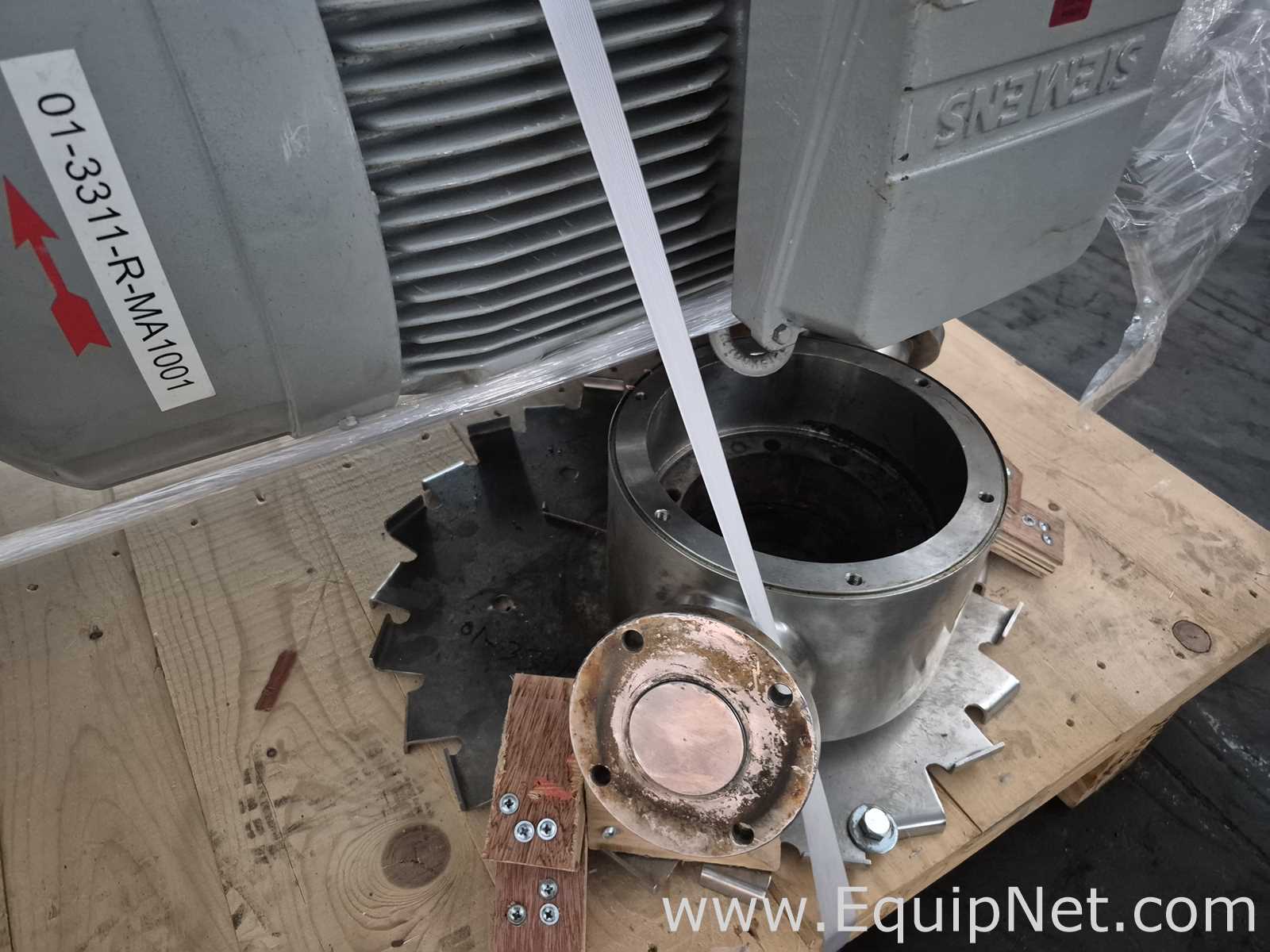

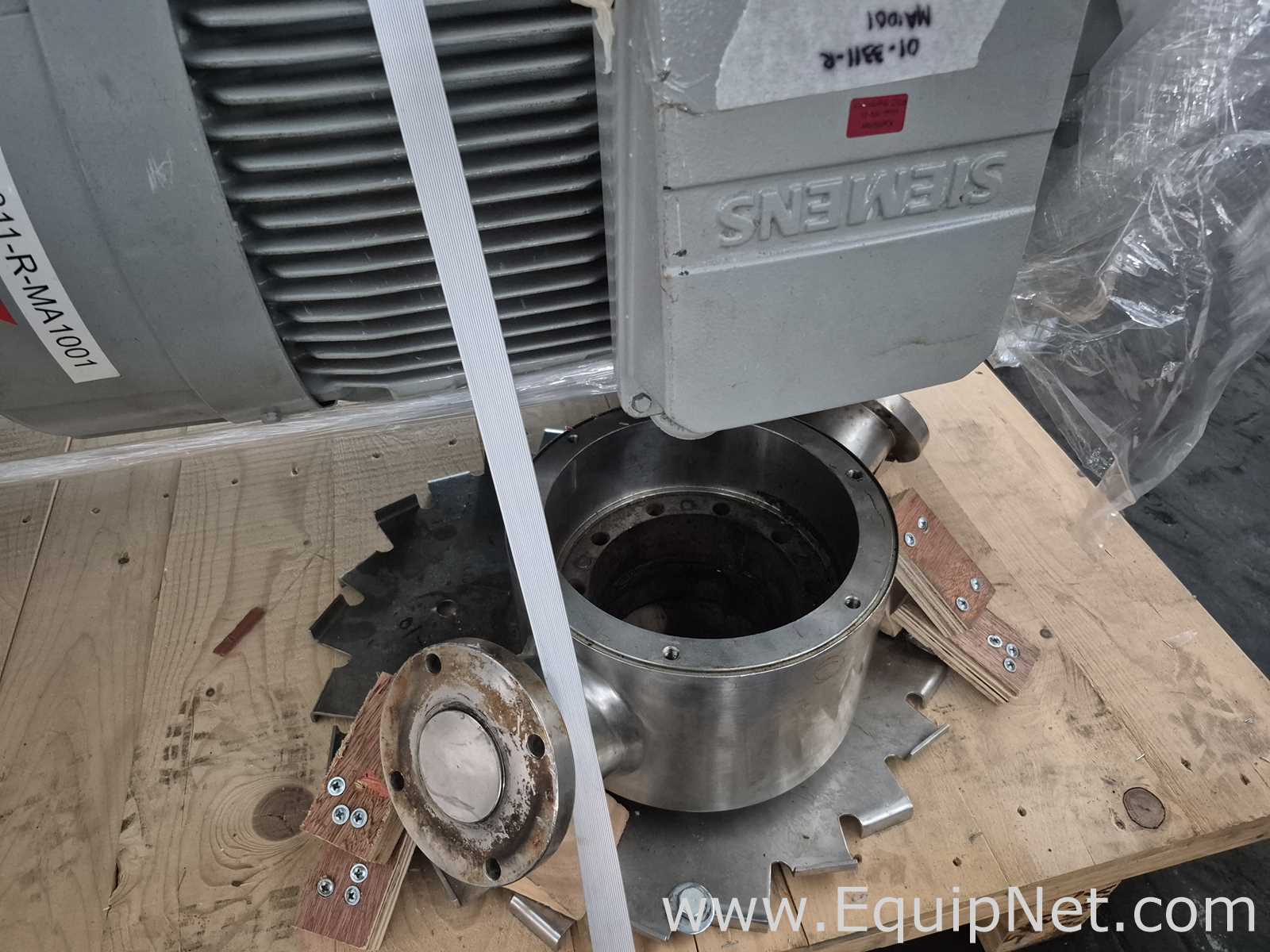

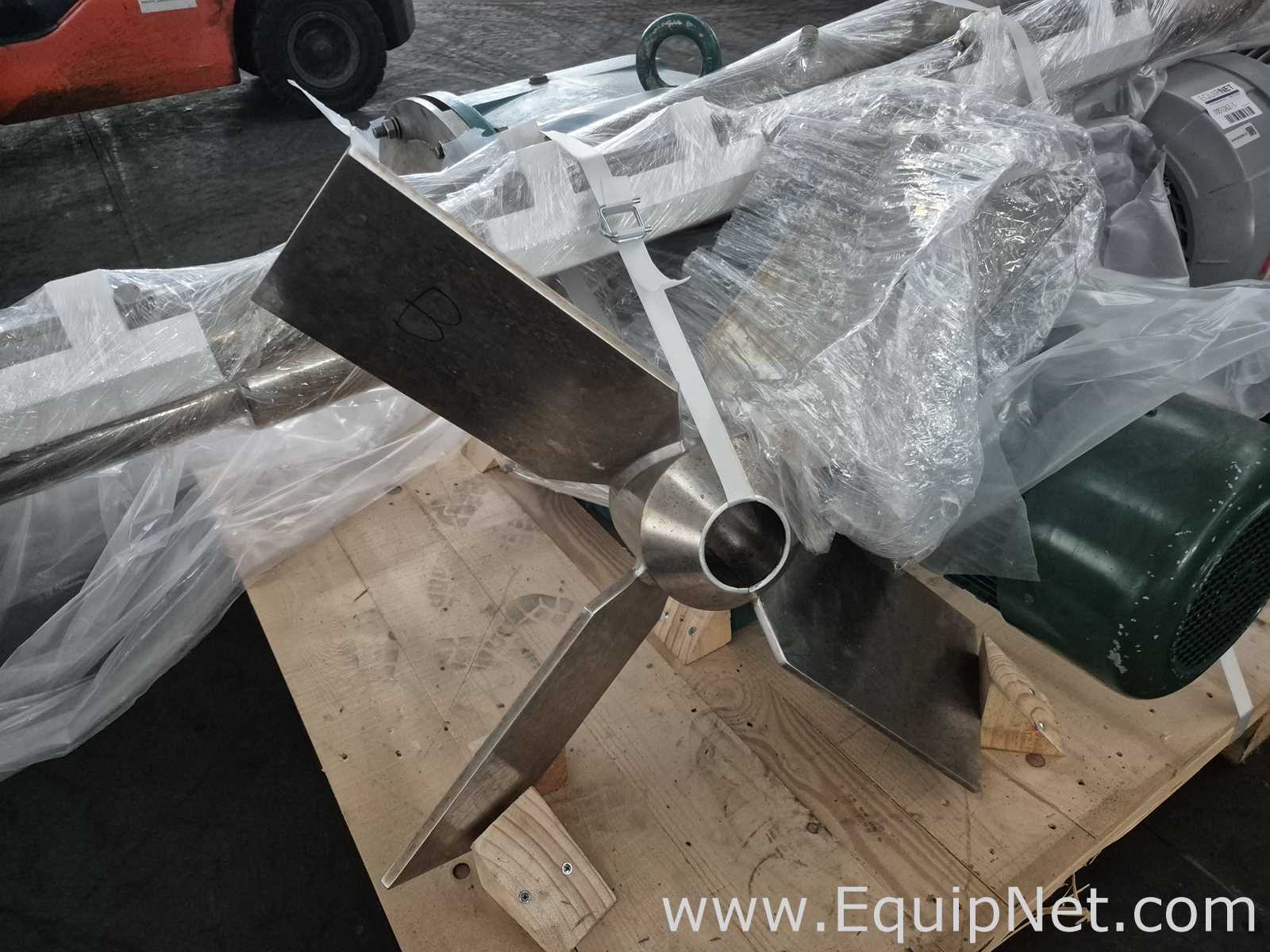

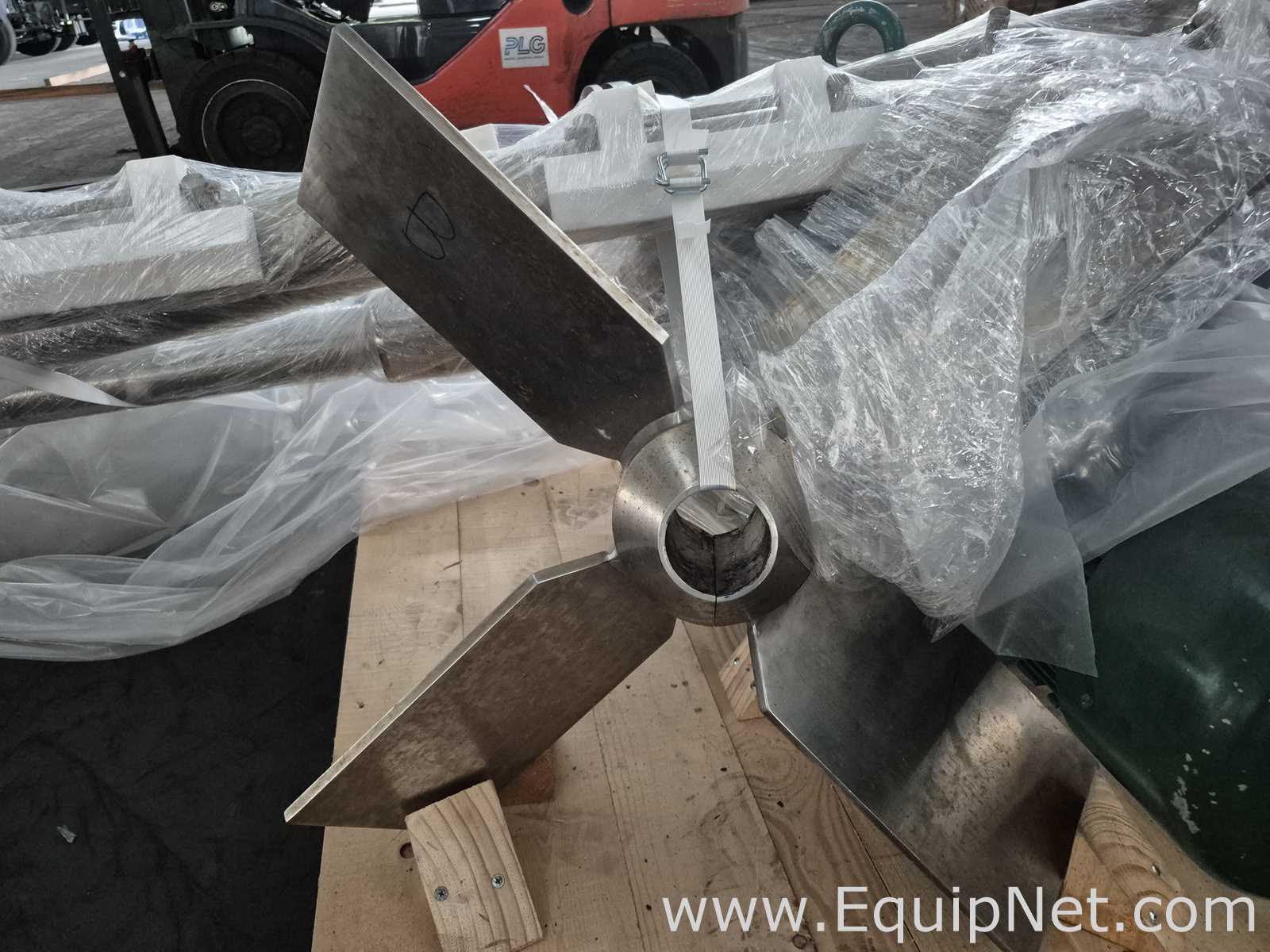

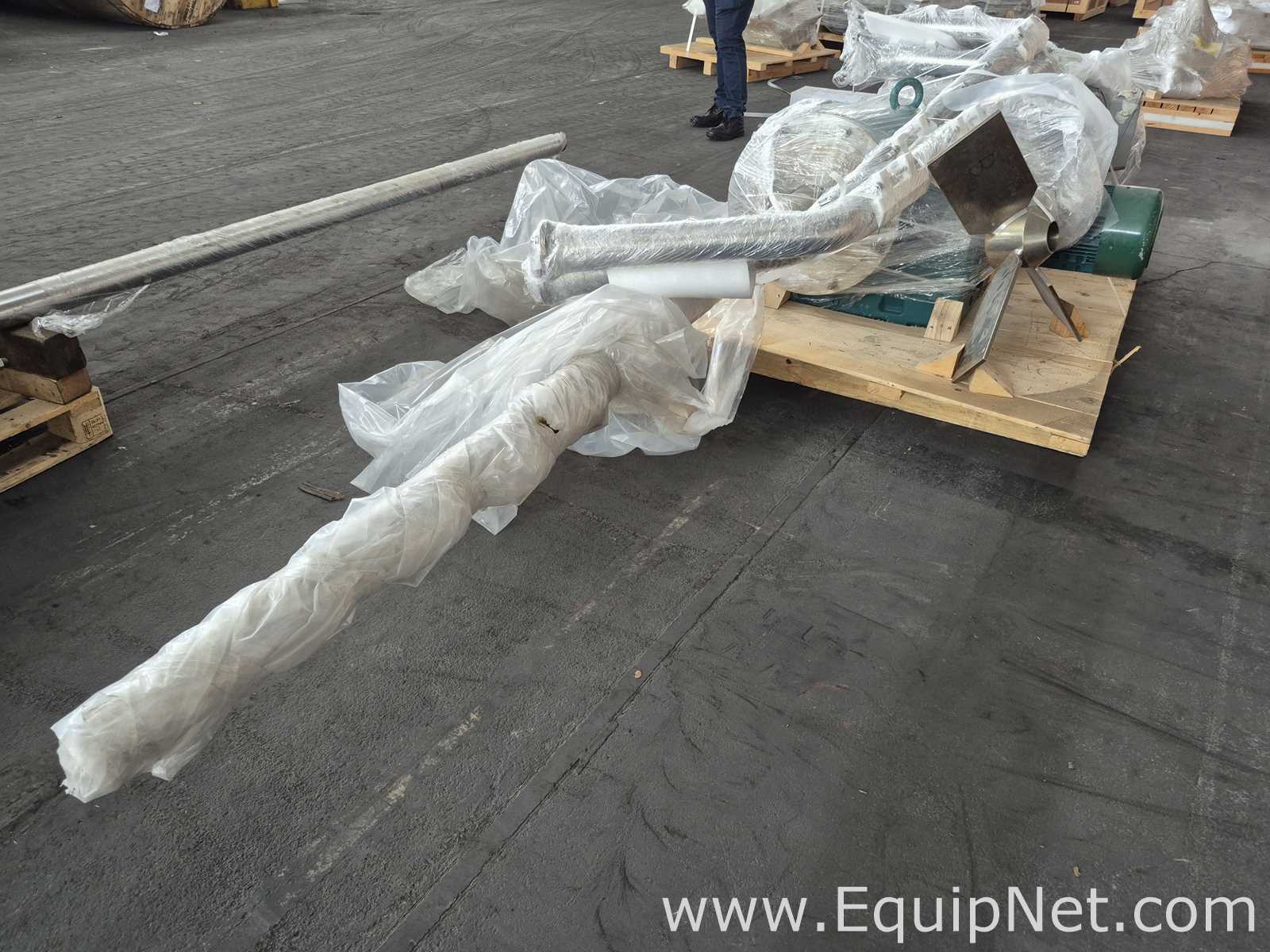

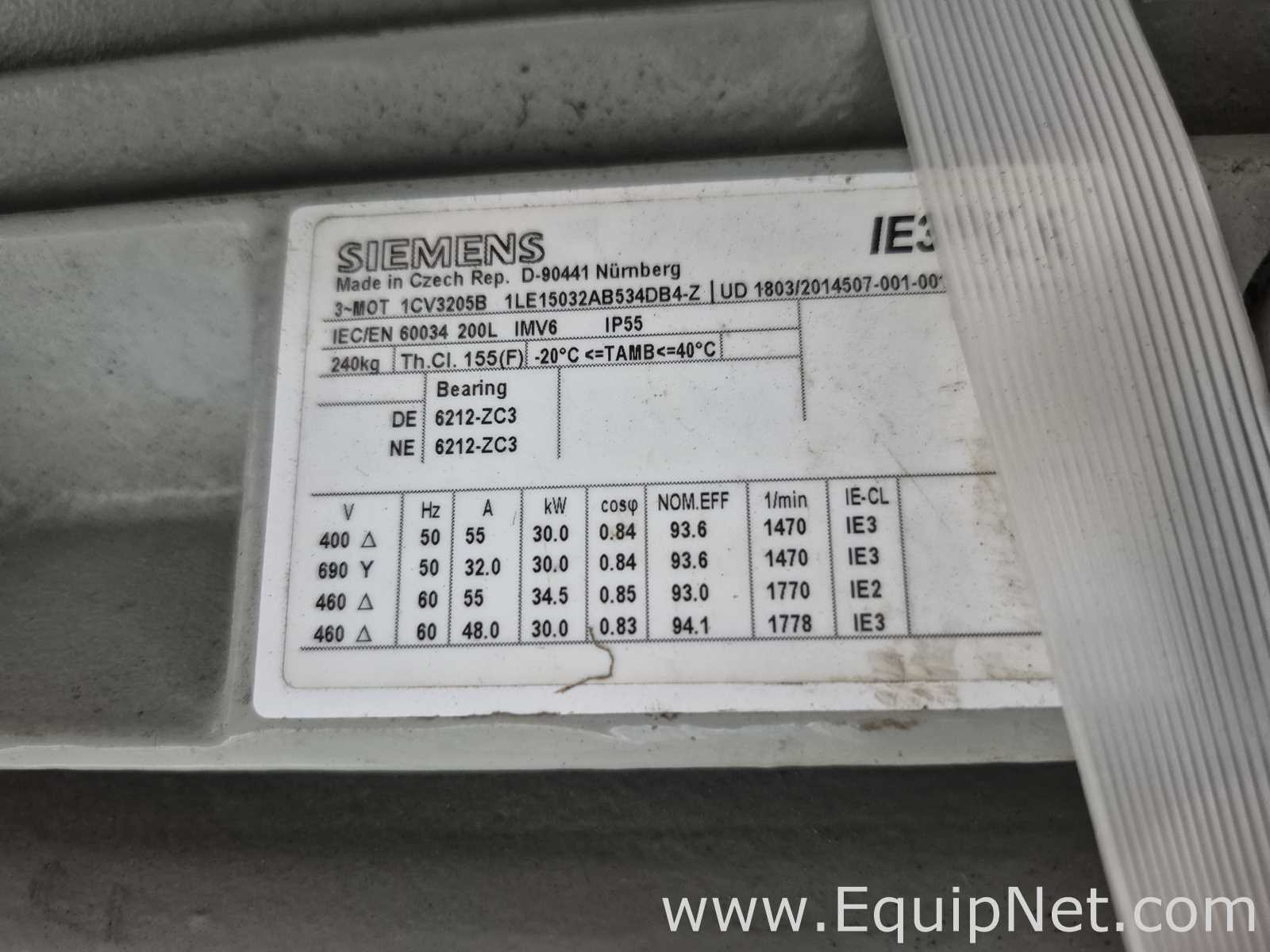

Disperser drive: Spindle speed 180-900 RPM. Mixing element Tooth disk approx 500mm. Mixer drive 30kW protection class IP 55 / Not explosion-proof infinitely variable via frequency inverter.

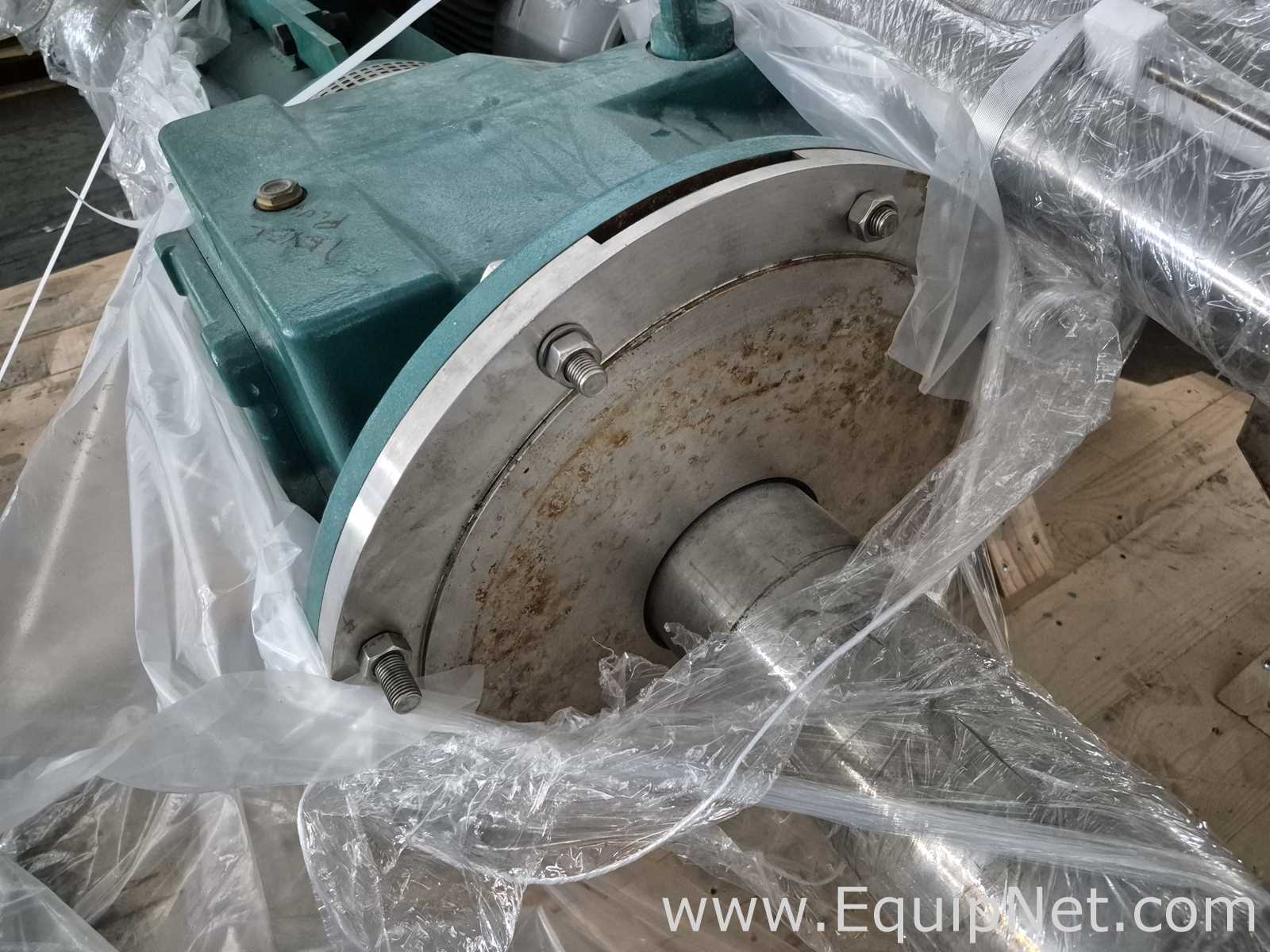

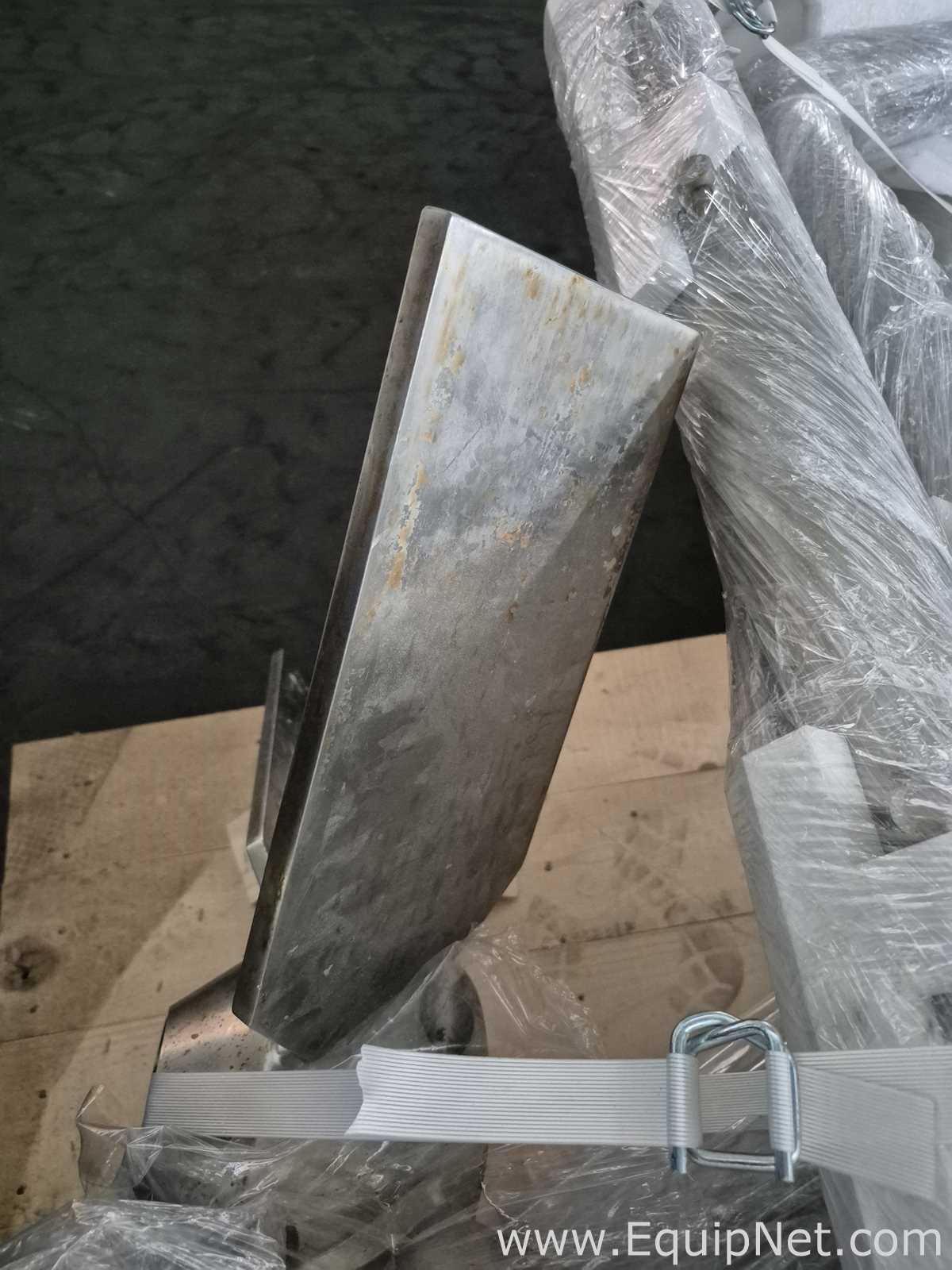

Scraper drive: Scraper speed 9.5 RPM - 0.83m/s. Scraper drive 5.5Kw protection class IP55 / not explosion-proof fix speed.
Cooling: Cooling coils stainless steel 1.4301 (304). Max. 3 bar with open outlet cooling water outlet temperature via PT100 and pressure via analog pressure gauge.
Insulation: For vessel wall in cooling area.

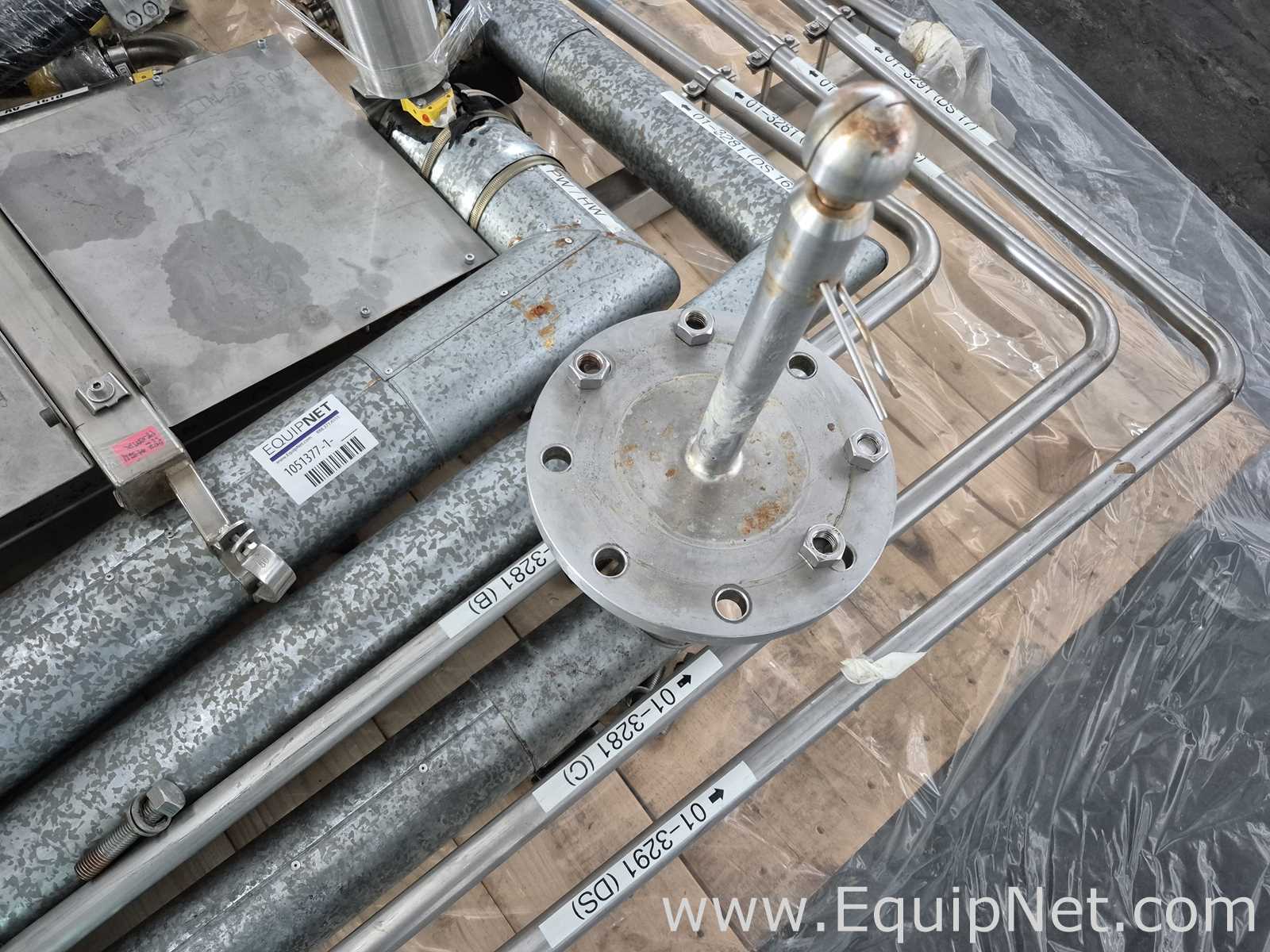

Cleaning system: With 2 cleaning heads type Turbo SSB and a total of 6 cleaning nozzles in the tank, with central connection point.

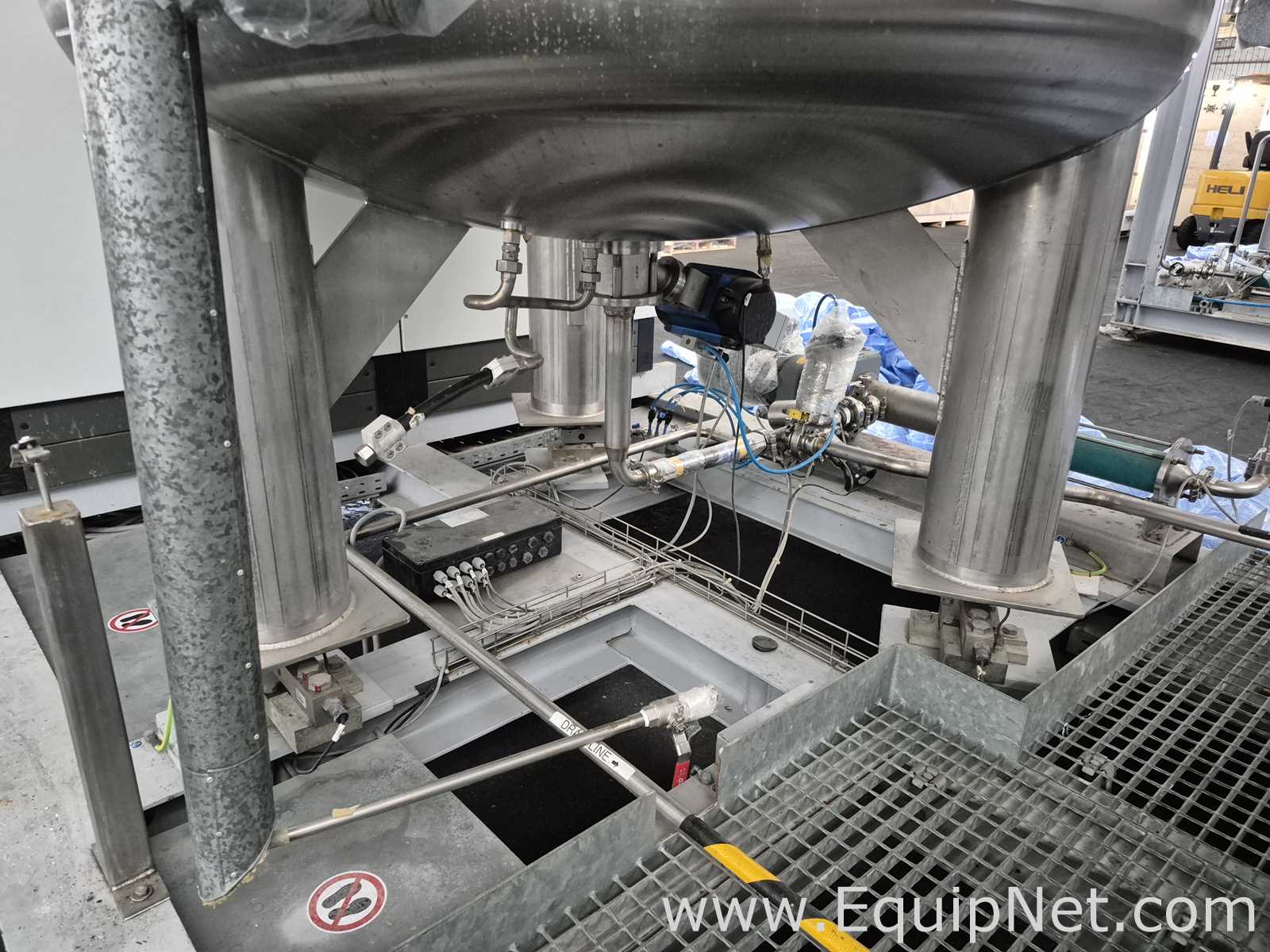

Load cell system: 3 load cells each 3t and mounting kit.
Temperature control with limit switch: resistance thermometer PT100.
Includes listing No 1051262.
Includes listing No 1051306.
Includes listing No 1051377.
Includes listing No 1051262.
Includes listing No 1051306.
Includes listing No 1051377.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Year:
2018
2018
Serial Number:
2800694-220
2800694-220
Tank Material of Construction:
STAINLESS STEEL
STAINLESS STEEL
Capacity Size of Vessel:
1057.04
gal
4000
L
Jacketed:
YES
YES
Type of Top Head:
DISHED
DISHED
Type of Bottom Head:
DISHED
DISHED
Vertical or Horizontal:
VERTICAL
VERTICAL
Agitation:
YES
YES
Recommended Packaging Form:
PALLET
PALLET
Voltage:
VOLTS
VOLTS
Frequency:
HERTZ
HERTZ
Dimensions:
Standard
Metric
Overall:
66.93 x 66.93 x 107.64 in - 3593.50 lb
1700 x 1700 x 2734 MM - 1630 KGS
Asset Documents
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1049711

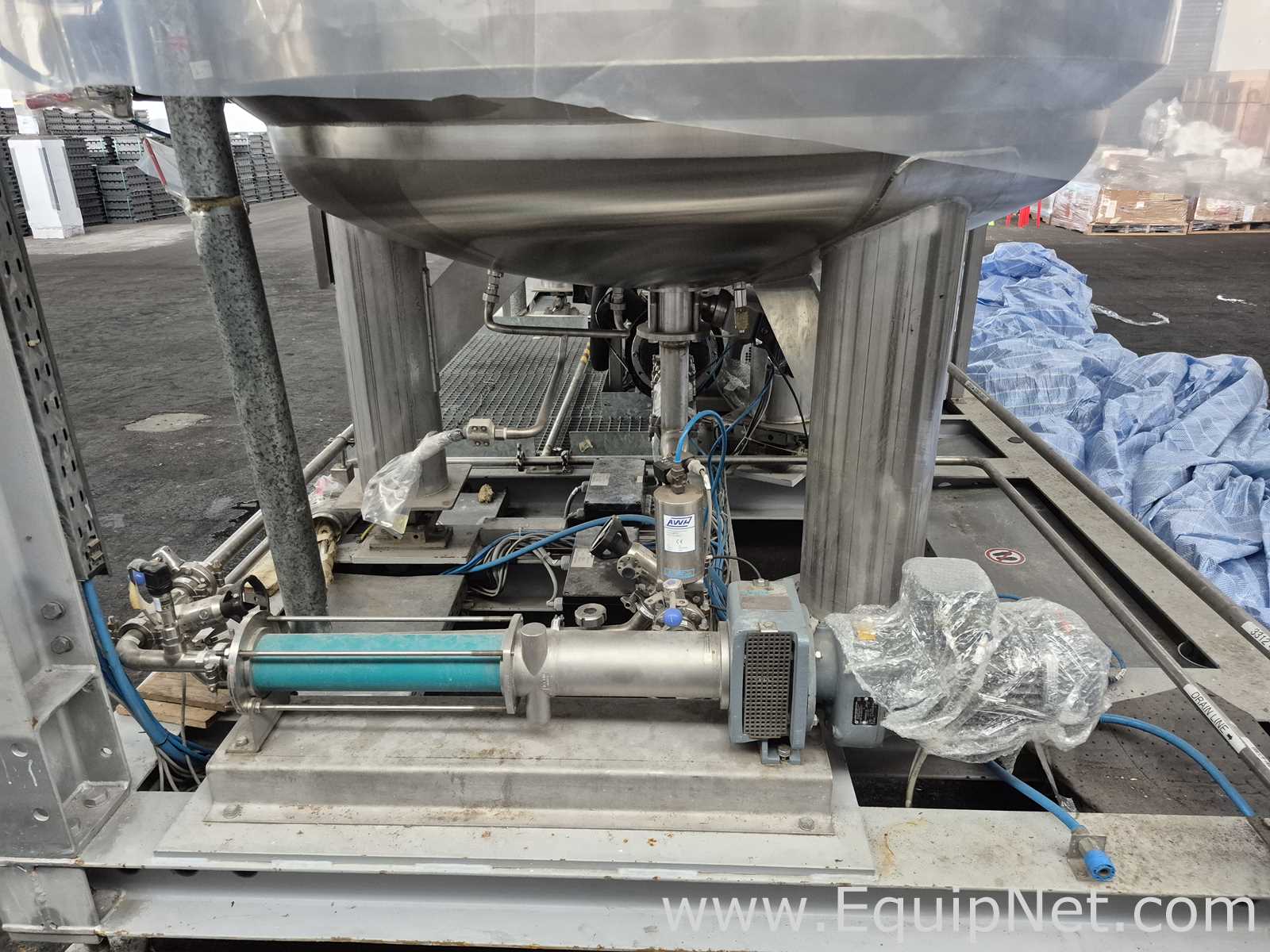

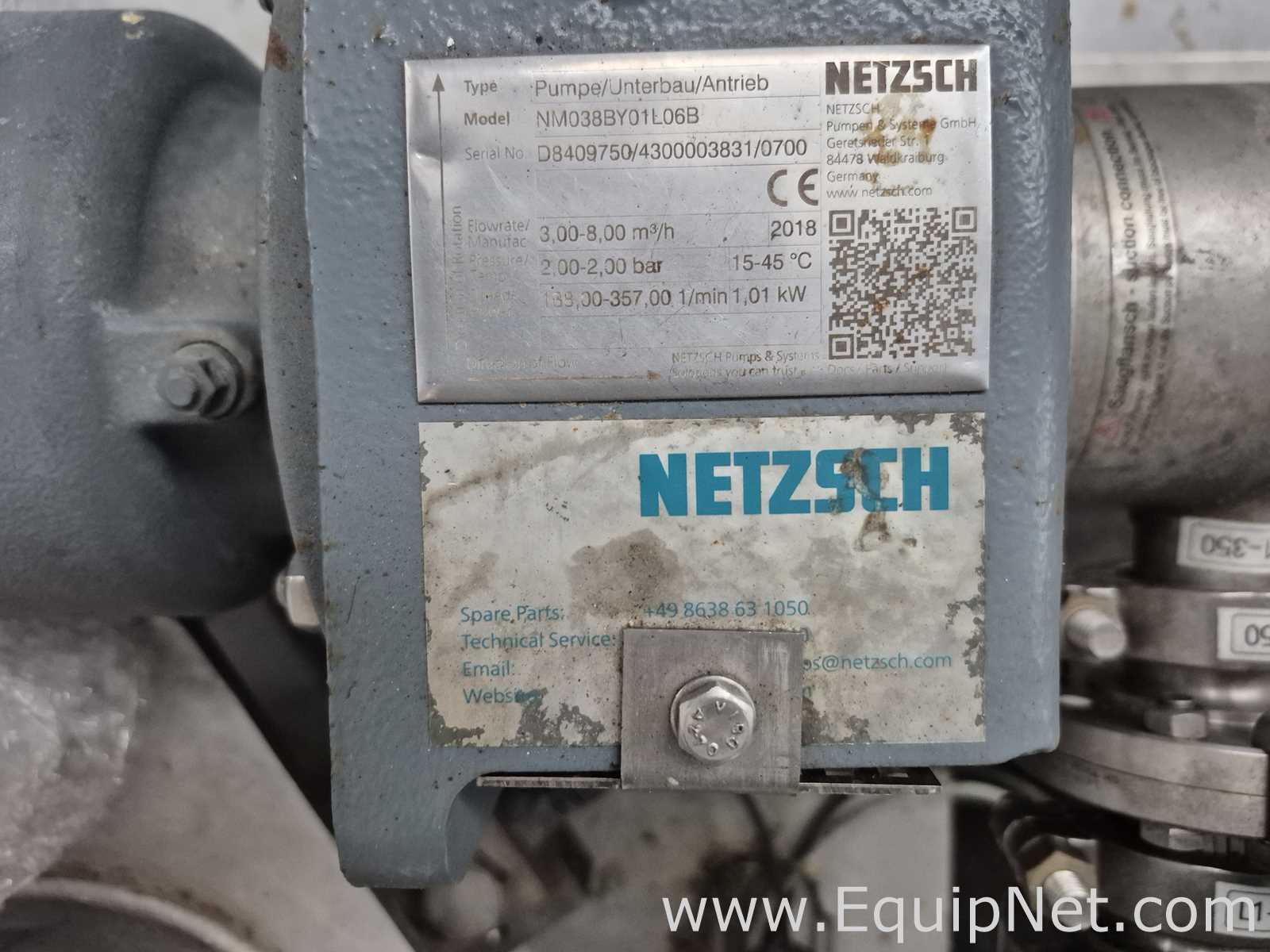

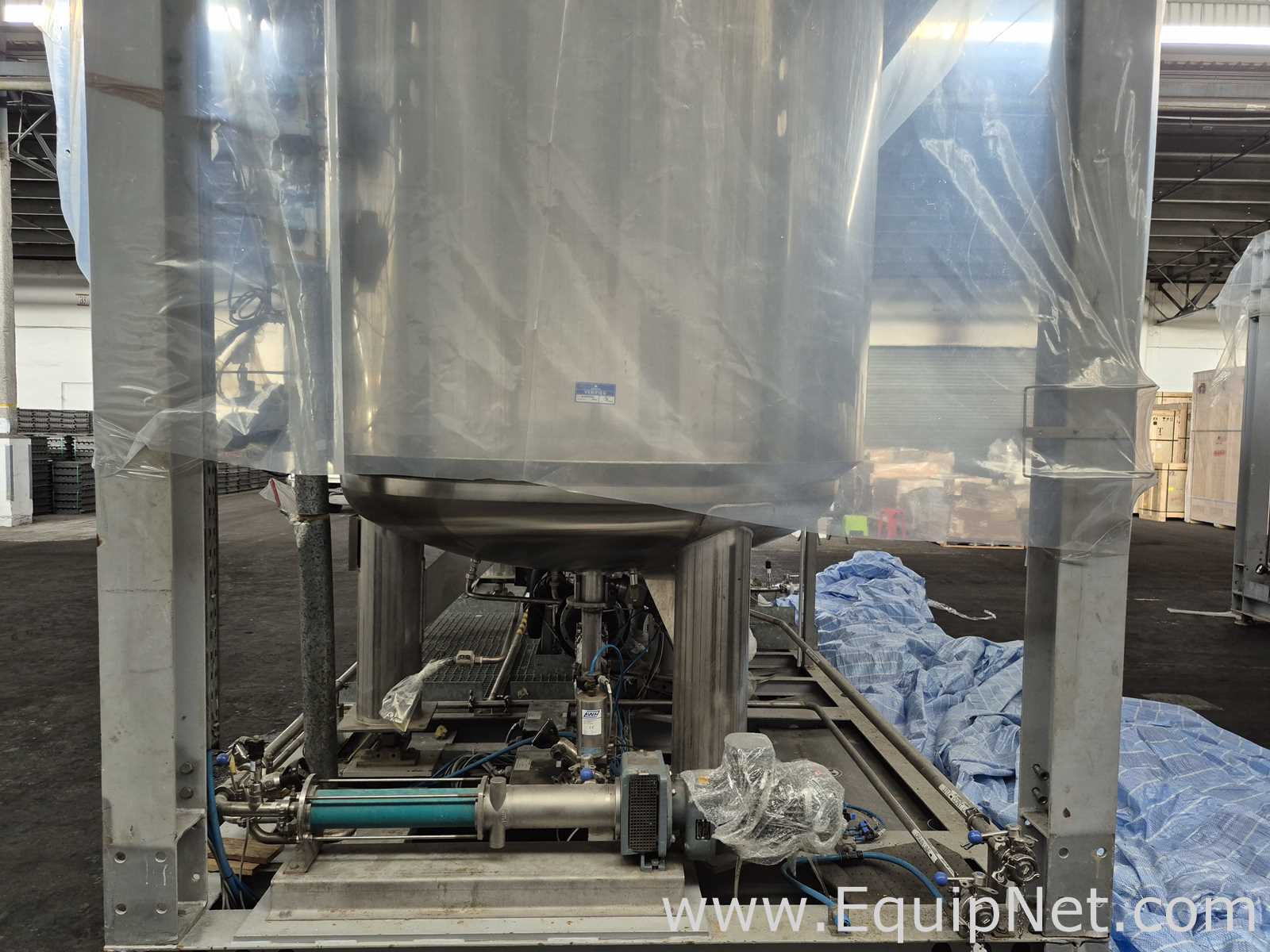

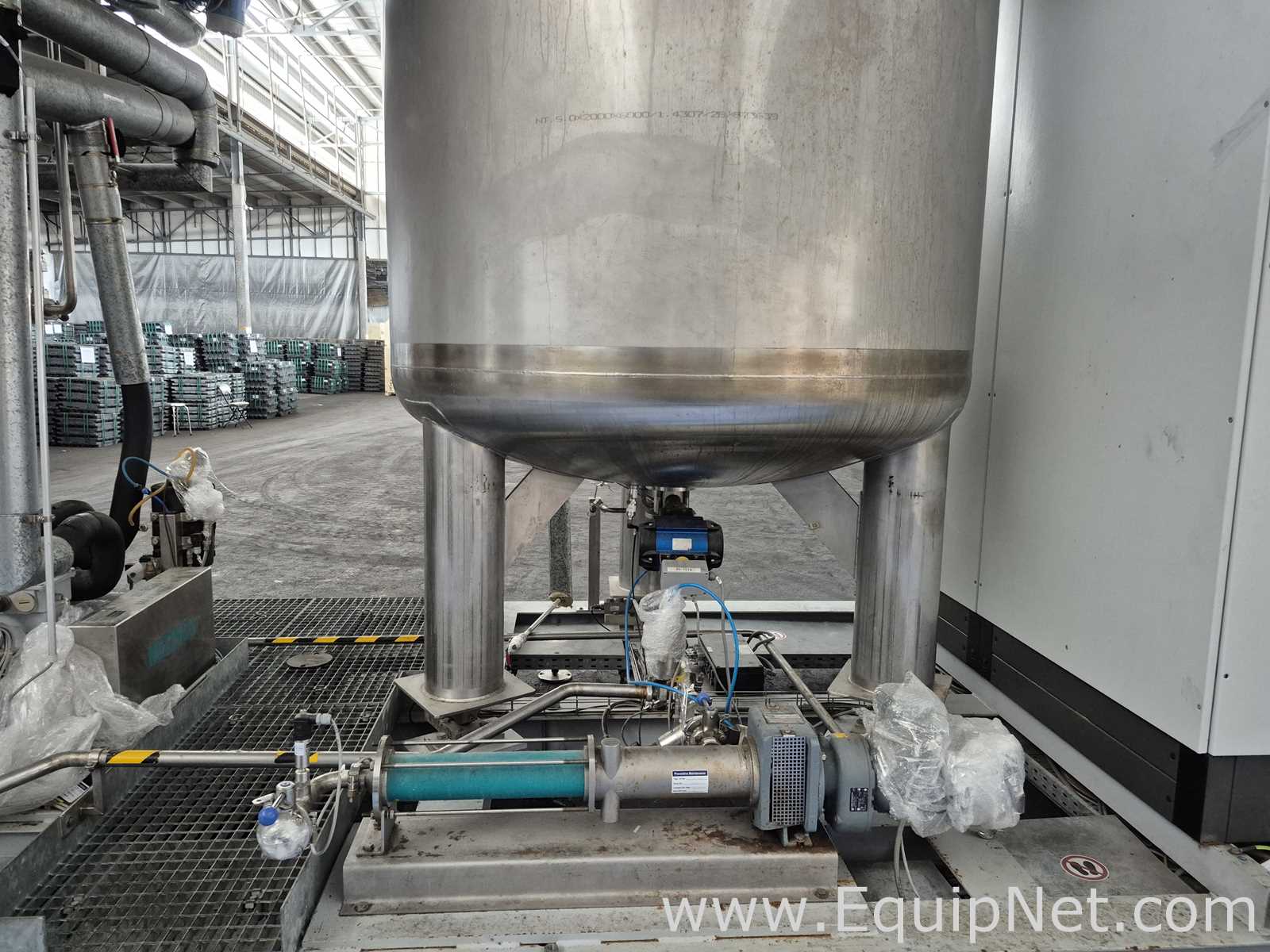

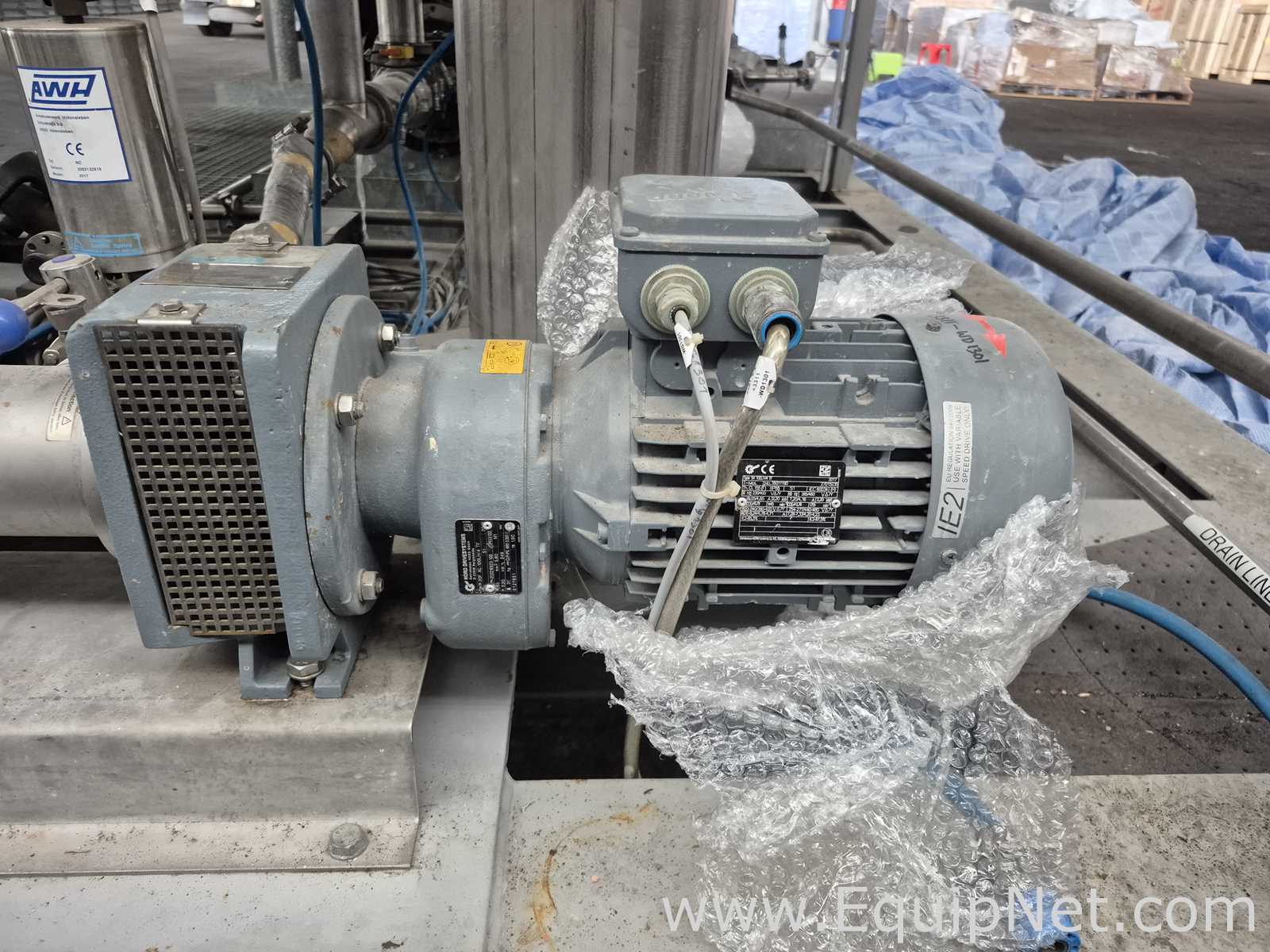

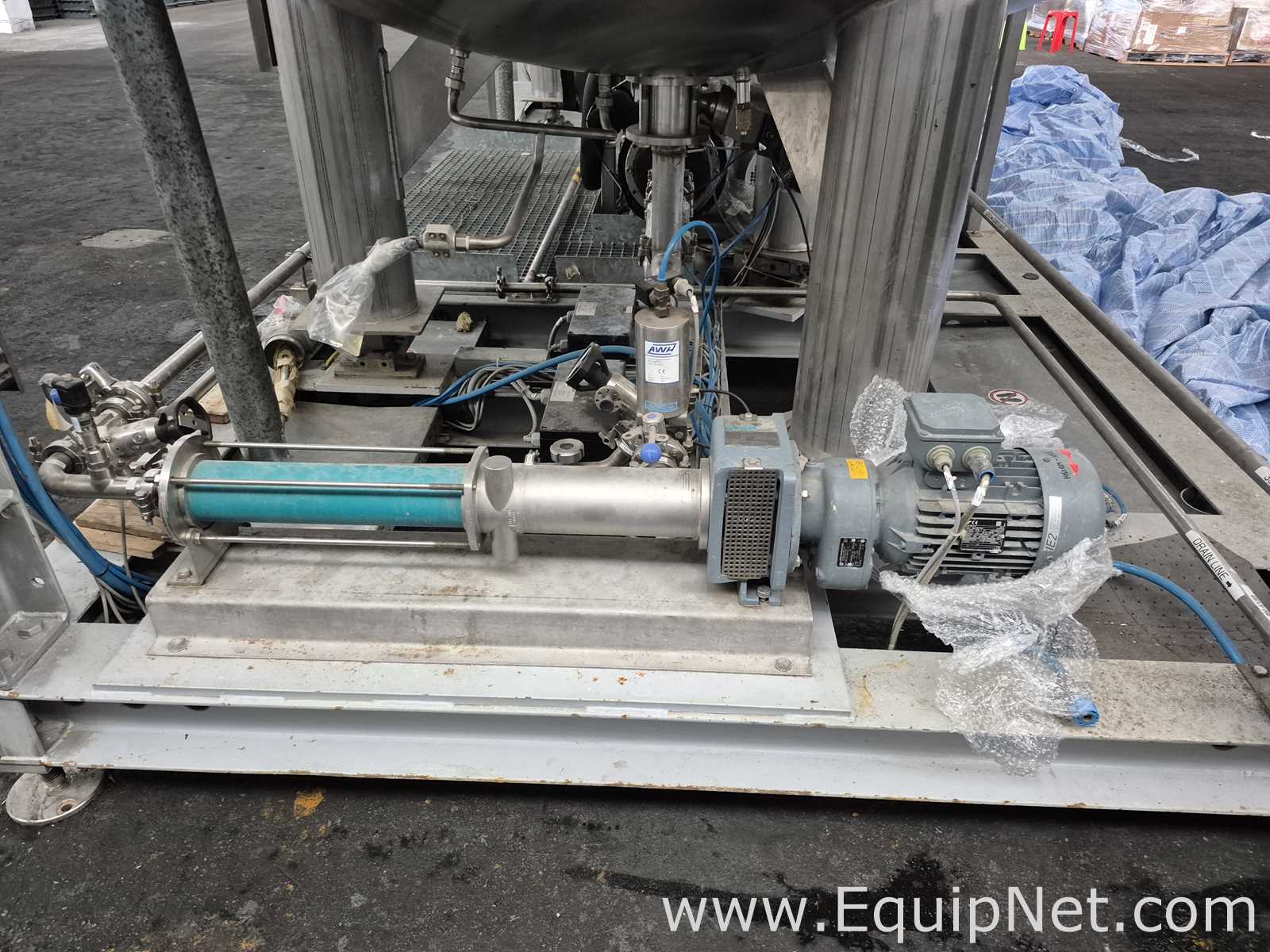

Netzsch Nemo Pump NM038 3311 - Skid 3-2 PPZ
Equipment Description

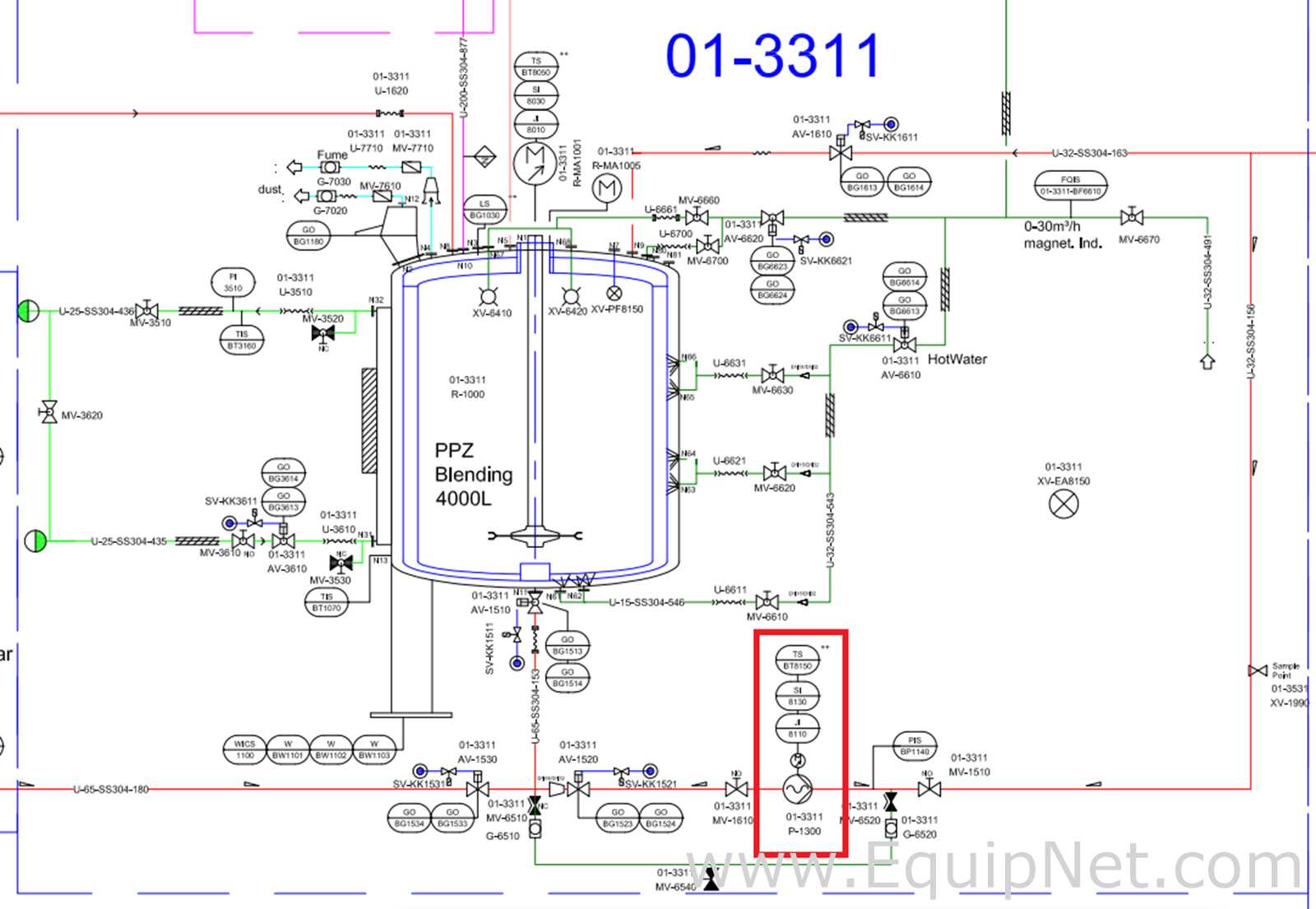

Netzsch Nemo Pump NM038 3311 - Skid 3-2 PPZ
Nemo PPZ blending discharge pump.
Speed: 188/357 RPM.
3-8m3/h (28-72 Hz).
Pressure: 2 bar.
Temperature: 15-45C.

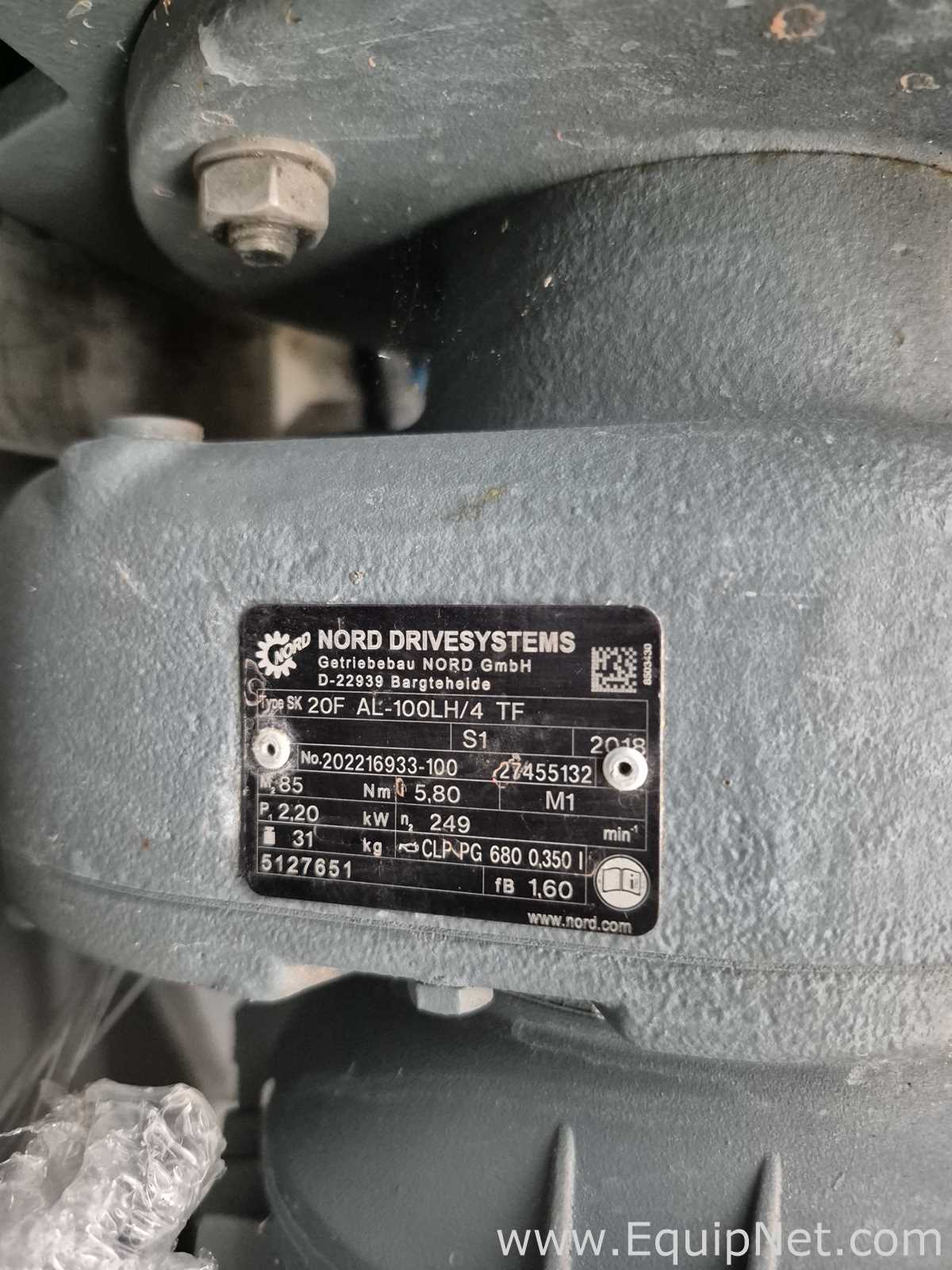

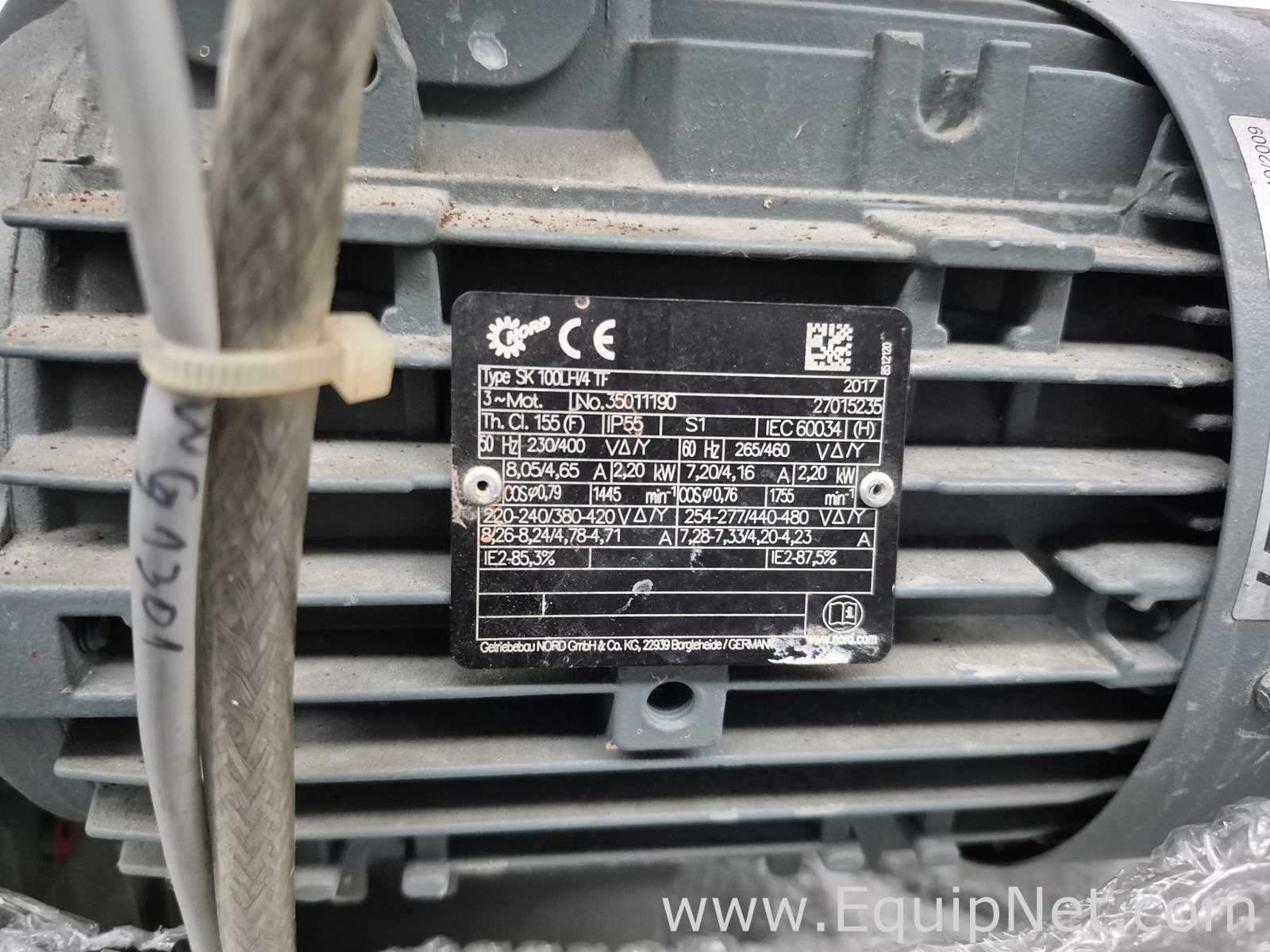

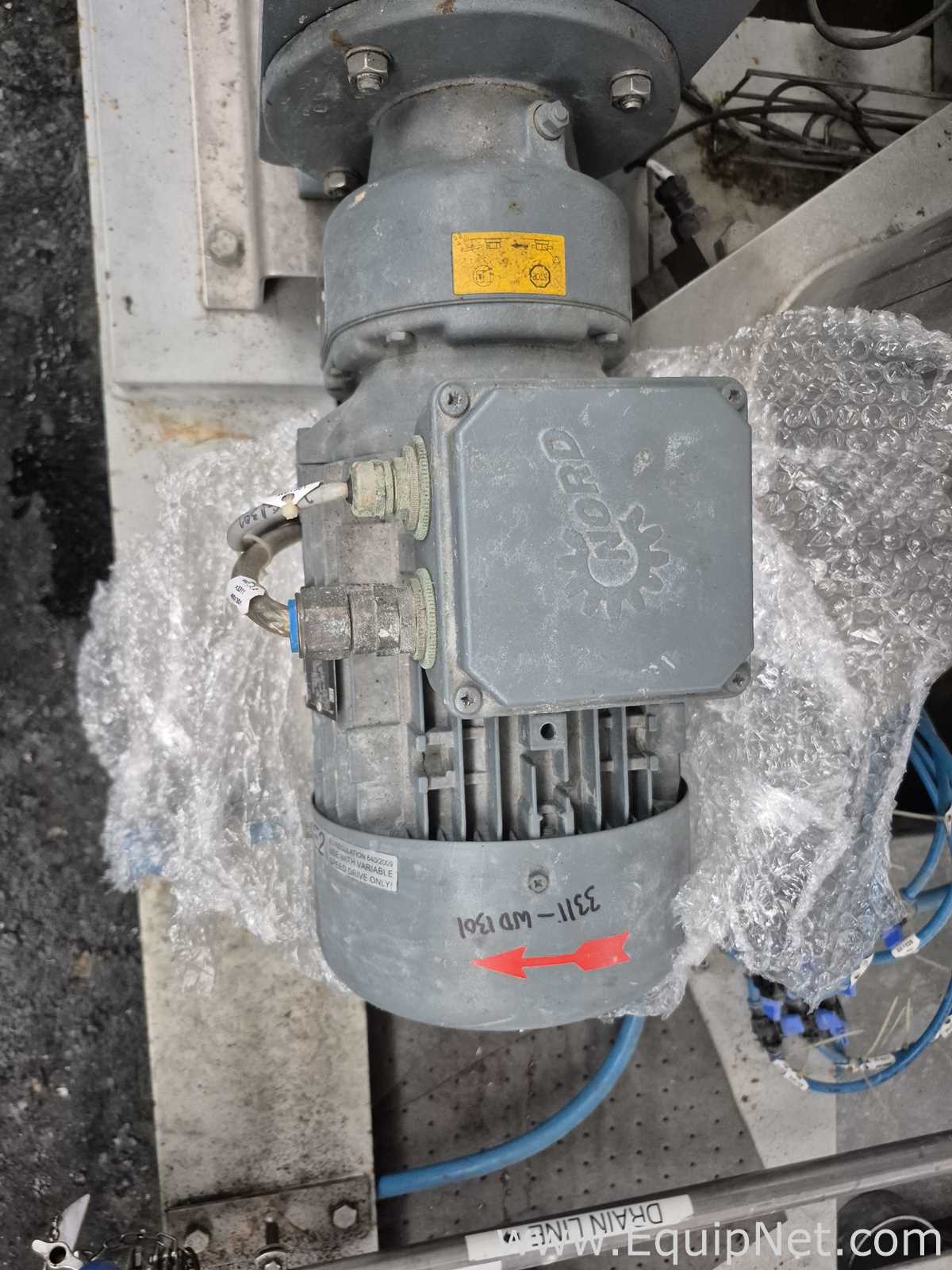

Nord motor: 3ph. 50/60hz. 230-400V. 2.2kW.
2,2 kW 230/400V 50 Hz.
Connection size and type: DN32, Triclamp.
Safety Equipment: Outlet pressure via pressure sensor with MAX switching contact.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Frequency:
50
HERTZ
50
HERTZ
Phase:
3
3
Serial Number:
D8409750/4300003831/0700
D8409750/4300003831/0700
Voltage:
230/400
VOLTS
230/400
VOLTS
Year:
2018
2018
Horsepower:
2,2
KW
2,2
KW
CE Marked:
YES
YES
Model:
NM038
NM038
Recommended Packaging Form:
CRATE
CRATE
Dimensions:
Standard
Metric
Overall:
1 x 1 x 1 IN - 1 LBS
25.40 x 25.40 x 25.40 mm - 0.45 kg
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1049739

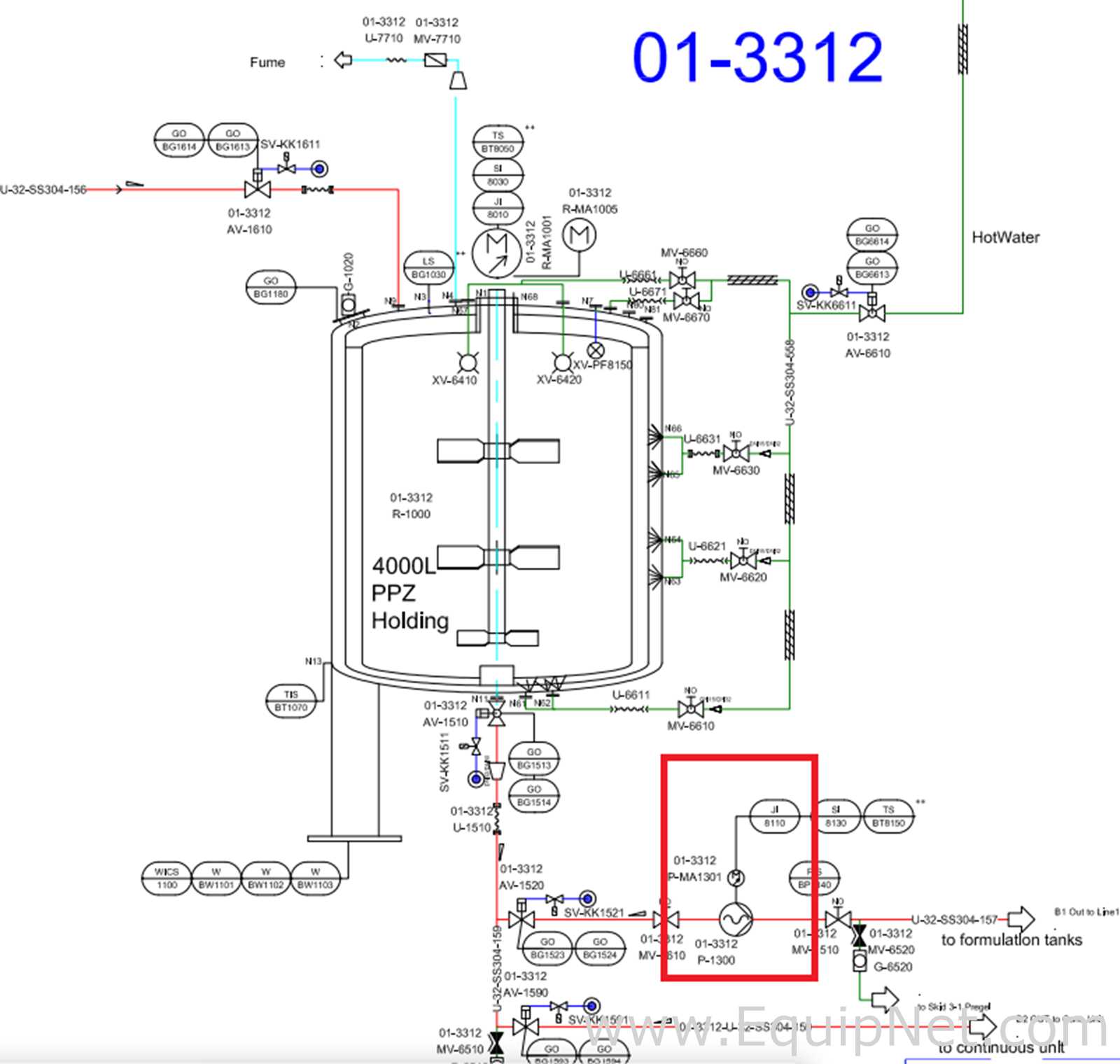

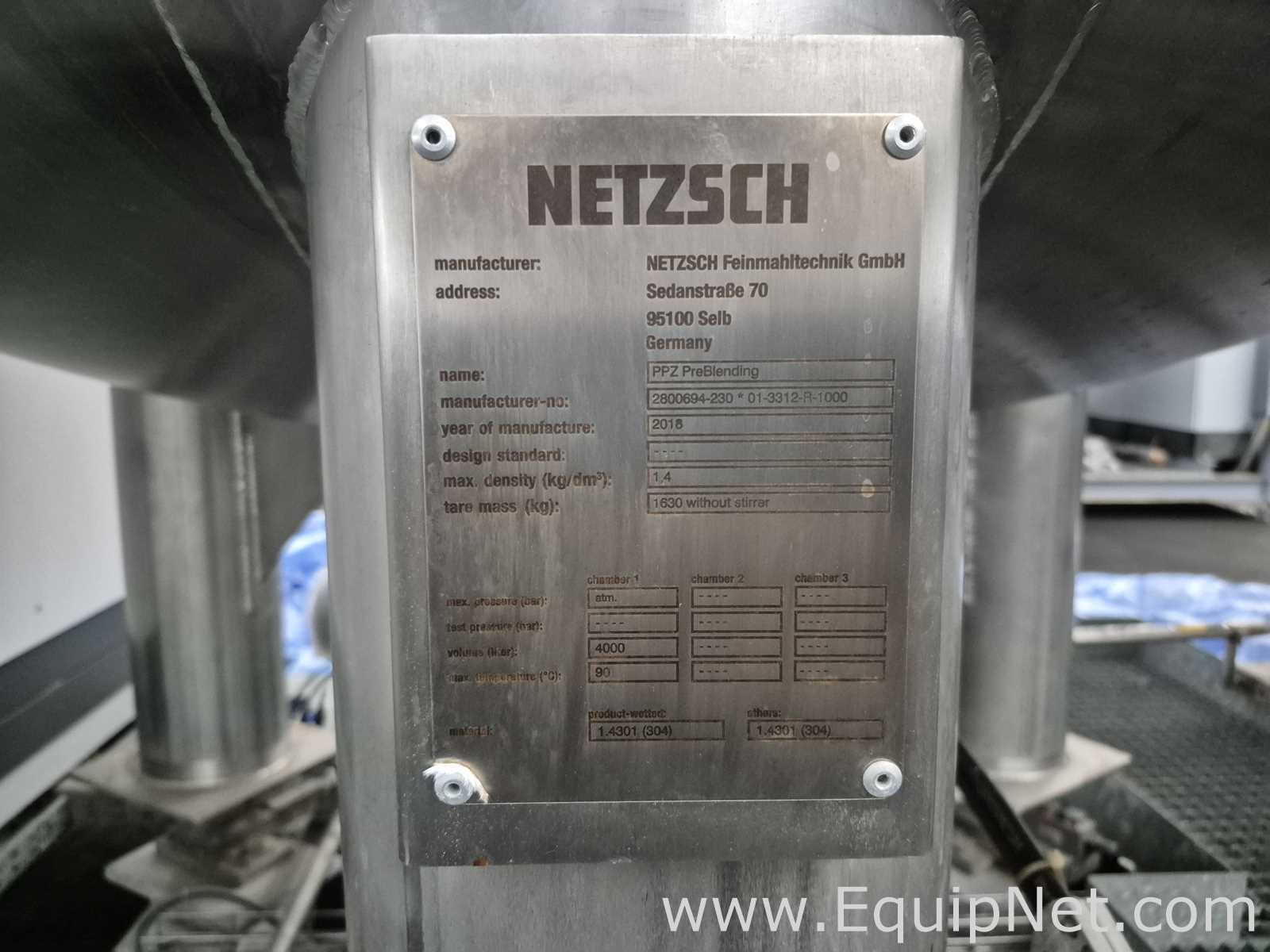

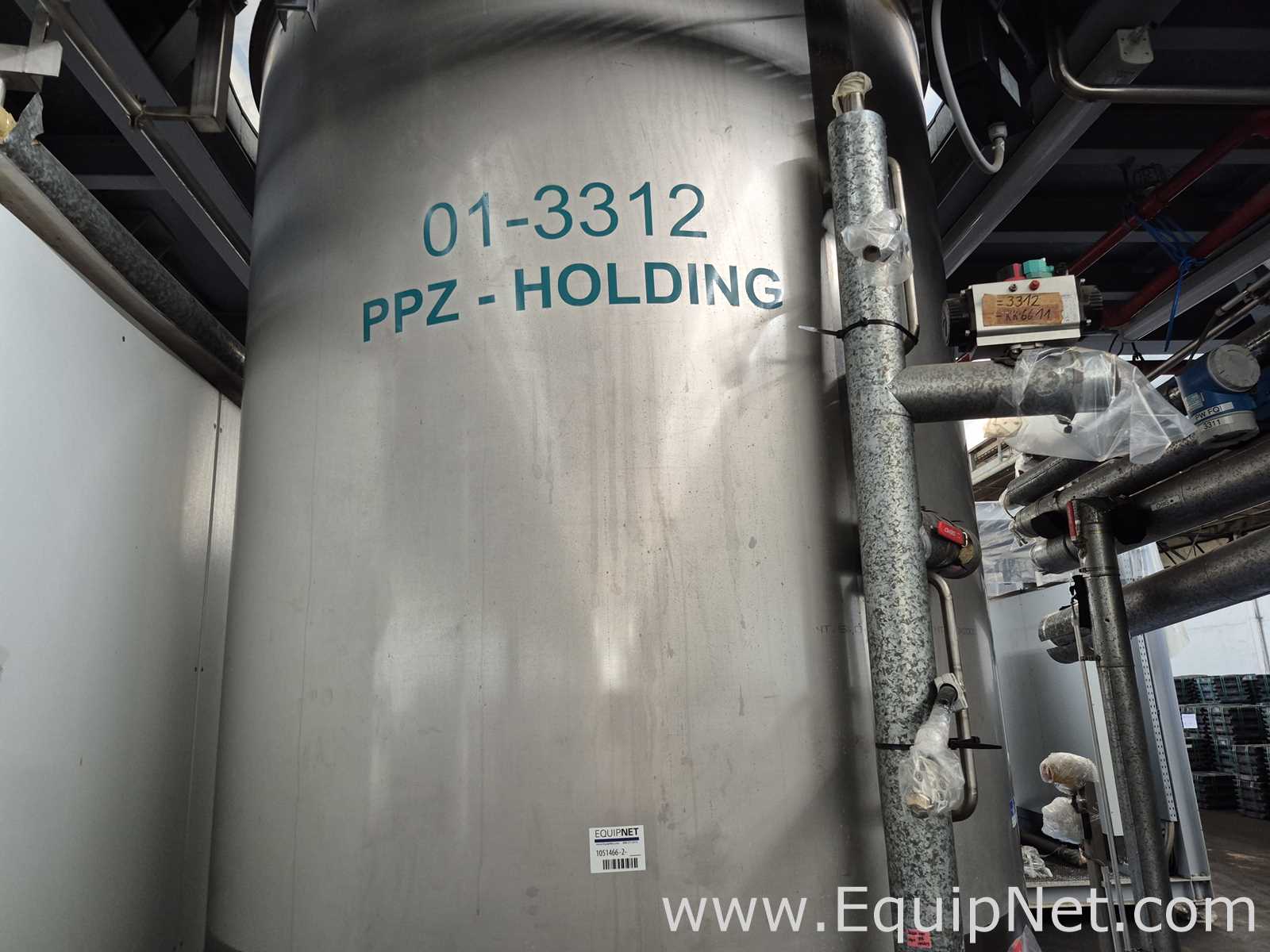

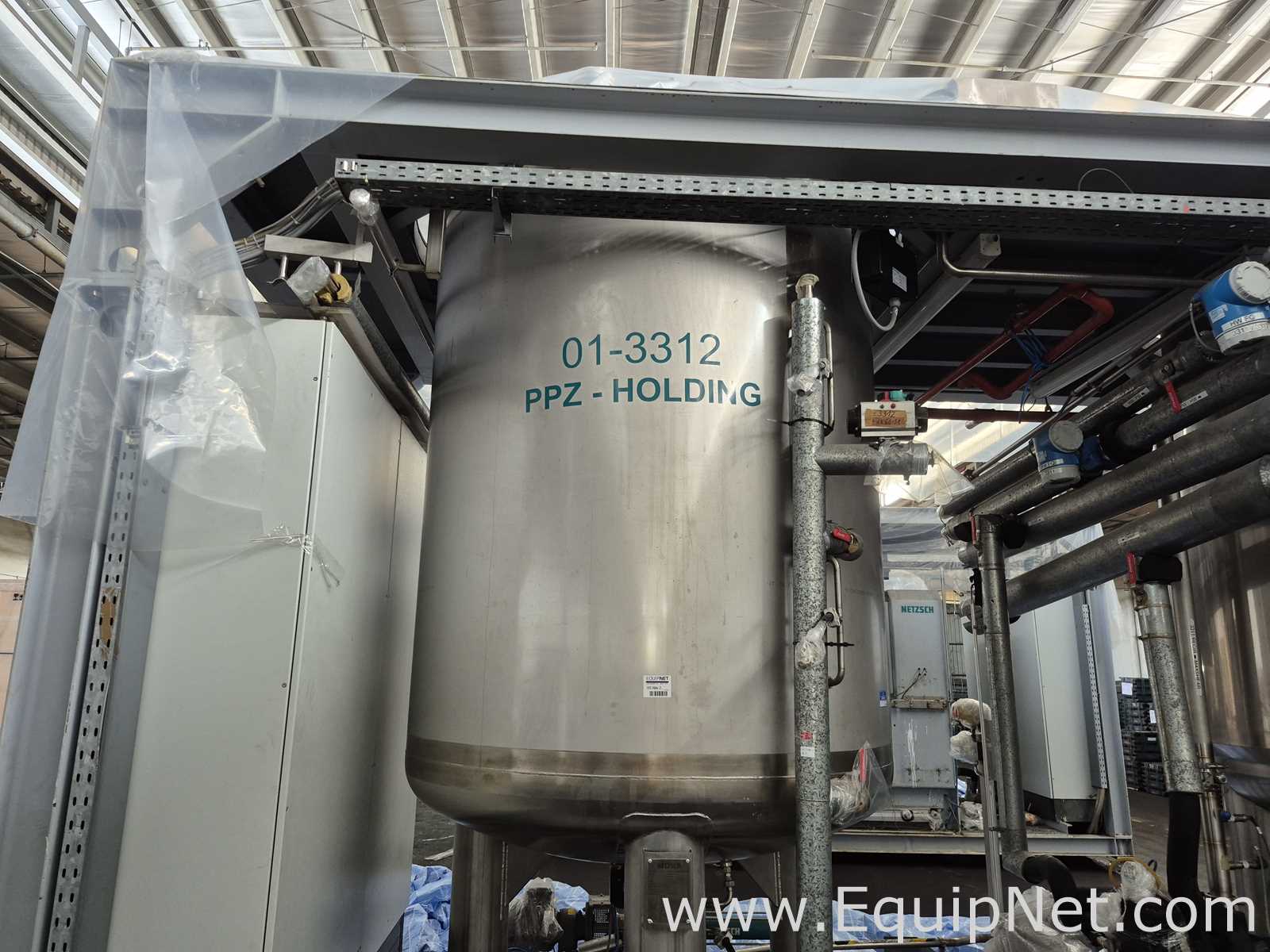

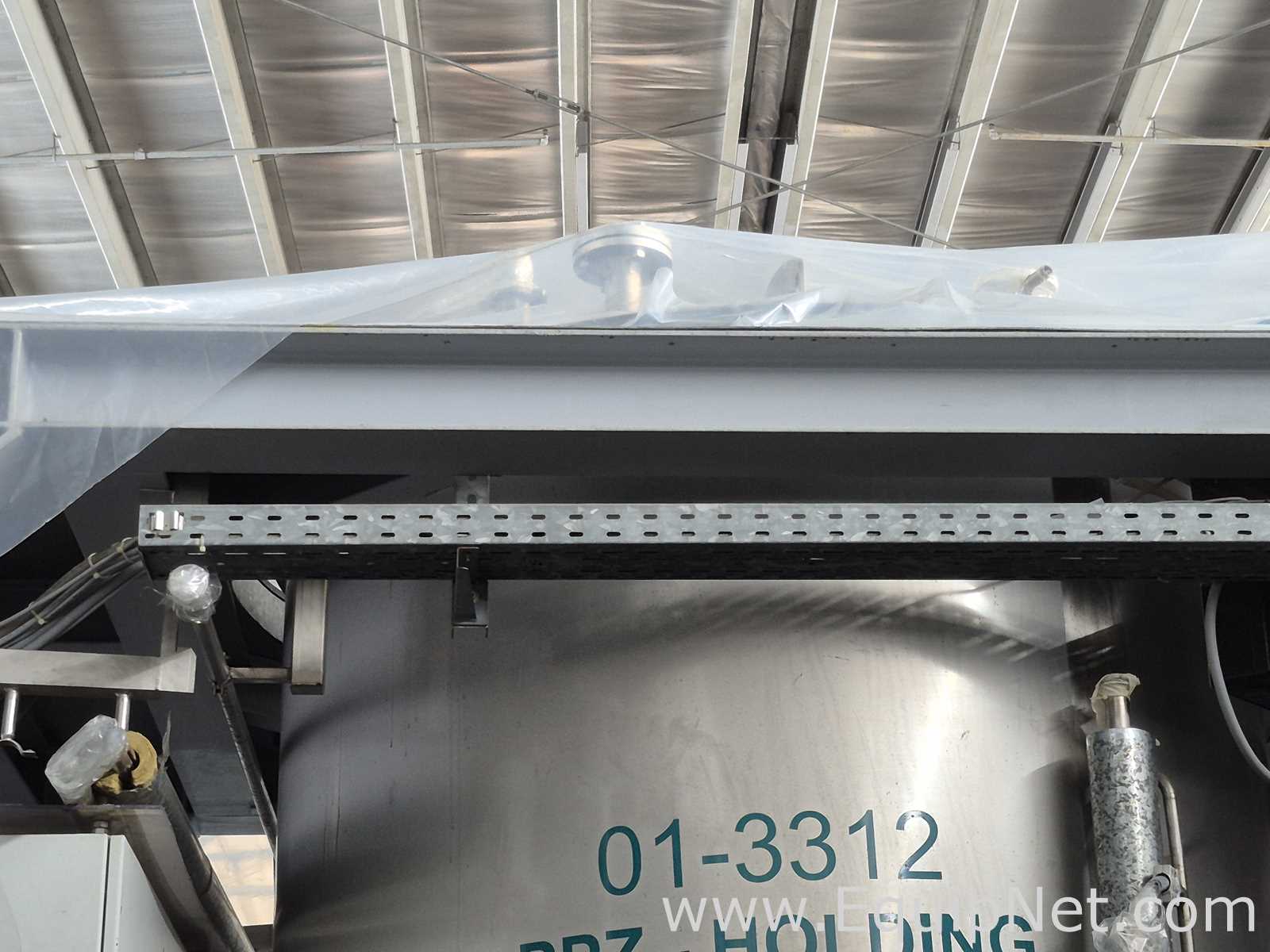

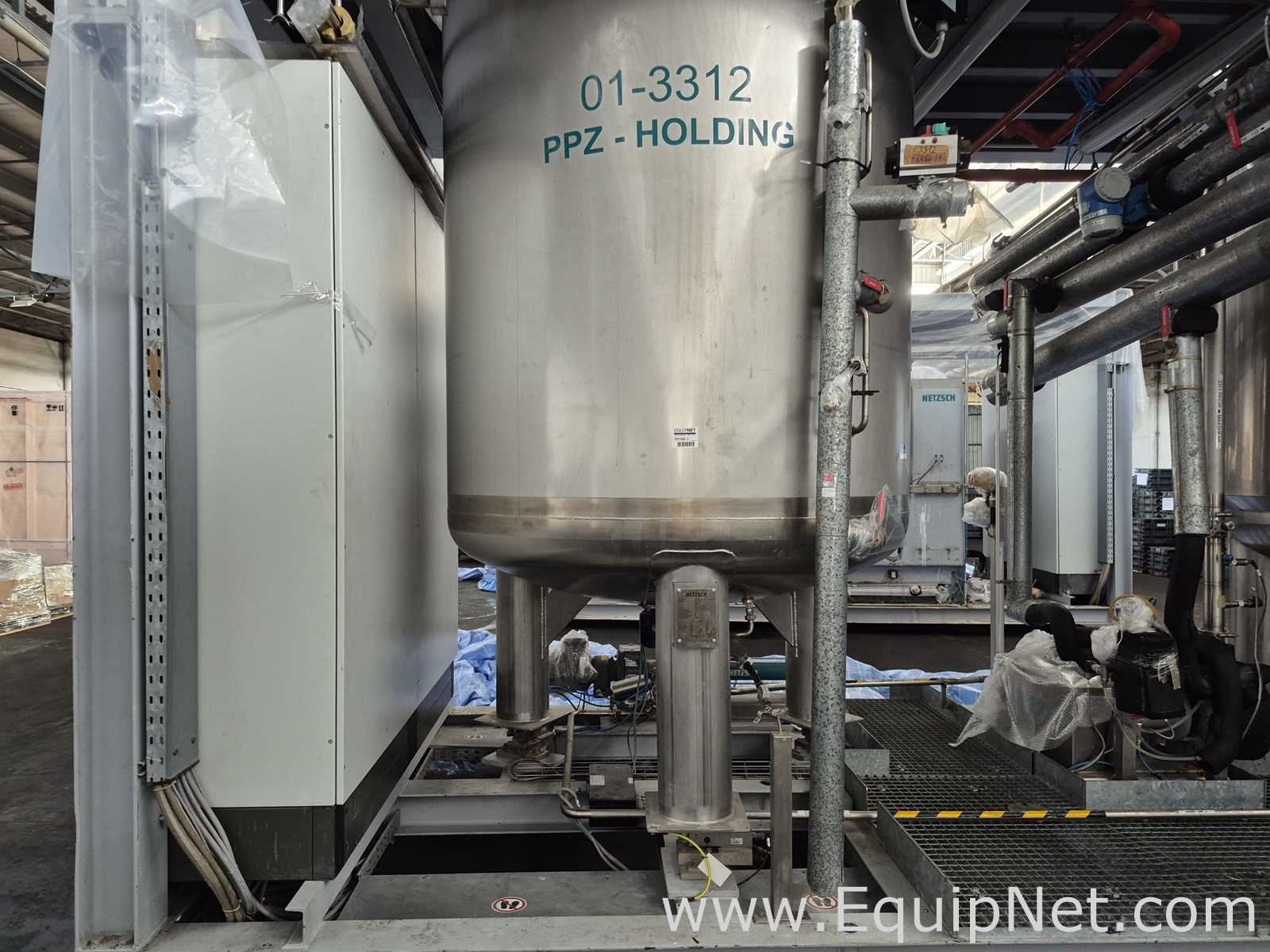

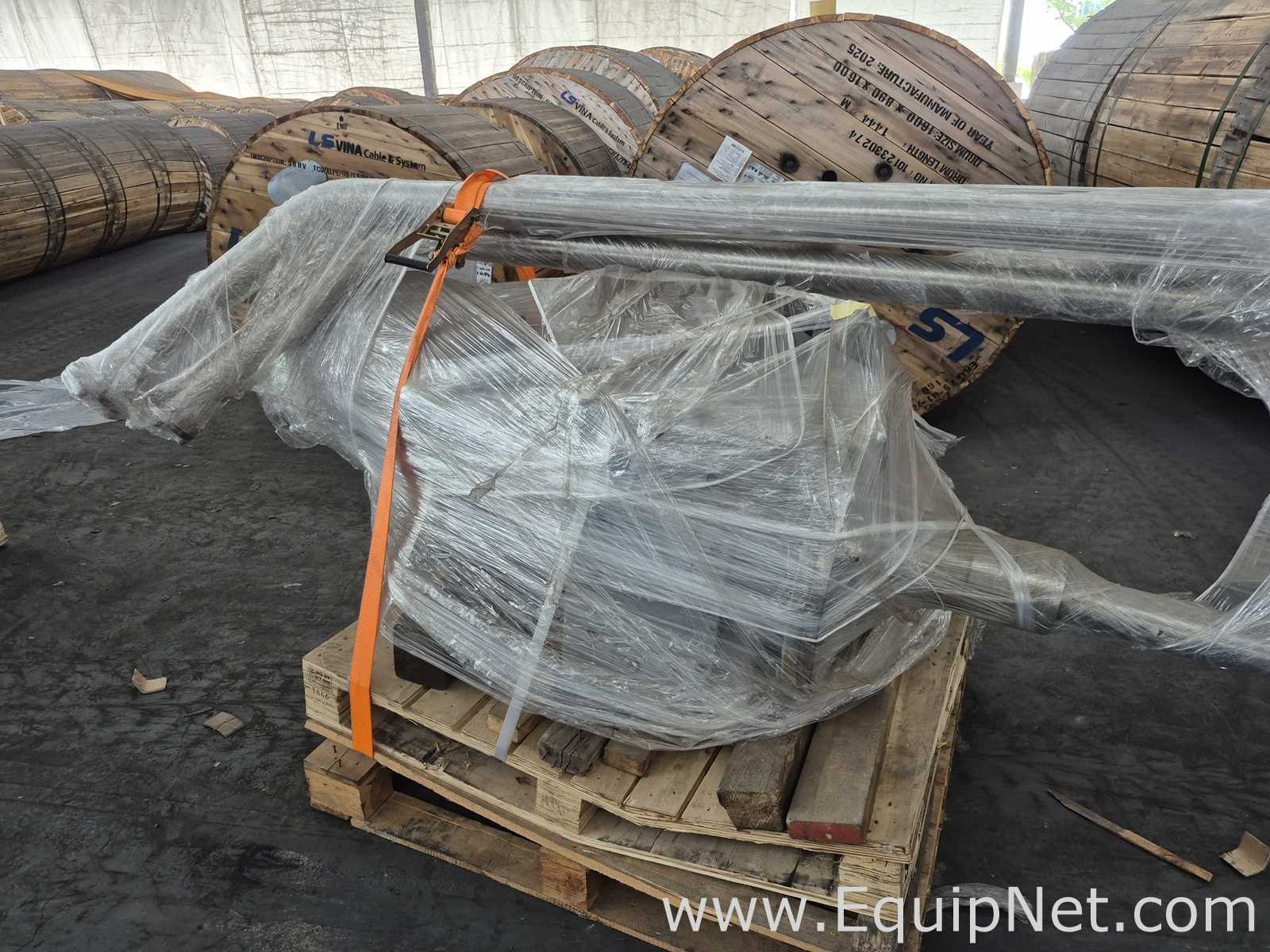

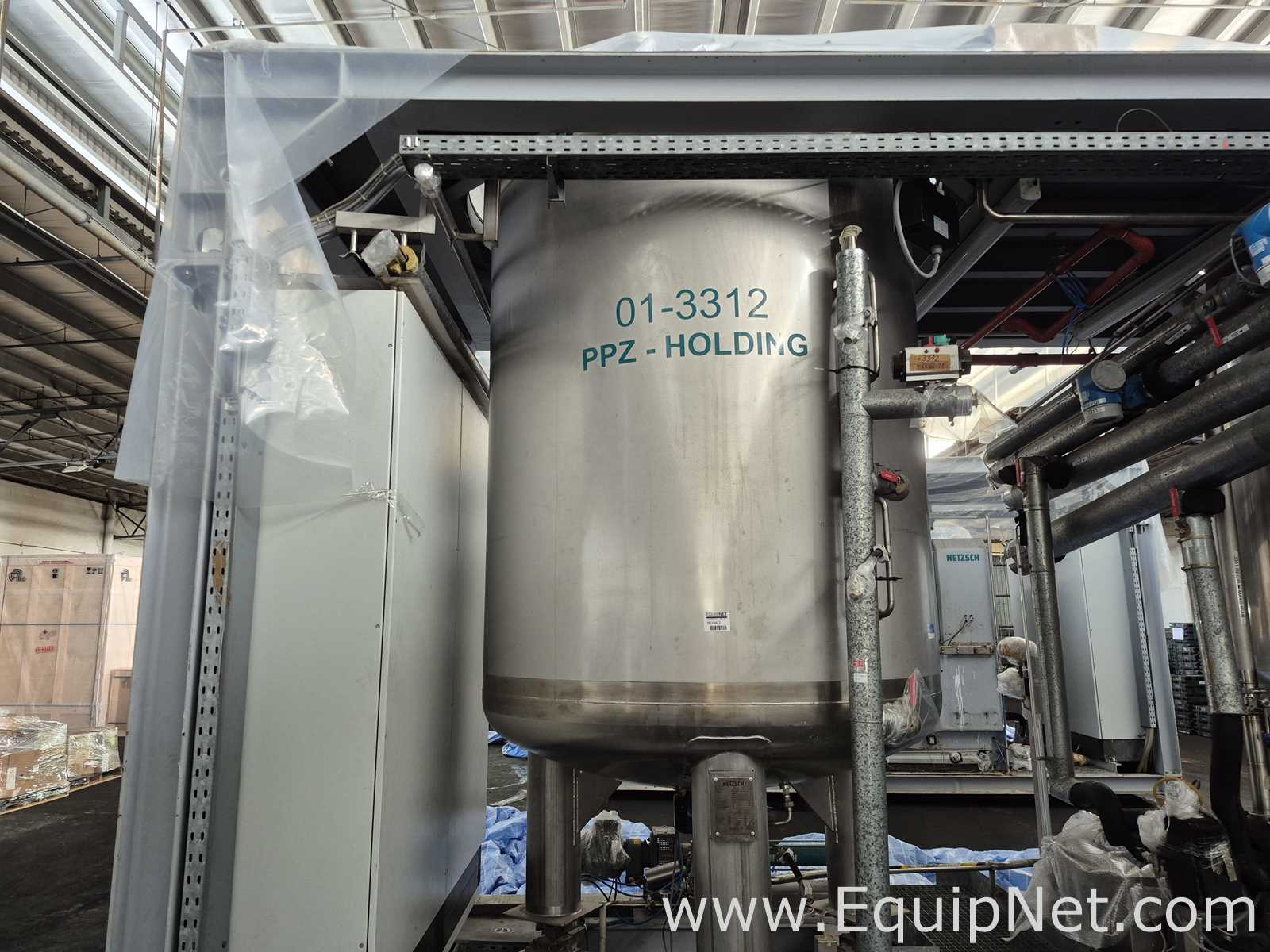

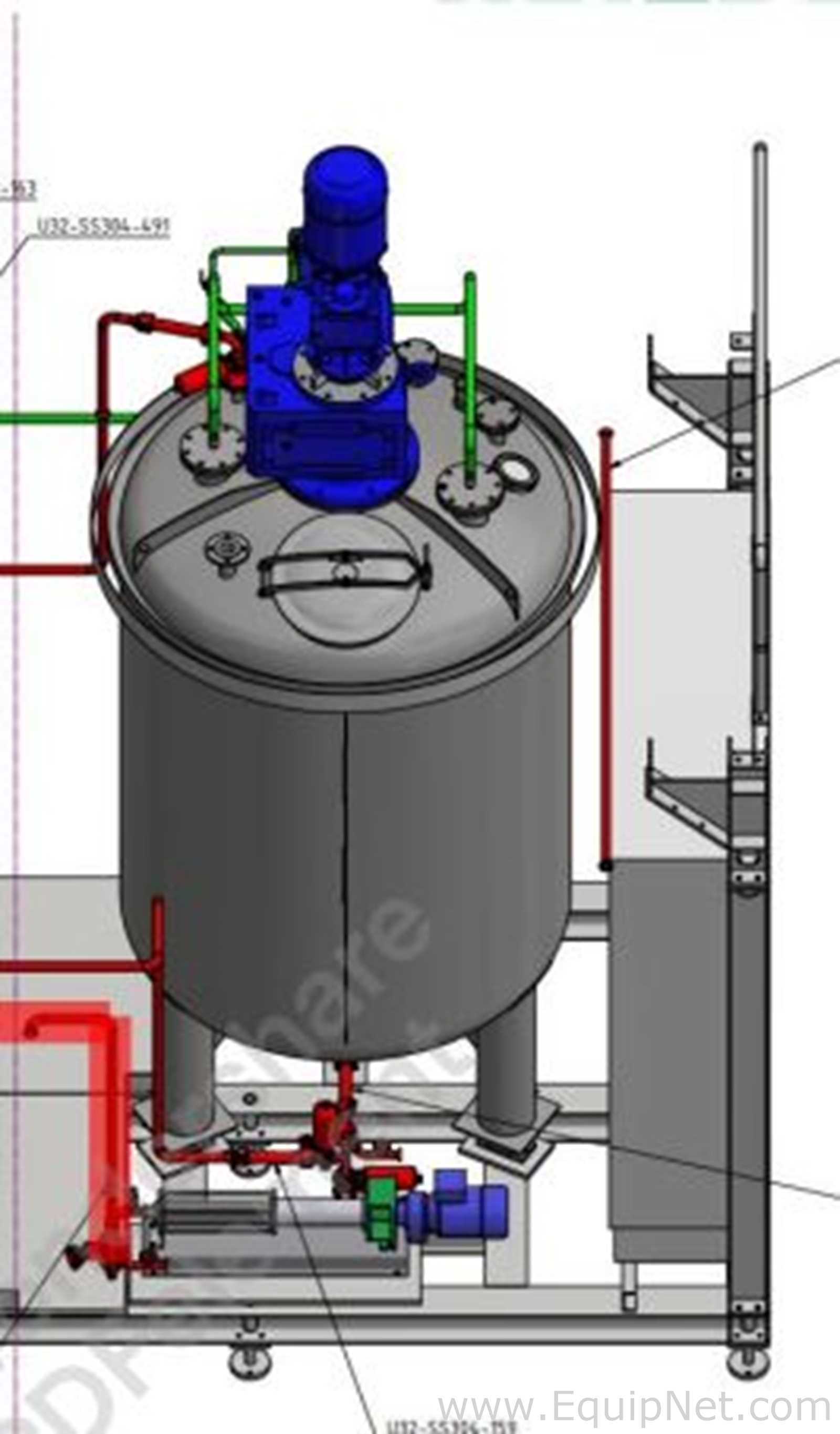

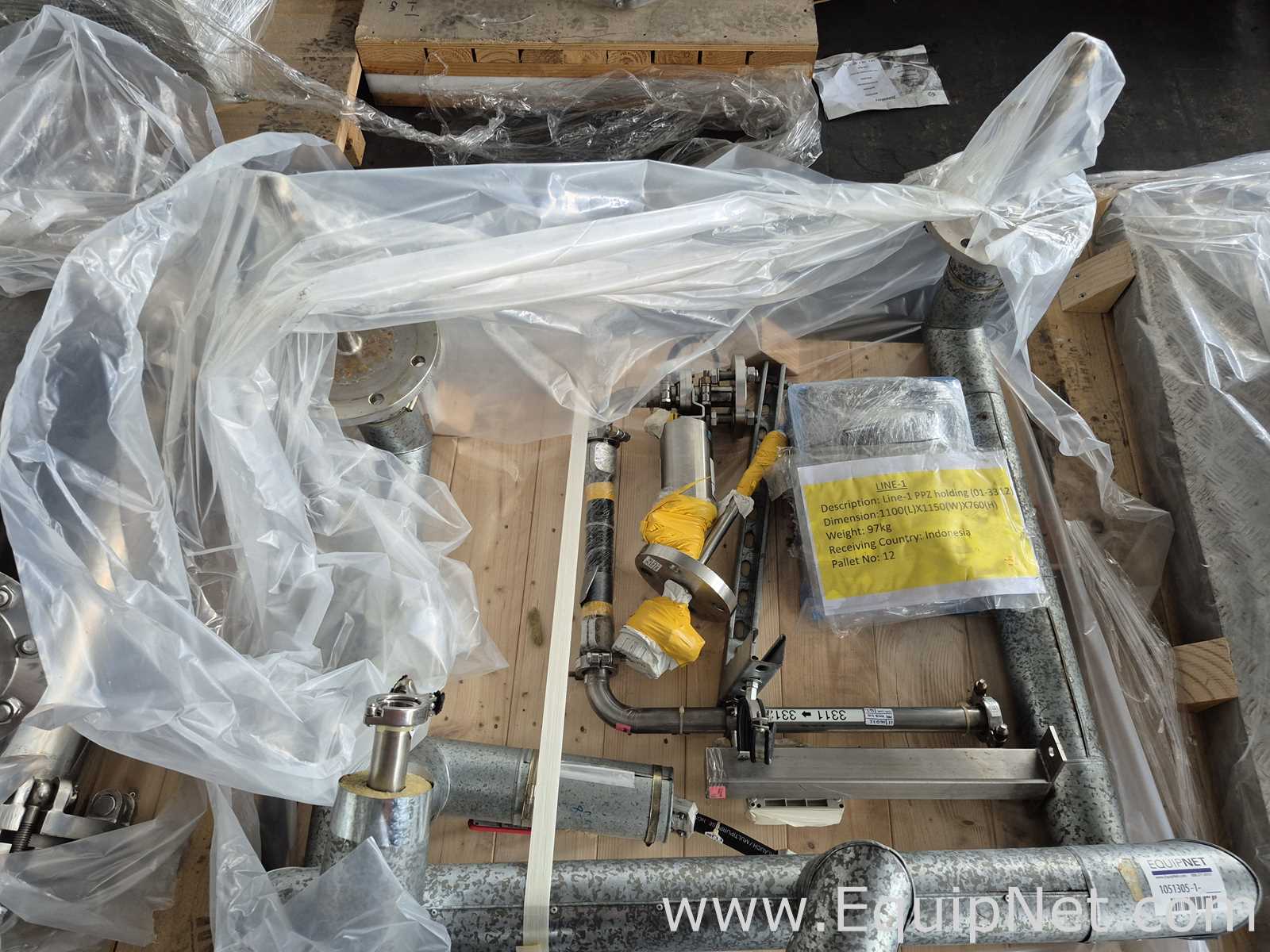

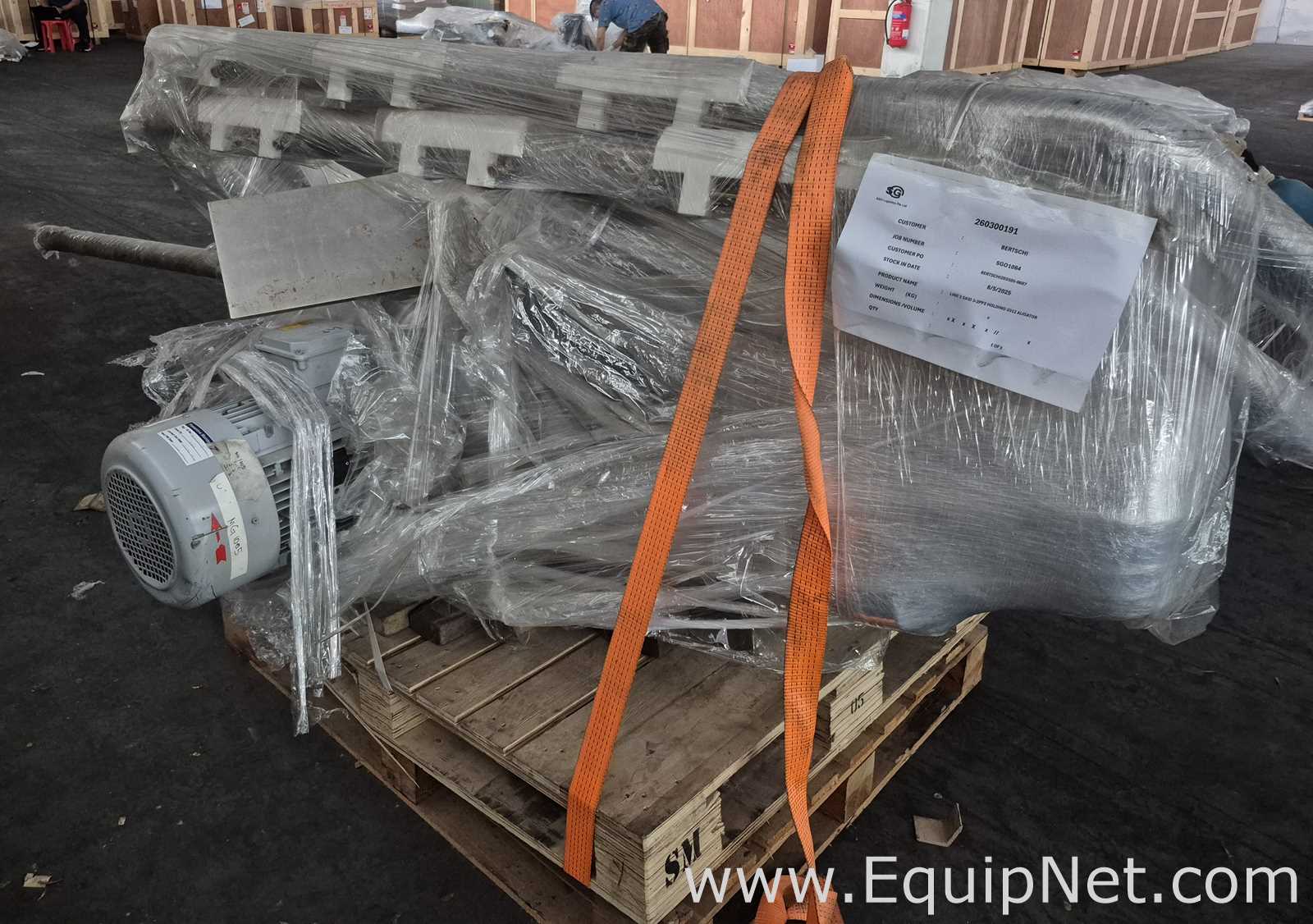

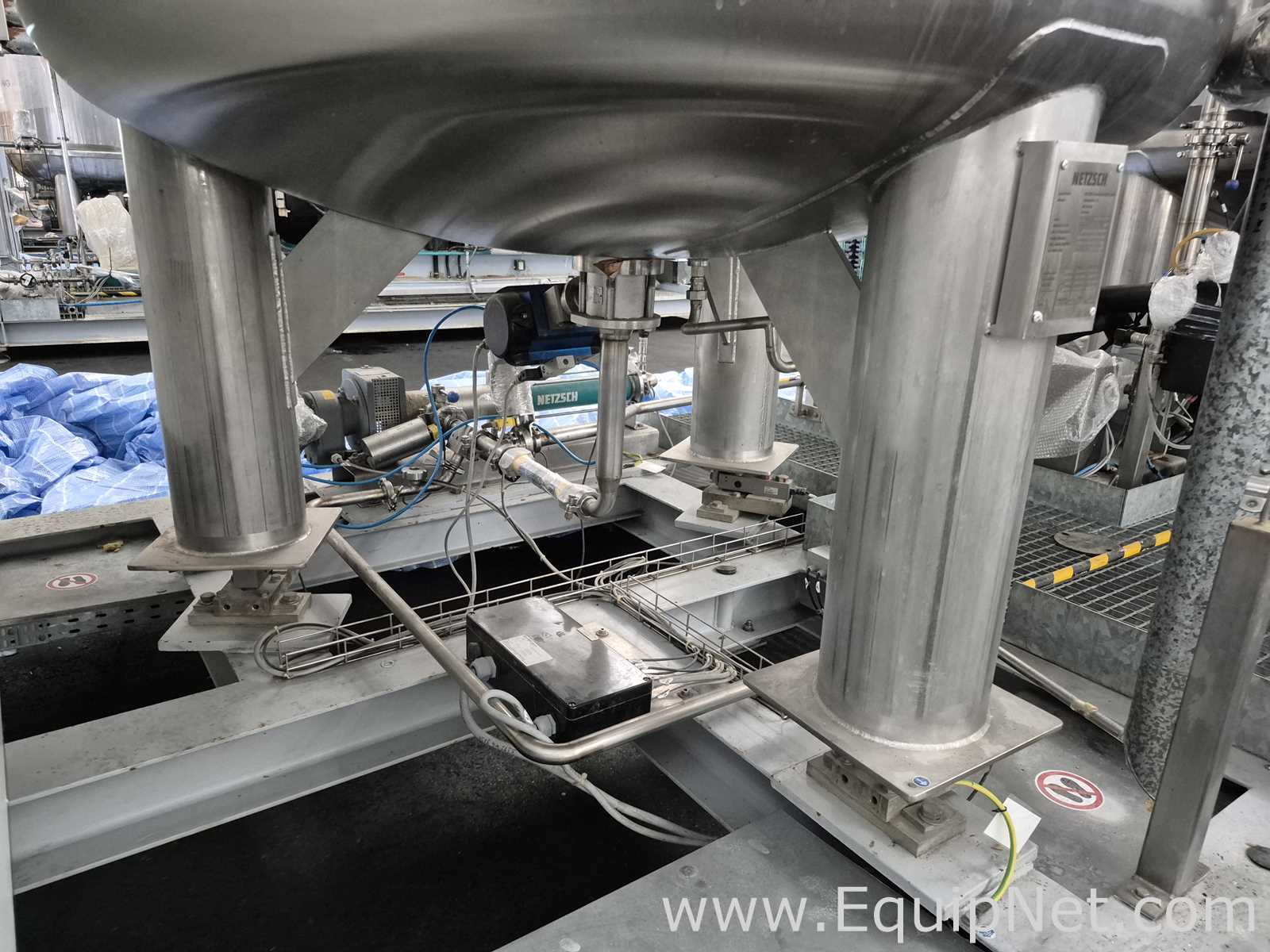

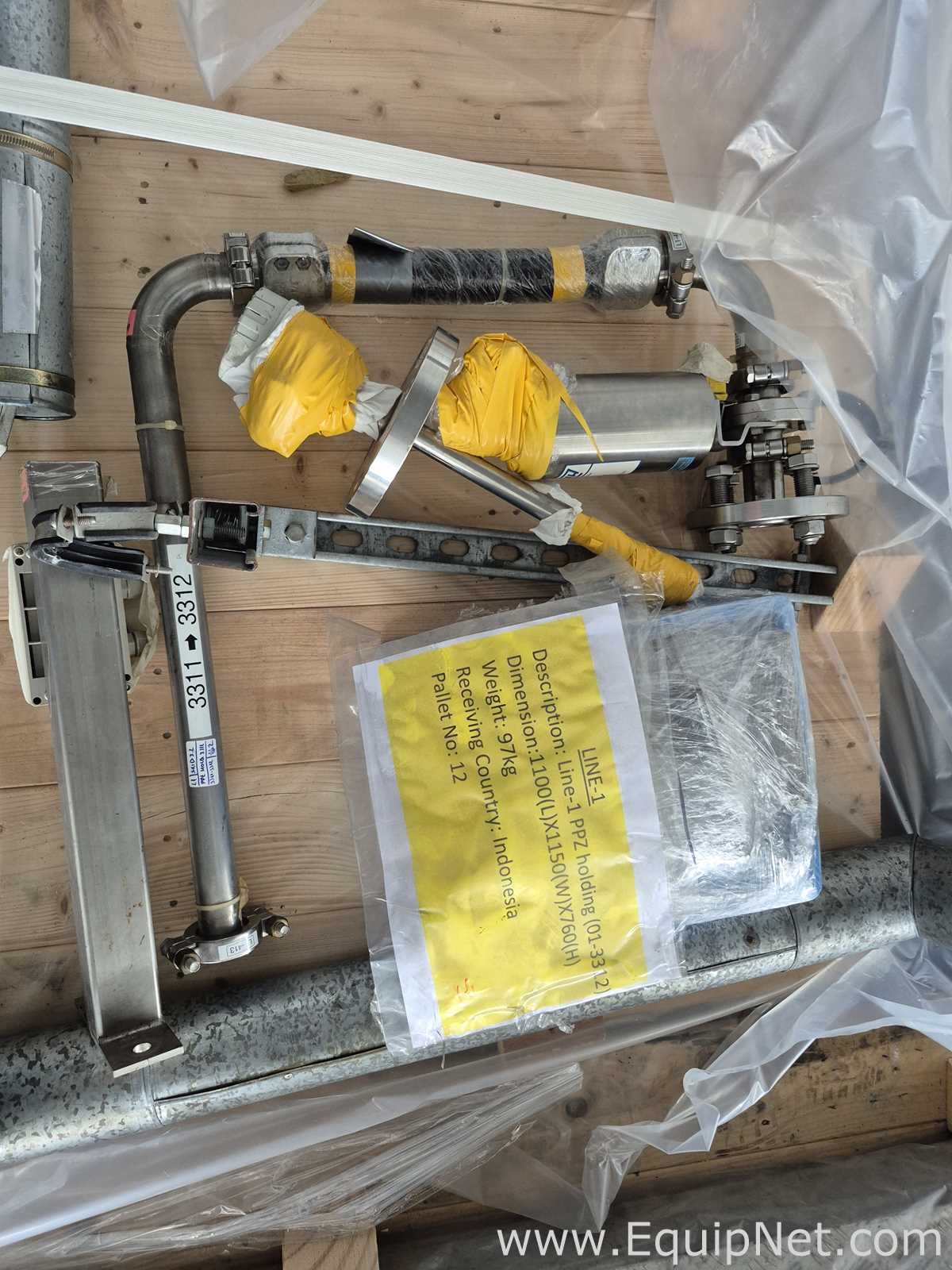

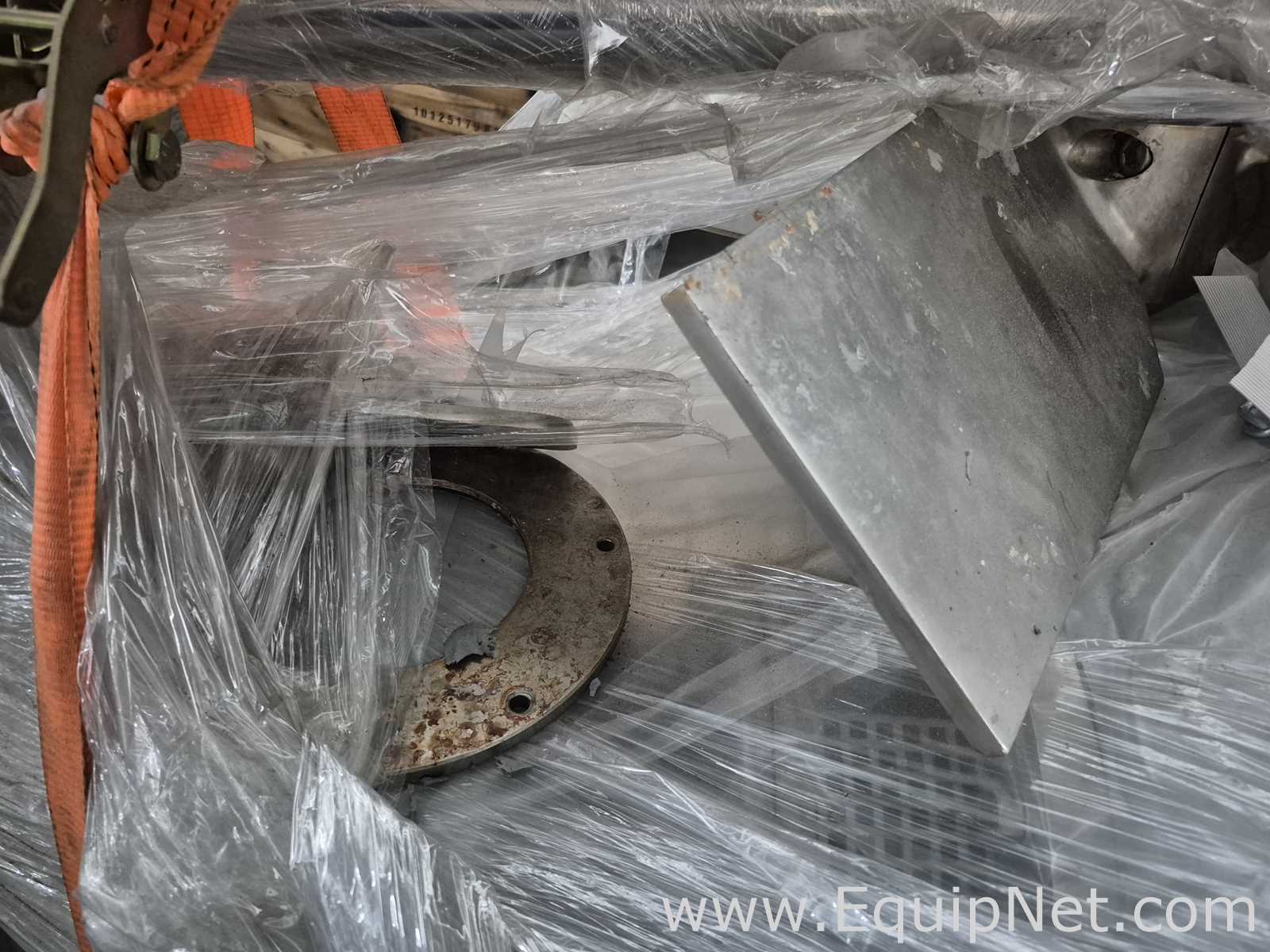

Netzsch 4000L SS Blending Holding Medium Speed Mixing Vessel with Scraper 3312 - Skid 3-2 PPZ
Equipment Description
Netzsch 4000L SS Blending Holding Medium Speed Mixing Vessel with Scraper 3312 - Skid 3-2 PPZ
Designed for Max operating pressure: atm.
Designed for Max operating temp: 90C.
Product wetted parts: SS1.4301 (304).
Other parts: mild steel.

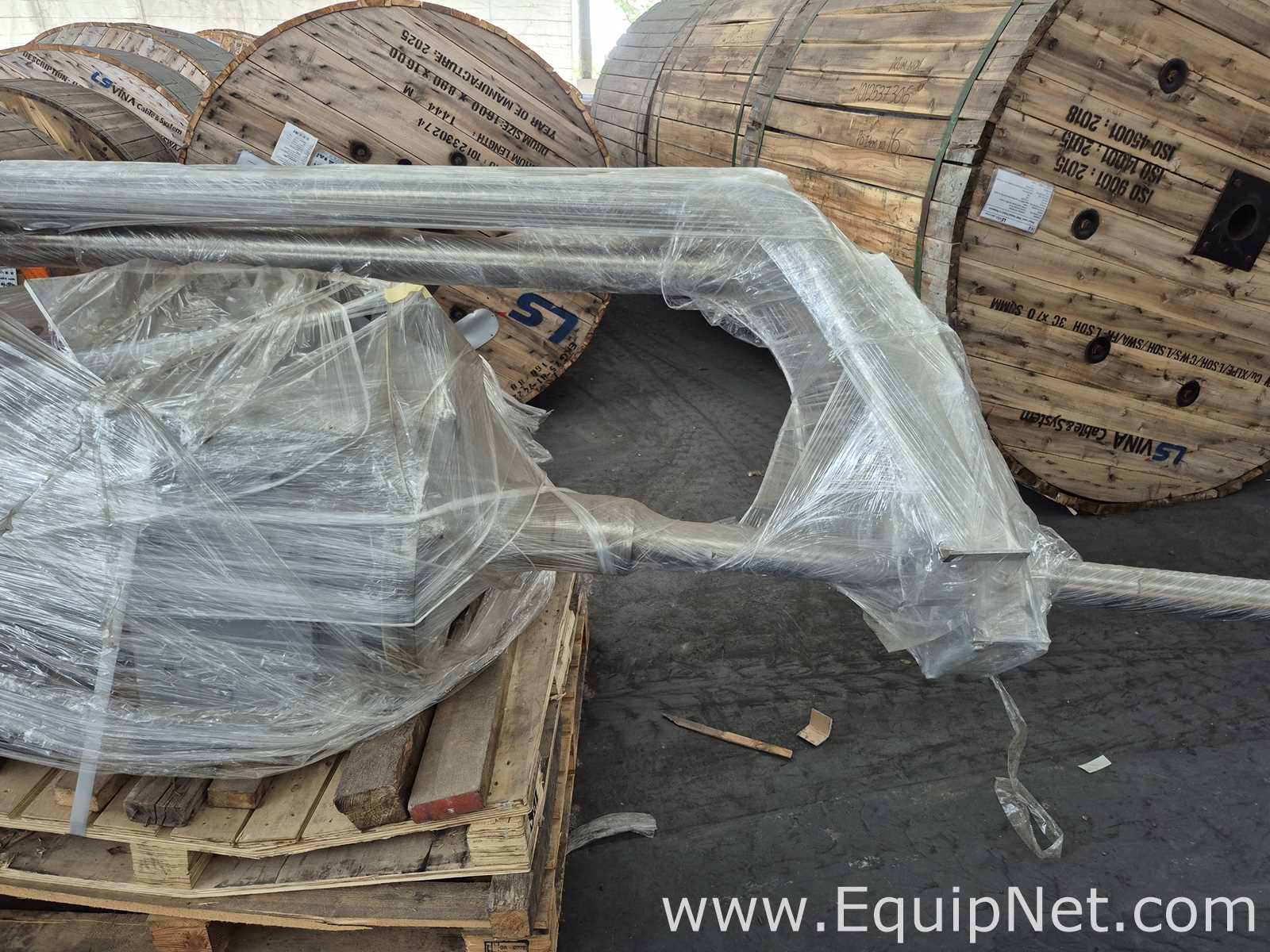

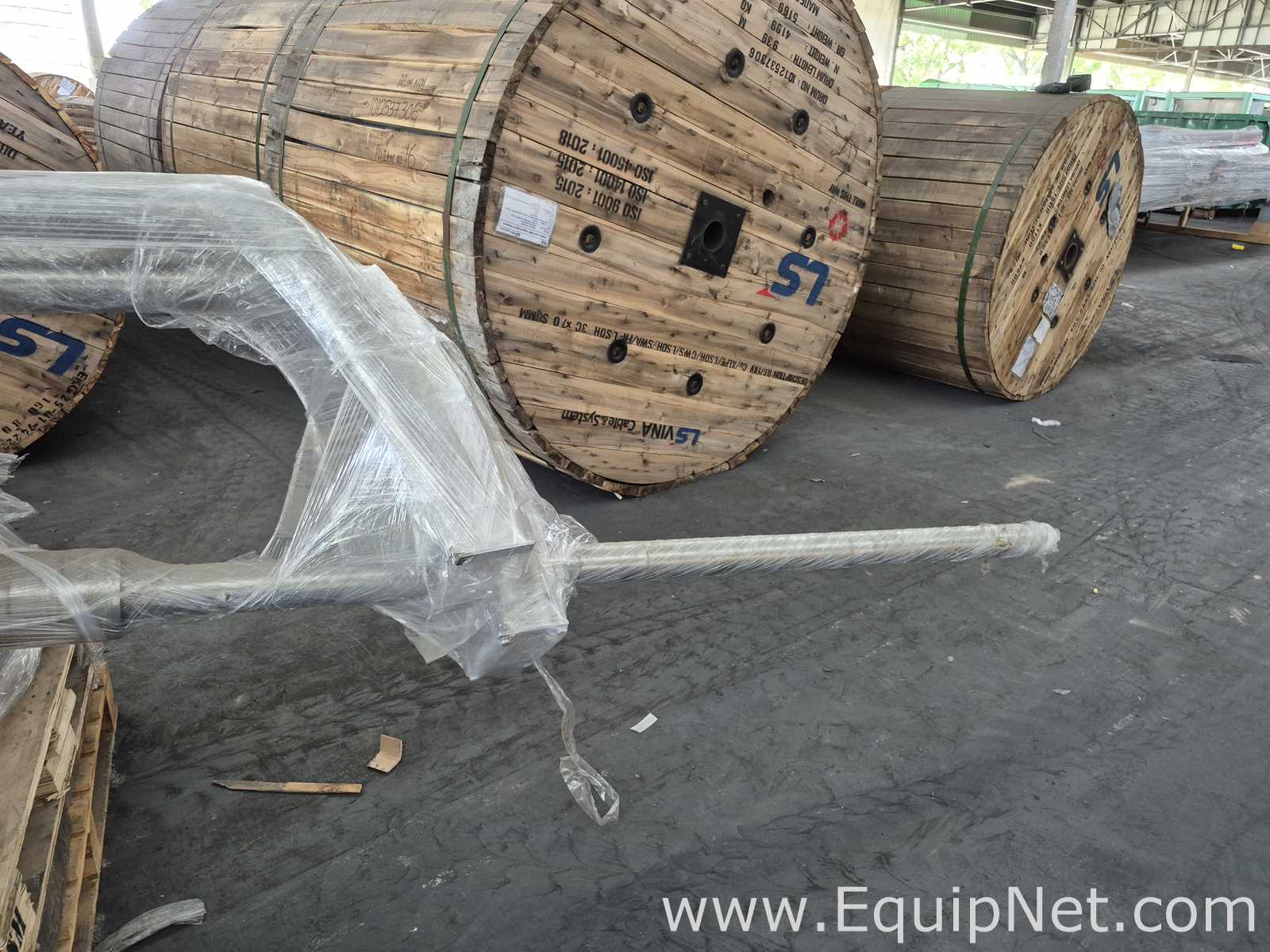

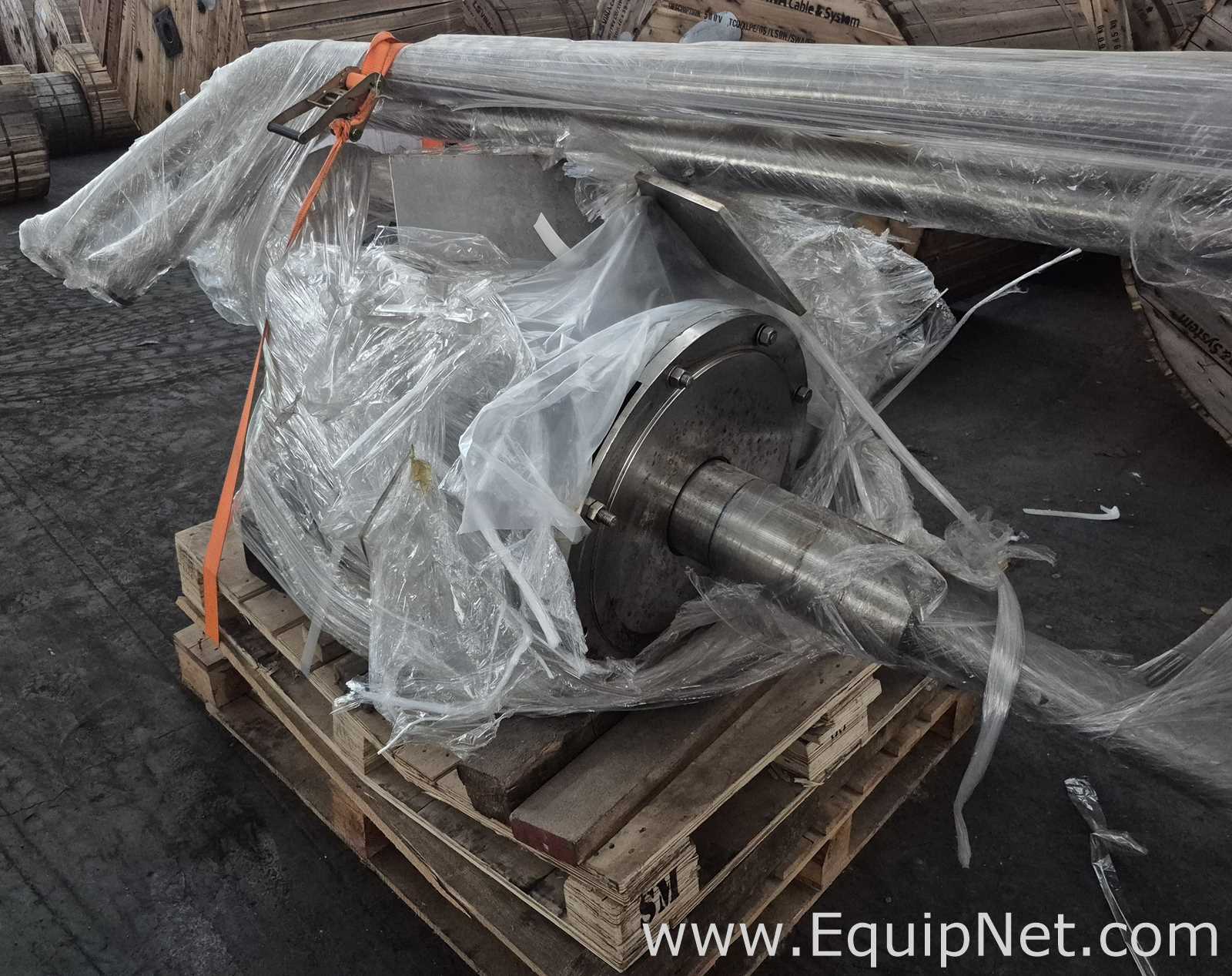

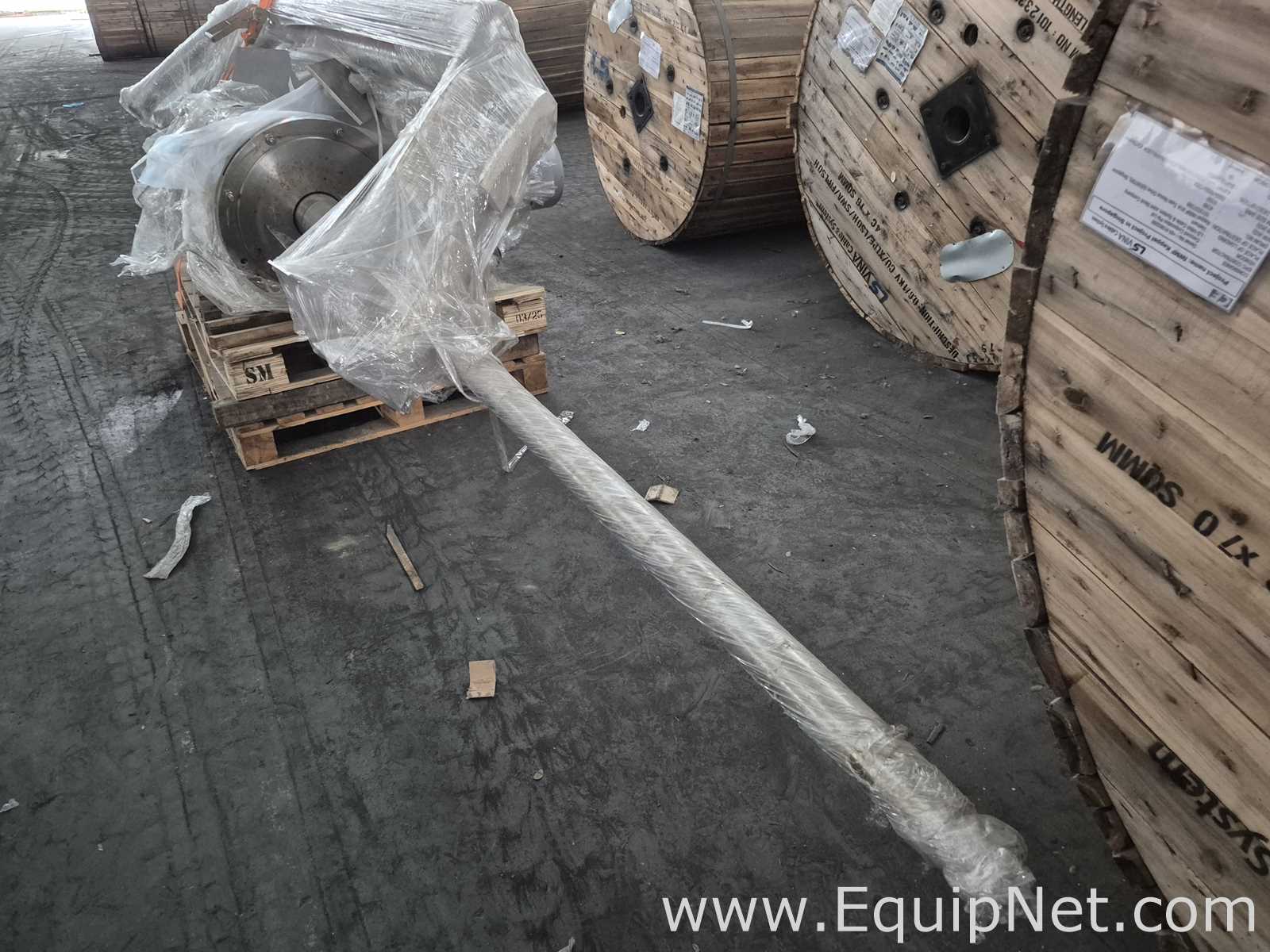

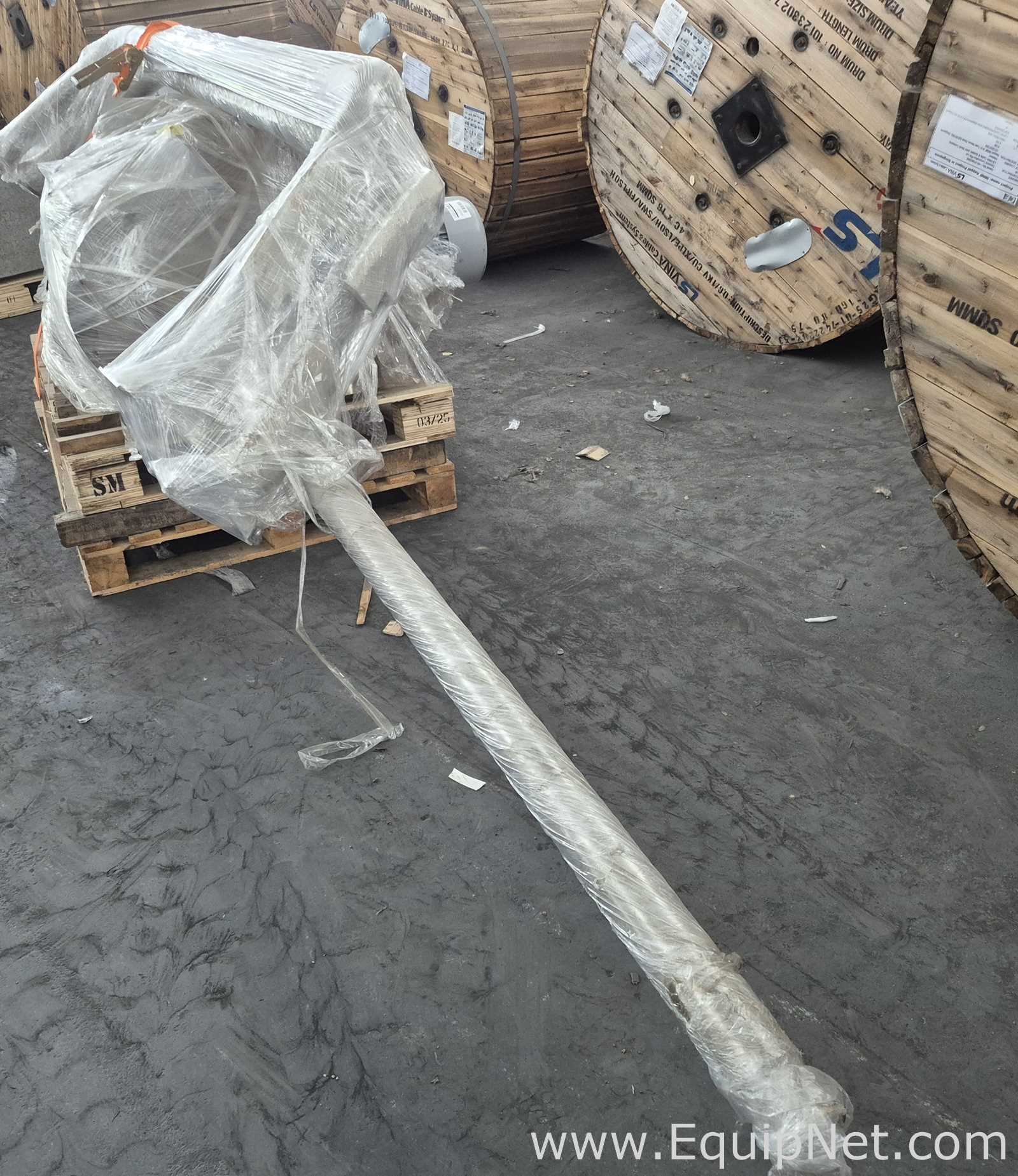

Agitator pitched blade stirrer: Spindle speed 24-120RPM. Mixing elements 2 x 4 blade axial flow about 850 mm, 1 x 4 blade axial flow about 400 mm and radially clamped two half shells. Mixer drive 11kW protection class IP55 / not explosion proof infinitely variable via frequency inverter.

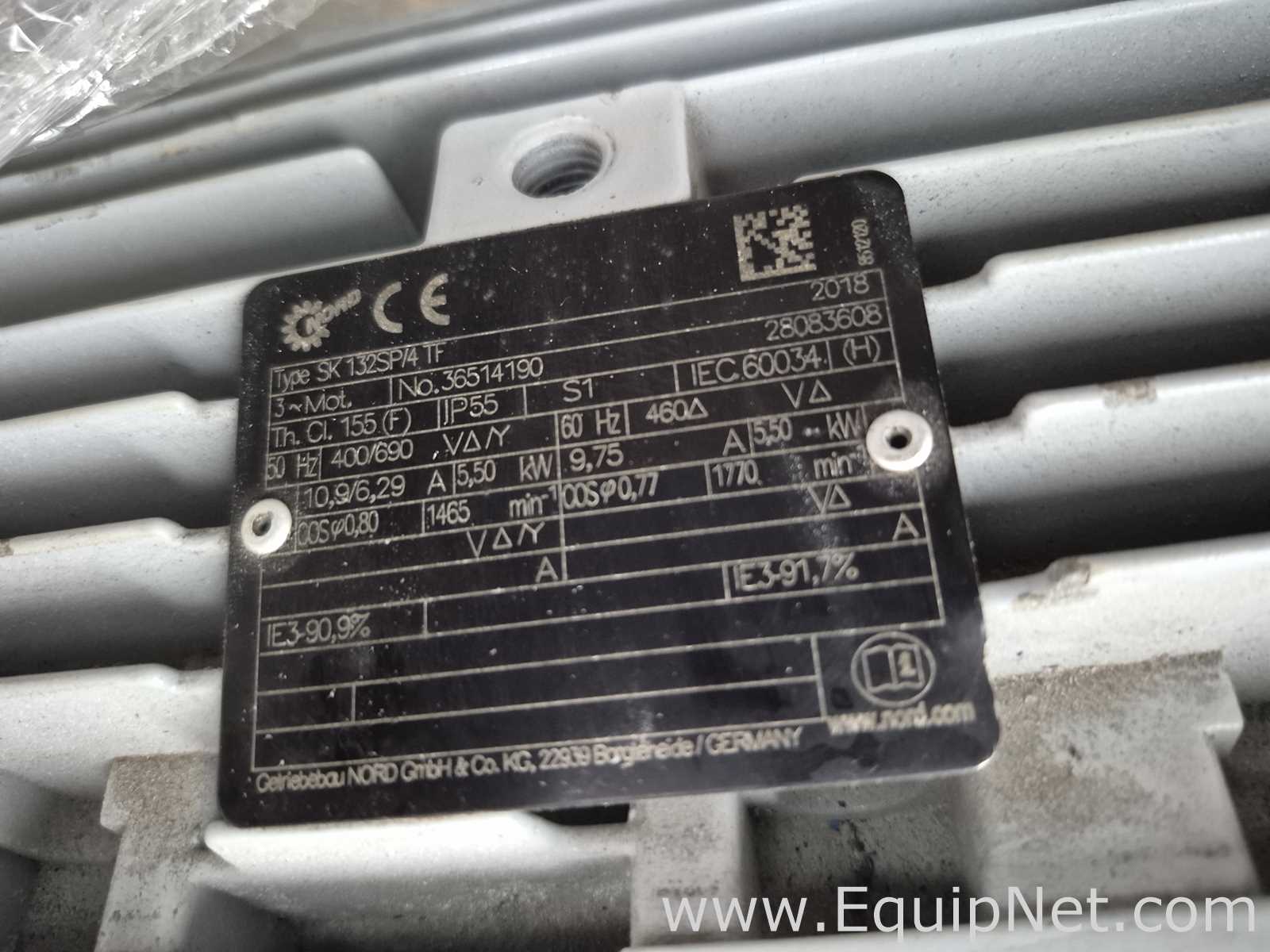

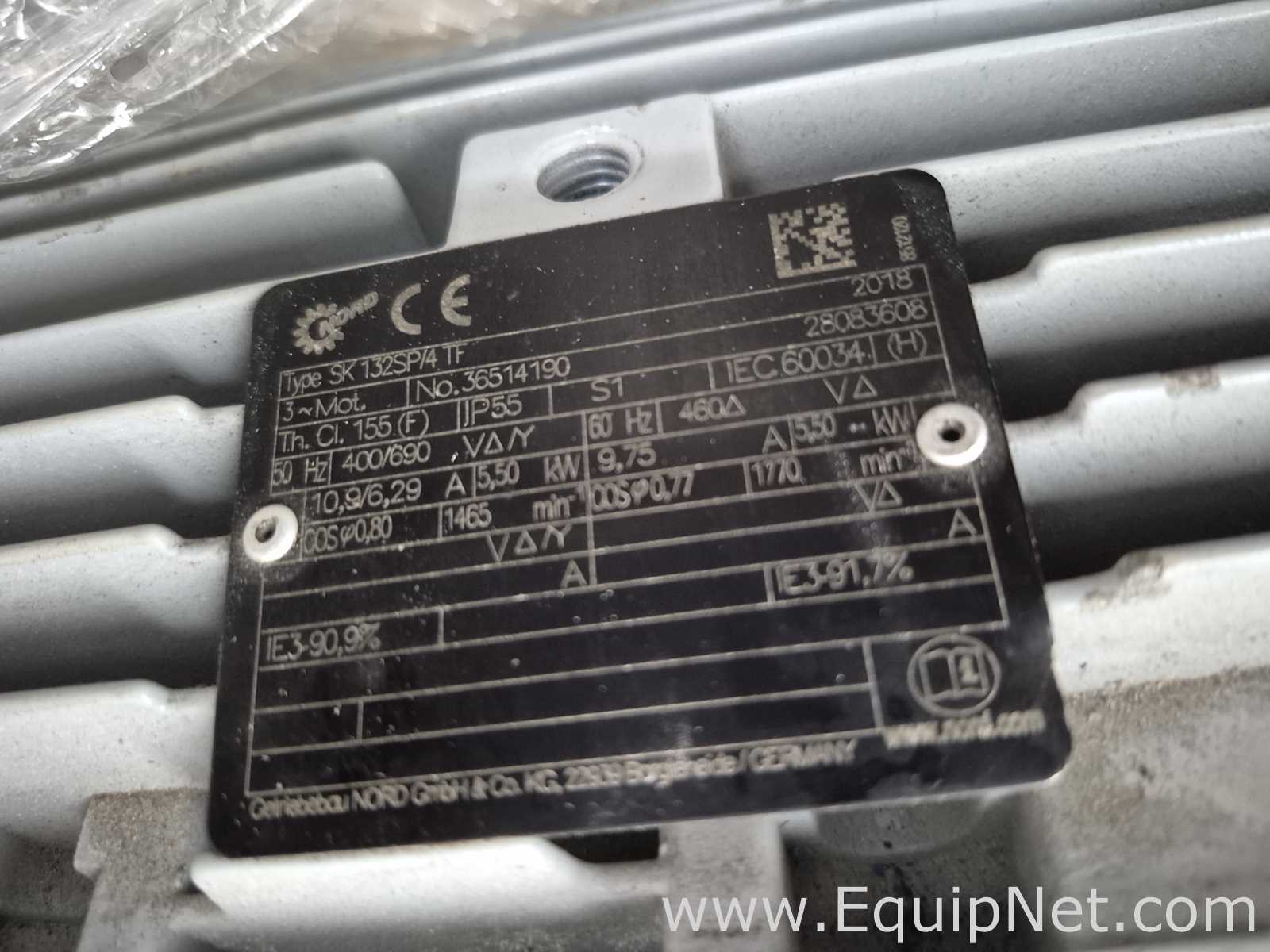

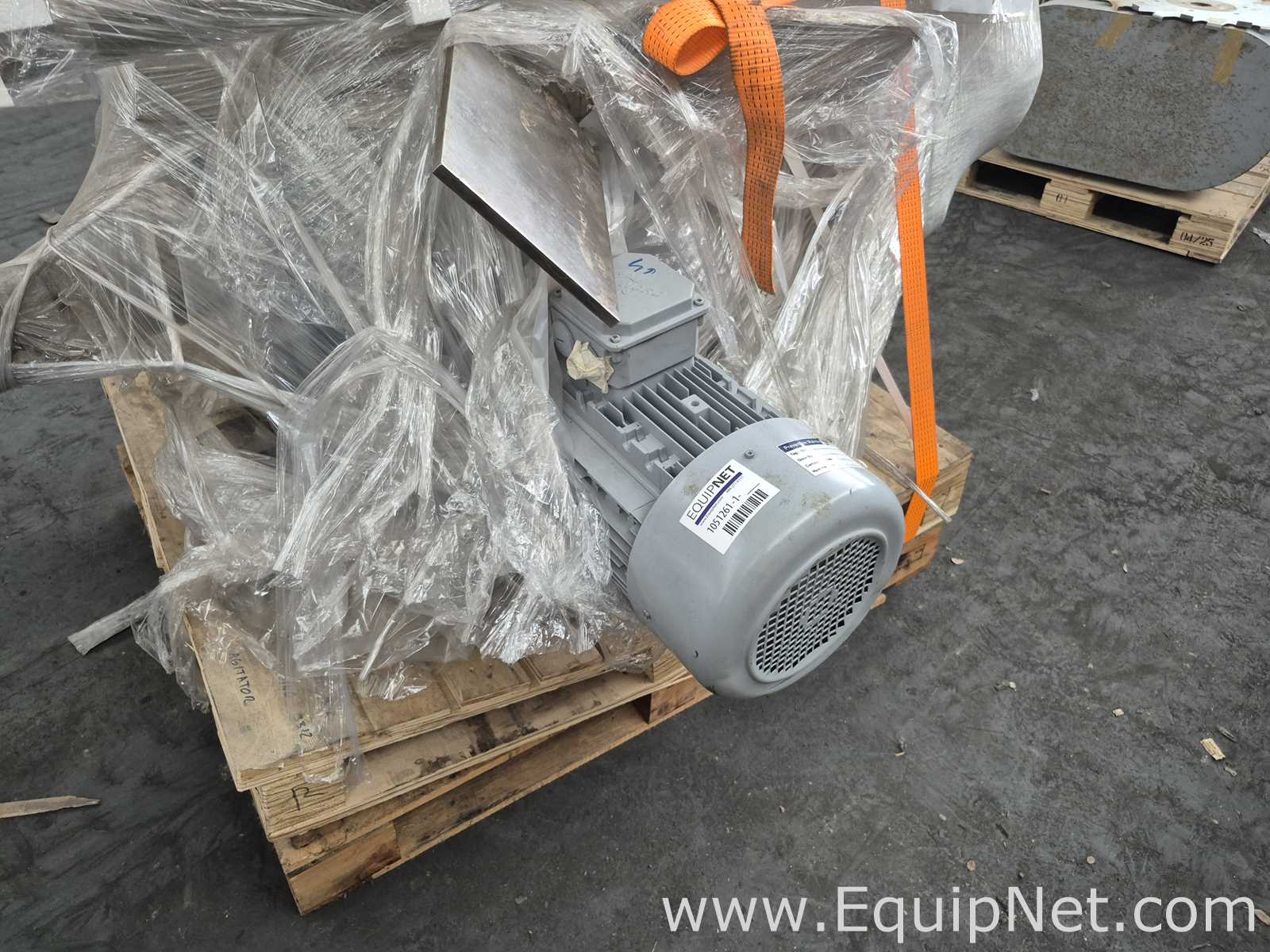

Scraper drive: Speed 9.5rpm - 0.83 m/s. Drive 5.5kW protection class IP55 / not explosion proof fix speed.
Cleaning system: with 2 cleaning heads type Turbo SSB and a total of 6 cleaning nozzles in the tank, with central connection point.
Load cell system: 3 load cells each 3 t and mounting kit.
Temperature control with limit switch: resistance thermometer PT100.
Overfilling safety: level limit switch FTL51.
Includes listing 1051261
Includes listing 1051304
Includes listing 1051261
Includes listing 1051304
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Year:
2018
2018
Serial Number:
2800694-230
2800694-230
CE Marked:
YES
YES
Tank Material of Construction:
STAINLESS STEEL
STAINLESS STEEL
Capacity Size of Vessel:
1057.04
gal
4000
L
Jacketed:
YES
YES
Type of Top Head:
DISHED
DISHED
Type of Bottom Head:
DISHED
DISHED
Vertical or Horizontal:
VERTICAL
VERTICAL
Agitation:
YES
YES
Installation Type:
LEGS
LEGS
Recommended Packaging Form:
CRATE
CRATE
Model:
4000L MS/LS
4000L MS/LS
Frequency:
50
HERTZ
50
HERTZ
Phase:
3
3
Dimensions:
Standard
Metric
Overall:
66.93 x 66.93 x 107.64 in - 3593.50 lb
1700 x 1700 x 2734 MM - 1630 KGS
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1049761
Netzsch Nemo Pump NM038 3312 - Skid 3-2 PPZ
Equipment Description
Netzsch Nemo Pump NM038 3312 - Skid 3-2 PPZ
Nemo PPZ blending discharge pump.
Speed: 188/357 RPM.
3-8m3/h (28-72 Hz).
Pressure: 2 bar.
Temperature: 15-45C.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Frequency:
50
HERTZ
50
HERTZ
Phase:
3
3
Voltage:
230/400
VOLTS
230/400
VOLTS
Year:
2018
2018
Horsepower:
2,2
KW
2,2
KW
CE Marked:
YES
YES
Model:
NM038
NM038
Recommended Packaging Form:
CRATE
CRATE
Dimensions:
Standard
Metric
Overall:
0.04 x 0.04 x 0.04 in - 2.20 lb
1 x 1 x 1 MM - 1 KGS
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1049519

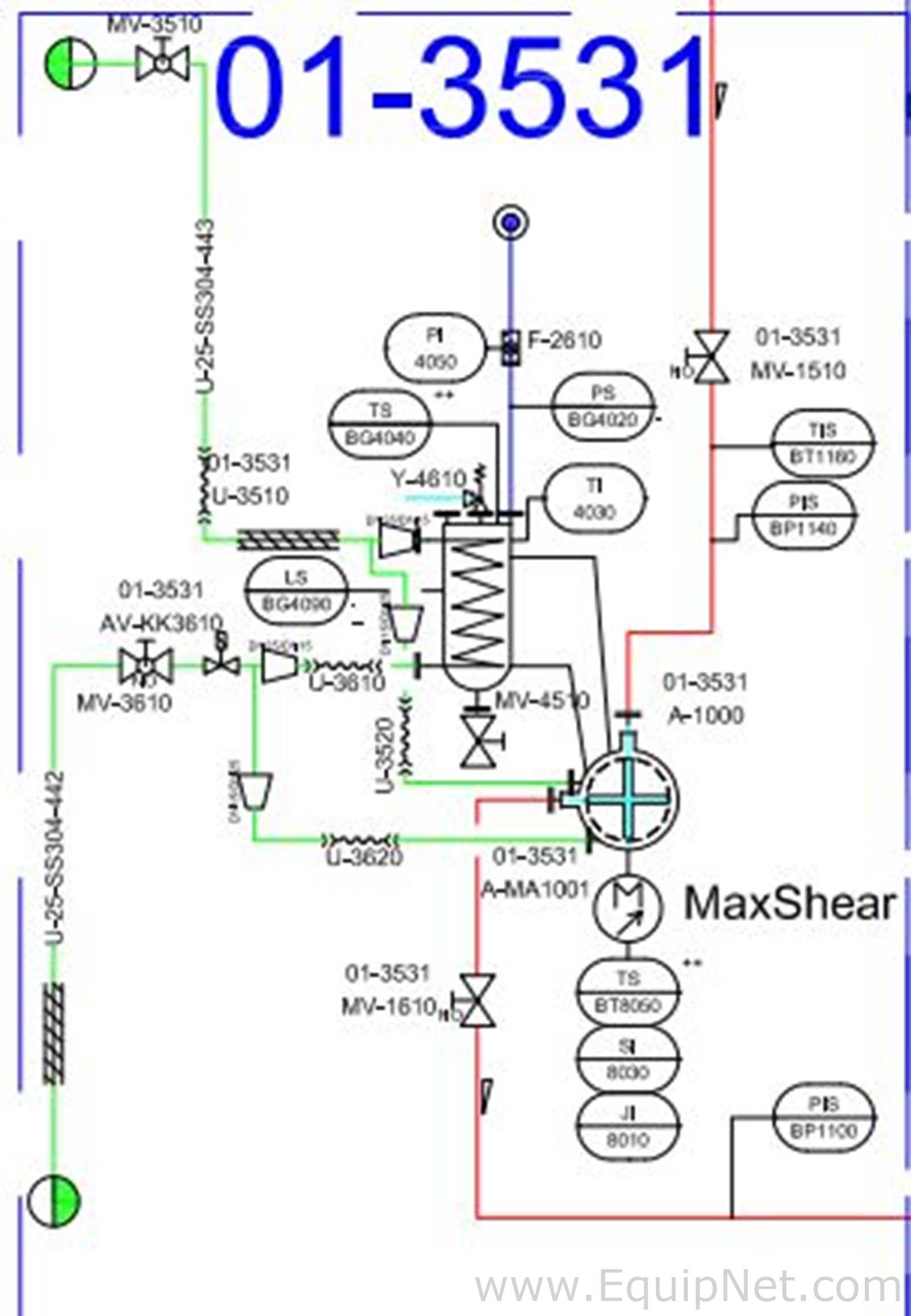

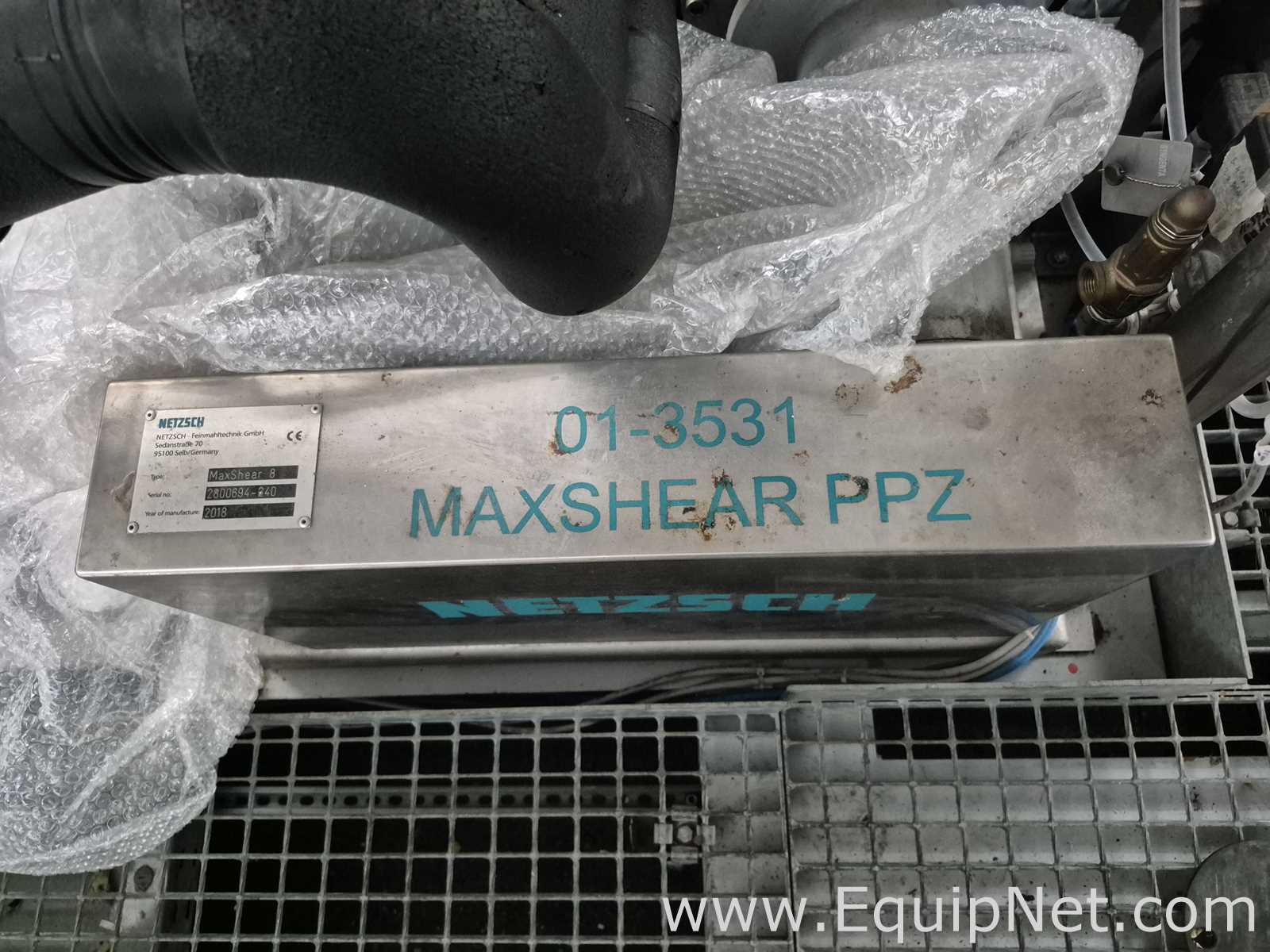

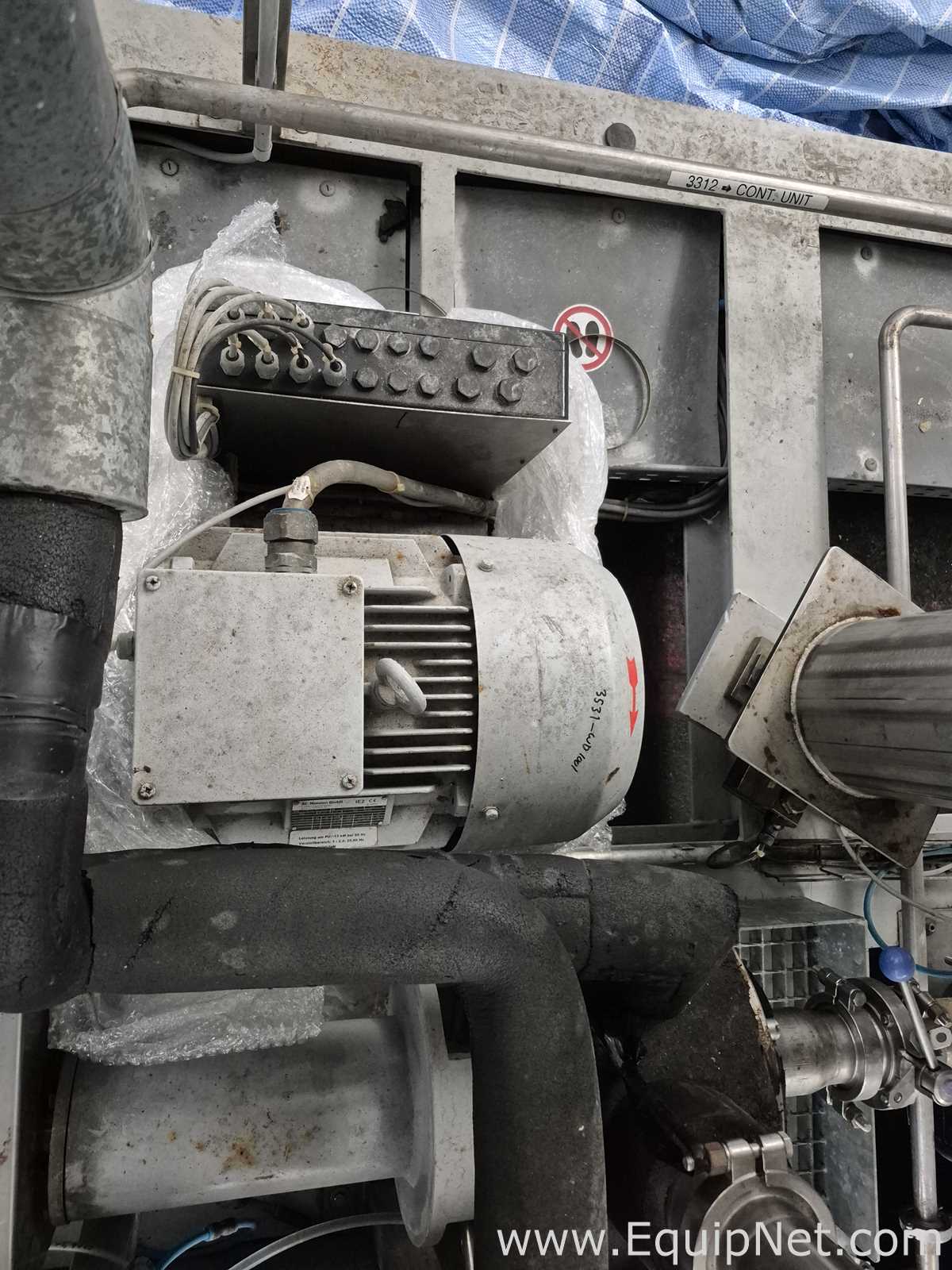

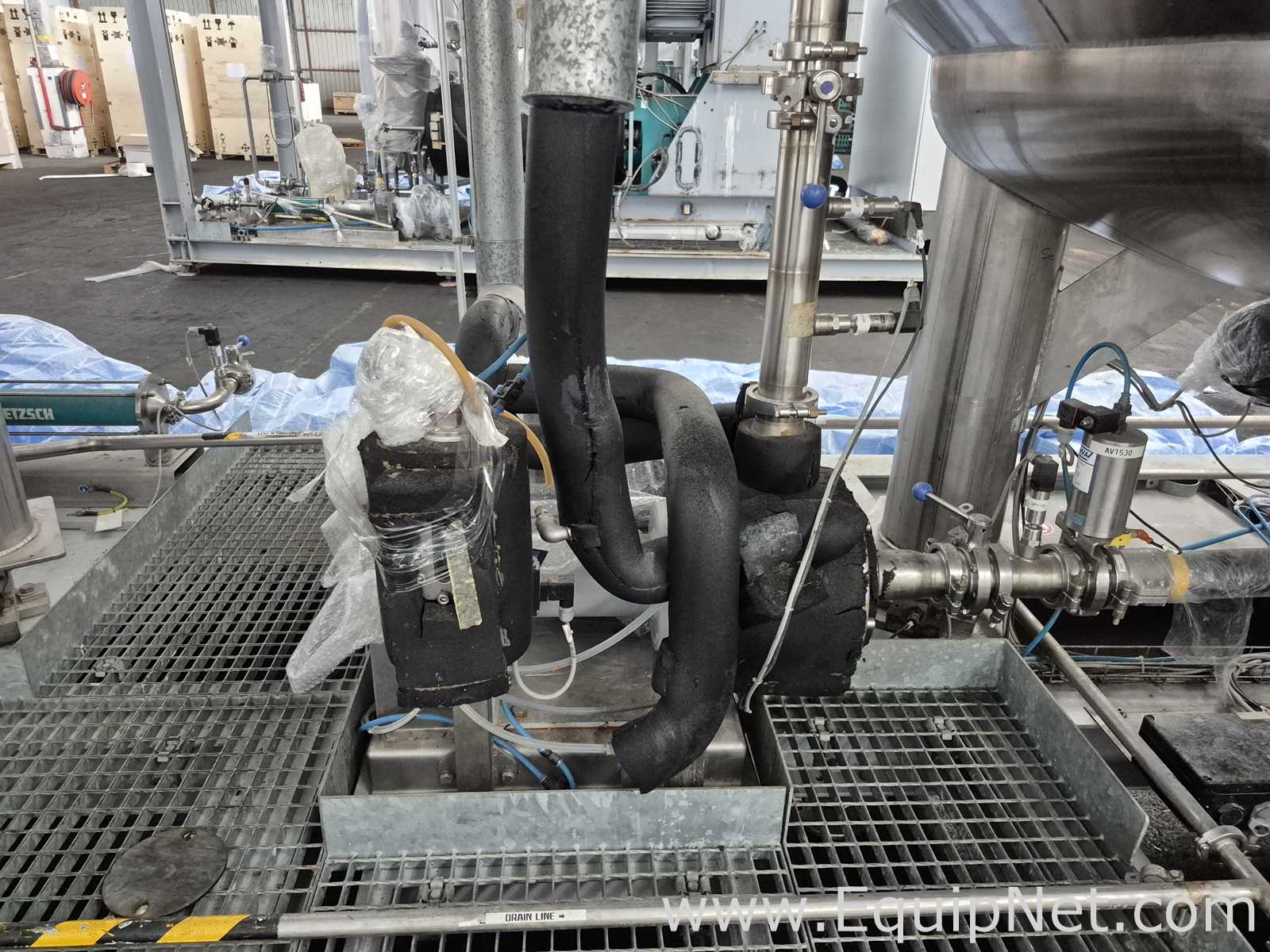

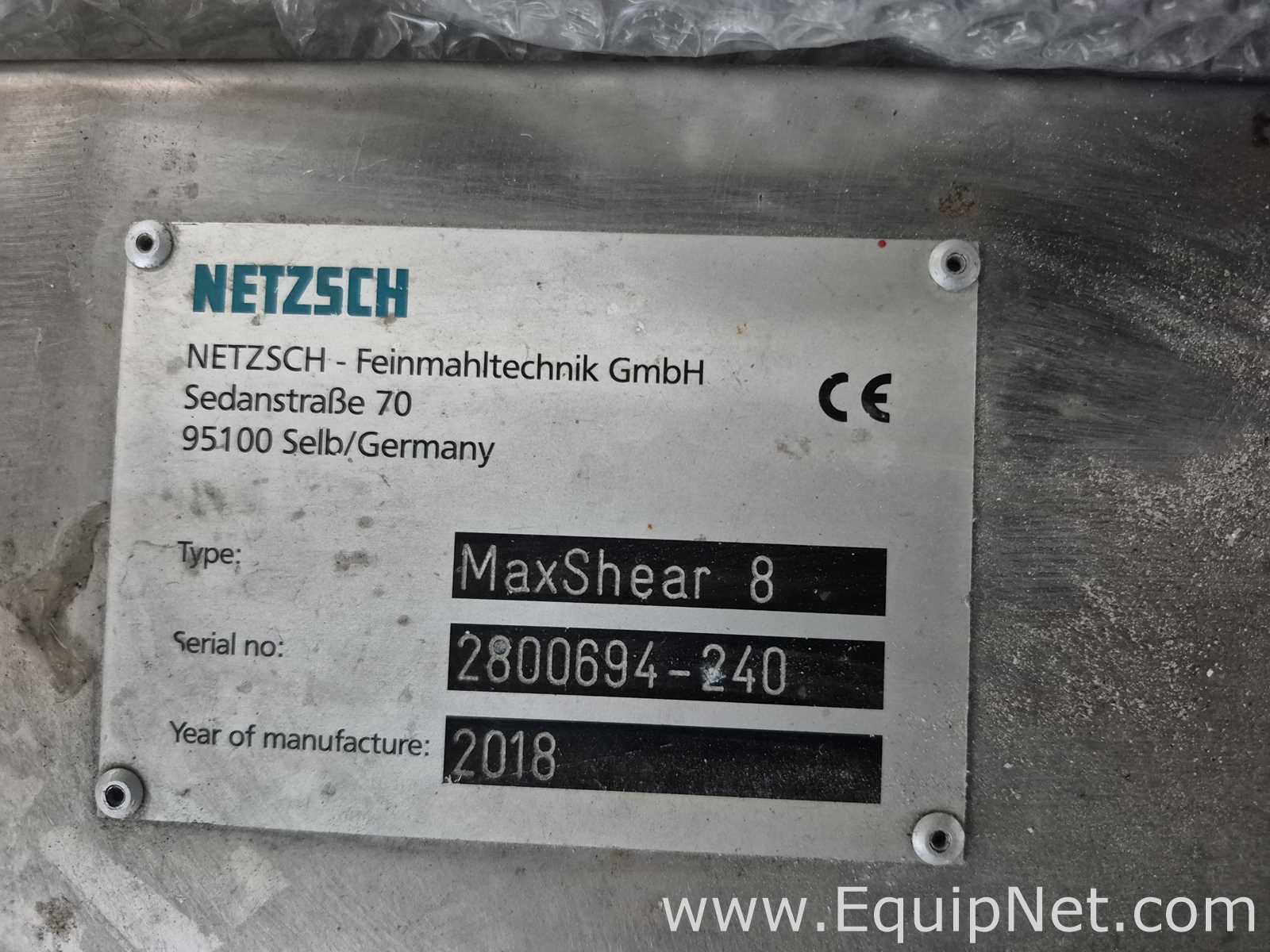

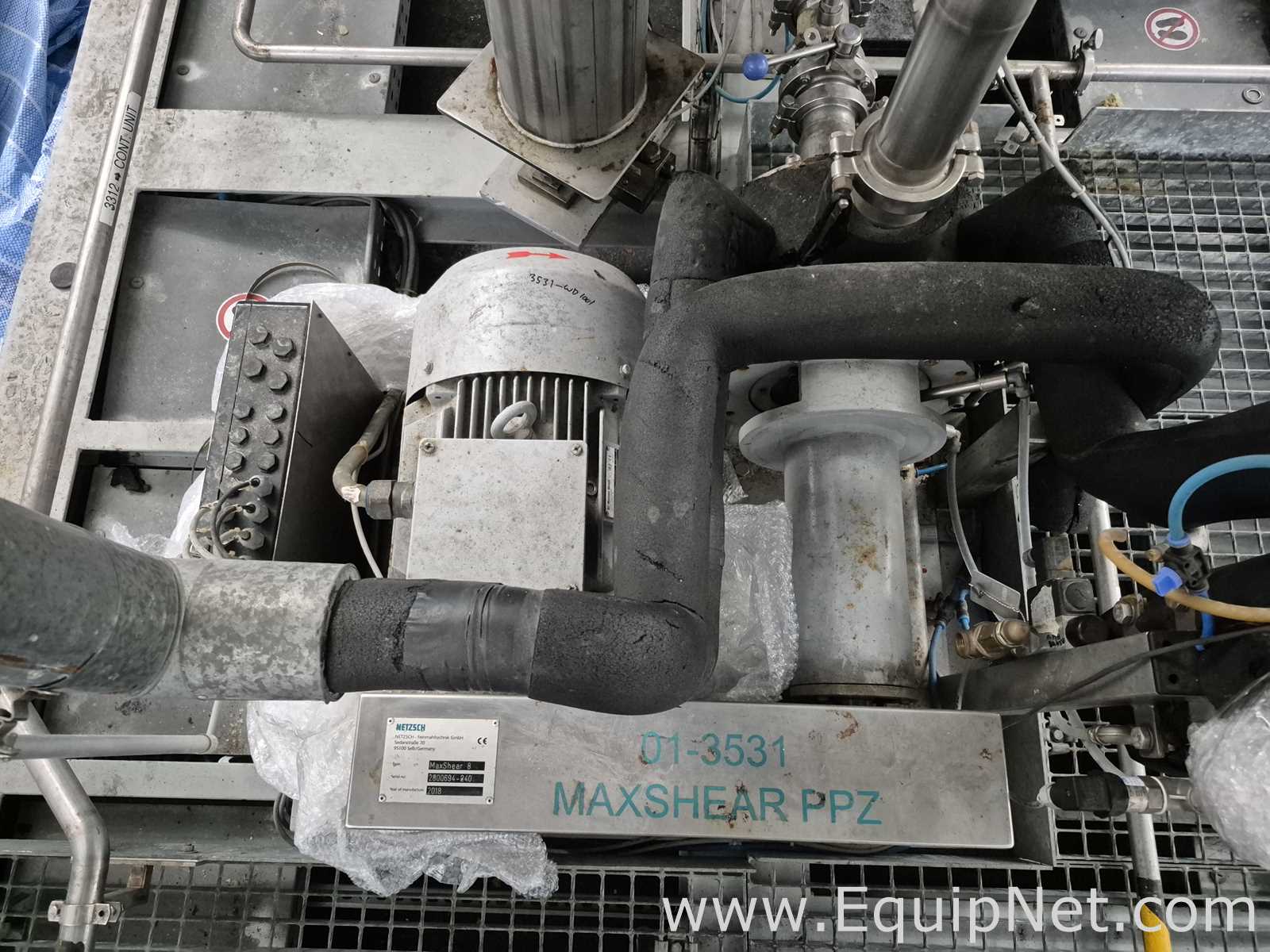

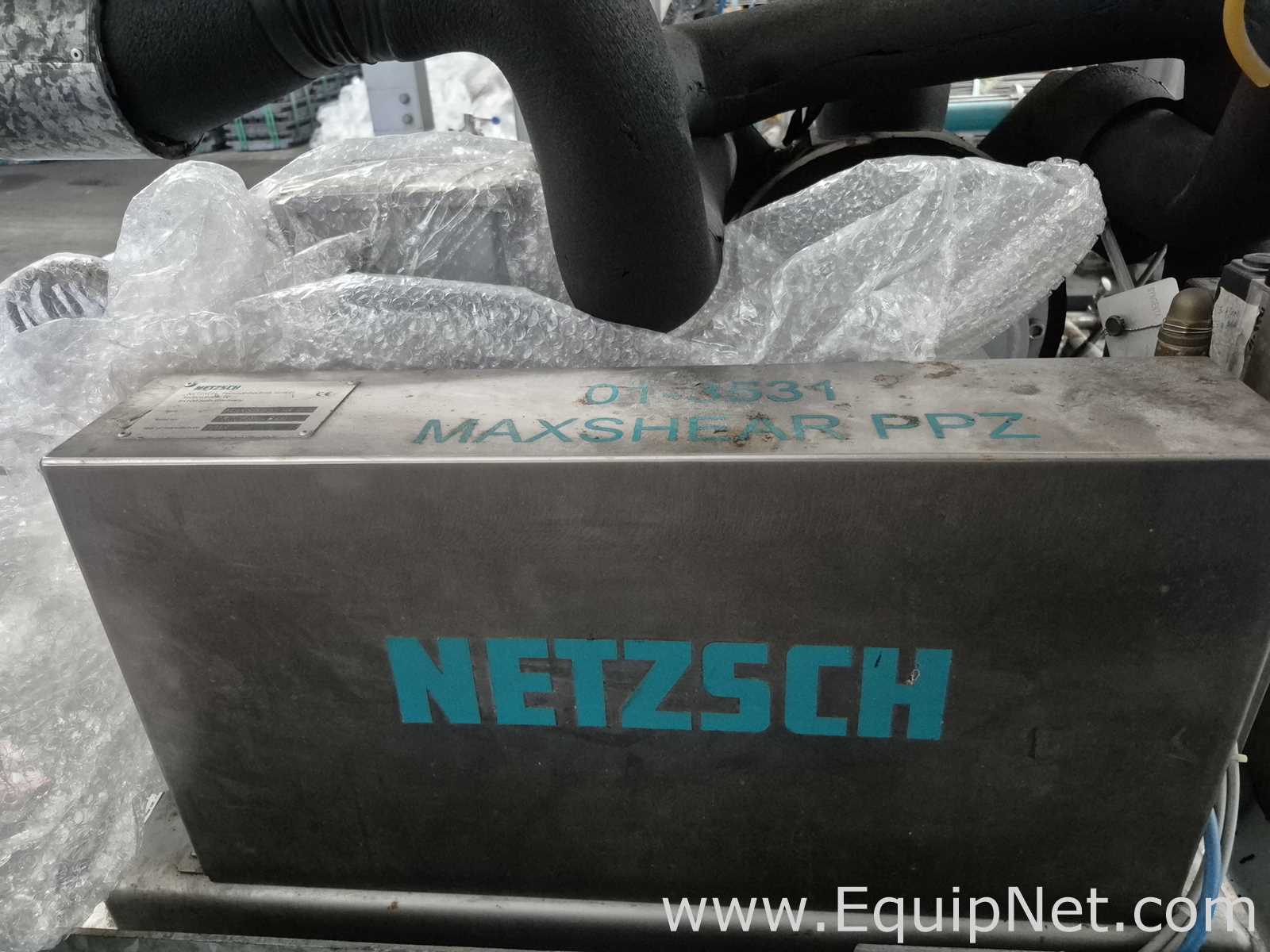

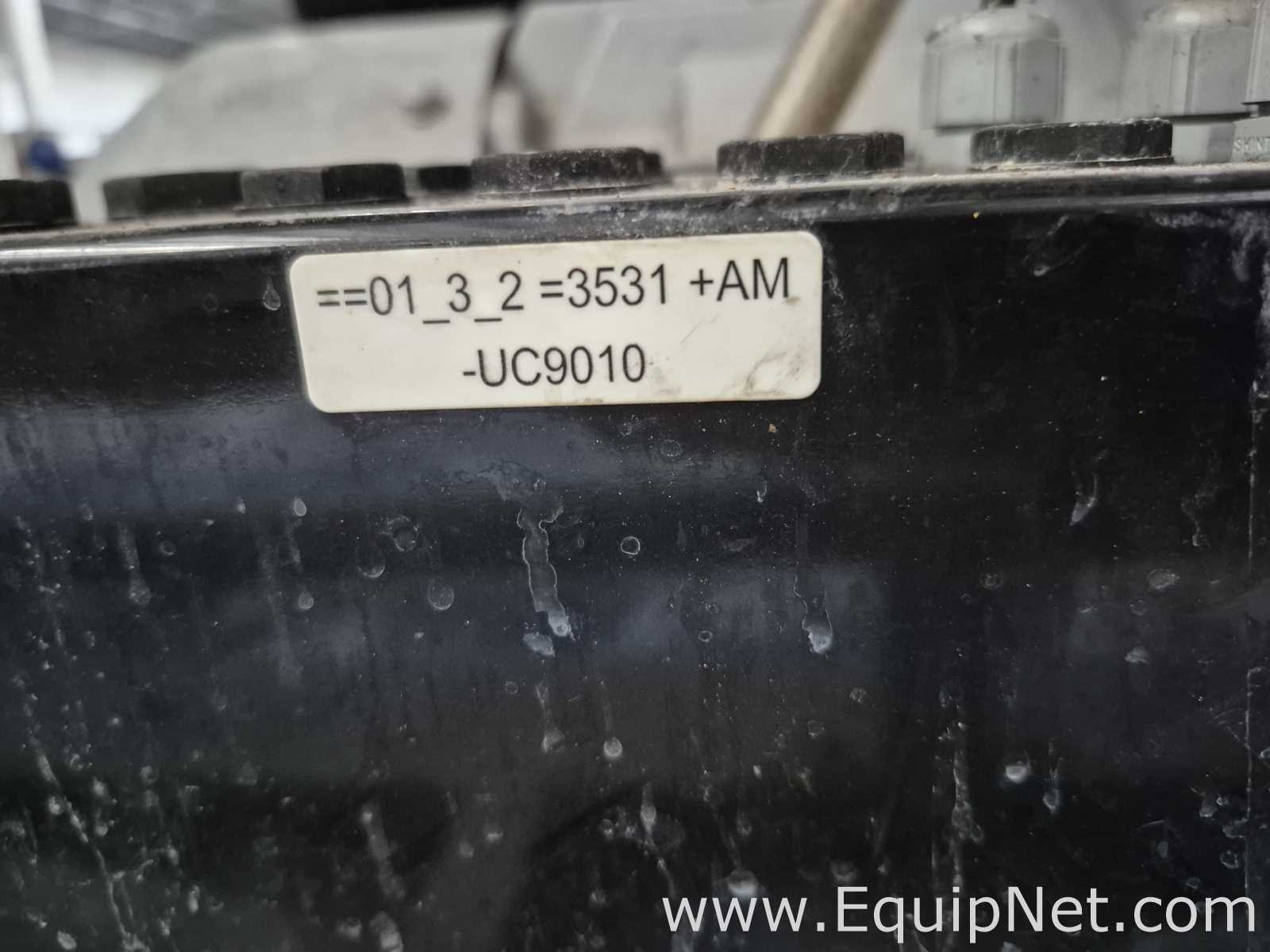

Netzsch MaxShear Inline Disperser 01-3531 - Skid 3-2 PPZ
Equipment Description

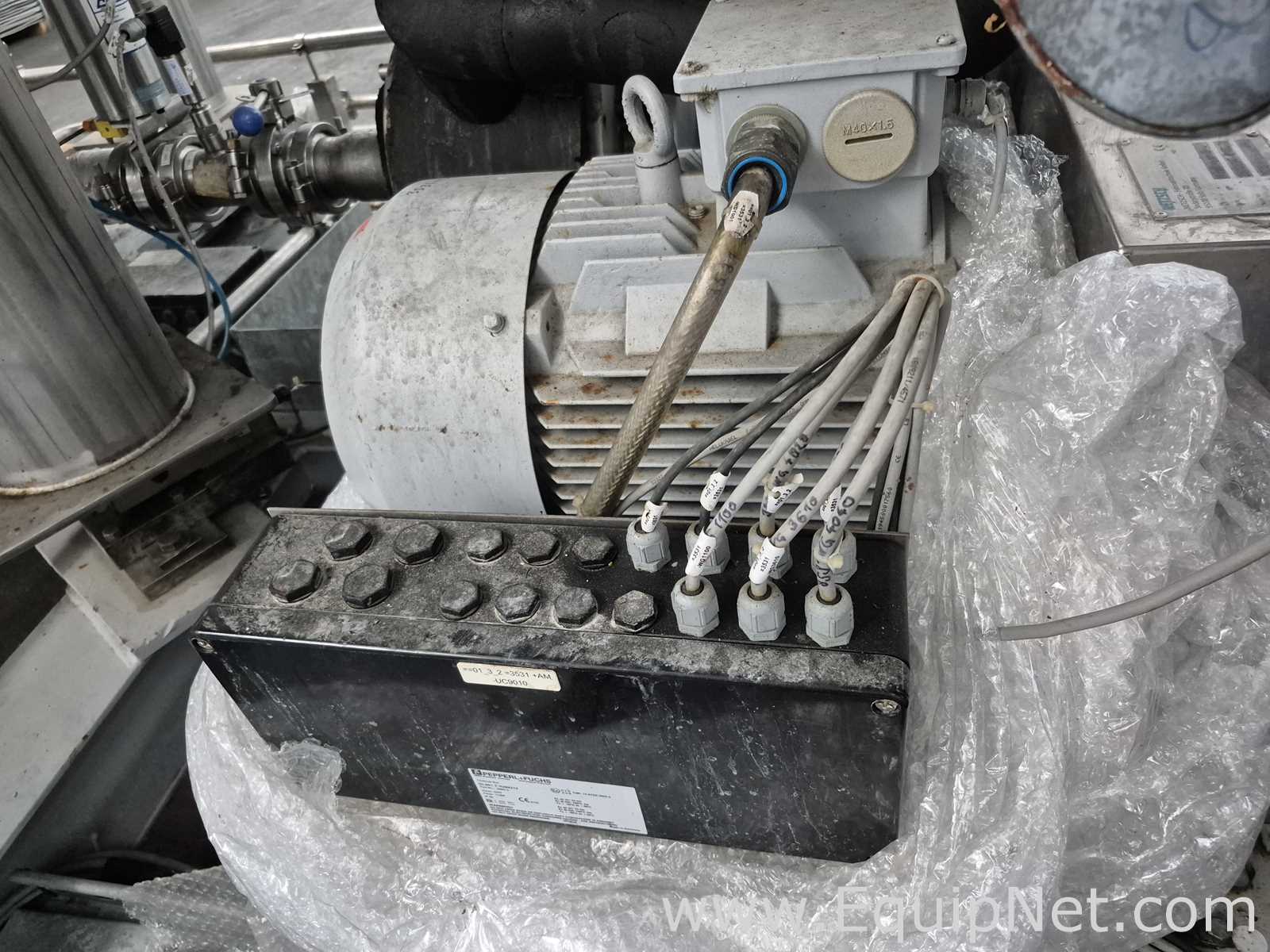

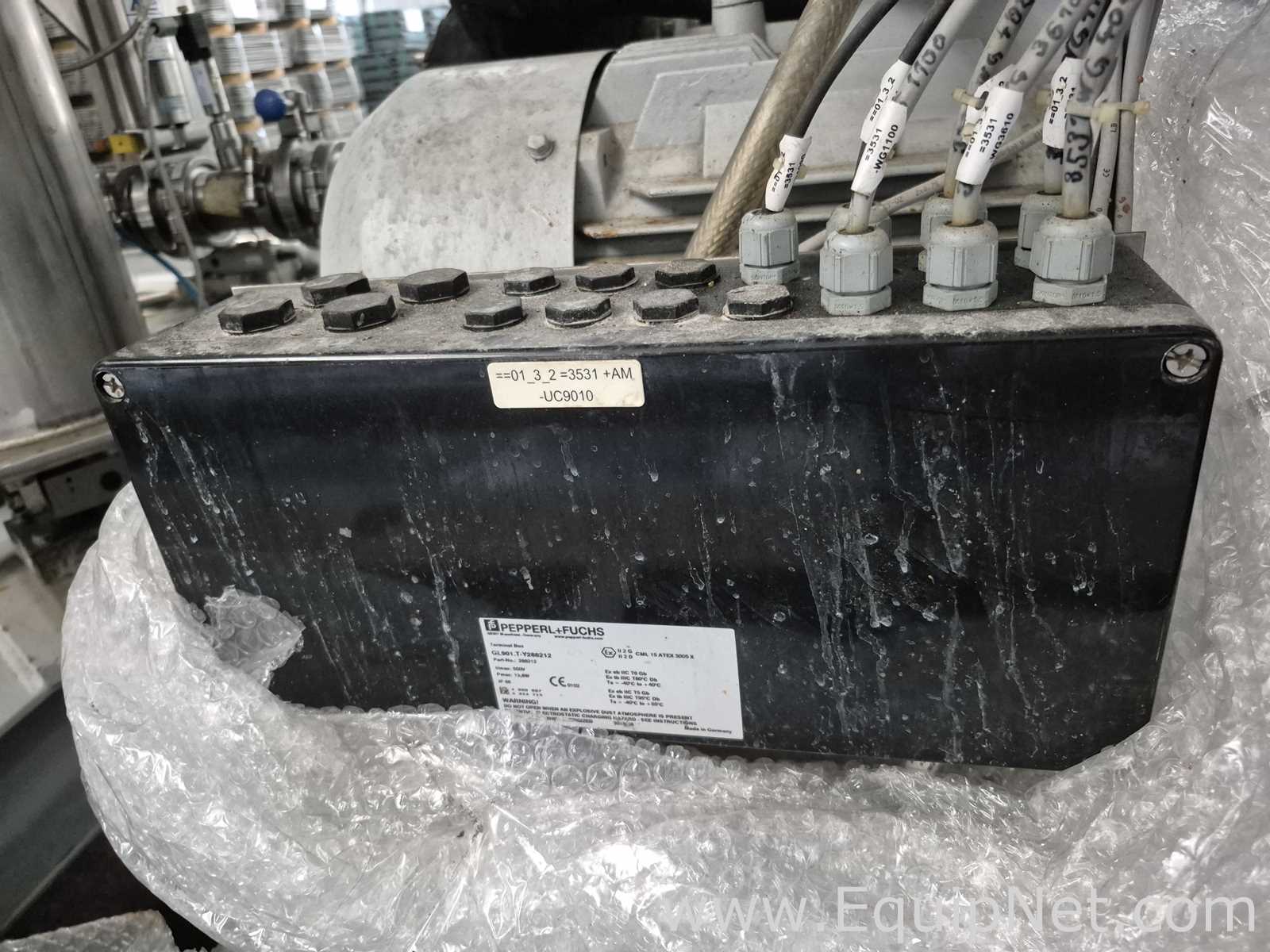

Netzsch MaxShear Inline Disperser 01-3531 - Skid 3-2 PPZ
Designed for Max operating pressure: 3.5 bar.
Designed for max operating temperature: 90C.
Designed for Max cooling water pressure: 3 bar.
Speed: 1000-2500 RPM.
Rotor diameter: Approx 196 mm.
Material of rotor/stator: SS1.4301.
Shaft Sealing: by dual-acting mechanical seal with sealing fluid pres-sure vessel – cooled and insulated, secondary seals FFKM.
Gaskets: FKM, PTFE-coated.

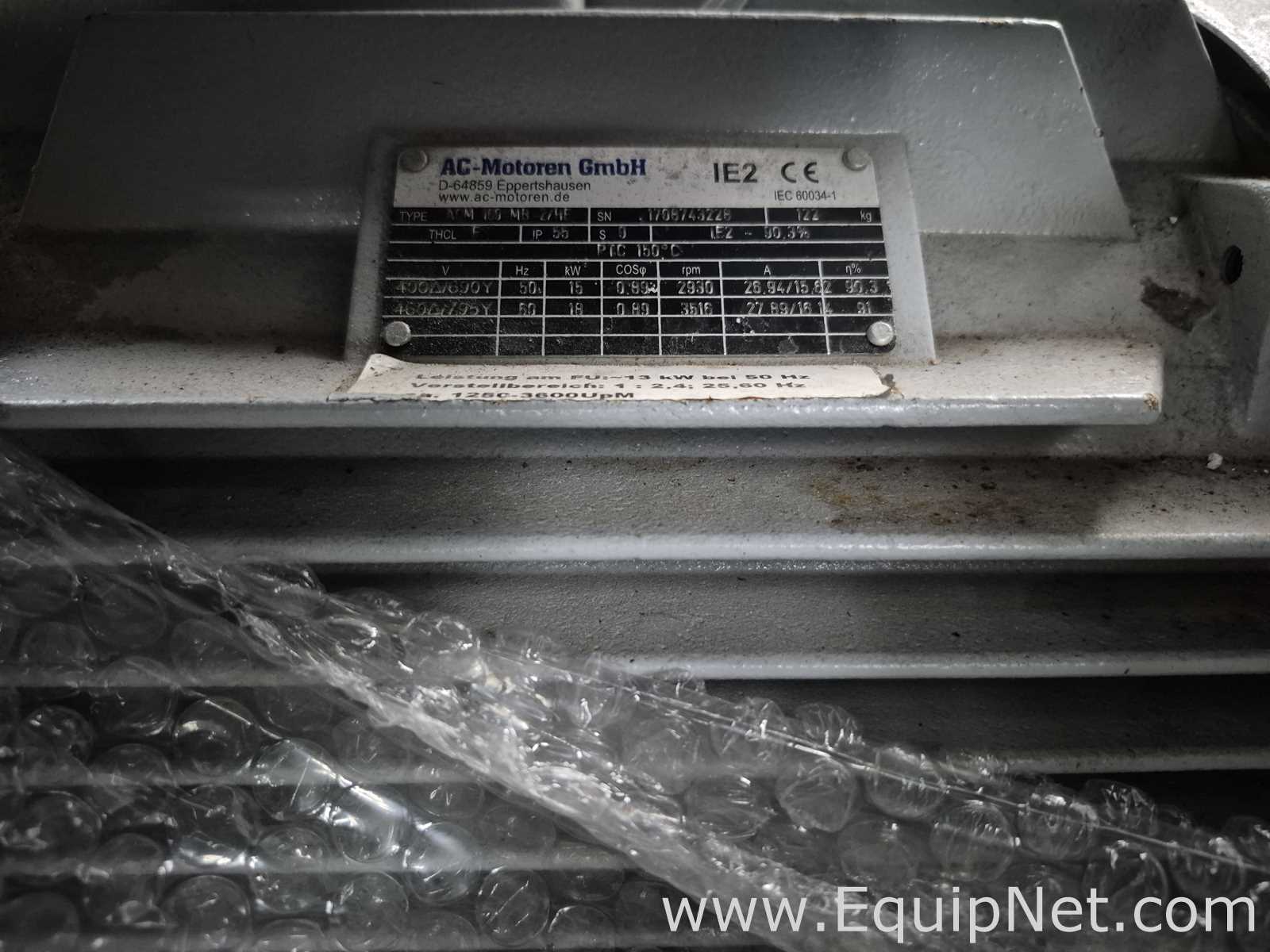

Drive motor: 15kW. Protection class IP/ Not explosion proof.
Strat type: By frequency inverter.
Maxshear 8"; 1mm Gap.
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Year:
2018
2018
Serial Number:
2800694-240
2800694-240
CE Marked:
YES
YES
Type of mixer:
HIGH SHEAR
HIGH SHEAR
Voltage:
400-795
VOLTS
400-795
VOLTS
Frequency:
50/60
HERTZ
50/60
HERTZ
Recommended Packaging Form:
PALLET
PALLET
Dimensions:
Standard
Metric
Overall:
40.16 x 39.37 x 29.92 in - 617.29 lb
1020 x 1000 x 760 MM - 280 KGS
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
Back to Top
Multi-Listing #1053952

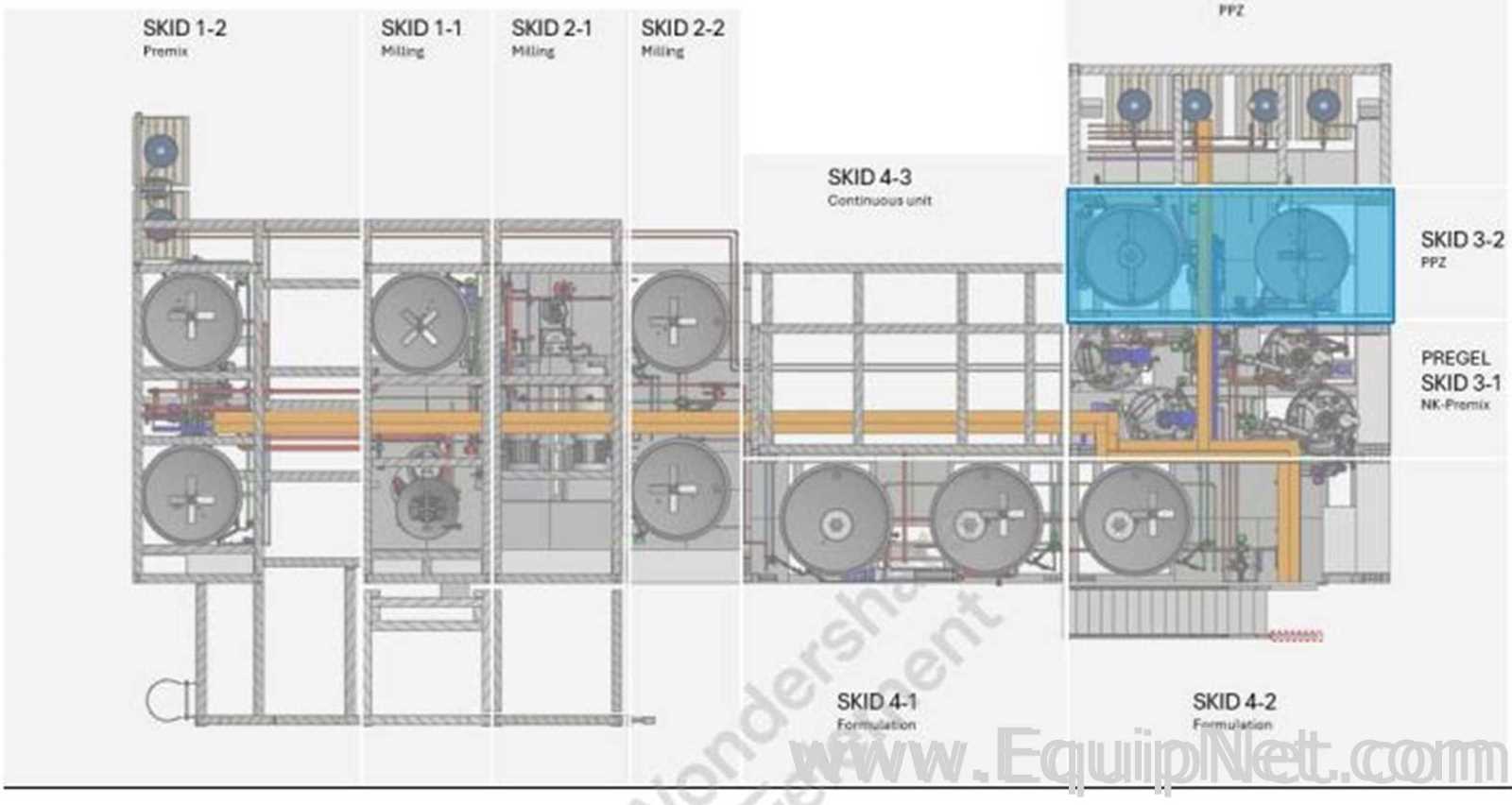

Netzsch Electrical Board Skid 3-2 PPZ
Equipment Description
Netzsch Electrical Board Skid 3-2 PPZ
Specifications:
Standard
Metric
Manufacturer Name
NETZSCH
Recommended Packaging Form:
CUSTOM PALLET
CUSTOM PALLET
Dimensions:
Standard
Metric
Overall:
0.04 x 0.04 x 0.04 in - 2.20 lb
1 x 1 x 1 MM - 1 KGS
Disclaimer:
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
Right of Return Terms:
Related Services:
EquipNet supports the full equipment lifecycle—from purchase through delivery, storage, and preparation—so you can move forward with confidence.
- Global Logistics
- Storage Solutions
- Equipment Lifecycle Services
- Regulatory Compliance Support and Consulting
- Workplace Safety Programs
- Safety Documentation
- FDA Audits & Inspection Readiness
- Quality & Process Validation
