Listing# 1102900
Unused Wenzhou 200 Liter Stainless Steel Tank Mixer
Seller's Acceptable Currency:
$1,875.00 USD
Make An OfferLocation: NY, USA
Level of Removal: Uncrated/Loose
*All offers are submitted in Seller’s Acceptable Currency
Don't see what you're looking for? We'll find it for you
Asset Documents
411564100ldrawing1.pdf (1)
(PDF) Requires® Adobe® Acrobat)
411564100ldrawing2.pdf (2)
(PDF) Requires® Adobe® Acrobat)
(PDF) Requires® Adobe® Acrobat)
411564100ldrawing2.pdf (2)
(PDF) Requires® Adobe® Acrobat)
Equipment Description

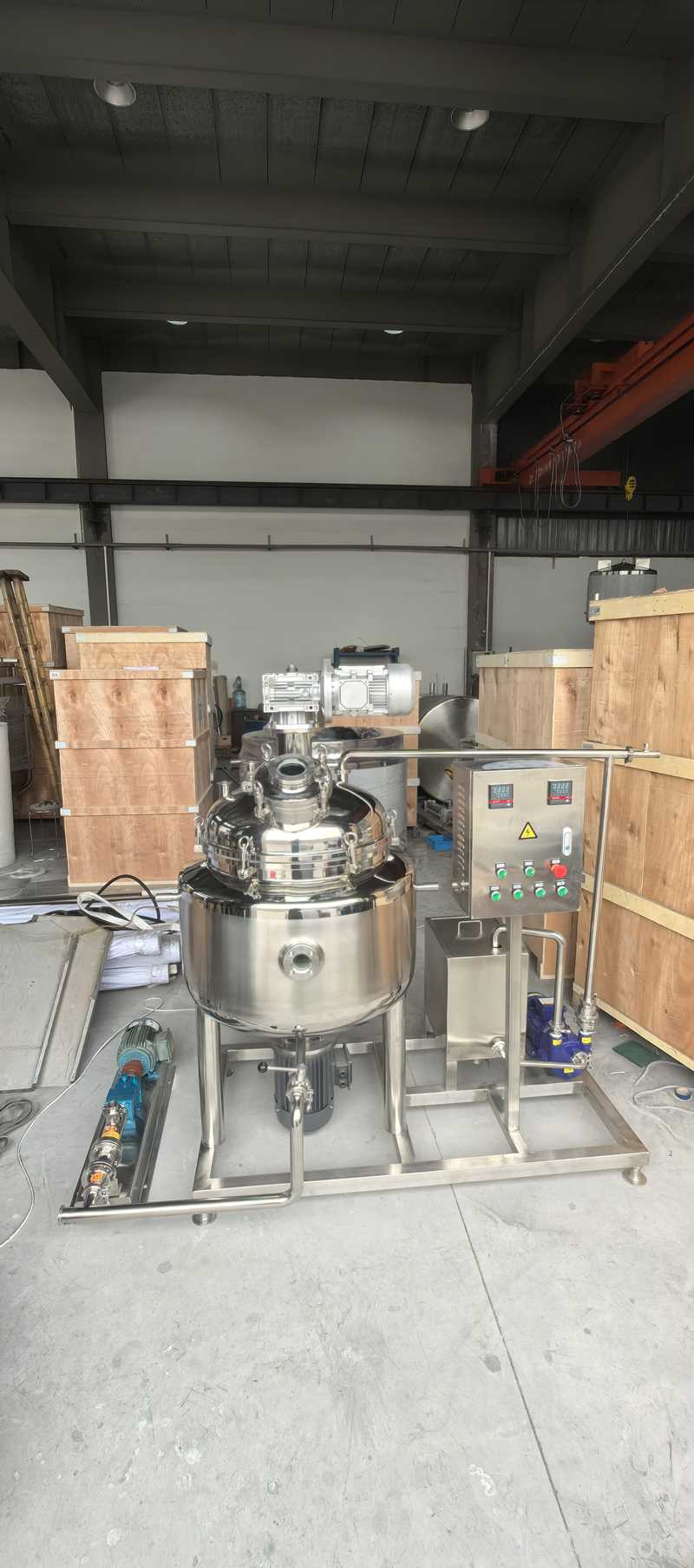

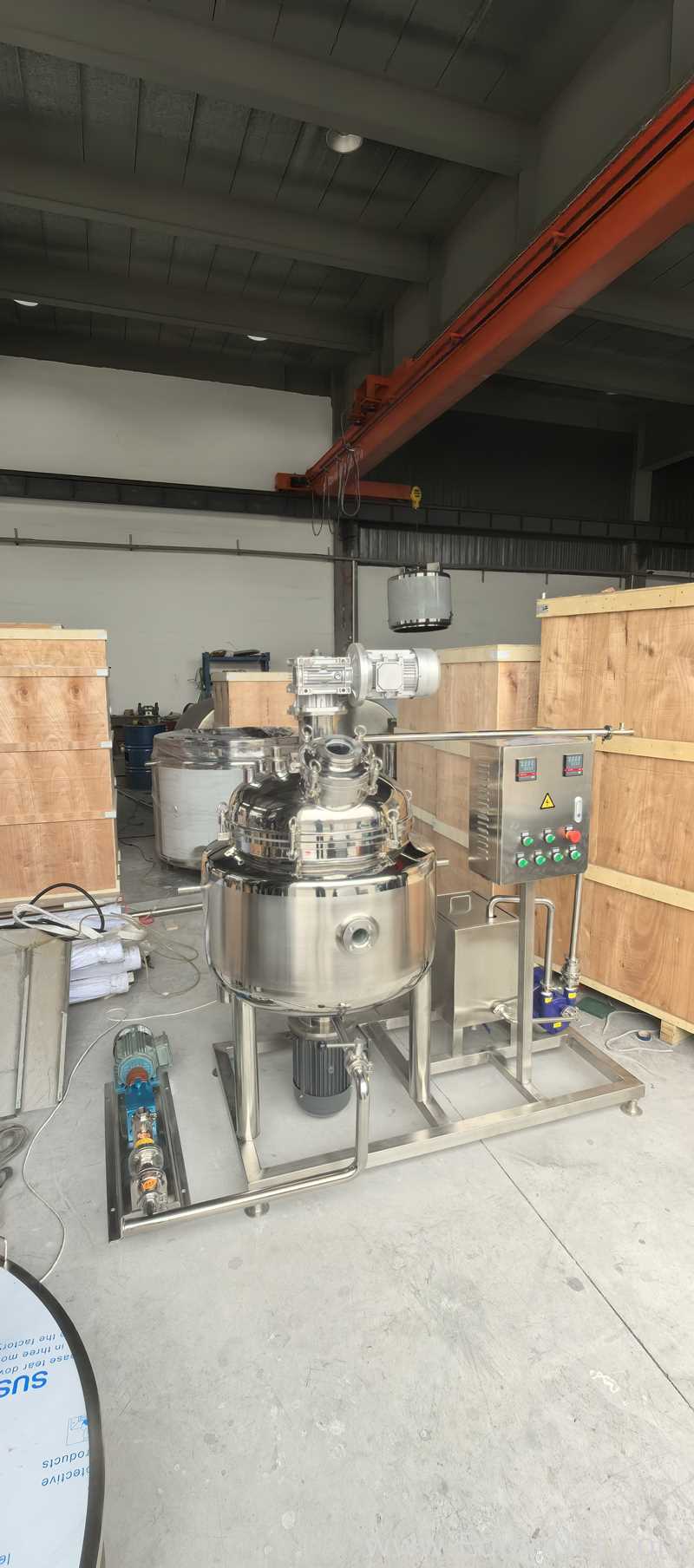

Unused Wenzhou Stainless Steel Mixing Tank 200L
Material - SUS304.
Volume - 200L.
Tank body size:
Inner Layer - 600x400mm thickness 5mm.
Jacket Layer - 800x400mm thickness 3mm.
Insulating Layer - 900x400mm thickness 2mm.
Frame mixer with scraper: 1.1 KW /36RPM / gear reducer.
Bottom homogenizer mixer: 4KW / 0-3400RPM with VFD controller.
Heating power: 10KW.
Oval head and sealed manhole design.
Inside mirror polish, outside matte 2B plate.
Control box, temperature sensor, drain valve, vent valve, relief valve, pressure gauge, etc.
Vacuum pump - 3KW.
Exhaust rate: 1 m3/min.
State speed: 2900RPM.
Max vacuum: -0.09 Mpa.
Stainless steel circulating water bucket, vacuum pipes, vacuum gauge, valve.
Specifications:
Standard
Metric
Manufacturer Name
Wenzhou
Jacketed:
YES
YES
Year:
2024
2024
Type of mixer:
CONVENTIONAL
CONVENTIONAL
Voltage:
220
VOLTS
220
VOLTS
Frequency:
50
HERTZ
50
HERTZ
Phase:
3
3
Recommended Packaging Form:
CUSTOM PALLET
CUSTOM PALLET
Dimensions:
Standard
Metric
Overall:
37 x 37 x 70 IN - 950 LBS
939.80 x 939.80 x 1778.00 mm - 430.92 kg
Disclaimer
This lot is being sold "as is, where is". We recommend that you contact an EquipNet sales representative to set up your own inspection. This item is located in
NY
This equipment is subject to a removal and loading charge.
The written description provided for this equipment is EXACTLY what you will receive if you opt to purchase this listing. Any items that are not in the description but appear in the visual representations of this listing will not be included in the sale. Photos and video are provided just as references and to give a general sense of condition.
Please be aware that weights and dimensions of equipment provided on EquipNet’s listings are estimates and can vary from actual weights and size. Sellers estimates are often not precise especially when equipment was installed versus prepped for shipment. As such, please do not fully rely on the accuracy of this information in EquipNet’s listings for shipping quotes and/or user size requirements.
Any license associated with this equipment is non-transferable.
