Listing# 1095016

Unused Technogel Filler Desk 3 Ice Cream Filler


Make an Inquiry

Seller's Acceptable Currency:

$15,000.00 USD

Make An Offer

Location:  ON, Canada

Level of Removal:  Already Crated

Why we recommend inspection

*All offers are submitted in Seller’s Acceptable Currency

Don't see what you're looking for? We'll find it for you





Equipment Description
Technogel Filler Desk 3 Ice Cream Filler

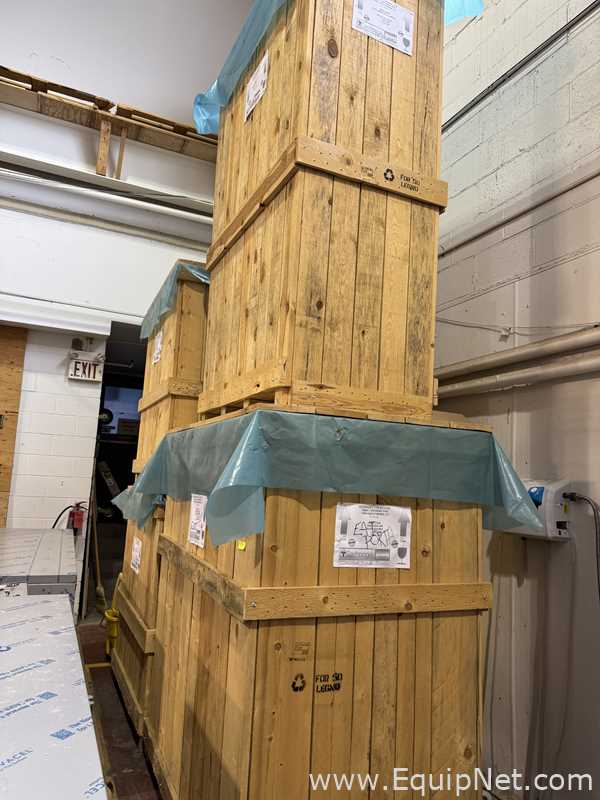

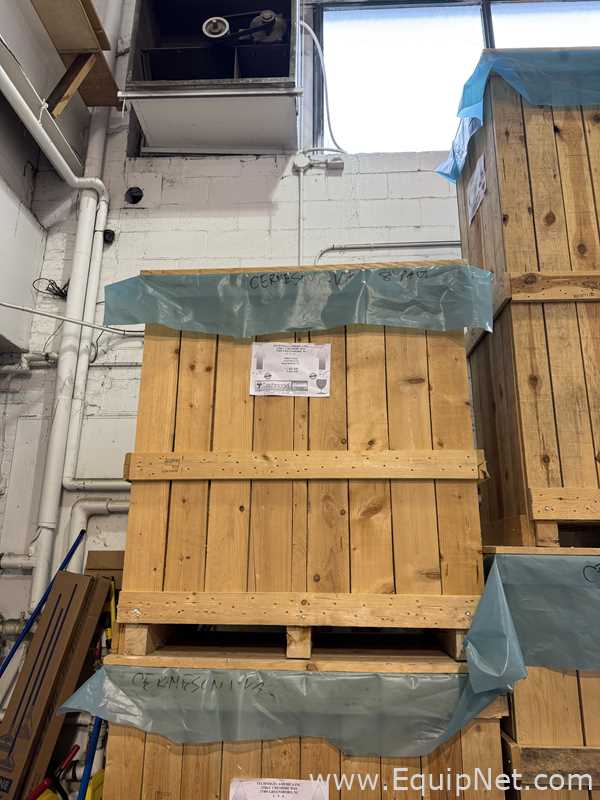

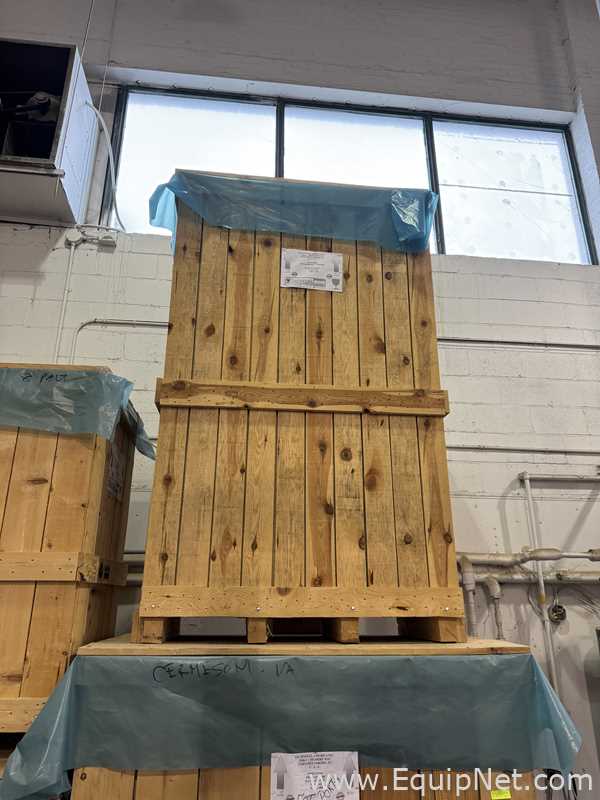

NEVER USED - IN ORIGINAL CRATE

PICTURE IS REPRESENTATIVE

Application:

Semiautomatic dosage of tubs and/or pots with 1 – 2 – or 3 ice cream flavours.

Description and features:

The machine has a three entry rotating spool doser to which one may connect three continuous freezers with
three different tastes. The out-put of the doser has three feeding ducts folded in a way that, when rotated in any direction, different shaped trays or cups may be dosed (square, round or rectangular). The spool doser has the advantage of being able to dose the ice-cream with pieces of fruit or chocolate inside and may therefore be connected to the FRUIT FEEDER FF-10. Upon request it may be equipped with a device for internal and external rippling of the ice-cream. The dosing is regulated by the timer on the control panel and is regulated according to the quantity of ice-cream arriving and the capacity of the trays to be filled.

Specifications:

Dimensions (LxPxH) mm.: 700 x 600 x 1700
Weight Kg.: 120
Electrical voltages normally provided: 230-1-60HZ
Installed electrical power kW: 0.05

Services required for the machine:
Compressed air 7 Bar NL/min: 50

Specifications:
Standard
Metric
Manufacturer Name
Technogel


Year:
2022
2022

Serial Number:
RA1482V
RA1482V

CE Marked:
YES
YES

Model:
Filler Desk 3
Filler Desk 3

Type of Filler:
PISTON
PISTON

Number of heads:
3
3

Air Requirements:
7 BAR
7 BAR

Voltage:
230 VOLTS
230 VOLTS

Frequency:
60 HERTZ
60 HERTZ

Phase:
1
1

Current:
0.5 KW
0.5 KW

Recommended Packaging Form:
CRATE
CRATE


Dimensions:
Standard
Metric

Overall:
51.97 x 29.53 x 66.93 in - 407.85 lb
1320 x 750 x 1700 MM - 185 KGS
